This document discusses using Apache Flume to stream data into Apache HBase. It describes how Flume provides a scalable and flexible way to collect and transport log and event data to HBase. Specifically, it covers the HBase sink plugin for Flume, which allows routing Flume events to HBase tables. It notes that while the initial HBase sink had limitations, the asynchronous HBase sink improved performance by fully utilizing the HBase cluster. Overall, the document presents Flume as a viable alternative to directly writing to HBase and provides flexibility to change schemas without code changes.

1. 1
Streaming data into HBase using
Flume
Hari Shreedharan | Software Engineer, Cloudera

2. Apache Flume Fundamentals
• Scalable collection, aggregation of event data (i.e.
logs)
• The simplest “unit” of data – “Event”
• Event = {Map<String, String>, byte[] body}
• Dynamic, contextual event routing
• Low latency, high throughput
• Declarative configuration
• Productive out of the box, yet powerfully extensible
• Open source software
2

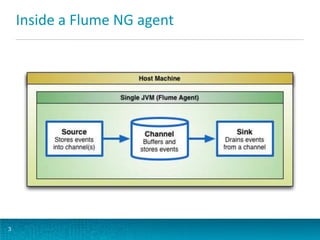

3. Inside a Flume NG agent
3

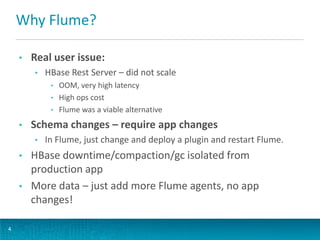

4. Why Flume?
4
• Real user issue:
• HBase Rest Server – did not scale
• OOM, very high latency
• High ops cost
• Flume was a viable alternative
• Schema changes – require app changes
• In Flume, just change and deploy a plugin and restart Flume.
• HBase downtime/compaction/gc isolated from
production app
• More data – just add more Flume agents, no app
changes!

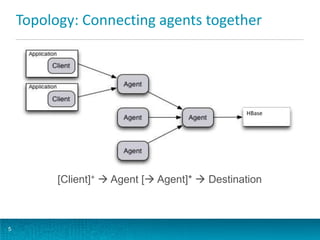

5. Topology: Connecting agents together
5
[Client]+  Agent [ Agent]*  Destination
HBase

6. Flume writes to HBase – HBase Sinks
6
• HBase Sink
• Currently supports 0.90.x, 0.92.x, 0.94.x
• Uses the “standard” HBase Client API
• Supports security
• Async HBase Sink
• Uses Async HBase
• No security support
• Faster
• Uses Async HBase 1.4.1

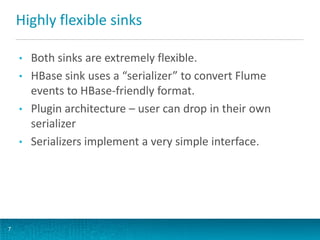

7. Highly flexible sinks
7
• Both sinks are extremely flexible.
• HBase sink uses a “serializer” to convert Flume
events to HBase-friendly format.
• Plugin architecture – user can drop in their own
serializer
• Serializers implement a very simple interface.

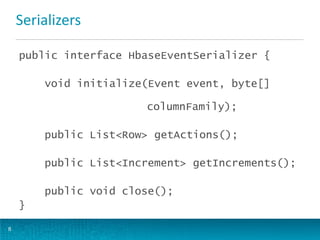

8. Serializers
8
public interface HbaseEventSerializer {
void initialize(Event event, byte[]
columnFamily);
public List<Row> getActions();
public List<Increment> getIncrements();
public void close();
}

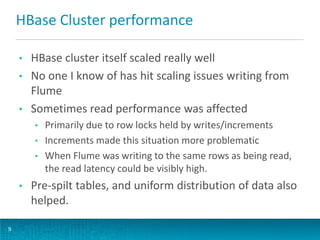

9. HBase Cluster performance
9
• HBase cluster itself scaled really well
• No one I know of has hit scaling issues writing from
Flume
• Sometimes read performance was affected
• Primarily due to row locks held by writes/increments
• Increments made this situation more problematic
• When Flume was writing to the same rows as being read,
the read latency could be visibly high.
• Pre-spilt tables, and uniform distribution of data also
helped.

10. Issues we faced – why two sinks?
10
• Wrote the HBase Sink first using HBase client API
• HBase Client API great at conserving resources
• Several static maps hidden away in the API meant we
could not open as many connections as wanted from
the same JVM
• Region Servers and Flume Agents were sitting idle
while data was being sent over the wire!
• More threads didn’t seem to help much.

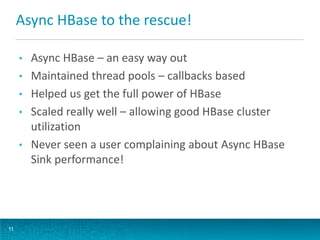

11. Async HBase to the rescue!
11
• Async HBase – an easy way out
• Maintained thread pools – callbacks based
• Helped us get the full power of HBase
• Scaled really well – allowing good HBase cluster
utilization
• Never seen a user complaining about Async HBase
Sink performance!

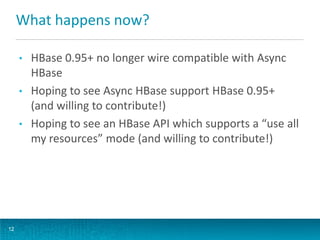

12. What happens now?
12
• HBase 0.95+ no longer wire compatible with Async
HBase
• Hoping to see Async HBase support HBase 0.95+
(and willing to contribute!)
• Hoping to see an HBase API which supports a “use all
my resources” mode (and willing to contribute!)

13. Read and contribute!
13
• Apache Flume: http://flume.apache.org/
• https://blogs.apache.org/flume/entry/flume_ng_arc
hitecture
• https://blogs.apache.org/flume/entry/streaming_dat
a_into_apache_hbase
• https://blogs.apache.org/flume/entry/flume_perfor
mance_tuning_part_1

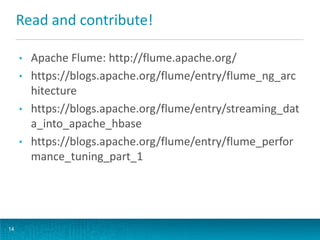

14. Read and contribute!
14
• Apache Flume: http://flume.apache.org/
• https://blogs.apache.org/flume/entry/flume_ng_arc
hitecture
• https://blogs.apache.org/flume/entry/streaming_dat
a_into_apache_hbase
• https://blogs.apache.org/flume/entry/flume_perfor
mance_tuning_part_1

15. Click to edit Master title style
15

16. Hari Shreedharan, Software Engineer, Cloudera @harisr1234
Thank you!
