Uploaded byMarie-Paule Odini
Openstack meetup: NFV and Openstack
The document outlines the concept of Network Function Virtualization (NFV) and its relationship with OpenStack, detailing its architecture, benefits, and use cases in telecommunications. It highlights the role of ETSI in defining NFV standards, the management and orchestration framework, and the integration of various virtualized network functions. Additionally, it discusses challenges related to security and the collaborative efforts within the industry to advance NFV implementation.
More Related Content
Similar to Openstack meetup: NFV and Openstack
Openstack meetup: NFV and Openstack
- 1. NFV and Openstack Marie-Paule Odini – HP Communication Media Solution CT Office ETSI NFV member: Steering Committee and Software Architecture co-chair ATIS SDN-NFV member © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
- 2. Agenda 1- Definitionde NFV ? 2- Specifications ETSI NFV & Use Cases 3- ETSI NFV, Openstack et OPNFV 4- HP Helion & Openstack © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 2 without notice.
- 3. 1- What isNFV: Network Function Virtualization virtualize network functions: from Home or Enterprise Gateway to Access/Core telecom network & Data centers Leverage IT virtualization techniques for telco functions • Use standard servers and storage • Applicable to telco network functions • Initiative from Tier 1 Operators & Vendors launched as a new Industry Specification Group (ISG) in ETSI Key Benefits • Reduced equipment costs • Faster time to market • Resource sharing • Targeted service introduction • More flexible, programmatic operations © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 3 without notice.
- 4. ETSI NFV architecture& interfaces http://www.etsi.org/technologies-clusters/technologies/nfv (open area) http://portal.etsi.org/home.aspx (restricted area) Service, VNF and Infrastructure Description EMS 1 EMS 2 EMS 3 Virtual Computing Computing Hardware NFV Management and Orchestration Os-Ma OSS/BSS Orchestrator Virtual Network Vn-Nf Hardware resources Virtual Storage Se-Ma Ve-Vnfm Nf-Vi Vl-Ha © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 4 without notice. © ETSI 2012. All rights reserved Storage Hardware Network Hardware Virtualisation Layer Or-Vnfm VNF Manager(s) Vi-Vnfm Virtualised Infrastructure Manager(s) VNF 2 NFVI VNF 1 VNF 3 Or-Vi Execution reference points Other reference points Main NFV reference points NFVI VNF MANO VIM
- 5. ETSI NFV –E2E Network Service with NFV => Compose VNF and PNF to create Network Services End Point End-to-end Network Service VNF-1 VNF-FG-2 VNF- 2C © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 5 without notice. VNF-3 NFVS Hardware resources VNF- 2A VNF- 2B Virtualisation Layer Compute/storage Infrastructure network Physical link Logical link Virtualisation VNF-FG Corresponding to Network Function Forwarding Graph
- 6. ETSI NFV UseCases • Large Telecom Networks • Regulated • Roaming Services Use Case Description #1 Network Functions Virtualisation Infrastructure as a Service #2 Virtual Network Platform as a Service (VNPaaS) #3 Virtual Network Function as a Service (VNFaaS) #4 Virtualisation of Mobile Core Network and IMS #5 Virtualisation of Mobile base station #6 Virtualisation of the Home Environment #7 Service Chains (VNF Forwarding Graphs) #8 Virtualisation of CDNs (vCDN) #9 Fixed Access Network Functions Virtualisation © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 6 without notice. • Growing data/video traffic • Unpredictible peaks • Enterprise SLAs • Government security • Emergency services • etc
- 7. Use Case: 3GPPIMS MRF Telco Grade Media Server Environment The AS interfaces • ISC SIP to invoke & control interactive multimedia apps • Sh Diameter interface to HSS for subscriber profile • Ro Diameter towards Online charging system • Rf Diameter towards Offline charging system The MRF interfaces • Mr SIP for Media server control (Netann, etc.) • Mb RTP/RTCP for media processing and interaction • Cr HTTP, HTTPS, VoiceXML, REST for app interaction Sh Ro Rf © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 7 without notice. SIP AS WEB AS SIP Invoking & Controlling Logic Servicing Logic S-CSCF Cr (HTTP/HTTPs) MRF-c Application Server ISC (SIP) O-Leg T-Leg Mr (SIP NETANN/RFC5552 MSCML, MediaCtrl) Mb (RTP/RTCP) IMS net. SOAP, JDBC, LDAP, xCIP/LHS, ... MRB MRF-c MRF-p Apps: IVR, VM … Supports applications like IVR, Voice Mail, Voice-Video conference, … Includes multiple codecs support, real time transcoding …
- 8. Ex#: IMS MSE/MRFmodeling into VNF The Multimedia Services Environment is decomposed into “VNF” or “VNFC” : The IMS MRF VNF that groups the MRB and the MRF (composite VNF) composed of MRF-C, MRF-P and MRF Storage VNFC The OCSEE Application server that includes a SIP AS function, a J2EE container, an internal WEB LB and a Reporting and Monitoring function, is it considered as VNFC (VNF Components) The SIP Load Balancer is aimed to load balance the incoming SIP Session towards several SIP AS instances. It’s a signalling function that supports the ISC IMS interface AS storage is an external storage for the AS data (SIP & WEB) © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 8 without notice. OCSEE SIP AS SIP Load Balancer WEB AS AS WEB Load Balancer AS Reporting & Monitoring AS Storage
- 9. Ex#: IMS MRFVNF Descriptors (VNFD) The IMS MRF VNFD includes the description of the MRF cluster -MRB network & application configuration -MRF instances number -MRF storage instances number -Affinity rules -Anti-affinity rules -IP QoS network constraints for each vLAN (Bandwidth, Jitter, Delay, Packet Loss Tolerance) -etc © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 9 without notice.
- 10. Ex#: Architecture &Lifecycle simplified 3GPP IMS MSE/MRF OSS/BSS NFV Orchestrator vMRF EM NFV Service Catalog OSS 1- deploy new MRF NFV Orchestrator 2- read 2- allocate resources 3- deploy vMRF software VIM (ex Openstack) Descriptor (XML file) & SW image Virtualization (ex KVM) MRF MRF VNF Manager 4-manage lifecycle (scaling etc) © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 10 without notice. NFV Management and Orchestration vMRF vMRF VNF Manager Virtualized Infrastructure Manager(s) Nfvo-Vi Nfvo-Vnfm Vnfm-Vi Os-Nfvo Nf-Vi VNF Catalog NFV Instances NFVI Resources VeEn-Vnfm VeNf-Vnfm Vn-Nf HP CMS NFVI Openstack HW Legend HW (Compute, Storage, Networking)
- 11. ETSI NFV SWA- VNF architecture VNFC VNFC or or [1,1] VNFC 1 VNFC 1 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 11 without notice. © ETSI 2013. All rights reserved VNF 1 VNFC 1 1 1 parallelizable VNFC (min. and max. # of instances) or VNF 1 VNFC 1 VNF w/ single component VNF w/ multiple components Virtual container • 1 VNFC = 1 container • virtualization container (not just hypervisor) [1,n] VNF 1 VNFC 1 VNF 1 stateless VNFC stateful VNFC VNF 1 VNFC w/ externalized state or VNFC 1 S S S VNF 1 VNFC 2 VNFC 3 VNFC 1 VNF 1 non-parallelizable VNFC VNF State Diagram Scalability Scale in/out Scale up/down Autoscale, etc
- 12. ETSI SWA -VNFC to VNFC Communications Affinity Affinity DPDK support SRIOV support DPDK support © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 12 without notice. SRIOV support Affinity An example of requirements
- 13. ETSI NFV Management& Orchestration © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 13 without notice. MANO
- 14. Multiple VIM &NW Controller Key Highlights: © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 14 without notice. • VNFM & NFVO could be across multiple NFVI Domains, ie multiple VIM • VIM could interface multiple Network Controllers • NFVO could request a “WAN manager” to bridge 2 PoP, PoP1 & PoP2 via a WAN. Meaning NFVO not only interface with VIM but also with WAN manager • VNFM does not interact with WAN manager, only to NFVO and VIM Source: MANO GS • WAN can support PNF
- 15. ETSI NFV INF– NFVI architecture & Interfaces © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 15 without notice.
- 16. POC#6: Virtualized MobileNetwork with Integrated DPI Telefonica Intel Tieto Qosmos Wind River Systems HP vEPC and vDPI Openstack SDN DPDK => Accelerated ETSI NFV in a multi-vendor environment NIC : Intel® 82599 10 Gigabit Ethernet Controller * Intel® DPDK: Intel® Data Plane Development Kit Network Operation (OSS/BSS) Virtualized Network Functions EMS vBS vMME vGW vDSC EMS TIP TIP TIP TIP TIP Intel DPDK Network Functions Virtualization (NFV) Infrastructure Virtualization Layer Hardware Resources HP ProLiant DL380p Gen8 Servers 10G/40G Intel® Ethernet Switch FM6764 Physical Network Functions Wind River* Supplied Hewlett Packard* Supplied © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 16 without notice. NFV Management and Orchestration Orchestrator SDN Manager vEPC Manager vBS Manager vDSC Manager Virtualized Infrastructure Manager(s) OpenStack* Neutron Nova Keystone Glance SDN Agent Wind River* Linux + KVM Intel DPDK Accelerated Open vSwitch* VNF Manager(s) Map UI Cloud Manager Virtual Resources NIC NIC Intel DPDK* Intel DPDK Intel DPDK vDPI Intel DPDK Intel Supplied Qosmos* Supplied Tieto* Supplied OpenStack Others Demo MWC’14 Openstack
- 17. POC#15: Subscriber AwareSgi/Gi-LAN Virtualization Telenor ConteXtream SkyFire Networks Guavus Redhat HP SDN based service chaining Across multi-Openstack domains VNF #1 TCPV NOFp t# 1 TCP Opt NFVI (Data Center X) Operator Self Service Portal Virtual Compute VNF #1 TCPV NOFp t# 2 Video Opt Virtual Storage Os-Nfvo Virtual Network Virtualiza on Layer Compute Storage Network Hardware Resources NFV Management and Orchestrator Orchestrator VNF Manager VIM ( VNF #1 TCPV NOFp t# 3 Analy cs NFVI (Data Center Y) Virtual Network Virtual Storage Virtual Compute Virtualiza on Layer Network Storage Compute Hardware Resources Network Controller Subscriber Aware Virtual Network Network Controller © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 17 without notice. VNF #1 TCPV NOFp t# N Vn-Nf 1-1 Vn-Nf 2-1 Switch Switch Vn-Nf 3-1 P-GW Internet Distributed Map Nf-Vi Nf-Vi Nf-Vi Underlay Network Cache Video Opt Video Opt Filter TCP TCP Op mizer Op mizer P-GW SGi Web and OTT Video Services Firewall OpenFlow SDN– Controller Subscriber A Subscriber B Subscriber C AAA TCP Op mizer Video Opt Analy cs So ware Switch OF Switch SDN N/W Simulated for PoC OpenStack Self Service Portal PoC - Scope Demo SDN world Congress Oct’14 Openstack
- 18. POC #23 -E2E Orchestration of Virtualized LTE Core- Network Functions & SDN-based Dynamic Service Chaining of VNFs using VNF-FG © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 18 without notice. NFV#7 SKT HP Samsung Telcoware Multi-vendor Fully orchestrated & automated vEPC – vIMS on Openstack & SDN based infrastructure Demo SKT R&D Lab SDN World Congress Openstack
- 19. 3- NFV andOpenstack example of requirements Nf-Vi, Vi-Vnfm, Nfvo-Vi • Multi-hypervisor support • Different virtualization model (ie docker, Linux) • Support legacy, bare metal • Support DPDK CPU, SRIOV NIC • Expose NW load balancer and other functions • Support HA , 5 9s • Support Secure Boot , certification • Support resource reservation (prior to instantiation) • Map pCPU with vCPU (dedicated CPU – pinning) • Support NUMA placement (memory access perf) • Expose localization of resources • Expose resource catalog • Expose resource metrics • Release backward compatible • Rollback • etc © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 19 without notice.
- 20. NFV & OpenStack?? Ex Security Security-specific? Over 1.7M lines of code ~ 6 meters or 20 ~ 6 meters feet ? How can I ensure there is no security breach in 1.7M lines ? ? How does Openstack prevent back doors ? ? How does Openstack support secure boot, certified VM? ? How can I define security rules for an SDN application to change a flow table on an SDN switch that is provided by a IaaS Provider that may change along the life of the service ? ? How can I ensure that the memory I am sharing will not be accessed by somebody else ? ? Can I present the system admin to access my personal data etc © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 20 without notice. Many blocks interact with Keystone Keystone is not the only entity that deals with security Keystone deals with security & policies, but NFV will need end to end security & policies across end to end network, at ?NFVO level : how to synchronize? etc

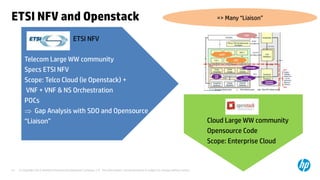

- 21. ETSI NFV andOpenstack ETSI NFV => Many “Liaison” 3GPP TMF Telecom Large WW community Specs ETSI NFV Scope: Telco Cloud (ie Openstack) + VNF + VNF & NS Orchestration POCs Gap Analysis with SDO and Opensource “Liaison” Cloud Large WW community © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 21 without notice. BBF Opensource Code Scope: Enterprise Cloud
- 22. OPNFV Open PlatformFor NFV – www.opnfv.org Launched Sept 30th, 2014 Work with upstream SDO (ETSI NFV) and Opensource (Openstack, OpenDaylight, KVM, Xen ect) Chairman: Prodip Sen, HP © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 22 without notice.
- 23. HP Open NFV & HP Helion © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
- 24. HP OpenNFV PRin Feb’14 : a new BU, new Products and OpenNFV Labs OSS Layer • Full OSS Suite from basic fault to service level management based on IMC & SiteScope VNF Layer • HP vHSS, vMRF, vSR and other key Network related Services Software available for virtualized environment deployment • An ecosystem of partners © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 24 without notice. MANO Layer • HP NFV Director : ETSI Based NFV Orchestrator for full life-cycle management • HP Helion OpenStack provides necessary OpenStack API support for NFV, and a carrier grade cloud management functionality • HP SDN Controller • Converged Infrastructure Management using a single tool – OneView NFVI Layer • Broader Hardware Support for high performance packet processing • Hardware/Software features integrated for high speed packet processing (SR-IOV support in OneView/CS8) • Native SDN Support with all HP Networking portfolio • Common Networking Environment for Networking using Comware7 stack
- 25. ETSI NFV Orchestratorwith embedded VNF Manager External VNF Managers © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 25 without notice. NFV Management and Orchestration HP NFV Director Model Driven vs Script Driven A common point to ensure consistent management and behavior of VNFs and NSs • Automatically manages the end-to-end service across VNF, VNF-FGs, and NSs • Supports multiple VNF across multiple sites • Handles provisioning and monitoring functions Designed to meet the evolving ETSI specifications • Full NFV orchestrator functionality, interfaces, and interaction models • Includes VNF manager functionality and works with external (VNF-supplied) VNF managers Supporting the journey to NFV • Handles virtual and physical network functions and hybrid services • Supports networks consisting of traditional and SDN domains Open and multivendor • Supports integration with any VNF, VIM, and OSS using open APIs Modular and extensible • Start small and grow • Flexible integration with OSS, EMS, VNF, and infrastructure NFV Director Policy management Service fulfillment Service monitoring Global resource fulfillment Global resource monitoring Virtualized Infrastructure Manager Catalog Instance inventory Global resource inventory VNF fulfillment VNF monitoring Embedded VNF Manager VNF fulfillment VNF monitoring
- 26. HP contributions toOpenStack® • Board member: Eileen Evans, VP Opensource • 3 technical committee member: Monty Taylor, Sean Dague and Devananda van der Veen • Number #1 contributor by number of employees to Havana release, and second to Icehouse • Number #2 in number of commits for Havana & Icehouse • Incl Continuous integration, testing, and deployment lead of OpenStack commits • & Openstack developer infrastructure, dashboard, bare metal provisioning, open integration suite, quality assurance, database as a service, etc Some other Examples … © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 26 without notice.
- 27. HP NFV ManagementSoftware Stack Volume Types Flavors Networks Cinder (Storage) Volume Templates Storage Arrays HP Helion OpenStack REST APIs http://api.openstack.org/api-ref.html Glance RESTful APIs to Foundation Services Os-Ma HP NFV Admin Virtualized Platform Admin © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 27 without notice. Net Svcs Resource Manager Conn. Resource Manager Storage Resource Manager Nova Ironic HP OneView driver(s) Server Templates Server Resource Manager Env Resource Manager Servers, Enclosures Edge Switches LAN, SAN Power, Cooling Image Resource Manager HPN Network Devices Pools Pools Pools Neutron (Network) HP OneView driver OS Image Conn. Networks publish publish publish HW Image publish OS Images Image Storage NFV Tenant HP OneView driver Horizon-based (Self-service portal) Workload Specific Management Physical Infrastructure Provider HP OneView REST APIs & Message Bus Bare-metal Server VM NS Orchestrator (fulfillment & assurance) VNF adapter VIM Adaptor Global Resource Orchestrator WIM adapter WIM VNF Manager (embedded) Infrastructure Management Or-Vi Or-Vnfm Vn-Nf
- 28. Summary Network FunctionVirtualization (NFV) is driving CSP requirements towards Openstack Via ETSI NFV specifications and OPNFV open source project HP is heavily involved and leading governance and contributions in ETSI NFV and other SDO, as well as Opensource community incl Openstack, OpenDaylight and OPNFV HP is committed to NFV and Openstack, with HP OpenNFV and HP Helion Openstack for public, private, hybrid and NFV cloud © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 28 without notice.
