1. An NFV Primer: The Next Generation
for Telco
Dave Neary
dneary@redhat.com / @nearyd
Open Source and Standards,
Red Hat
Sept 24th, 2015

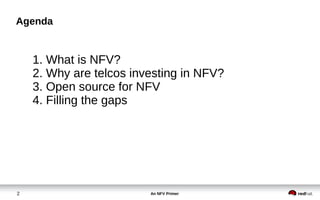

2. An NFV Primer2
Agenda
1. What is NFV?
2. Why are telcos investing in NFV?
3. Open source for NFV
4. Filling the gaps

3. An NFV Primer3

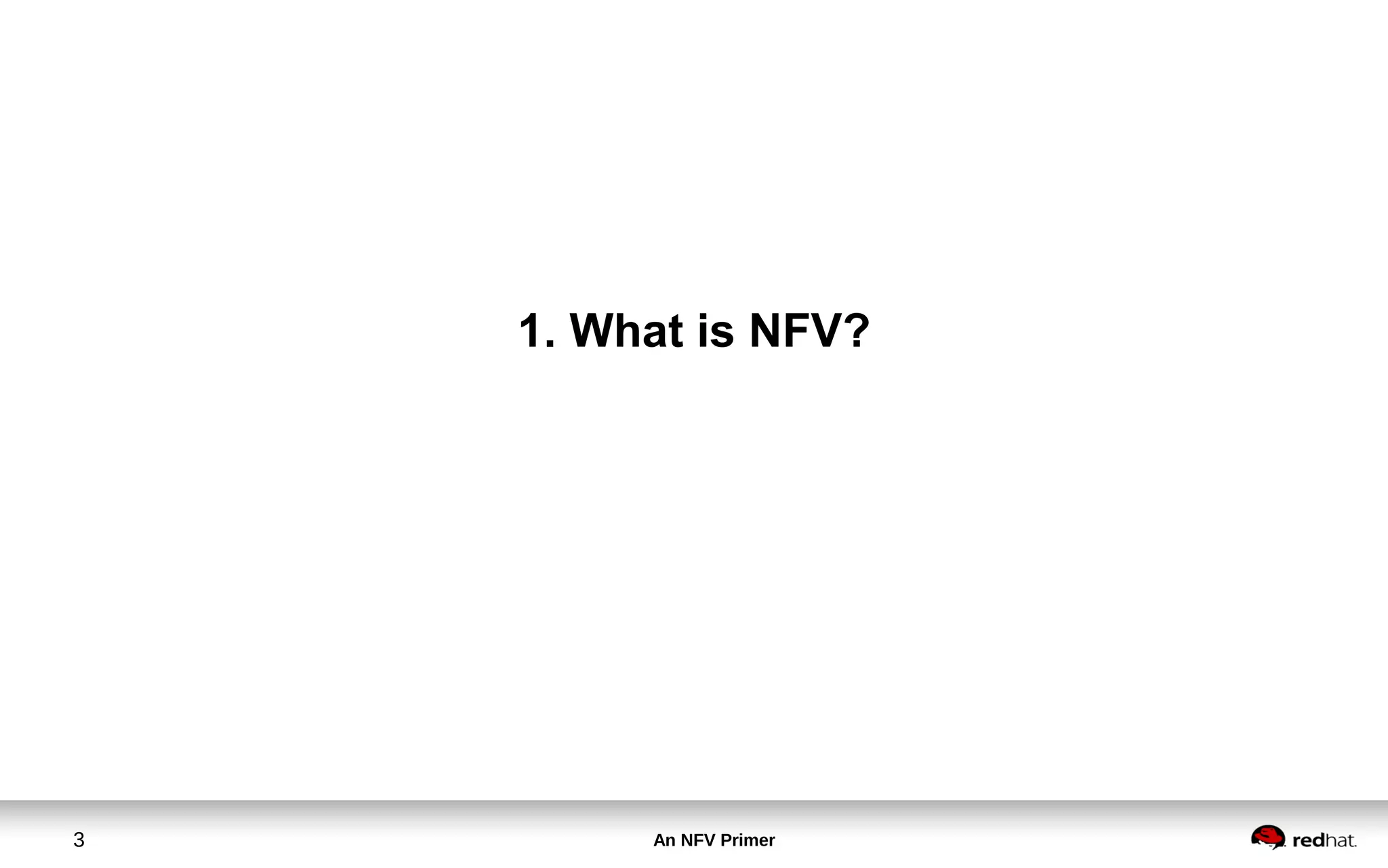

1. What is NFV?

4. An NFV Primer4

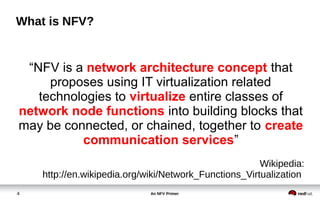

What is NFV?
Wikipedia:
http://en.wikipedia.org/wiki/Network_Functions_Virtualization
“NFV is a network architecture concept that
proposes using IT virtualization related
technologies to virtualize entire classes of
network node functions into building blocks that
may be connected, or chained, together to create
communication services”

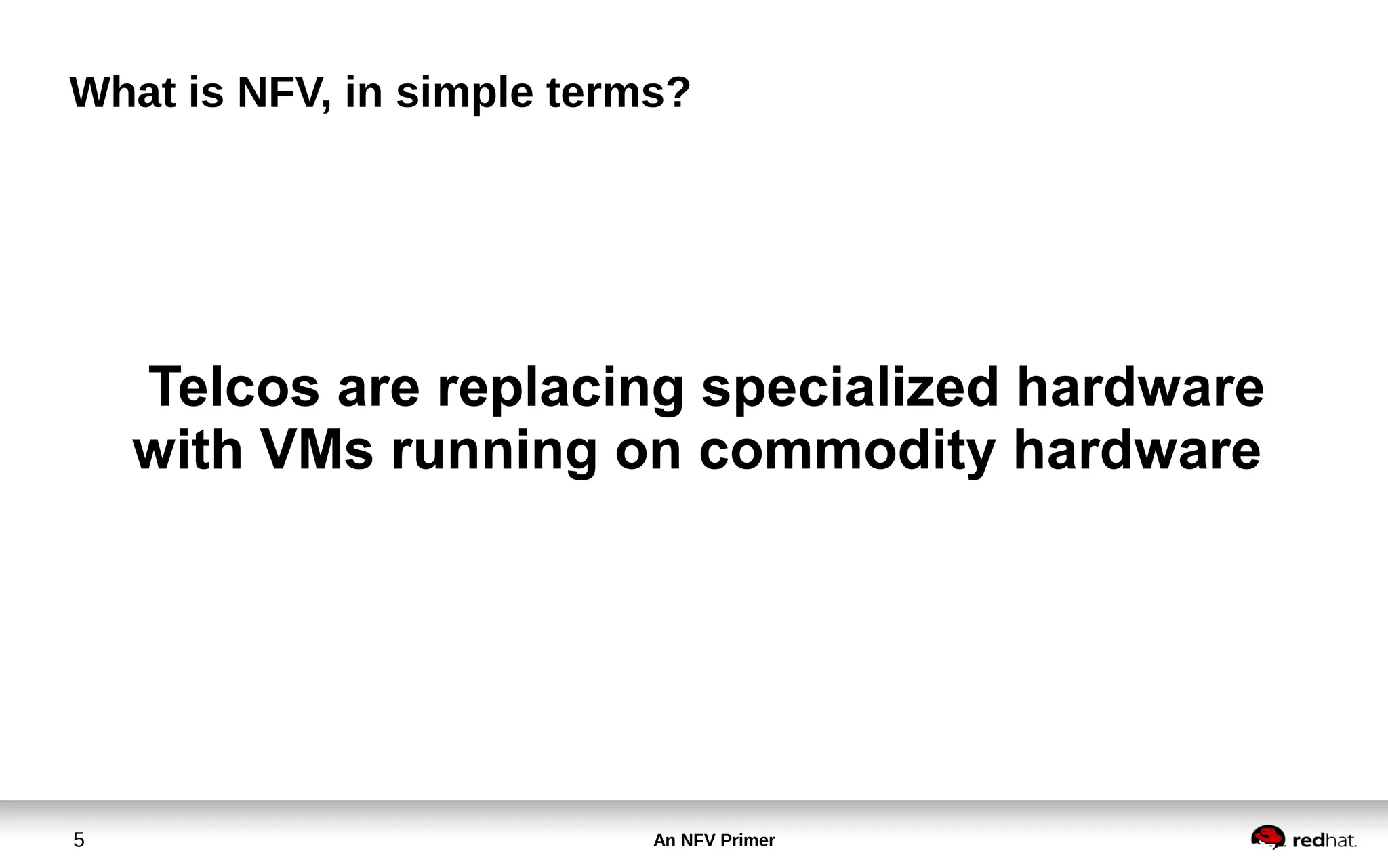

5. An NFV Primer5

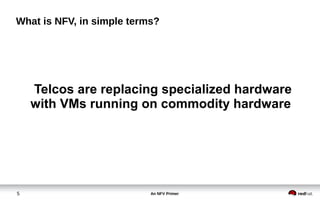

What is NFV, in simple terms?
Telcos are replacing specialized hardware
with VMs running on commodity hardware

6. An NFV Primer6

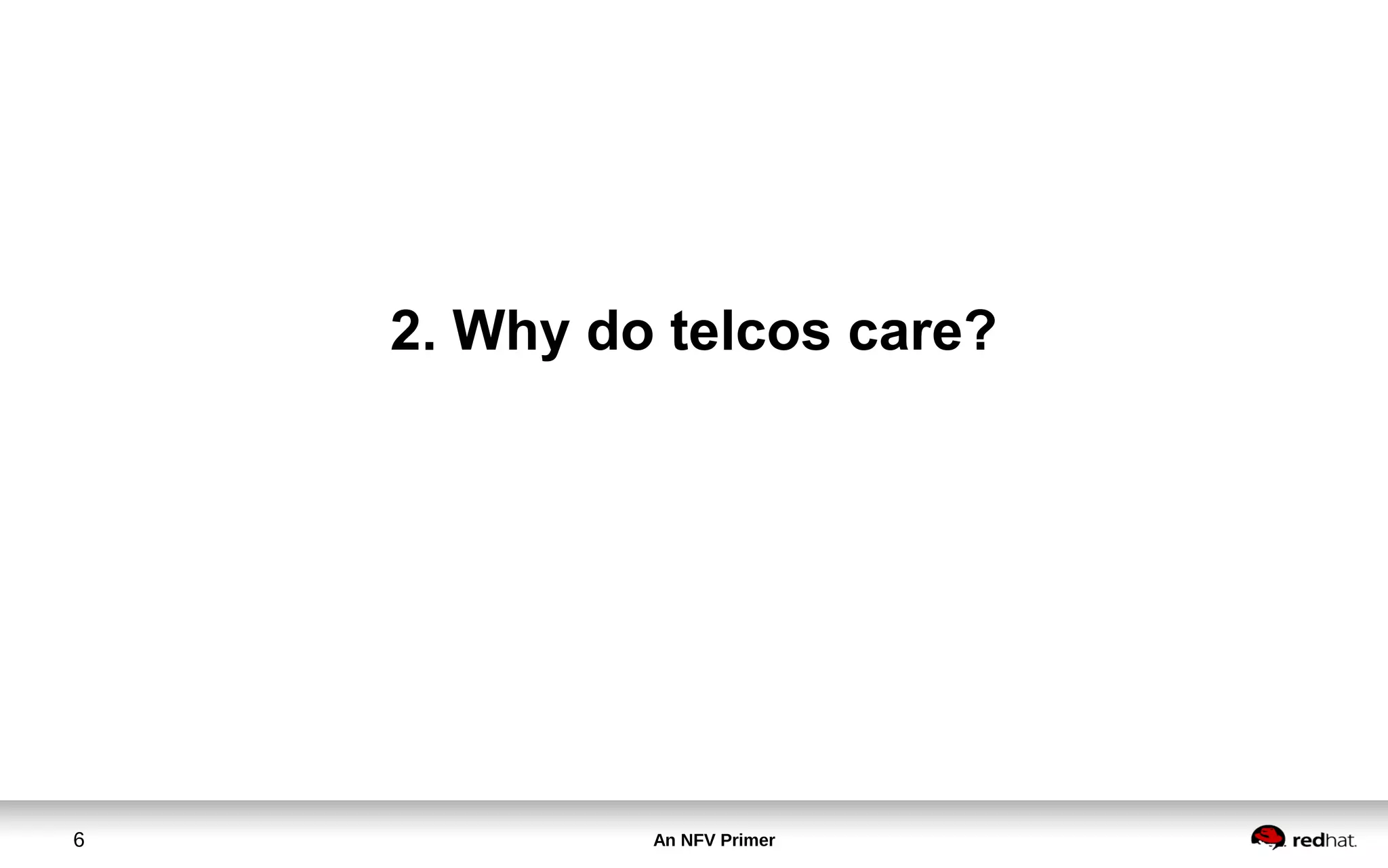

2. Why do telcos care?

7. An NFV Primer7

8. An NFV Primer8

9. An NFV Primer9

10. An NFV Primer10

11. An NFV Primer11
Telco services - access
● Dial-up
● ISDN
● ADSL
● Cable
● Fibre optic
● 3G/4G
● Satellite

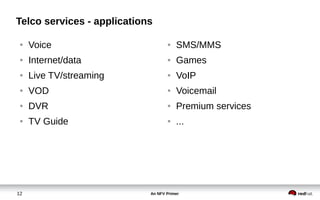

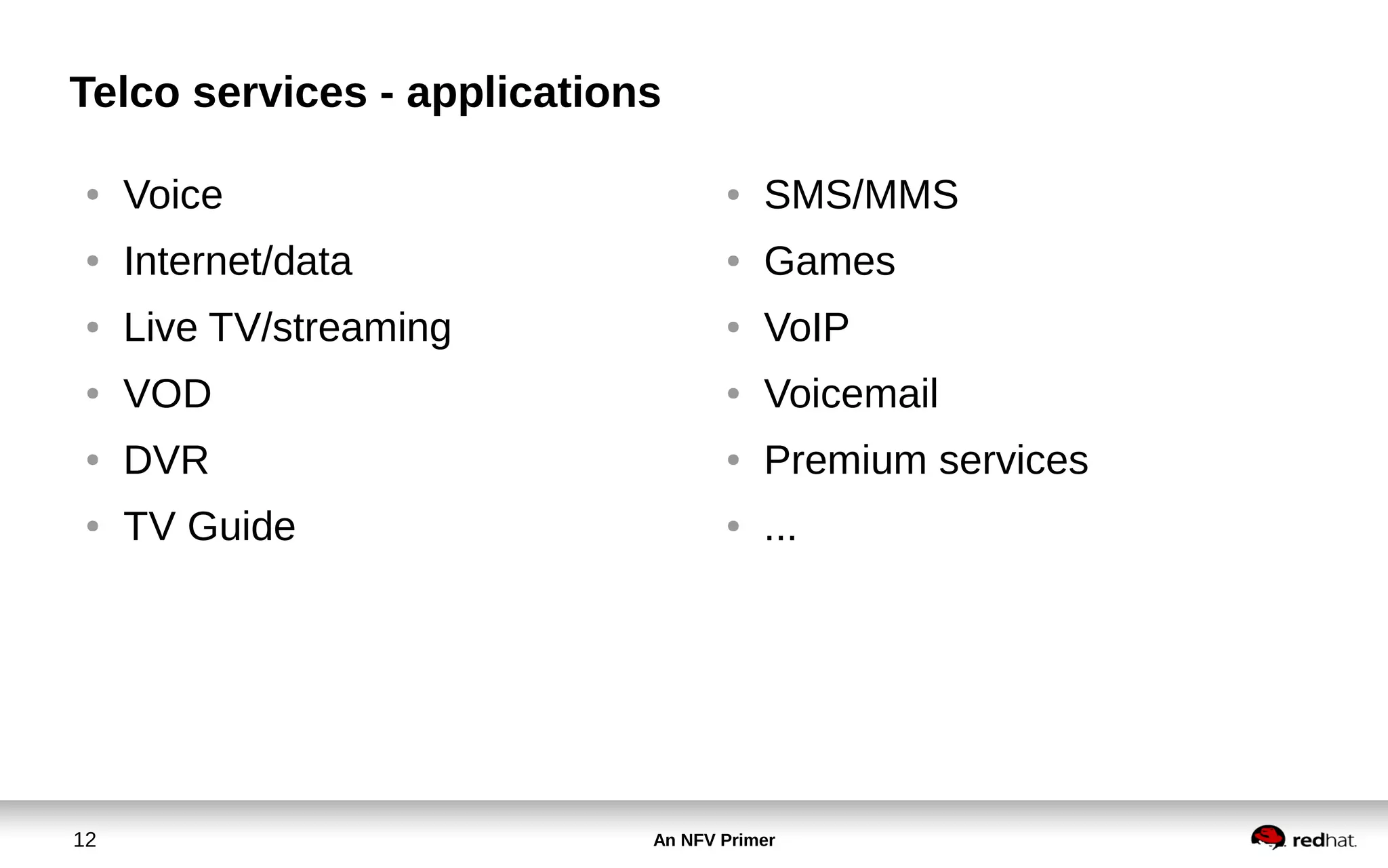

12. An NFV Primer12
Telco services - applications
● Voice
● Internet/data
● Live TV/streaming
● VOD
● DVR
● TV Guide
● SMS/MMS
● Games
● VoIP
● Voicemail
● Premium services
● ...

13. An NFV Primer13

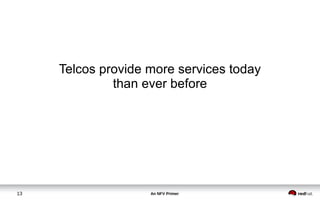

Telcos provide more services today
than ever before

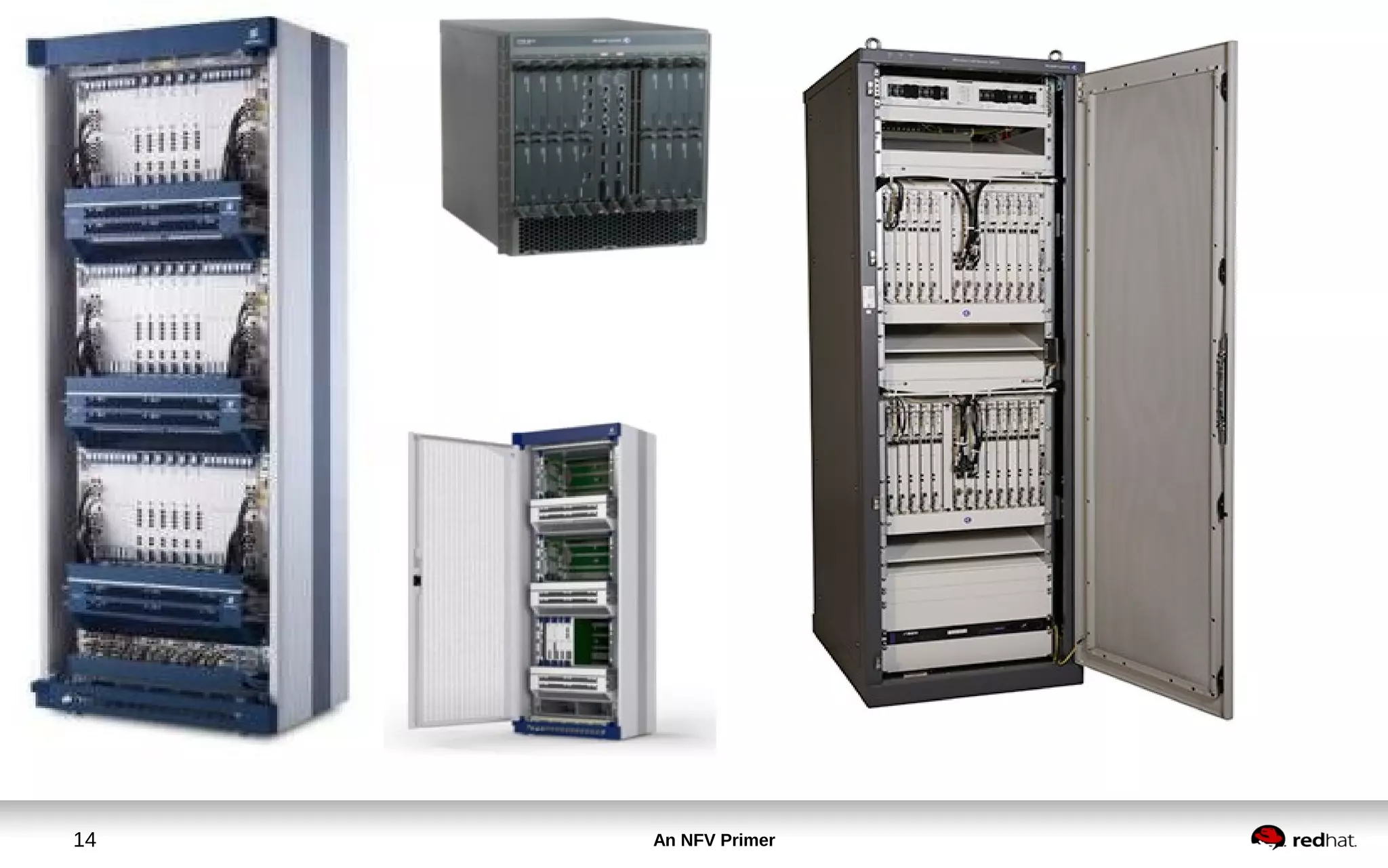

14. An NFV Primer14

15. An NFV Primer15
Telco industry more competitive than ever
● Costs dominated by data
usage
● Customers expect more data
for less
● Demand for new services
increasing

16. An NFV Primer16

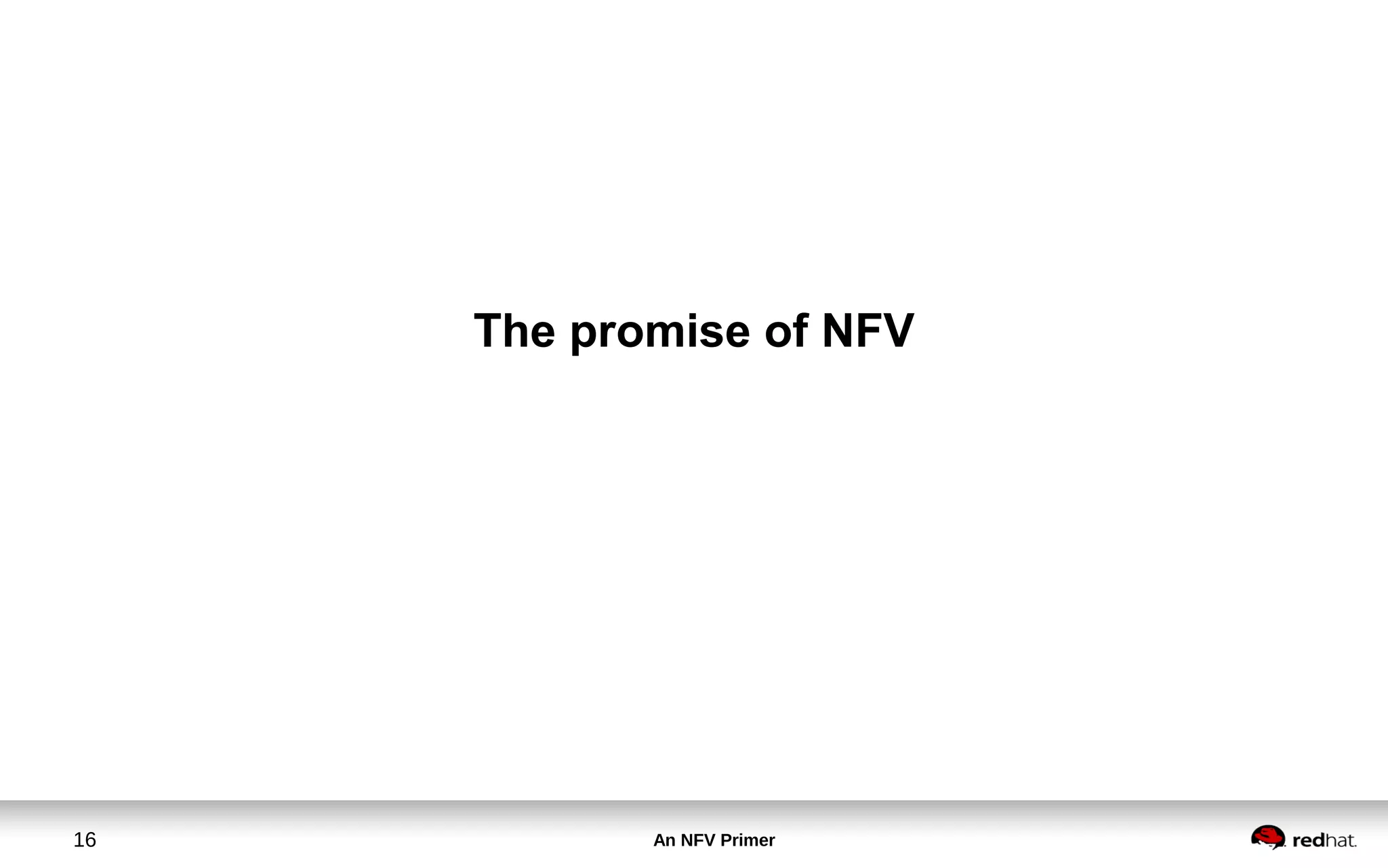

The promise of NFV

17. An NFV Primer17
Increased agility

18. An NFV Primer18
Reduced CapEx, OpEx

19. An NFV Primer19

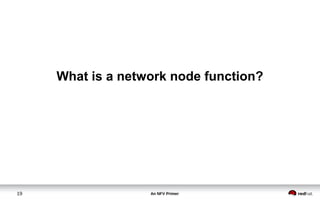

What is a network node function?

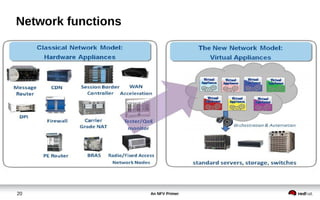

20. An NFV Primer20
Network functions

21. An NFV Primer21

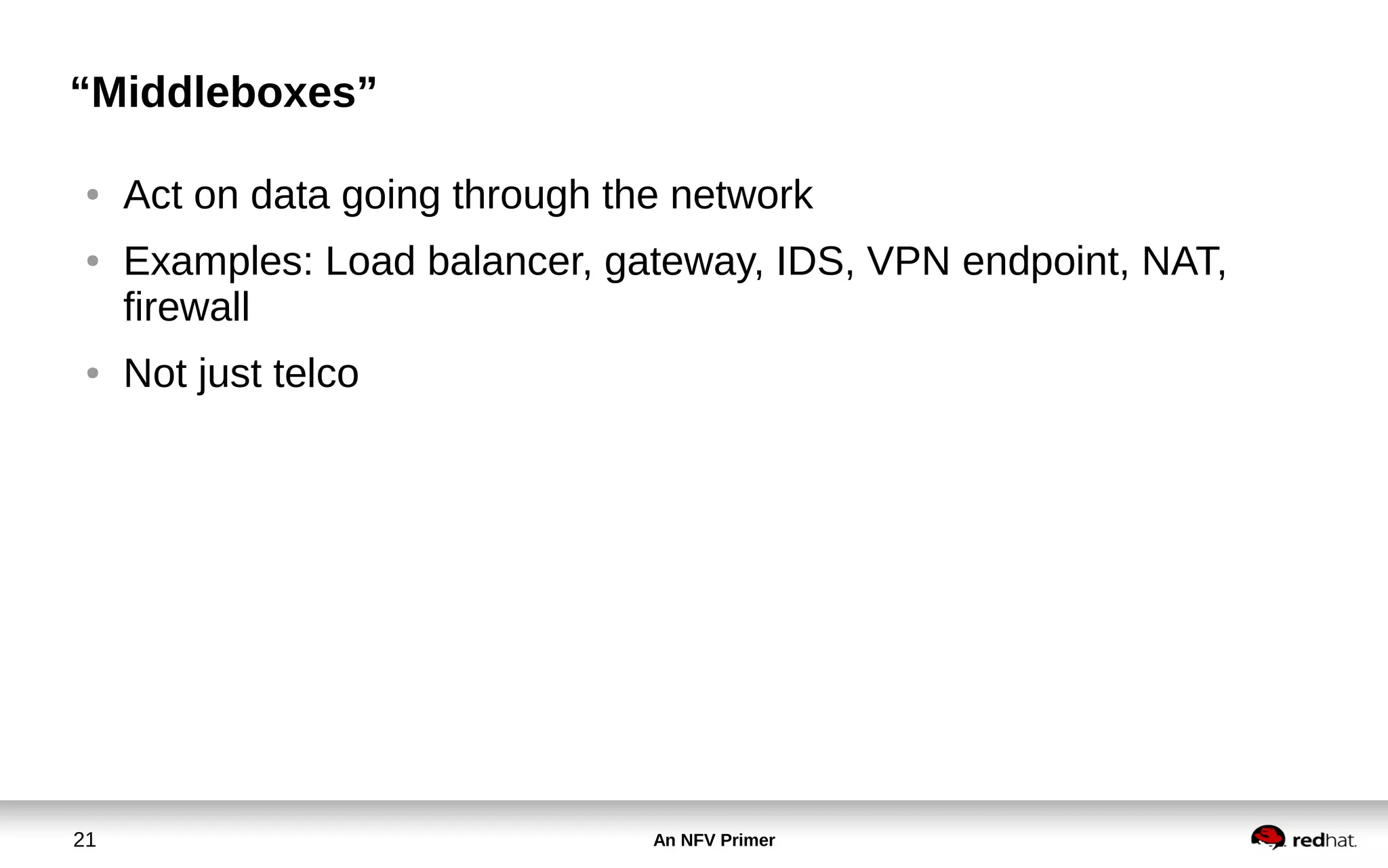

“Middleboxes”
● Act on data going through the network
● Examples: Load balancer, gateway, IDS, VPN endpoint, NAT,
firewall
● Not just telco

22. An NFV Primer22

23. An NFV Primer23
3. Open Source and NFV

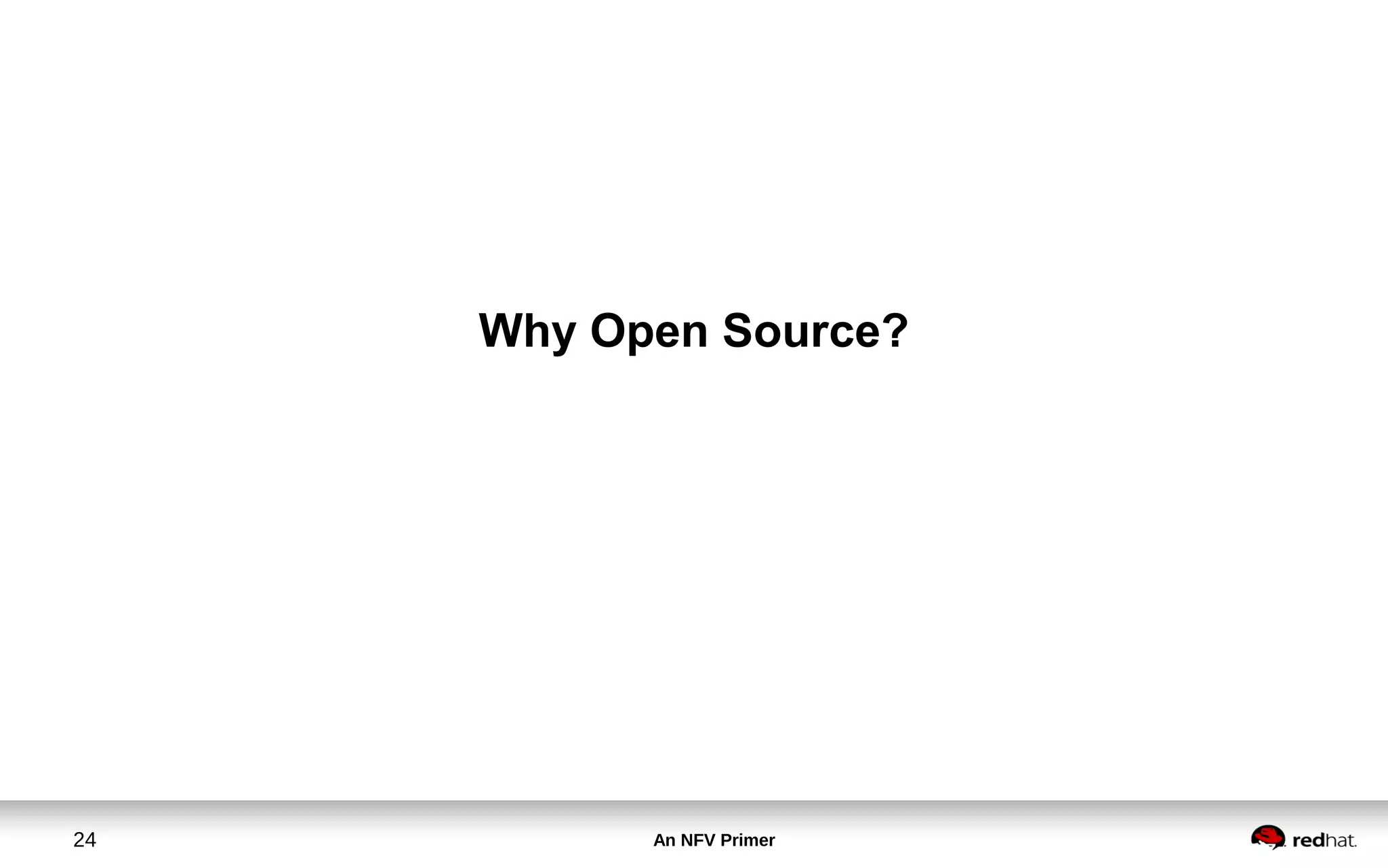

24. An NFV Primer24
Why Open Source?

25. An NFV Primer25
Cloud

26. An NFV Primer26
Private cloud

27. An NFV Primer27
DevOps and agile development

28. An NFV Primer28
Open source drives the cloud

29. An NFV Primer29

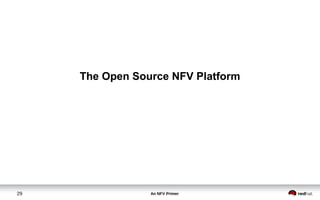

The Open Source NFV Platform

30. An NFV Primer30
Virtual compute

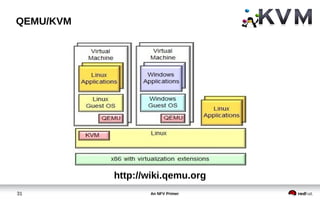

31. An NFV Primer31
QEMU/KVM
http://wiki.qemu.org

32. An NFV Primer32

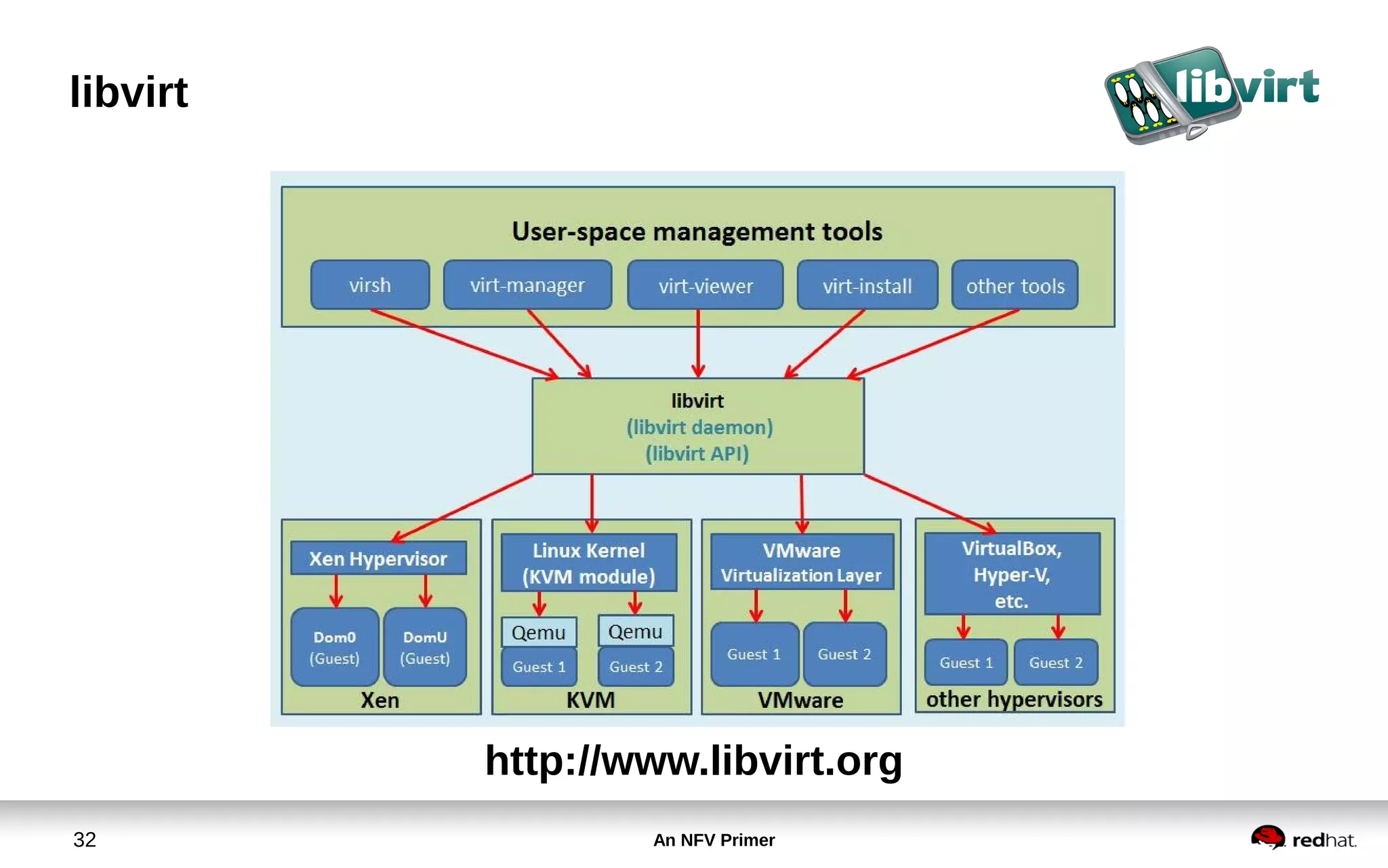

libvirt
http://www.libvirt.org

33. An NFV Primer33
Virtual storage

34. An NFV Primer34
Ceph
http://www.ceph.com

35. An NFV Primer35
Virtual network
DPDK

36. An NFV Primer36
OpenDaylight
http://www.opendaylight.org

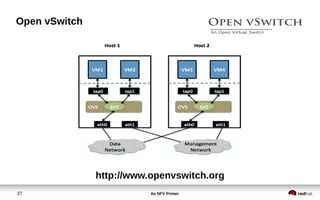

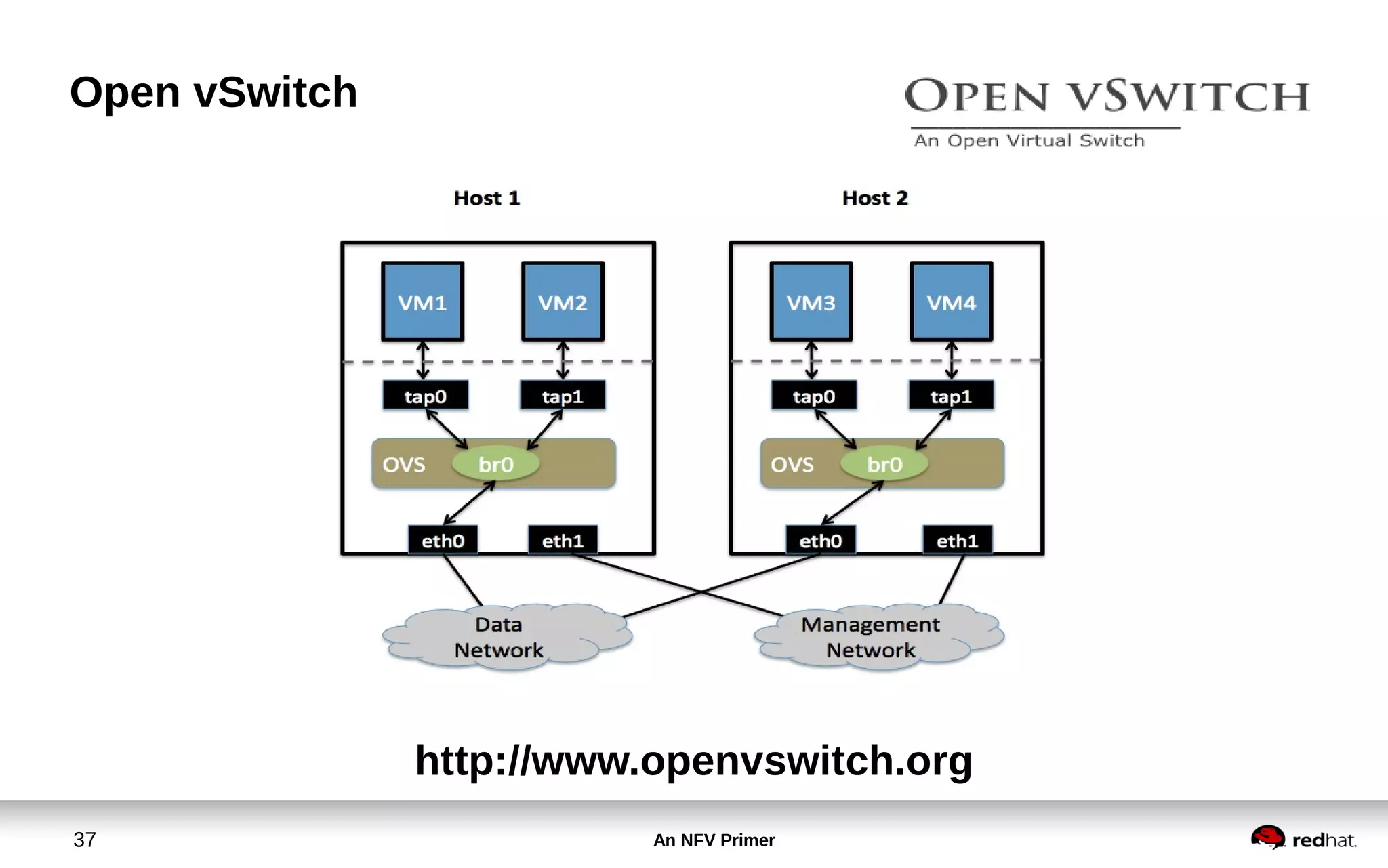

37. An NFV Primer37
Open vSwitch
http://www.openvswitch.org

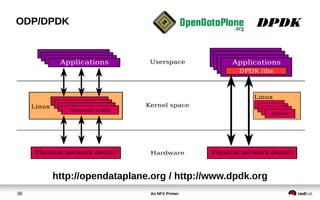

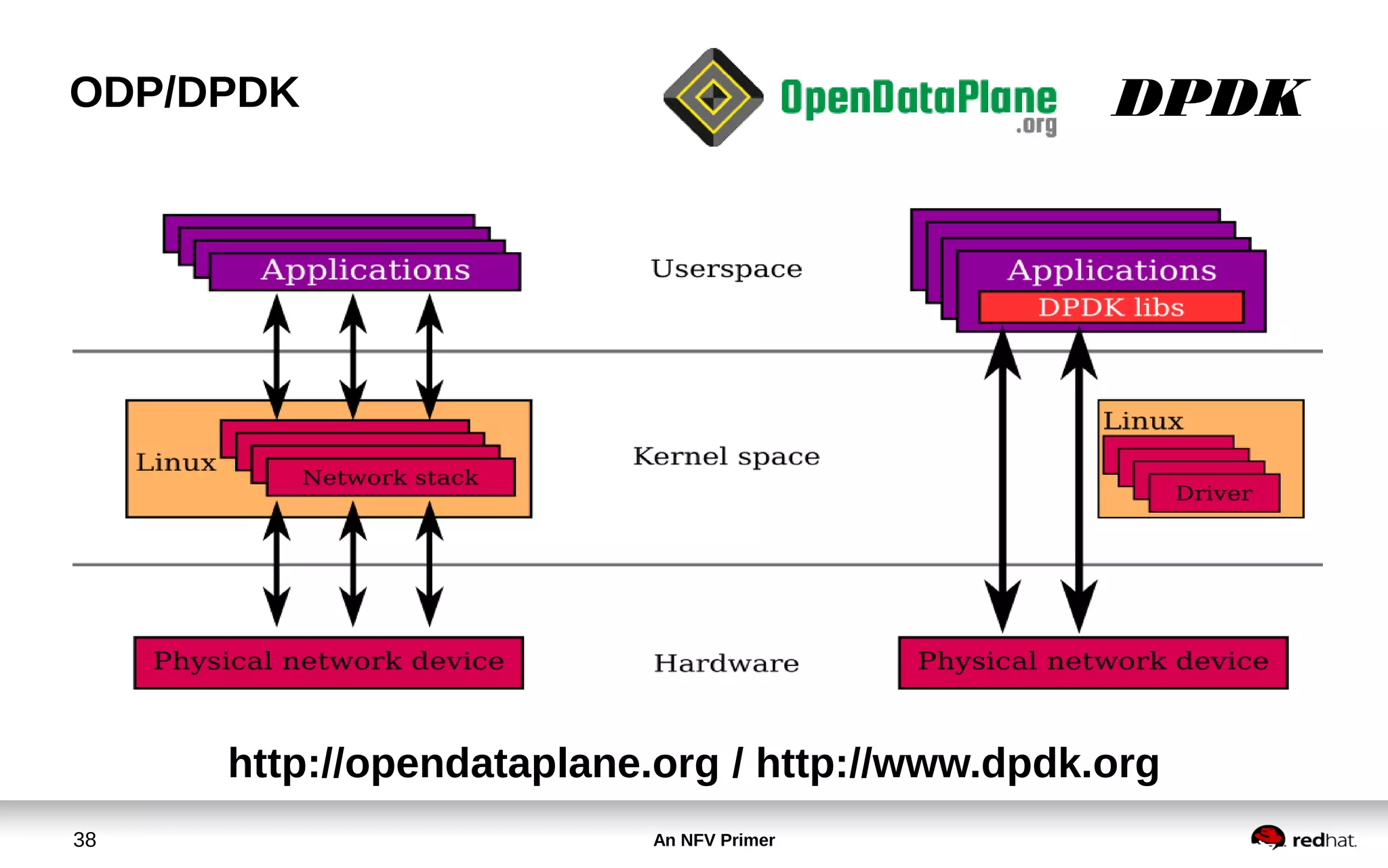

38. An NFV Primer38
ODP/DPDK DPDK
http://opendataplane.org / http://www.dpdk.org

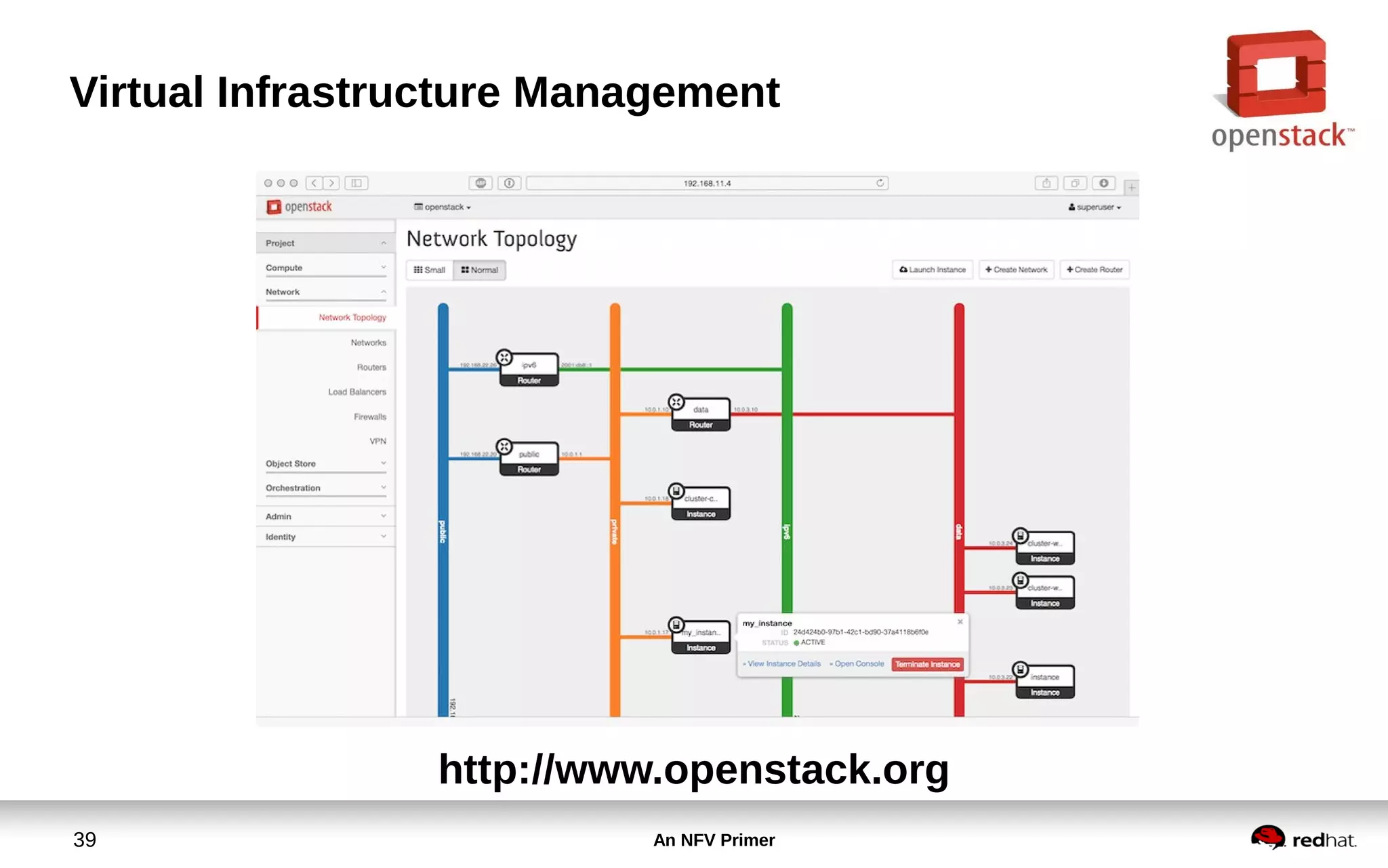

39. An NFV Primer39

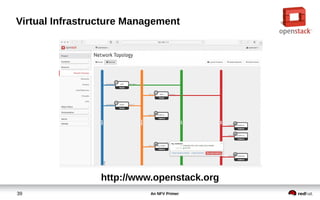

Virtual Infrastructure Management
http://www.openstack.org

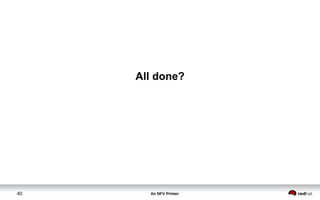

40. An NFV Primer40
All done?

41. An NFV Primer41
Not quite perfect...

42. An NFV Primer42

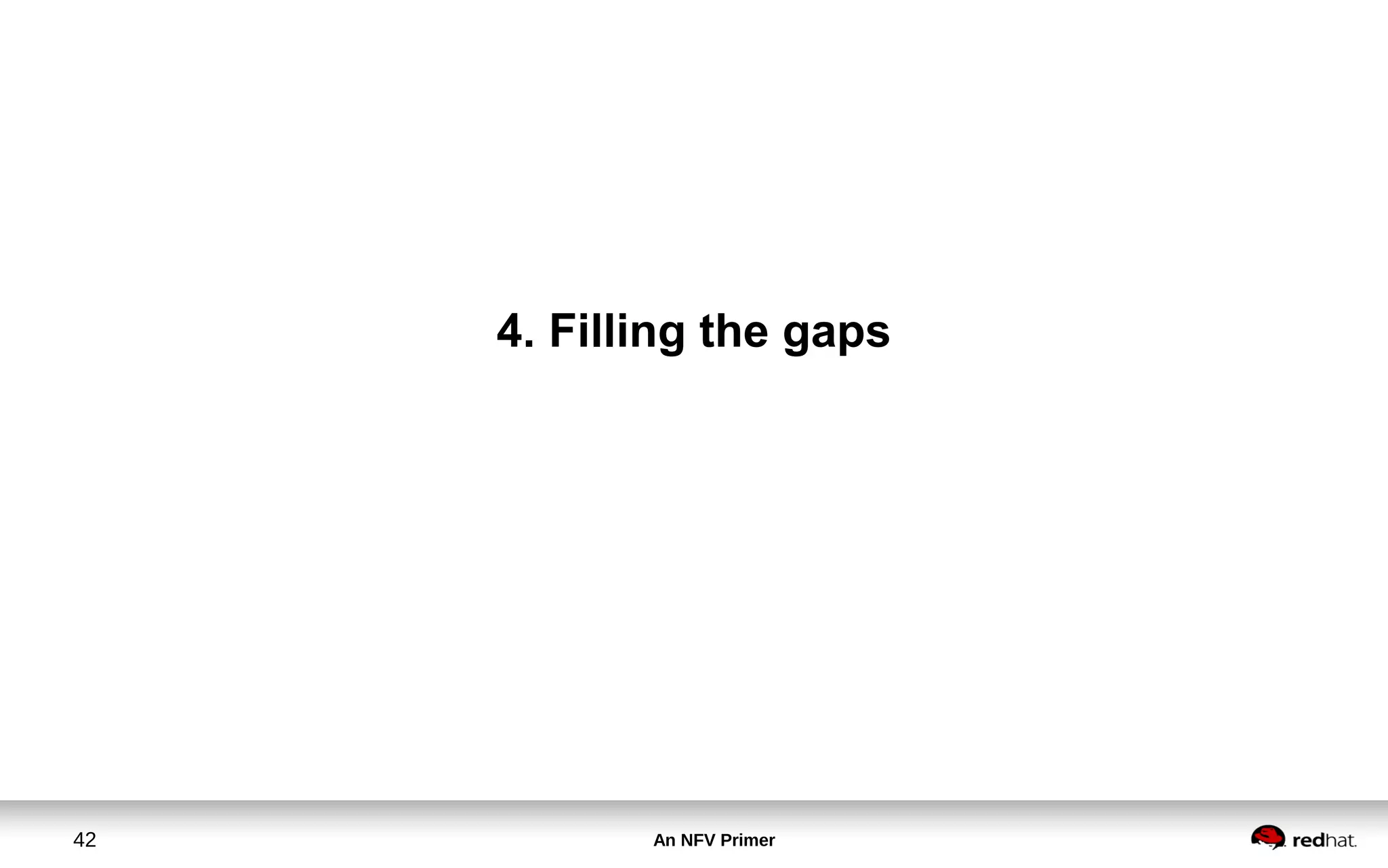

4. Filling the gaps

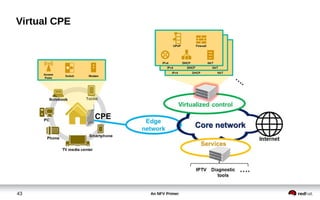

43. An NFV Primer43
Virtual CPE

44. An NFV Primer44
(ETSI #2)

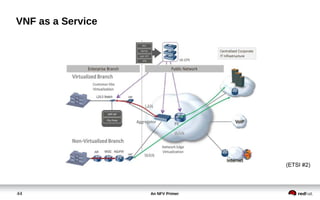

VNF as a Service

45. An NFV Primer45

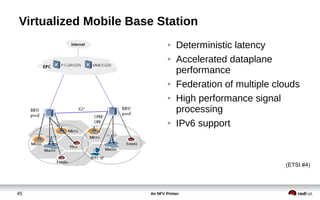

Virtualized Mobile Base Station
(ETSI #4)
● Deterministic latency
● Accelerated dataplane
performance
● Federation of multiple clouds
● High performance signal
processing
● IPv6 support

46. An NFV Primer46

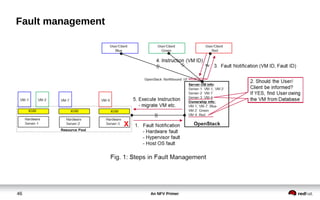

Fault management

47. An NFV Primer47

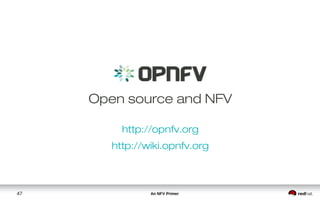

Open source and NFV
http://opnfv.org
http://wiki.opnfv.org

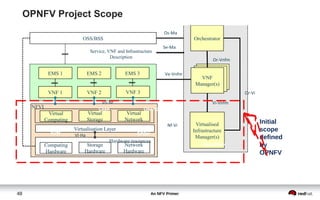

48. An NFV Primer48
Computing
Hardware
Storage
Hardware
Network
Hardware
Hardware resources
Virtualisation Layer
Virtualised
Infrastructure
Manager(s)
VNF
Manager(s)
VNF 2
OSS/BSS
NFVI
VNF 3VNF 1
Virtual
Computing
Virtual
Storage
Virtual
Network
EMS 2 EMS 3EMS 1
Service, VNF and Infrastructure
Description
Or-Vi
Or-Vnfm
Vi-Vnfm
Os-Ma
Se-Ma
Ve-Vnfm
Nf-Vi
Vn-Nf
Vl-Ha
Orchestrator
OpenStack
libvirt
KVM DPDK
Initial
scope
defined
by
OPNFV
OPNFV Project Scope
OpenDaylightCeph

49. An NFV Primer49
Platinum Members
Silver Members
Broad industry support

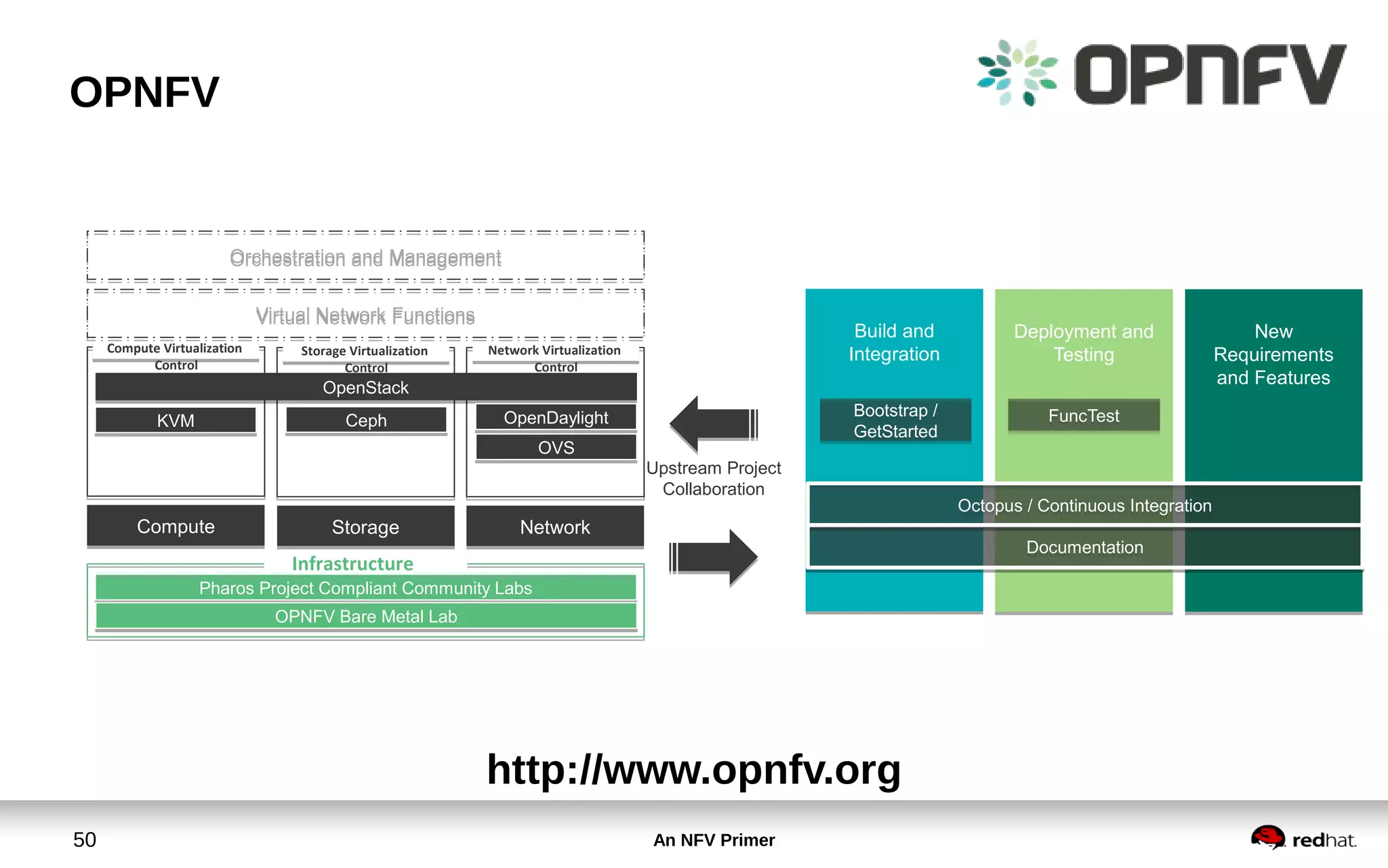

50. An NFV Primer50
OPNFV
http://www.opnfv.org
Build and
Integration
Build and
Integration
Deployment and
Testing
Deployment and
Testing
New
Requirements
and Features
New
Requirements
and Features
Network Virtualization
Control
Storage Virtualization
Control
Bootstrap /
GetStarted
Bootstrap /
GetStarted
FuncTestFuncTest
Compute Virtualization
Control
ComputeCompute StorageStorage NetworkNetwork
OpenStackOpenStack
OpenDaylightOpenDaylightKVMKVM
OVSOVS
Upstream Project
Collaboration
Infrastructure
Pharos Project Compliant Community LabsPharos Project Compliant Community Labs
OPNFV Bare Metal LabOPNFV Bare Metal Lab
Orchestration and ManagementOrchestration and Management
Virtual Network FunctionsVirtual Network Functions
CephCeph
Octopus / Continuous IntegrationOctopus / Continuous Integration
DocumentationDocumentation

51. An NFV Primer51
Upstream first

52. An NFV Primer52
Fork-free zone

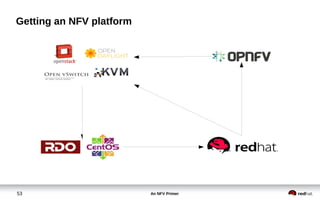

53. An NFV Primer53
Getting an NFV platform

54. An NFV Primer54
Join us at http://www.opnfv.org
Thank you!
