1. NFV-SDN
Opensource
MP Odini/HPE – ETSI NFV Vice Chair
Dec, 2015

2. F

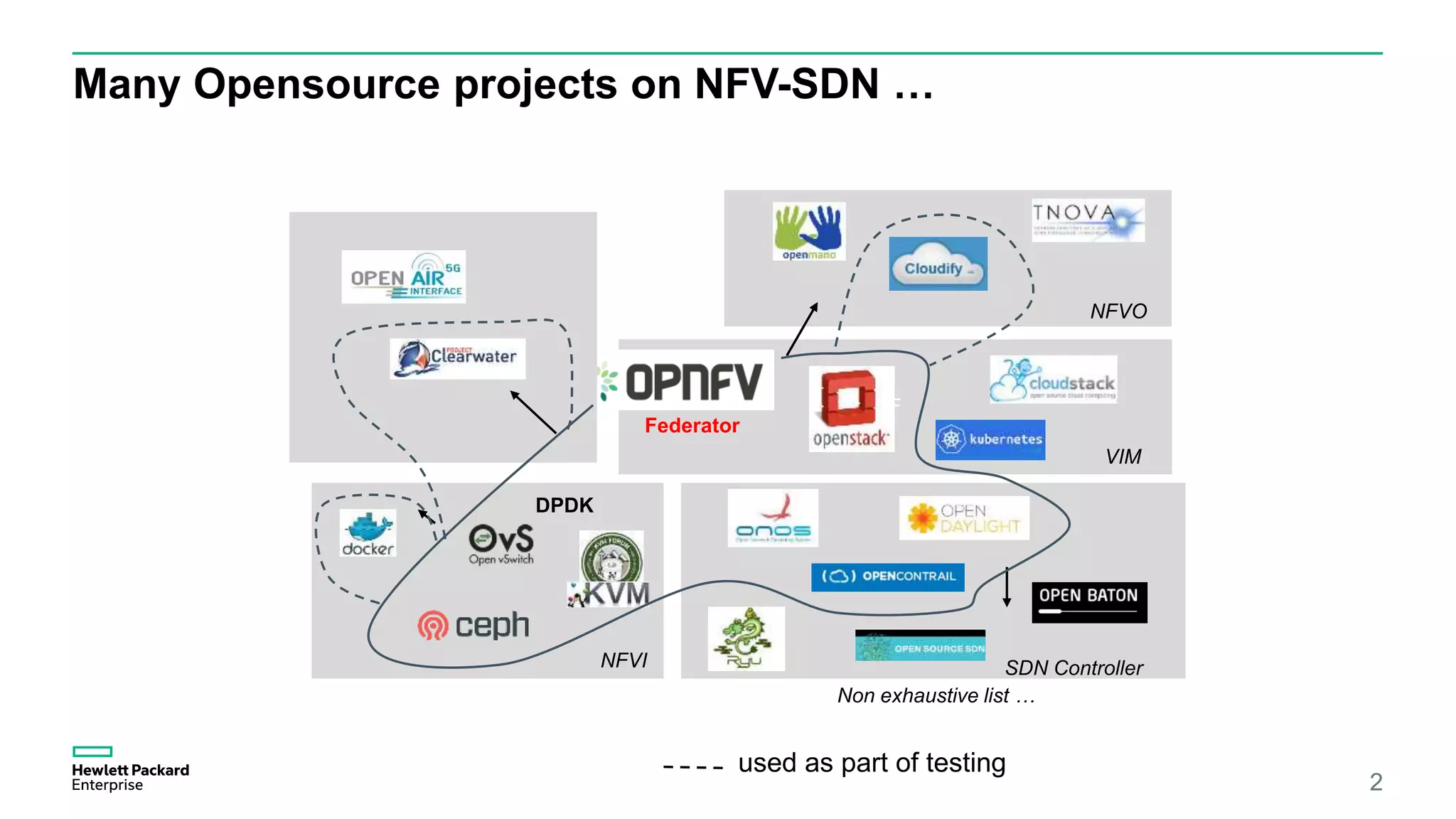

Many Opensource projects on NFV-SDN …
2
SDN Controller
VIM
DPDK
NFVI
NFVO
Non exhaustive list …
Federator
used as part of testing

3. MANO OpenSource Initiatives
OpenSource Link Status
NEW !!
ETSI OSG ‘OSM’ : OpenSource
MANO
http://osm.etsi.org new
NEW – OPNFV expanding scope www.opnfv.org Expending Scope to MANO stack
Tacker (OpenStack) – Apache2 https://wiki.openstack.org/wiki/Tacker Renaming of an opensource project called
ServiceVM (spin-off from Neutron)
Openmano (Telefonica) - Apache2 https://github.com/nfvlabs/openmano Launched beginning 2015 – issued from
Telefonica test team
OpenBaton (Fraunhofer) http://openbaton.github.io/ Oct 2015 – issued from OpenSDN FK
project
Cloudify http://getcloudify.org/ support from Orange and Metaswitch
Open-O (China Mobile) (not available yet) Presented at OPNFV Summit 2015
Gohan (NTT Data) – Apache2 https://github.com/morika-t/gohan Presented at OpenStack Summit Tokyo
TCS Telco Cloud (Tata) https://github.com/TCS-
TelcoCloud/OpenVNFManager

4. Backup
MANO OpenSource
4

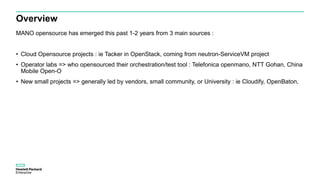

5. Overview
MANO opensource has emerged this past 1-2 years from 3 main sources :
• Cloud Opensource projects : ie Tacker in OpenStack, coming from neutron-ServiceVM project
• Operator labs => who opensourced their orchestration/test tool : Telefonica openmano, NTT Gohan, China
Mobile Open-O
• New small projects => generally led by vendors, small community, or University : ie Cloudify, OpenBaton,

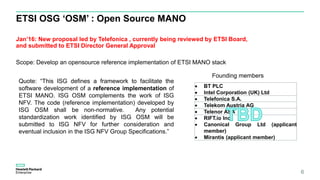

6. ETSI OSG ‘OSM’ : Open Source MANO
6
Jan’16: New proposal led by Telefonica , currently being reviewed by ETSI Board,
and submitted to ETSI Director General Approval
Scope: Develop an opensource reference implementation of ETSI MANO stack
Quote: “This ISG defines a framework to facilitate the
software development of a reference implementation of
ETSI MANO. ISG OSM complements the work of ISG
NFV. The code (reference implementation) developed by
ISG OSM shall be non-normative. Any potential
standardization work identified by ISG OSM will be
submitted to ISG NFV for further consideration and
eventual inclusion in the ISG NFV Group Specifications.”
 BT PLC
 Intel Corporation (UK) Ltd
 Telefonica S.A.
 Telekom Austria AG
 Telenor ASA
 RIFT.io Inc
 Canonical Group Ltd (applicant
member)
 Mirantis (applicant member)
Founding members

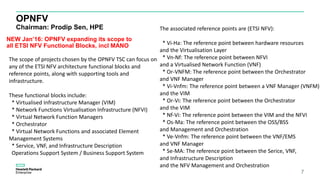

7. OPNFV
Chairman: Prodip Sen, HPE
7
The scope of projects chosen by the OPNFV TSC can focus on
any of the ETSI NFV architecture functional blocks and
reference points, along with supporting tools and
infrastructure.
These functional blocks include:
* Virtualised Infrastructure Manager (VIM)
* Network Functions Virtualisation Infrastructure (NFVI)
* Virtual Network Function Managers
* Orchestrator
* Virtual Network Functions and associated Element
Management Systems
* Service, VNF, and Infrastructure Description
Operations Support System / Business Support System
The associated reference points are (ETSI NFV):
* Vi-Ha: The reference point between hardware resources
and the Virtualisation Layer
* Vn-Nf: The reference point between NFVI
and a Virtualised Network Function (VNF)
* Or-VNFM: The reference point between the Orchestrator
and VNF Manager
* Vi-Vnfm: The reference point between a VNF Manager (VNFM)
and the VIM
* Or-Vi: The reference point between the Orchestrator
and the VIM
* Nf-Vi: The reference point between the VIM and the NFVI
* Os-Ma: The reference point between the OSS/BSS
and Management and Orchestration
* Ve-Vnfm: The reference point between the VNF/EMS
and VNF Manager
* Se-MA: The reference point between the Serice, VNF,
and Infrastructure Description
and the NFV Management and Orchestration
NEW Jan’16: OPNFV expanding its scope to
all ETSI NFV Functional Blocks, incl MANO

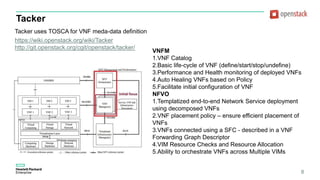

8. Tacker
8
VNFM
1.VNF Catalog
2.Basic life-cycle of VNF (define/start/stop/undefine)
3.Performance and Health monitoring of deployed VNFs
4.Auto Healing VNFs based on Policy
5.Facilitate initial configuration of VNF
NFVO
1.Templatized end-to-end Network Service deployment
using decomposed VNFs
2.VNF placement policy – ensure efficient placement of
VNFs
3.VNFs connected using a SFC - described in a VNF
Forwarding Graph Descriptor
4.VIM Resource Checks and Resource Allocation
5.Ability to orchestrate VNFs across Multiple VIMs
Tacker uses TOSCA for VNF meda-data definition
https://wiki.openstack.org/wiki/Tacker
http://git.openstack.org/cgit/openstack/tacker/

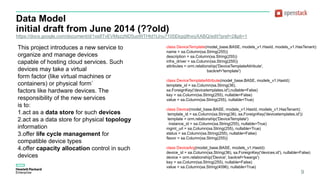

9. Data Model
initial draft from June 2014 (??old)
https://docs.google.com/document/d/1xs8TvEVMszzND5uoWTHtd1tJnu7105Ekgq9hxiyXABQ/edit?pref=2&pli=1
9
This project introduces a new service to
organize and manage devices
capable of hosting cloud services. Such
devices may take a virtual
form factor (like virtual machines or
containers) or physical form`
factors like hardware devices. The
responsibility of the new services
is to:
1.act as a data store for such devices
2.act as a data store for physical topology
information
3.offer life cycle management for
compatible device types
4.offer capacity allocation control in such
devices
class DeviceTemplate(model_base.BASE, models_v1.HasId, models_v1.HasTenant):
name = sa.Column(sa.String(255))
description = sa.Column(sa.String(255))
infra_driver = sa.Column(sa.String(255))
attributes = orm.relationship('DeviceTemplateAttribute',
backref='template')
class DeviceTemplateAttribute(model_base.BASE, models_v1.HasId):
template_id = sa.Column(sa.String(36),
sa.ForeignKey('devicetemplates.id'),nullable=False)
key = sa.Column(sa.String(255), nullable=False)
value = sa.Column(sa.String(255), nullable=True)
class Device(model_base.BASE, models_v1.HasId, models_v1.HasTenant):
template_id = sa.Column(sa.String(36), sa.ForeignKey('devicetemplates.id'))
template = orm.relationship('DeviceTemplate')
instance_id = sa.Column(sa.String(255), nullable=True)
mgmt_url = sa.Column(sa.String(255), nullable=True)
status = sa.Column(sa.String(255), nullable=False)
flavor = sa.Column(sa.String(255))
class DeviceArg(model_base.BASE, models_v1.HasId):
device_id = sa.Column(sa.String(36), sa.ForeignKey('devices.id'), nullable=False)
device = orm.relationship('Device', backref='kwargs')
key = sa.Column(sa.String(255), nullable=False)
value = sa.Column(sa.String(4096), nullable=True)

10. TOSCA – latest specs in progress
10
Current latest (as of Oct 2015) is: https://www.oasis-open.org/committees/download.php/56577/tosca-nfv-v1.0-wd02-rev03.doc

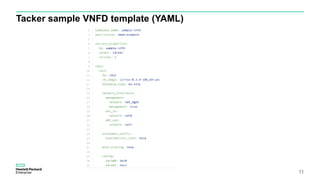

11. Tacker sample VNFD template (YAML)
11

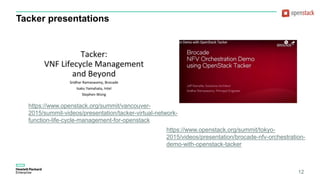

12. Tacker presentations
12
https://www.openstack.org/summit/vancouver-
2015/summit-videos/presentation/tacker-virtual-network-
function-life-cycle-management-for-openstack
https://www.openstack.org/summit/tokyo-
2015/videos/presentation/brocade-nfv-orchestration-
demo-with-openstack-tacker

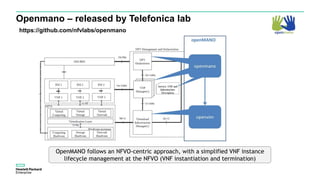

13. https://github.com/nfvlabs/openmano
OpenMANO follows an NFVO-centric approach, with a simplified VNF instance
lifecycle management at the NFVO (VNF instantiation and termination)
Openmano – released by Telefonica lab

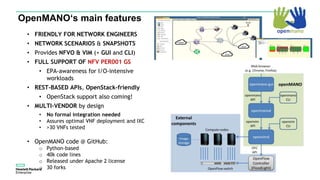

14. • FRIENDLY FOR NETWORK ENGINEERS
• NETWORK SCENARIOS & SNAPSHOTS
• Provides NFVO & VIM (+ GUI and CLI)
• FULL SUPPORT OF NFV PER001 GS
• EPA-awareness for I/O-intensive
workloads
• REST-BASED APIs, OpenStack-friendly
• OpenStack support also coming!
• MULTI-VENDOR by design
• No formal integration needed
• Assures optimal VNF deployment and IXC
• >30 VNFs tested
• OpenMANO code @ GitHub:
o Python-based
o 40k code lines
o Released under Apache 2 license
o 30 forks
OpenMANO‘s main features

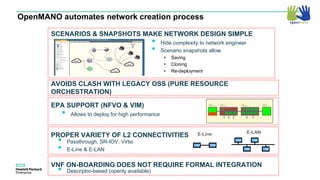

15. OpenMANO automates network creation process
SCENARIOS & SNAPSHOTS MAKE NETWORK DESIGN SIMPLE
AVOIDS CLASH WITH LEGACY OSS (PURE RESOURCE
ORCHESTRATION)
EPA SUPPORT (NFVO & VIM)
PROPER VARIETY OF L2 CONNECTIVITIES
VNF ON-BOARDING DOES NOT REQUIRE FORMAL INTEGRATION
• Hide complexity to network engineer
• Scenario snapshots allow
 Saving
 Cloning
 Re-deployment
• Allows to deploy for high performance
• Passthrough, SR-IOV, Virtio
• E-Line & E-LAN
• Descriptor-based (openly available)
VNF VNF
VNF VNF
VNF VNF
E-Line E-LAN

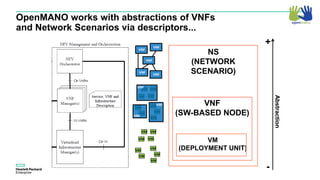

16. VNF
VNF
VNF
VNF
VNF
VM
VM VM
VM
VM
VM
VM
VM VM
VNF
VNF
VNF
VM
VM VM
VM
VM
VM
VM
VM VM
NS
(NETWORK
SCENARIO)
VNF
(SW-BASED NODE)
+
-
Abstraction
VM
(DEPLOYMENT UNIT)
OpenMANO works with abstractions of VNFs
and Network Scenarios via descriptors...

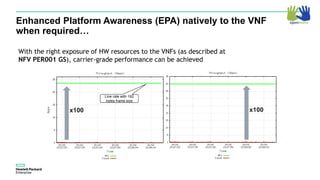

17. x100
Line rate with 192
bytes frame size
x100
With the right exposure of HW resources to the VNFs (as described at
NFV PER001 GS), carrier-grade performance can be achieved
Enhanced Platform Awareness (EPA) natively to the VNF
when required…

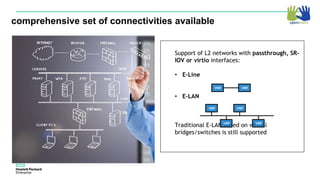

18. Support of L2 networks with passthrough, SR-
IOV or virtio interfaces:
• E-Line
• E-LAN
Traditional E-LAN based on virtual
bridges/switches is still supported
VNF VNF
VNF VNF
VNF VNF
comprehensive set of connectivities available

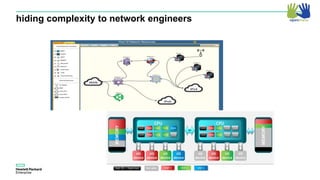

19. hiding complexity to network engineers

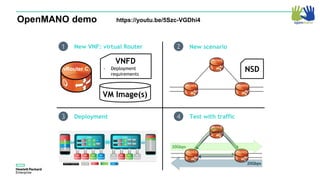

20. 1 2New VNF: virtual Router New scenario
3 Deployment 4 Test with traffic
vRouter C
VNFD
- Deployment
requirements
NSD
VM Image(s)
OpenMANO demo https://youtu.be/5Szc-VGDhi4

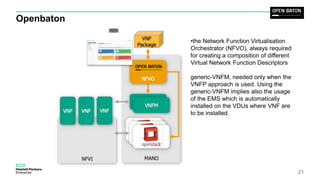

21. Openbaton
21
•the Network Function Virtualisation
Orchestrator (NFVO), always required
for creating a composition of different
Virtual Network Function Descriptors
generic-VNFM, needed only when the
VNFP approach is used. Using the
generic-VNFM implies also the usage
of the EMS which is automatically
installed on the VDUs where VNF are
to be installed.

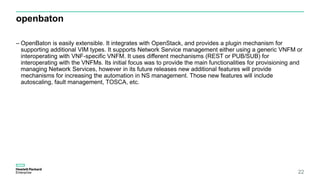

22. openbaton
– OpenBaton is easily extensible. It integrates with OpenStack, and provides a plugin mechanism for
supporting additional VIM types. It supports Network Service management either using a generic VNFM or
interoperating with VNF-specific VNFM. It uses different mechanisms (REST or PUB/SUB) for
interoperating with the VNFMs. Its initial focus was to provide the main functionalities for provisioning and
managing Network Services, however in its future releases new additional features will provide
mechanisms for increasing the automation in NS management. Those new features will include
autoscaling, fault management, TOSCA, etc.
22

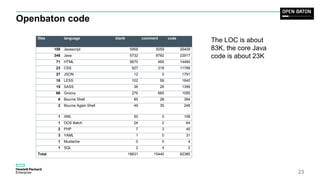

23. Openbaton code
23
files language blank comment code
159 Javascript 5958 5059 26409
348 Java 5732 8782 22917
71 HTML 5670 460 14484
23 CSS 627 318 11789
27 JSON 12 0 1791
18 LESS 102 58 1640
15 SASS 36 26 1399
66 Groovy 276 665 1055
6 Bourne Shell 85 28 394
2 Bourne Again Shell 49 35 248
1 XML 50 0 108
1 DOS Batch 24 2 64
2 PHP 7 3 45
3 YAML 1 0 31
1 Mustache 0 0 4
1 SQL 2 4 2
Total 18631 15440 82380
The LOC is about
83K, the core Java
code is about 23K

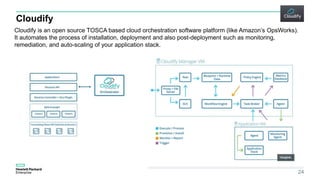

24. Cloudify
24
Cloudify is an open source TOSCA based cloud orchestration software platform (like Amazon’s OpsWorks).
It automates the process of installation, deployment and also post-deployment such as monitoring,
remediation, and auto-scaling of your application stack.

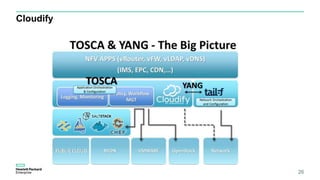

25. Cloudify
25
Application Orchestration
Your application in its entirety (Infrastructure, Middleware,
Application Code, Scripts, Tool Configuration, Metrics and Logs)
can be desribed in what we call a blueprint.
Ex: OpenStack blueprint => https://github.com/cloudify-
cosmo/cloudify-nodecellar-example/blob/master/openstack-
blueprint.yaml
Written in a human readable YAML format, a blueprint allows for
potentially high granularity of configuration of your application.
By defining the complete lifecycle of each part of your
application in a blueprint, and by utilizing the different IaaS APIs
and the plugin abstractions of different tools, Cloudify can
deploy and manage your application automatically.
Cloudify will launch the compute instances, and configure
network and security in order to manifest your infrastructure.
Then, it will execute scripts (remotely via SSH or locally on the
machines) or configuration management tools to configure your
servers and deploy your middleware and code.
Application Maintenance
Cloudify’s ability to run custom workflows will grant
you the ability to manually or automatically change
your application’s structure, deploy code to your
servers, heal or scale your system.
Cloudify will use metrics collectors (and soon, log
collectors) to stream application (and Cloudify
specific) data to Cloudify so that you’re able to
monitor and analyze your system.
Data aggregation and visualization within Cloudify
will allow you to execute the different workflows so
that either you or Cloudify itself can make smart,
actionable decisions based on business/application
KPIs.
Those decisions can either manually or
automatically trigger workflows (such as scaling or
healing) on the tactical front; or as application
behavior analysis on the strategic front.

26. Cloudify
26

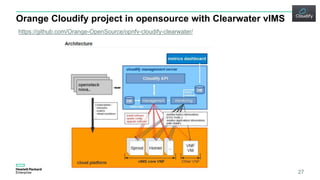

27. Orange Cloudify project in opensource with Clearwater vIMS
27
https://github.com/Orange-OpenSource/opnfv-cloudify-clearwater/

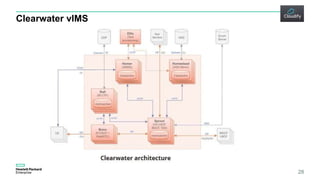

28. Clearwater vIMS
28

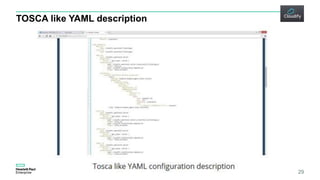

29. TOSCA like YAML description
29

30. Gohan – NTT opensource SDN/NFV Orchestration
30
https://www.openstack.org/summit/tokyo-2015/videos/presentation/gohan-an-open-source-service-development-engine-for-sdnnfv-orchestration

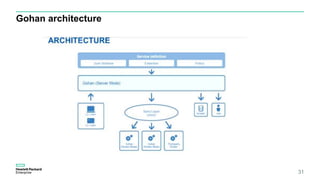

31. Gohan architecture
31

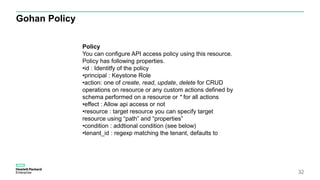

32. Gohan Policy
32
Policy
You can configure API access policy using this resource.
Policy has following properties.
•id : Identitfy of the policy
•principal : Keystone Role
•action: one of create, read, update, delete for CRUD
operations on resource or any custom actions defined by
schema performed on a resource or * for all actions
•effect : Allow api access or not
•resource : target resource you can specify target
resource using “path” and “properties”
•condition : addtional condition (see below)
•tenant_id : regexp matching the tenant, defaults to

33. TATA TCS Open VNF Manager
33

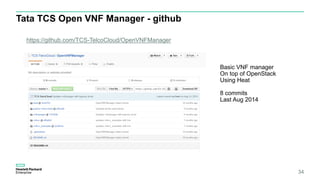

34. Tata TCS Open VNF Manager - github
34
https://github.com/TCS-TelcoCloud/OpenVNFManager
Basic VNF manager
On top of OpenStack
Using Heat
8 commits
Last Aug 2014

35. YangForge
YangForge provides runtime JavaScript execution based on YANG
schema modeling language – IETF (RFC 6020).
Basically, the framework enables YANG schema language to become
a programming language.
It utilizes YAML with custom tags to construct a portable module with
embedded code. It is written primarily using CoffeeScript and runs on
Node.js and the web browser (yes, it's isomorphic).
35

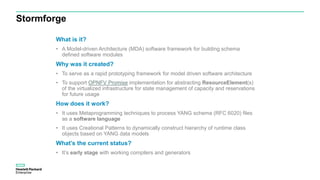

36. What is it?
• A Model-driven Architecture (MDA) software framework for building schema
defined software modules
Why was it created?
• To serve as a rapid prototyping framework for model driven software architecture
• To support OPNFV Promise implementation for abstracting ResourceElement(s)
of the virtualized infrastructure for state management of capacity and reservations
for future usage
How does it work?
• It uses Metaprogramming techniques to process YANG schema (RFC 6020) files
as a software language
• It uses Creational Patterns to dynamically construct hierarchy of runtime class
objects based on YANG data models
What’s the current status?
• It’s early stage with working compilers and generators
Stormforge

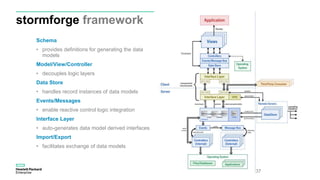

37. stormforge framework
37
Schema
• provides definitions for generating the data
models
Model/View/Controller
• decouples logic layers
Data Store
• handles record instances of data models
Events/Messages
• enable reactive control logic integration
Interface Layer
• auto-generates data model derived interfaces
Import/Export
• facilitates exchange of data models

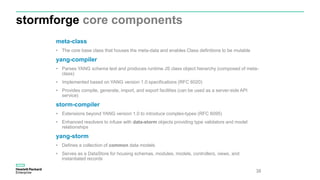

38. stormforge core components
38
meta-class
• The core base class that houses the meta-data and enables Class definitions to be mutable
yang-compiler
• Parses YANG schema text and produces runtime JS class object hierarchy (composed of meta-
class)
• Implemented based on YANG version 1.0 specifications (RFC 6020)
• Provides compile, generate, import, and export facilities (can be used as a server-side API
service)
storm-compiler
• Extensions beyond YANG version 1.0 to introduce complex-types (RFC 6095)
• Enhanced resolvers to infuse with data-storm objects providing type validators and model
relationships
yang-storm
• Defines a collection of common data models
• Serves as a DataStore for housing schemas, modules, models, controllers, views, and
instantiated records

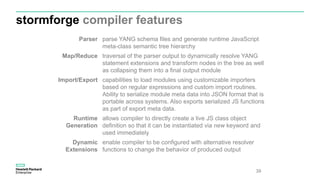

39. stormforge compiler features
39
Parser parse YANG schema files and generate runtime JavaScript
meta-class semantic tree hierarchy
Map/Reduce traversal of the parser output to dynamically resolve YANG
statement extensions and transform nodes in the tree as well
as collapsing them into a final output module
Import/Export capabilities to load modules using customizable importers
based on regular expressions and custom import routines.
Ability to serialize module meta data into JSON format that is
portable across systems. Also exports serialized JS functions
as part of export meta data.
Runtime
Generation
allows compiler to directly create a live JS class object
definition so that it can be instantiated via new keyword and
used immediately
Dynamic
Extensions
enable compiler to be configured with alternative resolver
functions to change the behavior of produced output

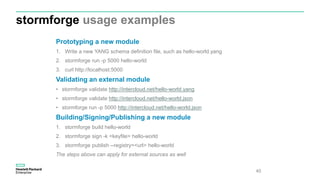

40. stormforge usage examples
40
Prototyping a new module
1. Write a new YANG schema definition file, such as hello-world.yang
2. stormforge run -p 5000 hello-world
3. curl http://localhost:5000
Validating an external module
• stormforge validate http://intercloud.net/hello-world.yang
• stormforge validate http://intercloud.net/hello-world.json
• stormforge run -p 5000 http://intercloud.net/hello-world.json
Building/Signing/Publishing a new module
1. stormforge build hello-world
2. stormforge sign -k <keyfile> hello-world
3. stormforge publish --registry=<url> hello-world
The steps above can apply for external sources as well

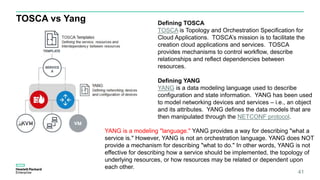

41. TOSCA vs Yang
41
Defining TOSCA
TOSCA is Topology and Orchestration Specification for
Cloud Applications. TOSCA’s mission is to facilitate the
creation cloud applications and services. TOSCA
provides mechanisms to control workflow, describe
relationships and reflect dependencies between
resources.
Defining YANG
YANG is a data modeling language used to describe
configuration and state information. YANG has been used
to model networking devices and services – i.e., an object
and its attributes. YANG defines the data models that are
then manipulated through the NETCONF protocol.
YANG is a modeling "language." YANG provides a way for describing "what a
service is." However, YANG is not an orchestration language. YANG does NOT
provide a mechanism for describing "what to do." In other words, YANG is not
effective for describing how a service should be implemented, the topology of
underlying resources, or how resources may be related or dependent upon
each other.

42. XML, Yang, HOT, TOSCA
XML, YAML and Yang = languages
XML: Extensible Markup Language (XML) is a simple, very
flexible text format
http://www.w3.org/XML/Core/#Publications
YAML: “YAML Ain't Markup Language” – inspired by XML but
simplified, more readable - data-oriented, rather than document
markup.
http://www.yaml.org
Ex; Sample VNFD Yaml (Tacker example):
https://github.com/openstack/tacker/blob/master/devstack/sampl
es/sample-vnfd.yaml
YANG: data modeling language used to model configuration and
state data manipulated by the Network Configuration Protocol
(IETF)
https://tools.ietf.org/html/rfc6020
• XML
Templates: HOT and TOSCA
HOT: Heat Orchestration Template
• Declarative
• YAML
TOSCA : Topology & Orchestration Standard for Cloud Application
(OASIS)
TOSCA NFV is refining TOSCA for NFV:
https://www.oasis-
open.org/committees/download.php/56577/tosca-nfv-v1.0-wd02-
rev03.doc
• Declarative & Imperative
• XML and now YAML
Ex: Sample TOSCA template in YAML (Cloudify example)
https://github.com/Orange-OpenSource/opnfv-cloudify-
clearwater/blob/master/openstack-blueprint.yaml
42http://fr.slideshare.net/openstackil/heat-tosca

43. TOSCA principles
43
TOSCA is made of following metadata:
- TOSCA Templates: Node, relationship (between node) and Topology
- Node Types with Capabilities and requirements
- Relationship Types with interfaces and properties
- Policies
A TOSCA Definitions document MUST define at least one of the elements :
ServiceTemplate, NodeType, NodeTypeImplementation, RelationshipType,
RelationshipTypeImplementation, RequirementType, CapabilityType, ArtifactType,
ArtifactTemplate, PolicyType, or PolicyTemplate
Simple example of a Node ‘Compute’ Template

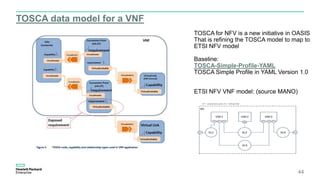

44. TOSCA data model for a VNF
44
TOSCA for NFV is a new initiative in OASIS
That is refining the TOSCA model to map to
ETSI NFV model
Baseline:
TOSCA-Simple-Profile-YAML
TOSCA Simple Profile in YAML Version 1.0
ETSI NFV VNF model: (source MANO)

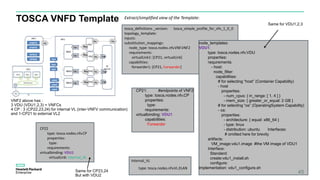

45. TOSCA VNFD Template
45
Extract/simplified view of the Template:
tosca_definitions _version: tosca_simple_profile_for_nfv_1_0_0
topology_template:
inputs:
subsititution_mappings:
node_type: tosca.nodes.nfv.VNF.VNF2
requirements:
virtualLink1: [CP21, virtualLink]
capabilities:
forwarder1: [CP21, Forwarder]
VNF2 above has :
3 VDU (VDU1,2,3) = VNFCs
4 CP : 3 (CP22,23,24) for internal VL (inter-VNFV communication)
and 1-CP21 to external VL2
CP21: #endpoints of VNF2
type: tosca.nodes.nfv.CP
properties:
type:
requirements:
virtualbinding: VDU1
capabilities:
Forwarder
node_templates:
VDU1:
type: tosca.nodes.nfv.VDU
properties:
requirements:
- host:
node_filter:
capabilities:
# for selecting “host” (Container Capability)
- host
properties:
- num_cpus: { in_range: [ 1, 4 ] }
- mem_size: { greater_or_equal: 2 GB }
# for selecting “os” (OperatingSystem Capability)
- os:
properties:
- architecture: { equal: x86_64 }
- type: linux
- distribution: ubuntu Interfaces:
# omitted here for brevity
artifacts:
VM_image:vdu1.image #the VM image of VDU1
Interface:
Standard:
create:vdu1_install.sh
configure:
implementation: vdu1_configure.sh
internal_VL
type: tosca.nodes.nfv.VL.ELAN
Same for VDU1,2,3
CP22
type: tosca.nodes.nfv.CP
properties:
type:
requirements:
virtualbinding: VDU1
virtualLink: internal_VL
Same for CP23,24
But with VDU2

46. Parsers & Yang
46
Parser URL Comment
Yang to TOSCA (? exists somewhere)
TOSCA to Yang Cloudify plug in at least , I think it is also in OpenStack (tbc)
TOSCA to HOT (Heat)
(OPNFV Parser)
https://github.com/op
enstack/heat-
translator
Contributed by HPE to OpenStack/OPNFV Parser - Heat-Translator
project takes a non-Heat template (e.g. TOSCA flat YAML template or template embedded in
TOSCA Cloud Service Archive (CSAR) format) as an input, calls an appropriate Parser (e.g.
TOSCA Parser) per the type of input template to parse it and create an in-memory graph, maps it
to Heat resources and then produces a Heat Orchestration Template (HOT) as an output.
YangForge (OPNFV
Promise)
https://github.com/op
nfv/yangforge
YangForge provides runtime JavaScript execution based on
YANG schema modeling language – IETF (RFC 6020).
StormForge http://github.com/stor
mstack/stormforge
Contributed by ClearPath – used in promise to model VIM NBI in
Yang
Yang plug-in for HPE
HPSA (HP only)
https://gitlab.ch.hpec
orp.net/hpsa/pluginN
etconfYang
Developed by HPE Portugal

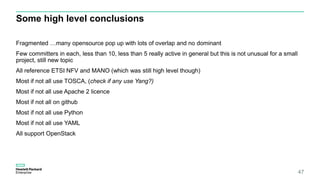

47. Some high level conclusions
Fragmented …many opensource pop up with lots of overlap and no dominant
Few committers in each, less than 10, less than 5 really active in general but this is not unusual for a small
project, still new topic
All reference ETSI NFV and MANO (which was still high level though)
Most if not all use TOSCA, (check if any use Yang?)
Most if not all use Apache 2 licence
Most if not all on github
Most if not all use Python
Most if not all use YAML
All support OpenStack
47

48. © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
Thankyou
