A short video & presentation looking at what is meant by Non-Terrestrial Networks or NTN as being defined by 3GPP
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
5G Network Architecture, Design and Optimisation3G4G
Presented by Prof. Andy Sutton, Principal Network Architect, Architecture & Strategy, TSO, BT at The IET '5G - State of Play' conference on 24th January 2018
*** SHARED WITH PERMISSION ***
Ericsson brings new updates to its 5G platform. Introducing 5G network services to support operators from preparation to 5G launch. Ericsson 5G services roadmap spans across three distinct phases, Prepare, Mobilize and Launch. Through our service offerings, Operators can now evolve their 4G network and smoothly start introducing 5G, reaching new heights on their journey to 5G.
A presentation on Cloud RAN fronthaul, current deployment Options, benefits and challenges. This was presented in the
iJOIN Winter School "5G Cloud Technologies: Benefits and Challenges", Bremen, 2015-02-23
Prof. Andy Sutton: 5G RAN Architecture Evolution - Jan 20193G4G
This presentation explores the evolution of GSM, UMTS and LTE radio access network architectures before a detailed review of the RAN architecture options for 5G. The functional decomposition of the 5G radio access network presents the network designer with many challenges with regards placement of RU, DU and CU nodes, all of which are discussed. The presentation concludes with a review of BT UK plans for 5G launch with a fully distributed RAN in support of an EN-DC architecture.
Presented by Professor Andy Sutton CEng FIET, Principal Network Architect, Architecture & Strategy, BT Technology at IET 5G - the Advent conference on 30 January 2019 | IET London: Savoy Place
*** SHARED WITH PERMISSION ***
What is active mobile network infrastructure sharing? Trends in active sharing. Why should regulators allow active sharing? Implementing the regulatory changes for active sharing. List of examples.
A short video & presentation looking at what is meant by Non-Terrestrial Networks or NTN as being defined by 3GPP
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
5G Network Architecture, Design and Optimisation3G4G
Presented by Prof. Andy Sutton, Principal Network Architect, Architecture & Strategy, TSO, BT at The IET '5G - State of Play' conference on 24th January 2018
*** SHARED WITH PERMISSION ***
Ericsson brings new updates to its 5G platform. Introducing 5G network services to support operators from preparation to 5G launch. Ericsson 5G services roadmap spans across three distinct phases, Prepare, Mobilize and Launch. Through our service offerings, Operators can now evolve their 4G network and smoothly start introducing 5G, reaching new heights on their journey to 5G.
A presentation on Cloud RAN fronthaul, current deployment Options, benefits and challenges. This was presented in the
iJOIN Winter School "5G Cloud Technologies: Benefits and Challenges", Bremen, 2015-02-23
Prof. Andy Sutton: 5G RAN Architecture Evolution - Jan 20193G4G
This presentation explores the evolution of GSM, UMTS and LTE radio access network architectures before a detailed review of the RAN architecture options for 5G. The functional decomposition of the 5G radio access network presents the network designer with many challenges with regards placement of RU, DU and CU nodes, all of which are discussed. The presentation concludes with a review of BT UK plans for 5G launch with a fully distributed RAN in support of an EN-DC architecture.
Presented by Professor Andy Sutton CEng FIET, Principal Network Architect, Architecture & Strategy, BT Technology at IET 5G - the Advent conference on 30 January 2019 | IET London: Savoy Place
*** SHARED WITH PERMISSION ***
What is active mobile network infrastructure sharing? Trends in active sharing. Why should regulators allow active sharing? Implementing the regulatory changes for active sharing. List of examples.
Intermediate: 5G Applications Architecture - A look at Application Functions ...3G4G
In this tutorial we look at the 5G Applications architecture. We discuss 5G applications, application functions and application servers and how they fit together in a 5G Service Based Architecture
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
AN UPDATED VERSION OF THIS IS AVAILABLE HERE: https://www.slideshare.net/3G4GLtd/beginners-5g-terminology-updated-feb-2019
A short video looking at 5G terminology that is being used in standards and specifications.
Shared/unlicensed spectrum is important for 5G and is valuable for wide range of deployments from extreme bandwidth by aggregating spectrum, enhanced local broadband to Internet of Things verticals. 5G New Radio (NR) will natively support all different spectrum types and is designed to take advantage of new sharing paradigms. We are pioneering 5G shared spectrum today by building on LTE-U/LAA, LWA, CBRS/LSA and MulteFire.
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3G4G
This SON tutorial is part of the 3GPP Self-Organizing Networks series (#3GPPSONSeries). In this part we will look at SON Management in Heterogeneous Networks (HetNets), including Enhanced ICIC (eICIC) and Further Enhanced ICIC (FeICIC)
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
SON Page: https://www.3g4g.co.uk/SON/
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
A quick look at 5G System architecture in Reference point representation and in Service Based representation and also look at the different Network Functions (NFs) within the 5G System.
With the components already introduced to the market, we are making the platform truly end-to-end by launching;
- The market’s first complete 5G radio system
- The first version of an E2E Core network capable of 5G use cases based on network slices
- A 5G core network which can now be connected to 5G NR radio
This enables already today some 5G use cases, for telecom operators to capture growth opportunities for 5G & Internet of Things services for Consumers & Enterprises.
3GPP Packet Core Towards 5G Communication SystemsOfinno
This presentation provides an overview of 3GPP packet core and 5G systems. Some enabler features are outlined, such as network slicing. This presentation was prepared for the 20th Annual International Conference on Next Generation Internet and Related Technologies Net-Centric 2017 that was held at George Mason University.
Next-Generation Wireless Overview & Outlook Update 12/8/21Mark Goldstein
Mark Goldstein of International Research Center presented a Next-Gen Wireless Overview & Outlook to the IEEE Computer Society Phoenix (https://ewh.ieee.org/r6/phoenix/compsociety/) on Wednesday, 12/8/21. He explored the next-generation wireless landscape with its underlying emerging technologies, protocols & standards, market trends & opportunities in a deep dive presentation covering all of today's wireless essentials. New spectrum and technologies driven by a rapidly evolving application landscape will be served up in innovative ways through 5G/6G mobile, Wi-Fi 6E, CBRS, White Space, mmWave, satellite & varieties of LPWAN connecting billions of new IoT sensors & devices spread around smart spaces & enabling autonomous transportation. Explore emerging wireless advances, roadblocks & operational challenges bringing you the insight and strategies to leverage emerging wireless opportunities going forward.
This presentation gives a summary of SDXCentral 2017 Report on NFV Industry and its trends. The presentation gives jump start for beginners to navigate through NFV forest by getting necessary details and expand understanding elaborating each piece of puzzle.
How to build high performance 5G networks with vRAN and O-RANQualcomm Research
5G networks are poised to deliver an unprecedented amount of data from a richer set of use cases than we have ever seen. This makes efficient networking in terms of scalability, cost, and power critical for the sustainable growth of 5G. Cloud technologies such as virtualization, containerization and orchestration are now powering a surge of innovation in virtualized radio access network (vRAN) infrastructure with modular hardware and software components, and standardized interfaces. While commercial off-the-shelf (COTS) hardware platforms provide the compute capacity for running vRAN software, hardware accelerators will also play a major role in offloading real-time and complex signal processing functions. Together, COTS platforms and hardware accelerators provide the foundation for building the intelligent 5G network and facilitate innovative new use cases with the intelligent wireless edge.
This presentation covers an industry perspective and a roadmap towards 5G with open and democratized interfaces. It covers examples of open reference platforms and how open source communities can complement standard bodies such as 3GPP and IEEE. It characterizes RAN and user and control plane core micro services and discusses opportunities for embedded network telemetry for emerging machine learning applications.
Speaker: Tom Tofigh, Principal Member of Technical Staff (Architect) at AT&T
Transforming enterprise and industry with 5G private networksQualcomm Research
The 3GPP put the spotlight on industry expansion in July with 5G NR Release 16 and set the stage for enterprise and industry verticals to look at how to provide high-performance wireless connectivity with 5G private networks. With a variety of options for spectrum, different network architectures, a rich feature set to meet the demanding needs of the industrial Internet of Things (IIoT), and the privacy and security required for business assurance, 5G private networks are poised to transform enterprise and industry.
Watch the webinar at: https://pages.questexnetwork.com/Webinar-Qualcomm-Registration-101520.html?source=Qualcomm
With 5G comes slicing that will greatly benefit to the Automotive Industry to have virtual dedicated networks for different traffic, from Safety highly reliable to entertainment or less critical sensor data collection
Monitor OpenStack Environments from the bottom up and front to backIcinga
Talk given by Thomas Stocking at Icinga Camp San Francisco 2016 - https://www.icinga.org/community/events/archive/2016-archive/icinga-camp-san-francisco/
Intermediate: 5G Applications Architecture - A look at Application Functions ...3G4G
In this tutorial we look at the 5G Applications architecture. We discuss 5G applications, application functions and application servers and how they fit together in a 5G Service Based Architecture
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
AN UPDATED VERSION OF THIS IS AVAILABLE HERE: https://www.slideshare.net/3G4GLtd/beginners-5g-terminology-updated-feb-2019
A short video looking at 5G terminology that is being used in standards and specifications.
Shared/unlicensed spectrum is important for 5G and is valuable for wide range of deployments from extreme bandwidth by aggregating spectrum, enhanced local broadband to Internet of Things verticals. 5G New Radio (NR) will natively support all different spectrum types and is designed to take advantage of new sharing paradigms. We are pioneering 5G shared spectrum today by building on LTE-U/LAA, LWA, CBRS/LSA and MulteFire.
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3G4G
This SON tutorial is part of the 3GPP Self-Organizing Networks series (#3GPPSONSeries). In this part we will look at SON Management in Heterogeneous Networks (HetNets), including Enhanced ICIC (eICIC) and Further Enhanced ICIC (FeICIC)
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
SON Page: https://www.3g4g.co.uk/SON/
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
A quick look at 5G System architecture in Reference point representation and in Service Based representation and also look at the different Network Functions (NFs) within the 5G System.
With the components already introduced to the market, we are making the platform truly end-to-end by launching;
- The market’s first complete 5G radio system
- The first version of an E2E Core network capable of 5G use cases based on network slices
- A 5G core network which can now be connected to 5G NR radio
This enables already today some 5G use cases, for telecom operators to capture growth opportunities for 5G & Internet of Things services for Consumers & Enterprises.
3GPP Packet Core Towards 5G Communication SystemsOfinno
This presentation provides an overview of 3GPP packet core and 5G systems. Some enabler features are outlined, such as network slicing. This presentation was prepared for the 20th Annual International Conference on Next Generation Internet and Related Technologies Net-Centric 2017 that was held at George Mason University.
Next-Generation Wireless Overview & Outlook Update 12/8/21Mark Goldstein
Mark Goldstein of International Research Center presented a Next-Gen Wireless Overview & Outlook to the IEEE Computer Society Phoenix (https://ewh.ieee.org/r6/phoenix/compsociety/) on Wednesday, 12/8/21. He explored the next-generation wireless landscape with its underlying emerging technologies, protocols & standards, market trends & opportunities in a deep dive presentation covering all of today's wireless essentials. New spectrum and technologies driven by a rapidly evolving application landscape will be served up in innovative ways through 5G/6G mobile, Wi-Fi 6E, CBRS, White Space, mmWave, satellite & varieties of LPWAN connecting billions of new IoT sensors & devices spread around smart spaces & enabling autonomous transportation. Explore emerging wireless advances, roadblocks & operational challenges bringing you the insight and strategies to leverage emerging wireless opportunities going forward.
This presentation gives a summary of SDXCentral 2017 Report on NFV Industry and its trends. The presentation gives jump start for beginners to navigate through NFV forest by getting necessary details and expand understanding elaborating each piece of puzzle.
How to build high performance 5G networks with vRAN and O-RANQualcomm Research
5G networks are poised to deliver an unprecedented amount of data from a richer set of use cases than we have ever seen. This makes efficient networking in terms of scalability, cost, and power critical for the sustainable growth of 5G. Cloud technologies such as virtualization, containerization and orchestration are now powering a surge of innovation in virtualized radio access network (vRAN) infrastructure with modular hardware and software components, and standardized interfaces. While commercial off-the-shelf (COTS) hardware platforms provide the compute capacity for running vRAN software, hardware accelerators will also play a major role in offloading real-time and complex signal processing functions. Together, COTS platforms and hardware accelerators provide the foundation for building the intelligent 5G network and facilitate innovative new use cases with the intelligent wireless edge.
This presentation covers an industry perspective and a roadmap towards 5G with open and democratized interfaces. It covers examples of open reference platforms and how open source communities can complement standard bodies such as 3GPP and IEEE. It characterizes RAN and user and control plane core micro services and discusses opportunities for embedded network telemetry for emerging machine learning applications.
Speaker: Tom Tofigh, Principal Member of Technical Staff (Architect) at AT&T
Transforming enterprise and industry with 5G private networksQualcomm Research
The 3GPP put the spotlight on industry expansion in July with 5G NR Release 16 and set the stage for enterprise and industry verticals to look at how to provide high-performance wireless connectivity with 5G private networks. With a variety of options for spectrum, different network architectures, a rich feature set to meet the demanding needs of the industrial Internet of Things (IIoT), and the privacy and security required for business assurance, 5G private networks are poised to transform enterprise and industry.
Watch the webinar at: https://pages.questexnetwork.com/Webinar-Qualcomm-Registration-101520.html?source=Qualcomm
With 5G comes slicing that will greatly benefit to the Automotive Industry to have virtual dedicated networks for different traffic, from Safety highly reliable to entertainment or less critical sensor data collection
Monitor OpenStack Environments from the bottom up and front to backIcinga
Talk given by Thomas Stocking at Icinga Camp San Francisco 2016 - https://www.icinga.org/community/events/archive/2016-archive/icinga-camp-san-francisco/
Network visibility and control using industry standard sFlow telemetrypphaal
• Find out about the sFlow instrumentation built into commodity data center network and server infrastructure.
• Understand how sFlow fits into the broader ecosystem of NetFlow, IPFIX, SNMP and DevOps monitoring technologies.
• Case studies demonstrate how sFlow telemetry combined with automation can lower costs, increase performance, and improve security of cloud infrastructure and applications.
In this presentation, Kaz Ohta, Kiyoto Tamura, and Ankush Rustagi from Treasure Data describe the company's Cloud Data Warehouse service.
"The Treasure Data Cloud Data Warehouse service enables companies to get big data analytics running in days not months without specialist IT resources and for a tenth the cost of other alternatives. Traditional data warehousing solutions - even modern alternatives such as Hadoop - are too expensive, complex and take too long for many companies to implement, so the idea of quickly launching a data warehouse service that uses the power and economics of the Cloud for companies of any size, opens up a huge potential market."
Learn more at: http://treasure-data.com * Watch the presentation video: http://inside-bigdata.com/?p=3531
Data collection and storage is a primary challenge for any big data architecture. In this session, we will describe the different types of data that customers are handling to drive high-scale workloads on AWS, and help you choose the best approach for your workload. We will cover optimization techniques that improve performance and reduce the cost of data ingestion.AWS services to be covered include: Amazon S3, DynamoDB, and Kinesis.
Cloud Network Virtualization with Juniper Contrailbuildacloud
Description: Contrail Technology will be discussed covering architecture, capabilities and use cases. It will be followed by a demonstration on current Contrail implementation on CloudStack/Openstack.
Parantap works as a Sr. Director of Solutions Engineering for Contrail Product within Juniper. Before Juniper, Parantap led the network architecture team for Microsoft Online Services (Windows Azure, MS Bing). Prior to Microsoft, Parantap worked as a core engineering manager for UUNet Technologies building Internet backbones.
Sergei Gotchev, Juniper Networks
Juniper Day, Praha, 13.5.2015
Jestliže SlideShare nezobrazí prezentaci korektně, můžete si ji stáhnout ve formátu .ppsx nebo .pdf (kliknutím na tlačitko v dolní liště snímků).
How will virtual networks, controlled by software, impact OSS systems?Comarch
Presentation from the OSS side of the story. How will the network change in the futur when entering the Zettabyte era? SDN/NFV explanations for the future of Telcos.
Meaningful and Necessary Operations on Behalf of NFVMichelle Holley
Uri Elzur shares his expertise in the challenging space of cloud networking. Uri is a networking specialist with more than 25 years of industry experience and is the CTO of Intel’s Data Center Network Solution Group.
Cloudify: Open vCPE Design Concepts and Multi-Cloud OrchestrationCloudify Community
See how open vCPE can be achieved in the real world and in action, while integrating other VNFs into the service chain, while easily instantiating and managing on any cloud, leveraging open orchestration design concepts. More and more vendors are looking to not only easily onboard their VNFs to the cloud, but also build a stack that is versatile and not locked into one cloud provider or vendor. Join this webinar and learn how Datavision and Cloudify are helping deliver this end-to-end solution across the globe
Presented at TM Forum Live ! on May 16th 2017
by Red Hat - François Duthilleul Telco Solutions Architect
For the past few decades, telecommunications networks have been built using closed-source monolithic products from network equipment vendors. Today, Network Functions Virtualization (NFV) and Software Defined Networking (SDN) are disrupting the way telecommunications networks are being built and operated and are gradually becoming the foundation of modern networking. The introduction of virtualisation, automation and orchestration provides the basis from which the networks will evolve towards a Zero-touch Orchestration, Operations and Management (ZOOM) target.
This presentation highlights the prominent role of open source and Red Hat’s portfolio in the implementation of future networks.
Don't hesitate to contact me at: fduthill@redhat.com
Analysis of basic Architectures used for Lifecycle Management and Orchestrati...rahulmonikasharma
The Network Function Virtualization (NFV), Software Defined Networking are technologies, so which are in combination inorder to provide a high flexibility for network and dynamical continuum of resources for the deployment of services in the environment of high network programmability. A Network Function Virtualization Orchestration (NFVO) is an important topic played a major role in above scenario and in high availability of Virtual Network Functions (VNF), lifecycle and configuration management of network elements. However, the hardware usage is one of the obstacle towards network programmability and is generally considered as a contrast with respect to NFV concepts. In this paper shows many architectures, workflow in virtualization environment, compatibility, flexibility is discussed. These architectures involve in great enhancement of network infrastructure in virtualized environment. Each architecture is needed to gain better results in network function virtualization environment.
NFV is "network function virtualization" and is a hot topic in virtualization and cloud infrastructure. This presentation walks through what NFV is and how the ManageIQ community could potentially integrate with various NFV implementations.
For more on ManageIQ, see http://manageiq.org/
Research Challenges and Opportunities in the Era of the Internet of Everythin...Stenio Fernandes
Currently there is increasing interest in scientific research on network traffic management for advanced scenarios (e.g. Internet of Everything (IoE), Everything as a Service (XaaS), Smart Cities, and the like) and their respective demands for novel network services. Such networked applications bring massive amounts of traffic data to be processed in real-time, thus driving researchers to develop affordable yet efficient network management systems. In fact, new paradigms, services, and architectures, such as Network Virtualization (NV), Software-Defined Networking (SDN), Distributed Cloud Computing, Network Functions Virtualization (NFV), Service Function Chaining (SFC), etc, will require robust and dynamic capabilities to support a myriad of possibilities for applications from the IoE and XaaS concepts. For example, there is a need for an in-depth understanding of the composition and the dynamics of Internet traffic to perform accurate capacity planning, deploy efficient management policies and pricing strategies, assess protocol performance, and detect abnormalities in such scenarios. Research on measurement, modeling, and analysis of network traffic and infrastructure always face new challenges as new applications are continuously deployed.
In this talk, I will discuss the rise of IoE and XaaS as well as the demand for advanced networking services, paradigms, and architectures (e.g., SDN, NFV). I will give an overview of some challenges, opportunities, and directions in these research topics.
The next generation mobile network will be built on open source software. It will be highly scalable, elastic, and extremely robust in order to handle the exponential increase in traffic including video, the IoT, and increasingly smarter devices. OPNFV will be the reference platform for operators to enable rapid deployment of new services, automated provisioning, security and a DevOps workflow for upgrades and maintenance. Huawei CTO Yingtao Li will speak about the next generation mobile architecture built on OPNFV and how it meets the needs of operators as they roll out new, software based networks.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Cosmetic shop management system project report.pdf
NFV Tutorial
1. Network Functions Virtualization
Conception, Present & Future
Rashid Mijumbi, Waterford Institute of Technology
Niels Bouten, Ghent University
Network Operations and Management Symposium (NOMS)
April 29, 2016
Istanbul, Turkey
2. Outline
PART 1: Theory
Conception
A. Motivation, History, Concept, Anticipated benefits
B. Architecture, Business Model, Related Concepts (SDN, Cloud Computing)
C. Examples (Use Cases)
Present (State-of-the-art)
A. NFV Proofs of Concept
B. Collaborative Academic and Industrial Projects
C. (Some) Products
Future (Research Challenges)
A. Management and Orchestration, Information Modelling, NFV Performance, Energy Efficiency, Security
B. Research directions in selected NFV use cases such as Internet of Things, Information-Centric Networking
PART 2: Hands-on
Virtualized IP Multimedia Subsystem
A. Introduction to IMS and Clearwater’s virtualised IMS
B. Description of setup: Resources, Management (OpenStack).
C. Hands-on
2 of 140
3. Conception
PART 1.1
Motivation, History (Including NFV timeline), Concept, Anticipated benefits
Architecture, Business Model, Related Concepts (SDN, Cloud Computing)
Examples (Use Cases)
3 of 140
4. Global Traffic Trend
Continuously increasing user requirements: more data, rapidly changing
services: Increased CAPEX
40
60
80
100
120
140
160
180
2014 2015 2016 2017 2018 2019
Exabytespermonth
Data Source: Cisco VNI Global IP Traffic Forecast, 2014–2019. May 2015.
1 exabyte = 1 000 000 000 gigabytes
4 of 140
5. Proprietary Equipment
Networks with proprietary equipment, long product development cycles:
Increased OPEX
Adapted from: Network Functions Virtualization - Everything Old Is New Again. F5 White
Paper. August 2013
5 of 140
6. Declining Revenues
Increased competition amoung each other (SPs) and from OTT: No
corresponding increase in Revenue
0
5
10
15
20
25
30
35
40
45
2008 2009 2010 2011 2012 2013 2014 2015
Fixed Broadband Mobile Total
Data Source: European Telecommunications Network Operators’ Association, Annual Economic
Report. 2015. Includes Turkey, excludes Georgia, Russia, Ukraine
ARPU in Europe
6 of 140
7. Call for Action
A joint operator call for the Telecom and IT industry to take
action to increase service agility, network flexibility and
reduce CAPEX and OPEX
http://portal.etsi.org/NFV/NFV_White_Paper.pdf
October 2012
November 2012: Some of the operators selected the European
Telecommunications Standards Institute (ETSI) to be the home
of the Industry Specification Group for NFV
7 of 140
8. Network Functions Virtualisation (NFV)
Adapted from: Network Functions Virtualization - Everything Old Is New Again. F5 White
Paper. August 2013
Classical Network Model: Hardware Appliances
Leverage advances in virtualisation decouple network functions from dedicated
hardware to run them on standard servers, storage and switches
Virtual Router
Virtual Firewall
Virtual NAT
Virtual CDN Virtual RAN
NFV Model: Virtual Appliances
8 of 140

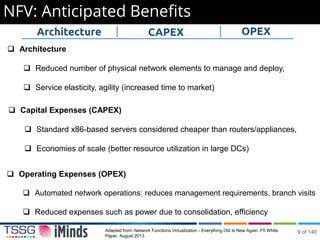

9. NFV: Anticipated Benefits
Adapted from: Network Functions Virtualization - Everything Old Is New Again. F5 White
Paper. August 2013
Architecture
Reduced number of physical network elements to manage and deploy,
Service elasticity, agility (increased time to market)
Capital Expenses (CAPEX)
Standard x86-based servers considered cheaper than routers/appliances,
Economies of scale (better resource utilization in large DCs)
Operating Expenses (OPEX)
Automated network operations: reduces management requirements, branch visits
Reduced expenses such as power due to consolidation, efficiency
Architecture CAPEX OPEX
9 of 140
10. Anticipated Benefits Survey
Source: sdxcentral.com ,
Reduce Capital
Expenditures
13% Accelerate Time To
Market
14%
Reduce Operational
Expenditures
23%
Deliver Agility and
Flexibility
50%
SDxCentral survey involving 79 end-user respondents, including service providers, (46%), cloud service
providers (14%), enterprise end users (14%) and a variety of others (24%) from user communities.
NFV Hardware, Software, and Services had an estimated EUR 2.1 Bn value
in 2015, forecast to grow to EUR 10.6 Bn in 2019, [50% CAGR]
IHS Infonetics NFV Hardware, Software, and Services Report, 2015. https://www.ihs.com/index.html
10 of 140
11. NFV Timeline
10 11 12 01 02 03 04 05 06 07 08 09 10 11 12 01 02 03 04 05 06 07 08 09 10 11 12 01 02 03 04 05 06 07 08 09 10 11 12 01 02 03 04
2012 2013 2014 2015 2016
Operator White paper: Call for Action
ETSI is chosen as “home of NFV”
1st meeting of the NFV ISG
20+ carriers and 100+ participants.
Detailed
Documents
- Use cases v2
- Requirements v2
- Architectural Framework v2
- Terminology v2
- PoC Execution and Results
~3.5 years later, over 270 individual companies
including 38 of the world's major service providers.

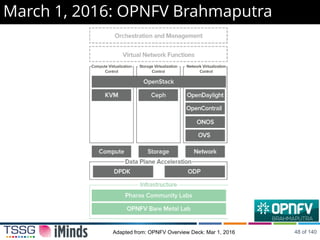

OPNFV ARNO
OPNFVBrahmaputra
https://docbox.etsi.org/ISG/NFV/Open/Other/NFV(16)000098r2_ETSI_NFV_Announcement_on_th
e_Evolution_of_Its_Release_2.docx
Publication of ETSI
NFV Release 2
Documents planned
for May 2016
High Level NFV
ISG Documents
- Use cases
- Requirements
- Architectural Framework
- Terminology
- PoC Framework
2nd White Paper
1st Year of NFV
3rd White Paper
2nd Year of NFV
11 of 140
13. VNFs
A NF is an element within a network with well defined external interfaces and functional behavior e.g. DHCP,
firewall
VNF is an implementation of an NF that is deployed on virtual resources such as a VM
A service is an offering provided by a TSP that is composed of one or more NFs.
13 of 140
14. VNF Design Patterns
Internal Structure
Virtualization
container
VNFC 1 VNFC 2
VNFC 4 VNFC 3
VNF with multiple
components
VNFC 1
VNF with single
component
VNF 1 VNF 1
VNF Instantiation VNFC 1
Non-parallelizable
VNFC
VNF 1
[1:1]
parallelizable VNFC
(min. & max. # of instances
VNF 1
VNFC 1
[1:n]
VNFC States
VNFC 1
Stateless VNFC
VNF 1
state
VNFC 1
Stateful VNFC
VNF 1
state
stateVNFC 1
VNFC with
external state
VNF 1
14 of 140

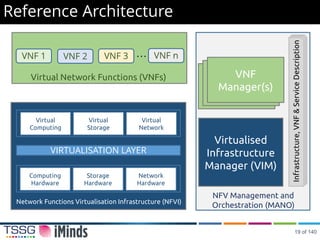

19. NFV MANO
Provides functionality required for the
provisioning of VNFs, and the related
operations, such as the configuration of the
VNFs and the infrastructure these functions
run on
Orchestration and lifecycle management of
physical and/or software resources that
support the infrastructure virtualization, and
the lifecycle management of VNFs,
Databases that are used to store the
information and data models which define
both deployment as well as lifecycle
properties of functions, services, and
resources.
22 of 140
20. NFV MANO
Manage/control NFVI resources in a single
domain.
NFV architecture may contain more than one
VIM, with each of them responsible for one
domain
Each VNF instance is has a VNFM.
For the management of the lifecycle of VNFs.
May be assigned the management of a single or
multiple VNF instances of the same or different
types
Combine more than one function so as to
create end-to-end services.
resource orchestration,
service orchestration
NFV Orchestrator
23 of 140
21. NFV MANO
Operation System Support, Business System Support
Element Management
Network Management Systems
NFV Orchestrator
24 of 140

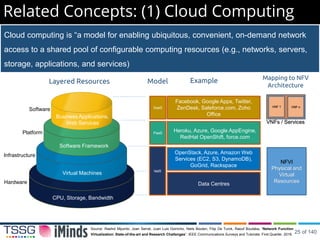

22. Related Concepts: (1) Cloud Computing
Hardware
Infrastructure
Platform
Software
CPU, Storage, Bandwidth
Business Applications,
Web Services
Virtual Machines
Software Framework
Layered Resources
Mapping to NFV
Architecture
NFVI
Physical and
Virtual
Resources
VNF 1 VNF n
VNFs / Services
IaaS
Data Centres
PaaS
SaaS
Facebook, Google Apps, Twitter,
ZenDesk, Saleforce.com, Zoho
Office
Model Example
Heroku, Azure, Google AppEngine,
RedHat OpenShift, force.com
OpenStack, Azure, Amazon Web
Services (EC2, S3, DynamoDB),
GoGrid, Rackspace
Source: Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Raouf Boutaba, “Network Function
Virtualization: State-of-the-art and Research Challenges”. IEEE Communications Surveys and Tutorials. First Quarter, 2016.
Cloud computing is “a model for enabling ubiquitous, convenient, on-demand network
access to a shared pool of configurable computing resources (e.g., networks, servers,
storage, applications, and services)
25 of 140
23. NFV vs Cloud Computing
NOT just transferring telecom network functions to the cloud
NFV Cloud Computing
Approach Service/Function Abstraction Computing Abstraction
Formalization ETSI NFV Industry Standard Group
DMTF Cloud Management Working
Group
Latency Expectations for low latency Some latency is acceptable
Protocol
Multiple Control Protocols (e.g OpenFlow,
SNMP)
OpenFlow
Reliability Strict 5 NINES availability requirements Less strict reliability requirements
Need for high availability for VNFs
Multi-tenancy: VNFs that deploy not just for a single customer but for a large number.
Interior network features like “virtual core routing” could be associated with a large-scale network
virtualization application.
26 of 140
24. ETSI Use Cases
Network Functions Virtualization Infrastructure as a Service (NFVIaaS)
Virtual Network Function as a Service (VNFaaS)
Virtual Network Platform as a Service (VNPaaS)
Service Chains (VNF Forwarding Graphs)
Virtualization of Mobile Core Network and IMS
Virtualization of Mobile base station
Virtualization of CDNs
Virtualization of the Home Environment
Fixed Access Network Functions Virtualization
CloudMobileCDNAccess
ArchitectureOrientedServiceOriented
27 of 140
25. Architecture Use Cases
Adapted from D.R. Lopez, “Moving along the NFV Way”, May 2014
IaaS
NaaS
NFVIaaS
Administrative
Domain 1
Administrative
Domain 2
IaaS
NaaS
NFVIaaS
VNFs controlled by
Admin Domain 1VNF VNF
VNF
VNF
VNF
VNF
E2E service abstraction of the
service provided by domain 1
VNF NFVIaaS Maps the Cloud Service
Models IaaS and NaaS to
NFV
VNFaaS Maps the Cloud Service
Model SaaS to NFV, where
a SP offers VNFs to its
customers
VNPaaS SP offers a platform to
customers on which they
can deploy their compatible
VNFs
28 of 140

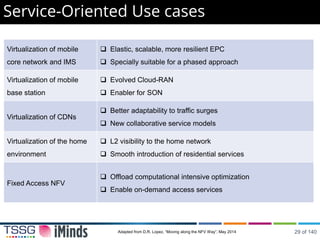

26. Service-Oriented Use cases
Adapted from D.R. Lopez, “Moving along the NFV Way”, May 2014
Virtualization of mobile
core network and IMS
Elastic, scalable, more resilient EPC
Specially suitable for a phased approach
Virtualization of mobile
base station
Evolved Cloud-RAN
Enabler for SON
Virtualization of CDNs
Better adaptability to traffic surges
New collaborative service models
Virtualization of the home
environment
L2 visibility to the home network
Smooth introduction of residential services
Fixed Access NFV
Offload computational intensive optimization
Enable on-demand access services
29 of 140
27. Virtualised CPE
Source: Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Raouf Boutaba, “Network Function
Virtualization: State-of-the-art and Research Challenges”. IEEE Communications Surveys and Tutorials. First Quarter, 2016.
30 of 140
28. Virtualised EPC
Access Network
(E-UTRAN)
User Equipment
Evolved Packet Core (EPC)
eNodeB eNodeB
S-GW MME
PCRF P-GW
External Networks
Source: Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Raouf Boutaba, “Network Function Virtualization:
State-of-the-art and Research Challenges”. IEEE Communications Surveys and Tutorials. First Quarter, 2016.
IMS
Access Network
(E-UTRAN)
User Equipment
VNFs
eNodeB eNodeB
S-GW
MME
PCRF
P-GW
External Networks
Data Centers
IMS
31 of 140
29. Virtualised RAN
RRH
RRH
RRH
BBU
BBU
BBU
eNodeB
eNodeB
eNodeB
Evolved Packet
Core
RRH
RRH
RRH
Centralized BBUs
Evolved
Packed Core
Front haul Front haul
Fronthaul
Source: Rashid Mijumbi, Joan Serrat, Juan-Luis Gorricho, Javier Rubio-Loyola and Steven Davy, “Server Placement and Assignment in Virtualized Radio Access
Networks”, IEEE/IFIP CNSM, International Workshop on Management of SDN and NFV Systems, Barcelona, Spain. September 2015
32 of 140
30. Use Cases Ranked
Data source: sdxcentral.com
78%
51%
41%
27%
4%
0%
10%
20%
30%
40%
50%
60%
70%
80%
Virtual CPE Virtualized EPC Service Chaining as
Part of Sgi/Gi-LAN
Deployment
Virtualized RAN Others
SDxCentral survey involving 79 end-user respondents, including service
providers, (46%), cloud service providers (14%), enterprise end users (14%)
and a variety of others (24%) from user communities.
33 of 140
31. Business Model
Brokers
Infrastructure Provider (InP)
Computing, Storage, Network Resources
UserTelecommunications Service
Provider (TSP)
2
3
4
VNF Provider
(VNFP)
Server Provider
(SP)
1
2
Source: Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Raouf Boutaba, “Network Function
Virtualization: State-of-the-art and Research Challenges”. IEEE Communications Surveys and Tutorials. First Quarter, 2016.
34 of 140

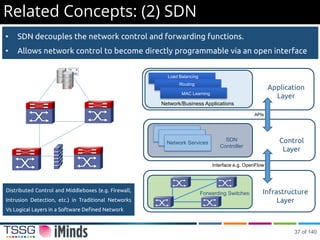

32. Related Concepts: (2) SDN
Distributed Control and Middleboxes (e.g. Firewall,
Intrusion Detection, etc.) in Traditional Networks
Vs Logical Layers in a Software Defined Network
• SDN decouples the network control and forwarding functions.
• Allows network control to become directly programmable via an open interface
SDN
Controller
Infrastructure
Layer
Application
Layer
APIs
Interface e.g. OpenFlow
Load Balancing
Routing
MAC Learning
Network/Business Applications
Network Services Control
Layer
Forwarding Switches
37 of 140
33. NFV vs SDN
NFV SDN
Approach Service/Function Abstraction Networking Abstraction
Formalization ETSI ONF
Advantage
Promises to bring flexibility and cost
reduction
Promises to bring unified programmable
control and open interfaces
Protocol
Multiple control protocols (e.g SNMP,
NETCONF)
OpenFlow is de-facto standard
Applications
run
Commodity servers and switches
Commodity servers for control plane and
possibility for specialized hardware for data
plane
NFV and SDN may be highly complimentary
NFV differs from the virtualization concept as used in the SDN architecture
39 of 140
34. NFV vs Cloud vs SDN
Source: Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Raouf Boutaba, “Network Function
Virtualization: State-of-the-art and Research Challenges”. IEEE Communications Surveys and Tutorials. First Quarter, 2016. 40 of 140

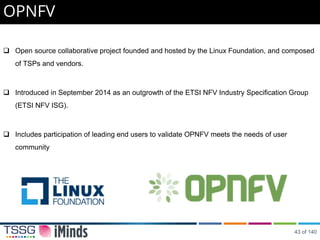

37. Open source collaborative project founded and hosted by the Linux Foundation, and composed
of TSPs and vendors.
Introduced in September 2014 as an outgrowth of the ETSI NFV Industry Specification Group
(ETSI NFV ISG).
Includes participation of leading end users to validate OPNFV meets the needs of user
community
OPNFV
43 of 140
38. Develop an integrated and tested open source platform that can be used to build NFV
functionality, accelerating the introduction of new products and services
Contribute to and participate in relevant open source projects that will be leveraged in the
OPNFV platform; ensure consistency, performance and interoperability among open source
components
Establish an ecosystem for NFV solutions based on open standards and software to meet the
needs of end users
Promote OPNFV as the preferred platform and community for open source NFV
OPNFV Objectives
Objective is to establish a carrier-grade integrated open source reference
platform that may be used to validate multi-vendor interoperable NFV solutions.
44 of 140
41. June 4, 2015: OPNFV Arno
Initial build of the NFV Infrastructure (NFVI)
and Virtual Infrastructure Manager (VIM)
components of ETSI NFV architecture.
Baseline foundation to enable continuous
integration, automated deployment and testing
of components necessary to build an NFV
platform from upstream components such as
OpenDaylight, OpenStack, Open vSwitch,
Ceph & KVM.
Aimed at exploring NFV deployments,
developing VNF applications, or NFV
performance and use case-based testing.
[10/01/2015] Arno SR1: Designed to address known issues in the
initial release for incremental stability and improved predictability.
47 of 140
42. March 1, 2016: OPNFV Brahmaputra
Adapted from: OPNFV Overview Deck: Mar 1, 2016 48 of 140

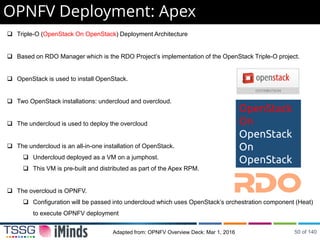

44. OPNFV Deployment: Apex
Adapted from: OPNFV Overview Deck: Mar 1, 2016
Triple-O (OpenStack On OpenStack) Deployment Architecture
Based on RDO Manager which is the RDO Project’s implementation of the OpenStack Triple-O project.
OpenStack is used to install OpenStack.
Two OpenStack installations: undercloud and overcloud.
The undercloud is used to deploy the overcloud
The undercloud is an all-in-one installation of OpenStack.
Undercloud deployed as a VM on a jumphost.
This VM is pre-built and distributed as part of the Apex RPM.
The overcloud is OPNFV.
Configuration will be passed into undercloud which uses OpenStack’s orchestration component (Heat)
to execute OPNFV deployment
OpenStack
On
OpenStack
On
OpenStack
50 of 140
45. ETSI-hosted project to develop an Open Source NFV MANO software stack aligned with ETSI
NFV.
ETSI OSM was announced on 22 February 2016
Aligned to ETSI NFV
To provide a regularly updated reference implementation of NFV MANO
Open Source
Apache License 2.0, using open source tools and methods
Telefonica’s OpenMANO, Canonicals’s Juju Charms and Rift.io Orchestrator
Open Community
Participation is open to members as well as non-members of ETSI as well as individual
developers
ETSI Open Source MANO (OSM)
51 of 140
47. OSM vs OPNFV
VIRTUALISATION LAYER
Computing
Hardware
Storage
Hardware
Network
Hardware
Virtual
Computing
Virtual
Storage
Virtual
Network
NFVI
Virtualised
Infrastructure
Manager (VIM)
NFV Management and
Orchestration (MANO)
OPNFV Scope
OSM Scope
SO
NFV Orchestrator
53 of 140
48. OSM Members: April 06, 2016
ParticipantsMembers
Within the next two months [May/June], OSM will launch Release 0, integrating and
documenting the code base from Telefonica, RIFT.io, Canonical and others.
New OSM releases are to be issued every six months
https://osm.etsi.org/ 54 of 140
49. Other NFV Projects
Industry
Zero-time Orchestration, Operations and Management (ZOOM)
OpenMANO, OpenNFV, Open Network Platform (ONP),
CloudNFV, CloudBand, Virtual Service Edge, etc.
Academic
Mobile Cloud Networking (MCN)
UNIFY
T-NOVA
OPEN-Orchestrator Project (OPEN-O)
55 of 140
51. Future (Research Challenges)
PART 1.3
Management and Orchestration, Information Modelling, NFV Performance, Energy Efficiency, Security,
Privacy and Trust,
Research directions in selected NFV use cases such as Internet of Things, Information-Centric Networking
57 of 140
52. MANO
Critical aspect towards ensuring the correct
operation of the NFV Infrastructure (NFVI) as well
as Virtual Network Functions (VNFs).
Provides the functionality required for the
provisioning of VNFs, and the related operations,
such as the configuration of the VNFs and the
infrastructure these functions run on.
Critical aspect towards ensuring the correct
operation of the NFVI as well as VNFs.
Provides the functionality required for the
provisioning of VNFs, and the related operations,
such as the configuration of the VNFs and the
infrastructure these functions run on.
Virtualised
Infrastructure
Manager (VIM)
VNF
Manager(s)
VNF Orchestrator
NFV Management and
Orchestration (MANO)
Infrastructure,VNF&ServiceDescription
NFV Orchestrator
58 of 140
53. MANO: State-of-the-Art
(Automated) Resource Management still missing!
Rashid Mijumbi, Joan Serrat, Juan-Luis Gorricho, Steven Latre, Marinos Charalambides and Diego Lopez,
“Management and Orchestration Challenges in Network Function Virtualization”, IEEE Communications
Magazine. January 2016.
59 of 140
54. Resource Management
Server Placement,
Rashid Mijumbi, Joan Serrat, Juan-Luis Gorricho, Javier Rubio-Loyola and Steven Davy, “Server Placement and
Assignment in Virtualized Radio Access Networks”, IEEE/IFIP CNSM, International Workshop on Management of
SDN and NFV Systems, Barcelona, Spain. September 2015
Function Placement, Chaining and Scheduling
Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Steven Davy, “Design and evaluation
of algorithms for mapping and scheduling of virtual network functions”, IEEE Conference on Network
Softwarization (NETSOFT). April 2015.
Niels Bouten, Maxim Claeys, Rashid Mijumbi, Joan Serrat, Jeroen Famaey, Steven Latre, Filip De Turck, “Semantic
Validation of Affinity Constrained Service Function Chain Requests”, IEEE Conference on Network Softwarization
(NetSoft), Seol Korea, June 6 – 10, 2016.
Dynamic Resource Allocation
Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, “Self-managed resources in network virtualisation
environments”, IFIP/IEEE International Symposium on Integrated Network Management (IM), May 2015,
Ottawa, Canada.
60 of 140
55. Information Modelling
NFV’s potential is based on its ability to deliver high levels of
automation and flexibility.
Resources and functions in NFV will be provided by different
entities.
Availability of well understood, open and standardized descriptors
for these multi-vendor resources, functions and services will be
key to large-scale NFV deployments.
Models should consider both initial deployment as well as
lifecycle management - reconfiguration.
As part of the MANO specification, the ETSI provided a possible
set of models that may be useful in NFV.
OVF, TOSCA, YANG and SID
Virtualised
Infrastructure
Manager (VIM)
VNF Manager(s)
VNF Orchestrator
NFV Management and
Orchestration (MANO)
Infrastructure,VNF&ServiceDescription
61 of 140
56. Information Modelling
Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Raouf Boutaba,
“Network Function Virtualization: State-of-the-art and Research Challenges”. IEEE
Communications Surveys and Tutorials. First Quarter, 2016.
62 of 140

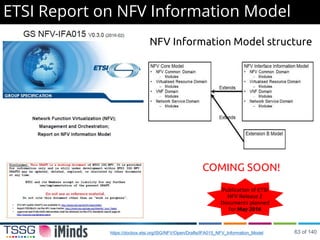

57. ETSI Report on NFV Information Model
https://docbox.etsi.org/ISG/NFV/Open/Drafts/IFA015_NFV_Information_Model
NFV Information Model structure
COMING SOON!
Publication of ETSI
NFV Release 2
Documents planned
for May 2016
63 of 140
58. Energy Efficiency
Bell Labs’ GWATT tool is aimed at determining the possible effect, on energy
consumption, of the evolution to NFV. Based on some forecast for traffic growth, the
tool is able to show the effect of virtualizing different network functions.
http://gwatt.net/intro/1 64 of 140
59. Energy Efficiency (II)
Rashid Mijumbiy, Joan Serraty, Juan-Luis Gorrichoy and Javier Rubio-Loyola, “On the Energy Efficiency
Prospects of Network Function Virtualization” 65 of 140
60. Performance (I)
NFV means that server providers should produce
equipment without knowledge of the characteristics of
functions that could run on them in future.
In the same way, VNF providers should ensure that the
functions will be able to run on commodity servers
This raises the question of whether functions run on
industry standard servers would achieve a performance
comparable to those running on specialized hardware,
and whether these functions would be portable between
the servers.
https://www.sdxcentral.com/articles/contributed/vnf-performance-fueling-nfv-discussion-kelly-leblanc/2015/05/ 66 of 140
61. Performance (II)
ETSI NFV Work Item “NFV Performance & Portability Best Practises”: DGS/NFV-PER001
Current version: v0.0.7 (stable draft – 15/10/2013)
If “best practices were followed” it is not only possible to achieve high performance (up to
80 Gbps for a server) in a fully virtualized environment, but that
the performance can be predictable, consistent and in vendor-agnostic manner,
leveraging features commonly available in current state-of-the-art servers.
x10
Performance Gap
Acceptable Performance 80 Gbps per COST blade
67 of 140

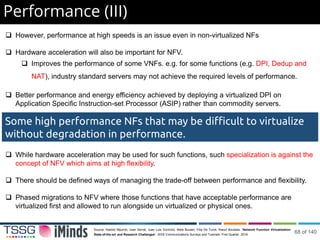

62. Performance (III)
However, performance at high speeds is an issue even in non-virtualized NFs
Hardware acceleration will also be important for NFV.
Improves the performance of some VNFs. e.g. for some functions (e.g. DPI, Dedup and
NAT), industry standard servers may not achieve the required levels of performance.
Better performance and energy efficiency achieved by deploying a virtualized DPI on
Application Specific Instruction-set Processor (ASIP) rather than commodity servers.
While hardware acceleration may be used for such functions, such specialization is against the
concept of NFV which aims at high flexibility.
There should be defined ways of managing the trade-off between performance and flexibility.
Phased migrations to NFV where those functions that have acceptable performance are
virtualized first and allowed to run alongside un virtualized or physical ones.
Some high performance NFs that may be difficult to virtualize
without degradation in performance.
Source: Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Raouf Boutaba, “Network Function Virtualization:
State-of-the-art and Research Challenges”. IEEE Communications Surveys and Tutorials. First Quarter, 2016.
68 of 140
63. Despite the enormous potential of cloud computing,
consumer uncertainty and concern regarding issues of
privacy, security and trust remain a major barrier to the
switch to cloud models
VNFs represent subscriber services, personally identifiable
information which may be transferred to the cloud.
Unique challenges especially as the functions will be
distributed, making it hard to know where this data is and
who has access to it.
In the case where the functions are deployed in third party
clouds, users and Telecom service providers would not have
access to the physical security system of data centers.
Even if the service providers do specify their privacy and
security requirements, it may still be hard to ensure that they
are fully respected.
Security, Privacy, Trust
NFV Security; Problem Statement. Bob Briscoe (Rapporteur). Draft Group
Specification published, Oct 2014.
69 of 140

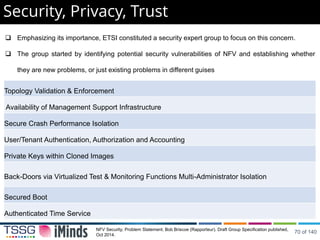

64. Security, Privacy, Trust
NFV Security; Problem Statement. Bob Briscoe (Rapporteur). Draft Group Specification published,
Oct 2014.
Topology Validation & Enforcement
Availability of Management Support Infrastructure
Secure Crash Performance Isolation
User/Tenant Authentication, Authorization and Accounting
Private Keys within Cloned Images
Back-Doors via Virtualized Test & Monitoring Functions Multi-Administrator Isolation
Secured Boot
Authenticated Time Service
Emphasizing its importance, ETSI constituted a security expert group to focus on this concern.
The group started by identifying potential security vulnerabilities of NFV and establishing whether
they are new problems, or just existing problems in different guises
70 of 140
65. The NFV SEC Working Group
NFV presents unique opportunities for addressing security problems
Exploits new capabilities:
Automation and analytics
Holistic Monitoring combined with analytics
Security and trust guidance that is unique to NFV development, architecture and
operation.
Currently no processes to take advantage of these solutions and, once in place, they
will add procedural complexity
https://portal.etsi.org/tb.aspx?tbid=799&SubTB=799
Unsolved problems: (un)lawful Interception, topology validation,
network performance isolation and multi-administrator isolation
71 of 140
66. Even More Challenges . . .
Challenges to Related Technologies:
- Cloud Computing
- SDN
NFV Challenges
- Interoperability and Portability
- Federation
Use case Related Challenges
- 5G
- IoT
- ICN
- Interoperability and Portability
- Federation
- Interoperability and Portability
- Federation
Use case Related Challenges
- 5G
- IoT
- ICN
72 of 140
67. Summary of Challenges
Challenge Current Work Opportunities for Research
Management
and
Orchestration
NV MANO Framework Specification,
Vendor specific products aligned to different NFV MANO
framework,
Multiple MANO-focused frameworks and architectures
Traffic and function monitoring, inter-operability
and interfacing, programmability and
Intelligence, distributed management, Resource
Management (placement, chaining, scaling)
NFV
Performance
Specification of “best practices" that need to followed to obtain
acceptable performance in NFV,
Some reports on deployment experiences,
Various proposals applying hardware acceleration to enhance the
performance of some VNFs such as DPI, dedup and NAT
More studies on the applicability of hardware
acceleration to some NFs, and on the resulting
trade-off between performance and flexibility
Energy
Efficiency
Measurements on the effect of transferring network and user
functions to the cloud,
Simulation of possible energy saving resulting from NFV
Still limited number of real world deployments to
give actual vales, energy efficient hardware,
energy-aware function placement chaining,
consideration of inter-data center
communications
Security,
Privacy, Trust
Definition security, trust and privacy threats in NFV,
Guidance on how security, privacy and trust may be achieved in
NFV.
Topology validation, network performance
isolation, multi-administrator isolation, data
interception
73 of 140
68. Virtualized IP Multimedia Subsystem
PART 2
Introduction to Clearwater IMS
Description of setup (OpenStack - TSSG Cloud)
Hands-on
75 of 140
69. Required Tools/Software
SSH client
For example Putty
Two instances of a SIP client:
Zoiper, X-Lite, Jitsi have been tested for this tutorial
Both instances could be the same e.g. two instances of zoiper
Both could be on a computer (same computer or different ones), smartphone, or one
on computer and another on smartphone
Access to a web-browser.
Google Chrome and IE have been tested for this tutorial
76 of 140
70. Required Tools/Software

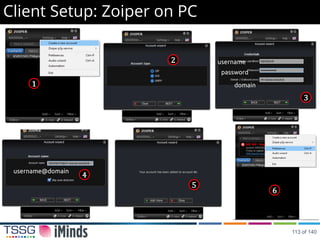

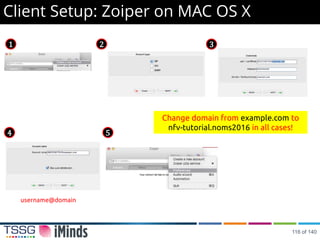

Zoiper:
Download Link: https://www.zoiper.com/en/voip-softphone/download/zoiper3
Support for: Android, iOS, Windows, Phone 8, Windows, Linux, Mac, Browser
Tested on: iOS, Windows 10, Ubuntu 14.04
X-Lite:
Download Link: http://www.counterpath.com/x-lite-download/
Support for: Windows, Mac
Tested on: Windows 10
Jitsi:
Download Link: https://jitsi.org/Main/Download
Support for: Windows, Mac, Linux
Tested on: Windows 10, Ubuntu 14.04
SSH Client:
For those on windows, Putty can be used
http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html
77 of 140
71. IP Multimedia Subsystem (IMS) is IMS is an architectural
framework standardized by 3GPP for delivering
multimedia services over IP
Overlay-architecture for session control in all-IP network
aimed at openness and interoperability by adopting a
separated application-layer approach based on the
Session Initiation Protocol (SIP)
Intended to aid the access of multimedia and voice
applications from wireless and wireline terminals
Introduction: IP Multimedia Subsystem
78 of 140
72. IMS Components
Includes functionalities related to End User authentication, authorization, call control and charging
for multimedia sessions, as well as QoS enforcement at data path level through the integration with
core network platforms such as the 3GPP Evolved Packet Core (EPC)
I-CSCF S-CSCF
Application
Server
HSSSLF
P-CSCF UE
79 of 140
73. Clearwater - IMS in the Cloud
Clearwater is an open source implementation of IMS (the IP Multimedia Subsystem)
Deployment in the cloud to provide voice, video and messaging services to (millions of) users.
Cloud-oriented design makes it extremely well suited for deployment in an NFV environment
All components are horizontally scalable using stateless load-balancing.
Minimal long-lived state is stored on cluster nodes,
No need for complex data replication schemes.
Most long-lived state is stored in back-end service nodes using cloud-optimized storage technologies
such as Cassandra.
Interfaces between the front-end SIP components and the back-end services use RESTful web services
interfaces.
Interfaces between the various components use connection pooling with statistical recycling of connections to
ensure load is spread evenly as nodes are added and removed from each layer.
80 of 140
75. Installation Methods
All-in-one (AIO) image
AMI on Amazon EC2 or OVF image on a private virtualization platform such as VMware or VirtualBox.
Easy but offers no redundancy or scalability and relatively limited performance
Automated install
Using the Chef orchestration system
Recommended install for spinning up large scale deployments since it can handle creating an arbitrary
sized deployment in a single command
Currently only supported on Amazon’s EC2 cloud and assumes that DNS is being handled by Amazon’s
Route53 and that Route53 controls the deployment’s root domain
Manual install
Using Debian packages and manually configuring every machine, firewalls and DNS entries,
Recommended method if chef is not supported on your virtualization platform or your DNS is not
provided by Amazon’s Route53.
Can be performed on any collection of machines (at least 5 are needed) running Ubuntu 14.04
Makes no assumptions about the environment in which the machines are running.
This
Hands-on
http://clearwater.readthedocs.org/en/latest/Manual_Install.html 82 of 140
76. Manual Installation (I)
Resource Requirements
Mandatory nodes: 7 machines
Each of the 6 machine takes on a separate role (Bono, Ellis, Sprout, Homer, Homestead, Ralf) in the
final deployment.
1 machine for DNS: allow each node to find the others it needs to talk to carry calls
An existing server may be used by just adding a zone and configuring records required for
Clearwater
Optional nodes: 3 machines
Cacti: monitoring and graphing
SIPp: stress testing
Jump Server: SSH access to the above machines
At least 2 publicly accessible IP addresses: 1 for Bono (hosts a restund STUN server), 1 for Ellis (GUI)
http://clearwater.readthedocs.org/en/latest/Manual_Install.html 83 of 140
77. Manual Installation (II)
Software Requirements
All nodes initially run clean installs of Ubuntu 14.04 - 64bit server edition
1 vCPU, 2 GB RAM (equivalent to t1.small on amazon)
The firewalls of these devices must be independently configurable. A specific number of ports has to be
opened on each machine
The system requirements for each role are the same thus the allocation of roles to machines can be
arbitrary
Configure the APT software sources
Configure each machine so that APT can use the Clearwater repository server.
create /etc/apt/sources.list.d/clearwater.list with the contents:
deb http://repo.cw-ngv.com/stable binary/
http://clearwater.readthedocs.org/en/latest/Manual_Install.html 84 of 140
78. Manual Installation (III)
,
Installation Steps
Determine machine roles: ellis, bono, sprout, homer, homestead, ralf
Firewall configuration: http://clearwater.readthedocs.org/en/latest/Clearwater_IP_Port_Usage.html
Create the per-node configuration: local_config
Install node-specific software
Provide shared configuration: shared_cinfig
Provision telephone numbers in ellis
DNS records
http://clearwater.readthedocs.org/en/latest/Manual_Install.html
15-20 minutes
Still unstable
Pre-installed
85 of 140
82. VIM: OpenStack
Cloud management system
Distributed Virtual Routing (DVR)
OpenStack virtual routers are replicated across the compute nodes.
In a standard install the network traffic would have to leave the Compute
nodes via an encapsulation process and sent to the 'network node' where all
the virtual routers are and then routed out of the network node.
With DVR, if you have a floating IP on a VM, the traffic leaves the compute
node straight onto the physical network - with no encapsulation having to
take place - and no network node bottleneck.
https://specs.openstack.org/openstack/neutron-specs/specs/juno/neutron-ovs-dvr.html 89 of 140

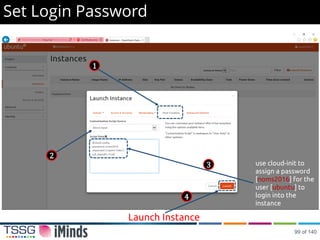

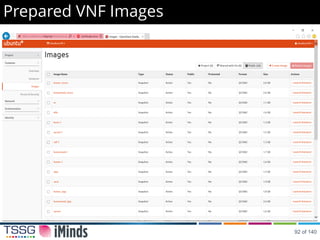

90. Set Login Password
1
use cloud-init to
assign a password
[noms2016] for the
user [ubuntu] to
login into the
instance
2
3
Launch Instance
4
99 of 140
91. External Access: Assign Floating IP
1
Assign a public IP to allow external access to VM
Allocate an IP address to the project
32
100 of 140
92. External Access: Assign Floating IP
1
IP Address allocated; to be used to SSH into VM
Associated IP to VM
101 of 140
93. Login into VM
1
VM IP Address
2
3
Trust VM identity
Username: ubuntu, password: noms2016
4
102 of 140

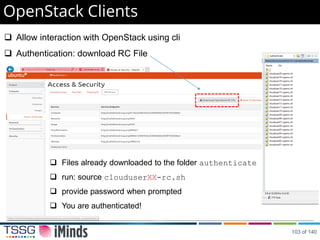

94. OpenStack Clients
Allow interaction with OpenStack using cli
Authentication: download RC File
Files already downloaded to the folder authenticate
run: source clouduserXX-rc.sh
provide password when prompted
You are authenticated!
103 of 140
95. Virtual IMS Deployment
Jump Server has all scripts to install Clearwater
$ ls
Running the scripts ./deploy.sh
./deploy.sh makes initial deployment
./teardown.sh terminates all nodes deployed using ./deploy.sh
./stress.sh starts simulated sip calls to stress deployed system
./scaleup.sh deploys additional nodes to scale initial deployment up
./teardown_added_nodes.sh terminates all nodes deployed using ./scaleup.sh
./scaledown.sh teardown some existing nodes
104 of 140
97. ./deploy.sh
~ 3 minutes
On completion, IP addresses are printed.
These can also be checked in OpenStack
Note all of them
We will refere to them as <ellisIP>, <bonoIP>,
<nsIP> and <cactiIP> in what follows
106 of 140
100. Logging and Debugging
<vnf> is one of ellis, bono, ralf, …
<domain> is nfv-tutorial.noms2016
From Jump Server, SSH into ellis <ellisIP>
sudo ssh ubuntu@<ellisIP>
All other nodes can be accessed from ellis
Check that DNS is correctly setup from ellis:
ping homer.<domain>, hs.<domain>
Clearwater <vnf>s are monitored by monit
sudo monit status
monit should automatically restart services if it goes down
To restart a component: sudo service <vnf> stop to stop the component, monit
automatically restarts it
By default each component logs to /var/log/<vnf>/
e.g. sudo nano /var/log/ellis/…
sudo clearwater-etcdctl cluster-health
sudo clearwater-etcdctl member list
http://clearwater.readthedocs.org/en/latest/Troubleshooting_and_Recovery.html 109 of 140
101. Making a Test Call
Ellis URL: http://<ellisIP>
In this example: Public IP for VM = 87.44.16.43
Signup as a new user
Create numbers for your client
110 of 140
103. Number Allocation
Ellis will automatically allocate a new number (6505550370 in this case) and display its password
(sy6XRb3EA in this case)
Another identity can be created! Note details of second identity
1
2
3
Remember the password provided for each number as it will only be displayed once.
From now on, we will use <username> to refer to the SIP username (e.g. 6505550793), <password>
to refer to the password (e.g. VyZPVRKpX ), and <domain> to refer to nfv-tutorial.noms2016
112 of 140
104. Client Setup: Zoiper on PC
1
2
3
4
5
6
username
password
domain
username@domain
113 of 140
105. Client Setup: Zoiper on PC
username
password
domain
username@domain
username
<bonoIP>: 5060
114 of 140
107. Client Setup: Zoiper on MAC OS X
1 2 3
4 5
username
password
domain
username@domain
Change domain from example.com to
nfv-tutorial.noms2016 in all cases!
116 of 140
108. Client Setup: Zoiper on MAC OS X
username
password
domain
username@domain
username
<bonoIP> : 5060
117 of 140
116. Privacy, Call Baring and Diversion
http://clearwater.readthedocs.org/en/latest/Clearwater_Call_Barring_Support.html 125 of 140
117. Statistics / Monitoring
Clearwater provides a set of statistics about the performance of each
Clearwater nodes over SNMP.
Currently, this is available on Bono, Sprout, Ralf and Homestead nodes
http://clearwater.readthedocs.org/en/latest/Clearwater_SNMP_Statistics.html 126 of 140
118. Monitoring: Cacti
Open-source statistics and graphing solution
Supports gathering statistics via native SNMP and also via external scripts
Exposes graphs over a web interface
127 of 140
119. Cacti With Clearwater
Ubuntu 14.04 VM
Install Cacti: sudo apt-get install cacti cacti-spine
Accept all the configuration defaults
Finalize Installation at: <cactiIP>/cacti
Default login (admin/admin) and set a new password
Modify Configuration, add nodes to be monitored, add graphs
For Clearwater, there are instructions at:
http://clearwater.readthedocs.org/en/latest/Cacti.html
admin/noms2016
128 of 140

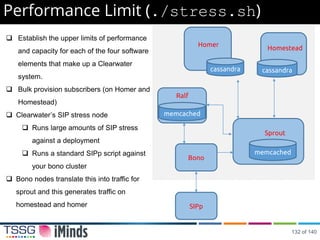

122. Performance Limit (./stress.sh)
Establish the upper limits of performance
and capacity for each of the four software
elements that make up a Clearwater
system.
Bulk provision subscribers (on Homer and
Homestead)
Clearwater’s SIP stress node
Runs large amounts of SIP stress
against a deployment
Runs a standard SIPp script against
your bono cluster
Bono nodes translate this into traffic for
sprout and this generates traffic on
homestead and homer
memcached
Ralf
Bono
memcached
Sprout
cassandra
Homestead
cassandra
Homer
SIPp
132 of 140
123. ./stress.sh
Replaces Homer and
Homestead nodes with ones in
which 100,000 subscribers
have been registered
Starts 5 SIPp nodes
Updates DNS Records to
include the new nodes
memcached
Ralf
Bono
memcached
Sprout
cassandra
Homestead
cassandra
Homer
SIPpSIPpSIPpSIPpSIPp
133 of 140
124. Status of Deployment
sudo clearwater-etcdctl member list
/usr/share/clearwater/clearwater-cluster-manager/scripts/check_cluster_state
134 of 140
127. The core Clearwater nodes have the
ability to elastically scale;
Can grow and shrink
deployment on demand,
without disrupting calls or
losing data
Decision to scale up could be based
on resource utilisation, e.g. when
CPU utilization reaches 60%
In this hands-on, we will spin up five
new VNFs
Bono, Ralf, Sprout, Homer,
Homestead
Scaling
Bono
memcached
Ralf
Bono
Bono memcached
Sprout
cassandra
Homestead
cassandra
Homer
137 of 140

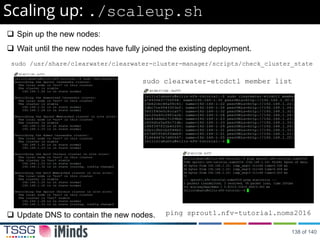

128. Scaling up: ./scaleup.sh
Spin up the new nodes:
Wait until the new nodes have fully joined the existing deployment.
sudo /usr/share/clearwater/clearwater-cluster-manager/scripts/check_cluster_state
Update DNS to contain the new nodes.
sudo clearwater-etcdctl member list
ping sprout1.nfv-tutorial.noms2016
138 of 140
129. References
1. Niels Bouten, Maxim Claeys, Rashid Mijumbi, Joan Serrat, Jeroen Famaey, Steven Latre, Filip De Turck, “Semantic
Validation of Affinity Constrained Service Function Chain Requests”, IEEE Conference on Network Softwarization
(NetSoft), Seol Korea, June 6 – 10, 2016.
2. Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Steven Latre, Marinos Charalambides, Diego Lopez, “Management and
Orchestration Challenges in Network Function Virtualization”. IEEE Communications Magazine. January 2016.
3. Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Raouf Boutaba, “Network Function
Virtualization: State-of-the-art and Research Challenges”. IEEE Communications Surveys and Tutorials. First Quarter,
2016.
4. Rashid Mijumbi, Joan Serrat, Juan Luis Gorricho, Niels Bouten, Filip De Turck, Steven Davy, “Design and evaluation of
algorithms for mapping and scheduling of virtual network functions”, IEEE Conference on Network Softwarization
(NETSOFT). April 2015.
5. Rashid Mijumbi, Joan Serrat, Juan-Luis Gorricho, Javier Rubio-Loyola and Steven Davy, “Server Placement and
Assignment in Virtualized Radio Access Networks”, IEEE/IFIP CNSM, International Workshop on Management of
SDN and NFV Systems, Barcelona, Spain. September 2015
6. Niels Bouten, Jeroen Famaey, Rashid Mijumbi, Bram Naudts, Joan Serrat, Steven Latre, Filip De Turck, “Towards NFV-
based Multimedia Delivery”, IFIP/IEEE International Symposium on Integrated Network Management (IM), Ottawa,
Canada, May 2015.
139 of 140
