The document discusses NFV (Network Functions Virtualization) and SDN (Software Defined Networking). It covers NFVI (NFV Infrastructure), VNFs (Virtual Network Functions), SDN control and orchestration, and combining NFV and SDN. It provides examples of virtual network functions like vRouter, vFW, vADC that can replace physical network appliances. It also discusses the OpenStack platform, Intel DPDK, Vyatta, and SDN controllers like OpenDaylight and Brocade and how they improve performance and efficiency for NFV.

1. NFV & SDN
- Efficiency & Automation
최홍식 수석
( lachesis@pentalink.co.kr ,
Hongsik.choi@gmail.com )
1

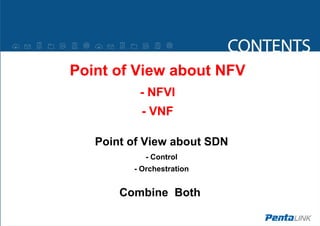

2. Point of View about NFV
- NFVI
- VNF
Point of View about SDN
- Control
- Orchestration
Combine Both

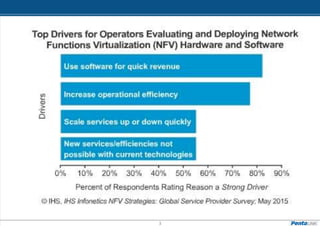

3. 3

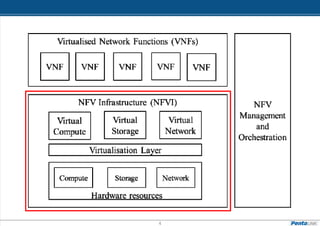

4. 4

5. NFVI
5

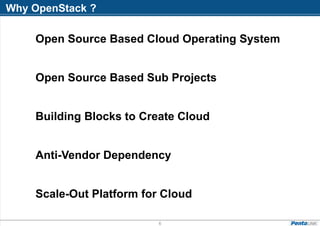

6. Why OpenStack ?
6
Open Source Based Cloud Operating System
Open Source Based Sub Projects
Building Blocks to Create Cloud
Anti-Vendor Dependency
Scale-Out Platform for Cloud

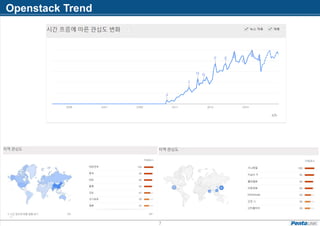

7. Openstack Trend
7

8. 8
But Problem is
Open Source is Gooood
Responsibility
Solved By
Internalization

9. RHEL OSP Reference
9

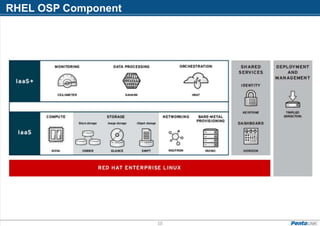

10. RHEL OSP Component
10

11. 11

12. OpenStack Networking at Rackspace
12
• Three networks – Public, SNET and Isolated
• Isolated (Private) networks
• Broadcast and Multicast on Isolated networks
• Attach / Detach Networks
• Shared IP on Isolated networks
• Additional IPs on PublicNet
• L3 Router, VPN and Firewall: (Brocade Vyatta vRouter)
• Routes on Isolated networks
• Floating IP
• L4-L7 Services

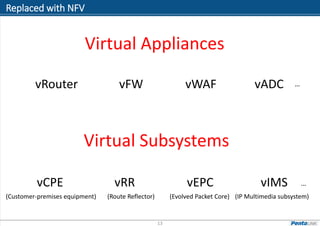

13. Replaced with NFV
13
vRouter vFW vADC
Virtual Appliances
vWAF
vCPE vRR …
Virtual Subsystems
vEPC
(Customer-premises equipment) (Route Reflector) (IP Multimedia subsystem)(Evolved Packet Core)
vIMS
…

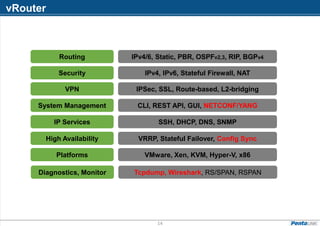

14. vRouter
14
Routing
Security
VPN
System Management
IP Services
Platforms
High Availability
IPv4/6, Static, PBR, OSPFv2,3, RIP, BGPv4
IPv4, IPv6, Stateful Firewall, NAT
IPSec, SSL, Route-based, L2-bridging
CLI, REST API, GUI, NETCONF/YANG
SSH, DHCP, DNS, SNMP
VRRP, Stateful Failover, Config Sync
VMware, Xen, KVM, Hyper-V, x86
Diagnostics, Monitor Tcpdump, Wireshark, RS/SPAN, RSPAN

15. The Matter is
15
Performance
Efficiency

16. The Matter is
16
Performance
PCI Pass-through SR-IOV
Bandwidth
DPDK
Process

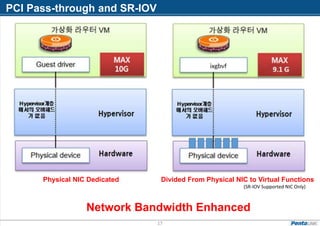

17. PCI Pass-through and SR-IOV
17
Physical NIC Dedicated Divided From Physical NIC to Virtual Functions
Network Bandwidth Enhanced
(SR-IOV Supported NIC Only)

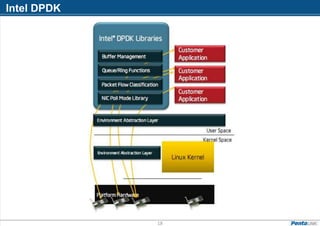

18. 18
Intel DPDK

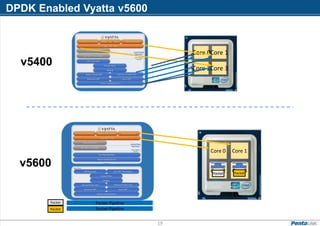

19. 19
DPDK Enabled Vyatta v5600
Core 0Core 1
Core 2Core 3
Packet Pipeline
Packet Pipeline
Core 0 Core 1
Core 2 Core 3
Packet
Packet
Packet Packet
Packet
Packet
v5600
v5400

20. 20
Vyatta OpenStack Plugin

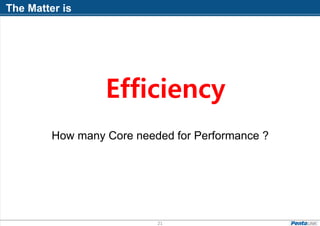

21. The Matter is
21
Efficiency
How many Core needed for Performance ?

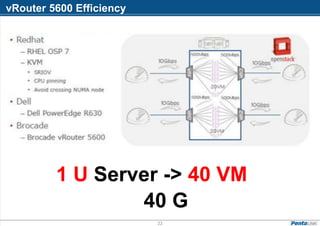

22. 22
vRouter 5600 Efficiency
40 G
1 U Server -> 40 VM

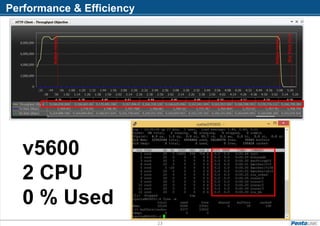

23. Performance & Efficiency
23
v5600
2 CPU
0 % Used

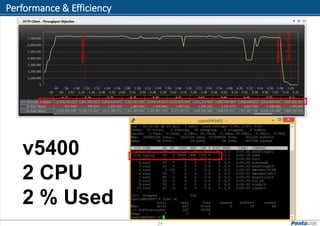

24. Performance & Efficiency
24
v5400
2 CPU
2 % Used

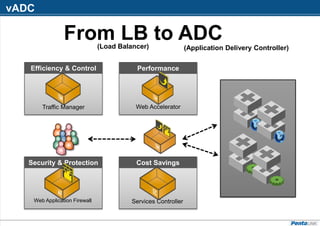

25. vADC
Performance
Web Accelerator
Cost Savings
Services Controller
Security & Protection
Web Application Firewall
Efficiency & Control
Traffic Manager
From LB to ADC
(Application Delivery Controller)(Load Balancer)

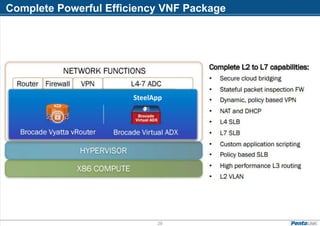

26. Complete Powerful Efficiency VNF Package
26
SteelApp

27. Point of View about NFV
- NFVI
- VNF
Point of View about SDN
- Control
- Orchestration
Combine Both

28. SDN Controller with Data Center Management
28
LevelofProgrammability
Scope of Domain
Network Element Network IT Infrastructure
PythonRESTCLIScripting
Classic Network
Management
Tools
Neutron
DevOps Tools

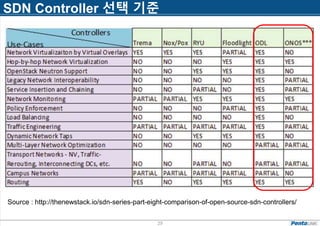

29. 29
SDN Controller 선택 기준
Source : http://thenewstack.io/sdn-series-part-eight-comparison-of-open-source-sdn-controllers/

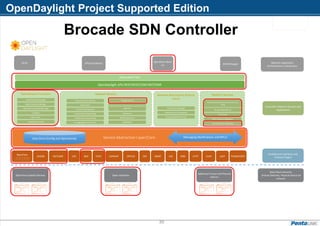

30. OpenDaylight Project Supported Edition
30
Service Abstraction Layer/Core
Base Network Functions
OpenFlow-Enabled Devices
DLUX VTN Coordinator
OpenStack Neutr
on SDNI Wrapper
Open vSwitches
Additional Virtual and Physical
Devices
OpenFlow Stats Manager
OVSDB NETCONF PCMM/COPSSNBILISP BGP PCEP SNMPSXP
Network Application
Orchestrations and Services
Data Plane Elements
(Virtual Switches, Physical Device Int
erfaces)
Controller Platform Services and
Applications
Southbound Interfaces and
Protocol Plugins
OpenFlow
OpenFlow Switch Manager
USCCAPWAP OPFLEX CoAPHTTP
OpenFlow Forwarding Rules Mgr
L2 Switch
Host Tracker
Topology Processing
AAA AuthN Filter
OpenDaylight APIs REST/RESTCONF/NETCONF
Messaging (Notifications and RPCs)
LACP
Network Services
Service Function Chaining
Reservation
Virtual Private Network
Virtual Tenant Network Mgr
Unified Secure Channel Mgr
OVSDB Neutron
Device Discovery, Identification, and Driver Ma
nagement
LISP Service
DOCSIS Abstraction
SNMP4SDN
Network Abstractions (Policy/I
ntent)
ALTO Protocol Manager
Network Intent Composition
Group-Based Policy Service
Platform Services
Authentication, Authorization, and Accou
nting
Neutron Northbound
Persistence
SDN IntegrationAggregator
Time Series Data Repository
Link Aggregation Ctl Protocol
Data Store (Config and Operational)
1.0 1.3 TTP
Brocade SDN Controller

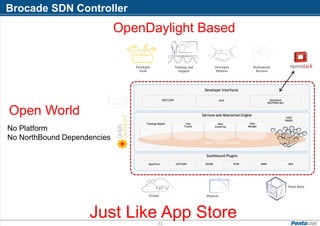

31. Brocade SDN Controller
31
Services and Abstraction Engine
Karaf / OSGi Container
Developer Interfaces
Topology Mapper Host
Tracker
Akka
Clustering
Stats
Manager
RESTCONF JAVA OpenStack
NEUTRON ML2
Southbound Plugins
OpenFlow NETCONF OVSDB PCEP SNMP BGP
Virtual Physical
Third-Party
Developer
Tools
Training and
Support
Developer
Partners
Professional
Services
YANG
Models
OpenDaylight Based
Open World
No Platform
No NorthBound Dependencies
Just Like App Store

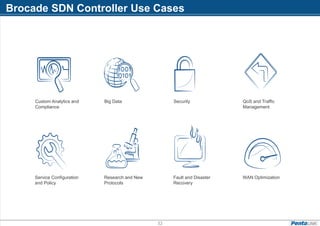

32. 32
Custom Analytics and
Compliance
Big Data Security QoS and Traffic
Management
WAN OptimizationFault and Disaster
Recovery
Research and New
Protocols
Service Configuration
and Policy
Brocade SDN Controller Use Cases

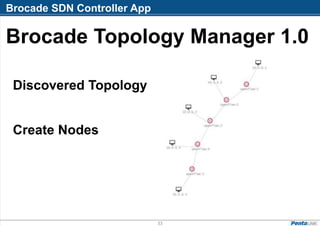

33. 33
Brocade Topology Manager 1.0
Brocade SDN Controller App
Create Nodes
Discovered Topology

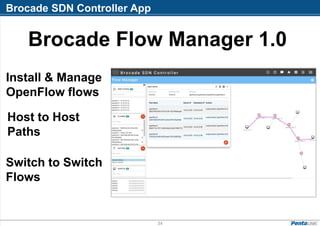

34. 34
Brocade Flow Manager 1.0
Brocade SDN Controller App
Switch to Switch
Flows
Host to Host
Paths
Install & Manage
OpenFlow flows

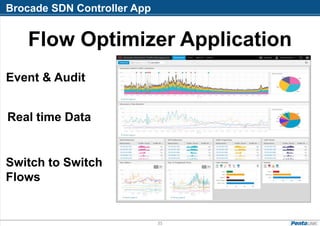

35. 35
Flow Optimizer Application
Brocade SDN Controller App
Switch to Switch
Flows
Real time Data
Event & Audit

36. 36
SFlow
NET-CONF/YANG
OpenFlow
OVS DB
Control & Orchestration

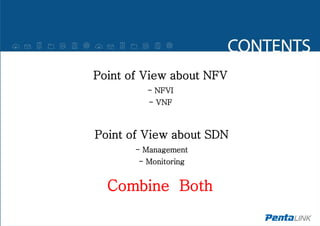

37. Point of View about NFV
- NFVI
- VNF
Point of View about SDN
- Management
- Monitoring
Combine Both

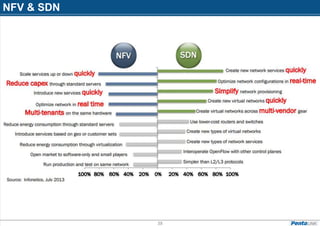

38. 38
NFV & SDN

39. 39
Service / Cloud Orchestrator 와 Controller, NFVi, Physical Network Function 관계
SDN Controller 의 Coverage
Source : AT&T’s SDN Controller Implementation Based on OpenDaylight (ODL Summit 2015)

40. 40
Questions ?
