MANO, the management and orchestration layer in NFV, is a critical element for the success of NFV deployments. This talk will focus on three important aspects for effectively implementing MANO in an open source manner, to enable the easy migration and management of networks in any cloud: - Open source, community-based orchestration such as Open-O and ARIA - Open architecture using technology agnostic principles - Open standards for modeling and orchestration (such as TOSCA) In this talk, I will explain how to use open source tools to migrate networks to the cloud and demo NFV orchestration with TOSCA in a multi-VIM environment.

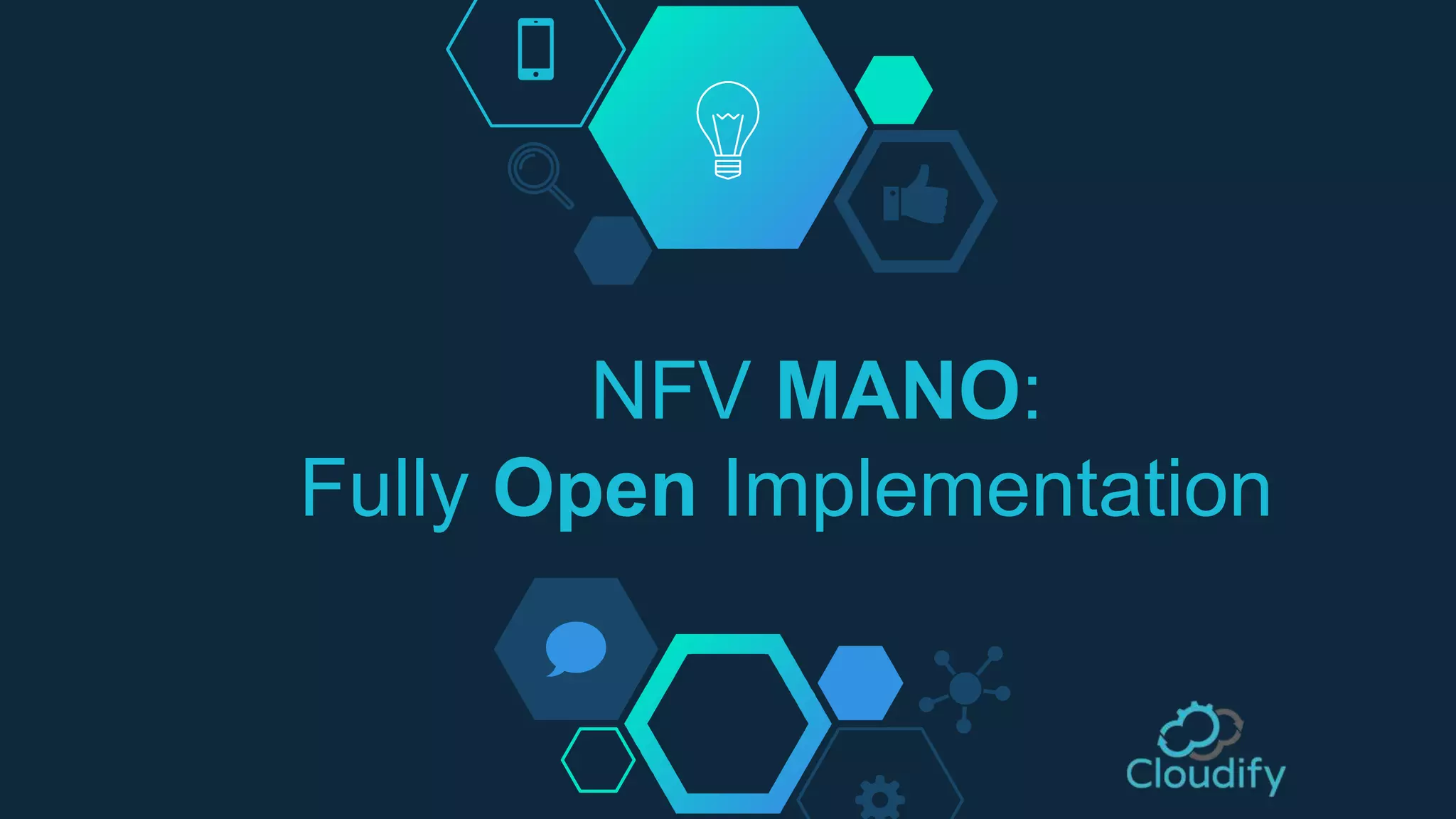

1. NFV MANO:
Fully Open Implementation

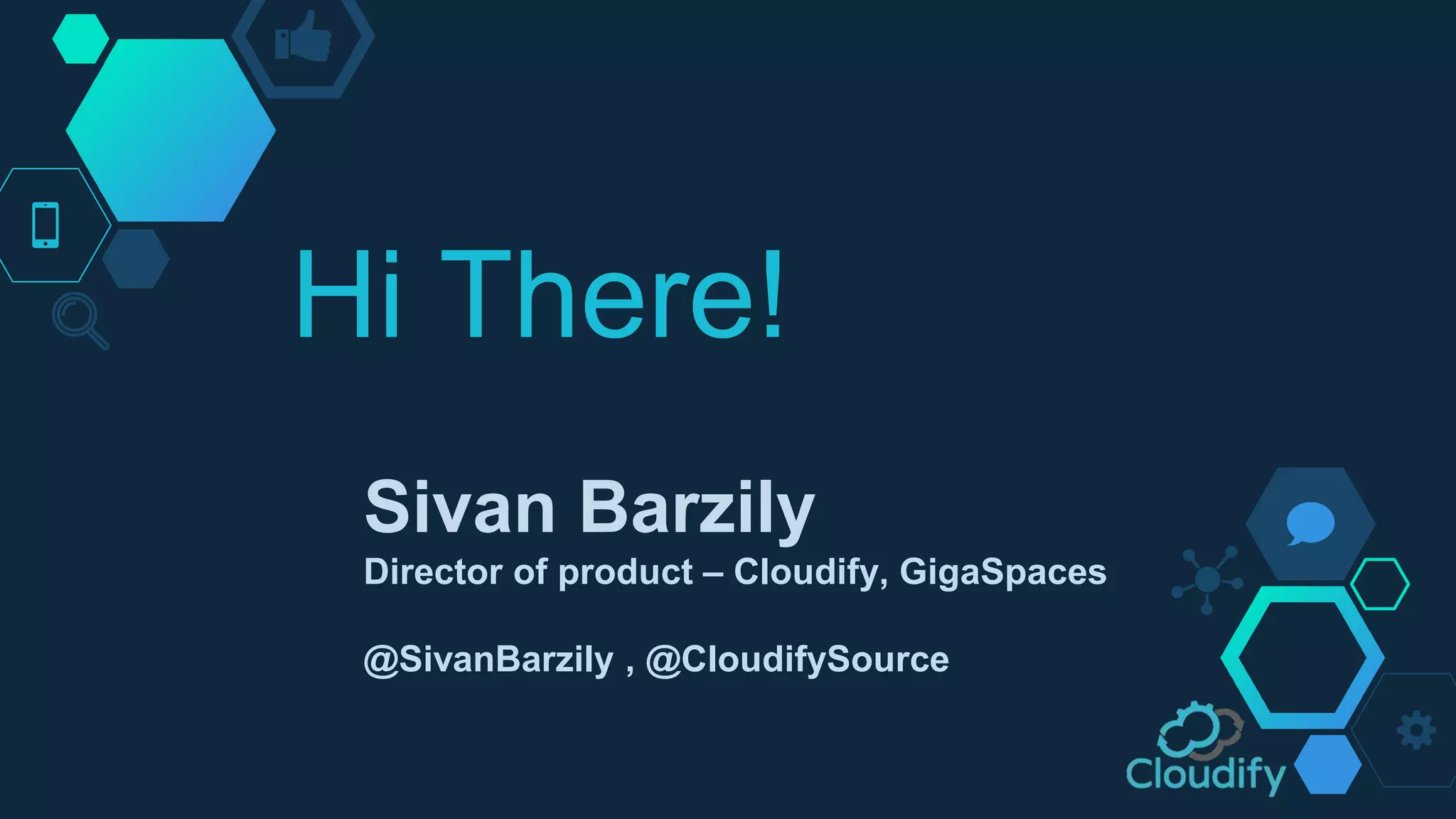

2. Hi There!
Sivan Barzily
Director of product – Cloudify, GigaSpaces
@SivanBarzily , @CloudifySource

3. “NFV is a network architecture concept that proposes using
IT virtualization related technologies to virtualize entire classes of
network node functions into building blocks that may be connected,
or chained, together to create communication services”

4. NFV Can Utilize More
Than IT Virtualization…
And introduce IT best practices to the Telco space!

5. MANO In NFV Architecture
MANO,
the management
and orchestration
layer in NFV,
Is a critical element
for the success of
NFV deployments

6. Key Implementation Aspects
Open Source
Open Source is key to
drive innovation,
accelerate industry
progress, and create
superb quality software
Open Standard
Open standard, vendor
neutral language to
describe VNFs and
network services
enables interoperability
and collaboration
Open Architecture
Using technology agnostic
principles enables
leveraging new emerging
technologies as they are
introduced to the market

7. Introducing Cloudify
Pure-Play Orchestrator based on TOSCA
Open Source, Open Architecture, Open Standard
Leveraging IT best practices to orchestrate network services
in Telco environments

8. Open Standard
TOSCA as a leading open standard for VNFD and NSD

9. TOSCA – Topology and Orchestration
Specification for Cloud Applications

10. TOSCA
Benefits
◇Interoperability
◇Portability
◇Multi VIM
◇Reusable models in varying architectures
◇Topology, workflows, policies

11. Service Blueprint with
TOSCA
Topology
nodes,
relationships,
requirements &
capabilities
Workflows
Lifecycle
operations
implementation
(install, scale…)
Policy
Events,
condition,
actions
mapping
Topology Orchestration Spec for Cloud Applications

12. VM
Container
VNF Topology Example
VM
Container
Bono
VM
Sprout Homer
HostedOn
ConnectedTo
Network A Network B
Subnet Subnet
Node Type:
VM
ConnectedTo

13. Place your screenshot here
Cloudify Composer
Simple Web UI tool for
creating TOSCA
blueprints

14. Open Source
Accelerator of product development
Enabler of open governance, community led efforts

15. Open Source Accelerates
Innovation
Cloudify Architecture
 Reusing existing components
 Focusing on value add
 Leveraging best practices and tools

16. Open Governance Builds
Communities and Collaboration
TOSCA Orchestration
Engine Library
Apache Software
Foundation Project
OASIS TOSCA
Defines and Refines
TOSCA SPEC
Cloudify
Consumes ARIA Library for TOSCA
orchestration capabilities
OPEN-O
Consumes ARIA library for TOSCA
orchestration capabilities and Multi-
VIM
ARIA
ARIA
Others
ARIA
ARIA serves as an orchestration
engine to be integrated into projects
looking for TOSCA orchestration
capabilities.

17. Increased Adoption,
Ensured Interoperability

18. Open Architecture
Leveraging existing technologies while building towards future ones

19. Modular plug-in Based Architecture
Service Portal
Self Service Instantiated
TOSCA Service Templates
OSS / BSS
Catalog, Inventory, Fulfillment
vRouters
Physical
Devices
vCPE
TOSCA / REST
Service Model
TOSCA/REST
Service Model
Service
Assurance
Service Catalog
REST API
WAN
ControllerVNF Manager (VNFM)
VNF Catalog
Lifecycle
Management
Enhanced
Monitoring
Cloudify
VNFM
Cloudify
NFVO
Network Controller
Intelligent Policy Manager
Application
Controller
TOSCA <-> YANG
Service Orchestrator
VNFs
VNFs
OpenStack
plugin
VMW
plugin
AWS plugin
3rd party
VNFM

20. Application
Blueprint
(TOSCA)
IaaS
Plugins
Container
Plugins
Conf Mgmt
Plugins
● Provision
● Configure
● Monitor
● Manage
Monitoring &
Alarming
Fits Into Existing Environments,
Enables Future Technologies

21. Application
Blueprint
(TOSCA)
IaaS
Plugins
Container
Plugins
Conf Mgmt
Plugins
● Provision
● Configure
● Monitor
● Manage
Monitoring &
Alarming
Fits Into Existing Environments,
Enables Future Technologies

22. Demo Time!
Tying it all together in a real, proven, use case

23. ClearWater IMS – From
Architecture To Deployment

24. “ The only constant is change”
-Unknown

25. “It is not the strongest of
the species that survives,
It is the one that is most
adaptable to change.”
-Charles Darwin
