- 1. NFV evolution towards5G Marie-Paule Odini, HPE Distinguished Technologist, ETSI NFV WG Chair
- 2. Bio 2 Marie-Paule Odini HPE CMSDistinguished Technologist Marie-paule.odini@hpe.com ETSI NFV ISG ISG Vice Chair (until Feb2017) Currently: Technical Steering Committee Member TST WG Chair Previously: SDN-NFV Work Item rapporteur SWA WG Vice Chair IEEE SDN Education Committee Chair Co-author “Towards 5G Software-Defined Ecosystems” 5G Americas Co-author Network Slicing White Paper https://www.linkedin.com/in/mpodini/
- 3. 5G … Preparefor a world where everything Computes & is Connected Technology will be embedded everywhere Everything will be understood Everyone & everything will be connected 3
- 4. Compute capabilities arechanging how networks are build Blurring the boundaries between network and service infrastructure 4 From a hierarchical network, where functions are placed along the traffic path To a flattened network, where functions are optimally placed and traffic is steered towards the most optimally placed service functions DSLAM/OLT Wireline eNodeB / RNC WiFi DOCSIS GW Cable BNG SGW PGW Switching & Routing Functions AAA ACCESS & AGGREGATION NODES EDGE Regional OfficesCentral Offices CORE Internet Core Routers Core Transport WiFi Mobile Wireline DSL/Fiber Cable SWG BNG Routing PGW BNG AAA PCRF MME Routing PCRF WiFi Mobile Wireline DSL/Fiber Cable WiFi Mobile Wireline DSL/ Fiber Cable Internet

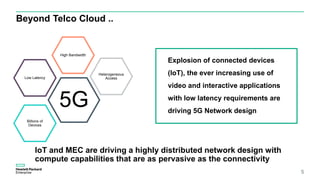

- 5. Beyond Telco Cloud.. 5 Explosion of connected devices (IoT), the ever increasing use of video and interactive applications with low latency requirements are driving 5G Network design IoT and MEC are driving a highly distributed network design with compute capabilities that are as pervasive as the connectivity 5G Low Latency Heterogeneous Access Billions of Devices High Bandwidth

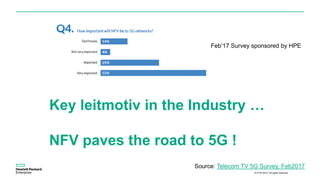

- 6. © ETSI 2015.All rights reserved Key leitmotiv in the Industry … NFV paves the road to 5G ! Source: Telecom TV 5G Survey, Feb2017 Feb’17 Survey sponsored by HPE

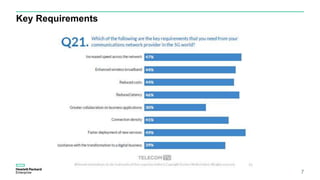

- 7.
- 8. What is NetworkFunctions Virtualization (NFV)? it is the ability to provide network functions on industry standard platforms Evolution of IT virtualization techniques for core network functions • Use standard servers and storage • Reduced equipment costs • Faster time to market • Resource sharing • Targeted service introduction Implement network functions in SW • It can be moved to, or instantiated in, various locations in the network as required, without the need to install new equipment! Classic network appliance approach Message router CDN Session border controller WAN acceleration DPI Firewall Carrier- grade NAT Tester/QoE monitor SGSN/ GGSN PE router BRAS Radio access network nodes • Fragmented non-commodity hardware • Physical install per appliance per site • Hardware development large barrier to entry for new vendors, constraining innovation and competition Network virtualization approach Standard high-volume Ethernet switches Standard high-volume storage Standard high-volume servers Software vendors Virtual appliances Orchestrated, automatic, and remote install Software Vendors Virtual Appliances
- 9. 9 NFV journey FY12-13 FY14FY15 FY16 FY17 Operators White Paper (13 operators) ETSI NFV Kick off ETSI NFV Arch Spec + OPNFV kick off ETSI NFV Rel #1 (13 specs, 226 companies) OPNFV Arno-Rel ETSI NFV PlugTest, Rel #3 & 5G White Paper ONAP 3GPP Rel 15 ETSI NFV Rel #2 & 5G workshop ETSI OSM OPNFV B-Rel Open-o

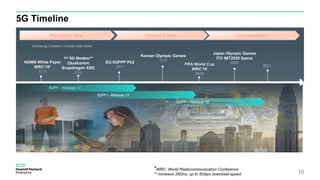

- 10. 5G Timeline 10 NGMN WhitePaper WRC’15* 2015 1st 5G Modem** (Qualcomm Snapdragon X50) 2016 EU-5GPPP Ph2 2017 Korean Olympic Games 2018 FIFA World Cup WRC’19 2019 Japan Olympic Games ITU IMT2020 Specs 2020 2021 3GPP – Release 14 3GPP – Release 16 3GPP – Release 15 *WRC: World Radiocommunication Conference ** mmwave 28Ghz, up to 5Gbps download speed Pre-Study & Tests Standard & Trials Commercialization (Samsung, Ericsson, Huawei radio tests)
- 11. ETSI NFV ReferenceArchitecture Framework 11 OSS/BSS Service, VNF and Infrastructure DescriptionEMS 1 EMS 2 EMS 3 VNF 1 VNF 2 VNF 3 Virtual Computing Virtual Storage Virtual Network Computing Hardware Storage Hardware Network Hardware NFVI Virtualization Layer Hardware resources Vi-Ha Execution reference points Other reference points Main NFV reference points Orchestrator Orchestrator OrchestratorVFN Manager(s) Virtualized Infrastructure Manager(s) Nf-Vi Ve-Vnfm Os-Ma Or-Vnfm Vi-Vnfm Or-Vi NFV Management and Orchestration Vn-Nf Private | Confidential | Internal Use Only 3 key components: NFVI : Network Function Virtualization Infrastructure MANO : Management and Orchestration VNF : Virtual Network Functions

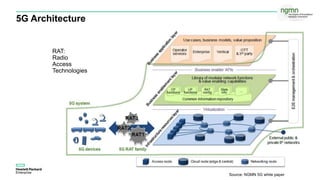

- 12. 5G Architecture Source: NGMN5G white paper RAT: Radio Access Technologies
- 13. ETSI NFV 5GSession Summary Common (NFV-SDN, Slicing, etc) SLA, E2E quality Edge computing Autonomous, Self-healing Softwarization Flexibility, Plug & Play Others NGMN ○ ○ ○ ○ ○ Attestability 5G-PPP ○ ○ ○ ○ ○ ○ Information model ITU IMT2020 ○ ○ ○ ○ ○ ICN/CCN, Trust, Traffic models 5GMF ○ ○ ○ ○ 5G Forum ○ ○ ○ ○ Energy efficiency, TU-Dresden 5G Labs ○ ○ Network coding, Compressed sensing EURECOM ○ ○ ○ ○ Programmability, C/D split, Micro services Common features: NFV & SDN, Slicing, E2E management and orchestration, Security, Multi-access/domain, Low latency

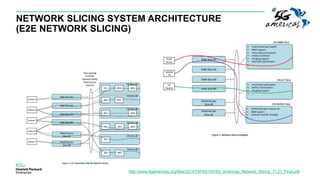

- 14. NETWORK SLICING SYSTEMARCHITECTURE (E2E NETWORK SLICING) http://www.5gamericas.org/files/3214/7975/0104/5G_Americas_Network_Slicing_11.21_Final.pdf

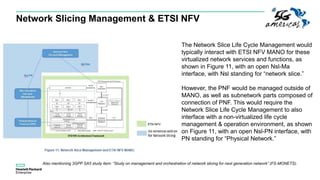

- 15. Network Slicing Management& ETSI NFV Also mentioning 3GPP SA5 study item: “Study on management and orchestration of network slicing for next generation network” (FS-MONETS). The Network Slice Life Cycle Management would typically interact with ETSI NFV MANO for these virtualized network services and functions, as shown in Figure 11, with an open Nsl-Ma interface, with Nsl standing for “network slice.” However, the PNF would be managed outside of MANO, as well as subnetwork parts composed of connection of PNF. This would require the Network Slice Life Cycle Management to also interface with a non-virtualized life cycle management & operation environment, as shown on Figure 11, with an open Nsl-PN interface, with PN standing for “Physical Network.”

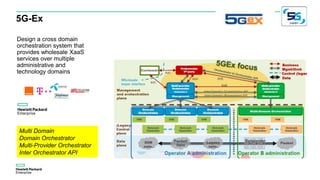

- 16. 5G-Ex Design a crossdomain orchestration system that provides wholesale XaaS services over multiple administrative and technology domains Multi Domain Domain Orchestrator Multi-Provider Orchestrator Inter Orchestrator API
- 17. 5G-Ex and ETSINFV 5G-Ex architecture mapping to ETSI NFV NFVO split: RO, NSO NFVO to NFVO, open API Topology distribution mechanism
- 18. SECURED and ETSINFV SECURity at the network Edge - https://www.secured-fp7.eu/ FINLAND University de Catalunya Labs - Bristol Personal Security Manager = ? VNFM or ? New MANO function ETSI NFV SECURED

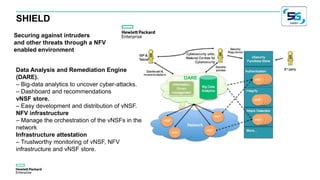

- 19. SHIELD Securing against intruders andother threats through a NFV enabled environment Data Analysis and Remediation Engine (DARE). – Big-data analytics to uncover cyber-attacks. – Dashboard and recommendations vNSF store. – Easy development and distribution of vNSF. NFV infrastructure – Manage the orchestration of the vNSFs in the network Infrastructure attestation – Trustworthy monitoring of vNSF, NFV infrastructure and vNSF store. DARE

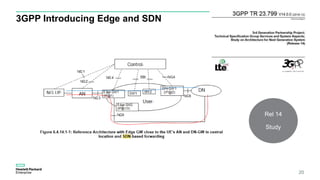

- 20. 3GPP Introducing Edgeand SDN 20 Rel 14 Study

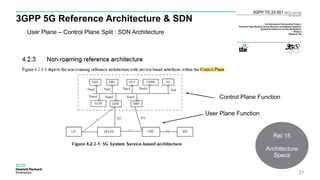

- 21. 3GPP 5G ReferenceArchitecture & SDN 21 User Plane Function Control Plane Function User Plane – Control Plane Split : SDN Architecture Rel 15 Architecture Specs

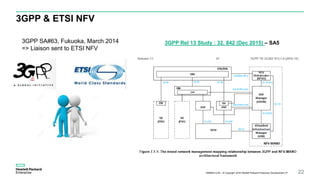

- 22. 3GPP & ETSINFV 3GPP Rel 13 Study : 32. 842 (Dec 2015) – SA5 H8N84S A.00 – © Copyright 2016 Hewlett Packard Enterprise Development LP 22 3GPP SA#63, Fukuoka, March 2014 => Liaison sent to ETSI NFV

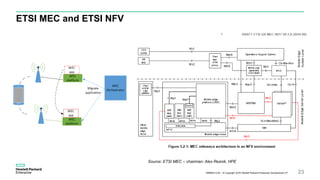

- 23. ETSI MEC andETSI NFV H8N84S A.00 – © Copyright 2016 Hewlett Packard Enterprise Development LP 23 Source: ETSI MEC – chairman: Alex Reznik, HPE
- 24. ETSI NFV –Operators White Paper 5G – Key NFV features for 5G highlighted by network operators in the ETSI NFV ISG © ETSI 2017. All rights reserved 24 Cloud-native Network Functions Edge Computing RAN Cloudification End-to-end Service Management Network Slicing NFV License Management Reliability Scalability Security Multi-site/domain Services http://portal.etsi.org/NFV/NFV_White_Paper_5G.pdf Feb ‘17
- 25. HPE and 5G Acceleratinginnovation Accelerating transformation Accelerating value Accelerating possibilities 25
- 26. Core beliefs The accesswill be very Heterogeneous The Intelligent Edge is going to unleash an industrial revolution IT & Services are going to be even more critical
- 27. 5G Network Architecture:High Level Overview Global Service Orchestration & Capability Exposure Converged Core with decomposed network functions (NFV) Multi-Strata Topology Control (SDN) Programmable Multi- technology Connectivity Monitoring, Analytics and Autonomous Decision Framework Common Security & Governance Framework Compute Fabric Connectivity Fabric Decision Fabric Converged Edge Cloud Converged Edge Cloud Converged Edge Cloud

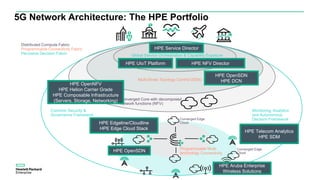

- 28. 5G Network Architecture:The HPE Portfolio Global Service Orchestration & Capability Exposure Converged Core with decomposed network functions (NFV) Multi-Strata Topology Control (SDN) Programmable Multi- technology Connectivity Monitoring, Analytics and Autonomous Decision Framework Common Security & Governance Framework Distributed Compute Fabric Programmable Connectivity Fabric Pervasive Decision Fabric Converged Edge Cloud Converged Edge Cloud Converged Edge Cloud HPE Service Director HPE UIoT Platform HPE NFV Director HPE OpenNFV HPE Helion Carrier Grade HPE Composable Infrastructure (Servers, Storage, Networking) HPE OpenSDN HPE DCN HPE Edgeline/Cloudline HPE Edge Cloud Stack HPE Telecom Analytics HPE SDM HPE OpenSDN HPE Aruba Enterprise Wireless Solutions

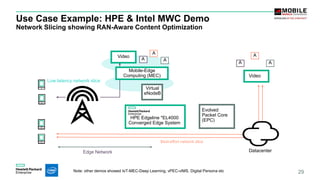

- 29. Use Case Example:HPE & Intel MWC Demo Network Slicing showing RAN-Aware Content Optimization 29 Datacenter Video A A A Virtual eNodeB Video A A A Mobile-Edge Computing (MEC) HPE Edgeline *EL4000 Converged Edge System Evolved Packet Core (EPC) Low latency network slice Best-effort network slice Edge Network Note: other demos showed IoT-MEC-Deep Learning, vPEC-vIMS, Digital Persona etc
