Build, Publish, Deploy and Test Docker images and containers with Jenkins Workflow
- 1. Build, Publish, Deploy and Test Docker images and containers with Jenkins Workflow. Nigel Harniman Senior Solutions Architect, CloudBees Inc
- 2. About me Nigel Harniman @harniman Build Engineer, Devops and Architect DevOps, Infra as Code, Continuous Delivery
- 3. “Software is eating the world” Marc Andreessen

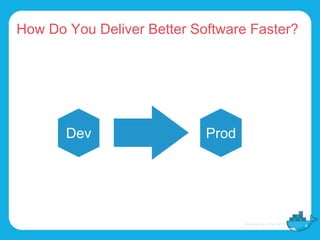

- 4. 4 How Do You Deliver Better Software Faster? ProdDev
- 5. 5 Automation is the Key Photo courtesy of Steve Jurvetson via Flickr
- 7. Docker Has Potential An example: Software Configuration Management Space
- 8. Docker Has Potential An example: Software Configuration Management Space

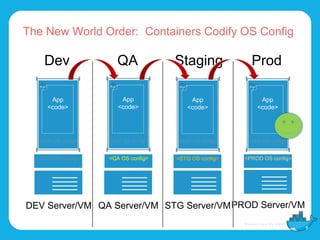

- 9. The New World Order: Containers Codify OS Config 9 ProdDev QA Staging DEV Server/VM QA Server/VM STG Server/VMPROD Server/VM <PROD OS config><STG OS config><QA OS config><DEV OS config> App <code> <APP OS config> App <code> <APP OS config> App <code> <APP OS config> App <code> <APP OS config>
- 10. So is this how I build a Docker Image? 10
- 11. Jenkins & Docker
- 12. How Can You Use Jenkins & Docker Together? +

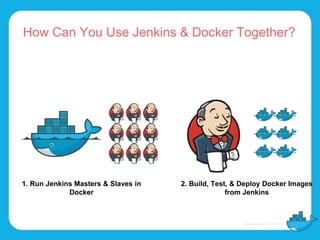

- 13. How Can You Use Jenkins & Docker Together? 1. Run Jenkins Masters & Slaves in Docker 2. Build, Test, & Deploy Docker Images from Jenkins

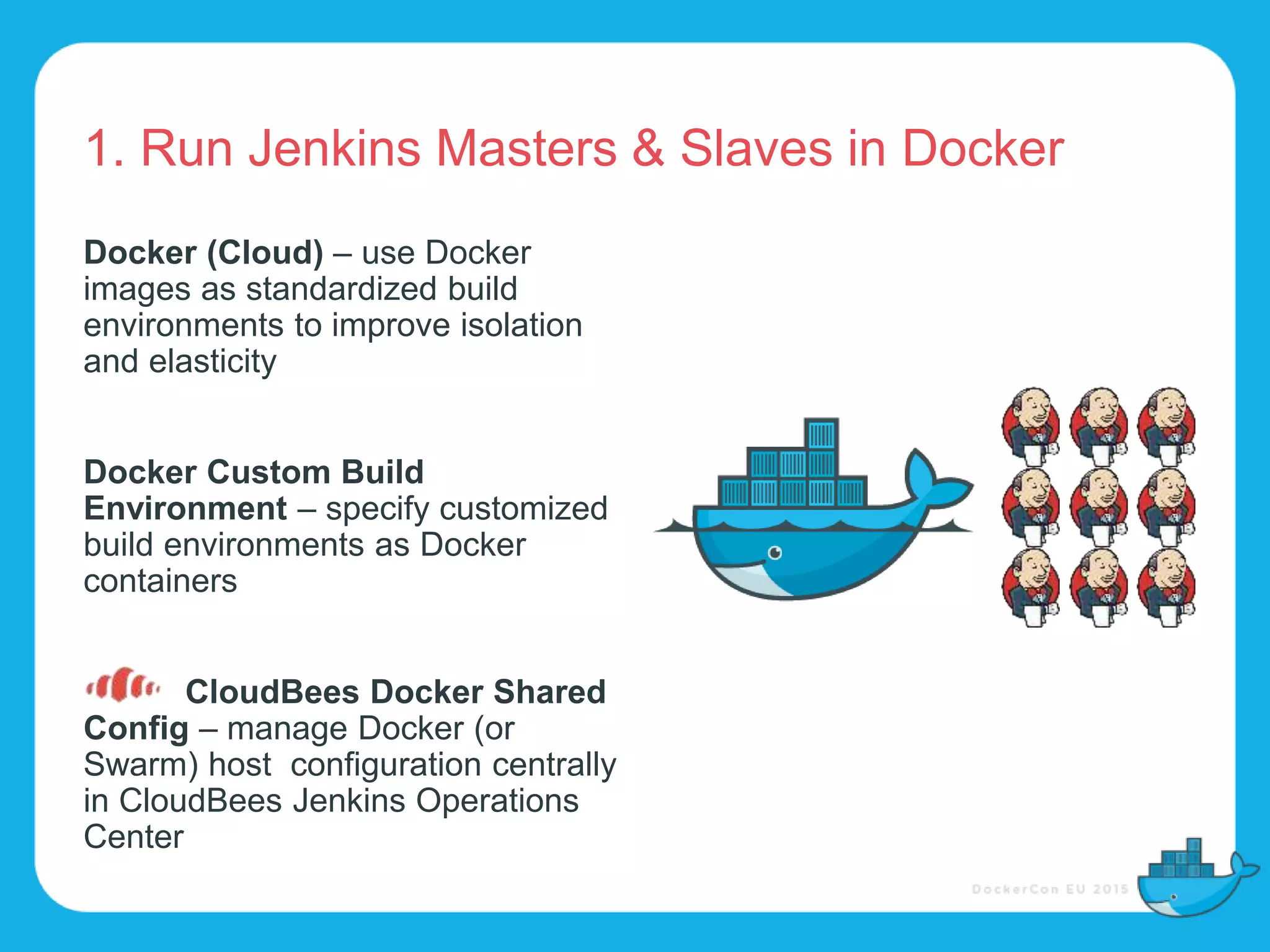

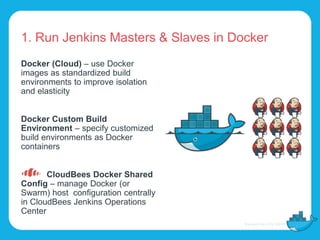

- 14. 1. Run Jenkins Masters & Slaves in Docker Docker (Cloud) – use Docker images as standardized build environments to improve isolation and elasticity Docker Custom Build Environment – specify customized build environments as Docker containers CloudBees Docker Shared Config – manage Docker (or Swarm) host configuration centrally in CloudBees Jenkins Operations Center
- 15. 2. Build, Test, & Deploy Docker Images from Jenkins Build and Publish – build projects that have a Dockerfile and push the resultant tagged image to Docker Hub Docker Traceability – identify which build pushed a particular container and displays the build / image details in Jenkins Docker Hub Notification – trigger downstream jobs when a tagged container is pushed to Docker Hub

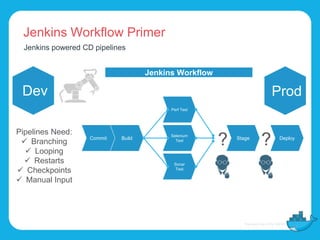

- 17. Jenkins Workflow Primer Jenkins powered CD pipelines Jenkins Workflow ProdDev Perf Test BuildCommit Selenium Test Stage Deploy Sonar Test Pipelines Need: Branching Looping Restarts Checkpoints Manual Input ??

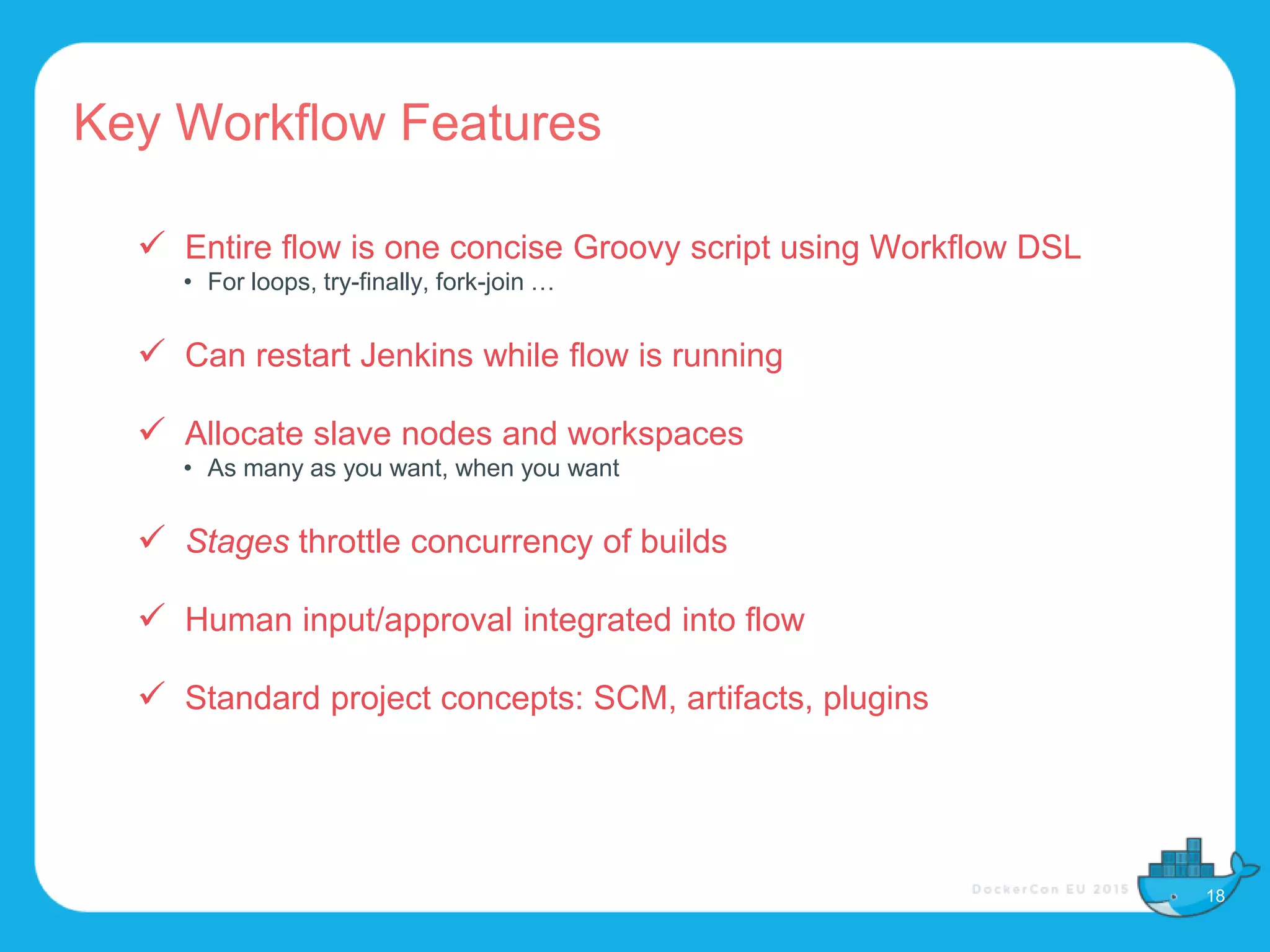

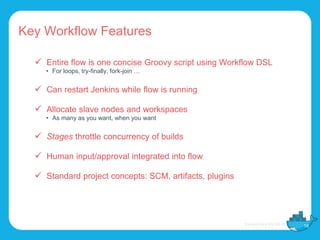

- 18. Key Workflow Features 18 Entire flow is one concise Groovy script using Workflow DSL • For loops, try-finally, fork-join … Can restart Jenkins while flow is running Allocate slave nodes and workspaces • As many as you want, when you want Stages throttle concurrency of builds Human input/approval integrated into flow Standard project concepts: SCM, artifacts, plugins

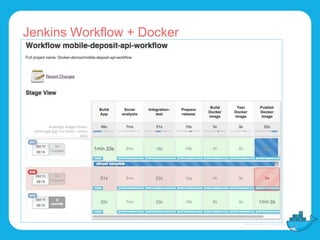

- 19. Jenkins Workflow + Docker

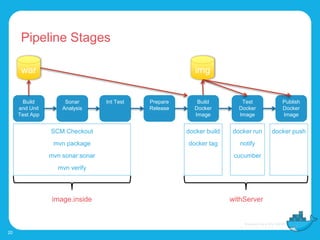

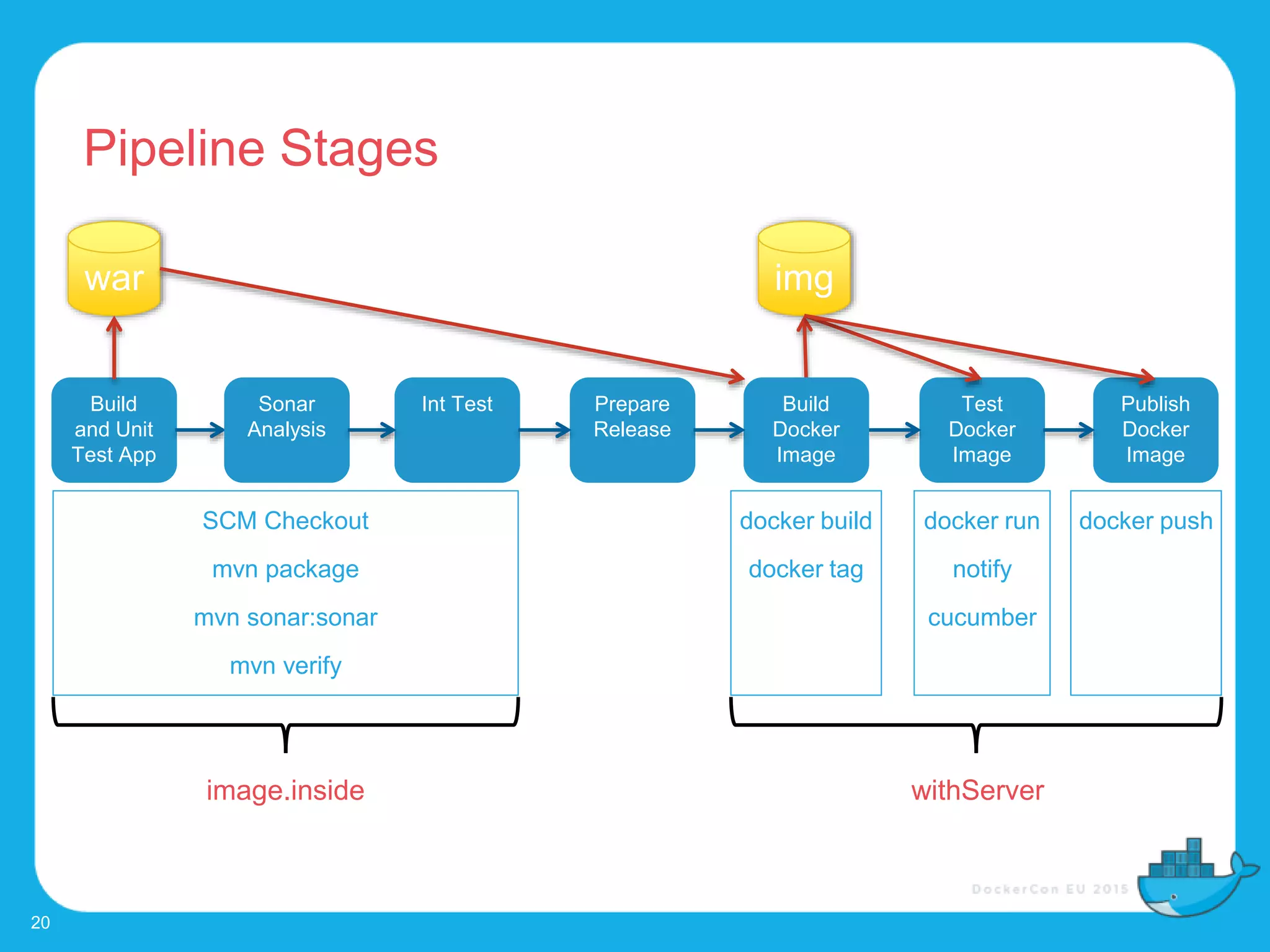

- 20. Pipeline Stages 20 Build and Unit Test App Test Docker Image Publish Docker Image SCM Checkout mvn package mvn sonar:sonar mvn verify docker build docker tag docker run notify cucumber war img Sonar Analysis Prepare Release Build Docker Image Int Test docker push image.inside withServer

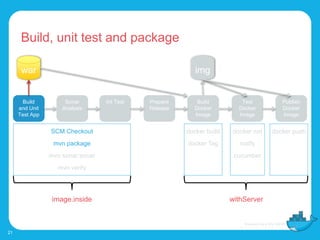

- 21. Build, unit test and package 21 Build and Unit Test App Test Docker Image Publish Docker Image SCM Checkout mvn package mvn sonar:sonar mvn verify docker build docker Tag docker run notify cucumber war img Sonar Analysis Prepare Release Build Docker Image Int Test docker push image.inside withServer

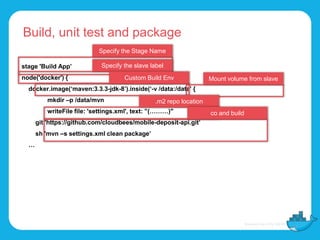

- 22. Build, unit test and package stage 'Build App’ node('docker') { docker.image(‘maven:3.3.3-jdk-8’).inside(‘-v /data:/data’ { mkdir –p /data/mvn writeFile file: 'settings.xml', text: ”(………)" git 'https://github.com/cloudbees/mobile-deposit-api.git’ sh 'mvn –s settings.xml clean package’ … Specify the Stage Name Specify the slave label Custom Build Env Mount volume from slave .m2 repo location co and build

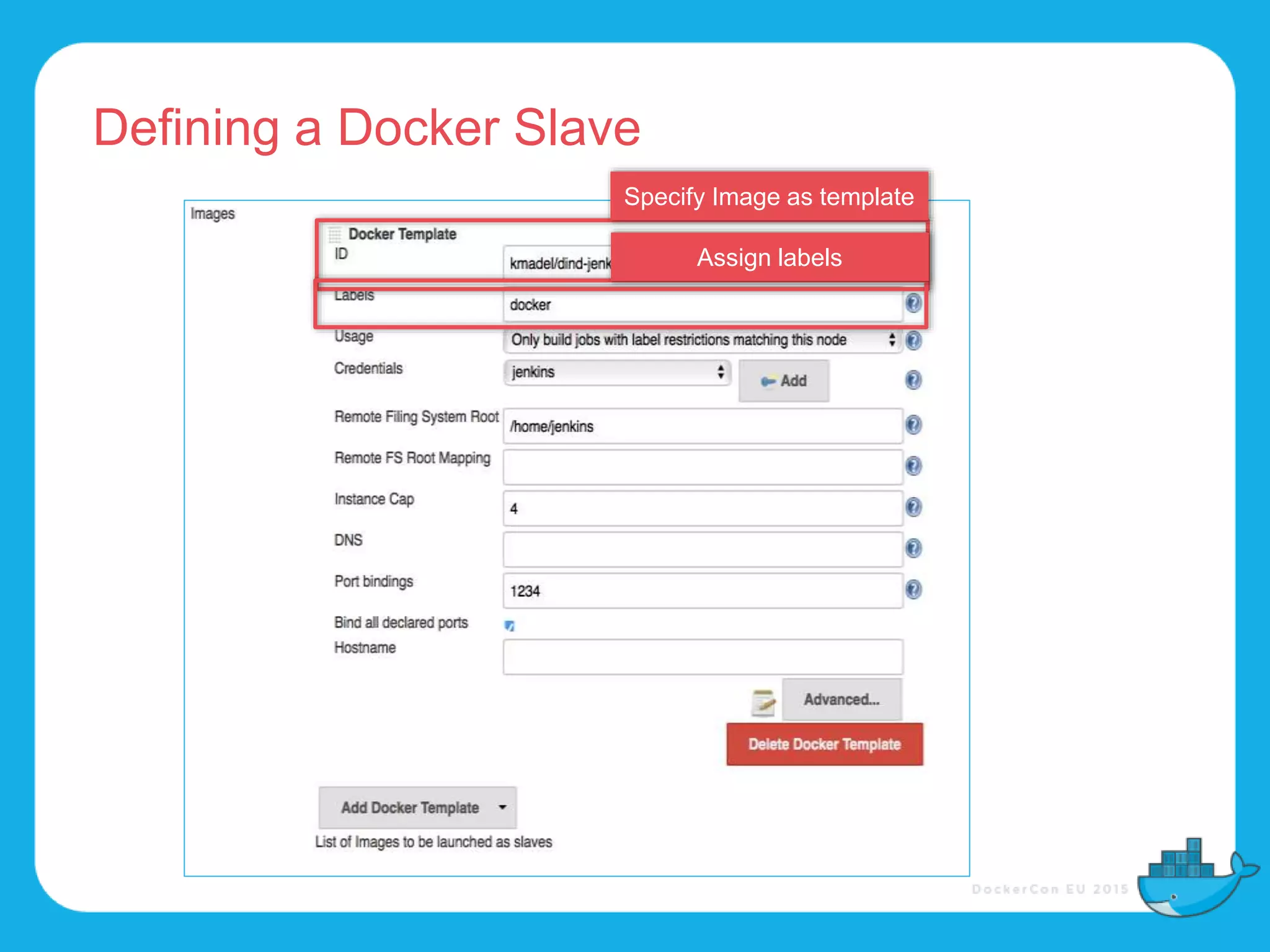

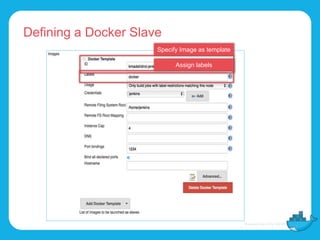

- 23. Defining a Docker Slave Specify Image as template Assign labels

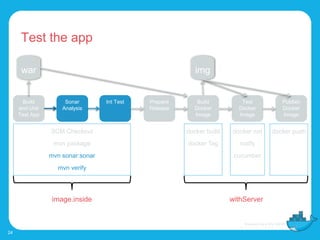

- 24. Test the app 24 Build and Unit Test App Test Docker Image Publish Docker Image SCM Checkout mvn package mvn sonar:sonar mvn verify docker build docker Tag docker run notify cucumber war img Sonar Analysis Prepare Release Build Docker Image Int Test docker push image.inside withServer

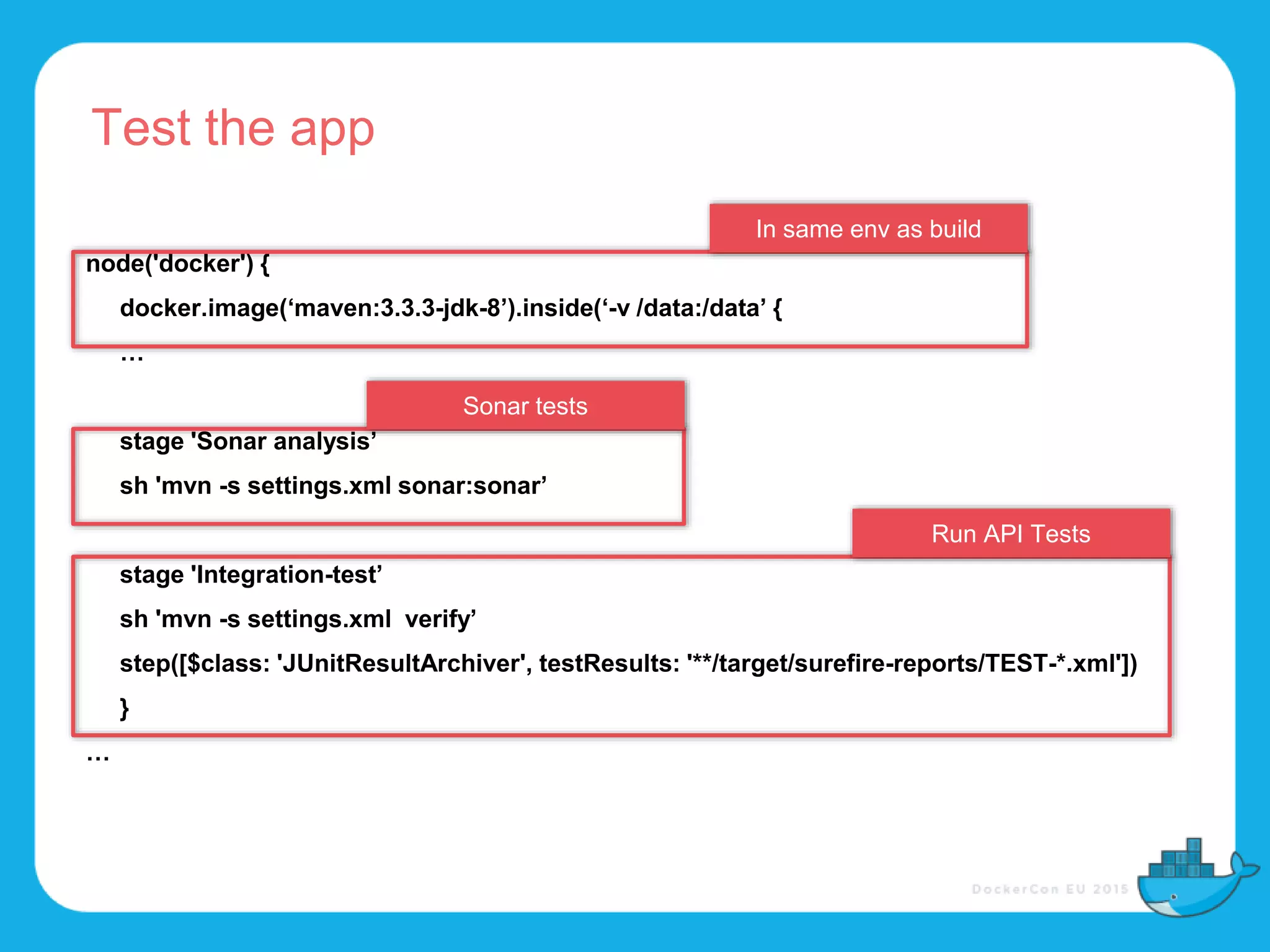

- 25. Test the app node('docker') { docker.image(‘maven:3.3.3-jdk-8’).inside(‘-v /data:/data’ { … stage 'Sonar analysis’ sh 'mvn -s settings.xml sonar:sonar’ stage 'Integration-test’ sh 'mvn -s settings.xml verify’ step([$class: 'JUnitResultArchiver', testResults: '**/target/surefire-reports/TEST-*.xml']) } … In same env as build Sonar tests Run API Tests

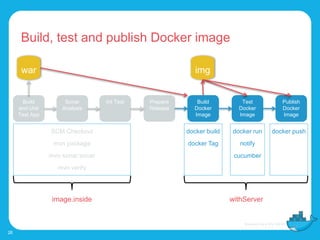

- 26. Build, test and publish Docker image 26 Build and Unit Test App Test Docker Image Publish Docker Image SCM Checkout mvn package mvn sonar:sonar mvn verify docker build docker Tag docker run notify cucumber war img Sonar Analysis Prepare Release Build Docker Image Int Test docker push image.inside withServer

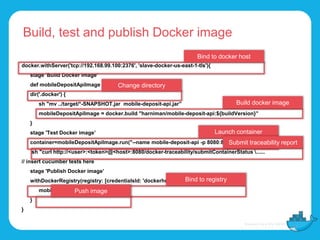

- 27. Build, test and publish Docker image docker.withServer('tcp://192.168.99.100:2376', 'slave-docker-us-east-1-tls'){ stage 'Build Docker image’ def mobileDepositApiImage dir('.docker') { sh "mv ../target/*-SNAPSHOT.jar mobile-deposit-api.jar” mobileDepositApiImage = docker.build "harniman/mobile-deposit-api:${buildVersion}” } stage 'Test Docker image’ container=mobileDepositApiImage.run("--name mobile-deposit-api -p 8080:8080”) sh "curl http://<user>:<token>@<host>:8080/docker-traceability/submitContainerStatus ...... // insert cucumber tests here stage 'Publish Docker image’ withDockerRegistry(registry: [credentialsId: 'dockerhub-harniman']) { mobileDepositApiImage.push() } } Bind to docker host Change directory Launch container Build docker image Bind to registry Push image Submit traceability report

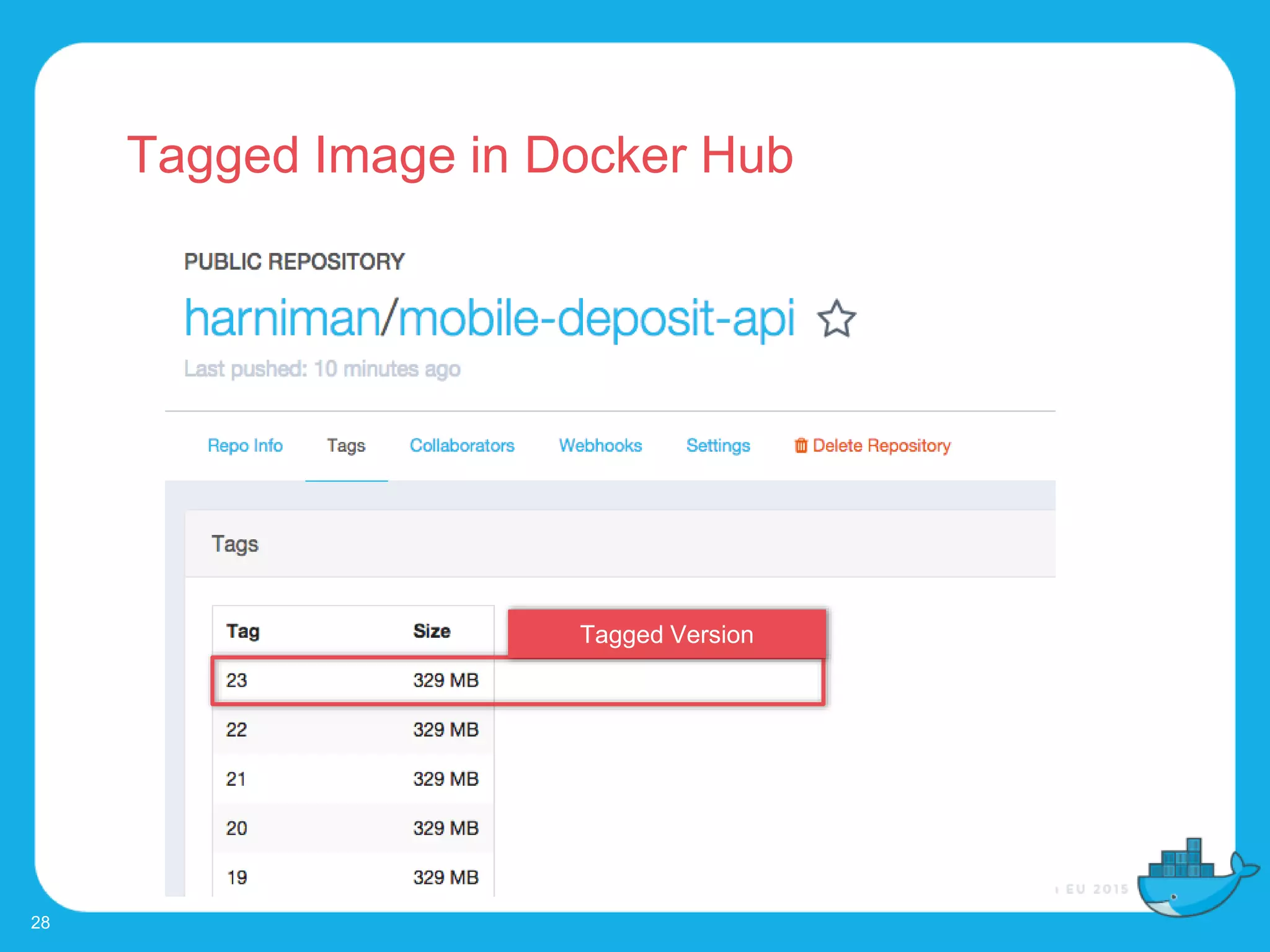

- 28. 28 Tagged Version a Tagged Image in Docker Hub a
- 29. Traceability

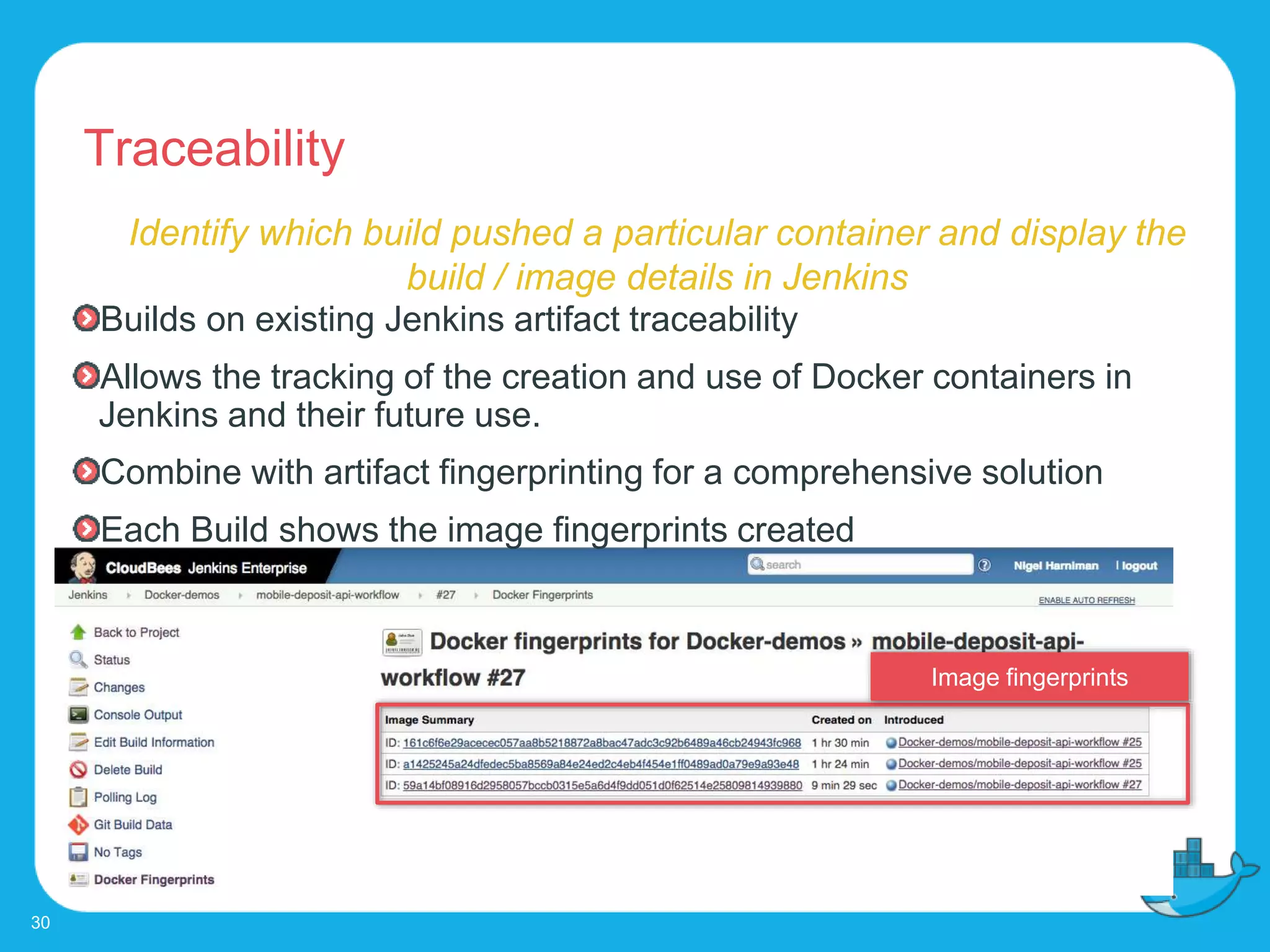

- 30. Traceability Builds on existing Jenkins artifact traceability Allows the tracking of the creation and use of Docker containers in Jenkins and their future use. Combine with artifact fingerprinting for a comprehensive solution Each Build shows the image fingerprints created 30 Identify which build pushed a particular container and display the build / image details in Jenkins Image fingerprints

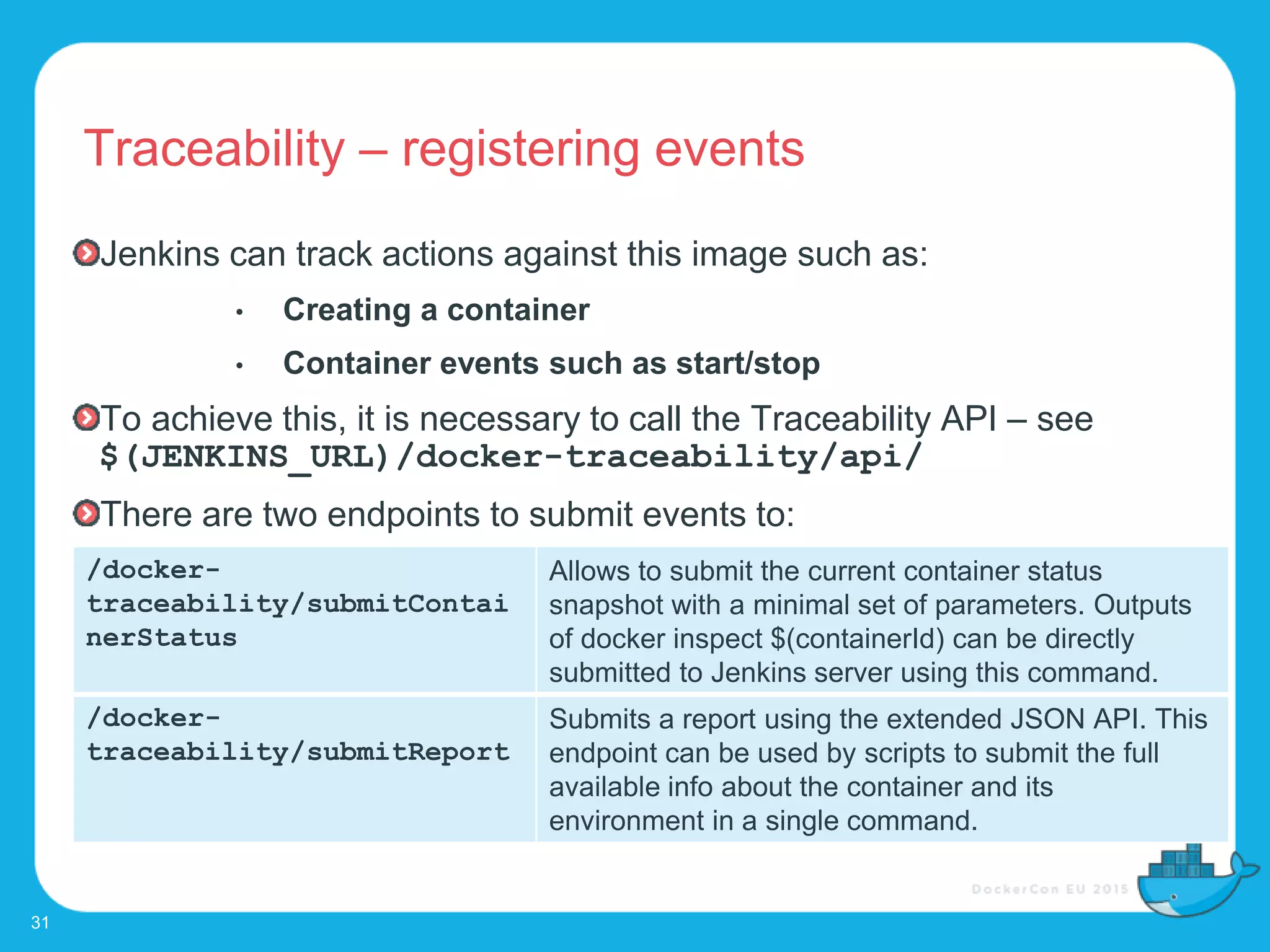

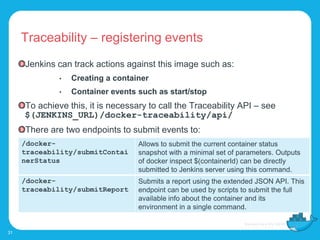

- 31. Traceability – registering events Jenkins can track actions against this image such as: • Creating a container • Container events such as start/stop To achieve this, it is necessary to call the Traceability API – see $(JENKINS_URL)/docker-traceability/api/ There are two endpoints to submit events to: 31 /docker- traceability/submitContai nerStatus Allows to submit the current container status snapshot with a minimal set of parameters. Outputs of docker inspect $(containerId) can be directly submitted to Jenkins server using this command. /docker- traceability/submitReport Submits a report using the extended JSON API. This endpoint can be used by scripts to submit the full available info about the container and its environment in a single command.
- 32. Traceability – registering events - example Workflow usage example: 32 container = mobileDepositApiImage.run("--name mobile-deposit-api -p 8080:8080") sh "curl http://<user>:<token>@<host>:8080/docker-traceability/submitContainerStatus --data-urlencode status=deployed --data-urlencode inspectData="$(docker inspect $container.id)" --data-urlencode environment=test --data-urlencode hostName=mymac --data-urlencode imageName=harniman/mobile-deposit-api" Spin up container Notify Jenkins

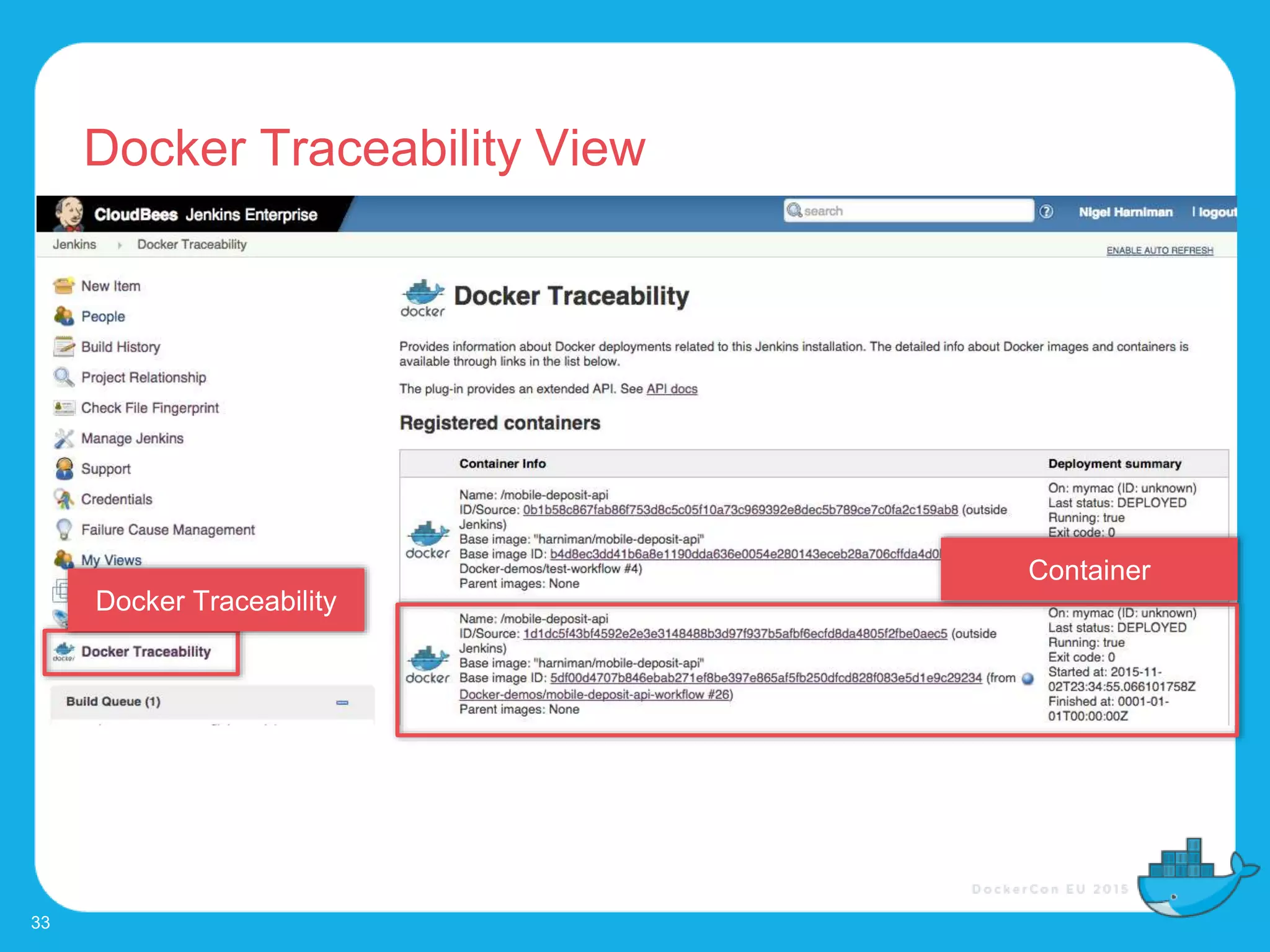

- 33. Docker Traceability View 33 Docker Traceability Container

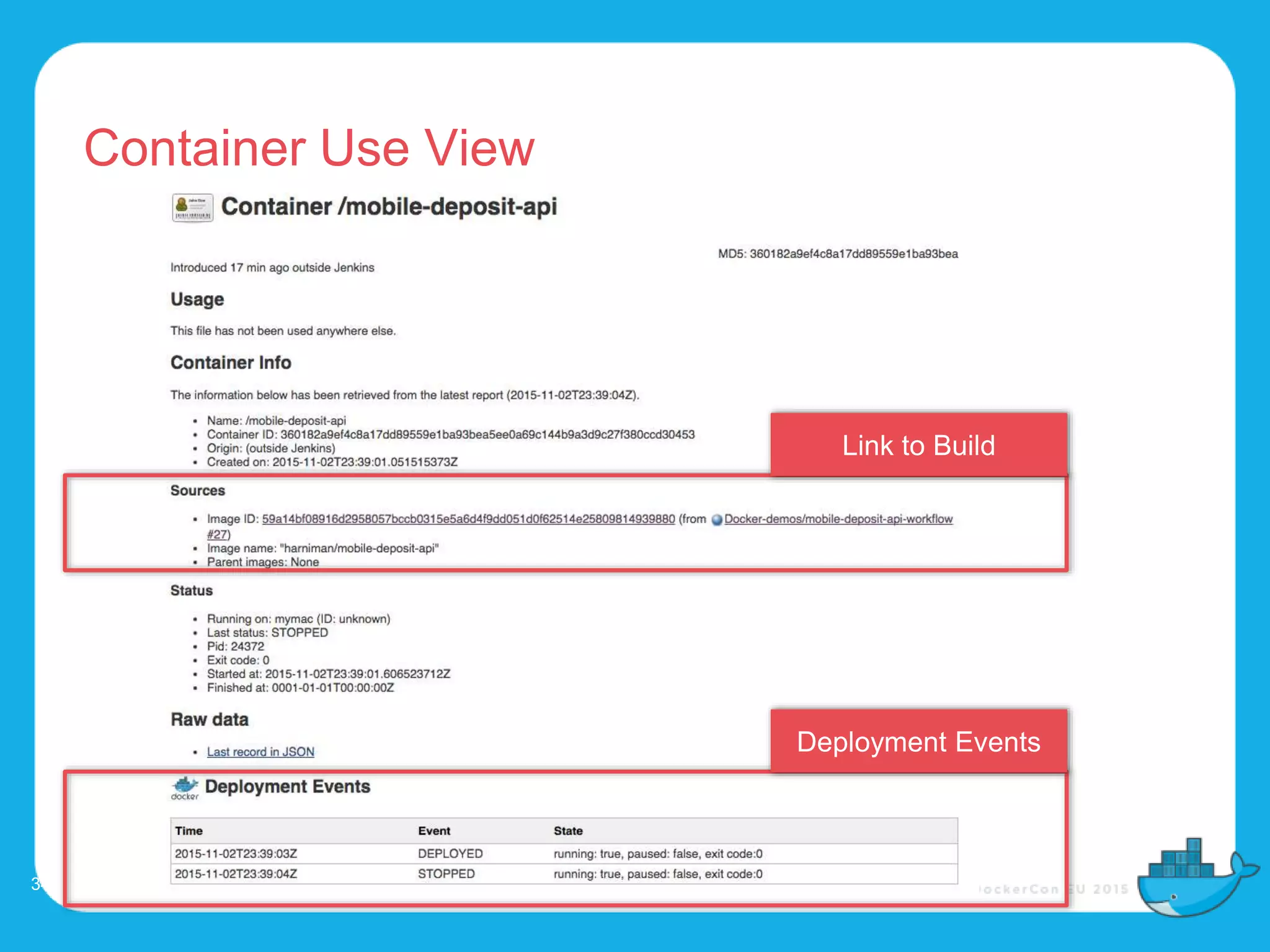

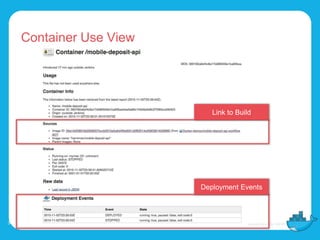

- 34. Container Use View 34 Deployment Events Link to Build

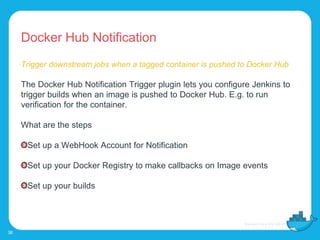

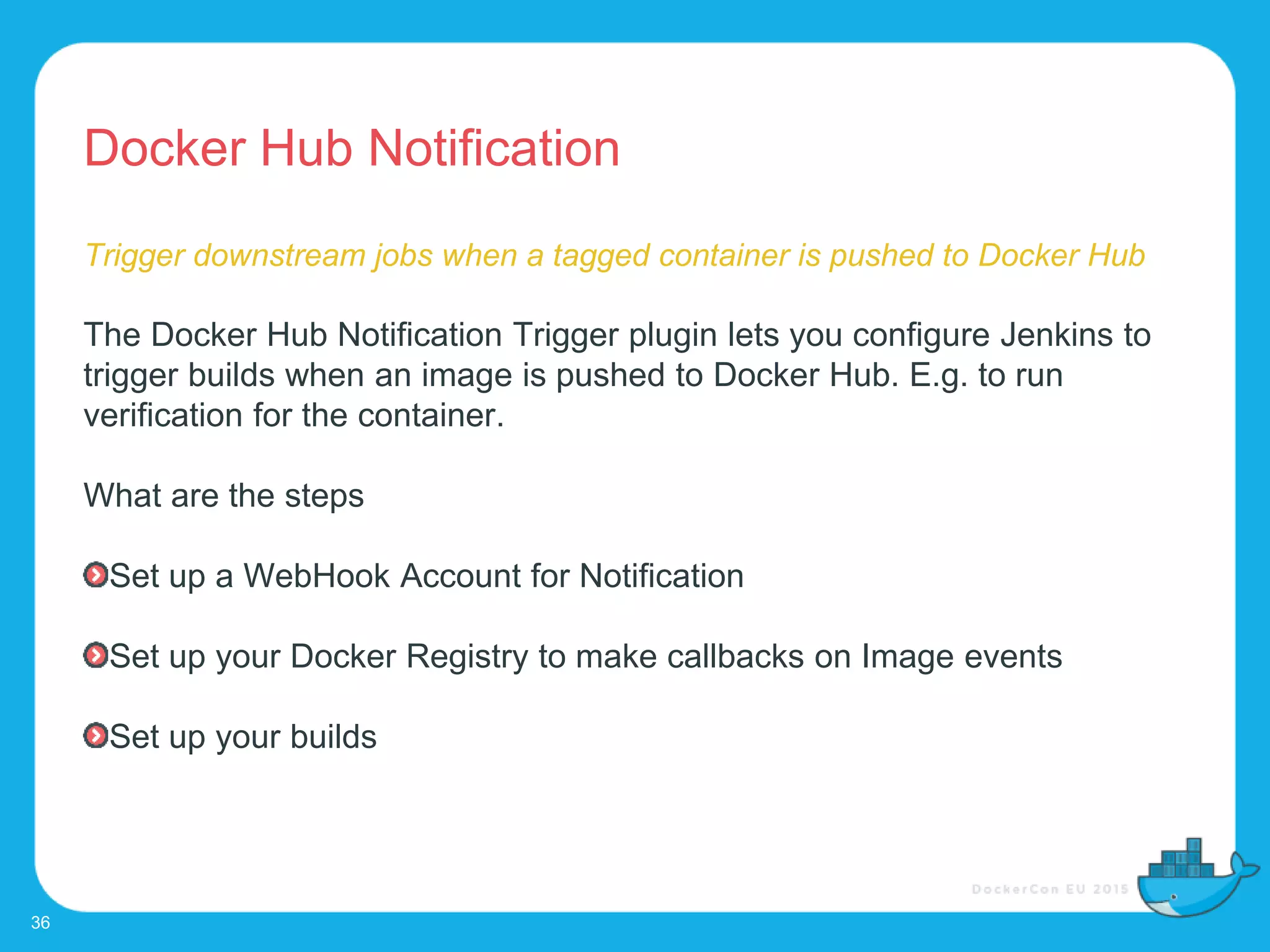

- 36. Docker Hub Notification Trigger downstream jobs when a tagged container is pushed to Docker Hub The Docker Hub Notification Trigger plugin lets you configure Jenkins to trigger builds when an image is pushed to Docker Hub. E.g. to run verification for the container. What are the steps Set up a WebHook Account for Notification Set up your Docker Registry to make callbacks on Image events Set up your builds 36

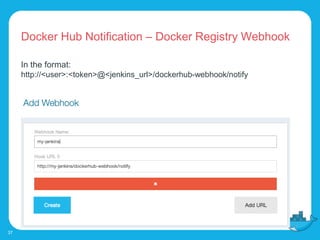

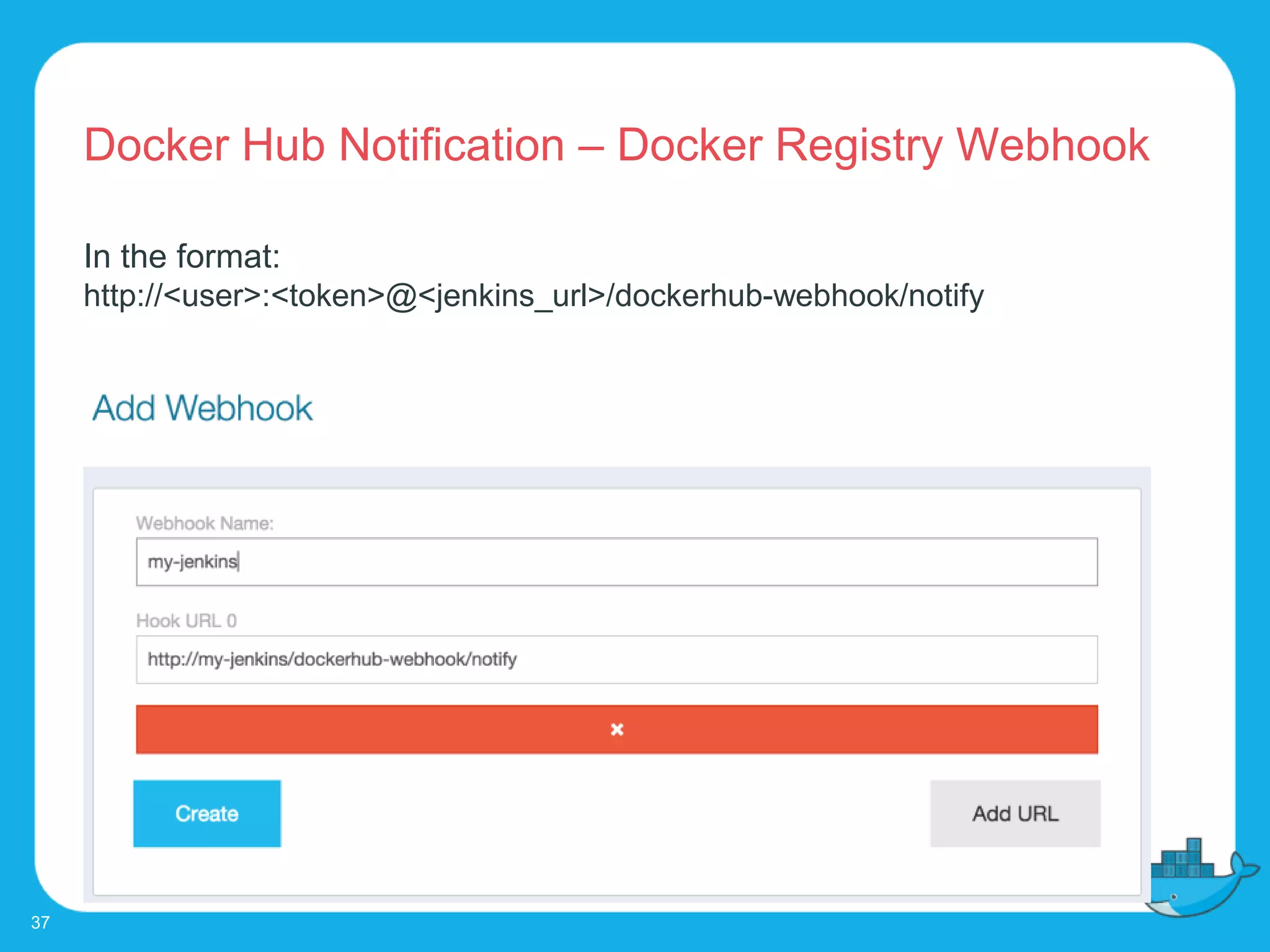

- 37. Docker Hub Notification – Docker Registry Webhook 37 In the format: http://<user>:<token>@<jenkins_url>/dockerhub-webhook/notify

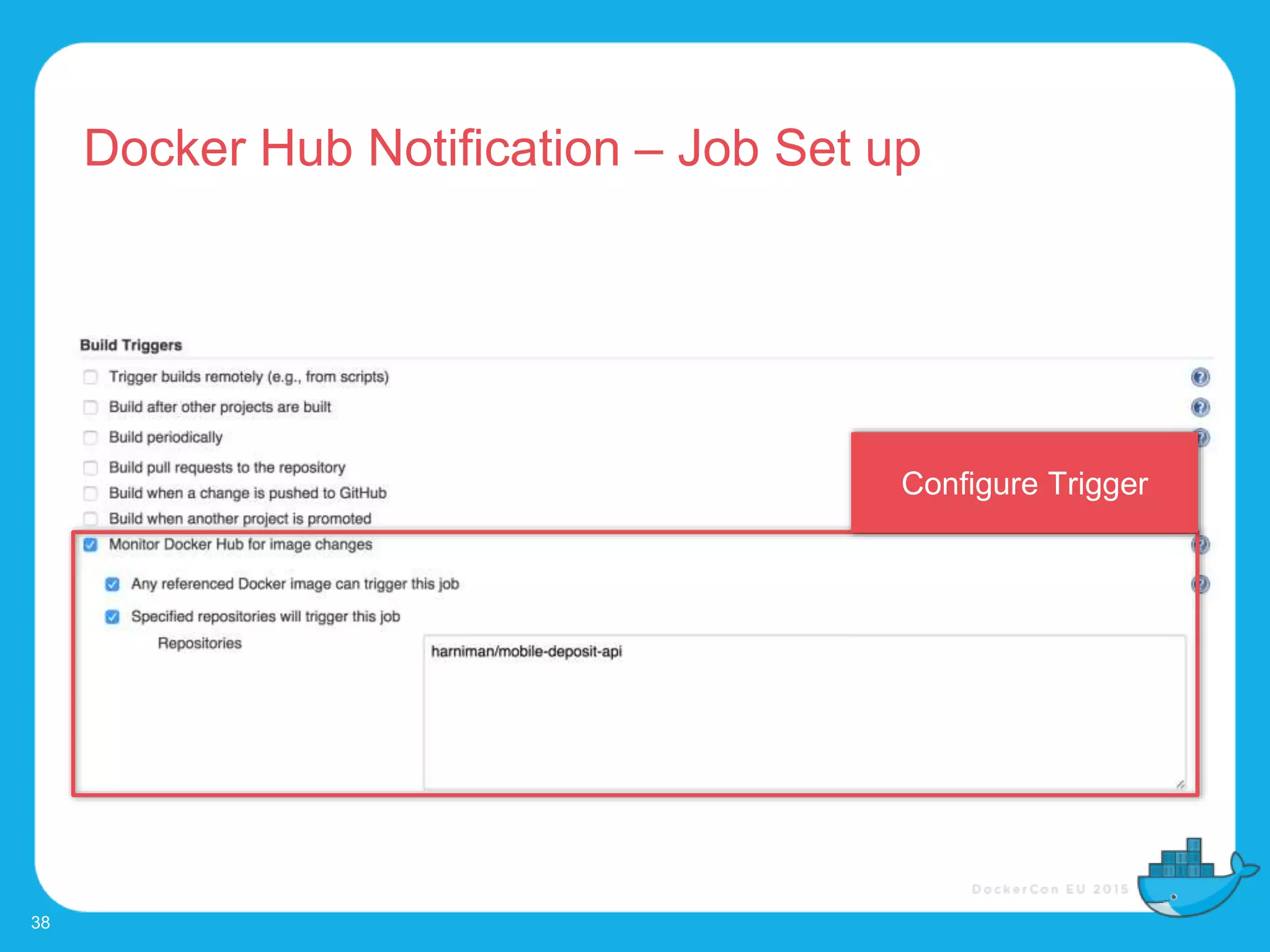

- 38. Docker Hub Notification – Job Set up 38 Configure Trigger
- 39. In Conclusion

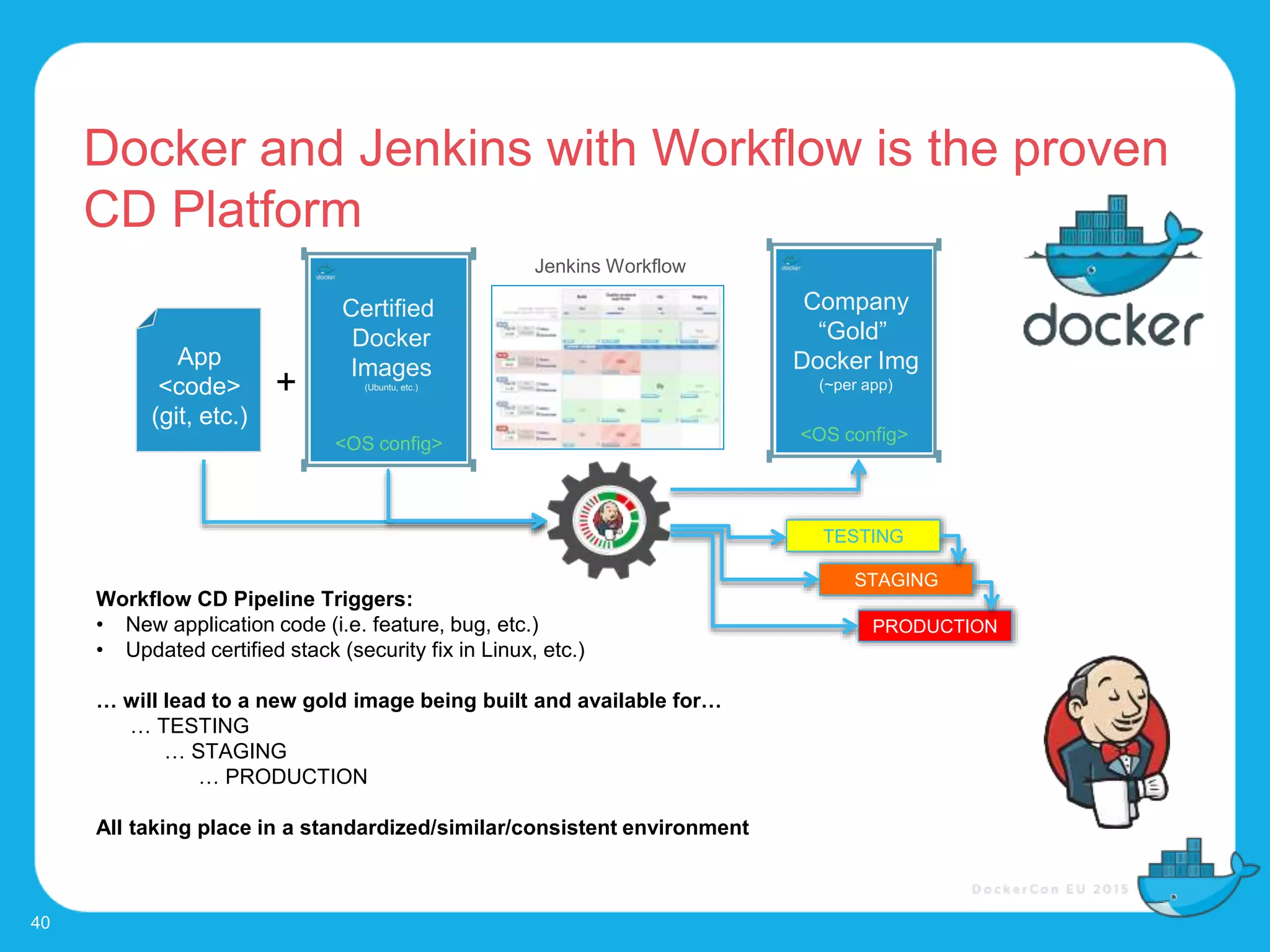

- 40. Docker and Jenkins with Workflow is the proven CD Platform 40 + TESTING STAGING PRODUCTION Workflow CD Pipeline Triggers: • New application code (i.e. feature, bug, etc.) • Updated certified stack (security fix in Linux, etc.) … will lead to a new gold image being built and available for… … TESTING … STAGING … PRODUCTION All taking place in a standardized/similar/consistent environment <OS config> Company “Gold” Docker Img (~per app) App <code> (git, etc.) <OS config> Certified Docker Images (Ubuntu, etc.) Jenkins Workflow

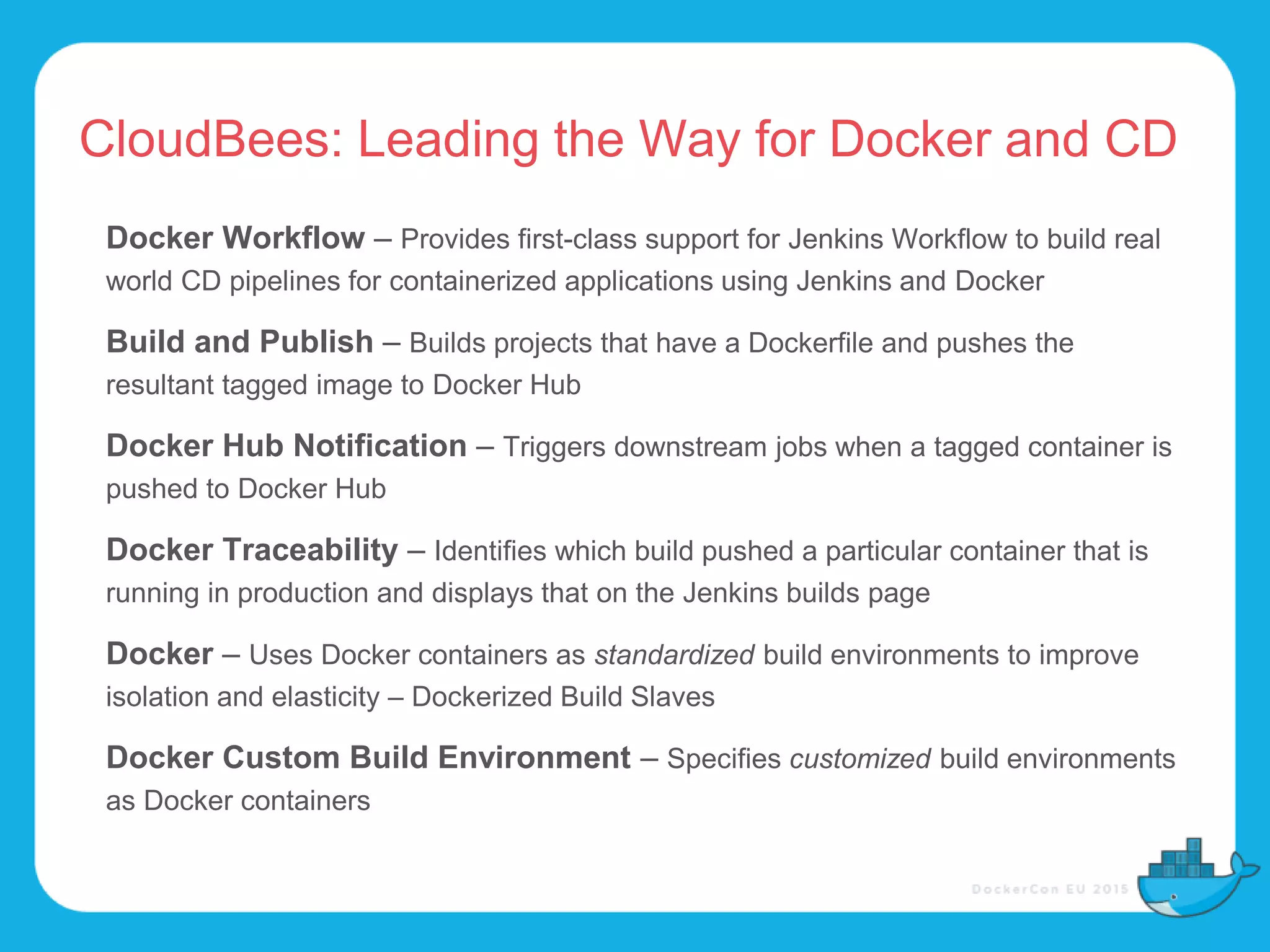

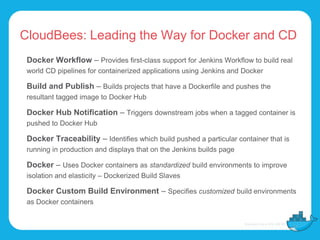

- 41. CloudBees: Leading the Way for Docker and CD Docker Workflow – Provides first-class support for Jenkins Workflow to build real world CD pipelines for containerized applications using Jenkins and Docker Build and Publish – Builds projects that have a Dockerfile and pushes the resultant tagged image to Docker Hub Docker Hub Notification – Triggers downstream jobs when a tagged container is pushed to Docker Hub Docker Traceability – Identifies which build pushed a particular container that is running in production and displays that on the Jenkins builds page Docker – Uses Docker containers as standardized build environments to improve isolation and elasticity – Dockerized Build Slaves Docker Custom Build Environment – Specifies customized build environments as Docker containers

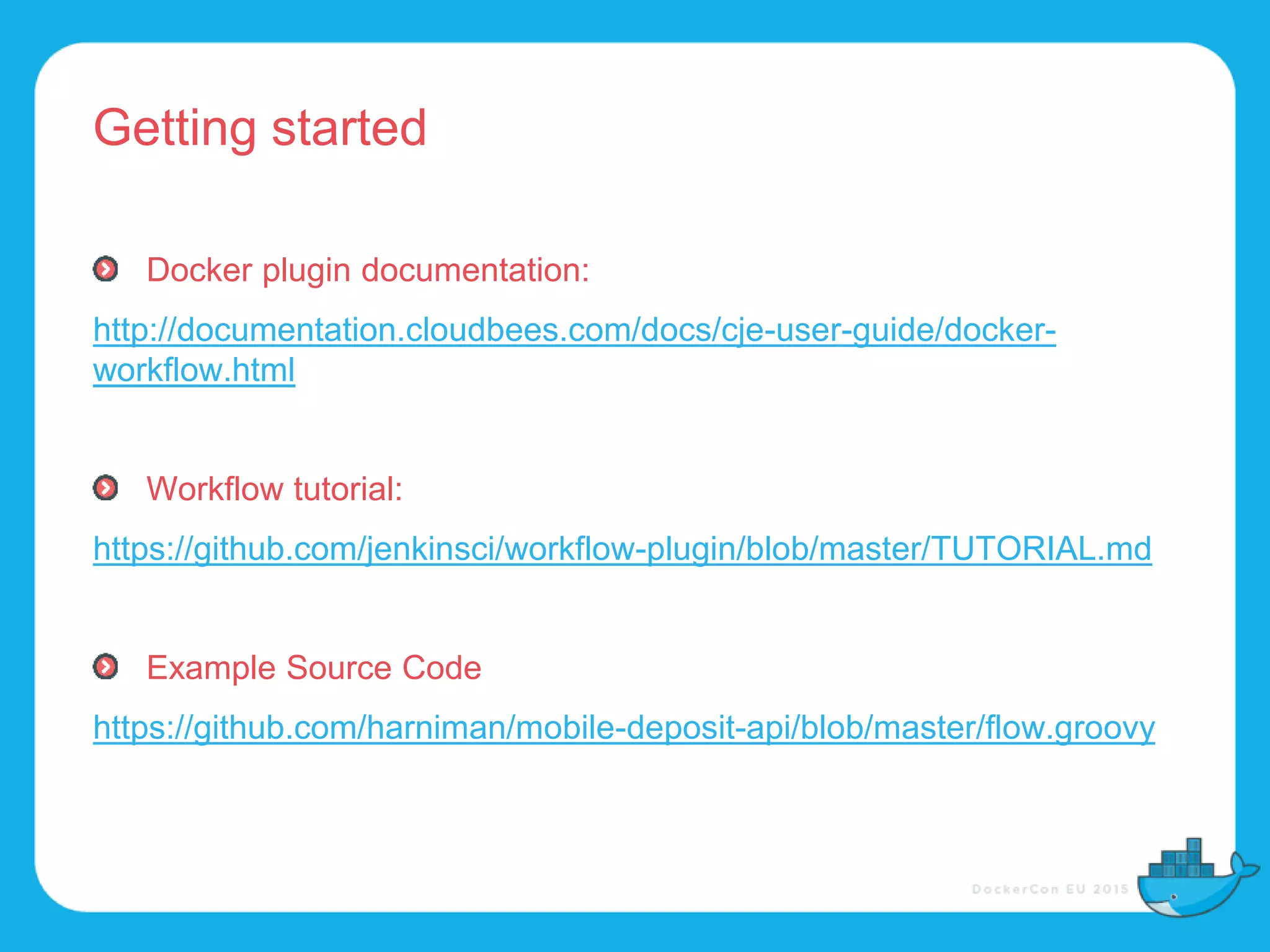

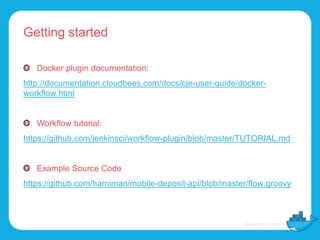

- 42. Getting started Docker plugin documentation: http://documentation.cloudbees.com/docs/cje-user-guide/docker- workflow.html Workflow tutorial: https://github.com/jenkinsci/workflow-plugin/blob/master/TUTORIAL.md Example Source Code https://github.com/harniman/mobile-deposit-api/blob/master/flow.groovy
- 43. How Do You Manage CD at Enterprise Scale? 43 CloudBees Jenkins Platform Jenkins at Enterprise Scale for CI and CD
Editor's Notes
- About me: I work for CloudBees as a Solution Architect helping our customers understand how CloudBees Jenkins Platform can help them solve their goals. I have been in engineering for over 20 years and have performed various java development and architecture roles including a stint as a build engineer and as a lead Dev Ops. I came to CloudBees from Sky where I had responsibility for the online video platform, and as part of my time there I designed and built an online platform for sales and service using Infrastructure as Code principles – devops before it was called that! QAs deployed many times a day via a self service mechanism with db redeployment/upgrade and flexible mocking options. We deployed to prod weekly with full VM tear down and rebuild via a scripted ‘next”, “next” approach I am interested in all things automation, devops, and especially how that applies in the cloud.
- We’ve heard this Meme over and over. Marc Andreeson said “Software is eating the World.” What does this mean? Wherever we look, products are being defined by the software they run as much as the physical appearance. For instance, is a car defined just by its style, or by the driver automation features implemented by software such as auto parking, lane assist, adaptive cruise control, self driving? What about the recent emissions scandal involving a certain German manufacturer? Has this been attributed to Hardware or Software? The software stakes have never been higher. Quality needs have never been higher – who wants their self driving car to crash – but speed to market of new features becomes critical as software becomes a key differentiator.
- So, how do we do that? How do we deliver better software faster? How do we take code developed by developers and rapidly move it to production as new features for users? Whilst maintaining quality.
- Well, Automation is the key. Just as the Tesla Motor Company built a fully automated factory floor to produce their leading edge cars, we need to build a fully automated software factory using automation technologies.
- Lets look at the advantage Docker brings to speeding up this process.
- A typical full stack configuration looks like this: Develop Code Commit to SCM Build and test app with Jenkins Provision environment with Puppet Test Environment and App code are not bound tightly together. Environment changes do not propagate with App changes. Testers find bugs, developers have to spend time investigating why it worked in DEV and not in PROD and then re-working. This is not fast
- Use Docker to manage the environment config alongside the application. Propagate the same configuration across all environments. If it works in Dev, it will work in prod. Focus on new innovation rather than fault finding.
- What does this look like in reality? We package all app related OS config with the application code. The same tested package is propagated across the environments. This takes the single binary concept to the next level. (NB we still have to manage data network layers and provide consistent configuration. Other tooling can address these needs.
- Images need to be built using a reliable, repeatable and automated process These days it is not acceptable to build application artifacts by hand – so Docker Images need the same type of automation.
- This is where Jenkins comes to our rescue Jenkins is widely used for application CI and drives many CD initiaves (RebelLabs research showed 70% of Java projects use Jenkins)
- Lets look at how Jenkins and Docker can be used together to take your delivery process to the next level.
- Two patterns of use: Use Docker to provide run-time environments for Jenkins components – Slaves and Masters (And Operations Center if running CloudBees Jenkins Platform) Use Jenkins to build and test Docker Images
- Firstly Docker can be leveraged as the runtime platform for Jenkins components such as Masters and Slaves. There are standard docker images for Masters, and the CloudBees Jenkins Platform components. Docker can also be used to provision Slave nodes on demand using the Docker Slaves plugin. Various images exist, or roll your own with all required tools. Also integrates via Swam and Kubernetes for scaling across many Docker hosts Sometimes you want a very controlled build environment – think clean room, or you need certain pre-configured credentials or other config to exist. The Custom Build Environment plugin allows you to achieve just this. Within your slave, a container is spun up from a predefined image, filesystems mounted from the slave and the build steps executed within the container. Users of the CloudBees Jenkins Platform are able to leverage the Shared Config capability to distribute the docker host and image/label configuration across the whole cluster of masters from a central point. I won’t go into details of these now, as we want to focus on pipelines.
- The second area that Jenkins and Docker deliver is the ability to create a fully automated pipeline to Build, Test and Deploy Docker images. The Build and Publish plugin provides an easy to use abstraction of the Docker command line and adds Jenkins Build Steps for build, tag, push etc Docker Traceability extends Jenkins existing Fingerprint capability to allow identification of the underlying build that created a given image, and allows tracing back from a running container Docker Hub Notification addresses two needs. How do I trigger a redeployment when an Image is pushed, and, given Docker’s layered approach, how do I rebuild my image if an upstream layer is changed – ie my Company pushes a new Ubuntu-secure-base These plugins can be used in regular Jenkins jobs to assemble pipelines, but I want to show you how super simple this is using Jenkins Workflow.
- Workflow is a new Job type. Launched in Nov 2014. Workflow is available to the OSS users. A job now becomes the whole pipeline, and has the power to model complex scenarios such as Branching, Looping, handling human input. A workflow also runs in a detached manner, which means as long as the real work is being performed on executors, it survives a Master restart.
- Jenkins Workflow has some really cool features…
- Workflow has the concept of Stages. This screen shot is using the Stage View plugin from CloudBees Jenkins Platform to show how a typical Docker pipeline might look. Stages are fully customizable.
- Lets look at this example pipeline in more detail. We are going to build the app just like we do today – this will compile and unit test, produce a war (mvn package) , run Sonar analysis (mvn sonar:sonar) and then Integration test (mvn verify) The difference here, is we are going to run this inside a specific Docker container using the Custom Build Environment plugin We will then prepare the release – in this case it is grabbing the version from the POM Now comes the real Docker integration. We will create the docker image and tag it. We then spin up a container from this image, notify Jenkins of the container (for traceability) and run tests against it – these could be functional, security, performance – maybe you will have multiple test phases run in parallel against multiple containers. If the tests pass, we then publish the image to our registry – public or private – the choice is yours.
- Lets look at the build step in more detail
- We specify the stage name Next, we need to run these steps on a slave. This slave needs docker installed. Then we define the container we need to run the build in And mount a additional data volume – we do this to provide a common maven repo cache Which is why we use a custom settings file to point to the repo location And then we perform a git checkout, and run mvn from the command line
- A note about docker slaves In the global config, you specify various docker images that can be used as slaves, and map to labels. There is an existing docker-in-docker plugin that I am using to spin up a container that also can run docker,
- Next we will look at the sonar and integration test steps
- We add stage names And then we run the mvn targets from the command line This is typical workflow pipeline construction
- Now we’ll focus on the image creation and use.
- First we need to ensure we have access to a docker host. You can see here I am referencing a Jenkins Credentials via its ID. The docker plugins are fully integrated with Jenkins Credentials API. Within this block that performs the bind, I will then execute the workflow steps You can see more stages defined – I’m not going to cover these in detail – it’s the same as before Next we need to ensue we are executing commands within the context of the correct directory on the filesystem that contains the dockerfile We then invoke the build – providing the tag at the same time – note we obtain a reference to the image Once the image is built, we want to provision a container. Note we also grab a handle to this so we can address it later. The next step is to notify Jenkins that we have created a container from this image (I’ll show more details a bit later) If the tests pass, we bind to the registry (the default is dockerhub) – note we also supply credentials reference here too, and the push the image
- And voila, we have a tagged version that is fully tested.
- So I mentioned earlier I would talk more about traceability.
- Identify which build pushed a particular container and display the build / image details in Jenkins
- After we have spun up a container, we need to call the Jenkins traceability endpoint with details. Fortunately we can pass in the output of “docker inspect”
- What does this give us? On the left hand menu we have a new Docker Traceability item It shows the containers known to Jenkins Clicking on one reveals
- The container’s events – as logged via the Traceability API And the Build that created the image so you can trace back to the source.
- A final word on Docker Hub Notifications
- Trigger downstream jobs when a tagged container is pushed to Docker Hub
- Need to configure Docker registry with a WebHook and provide the user and token to access
- Then you configure the trigger conditions on the jobs It can either be automatic from any Docker image used by the build – ie deploy container from image x Or, you can list the depenant images explicity
- OK, so in conclusion
- Jenkins and Docker can be your key to Continuous Delivery. The same automation engine that you already know and use for CI can fully power your docker based CD process as well. Jenkins supports the creation and management of complex Delivery Pipelines
- CloudBees has been working closely with Docker, the company, to create a number of Jenkins plugins that insure that Docker is a first-class entity in the CD/DevOps ecosystem.
- How can you get started? Documentation on the Docker extensions for Workflow Workflow Tutorial Take a look at the example application and pipeline on my Github
- So, how do you manage Jenkins at Enterprise scale? If you are going to use Jenkins for CI or CD, then it will become a crucial part of your application delivery environment. You need to be confident that it will be there when needed. That’s where we come in. <click build> CloudBees is the enterprise Jenkins company. We offer subscription based access to CloudBees Jenkins Enterprise which is an enhanced, robust, and highly available version of Jenkins that is built on the same open source core that you know and trust.
