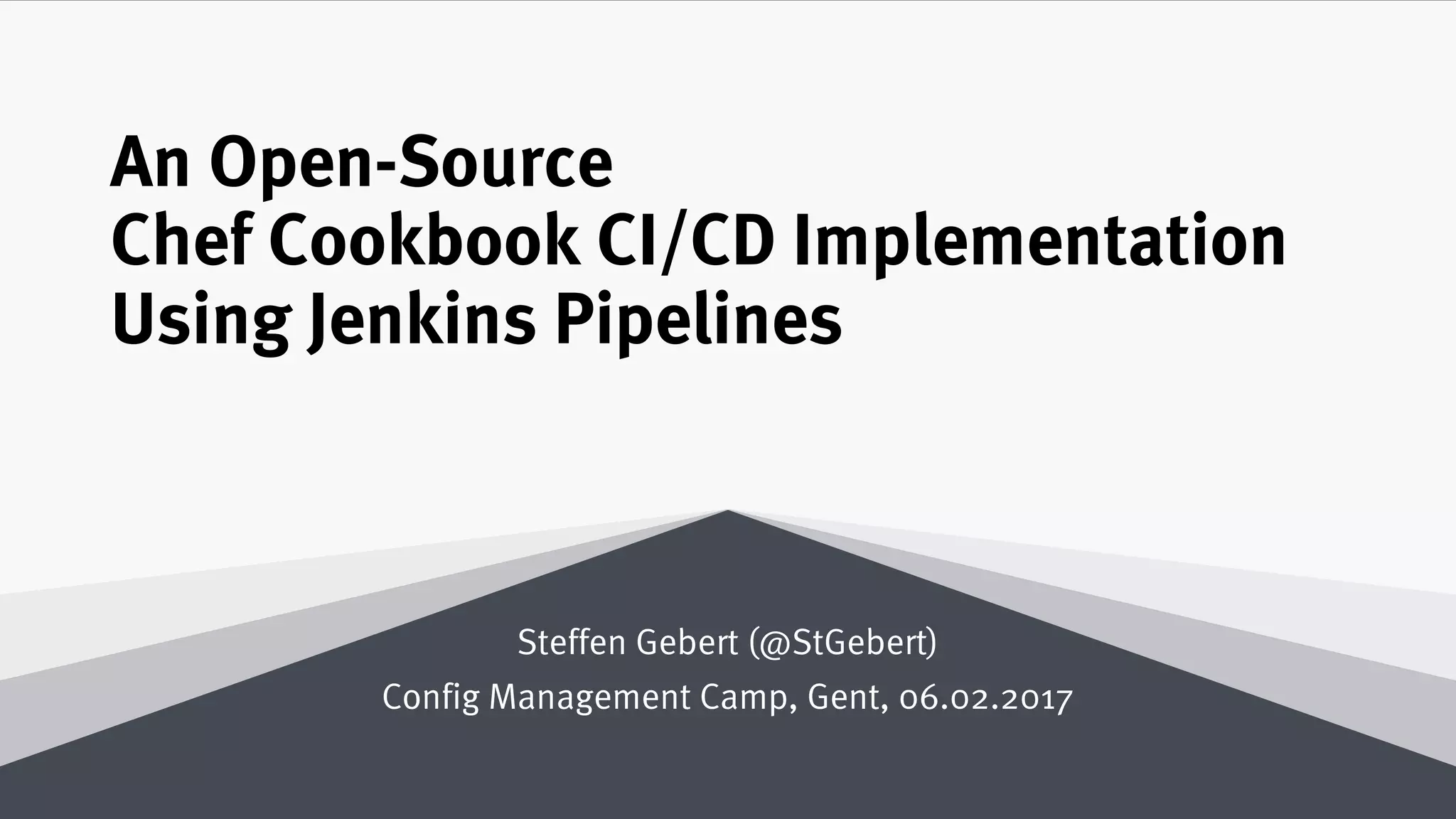

An Open-Source
Chef Cookbook CI/CD Implementation
Using Jenkins Pipelines
Steffen Gebert (@StGebert)
Config Management Camp, Gent, 06.02.2017
2

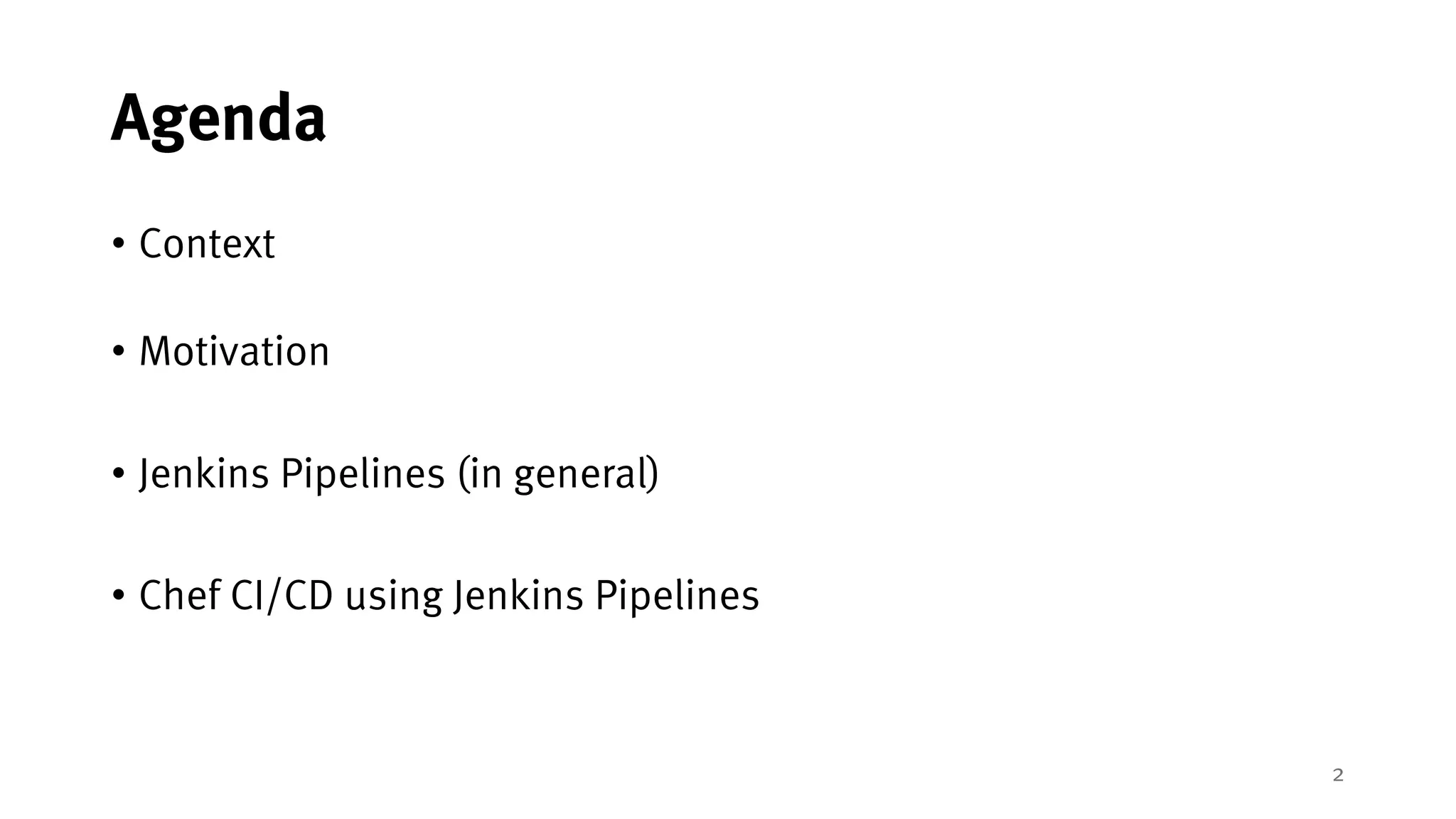

Agenda
• Context
• Motivation
• Jenkins Pipelines (in general)
• Chef CI/CD using Jenkins Pipelines

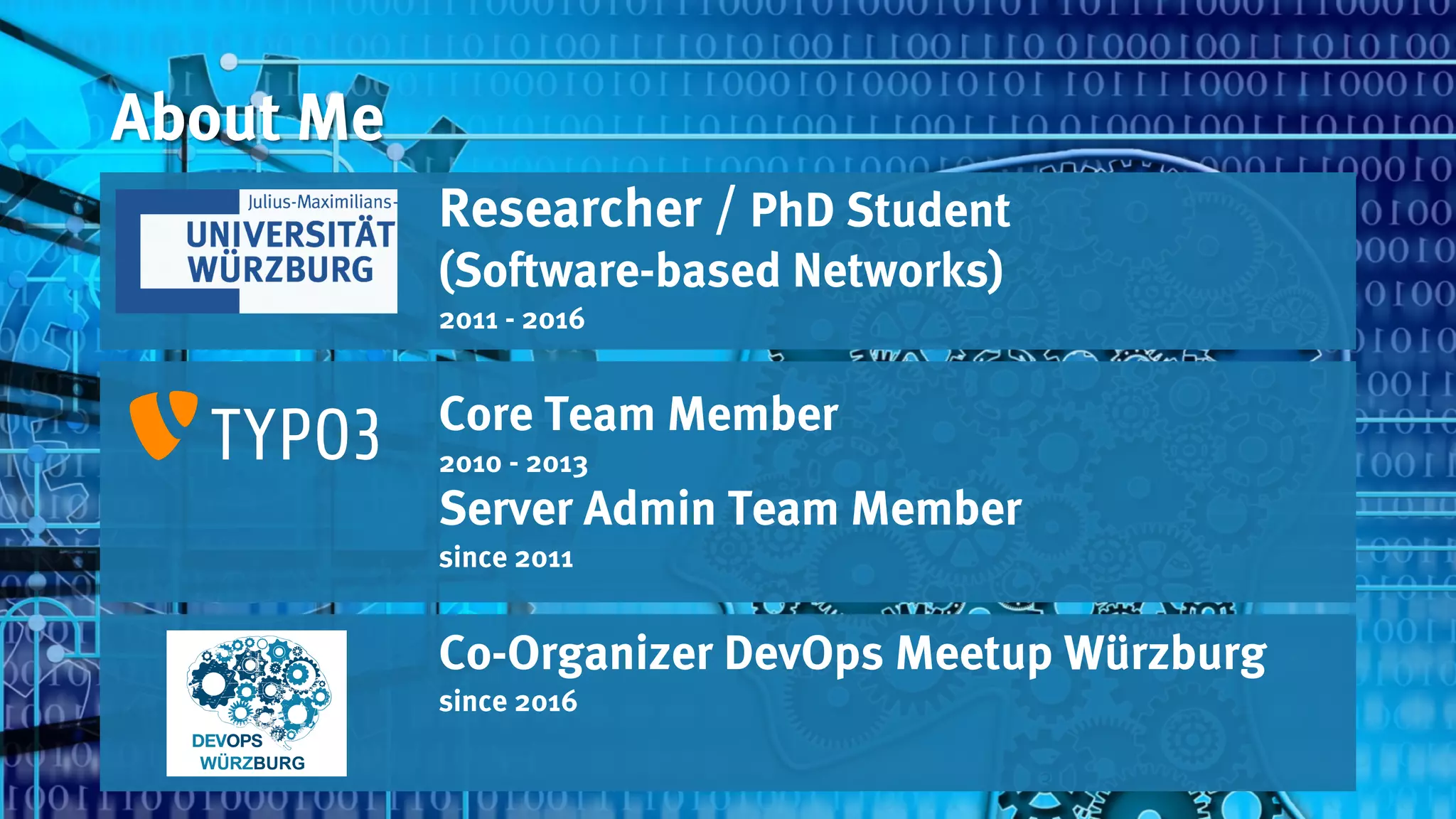

About Me
Researcher / PhD Student
(Software-based Networks)
2011 - 2016
Core Team Member
2010 - 2013
Server Admin Team Member
since 2011
3
Co-Organizer DevOps Meetup Würzburg
since 2016
4

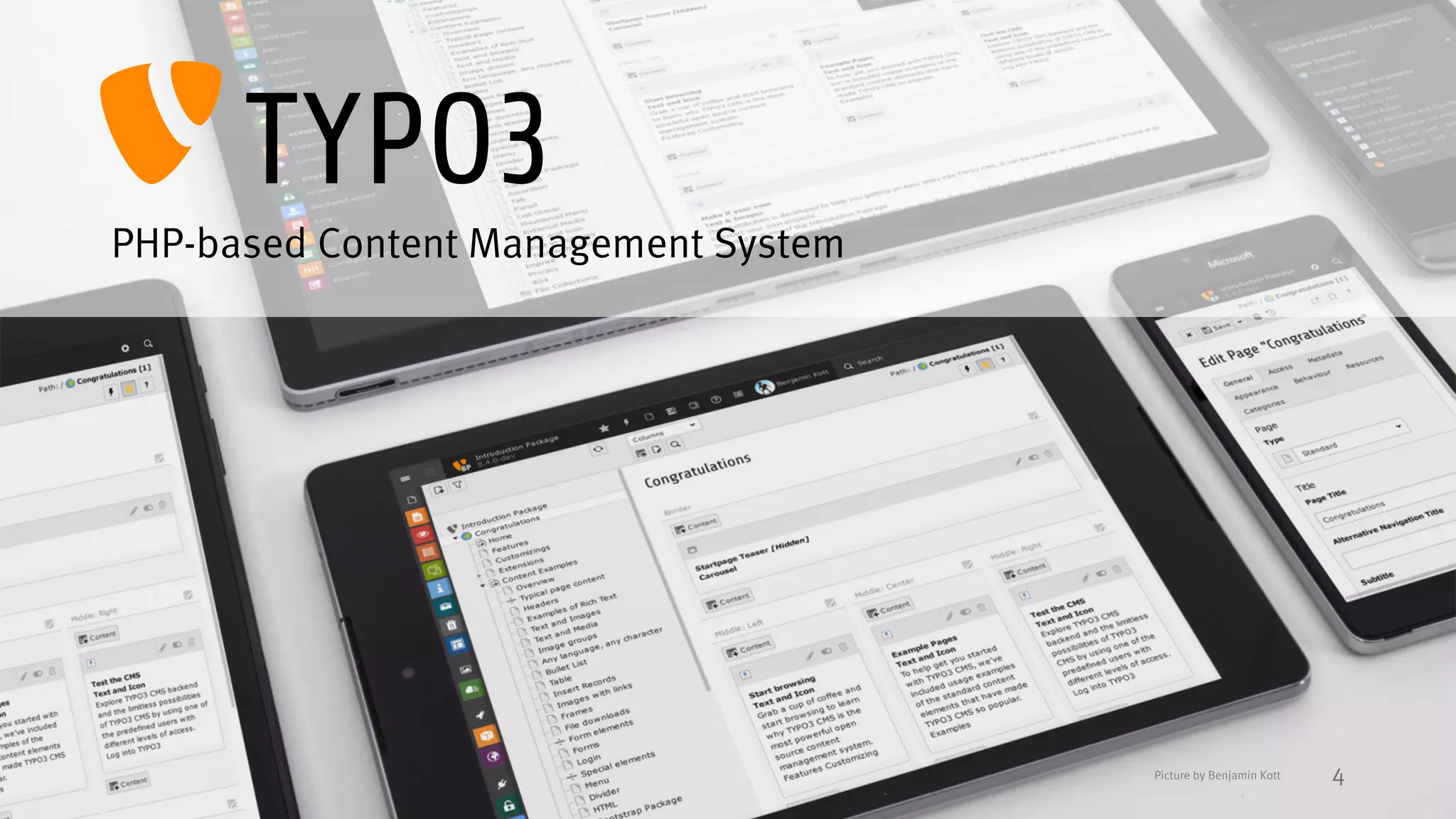

PHP-based Content Management System
Picture by Benjamin Kott
5
TYPO3 Open Source Project
• Established open-source
community since 1997
• TYPO3 Association as non-profit
organization
• Server Admin Team responsible
for project infrastructure *
Thanks for partially
funding my work and
covering travel costs!
*	listed	on	opensourceinfra.org
Picture by Daniel Pötzinger: http://www.typo3-media.com/blog/article/typo3-wallpaper-for-wide-screen.html
Based on image by Mike Swanson: http://interfacelift.com/wallpaper/details.php?id=1402
PicturebyStefanBusemann
6

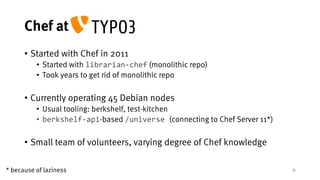

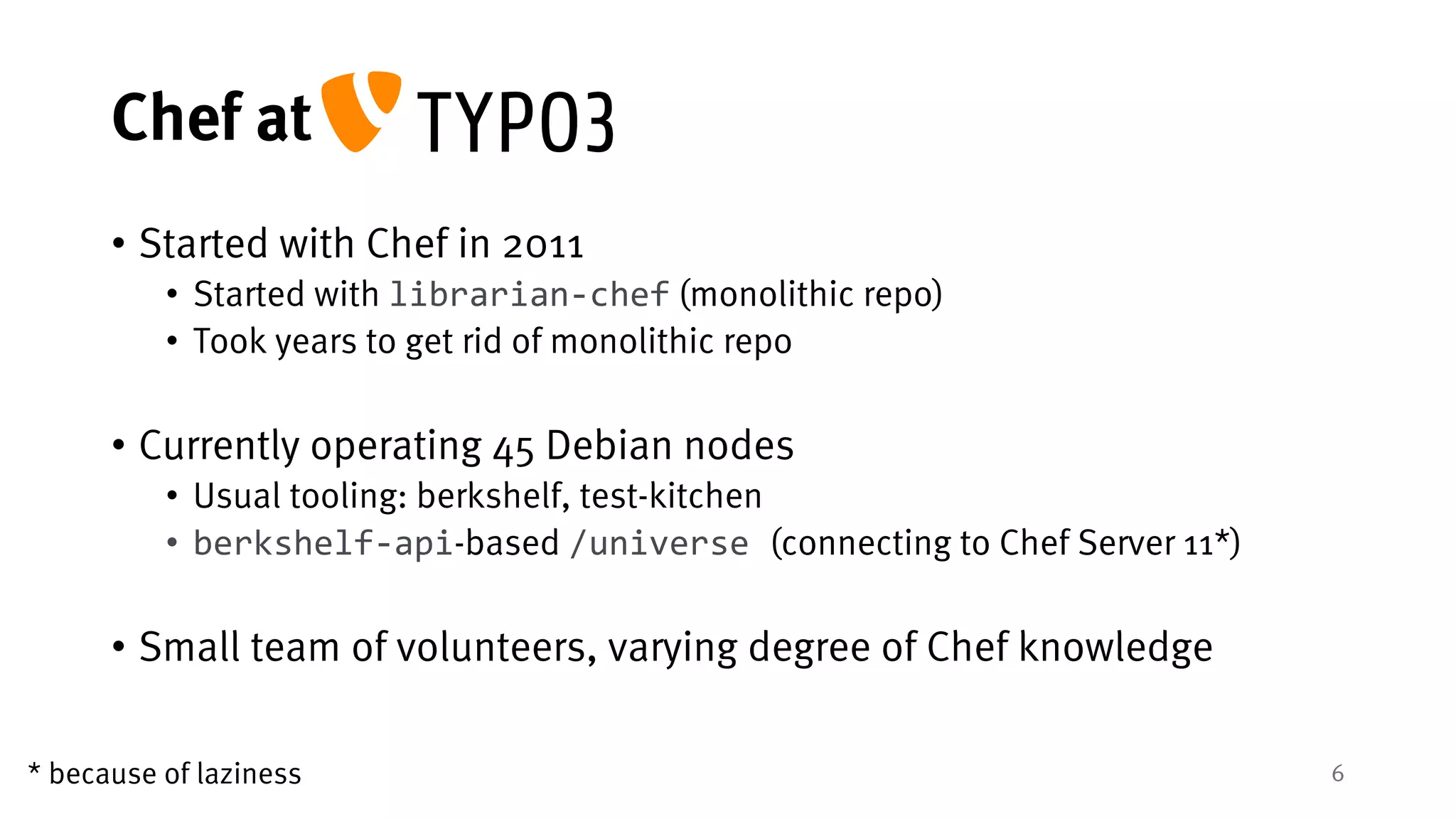

Chef at TYPO3
• Started with Chef in 2011
• Started with librarian-chef (monolithic repo)
• Took years to get rid of monolithic repo
• Currently operating 45 Debian nodes
• Usual tooling: berkshelf, test-kitchen
• berkshelf-api-based /universe (connecting to Chef Server 11*)
• Small team of volunteers, varying degree of Chef knowledge
* because of laziness
7
Demo Time!
Picture by annca/ pixabay:
https://pixabay.com/en/popcorn-cinema-ticket-film-1433327/
Working with Chef
(and knife, and berks, and..)
9
We have
workflow problems!
Picture by tpsdave / pixabay:
https://pixabay.com/en/firefighters-fire-flames-outside-115800/
10
11
12

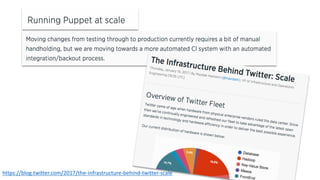

https://blog.twitter.com/2017/the-infrastructure-behind-twitter-scale
13
Related Work
• zts/cooking-with-jenkins
• Provides resource to create single Jenkins freestyle jobs per cookbook
• Executes pre-defined rake tasks
• chef-solutions/pipeline
• Reads cookbooks from a Berksfile enclosed in main chef-repo
• Creates single Jenkins freestyle job per cookbook
• Chef Automate
• Commercial
• Little known to me, what's going on under the hood
14

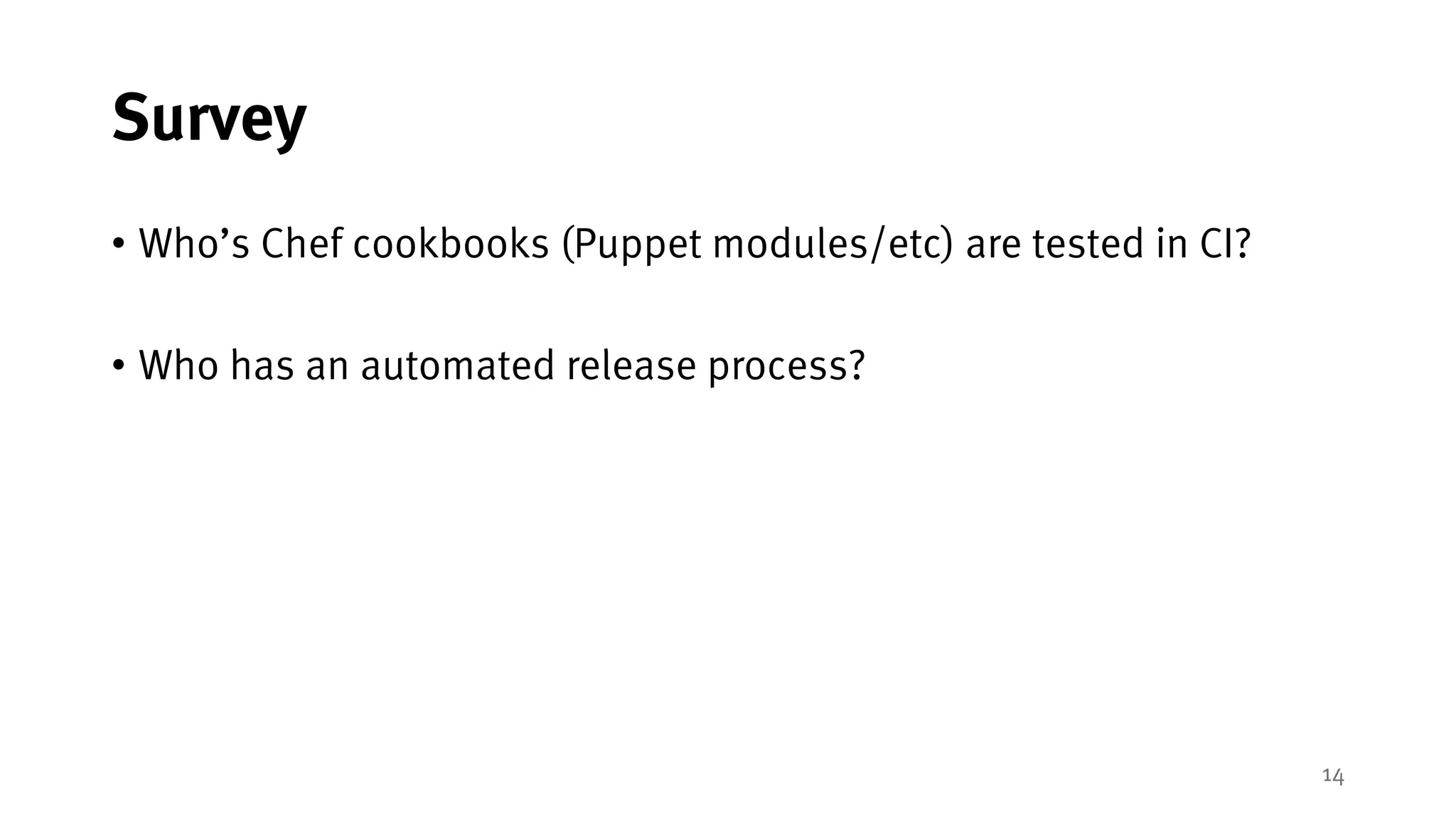

Survey
• Who’s Chef cookbooks (Puppet modules/etc) are tested in CI?
• Who has an automated release process?
15

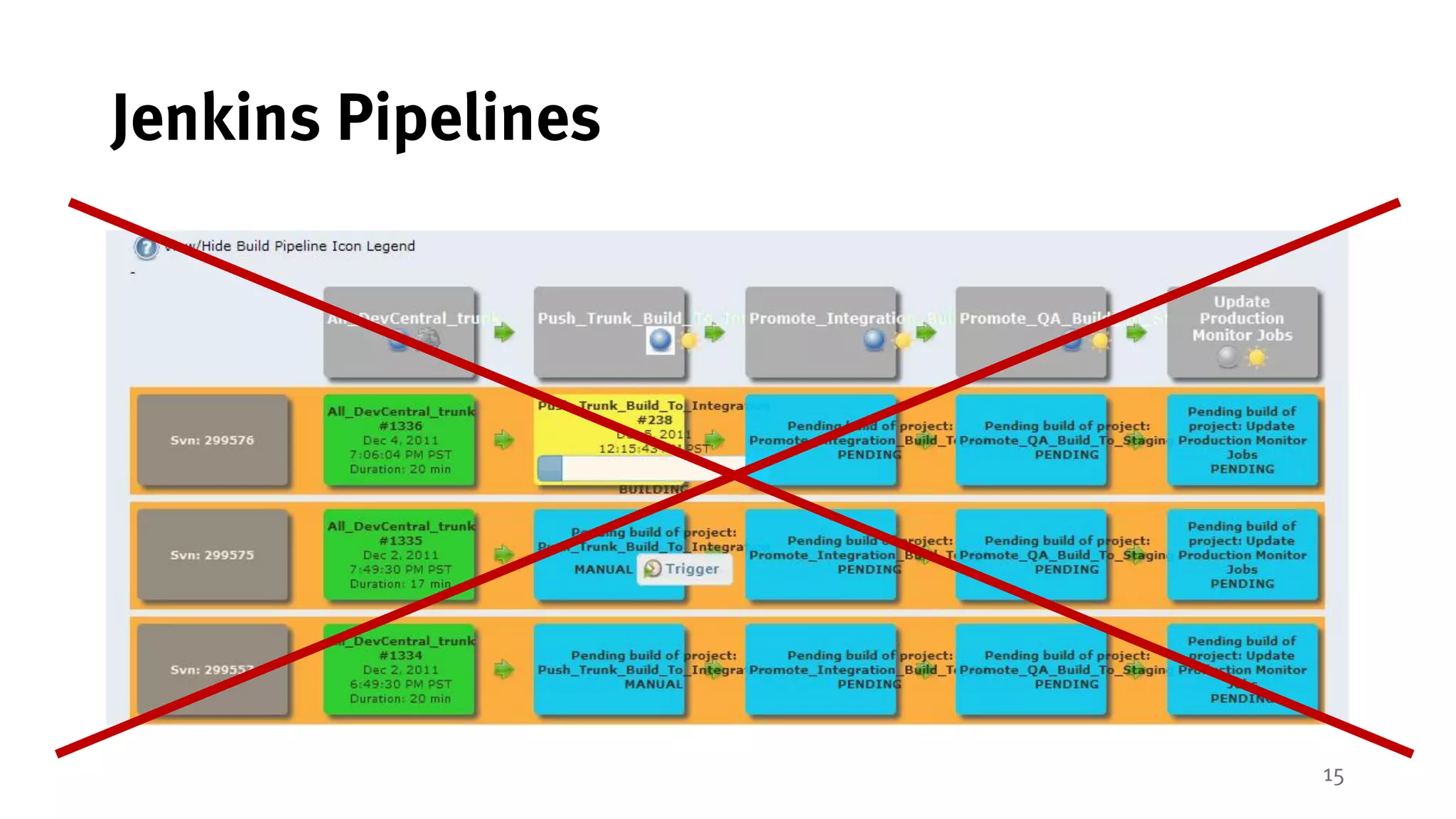

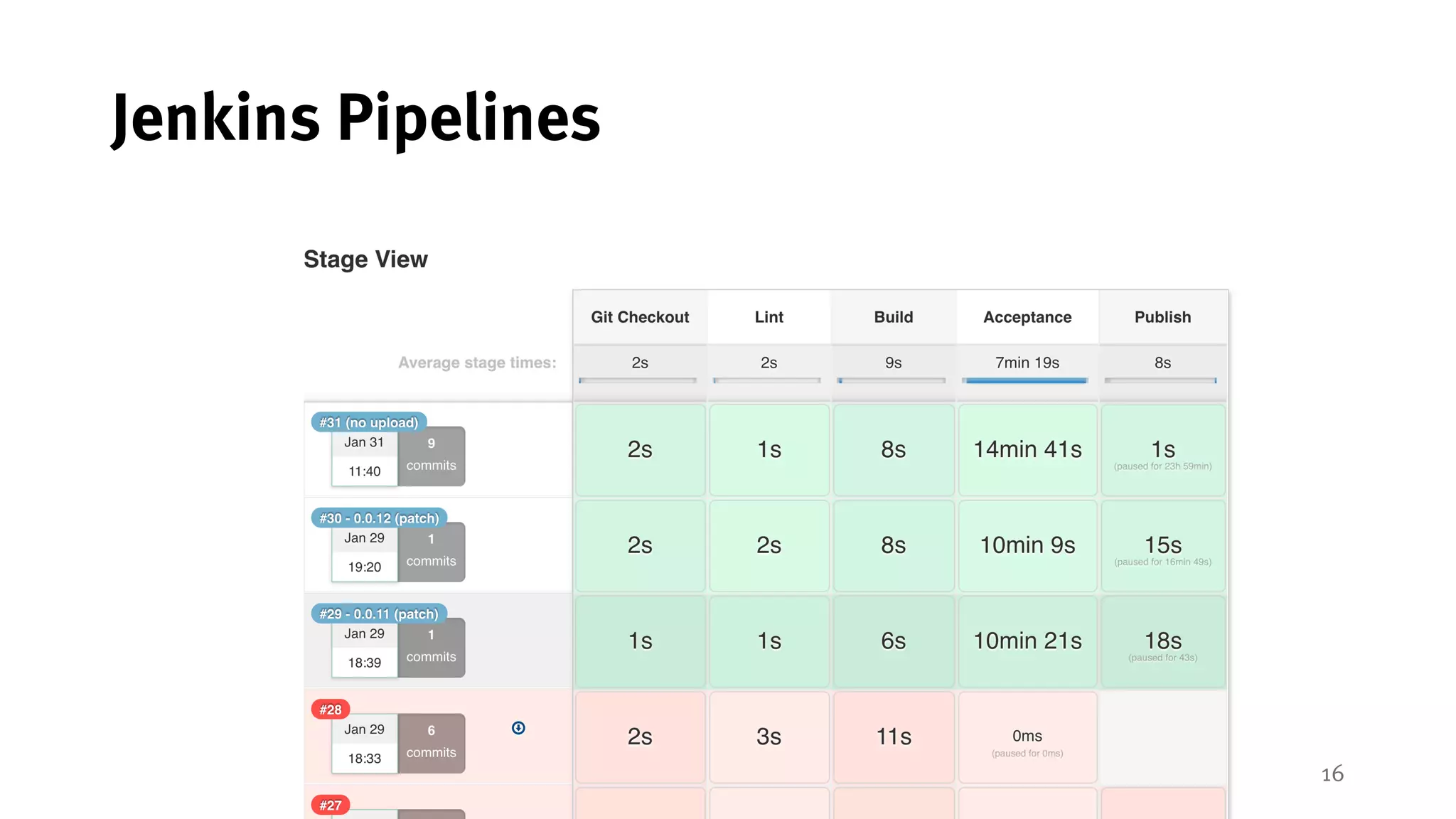

Jenkins Pipelines
16
Jenkins Pipelines
17
18
Jenkins Pipelines
Introduction to
20

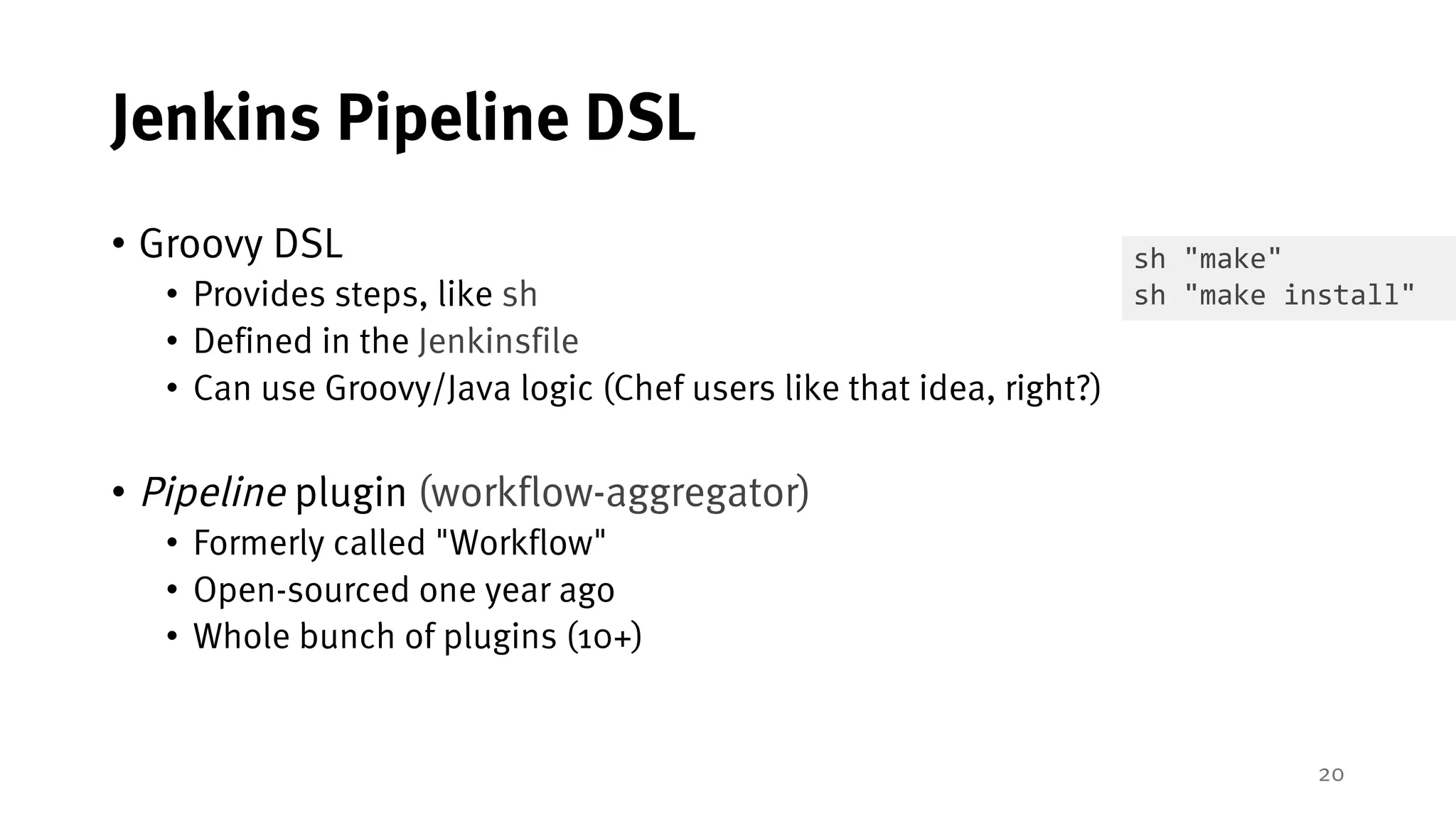

Jenkins Pipeline DSL
• Groovy DSL
• Provides steps, like sh
• Defined in the Jenkinsfile
• Can use Groovy/Java logic (Chef users like that idea, right?)
• Pipeline plugin (workflow-aggregator)
• Formerly called "Workflow"
• Open-sourced one year ago
• Whole bunch of plugins (10+)
sh "make"
sh "make install"
21

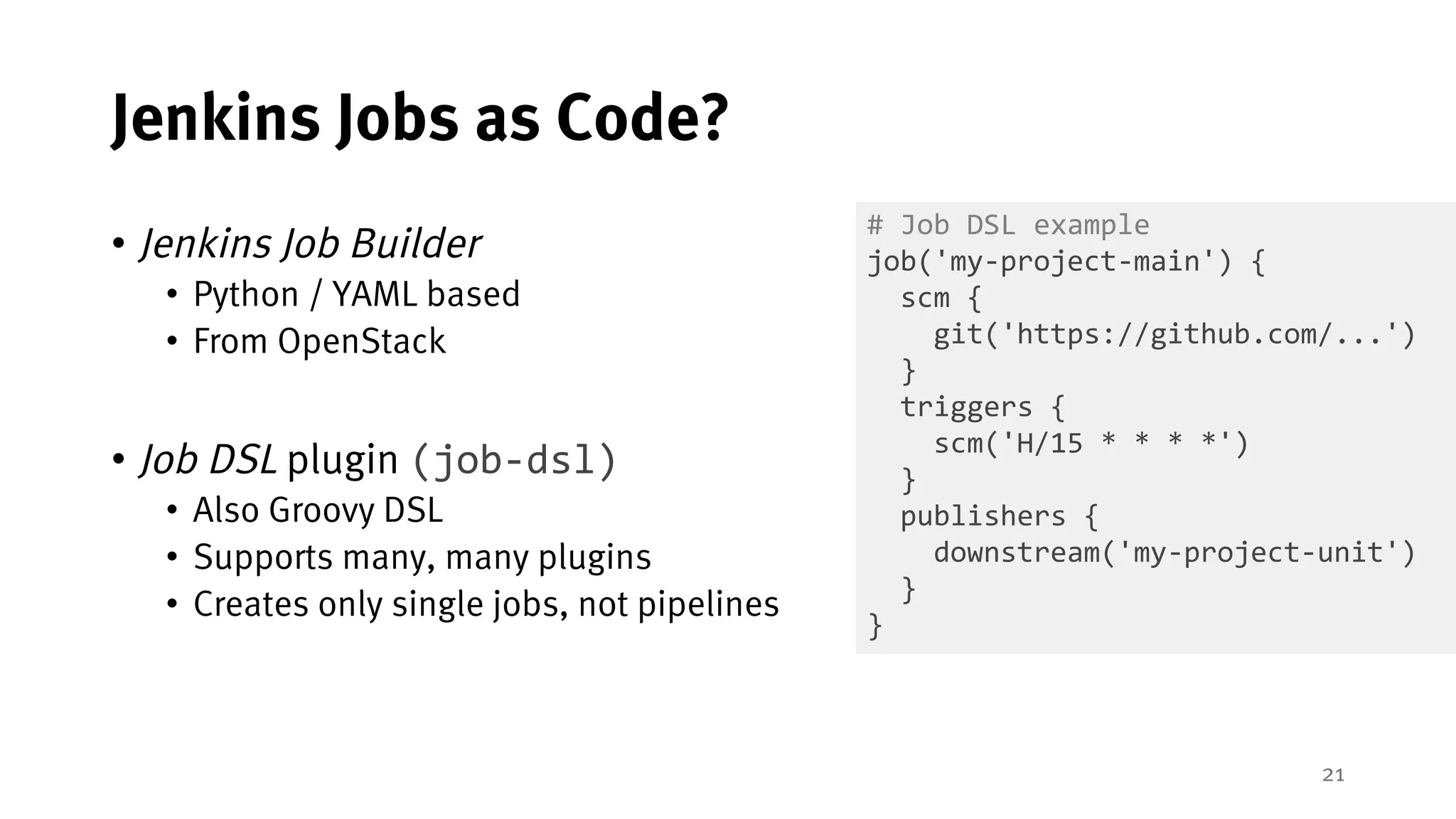

Jenkins Jobs as Code?
• Jenkins Job Builder
• Python / YAML based
• From OpenStack
• Job DSL plugin (job-dsl)
• Also Groovy DSL
• Supports many, many plugins
• Creates only single jobs, not pipelines
# Job DSL example
job('my-project-main') {
scm {
git('https://github.com/...')
}
triggers {
scm('H/15 * * * *')
}
publishers {
downstream('my-project-unit')
}
}
22

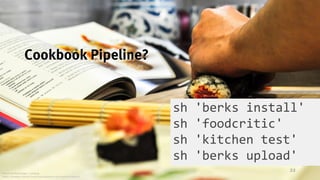

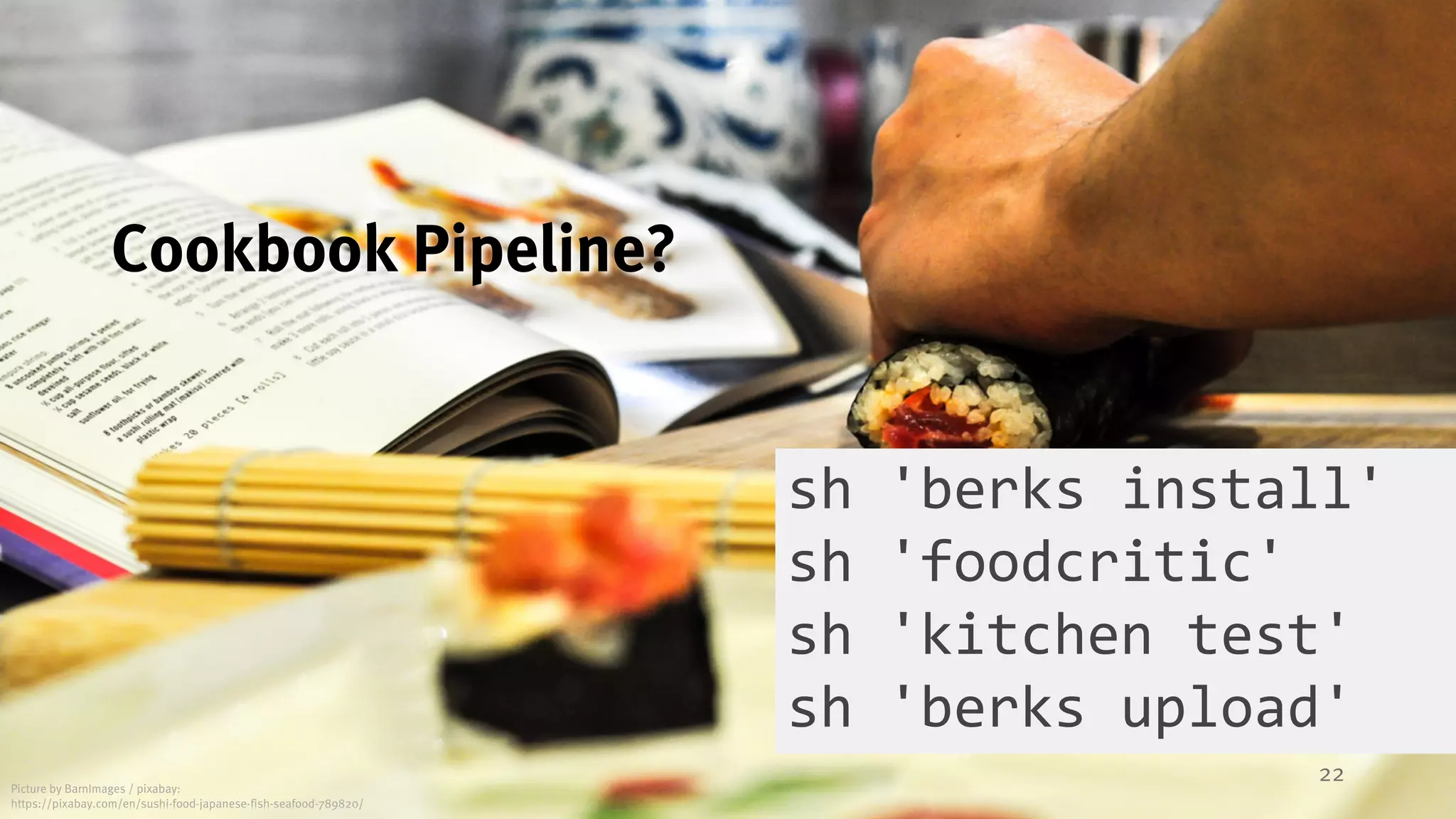

Cookbook Pipeline?
sh 'berks install'
sh 'foodcritic'
sh 'kitchen test'
sh 'berks upload'
Picture by BarnImages / pixabay:
https://pixabay.com/en/sushi-food-japanese-fish-seafood-789820/
23

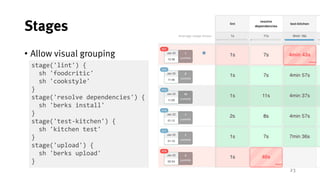

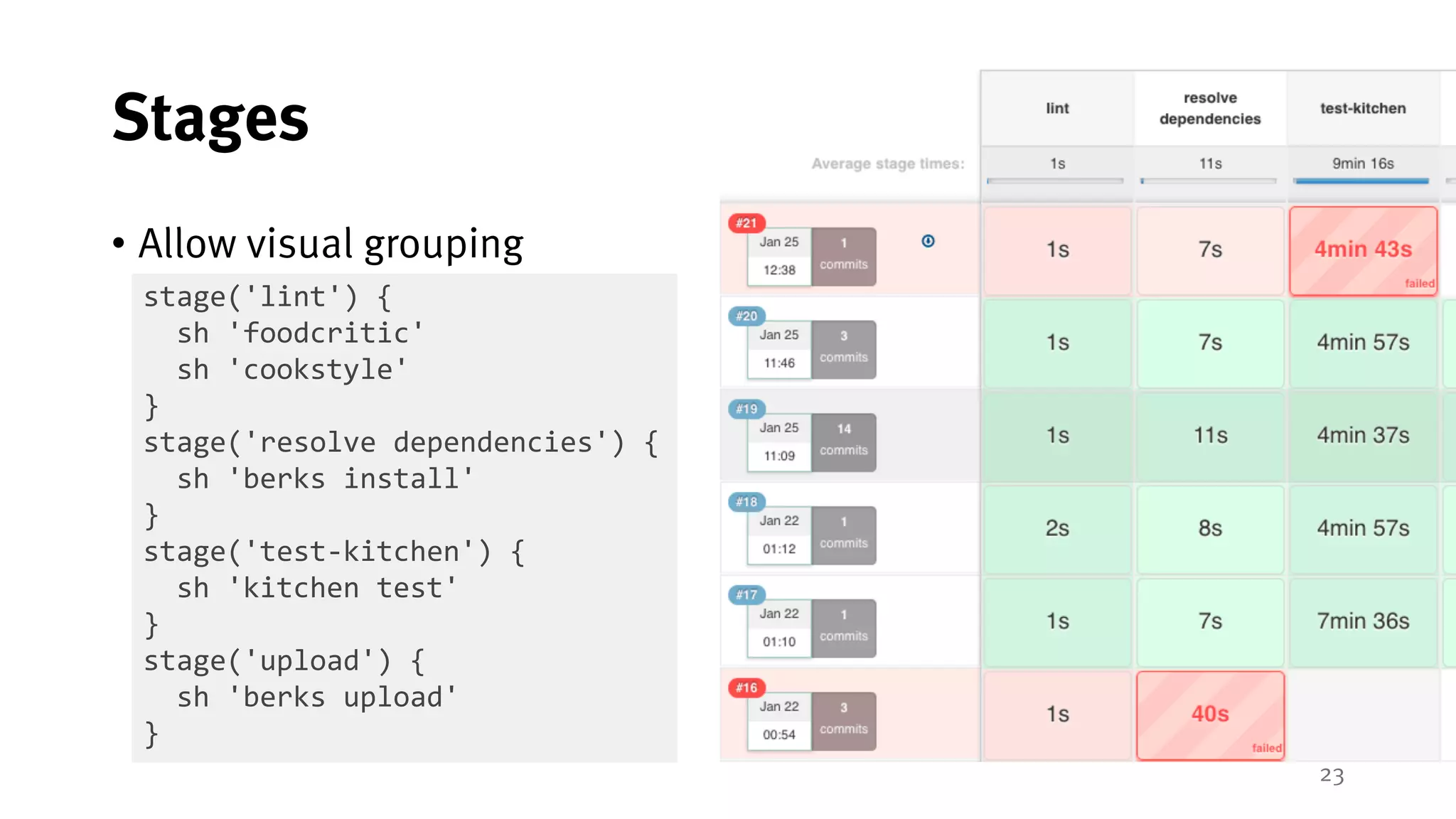

Stages
• Allow visual grouping
stage('lint') {
sh 'foodcritic'
sh 'cookstyle'
}
stage('resolve dependencies') {
sh 'berks install'
}
stage('test-kitchen') {
sh 'kitchen test'
}
stage('upload') {
sh 'berks upload'
}
24

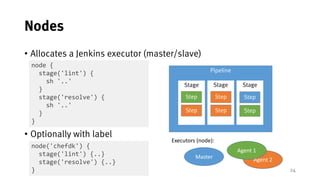

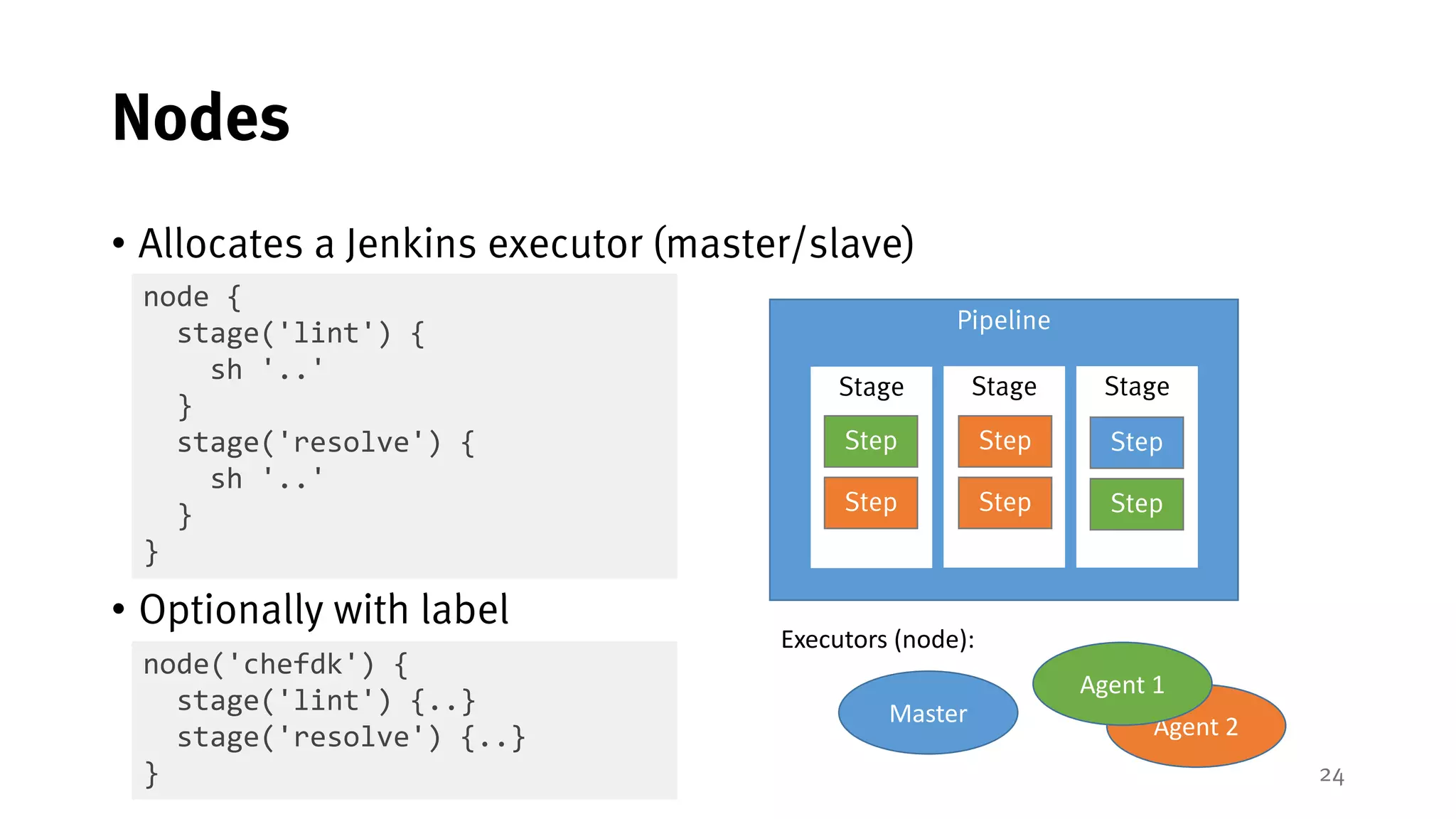

Nodes
• Allocates a Jenkins executor (master/slave)
• Optionally with label
node {
stage('lint') {
sh '..'
}
stage('resolve') {
sh '..'
}
}
node('chefdk') {
stage('lint') {..}
stage('resolve') {..}
}
Master Agent	2
Agent	1
Executors	(node):
Pipeline
Stage
Step
Step
Stage
Step
Step
Stage
Step
Step
25

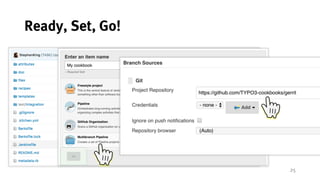

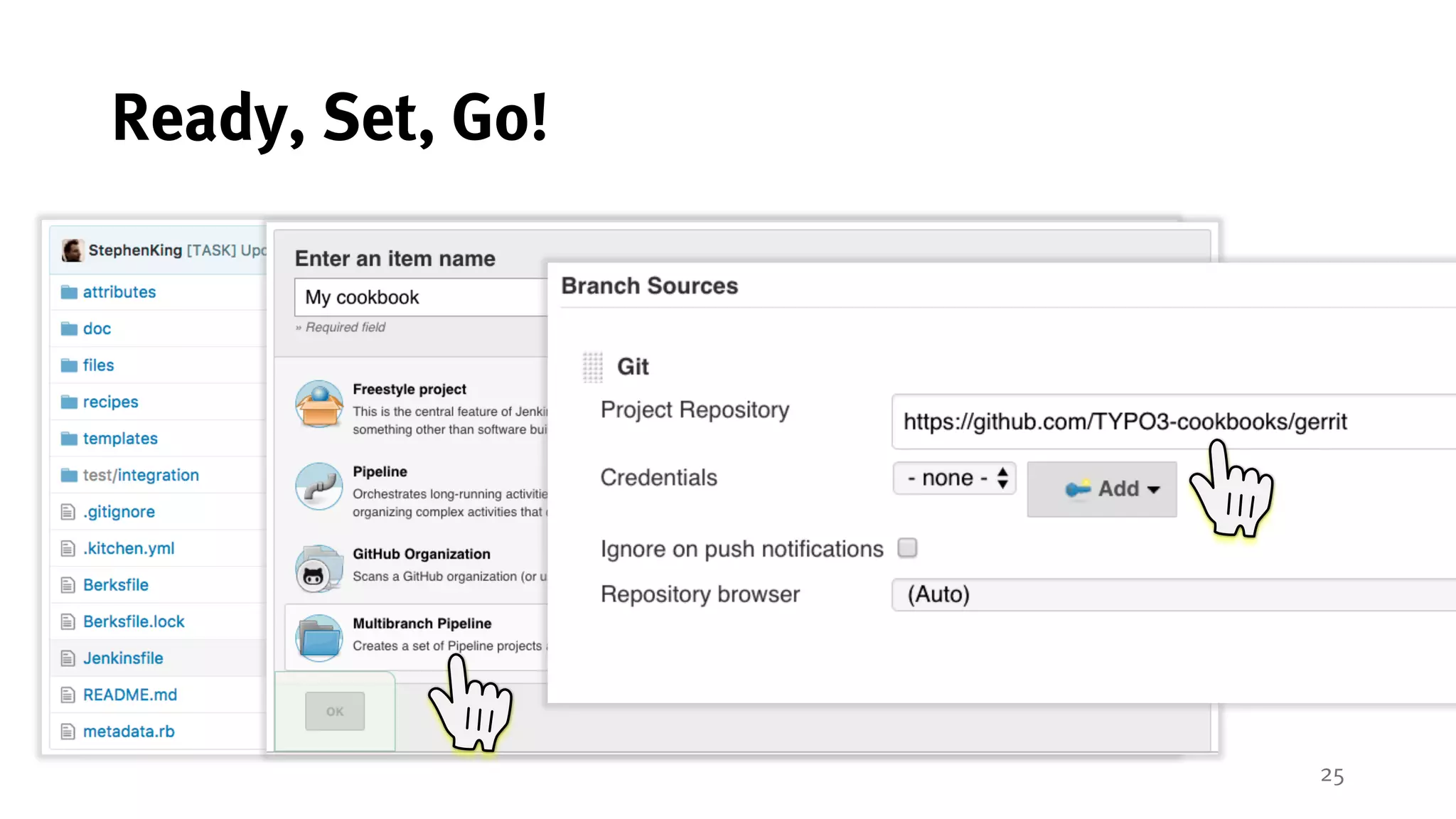

Ready, Set, Go!
26

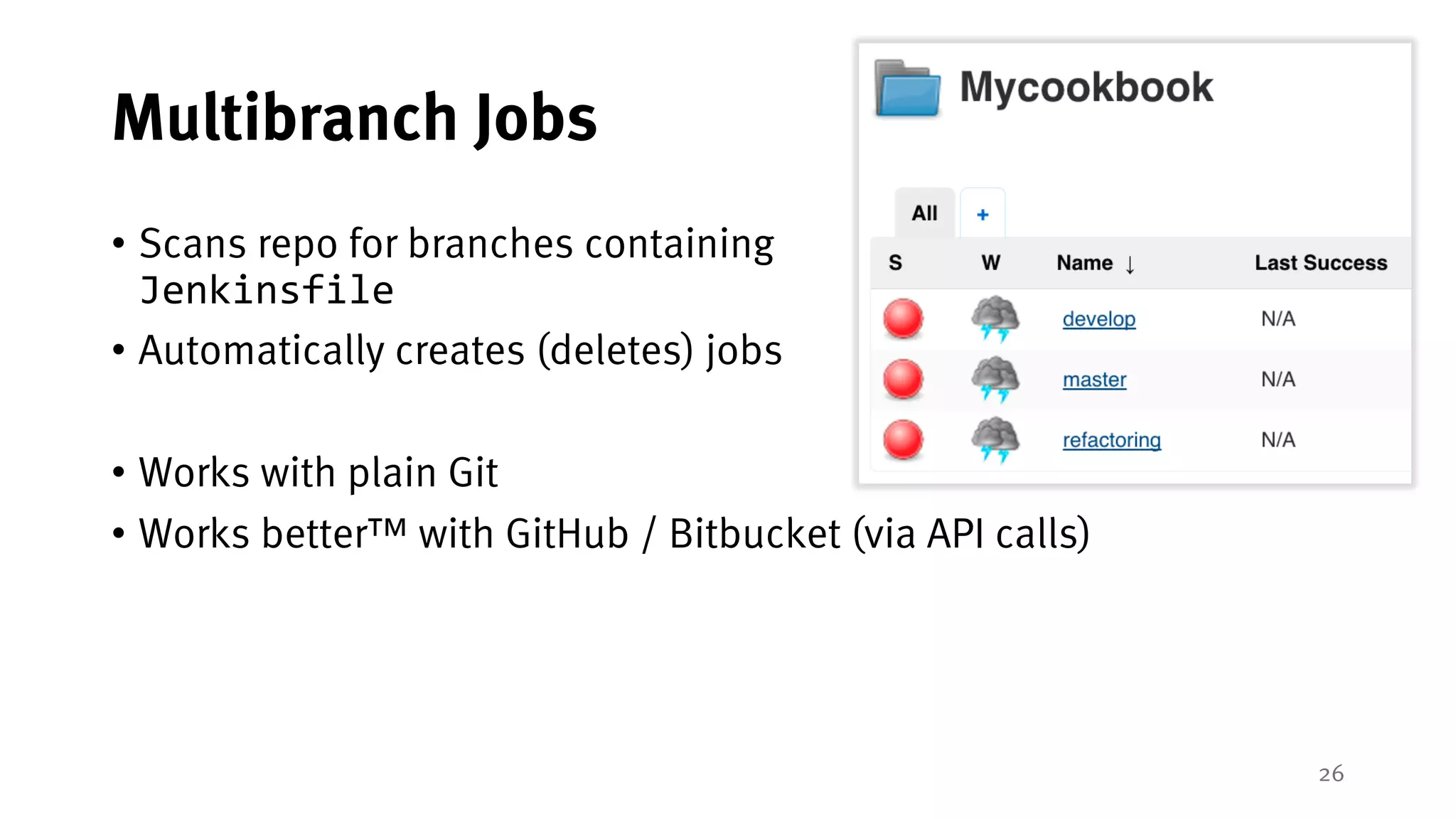

Multibranch Jobs
• Scans repo for branches containing
Jenkinsfile
• Automatically creates (deletes) jobs
• Works with plain Git
• Works better™ with GitHub / Bitbucket (via API calls)
27

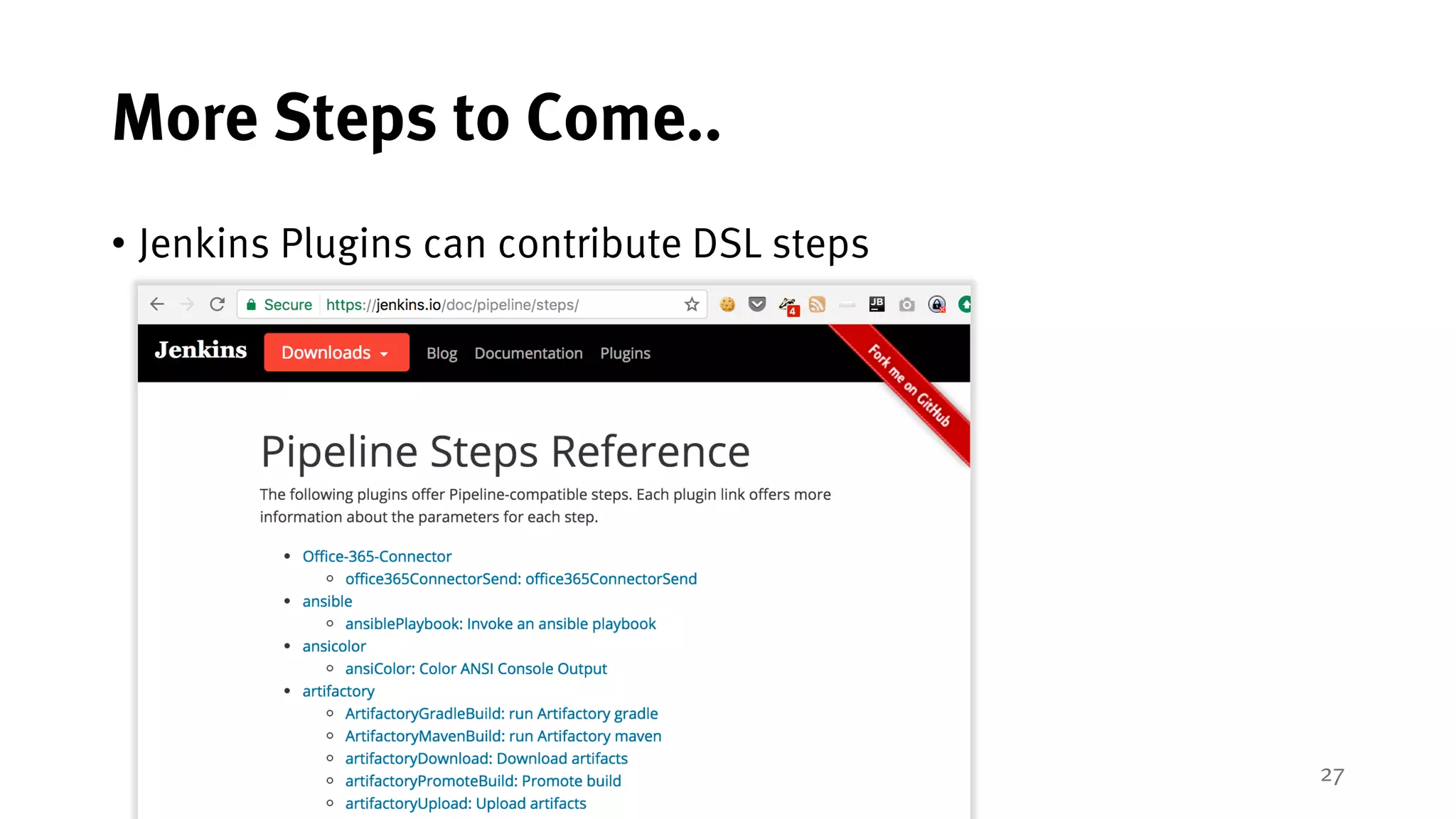

More Steps to Come..
• Jenkins Plugins can contribute DSL steps
28

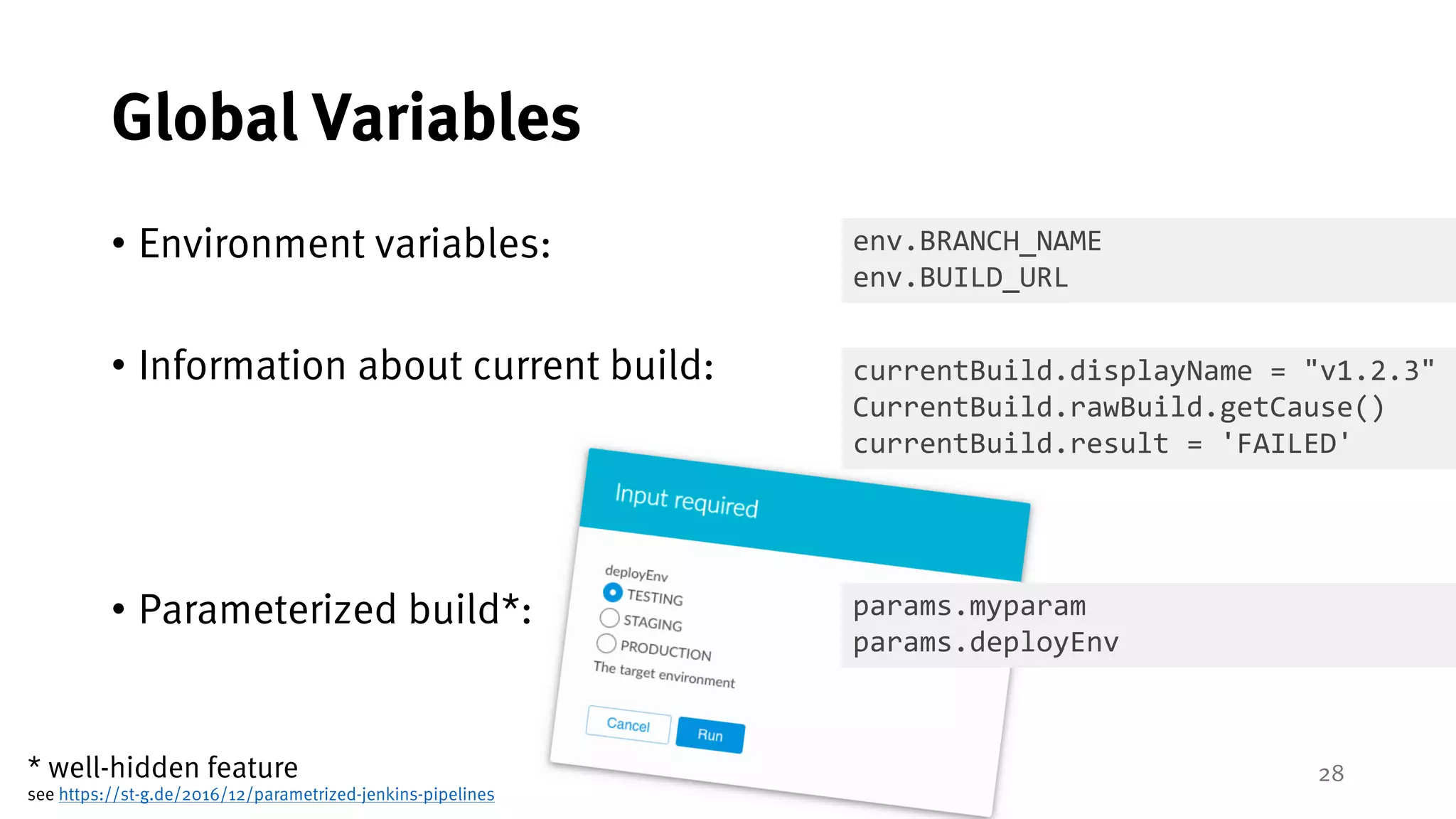

Global Variables
• Environment variables:
• Information about current build:
• Parameterized build*:
env.BRANCH_NAME
env.BUILD_URL
params.myparam
params.deployEnv
* well-hidden feature
see https://st-g.de/2016/12/parametrized-jenkins-pipelines
currentBuild.displayName = "v1.2.3"
CurrentBuild.rawBuild.getCause()
currentBuild.result = 'FAILED'
29
Now Copy & Paste?
Picture by aitroff / pixabay:
https://pixabay.com/en/stormtrooper-star-wars-lego-storm-1343772/
30

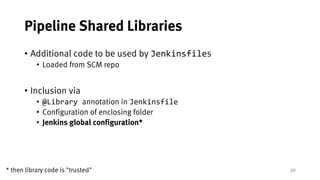

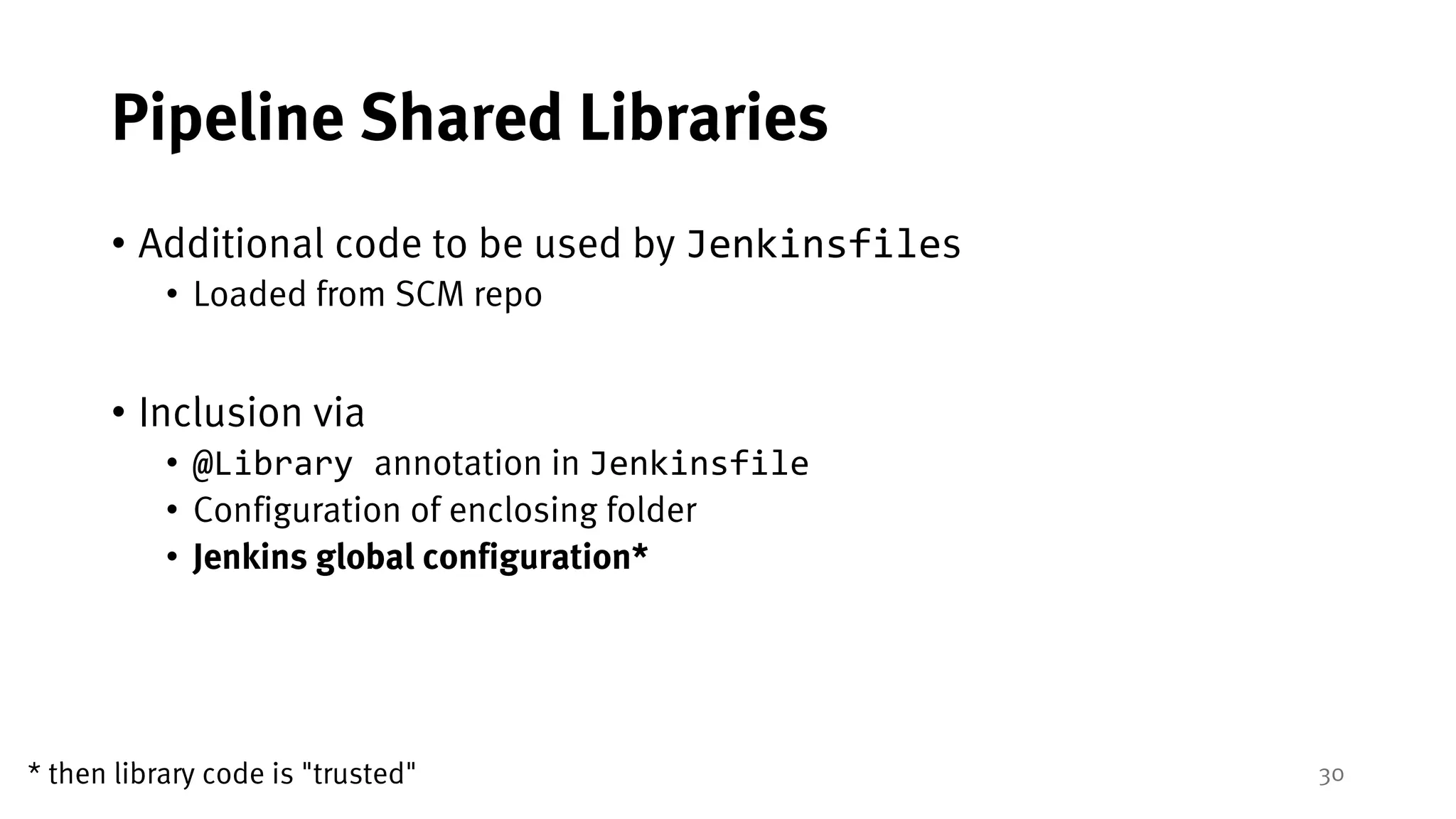

Pipeline Shared Libraries
• Additional code to be used by Jenkinsfiles
• Loaded from SCM repo
• Inclusion via
• @Library annotation in Jenkinsfile
• Configuration of enclosing folder
• Jenkins global configuration*
* then library code is "trusted"
31
Configuring Global Pipeline Library
• Jenkinsfile:
• Load implicitly would load it
without @Library
• Use non-default branch/tag
@Library('chefci')
org.example.Pipeline ...
@Library('chefci@testing')
Don't play
well together
32

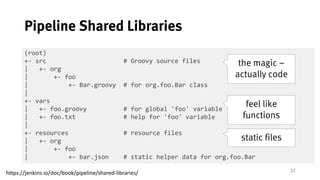

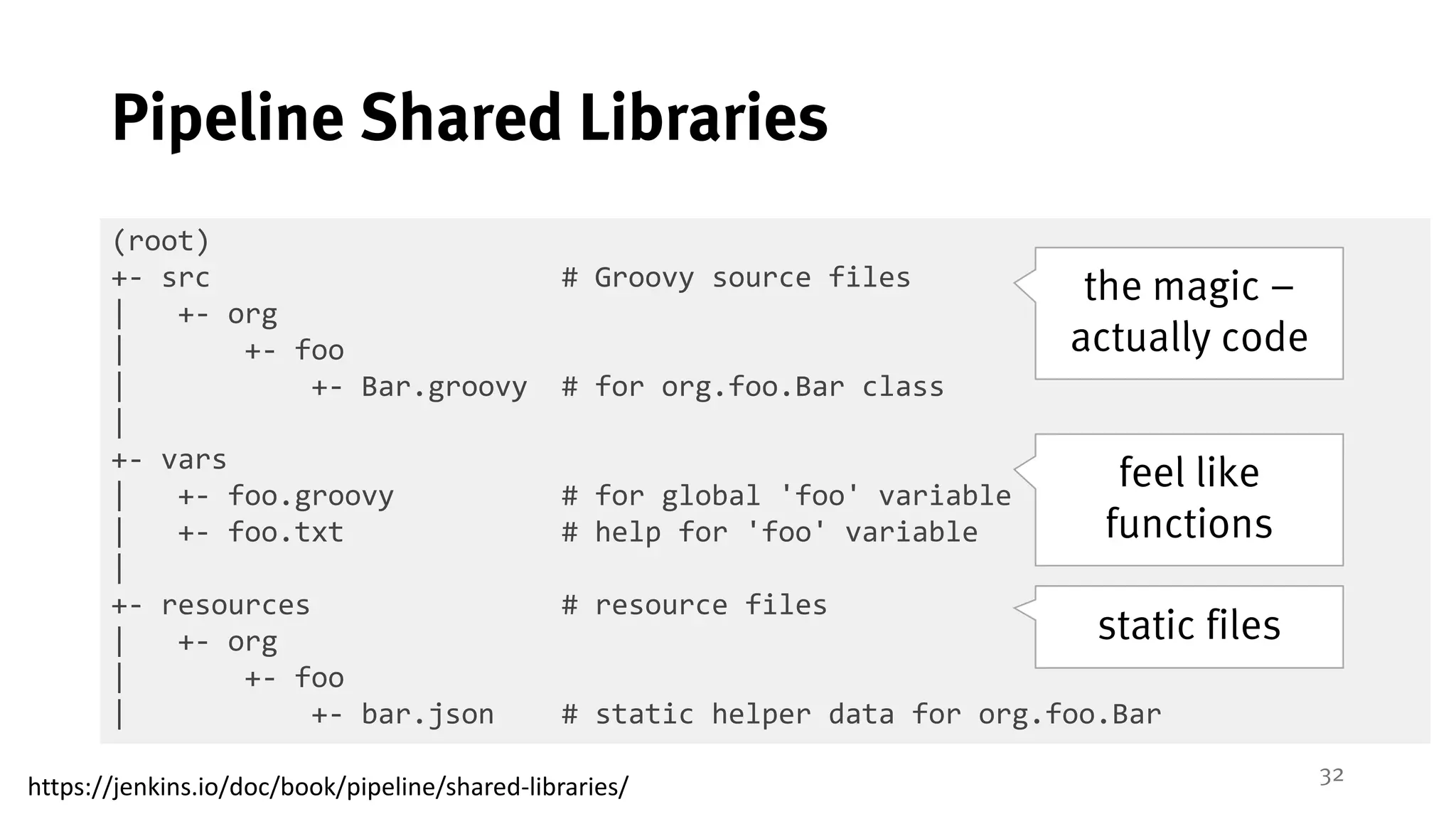

Pipeline Shared Libraries
(root)
+- src # Groovy source files
| +- org
| +- foo
| +- Bar.groovy # for org.foo.Bar class
|
+- vars
| +- foo.groovy # for global 'foo' variable
| +- foo.txt # help for 'foo' variable
|
+- resources # resource files
| +- org
| +- foo
| +- bar.json # static helper data for org.foo.Bar
https://jenkins.io/doc/book/pipeline/shared-libraries/
static files
feel like
functions
the magic –
actually code
33

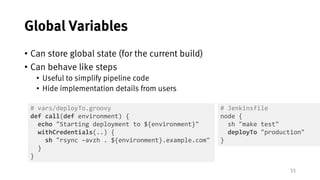

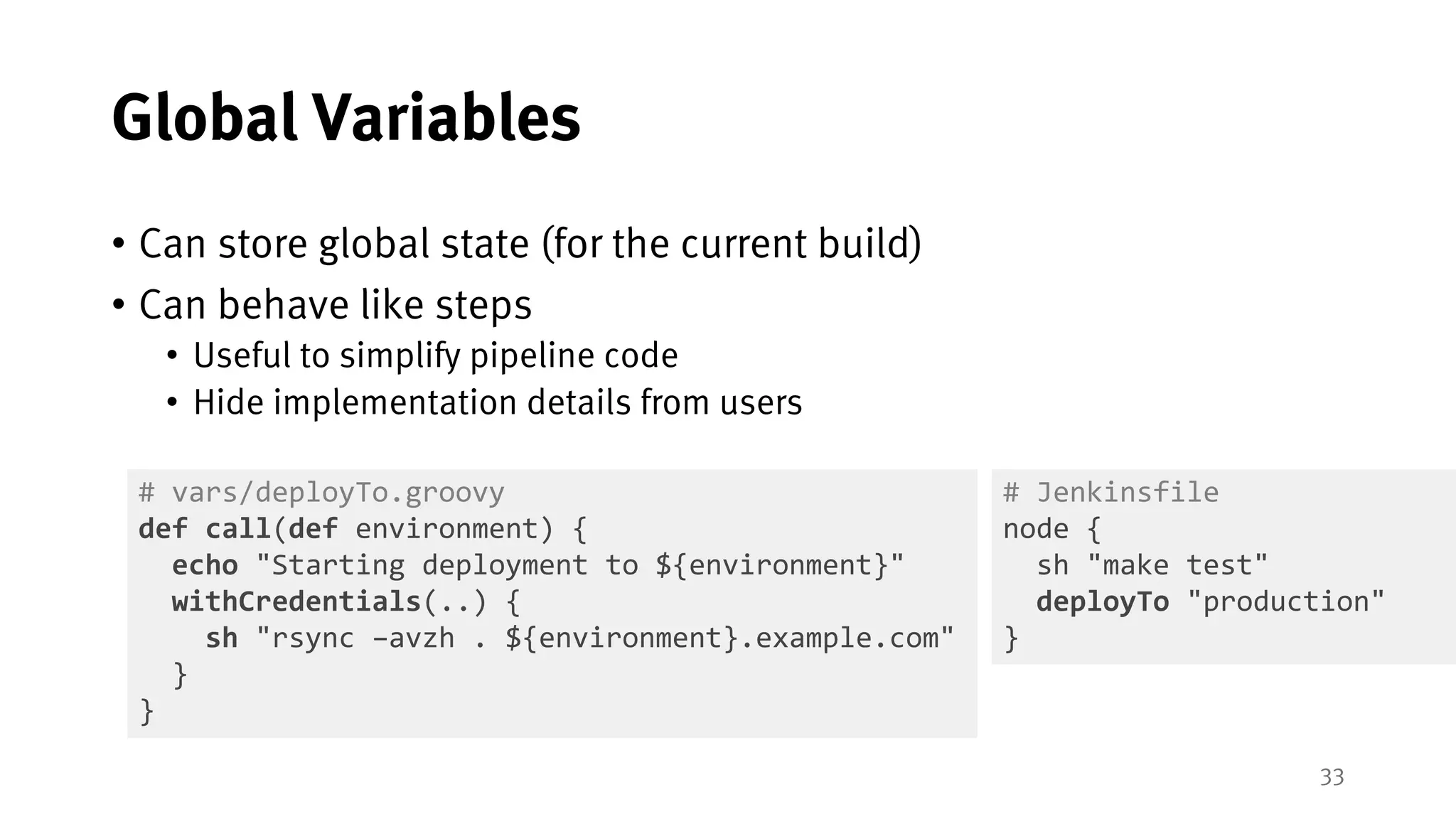

Global Variables
• Can store global state (for the current build)
• Can behave like steps
• Useful to simplify pipeline code
• Hide implementation details from users
# vars/deployTo.groovy
def call(def environment) {
echo "Starting deployment to ${environment}"
withCredentials(..) {
sh "rsync –avzh . ${environment}.example.com"
}
}
# Jenkinsfile
node {
sh "make test"
deployTo "production"
}
34

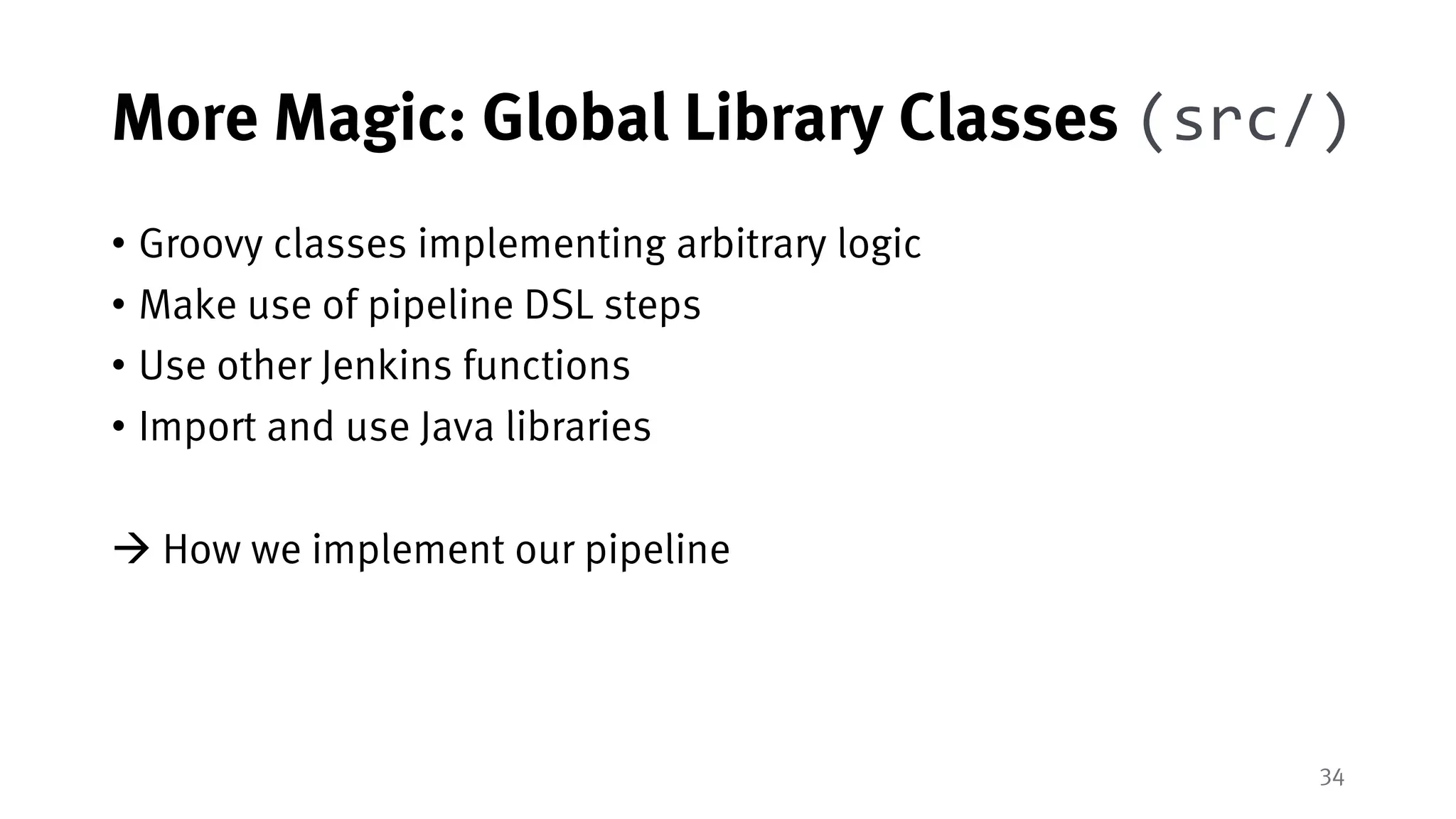

More Magic: Global Library Classes (src/)
• Groovy classes implementing arbitrary logic
• Make use of pipeline DSL steps
• Use other Jenkins functions
• Import and use Java libraries
à How we implement our pipeline
35

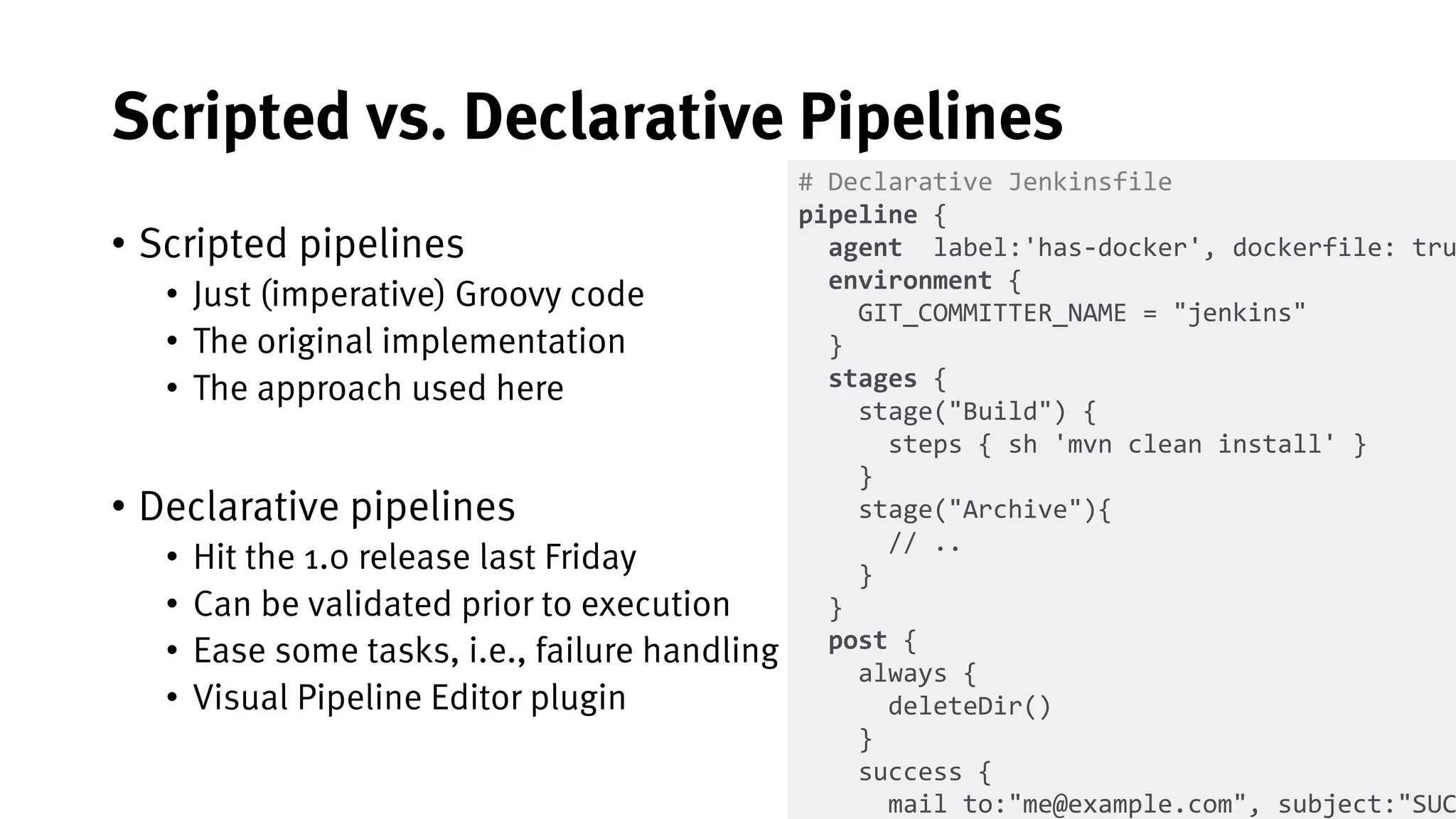

# Declarative Jenkinsfile
pipeline {
agent label:'has-docker', dockerfile: tru
environment {
GIT_COMMITTER_NAME = "jenkins"
}
stages {
stage("Build") {
steps { sh 'mvn clean install' }
}
stage("Archive"){
// ..
}
}
post {
always {
deleteDir()
}
success {
mail to:"me@example.com", subject:"SUC
Scripted vs. Declarative Pipelines
• Scripted pipelines
• Just (imperative) Groovy code
• The original implementation
• The approach used here
• Declarative pipelines
• Hit the 1.0 release last Friday
• Can be validated prior to execution
• Ease some tasks, i.e., failure handling
• Visual Pipeline Editor plugin
36

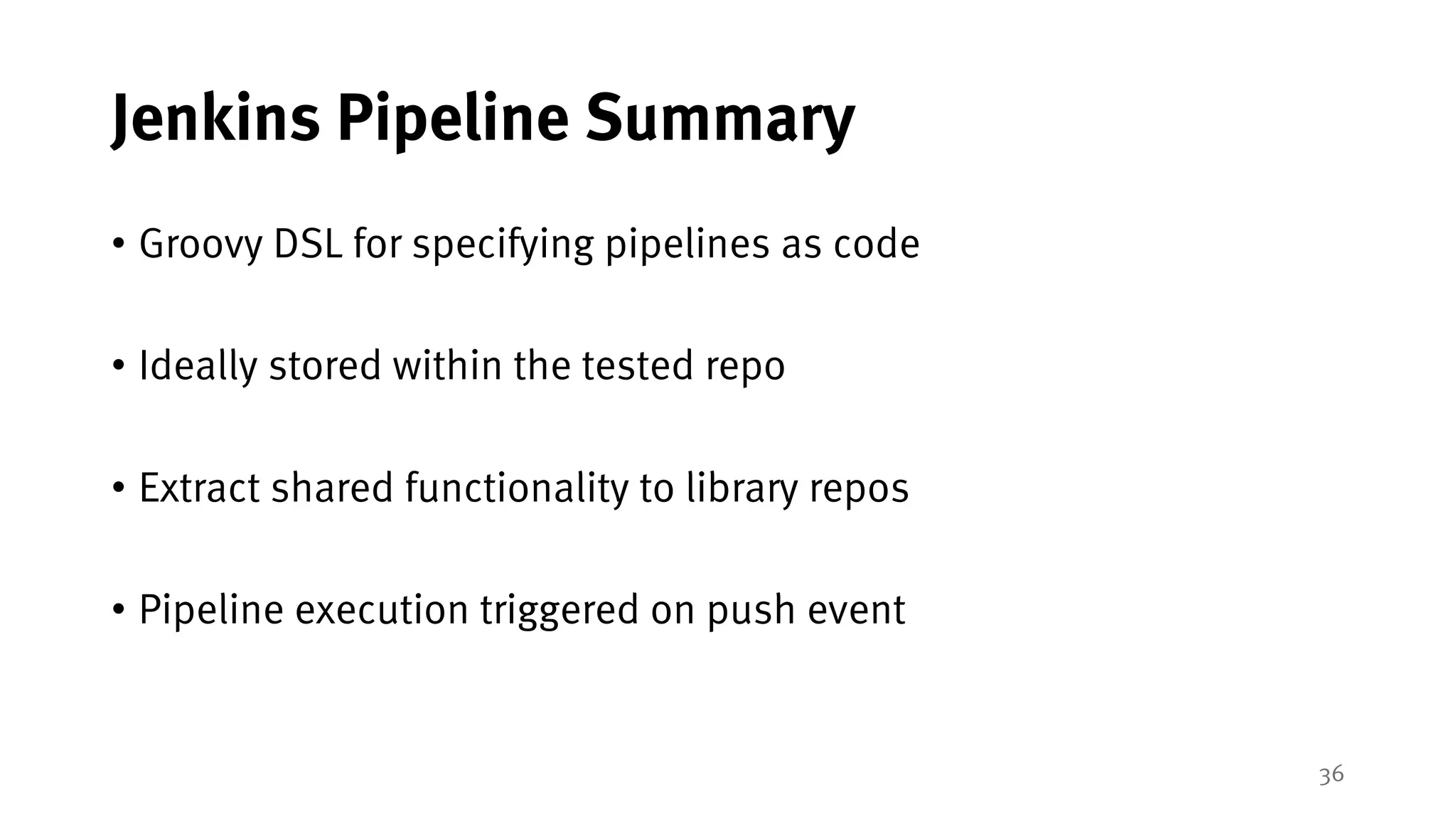

Jenkins Pipeline Summary
• Groovy DSL for specifying pipelines as code
• Ideally stored within the tested repo
• Extract shared functionality to library repos
• Pipeline execution triggered on push event
jenkins-chefci
An Open-Source Chef Cookbook CI/CD Implementation
Using Jenkins Pipelines
38
Forbidden Commands
$ berks upload
$ knife cookbook upload
$ knife data bag from file
$ knife data bag delete
$ knife environment from file
$ knife environment delete
$ knife role from file
$ knife role delete
Allowed Commands
$ git pull
$ git commit
$ git push
Pictures by PublicDomainPictures & serrano / pixabay:
https://pixabay.com/en/costume-demon-devil-board-female-15747/
https://pixabay.com/en/bebe-girl-child-child-portrait-1237704/
39

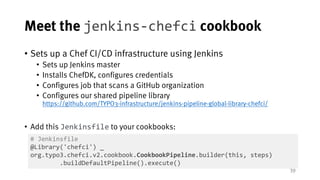

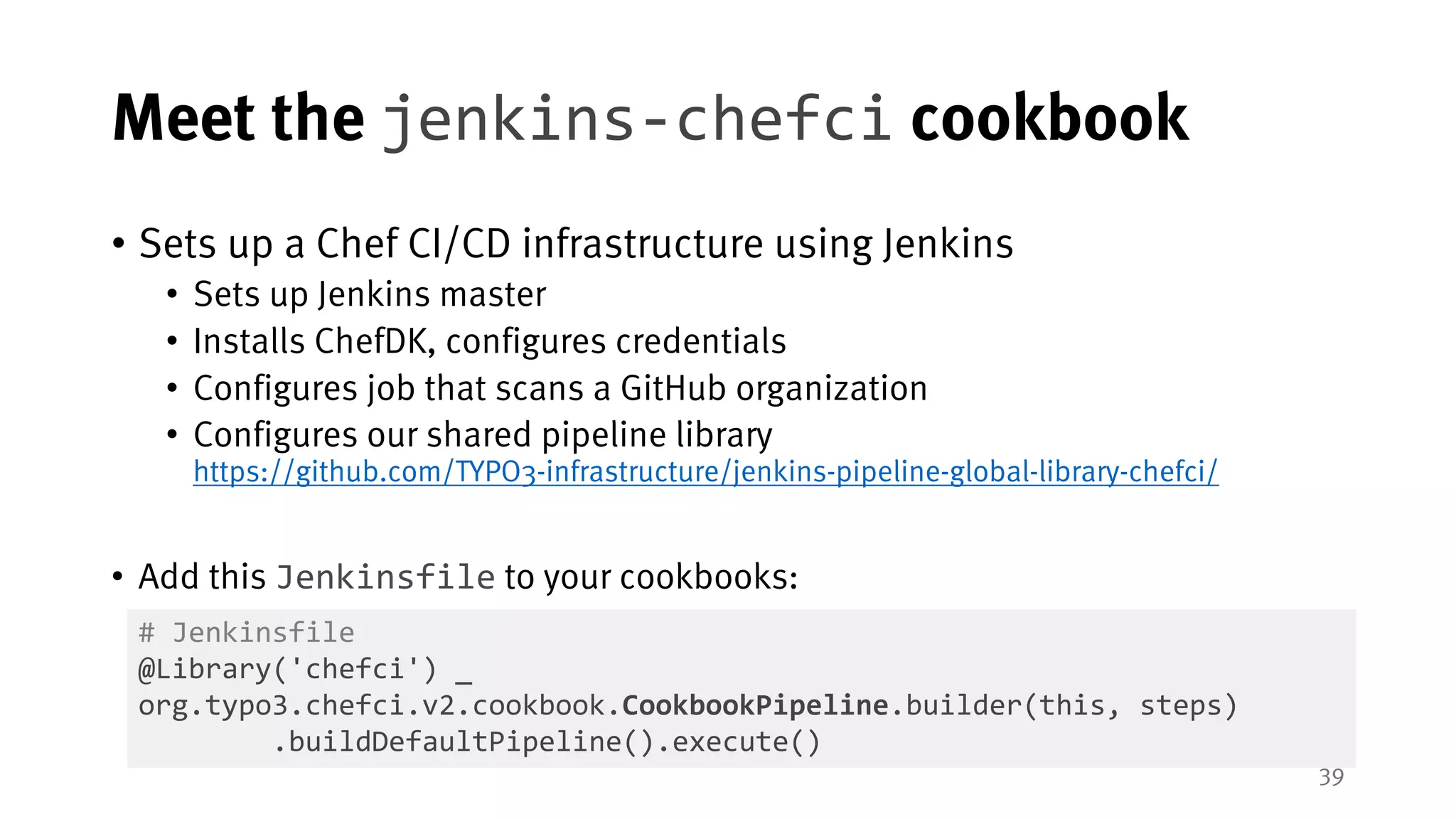

Meet the jenkins-chefci cookbook
• Sets up a Chef CI/CD infrastructure using Jenkins
• Sets up Jenkins master
• Installs ChefDK, configures credentials
• Configures job that scans a GitHub organization
• Configures our shared pipeline library
https://github.com/TYPO3-infrastructure/jenkins-pipeline-global-library-chefci/
• Add this Jenkinsfile to your cookbooks:
# Jenkinsfile
@Library('chefci') _
org.typo3.chefci.v2.cookbook.CookbookPipeline.builder(this, steps)
.buildDefaultPipeline().execute()
40

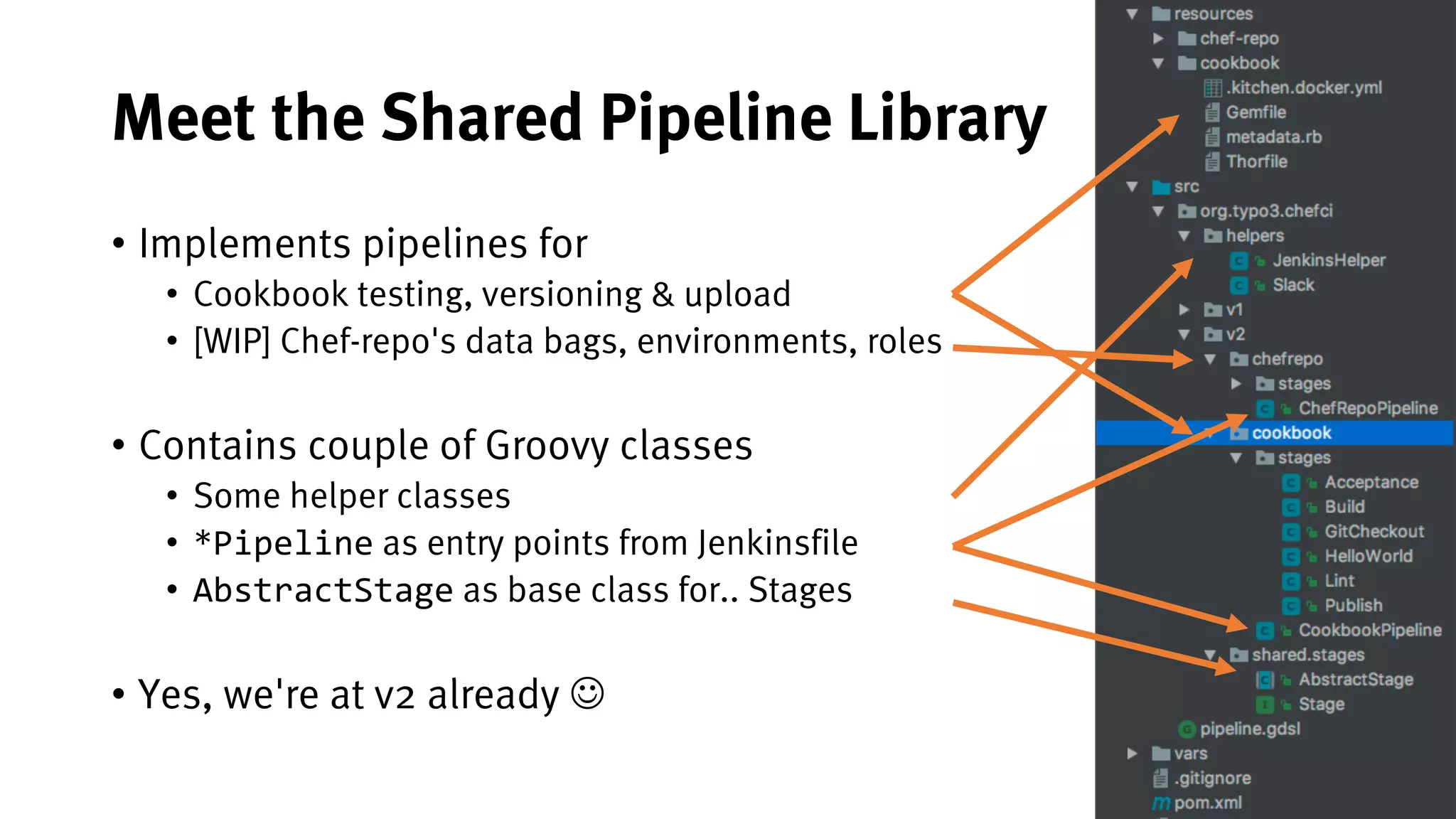

Meet the Shared Pipeline Library
• Implements pipelines for
• Cookbook testing, versioning & upload
• [WIP] Chef-repo's data bags, environments, roles
• Contains couple of Groovy classes
• Some helper classes
• *Pipeline as entry points from Jenkinsfile
• AbstractStage as base class for.. Stages
• Yes, we're at v2 already J
41

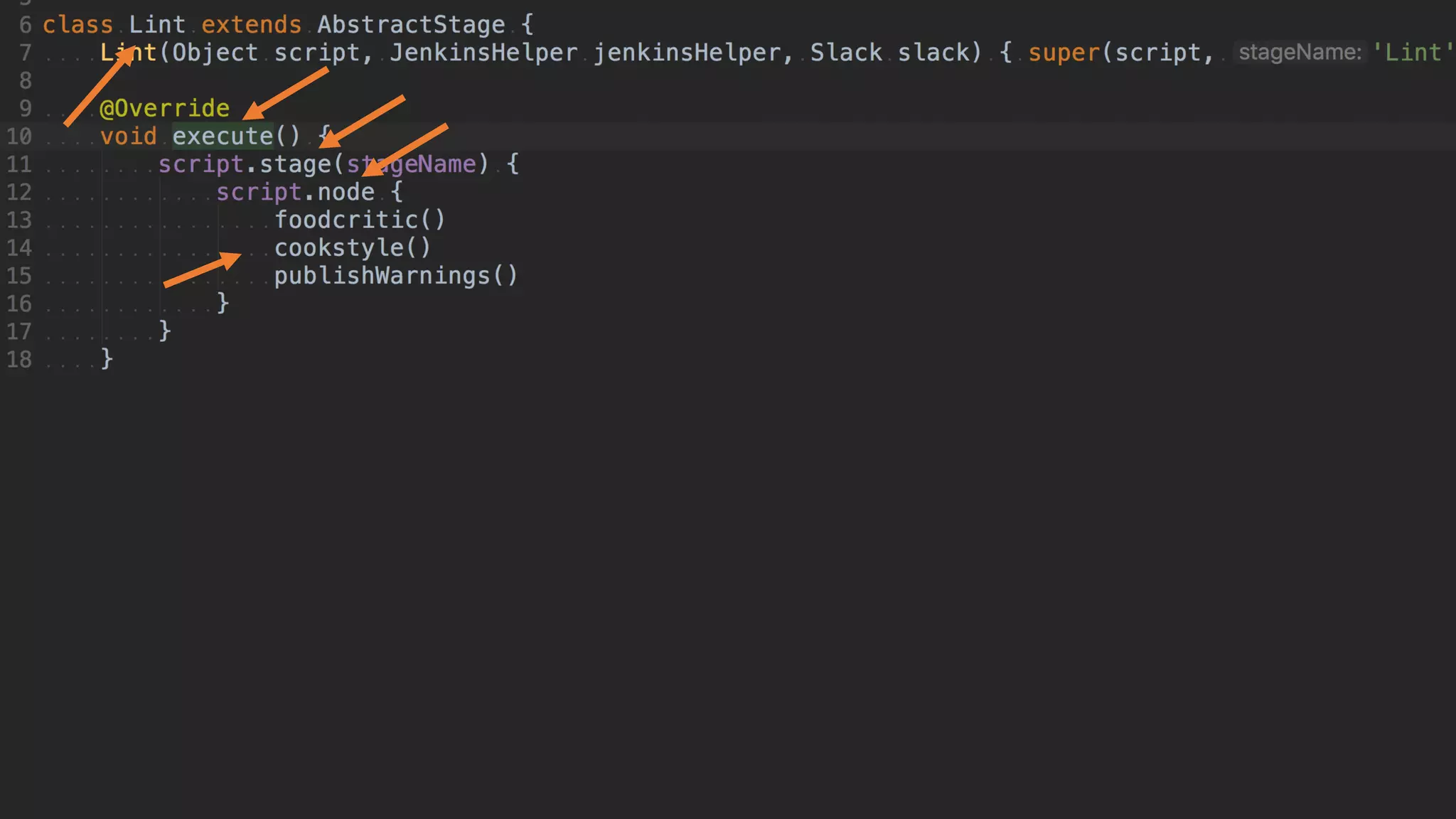

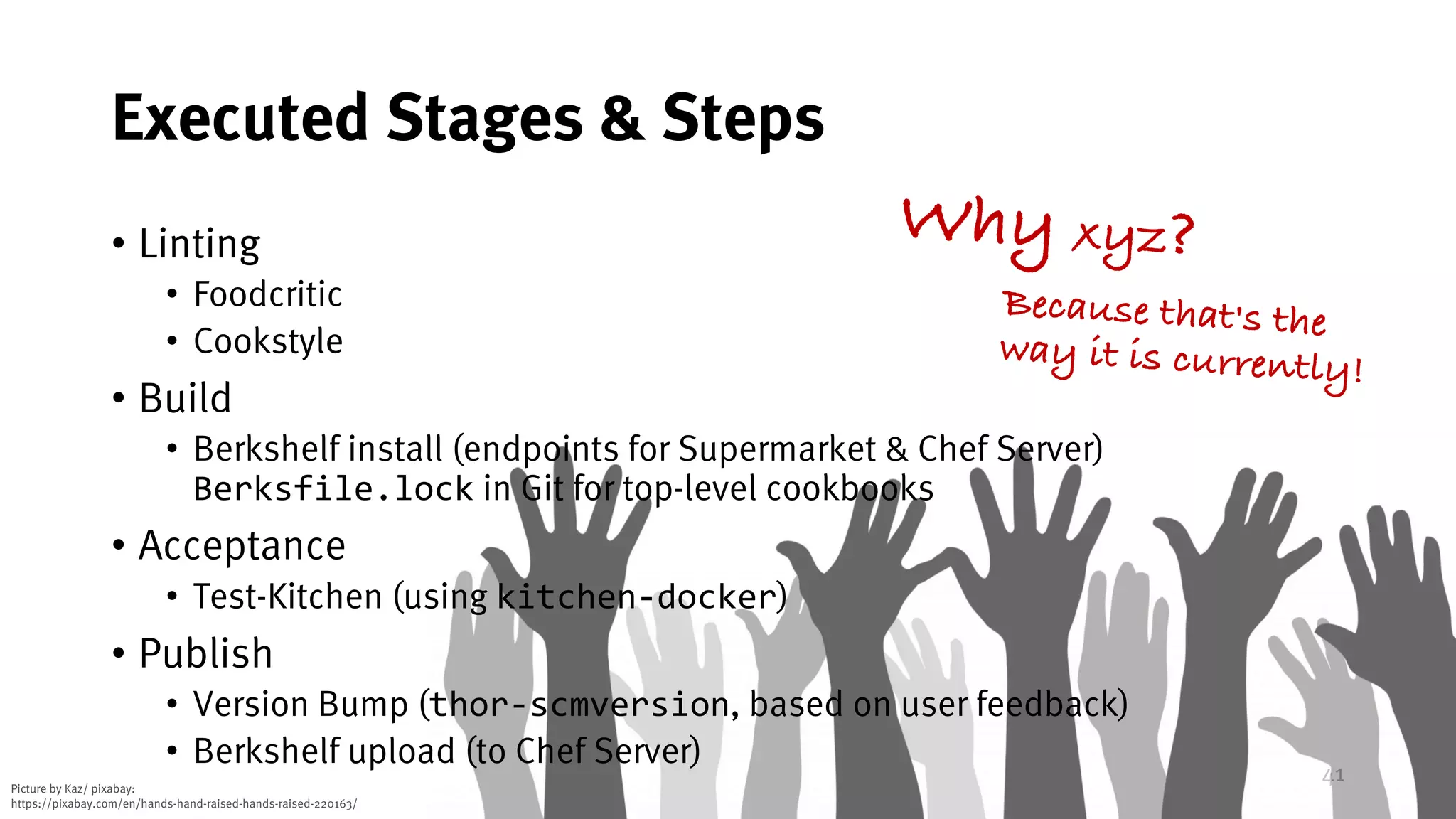

Executed Stages & Steps
• Linting
• Foodcritic
• Cookstyle
• Build
• Berkshelf install (endpoints for Supermarket & Chef Server)
Berksfile.lock in Git for top-level cookbooks
• Acceptance
• Test-Kitchen (using kitchen-docker)
• Publish
• Version Bump (thor-scmversion, based on user feedback)
• Berkshelf upload (to Chef Server)
Picture by Kaz/ pixabay:
https://pixabay.com/en/hands-hand-raised-hands-raised-220163/
42
43

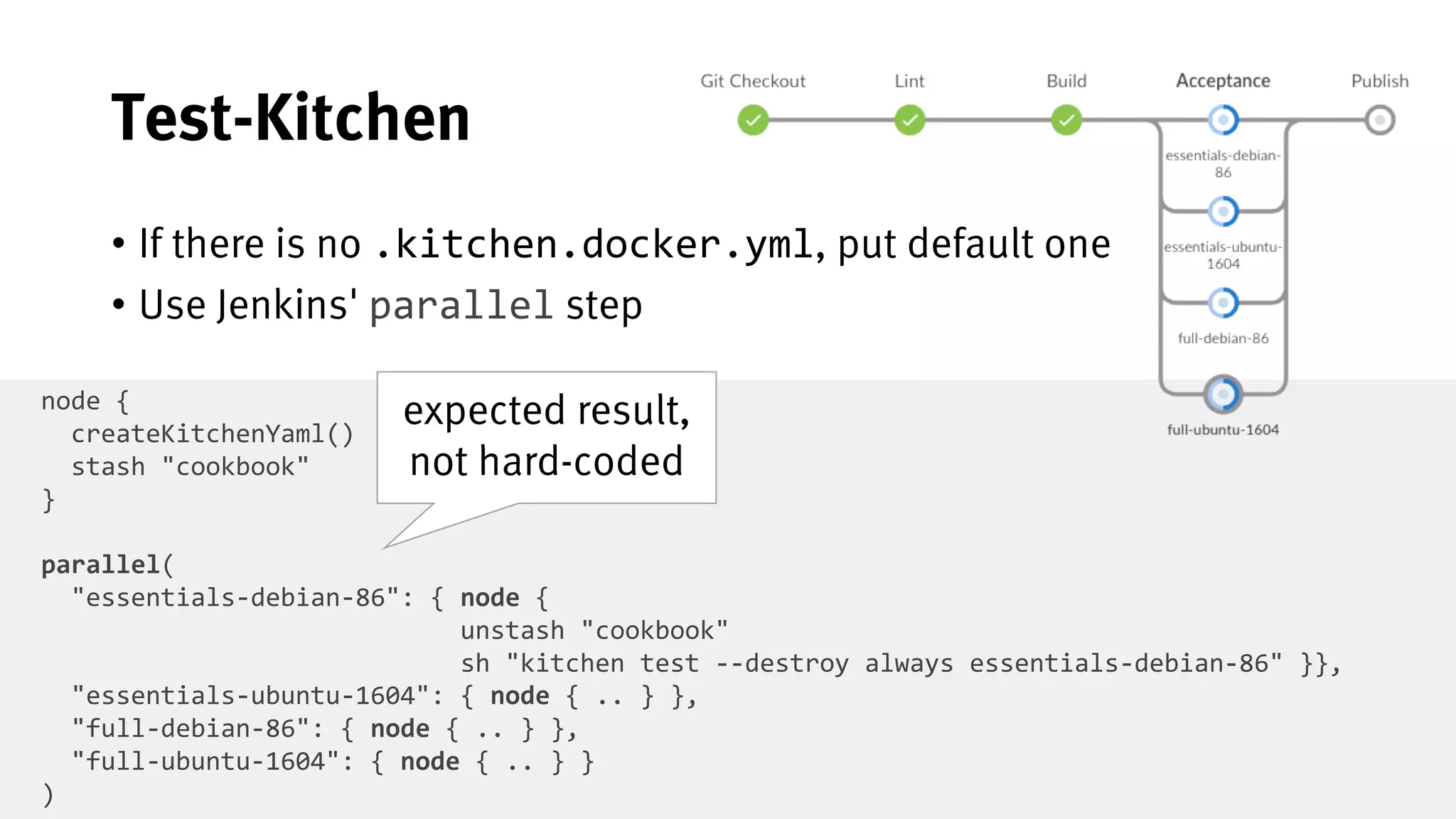

node {
createKitchenYaml()
stash "cookbook"
}
parallel(
"essentials-debian-86": { node {
unstash "cookbook"
sh "kitchen test --destroy always essentials-debian-86" }},
"essentials-ubuntu-1604": { node { .. } },
"full-debian-86": { node { .. } },
"full-ubuntu-1604": { node { .. } }
)
Test-Kitchen
• If there is no .kitchen.docker.yml, put default one
• Use Jenkins' parallel step
expected result,
not hard-coded
44

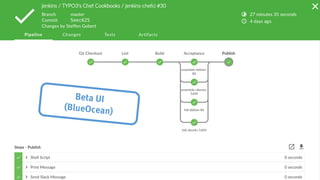

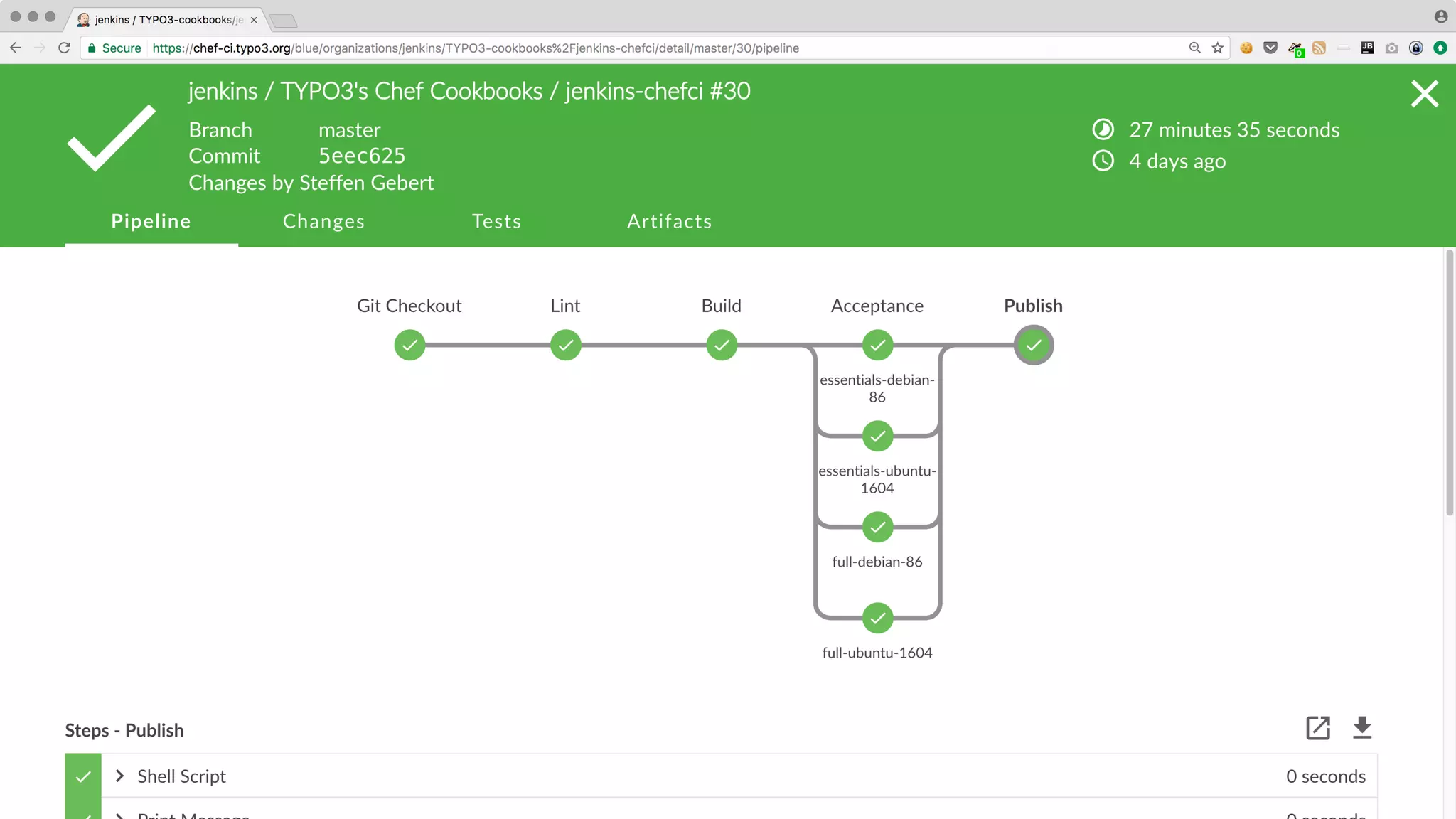

Test-Kitchen (2)
• Parallel instances automatically derived from kitchen status
• Log files of failed instances are archived
• Less chaos than complete Jenkins log
• Traditional UI does not clearly show failed parallel branch
• Not limited to kitchen-docker

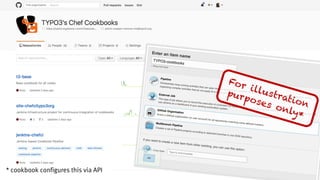

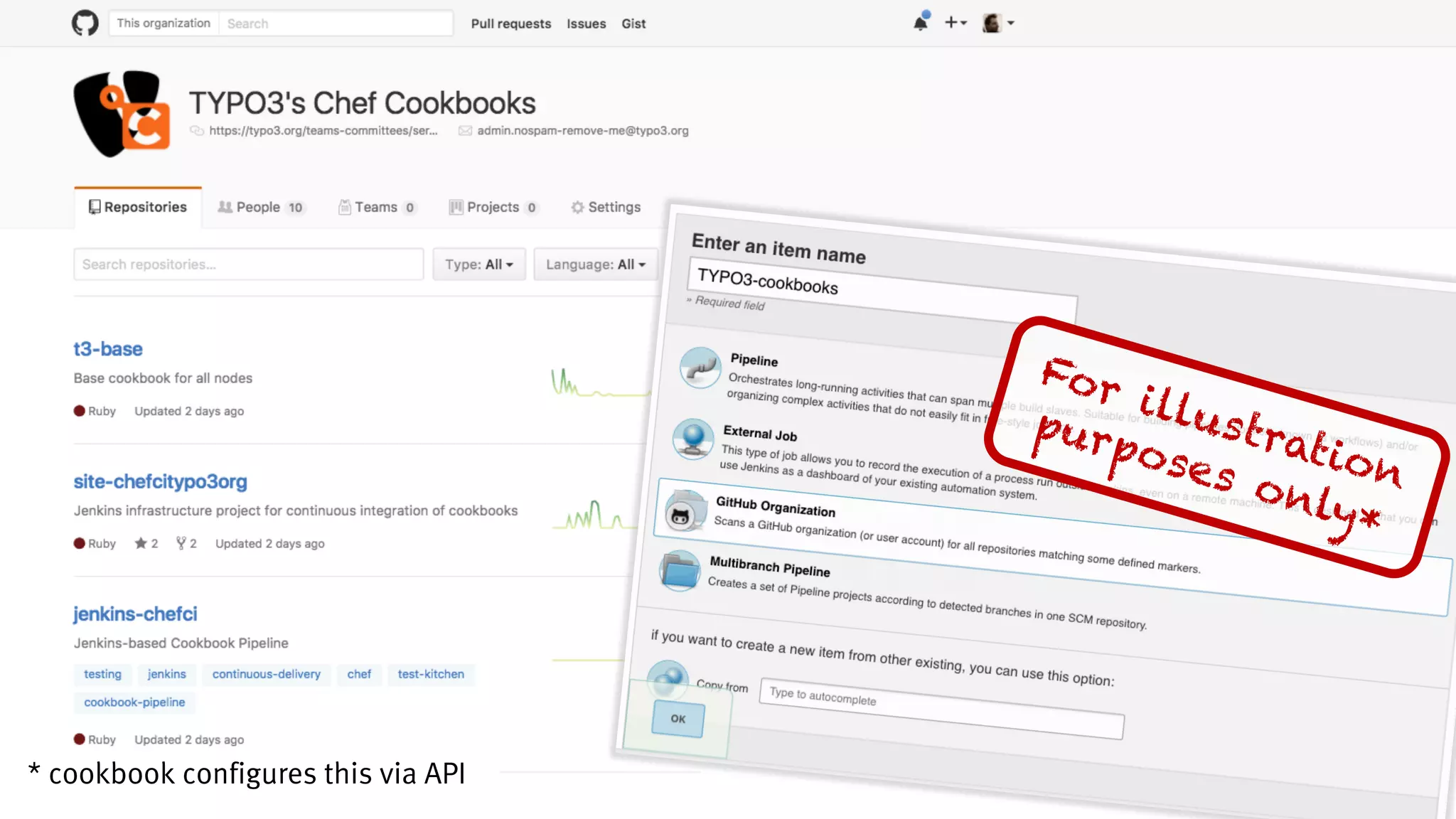

45* cookbook configures this via API
46
47
48
49

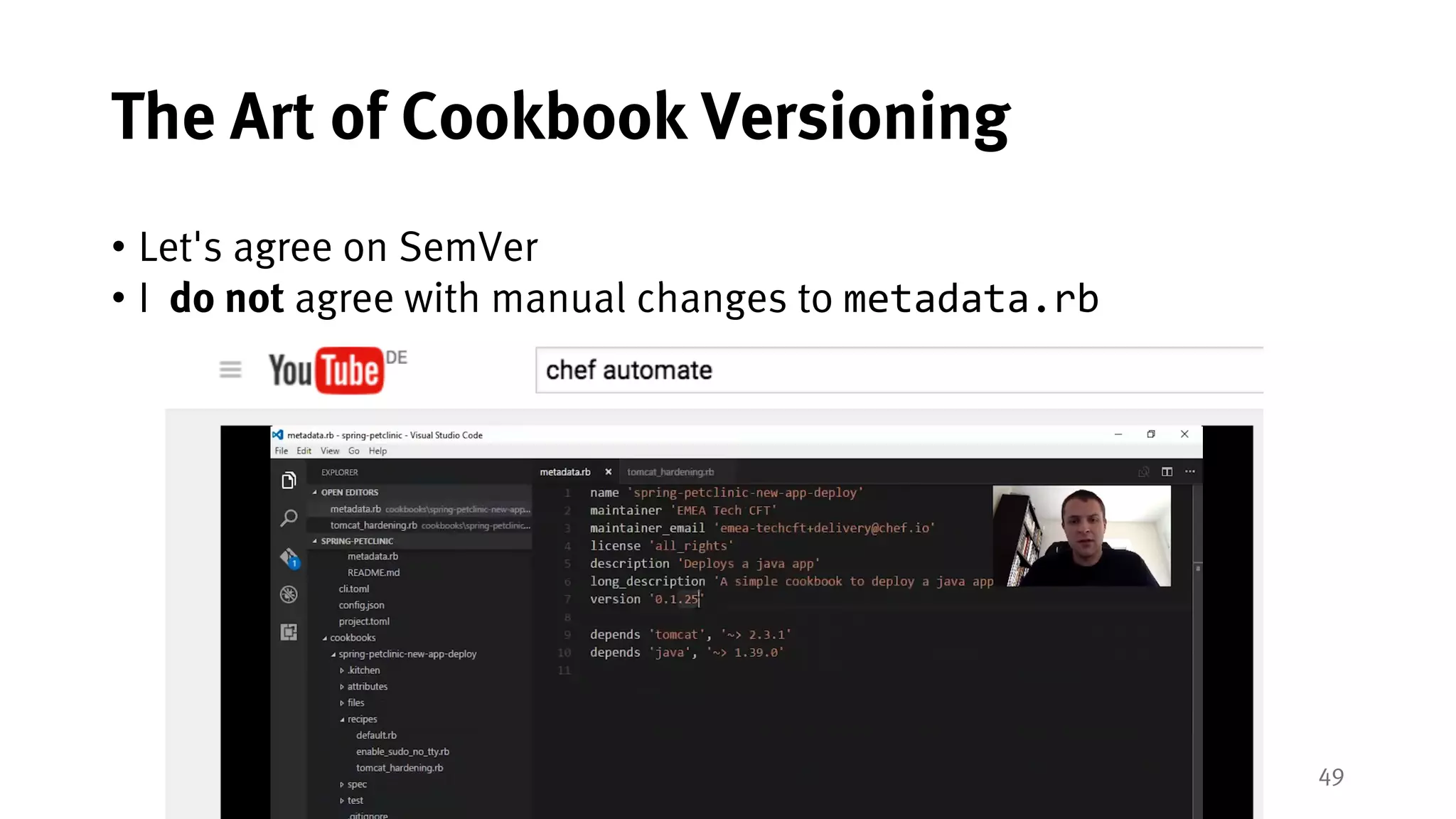

The Art of Cookbook Versioning
• Let's agree on SemVer
• I do not agree with manual changes to metadata.rb
50
Demo Time!
Picture by annca/ pixabay:
https://pixabay.com/en/popcorn-cinema-ticket-film-1433327/
51

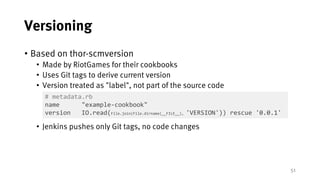

Versioning
• Based on thor-scmversion
• Made by RiotGames for their cookbooks
• Uses Git tags to derive current version
• Version treated as "label", not part of the source code
• Jenkins pushes only Git tags, no code changes
# metadata.rb
name "example-cookbook"
version IO.read(File.join(File.dirname(__FILE__), 'VERSION')) rescue '0.0.1'
52

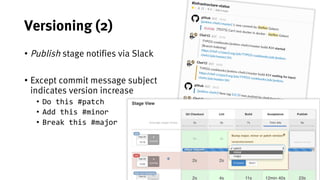

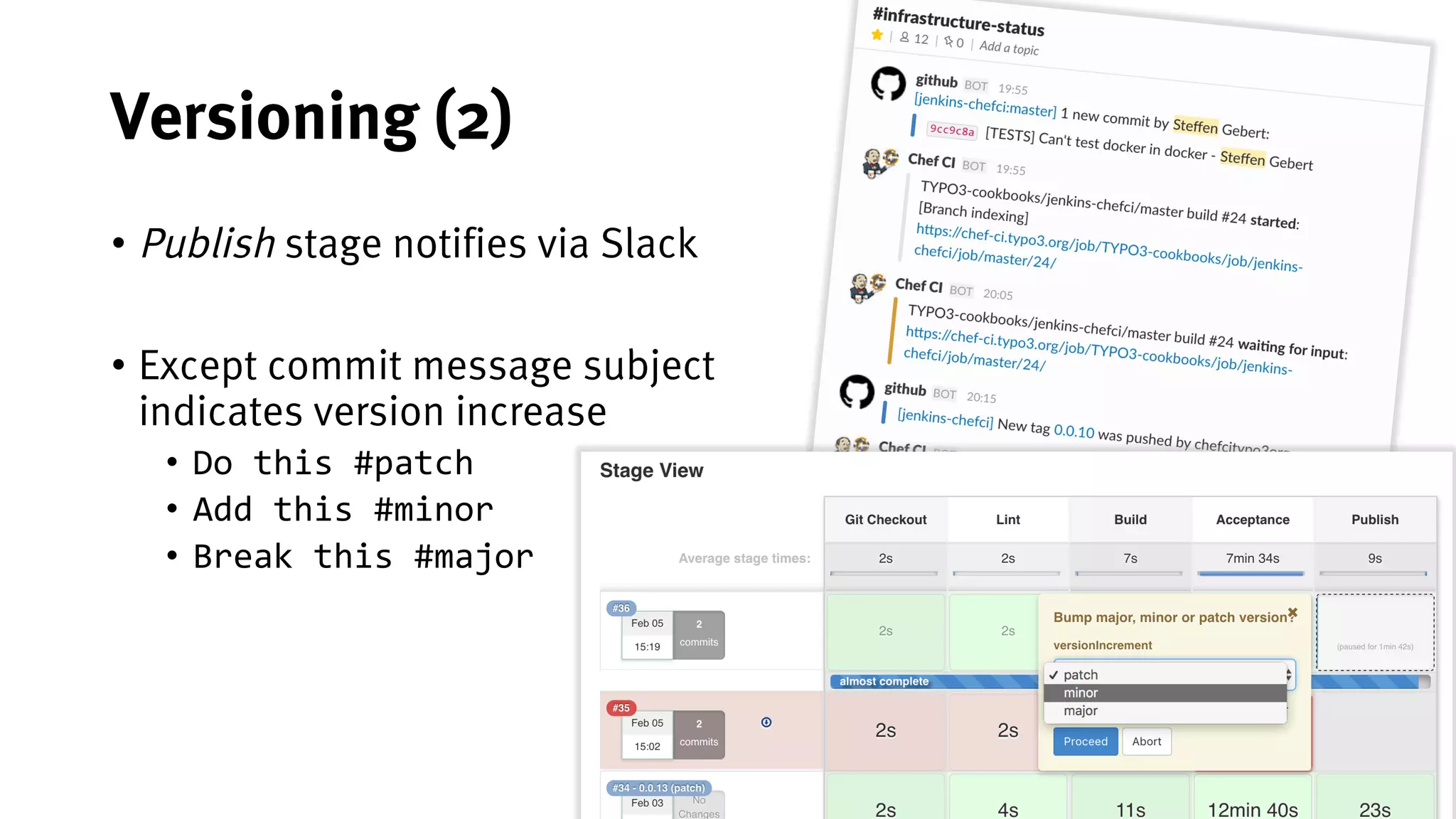

Versioning (2)
• Publish stage notifies via Slack
• Except commit message subject
indicates version increase
• Do this #patch
• Add this #minor
• Break this #major
53
"Main Chef-Repo"
• Not covered here, but in site-chefcitypo3org cookbook
• Freestyle job, defined via JobDSL
• Uses script to parse git diff and
upload changes using knife
54

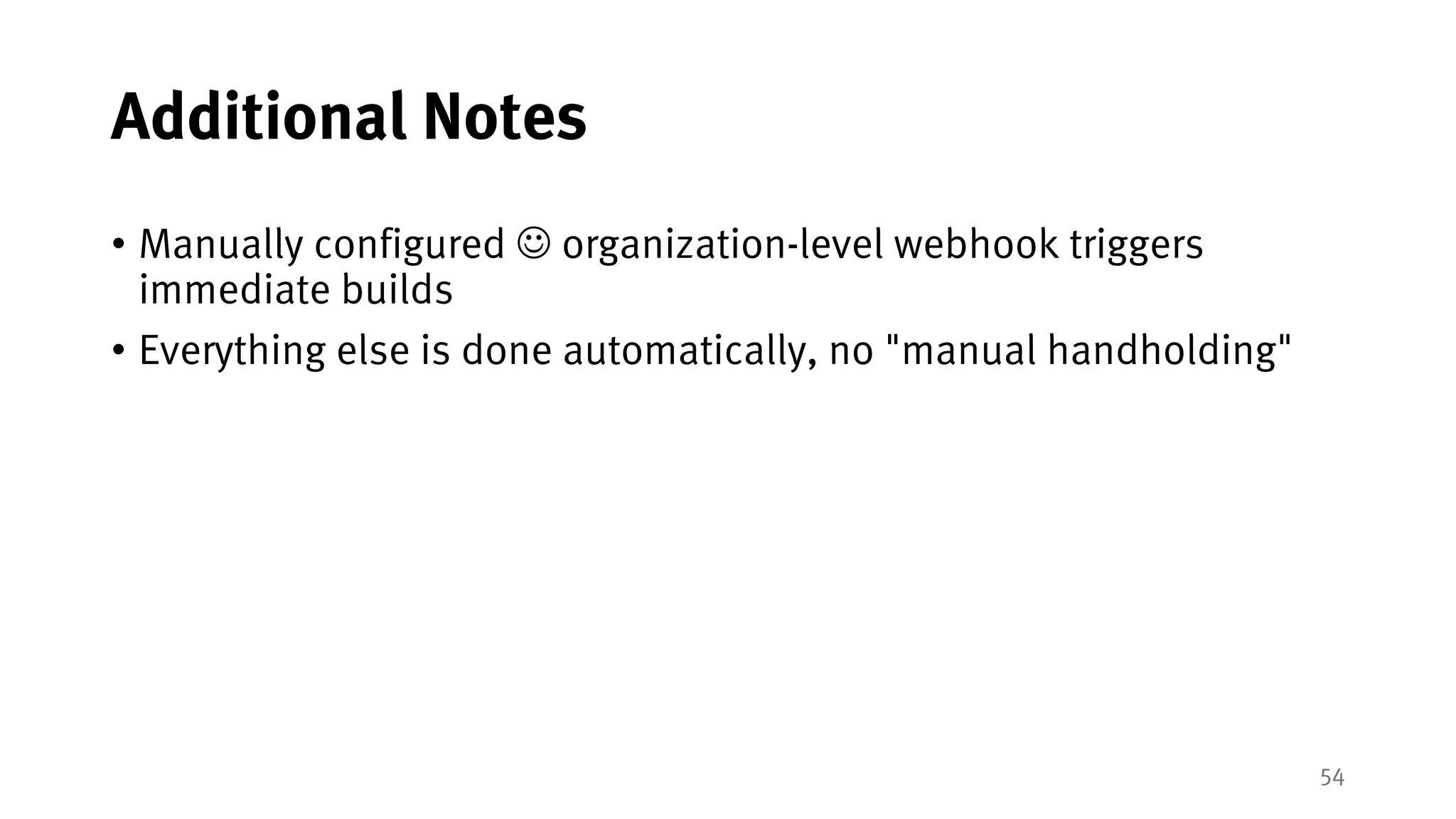

Additional Notes
• Manually configured J organization-level webhook triggers
immediate builds
• Everything else is done automatically, no "manual handholding"

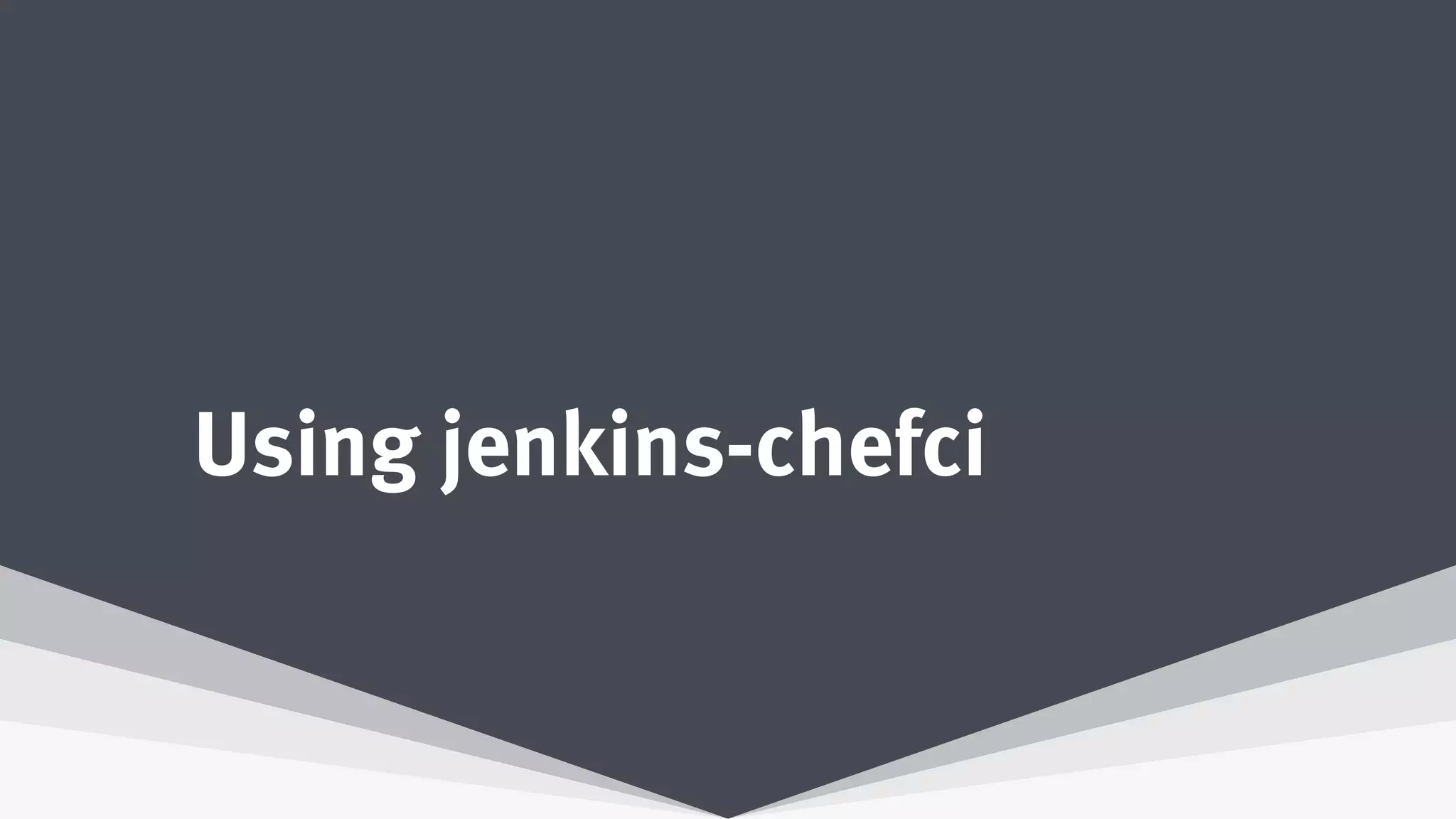

Using jenkins-chefci
56

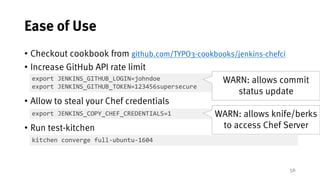

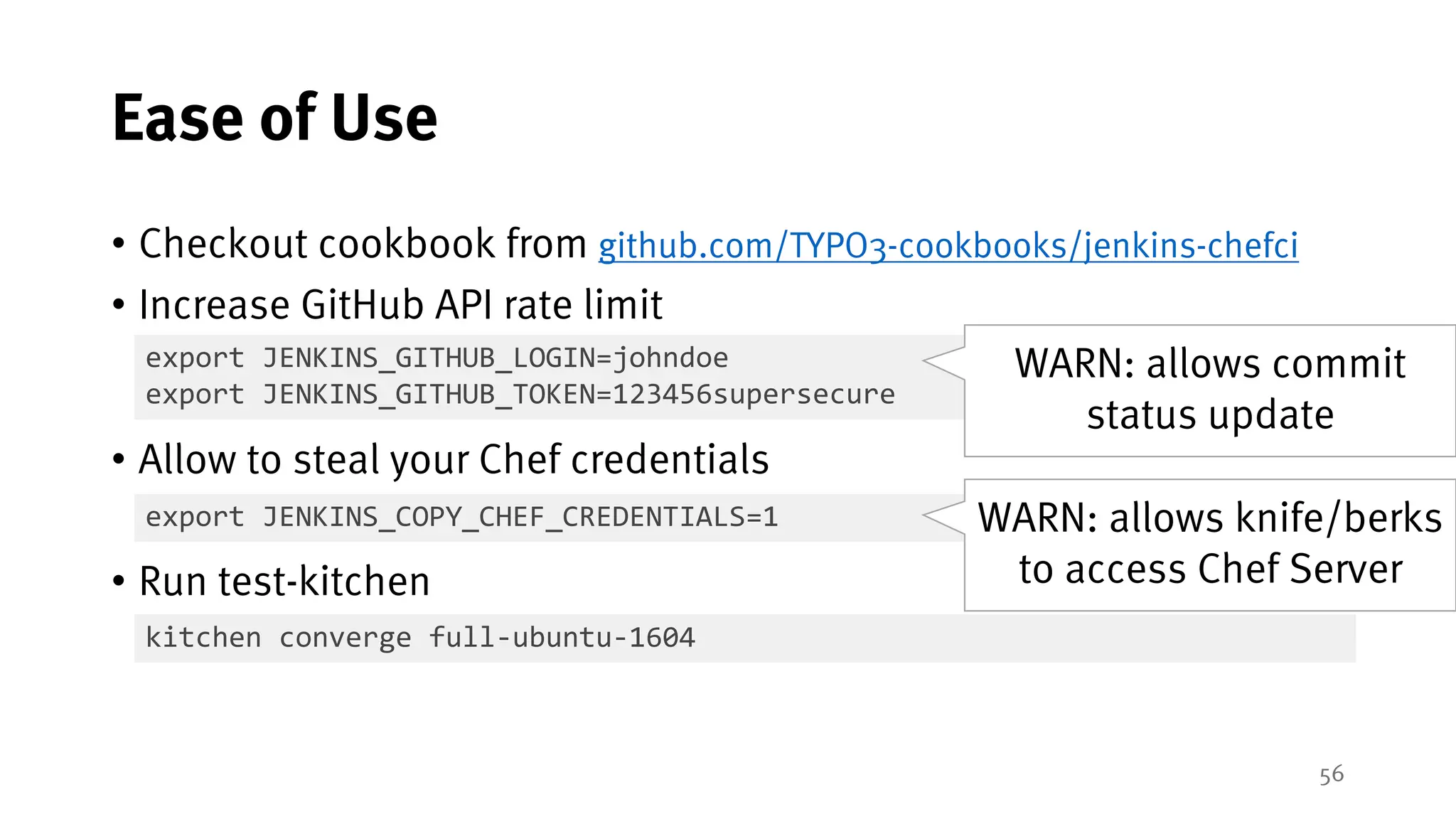

Ease of Use
• Checkout cookbook from github.com/TYPO3-cookbooks/jenkins-chefci
• Increase GitHub API rate limit
• Allow to steal your Chef credentials
• Run test-kitchen
export JENKINS_GITHUB_LOGIN=johndoe
export JENKINS_GITHUB_TOKEN=123456supersecure
export JENKINS_COPY_CHEF_CREDENTIALS=1
kitchen converge full-ubuntu-1604
WARN: allows commit
status update
WARN: allows knife/berks
to access Chef Server
57

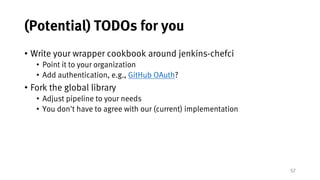

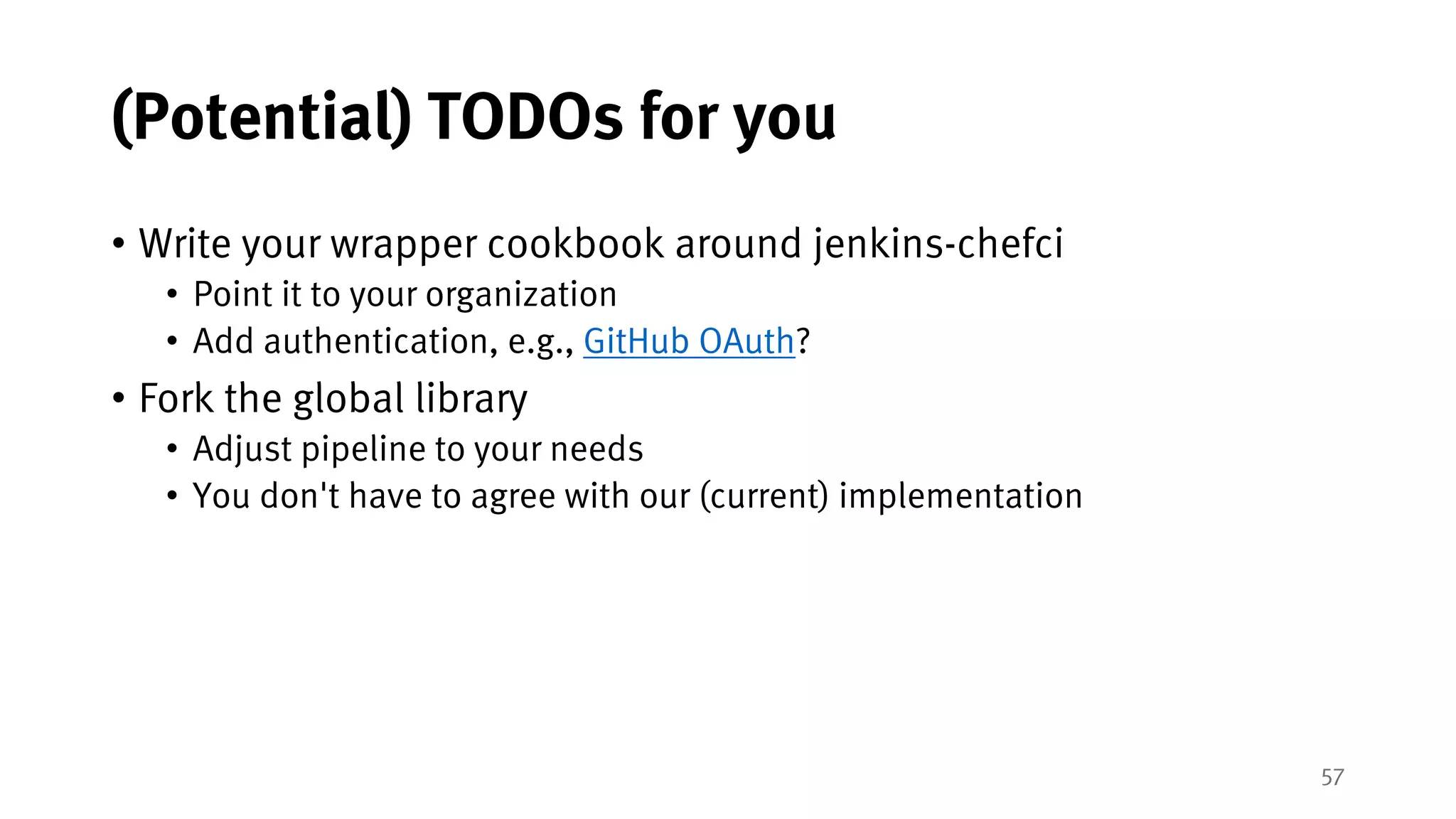

(Potential) TODOs for you
• Write your wrapper cookbook around jenkins-chefci
• Point it to your organization
• Add authentication, e.g., GitHub OAuth?
• Fork the global library
• Adjust pipeline to your needs
• You don't have to agree with our (current) implementation
58

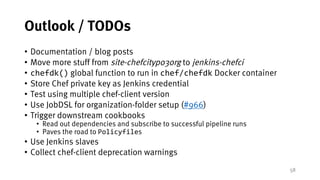

Outlook / TODOs
• Documentation / blog posts
• Move more stuff from site-chefcitypo3org to jenkins-chefci
• chefdk() global function to run in chef/chefdk Docker container
• Store Chef private key as Jenkins credential
• Test using multiple chef-client version
• Use JobDSL for organization-folder setup (#966)
• Trigger downstream cookbooks
• Read out dependencies and subscribe to successful pipeline runs
• Paves the road to Policyfiles
• Use Jenkins slaves
• Collect chef-client deprecation warnings
59

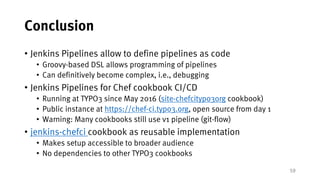

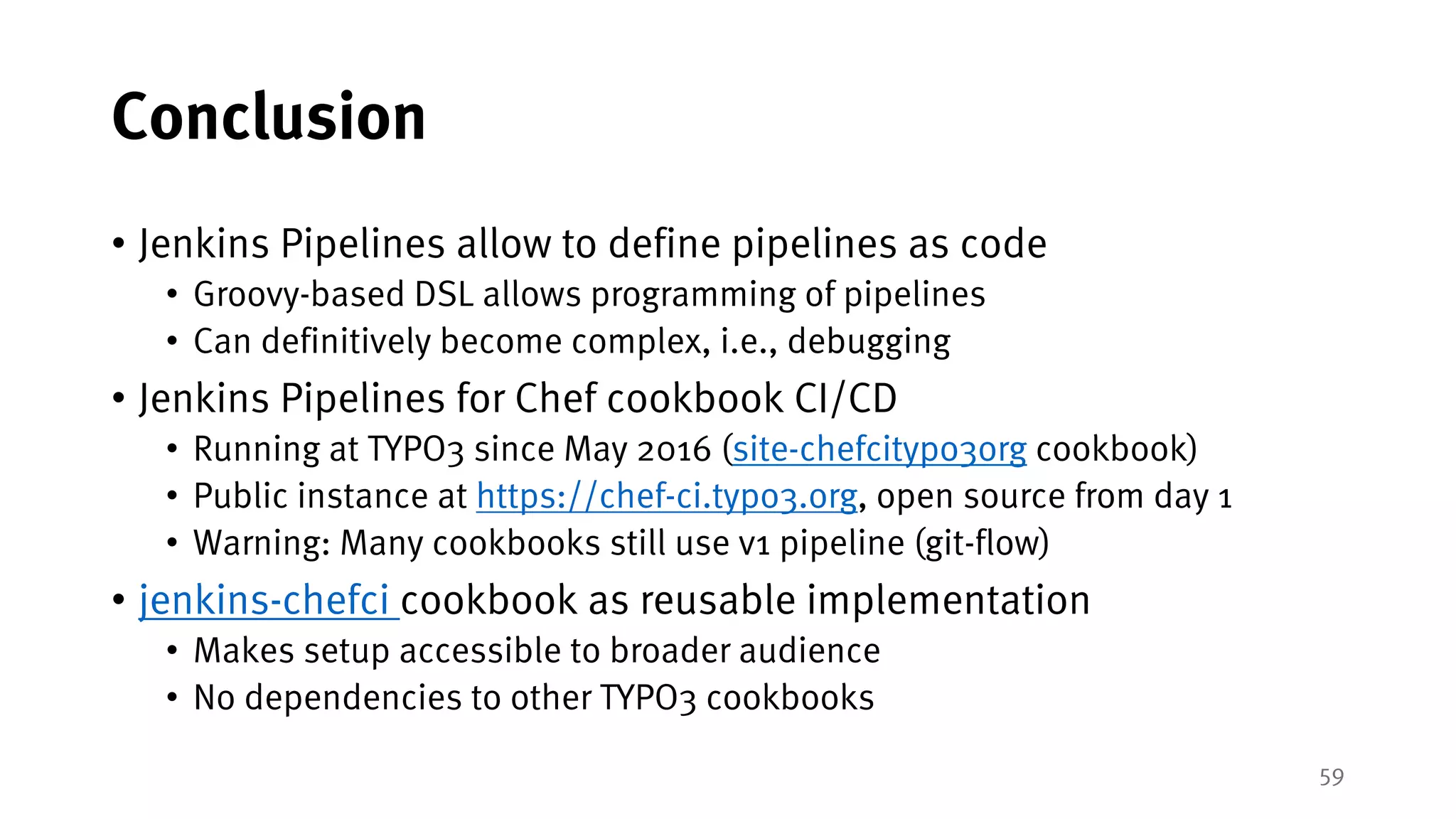

Conclusion
• Jenkins Pipelines allow to define pipelines as code
• Groovy-based DSL allows programming of pipelines
• Can definitively become complex, i.e., debugging
• Jenkins Pipelines for Chef cookbook CI/CD
• Running at TYPO3 since May 2016 (site-chefcitypo3org cookbook)
• Public instance at https://chef-ci.typo3.org, open source from day 1
• Warning: Many cookbooks still use v1 pipeline (git-flow)
• jenkins-chefci cookbook as reusable implementation
• Makes setup accessible to broader audience
• No dependencies to other TYPO3 cookbooks
60

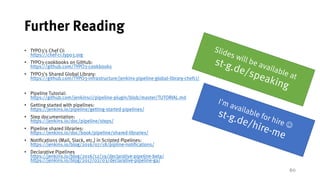

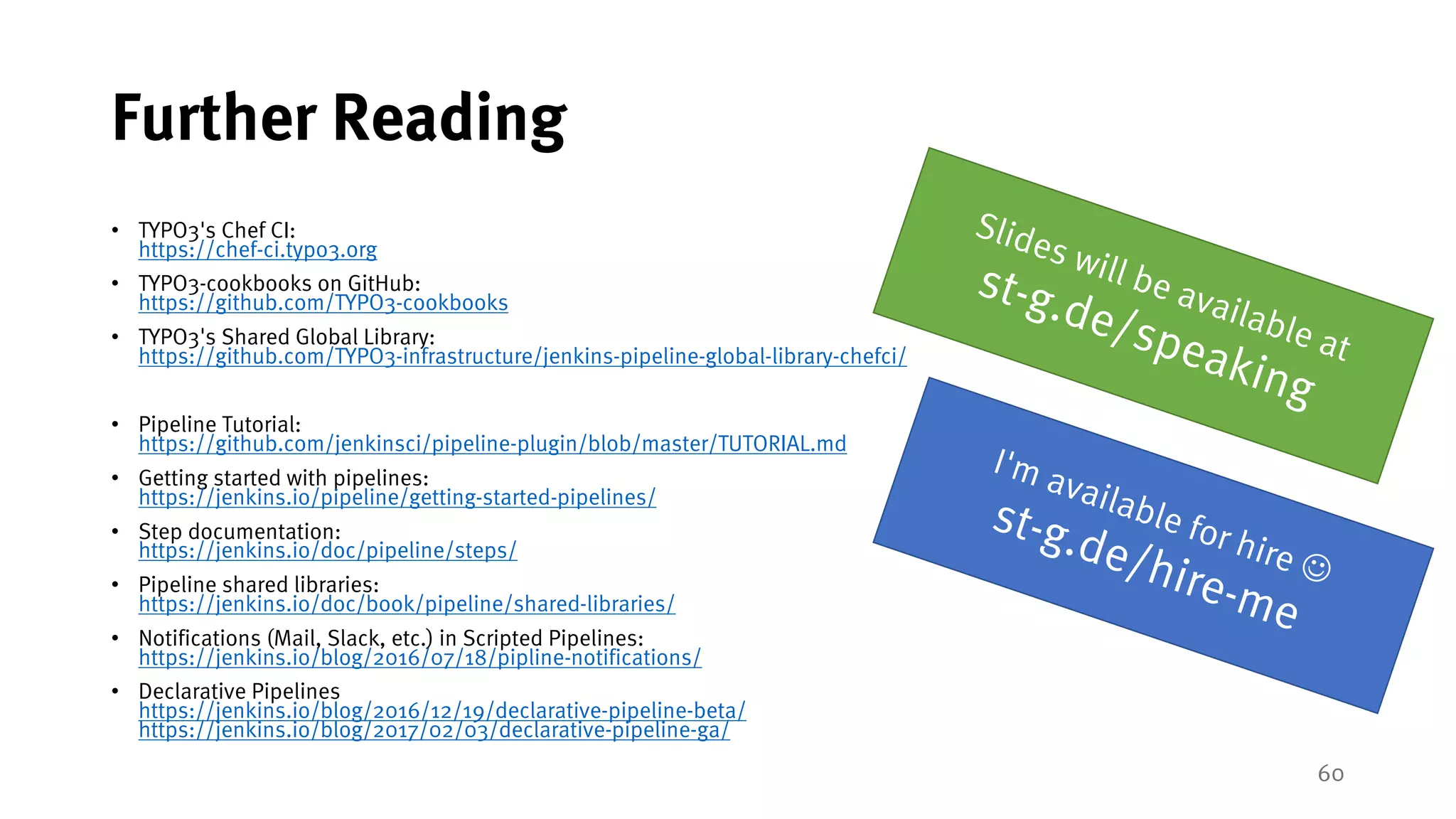

Further Reading
• TYPO3's Chef CI:
https://chef-ci.typo3.org
• TYPO3-cookbooks on GitHub:
https://github.com/TYPO3-cookbooks
• TYPO3's Shared Global Library:
https://github.com/TYPO3-infrastructure/jenkins-pipeline-global-library-chefci/
• Pipeline Tutorial:
https://github.com/jenkinsci/pipeline-plugin/blob/master/TUTORIAL.md
• Getting started with pipelines:
https://jenkins.io/pipeline/getting-started-pipelines/
• Step documentation:
https://jenkins.io/doc/pipeline/steps/
• Pipeline shared libraries:
https://jenkins.io/doc/book/pipeline/shared-libraries/
• Notifications (Mail, Slack, etc.) in Scripted Pipelines:
https://jenkins.io/blog/2016/07/18/pipline-notifications/
• Declarative Pipelines
https://jenkins.io/blog/2016/12/19/declarative-pipeline-beta/
https://jenkins.io/blog/2017/02/03/declarative-pipeline-ga/

More Related Content

What's hot

Kubernetes for Beginners: An Introductory Guide
Kubernetes for Beginners: An Introductory GuideKubernetes for Beginners: An Introductory Guide
Kubernetes for Beginners: An Introductory Guide
Bytemark

OpenShift 4 installation
OpenShift 4 installationOpenShift 4 installation
OpenShift 4 installation
Robert Bohne

Community Openstack 구축 사례
Community Openstack 구축 사례Community Openstack 구축 사례
Community Openstack 구축 사례
Open Source Consulting

Kubernetes and container security
Kubernetes and container securityKubernetes and container security
Kubernetes and container security
Volodymyr Shynkar

Terraform 101: What's infrastructure as code?
Terraform 101: What's infrastructure as code?Terraform 101: What's infrastructure as code?
Terraform 101: What's infrastructure as code?
GDX Wu

Containers Anywhere with OpenShift by Red Hat
Containers Anywhere with OpenShift by Red HatContainers Anywhere with OpenShift by Red Hat
Containers Anywhere with OpenShift by Red Hat
Amazon Web Services

Kubernetes Docker Container Implementation Ppt PowerPoint Presentation Slide ...
Kubernetes Docker Container Implementation Ppt PowerPoint Presentation Slide ...Kubernetes Docker Container Implementation Ppt PowerPoint Presentation Slide ...
Kubernetes Docker Container Implementation Ppt PowerPoint Presentation Slide ...
SlideTeam

Container security
Container securityContainer security
Container security
Anthony Chow

Terraform introduction
Terraform introductionTerraform introduction
Terraform introduction
Jason Vance

Kubernetes Basics
Kubernetes BasicsKubernetes Basics
Kubernetes Basics
Eueung Mulyana

Open shift 4 infra deep dive
Open shift 4    infra deep diveOpen shift 4    infra deep dive
Open shift 4 infra deep dive
Winton Winton

쉽게 알아보는 AWS 클라우드 보안 :: 임기성 & 신용녀 :: AWS Summit Seoul 2016
쉽게 알아보는 AWS 클라우드 보안 :: 임기성 & 신용녀 :: AWS Summit Seoul 2016쉽게 알아보는 AWS 클라우드 보안 :: 임기성 & 신용녀 :: AWS Summit Seoul 2016
쉽게 알아보는 AWS 클라우드 보안 :: 임기성 & 신용녀 :: AWS Summit Seoul 2016
Amazon Web Services Korea

Kubernetes Webinar - Using ConfigMaps & Secrets
Kubernetes Webinar - Using ConfigMaps & Secrets Kubernetes Webinar - Using ConfigMaps & Secrets
Kubernetes Webinar - Using ConfigMaps & Secrets
Janakiram MSV

Challenges of Kubernetes On-premise Deployment
Challenges of Kubernetes On-premise DeploymentChallenges of Kubernetes On-premise Deployment
Challenges of Kubernetes On-premise Deployment
Vietnam Open Infrastructure User Group

Docker Compose | Docker Compose Tutorial | Docker Tutorial For Beginners | De...
Docker Compose | Docker Compose Tutorial | Docker Tutorial For Beginners | De...Docker Compose | Docker Compose Tutorial | Docker Tutorial For Beginners | De...
Docker Compose | Docker Compose Tutorial | Docker Tutorial For Beginners | De...
Simplilearn

Docker Swarm Introduction
Docker Swarm IntroductionDocker Swarm Introduction
Docker Swarm Introduction
rajdeep

How we can do Multi-Tenancy on Kubernetes
How we can do Multi-Tenancy on KubernetesHow we can do Multi-Tenancy on Kubernetes
How we can do Multi-Tenancy on Kubernetes
Opsta

Everything You Need To Know About Persistent Storage in Kubernetes
Everything You Need To Know About Persistent Storage in KubernetesEverything You Need To Know About Persistent Storage in Kubernetes
Everything You Need To Know About Persistent Storage in Kubernetes
The {code} Team

Container Security
Container SecurityContainer Security
Container Security
Salman Baset

Using HashiCorp’s Terraform to build your infrastructure on AWS - Pop-up Loft...
Using HashiCorp’s Terraform to build your infrastructure on AWS - Pop-up Loft...Using HashiCorp’s Terraform to build your infrastructure on AWS - Pop-up Loft...
Using HashiCorp’s Terraform to build your infrastructure on AWS - Pop-up Loft...
Amazon Web Services


What's hot (20)

Kubernetes for Beginners: An Introductory Guide
Kubernetes for Beginners: An Introductory GuideKubernetes for Beginners: An Introductory Guide
Kubernetes for Beginners: An Introductory Guide

OpenShift 4 installation
OpenShift 4 installationOpenShift 4 installation
OpenShift 4 installation

Community Openstack 구축 사례
Community Openstack 구축 사례Community Openstack 구축 사례
Community Openstack 구축 사례

Kubernetes and container security
Kubernetes and container securityKubernetes and container security
Kubernetes and container security

Terraform 101: What's infrastructure as code?
Terraform 101: What's infrastructure as code?Terraform 101: What's infrastructure as code?
Terraform 101: What's infrastructure as code?

Containers Anywhere with OpenShift by Red Hat
Containers Anywhere with OpenShift by Red HatContainers Anywhere with OpenShift by Red Hat
Containers Anywhere with OpenShift by Red Hat

Kubernetes Docker Container Implementation Ppt PowerPoint Presentation Slide ...
Kubernetes Docker Container Implementation Ppt PowerPoint Presentation Slide ...Kubernetes Docker Container Implementation Ppt PowerPoint Presentation Slide ...
Kubernetes Docker Container Implementation Ppt PowerPoint Presentation Slide ...

Container security
Container securityContainer security
Container security

Terraform introduction
Terraform introductionTerraform introduction
Terraform introduction

Kubernetes Basics
Kubernetes BasicsKubernetes Basics
Kubernetes Basics

Open shift 4 infra deep dive
Open shift 4    infra deep diveOpen shift 4    infra deep dive
Open shift 4 infra deep dive

쉽게 알아보는 AWS 클라우드 보안 :: 임기성 & 신용녀 :: AWS Summit Seoul 2016
쉽게 알아보는 AWS 클라우드 보안 :: 임기성 & 신용녀 :: AWS Summit Seoul 2016쉽게 알아보는 AWS 클라우드 보안 :: 임기성 & 신용녀 :: AWS Summit Seoul 2016
쉽게 알아보는 AWS 클라우드 보안 :: 임기성 & 신용녀 :: AWS Summit Seoul 2016

Kubernetes Webinar - Using ConfigMaps & Secrets
Kubernetes Webinar - Using ConfigMaps & Secrets Kubernetes Webinar - Using ConfigMaps & Secrets
Kubernetes Webinar - Using ConfigMaps & Secrets

Challenges of Kubernetes On-premise Deployment
Challenges of Kubernetes On-premise DeploymentChallenges of Kubernetes On-premise Deployment
Challenges of Kubernetes On-premise Deployment

Docker Compose | Docker Compose Tutorial | Docker Tutorial For Beginners | De...
Docker Compose | Docker Compose Tutorial | Docker Tutorial For Beginners | De...Docker Compose | Docker Compose Tutorial | Docker Tutorial For Beginners | De...
Docker Compose | Docker Compose Tutorial | Docker Tutorial For Beginners | De...

Docker Swarm Introduction
Docker Swarm IntroductionDocker Swarm Introduction
Docker Swarm Introduction

How we can do Multi-Tenancy on Kubernetes
How we can do Multi-Tenancy on KubernetesHow we can do Multi-Tenancy on Kubernetes
How we can do Multi-Tenancy on Kubernetes

Everything You Need To Know About Persistent Storage in Kubernetes
Everything You Need To Know About Persistent Storage in KubernetesEverything You Need To Know About Persistent Storage in Kubernetes
Everything You Need To Know About Persistent Storage in Kubernetes

Container Security
Container SecurityContainer Security
Container Security

Using HashiCorp’s Terraform to build your infrastructure on AWS - Pop-up Loft...
Using HashiCorp’s Terraform to build your infrastructure on AWS - Pop-up Loft...Using HashiCorp’s Terraform to build your infrastructure on AWS - Pop-up Loft...
Using HashiCorp’s Terraform to build your infrastructure on AWS - Pop-up Loft...


Viewers also liked

(Declarative) Jenkins Pipelines
(Declarative) Jenkins Pipelines(Declarative) Jenkins Pipelines
(Declarative) Jenkins Pipelines
Steffen Gebert

Jenkins Pipelines
Jenkins PipelinesJenkins Pipelines
Jenkins Pipelines
Steffen Gebert

State of the Jenkins Automation
State of the Jenkins AutomationState of the Jenkins Automation
State of the Jenkins Automation
Julien Pivotto

Continuous Delivery
Continuous DeliveryContinuous Delivery
Continuous Delivery
Steffen Gebert

Cleaning Up the Dirt of the Nineties - How New Protocols are Modernizing the Web
Cleaning Up the Dirt of the Nineties - How New Protocols are Modernizing the WebCleaning Up the Dirt of the Nineties - How New Protocols are Modernizing the Web
Cleaning Up the Dirt of the Nineties - How New Protocols are Modernizing the Web
Steffen Gebert

Pipeline: Continuous Delivery as Code in Jenkins 2.0
Pipeline: Continuous Delivery as Code in Jenkins 2.0Pipeline: Continuous Delivery as Code in Jenkins 2.0
Pipeline: Continuous Delivery as Code in Jenkins 2.0
Jules Pierre-Louis

Let's go HTTPS-only! - More Than Buying a Certificate
Let's go HTTPS-only! - More Than Buying a CertificateLet's go HTTPS-only! - More Than Buying a Certificate
Let's go HTTPS-only! - More Than Buying a Certificate
Steffen Gebert

Jenkins and Chef: Infrastructure CI and Automated Deployment
Jenkins and Chef: Infrastructure CI and Automated DeploymentJenkins and Chef: Infrastructure CI and Automated Deployment
Jenkins and Chef: Infrastructure CI and Automated Deployment
Dan Stine

Jenkins 2.0 最新事情 〜Make Jenkins Great Again〜
Jenkins 2.0 最新事情 〜Make Jenkins Great Again〜Jenkins 2.0 最新事情 〜Make Jenkins Great Again〜
Jenkins 2.0 最新事情 〜Make Jenkins Great Again〜
Jumpei Miyata

SD DevOps Meet-up - Jenkins 2.0 and Pipeline-as-Code
SD DevOps Meet-up - Jenkins 2.0 and Pipeline-as-CodeSD DevOps Meet-up - Jenkins 2.0 and Pipeline-as-Code
SD DevOps Meet-up - Jenkins 2.0 and Pipeline-as-Code
Brian Dawson

Delivery Pipeline as Code: using Jenkins 2.0 Pipeline
Delivery Pipeline as Code: using Jenkins 2.0 PipelineDelivery Pipeline as Code: using Jenkins 2.0 Pipeline
Delivery Pipeline as Code: using Jenkins 2.0 Pipeline
Slawa Giterman

CI and CD with Jenkins
CI and CD with JenkinsCI and CD with Jenkins
CI and CD with Jenkins
Martin Málek

Ruby Conf India 2016
Ruby Conf India 2016Ruby Conf India 2016
Ruby Conf India 2016
Sumit Mahamuni

Unity Loves HelNode - Helsinki Node.js November Meetup
Unity Loves HelNode - Helsinki Node.js November MeetupUnity Loves HelNode - Helsinki Node.js November Meetup
Unity Loves HelNode - Helsinki Node.js November Meetup
Helsinki Node.js Meetup Group

[DevFest Nantes 2016] Les Pipelines Jenkins dans la vraie vie
[DevFest Nantes 2016] Les Pipelines Jenkins dans la vraie vie[DevFest Nantes 2016] Les Pipelines Jenkins dans la vraie vie
[DevFest Nantes 2016] Les Pipelines Jenkins dans la vraie vie
Jean-Philippe Briend

On QoE Metrics and QoE Fairness for Network & Traffic Management
On QoE Metrics and QoE Fairness for Network & Traffic ManagementOn QoE Metrics and QoE Fairness for Network & Traffic Management
On QoE Metrics and QoE Fairness for Network & Traffic Management
Tobias Hoßfeld

[Codeur en seine] Les Pipelines Jenkins dans la vraie vie
[Codeur en seine] Les Pipelines Jenkins dans la vraie vie[Codeur en seine] Les Pipelines Jenkins dans la vraie vie
[Codeur en seine] Les Pipelines Jenkins dans la vraie vie
Jean-Philippe Briend

IPC16: A Practical Introduction to Kubernetes
IPC16: A Practical Introduction to Kubernetes IPC16: A Practical Introduction to Kubernetes
IPC16: A Practical Introduction to Kubernetes
Robert Lemke

Alpes Jug (29th March, 2010) - Apache Maven
Alpes Jug (29th March, 2010) - Apache MavenAlpes Jug (29th March, 2010) - Apache Maven
Alpes Jug (29th March, 2010) - Apache Maven
Arnaud Héritier

Captain Agile and the Providers of Value
Captain Agile and the Providers of ValueCaptain Agile and the Providers of Value
Captain Agile and the Providers of Value
Schalk Cronjé


Viewers also liked (20)

(Declarative) Jenkins Pipelines
(Declarative) Jenkins Pipelines(Declarative) Jenkins Pipelines
(Declarative) Jenkins Pipelines

Jenkins Pipelines
Jenkins PipelinesJenkins Pipelines
Jenkins Pipelines

State of the Jenkins Automation
State of the Jenkins AutomationState of the Jenkins Automation
State of the Jenkins Automation

Continuous Delivery
Continuous DeliveryContinuous Delivery
Continuous Delivery

Cleaning Up the Dirt of the Nineties - How New Protocols are Modernizing the Web
Cleaning Up the Dirt of the Nineties - How New Protocols are Modernizing the WebCleaning Up the Dirt of the Nineties - How New Protocols are Modernizing the Web
Cleaning Up the Dirt of the Nineties - How New Protocols are Modernizing the Web

Pipeline: Continuous Delivery as Code in Jenkins 2.0
Pipeline: Continuous Delivery as Code in Jenkins 2.0Pipeline: Continuous Delivery as Code in Jenkins 2.0
Pipeline: Continuous Delivery as Code in Jenkins 2.0

Let's go HTTPS-only! - More Than Buying a Certificate
Let's go HTTPS-only! - More Than Buying a CertificateLet's go HTTPS-only! - More Than Buying a Certificate
Let's go HTTPS-only! - More Than Buying a Certificate

Jenkins and Chef: Infrastructure CI and Automated Deployment
Jenkins and Chef: Infrastructure CI and Automated DeploymentJenkins and Chef: Infrastructure CI and Automated Deployment
Jenkins and Chef: Infrastructure CI and Automated Deployment

Jenkins 2.0 最新事情 〜Make Jenkins Great Again〜
Jenkins 2.0 最新事情 〜Make Jenkins Great Again〜Jenkins 2.0 最新事情 〜Make Jenkins Great Again〜
Jenkins 2.0 最新事情 〜Make Jenkins Great Again〜

SD DevOps Meet-up - Jenkins 2.0 and Pipeline-as-Code
SD DevOps Meet-up - Jenkins 2.0 and Pipeline-as-CodeSD DevOps Meet-up - Jenkins 2.0 and Pipeline-as-Code
SD DevOps Meet-up - Jenkins 2.0 and Pipeline-as-Code

Delivery Pipeline as Code: using Jenkins 2.0 Pipeline
Delivery Pipeline as Code: using Jenkins 2.0 PipelineDelivery Pipeline as Code: using Jenkins 2.0 Pipeline
Delivery Pipeline as Code: using Jenkins 2.0 Pipeline

CI and CD with Jenkins
CI and CD with JenkinsCI and CD with Jenkins
CI and CD with Jenkins

Ruby Conf India 2016
Ruby Conf India 2016Ruby Conf India 2016
Ruby Conf India 2016

Unity Loves HelNode - Helsinki Node.js November Meetup
Unity Loves HelNode - Helsinki Node.js November MeetupUnity Loves HelNode - Helsinki Node.js November Meetup
Unity Loves HelNode - Helsinki Node.js November Meetup

[DevFest Nantes 2016] Les Pipelines Jenkins dans la vraie vie
[DevFest Nantes 2016] Les Pipelines Jenkins dans la vraie vie[DevFest Nantes 2016] Les Pipelines Jenkins dans la vraie vie
[DevFest Nantes 2016] Les Pipelines Jenkins dans la vraie vie

On QoE Metrics and QoE Fairness for Network & Traffic Management
On QoE Metrics and QoE Fairness for Network & Traffic ManagementOn QoE Metrics and QoE Fairness for Network & Traffic Management
On QoE Metrics and QoE Fairness for Network & Traffic Management

[Codeur en seine] Les Pipelines Jenkins dans la vraie vie
[Codeur en seine] Les Pipelines Jenkins dans la vraie vie[Codeur en seine] Les Pipelines Jenkins dans la vraie vie
[Codeur en seine] Les Pipelines Jenkins dans la vraie vie

IPC16: A Practical Introduction to Kubernetes
IPC16: A Practical Introduction to Kubernetes IPC16: A Practical Introduction to Kubernetes
IPC16: A Practical Introduction to Kubernetes

Alpes Jug (29th March, 2010) - Apache Maven
Alpes Jug (29th March, 2010) - Apache MavenAlpes Jug (29th March, 2010) - Apache Maven
Alpes Jug (29th March, 2010) - Apache Maven

Captain Agile and the Providers of Value
Captain Agile and the Providers of ValueCaptain Agile and the Providers of Value
Captain Agile and the Providers of Value


Similar to An Open-Source Chef Cookbook CI/CD Implementation Using Jenkins Pipelines

Atlanta Jenkins Area Meetup October 22nd 2015
Atlanta Jenkins Area Meetup October 22nd 2015Atlanta Jenkins Area Meetup October 22nd 2015
Atlanta Jenkins Area Meetup October 22nd 2015
Kurt Madel

Dockercon EU 2014
Dockercon EU 2014Dockercon EU 2014
Dockercon EU 2014
Rafe Colton

The Tale of a Docker-based Continuous Delivery Pipeline by Rafe Colton (ModCl...
The Tale of a Docker-based Continuous Delivery Pipeline by Rafe Colton (ModCl...The Tale of a Docker-based Continuous Delivery Pipeline by Rafe Colton (ModCl...
The Tale of a Docker-based Continuous Delivery Pipeline by Rafe Colton (ModCl...
Docker, Inc.

OpenShift Build Pipelines @ Lightweight Java User Group Meetup
OpenShift Build Pipelines @ Lightweight Java User Group MeetupOpenShift Build Pipelines @ Lightweight Java User Group Meetup
OpenShift Build Pipelines @ Lightweight Java User Group Meetup
Tobias Schneck

ConcourseCi overview
ConcourseCi  overviewConcourseCi  overview
ConcourseCi overview
Gwenn Etourneau

Docker and Puppet for Continuous Integration
Docker and Puppet for Continuous IntegrationDocker and Puppet for Continuous Integration
Docker and Puppet for Continuous Integration
Giacomo Vacca

DevOps Odessa #TechTalks 21.01.2020
DevOps Odessa #TechTalks 21.01.2020DevOps Odessa #TechTalks 21.01.2020
DevOps Odessa #TechTalks 21.01.2020
Lohika_Odessa_TechTalks

OpenShift-Build-Pipelines: Build -> Test -> Run! @JavaForumStuttgart
OpenShift-Build-Pipelines: Build -> Test -> Run! @JavaForumStuttgartOpenShift-Build-Pipelines: Build -> Test -> Run! @JavaForumStuttgart
OpenShift-Build-Pipelines: Build -> Test -> Run! @JavaForumStuttgart
Tobias Schneck

Jenkins days workshop pipelines - Eric Long
Jenkins days workshop  pipelines - Eric LongJenkins days workshop  pipelines - Eric Long
Jenkins days workshop pipelines - Eric Long
ericlongtx

Codifying the Build and Release Process with a Jenkins Pipeline Shared Library
Codifying the Build and Release Process with a Jenkins Pipeline Shared LibraryCodifying the Build and Release Process with a Jenkins Pipeline Shared Library
Codifying the Build and Release Process with a Jenkins Pipeline Shared Library
Alvin Huang

Continuous Deployment with Kubernetes, Docker and GitLab CI
Continuous Deployment with Kubernetes, Docker and GitLab CIContinuous Deployment with Kubernetes, Docker and GitLab CI
Continuous Deployment with Kubernetes, Docker and GitLab CI
alexanderkiel

Leonid Vasilyev "Building, deploying and running production code at Dropbox"
Leonid Vasilyev  "Building, deploying and running production code at Dropbox"Leonid Vasilyev  "Building, deploying and running production code at Dropbox"
Leonid Vasilyev "Building, deploying and running production code at Dropbox"
IT Event

Knative build for open whisk runtimes phase 1 - 2018-02-20
Knative build for open whisk runtimes   phase 1 - 2018-02-20Knative build for open whisk runtimes   phase 1 - 2018-02-20
Knative build for open whisk runtimes phase 1 - 2018-02-20
Matt Rutkowski

CT Software Developers Meetup: Using Docker and Vagrant Within A GitHub Pull ...
CT Software Developers Meetup: Using Docker and Vagrant Within A GitHub Pull ...CT Software Developers Meetup: Using Docker and Vagrant Within A GitHub Pull ...
CT Software Developers Meetup: Using Docker and Vagrant Within A GitHub Pull ...
E. Camden Fisher

Building an Extensible, Resumable DSL on Top of Apache Groovy
Building an Extensible, Resumable DSL on Top of Apache GroovyBuilding an Extensible, Resumable DSL on Top of Apache Groovy
Building an Extensible, Resumable DSL on Top of Apache Groovy
jgcloudbees

habitat at docker bud
habitat at docker budhabitat at docker bud
habitat at docker bud
Mandi Walls

Jenkins Days - Workshop - Let's Build a Pipeline - Los Angeles
Jenkins Days - Workshop - Let's Build a Pipeline - Los AngelesJenkins Days - Workshop - Let's Build a Pipeline - Los Angeles
Jenkins Days - Workshop - Let's Build a Pipeline - Los Angeles
Andy Pemberton

Practical introduction to dev ops with chef
Practical introduction to dev ops with chefPractical introduction to dev ops with chef
Practical introduction to dev ops with chef
LeanDog

CI/CD with Azure DevOps and Azure Databricks
CI/CD with Azure DevOps and Azure DatabricksCI/CD with Azure DevOps and Azure Databricks
CI/CD with Azure DevOps and Azure Databricks
GoDataDriven

Grooving with Jenkins
Grooving with JenkinsGrooving with Jenkins
Grooving with Jenkins
Anton Weiss


Similar to An Open-Source Chef Cookbook CI/CD Implementation Using Jenkins Pipelines (20)

Atlanta Jenkins Area Meetup October 22nd 2015
Atlanta Jenkins Area Meetup October 22nd 2015Atlanta Jenkins Area Meetup October 22nd 2015
Atlanta Jenkins Area Meetup October 22nd 2015

Dockercon EU 2014
Dockercon EU 2014Dockercon EU 2014
Dockercon EU 2014

The Tale of a Docker-based Continuous Delivery Pipeline by Rafe Colton (ModCl...
The Tale of a Docker-based Continuous Delivery Pipeline by Rafe Colton (ModCl...The Tale of a Docker-based Continuous Delivery Pipeline by Rafe Colton (ModCl...
The Tale of a Docker-based Continuous Delivery Pipeline by Rafe Colton (ModCl...

OpenShift Build Pipelines @ Lightweight Java User Group Meetup
OpenShift Build Pipelines @ Lightweight Java User Group MeetupOpenShift Build Pipelines @ Lightweight Java User Group Meetup
OpenShift Build Pipelines @ Lightweight Java User Group Meetup

ConcourseCi overview
ConcourseCi  overviewConcourseCi  overview
ConcourseCi overview

Docker and Puppet for Continuous Integration
Docker and Puppet for Continuous IntegrationDocker and Puppet for Continuous Integration
Docker and Puppet for Continuous Integration

DevOps Odessa #TechTalks 21.01.2020
DevOps Odessa #TechTalks 21.01.2020DevOps Odessa #TechTalks 21.01.2020
DevOps Odessa #TechTalks 21.01.2020

OpenShift-Build-Pipelines: Build -> Test -> Run! @JavaForumStuttgart
OpenShift-Build-Pipelines: Build -> Test -> Run! @JavaForumStuttgartOpenShift-Build-Pipelines: Build -> Test -> Run! @JavaForumStuttgart
OpenShift-Build-Pipelines: Build -> Test -> Run! @JavaForumStuttgart

Jenkins days workshop pipelines - Eric Long
Jenkins days workshop  pipelines - Eric LongJenkins days workshop  pipelines - Eric Long
Jenkins days workshop pipelines - Eric Long

Codifying the Build and Release Process with a Jenkins Pipeline Shared Library
Codifying the Build and Release Process with a Jenkins Pipeline Shared LibraryCodifying the Build and Release Process with a Jenkins Pipeline Shared Library
Codifying the Build and Release Process with a Jenkins Pipeline Shared Library

Continuous Deployment with Kubernetes, Docker and GitLab CI
Continuous Deployment with Kubernetes, Docker and GitLab CIContinuous Deployment with Kubernetes, Docker and GitLab CI
Continuous Deployment with Kubernetes, Docker and GitLab CI

Leonid Vasilyev "Building, deploying and running production code at Dropbox"
Leonid Vasilyev  "Building, deploying and running production code at Dropbox"Leonid Vasilyev  "Building, deploying and running production code at Dropbox"
Leonid Vasilyev "Building, deploying and running production code at Dropbox"

Knative build for open whisk runtimes phase 1 - 2018-02-20
Knative build for open whisk runtimes   phase 1 - 2018-02-20Knative build for open whisk runtimes   phase 1 - 2018-02-20
Knative build for open whisk runtimes phase 1 - 2018-02-20

CT Software Developers Meetup: Using Docker and Vagrant Within A GitHub Pull ...
CT Software Developers Meetup: Using Docker and Vagrant Within A GitHub Pull ...CT Software Developers Meetup: Using Docker and Vagrant Within A GitHub Pull ...
CT Software Developers Meetup: Using Docker and Vagrant Within A GitHub Pull ...

Building an Extensible, Resumable DSL on Top of Apache Groovy
Building an Extensible, Resumable DSL on Top of Apache GroovyBuilding an Extensible, Resumable DSL on Top of Apache Groovy
Building an Extensible, Resumable DSL on Top of Apache Groovy

habitat at docker bud
habitat at docker budhabitat at docker bud
habitat at docker bud

Jenkins Days - Workshop - Let's Build a Pipeline - Los Angeles
Jenkins Days - Workshop - Let's Build a Pipeline - Los AngelesJenkins Days - Workshop - Let's Build a Pipeline - Los Angeles
Jenkins Days - Workshop - Let's Build a Pipeline - Los Angeles

Practical introduction to dev ops with chef
Practical introduction to dev ops with chefPractical introduction to dev ops with chef
Practical introduction to dev ops with chef

CI/CD with Azure DevOps and Azure Databricks
CI/CD with Azure DevOps and Azure DatabricksCI/CD with Azure DevOps and Azure Databricks
CI/CD with Azure DevOps and Azure Databricks

Grooving with Jenkins
Grooving with JenkinsGrooving with Jenkins
Grooving with Jenkins


More from Steffen Gebert

Building an IoT SuperNetwork on top of the AWS Global Infrastructure
Building an IoT SuperNetwork on top of the AWS Global InfrastructureBuilding an IoT SuperNetwork on top of the AWS Global Infrastructure
Building an IoT SuperNetwork on top of the AWS Global Infrastructure
Steffen Gebert

Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungspr...
Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungspr...Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungspr...
Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungspr...
Steffen Gebert

Feature Management Platforms
Feature Management PlatformsFeature Management Platforms
Feature Management Platforms
Steffen Gebert

Serverless Networking - How We Provide Cloud-Native Connectivity for IoT Devices
Serverless Networking - How We Provide Cloud-Native Connectivity for IoT DevicesServerless Networking - How We Provide Cloud-Native Connectivity for IoT Devices
Serverless Networking - How We Provide Cloud-Native Connectivity for IoT Devices
Steffen Gebert

How our Cloudy Mindsets Approached Physical Routers
How our Cloudy Mindsets Approached Physical RoutersHow our Cloudy Mindsets Approached Physical Routers
How our Cloudy Mindsets Approached Physical Routers
Steffen Gebert

Jenkins vs. AWS CodePipeline (AWS User Group Berlin)
Jenkins vs. AWS CodePipeline (AWS User Group Berlin)Jenkins vs. AWS CodePipeline (AWS User Group Berlin)
Jenkins vs. AWS CodePipeline (AWS User Group Berlin)
Steffen Gebert

Jenkins vs. AWS CodePipeline
Jenkins vs. AWS CodePipelineJenkins vs. AWS CodePipeline
Jenkins vs. AWS CodePipeline
Steffen Gebert

Monitoring Akka with Kamon 1.0
Monitoring Akka with Kamon 1.0Monitoring Akka with Kamon 1.0
Monitoring Akka with Kamon 1.0
Steffen Gebert

Investigating the Impact of Network Topology on the Processing Times of SDN C...
Investigating the Impact of Network Topology on the Processing Times of SDN C...Investigating the Impact of Network Topology on the Processing Times of SDN C...
Investigating the Impact of Network Topology on the Processing Times of SDN C...
Steffen Gebert

SDN interfaces and performance analysis of SDN components
SDN interfaces and performance analysis of SDN componentsSDN interfaces and performance analysis of SDN components
SDN interfaces and performance analysis of SDN components
Steffen Gebert

Git Power-Workshop
Git Power-WorkshopGit Power-Workshop
Git Power-Workshop
Steffen Gebert

The Development Infrastructure of the TYPO3 Project
The Development Infrastructure of the TYPO3 ProjectThe Development Infrastructure of the TYPO3 Project
The Development Infrastructure of the TYPO3 Project
Steffen Gebert

Der Weg zu TYPO3 CMS 6.0 und Einblicke in die TYPO3-Entwicklung
Der Weg zu TYPO3 CMS 6.0 und Einblicke in die TYPO3-EntwicklungDer Weg zu TYPO3 CMS 6.0 und Einblicke in die TYPO3-Entwicklung
Der Weg zu TYPO3 CMS 6.0 und Einblicke in die TYPO3-Entwicklung
Steffen Gebert

Official typo3.org infrastructure &
the TYPO3 Server Admin Team
Official typo3.org infrastructure &
the TYPO3 Server Admin TeamOfficial typo3.org infrastructure &
the TYPO3 Server Admin Team
Official typo3.org infrastructure &
the TYPO3 Server Admin Team
Steffen Gebert

Neuigkeiten aus dem TYPO3-Projekt
Neuigkeiten aus dem TYPO3-ProjektNeuigkeiten aus dem TYPO3-Projekt
Neuigkeiten aus dem TYPO3-Projekt
Steffen Gebert

The TYPO3 Server Admin Team
The TYPO3 Server Admin TeamThe TYPO3 Server Admin Team
The TYPO3 Server Admin Team
Steffen Gebert

Gerrit Workshop
Gerrit WorkshopGerrit Workshop
Gerrit Workshop
Steffen Gebert

Making of: TYPO3
Making of: TYPO3Making of: TYPO3
Making of: TYPO3
Steffen Gebert

*.typo3.org - Dienste von und für die Community
*.typo3.org - Dienste von und für die Community*.typo3.org - Dienste von und für die Community
*.typo3.org - Dienste von und für die CommunitySteffen Gebert

Git & Gerrit: Verteilte Softwareentwicklung und -reviews in der TYPO3-Community
Git & Gerrit: Verteilte Softwareentwicklung und -reviews in der TYPO3-CommunityGit & Gerrit: Verteilte Softwareentwicklung und -reviews in der TYPO3-Community
Git & Gerrit: Verteilte Softwareentwicklung und -reviews in der TYPO3-CommunitySteffen Gebert


More from Steffen Gebert (20)

Building an IoT SuperNetwork on top of the AWS Global Infrastructure
Building an IoT SuperNetwork on top of the AWS Global InfrastructureBuilding an IoT SuperNetwork on top of the AWS Global Infrastructure
Building an IoT SuperNetwork on top of the AWS Global Infrastructure

Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungspr...
Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungspr...Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungspr...
Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungspr...

Feature Management Platforms
Feature Management PlatformsFeature Management Platforms
Feature Management Platforms

Serverless Networking - How We Provide Cloud-Native Connectivity for IoT Devices
Serverless Networking - How We Provide Cloud-Native Connectivity for IoT DevicesServerless Networking - How We Provide Cloud-Native Connectivity for IoT Devices
Serverless Networking - How We Provide Cloud-Native Connectivity for IoT Devices

How our Cloudy Mindsets Approached Physical Routers
How our Cloudy Mindsets Approached Physical RoutersHow our Cloudy Mindsets Approached Physical Routers
How our Cloudy Mindsets Approached Physical Routers

Jenkins vs. AWS CodePipeline (AWS User Group Berlin)
Jenkins vs. AWS CodePipeline (AWS User Group Berlin)Jenkins vs. AWS CodePipeline (AWS User Group Berlin)
Jenkins vs. AWS CodePipeline (AWS User Group Berlin)

Jenkins vs. AWS CodePipeline
Jenkins vs. AWS CodePipelineJenkins vs. AWS CodePipeline
Jenkins vs. AWS CodePipeline

Monitoring Akka with Kamon 1.0
Monitoring Akka with Kamon 1.0Monitoring Akka with Kamon 1.0
Monitoring Akka with Kamon 1.0

Investigating the Impact of Network Topology on the Processing Times of SDN C...
Investigating the Impact of Network Topology on the Processing Times of SDN C...Investigating the Impact of Network Topology on the Processing Times of SDN C...
Investigating the Impact of Network Topology on the Processing Times of SDN C...

SDN interfaces and performance analysis of SDN components
SDN interfaces and performance analysis of SDN componentsSDN interfaces and performance analysis of SDN components
SDN interfaces and performance analysis of SDN components

Git Power-Workshop
Git Power-WorkshopGit Power-Workshop
Git Power-Workshop

The Development Infrastructure of the TYPO3 Project
The Development Infrastructure of the TYPO3 ProjectThe Development Infrastructure of the TYPO3 Project
The Development Infrastructure of the TYPO3 Project

Der Weg zu TYPO3 CMS 6.0 und Einblicke in die TYPO3-Entwicklung
Der Weg zu TYPO3 CMS 6.0 und Einblicke in die TYPO3-EntwicklungDer Weg zu TYPO3 CMS 6.0 und Einblicke in die TYPO3-Entwicklung
Der Weg zu TYPO3 CMS 6.0 und Einblicke in die TYPO3-Entwicklung

Official typo3.org infrastructure &
the TYPO3 Server Admin Team
Official typo3.org infrastructure &
the TYPO3 Server Admin TeamOfficial typo3.org infrastructure &
the TYPO3 Server Admin Team
Official typo3.org infrastructure &
the TYPO3 Server Admin Team

Neuigkeiten aus dem TYPO3-Projekt
Neuigkeiten aus dem TYPO3-ProjektNeuigkeiten aus dem TYPO3-Projekt
Neuigkeiten aus dem TYPO3-Projekt

The TYPO3 Server Admin Team
The TYPO3 Server Admin TeamThe TYPO3 Server Admin Team
The TYPO3 Server Admin Team

Gerrit Workshop
Gerrit WorkshopGerrit Workshop
Gerrit Workshop

Making of: TYPO3
Making of: TYPO3Making of: TYPO3
Making of: TYPO3

*.typo3.org - Dienste von und für die Community
*.typo3.org - Dienste von und für die Community*.typo3.org - Dienste von und für die Community
*.typo3.org - Dienste von und für die Community

Git & Gerrit: Verteilte Softwareentwicklung und -reviews in der TYPO3-Community
Git & Gerrit: Verteilte Softwareentwicklung und -reviews in der TYPO3-CommunityGit & Gerrit: Verteilte Softwareentwicklung und -reviews in der TYPO3-Community
Git & Gerrit: Verteilte Softwareentwicklung und -reviews in der TYPO3-Community


Recently uploaded

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture
fredae14

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations
kumardaparthi1024

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment
Octavian Nadolu

OpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - AuthorizationOpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - Authorization
David Brossard

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
IndexBug

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead
Wask

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

Webinar: Designing a schema for a Data Warehouse
Webinar: Designing a schema for a Data WarehouseWebinar: Designing a schema for a Data Warehouse
Webinar: Designing a schema for a Data Warehouse
Federico Razzoli

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Alpen-Adria-Universität

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024
Hiroshi SHIBATA

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
shyamraj55

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Jeffrey Haguewood

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus
Zilliz


Recently uploaded (20)

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment

OpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - AuthorizationOpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - Authorization

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

Webinar: Designing a schema for a Data Warehouse
Webinar: Designing a schema for a Data WarehouseWebinar: Designing a schema for a Data Warehouse
Webinar: Designing a schema for a Data Warehouse

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus


An Open-Source Chef Cookbook CI/CD Implementation Using Jenkins Pipelines

  • 1. An Open-Source Chef Cookbook CI/CD Implementation Using Jenkins Pipelines Steffen Gebert (@StGebert) Config Management Camp, Gent, 06.02.2017
  • 2. 2 Agenda • Context • Motivation • Jenkins Pipelines (in general) • Chef CI/CD using Jenkins Pipelines
  • 3. About Me Researcher / PhD Student (Software-based Networks) 2011 - 2016 Core Team Member 2010 - 2013 Server Admin Team Member since 2011 3 Co-Organizer DevOps Meetup Würzburg since 2016
  • 4. 4 PHP-based Content Management System Picture by Benjamin Kott
  • 5. 5 TYPO3 Open Source Project • Established open-source community since 1997 • TYPO3 Association as non-profit organization • Server Admin Team responsible for project infrastructure * Thanks for partially funding my work and covering travel costs! * listed on opensourceinfra.org Picture by Daniel Pötzinger: http://www.typo3-media.com/blog/article/typo3-wallpaper-for-wide-screen.html Based on image by Mike Swanson: http://interfacelift.com/wallpaper/details.php?id=1402 PicturebyStefanBusemann
  • 6. 6 Chef at TYPO3 • Started with Chef in 2011 • Started with librarian-chef (monolithic repo) • Took years to get rid of monolithic repo • Currently operating 45 Debian nodes • Usual tooling: berkshelf, test-kitchen • berkshelf-api-based /universe (connecting to Chef Server 11*) • Small team of volunteers, varying degree of Chef knowledge * because of laziness
  • 7. 7 Demo Time! Picture by annca/ pixabay: https://pixabay.com/en/popcorn-cinema-ticket-film-1433327/
  • 8. Working with Chef (and knife, and berks, and..)
  • 9. 9 We have workflow problems! Picture by tpsdave / pixabay: https://pixabay.com/en/firefighters-fire-flames-outside-115800/
  • 10. 10
  • 11. 11
  • 13. 13 Related Work • zts/cooking-with-jenkins • Provides resource to create single Jenkins freestyle jobs per cookbook • Executes pre-defined rake tasks • chef-solutions/pipeline • Reads cookbooks from a Berksfile enclosed in main chef-repo • Creates single Jenkins freestyle job per cookbook • Chef Automate • Commercial • Little known to me, what's going on under the hood
  • 14. 14 Survey • Who’s Chef cookbooks (Puppet modules/etc) are tested in CI? • Who has an automated release process?
  • 17. 17
  • 18. 18
  • 20. 20 Jenkins Pipeline DSL • Groovy DSL • Provides steps, like sh • Defined in the Jenkinsfile • Can use Groovy/Java logic (Chef users like that idea, right?) • Pipeline plugin (workflow-aggregator) • Formerly called "Workflow" • Open-sourced one year ago • Whole bunch of plugins (10+) sh "make" sh "make install"
  • 21. 21 Jenkins Jobs as Code? • Jenkins Job Builder • Python / YAML based • From OpenStack • Job DSL plugin (job-dsl) • Also Groovy DSL • Supports many, many plugins • Creates only single jobs, not pipelines # Job DSL example job('my-project-main') { scm { git('https://github.com/...') } triggers { scm('H/15 * * * *') } publishers { downstream('my-project-unit') } }
  • 22. 22 Cookbook Pipeline? sh 'berks install' sh 'foodcritic' sh 'kitchen test' sh 'berks upload' Picture by BarnImages / pixabay: https://pixabay.com/en/sushi-food-japanese-fish-seafood-789820/
  • 23. 23 Stages • Allow visual grouping stage('lint') { sh 'foodcritic' sh 'cookstyle' } stage('resolve dependencies') { sh 'berks install' } stage('test-kitchen') { sh 'kitchen test' } stage('upload') { sh 'berks upload' }
  • 24. 24 Nodes • Allocates a Jenkins executor (master/slave) • Optionally with label node { stage('lint') { sh '..' } stage('resolve') { sh '..' } } node('chefdk') { stage('lint') {..} stage('resolve') {..} } Master Agent 2 Agent 1 Executors (node): Pipeline Stage Step Step Stage Step Step Stage Step Step
  • 26. 26 Multibranch Jobs • Scans repo for branches containing Jenkinsfile • Automatically creates (deletes) jobs • Works with plain Git • Works better™ with GitHub / Bitbucket (via API calls)
  • 27. 27 More Steps to Come.. • Jenkins Plugins can contribute DSL steps
  • 28. 28 Global Variables • Environment variables: • Information about current build: • Parameterized build*: env.BRANCH_NAME env.BUILD_URL params.myparam params.deployEnv * well-hidden feature see https://st-g.de/2016/12/parametrized-jenkins-pipelines currentBuild.displayName = "v1.2.3" CurrentBuild.rawBuild.getCause() currentBuild.result = 'FAILED'
  • 29. 29 Now Copy & Paste? Picture by aitroff / pixabay: https://pixabay.com/en/stormtrooper-star-wars-lego-storm-1343772/
  • 30. 30 Pipeline Shared Libraries • Additional code to be used by Jenkinsfiles • Loaded from SCM repo • Inclusion via • @Library annotation in Jenkinsfile • Configuration of enclosing folder • Jenkins global configuration* * then library code is "trusted"
  • 31. 31 Configuring Global Pipeline Library • Jenkinsfile: • Load implicitly would load it without @Library • Use non-default branch/tag @Library('chefci') org.example.Pipeline ... @Library('chefci@testing') Don't play well together
  • 32. 32 Pipeline Shared Libraries (root) +- src # Groovy source files | +- org | +- foo | +- Bar.groovy # for org.foo.Bar class | +- vars | +- foo.groovy # for global 'foo' variable | +- foo.txt # help for 'foo' variable | +- resources # resource files | +- org | +- foo | +- bar.json # static helper data for org.foo.Bar https://jenkins.io/doc/book/pipeline/shared-libraries/ static files feel like functions the magic – actually code
  • 33. 33 Global Variables • Can store global state (for the current build) • Can behave like steps • Useful to simplify pipeline code • Hide implementation details from users # vars/deployTo.groovy def call(def environment) { echo "Starting deployment to ${environment}" withCredentials(..) { sh "rsync –avzh . ${environment}.example.com" } } # Jenkinsfile node { sh "make test" deployTo "production" }
  • 34. 34 More Magic: Global Library Classes (src/) • Groovy classes implementing arbitrary logic • Make use of pipeline DSL steps • Use other Jenkins functions • Import and use Java libraries à How we implement our pipeline
  • 35. 35 # Declarative Jenkinsfile pipeline { agent label:'has-docker', dockerfile: tru environment { GIT_COMMITTER_NAME = "jenkins" } stages { stage("Build") { steps { sh 'mvn clean install' } } stage("Archive"){ // .. } } post { always { deleteDir() } success { mail to:"me@example.com", subject:"SUC Scripted vs. Declarative Pipelines • Scripted pipelines • Just (imperative) Groovy code • The original implementation • The approach used here • Declarative pipelines • Hit the 1.0 release last Friday • Can be validated prior to execution • Ease some tasks, i.e., failure handling • Visual Pipeline Editor plugin
  • 36. 36 Jenkins Pipeline Summary • Groovy DSL for specifying pipelines as code • Ideally stored within the tested repo • Extract shared functionality to library repos • Pipeline execution triggered on push event
  • 37. jenkins-chefci An Open-Source Chef Cookbook CI/CD Implementation Using Jenkins Pipelines
  • 38. 38 Forbidden Commands $ berks upload $ knife cookbook upload $ knife data bag from file $ knife data bag delete $ knife environment from file $ knife environment delete $ knife role from file $ knife role delete Allowed Commands $ git pull $ git commit $ git push Pictures by PublicDomainPictures & serrano / pixabay: https://pixabay.com/en/costume-demon-devil-board-female-15747/ https://pixabay.com/en/bebe-girl-child-child-portrait-1237704/
  • 39. 39 Meet the jenkins-chefci cookbook • Sets up a Chef CI/CD infrastructure using Jenkins • Sets up Jenkins master • Installs ChefDK, configures credentials • Configures job that scans a GitHub organization • Configures our shared pipeline library https://github.com/TYPO3-infrastructure/jenkins-pipeline-global-library-chefci/ • Add this Jenkinsfile to your cookbooks: # Jenkinsfile @Library('chefci') _ org.typo3.chefci.v2.cookbook.CookbookPipeline.builder(this, steps) .buildDefaultPipeline().execute()
  • 40. 40 Meet the Shared Pipeline Library • Implements pipelines for • Cookbook testing, versioning & upload • [WIP] Chef-repo's data bags, environments, roles • Contains couple of Groovy classes • Some helper classes • *Pipeline as entry points from Jenkinsfile • AbstractStage as base class for.. Stages • Yes, we're at v2 already J
  • 41. 41 Executed Stages & Steps • Linting • Foodcritic • Cookstyle • Build • Berkshelf install (endpoints for Supermarket & Chef Server) Berksfile.lock in Git for top-level cookbooks • Acceptance • Test-Kitchen (using kitchen-docker) • Publish • Version Bump (thor-scmversion, based on user feedback) • Berkshelf upload (to Chef Server) Picture by Kaz/ pixabay: https://pixabay.com/en/hands-hand-raised-hands-raised-220163/
  • 42. 42
  • 43. 43 node { createKitchenYaml() stash "cookbook" } parallel( "essentials-debian-86": { node { unstash "cookbook" sh "kitchen test --destroy always essentials-debian-86" }}, "essentials-ubuntu-1604": { node { .. } }, "full-debian-86": { node { .. } }, "full-ubuntu-1604": { node { .. } } ) Test-Kitchen • If there is no .kitchen.docker.yml, put default one • Use Jenkins' parallel step expected result, not hard-coded
  • 44. 44 Test-Kitchen (2) • Parallel instances automatically derived from kitchen status • Log files of failed instances are archived • Less chaos than complete Jenkins log • Traditional UI does not clearly show failed parallel branch • Not limited to kitchen-docker
  • 45. 45* cookbook configures this via API
  • 46. 46
  • 47. 47
  • 48. 48
  • 49. 49 The Art of Cookbook Versioning • Let's agree on SemVer • I do not agree with manual changes to metadata.rb
  • 50. 50 Demo Time! Picture by annca/ pixabay: https://pixabay.com/en/popcorn-cinema-ticket-film-1433327/
  • 51. 51 Versioning • Based on thor-scmversion • Made by RiotGames for their cookbooks • Uses Git tags to derive current version • Version treated as "label", not part of the source code • Jenkins pushes only Git tags, no code changes # metadata.rb name "example-cookbook" version IO.read(File.join(File.dirname(__FILE__), 'VERSION')) rescue '0.0.1'
  • 52. 52 Versioning (2) • Publish stage notifies via Slack • Except commit message subject indicates version increase • Do this #patch • Add this #minor • Break this #major
  • 53. 53 "Main Chef-Repo" • Not covered here, but in site-chefcitypo3org cookbook • Freestyle job, defined via JobDSL • Uses script to parse git diff and upload changes using knife
  • 54. 54 Additional Notes • Manually configured J organization-level webhook triggers immediate builds • Everything else is done automatically, no "manual handholding"
  • 56. 56 Ease of Use • Checkout cookbook from github.com/TYPO3-cookbooks/jenkins-chefci • Increase GitHub API rate limit • Allow to steal your Chef credentials • Run test-kitchen export JENKINS_GITHUB_LOGIN=johndoe export JENKINS_GITHUB_TOKEN=123456supersecure export JENKINS_COPY_CHEF_CREDENTIALS=1 kitchen converge full-ubuntu-1604 WARN: allows commit status update WARN: allows knife/berks to access Chef Server
  • 57. 57 (Potential) TODOs for you • Write your wrapper cookbook around jenkins-chefci • Point it to your organization • Add authentication, e.g., GitHub OAuth? • Fork the global library • Adjust pipeline to your needs • You don't have to agree with our (current) implementation
  • 58. 58 Outlook / TODOs • Documentation / blog posts • Move more stuff from site-chefcitypo3org to jenkins-chefci • chefdk() global function to run in chef/chefdk Docker container • Store Chef private key as Jenkins credential • Test using multiple chef-client version • Use JobDSL for organization-folder setup (#966) • Trigger downstream cookbooks • Read out dependencies and subscribe to successful pipeline runs • Paves the road to Policyfiles • Use Jenkins slaves • Collect chef-client deprecation warnings
  • 59. 59 Conclusion • Jenkins Pipelines allow to define pipelines as code • Groovy-based DSL allows programming of pipelines • Can definitively become complex, i.e., debugging • Jenkins Pipelines for Chef cookbook CI/CD • Running at TYPO3 since May 2016 (site-chefcitypo3org cookbook) • Public instance at https://chef-ci.typo3.org, open source from day 1 • Warning: Many cookbooks still use v1 pipeline (git-flow) • jenkins-chefci cookbook as reusable implementation • Makes setup accessible to broader audience • No dependencies to other TYPO3 cookbooks
  • 60. 60 Further Reading • TYPO3's Chef CI: https://chef-ci.typo3.org • TYPO3-cookbooks on GitHub: https://github.com/TYPO3-cookbooks • TYPO3's Shared Global Library: https://github.com/TYPO3-infrastructure/jenkins-pipeline-global-library-chefci/ • Pipeline Tutorial: https://github.com/jenkinsci/pipeline-plugin/blob/master/TUTORIAL.md • Getting started with pipelines: https://jenkins.io/pipeline/getting-started-pipelines/ • Step documentation: https://jenkins.io/doc/pipeline/steps/ • Pipeline shared libraries: https://jenkins.io/doc/book/pipeline/shared-libraries/ • Notifications (Mail, Slack, etc.) in Scripted Pipelines: https://jenkins.io/blog/2016/07/18/pipline-notifications/ • Declarative Pipelines https://jenkins.io/blog/2016/12/19/declarative-pipeline-beta/ https://jenkins.io/blog/2017/02/03/declarative-pipeline-ga/
