Docker & ci
Kurento is a media server for real-time video communication that needed to test its software under many scenarios and environments. Its CI infrastructure originally used many virtual machines, each configured differently for testing. This led to high costs, configuration difficulties, and slow development cycles. By using Docker, Kurento was able to define environments as reusable images and run tests in isolated containers on fewer virtual machines. This simplified infrastructure management and sped up development.
More Related Content
Docker & ci

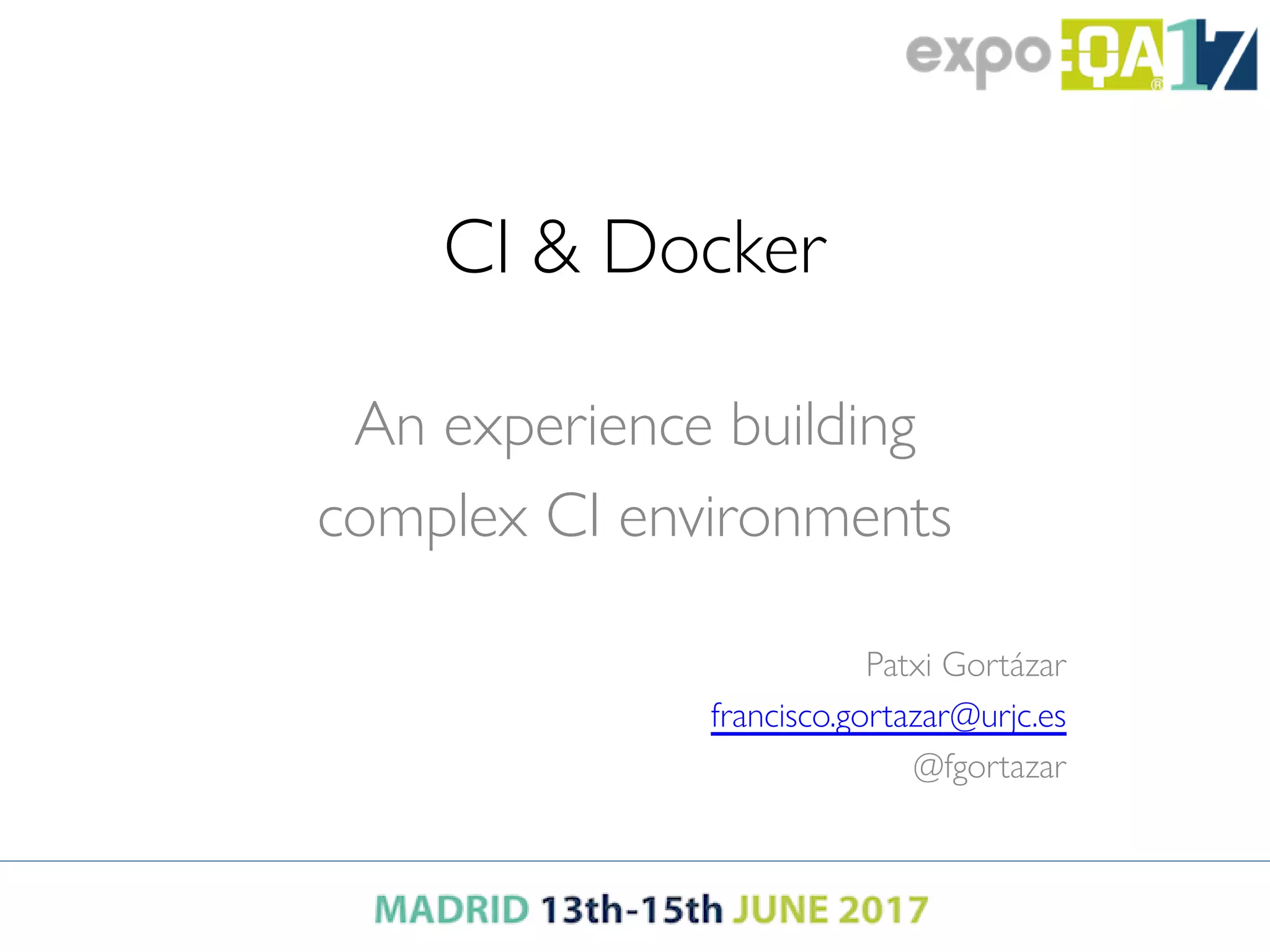

- 2. CI & Docker Anexperience building complex CI environments Patxi Gortázar francisco.gortazar@urjc.es @fgortazar
- 3. Bio Project Coordinator at@elastestio EU project Devops @ Kurento Teaching Distributed Systems @ URJC @fgortazar https://es.linkedin.com/in/franciscogortazar
- 4. Consultancy / Training CloudComputing Distributed Systems Web Technologies Extreme Programming Testing / Git / Jenkins Software Architectures Concurrent Programming Open source elastic platform for end to end testing http://codeurjc.es http://elastest.io Advanced log management Test orchestration Test execution comparison Web and Mobile testing Security testing IoT testing Performance testing

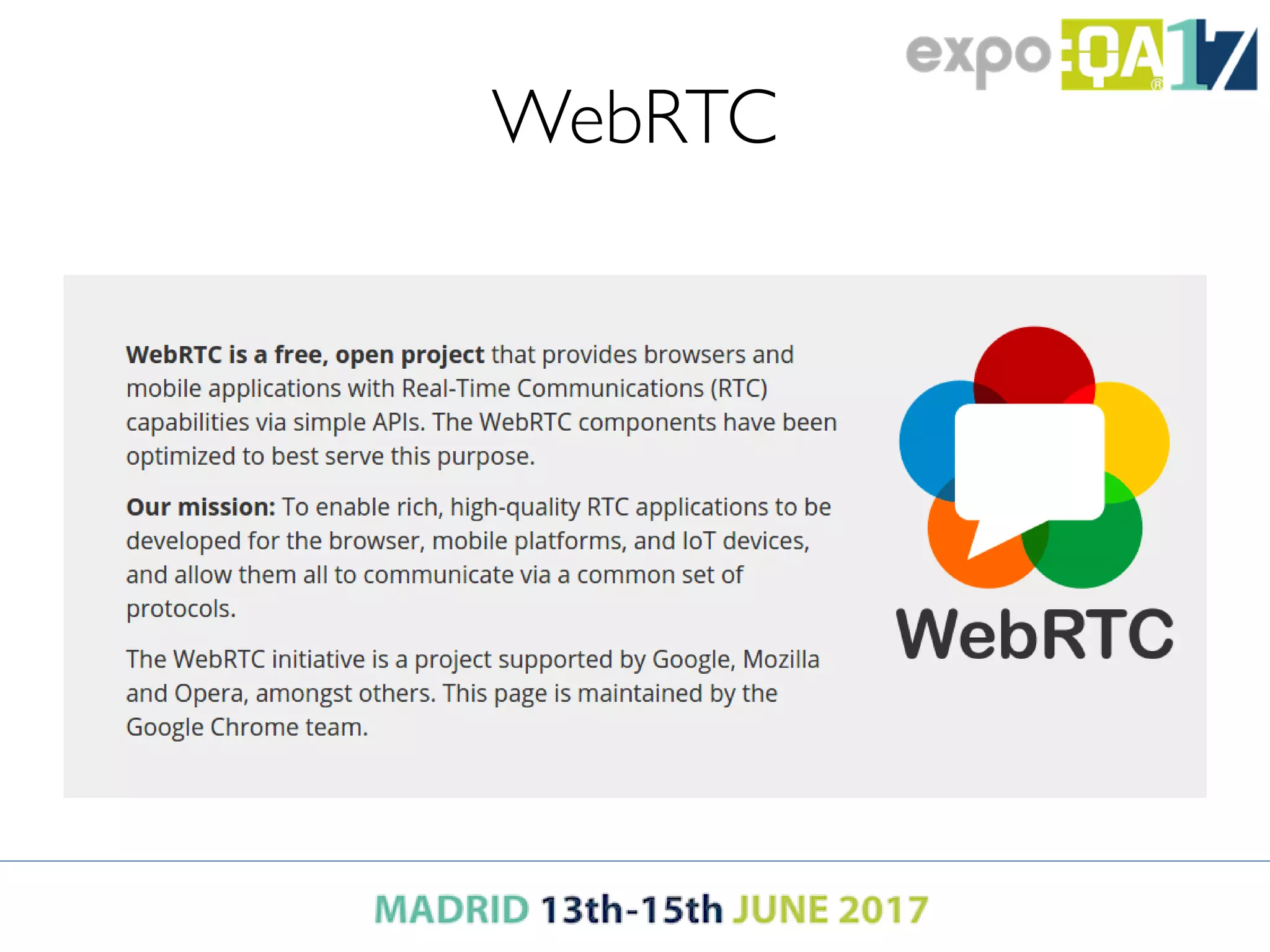

- 5. Why A media serverfor real time video communication The software under test
- 6.
- 7.
- 8.
- 9. Software under test SoKurento is… • A media server • APIs for managing connections in a WebRTC communication • Tutorials • Applications • Testing – Under many scenarios – Even more testing in different environments

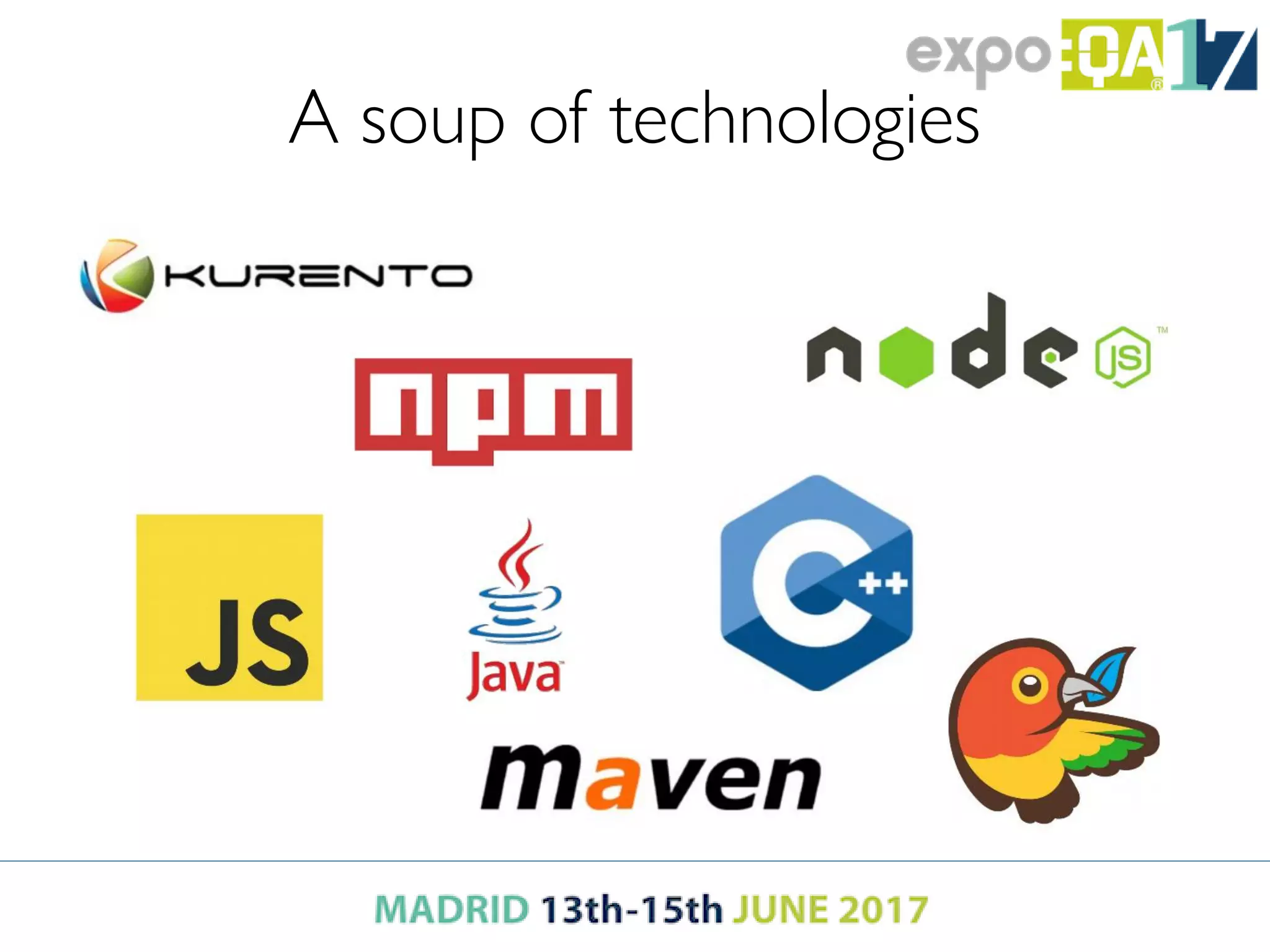

- 10. A soup oftechnologies
- 11. Some numbers • 30code repositories • ~400 Jenkins jobs • +1,000 tests • +20 different environments to test • +80 artifacts to be deployed at release time
- 12. Feasible infrastructures Cloud • Publicor private • 20 environments = 20 different VMs • Cost increases with each new environment!! • Effort increases with each new environment to configure (ops)!! • Time-to-market increases also!!
- 13. Kurento’s CI Infrastructure BuildingDebian packages • 2 Ubuntu Trusty VMs • 4 Ubuntu Xenial VMs • 2 Ubuntu latest VMs Building clients • 1 node mvn & jdk 7 & node 4 • 1 node mvn & jdk 7 & node 6 • 1 node mvn & jdk 8 & node 4 • 1 node mvn & jdk 8 & node 6
- 14. Further problems • Developersare pushing hard towards ops/devops to include changes in infrastructure • Changes can hardly be reverted (possible, but…) • Hard to test locally – Works in my machine effect • Wasted resources • And at the same time, insufficient resources Can we do better?
- 15. Simplifying CI withDocker

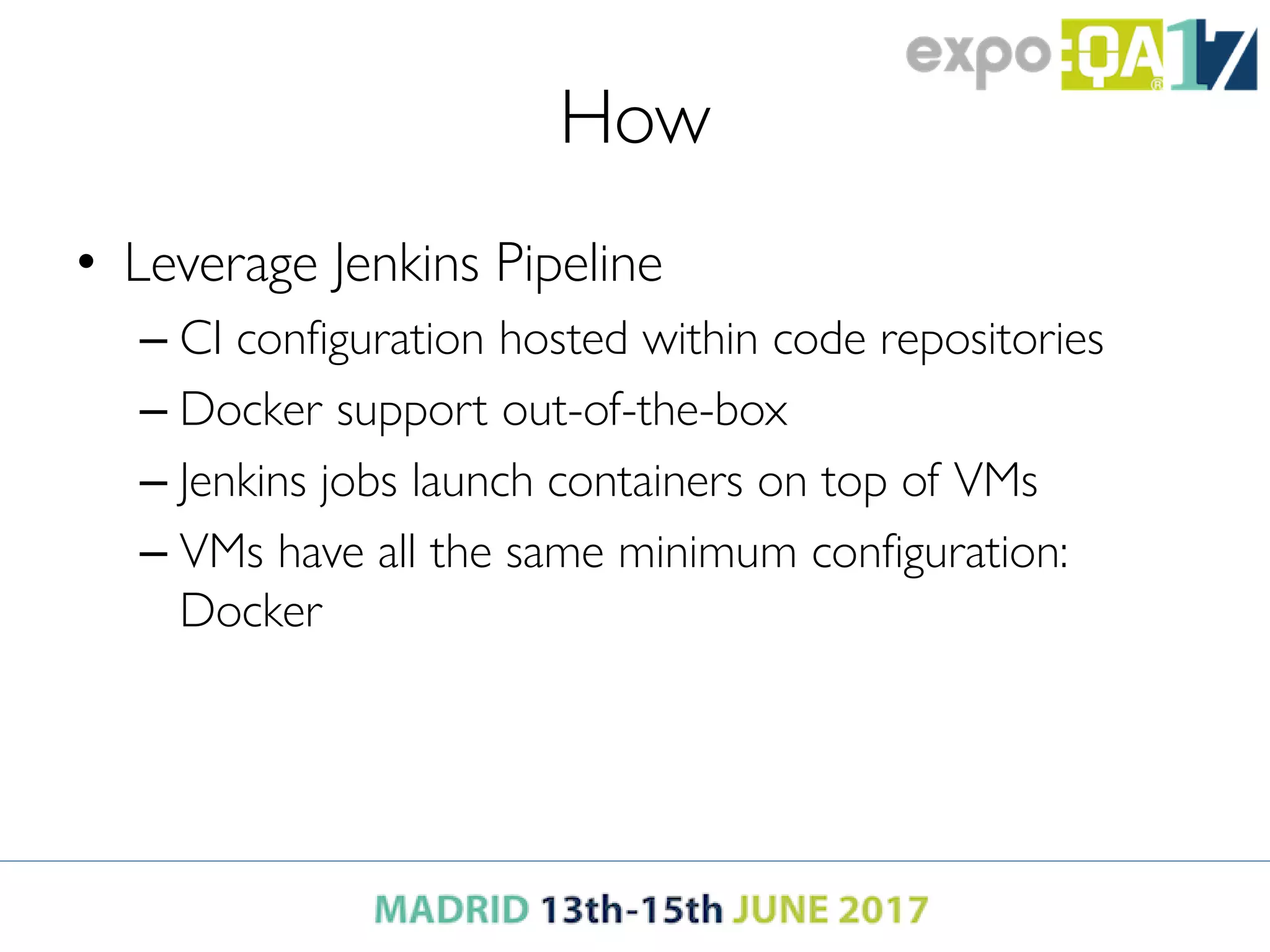

- 16. How • Leverage JenkinsPipeline – CI configuration hosted within code repositories – Docker support out-of-the-box – Jenkins jobs launch containers on top of VMs – VMs have all the same minimum configuration: Docker
- 17. Current Infrastructure 1 VMJenkins Master N VMs Jenkins Workers (running Docker) 2 VM configurations
- 18. Where are myenvironments? • The different environments are encapsulated as Docker images • Docker images can be used in any of the workers • Docker images can be used in your laptop • Docker images are versioned, easy to maintain, easy to build • Any version can be used • Several environments can be run in parallel in the same VM: isolation
- 19. Which environments doI need? You need images for your builds You need images for your applications You need images for your tests
- 20. Images for builds •Heavy images (> 400Mb) • One image per tool version: jdk7, jdk8 • Download ahead of time – As opposed to downloading at build time – E.g., downloading images in a nightly job
- 21. Images for builds WithDocker it’s easier to tame matrix envs • Consider building a project using… – Ubuntu • Trusty • Xenial • Zesty – Java • JDK 7 • JDK 8 • JDK 9
- 22. Images for builds Whatif we need to mix… • JDK • Maven • Node • Npm • Bower … in the same environment?
- 23. Images for applications You'reready to ship your application as a container (optional) • Choose lightweight containers – Docker is focusing on lightweight containers leveraging Alpine Linux • Include just what your application needs – Leverage new multi-stage build in Docker • Think about dependencies (databases, caching...)
- 24. Images for testing •You can run browsers within a container – https://github.com/SeleniumHQ/docker-selenium • Available images – selenium/hub – selenium/node-chrome – selenium/node-firefox – selenium/node-chrome-debug – selenium/node-firefox-debug
- 25. Images for testing •Unfortunately they're a bit out of date – See https://github.com/SeleniumHQ/docker- selenium/issues/229#issuecomment-253334224 • Don't worry – It's easy to build them with the latest browser – We can test against latest release, beta and canary • Alternatives – TestContainers: https://www.testcontainers.org/
- 26. Testing with multiplecontainers Orchestration... • docker compose – Require to know the number of containers in advance • Otherwise, docker run • Cleaning containers and images with spotify-gc
- 27. Testing with multiplecontainers Orchestration... • End-to-end tests – 1-5 browsers – Test scenario is run several times with different configurations • Chrome (stable, beta, canary) • Firefox (stable, beta) • …
- 28. Testing with multiplecontainers Orchestration... • Tests can include a Docker client for flexibility: – Start & stop containers – Container inspection – Gathering logs – Managing Volumes – Managing environment variables

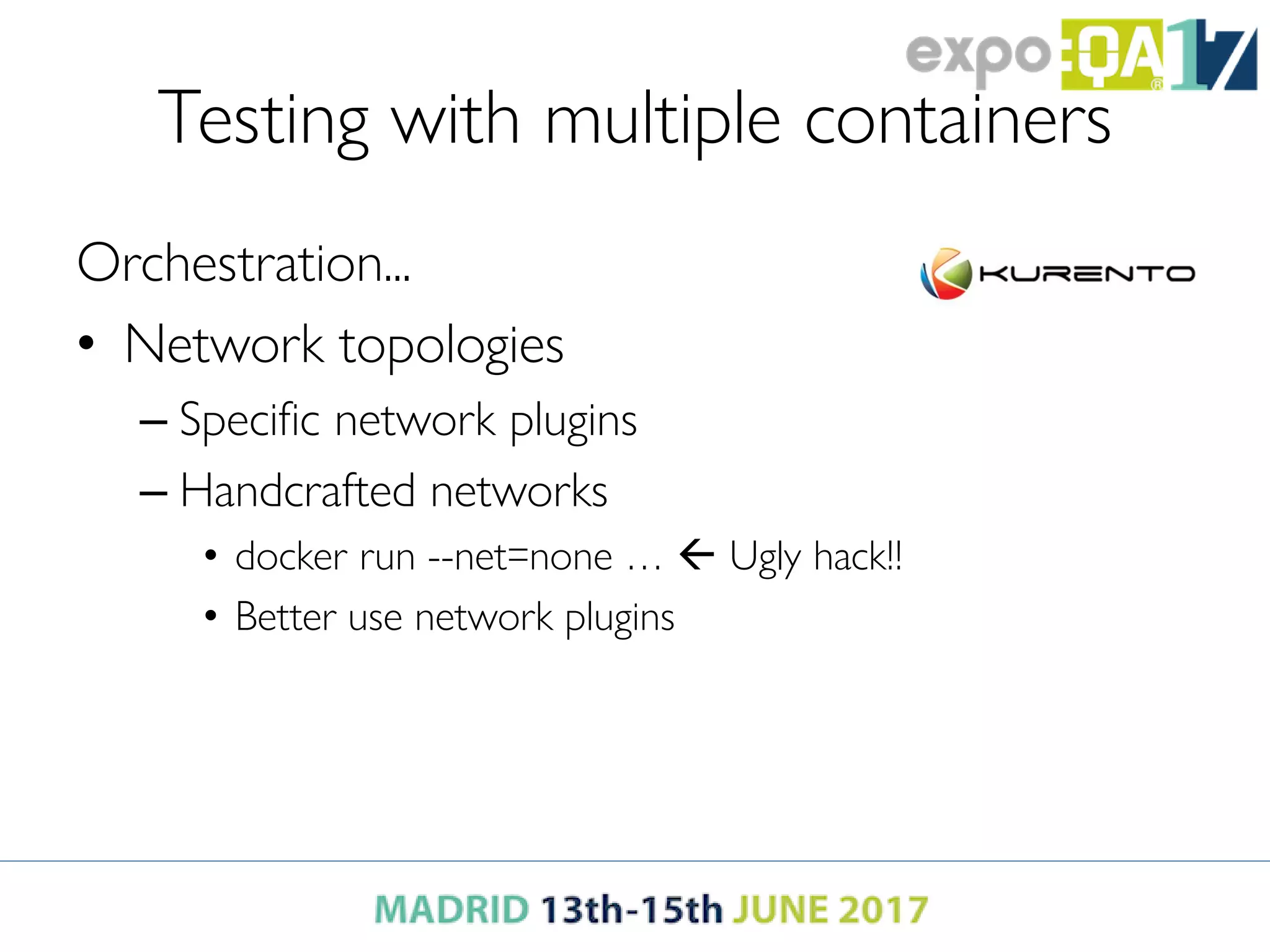

- 29. Testing with multiplecontainers Orchestration... • Network topologies – Specific network plugins – Handcrafted networks • docker run --net=none … Ugly hack!! • Better use network plugins
- 30. Testing with multiplecontainers
- 31. Challenges • Gathering data –Logs from several containers – Metrics (CPU, memory, network…) – Files generated (browser recording) • Integrating data with test execution – Comparing some data across several executions – Data integration
- 32. Challenges • Reproducing real-worldconditions – Failing nodes – Failing networks – Network bandwidth (4G, 5G, DSL) – Network topologies (NAT traversal, firewalls, …) – High loads (bursting CPUs)
- 33. Consultancy / Training CloudComputing Distributed Systems Web Technologies Extreme Programming Testing / Git / Jenkins Software Architectures Concurrent Programming Open source elastic platform for end to end testing http://codeurjc.es http://elastest.io Advanced log management Test orchestration Test execution comparison Web and Mobile testing Security testing IoT testing Performance testing

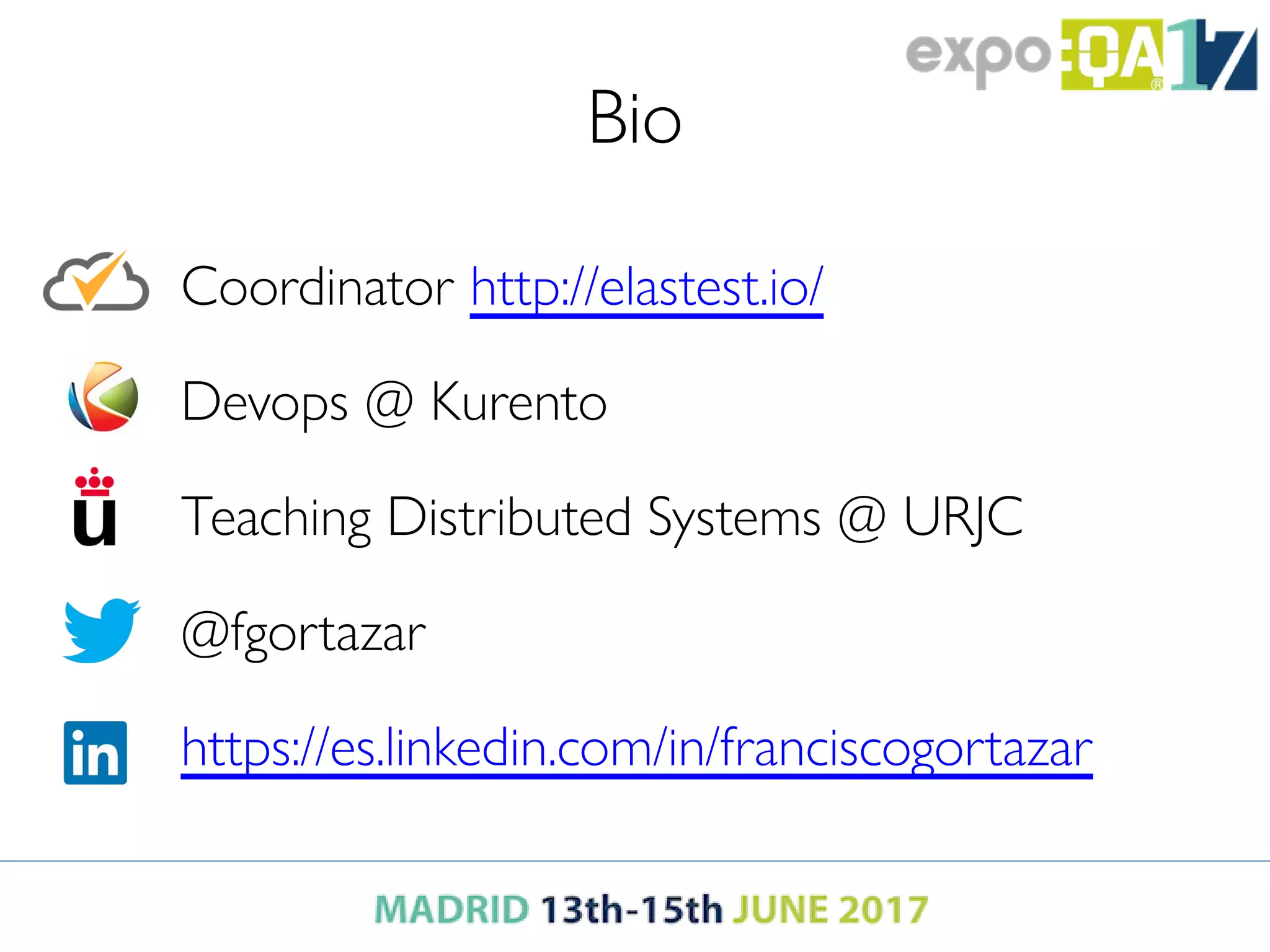

- 34. Bio Coordinator http://elastest.io/ Devops @Kurento Teaching Distributed Systems @ URJC @fgortazar https://es.linkedin.com/in/franciscogortazar
