This document discusses bringing OpenLDAP configurations into Apache Directory Studio. It provides an overview of configuring OpenLDAP using either the traditional slapd.conf file or the newer cn=config backend in LDAP. It then introduces the OpenLDAP configuration plugin for Apache Directory Studio, which allows configuring OpenLDAP in a graphical user interface without needing to directly edit configuration files. This plugin aims to simplify OpenLDAP administration and prevent configuration errors.

1. OpenLDAP configuration
brought to
Apache Directory Studio
1

2. <OpenLDAP configuration/>
brought to
<Apache Directory Studio/>
2

3. Emmanuel Lécharny
Apache Software Foundation member
Chairman of MINA project
PMC of Apache Directory Project
elecharny@apache.org / elecharny@symas.com

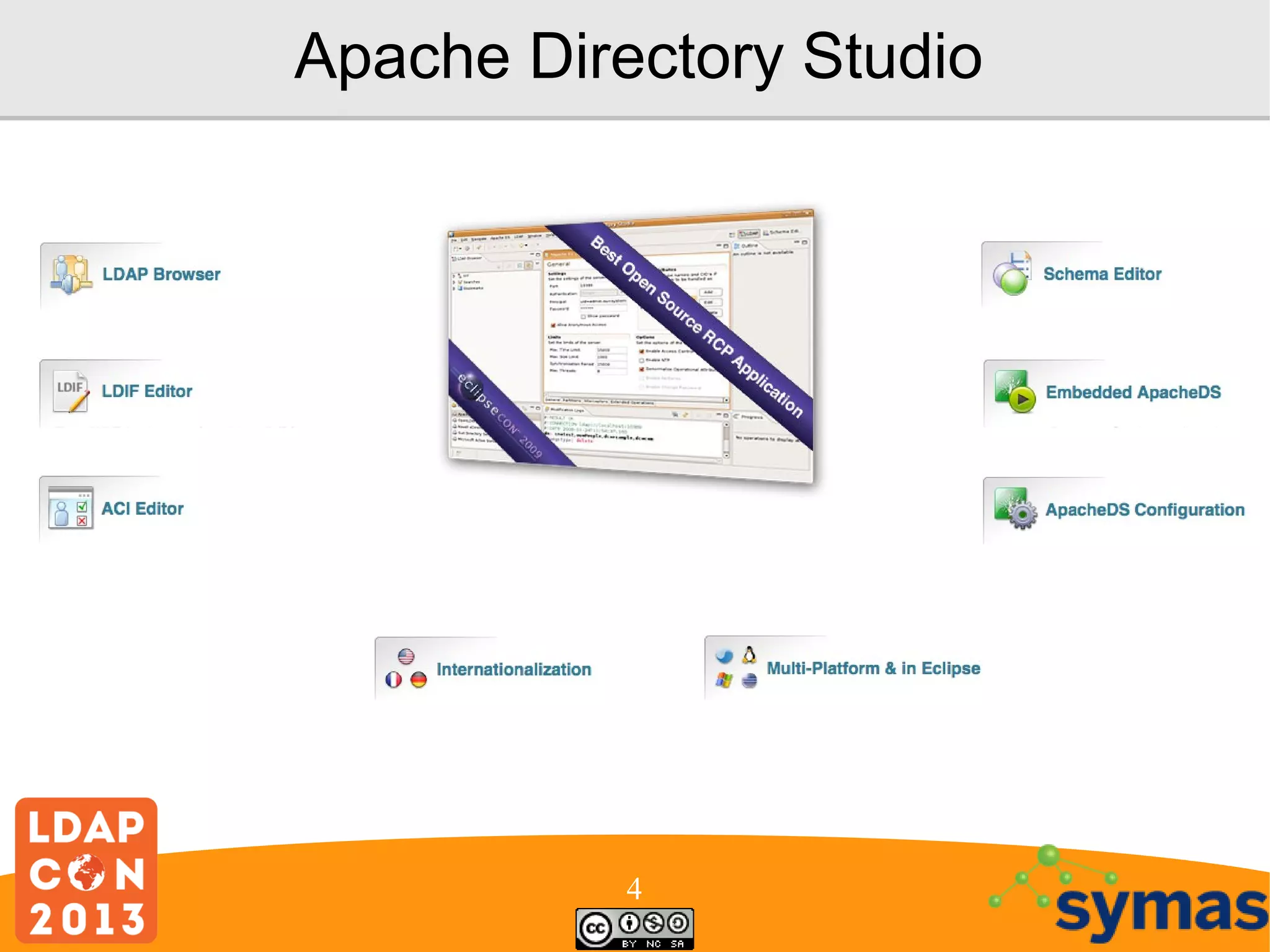

4. Apache Directory Studio
4

5. OpenLDAP configuration
slapd.conf
Or
cn=config/
5

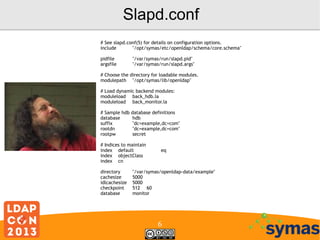

6. Slapd.conf
# See slapd.conf(5) for details on configuration options.
include
"/opt/symas/etc/openldap/schema/core.schema"
pidfile
argsfile
"/var/symas/run/slapd.pid"
"/var/symas/run/slapd.args"
# Choose the directory for loadable modules.
modulepath "/opt/symas/lib/openldap"
# Load dynamic backend modules:
moduleload back_hdb.la
moduleload back_monitor.la
# Sample hdb
database
suffix
rootdn
rootpw
database definitions
hdb
"dc=example,dc=com"
"dc=example,dc=com"
secret
# Indices to maintain
index default
index objectClass
index cn
directory
cachesize
idlcachesize
checkpoint
database
eq
"/var/symas/openldap-data/example"
5000
5000
512 60
monitor
6

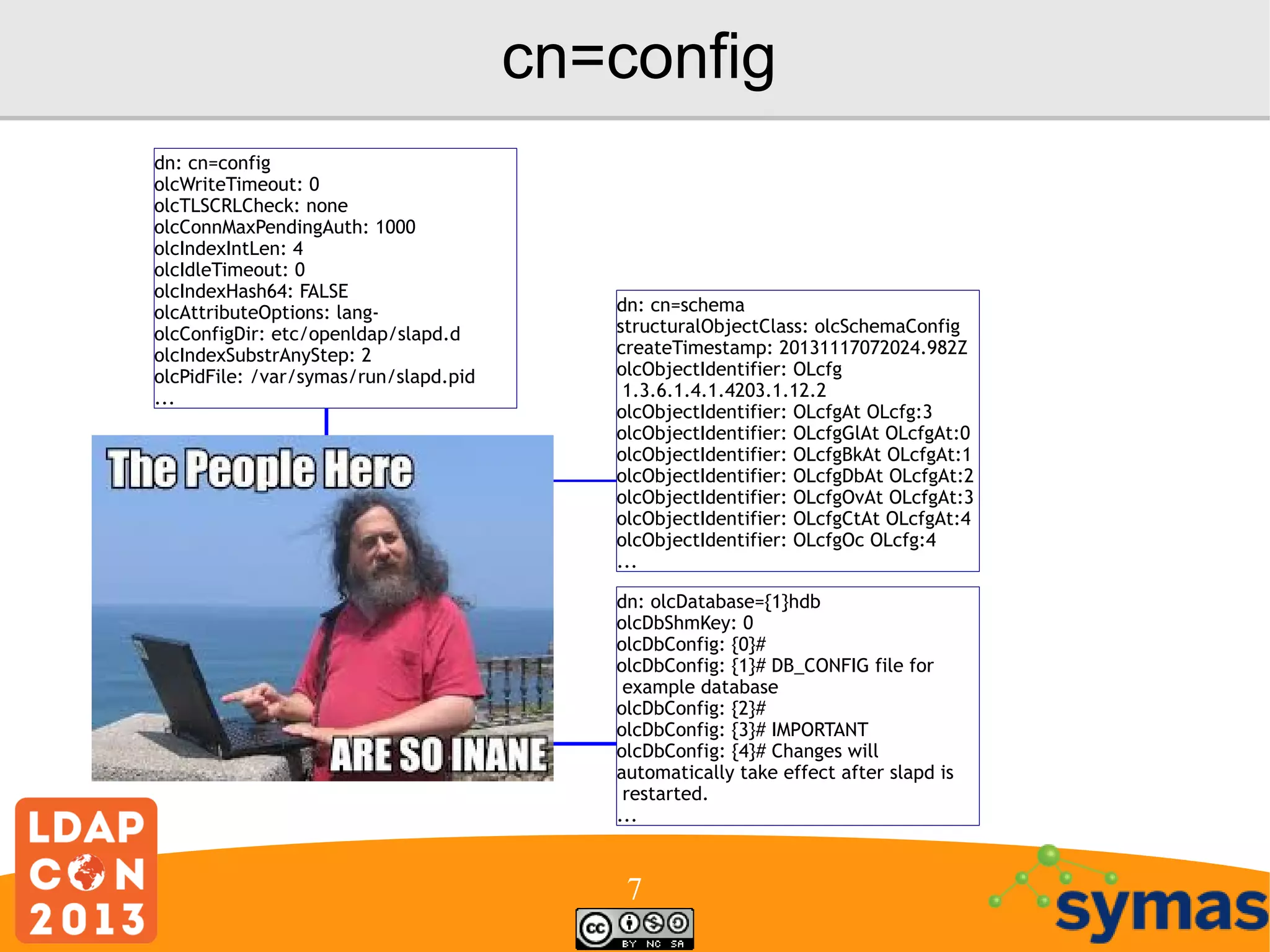

7. cn=config
dn: cn=config
olcWriteTimeout: 0
olcTLSCRLCheck: none
olcConnMaxPendingAuth: 1000
olcIndexIntLen: 4
olcIdleTimeout: 0
olcIndexHash64: FALSE
olcAttributeOptions: langolcConfigDir: etc/openldap/slapd.d
olcIndexSubstrAnyStep: 2
olcPidFile: /var/symas/run/slapd.pid
...
dn: cn=schema
structuralObjectClass: olcSchemaConfig
createTimestamp: 20131117072024.982Z
olcObjectIdentifier: OLcfg
1.3.6.1.4.1.4203.1.12.2
olcObjectIdentifier: OLcfgAt OLcfg:3
olcObjectIdentifier: OLcfgGlAt OLcfgAt:0
olcObjectIdentifier: OLcfgBkAt OLcfgAt:1
olcObjectIdentifier: OLcfgDbAt OLcfgAt:2
olcObjectIdentifier: OLcfgOvAt OLcfgAt:3
olcObjectIdentifier: OLcfgCtAt OLcfgAt:4
olcObjectIdentifier: OLcfgOc OLcfg:4
...
dn: olcDatabase={1}hdb
olcDbShmKey: 0
olcDbConfig: {0}#
olcDbConfig: {1}# DB_CONFIG file for
example database
olcDbConfig: {2}#
olcDbConfig: {3}# IMPORTANT
olcDbConfig: {4}# Changes will
automatically take effect after slapd is
restarted.
...
7

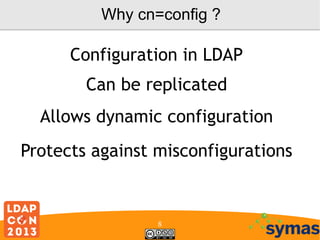

8. Why cn=config ?
Configuration in LDAP
Can be replicated
Allows dynamic configuration
Protects against misconfigurations
8

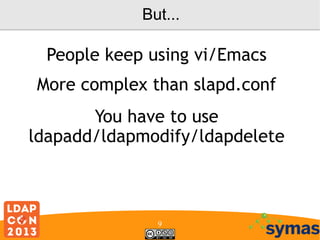

9. But...
People keep using vi/Emacs
More complex than slapd.conf
You have to use
ldapadd/ldapmodify/ldapdelete
9

10. But...
« It is of course possible for a careful, clueful
admin to edit the files by hand without breaking
anything. »
« But let's face it, the majority of people out
there, and particularly the people having
problems that drive them to post on this mailing
list, are neither careful enough nor clueful
enough to qualify for these activities. »
10

11. Let's use Studio !
11

12. OpenLDAP configuration plugin
Don't have to lecture people who
use text editors
Config for dummies (almost)
Many controls done by the plugin
« smart » editors
12

13. Backend configuration
13

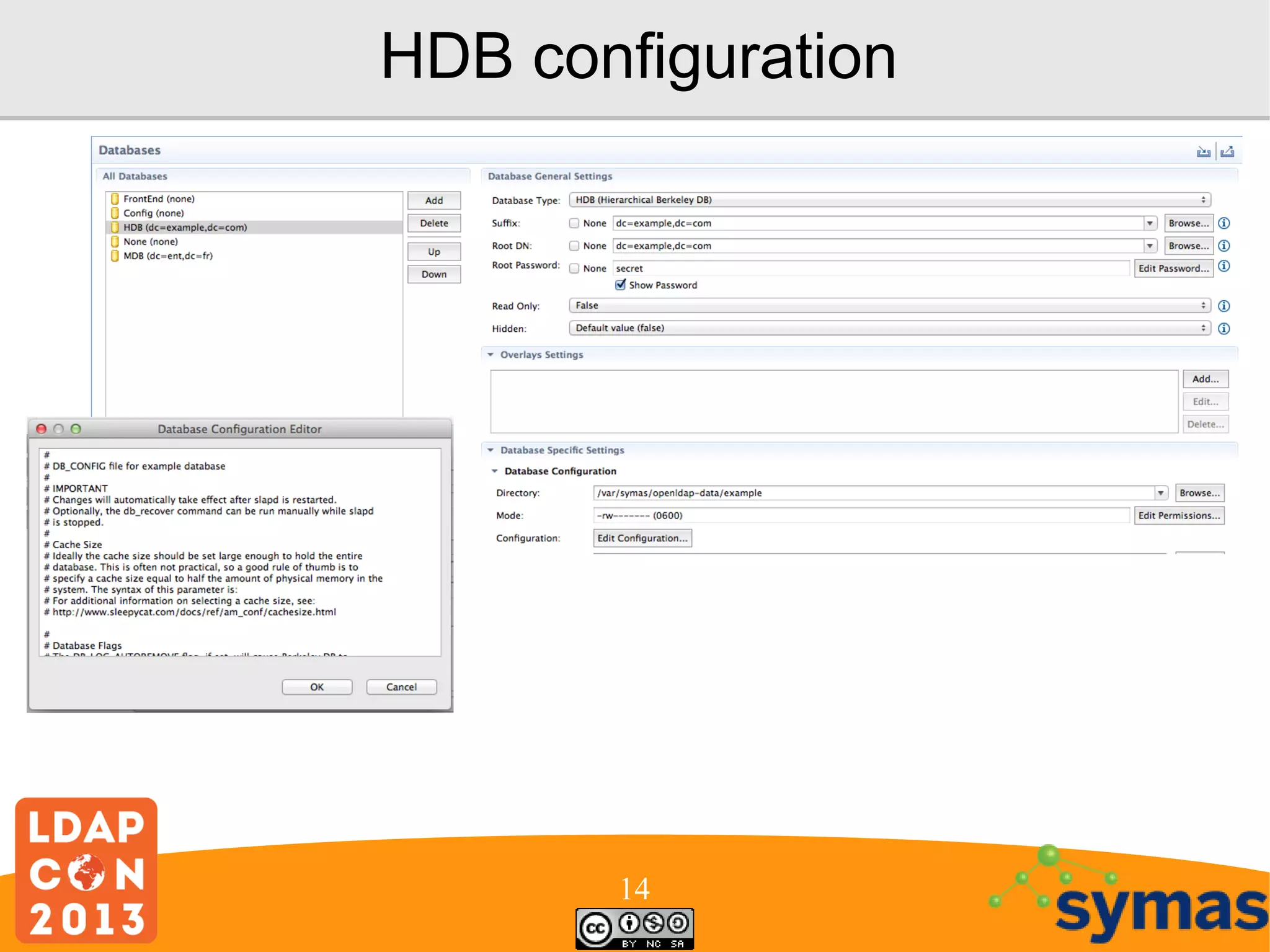

14. HDB configuration
14

15. Replication configuration
15

16. Options configuration
16

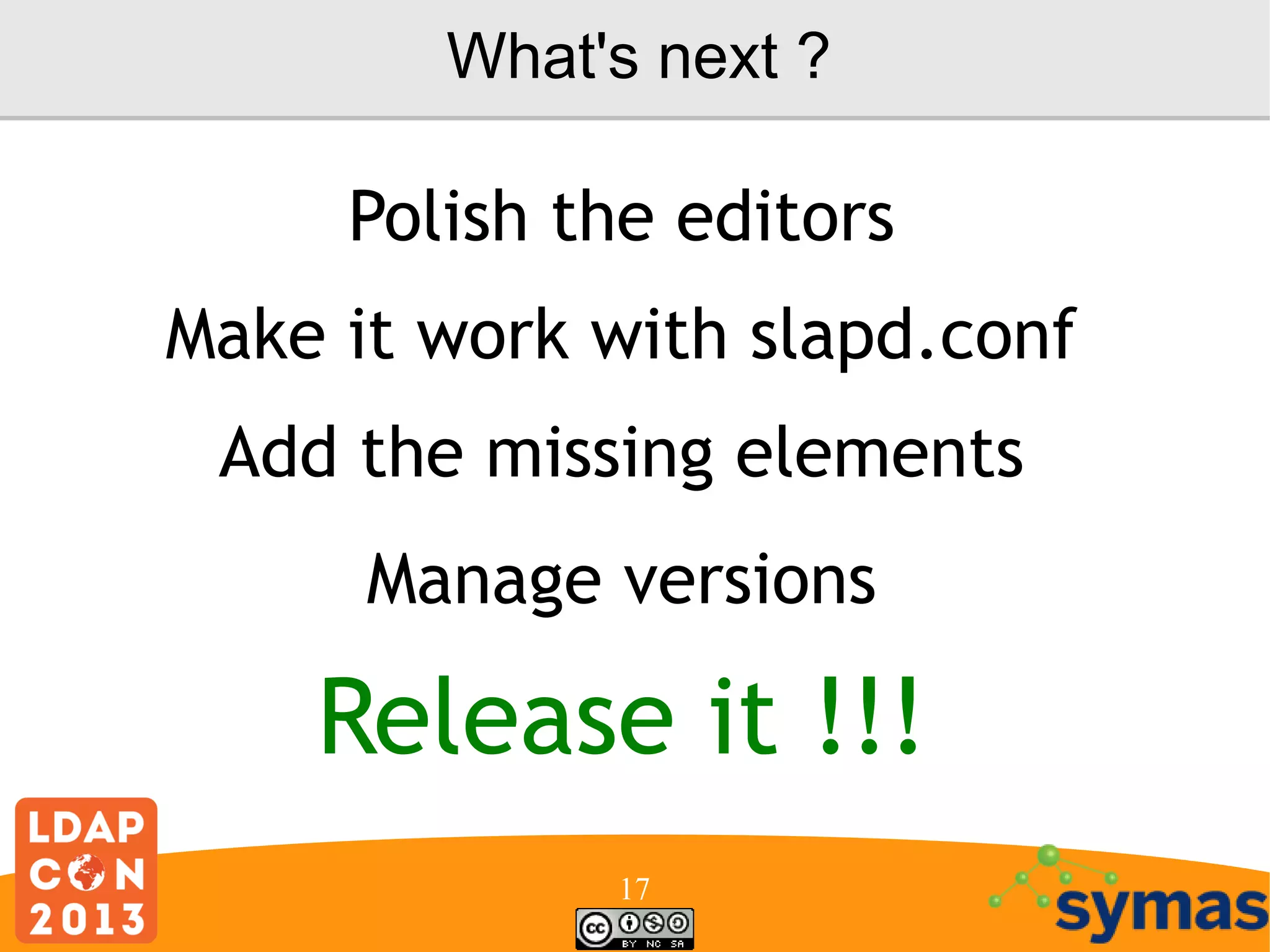

17. What's next ?
Polish the editors
Make it work with slapd.conf
Add the missing elements
Manage versions
Release it !!!
17

18. Thanks!
