Data formats can vary greatly, from handwritten text to complex electronic formats. There are many reasons for using different formats, including historical reasons, the data generator, and formats agreed upon for certain data types. Common formats include ASCII, binary, spreadsheets, relational databases, images, maps, and more. Proper documentation of file contents and structure is important for understanding and using data in different formats.

1. 1. Data formats
• Large heterogeneity in data formats
• Data format = the physical or electronic shape
in which data is stored
• Piece of paper with hand written text = data
format
• However focuss here:
– Electronic data formats
– Commonly used data formats

2. 1. Data formats
• Why use which format?
– Historical reasons:
• Old data mostly in text based list formats
• Software and technology is accompagning certain
formats
• Example: xml is only being used after its invention
– Other reasons:
• Depending on data generator:
– Machine generated data (mostly ascii format)
• Worldwide agreed formats for certain types of data
– Facilitate exchange of data packages

3. 1. Data formats
• Exchange of data formats
– Most formats are exchangeable into eachother
– Mostly top down:
• Relational structure  spreadsheet  txt-based

4. Data formats: different classifications
• Physical types:
– ASCII
– BINARY
• Format types : 15 often used data types

5. Dataformat – ascii format (1)
• Ascii: American Standard Code for Information
Interchange
• ASCII data are encoded so that the human reader can
see and understand the values, because they are
displayed as normal integers and real numbers. This
means that the actual digital file contains print and
display information for the human-readable
characters, not the actual values of the data. The
benefit of using ASCII data is that the user can see,
understand and edit the file contents directly; the
downside of using ASCII is that the data files are much
larger.

6. Dataformat – ascii format (2)
• Combination of letters
and numbers
• Readable by any
computer
• No complex software
required

7. Dataformat – Binary data
• Binary data are numeric data whose values
are expressed in bits and bytes, instead of the
human-readable ascii code.
• Number values can be stored in much smaller
files:  be read more rapidly (by machines)
• the method for large datafiles, especially
gridded data.
• To use binary data: not so easy  interpreting
steps are required

8. Dataformat – Binary data
• Contents and structure
of binary files may vary:
– Type of data stored:
• Bit (0-1) – 1 bit
• Byte (0-255) – 8 bits
• Short integer (-32,768
32,767) – 16 bits
• Interpreter – translator
is required

9. Data formats – 15 common used types
•
•
•
•
Text – files  Ascii/Binary
Spreadsheets
Relational structures
Others
– Images
– Maps

10. 1 & 2 : Auxiliary Formats
• Auxiliary Formats - Information about data
files; these are not really "data" files, but are
included here for completeness
– 1 Header Formats - Information about the
format, location or geo-referencing; usually very
short
– 2 Metadata Formats - see also metadata

11. 3. Document
• Digital data in proprietary formats (or
sometimes just simple ASCII) designed for
visual inspection, but not for data processing
• ASCII ,MS Word DOC , WordPerfect , HTML ,
PDF - Adobe Acrobat , PS/EPS PostScript/Encapsulated PS , Desktop
publisher programs - all proprietary ...

12. 3. Document
• Advantages: Very polished appearance;
powerful editors available; compatibility with
other major document editing software.
• Disadvantages: (hard to use in data mining)
– ASCII text must be extracted for the sections of
interest.
– Embedded images must be converted to more
easily used GIF, JPG or BMP formats. PDF and
PS/EPS very tricky to convert to other formats.

13. 4. Gridded data
• File formats:
– ASCII : example - SURFER (*.GRD) - with "DSAA"
header lines
– Binary : Plain binary grids: byte, short integer, long
integer, single-precision or double-precision; with
or without ASCII Header Files (see earlier)

15. 4. Gridded data
• Creation of the Grid:
– The gridded data file is created from scattered
data points in the real world, by a process called
"gridding."
– mathematical methods to create the grid
– algorithms are available to examine data points

16. 4. Gridded data
• Gridded data files commonly contain more than a single grid
– Data mostly avaiable for different parameters
– Using sequences of XYZ dimensions and parameter dimensions
– There is no "correct" way to construct files of multiple data grids
• It is extremely important to document the sequence in which the dimensions
(XYZ location, time, parameters) are "read."
• Vector Grids: To represent vectors (literally arrows showing the
direction of flow) in ocean and meteorological datasets two
methods have been devised: provide the U and V components of
the vector, or provide the direction and magnitude of the
arrow. Both of these methods have been adapted to grids, for
vector results from gridded models for instance. The grids can be
contained in separate files, or sequentially listed in the same file.

17. 4. Gridded data
• Advantages:
–
–
–
–
Saves storage space
XYZ storage which requires 3 data per gridpoint.
Binary takes much less space than ASCII.
Reading the data is usually a very straightforward
creation of a
• DO LOOP routine (or nest of routines) that follows the order
in which the data were stored
• Disadvantages:
– Binary data are not liked by those who want "to see"
their data at all times.

18. 5. Hard copy
• Older, hard copy datasets
• necessary evil
– (pre-60s) ocean data has never been digitized
• These datasets range from technical reports to handwritten log sheets and lab sheets.
– Reports usually contain enough information to be
successfully digitized
– Manuscript holdings often require tedious collation and
cross-referencing in order to assemble all the needed
parts.
– Datasets with missing critical parts (e.g. station data) exist,
as well as analysis and synthesis reports containing
statistics, graphs and tables, but no data.

19. 5. Hard copy
• Examples:
–
–
–
–
–
–
–
–
Lab sheets
Journal articles
Technical Reports
80-character punch cards - Included here because
many locations lack the facilities to read them
Hand-annotated charts/graphs
Specimen identification cards
Diaries
Ship logs

20. 5. Hard copy
•
Risk of data loss:
– Rule in many data centres: No paper data should be mailed or shipped unless photocopied.
– All ORIGINAL paper data should be gathered by the data manager immediately after the
relevant cruise and grouped into named folios whose contents are indexed.
•
All paper data should be submitted to supervised digitization as soon as possible.
– Example: heritage library
•
Metadata of hard copy data: should fully describe the folios
– numbers of pages
– Color of frontpage
– Other identifying characteristics
•
•
Advantages: They still exist.
Disadvantages:
– Cannot be used in modern digital analysis.
– Digital capture is very labor intensive.
– Access is a tricky political issue in some institutions.
•
Compatibilities: Published papers in good condition can be scanned and converted
to ASCII text with many commercial packages. (OCR techniques)
– Controll afterwards ….

21. 5. Hard copy
• From hard copy to digital copy ...
– Technique used depends on aim and type of data
– Often just transformed in ‘document’ format
– If to other formats – often man-driven
• In many cases going back to hard copy only
way to work (due to lack of metadata, file
versions, ...)

22. 6. Simple Images
– Graphics file without earth mapping information
– Interpretation is purely man-based
– Very variable
– Many file formats:
• TIFF, GIF, JPG, BMP …
• RAW versus compressed
– RAW: all image information is stored without compression
– Compressed: JPG/GIF information is compressed by
extrapolation, reducing colors  smaller files but loss of
information

24. 6. Simple images
• Some images have added artistic borders – outside the geographic grid: that obscure the pixel-tocoordinates relationship
• Advantages
– Quick visualization of data that may have originally
been extremely complex. Subjective analyses that do
not require positional accuracy.
– Disadvantages Quantification difficult; synthesis
nearly impossible unless with pictures derived in
exactly the same fashion Compatibilities Nearly all
graphic picture formats are interchangeable with
editor programs.

25. 7. Geo-referenced images
• Graphics file, with ancillary mapping
information, showing 1 or more parameters of
the earth's system in a rectilinear grid, usually
derived by processing and decimation of very
high-density information from aerial or space
sensors.
– Coordinates of pixel correspond to XY geocoordinate.
– Color of pixel represents a parameter

26. 7. Geo-referenced images
• TIF files can be made into Geo-Referenced Image files by the addition of
internal geographic tags, which require exact knowledge of the image
dimensions and its proper location on the earth's surface.
• JPG, TIF and BMP can be made into Geo-Referenced Image formats by the
addition of header "world files," which require exact knowledge of the
image dimensions and its proper location on the earth's surface. A world
file is a simple ASCII file with the following contents:
–
–
–
–
–
–
X-pixel size (delta X)
Rotation term for row (normally zero)
Rotation term for column (normally zero)
Y-pixel size (delta Y)
X-coordinate of center of upper left pixel
Y-coordinate of center of upper left pixel
• World files for TIF have the extension TFW;
• world files for JPG have the extension JPW;
• world files for BMP have the extension BPW.

27. 7. Geo-referenced images

28. 8-9-10. Mapping data
• Mapping - Mapping data consisting of digital
representations of individual objects (points, lines,
polygons, etc.)
– 8 XY- Mapping line objects, in X (usually longitude) and Y
(usually latitude) coordinates only
– 9 List- Mapping objects (points, lines, symbols, text, etc.)
without topology or descriptive attributes
– 10 Geographic Information System (GIS) - Mapping
objects (points, lines, polygons, etc.) on the earth
incorporated into robust data assemblages that contain
additional detailed information about the properties and
topologies of the objects. [NOTE: Most GIS systems can
also accommodate gridded, geo-referenced image,
relational and spreadsheet formats.]

29. 8. XY data
• Description:
– simplest kind of geographic information:
• lines specified by their ordered X and Y coordinates.
• country boundaries: separated by several different markers
• ASCII Export Format from GEBCO Database/Software
(actually YX in column order)
• Advantages: Simple to write, easy to read (when
ASCII).
• Disadvantages: Contain no topological relationships
between objects, or attributes of the objects.
• Text is rendered as drawing instructions, and cannot be
retrieved as recognizable data.

32. 9. Mapping data - List
• ordered list of "map primitives" to be drawn:
– such as points, lines, circles, labels, etc.
• These formats are extremely specific to certain software.
• They could almost be called "plotter formats" because they do little
more than draw pictures of geographically referenced information.
• Small amounts of data can be included, however, coded into the
appearance of such primitives as the circle (variable diameters), the
vector arrow (variable lengths), and contour lines (colors).
• Advantages; Usually easy to read/write.
• Disadvantages exists in many variant subtypes; MS Word and
WordPerfect differ markedly in the versions they accept.

33. 10. Geographic Information System
(GIS)
• Charting and mapping: tools for natural resource management.
• Digital methods are becoming much more common in ocean data
analysis.
• Geographic Information System (GIS) data formats contain complex,
multi-theme collections of spatial information that can be used to
create maps and charts, and to perform analyses.
• The data formats that can support these systems are not just
sufficient to draw maps, but also contain necessary ancillary data
about the features included (in space and time).
• NOTE: GIS files can be vector-type or raster-type, and many GIS
software systems can handle both. Conversion utilities exist that
can convert these files in either direction, although the raster-tovector conversion often requires intensive quality control by skilled
operators.

34. 10. Geographic Information System
(GIS)
• Software:
– Esri/Mapinfo/Surfer/...
• Recently: also many online gis-tools
– OBIS
– Open Gis standards : Open Geospatial Consortium
• an international industry consortium of 334 companies,
government agencies and universities participating in a
consensus process to develop publicly available
geoprocessing specifications.
• Open Geospatial Consortium (OGC) protocols include Web
Map Service (WMS) and Web Feature Service (WFS).

35. 10. Geographic Information System
(GIS)
• Formats Within This Group ESRI Shapefiles (SHP) , VPF
• Advantages:
– Rapid creation of new maps and charts using the same databases.
– No laborious hand-drawing methods.
– Synthesis of different kinds of information, on an as-needed basis,
from a common pool of datasets.
– Instant changes in projection, scale, coverage area, etc.
• Disadvantages:
– GIS formats tend to be very complex, and populating them with the
actual data of interest is laborious.
• Compatibilities Most of the major software systems now recognize
each other's formats.
– Most have ASCII export routines for simple versions of the internal
datafiles (e.g. DXF).

36. 11. Message data
• Ocean and meteorological data compressed into official (usually
WMO-sanctioned) formats for transmission over approved
international channels, especially the WMO's Global
Telecommunications System (GTS). These highly compacted
formats usually require unpacking programs before they can be
used for analysis purposes. [The Self-Describing Formats BUFR and
GRIB are also often used for data and analysis messages within the
GTS.]
• Formats : DBCP-x, AAXX, BBXX, EEAA, EEBB, EECC, EEDD , IIAA, IIBB,
IICC, IIDD , JJXX, JJYY, PPAA, PPBB, PPCC, PPDD , QQAA, QQBB,
QQCC, QQDD , TTAA, TTBB, TTCC, TTDD , UUAA, UUBB, UUCC,
UUDD , VVAA, VVCC , YYXX , ZZYY
• As an example, the JJYY format encodes real-time
bathythermograph data; it replaces an older format, JJXX, used until
1995.

37. 11. Message data
• Advantages :
– Cheap and quick to send over often crowded
circuits; widely accepted among non-technical
marine community.
– when of poor quality, they create a "placeholder"
for the higher quality data which should follow
• Disadvantages
– Only very coarse resolution and/or low precision is
possible due to the message format limitations.

39. 11. Message data
This element defines an observation report on temperature, salinity and
currents at one particular location on the ocean surface, or in subsurface
layers.

40. 12. Relational database
• A suite of spreadsheet-like tables with explicit links
between them in special linkage arrangements (usually
contained in additional tables).
• This collection of linked tables, known as a Relational
Database (RD), divides up very large initial tables into
much smaller tables and eliminates much duplication
of information that would otherwise be required.
• Relational Databases require the use of special
software (in which they are created, manipulated, and
analyzed) called Relational Database Management
Systems (RDMS).
• Formats: MS Access, Oracle, Sybase, dBase, SQL Server

41. 12. Relational database
• Advantages:
– Enormously flexible systems, capable of most typical statistical
and graphical analyses of data.
– Some have immediate Web compatibility for publishing
databases directly on the Internet; ability to exchange data (via
I/O operations or direct linking).
• Disadvantages
– Ocean data are seldom published in commercial RDMS formats,
due to the machine- and software-specific requirements they
would carry with them.
– Users cannot immediately "look at" their data, although this
only requires simple queries that can written in minutes.
• More about these formats later

42. 13. Spreadsheets
• Spreadsheet formats are simply row-and-column data tables.
• Easily be imported into several proprietary spreadsheet software
programs and many public domain programs.
• Each row is called a "record."
• The separate "fields" may be labeled by a single "label row" at the
beginning of the spreadsheet
• Formats: EXCEL , WK*
• Advantages
– Extremely easy to create, read, quality-control and manipulate in
commercial spreadsheet programs. Each record (data line) is unique
and complete.
• Disadvantages
– Can be quite large, compared to binary files of the same data.

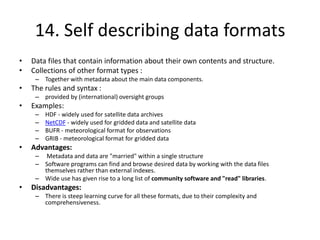

43. 14. Self describing data formats
•
•
Data files that contain information about their own contents and structure.
Collections of other format types :
– Together with metadata about the main data components.
•
The rules and syntax :
– provided by (international) oversight groups
•
Examples:
–
–
–
–
•
HDF - widely used for satellite data archives
NetCDF - widely used for gridded data and satellite data
BUFR - meteorological format for observations
GRIB - meteorological format for gridded data
Advantages:
– Metadata and data are "married" within a single structure
– Software programs can find and browse desired data by working with the data files
themselves rather than external indexes.
– Wide use has given rise to a long list of community software and "read" libraries.
•
Disadvantages:
– There is steep learning curve for all these formats, due to their complexity and
comprehensiveness.

44. 15. Stratified data formats
•
•
•
A very common method to reduce the large size of Spreadsheet format data is to
take the slowly changing fields, which take up a lot of room in each record and to
place them in a totally separate "Cruise/Station" record that precedes all "Data"
records to which it refers.
Naturally, this new type of record will have a different format from the other
records.
This process can be taken further, so that "Cruise" records, "Station" records, and
"Data" records all have different formats.
– significance in the order of the records: because each "Data" record takes its full meaning
from the closest preceding "Cruise" and "Station" records.
•
•
ICES Standard Profile
Advantages:
–
•
Smaller in size than spreadsheet.
Disadvantages :
– Tricky to write software, due to multiple line formats.
– Usually the lines are formatted, so it is difficult for the human eye to read the data values.
– Use with spreadsheet software is very limited (editing, block sorting/cutting/pasting) due to
the different line formats.
– Import to relational databases with "off the shelf" routines is impossible.

45. 15. Stratified data formats
Cruiseid
A
B
C
stationid
x
y
Z
Sampleid
l
p
K
Sampleid2
l2
p2
K2
Sampleid3
l3
p2
K3
Stationid
x2
y2
Z2
W2
...
...
...
...
...
W

46. 16. Extra - XML
• Currently widely used
• Data exchange format
• Extensible Markup Language (XML)

47. 16. Extra - XML
•
•
•
•
•
•
•
•
•
Text based – small file size
Ascii format
Similar to stratified  hierarchy
Formats defined by international organisations (see
also stratified)
Metadata can be embeded in data
Data exchange format – through internet
Both for data delivery & data request
Used in GIS in recent versions of software
Web technology (e.g. Newsitems, search engines, ...)
