This document provides an introduction to pointers in C++, explaining how they represent memory addresses and how to use the address-of operator '&' with variables. It demonstrates pointer declaration, null pointers, and their usage in functions to alter variable values through call by reference. Additionally, it discusses the relationship between arrays and pointers, showcasing how to access array elements using pointer notation.

2. Name – Amir hamza khan
Instructor –Sir Irfan Latif Memon
Section – BSCS-1
RegNo. – 1312118

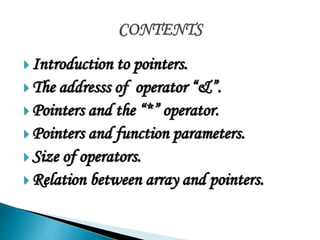

3.  Introduction to pointers.
 The addresss of operator “&”.
 Pointers and the “*” operator.
 Pointers and function parameters.
 Size of operators.
Relation between array and pointers.

4.  The pointer is a variable that holds a memory address.
 To understand the pointers we should first understand a bit
about the computer memory.
 Whenever any application is executed, it is loaded in to the
memory form the disk and all the elements and components of
that application will be located at the particular location
somewhere in the memory.

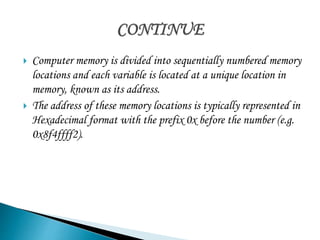

5.  Computer memory is divided into sequentially numbered memory
locations and each variable is located at a unique location in
memory, known as its address.
 The address of these memory locations is typically represented in
Hexadecimal format with the prefix 0x before the number (e.g.
0x8f4ffff2).

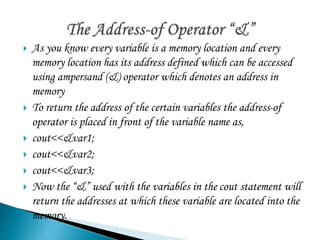

6.  As you know every variable is a memory location and every
memory location has its address defined which can be accessed
using ampersand (&) operator which denotes an address in
memory
 To return the address of the certain variables the address-of
operator is placed in front of the variable name as,
 cout<<&var1;
 cout<<&var2;
 cout<<&var3;
 Now the “&” used with the variables in the cout statement will
return the addresses at which these variable are located into the
memory.

7.  #include <iostream.h>
 main ()
 {
 int var1;
 char var2[10];
 cout << "Address of var1
variable: ";
 cout << &var1 << endl;
 cout << "Address of var2
variable: ";
 cout << &var2 << endl;
 }

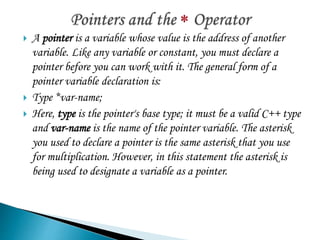

8.  A pointer is a variable whose value is the address of another
variable. Like any variable or constant, you must declare a
pointer before you can work with it. The general form of a
pointer variable declaration is:
 Type *var-name;
 Here, type is the pointer's base type; it must be a valid C++ type
and var-name is the name of the pointer variable. The asterisk
you used to declare a pointer is the same asterisk that you use
for multiplication. However, in this statement the asterisk is
being used to designate a variable as a pointer.

9.  int *ip; // pointer to an integer
 double *dp; // pointer to a double
 float *fp; // pointer to a float
 char *ch; // pointer to character
 The actual data type of the value of all pointers, whether
integer, float, character, or otherwise, is the same, a long
hexadecimal number that represents a memory address. The only
difference between pointers of different data types is the data
type of the variable or constant that the pointer points to

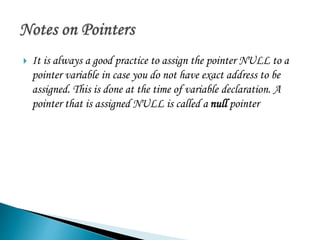

10.  It is always a good practice to assign the pointer NULL to a
pointer variable in case you do not have exact address to be
assigned. This is done at the time of variable declaration. A
pointer that is assigned NULL is called a null pointer

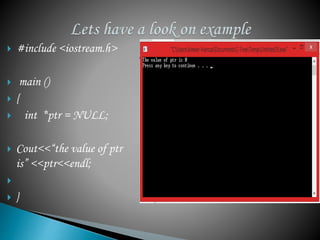

11.  #include <iostream.h>
 main ()
 {
 int *ptr = NULL;
 Cout<<“the value of ptr
is” <<ptr<<endl;

 }

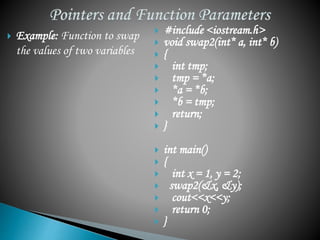

12.  Example: Function to swap
the values of two variables
 #include <iostream.h>
 void swap2(int* a, int* b)
 {
 int tmp;
 tmp = *a;
 *a = *b;
 *b = tmp;
 return;
 }
 int main()
 {
 int x = 1, y = 2;
 swap2(&x, &y);
 cout<<x<<y;
 return 0;
 }

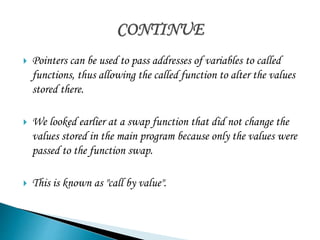

13.  Pointers can be used to pass addresses of variables to called
functions, thus allowing the called function to alter the values
stored there.
 We looked earlier at a swap function that did not change the
values stored in the main program because only the values were
passed to the function swap.
 This is known as "call by value".

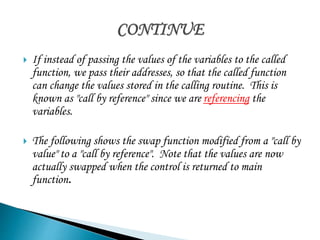

14.  If instead of passing the values of the variables to the called
function, we pass their addresses, so that the called function
can change the values stored in the calling routine. This is
known as "call by reference" since we are referencing the
variables.
 The following shows the swap function modified from a "call by
value" to a "call by reference". Note that the values are now
actually swapped when the control is returned to main
function.

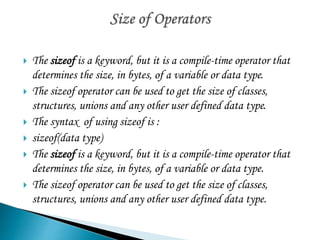

15.  The sizeof is a keyword, but it is a compile-time operator that
determines the size, in bytes, of a variable or data type.
 The sizeof operator can be used to get the size of classes,
structures, unions and any other user defined data type.
 The syntax of using sizeof is :
 sizeof(data type)
 The sizeof is a keyword, but it is a compile-time operator that
determines the size, in bytes, of a variable or data type.
 The sizeof operator can be used to get the size of classes,
structures, unions and any other user defined data type.

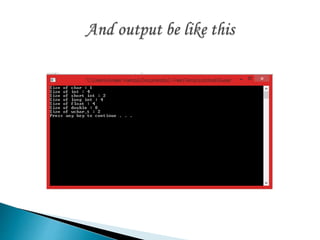

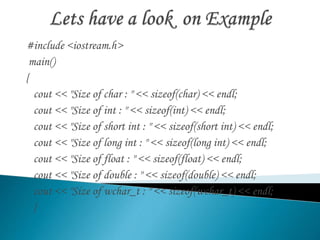

16. #include <iostream.h>
main()
{
cout << "Size of char : " << sizeof(char) << endl;
cout << "Size of int : " << sizeof(int) << endl;
cout << "Size of short int : " << sizeof(short int) << endl;
cout << "Size of long int : " << sizeof(long int) << endl;
cout << "Size of float : " << sizeof(float) << endl;
cout << "Size of double : " << sizeof(double) << endl;
cout << "Size of wchar_t : " << sizeof(wchar_t) << endl;
}

18.  Arrays and pointers are closely related
◦ Array name is like constant pointer
◦ Pointers can do array subscripting operations

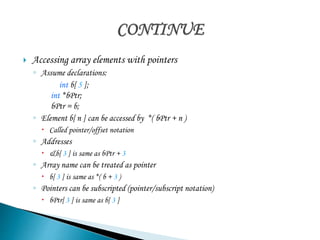

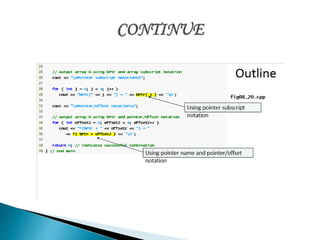

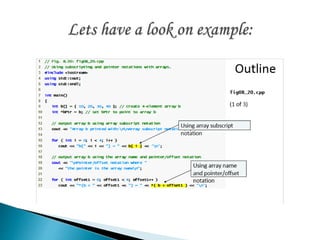

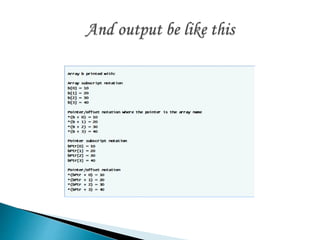

19.  Accessing array elements with pointers
◦ Assume declarations:
int b[ 5 ];
int *bPtr;
bPtr = b;
◦ Element b[ n ] can be accessed by *( bPtr + n )
 Called pointer/offset notation
◦ Addresses
 &b[ 3 ] is same as bPtr + 3
◦ Array name can be treated as pointer
 b[ 3 ] is same as *( b + 3 )
◦ Pointers can be subscripted (pointer/subscript notation)
 bPtr[ 3 ] is same as b[ 3 ]
