1. Assignment
Recombinant DNA
Technology
Topic: Northern Blotting
Submitted to: Dr. Ameer Khan
Submitted by: Mujahid Hussain
Roll Number: 12
Class: M.Phil
Roll No. 12 (Mujahid Hussain) M.Phil Botany1 12/2/2016

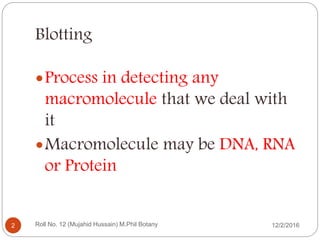

2. Blotting
Process in detecting any
macromolecule that we deal with
it
Macromolecule may be DNA, RNA
or Protein
Roll No. 12 (Mujahid Hussain) M.Phil Botany2 12/2/2016

3. Blotting
IF we are detecting DNA we called
it Southern Bloting
IF we are detecting RNA we called
it Nothern Bloting
IF we are detecting Protein we
called it Western Boting
Roll No. 12 (Mujahid Hussain) M.Phil Botany3 12/2/2016

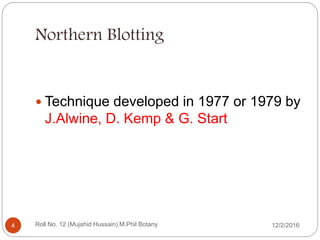

4. Northern Blotting
 Technique developed in 1977 or 1979 by
J.Alwine, D. Kemp & G. Start
Roll No. 12 (Mujahid Hussain) M.Phil Botany4 12/2/2016

5. Northern Blotting
 Very Similar to Southern Bloting
 Technique based on Nucleic acid
Hybridization
Roll No. 12 (Mujahid Hussain) M.Phil Botany5 12/2/2016
Nucleic acid hybridization: A technique in which single-
stranded nucleic acids(DNA or RNA) are allowed to interact so
that complexes called hybrids are formed by molecules with
similar, complementary sequences.

6. Northern Blotting (Importance)
 To Study gene expression by detecting RNA
in a Sample During differentiation,
morphogenesis as well as abnormal or
diseased condition
Roll No. 12 (Mujahid Hussain) M.Phil Botany6 12/2/2016

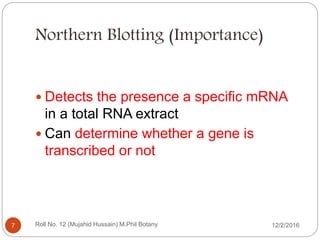

7. Northern Blotting (Importance)
 Detects the presence a specific mRNA
in a total RNA extract
 Can determine whether a gene is
transcribed or not
Roll No. 12 (Mujahid Hussain) M.Phil Botany7 12/2/2016

8. Northern Blotting (Stages)
 Major stages involve in Northern Bloting
 To Prepare target
 Gel electrophoresis
 Blot
 Hybridization
 Detection
Roll No. 12 (Mujahid Hussain) M.Phil Botany8 12/2/2016

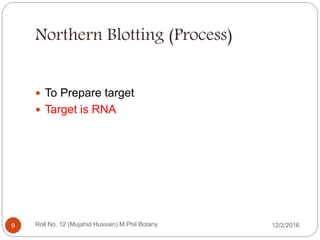

9. Northern Blotting (Process)
 To Prepare target
 Target is RNA
Roll No. 12 (Mujahid Hussain) M.Phil Botany9 12/2/2016

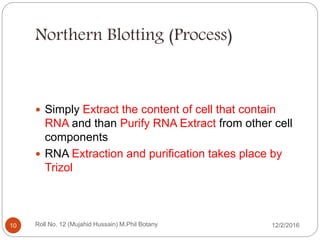

10. Northern Blotting (Process)
 Simply Extract the content of cell that contain
RNA and than Purify RNA Extract from other cell
components
 RNA Extraction and purification takes place by
Trizol
Roll No. 12 (Mujahid Hussain) M.Phil Botany10 12/2/2016

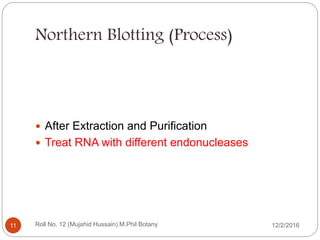

11. Northern Blotting (Process)
 After Extraction and Purification
 Treat RNA with different endonucleases
Roll No. 12 (Mujahid Hussain) M.Phil Botany11 12/2/2016

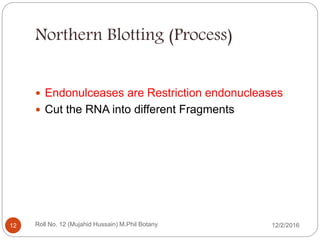

12. Northern Blotting (Process)
 Endonulceases are Restriction endonucleases
 Cut the RNA into different Fragments
Roll No. 12 (Mujahid Hussain) M.Phil Botany12 12/2/2016

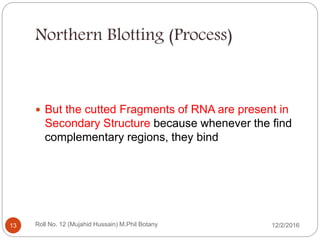

13. Northern Blotting (Process)
 But the cutted Fragments of RNA are present in
Secondary Structure because whenever the find
complementary regions, they bind
Roll No. 12 (Mujahid Hussain) M.Phil Botany13 12/2/2016

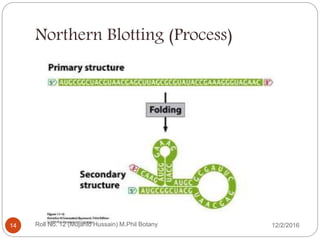

14. Northern Blotting (Process)
Roll No. 12 (Mujahid Hussain) M.Phil Botany14 12/2/2016

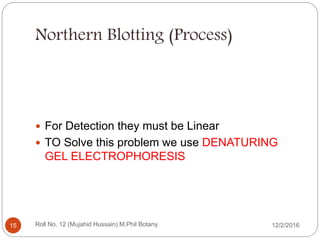

15. Northern Blotting (Process)
 For Detection they must be Linear
 TO Solve this problem we use DENATURING
GEL ELECTROPHORESIS
Roll No. 12 (Mujahid Hussain) M.Phil Botany15 12/2/2016

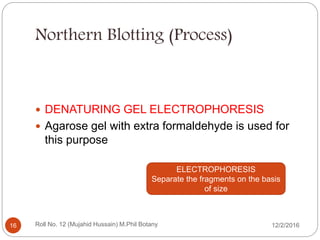

16. Northern Blotting (Process)
 DENATURING GEL ELECTROPHORESIS
 Agarose gel with extra formaldehyde is used for
this purpose
DENATURING GEL
ELECTROPHORESIS
Separate the fragments on the basis
of size
And linear the RNA
Roll No. 12 (Mujahid Hussain) M.Phil Botany16 12/2/2016

17. Northern Blotting (Process)
 Extra Formaldehyde makes it (RNA Fragments)
linear
Roll No. 12 (Mujahid Hussain) M.Phil Botany17 12/2/2016

18. Northern Blotting (Process)
 Smaller Fragments move faster, migrate more,
travel more distance
 Larger Fragments move slower, migrate less,
travel less distance
Roll No. 12 (Mujahid Hussain) M.Phil Botany18 12/2/2016

19. Northern Blotting (Process)
Roll No. 12 (Mujahid Hussain) M.Phil Botany19 12/2/2016

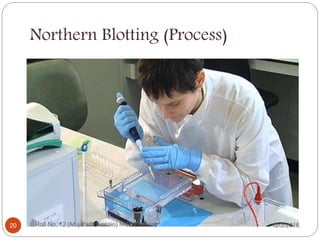

20. Northern Blotting (Process)
Roll No. 12 (Mujahid Hussain) M.Phil Botany20 12/2/2016

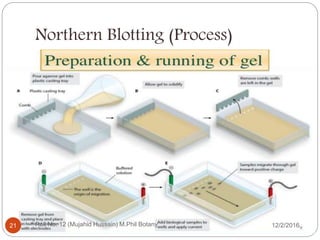

21. Northern Blotting (Process)
Roll No. 12 (Mujahid Hussain) M.Phil Botany21 12/2/2016

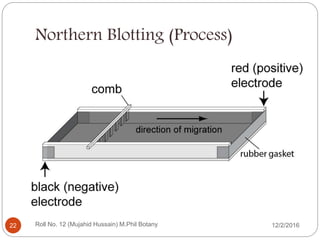

22. Northern Blotting (Process)
Roll No. 12 (Mujahid Hussain) M.Phil Botany22 12/2/2016

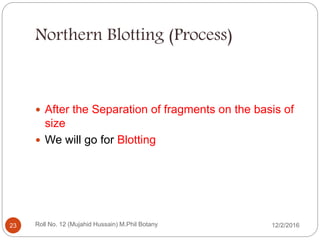

23. Northern Blotting (Process)
 After the Separation of fragments on the basis of
size
 We will go for Blotting
Roll No. 12 (Mujahid Hussain) M.Phil Botany23 12/2/2016

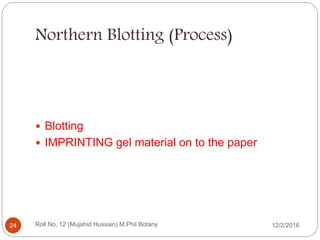

24. Northern Blotting (Process)
 Blotting
 IMPRINTING gel material on to the paper
Roll No. 12 (Mujahid Hussain) M.Phil Botany24 12/2/2016

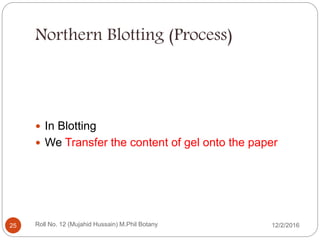

25. Northern Blotting (Process)
 In Blotting
 We Transfer the content of gel onto the paper
Roll No. 12 (Mujahid Hussain) M.Phil Botany25 12/2/2016

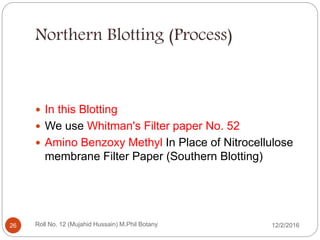

26. Northern Blotting (Process)
 In this Blotting
 We use Whitman's Filter paper No. 52
 Amino Benzoxy Methyl In Place of Nitrocellulose
membrane Filter Paper (Southern Blotting)
Roll No. 12 (Mujahid Hussain) M.Phil Botany26 12/2/2016

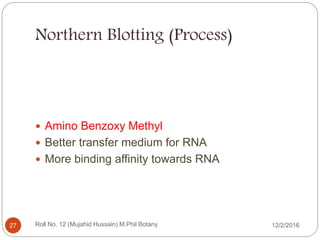

27. Northern Blotting (Process)
 Amino Benzoxy Methyl
 Better transfer medium for RNA
 More binding affinity towards RNA
Roll No. 12 (Mujahid Hussain) M.Phil Botany27 12/2/2016

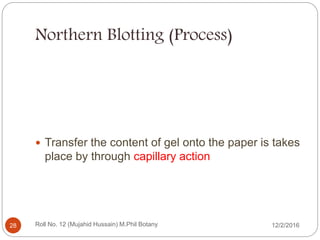

28. Northern Blotting (Process)
 Transfer the content of gel onto the paper is takes
place by through capillary action
Roll No. 12 (Mujahid Hussain) M.Phil Botany28 12/2/2016

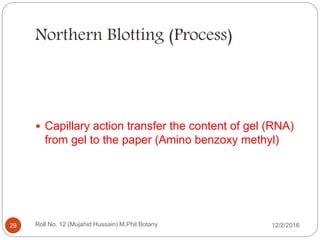

29. Northern Blotting (Process)
 Capillary action transfer the content of gel (RNA)
from gel to the paper (Amino benzoxy methyl)
Roll No. 12 (Mujahid Hussain) M.Phil Botany29 12/2/2016

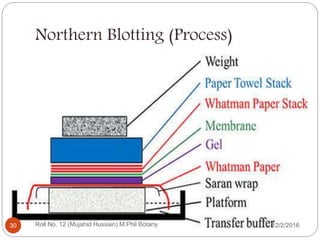

30. Northern Blotting (Process)
Roll No. 12 (Mujahid Hussain) M.Phil Botany30 12/2/2016

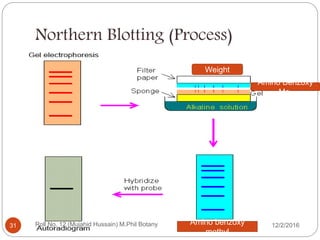

31. Northern Blotting (Process)
Amino Benzoxy
Me.
Weight
Amino benzoxy
methyl
Roll No. 12 (Mujahid Hussain) M.Phil Botany31 12/2/2016

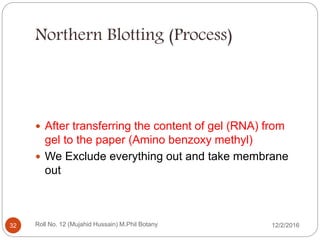

32. Northern Blotting (Process)
 After transferring the content of gel (RNA) from
gel to the paper (Amino benzoxy methyl)
 We Exclude everything out and take membrane
out
Roll No. 12 (Mujahid Hussain) M.Phil Botany32 12/2/2016

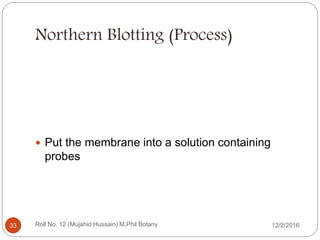

33. Northern Blotting (Process)
 Put the membrane into a solution containing
probes
Roll No. 12 (Mujahid Hussain) M.Phil Botany33 12/2/2016

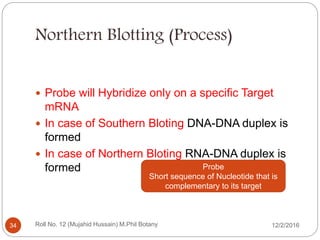

34. Northern Blotting (Process)
 Probe will Hybridize only on a specific Target
mRNA
 In case of Southern Bloting DNA-DNA duplex is
formed
 In case of Northern Bloting RNA-DNA duplex is
formed Probe
Short sequence of Nucleotide that is
complementary to its target
Roll No. 12 (Mujahid Hussain) M.Phil Botany34 12/2/2016

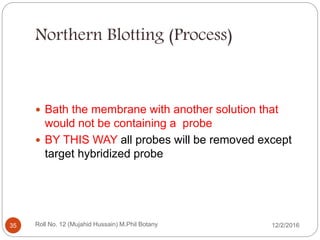

35. Northern Blotting (Process)
 Bath the membrane with another solution that
would not be containing a probe
 BY THIS WAY all probes will be removed except
target hybridized probe
Roll No. 12 (Mujahid Hussain) M.Phil Botany35 12/2/2016

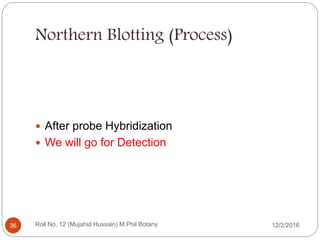

36. Northern Blotting (Process)
 After probe Hybridization
 We will go for Detection
Roll No. 12 (Mujahid Hussain) M.Phil Botany36 12/2/2016

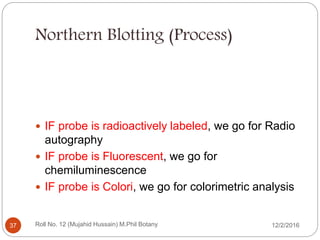

37. Northern Blotting (Process)
 IF probe is radioactively labeled, we go for Radio
autography
 IF probe is Fluorescent, we go for
chemiluminescence
 IF probe is Colori, we go for colorimetric analysis
Roll No. 12 (Mujahid Hussain) M.Phil Botany37 12/2/2016

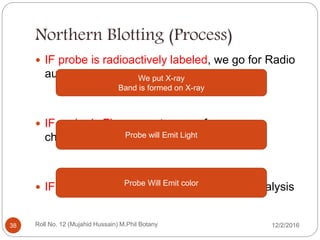

38. Northern Blotting (Process)
 IF probe is radioactively labeled, we go for Radio
autography
 IF probe is Fluorescent, we go for
chemiluminescence
 IF probe is Colori, we go for colorimetric analysis
We put X-ray
Band is formed on X-ray
Probe will Emit Light
Probe Will Emit color
Roll No. 12 (Mujahid Hussain) M.Phil Botany38 12/2/2016

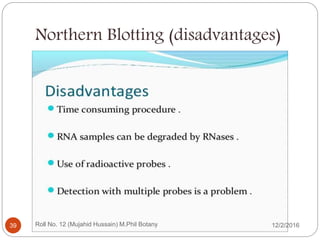

39. Northern Blotting (disadvantages)
Roll No. 12 (Mujahid Hussain) M.Phil Botany39 12/2/2016

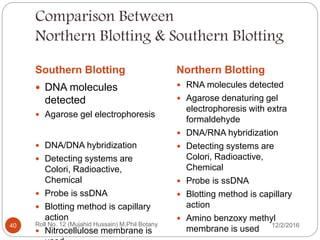

40. Comparison Between
Northern Blotting & Southern Blotting
Southern Blotting Northern Blotting
 DNA molecules
detected
 Agarose gel electrophoresis
 DNA/DNA hybridization
 Detecting systems are
Colori, Radioactive,
Chemical
 Probe is ssDNA
 Blotting method is capillary
action
 Nitrocellulose membrane is
 RNA molecules detected
 Agarose denaturing gel
electrophoresis with extra
formaldehyde
 DNA/RNA hybridization
 Detecting systems are
Colori, Radioactive,
Chemical
 Probe is ssDNA
 Blotting method is capillary
action
 Amino benzoxy methyl
membrane is used
Roll No. 12 (Mujahid Hussain) M.Phil Botany40 12/2/2016

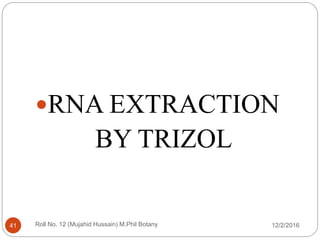

41. 12/2/2016Roll No. 12 (Mujahid Hussain) M.Phil Botany41
RNA EXTRACTION
BY TRIZOL

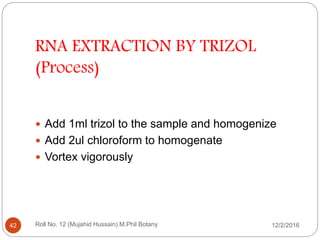

42. RNA EXTRACTION BY TRIZOL
(Process)
 Add 1ml trizol to the sample and homogenize
 Add 2ul chloroform to homogenate
 Vortex vigorously
Roll No. 12 (Mujahid Hussain) M.Phil Botany42 12/2/2016

43. RNA EXTRACTION BY TRIZOL
 Incubate on ice for 15 minutes
 Centrifuge to get phase separation
 12,000g for 15minutes at 4 degree centigrade
Roll No. 12 (Mujahid Hussain) M.Phil Botany43 12/2/2016
g is the relative
centrifugal force

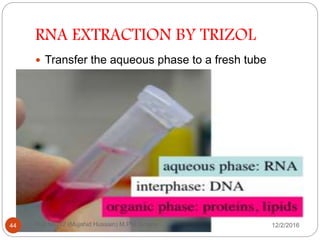

44. RNA EXTRACTION BY TRIZOL
 Transfer the aqueous phase to a fresh tube
Roll No. 12 (Mujahid Hussain) M.Phil Botany44 12/2/2016

45. RNA EXTRACTION BY TRIZOL
 Precipitate the RNA by mixing with 0.5ml
isopropanol
 Incubate on ice for 10 minutes
 Centrifuge for 10minutes at 12,000g at 4 degree
centigrade
Roll No. 12 (Mujahid Hussain) M.Phil Botany45 12/2/2016

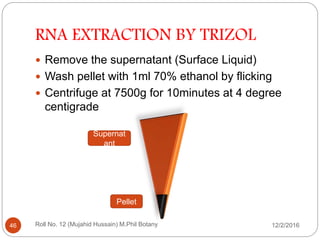

46. RNA EXTRACTION BY TRIZOL
 Remove the supernatant (Surface Liquid)
 Wash pellet with 1ml 70% ethanol by flicking
 Centrifuge at 7500g for 10minutes at 4 degree
centigrade
Pellet
Supernat
ant
Roll No. 12 (Mujahid Hussain) M.Phil Botany46 12/2/2016

47. RNA EXTRACTION BY TRIZOL
 Remove supernatant
 Air dry the Pellet (RNA Pellet)
 Dissolve RNA Pellet in appropriate volume of
Rnase-free water
Now further we treat this RNA with restriction
endonucleases
And cutted into Fragments
Roll No. 12 (Mujahid Hussain) M.Phil Botany47 12/2/2016

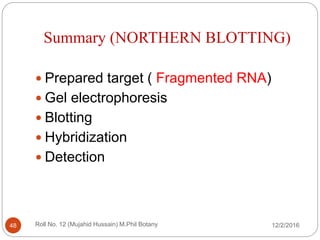

48. Summary (NORTHERN BLOTTING)
12/2/2016Roll No. 12 (Mujahid Hussain) M.Phil Botany48
 Prepared target ( Fragmented RNA)
 Gel electrophoresis
 Blotting
 Hybridization
 Detection

49.  Thank You 
Roll No. 12 (Mujahid Hussain) M.Phil Botany49 12/2/2016
