This document provides an introduction to Jenkins for .NET developers. It discusses what Jenkins is, which is an open source continuous integration tool. It explains that Jenkins provides continuous integration services for software development by monitoring repeated jobs like building software projects. The document then discusses continuous integration and why it is needed for software development. It provides an overview of how Jenkins typically fits into the development workflow, including integrating with source control, installing Jenkins, and different job types. It also covers requisites and configurations for using Jenkins with .NET and TFS projects.

1. Introduction to Jenkins for
the .NET Developer
Abe Diaz
@abe238

2. Who am I?
• Developer -> Evangelist -> Product
• Mostly .Net Developer
• Jenkins Enthusiast
• Contact Info:
• Twitter: @abe238
• info@abediaz.com

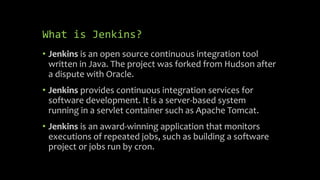

3. What is Jenkins?
• Jenkins is an open source continuous integration tool
written in Java. The project was forked from Hudson after
a dispute with Oracle.
• Jenkins provides continuous integration services for
software development. It is a server-based system
running in a servlet container such as Apache Tomcat.
• Jenkins is an award-winning application that monitors
executions of repeated jobs, such as building a software
project or jobs run by cron.

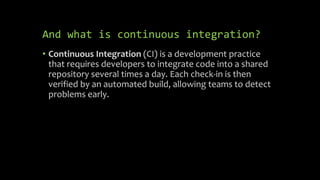

4. And what is continuous integration?
• Continuous Integration (CI) is a development practice
that requires developers to integrate code into a shared
repository several times a day. Each check-in is then
verified by an automated build, allowing teams to detect
problems early.

5. And why do I need this again?

6. The software development world is
a distributed one

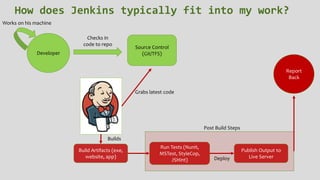

7. Developer
Works on his machine
Checks in
code to repo
Source Control
(Git/TFS)
Grabs latest code
Build Artifacts (exe,
website, app)
Builds
Run Tests (Nunit,
MSTest, StyleCop,
JSHint)
Publish Output to
Live Server
Post Build Steps
Deploy
Report
Back
How does Jenkins typically fit into my work?

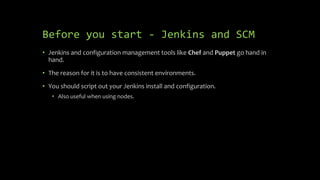

8. Before you start - Jenkins and SCM
• Jenkins and configuration management tools like Chef and Puppet go hand in
hand.
• The reason for it is to have consistent environments.
• You should script out your Jenkins install and configuration.
• Also useful when using nodes.

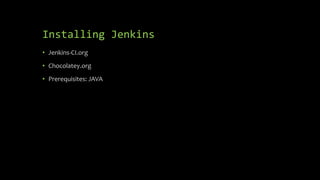

9. Installing Jenkins
• Jenkins-CI.org
• Chocolatey.org
• Prerequisites: JAVA

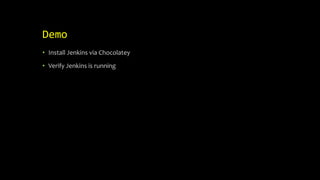

10. Demo
• Install Jenkins via Chocolatey
• Verify Jenkins is running

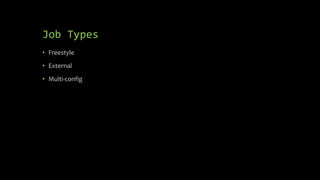

11. Job Types
• Freestyle
• External
• Multi-config

12. Requisites for TFS & .NET
• Microsoft Team Explorer Everywhere 2013
• .NET 4.5.1
• Easy: choco install visualstudio2013teamexplorer

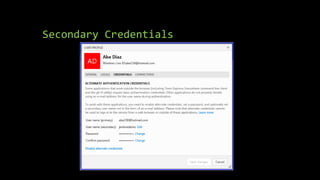

13. Secondary Credentials

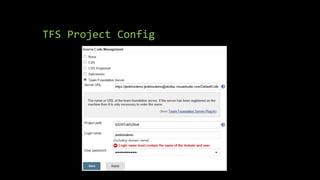

14. TFS Project Config

15. VisualStudio Online is a bit finicky
• When all fails, use plain commands.

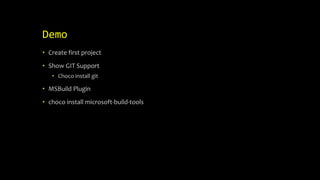

16. Demo
• Create first project
• Show GIT Support
• Choco install git
• MSBuild Plugin
• choco install microsoft-build-tools

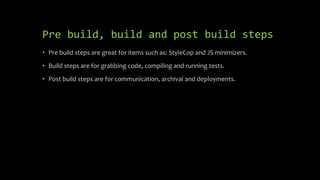

17. Pre build, build and post build steps
• Pre build steps are great for items such as: StyleCop and JS minimizers.
• Build steps are for grabbing code, compiling and running tests.
• Post build steps are for communication, archival and deployments.

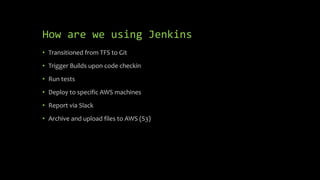

18. How are we using Jenkins
• Transitioned from TFS to Git
• Trigger Builds upon code checkin
• Run tests
• Deploy to specific AWS machines
• Report via Slack
• Archive and upload files to AWS (S3)

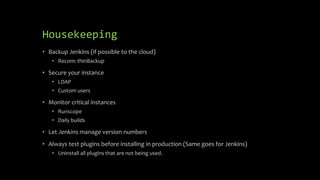

19. Housekeeping
• Backup Jenkins (if possible to the cloud)
• Recom: thinBackup
• Secure your instance
• LDAP
• Custom users
• Monitor critical instances
• Runscope
• Daily builds
• Let Jenkins manage version numbers
• Always test plugins before installing in production (Same goes for Jenkins)
• Uninstall all plugins that are not being used.

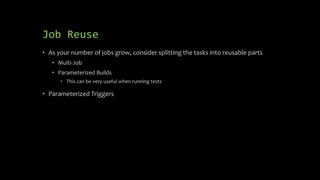

20. Job Reuse
• As your number of jobs grow, consider splitting the tasks into reusable parts
• Multi-Job
• Parameterized Builds
• This can be very useful when running tests
• Parameterized Triggers

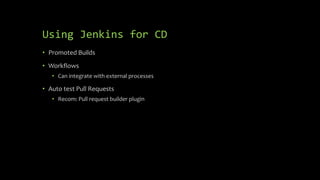

21. Using Jenkins for CD
• Promoted Builds
• Workflows
• Can integrate with external processes
• Auto test Pull Requests
• Recom: Pull request builder plugin

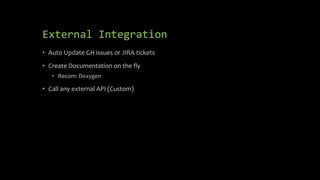

22. External Integration
• Auto Update GH issues or JIRA tickets
• Create Documentation on the fly
• Recom: Doxygen
• Call any external API (Custom)

23. Using Nodes
• Jenkins has a Master/Slave architecture
• You can add as many nodes as needed.
• These can be generic or environment specific
• These can be used also for testing as nodes could be on a different OS

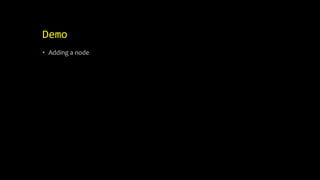

24. Demo
• Adding a node

25. Questions?
