cmake
Introduction and best practices
Daniel Pfeifer
May 21, 2015
daniel@pfeifer-mail.de

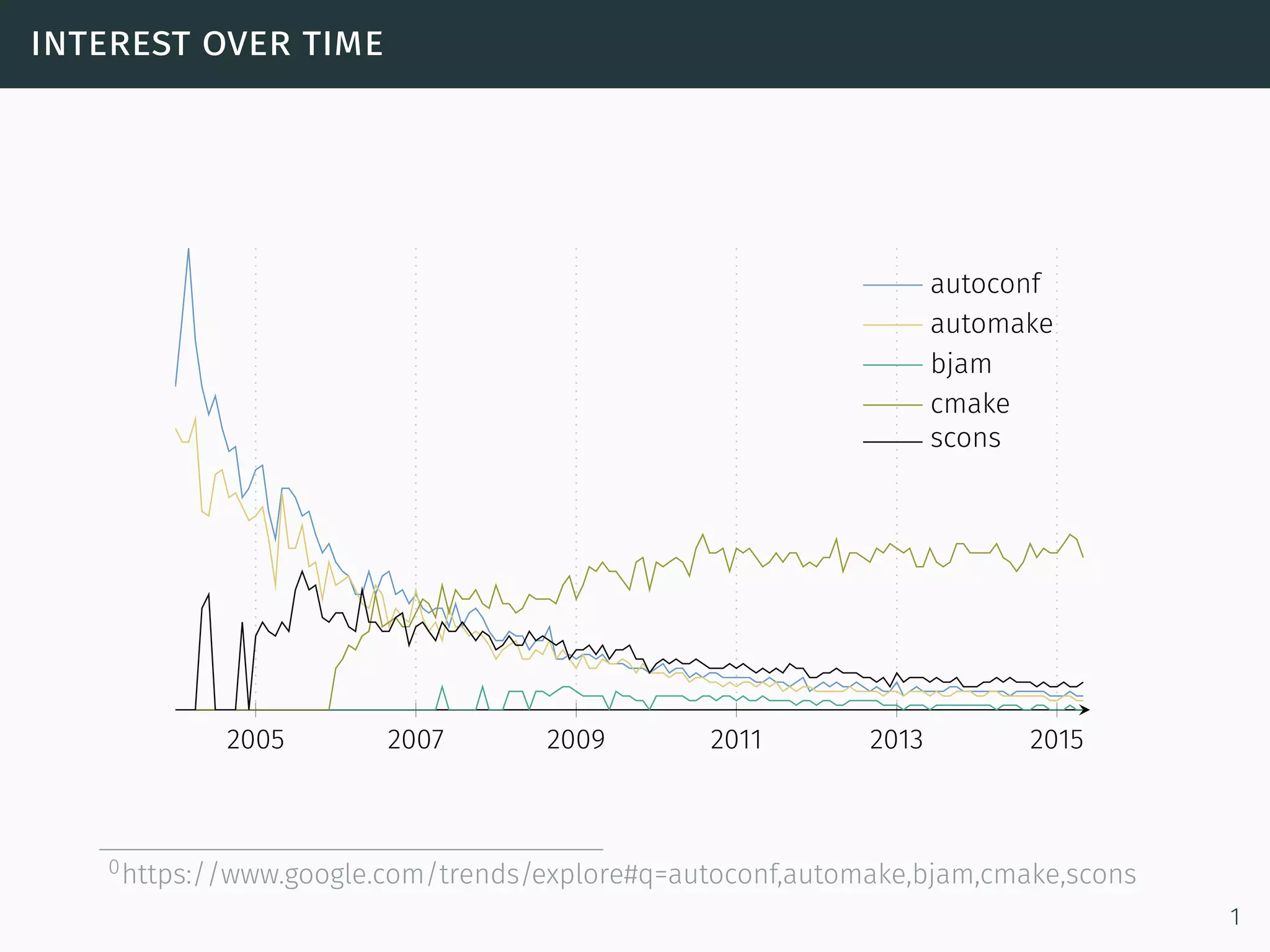

interest over time
2005 2007 2009 2011 2013 2015
autoconf
automake
bjam
cmake
scons
0https://www.google.com/trends/explore#q=autoconf,automake,bjam,cmake,scons
1

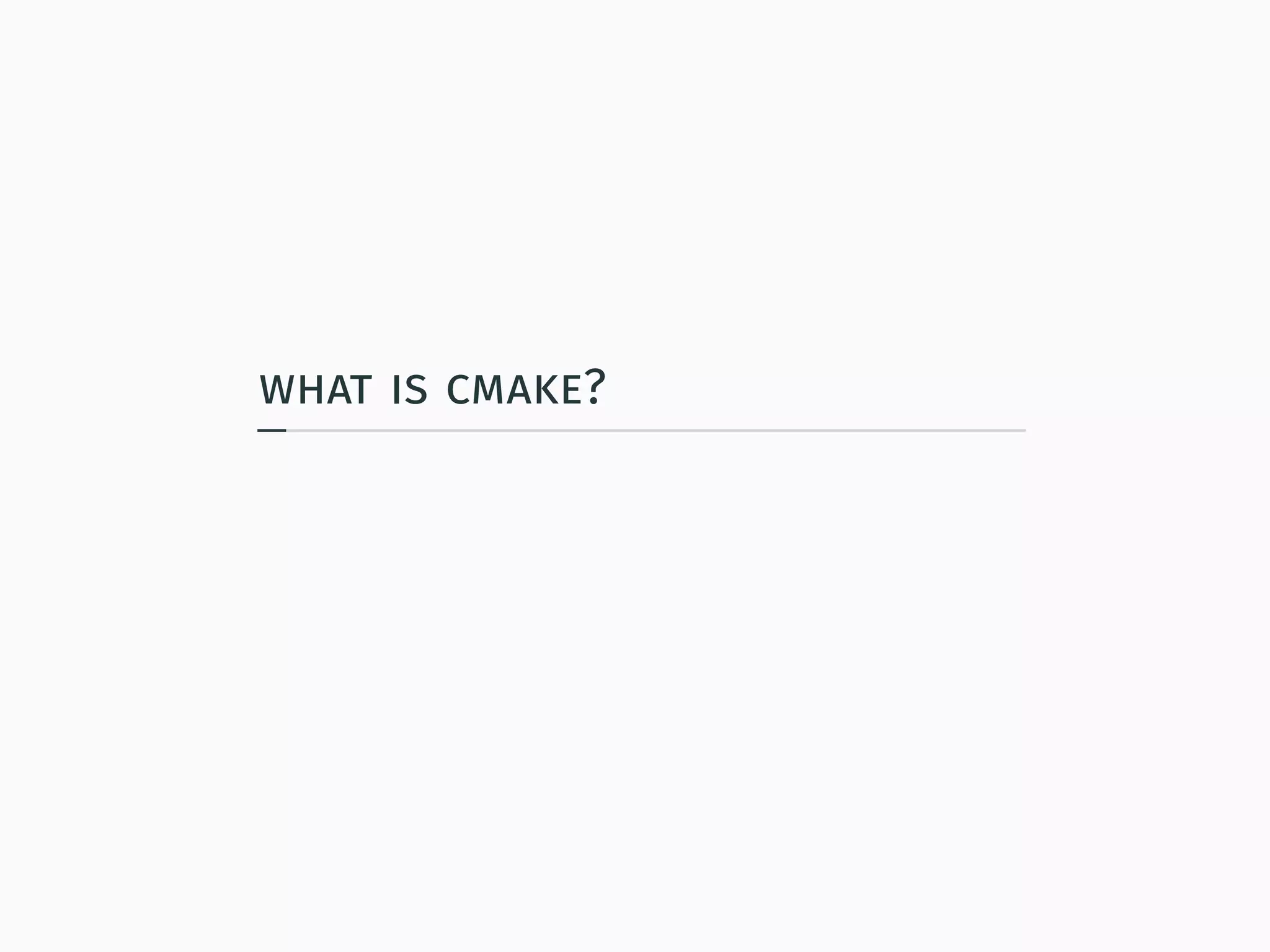

what is cmake?

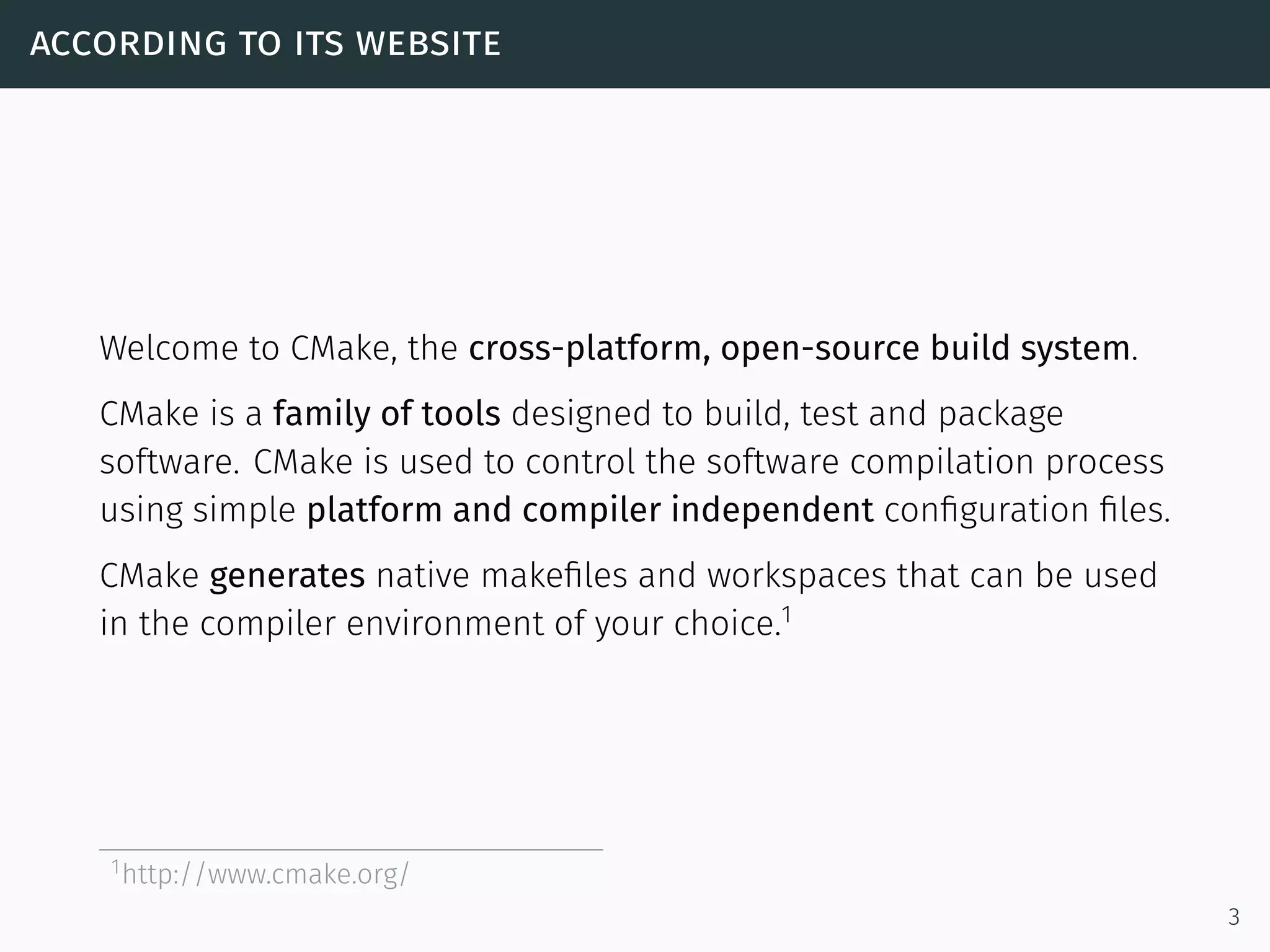

according to its website
Welcome to CMake, the cross-platform, open-source build system.
CMake is a family of tools designed to build, test and package
software. CMake is used to control the software compilation process
using simple platform and compiler independent configuration files.
CMake generates native makefiles and workspaces that can be used
in the compiler environment of your choice.1
1http://www.cmake.org/
3

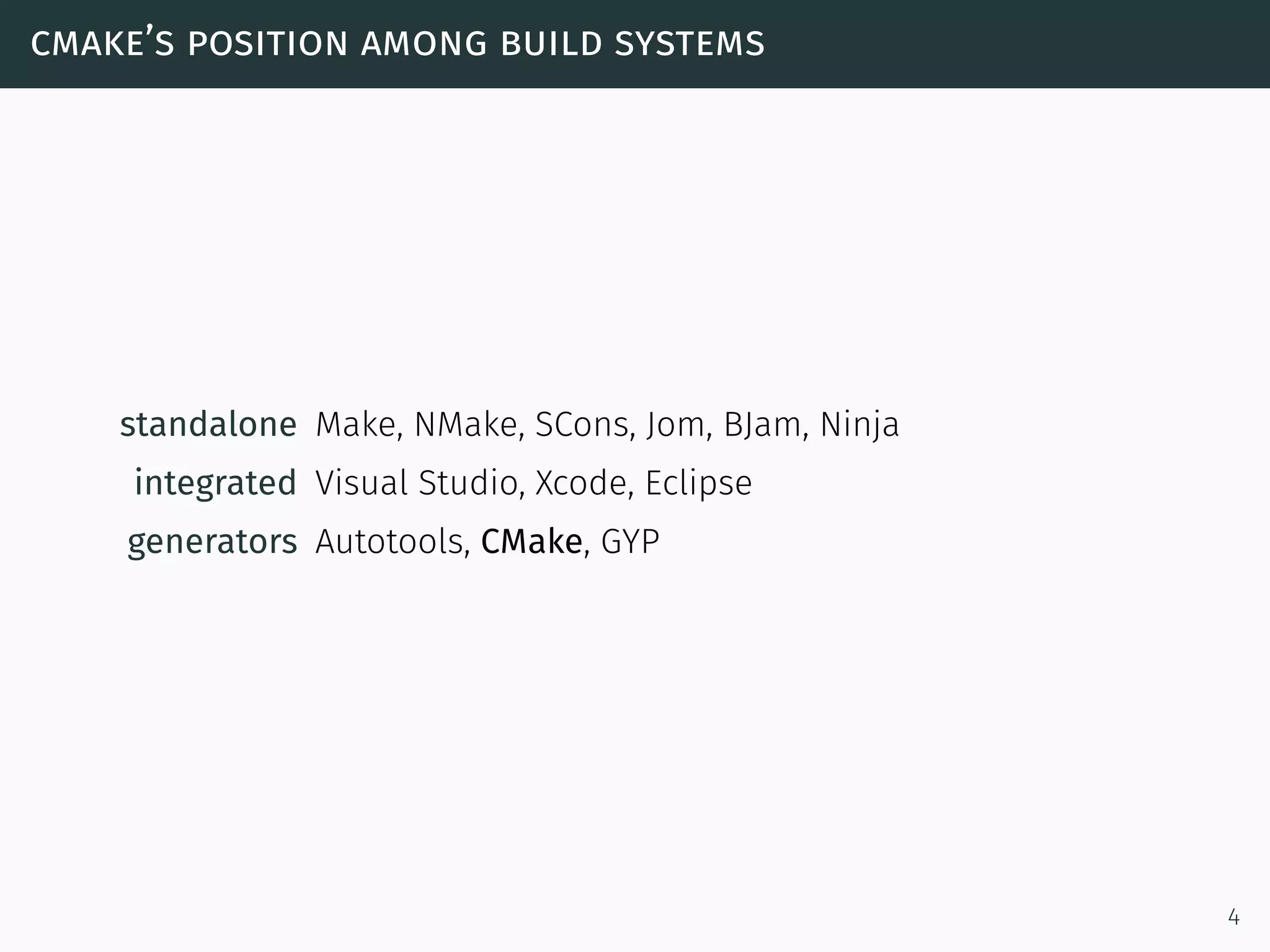

cmake’s position among build systems
standalone Make, NMake, SCons, Jom, BJam, Ninja
integrated Visual Studio, Xcode, Eclipse
generators Autotools, CMake, GYP
4

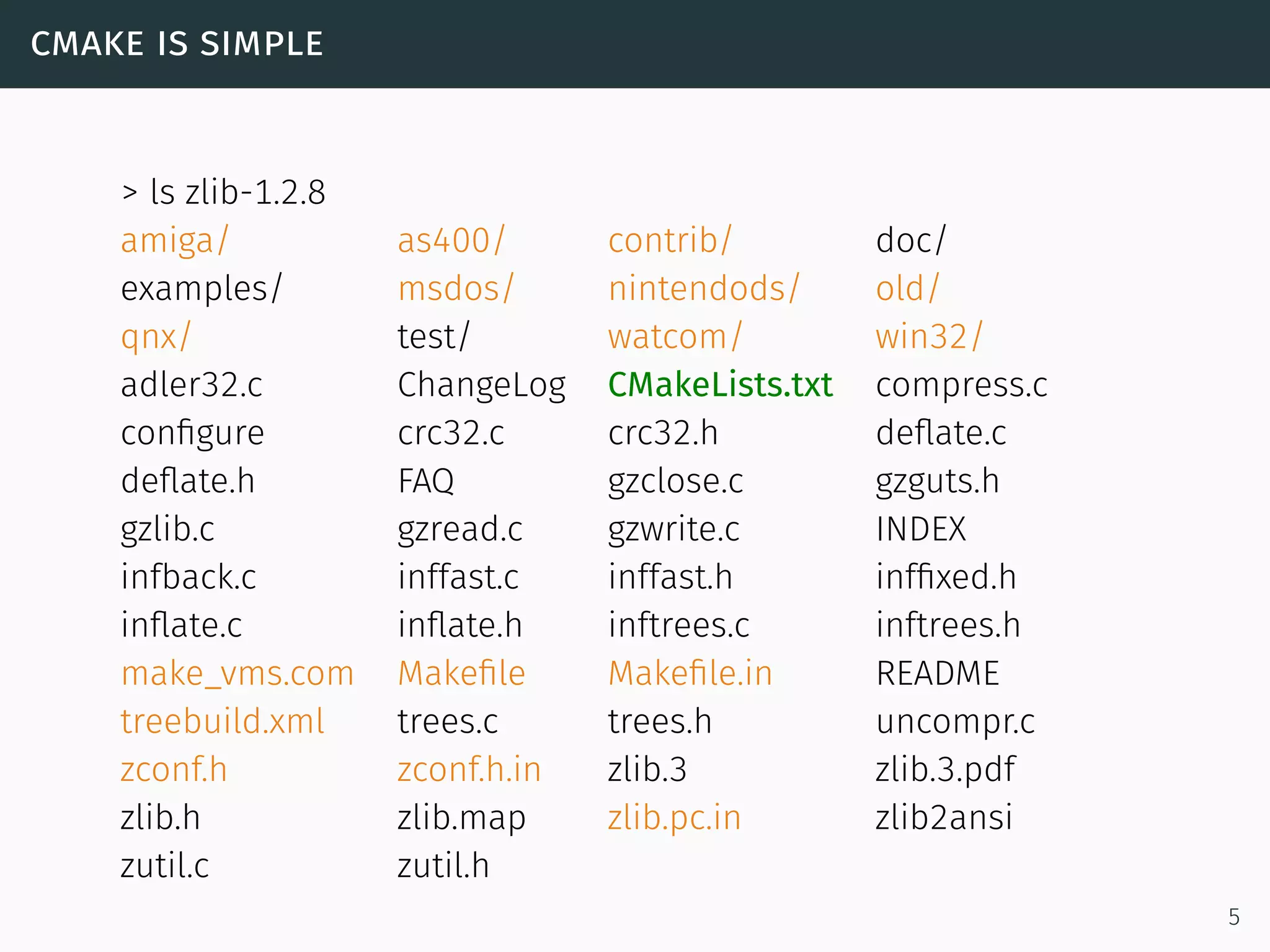

cmake is simple
> ls zlib-1.2.8
amiga/ as400/ contrib/ doc/
examples/ msdos/ nintendods/ old/
qnx/ test/ watcom/ win32/
adler32.c ChangeLog CMakeLists.txt compress.c
configure crc32.c crc32.h deflate.c
deflate.h FAQ gzclose.c gzguts.h
gzlib.c gzread.c gzwrite.c INDEX
infback.c inffast.c inffast.h inffixed.h
inflate.c inflate.h inftrees.c inftrees.h
make_vms.com Makefile Makefile.in README
treebuild.xml trees.c trees.h uncompr.c
zconf.h zconf.h.in zlib.3 zlib.3.pdf
zlib.h zlib.map zlib.pc.in zlib2ansi
zutil.c zutil.h
5
reduce your maintenance ...
You write a single configuration that CMake understands.
CMake takes care that it works on all compilers and platforms.
6
... unless you break it!
Don’t make any assumption about the platform or compiler!
7
cmake is fast!
I was quite surprised with the speed of building Quantum GIS
codebase in comparison to Autotools.2
Task CMake Autotools
Configure 0:08 0:61
Make 12:15 21:16
Install 0:20 0:36
Total 12:43 22:43
2http://blog.qgis.org/node/16.html
8
the cmake cache
∙ Compiler and platform test results are cached in
CMakeCache.txt.
∙ You can modify this file and re-run CMake.
∙ CMake also provides graphical cache editors.
9
cmake’s graphical cache editor
10
cmake’s position on the time axis
past CMake generates build systems.
today CMake is integrated into IDEs.
future IDEs run CMake as a background process.3
3http://public.kitware.com/pipermail/cmake-developers/2015-April/025012.html
11
modes of operation
cmake as a build system generator
1 > cmake [<options>] <path>
∙ If the specified path contains a CMakeCache.txt, it is treated as a
build directory where the build system is reconfigured and
regenerated.
∙ Otherwise the specified path is treated as the source directory
and the current working directory is treated as build directory.
1 > mkdir build
2 > cd build
3 > time cmake ..
4 > time cmake .
5 > time make
13

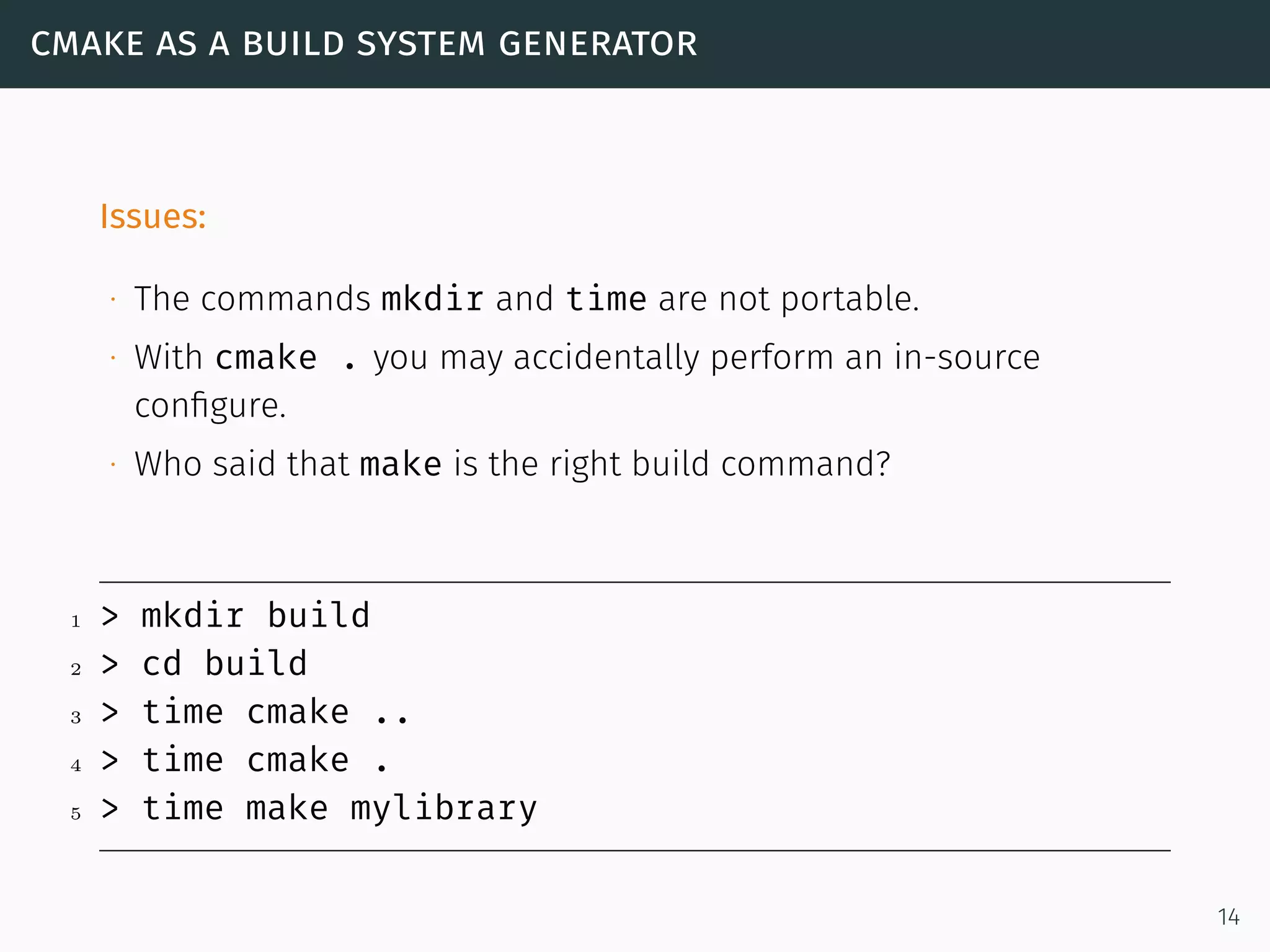

cmake as a build system generator
Issues:
∙ The commands mkdir and time are not portable.
∙ With cmake . you may accidentally perform an in-source
configure.
∙ Who said that make is the right build command?
1 > mkdir build
2 > cd build
3 > time cmake ..
4 > time cmake .
5 > time make mylibrary
14
cmake’s command-line tool mode
1 > cmake -E <command> [<options>...]
Run cmake -E help for a summary of commands.
1 > cmake -E make_directory build
2 > cmake -E chdir cmake -E time cmake ..
3 > cmake -E time cmake build
15

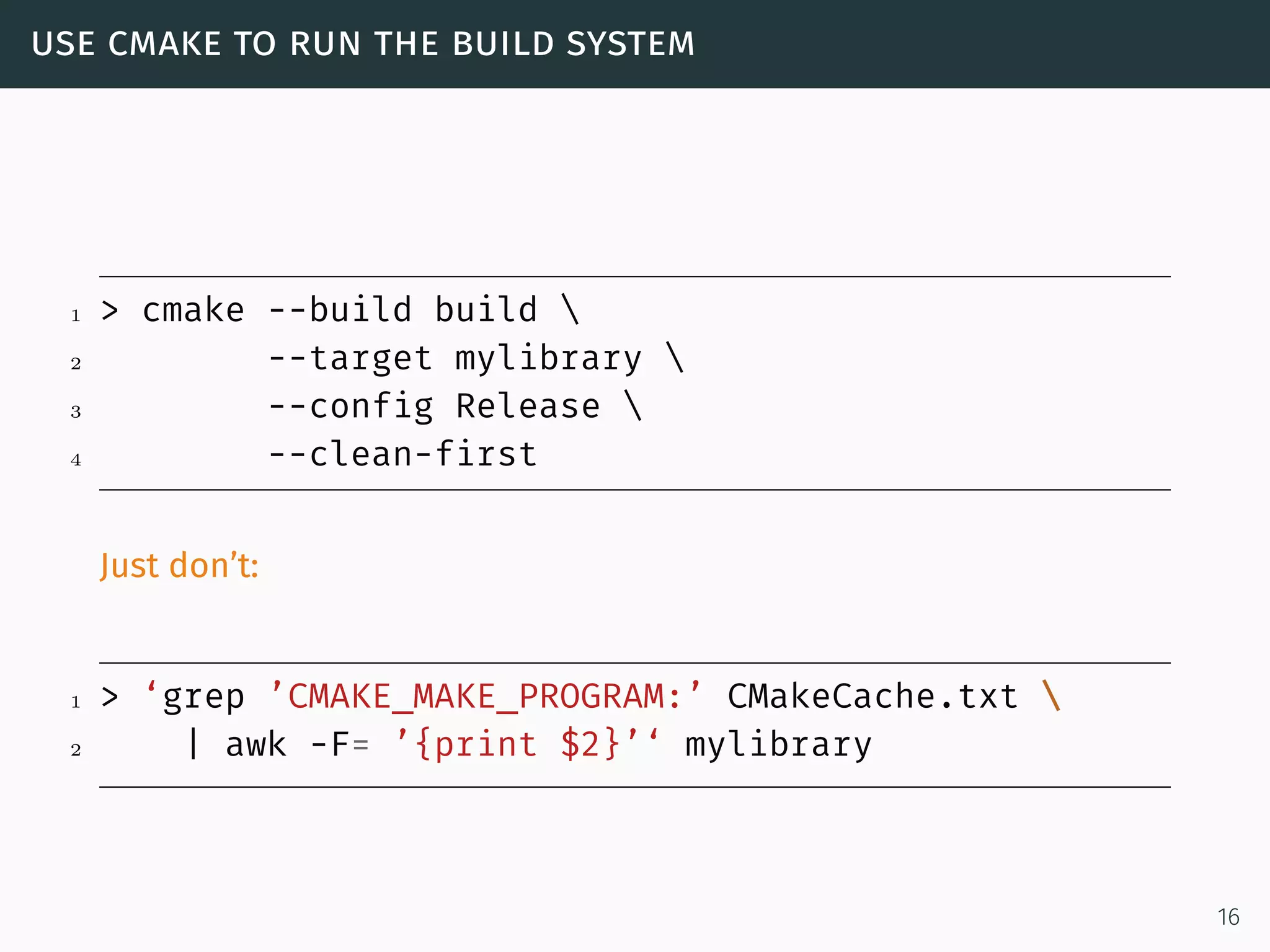

use cmake to run the build system
1 > cmake --build build
2 --target mylibrary
3 --config Release
4 --clean-first
Just don’t:
1 > ‘grep ’CMAKE_MAKE_PROGRAM:’ CMakeCache.txt
2 | awk -F= ’{print $2}’‘ mylibrary
16
cmake as a scripting language
1 > cat hello_world.cmake
2 foreach(greet Hello Goodbye)
3 message(”${greet}, World!”)
4 endforeach()
5
6 > cmake -P hello_world.cmake
7 Hello, World!
8 Goodbye, World!
No configure or generate step is performed and the cache is not
modified.
17
Resist the bash/perl/python temptation!
18

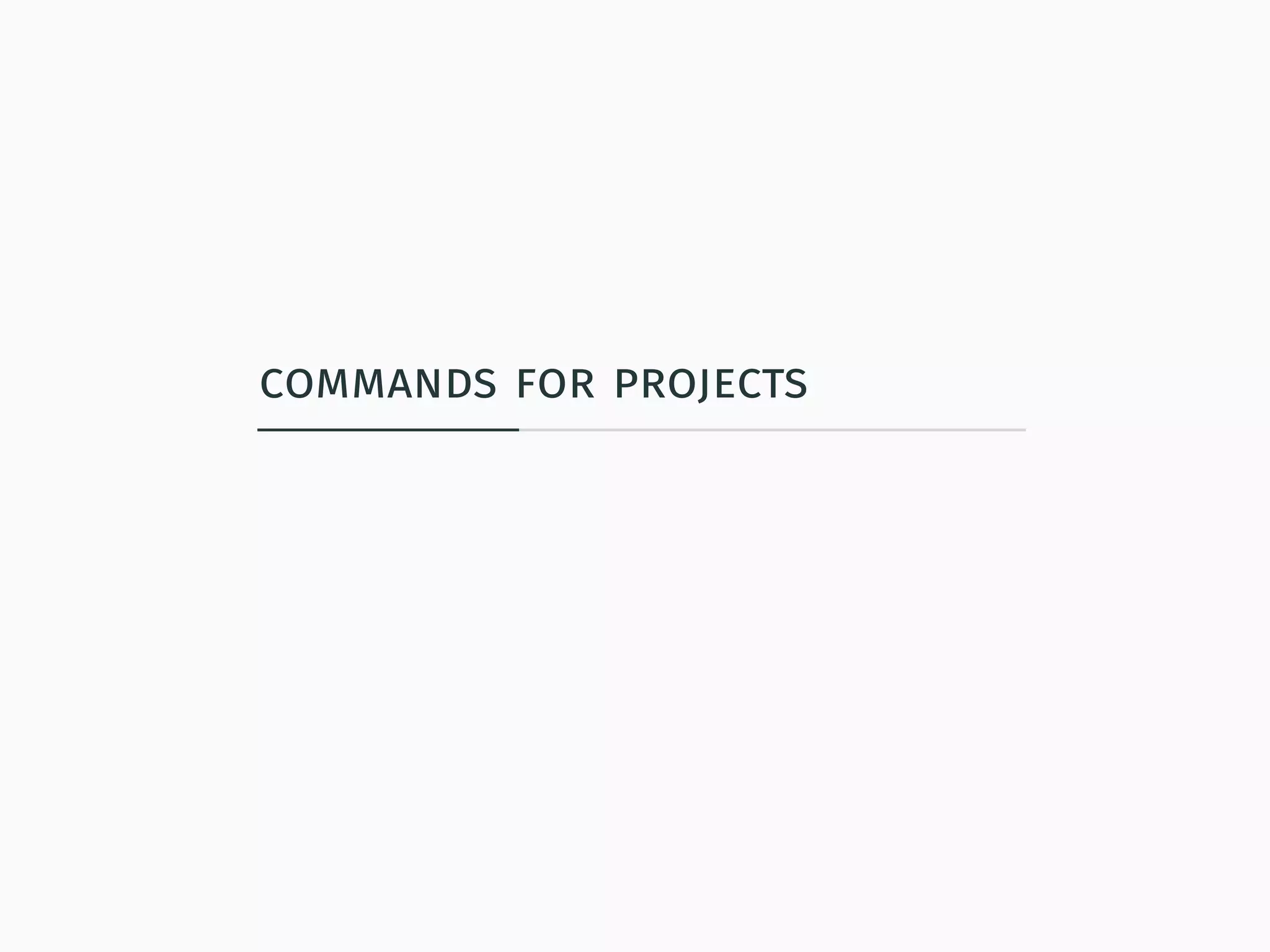

commands for projects

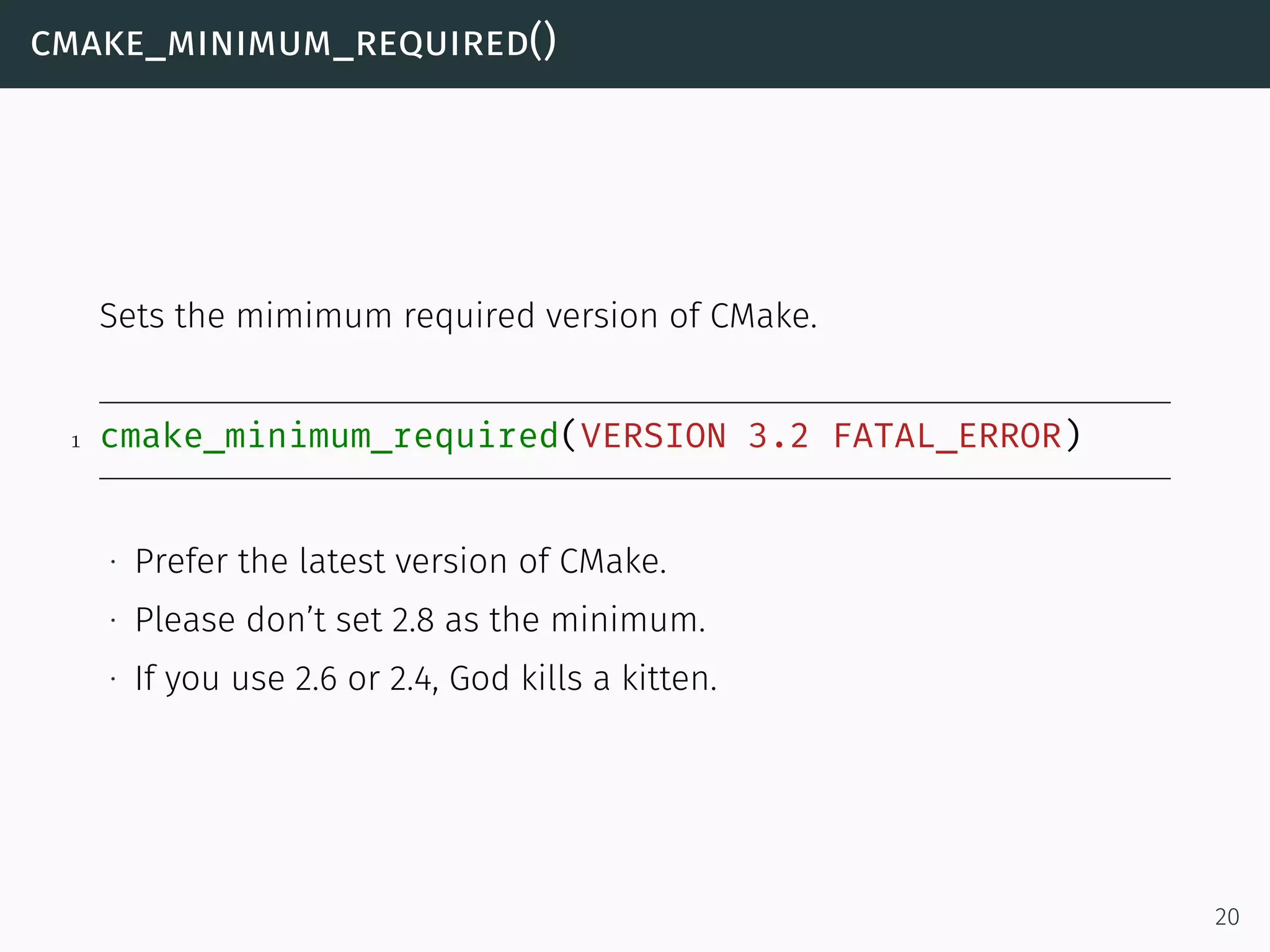

cmake_minimum_required()
Sets the mimimum required version of CMake.
1 cmake_minimum_required(VERSION 3.2 FATAL_ERROR)
∙ Prefer the latest version of CMake.
∙ Please don’t set 2.8 as the minimum.
∙ If you use 2.6 or 2.4, God kills a kitten.
20
project()
Set the name and version; enable languages.
1 project(<name> VERSION <version> LANGUAGES CXX)
∙ CMake sets several variables based on project().
∙ Call to project() must be direct, not through a
function/macro/include.
∙ CMake will add a call to project() if not found on the top level.
21
add_subdirectory()
Embed projects as sub-projects.
1 add_subdirectory(<sourcedir> [<binarydir>])
∙ CMake creates a Makefile/Solution for each subproject.
∙ The subproject does not have to reside in a subfolder.
22
hint!
Make sure that all your projects can be built both standalone and as
a subproject of another project:
∙ Don’t assume that your project root is the build root.
∙ Don’t modify global compile/link flags.
∙ Don’t make any global changes!
23

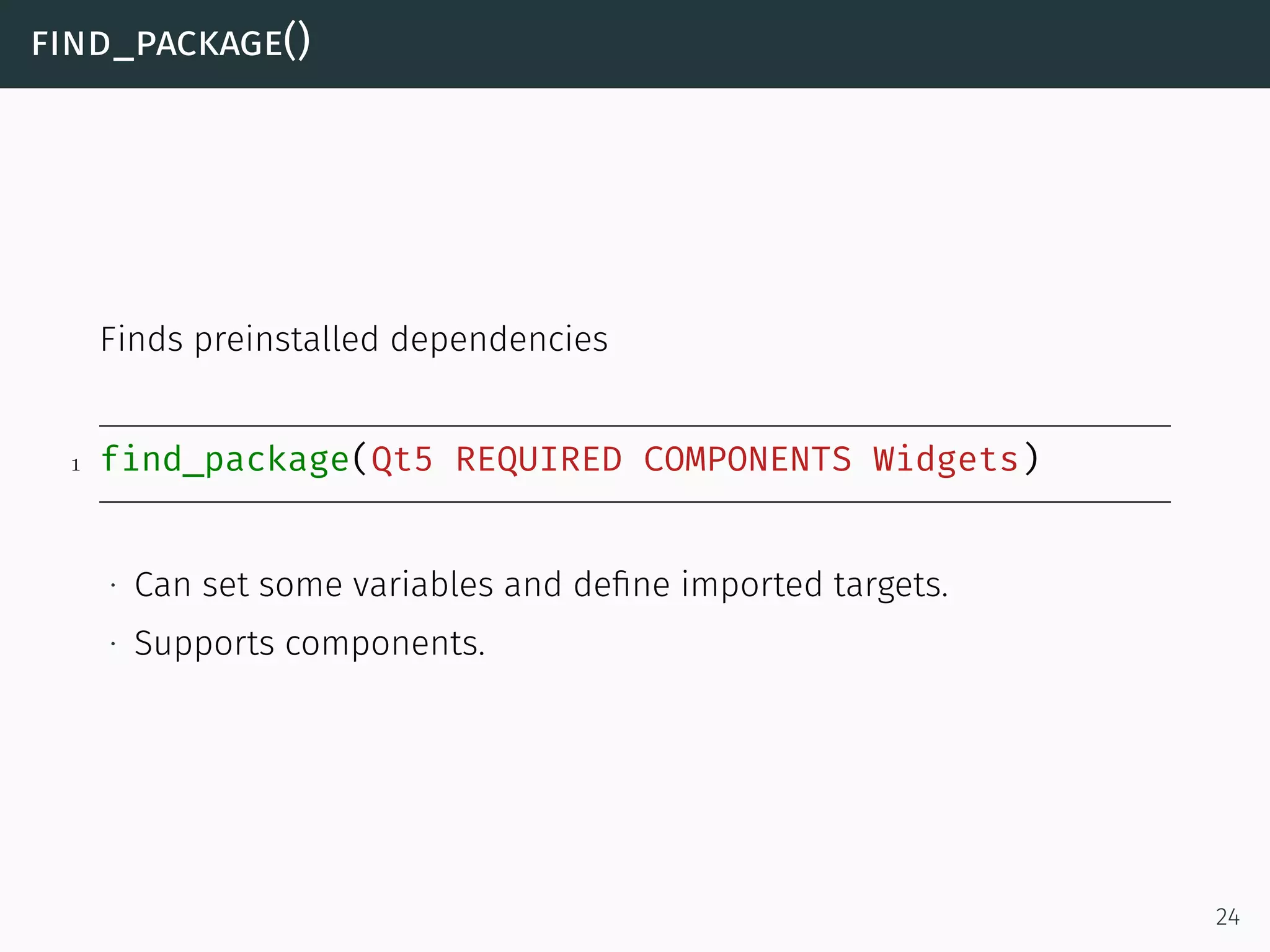

find_package()
Finds preinstalled dependencies
1 find_package(Qt5 REQUIRED COMPONENTS Widgets)
∙ Can set some variables and define imported targets.
∙ Supports components.
24

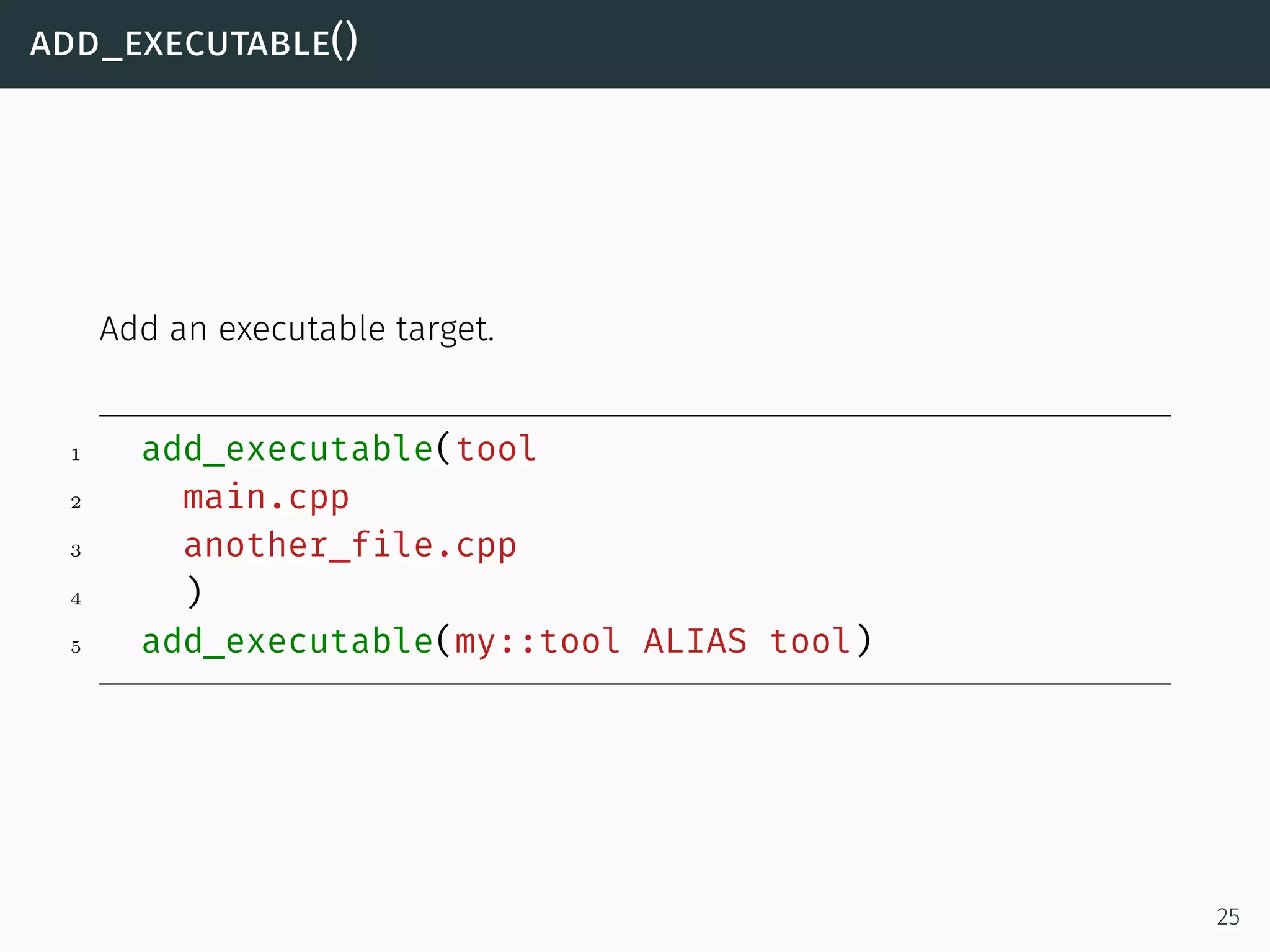

add_executable()
Add an executable target.
1 add_executable(tool
2 main.cpp
3 another_file.cpp
4 )
5 add_executable(my::tool ALIAS tool)
25
add_library()
Add a library target.
1 add_library(foo STATIC
2 foo1.cpp
3 foo2.cpp
4 )
5 add_library(my::foo ALIAS foo)
∙ Libraries can be STATIC, SHARED, MODULE, or INTERFACE.
∙ Default can be controlled with BUILD_SHARED_LIBS.
26

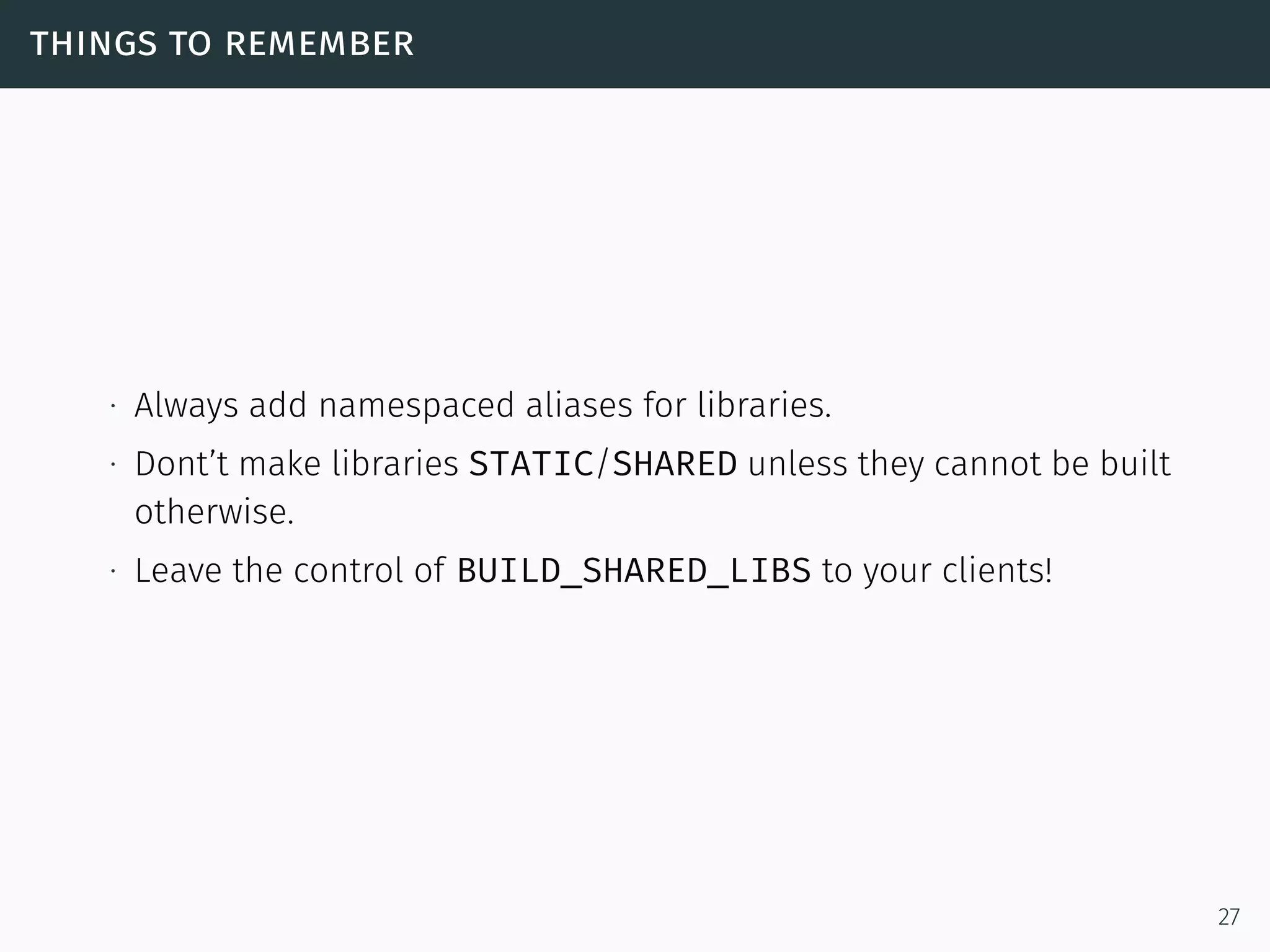

things to remember
∙ Always add namespaced aliases for libraries.
∙ Dont’t make libraries STATIC/SHARED unless they cannot be built
otherwise.
∙ Leave the control of BUILD_SHARED_LIBS to your clients!
27
usage requirements

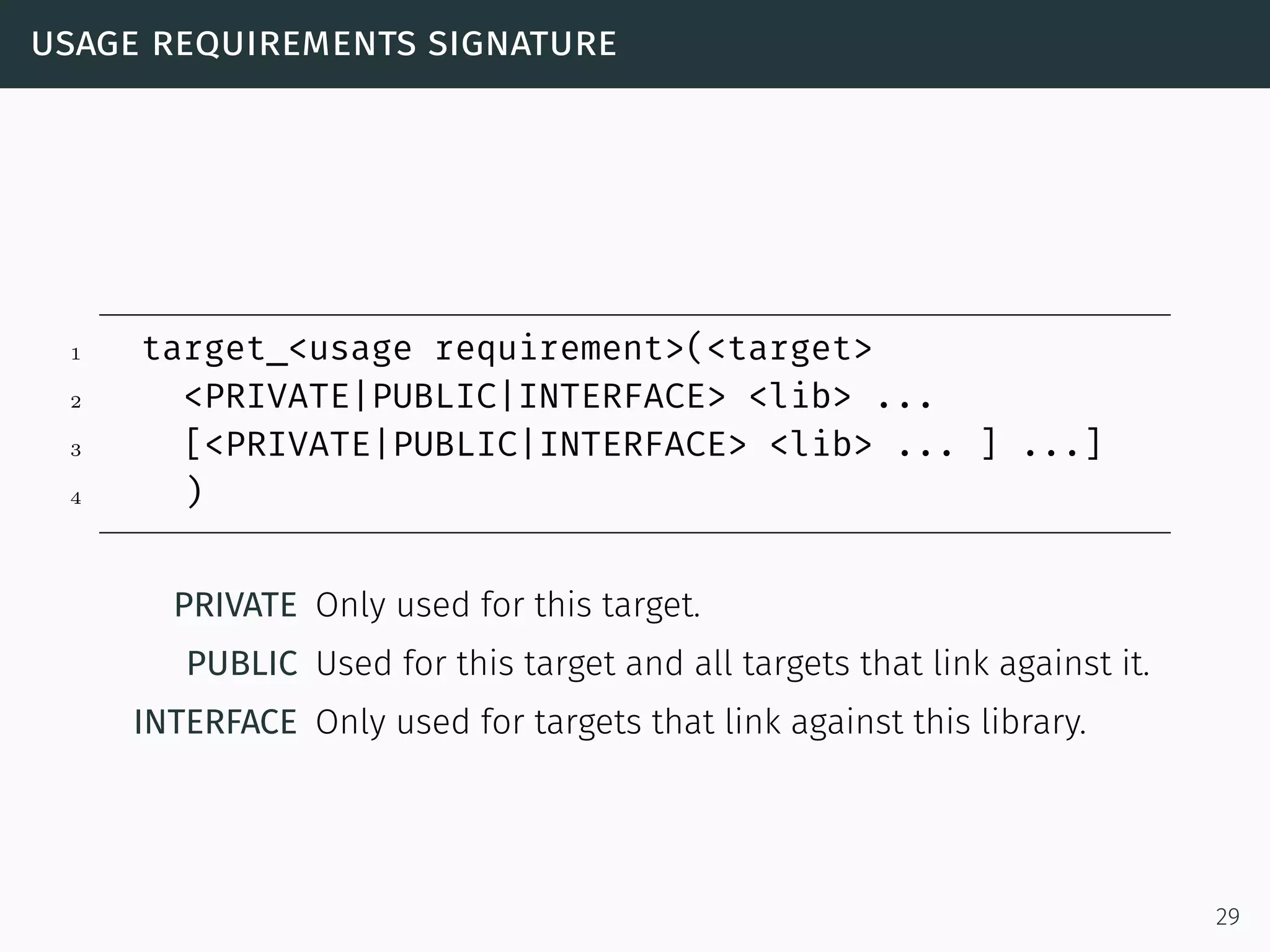

usage requirements signature
1 target_<usage requirement>(<target>
2 <PRIVATE|PUBLIC|INTERFACE> <lib> ...
3 [<PRIVATE|PUBLIC|INTERFACE> <lib> ... ] ...]
4 )
PRIVATE Only used for this target.
PUBLIC Used for this target and all targets that link against it.
INTERFACE Only used for targets that link against this library.
29

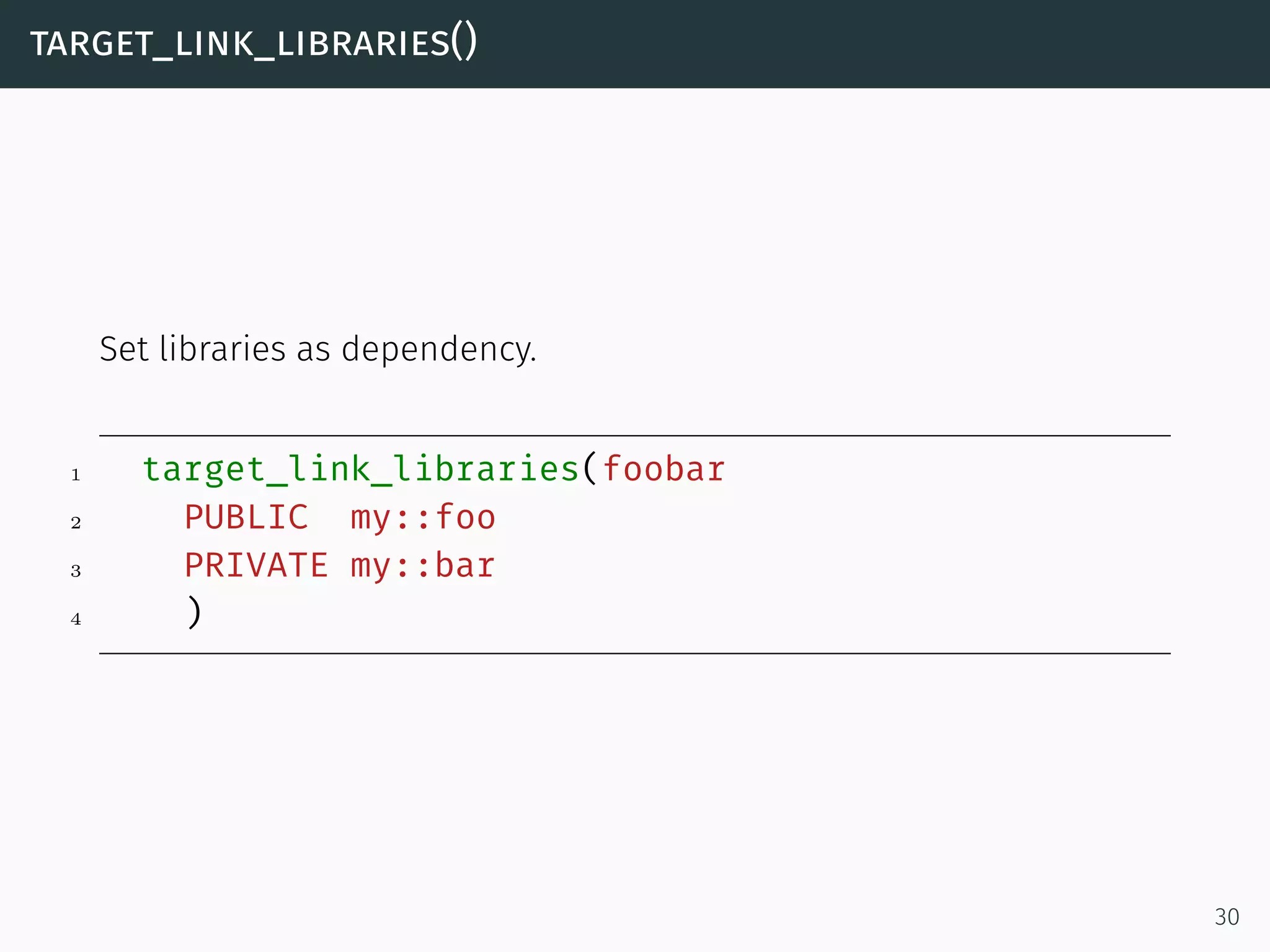

target_link_libraries()
Set libraries as dependency.
1 target_link_libraries(foobar
2 PUBLIC my::foo
3 PRIVATE my::bar
4 )
30

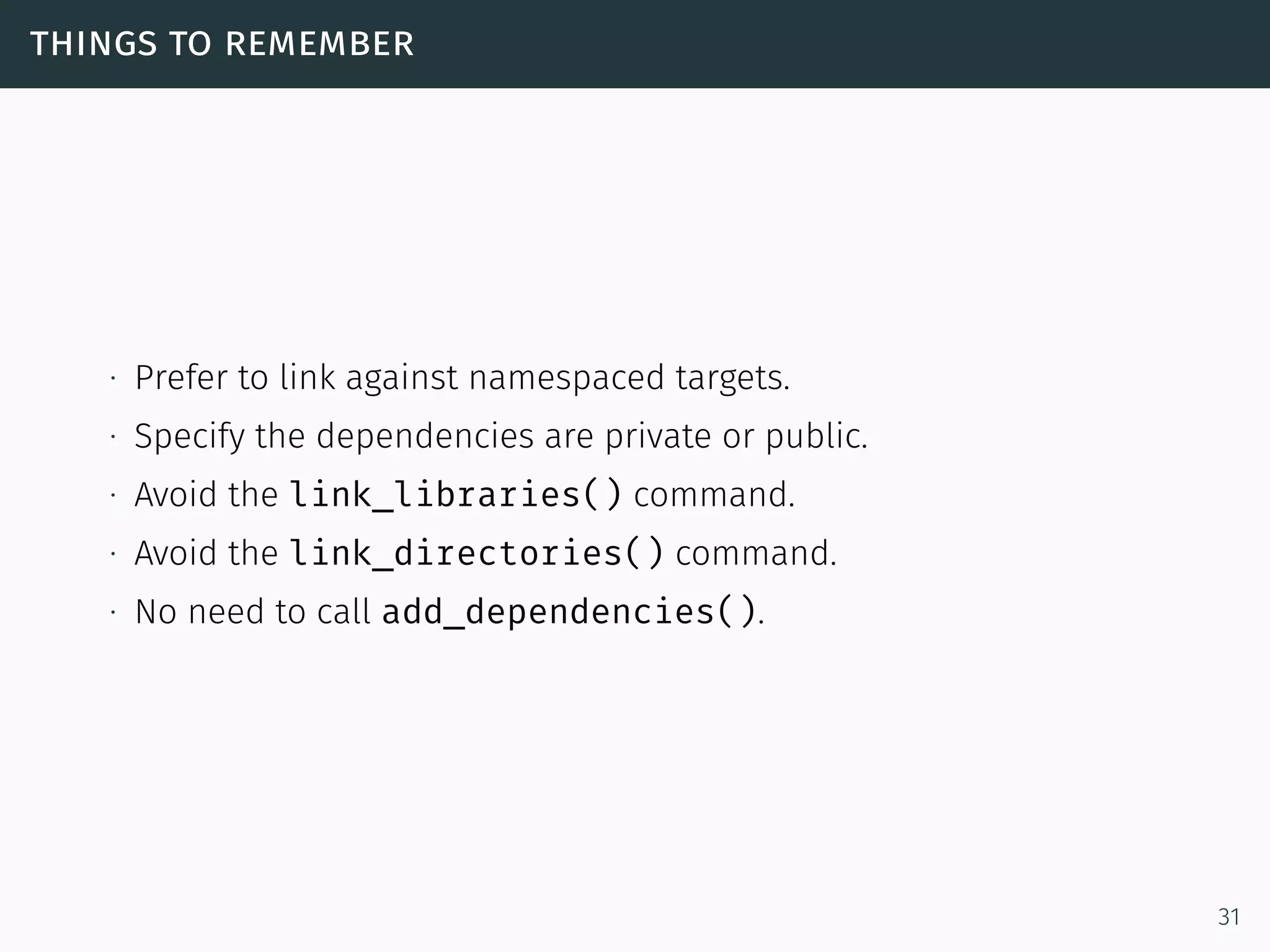

things to remember
∙ Prefer to link against namespaced targets.
∙ Specify the dependencies are private or public.
∙ Avoid the link_libraries() command.
∙ Avoid the link_directories() command.
∙ No need to call add_dependencies().
31

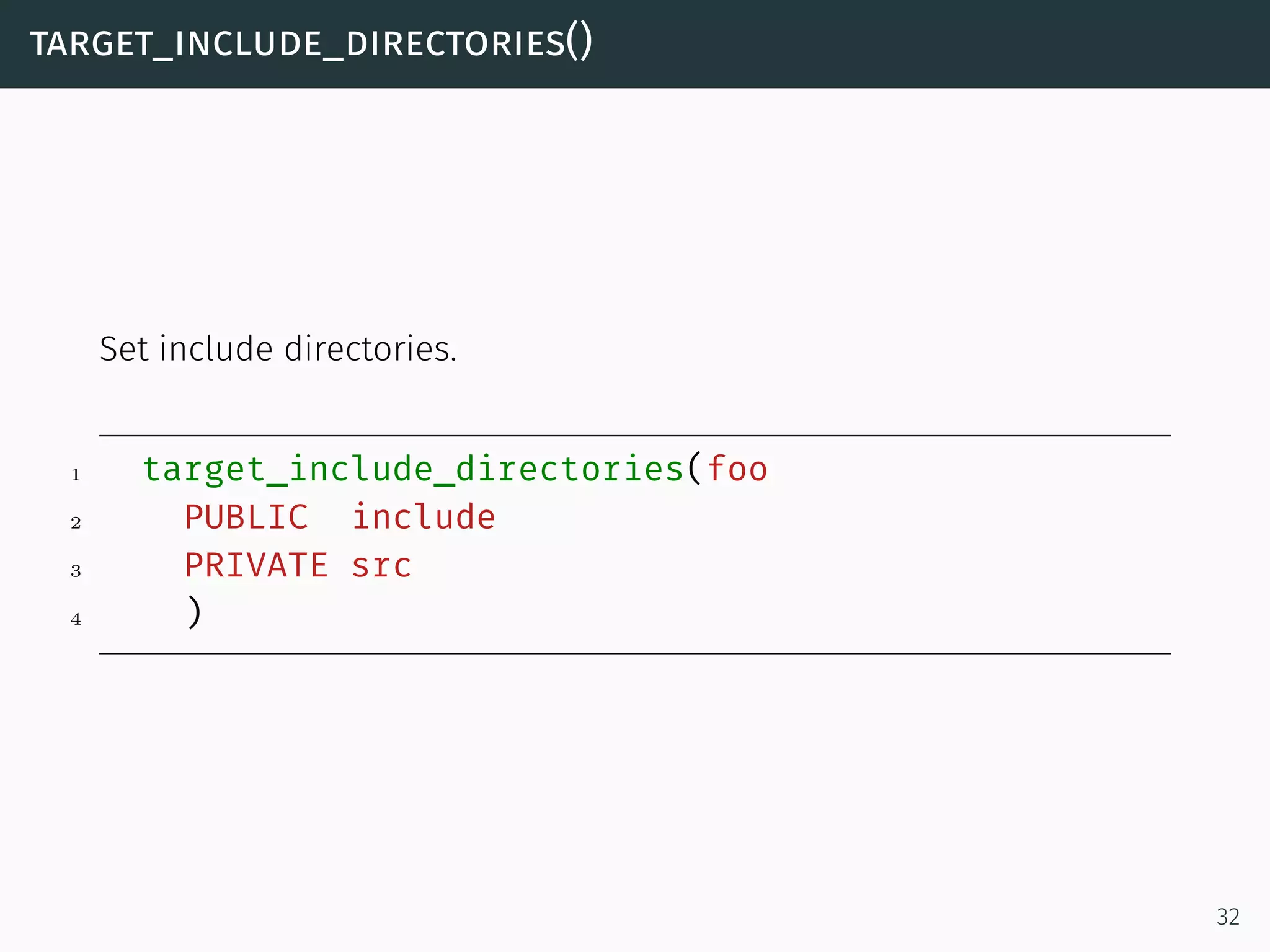

target_include_directories()
Set include directories.
1 target_include_directories(foo
2 PUBLIC include
3 PRIVATE src
4 )
32

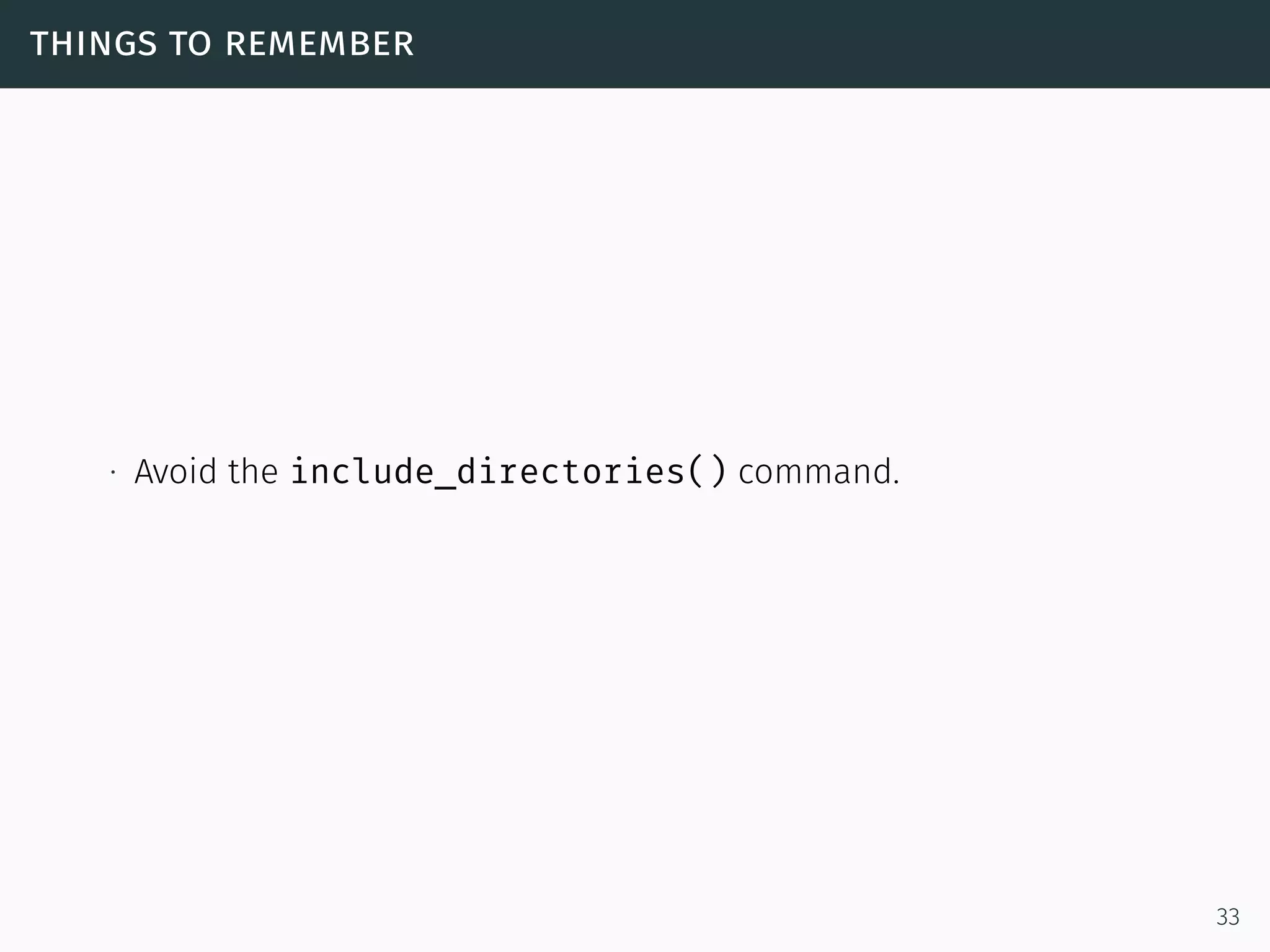

things to remember
∙ Avoid the include_directories() command.
33

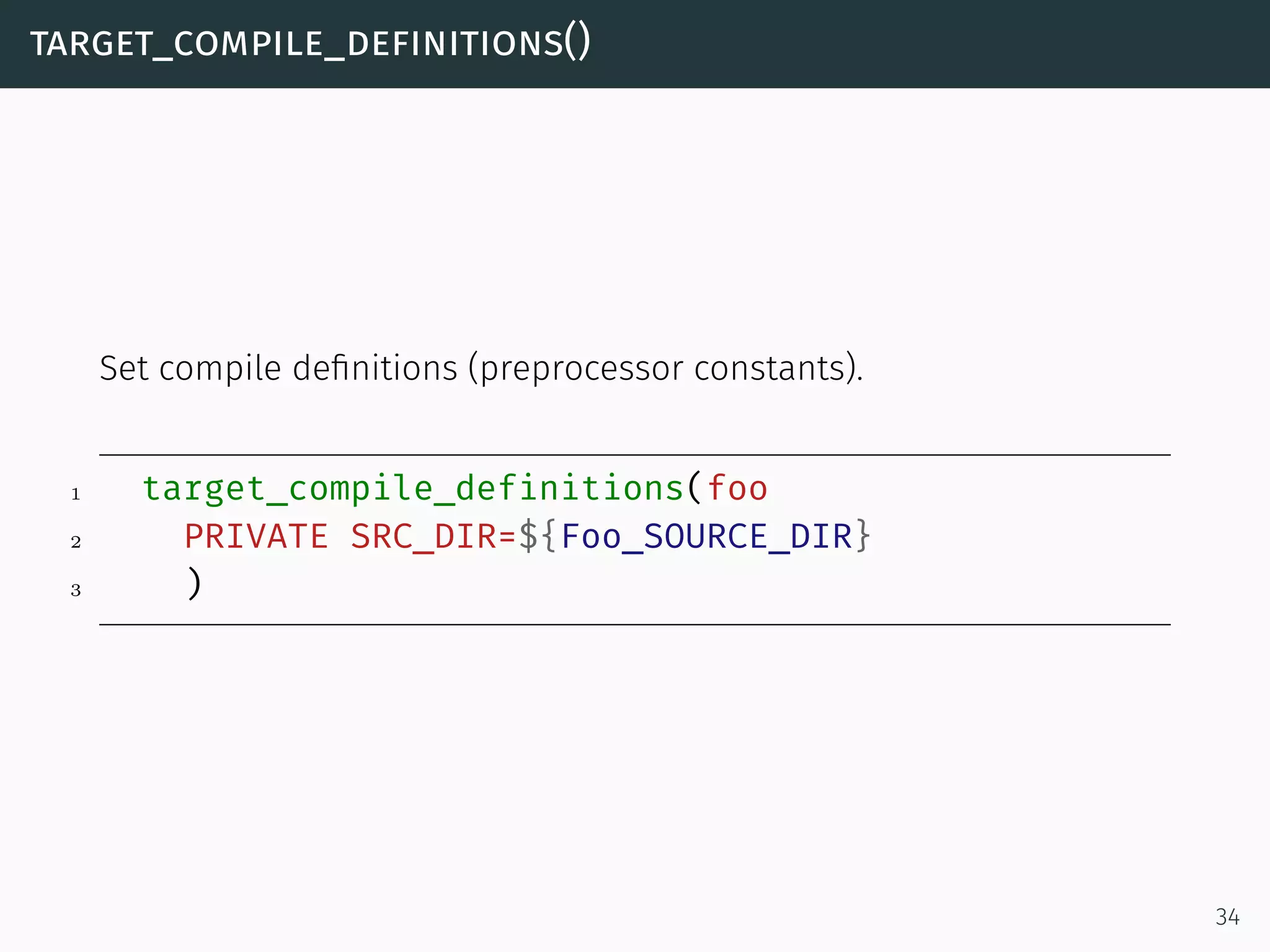

target_compile_definitions()
Set compile definitions (preprocessor constants).
1 target_compile_definitions(foo
2 PRIVATE SRC_DIR=${Foo_SOURCE_DIR}
3 )
34

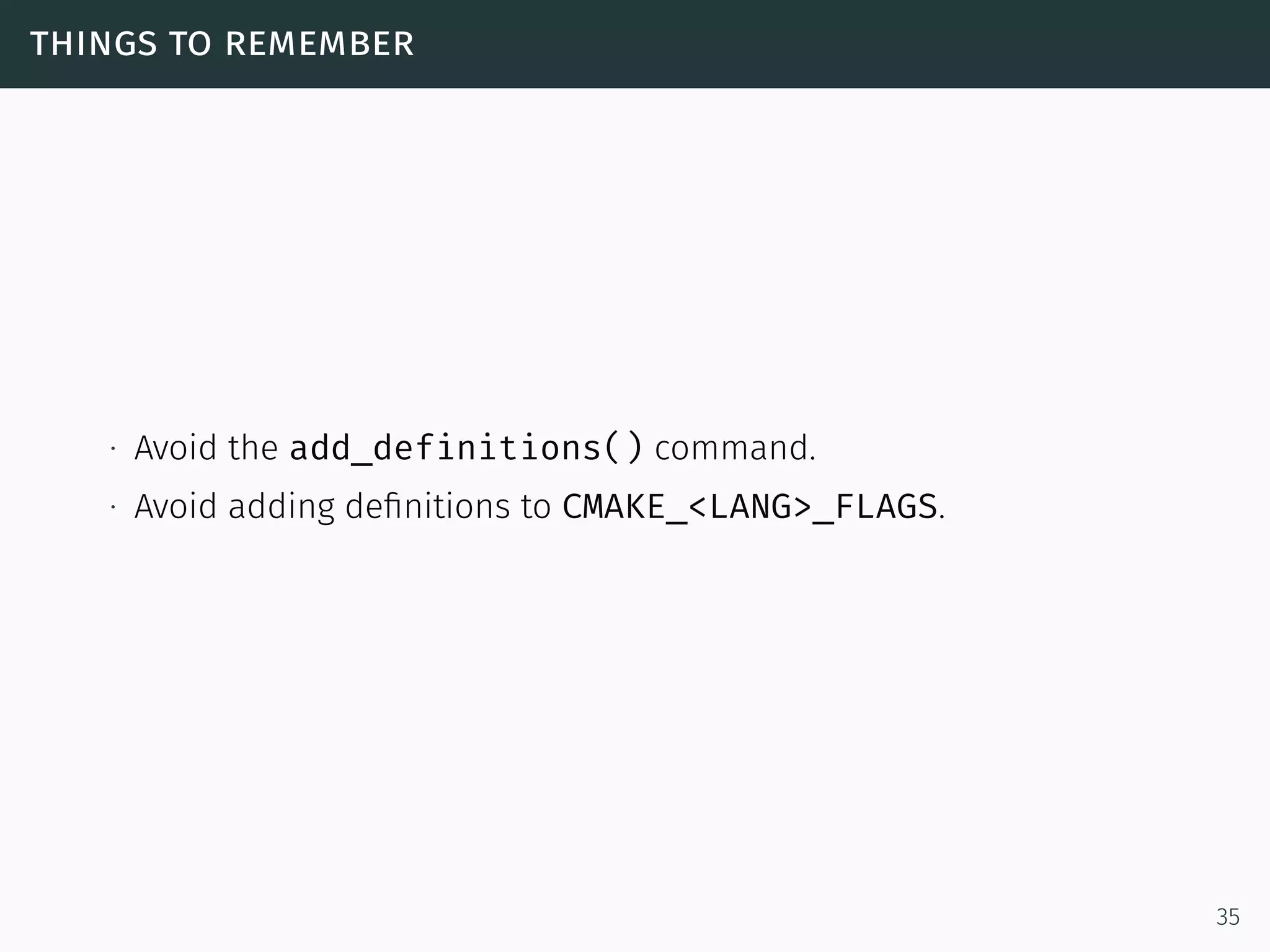

things to remember
∙ Avoid the add_definitions() command.
∙ Avoid adding definitions to CMAKE_<LANG>_FLAGS.
35

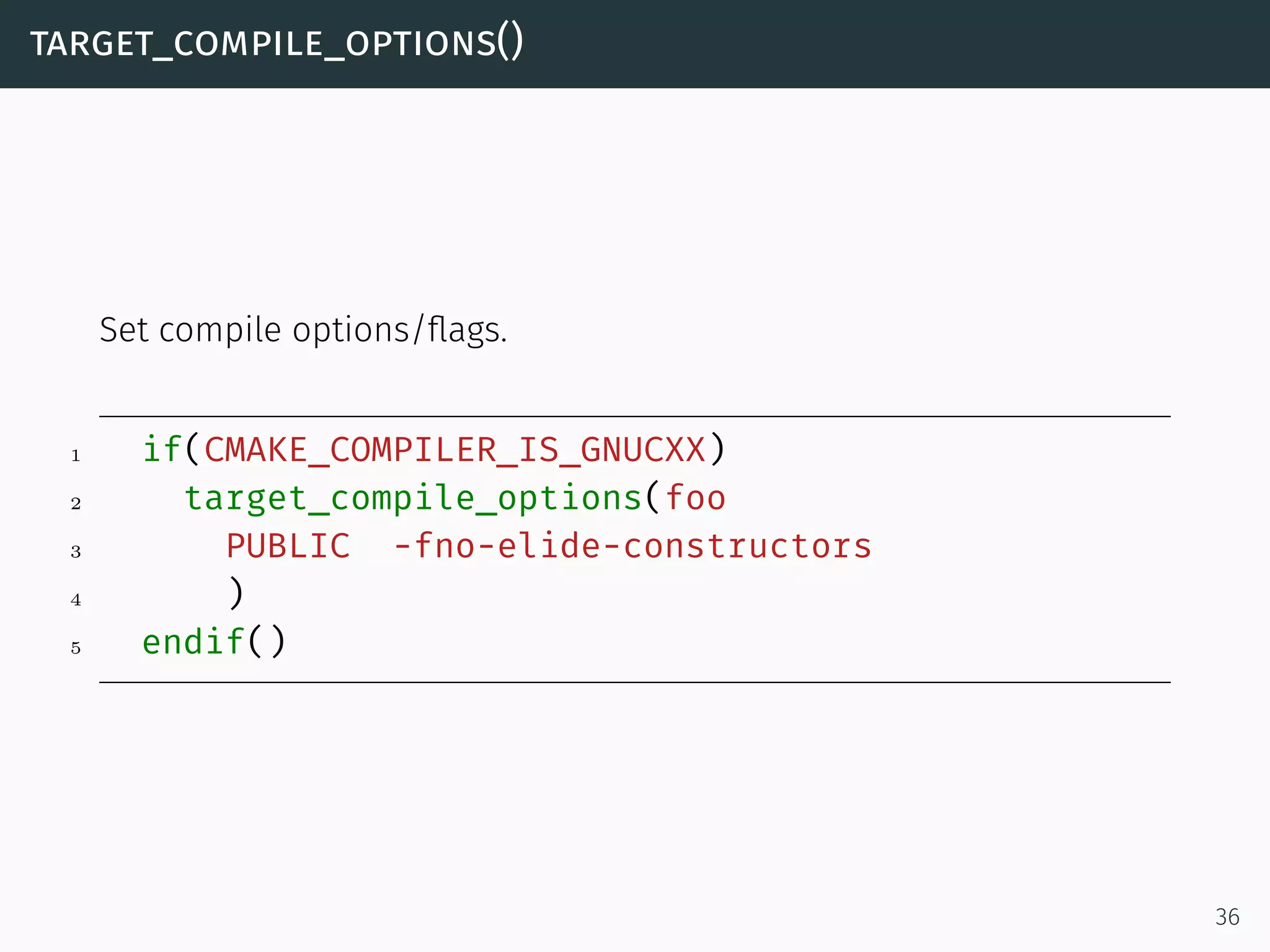

target_compile_options()
Set compile options/flags.
1 if(CMAKE_COMPILER_IS_GNUCXX)
2 target_compile_options(foo
3 PUBLIC -fno-elide-constructors
4 )
5 endif()
36

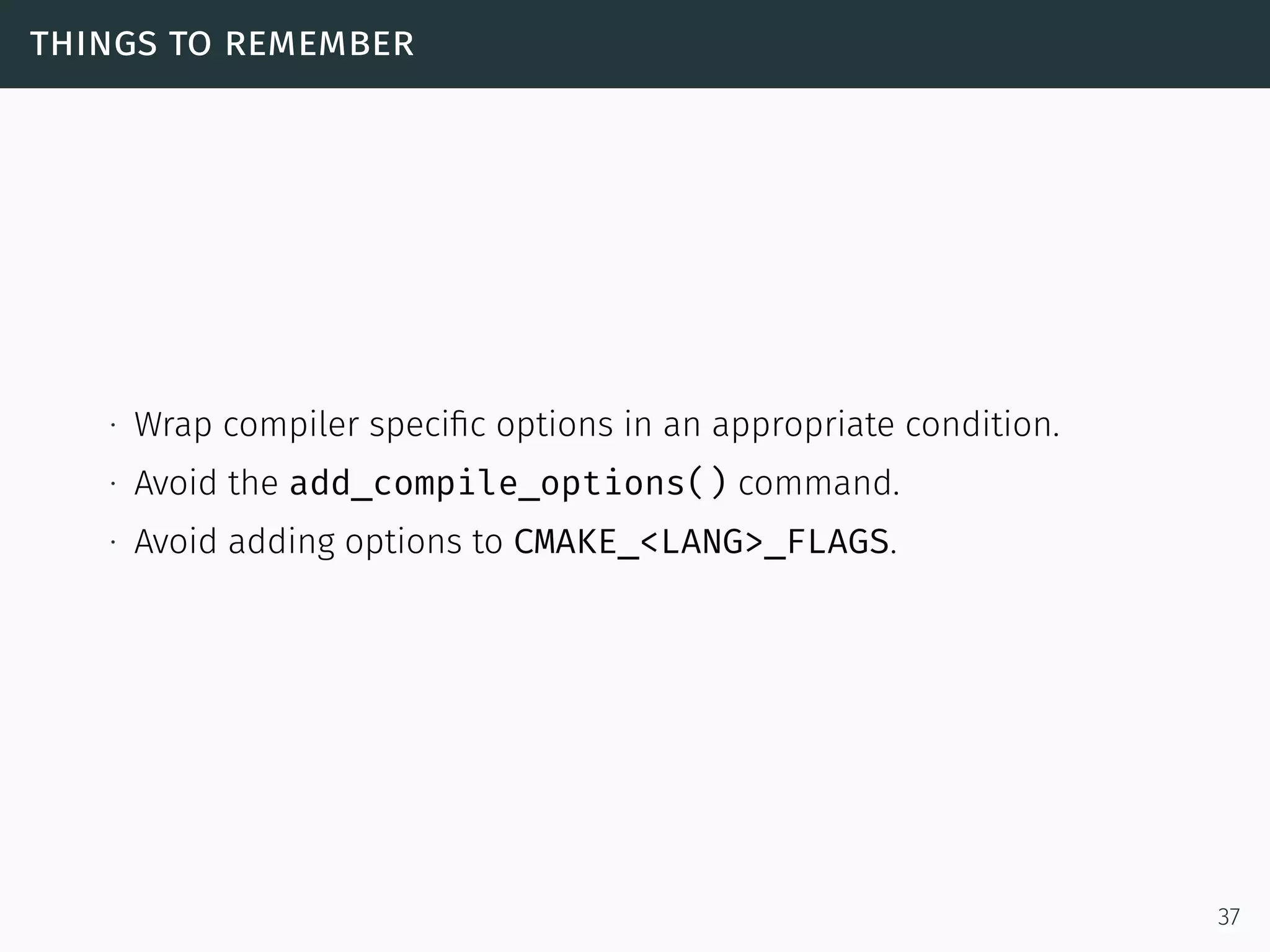

things to remember
∙ Wrap compiler specific options in an appropriate condition.
∙ Avoid the add_compile_options() command.
∙ Avoid adding options to CMAKE_<LANG>_FLAGS.
37
target_compile_features()
Set required compiler features.
1 target_compile_features(foo
2 PUBLIC
3 cxx_auto_type
4 cxx_range_for
5 PRIVATE
6 cxx_variadic_templates
7 )
∙ CMake will add required compile flags.
∙ Errors if the compiler is not supported.
38

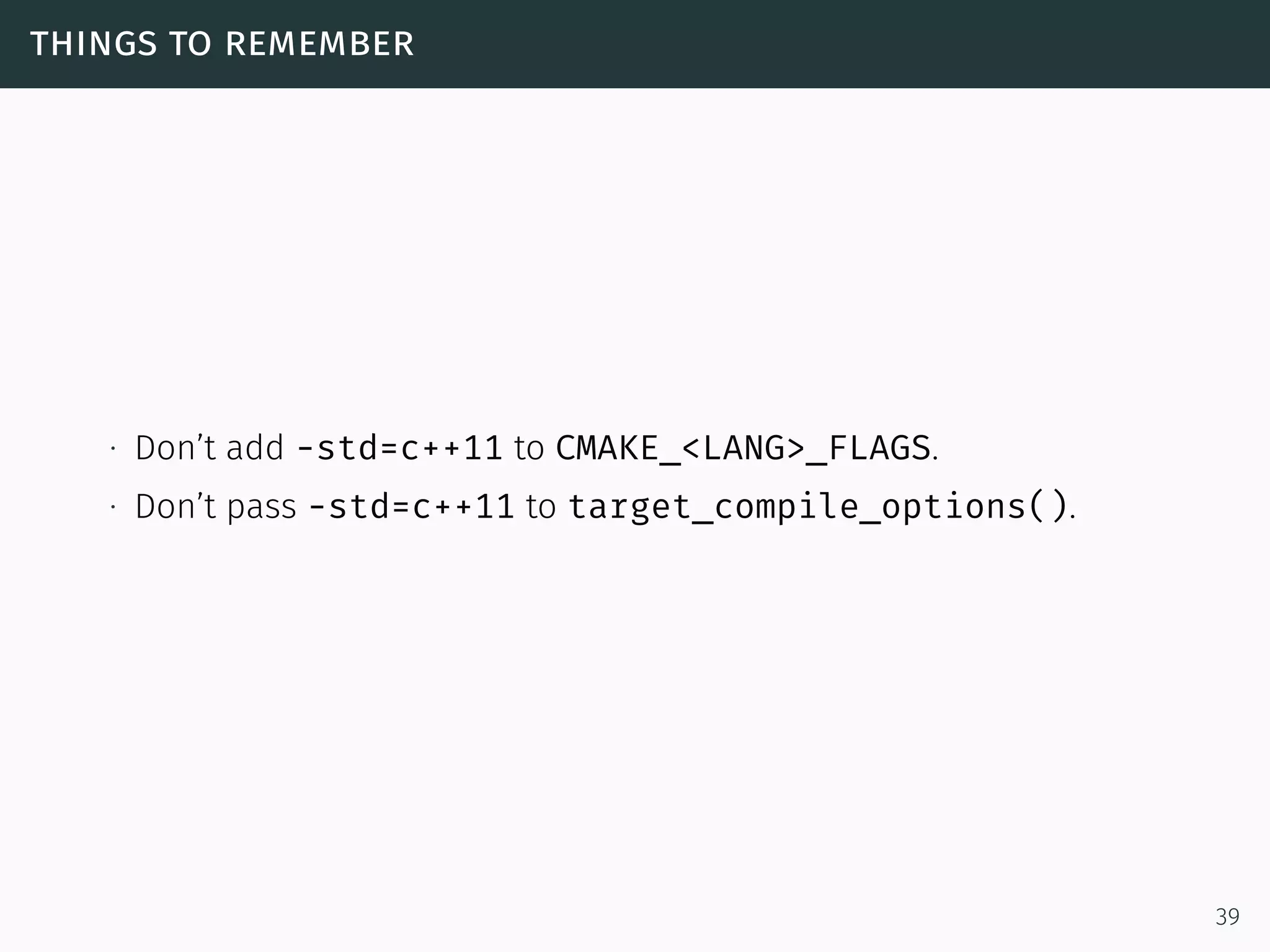

things to remember
∙ Don’t add -std=c++11 to CMAKE_<LANG>_FLAGS.
∙ Don’t pass -std=c++11 to target_compile_options().
39

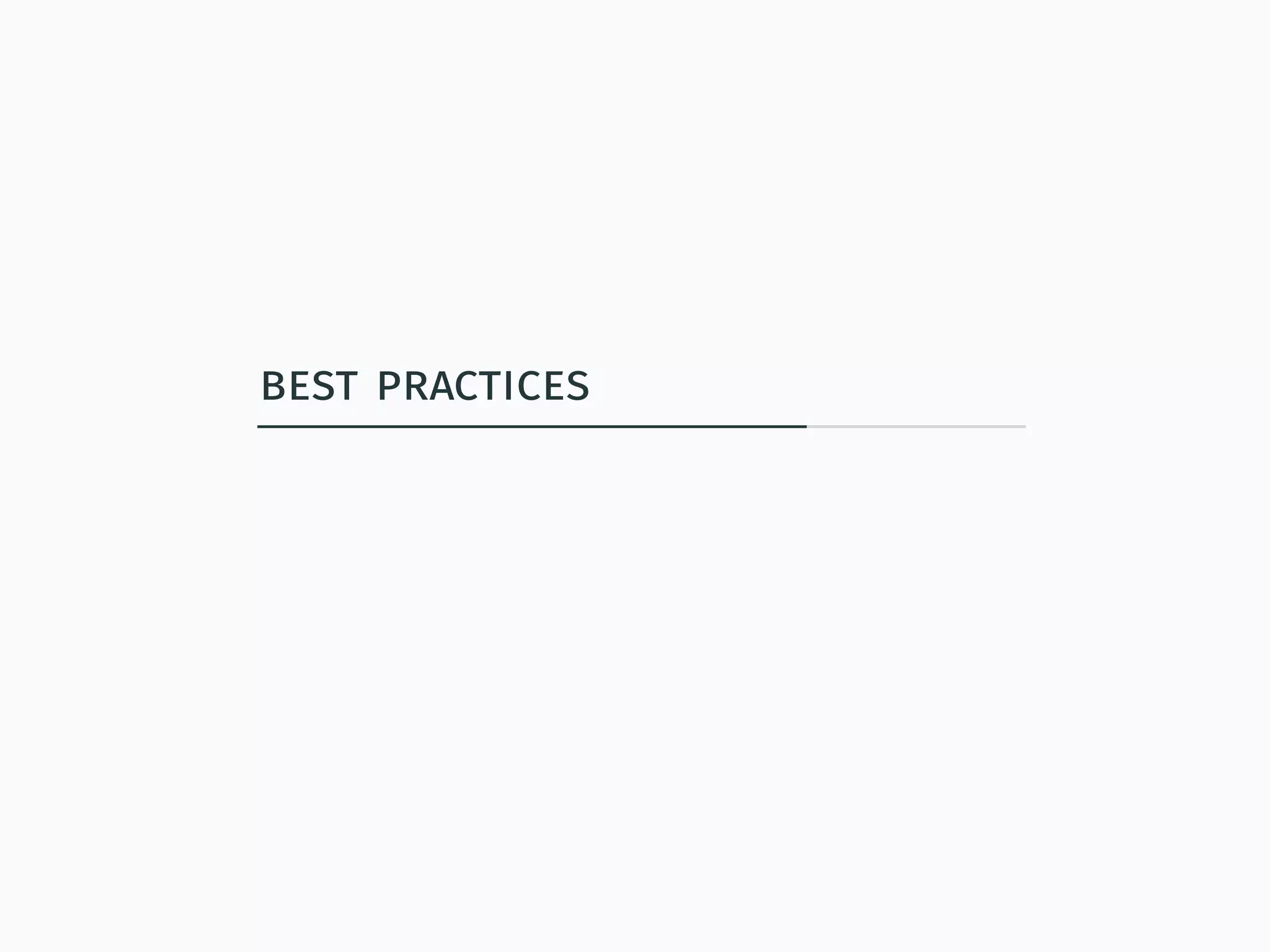

best practices

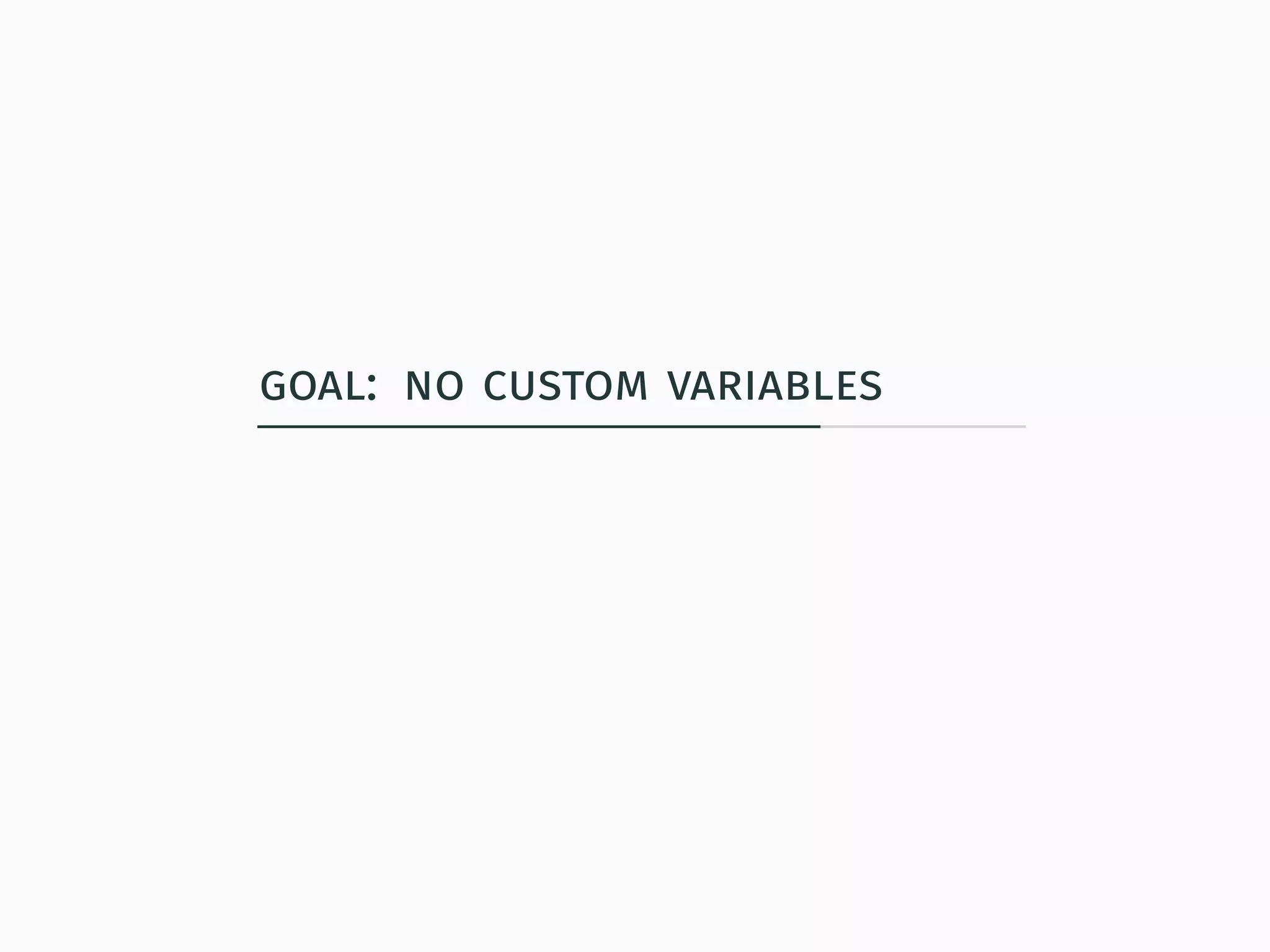

goal: no custom variables

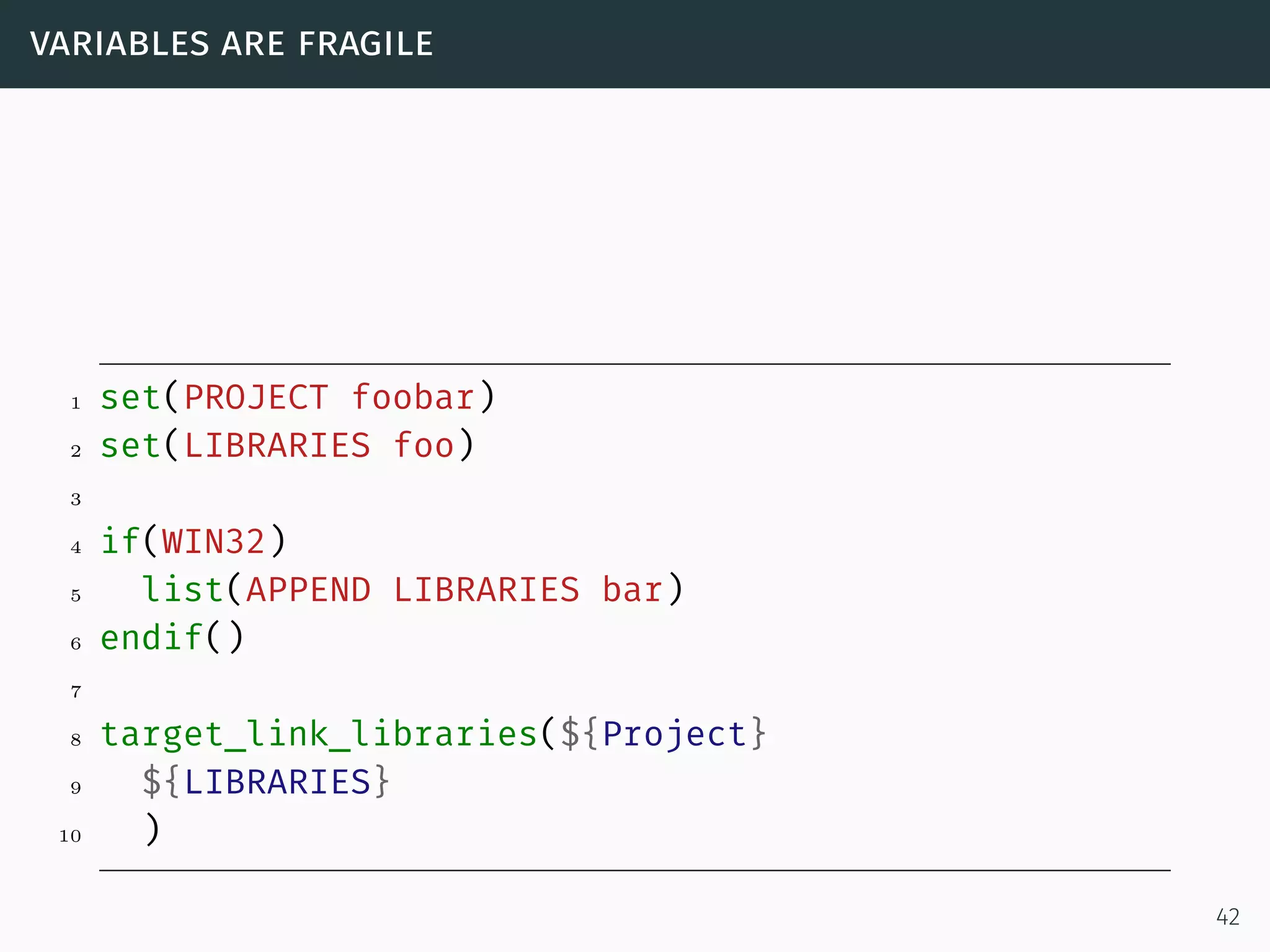

variables are fragile
1 set(PROJECT foobar)
2 set(LIBRARIES foo)
3
4 if(WIN32)
5 list(APPEND LIBRARIES bar)
6 endif()
7
8 target_link_libraries(${Project}
9 ${LIBRARIES}
10 )
42

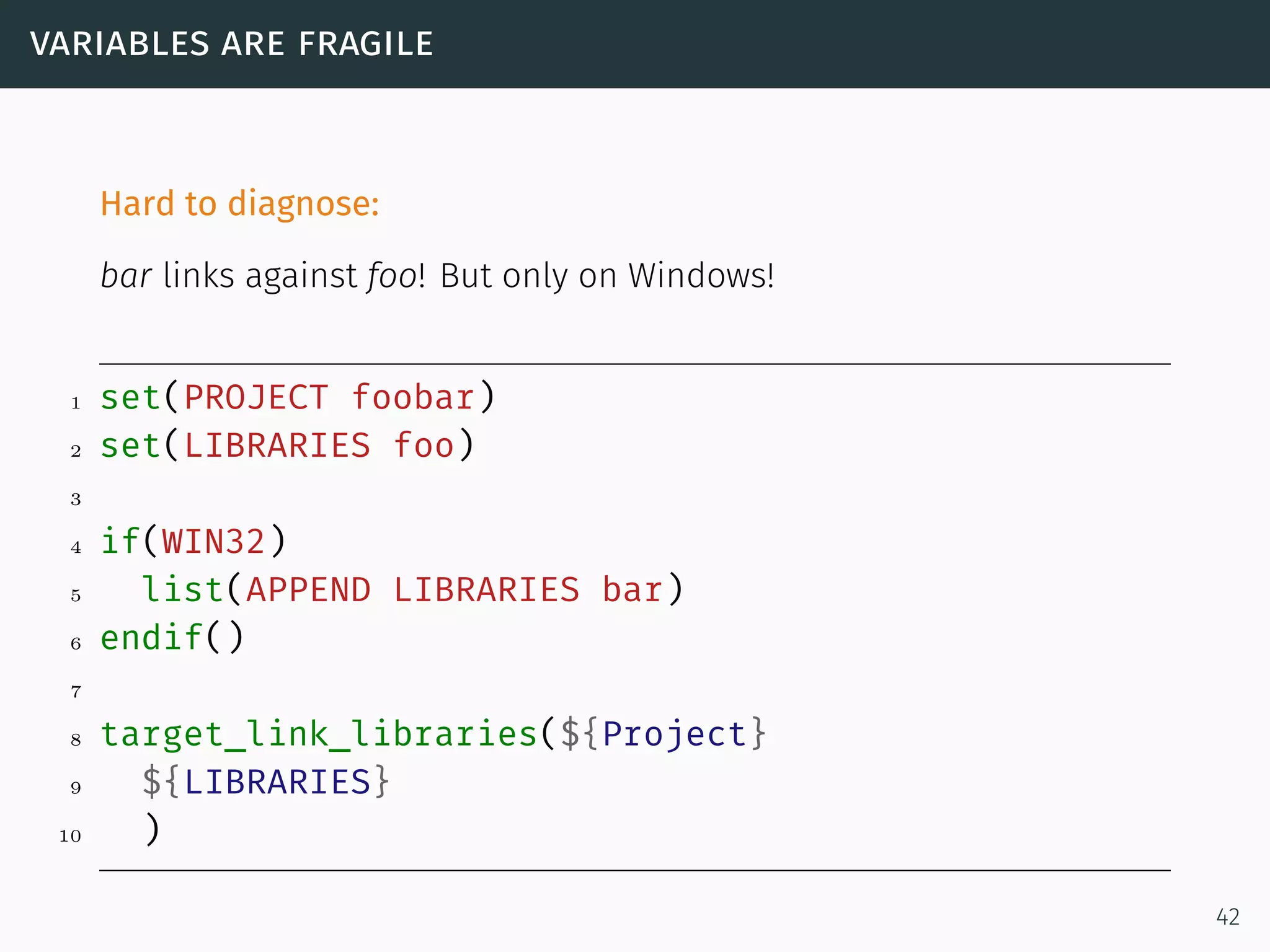

variables are fragile
Hard to diagnose:
bar links against foo! But only on Windows!
1 set(PROJECT foobar)
2 set(LIBRARIES foo)
3
4 if(WIN32)
5 list(APPEND LIBRARIES bar)
6 endif()
7
8 target_link_libraries(${Project}
9 ${LIBRARIES}
10 )
42

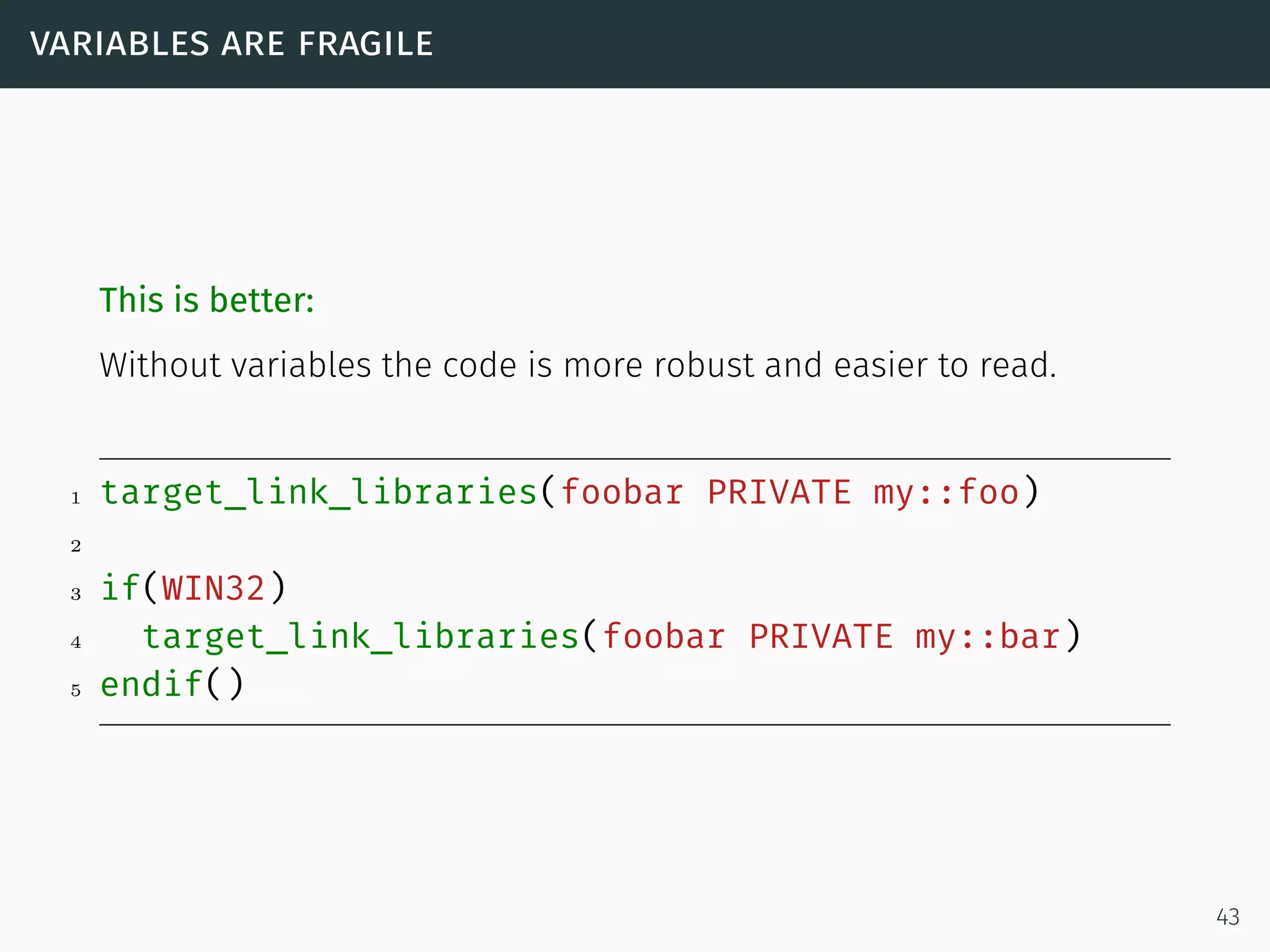

variables are fragile
This is better:
Without variables the code is more robust and easier to read.
1 target_link_libraries(foobar PRIVATE my::foo)
2
3 if(WIN32)
4 target_link_libraries(foobar PRIVATE my::bar)
5 endif()
43

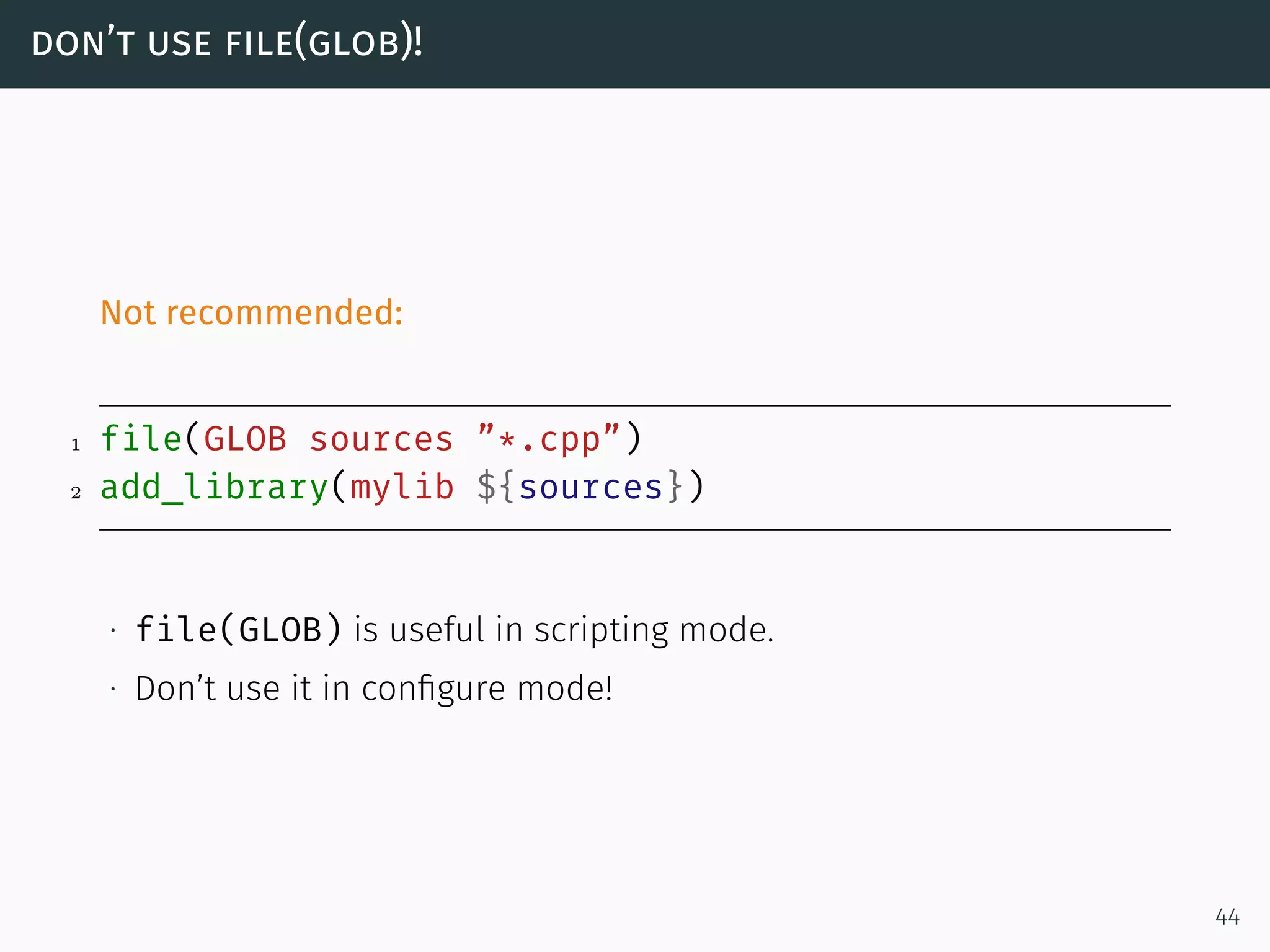

don’t use file(glob)!
Not recommended:
1 file(GLOB sources ”*.cpp”)
2 add_library(mylib ${sources})
∙ file(GLOB) is useful in scripting mode.
∙ Don’t use it in configure mode!
44

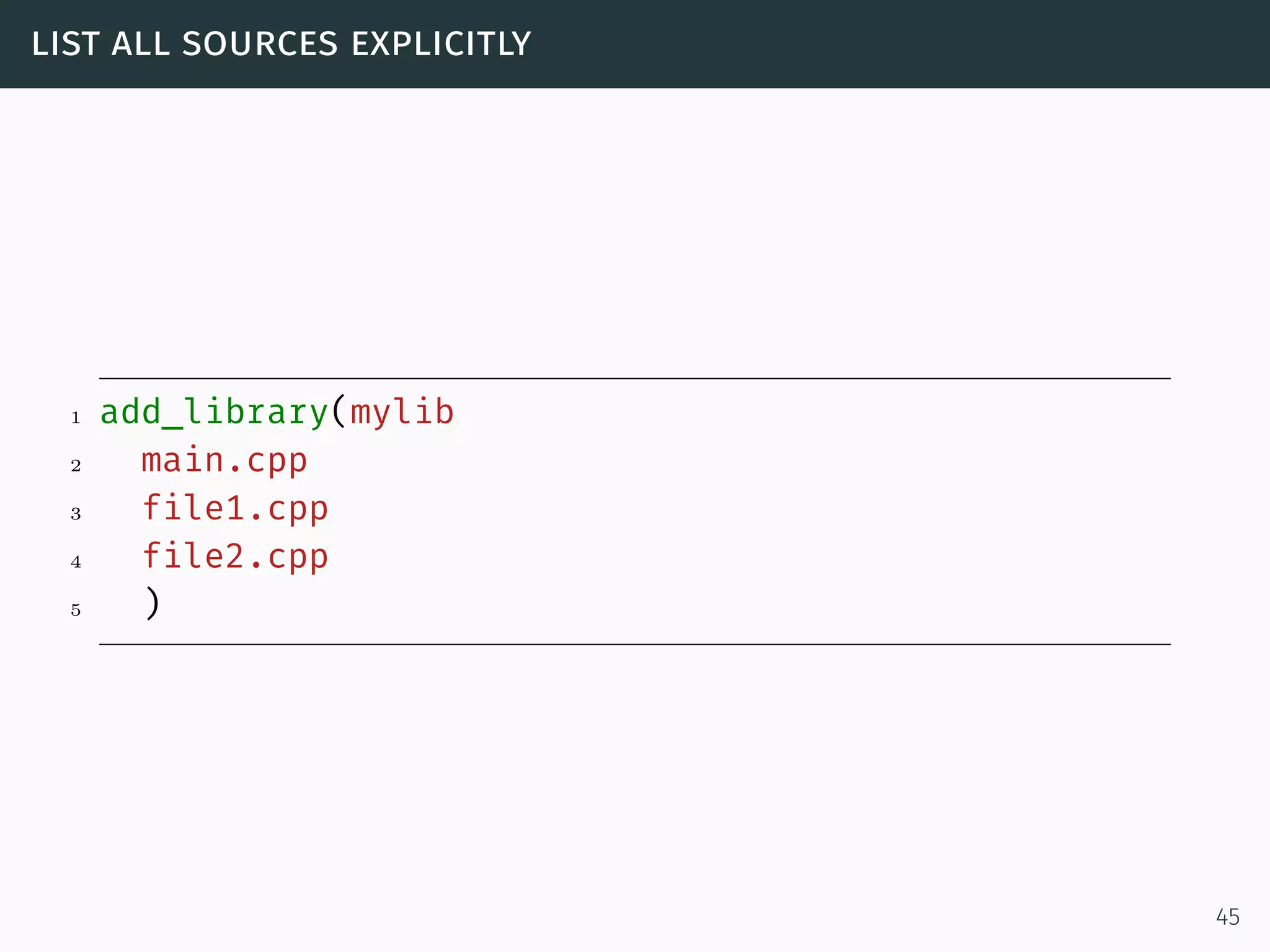

list all sources explicitly
1 add_library(mylib
2 main.cpp
3 file1.cpp
4 file2.cpp
5 )
45

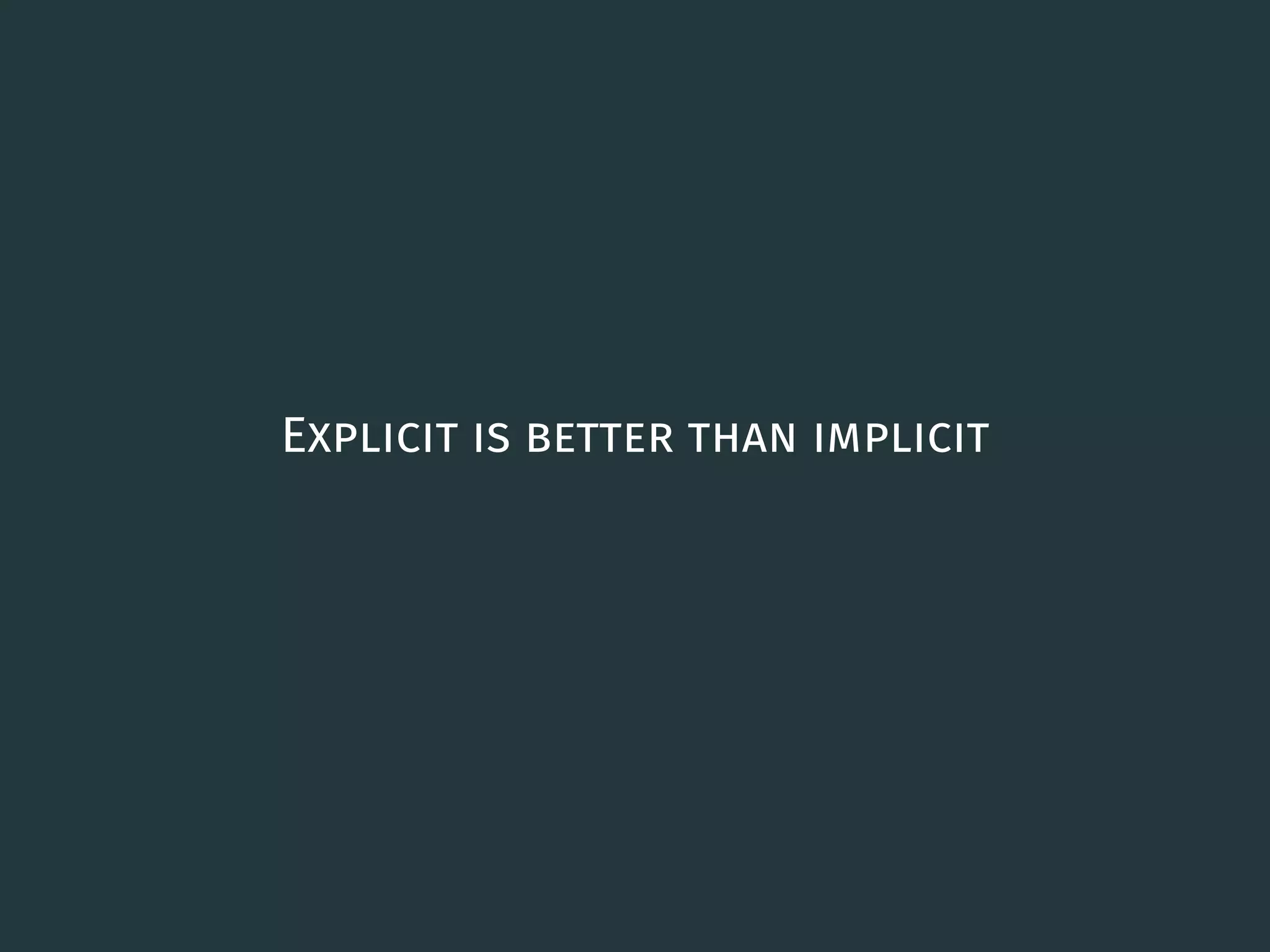

Explicit is better than implicit
46
goal: no custom functions

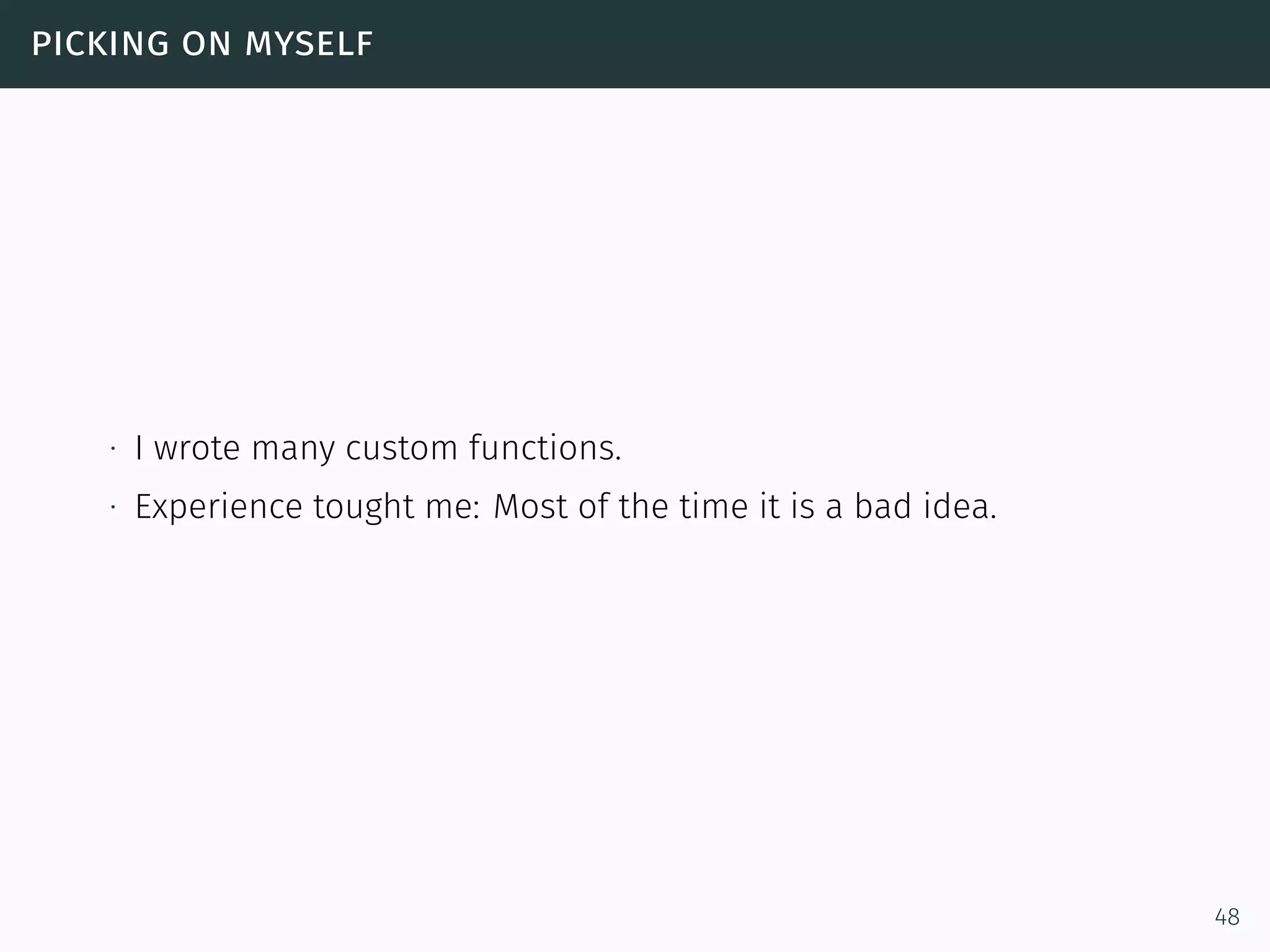

picking on myself
∙ I wrote many custom functions.
∙ Experience tought me: Most of the time it is a bad idea.
48

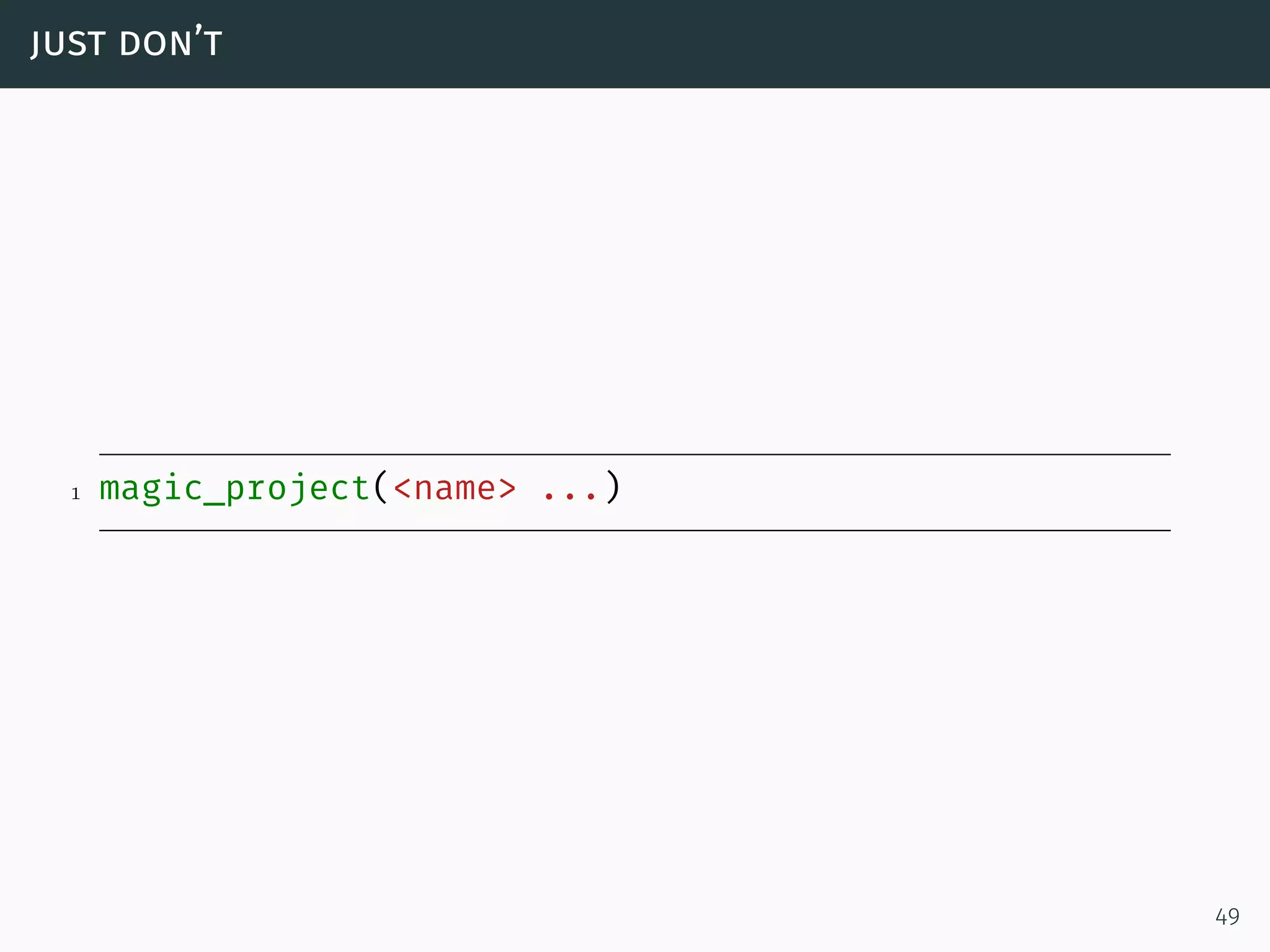

just don’t
1 magic_project(<name> ...)
49

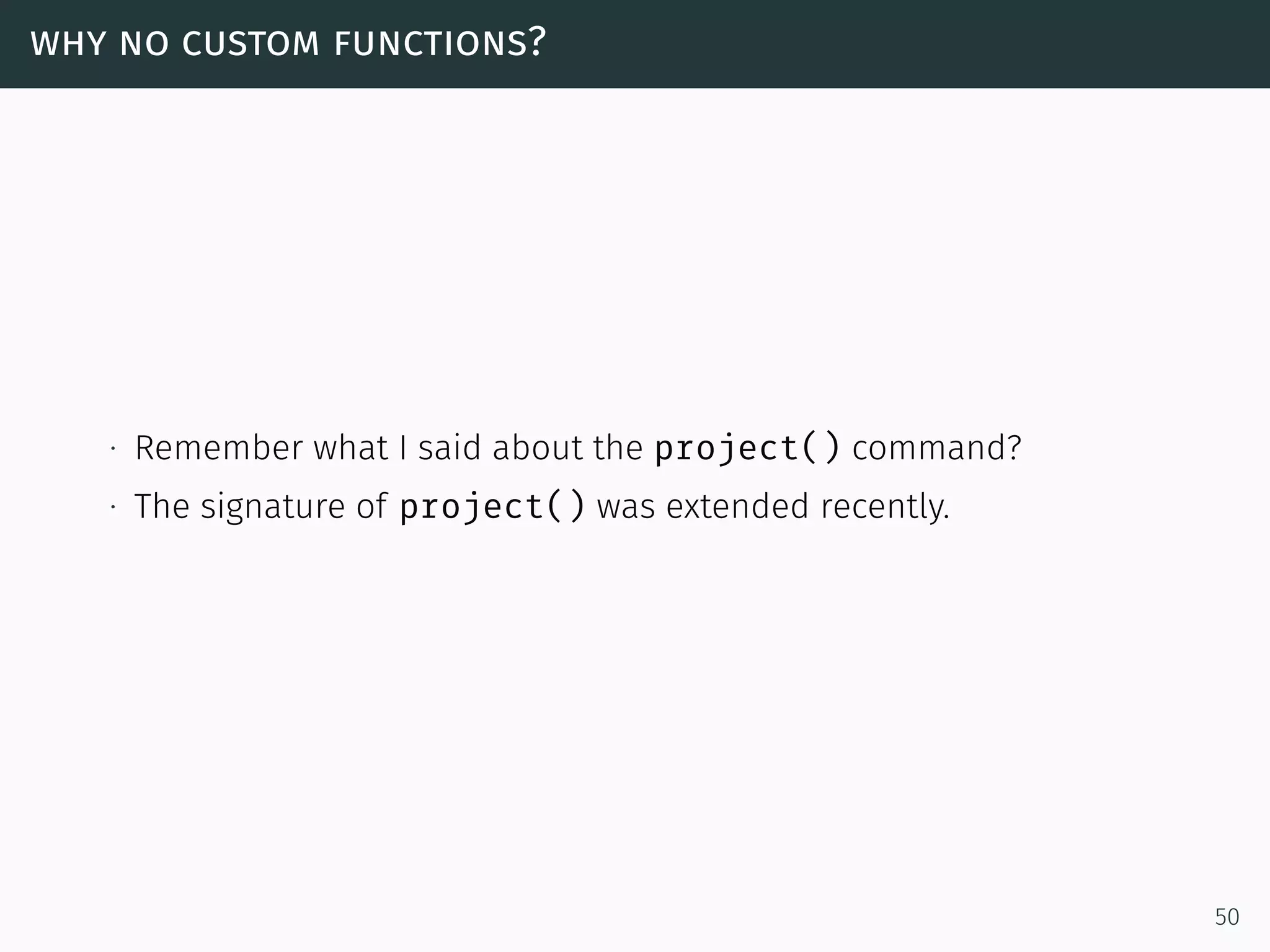

why no custom functions?
∙ Remember what I said about the project() command?
∙ The signature of project() was extended recently.
50

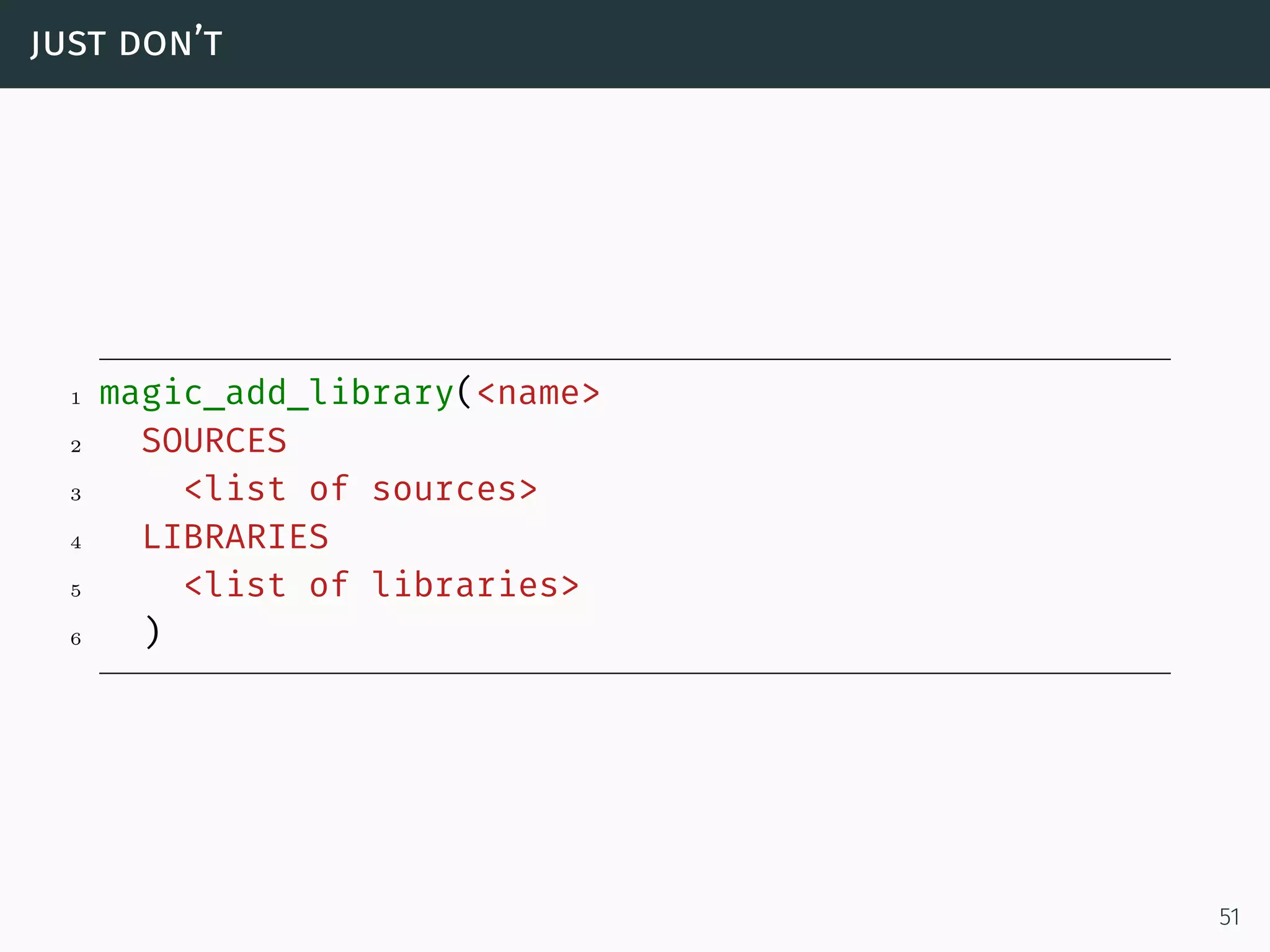

just don’t
1 magic_add_library(<name>
2 SOURCES
3 <list of sources>
4 LIBRARIES
5 <list of libraries>
6 )
51

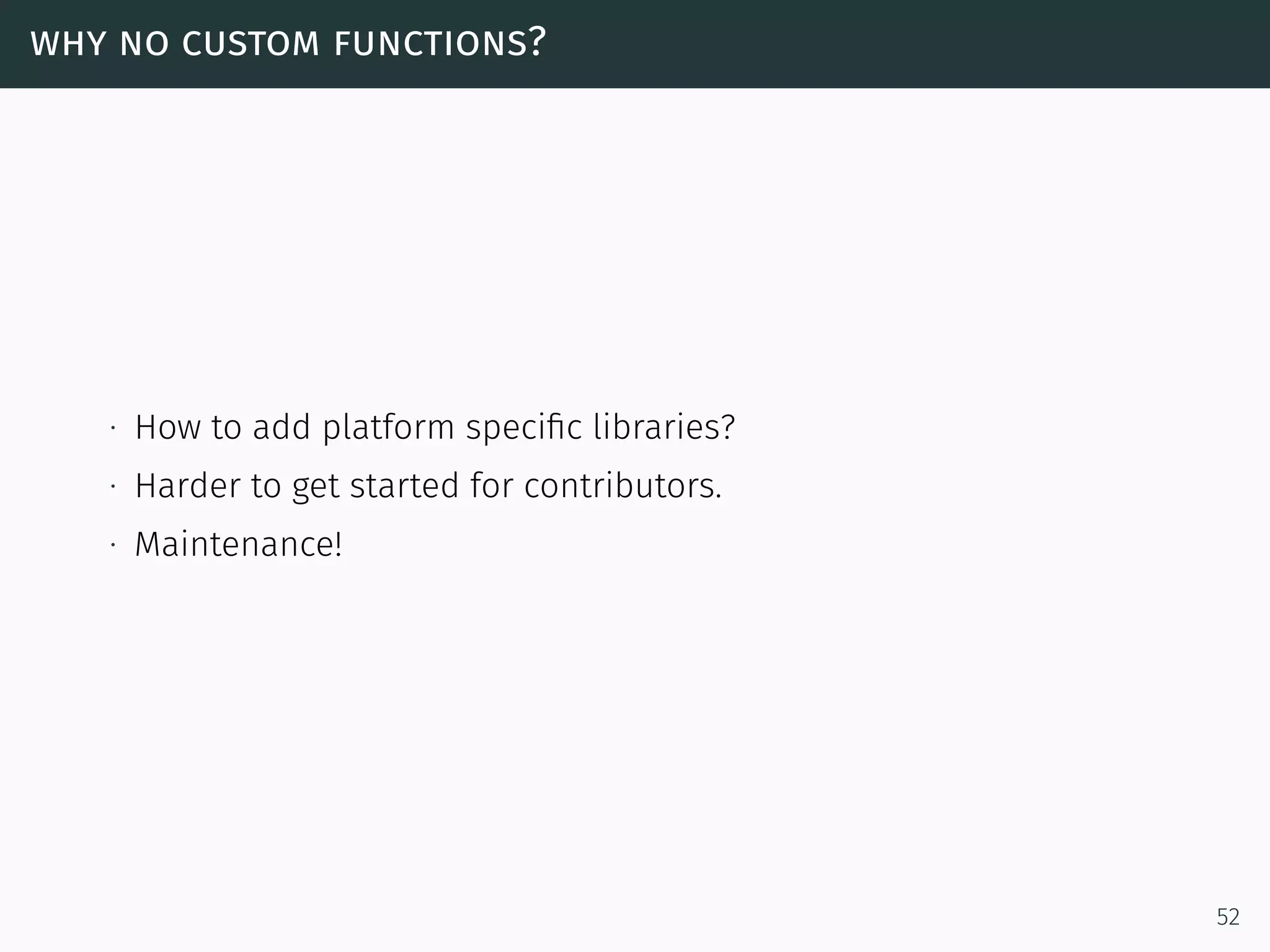

why no custom functions?
∙ How to add platform specific libraries?
∙ Harder to get started for contributors.
∙ Maintenance!
52

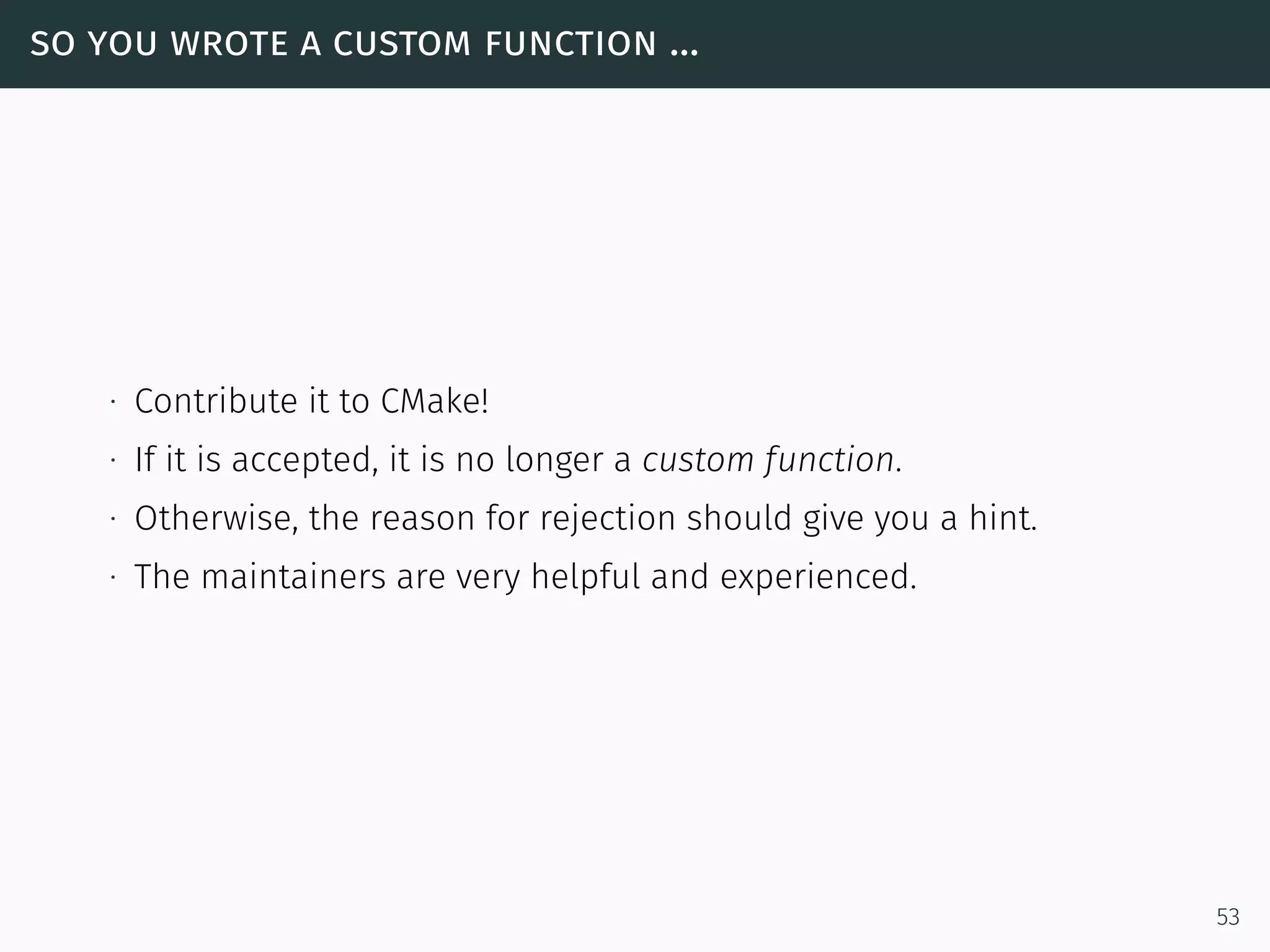

so you wrote a custom function ...
∙ Contribute it to CMake!
∙ If it is accepted, it is no longer a custom function.
∙ Otherwise, the reason for rejection should give you a hint.
∙ The maintainers are very helpful and experienced.
53

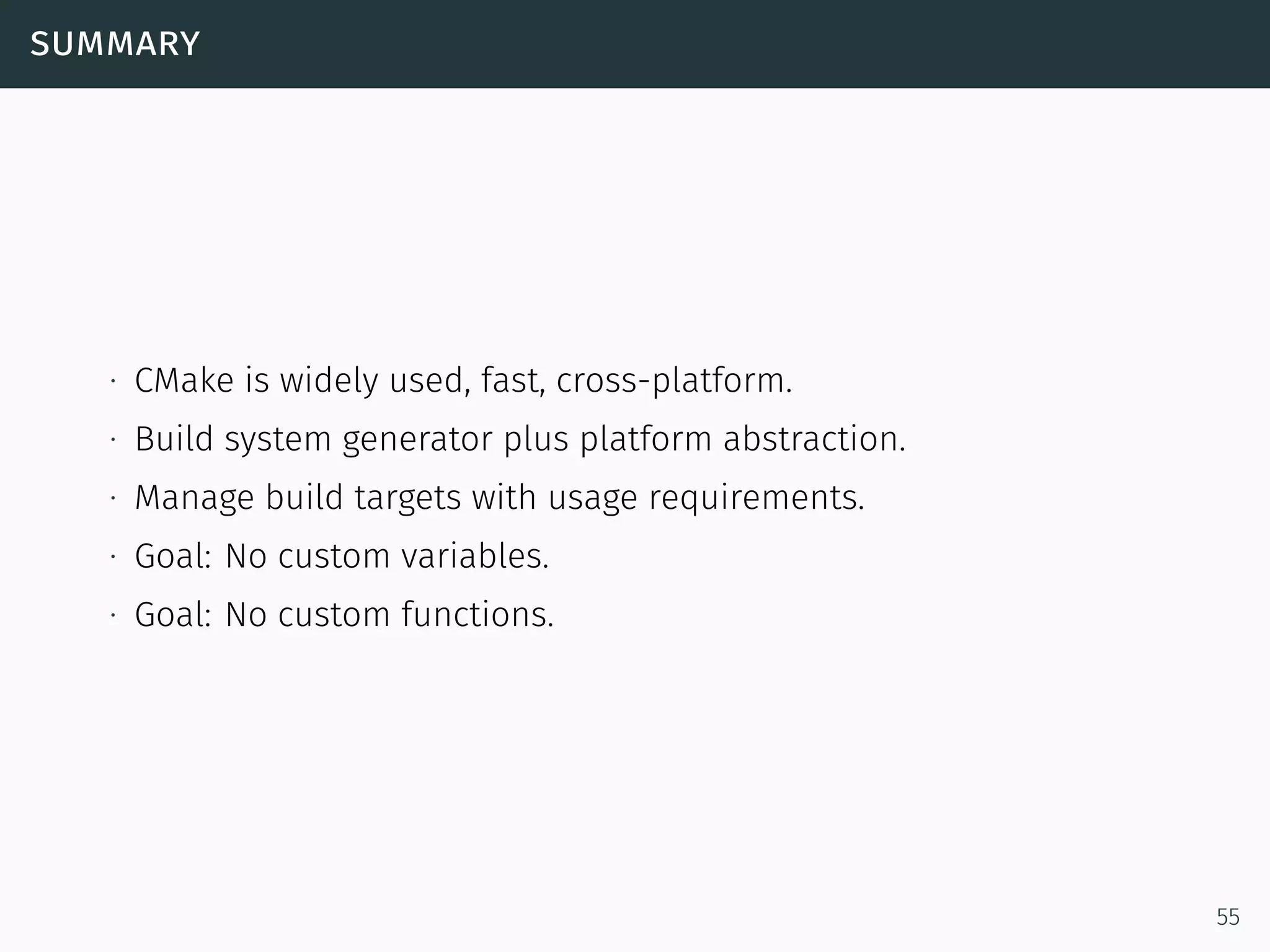

summary
summary
∙ CMake is widely used, fast, cross-platform.
∙ Build system generator plus platform abstraction.
∙ Manage build targets with usage requirements.
∙ Goal: No custom variables.
∙ Goal: No custom functions.
55
Thank you!
56

More Related Content

What's hot

"허니몬의 마크다운 사용기"
"허니몬의 마크다운 사용기""허니몬의 마크다운 사용기"
"허니몬의 마크다운 사용기"
Ji Heon Kim

[Paris Container Day 2021] nerdctl: yet another Docker & Docker Compose imple...
[Paris Container Day 2021] nerdctl: yet another Docker & Docker Compose imple...[Paris Container Day 2021] nerdctl: yet another Docker & Docker Compose imple...
[Paris Container Day 2021] nerdctl: yet another Docker & Docker Compose imple...
Akihiro Suda

Firewall(linux)
Firewall(linux)Firewall(linux)
Firewall(linux)
Santosh Khadsare

eBPF Workshop
eBPF WorkshopeBPF Workshop
eBPF Workshop
Michael Kehoe

Introduction git
Introduction gitIntroduction git
Introduction git
Dian Sigit Prastowo

Linux-Internals-and-Networking
Linux-Internals-and-NetworkingLinux-Internals-and-Networking
Linux-Internals-and-Networking
Emertxe Information Technologies Pvt Ltd

Introduction to GNU Make Programming Language
Introduction to GNU Make Programming LanguageIntroduction to GNU Make Programming Language
Introduction to GNU Make Programming Language
Shih-Hsiang Lin

BPF Internals (eBPF)
BPF Internals (eBPF)BPF Internals (eBPF)
BPF Internals (eBPF)
Brendan Gregg

Linux basic commands with examples
Linux basic commands with examplesLinux basic commands with examples
Linux basic commands with examples
abclearnn

makefiles tutorial
makefiles tutorialmakefiles tutorial
makefiles tutorial
vsubhashini

Bash shell scripting
Bash shell scriptingBash shell scripting
Bash shell scripting
VIKAS TIWARI

Linux Instrumentation
Linux InstrumentationLinux Instrumentation
Linux Instrumentation
DarkStarSword

Container Performance Analysis
Container Performance AnalysisContainer Performance Analysis
Container Performance Analysis
Brendan Gregg

Luca Ceresoli - Buildroot vs Yocto: Differences for Your Daily Job
Luca Ceresoli - Buildroot vs Yocto: Differences for Your Daily JobLuca Ceresoli - Buildroot vs Yocto: Differences for Your Daily Job
Luca Ceresoli - Buildroot vs Yocto: Differences for Your Daily Job
linuxlab_conf

Course 102: Lecture 2: Unwrapping Linux
Course 102: Lecture 2: Unwrapping Linux Course 102: Lecture 2: Unwrapping Linux
Course 102: Lecture 2: Unwrapping Linux
Ahmed El-Arabawy

Porting Android
Porting AndroidPorting Android
Porting Android
Opersys inc.

Exploring the power of Gradle in android studio - Basics & Beyond
Exploring the power of Gradle in android studio - Basics & BeyondExploring the power of Gradle in android studio - Basics & Beyond
Exploring the power of Gradle in android studio - Basics & Beyond
Kaushal Dhruw

Performance Analysis Tools for Linux Kernel
Performance Analysis Tools for Linux KernelPerformance Analysis Tools for Linux Kernel
Performance Analysis Tools for Linux Kernel
lcplcp1

USENIX ATC 2017: Visualizing Performance with Flame Graphs
USENIX ATC 2017: Visualizing Performance with Flame GraphsUSENIX ATC 2017: Visualizing Performance with Flame Graphs
USENIX ATC 2017: Visualizing Performance with Flame Graphs
Brendan Gregg

Linux Kernel Module - For NLKB
Linux Kernel Module - For NLKBLinux Kernel Module - For NLKB
Linux Kernel Module - For NLKB
shimosawa


What's hot (20)

"허니몬의 마크다운 사용기"
"허니몬의 마크다운 사용기""허니몬의 마크다운 사용기"
"허니몬의 마크다운 사용기"

[Paris Container Day 2021] nerdctl: yet another Docker & Docker Compose imple...
[Paris Container Day 2021] nerdctl: yet another Docker & Docker Compose imple...[Paris Container Day 2021] nerdctl: yet another Docker & Docker Compose imple...
[Paris Container Day 2021] nerdctl: yet another Docker & Docker Compose imple...

Firewall(linux)
Firewall(linux)Firewall(linux)
Firewall(linux)

eBPF Workshop
eBPF WorkshopeBPF Workshop
eBPF Workshop

Introduction git
Introduction gitIntroduction git
Introduction git

Linux-Internals-and-Networking
Linux-Internals-and-NetworkingLinux-Internals-and-Networking
Linux-Internals-and-Networking

Introduction to GNU Make Programming Language
Introduction to GNU Make Programming LanguageIntroduction to GNU Make Programming Language
Introduction to GNU Make Programming Language

BPF Internals (eBPF)
BPF Internals (eBPF)BPF Internals (eBPF)
BPF Internals (eBPF)

Linux basic commands with examples
Linux basic commands with examplesLinux basic commands with examples
Linux basic commands with examples

makefiles tutorial
makefiles tutorialmakefiles tutorial
makefiles tutorial

Bash shell scripting
Bash shell scriptingBash shell scripting
Bash shell scripting

Linux Instrumentation
Linux InstrumentationLinux Instrumentation
Linux Instrumentation

Container Performance Analysis
Container Performance AnalysisContainer Performance Analysis
Container Performance Analysis

Luca Ceresoli - Buildroot vs Yocto: Differences for Your Daily Job
Luca Ceresoli - Buildroot vs Yocto: Differences for Your Daily JobLuca Ceresoli - Buildroot vs Yocto: Differences for Your Daily Job
Luca Ceresoli - Buildroot vs Yocto: Differences for Your Daily Job

Course 102: Lecture 2: Unwrapping Linux
Course 102: Lecture 2: Unwrapping Linux Course 102: Lecture 2: Unwrapping Linux
Course 102: Lecture 2: Unwrapping Linux

Porting Android
Porting AndroidPorting Android
Porting Android

Exploring the power of Gradle in android studio - Basics & Beyond
Exploring the power of Gradle in android studio - Basics & BeyondExploring the power of Gradle in android studio - Basics & Beyond
Exploring the power of Gradle in android studio - Basics & Beyond

Performance Analysis Tools for Linux Kernel
Performance Analysis Tools for Linux KernelPerformance Analysis Tools for Linux Kernel
Performance Analysis Tools for Linux Kernel

USENIX ATC 2017: Visualizing Performance with Flame Graphs
USENIX ATC 2017: Visualizing Performance with Flame GraphsUSENIX ATC 2017: Visualizing Performance with Flame Graphs
USENIX ATC 2017: Visualizing Performance with Flame Graphs

Linux Kernel Module - For NLKB
Linux Kernel Module - For NLKBLinux Kernel Module - For NLKB
Linux Kernel Module - For NLKB


Similar to CMake - Introduction and best practices

cmake.pdf
cmake.pdfcmake.pdf
cmake.pdf
Thejeswara Reddy

Red Teaming macOS Environments with Hermes the Swift Messenger
Red Teaming macOS Environments with Hermes the Swift MessengerRed Teaming macOS Environments with Hermes the Swift Messenger
Red Teaming macOS Environments with Hermes the Swift Messenger
Justin Bui

CMake best practices
CMake best practicesCMake best practices
CMake best practices
Henry Schreiner

LOSS_C11- Programming Linux 20221006.pdf
LOSS_C11- Programming Linux 20221006.pdfLOSS_C11- Programming Linux 20221006.pdf
LOSS_C11- Programming Linux 20221006.pdf
Thninh2

Makefile
MakefileMakefile
Makefile
Ionela

IBM Index 2018 Conference Workshop: Modernizing Traditional Java App's with D...
IBM Index 2018 Conference Workshop: Modernizing Traditional Java App's with D...IBM Index 2018 Conference Workshop: Modernizing Traditional Java App's with D...
IBM Index 2018 Conference Workshop: Modernizing Traditional Java App's with D...
Eric Smalling

Install guide
Install guideInstall guide
Install guide
Xuân Hoàng

Install guide
Install guideInstall guide
Install guide
Henrique Saraiva

Dependencies Managers in C/C++. Using stdcpp 2014
Dependencies Managers in C/C++. Using stdcpp 2014Dependencies Managers in C/C++. Using stdcpp 2014
Dependencies Managers in C/C++. Using stdcpp 2014
biicode

Yocto: Training in English
Yocto: Training in EnglishYocto: Training in English
Yocto: Training in English
Otavio Salvador

IIT-RTC 2017 Qt WebRTC Tutorial (Qt Janus Client)
IIT-RTC 2017 Qt WebRTC Tutorial (Qt Janus Client)IIT-RTC 2017 Qt WebRTC Tutorial (Qt Janus Client)
IIT-RTC 2017 Qt WebRTC Tutorial (Qt Janus Client)
Alexandre Gouaillard

Makefile for python projects
Makefile for python projectsMakefile for python projects
Makefile for python projects
Mpho Mphego

Training: Day Two - Eclipse, Git, Maven
Training: Day Two - Eclipse, Git, MavenTraining: Day Two - Eclipse, Git, Maven
Training: Day Two - Eclipse, Git, Maven
Artur Ventura

HPC_MPI_CICD.pptx
HPC_MPI_CICD.pptxHPC_MPI_CICD.pptx
HPC_MPI_CICD.pptx
ObjectAutomation2

3.1.d manual bash script guide lsstv 2.0r11
3.1.d manual bash script guide lsstv 2.0r113.1.d manual bash script guide lsstv 2.0r11
3.1.d manual bash script guide lsstv 2.0r11
Acácio Oliveira

CMake_Tutorial.pdf
CMake_Tutorial.pdfCMake_Tutorial.pdf
CMake_Tutorial.pdf
Thejeswara Reddy

C make tutorial
C make tutorialC make tutorial
C make tutorial
C make tutorialC make tutorial
C make tutorial
zeng724

Server(less) Swift at SwiftCloudWorkshop 3
Server(less) Swift at SwiftCloudWorkshop 3Server(less) Swift at SwiftCloudWorkshop 3
Server(less) Swift at SwiftCloudWorkshop 3
kognate

Composer JSON kills make files
Composer JSON kills make filesComposer JSON kills make files
Composer JSON kills make files
ropsu


Similar to CMake - Introduction and best practices (20)

cmake.pdf
cmake.pdfcmake.pdf
cmake.pdf

Red Teaming macOS Environments with Hermes the Swift Messenger
Red Teaming macOS Environments with Hermes the Swift MessengerRed Teaming macOS Environments with Hermes the Swift Messenger
Red Teaming macOS Environments with Hermes the Swift Messenger

CMake best practices
CMake best practicesCMake best practices
CMake best practices

LOSS_C11- Programming Linux 20221006.pdf
LOSS_C11- Programming Linux 20221006.pdfLOSS_C11- Programming Linux 20221006.pdf
LOSS_C11- Programming Linux 20221006.pdf

Makefile
MakefileMakefile
Makefile

IBM Index 2018 Conference Workshop: Modernizing Traditional Java App's with D...
IBM Index 2018 Conference Workshop: Modernizing Traditional Java App's with D...IBM Index 2018 Conference Workshop: Modernizing Traditional Java App's with D...
IBM Index 2018 Conference Workshop: Modernizing Traditional Java App's with D...

Install guide
Install guideInstall guide
Install guide

Install guide
Install guideInstall guide
Install guide

Dependencies Managers in C/C++. Using stdcpp 2014
Dependencies Managers in C/C++. Using stdcpp 2014Dependencies Managers in C/C++. Using stdcpp 2014
Dependencies Managers in C/C++. Using stdcpp 2014

Yocto: Training in English
Yocto: Training in EnglishYocto: Training in English
Yocto: Training in English

IIT-RTC 2017 Qt WebRTC Tutorial (Qt Janus Client)
IIT-RTC 2017 Qt WebRTC Tutorial (Qt Janus Client)IIT-RTC 2017 Qt WebRTC Tutorial (Qt Janus Client)
IIT-RTC 2017 Qt WebRTC Tutorial (Qt Janus Client)

Makefile for python projects
Makefile for python projectsMakefile for python projects
Makefile for python projects

Training: Day Two - Eclipse, Git, Maven
Training: Day Two - Eclipse, Git, MavenTraining: Day Two - Eclipse, Git, Maven
Training: Day Two - Eclipse, Git, Maven

HPC_MPI_CICD.pptx
HPC_MPI_CICD.pptxHPC_MPI_CICD.pptx
HPC_MPI_CICD.pptx

3.1.d manual bash script guide lsstv 2.0r11
3.1.d manual bash script guide lsstv 2.0r113.1.d manual bash script guide lsstv 2.0r11
3.1.d manual bash script guide lsstv 2.0r11

CMake_Tutorial.pdf
CMake_Tutorial.pdfCMake_Tutorial.pdf
CMake_Tutorial.pdf

C make tutorial
C make tutorialC make tutorial
C make tutorial

C make tutorial
C make tutorialC make tutorial
C make tutorial

Server(less) Swift at SwiftCloudWorkshop 3
Server(less) Swift at SwiftCloudWorkshop 3Server(less) Swift at SwiftCloudWorkshop 3
Server(less) Swift at SwiftCloudWorkshop 3

Composer JSON kills make files
Composer JSON kills make filesComposer JSON kills make files
Composer JSON kills make files


Recently uploaded

What’s New in Odoo 17 – A Complete Roadmap
What’s New in Odoo 17 – A Complete RoadmapWhat’s New in Odoo 17 – A Complete Roadmap
What’s New in Odoo 17 – A Complete Roadmap
Envertis Software Solutions

Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdfTop Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
VALiNTRY360

All you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVMAll you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVM
Alina Yurenko

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech
Drona Infotech

Quarter 3 SLRP grade 9.. gshajsbhhaheabh
Quarter 3 SLRP grade 9.. gshajsbhhaheabhQuarter 3 SLRP grade 9.. gshajsbhhaheabh
Quarter 3 SLRP grade 9.. gshajsbhhaheabh
aisafed42

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
The Third Creative Media

The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024
Yara Milbes

Malibou Pitch Deck For Its €3M Seed Round
Malibou Pitch Deck For Its €3M Seed RoundMalibou Pitch Deck For Its €3M Seed Round
Malibou Pitch Deck For Its €3M Seed Round
sjcobrien

Measures in SQL (SIGMOD 2024, Santiago, Chile)
Measures in SQL (SIGMOD 2024, Santiago, Chile)Measures in SQL (SIGMOD 2024, Santiago, Chile)
Measures in SQL (SIGMOD 2024, Santiago, Chile)
Julian Hyde

E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian CompaniesE-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
Quickdice ERP

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics
Hornet Dynamics

Enhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom KittEnhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom Kitt
Peter Caitens

Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
XfilesPro

The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
kalichargn70th171

WWDC 2024 Keynote Review: For CocoaCoders Austin
WWDC 2024 Keynote Review: For CocoaCoders AustinWWDC 2024 Keynote Review: For CocoaCoders Austin
WWDC 2024 Keynote Review: For CocoaCoders Austin
Patrick Weigel

How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?
ToXSL Technologies

Kubernetes at Scale: Going Multi-Cluster with Istio
Kubernetes at Scale:  Going Multi-Cluster  with IstioKubernetes at Scale:  Going Multi-Cluster  with Istio
Kubernetes at Scale: Going Multi-Cluster with Istio
Severalnines

ALGIT - Assembly Line for Green IT - Numbers, Data, Facts
ALGIT - Assembly Line for Green IT - Numbers, Data, FactsALGIT - Assembly Line for Green IT - Numbers, Data, Facts
ALGIT - Assembly Line for Green IT - Numbers, Data, Facts
Green Software Development

Webinar On-Demand: Using Flutter for Embedded
Webinar On-Demand: Using Flutter for EmbeddedWebinar On-Demand: Using Flutter for Embedded
Webinar On-Demand: Using Flutter for Embedded
ICS

Energy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina JonuziEnergy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina Jonuzi
Green Software Development


Recently uploaded (20)

What’s New in Odoo 17 – A Complete Roadmap
What’s New in Odoo 17 – A Complete RoadmapWhat’s New in Odoo 17 – A Complete Roadmap
What’s New in Odoo 17 – A Complete Roadmap

Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdfTop Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf

All you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVMAll you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVM

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech

Quarter 3 SLRP grade 9.. gshajsbhhaheabh
Quarter 3 SLRP grade 9.. gshajsbhhaheabhQuarter 3 SLRP grade 9.. gshajsbhhaheabh
Quarter 3 SLRP grade 9.. gshajsbhhaheabh

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...

The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024

Malibou Pitch Deck For Its €3M Seed Round
Malibou Pitch Deck For Its €3M Seed RoundMalibou Pitch Deck For Its €3M Seed Round
Malibou Pitch Deck For Its €3M Seed Round

Measures in SQL (SIGMOD 2024, Santiago, Chile)
Measures in SQL (SIGMOD 2024, Santiago, Chile)Measures in SQL (SIGMOD 2024, Santiago, Chile)
Measures in SQL (SIGMOD 2024, Santiago, Chile)

E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian CompaniesE-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics

Enhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom KittEnhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom Kitt

Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...

The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...

WWDC 2024 Keynote Review: For CocoaCoders Austin
WWDC 2024 Keynote Review: For CocoaCoders AustinWWDC 2024 Keynote Review: For CocoaCoders Austin
WWDC 2024 Keynote Review: For CocoaCoders Austin

How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?

Kubernetes at Scale: Going Multi-Cluster with Istio
Kubernetes at Scale:  Going Multi-Cluster  with IstioKubernetes at Scale:  Going Multi-Cluster  with Istio
Kubernetes at Scale: Going Multi-Cluster with Istio

ALGIT - Assembly Line for Green IT - Numbers, Data, Facts
ALGIT - Assembly Line for Green IT - Numbers, Data, FactsALGIT - Assembly Line for Green IT - Numbers, Data, Facts
ALGIT - Assembly Line for Green IT - Numbers, Data, Facts

Webinar On-Demand: Using Flutter for Embedded
Webinar On-Demand: Using Flutter for EmbeddedWebinar On-Demand: Using Flutter for Embedded
Webinar On-Demand: Using Flutter for Embedded

Energy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina JonuziEnergy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina Jonuzi


CMake - Introduction and best practices

  • 1. cmake Introduction and best practices Daniel Pfeifer May 21, 2015 daniel@pfeifer-mail.de
  • 2. interest over time 2005 2007 2009 2011 2013 2015 autoconf automake bjam cmake scons 0https://www.google.com/trends/explore#q=autoconf,automake,bjam,cmake,scons 1
  • 4. according to its website Welcome to CMake, the cross-platform, open-source build system. CMake is a family of tools designed to build, test and package software. CMake is used to control the software compilation process using simple platform and compiler independent configuration files. CMake generates native makefiles and workspaces that can be used in the compiler environment of your choice.1 1http://www.cmake.org/ 3
  • 5. cmake’s position among build systems standalone Make, NMake, SCons, Jom, BJam, Ninja integrated Visual Studio, Xcode, Eclipse generators Autotools, CMake, GYP 4
  • 6. cmake is simple > ls zlib-1.2.8 amiga/ as400/ contrib/ doc/ examples/ msdos/ nintendods/ old/ qnx/ test/ watcom/ win32/ adler32.c ChangeLog CMakeLists.txt compress.c configure crc32.c crc32.h deflate.c deflate.h FAQ gzclose.c gzguts.h gzlib.c gzread.c gzwrite.c INDEX infback.c inffast.c inffast.h inffixed.h inflate.c inflate.h inftrees.c inftrees.h make_vms.com Makefile Makefile.in README treebuild.xml trees.c trees.h uncompr.c zconf.h zconf.h.in zlib.3 zlib.3.pdf zlib.h zlib.map zlib.pc.in zlib2ansi zutil.c zutil.h 5
  • 7. reduce your maintenance ... You write a single configuration that CMake understands. CMake takes care that it works on all compilers and platforms. 6
  • 8. ... unless you break it! Don’t make any assumption about the platform or compiler! 7
  • 9. cmake is fast! I was quite surprised with the speed of building Quantum GIS codebase in comparison to Autotools.2 Task CMake Autotools Configure 0:08 0:61 Make 12:15 21:16 Install 0:20 0:36 Total 12:43 22:43 2http://blog.qgis.org/node/16.html 8
  • 10. the cmake cache ∙ Compiler and platform test results are cached in CMakeCache.txt. ∙ You can modify this file and re-run CMake. ∙ CMake also provides graphical cache editors. 9
  • 12. cmake’s position on the time axis past CMake generates build systems. today CMake is integrated into IDEs. future IDEs run CMake as a background process.3 3http://public.kitware.com/pipermail/cmake-developers/2015-April/025012.html 11
  • 14. cmake as a build system generator 1 > cmake [<options>] <path> ∙ If the specified path contains a CMakeCache.txt, it is treated as a build directory where the build system is reconfigured and regenerated. ∙ Otherwise the specified path is treated as the source directory and the current working directory is treated as build directory. 1 > mkdir build 2 > cd build 3 > time cmake .. 4 > time cmake . 5 > time make 13
  • 15. cmake as a build system generator Issues: ∙ The commands mkdir and time are not portable. ∙ With cmake . you may accidentally perform an in-source configure. ∙ Who said that make is the right build command? 1 > mkdir build 2 > cd build 3 > time cmake .. 4 > time cmake . 5 > time make mylibrary 14
  • 16. cmake’s command-line tool mode 1 > cmake -E <command> [<options>...] Run cmake -E help for a summary of commands. 1 > cmake -E make_directory build 2 > cmake -E chdir cmake -E time cmake .. 3 > cmake -E time cmake build 15
  • 17. use cmake to run the build system 1 > cmake --build build 2 --target mylibrary 3 --config Release 4 --clean-first Just don’t: 1 > ‘grep ’CMAKE_MAKE_PROGRAM:’ CMakeCache.txt 2 | awk -F= ’{print $2}’‘ mylibrary 16
  • 18. cmake as a scripting language 1 > cat hello_world.cmake 2 foreach(greet Hello Goodbye) 3 message(”${greet}, World!”) 4 endforeach() 5 6 > cmake -P hello_world.cmake 7 Hello, World! 8 Goodbye, World! No configure or generate step is performed and the cache is not modified. 17
  • 19. Resist the bash/perl/python temptation! 18
  • 21. cmake_minimum_required() Sets the mimimum required version of CMake. 1 cmake_minimum_required(VERSION 3.2 FATAL_ERROR) ∙ Prefer the latest version of CMake. ∙ Please don’t set 2.8 as the minimum. ∙ If you use 2.6 or 2.4, God kills a kitten. 20
  • 22. project() Set the name and version; enable languages. 1 project(<name> VERSION <version> LANGUAGES CXX) ∙ CMake sets several variables based on project(). ∙ Call to project() must be direct, not through a function/macro/include. ∙ CMake will add a call to project() if not found on the top level. 21
  • 23. add_subdirectory() Embed projects as sub-projects. 1 add_subdirectory(<sourcedir> [<binarydir>]) ∙ CMake creates a Makefile/Solution for each subproject. ∙ The subproject does not have to reside in a subfolder. 22
  • 24. hint! Make sure that all your projects can be built both standalone and as a subproject of another project: ∙ Don’t assume that your project root is the build root. ∙ Don’t modify global compile/link flags. ∙ Don’t make any global changes! 23
  • 25. find_package() Finds preinstalled dependencies 1 find_package(Qt5 REQUIRED COMPONENTS Widgets) ∙ Can set some variables and define imported targets. ∙ Supports components. 24
  • 26. add_executable() Add an executable target. 1 add_executable(tool 2 main.cpp 3 another_file.cpp 4 ) 5 add_executable(my::tool ALIAS tool) 25
  • 27. add_library() Add a library target. 1 add_library(foo STATIC 2 foo1.cpp 3 foo2.cpp 4 ) 5 add_library(my::foo ALIAS foo) ∙ Libraries can be STATIC, SHARED, MODULE, or INTERFACE. ∙ Default can be controlled with BUILD_SHARED_LIBS. 26
  • 28. things to remember ∙ Always add namespaced aliases for libraries. ∙ Dont’t make libraries STATIC/SHARED unless they cannot be built otherwise. ∙ Leave the control of BUILD_SHARED_LIBS to your clients! 27
  • 30. usage requirements signature 1 target_<usage requirement>(<target> 2 <PRIVATE|PUBLIC|INTERFACE> <lib> ... 3 [<PRIVATE|PUBLIC|INTERFACE> <lib> ... ] ...] 4 ) PRIVATE Only used for this target. PUBLIC Used for this target and all targets that link against it. INTERFACE Only used for targets that link against this library. 29
  • 31. target_link_libraries() Set libraries as dependency. 1 target_link_libraries(foobar 2 PUBLIC my::foo 3 PRIVATE my::bar 4 ) 30
  • 32. things to remember ∙ Prefer to link against namespaced targets. ∙ Specify the dependencies are private or public. ∙ Avoid the link_libraries() command. ∙ Avoid the link_directories() command. ∙ No need to call add_dependencies(). 31
  • 33. target_include_directories() Set include directories. 1 target_include_directories(foo 2 PUBLIC include 3 PRIVATE src 4 ) 32
  • 34. things to remember ∙ Avoid the include_directories() command. 33
  • 35. target_compile_definitions() Set compile definitions (preprocessor constants). 1 target_compile_definitions(foo 2 PRIVATE SRC_DIR=${Foo_SOURCE_DIR} 3 ) 34
  • 36. things to remember ∙ Avoid the add_definitions() command. ∙ Avoid adding definitions to CMAKE_<LANG>_FLAGS. 35
  • 37. target_compile_options() Set compile options/flags. 1 if(CMAKE_COMPILER_IS_GNUCXX) 2 target_compile_options(foo 3 PUBLIC -fno-elide-constructors 4 ) 5 endif() 36
  • 38. things to remember ∙ Wrap compiler specific options in an appropriate condition. ∙ Avoid the add_compile_options() command. ∙ Avoid adding options to CMAKE_<LANG>_FLAGS. 37
  • 39. target_compile_features() Set required compiler features. 1 target_compile_features(foo 2 PUBLIC 3 cxx_auto_type 4 cxx_range_for 5 PRIVATE 6 cxx_variadic_templates 7 ) ∙ CMake will add required compile flags. ∙ Errors if the compiler is not supported. 38
  • 40. things to remember ∙ Don’t add -std=c++11 to CMAKE_<LANG>_FLAGS. ∙ Don’t pass -std=c++11 to target_compile_options(). 39
  • 42. goal: no custom variables
  • 43. variables are fragile 1 set(PROJECT foobar) 2 set(LIBRARIES foo) 3 4 if(WIN32) 5 list(APPEND LIBRARIES bar) 6 endif() 7 8 target_link_libraries(${Project} 9 ${LIBRARIES} 10 ) 42
  • 44. variables are fragile Hard to diagnose: bar links against foo! But only on Windows! 1 set(PROJECT foobar) 2 set(LIBRARIES foo) 3 4 if(WIN32) 5 list(APPEND LIBRARIES bar) 6 endif() 7 8 target_link_libraries(${Project} 9 ${LIBRARIES} 10 ) 42
  • 45. variables are fragile This is better: Without variables the code is more robust and easier to read. 1 target_link_libraries(foobar PRIVATE my::foo) 2 3 if(WIN32) 4 target_link_libraries(foobar PRIVATE my::bar) 5 endif() 43
  • 46. don’t use file(glob)! Not recommended: 1 file(GLOB sources ”*.cpp”) 2 add_library(mylib ${sources}) ∙ file(GLOB) is useful in scripting mode. ∙ Don’t use it in configure mode! 44
  • 47. list all sources explicitly 1 add_library(mylib 2 main.cpp 3 file1.cpp 4 file2.cpp 5 ) 45
  • 48. Explicit is better than implicit 46
  • 49. goal: no custom functions
  • 50. picking on myself ∙ I wrote many custom functions. ∙ Experience tought me: Most of the time it is a bad idea. 48
  • 52. why no custom functions? ∙ Remember what I said about the project() command? ∙ The signature of project() was extended recently. 50
  • 53. just don’t 1 magic_add_library(<name> 2 SOURCES 3 <list of sources> 4 LIBRARIES 5 <list of libraries> 6 ) 51
  • 54. why no custom functions? ∙ How to add platform specific libraries? ∙ Harder to get started for contributors. ∙ Maintenance! 52
  • 55. so you wrote a custom function ... ∙ Contribute it to CMake! ∙ If it is accepted, it is no longer a custom function. ∙ Otherwise, the reason for rejection should give you a hint. ∙ The maintainers are very helpful and experienced. 53
  • 57. summary ∙ CMake is widely used, fast, cross-platform. ∙ Build system generator plus platform abstraction. ∙ Manage build targets with usage requirements. ∙ Goal: No custom variables. ∙ Goal: No custom functions. 55
