The document discusses scheduling in Android. It provides an overview of the history of Linux scheduling including the Completely Fair Scheduler (CFS) and scheduling classes. It describes how CPU power management integrates with scheduling and discusses load tracking methods. The document outlines some problems Android has had with the Linux scheduler and solutions developed. It also summarizes how the Android framework interacts with and provides hints to the underlying Linux scheduler.

1. 1
Scheduling in
Android
AnDevCon Washington D.C. 2017
Karim Yaghmour
@karimyaghmour
karim.yaghmour@opersys.com

2. 2

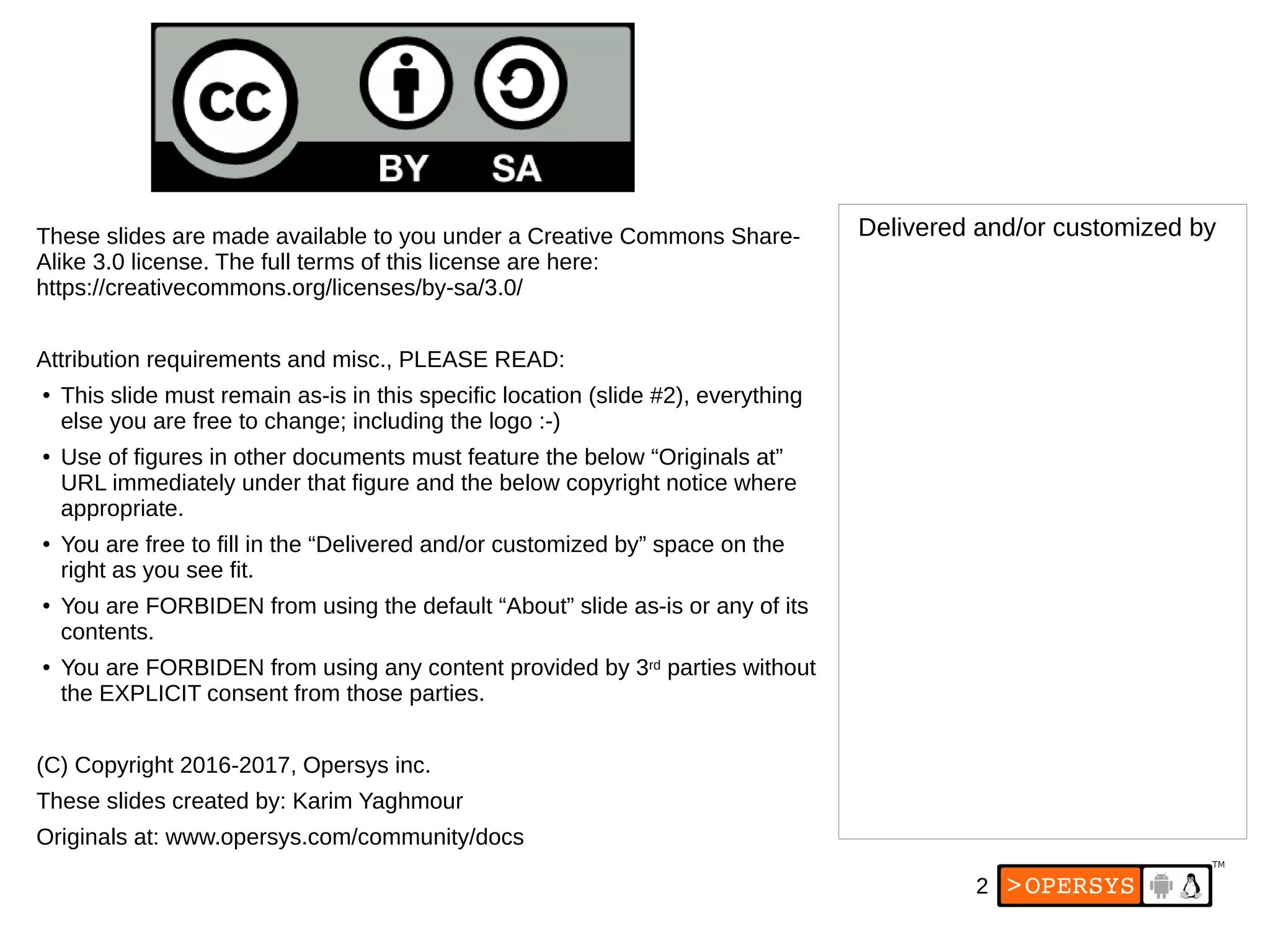

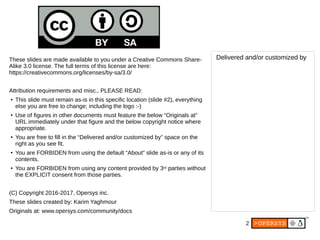

These slides are made available to you under a Creative Commons Share-
Alike 3.0 license. The full terms of this license are here:
https://creativecommons.org/licenses/by-sa/3.0/
Attribution requirements and misc., PLEASE READ:
● This slide must remain as-is in this specific location (slide #2), everything
else you are free to change; including the logo :-)
● Use of figures in other documents must feature the below “Originals at”
URL immediately under that figure and the below copyright notice where
appropriate.
● You are free to fill in the “Delivered and/or customized by” space on the
right as you see fit.
● You are FORBIDEN from using the default “About” slide as-is or any of its
contents.
● You are FORBIDEN from using any content provided by 3rd parties without
the EXPLICIT consent from those parties.
(C) Copyright 2016-2017, Opersys inc.
These slides created by: Karim Yaghmour
Originals at: www.opersys.com/community/docs
Delivered and/or customized by

3. 3

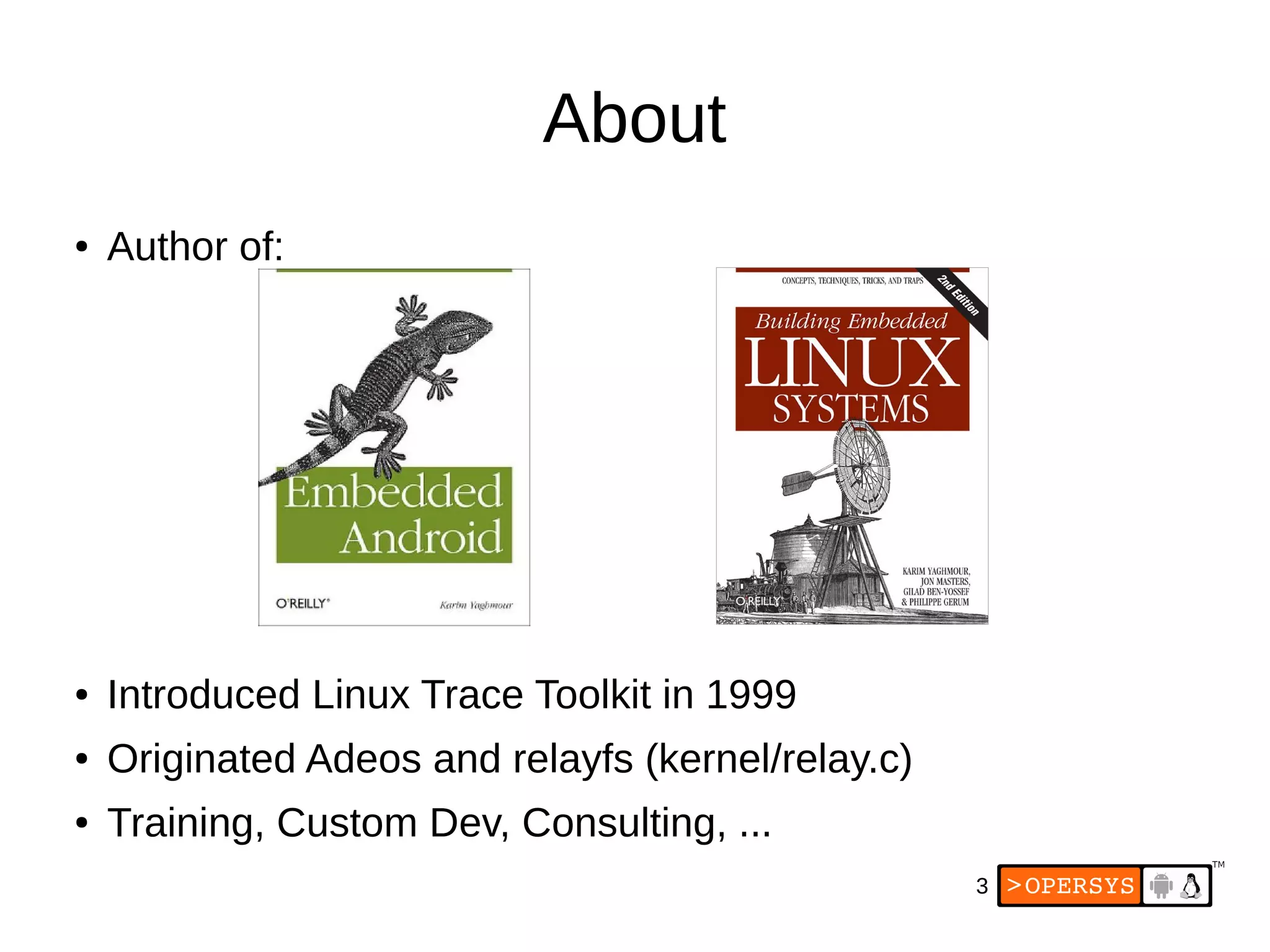

About
● Author of:
● Introduced Linux Trace Toolkit in 1999
● Originated Adeos and relayfs (kernel/relay.c)
● Training, Custom Dev, Consulting, ...

4. 4

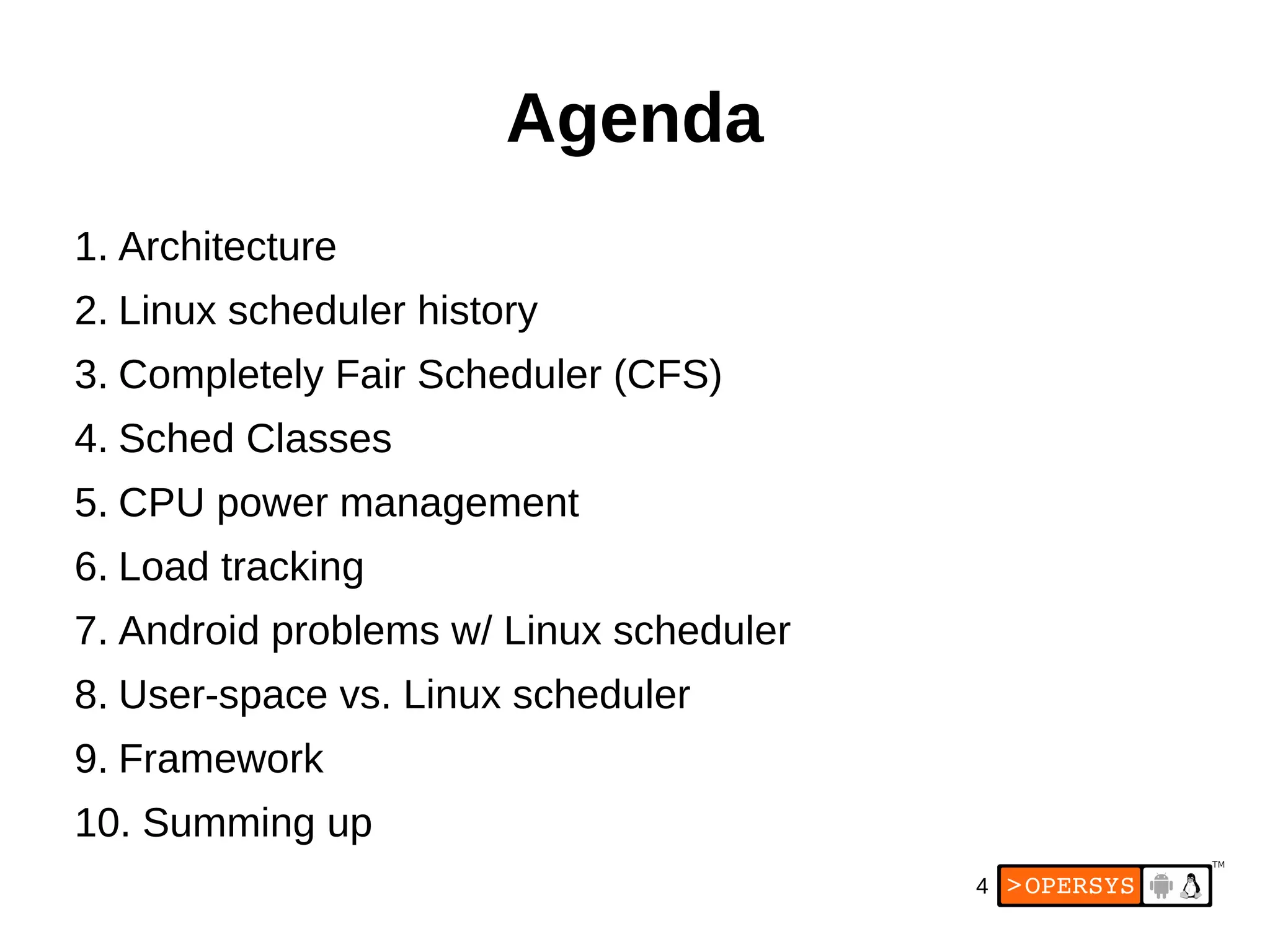

Agenda
1. Architecture
2. Linux scheduler history
3. Completely Fair Scheduler (CFS)
4. Sched Classes
5. CPU power management
6. Load tracking
7. Android problems w/ Linux scheduler
8. User-space vs. Linux scheduler
9. Framework
10. Summing up

5. 5

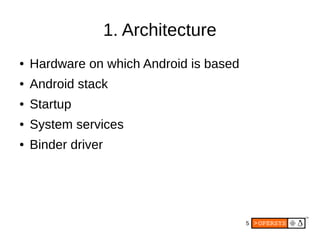

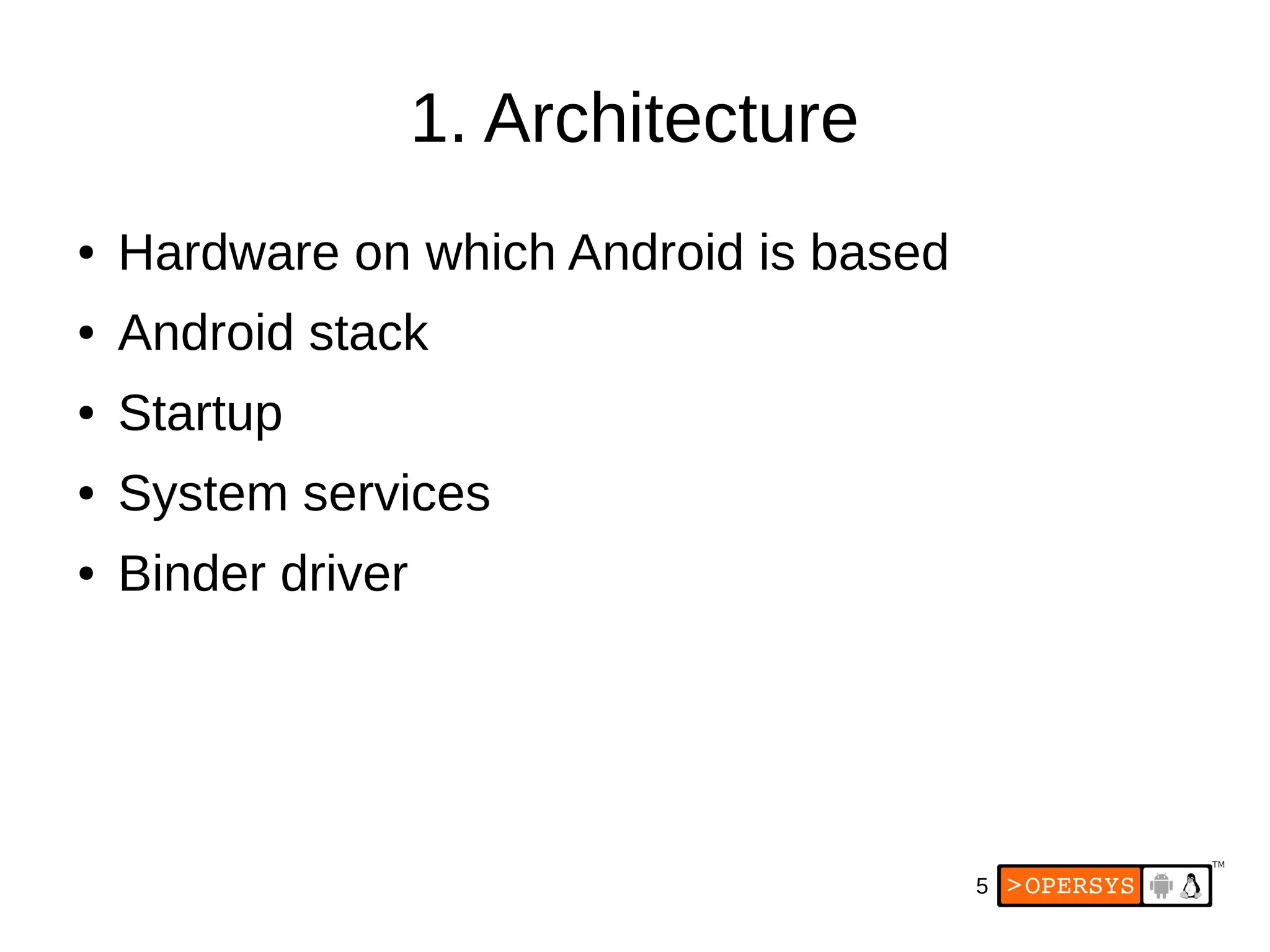

1. Architecture

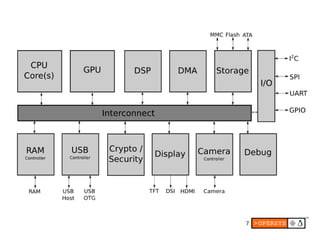

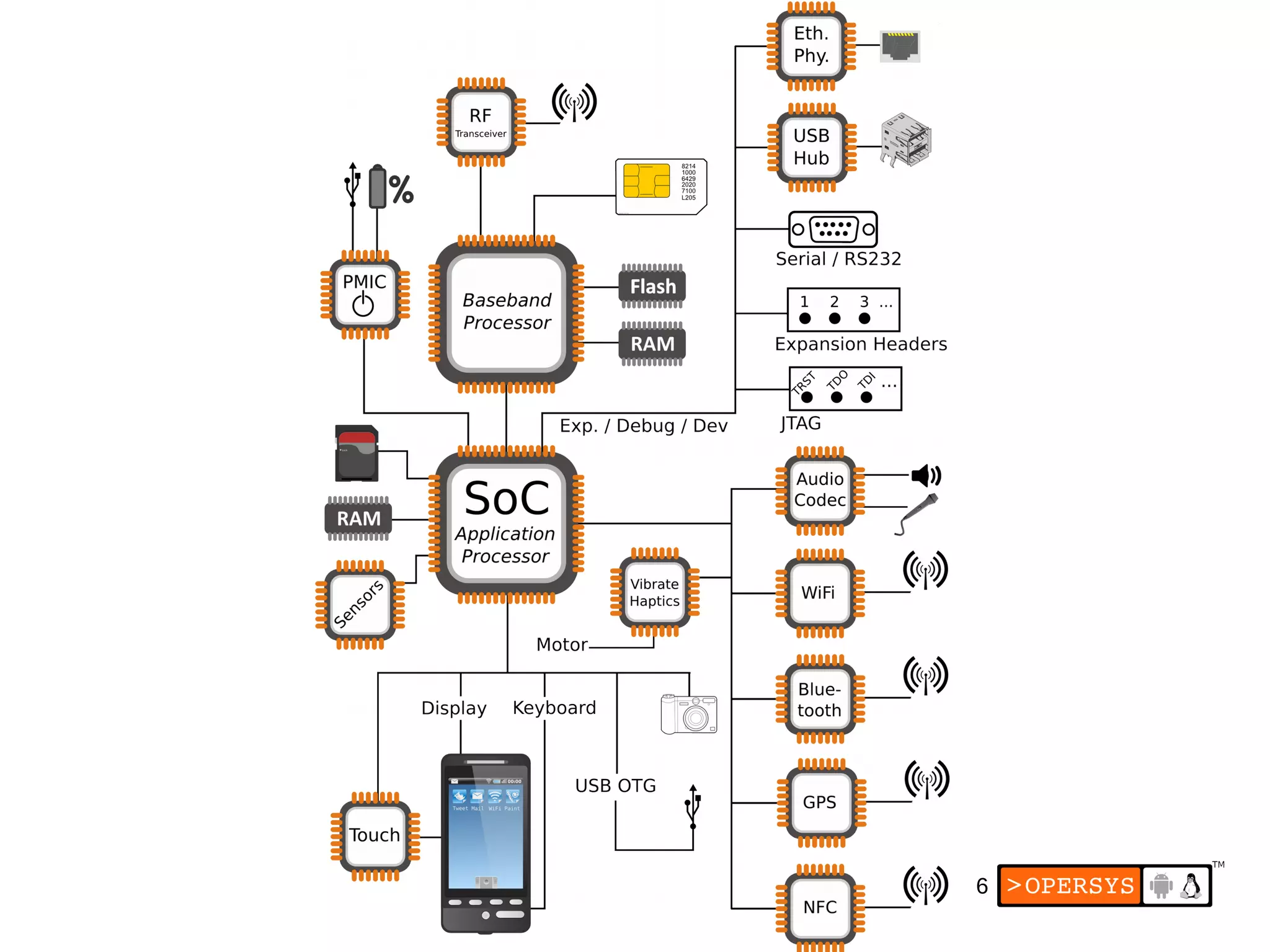

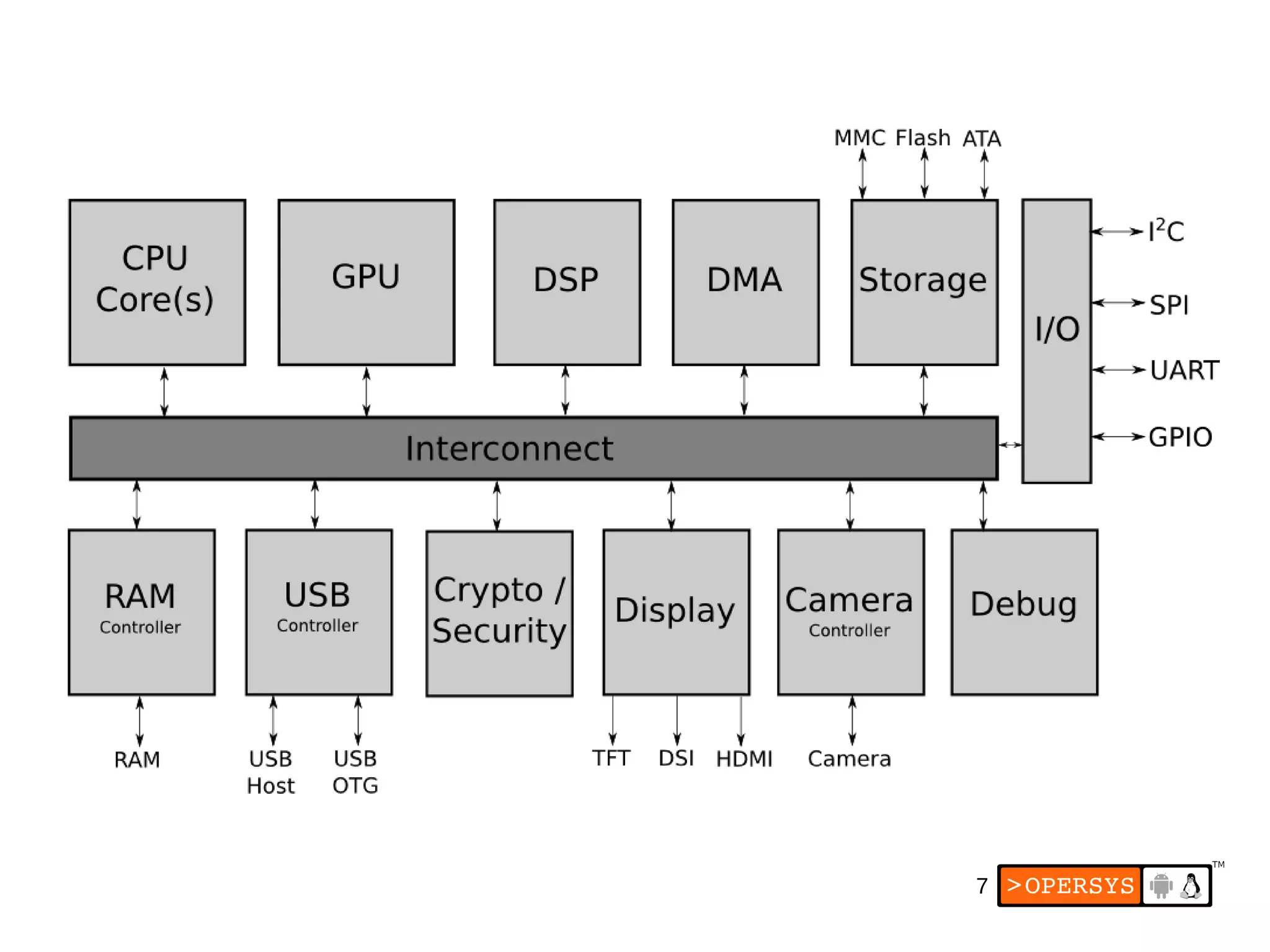

● Hardware on which Android is based
● Android stack
● Startup
● System services
● Binder driver

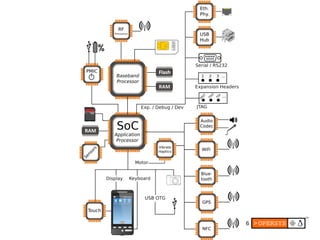

6. 6

7. 7

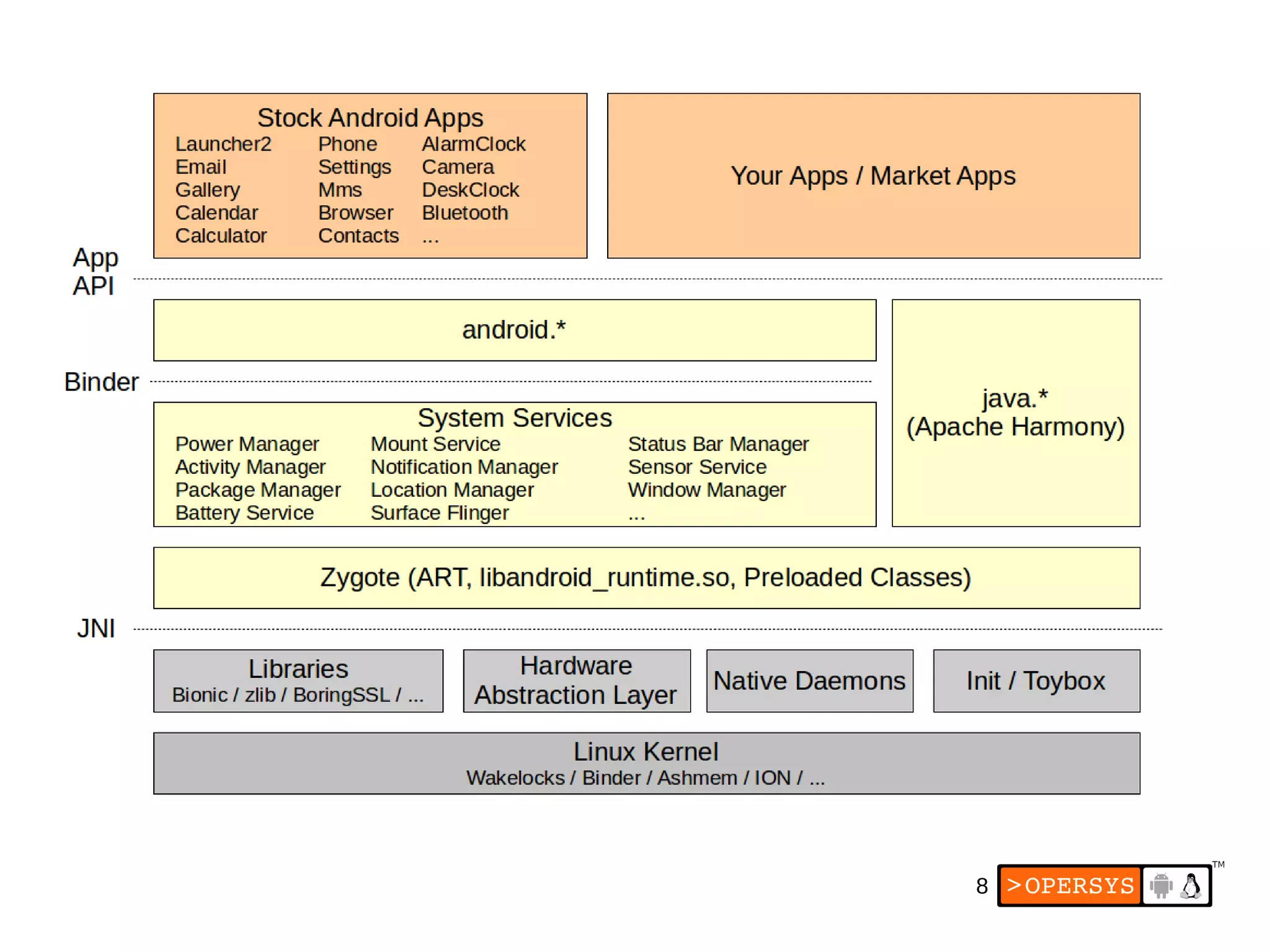

8. 8

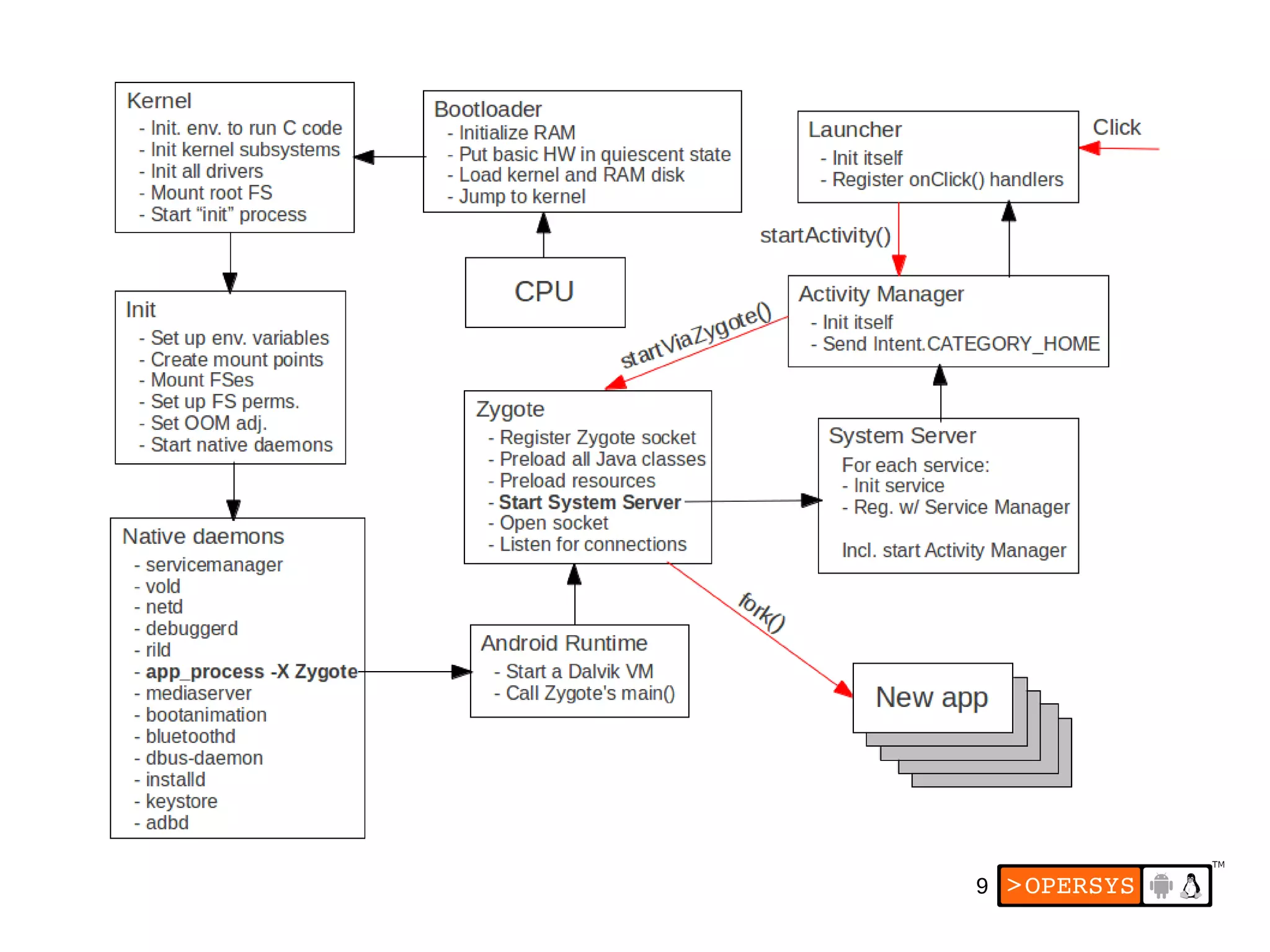

9. 9

10. 10

11. 11

12. 12

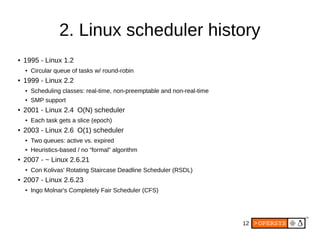

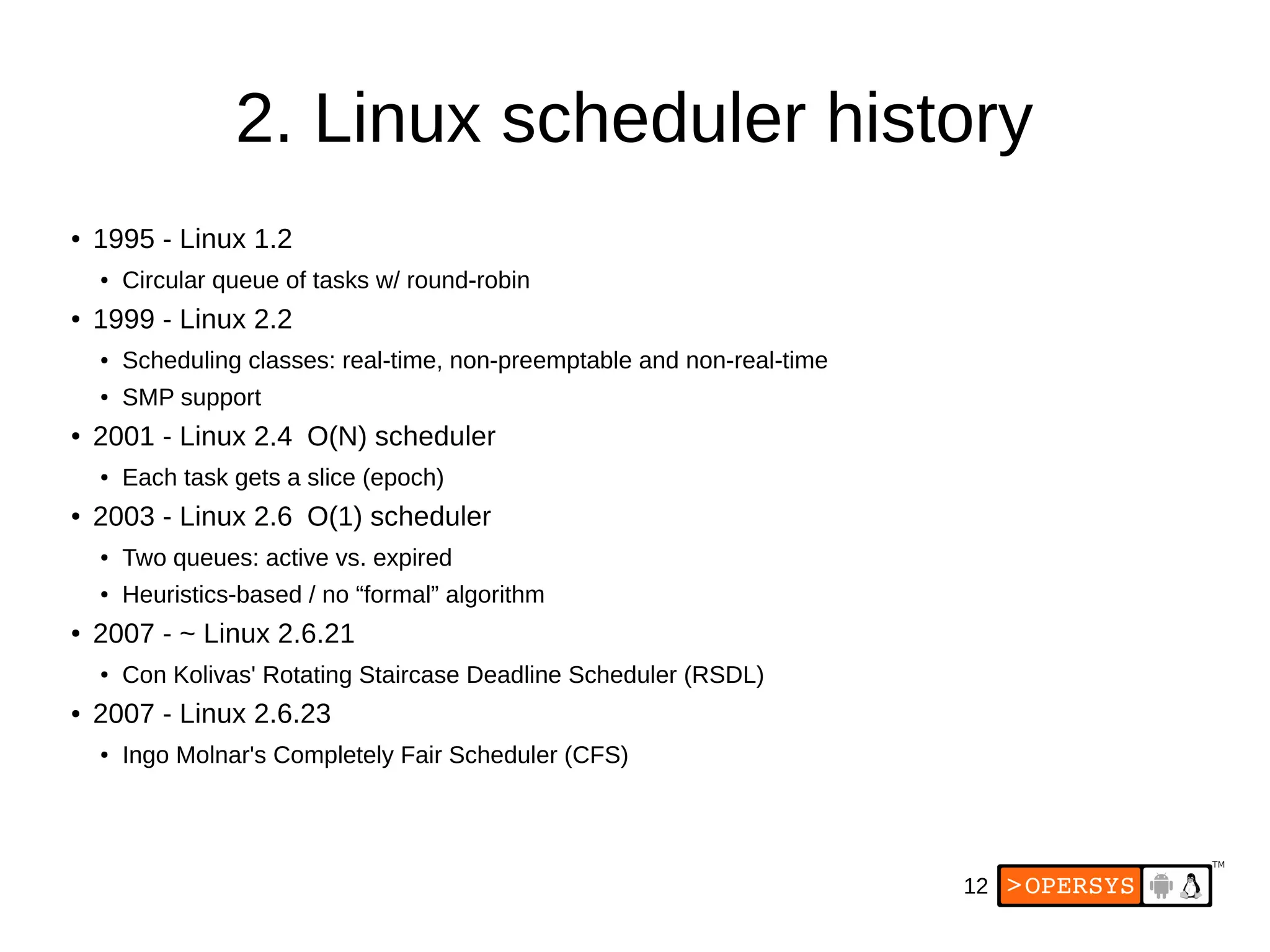

2. Linux scheduler history
● 1995 - Linux 1.2
● Circular queue of tasks w/ round-robin
● 1999 - Linux 2.2
● Scheduling classes: real-time, non-preemptable and non-real-time
● SMP support
● 2001 - Linux 2.4 O(N) scheduler
● Each task gets a slice (epoch)
● 2003 - Linux 2.6 O(1) scheduler
● Two queues: active vs. expired
● Heuristics-based / no “formal” algorithm
● 2007 - ~ Linux 2.6.21
● Con Kolivas' Rotating Staircase Deadline Scheduler (RSDL)
● 2007 - Linux 2.6.23
● Ingo Molnar's Completely Fair Scheduler (CFS)

13. 13

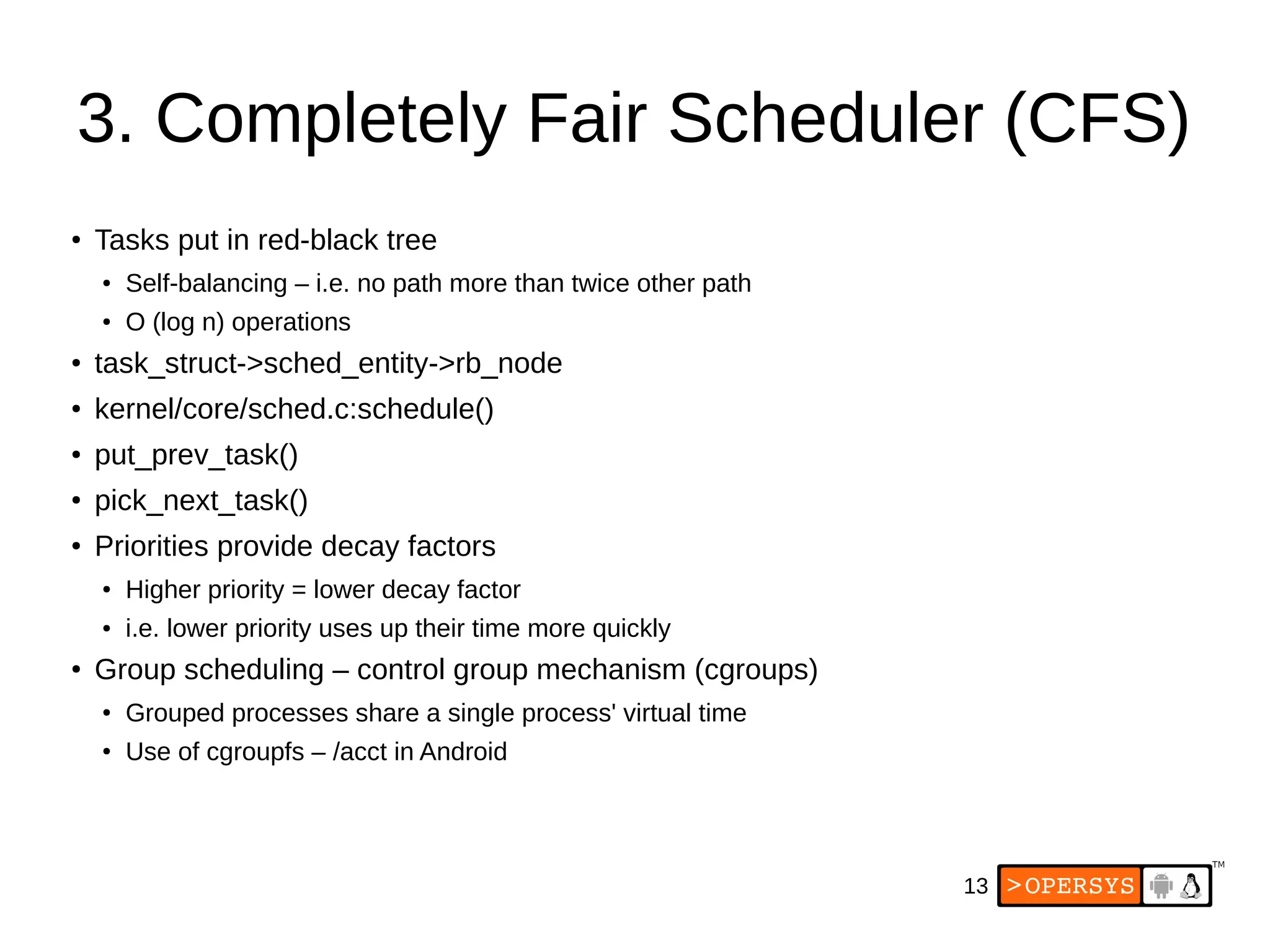

3. Completely Fair Scheduler (CFS)
●
Tasks put in red-black tree
●
Self-balancing – i.e. no path more than twice other path
● O (log n) operations
●
task_struct->sched_entity->rb_node
●
kernel/core/sched.c:schedule()
●
put_prev_task()
●
pick_next_task()
●
Priorities provide decay factors
●
Higher priority = lower decay factor
● i.e. lower priority uses up their time more quickly
●
Group scheduling – control group mechanism (cgroups)
●
Grouped processes share a single process' virtual time
●
Use of cgroupfs – /acct in Android

14. 14

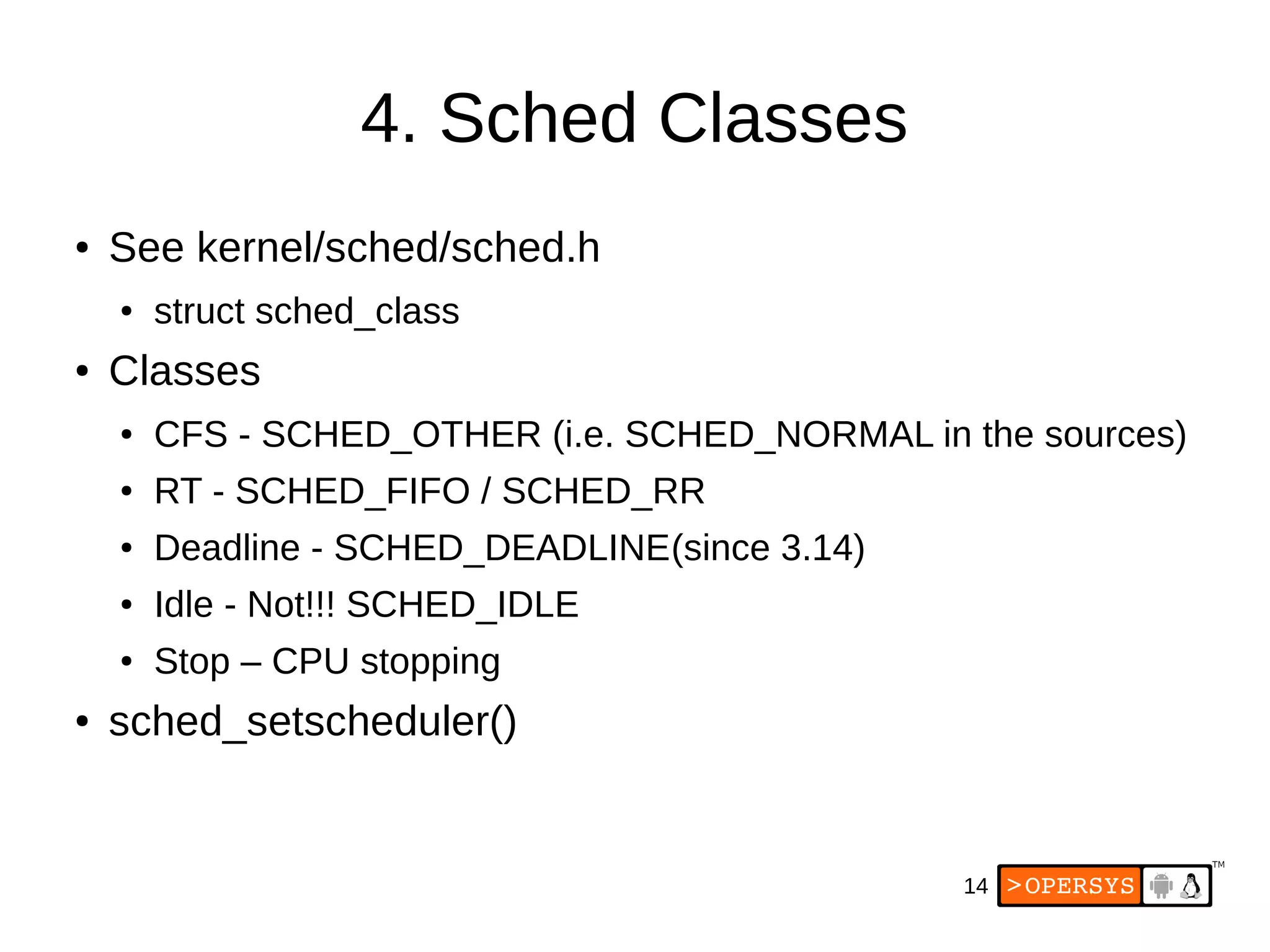

4. Sched Classes
● See kernel/sched/sched.h
● struct sched_class
● Classes
● CFS - SCHED_OTHER (i.e. SCHED_NORMAL in the sources)
● RT - SCHED_FIFO / SCHED_RR
● Deadline - SCHED_DEADLINE(since 3.14)
● Idle - Not!!! SCHED_IDLE
● Stop – CPU stopping
● sched_setscheduler()

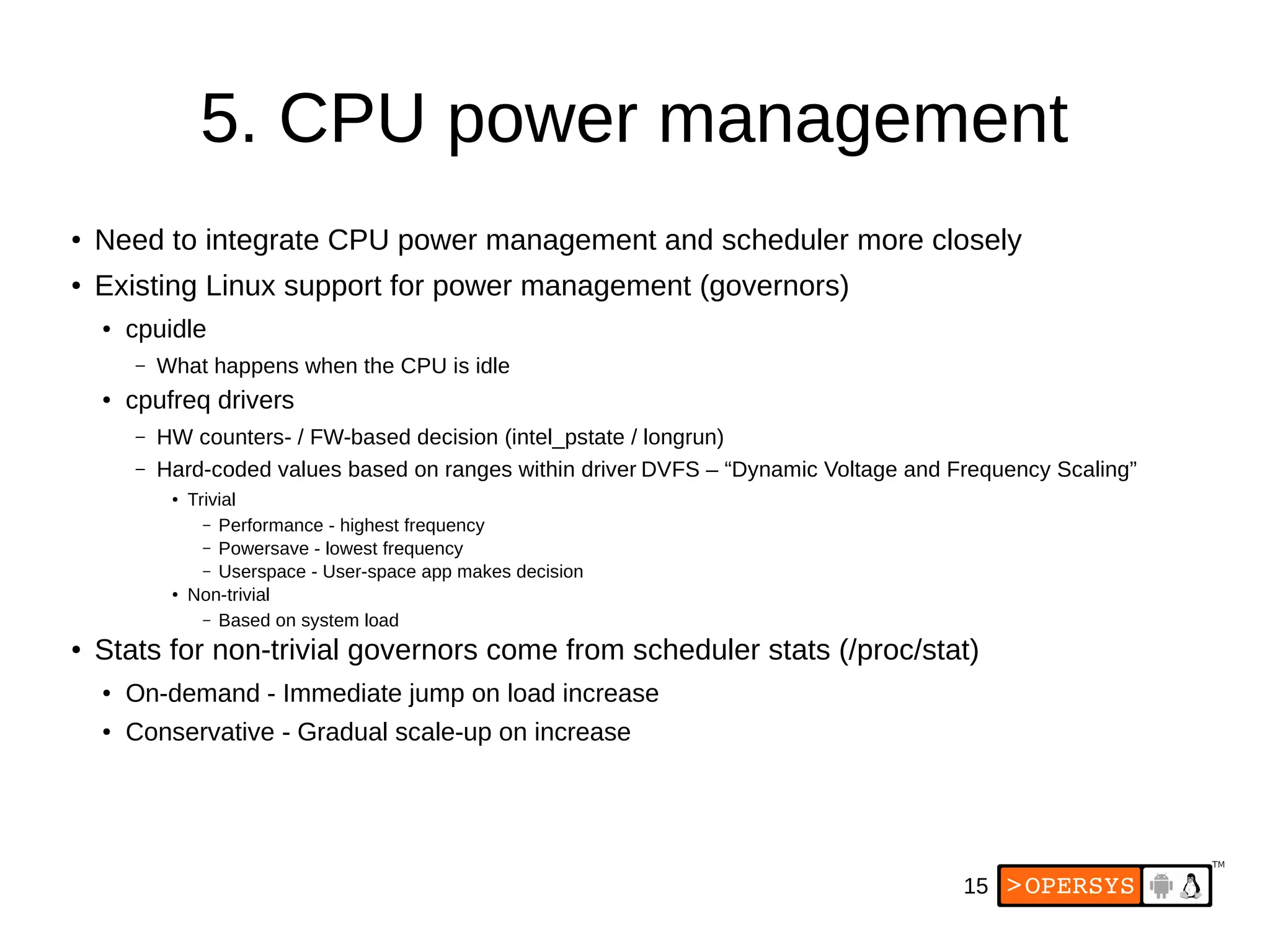

15. 15
5. CPU power management
●
Need to integrate CPU power management and scheduler more closely
●
Existing Linux support for power management (governors)
●
cpuidle
– What happens when the CPU is idle
● cpufreq drivers
– HW counters- / FW-based decision (intel_pstate / longrun)
– Hard-coded values based on ranges within driver DVFS – “Dynamic Voltage and Frequency Scaling”
●
Trivial
– Performance - highest frequency
– Powersave - lowest frequency
– Userspace - User-space app makes decision
●
Non-trivial
– Based on system load
●
Stats for non-trivial governors come from scheduler stats (/proc/stat)
●
On-demand - Immediate jump on load increase
● Conservative - Gradual scale-up on increase

16. 16

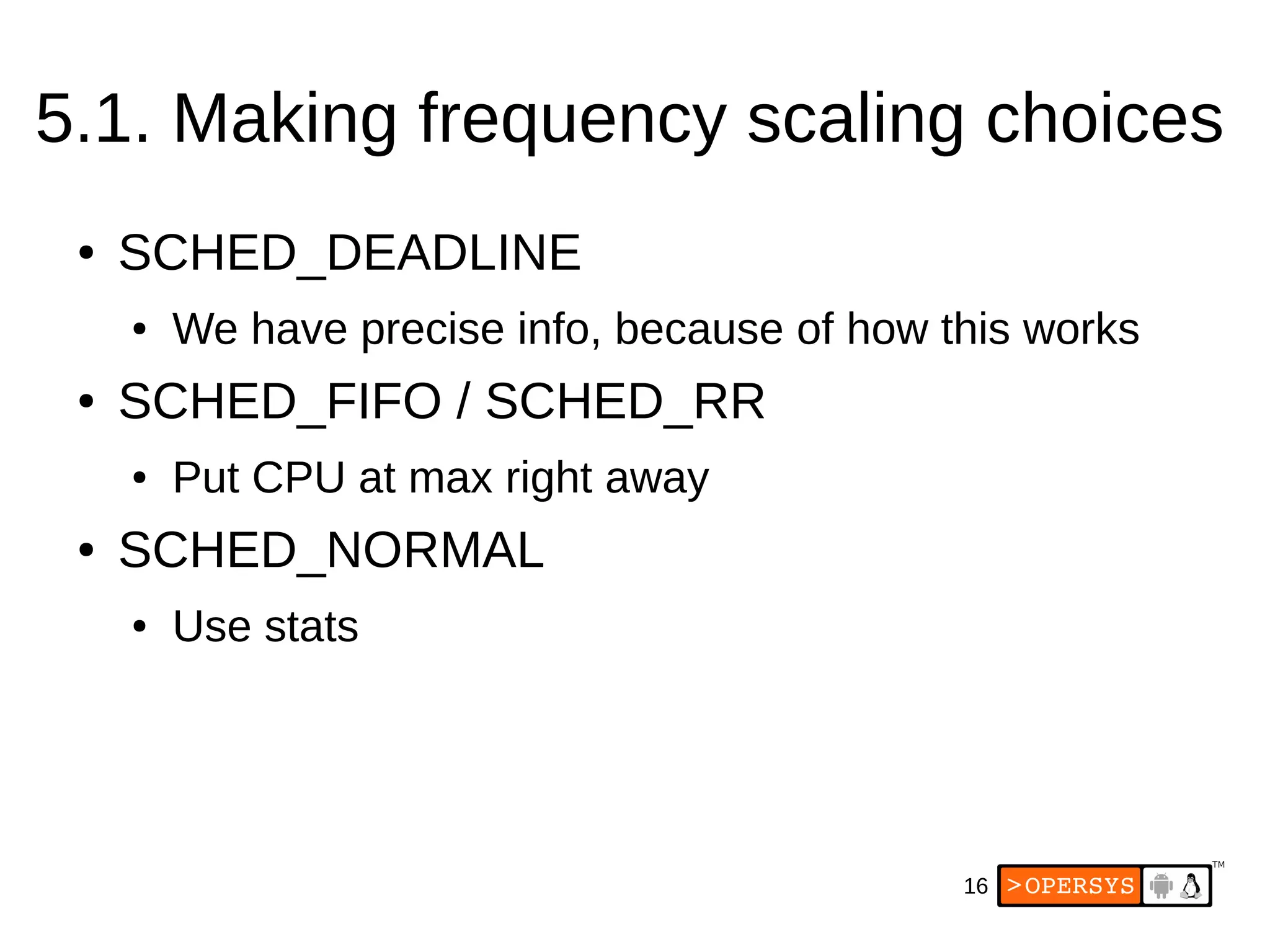

5.1. Making frequency scaling choices
● SCHED_DEADLINE
● We have precise info, because of how this works
● SCHED_FIFO / SCHED_RR
● Put CPU at max right away
● SCHED_NORMAL
● Use stats

17. 17

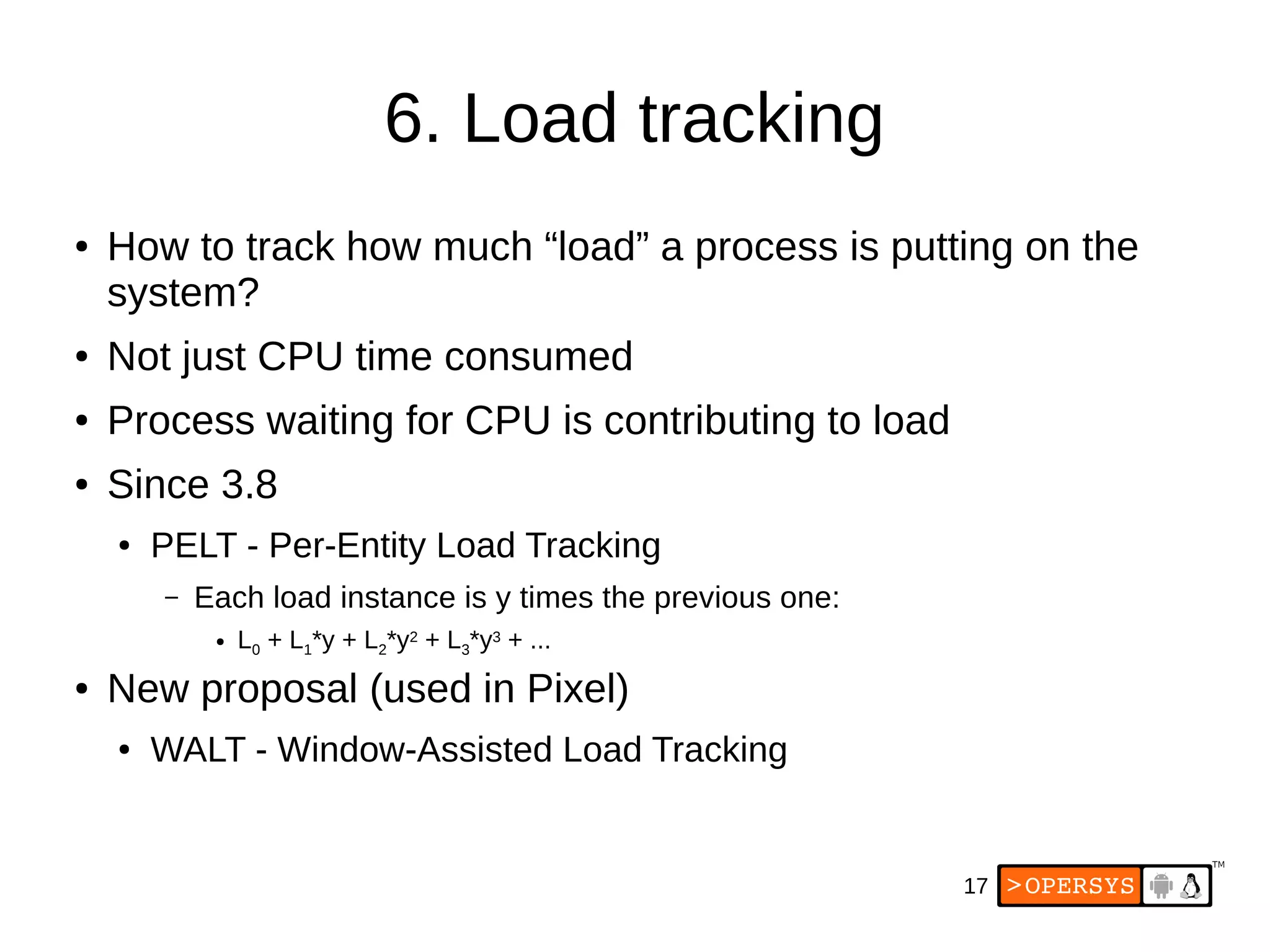

6. Load tracking
● How to track how much “load” a process is putting on the
system?
● Not just CPU time consumed
● Process waiting for CPU is contributing to load
● Since 3.8
● PELT - Per-Entity Load Tracking
– Each load instance is y times the previous one:
● L0 + L1*y + L2*y2 + L3*y3 + ...
● New proposal (used in Pixel)
● WALT - Window-Assisted Load Tracking

18. 18

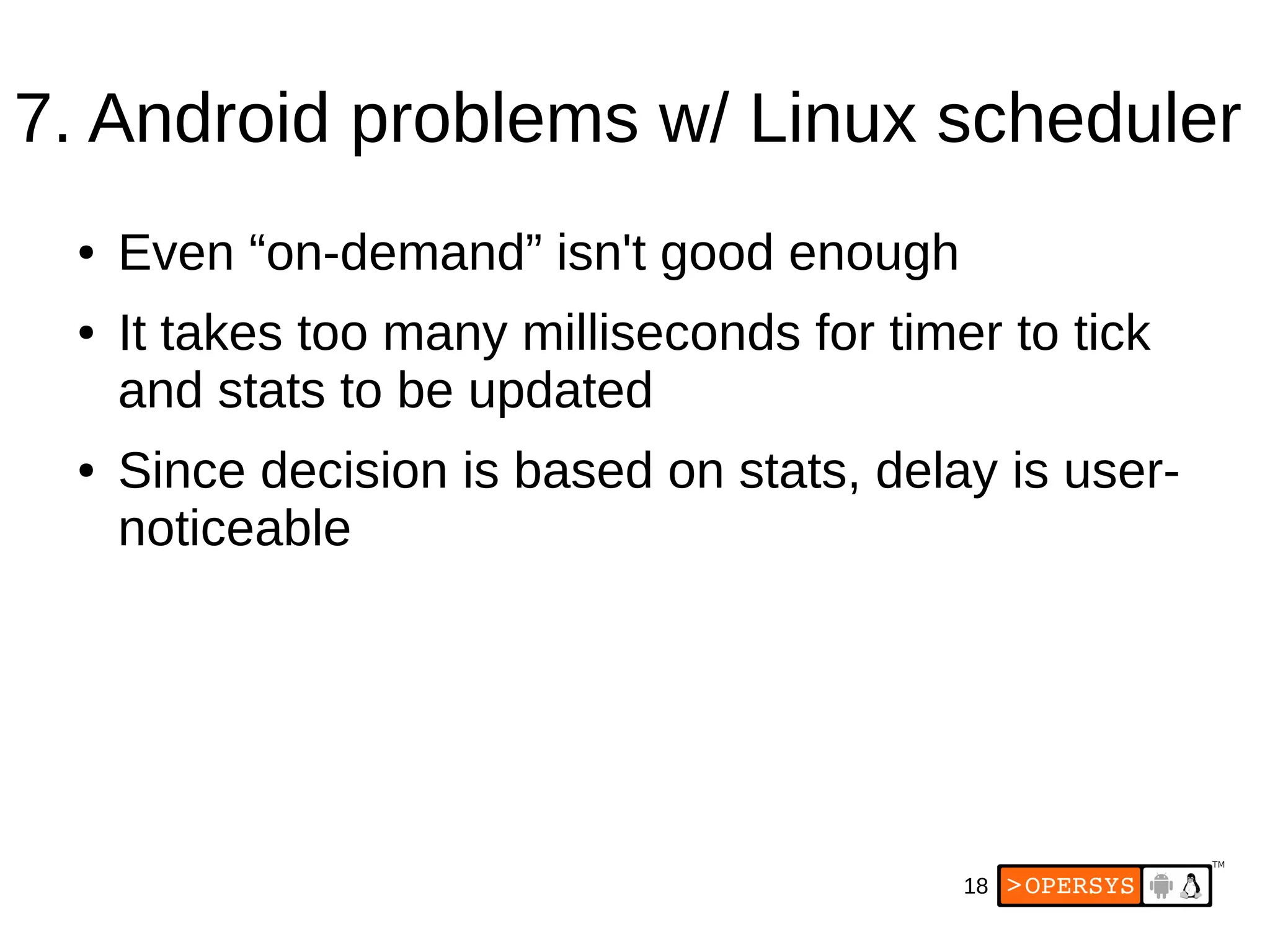

7. Android problems w/ Linux scheduler
● Even “on-demand” isn't good enough
● It takes too many milliseconds for timer to tick
and stats to be updated
● Since decision is based on stats, delay is user-
noticeable

19. 19

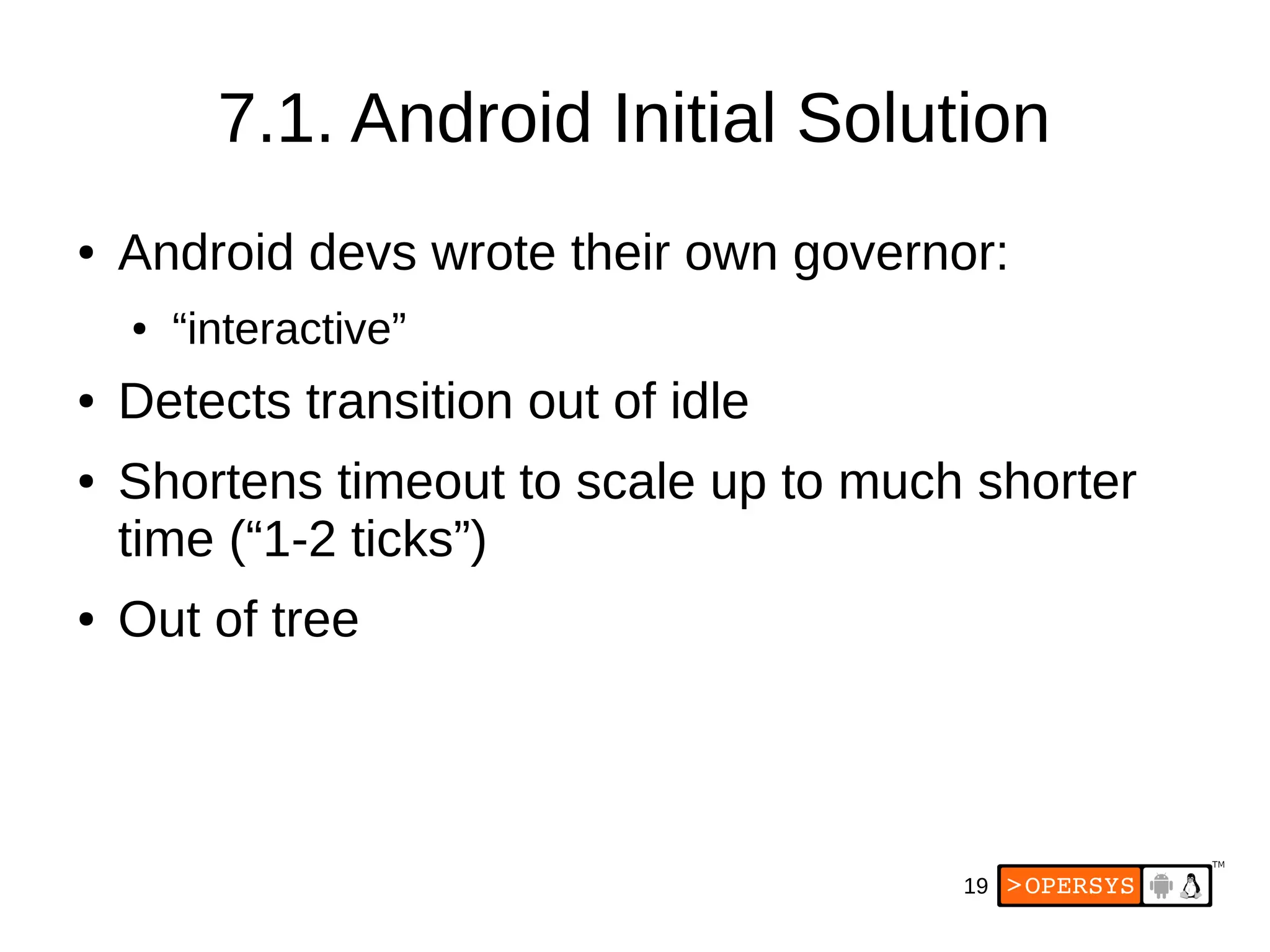

7.1. Android Initial Solution
● Android devs wrote their own governor:
● “interactive”
● Detects transition out of idle
● Shortens timeout to scale up to much shorter
time (“1-2 ticks”)
● Out of tree

20. 20

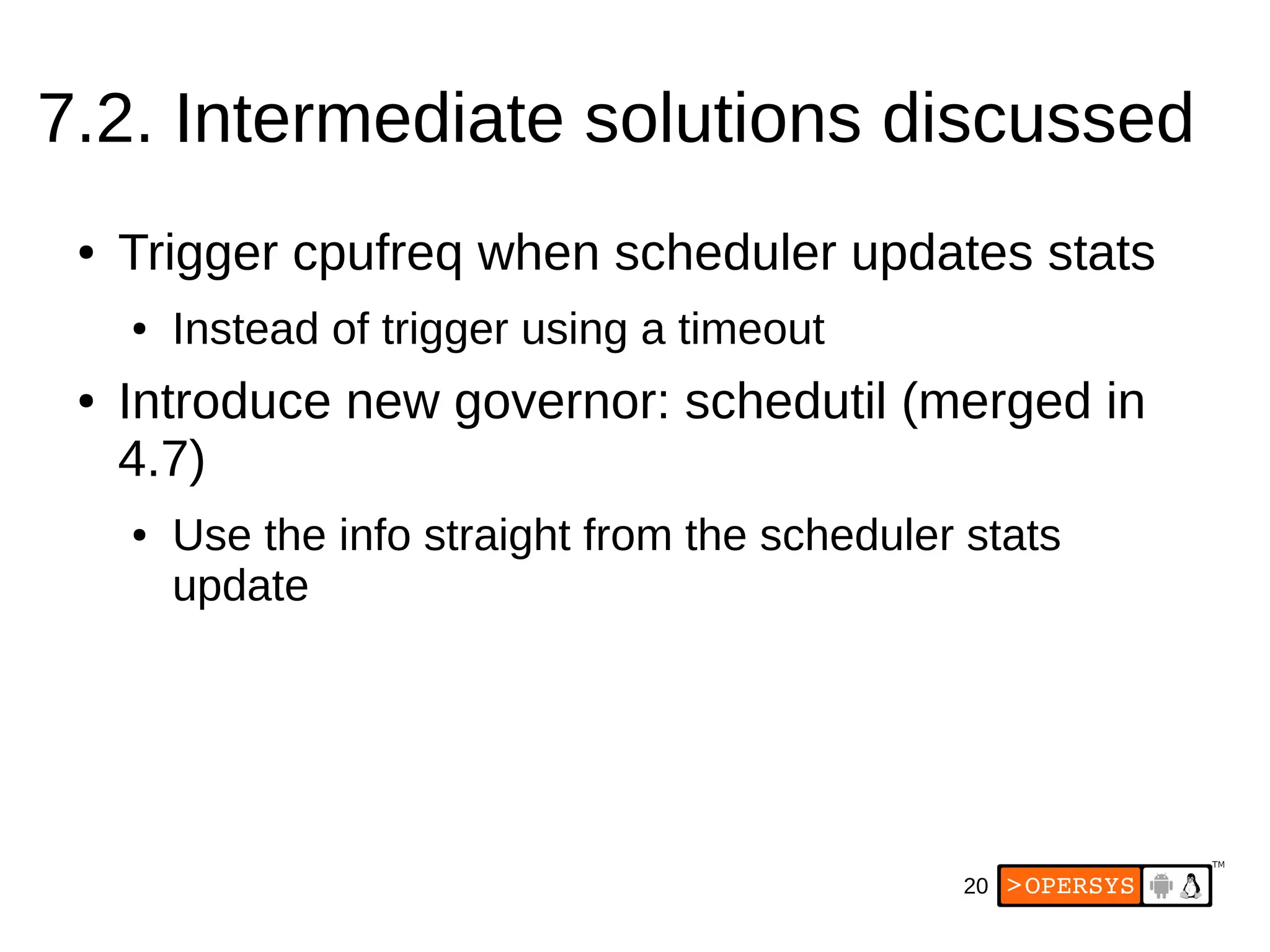

7.2. Intermediate solutions discussed
● Trigger cpufreq when scheduler updates stats
● Instead of trigger using a timeout
● Introduce new governor: schedutil (merged in
4.7)
● Use the info straight from the scheduler stats
update

21. 21

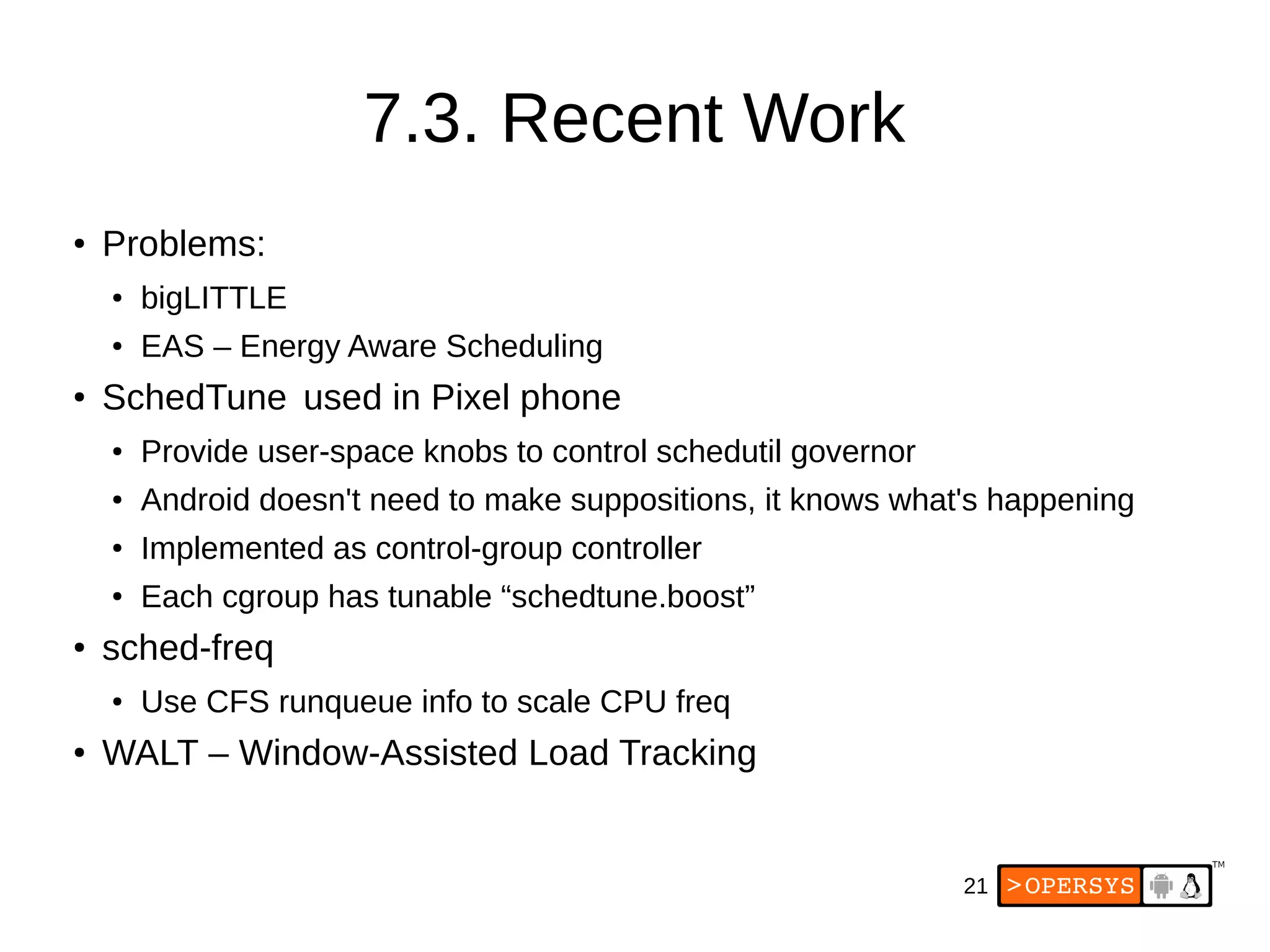

7.3. Recent Work
●
Problems:
● bigLITTLE
● EAS – Energy Aware Scheduling
●
SchedTune used in Pixel phone
● Provide user-space knobs to control schedutil governor
● Android doesn't need to make suppositions, it knows what's happening
●
Implemented as control-group controller
● Each cgroup has tunable “schedtune.boost”
●
sched-freq
● Use CFS runqueue info to scale CPU freq
●
WALT – Window-Assisted Load Tracking

22. 22

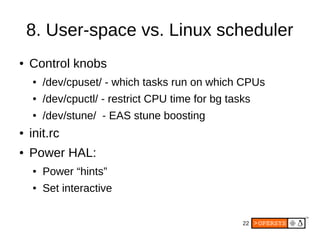

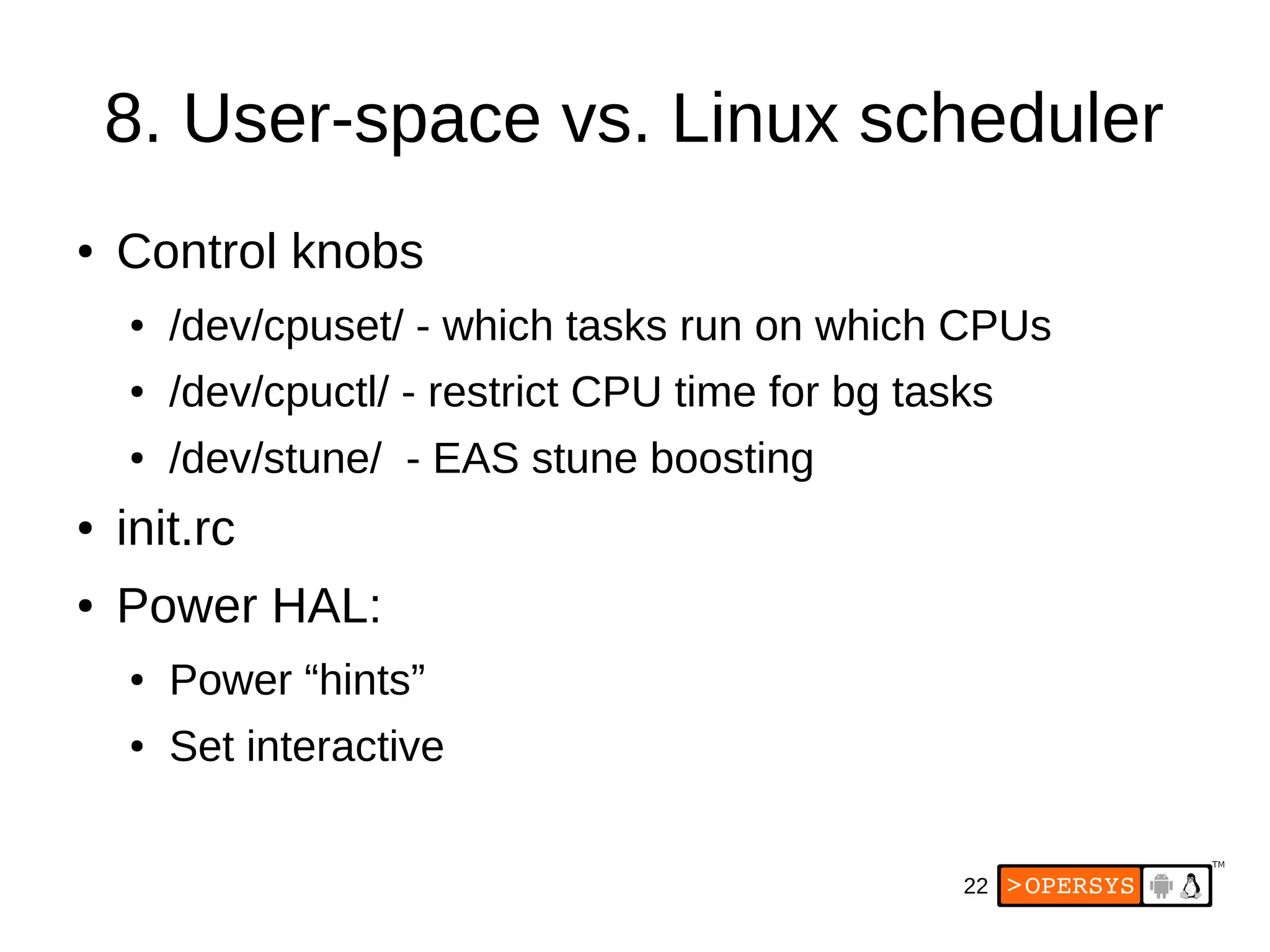

8. User-space vs. Linux scheduler
● Control knobs
● /dev/cpuset/ - which tasks run on which CPUs
● /dev/cpuctl/ - restrict CPU time for bg tasks
● /dev/stune/ - EAS stune boosting
● init.rc
● Power HAL:
● Power “hints”
● Set interactive

23. 23

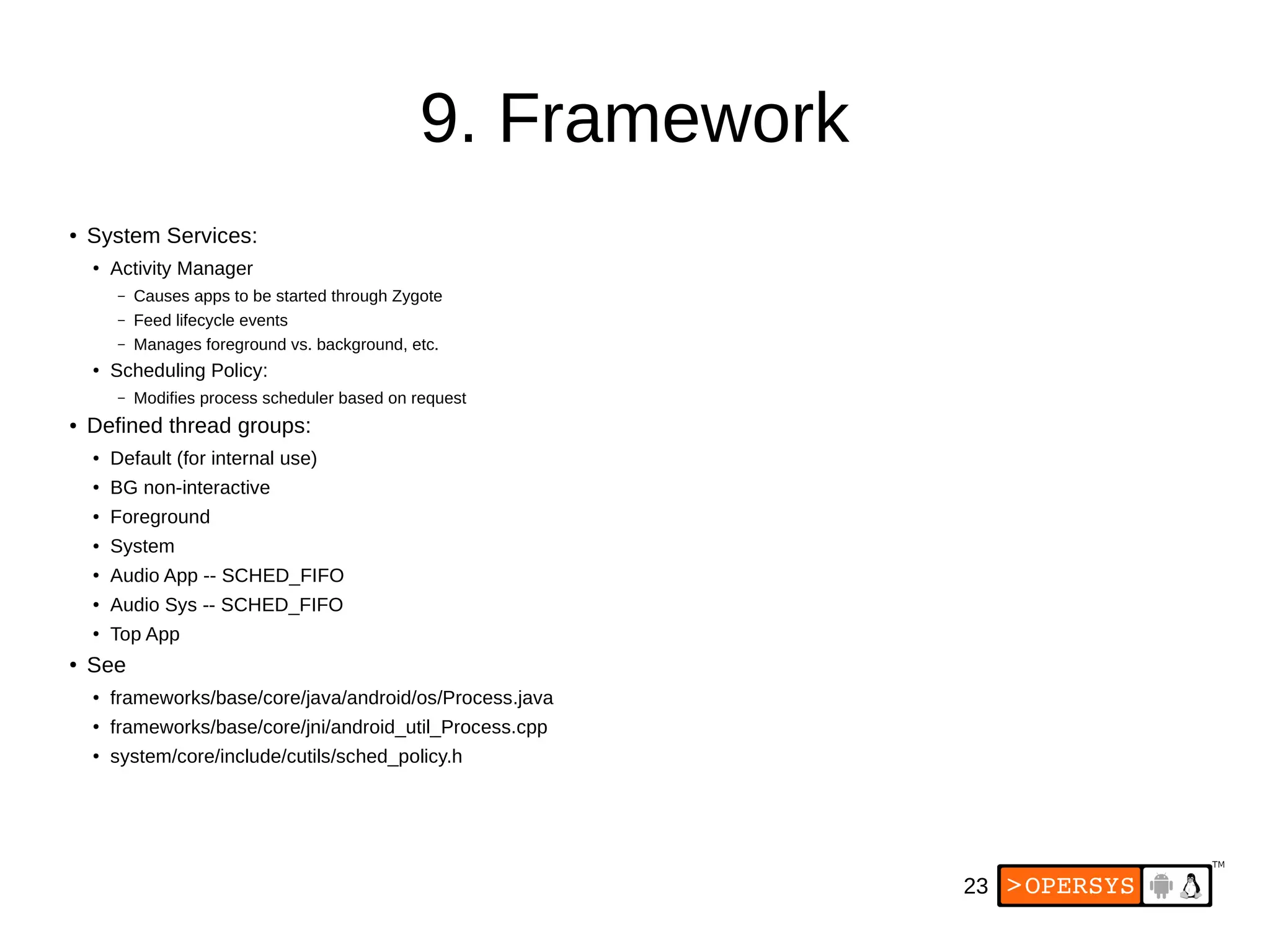

9. Framework
● System Services:
●
Activity Manager
– Causes apps to be started through Zygote
– Feed lifecycle events
– Manages foreground vs. background, etc.
●
Scheduling Policy:
– Modifies process scheduler based on request
● Defined thread groups:
● Default (for internal use)
● BG non-interactive
● Foreground
● System
●
Audio App -- SCHED_FIFO
●
Audio Sys -- SCHED_FIFO
●
Top App
● See
●
frameworks/base/core/java/android/os/Process.java
●
frameworks/base/core/jni/android_util_Process.cpp
●
system/core/include/cutils/sched_policy.h

24. 24

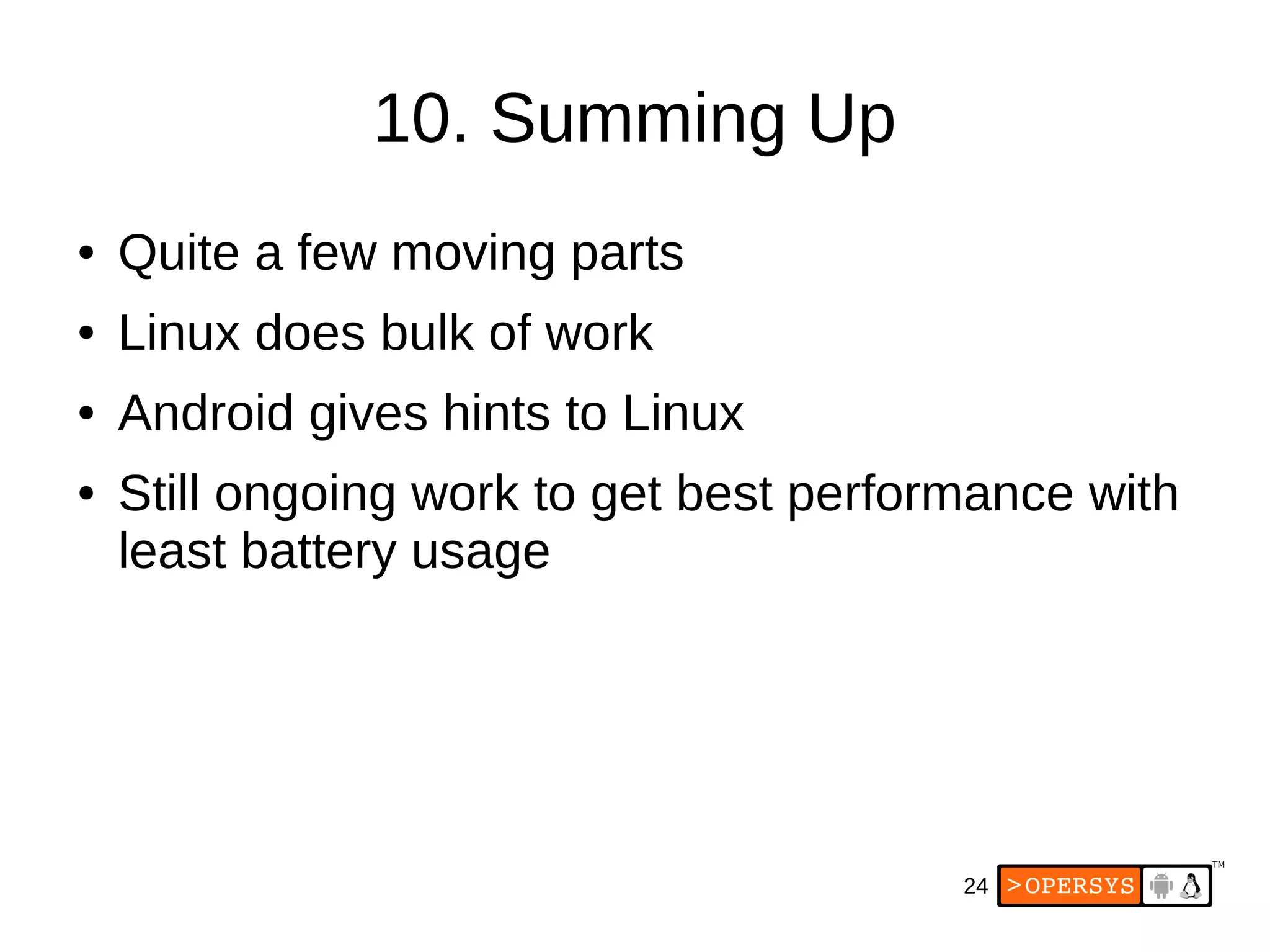

10. Summing Up
● Quite a few moving parts
● Linux does bulk of work
● Android gives hints to Linux
● Still ongoing work to get best performance with
least battery usage

25. 25

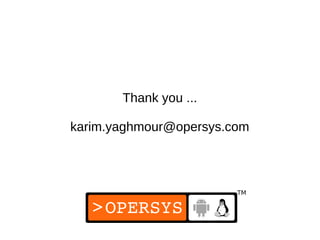

Thank you ...
karim.yaghmour@opersys.com
