Networks have layers according to different models like the OSI model and TCP/IP model. The document discusses each layer including physical, data link, network, transport, session, presentation, and application layers. It provides examples of common protocols that operate at each layer like Ethernet at the data link layer, IP at the network layer, and HTTP at the application layer. The document demonstrates using Wireshark to capture network packets at different layers like ARP, DNS, ping, and HTTP requests to analyze the network traffic and observe how protocols work.

1. Networks Have Layers
Brandon Checketts

2. Who Am I
● My father is a network engineer for a government
contractor (I grew up with this stuff)
● Degree on Telecommunications Administration
● Background in Linux System Administration
● Now mostly work in Software Development
● Lead people here at RoundSphere / BookScouter / Seller
Labs

3. http://193.140.54.45/network/Network-Protocols-Map-Poster.jpg (9Mb)

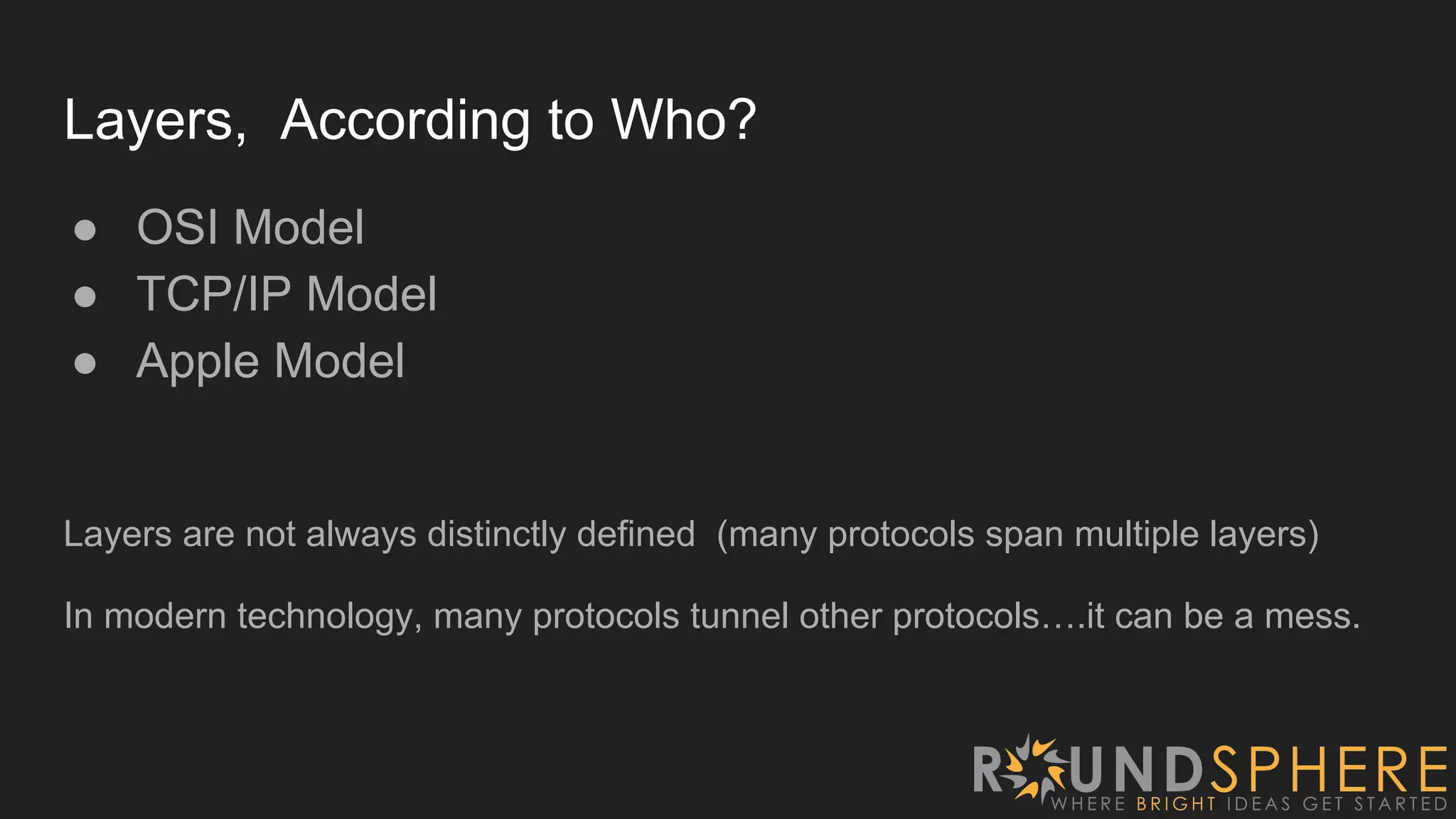

4. Layers, According to Who?
● OSI Model
● TCP/IP Model
● Apple Model
Layers are not always distinctly defined (many protocols span multiple layers)
In modern technology, many protocols tunnel other protocols….it can be a mess.

5. https://www.youtube.com/watch?v=GZpcwKEIRCI

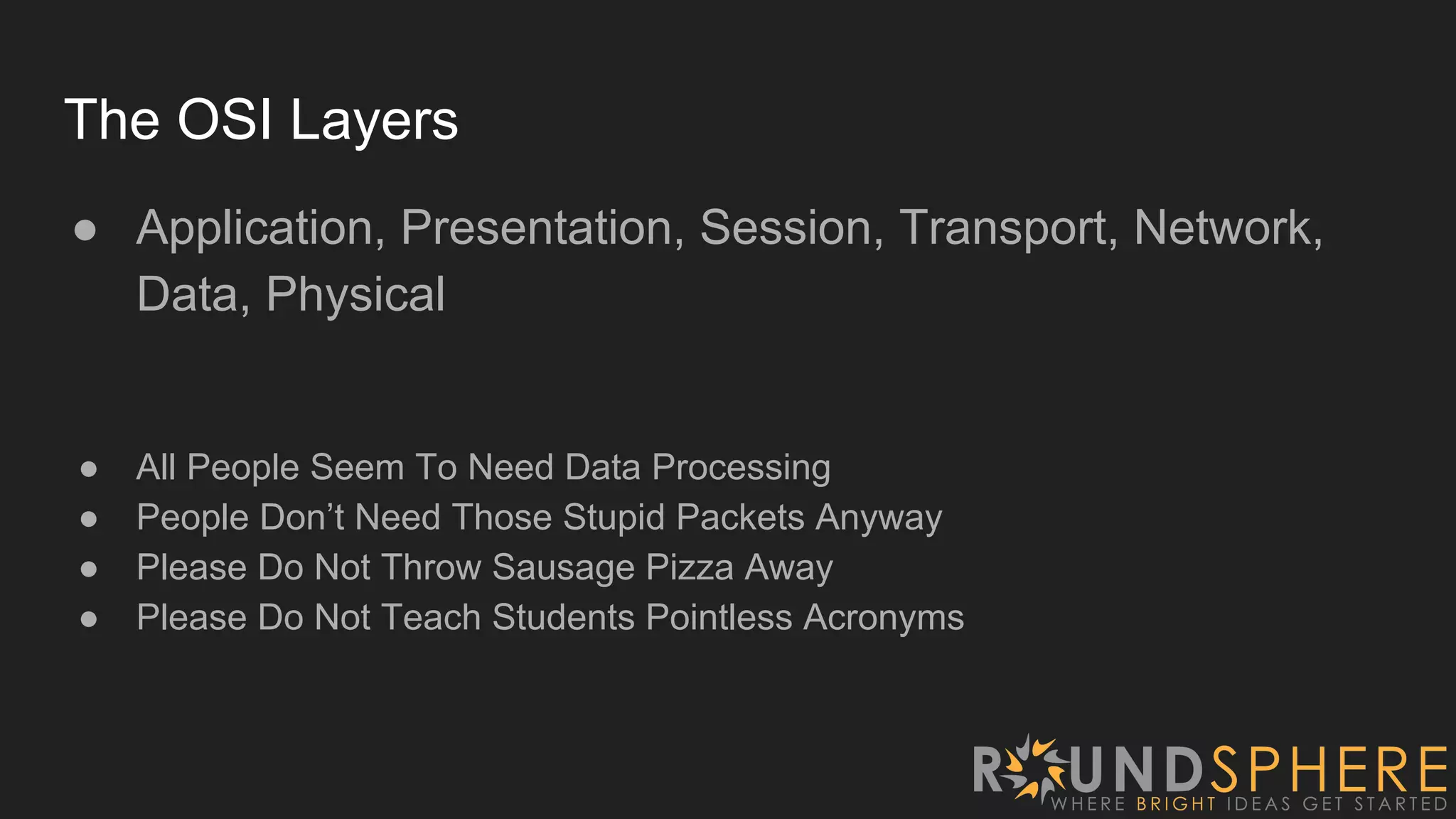

7. The OSI Layers
● Application, Presentation, Session, Transport, Network,
Data, Physical
● All People Seem To Need Data Processing
● People Don’t Need Those Stupid Packets Anyway
● Please Do Not Throw Sausage Pizza Away
● Please Do Not Teach Students Pointless Acronyms

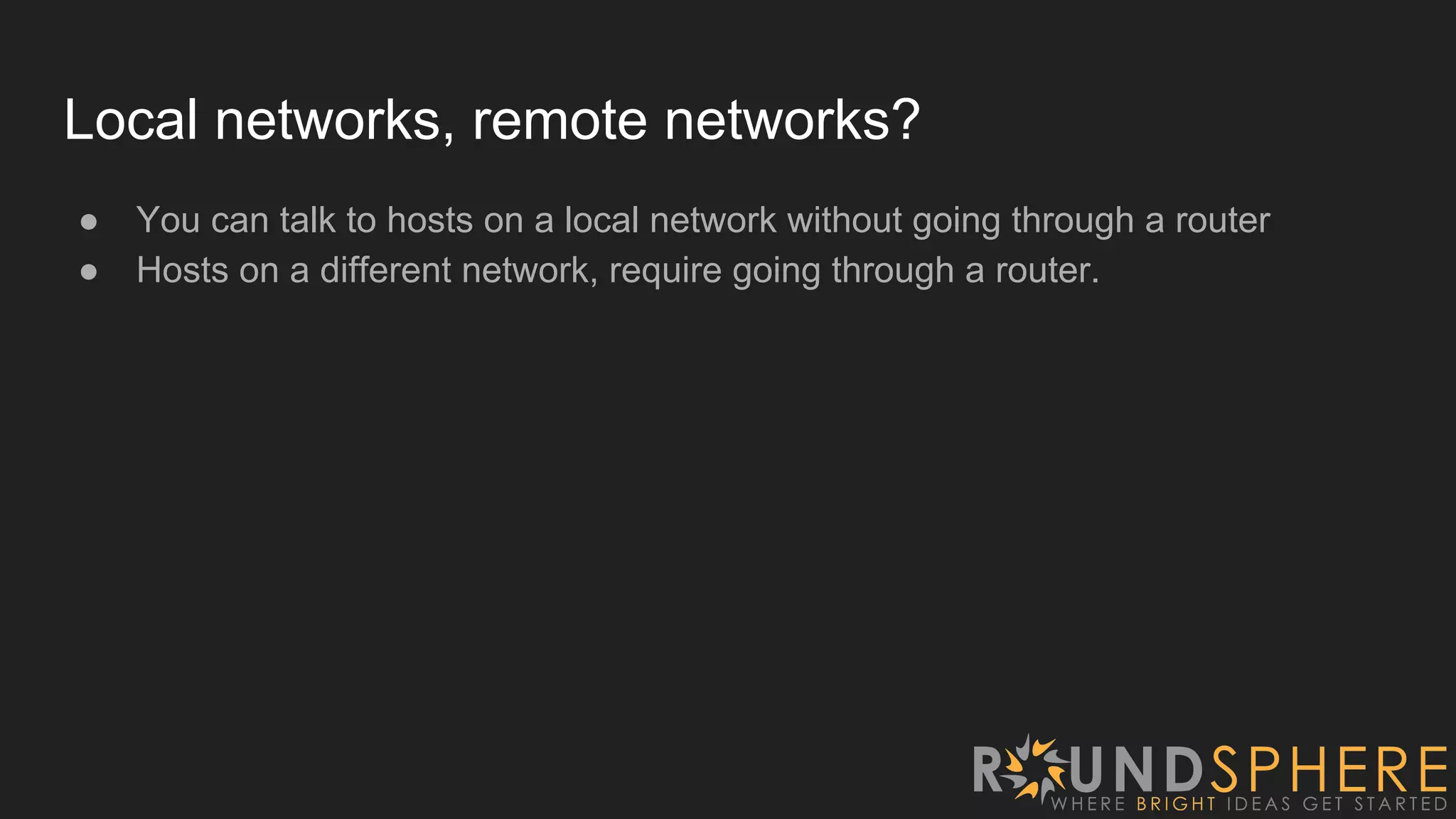

8. Local networks, remote networks?
● You can talk to hosts on a local network without going through a router
● Hosts on a different network, require going through a router.

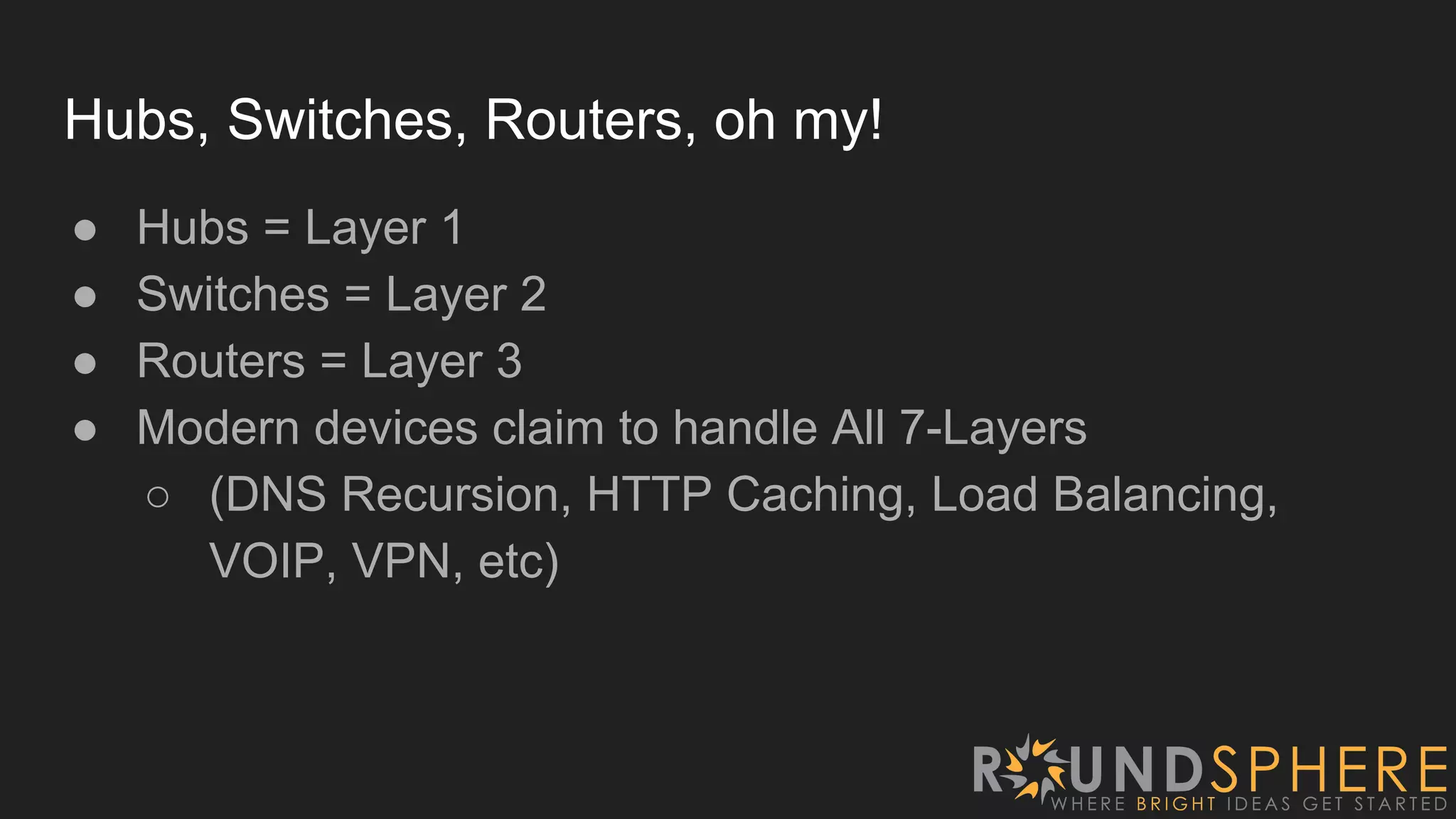

9. Hubs, Switches, Routers, oh my!
● Hubs = Layer 1
● Switches = Layer 2
● Routers = Layer 3
● Modern devices claim to handle All 7-Layers
○ (DNS Recursion, HTTP Caching, Load Balancing,
VOIP, VPN, etc)

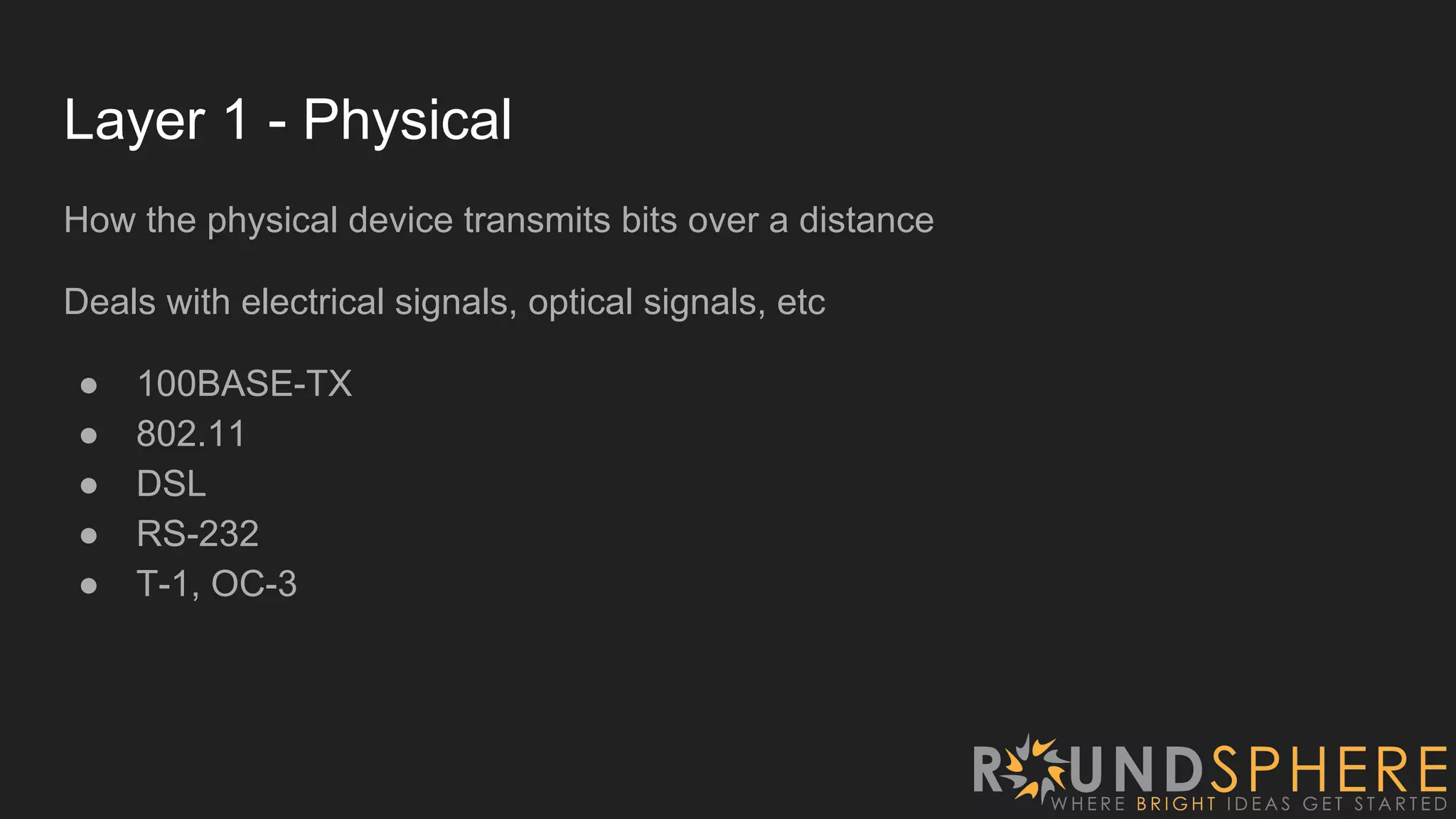

10. Layer 1 - Physical
How the physical device transmits bits over a distance
Deals with electrical signals, optical signals, etc
● 100BASE-TX
● 802.11
● DSL
● RS-232
● T-1, OC-3

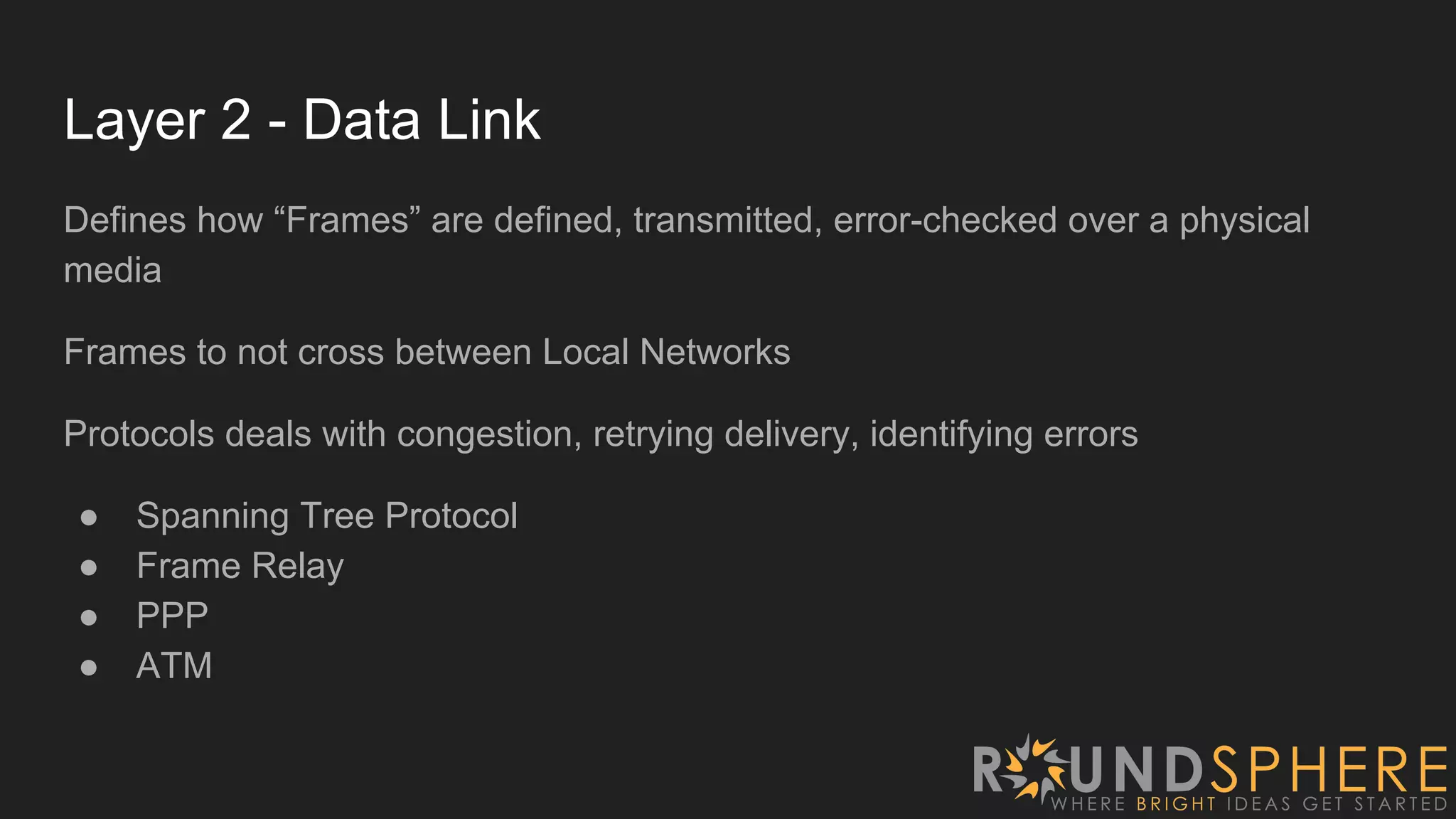

11. Layer 2 - Data Link
Defines how “Frames” are defined, transmitted, error-checked over a physical
media
Frames to not cross between Local Networks
Protocols deals with congestion, retrying delivery, identifying errors
● Spanning Tree Protocol
● Frame Relay
● PPP
● ATM

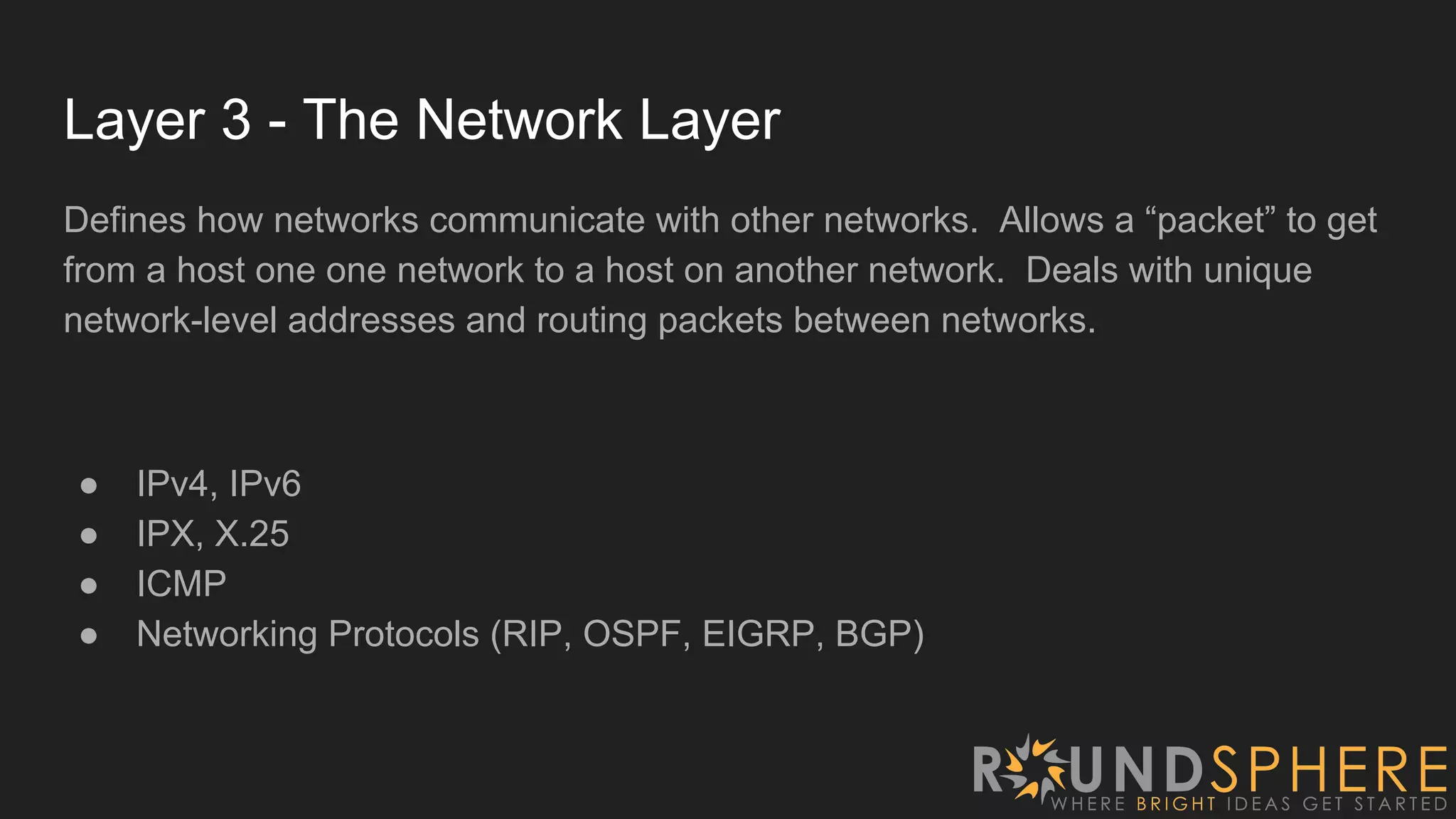

12. Layer 3 - The Network Layer
Defines how networks communicate with other networks. Allows a “packet” to get
from a host one one network to a host on another network. Deals with unique
network-level addresses and routing packets between networks.
● IPv4, IPv6
● IPX, X.25
● ICMP
● Networking Protocols (RIP, OSPF, EIGRP, BGP)

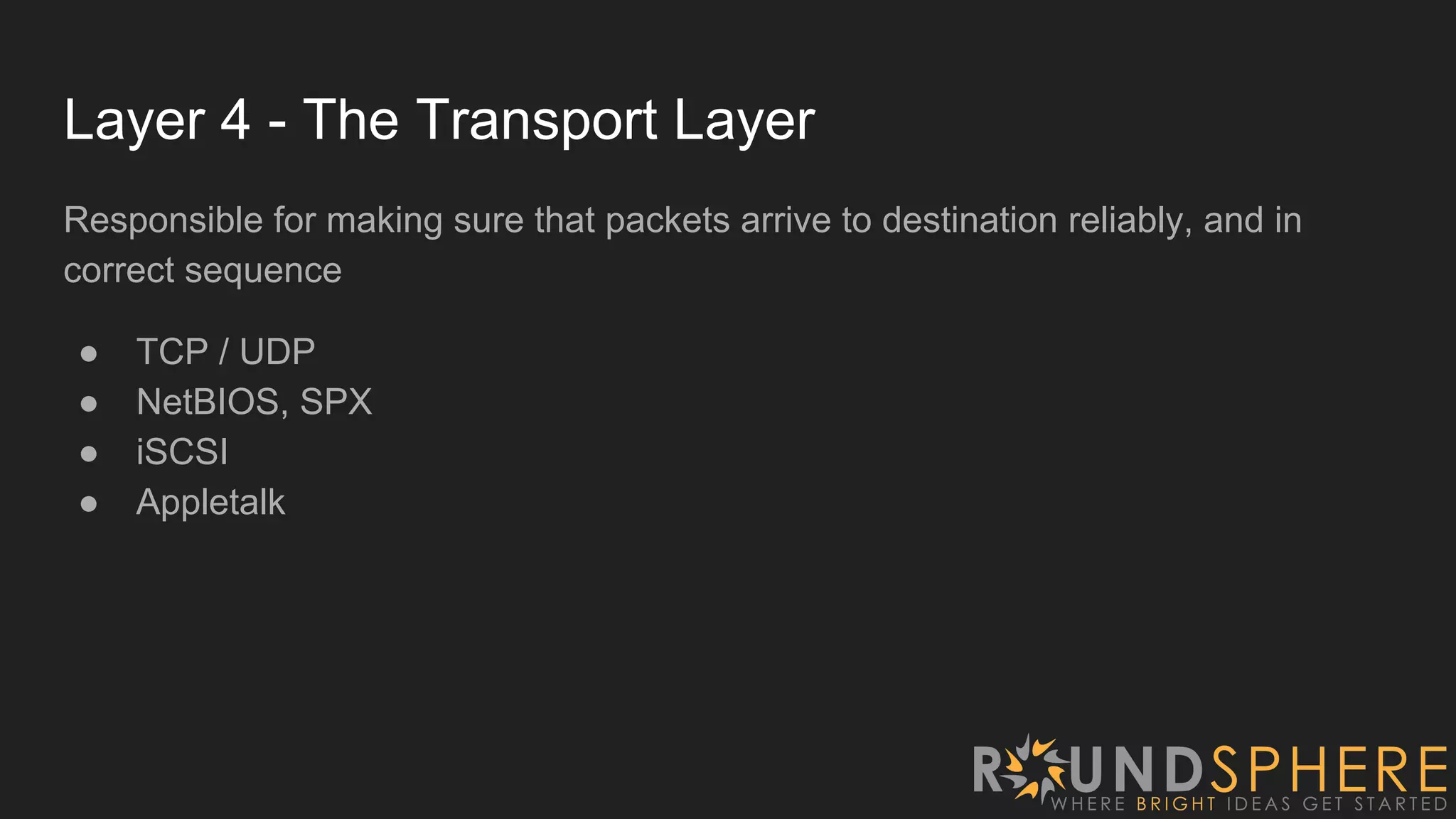

13. Layer 4 - The Transport Layer
Responsible for making sure that packets arrive to destination reliably, and in
correct sequence
● TCP / UDP
● NetBIOS, SPX
● iSCSI
● Appletalk

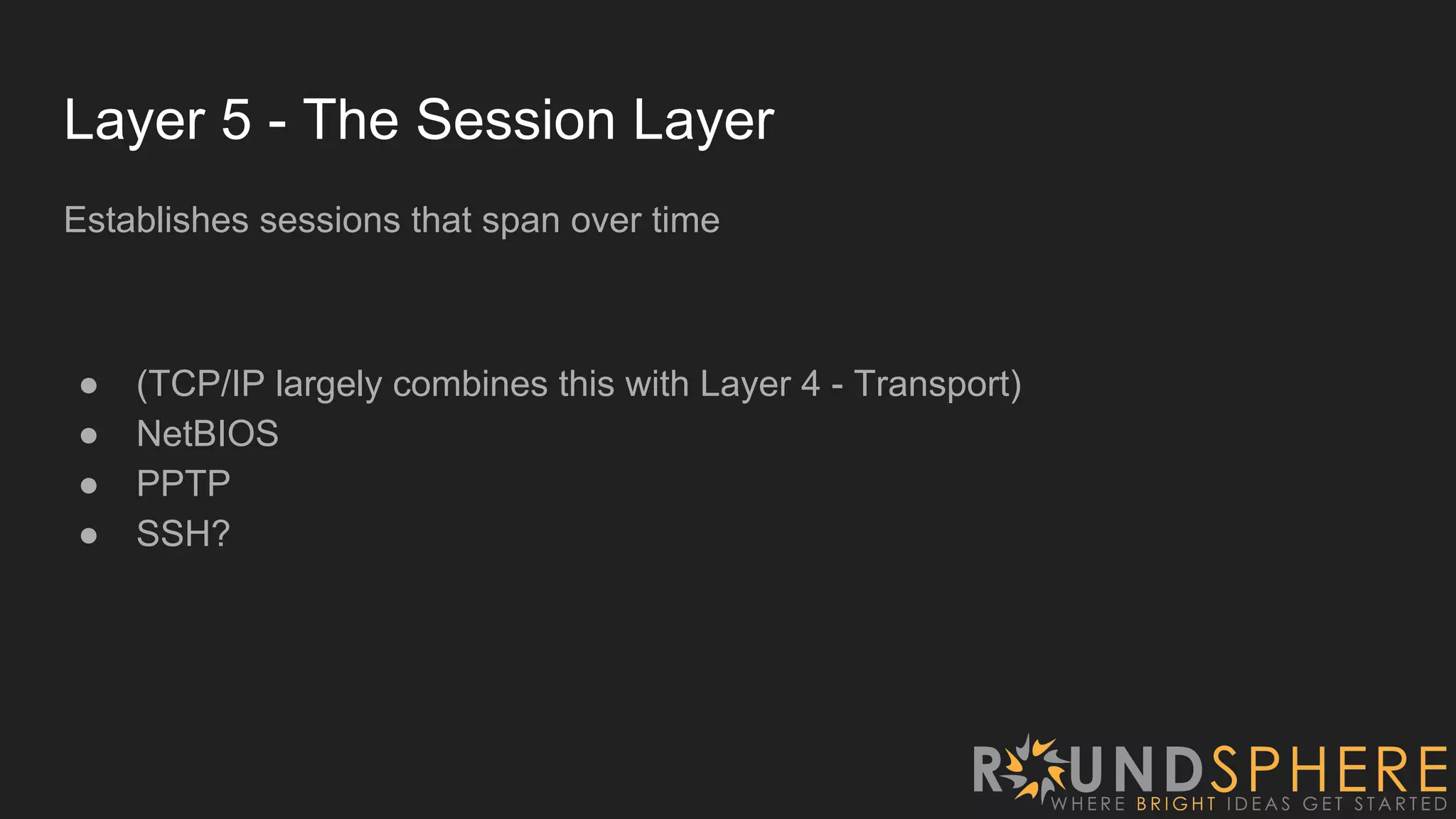

14. Layer 5 - The Session Layer
Establishes sessions that span over time
● (TCP/IP largely combines this with Layer 4 - Transport)
● NetBIOS
● PPTP
● SSH?

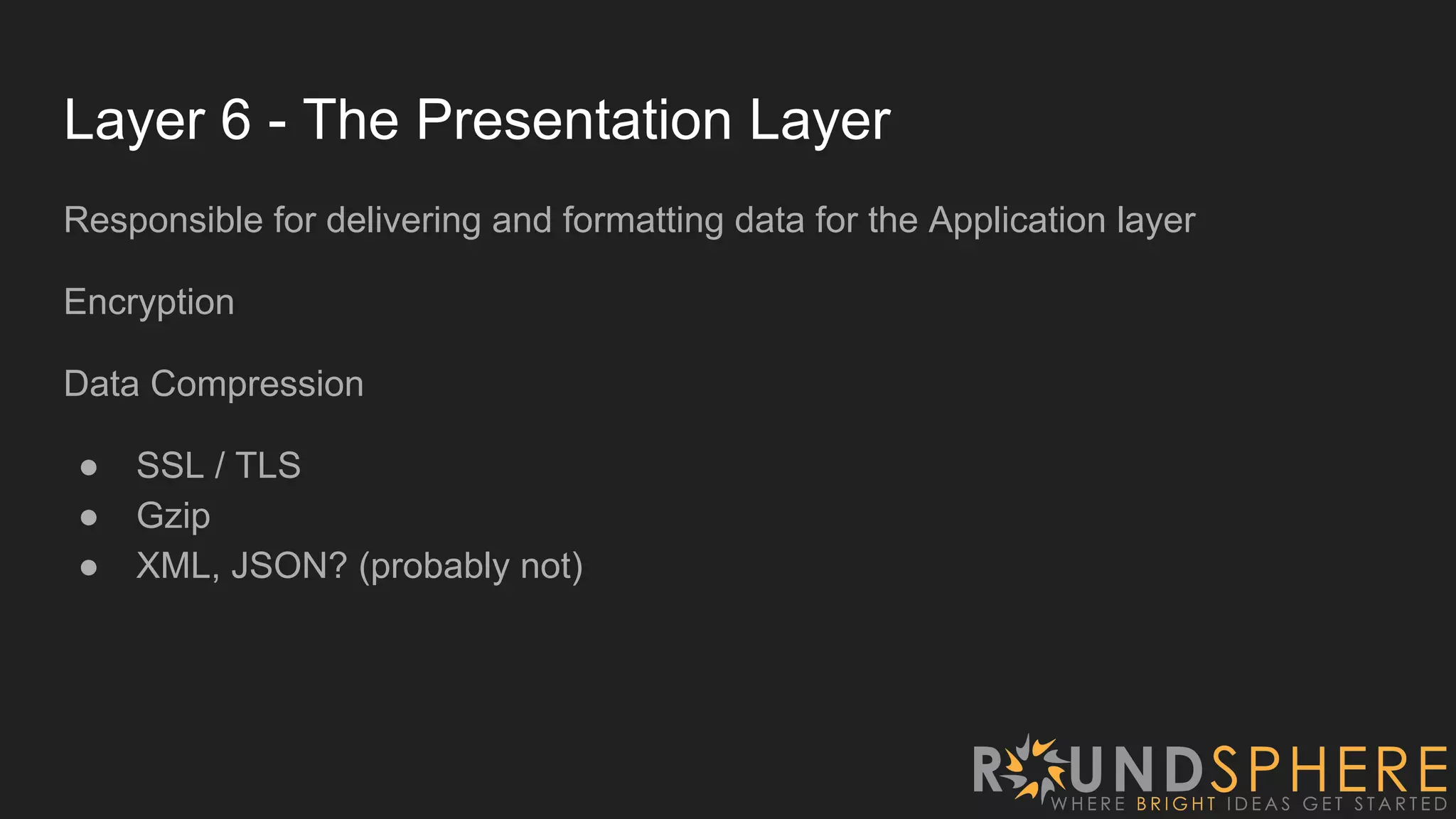

15. Layer 6 - The Presentation Layer
Responsible for delivering and formatting data for the Application layer
Encryption
Data Compression
● SSL / TLS
● Gzip
● XML, JSON? (probably not)

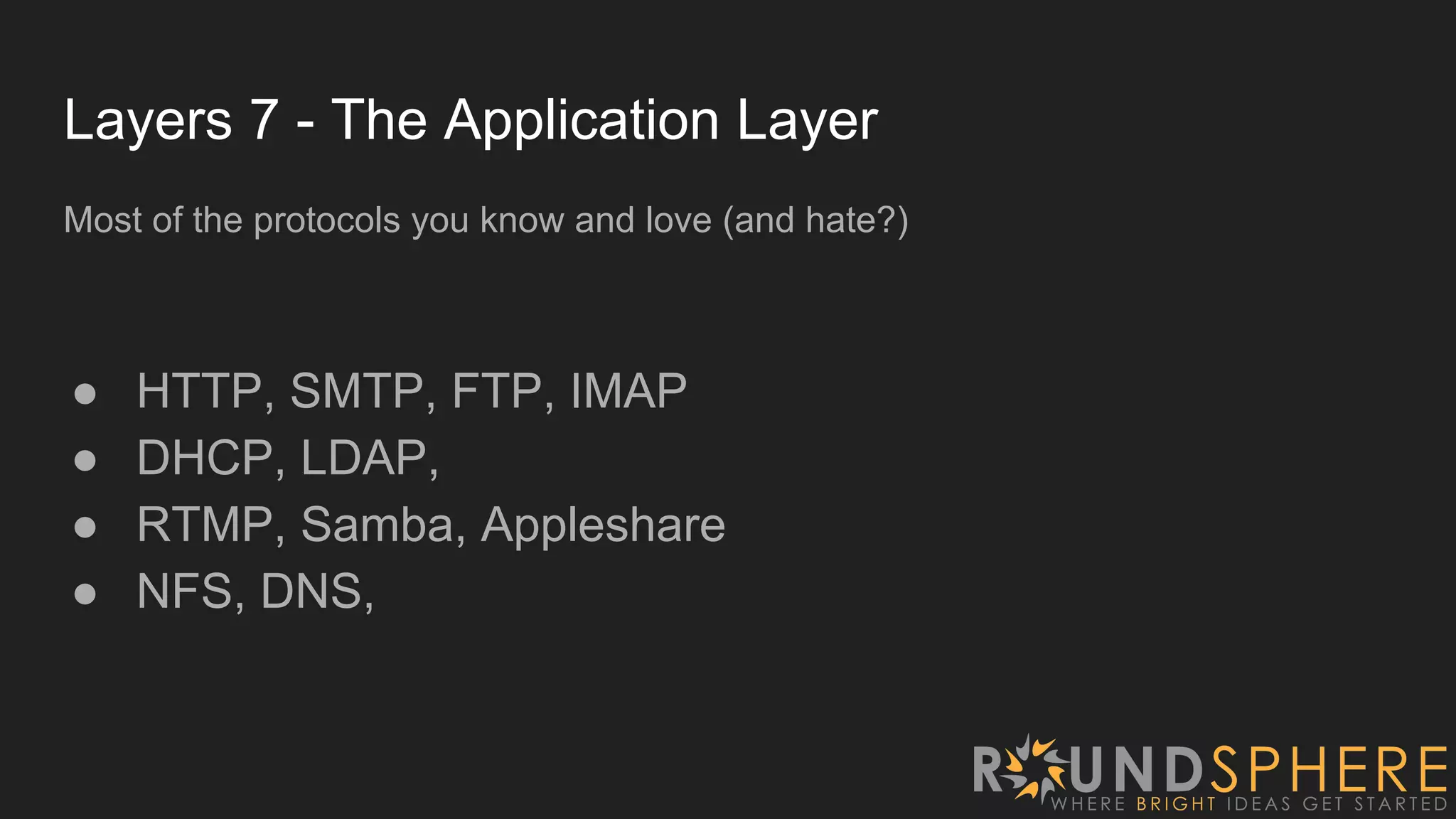

16. Layers 7 - The Application Layer
Most of the protocols you know and love (and hate?)
● HTTP, SMTP, FTP, IMAP
● DHCP, LDAP,
● RTMP, Samba, Appleshare
● NFS, DNS,

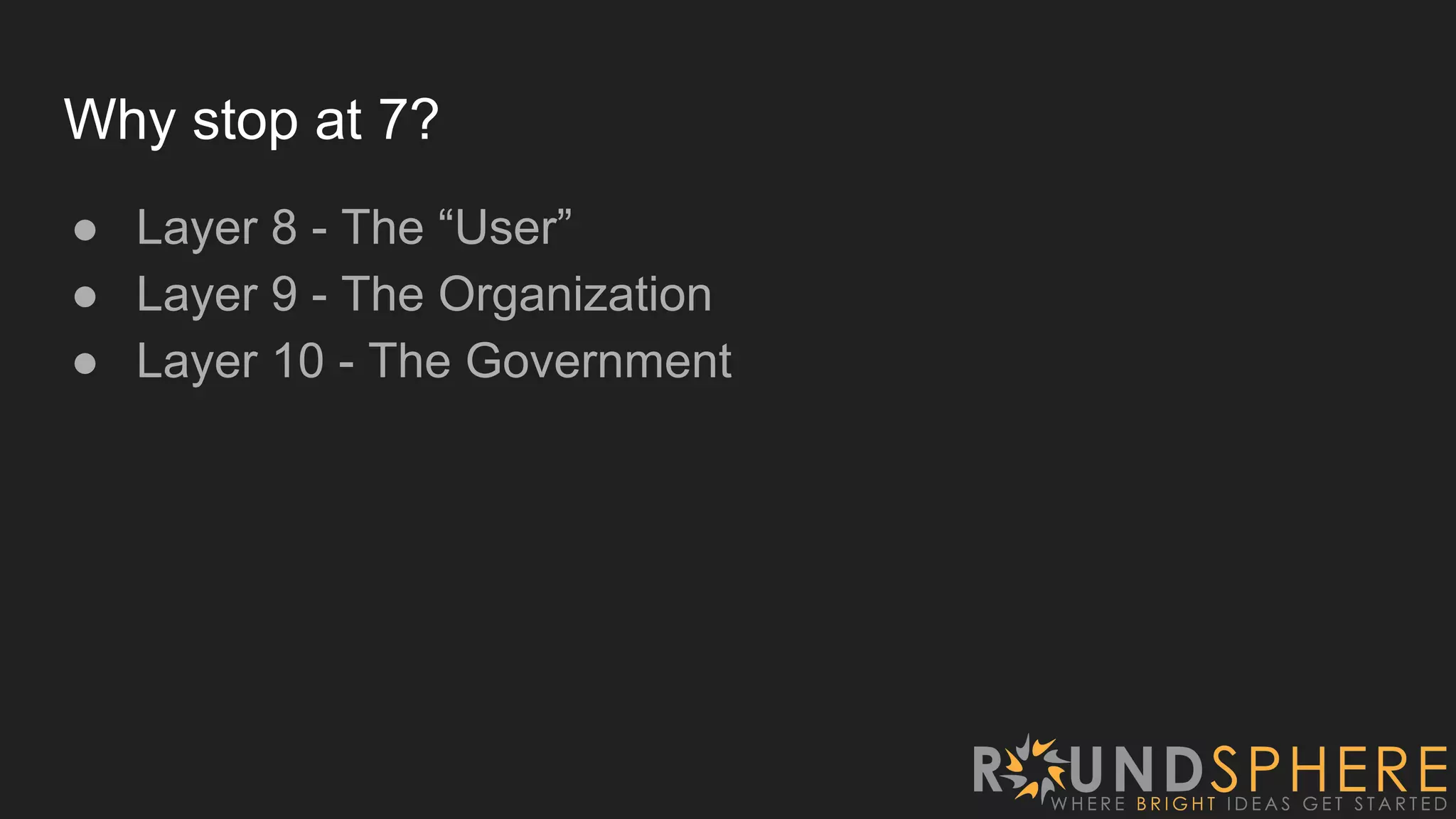

17. Why stop at 7?
● Layer 8 - The “User”
● Layer 9 - The Organization
● Layer 10 - The Government

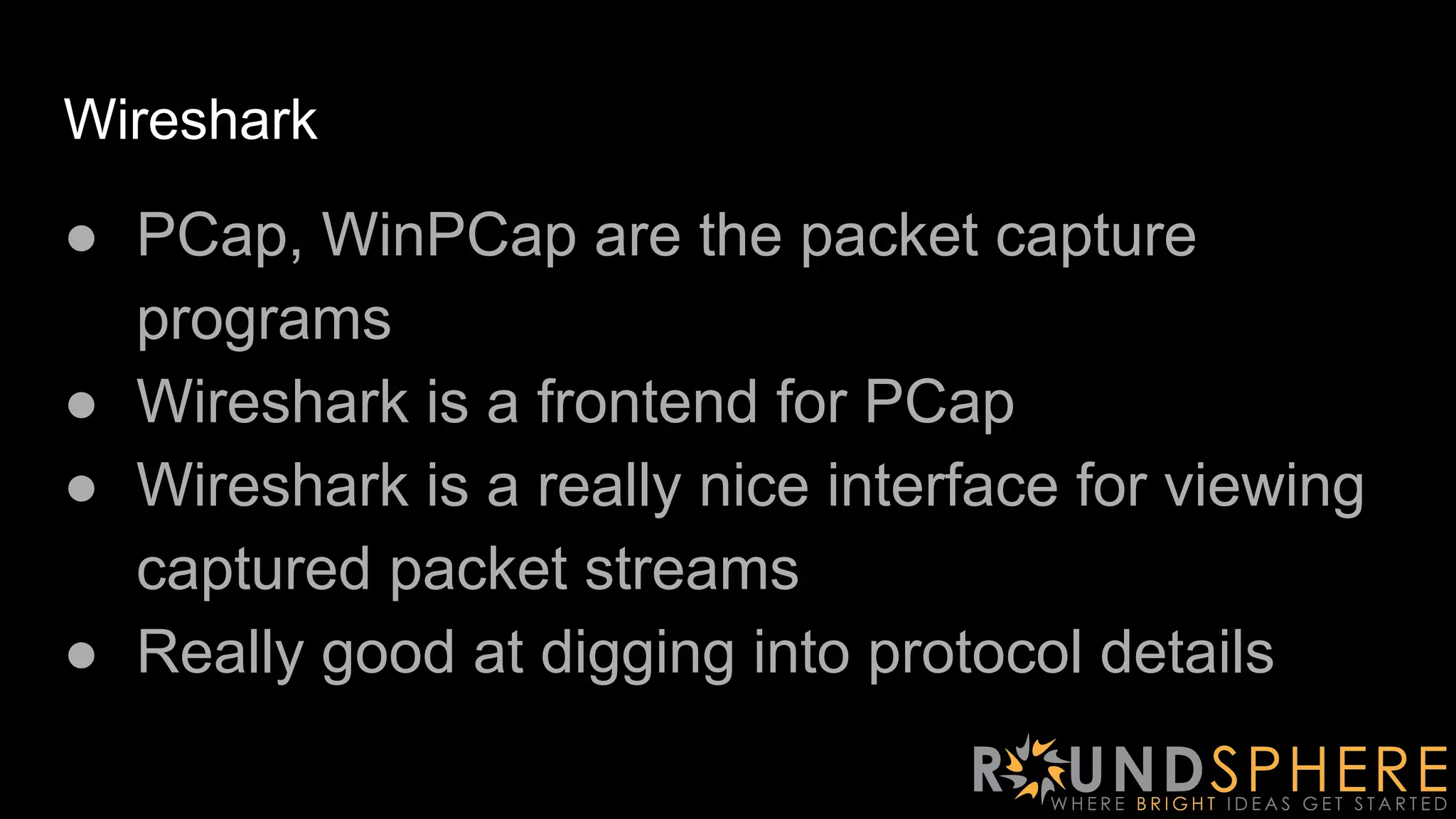

18. Wireshark
● PCap, WinPCap are the packet capture
programs
● Wireshark is a frontend for PCap
● Wireshark is a really nice interface for viewing
captured packet streams
● Really good at digging into protocol details

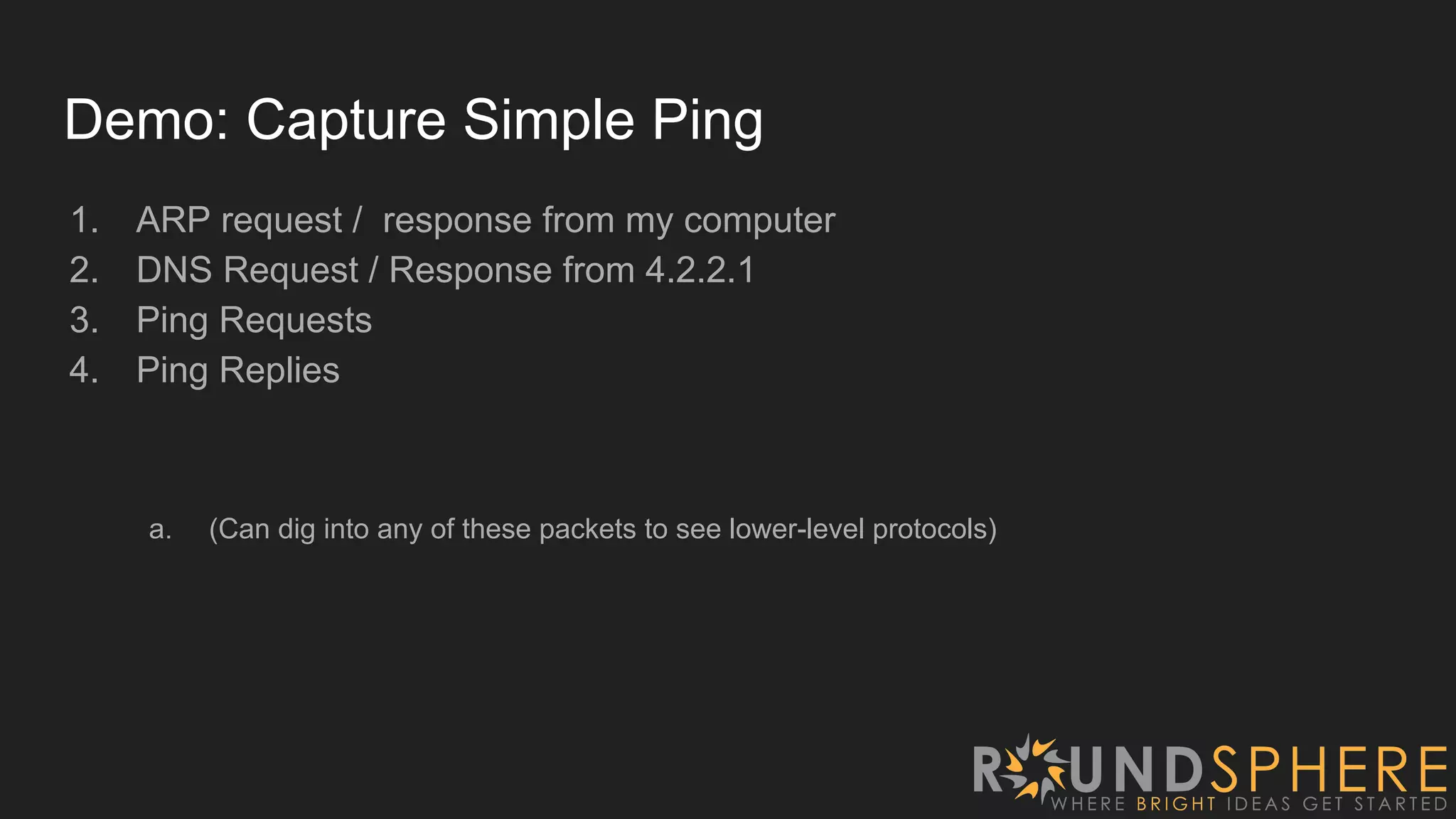

19. Demo: Capture Simple Ping
1. ARP request / response from my computer
2. DNS Request / Response from 4.2.2.1
3. Ping Requests
4. Ping Replies
a. (Can dig into any of these packets to see lower-level protocols)

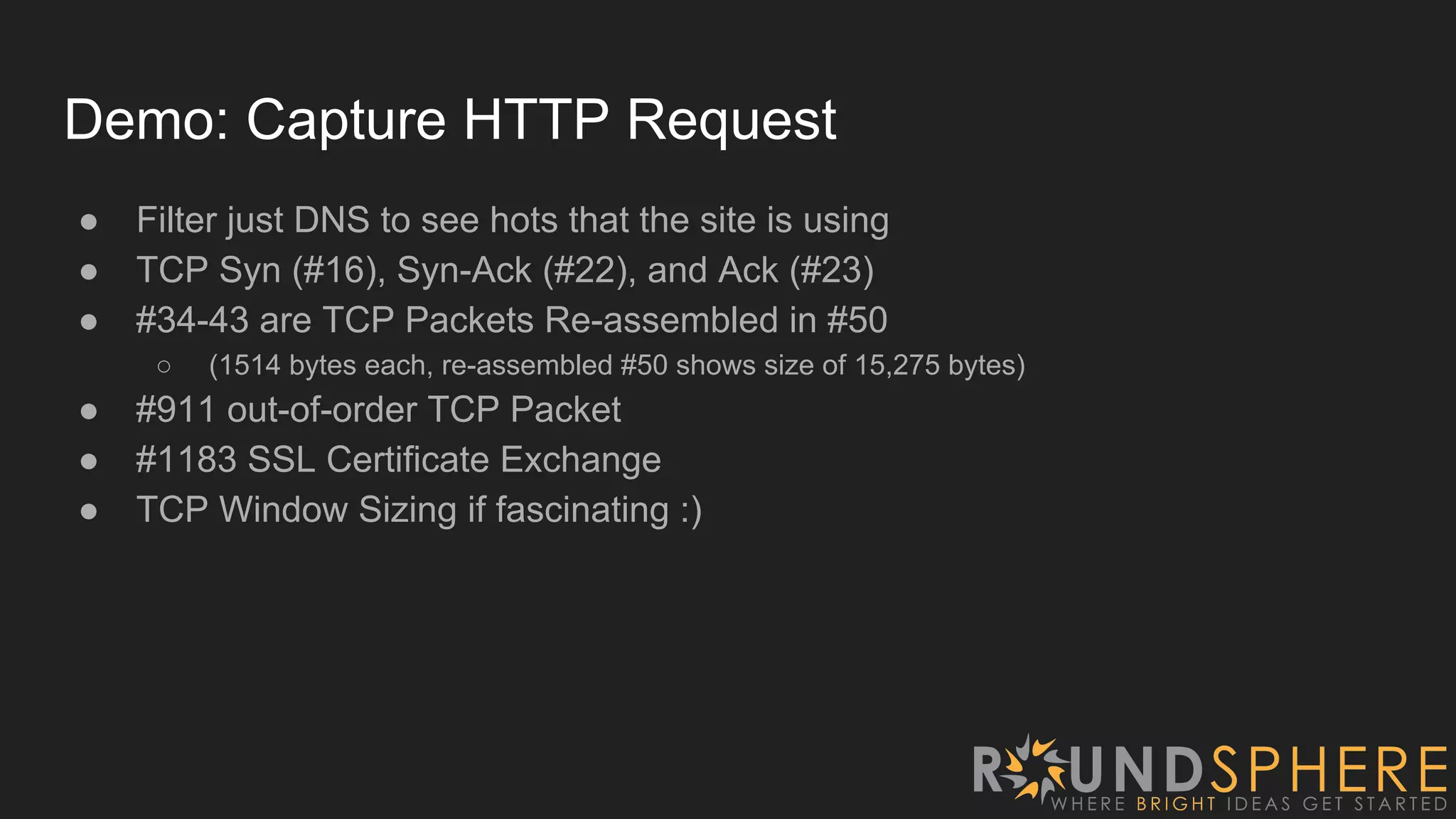

20. Demo: Capture HTTP Request
● Filter just DNS to see hots that the site is using
● TCP Syn (#16), Syn-Ack (#22), and Ack (#23)
● #34-43 are TCP Packets Re-assembled in #50
○ (1514 bytes each, re-assembled #50 shows size of 15,275 bytes)
● #911 out-of-order TCP Packet
● #1183 SSL Certificate Exchange
● TCP Window Sizing if fascinating :)

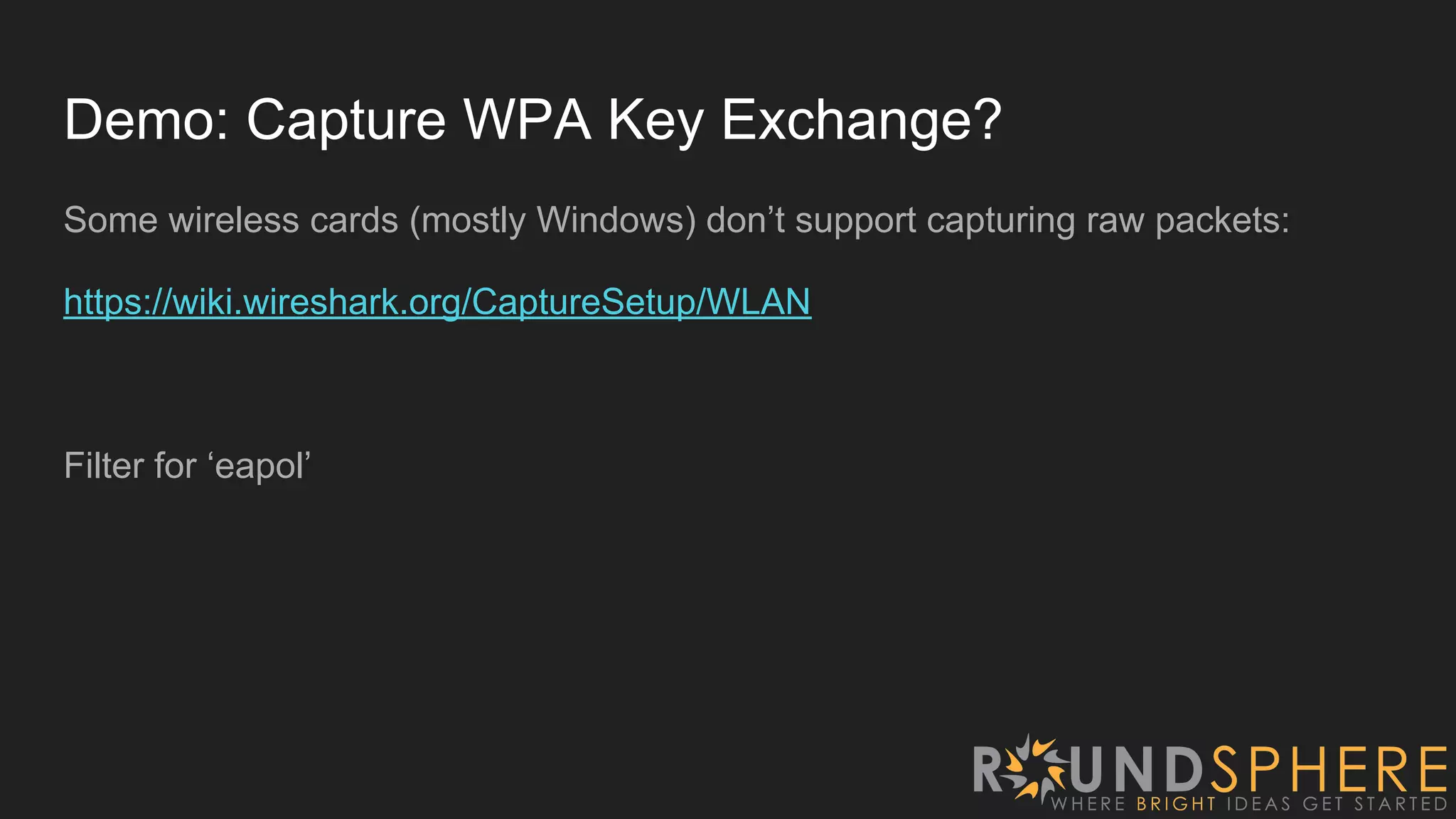

21. Demo: Capture WPA Key Exchange?
Some wireless cards (mostly Windows) don’t support capturing raw packets:
https://wiki.wireshark.org/CaptureSetup/WLAN
Filter for ‘eapol’

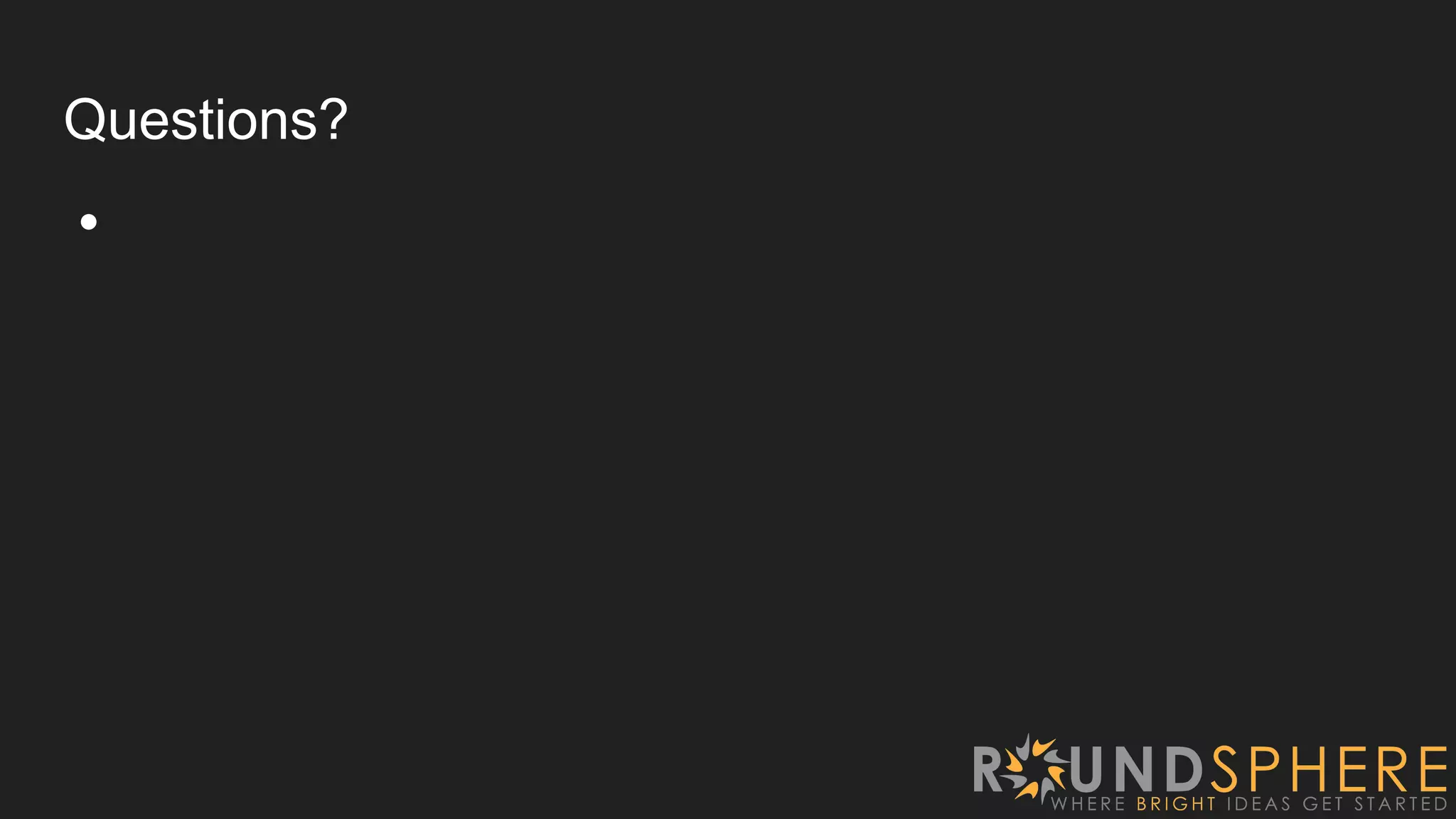

22. Questions?
●
