The “Neo-security Stack”
Securing APIs using the new stack of RESTful technologies
By Travis Spencer, CEO
@travisspencer, @2botech
Copyright © 2013 Twobo Technologies AB. All rights reserved

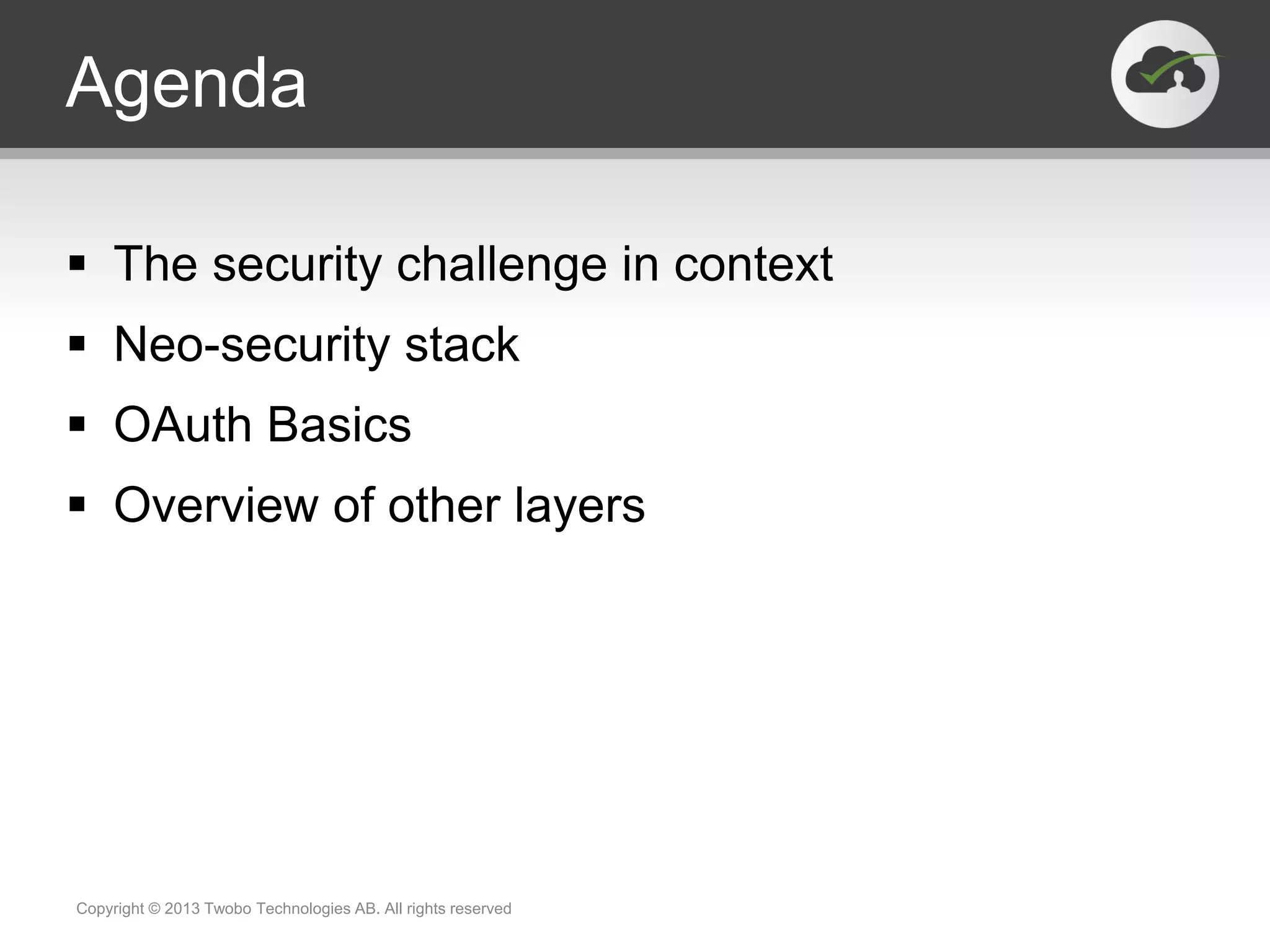

Agenda
 The security challenge in context
 Neo-security stack
 OAuth Basics
 Overview of other layers
Copyright © 2013 Twobo Technologies AB. All rights reserved
Crucial Security Concerns
Copyright © 2013 Twobo Technologies AB. All rights reserved
Enterprise
Security
API
Security
Mobile
Security
Identity is Central
Copyright © 2013 Twobo Technologies AB. All rights reserved
MDM MAM
A
u
t
h
Z
Mobile
Security
API
Security
Enterprise
Security
Identity
Venn diagram by Gunnar Peterson
SAML /
OpenID
Connect
SCIM
JSON
Identity
Suite
OAuth
The Neo-security Stack
Copyright © 2013 Twobo Technologies AB. All rights reserved
Federation Provisioning
Identity Authorization
SAML
 SAML: proven
technology for
identity federation
and Web SSO
 Profiles, bindings,
protocols, assertions
& metadata
 V. 2.1 in
the works
Copyright © 2013 Twobo Technologies AB. All rights reserved
Service
Provider (SP)
Identity Provider (IdP)
OpenID Connect
 New federation protocol that builds on OAuth 2
 Adds identity inputs/outputs to OAuth messages
 Related to prior OpenID versions in name only
 Compact messages for mobile scenerios
 RP / client can determine info about end user
 Tokens are JWTs
 UserInfo endpoint to get user data
Copyright © 2013 Twobo Technologies AB. All rights reserved
Grandpa SAML
& junior
Overview of SCIM
 Defines RESTful API to manage users & groups
 Specifies core user & group schemas
 Supports bulk updates for ingest
 Binding for SAML and eventually OpenID Connect
Copyright © 2013 Twobo Technologies AB. All rights reserved
OAuth
 OAuth 2 is the new protocol of
protocols
 Composed in useful ways
 Like WS-Trust of old
 Addresses old requirements and
solves new ones
 Delegated access
 No password sharing
 Revocation of access
Copyright © 2013 Twobo Technologies AB. All rights reserved
OAuth Actors
 Client
 Authorization Server (AS)
 Resource Server (RS) (i.e., API)
 Resource Owner (RO)
Copyright © 2013 Twobo Technologies AB. All rights reserved
Getatoken
User a token
RS Client
AS
Access Tokens Refresh Tokens
Types of Tokens
Copyright © 2013 Twobo Technologies AB. All rights reserved
Like a Session
Used to secure API calls
Like a Password
Used to get new access
tokens
By Value By Reference
Classes of Tokens
Copyright © 2013 Twobo Technologies AB. All rights reserved
123XYZ
123XYZ
User attributes are in the
token
User attributes are
referenced by an identifier
Scopes
 Like permissions
 Scopes specify extent of
tokens’ usefulness
 Listed on consent UI (if shown)
 Issued tokens may have
narrower scope than requested
 No standardized scopes
Copyright © 2013 Twobo Technologies AB. All rights reserved
OAuth Web Server Flow
Copyright © 2013 Twobo Technologies AB. All rights reserved
Usage of OAuth
Copyright © 2013 Twobo Technologies AB. All rights reserved
Not for authentication
Not really for authorization
For delegation
JSON Identity Protocol Suite
 Suite of JSON-based identity protocols
 Tokens (JWT) ▪ Encryption (JWE)
 Keys (JWK) ▪ Signatures (JWS)
 Algorithms (JWA)
 Bearer Token spec explains how to use w/ OAuth
 Being defined in IETF
Copyright © 2013 Twobo Technologies AB. All rights reserved
JWT Tokens
 Pronounced like the English word “jot”
 Lightweight tokens passed in HTTP headers &
query strings
 Akin to SAML tokens
 Less expressive
 Less security options
 More compact
 Encoded w/ JSON not XML
Copyright © 2013 Twobo Technologies AB. All rights reserved
Authentication & Federation
 How you authenticate to AS is undefined
 Use SAML or OpenID Connect for SSO to AS
 Relay OAuth token in SAML messages
Copyright © 2013 Twobo Technologies AB. All rights reserved
Push Tokens & Pull Data
Copyright © 2013 Twobo Technologies AB. All rights reserved
IdP & API Provider SaaS App
Browser
Access token in
federation message
Get Data
Data
SCIM + OAuth
 Use OAuth to secure SCIM API calls
 Use SCIM to create accounts needed to access
APIs secured using OAuth
Copyright © 2013 Twobo Technologies AB. All rights reserved
SCIM + SAML/OIDC
 Carry SCIM attributes in SAML assertions
(bindings for SCIM)
 Enables JIT provisioning
 Supplements SCIM API & schema
 Provisioning accounts using SCIM API to be
updated before/after logon
Copyright © 2013 Twobo Technologies AB. All rights reserved
User Managed Access
 Also extends OAuth 2
 Allows users to centrally control
distribution of their identity data
 Used with Personal Data
Stores (PDS) to create “identity
data lockers”
Copyright © 2013 Twobo Technologies AB. All rights reserved
Questions & Thanks
@2botech
@travisspencer
www.2botech.com
travisspencer.com
Copyright © 2013 Twobo Technologies AB. All rights reserved
