This document provides an overview of the nasal cavity and paranasal sinuses through descriptions of their gross anatomy, radiographic anatomy using x-ray, CT and MRI, and positioning for various imaging views. Key structures of the nasal cavity discussed include the nasal septum, lateral walls containing the maxillary, palatine, lacrimal and ethmoid bones. The four paranasal sinuses are also introduced as the frontal, ethmoid, sphenoid and maxillary sinuses.

1. +
Nasal Cavity and
Paranasal Sinuses

2. +
Roadmap
Gross
Introduction Positioning
Anatomy
Radiographic
X Ray CT
Anatomy
MRI Questions

3. +
Introduction

4. +
Introduction
 Nasal cavity is a passage from
the external nose anteriorly to
the nasopharynx posteriorly.
 The frontal, ethmoid, sphenoid
and maxillary sinuses form the
paired paranasal sinuses.
 They are situated around and
drain into the nasal cavity.
 The entire complex is lined by
mucus secreting epithelium.

5. +
Gross
Anatomy

6. +
Nasal Cavity
Nasal Cavity Sagittal View
 Nasal Septum
 Floor of the nasal cavity
 Lateral wall of the cavity

7. +
Nasal Cavity
Lateral Wall Sagittal view
 Maxillary
 Palatine
 Lacrimal
 Ethmoid

8. +
Nasal Cavity
Lateral Wall Sagittal view
 Sphenoethmoidal recess
 Superior Turbinate
 Superior Meatus
 Middle turbinate
 Middle meatus
 Inferior turbinate
 Inferior meatus

9. +
Nasal Cavity
Lateral wall Sagittal view
 Sphenoid >> Spenoethmoidal
recess.
 Posterior group of ethmoid >>
superior meatus.
 Frontal + Ant Ethmoidal +
Maxillary >> middle meatus
 Nasolacrimal duct >> inferior
meatus

10. +
Blood Supply of Nasal Cavity
 Sphenopalatine artery
 Greater palatine artery
 Superior labial branch of facial artery
 Anterior and posterior branches of ophthalmic artery
 Little’s area

11. +
Paranasal Sinuses
 Frontal
 Ethmoid
 Sphenoid
 Maxillary

12. +

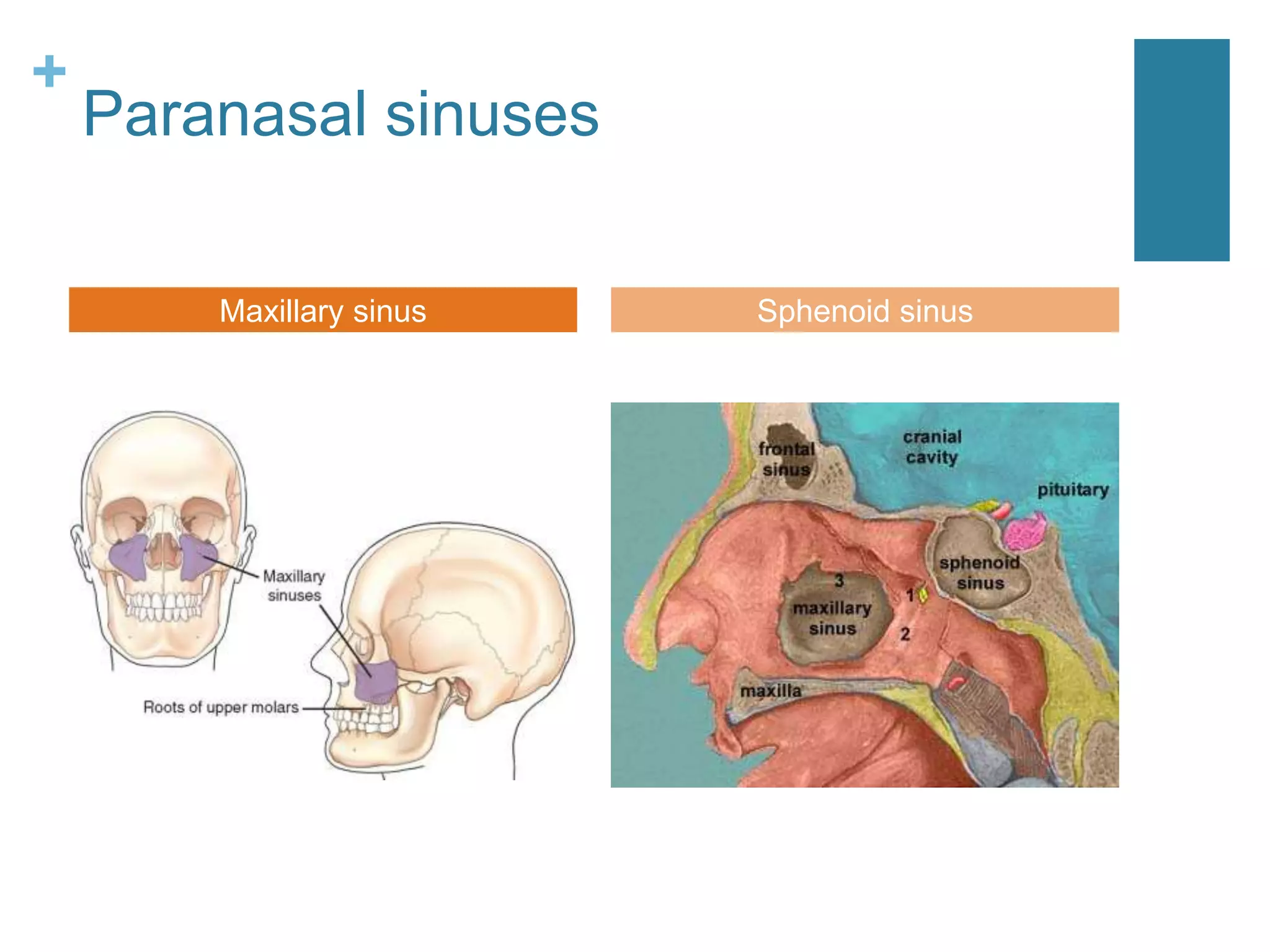

Paranasal sinuses
Maxillary sinus Sphenoid sinus

13. +
Positioning

14. +
PA 15 Caldwell
Position Image

15. +
Occipito Mental OM (Waters)
Position Image

16. +
Lateral View
Position Image

17. +
Radiologic
Anatomy

18. +
Plain X-ray

19. +
Nasal Bones

20. +
Nasal Bones &
Septum

21. +
Paranasal sinuses
PA 15 Caldwell

22. +
Paranasal sinuses

23. +
Paranasal sinuses
Lateral View

24. +
CT

25. + Nasal
Maxillary Nasal
Septum
Zygomatic Sinus Concha
Arch Nasopharynx
Nasal Cavity
Axial view
Eustachian
Tube

26. +
Nasal Cavity
Axial view

27. +
Nasal Cavity
Coronal View

28. +
Nasal Cavity
Coronal View
Turbinates

29. +
Nasal Cavity
Coronal View

30. +
Paranasal sinuses

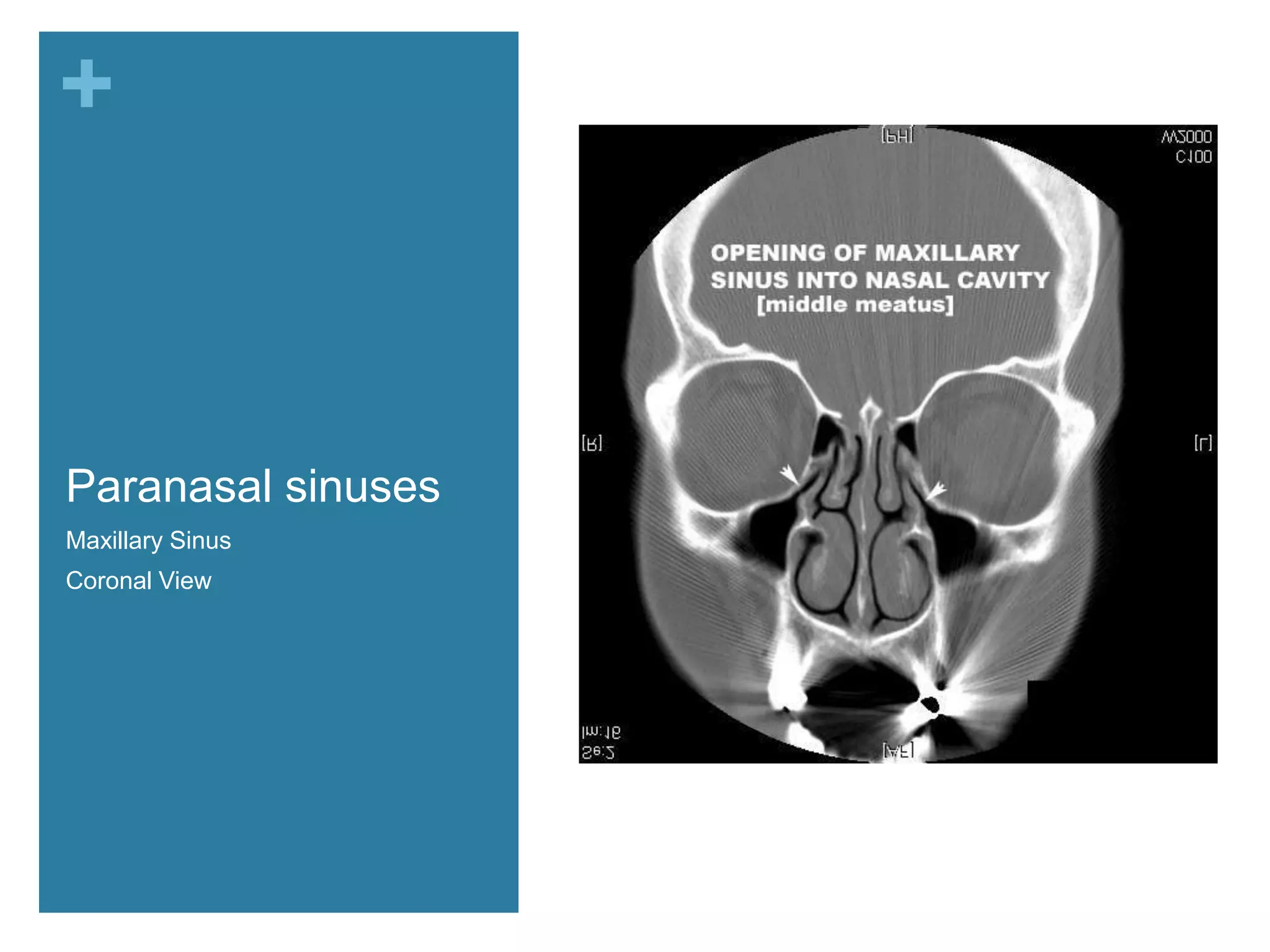

Maxillary Sinus
Coronal View Turbinates

31. +
Paranasal sinuses
Maxillary Sinus
Axial view Turbinates

32. +
Paranasal sinuses
Maxillary Sinus
Coronal View Turbinates

33. +
Paranasal sinuses
Maxillary Sinus
Coronal View Turbinates

34. +
Frontal sinus
Paranasal sinuses
Frontal Sinus

35. +
Paranasal sinuses
Frontal Sinus
Axial view

36. +
Paranasal sinuses

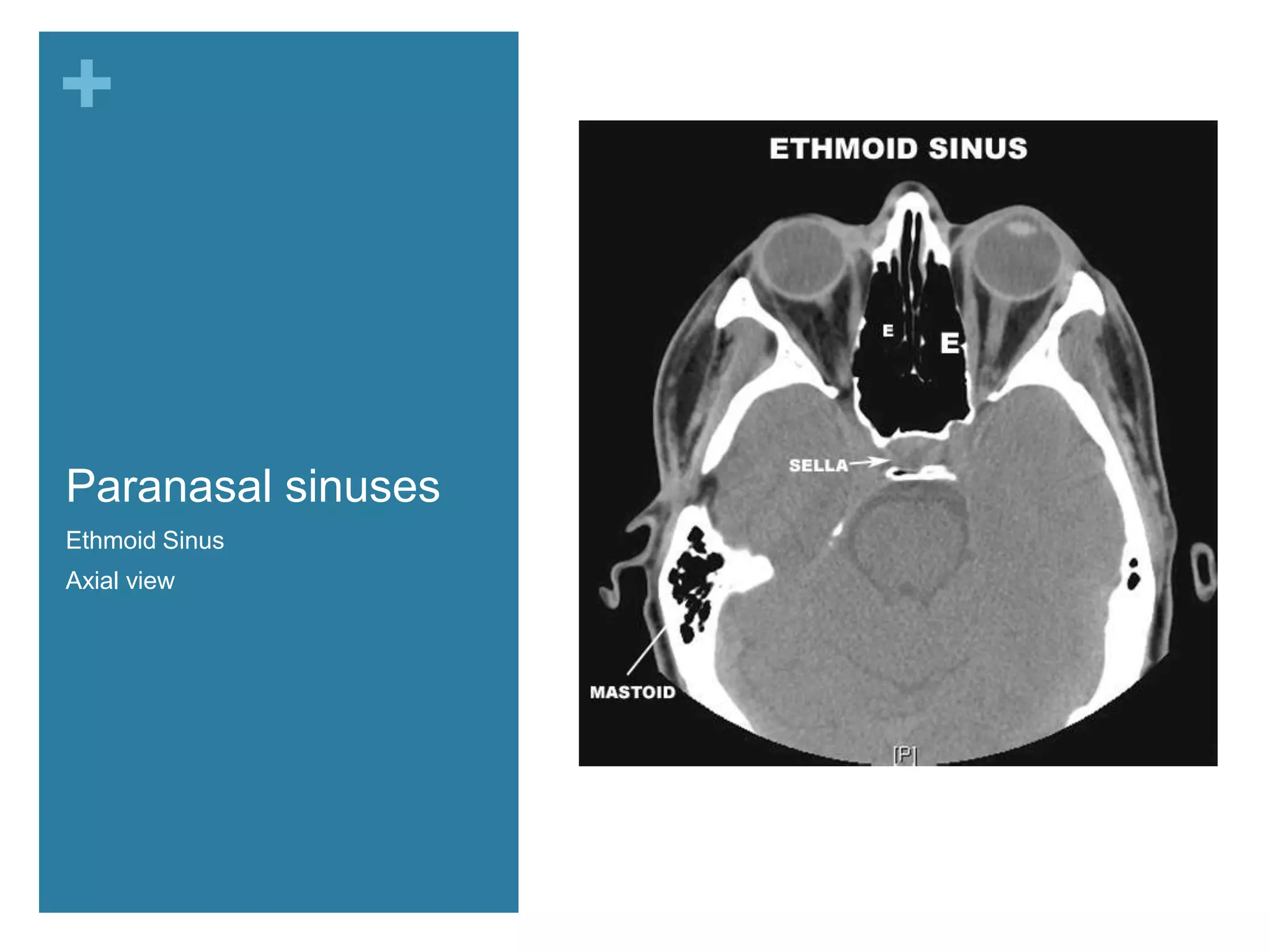

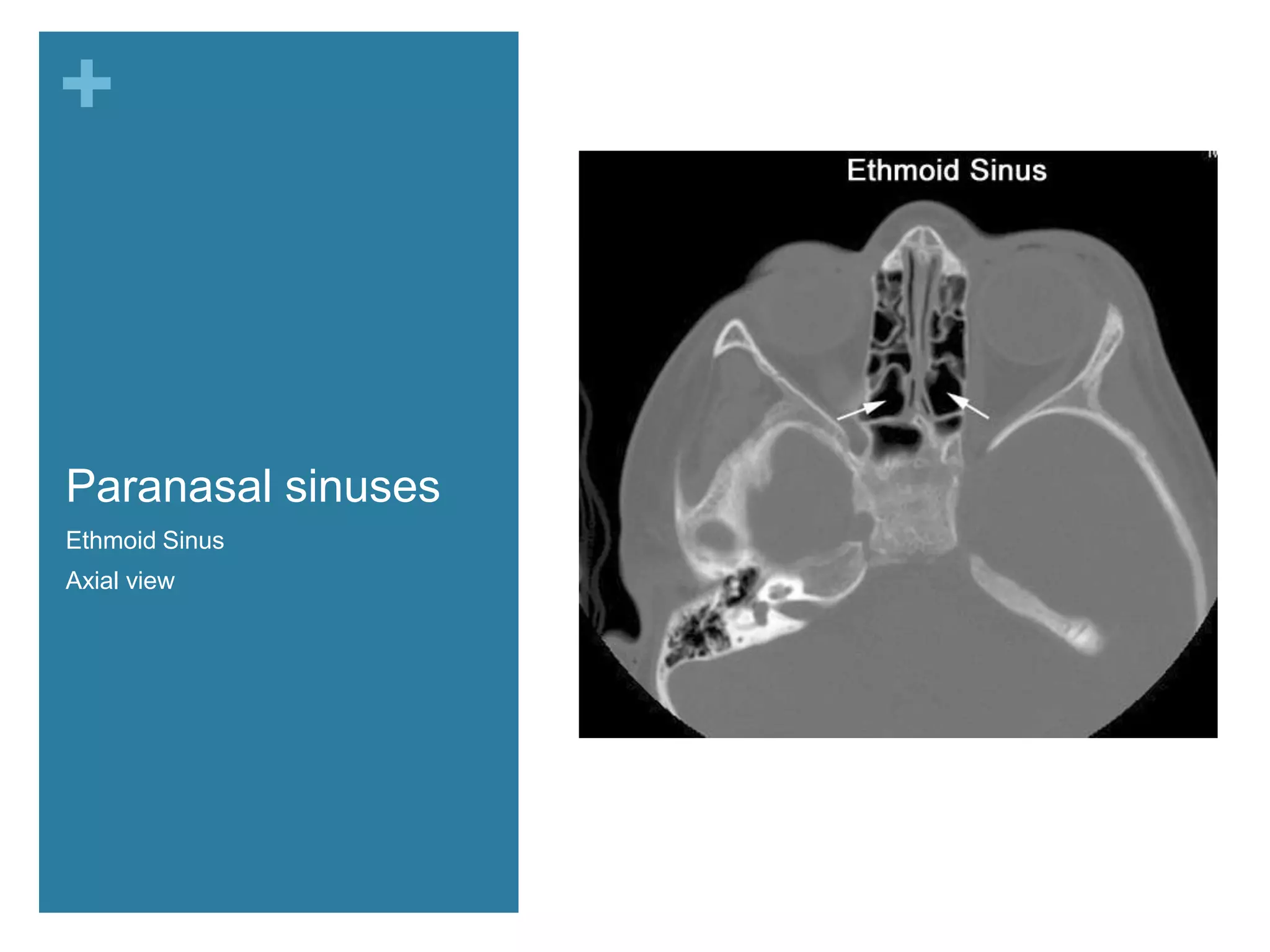

Ethmoid Sinus
Coronal View Turbinates

37. +
Paranasal sinuses
Ethmoid Sinus
Axial view Turbinates

38. +
Paranasal sinuses
Ethmoid Sinus
Axial view Turbinates

39. +
Paranasal sinuses
Ethmoid Sinus
Axial view Turbinates

40. +
Paranasal sinuses

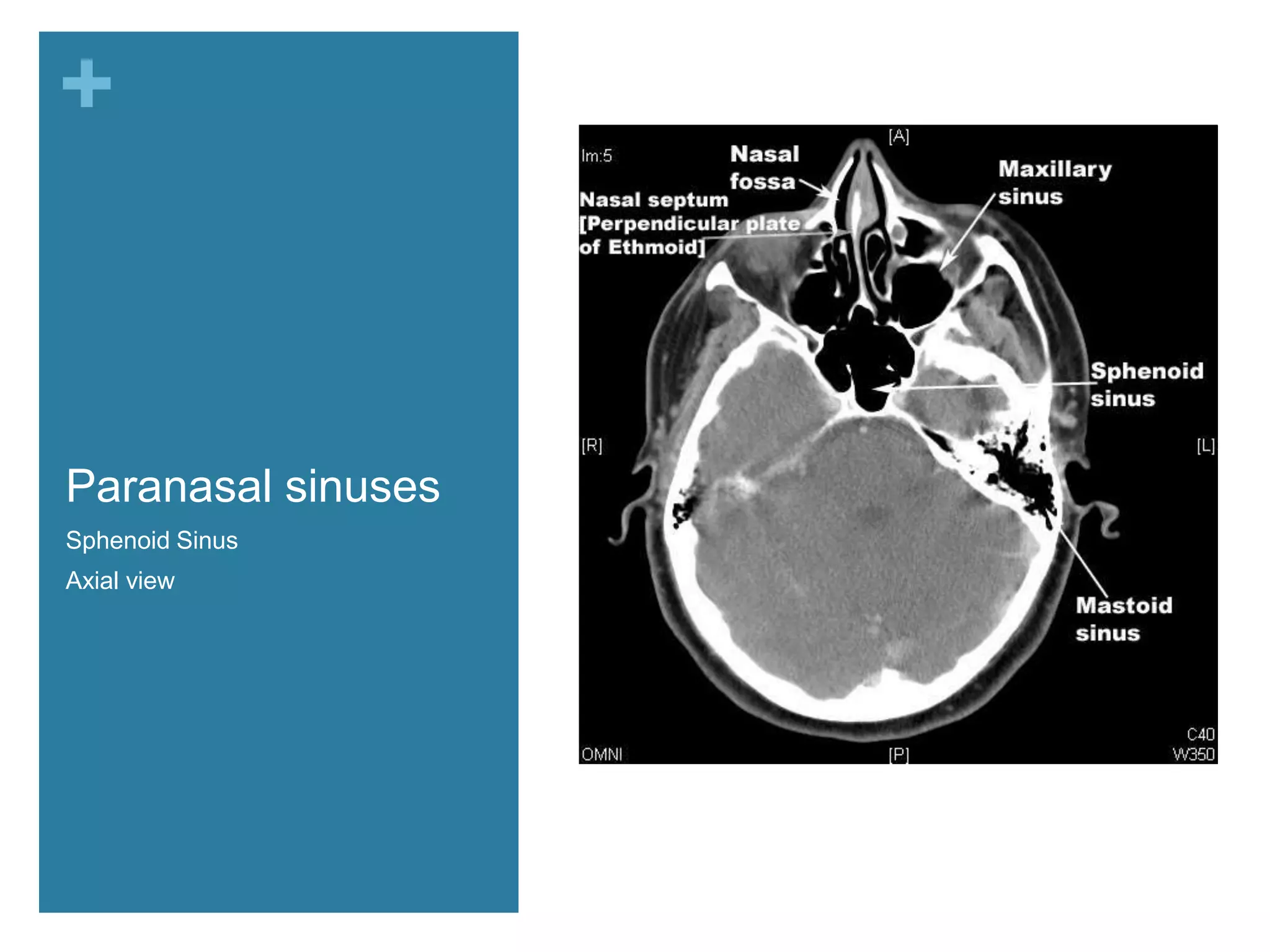

Sphenoid Sinus
Coronal View Turbinates

41. +
Paranasal sinuses
Sphenoid Sinus
Coronal View Turbinates

42. +
Paranasal sinuses
Sphenoid Sinus
Axial view Turbinates

43. +

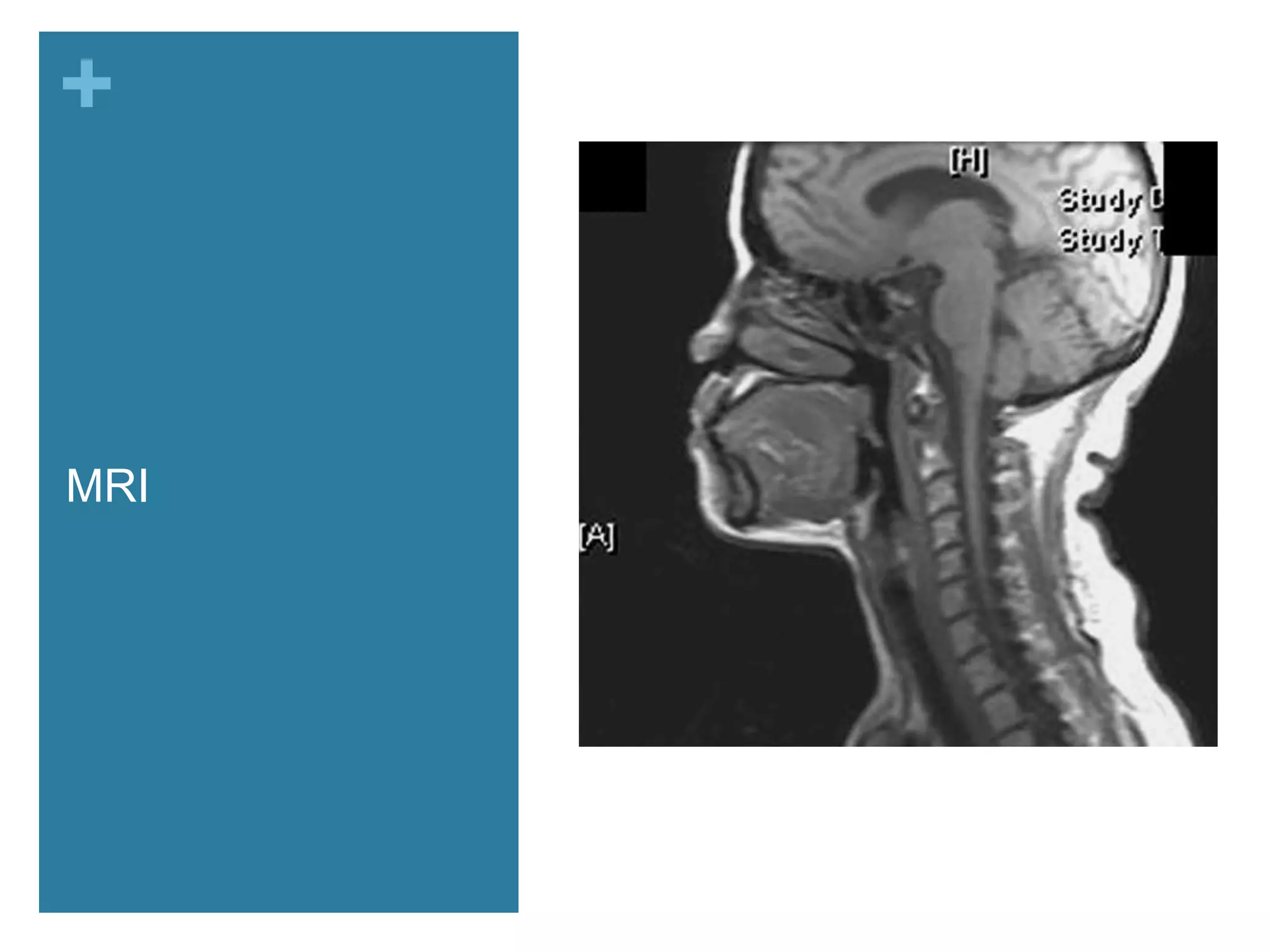

MRI

44. +
MRI

45. +
Questions ??
