1
Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

Insert Information Protection Policy Classification from Slide 12
MySQL 5.6 Performance:
Tuning and “Best” Practices..

Dimitri KRAVTCHUK
MySQL Performance Architect @Oracle

2
Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

Insert Information Protection Policy Classification from Slide 12

Insert Picture Here

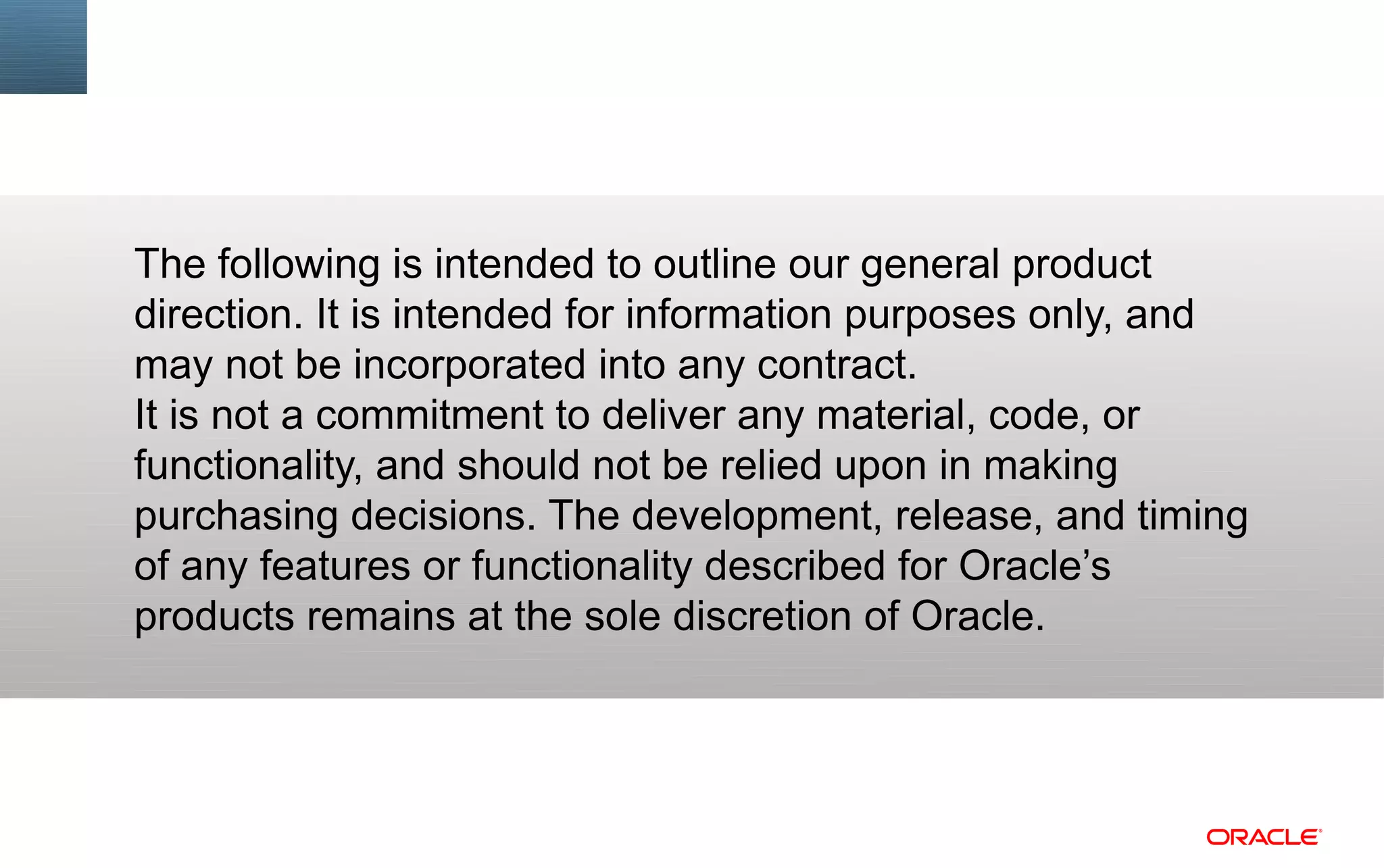

The following is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract.
It is not a commitment to deliver any material, code, or
functionality, and should not be relied upon in making
purchasing decisions. The development, release, and timing
of any features or functionality described for Oracle’s
products remains at the sole discretion of Oracle.
Are you Dimitri?..
§ Yes, it's me :-)
§ Hello from Paris! ;-)
§ Passionated by Systems and Databases Performance
§ Previous 15 years @Sun Benchmark Center
§ Started working on MySQL Performance since v3.23
§ But during all that time just for fun only ;-)
§ Since last years officially @MySQL Performance full time now
§ http://dimitrik.free.fr/blog / @dimitrik_fr

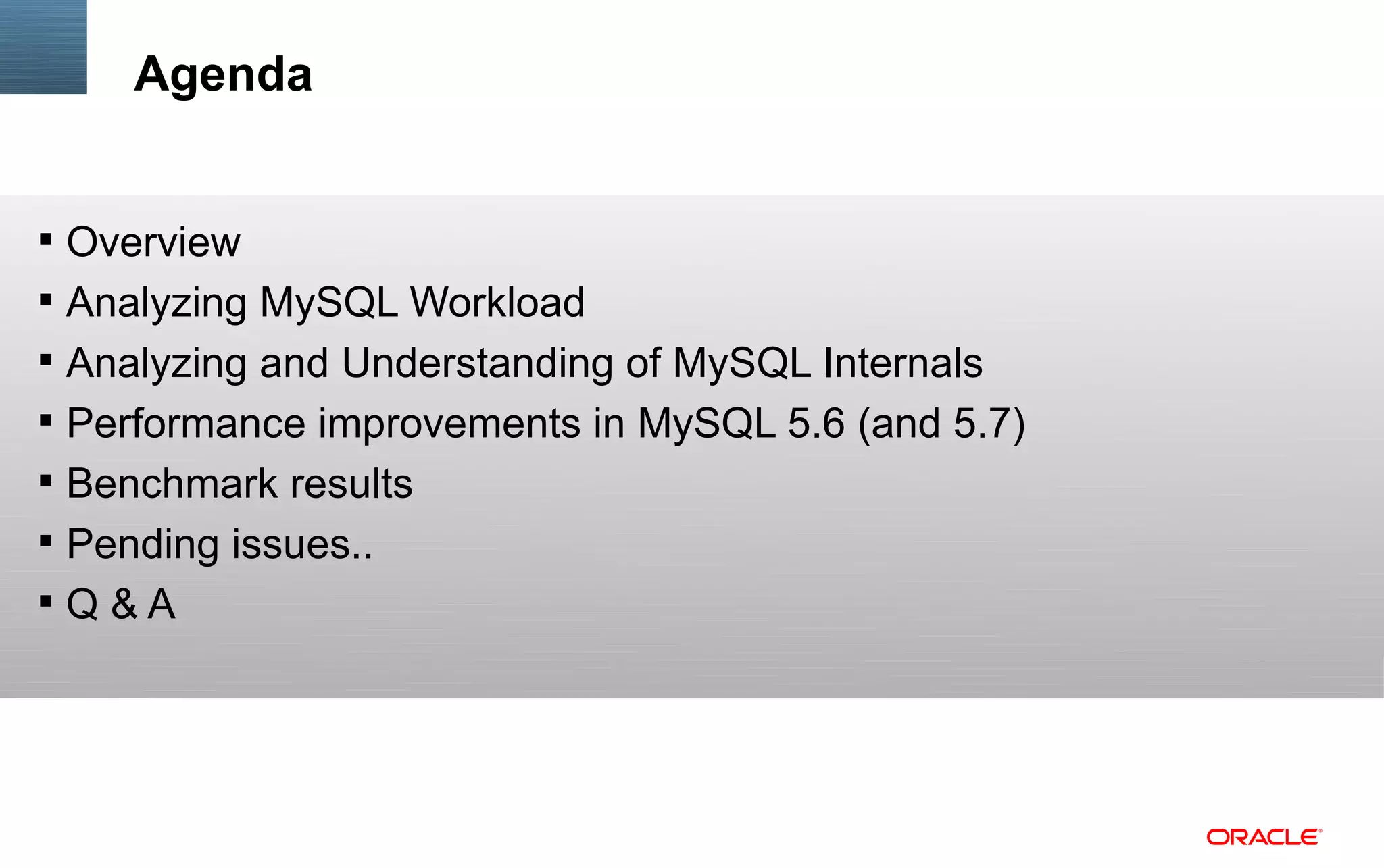

Agenda
§ Overview
§ Analyzing MySQL Workload
§ Analyzing and Understanding of MySQL Internals
§ Performance improvements in MySQL 5.6 (and 5.7)
§ Benchmark results

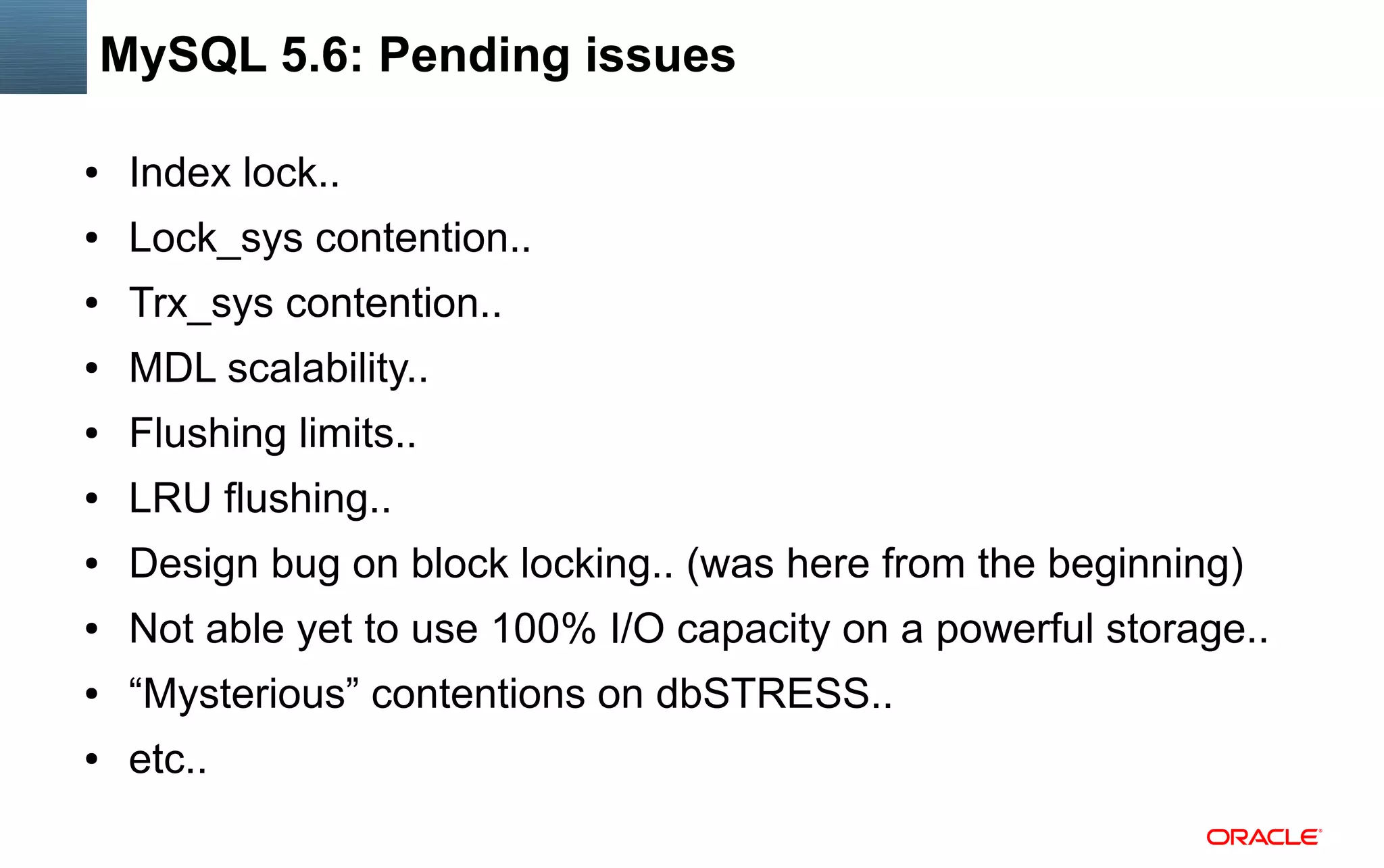

§ Pending issues..
§Q&A
Why MySQL Performance ?...
Why benchmarking MySQL?..
●

Any solution may look “good enough”...
Why benchmarking MySQL?..
●

Until it did not reach its limit..
Why benchmarking MySQL?..
●

And even improved solution may not resist to increasing load..
Why benchmarking MySQL?..
●

And reach a similar limit..
Why benchmarking MySQL?..
●

A good benchmark testing may help you understand ahead the
resistance of your solution to incoming potential problems ;-)
Why benchmarking MySQL?..
●

But keep it in mind:
●

Even a very powerful solution but
leaved in wrong hands may still be
easily broken!... :-)

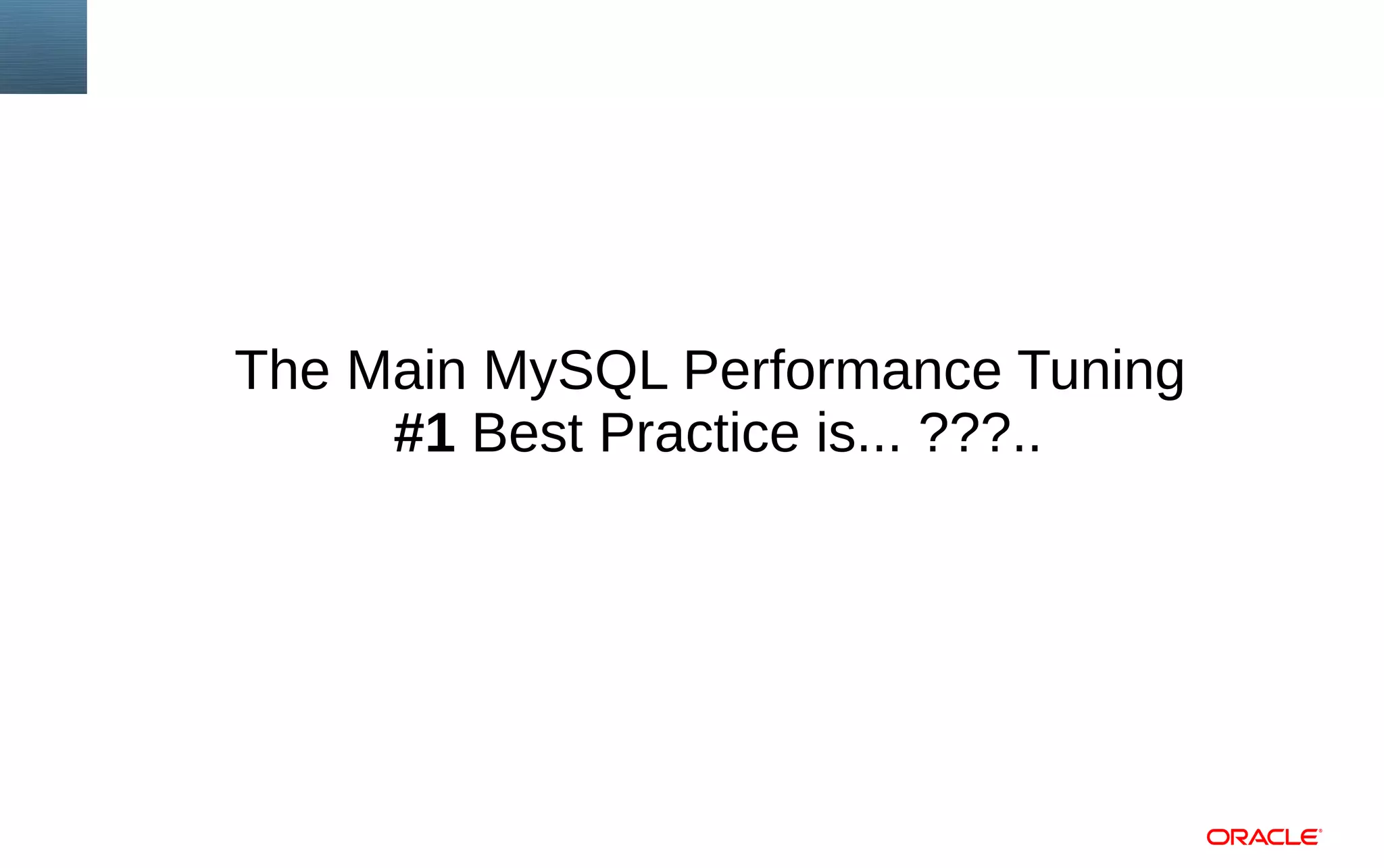

The Main MySQL Performance Tuning
#1 Best Practice is... ???..
The Main MySQL Performance Tuning
#1 Best Practice is... ???..
USE YOUR BRAIN !!! :-)

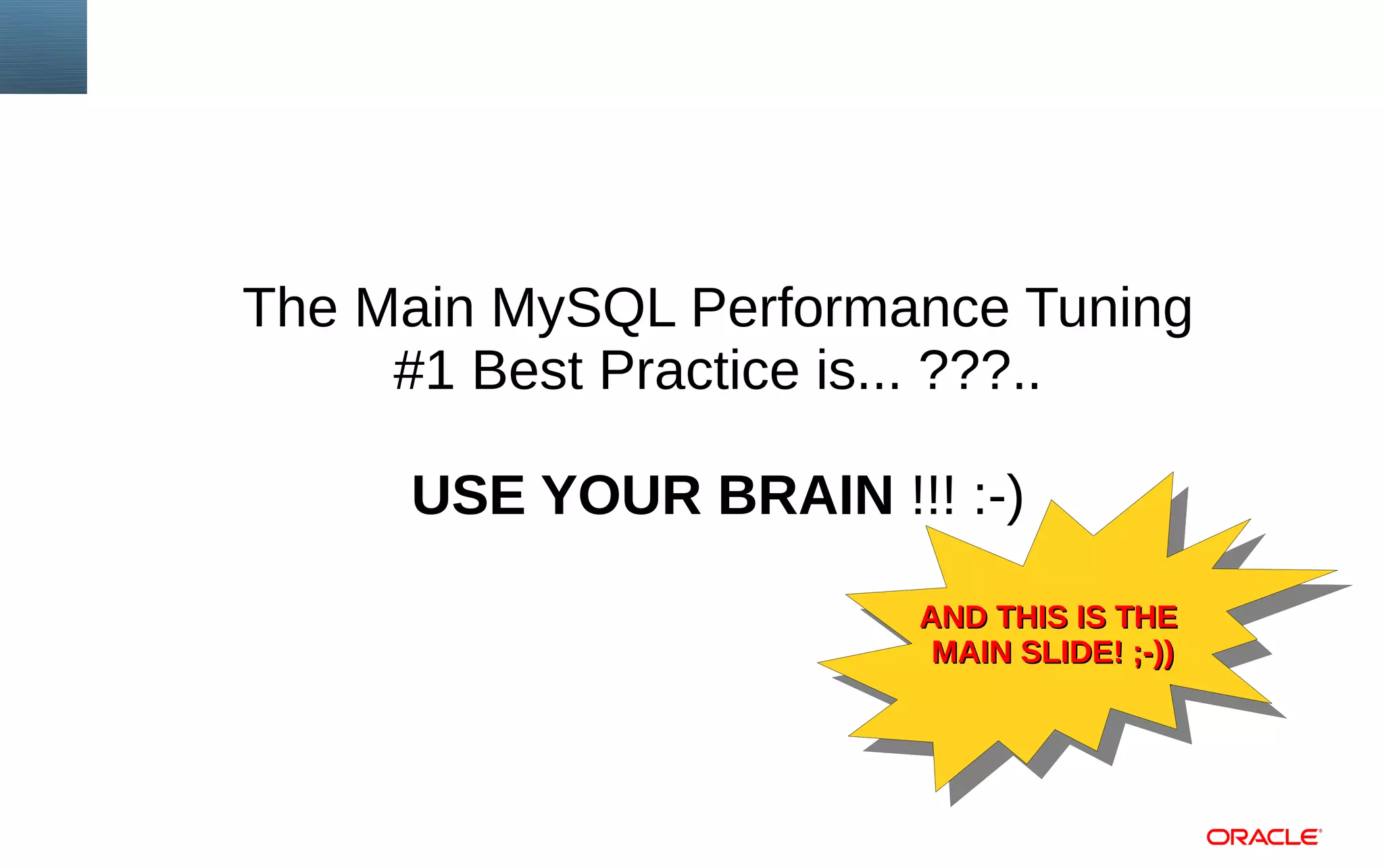

The Main MySQL Performance Tuning
#1 Best Practice is... ???..
USE YOUR BRAIN !!! :-)
AND THIS IS THE
AND THIS IS THE
MAIN SLIDE! ;-))
MAIN SLIDE! ;-))

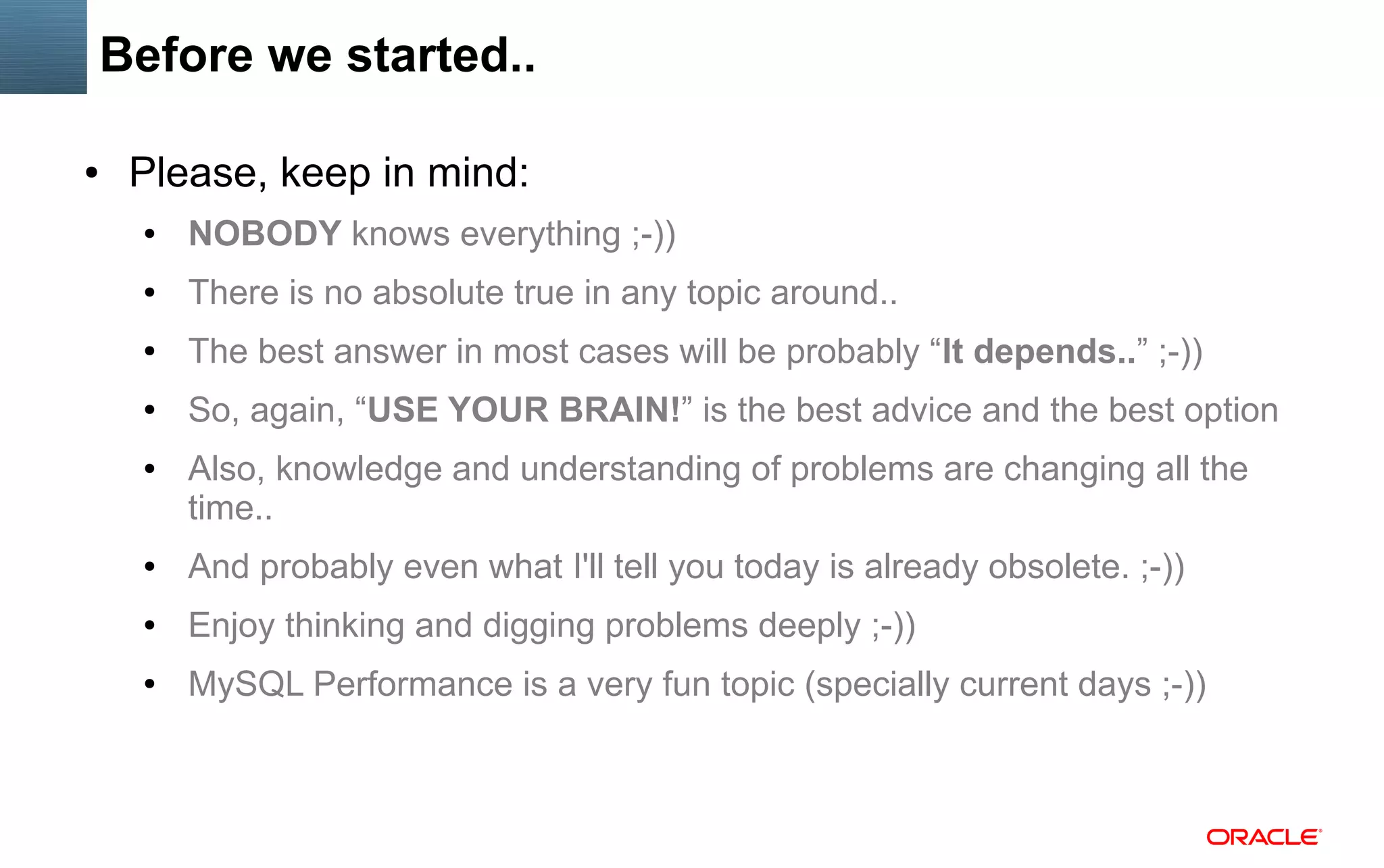

Before we started..
●

Please, keep in mind:
●

NOBODY knows everything ;-))

●

There is no absolute true in any topic around..

●

The best answer in most cases will be probably “It depends..” ;-))

●

So, again, “USE YOUR BRAIN!” is the best advice and the best option

●

Also, knowledge and understanding of problems are changing all the
time..

●

And probably even what I'll tell you today is already obsolete. ;-))

●

Enjoy thinking and digging problems deeply ;-))

●

MySQL Performance is a very fun topic (specially current days ;-))

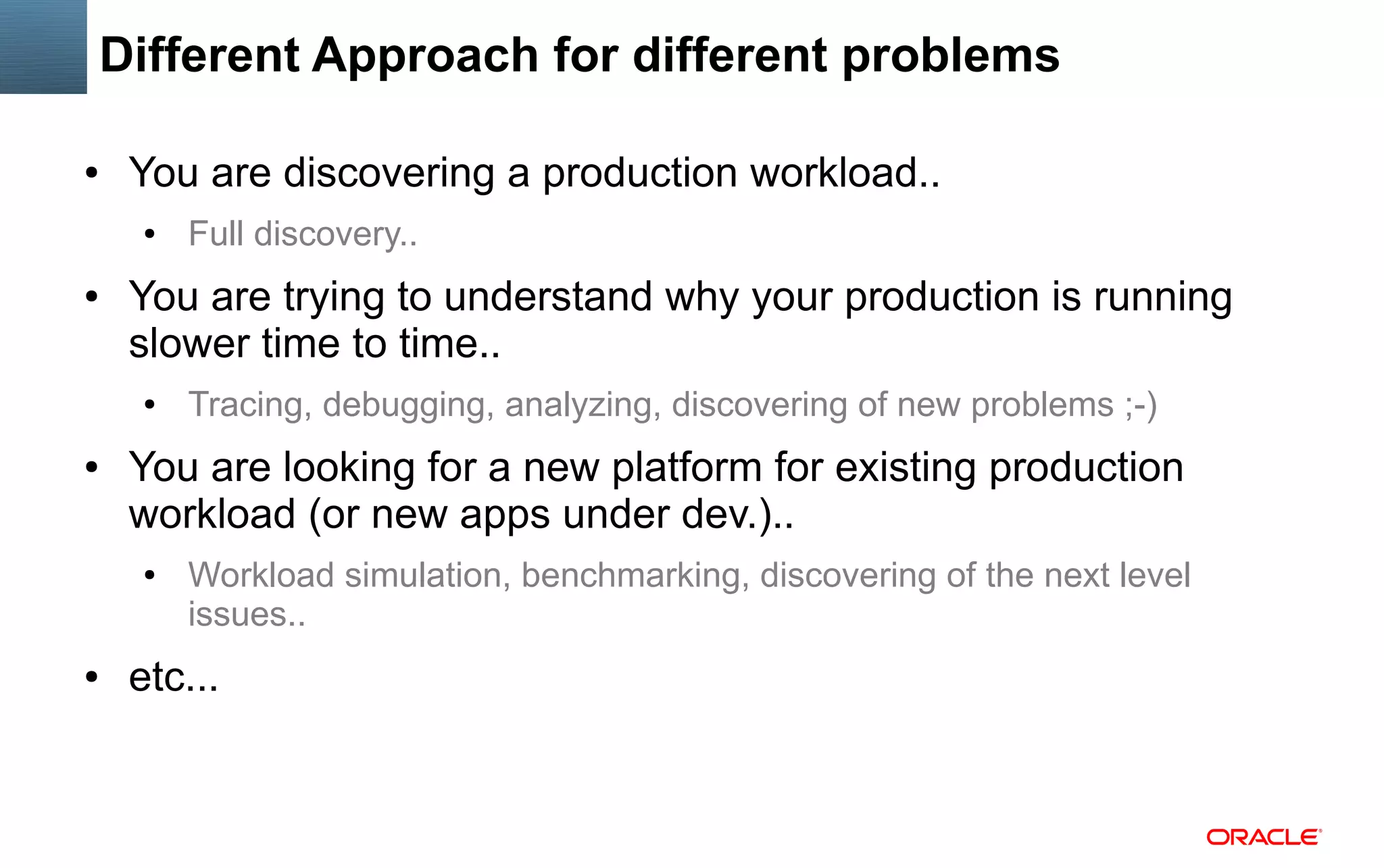

Different Approach for different problems
●

You are discovering a production workload..
●

●

You are trying to understand why your production is running
slower time to time..
●

●

Tracing, debugging, analyzing, discovering of new problems ;-)

You are looking for a new platform for existing production
workload (or new apps under dev.)..
●

●

Full discovery..

Workload simulation, benchmarking, discovering of the next level
issues..

etc...

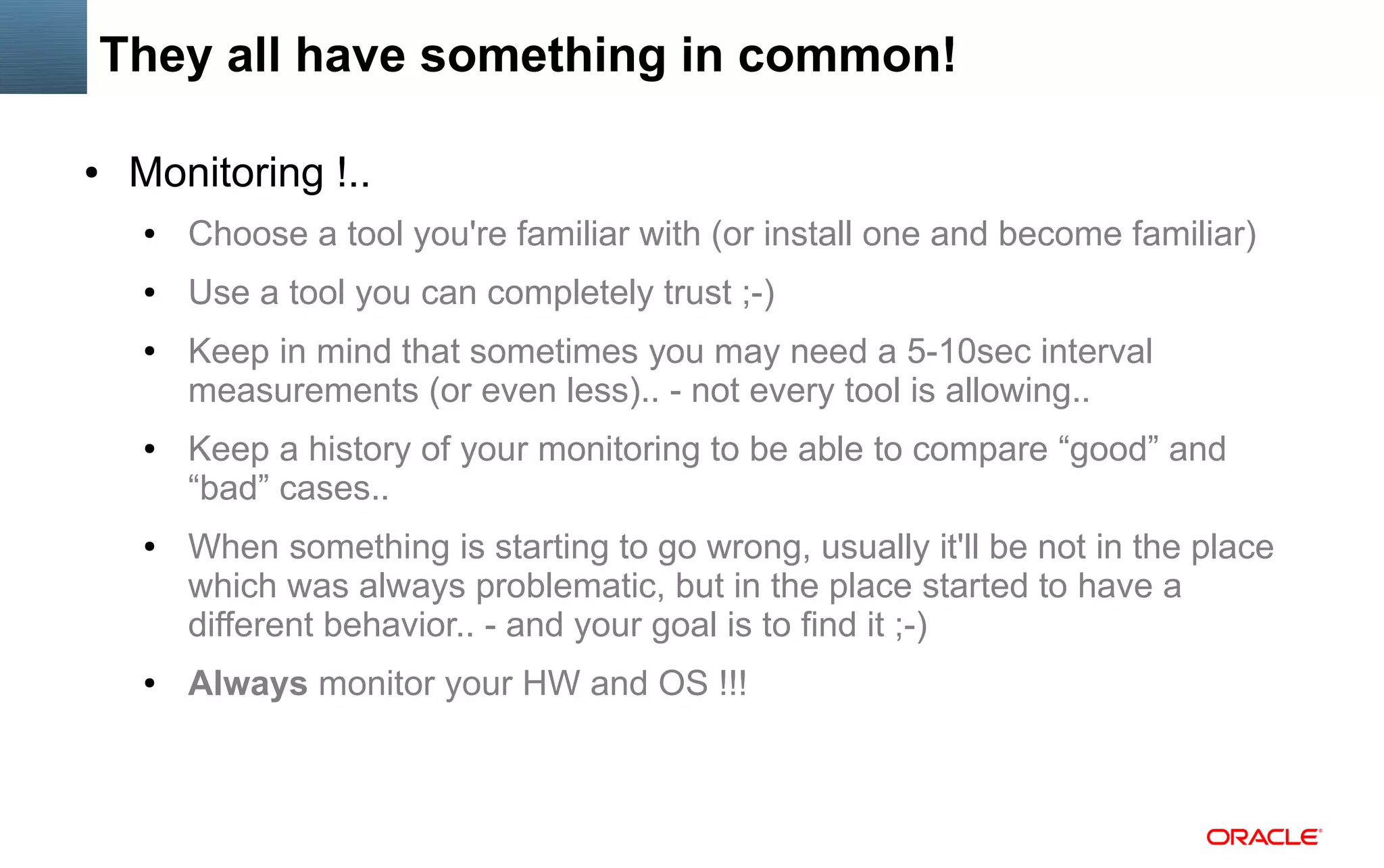

They all have something in common!
●

Monitoring !..
●

Choose a tool you're familiar with (or install one and become familiar)

●

Use a tool you can completely trust ;-)

●

●

●

●

Keep in mind that sometimes you may need a 5-10sec interval
measurements (or even less).. - not every tool is allowing..
Keep a history of your monitoring to be able to compare “good” and
“bad” cases..
When something is starting to go wrong, usually it'll be not in the place
which was always problematic, but in the place started to have a
different behavior.. - and your goal is to find it ;-)
Always monitor your HW and OS !!!

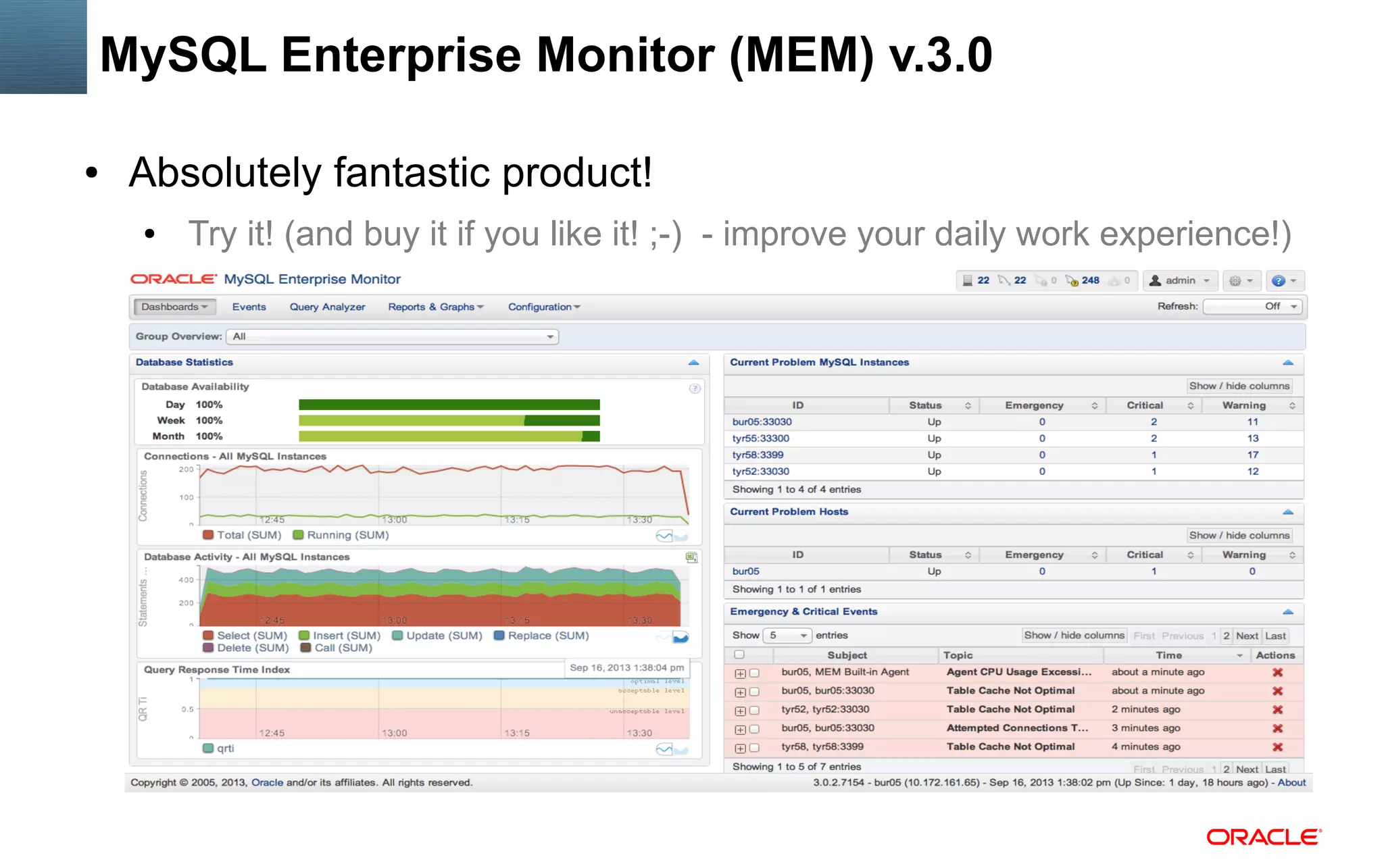

MySQL Enterprise Monitor (MEM) v.3.0
●

Absolutely fantastic product!
●

Try it! (and buy it if you like it! ;-) - improve your daily work experience!)

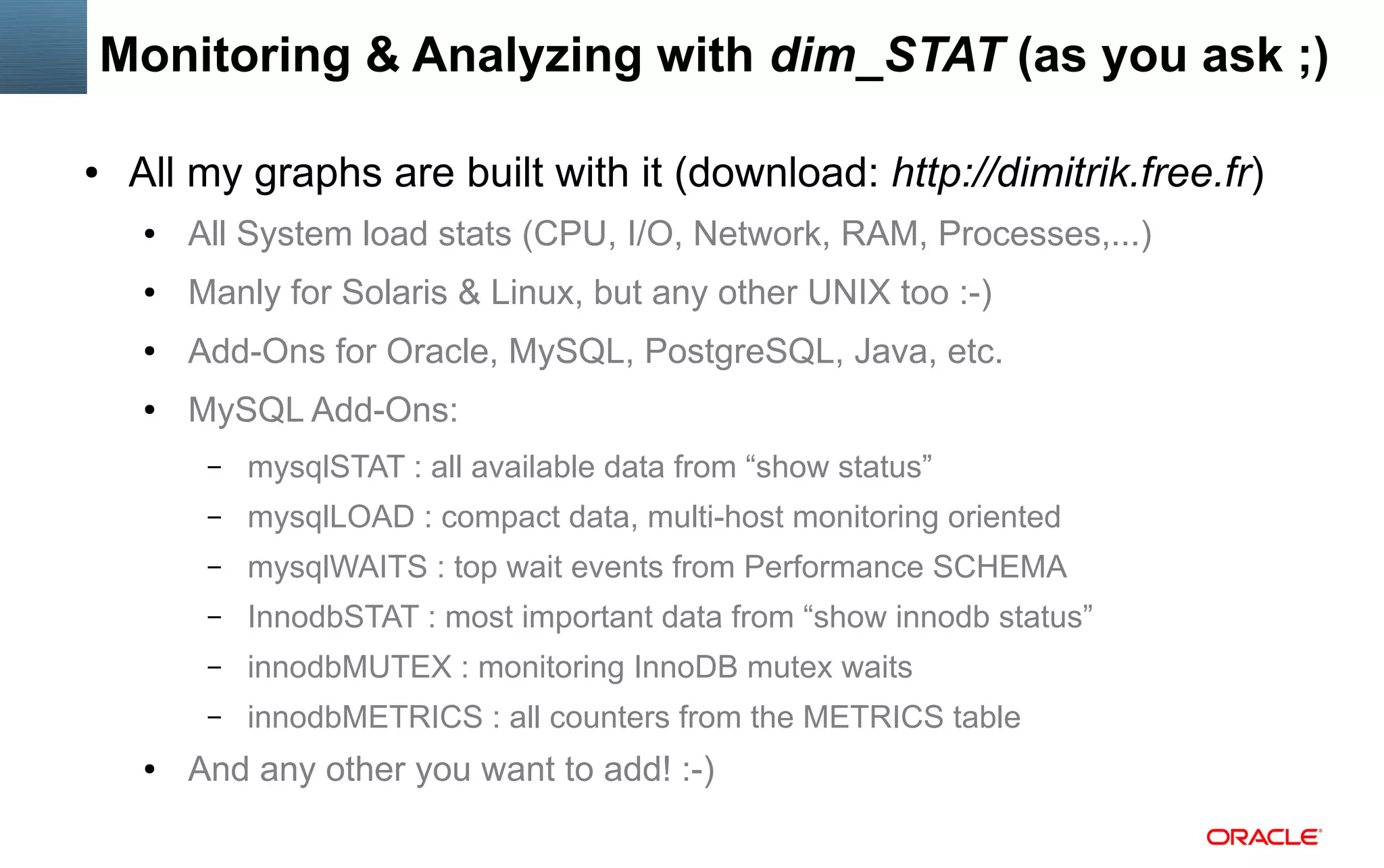

Monitoring & Analyzing with dim_STAT (as you ask ;)
●

All my graphs are built with it (download: http://dimitrik.free.fr)
●

All System load stats (CPU, I/O, Network, RAM, Processes,...)

●

Manly for Solaris & Linux, but any other UNIX too :-)

●

Add-Ons for Oracle, MySQL, PostgreSQL, Java, etc.

●

MySQL Add-Ons:
–
–

mysqlLOAD : compact data, multi-host monitoring oriented

–

mysqlWAITS : top wait events from Performance SCHEMA

–

InnodbSTAT : most important data from “show innodb status”

–

innodbMUTEX : monitoring InnoDB mutex waits

–
●

mysqlSTAT : all available data from “show status”

innodbMETRICS : all counters from the METRICS table

And any other you want to add! :-)

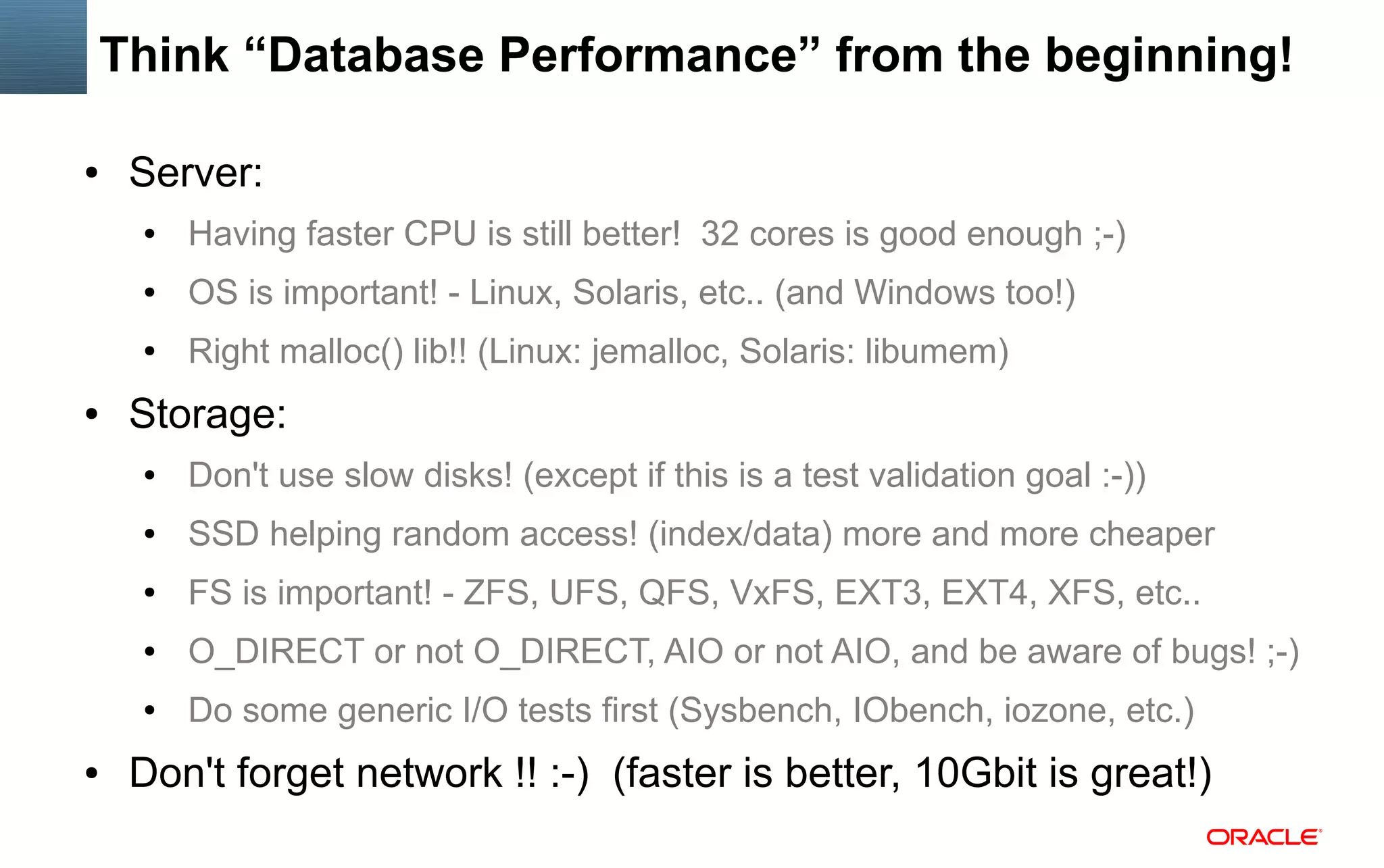

Think “Database Performance” from the beginning!
●

Server:
●

●

OS is important! - Linux, Solaris, etc.. (and Windows too!)

●

●

Having faster CPU is still better! 32 cores is good enough ;-)
Right malloc() lib!! (Linux: jemalloc, Solaris: libumem)

Storage:
●

●

SSD helping random access! (index/data) more and more cheaper

●

FS is important! - ZFS, UFS, QFS, VxFS, EXT3, EXT4, XFS, etc..

●

O_DIRECT or not O_DIRECT, AIO or not AIO, and be aware of bugs! ;-)

●

●

Don't use slow disks! (except if this is a test validation goal :-))

Do some generic I/O tests first (Sysbench, IObench, iozone, etc.)

Don't forget network !! :-) (faster is better, 10Gbit is great!)

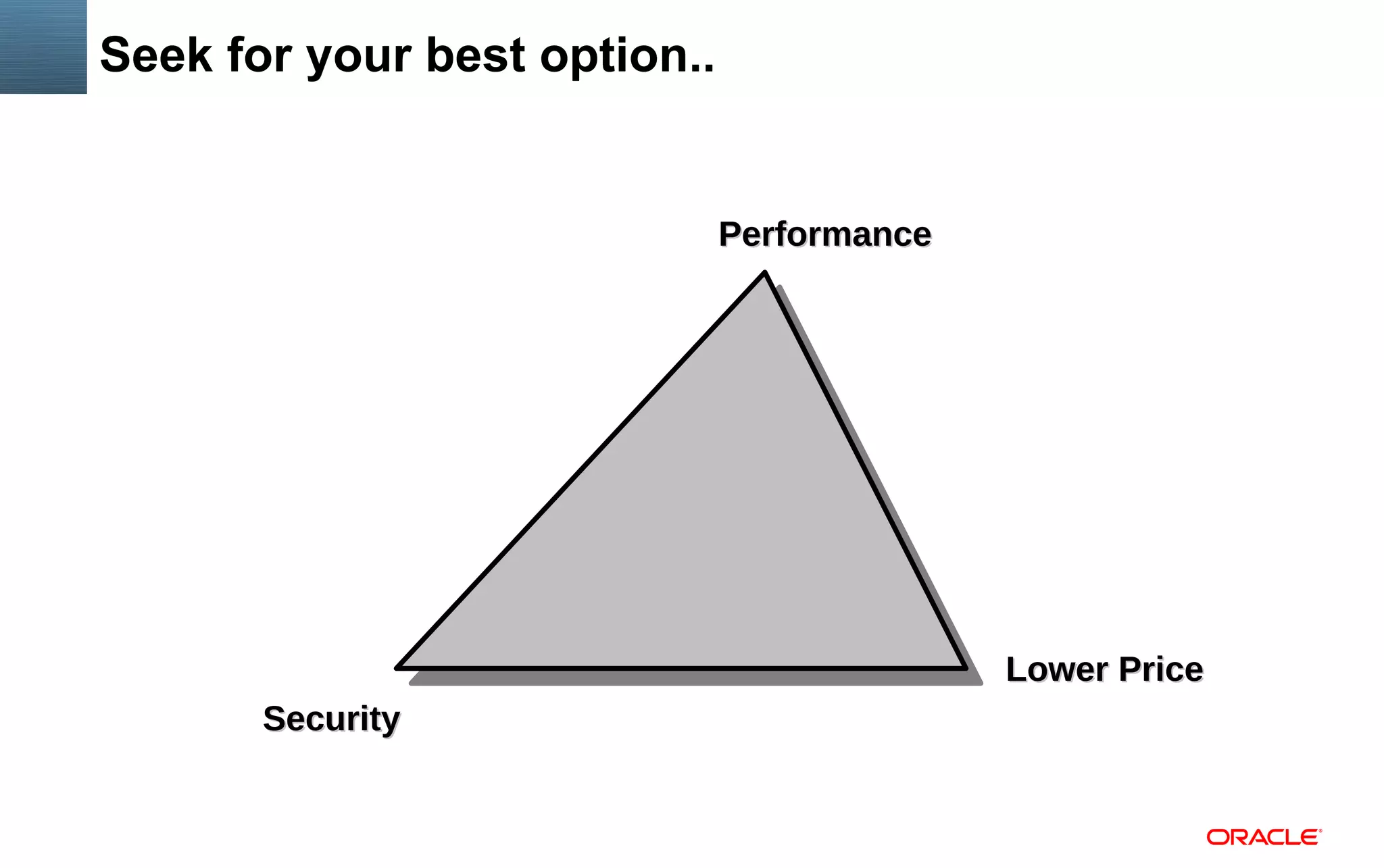

Seek for your best option..

Performance

Lower Price
Security

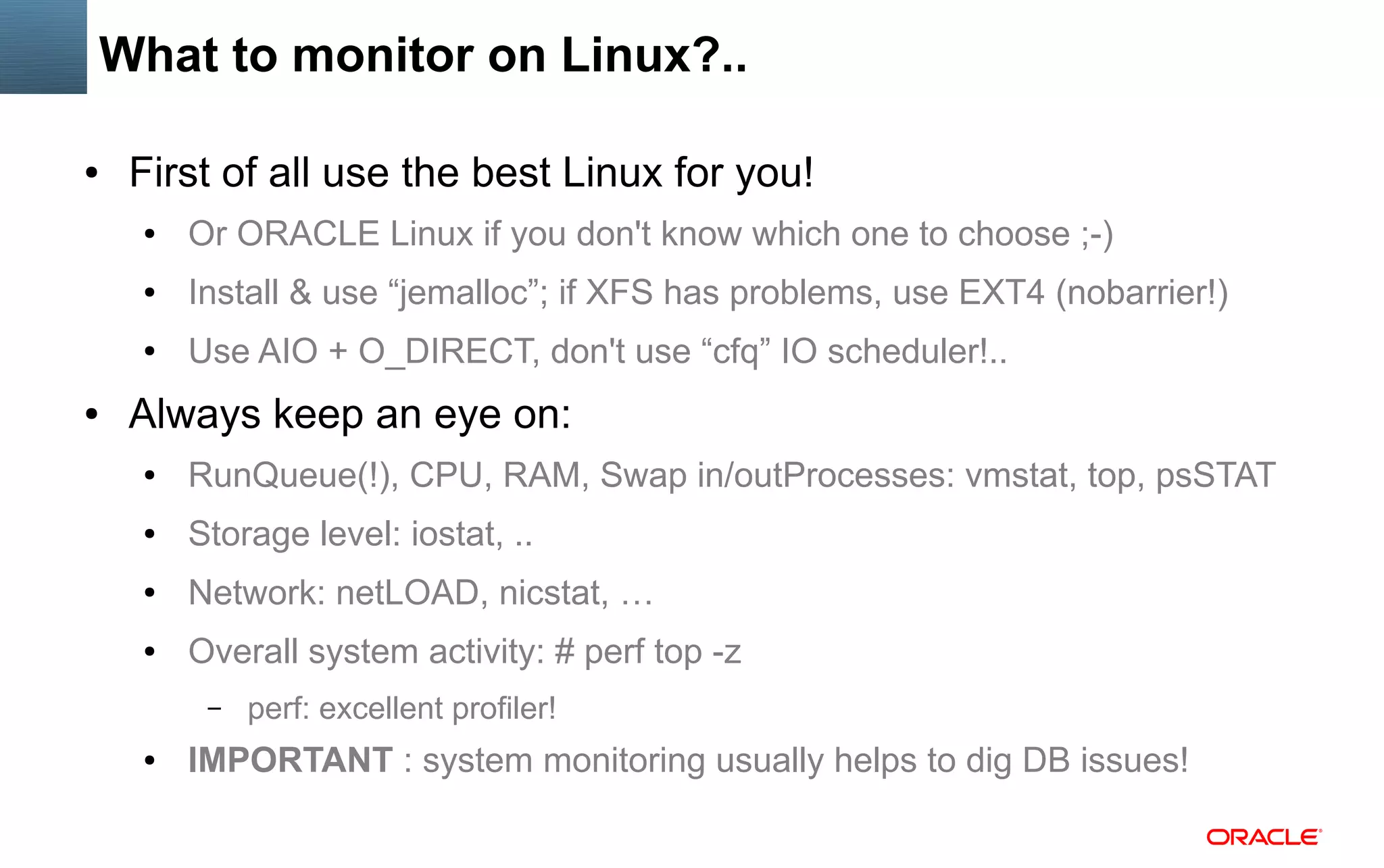

What to monitor on Linux?..
●

First of all use the best Linux for you!
●

●

Install & use “jemalloc”; if XFS has problems, use EXT4 (nobarrier!)

●

●

Or ORACLE Linux if you don't know which one to choose ;-)
Use AIO + O_DIRECT, don't use “cfq” IO scheduler!..

Always keep an eye on:
●

RunQueue(!), CPU, RAM, Swap in/outProcesses: vmstat, top, psSTAT

●

Storage level: iostat, ..

●

Network: netLOAD, nicstat, …

●

Overall system activity: # perf top -z
–

●

perf: excellent profiler!

IMPORTANT : system monitoring usually helps to dig DB issues!

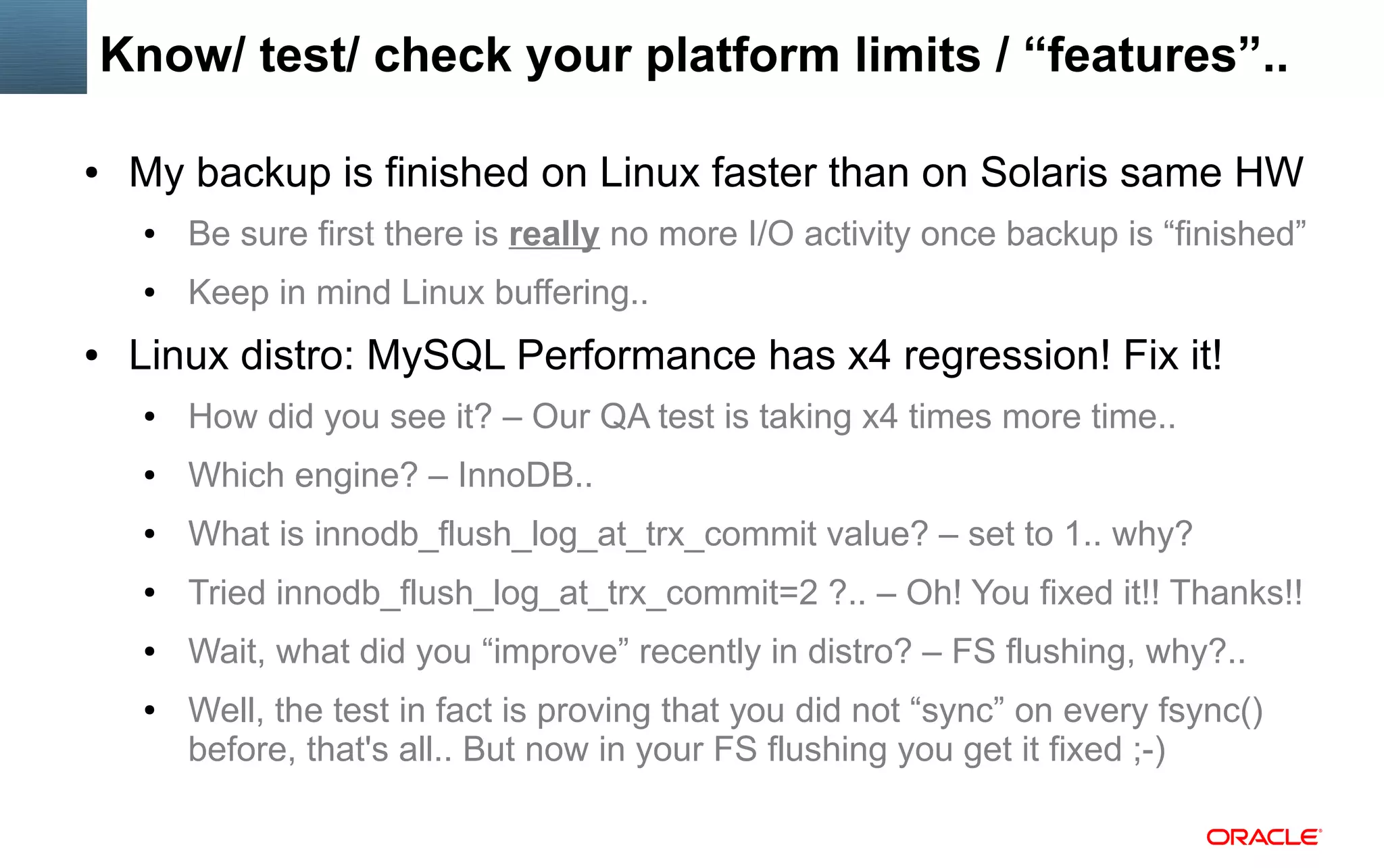

Know/ test/ check your platform limits / “features”..
●

My backup is finished on Linux faster than on Solaris same HW
●

●

●

Be sure first there is really no more I/O activity once backup is “finished”
Keep in mind Linux buffering..

Linux distro: MySQL Performance has x4 regression! Fix it!
●

How did you see it? – Our QA test is taking x4 times more time..

●

Which engine? – InnoDB..

●

What is innodb_flush_log_at_trx_commit value? – set to 1.. why?

●

Tried innodb_flush_log_at_trx_commit=2 ?.. – Oh! You fixed it!! Thanks!!

●

Wait, what did you “improve” recently in distro? – FS flushing, why?..

●

Well, the test in fact is proving that you did not “sync” on every fsync()
before, that's all.. But now in your FS flushing you get it fixed ;-)

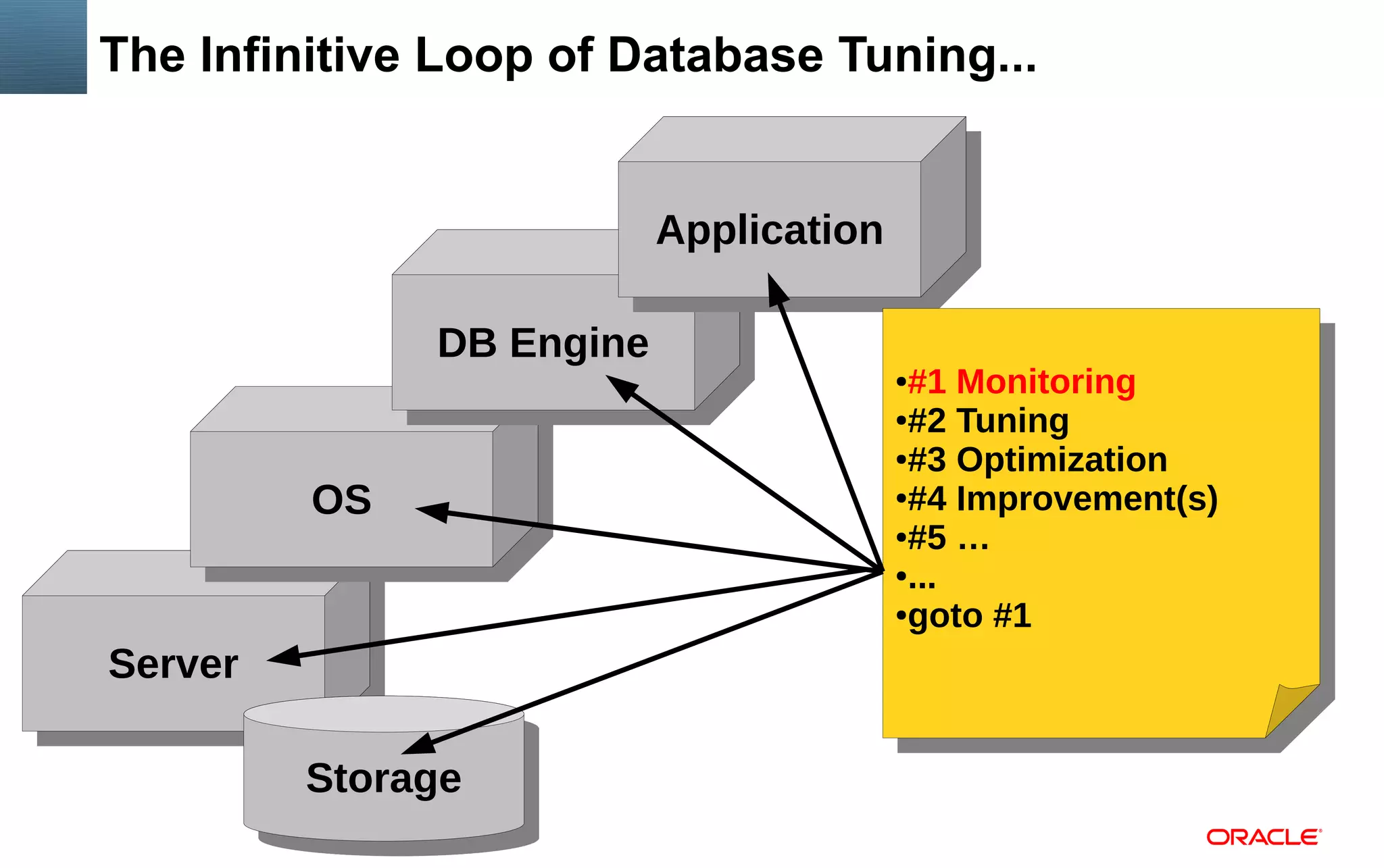

The Infinitive Loop of Database Tuning...

Application
Application
DB Engine
DB Engine
OS
OS
Server
Server
Storage
Storage

#1 Monitoring
●#1 Monitoring
●#2 Tuning
●#2 Tuning
●#3 Optimization
●#3 Optimization
●#4 Improvement(s)
●#4 Improvement(s)
●#5 …
●#5 …
●...
●...
●goto #1
●goto #1
●

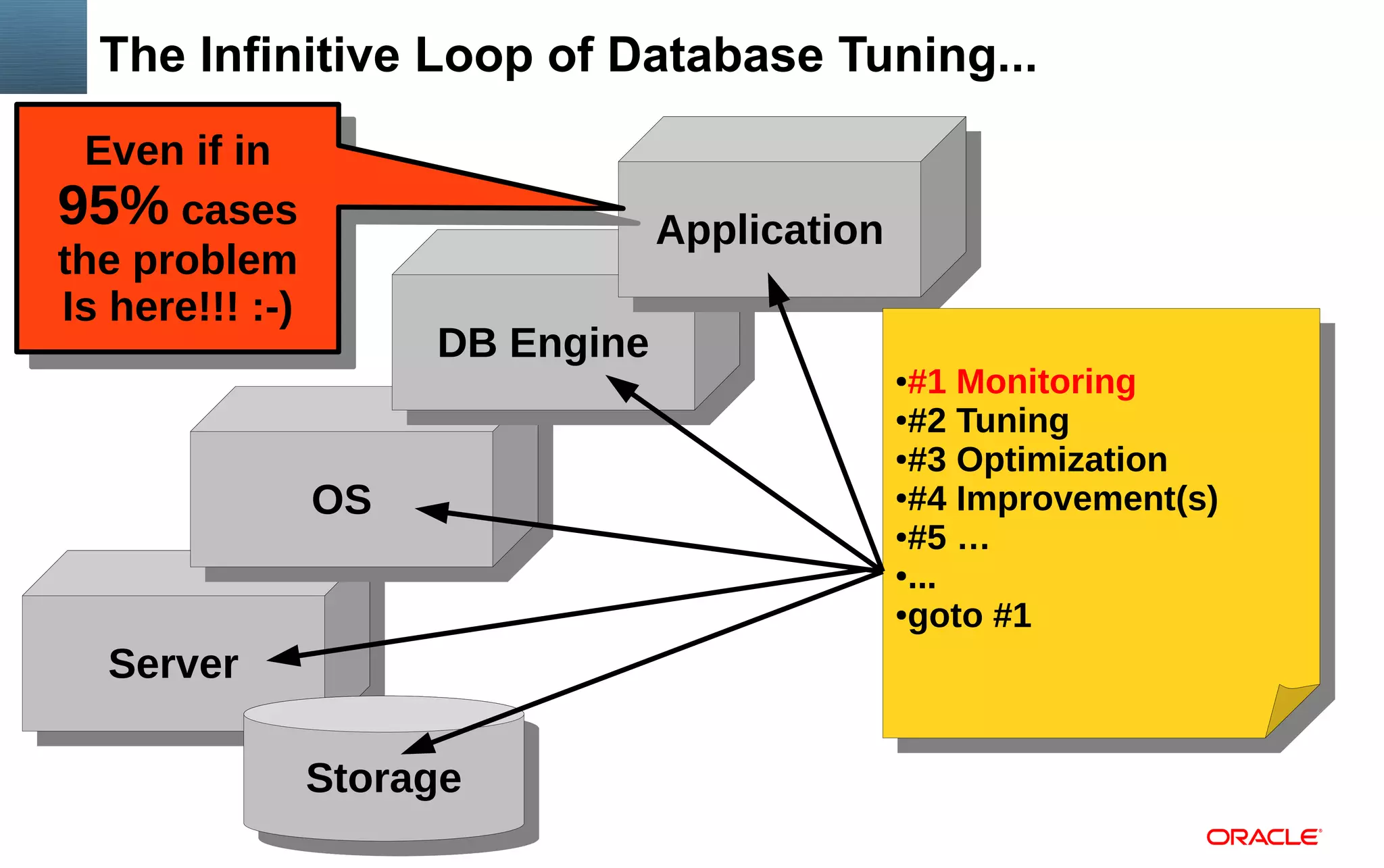

The Infinitive Loop of Database Tuning...
Even if in
Even if in
95% cases
95% cases
the problem
the problem
Is here!!! :-)
Is here!!! :-)

Application
Application
DB Engine
DB Engine

OS
OS
Server
Server
Storage
Storage

#1 Monitoring
●#1 Monitoring
●#2 Tuning
●#2 Tuning
●#3 Optimization
●#3 Optimization
●#4 Improvement(s)
●#4 Improvement(s)
●#5 …
●#5 …
●...
●...
●goto #1
●goto #1
●

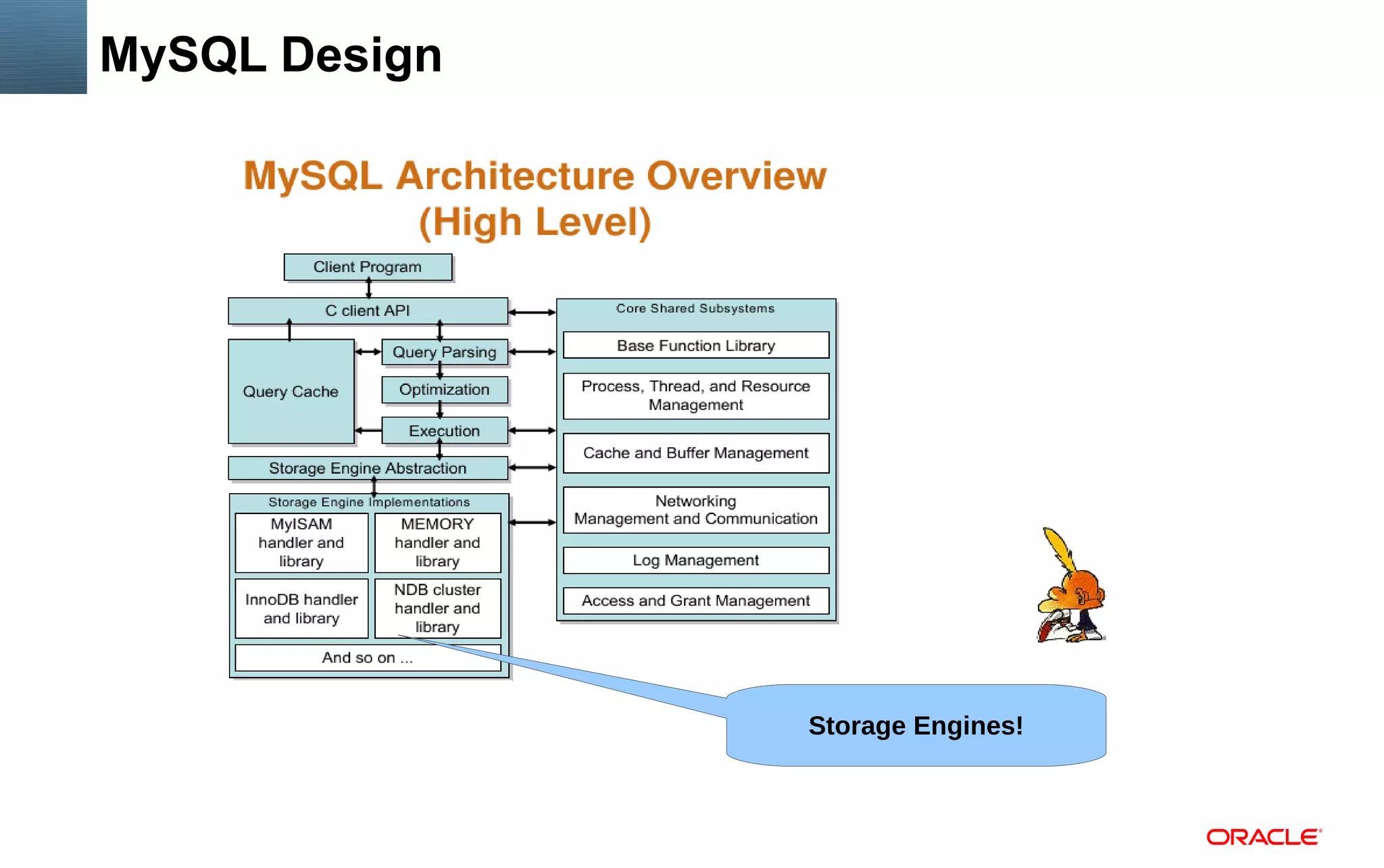

MySQL Design

Storage Engines!

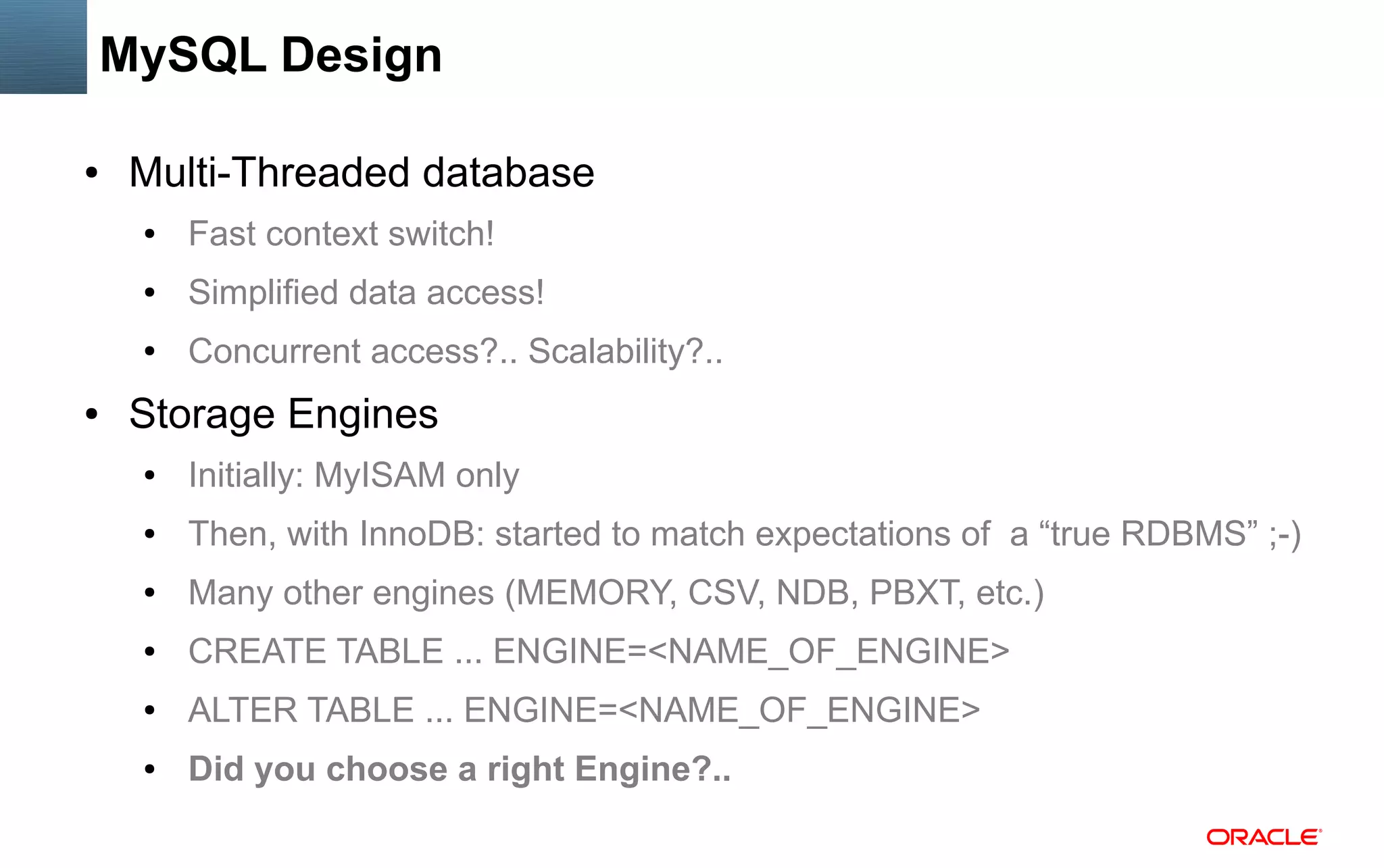

MySQL Design
●

Multi-Threaded database
●

●

Simplified data access!

●

●

Fast context switch!
Concurrent access?.. Scalability?..

Storage Engines
●

Initially: MyISAM only

●

Then, with InnoDB: started to match expectations of a “true RDBMS” ;-)

●

Many other engines (MEMORY, CSV, NDB, PBXT, etc.)

●

CREATE TABLE ... ENGINE=<NAME_OF_ENGINE>

●

ALTER TABLE ... ENGINE=<NAME_OF_ENGINE>

●

Did you choose a right Engine?..

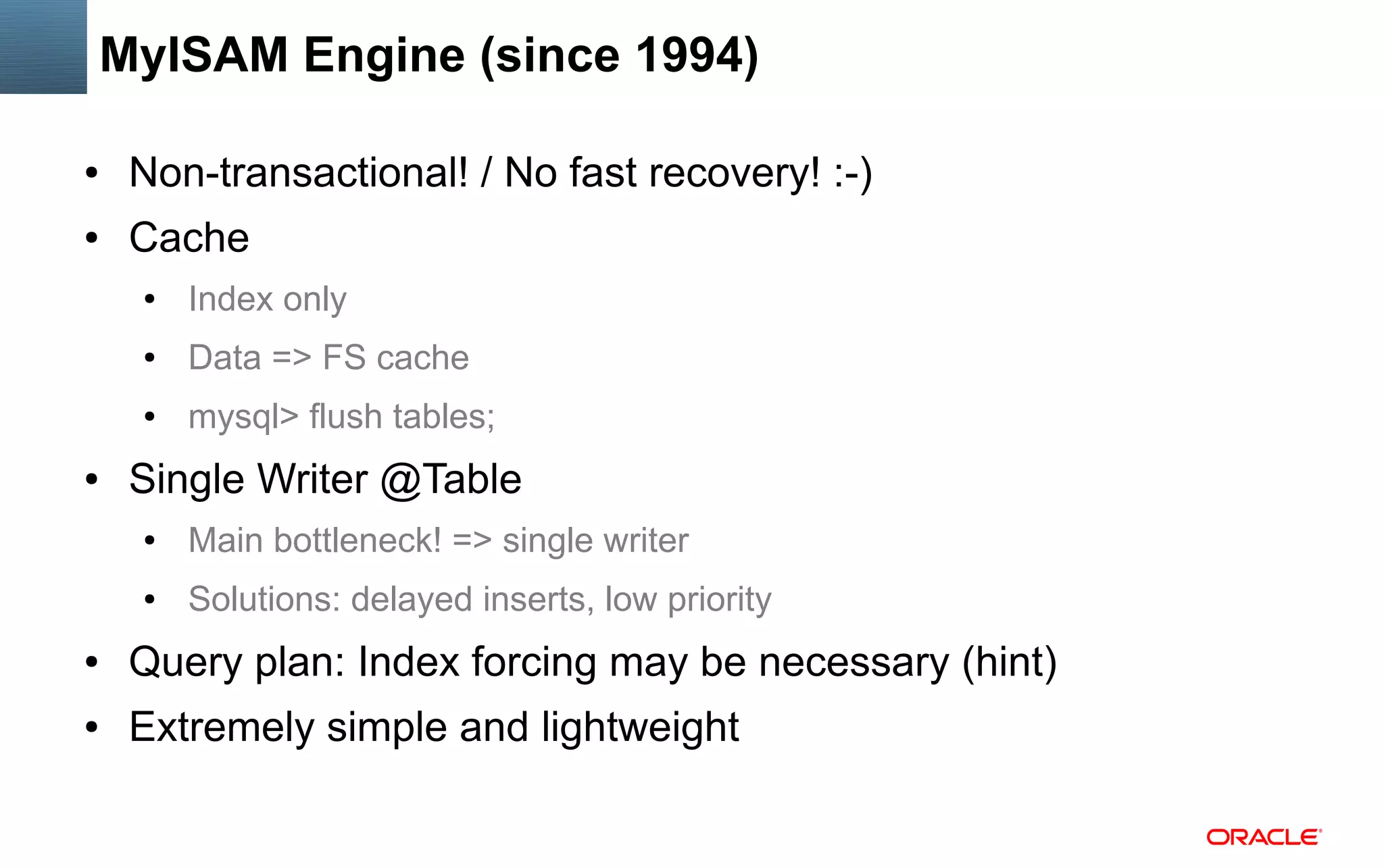

MyISAM Engine (since 1994)
●

Non-transactional! / No fast recovery! :-)

●

Cache
●

●

Data => FS cache

●

●

Index only
mysql> flush tables;

Single Writer @Table
●

Main bottleneck! => single writer

●

Solutions: delayed inserts, low priority

●

Query plan: Index forcing may be necessary (hint)

●

Extremely simple and lightweight

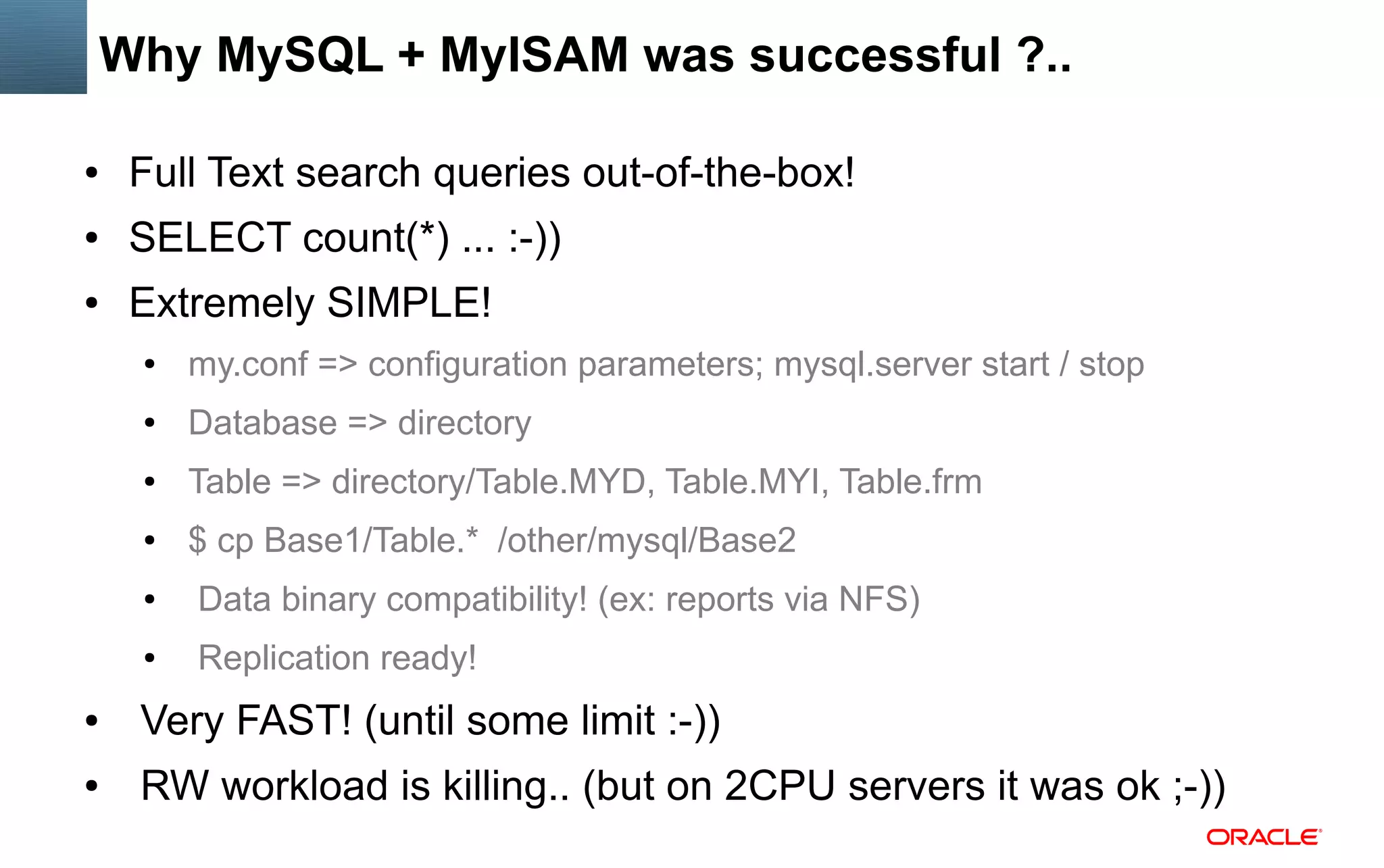

Why MySQL + MyISAM was successful ?..
●

Full Text search queries out-of-the-box!

●

SELECT count(*) ... :-))

●

Extremely SIMPLE!
●

my.conf => configuration parameters; mysql.server start / stop

●

Database => directory

●

Table => directory/Table.MYD, Table.MYI, Table.frm

●

$ cp Base1/Table.* /other/mysql/Base2

●

Data binary compatibility! (ex: reports via NFS)

●

Replication ready!

●

Very FAST! (until some limit :-))

●

RW workload is killing.. (but on 2CPU servers it was ok ;-))

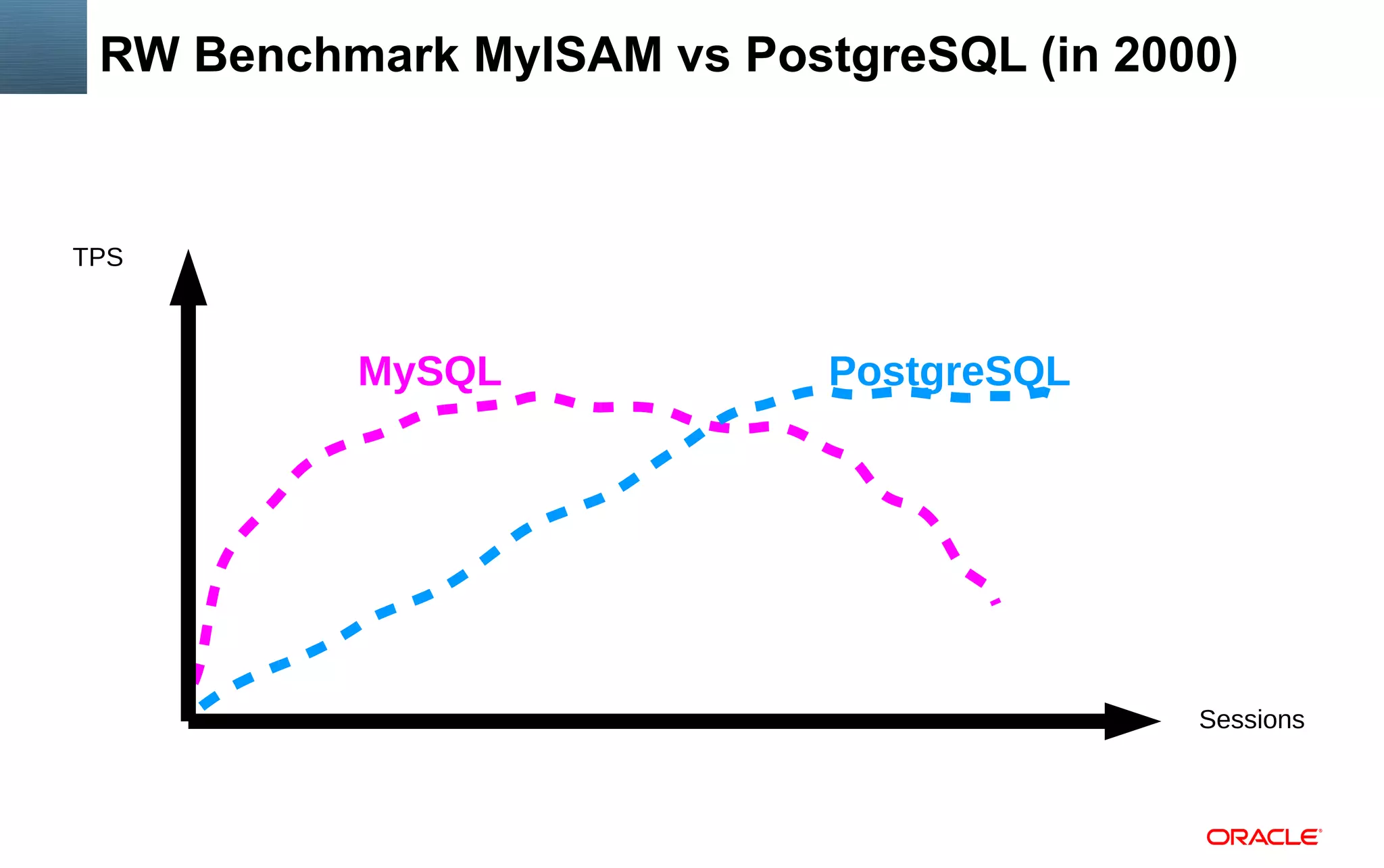

RW Benchmark MyISAM vs PostgreSQL (in 2000)

TPS

MySQL

PostgreSQL

Sessions

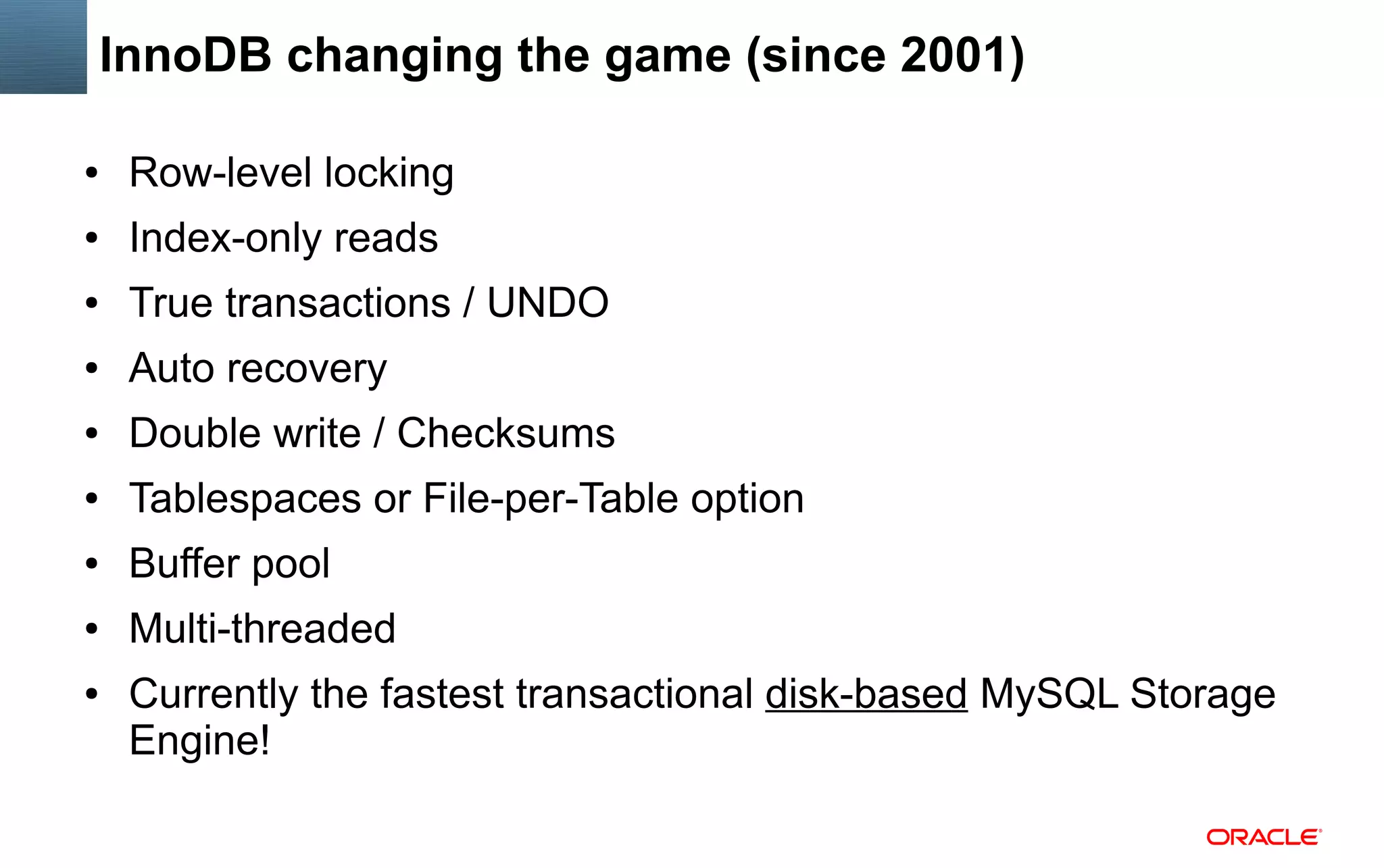

InnoDB changing the game (since 2001)
●

Row-level locking

●

Index-only reads

●

True transactions / UNDO

●

Auto recovery

●

Double write / Checksums

●

Tablespaces or File-per-Table option

●

Buffer pool

●

Multi-threaded

●

Currently the fastest transactional disk-based MySQL Storage
Engine!

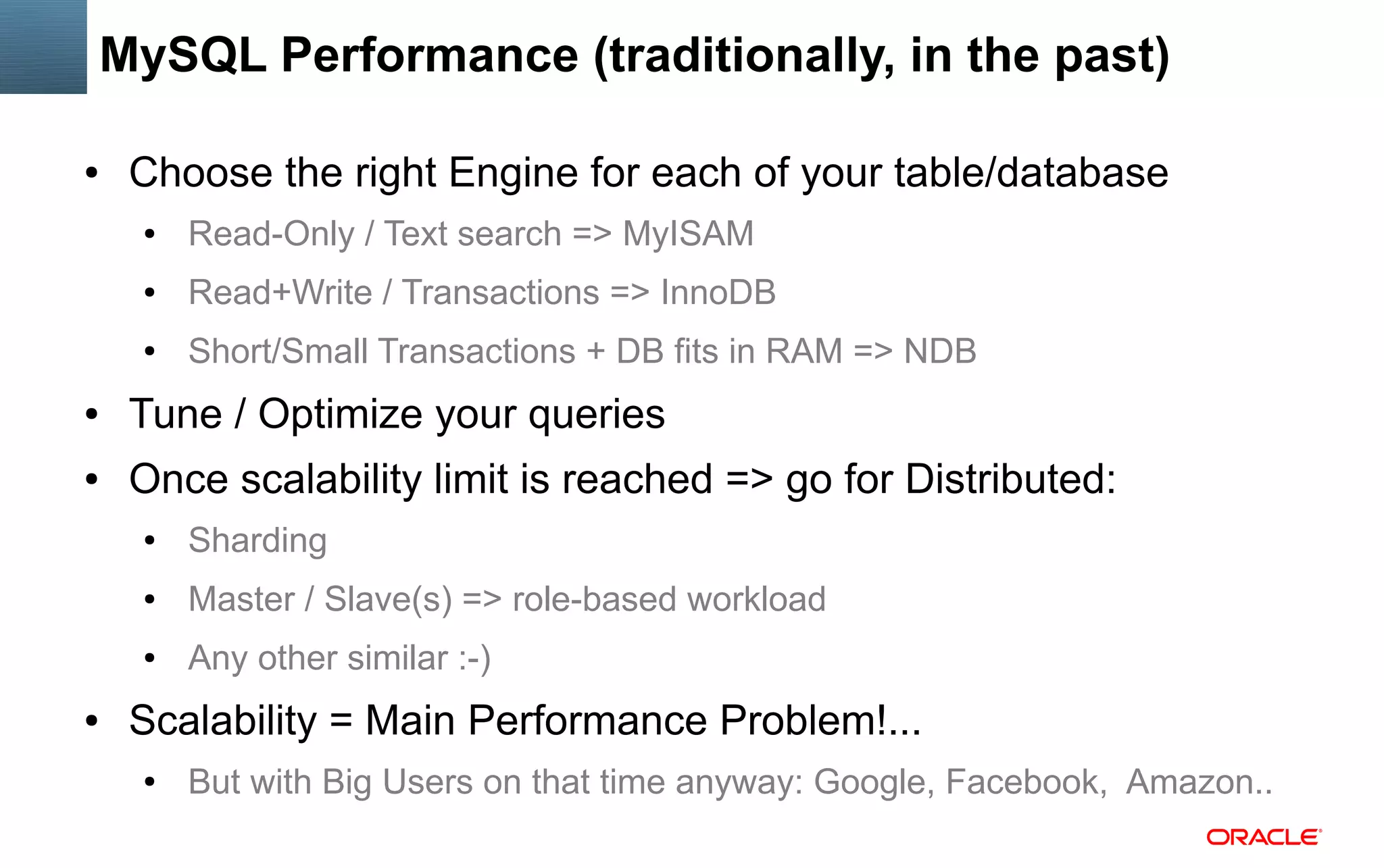

MySQL Performance (traditionally, in the past)
●

Choose the right Engine for each of your table/database
●

Read-Only / Text search => MyISAM

●

Read+Write / Transactions => InnoDB

●

Short/Small Transactions + DB fits in RAM => NDB

●

Tune / Optimize your queries

●

Once scalability limit is reached => go for Distributed:
●

●

Master / Slave(s) => role-based workload

●

●

Sharding
Any other similar :-)

Scalability = Main Performance Problem!...
●

But with Big Users on that time anyway: Google, Facebook, Amazon..

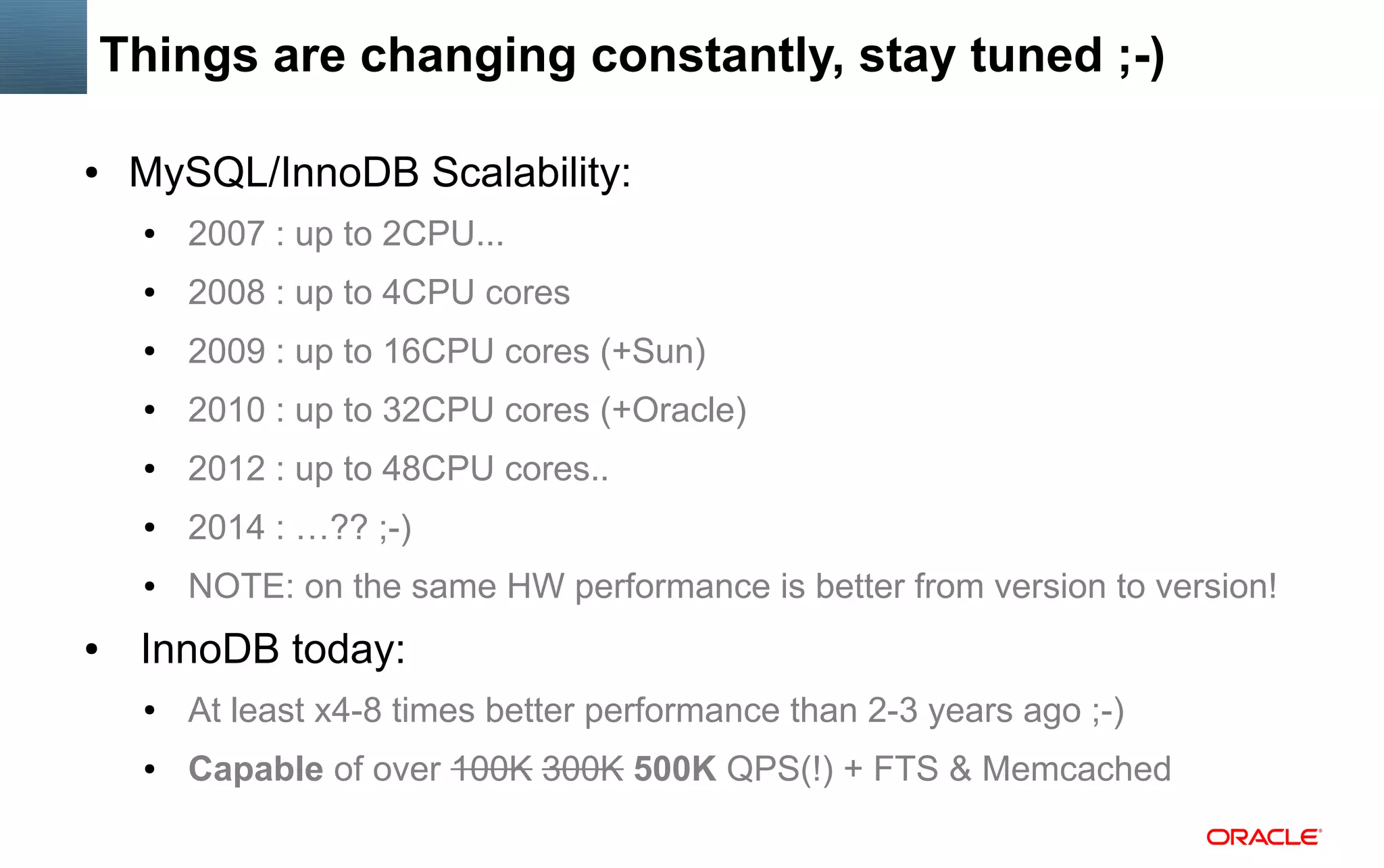

Things are changing constantly, stay tuned ;-)
●

MySQL/InnoDB Scalability:
●

●

2008 : up to 4CPU cores

●

2009 : up to 16CPU cores (+Sun)

●

2010 : up to 32CPU cores (+Oracle)

●

2012 : up to 48CPU cores..

●

2014 : …?? ;-)

●

●

2007 : up to 2CPU...

NOTE: on the same HW performance is better from version to version!

InnoDB today:
●

At least x4-8 times better performance than 2-3 years ago ;-)

●

Capable of over 100K 300K 500K QPS(!) + FTS & Memcached

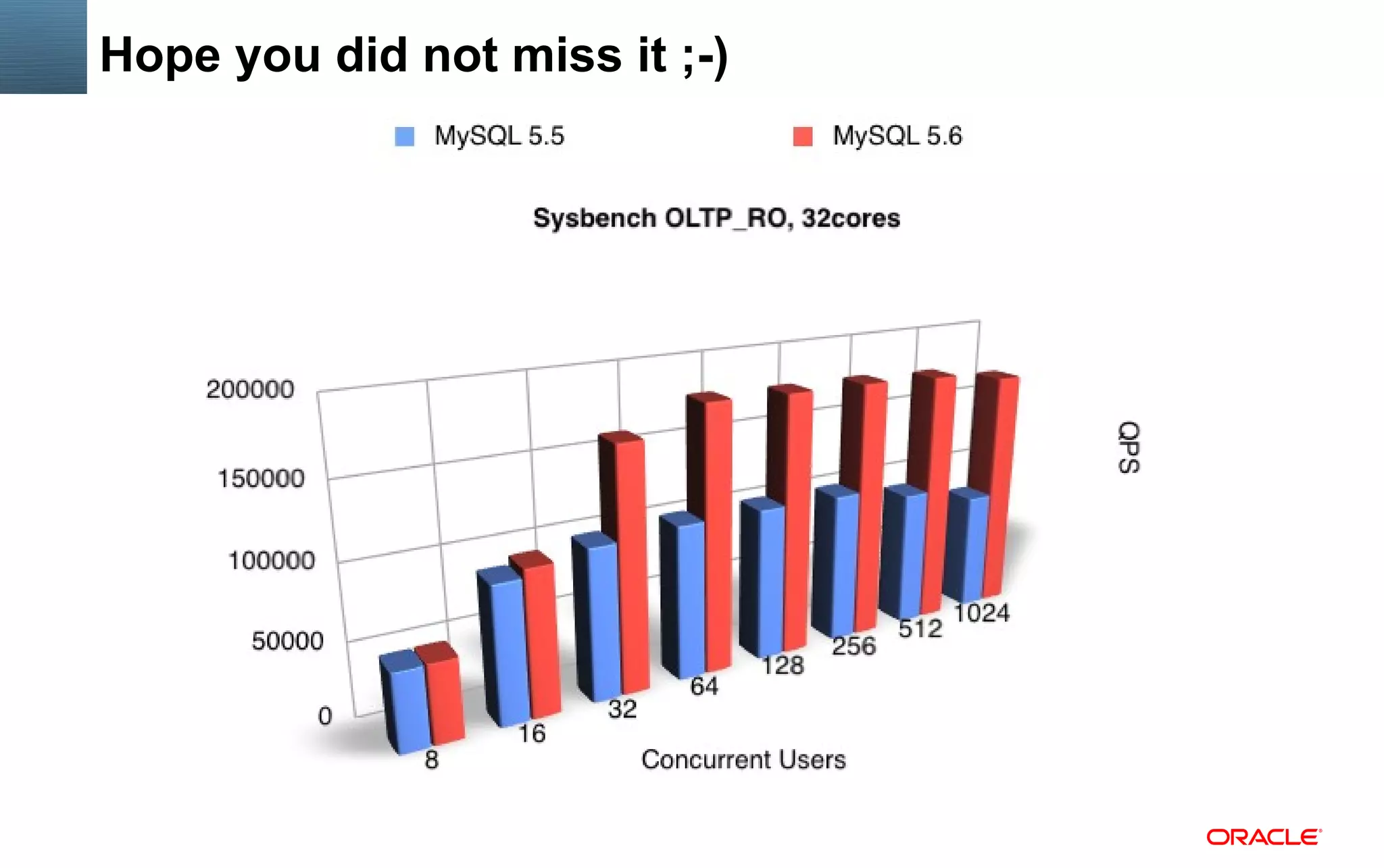

Hope you did not miss it ;-)

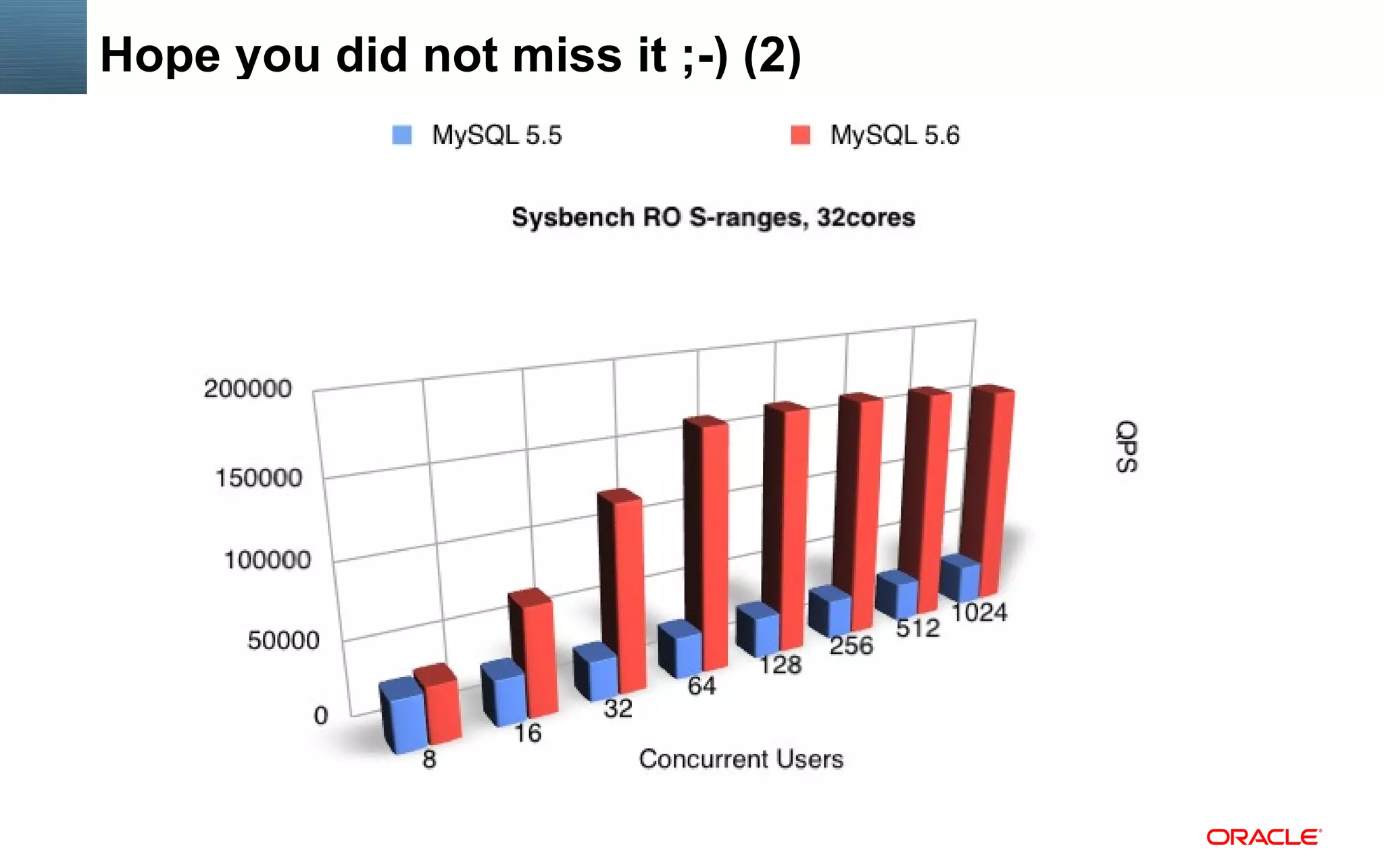

Hope you did not miss it ;-) (2)

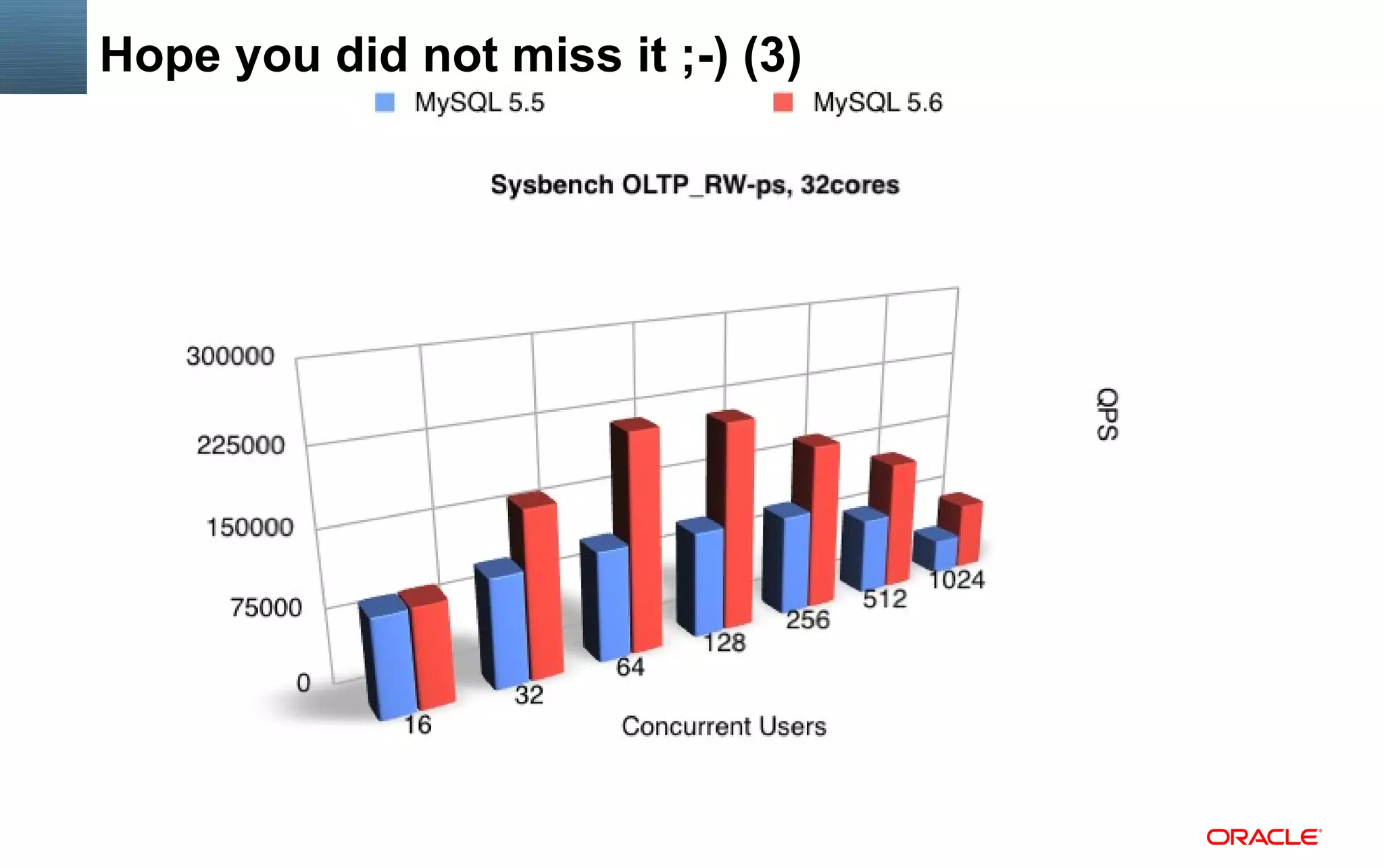

Hope you did not miss it ;-) (3)

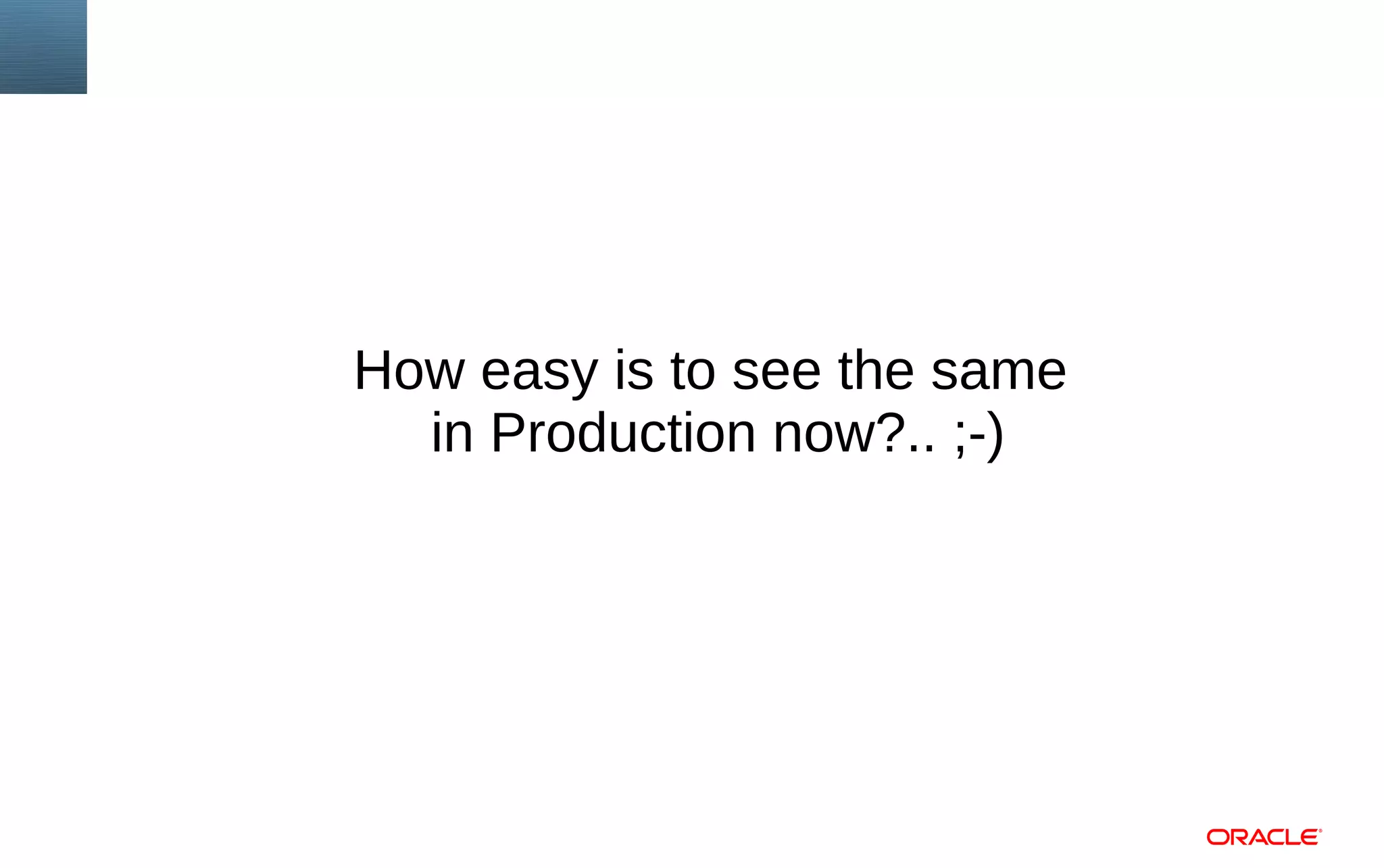

How easy is to see the same
in Production now?.. ;-)

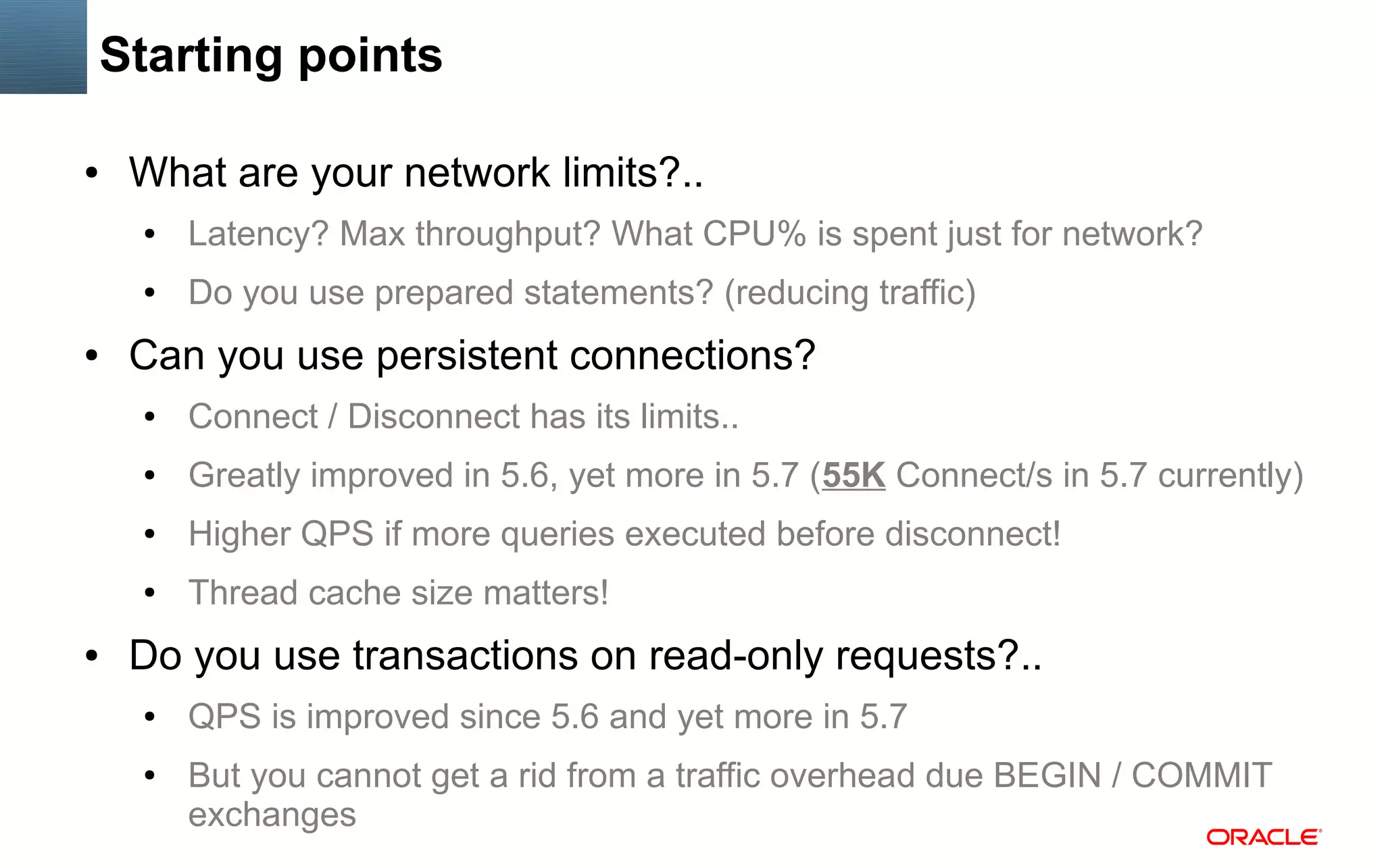

Starting points
●

What are your network limits?..
●

●

●

Latency? Max throughput? What CPU% is spent just for network?
Do you use prepared statements? (reducing traffic)

Can you use persistent connections?
●

●

Greatly improved in 5.6, yet more in 5.7 (55K Connect/s in 5.7 currently)

●

Higher QPS if more queries executed before disconnect!

●

●

Connect / Disconnect has its limits..

Thread cache size matters!

Do you use transactions on read-only requests?..
●

●

QPS is improved since 5.6 and yet more in 5.7
But you cannot get a rid from a traffic overhead due BEGIN / COMMIT
exchanges

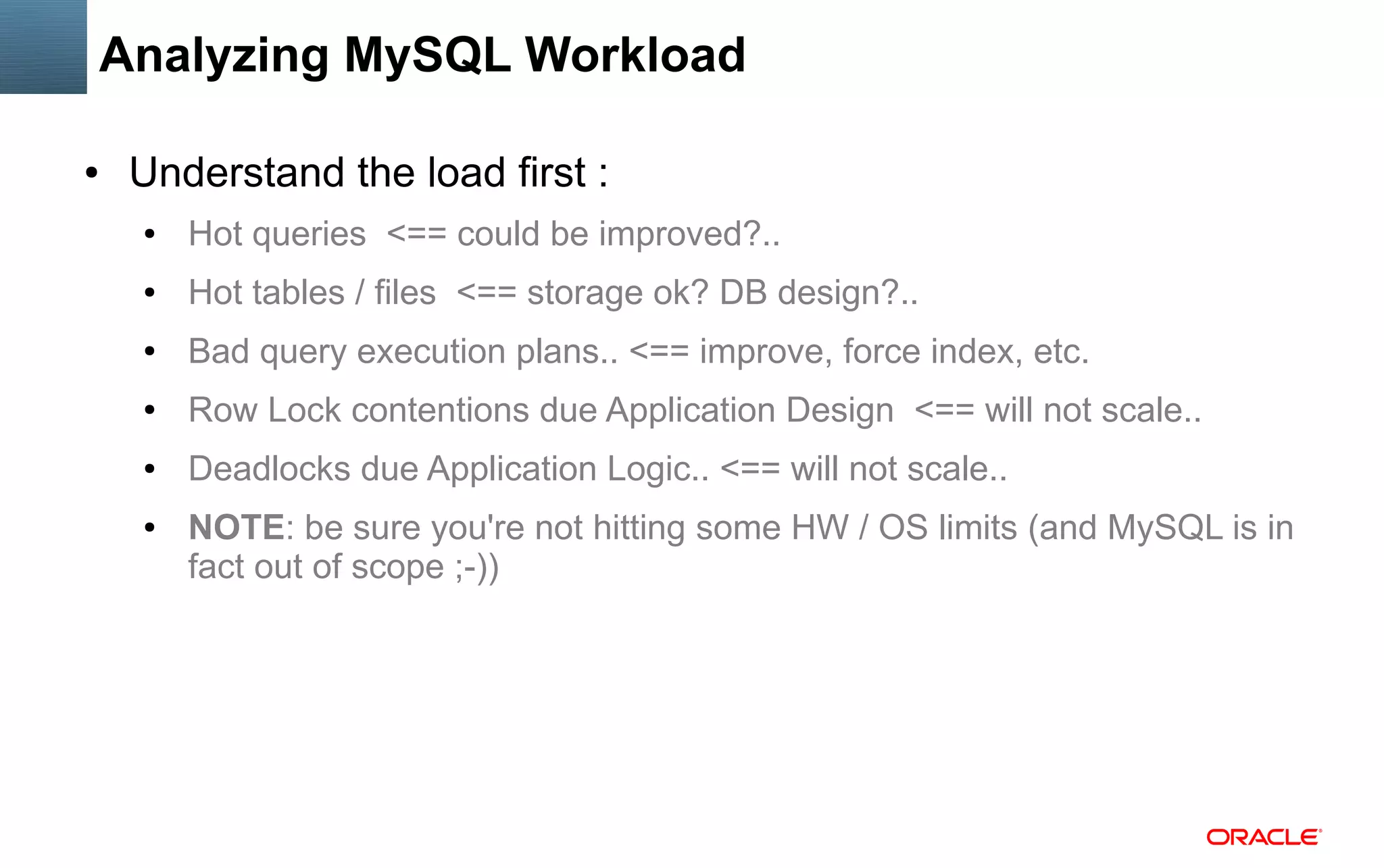

Analyzing MySQL Workload
●

Understand the load first :
●

Hot queries <== could be improved?..

●

Hot tables / files <== storage ok? DB design?..

●

Bad query execution plans.. <== improve, force index, etc.

●

Row Lock contentions due Application Design <== will not scale..

●

Deadlocks due Application Logic.. <== will not scale..

●

NOTE: be sure you're not hitting some HW / OS limits (and MySQL is in
fact out of scope ;-))

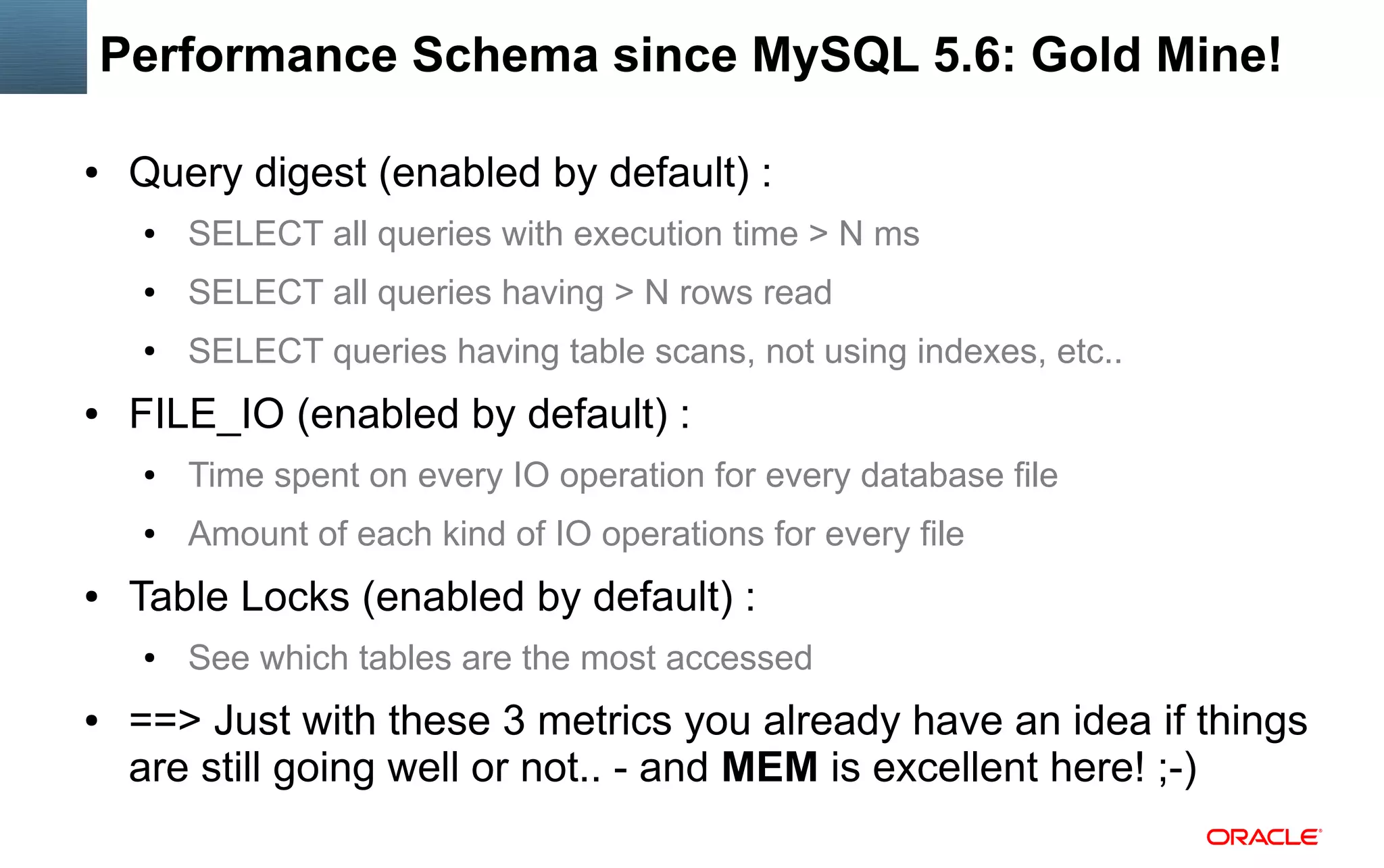

Performance Schema since MySQL 5.6: Gold Mine!
●

Query digest (enabled by default) :
●

●

SELECT all queries having > N rows read

●

●

SELECT all queries with execution time > N ms
SELECT queries having table scans, not using indexes, etc..

FILE_IO (enabled by default) :
●

●

●

Time spent on every IO operation for every database file
Amount of each kind of IO operations for every file

Table Locks (enabled by default) :
●

●

See which tables are the most accessed

==> Just with these 3 metrics you already have an idea if things
are still going well or not.. - and MEM is excellent here! ;-)

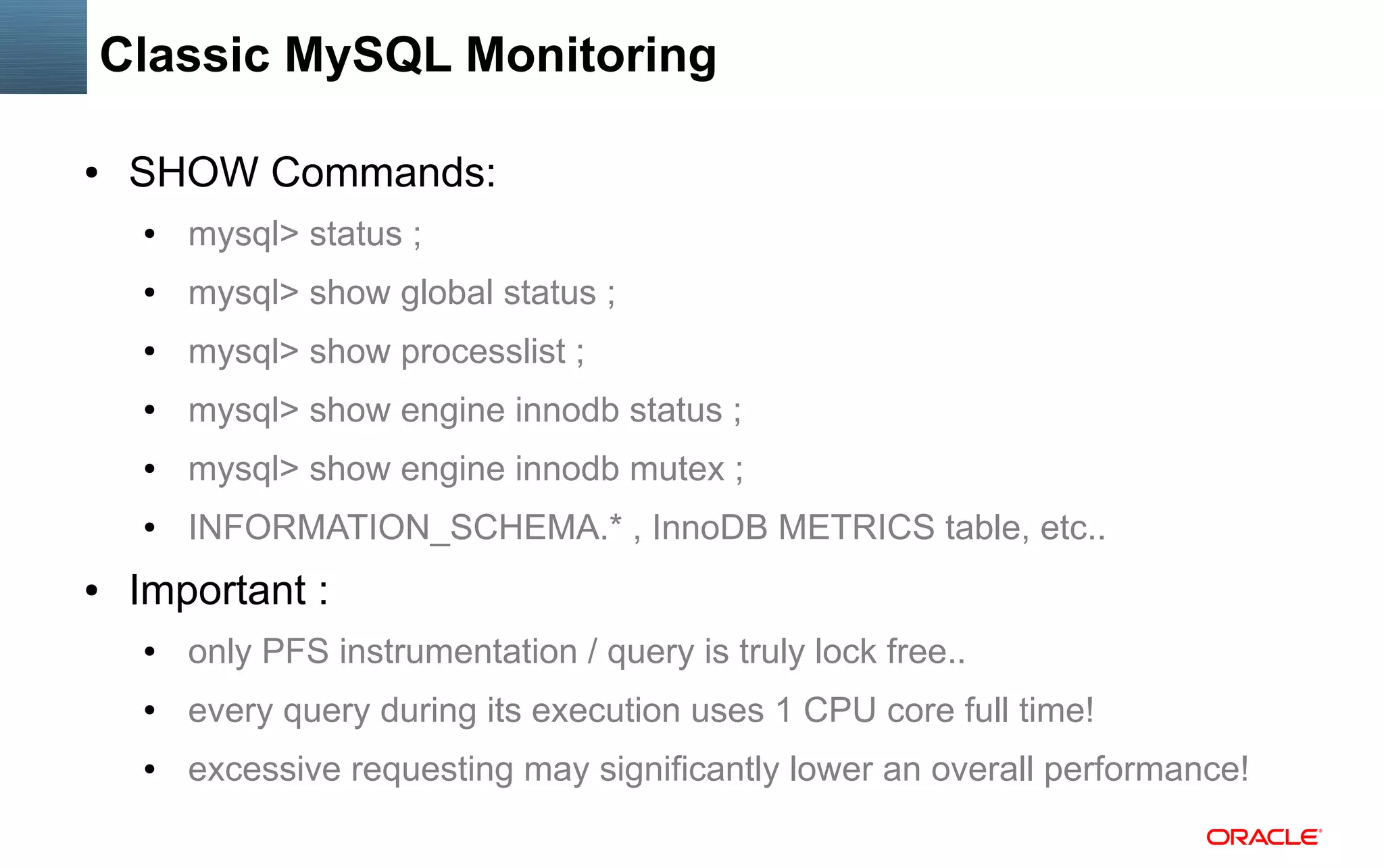

Classic MySQL Monitoring
●

SHOW Commands:
●

●

mysql> show global status ;

●

mysql> show processlist ;

●

mysql> show engine innodb status ;

●

mysql> show engine innodb mutex ;

●

●

mysql> status ;

INFORMATION_SCHEMA.* , InnoDB METRICS table, etc..

Important :
●

only PFS instrumentation / query is truly lock free..

●

every query during its execution uses 1 CPU core full time!

●

excessive requesting may significantly lower an overall performance!

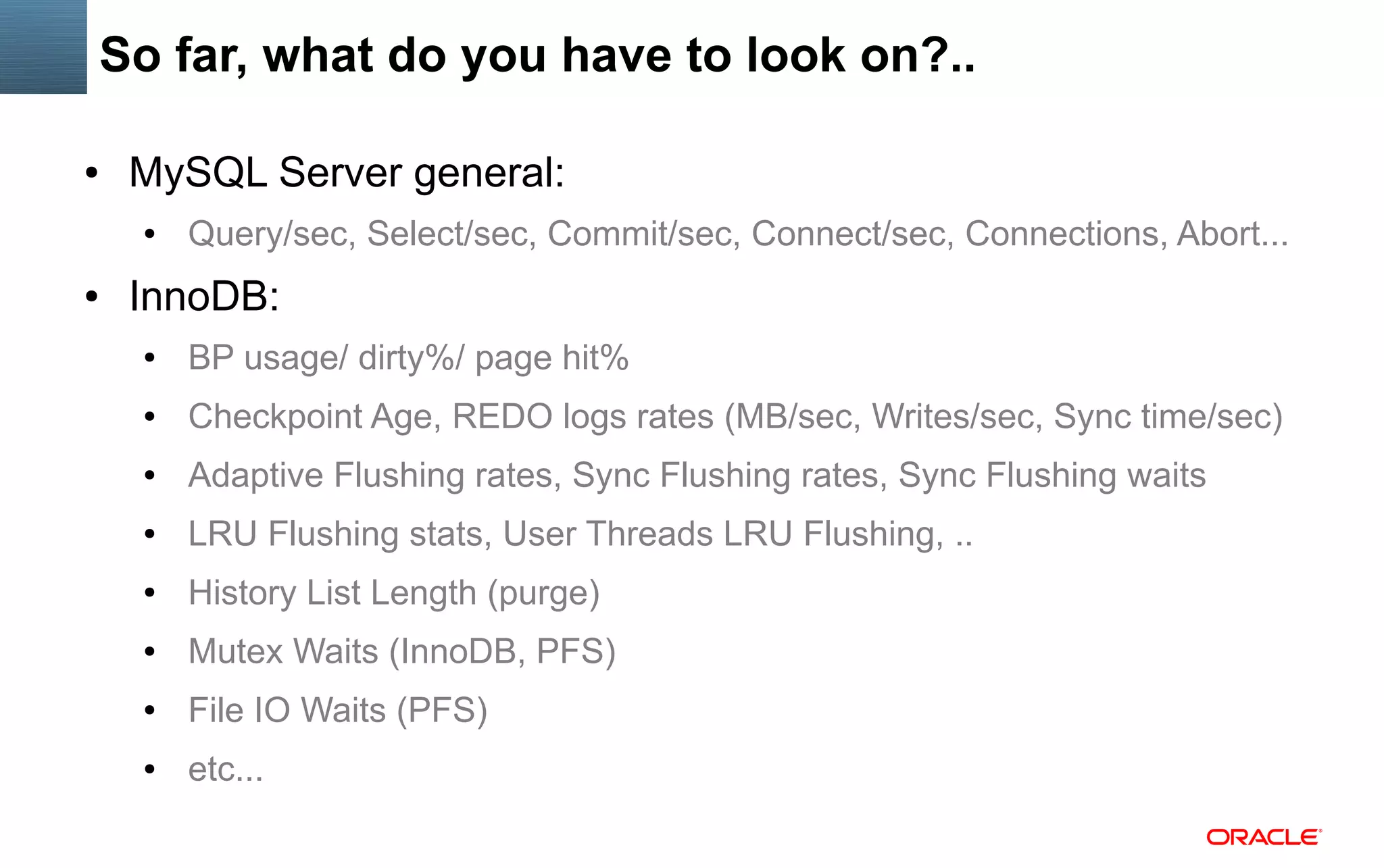

So far, what do you have to look on?..
●

MySQL Server general:
●

●

Query/sec, Select/sec, Commit/sec, Connect/sec, Connections, Abort...

InnoDB:
●

BP usage/ dirty%/ page hit%

●

Checkpoint Age, REDO logs rates (MB/sec, Writes/sec, Sync time/sec)

●

Adaptive Flushing rates, Sync Flushing rates, Sync Flushing waits

●

LRU Flushing stats, User Threads LRU Flushing, ..

●

History List Length (purge)

●

Mutex Waits (InnoDB, PFS)

●

File IO Waits (PFS)

●

etc...

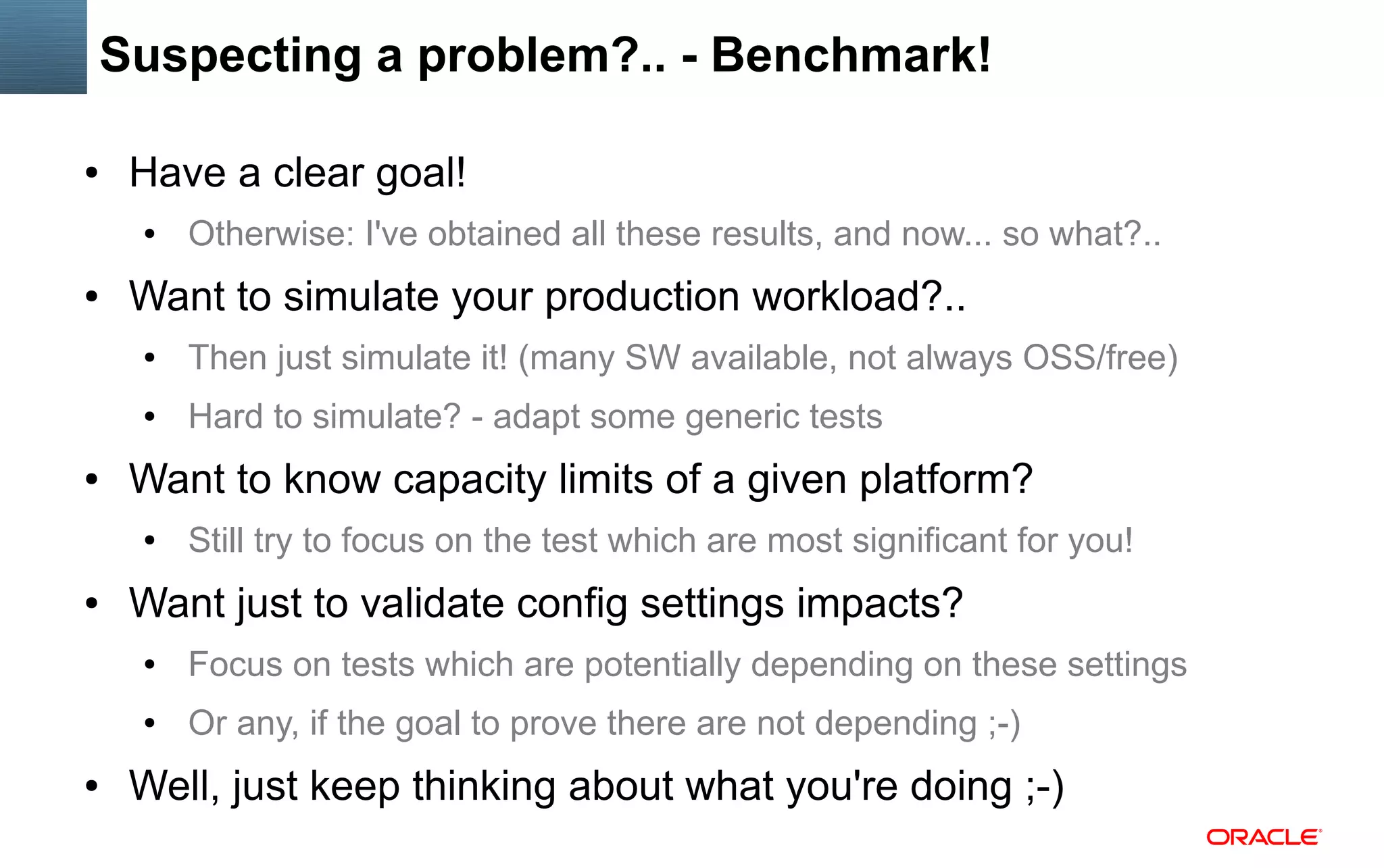

Suspecting a problem?.. - Benchmark!
●

Have a clear goal!
●

●

Otherwise: I've obtained all these results, and now... so what?..

Want to simulate your production workload?..
●

●

●

Then just simulate it! (many SW available, not always OSS/free)
Hard to simulate? - adapt some generic tests

Want to know capacity limits of a given platform?
●

●

Still try to focus on the test which are most significant for you!

Want just to validate config settings impacts?
●

●

●

Focus on tests which are potentially depending on these settings
Or any, if the goal to prove there are not depending ;-)

Well, just keep thinking about what you're doing ;-)

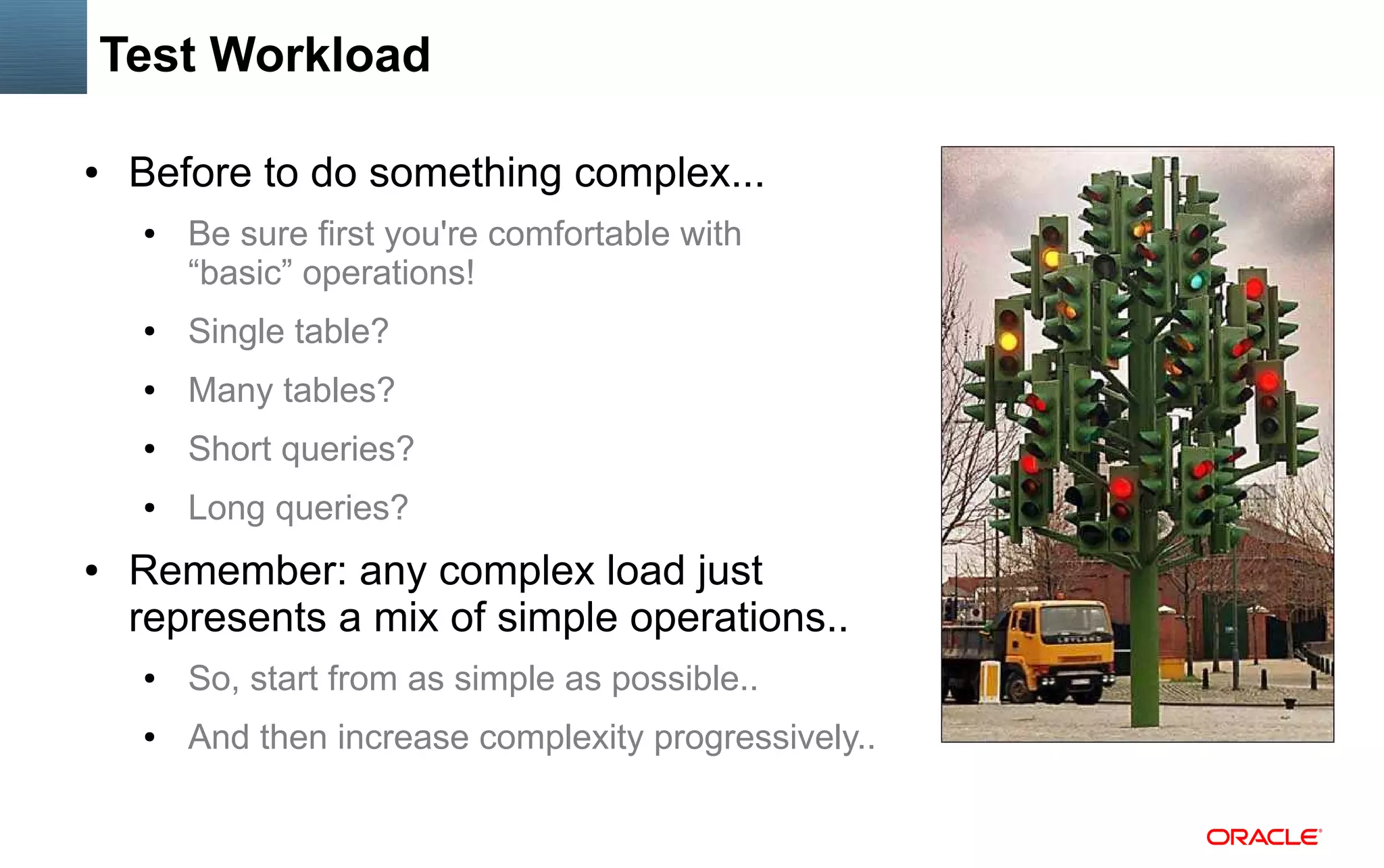

Test Workload
●

Before to do something complex...
●

Be sure first you're comfortable with
“basic” operations!

●

●

Many tables?

●

Short queries?

●

●

Single table?

Long queries?

Remember: any complex load just
represents a mix of simple operations..
●

So, start from as simple as possible..

●

And then increase complexity progressively..

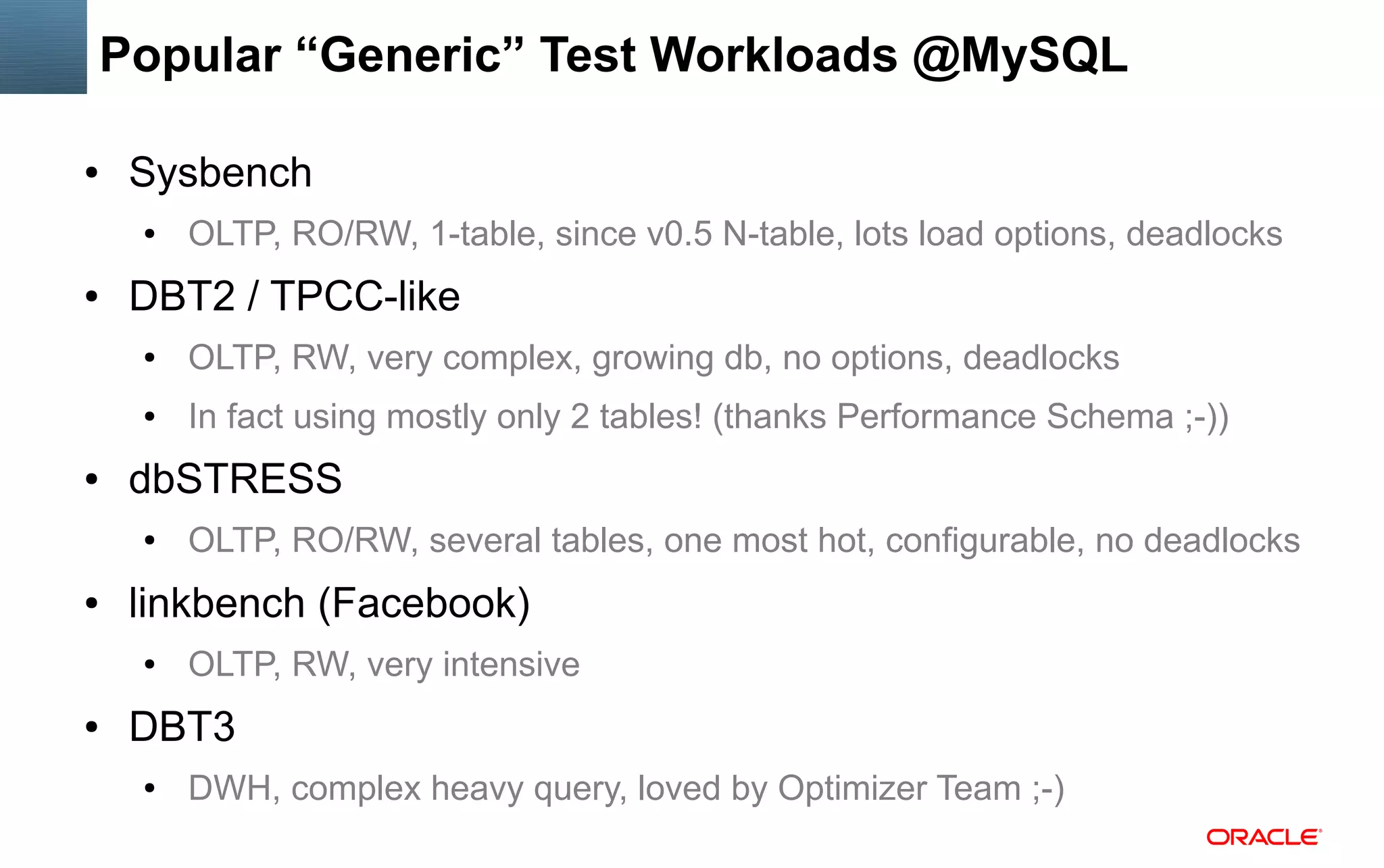

Popular “Generic” Test Workloads @MySQL
●

Sysbench
●

●

OLTP, RO/RW, 1-table, since v0.5 N-table, lots load options, deadlocks

DBT2 / TPCC-like
●

●

●

OLTP, RW, very complex, growing db, no options, deadlocks
In fact using mostly only 2 tables! (thanks Performance Schema ;-))

dbSTRESS
●

●

linkbench (Facebook)
●

●

OLTP, RO/RW, several tables, one most hot, configurable, no deadlocks
OLTP, RW, very intensive

DBT3
●

DWH, complex heavy query, loved by Optimizer Team ;-)

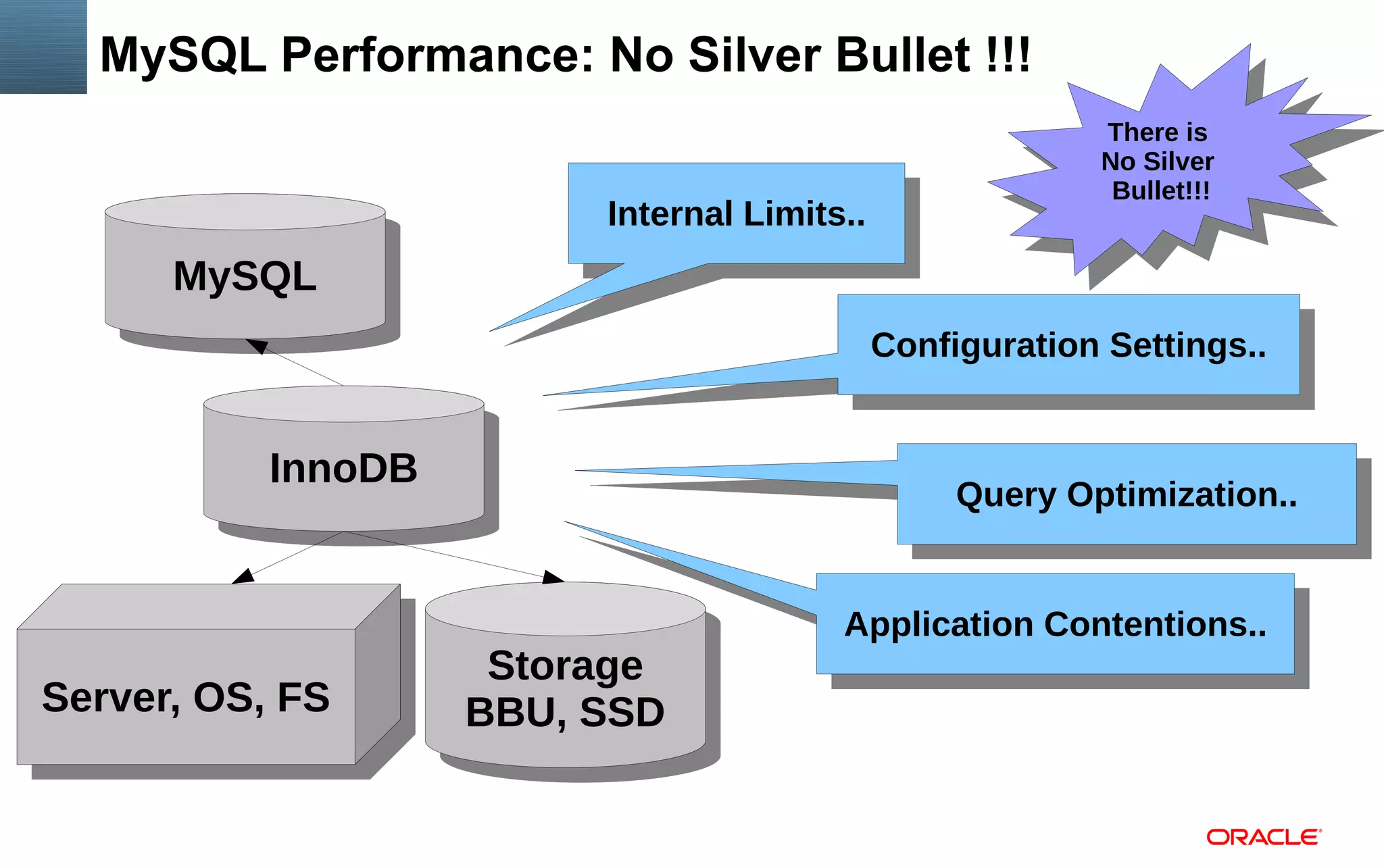

MySQL Performance: No Silver Bullet !!!
Internal Limits..
Internal Limits..

There is
There is
No Silver
No Silver
Bullet!!!
Bullet!!!

MySQL
MySQL
Configuration Settings..
Configuration Settings..

InnoDB
InnoDB

Server, OS, FS
Server, OS, FS

Query Optimization..
Query Optimization..

Storage
Storage
BBU, SSD
BBU, SSD

Application Contentions..
Application Contentions..

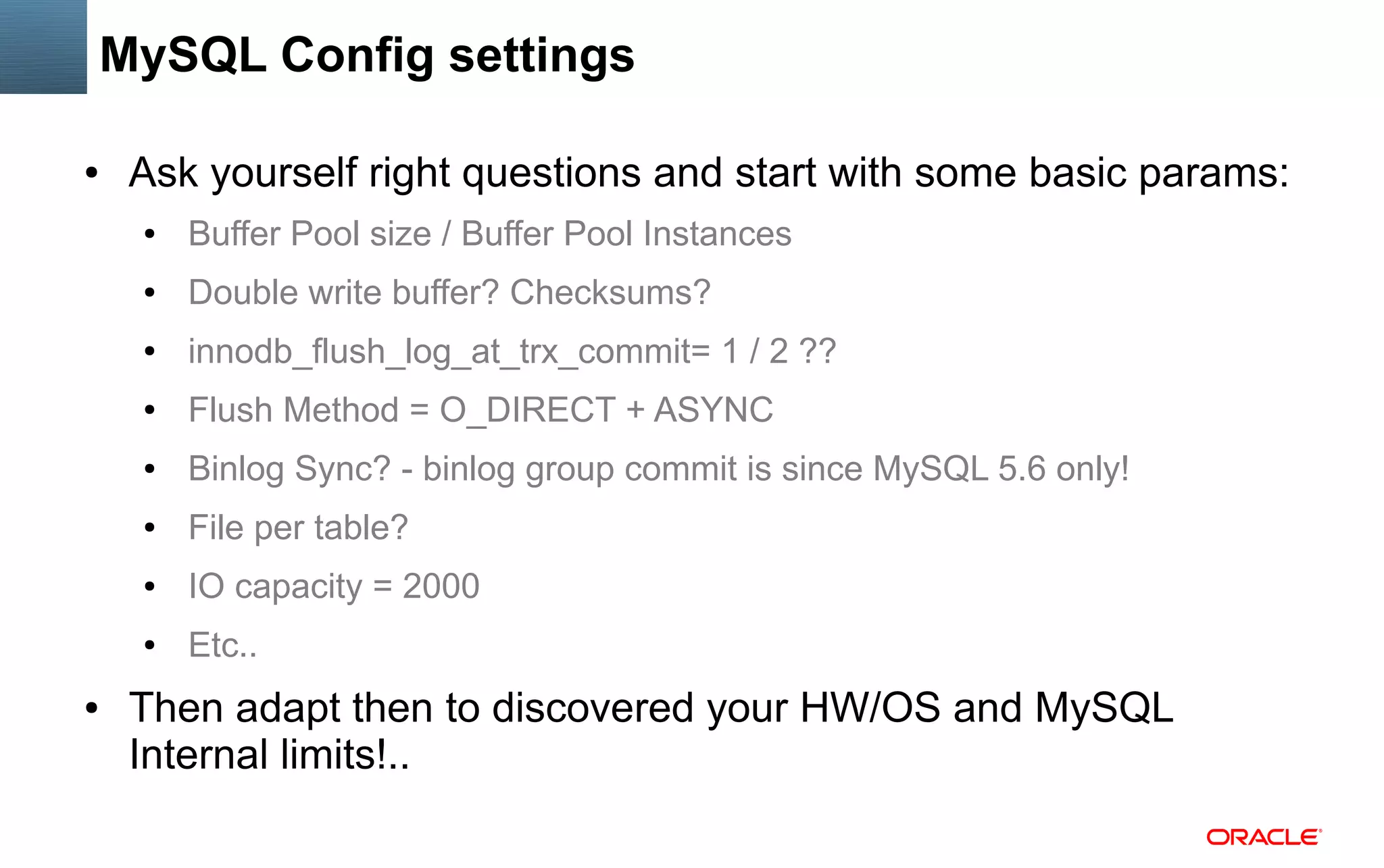

MySQL Config settings
●

Ask yourself right questions and start with some basic params:
●

●

Double write buffer? Checksums?

●

innodb_flush_log_at_trx_commit= 1 / 2 ??

●

Flush Method = O_DIRECT + ASYNC

●

Binlog Sync? - binlog group commit is since MySQL 5.6 only!

●

File per table?

●

IO capacity = 2000

●

●

Buffer Pool size / Buffer Pool Instances

Etc..

Then adapt then to discovered your HW/OS and MySQL
Internal limits!..

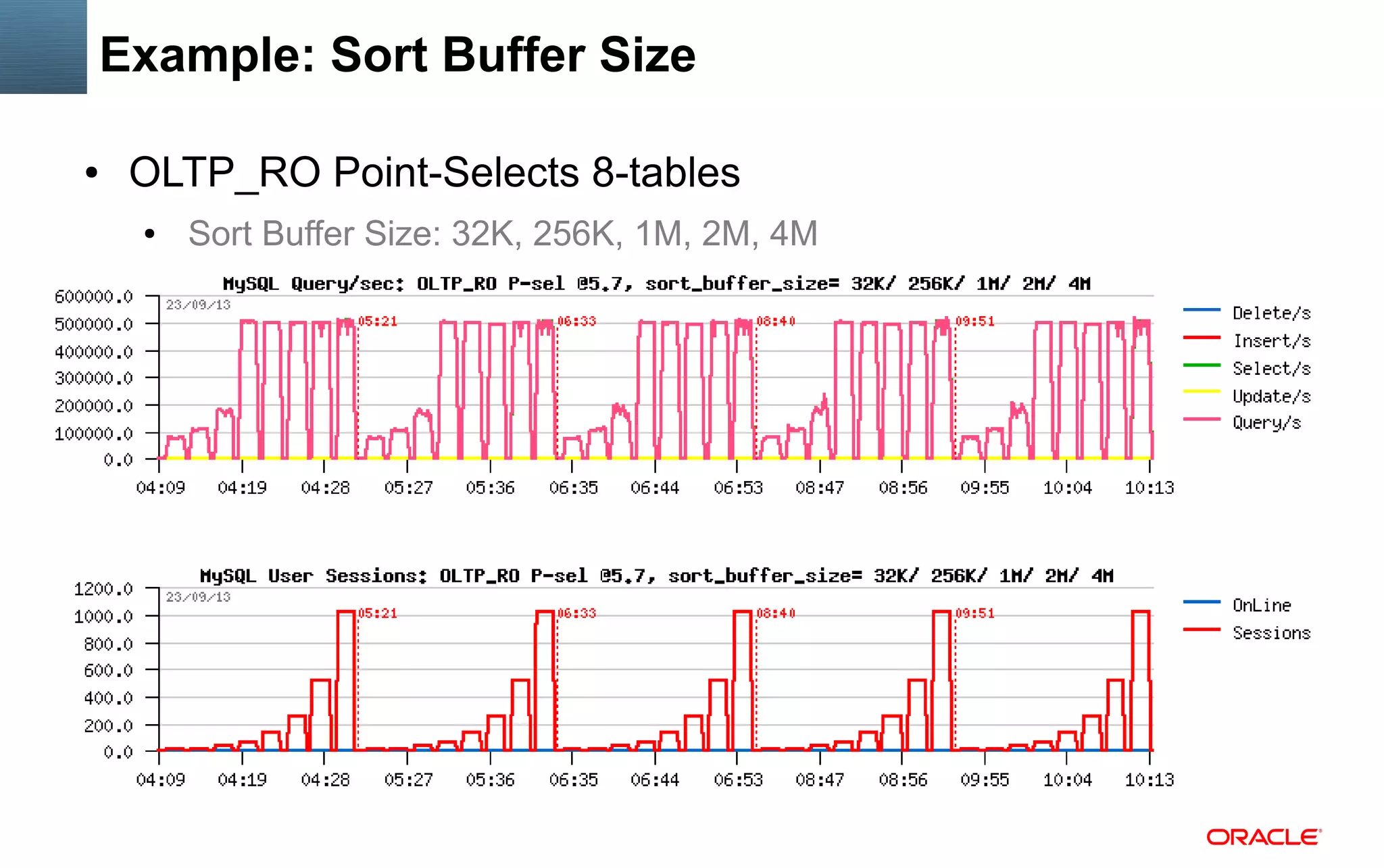

Example: Sort Buffer Size
●

OLTP_RO Point-Selects 8-tables
●

Sort Buffer Size: 32K, 256K, 1M, 2M, 4M

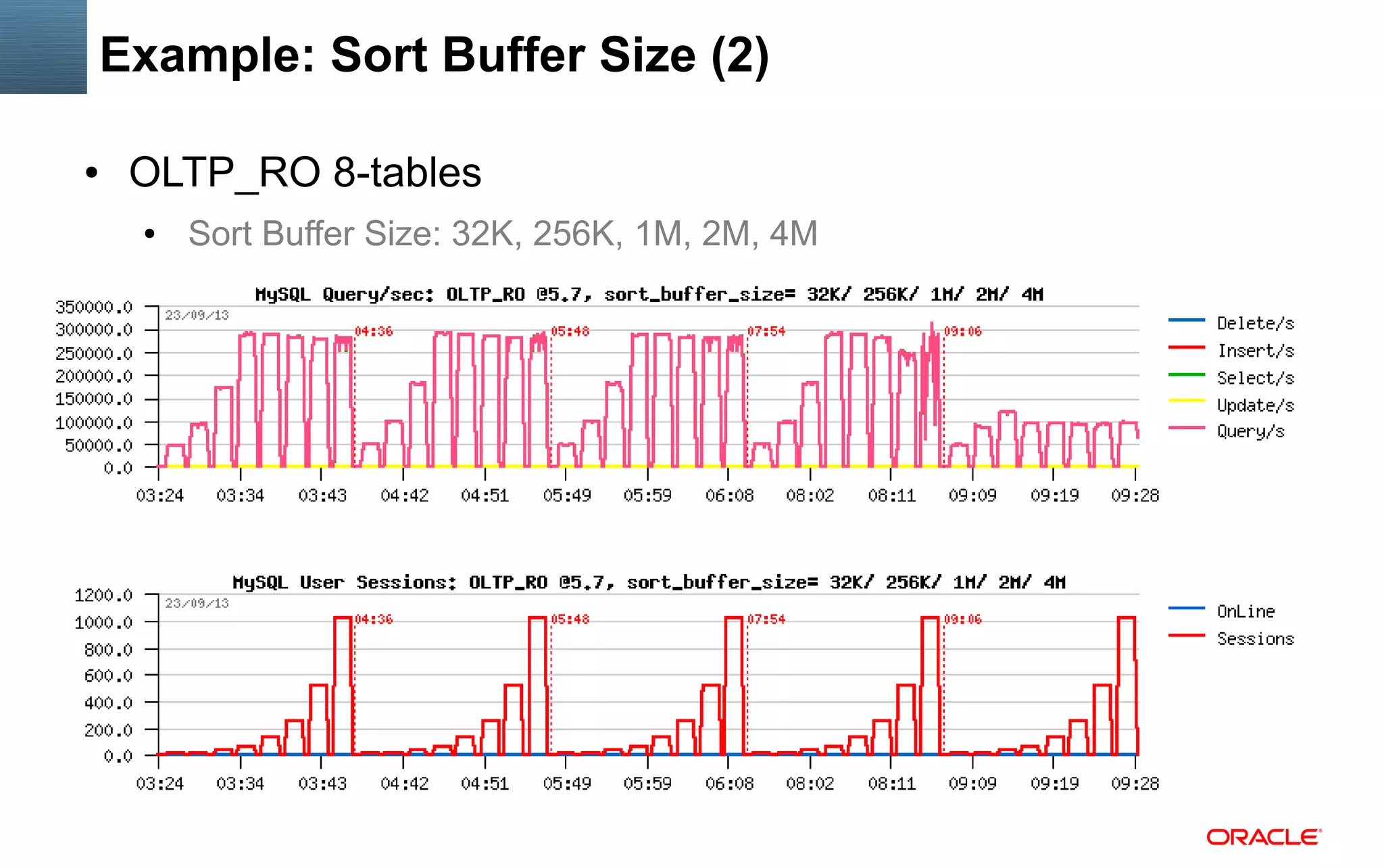

Example: Sort Buffer Size (2)
●

OLTP_RO 8-tables
●

Sort Buffer Size: 32K, 256K, 1M, 2M, 4M

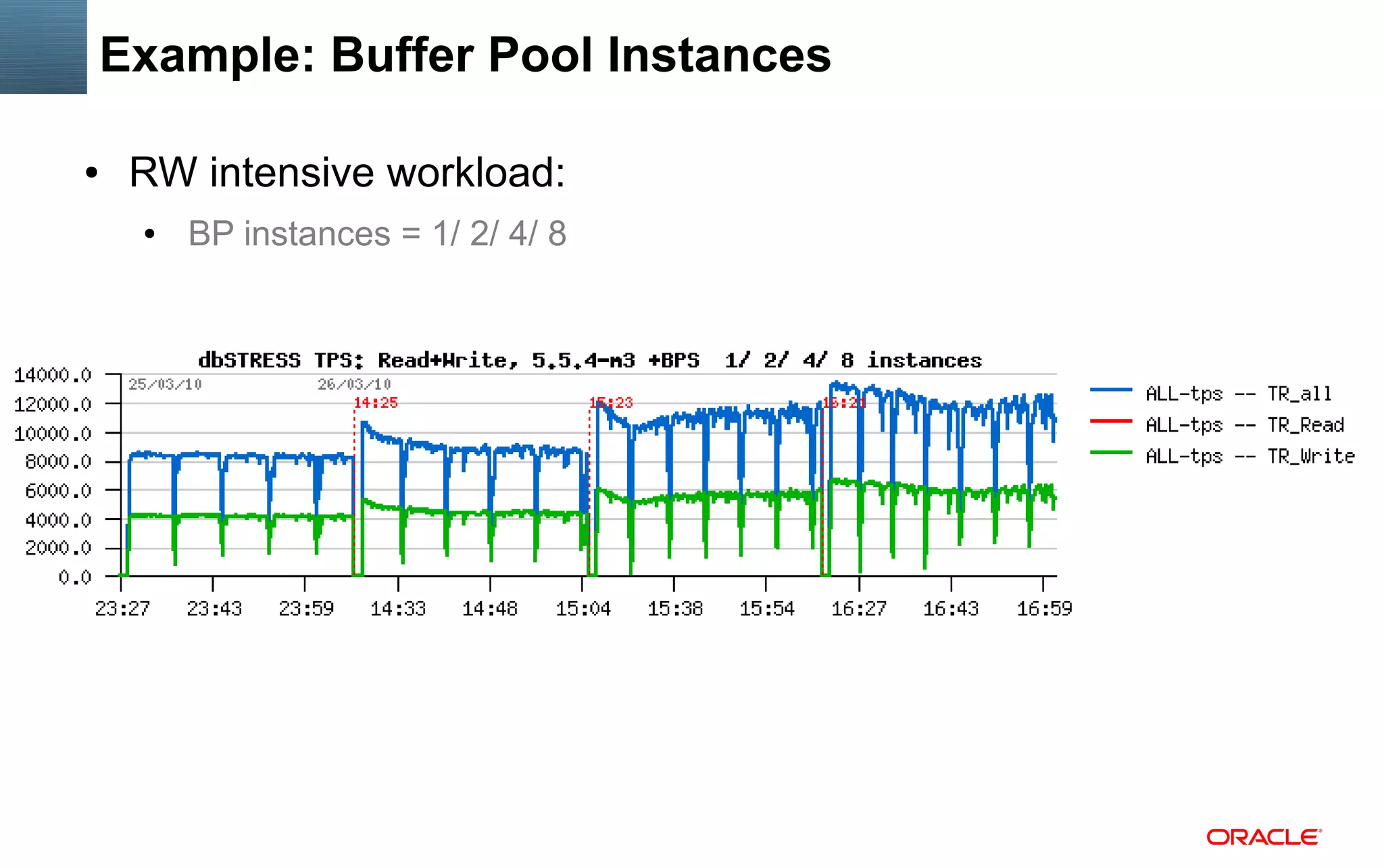

Example: Buffer Pool Instances
●

RW intensive workload:
●

BP instances = 1/ 2/ 4/ 8

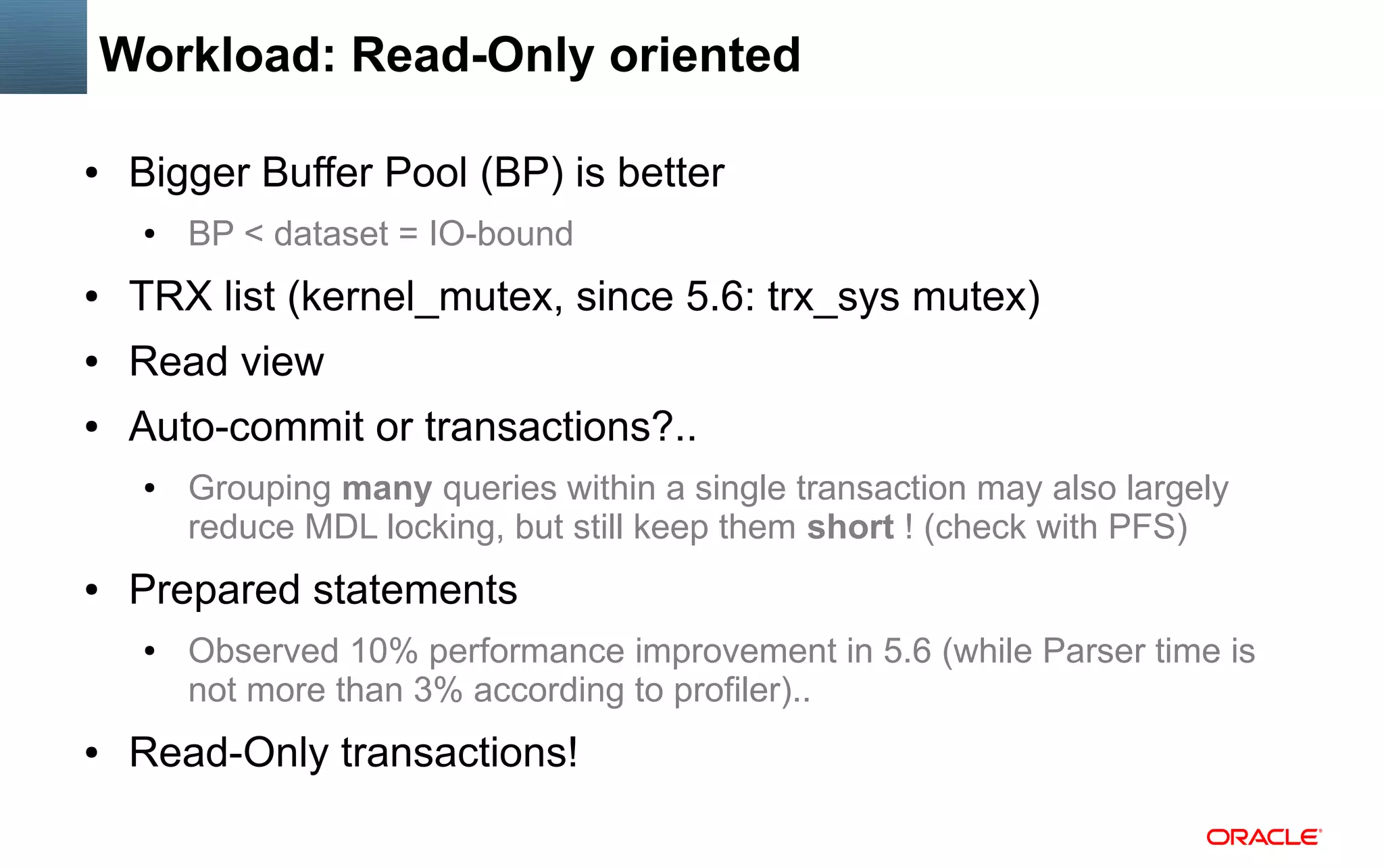

Workload: Read-Only oriented
●

Bigger Buffer Pool (BP) is better
●

BP < dataset = IO-bound

●

TRX list (kernel_mutex, since 5.6: trx_sys mutex)

●

Read view

●

Auto-commit or transactions?..
●

●

Prepared statements
●

●

Grouping many queries within a single transaction may also largely
reduce MDL locking, but still keep them short ! (check with PFS)
Observed 10% performance improvement in 5.6 (while Parser time is
not more than 3% according to profiler)..

Read-Only transactions!

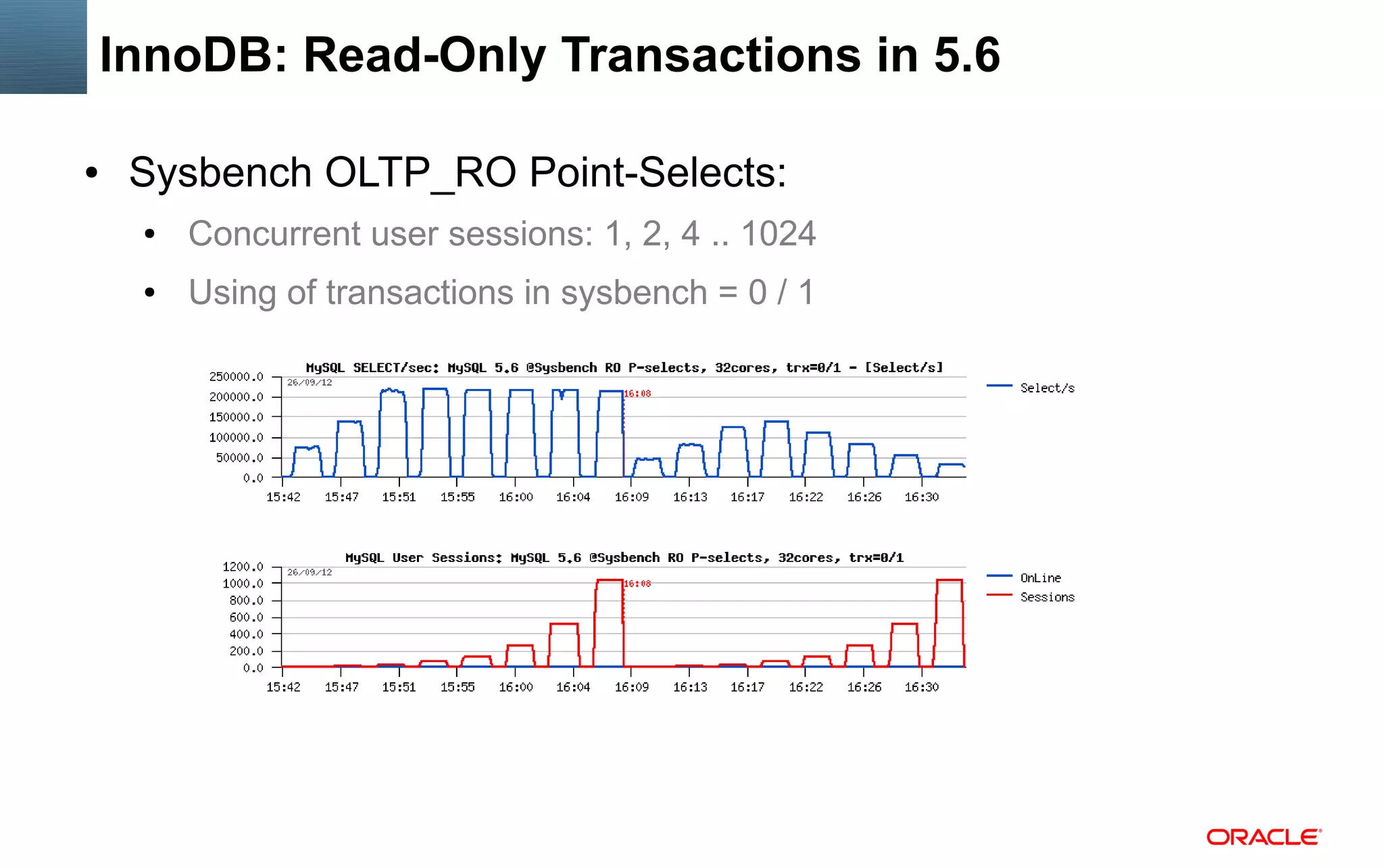

InnoDB: Read-Only Transactions in 5.6
●

Sysbench OLTP_RO Point-Selects:
●

Concurrent user sessions: 1, 2, 4 .. 1024

●

Using of transactions in sysbench = 0 / 1

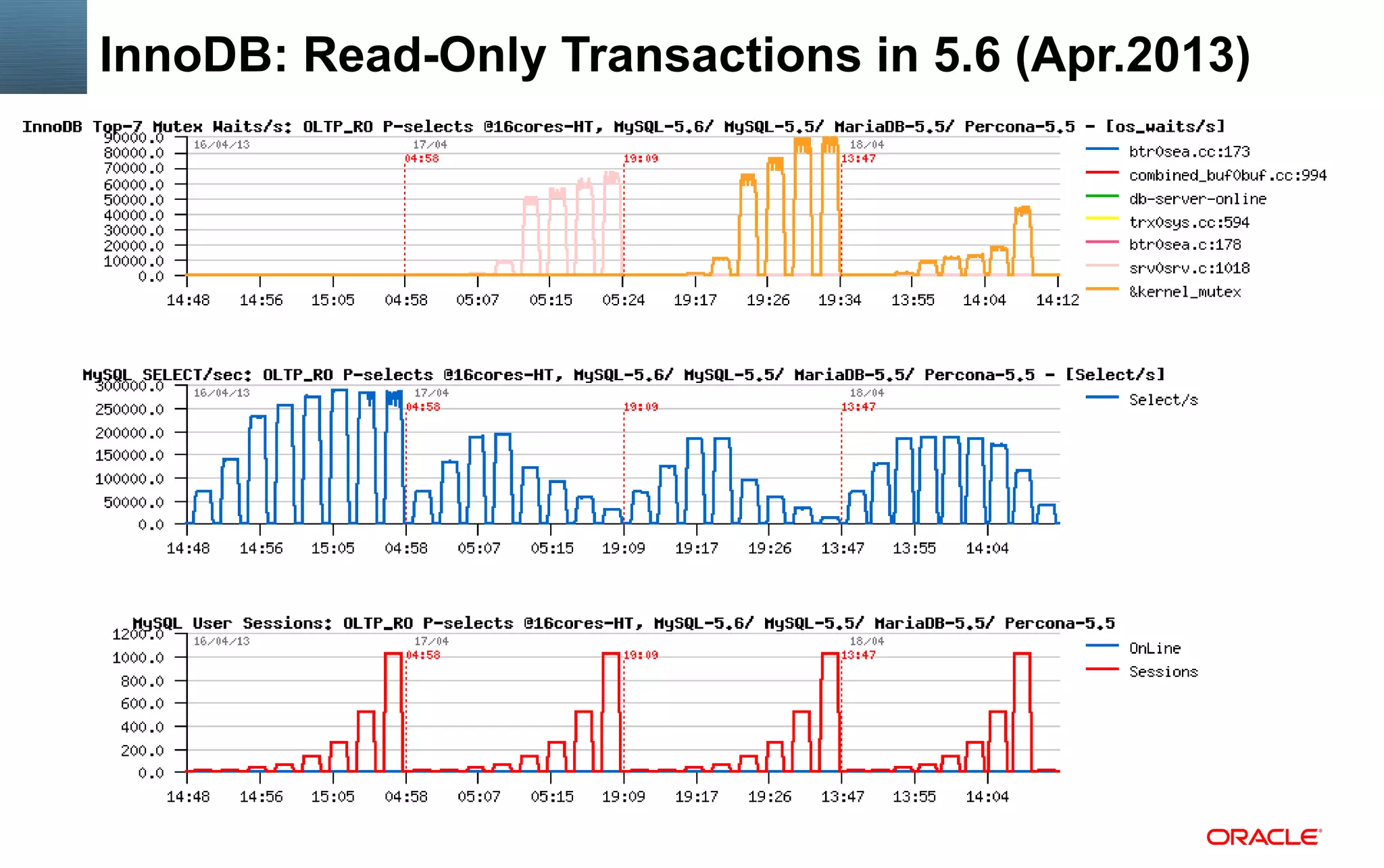

InnoDB: Read-Only Transactions in 5.6 (Apr.2013)
●

Sysbench OLTP_RO Point-Selects:
●

Concurrent user sessions: 1, 2, 4 .. 1024

●

Using of transactions in sysbench = 0

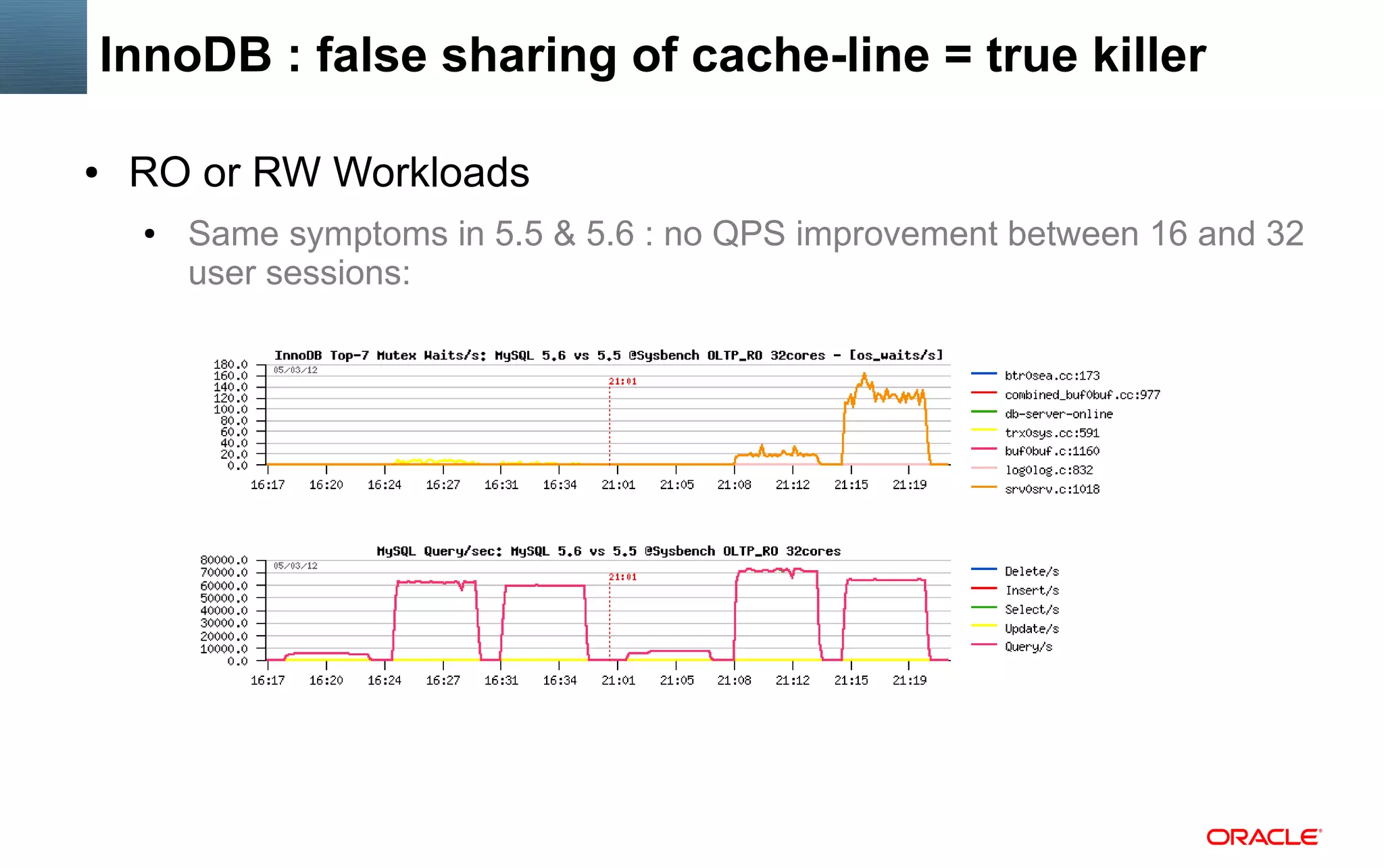

InnoDB : false sharing of cache-line = true killer
●

RO or RW Workloads
●

Same symptoms in 5.5 & 5.6 : no QPS improvement between 16 and 32
user sessions:

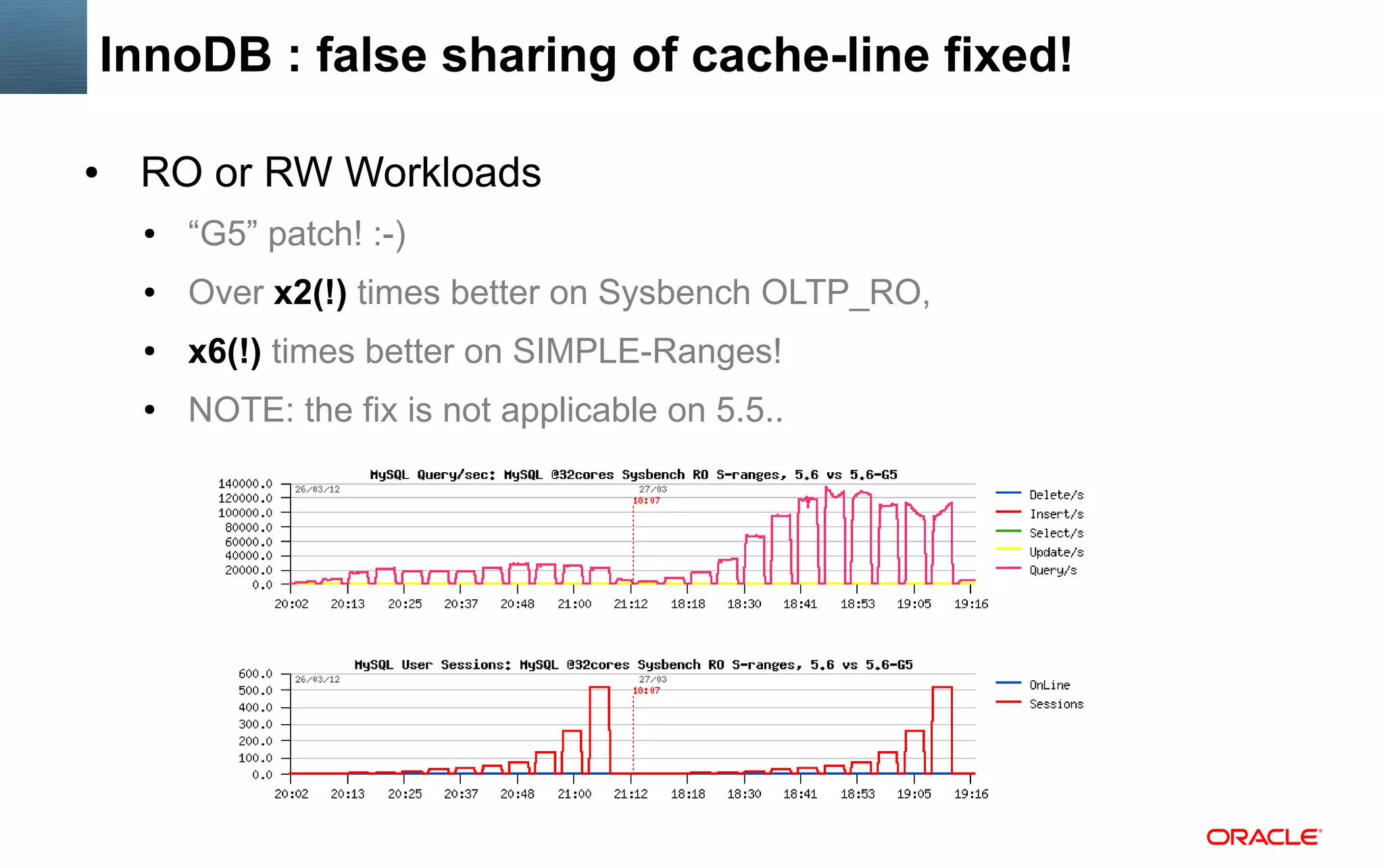

InnoDB : false sharing of cache-line fixed!
●

RO or RW Workloads
●

“G5” patch! :-)

●

Over x2(!) times better on Sysbench OLTP_RO,

●

x6(!) times better on SIMPLE-Ranges!

●

NOTE: the fix is not applicable on 5.5..

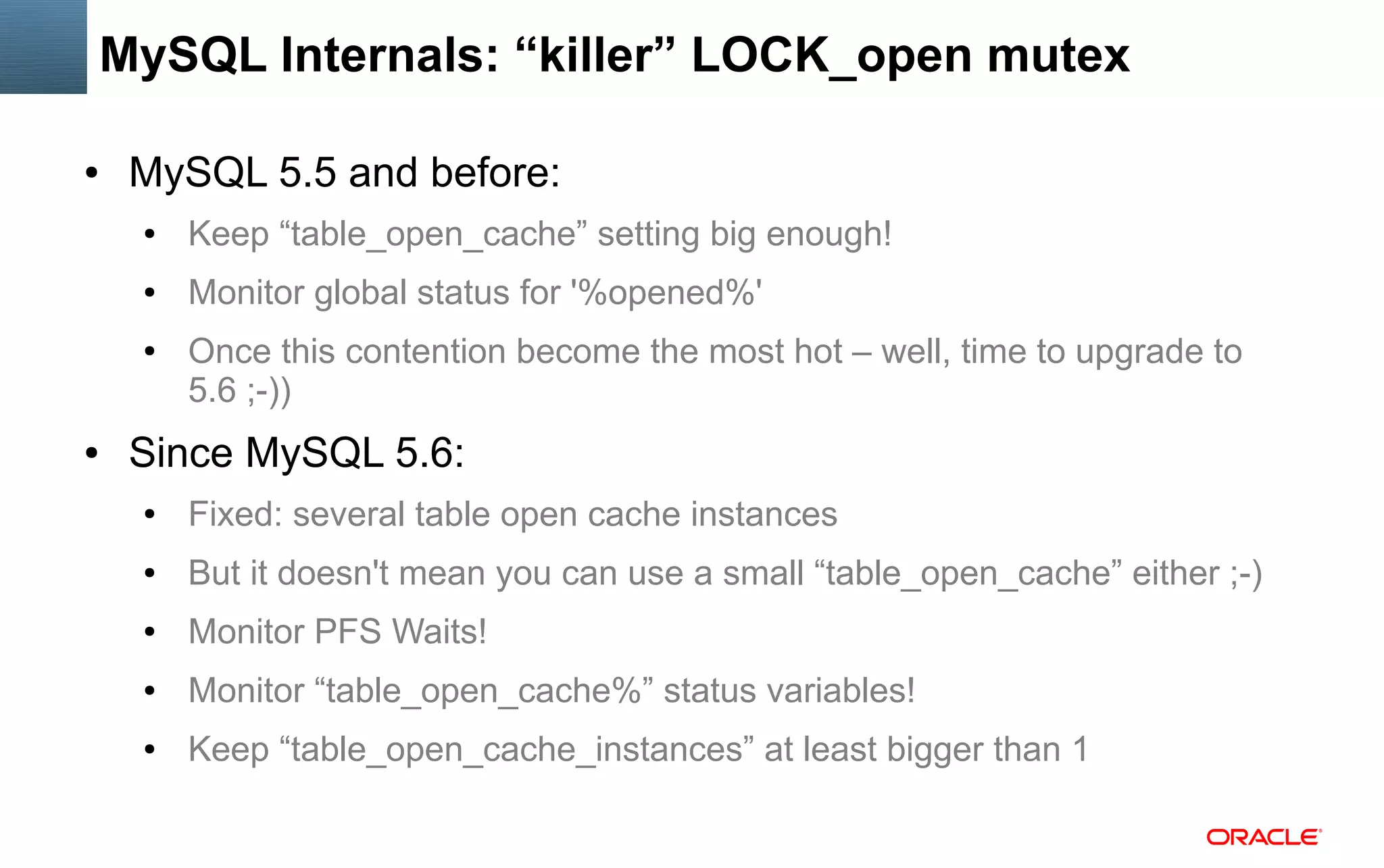

MySQL Internals: “killer” LOCK_open mutex
●

MySQL 5.5 and before:
●

Keep “table_open_cache” setting big enough!

●

Monitor global status for '%opened%'

●

●

Once this contention become the most hot – well, time to upgrade to
5.6 ;-))

Since MySQL 5.6:
●

Fixed: several table open cache instances

●

But it doesn't mean you can use a small “table_open_cache” either ;-)

●

Monitor PFS Waits!

●

Monitor “table_open_cache%” status variables!

●

Keep “table_open_cache_instances” at least bigger than 1

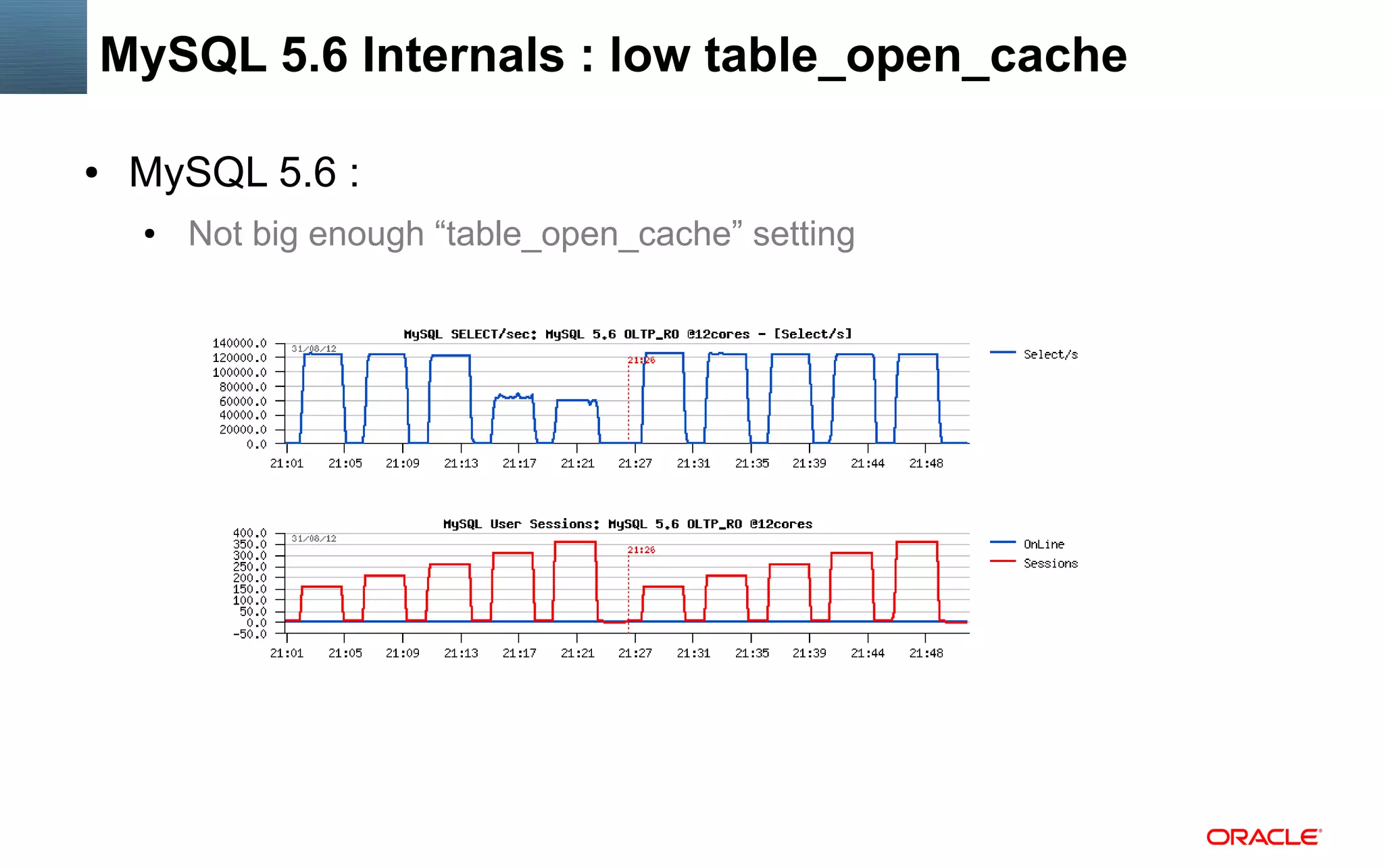

MySQL 5.6 Internals : low table_open_cache
●

MySQL 5.6 :
●

Not big enough “table_open_cache” setting

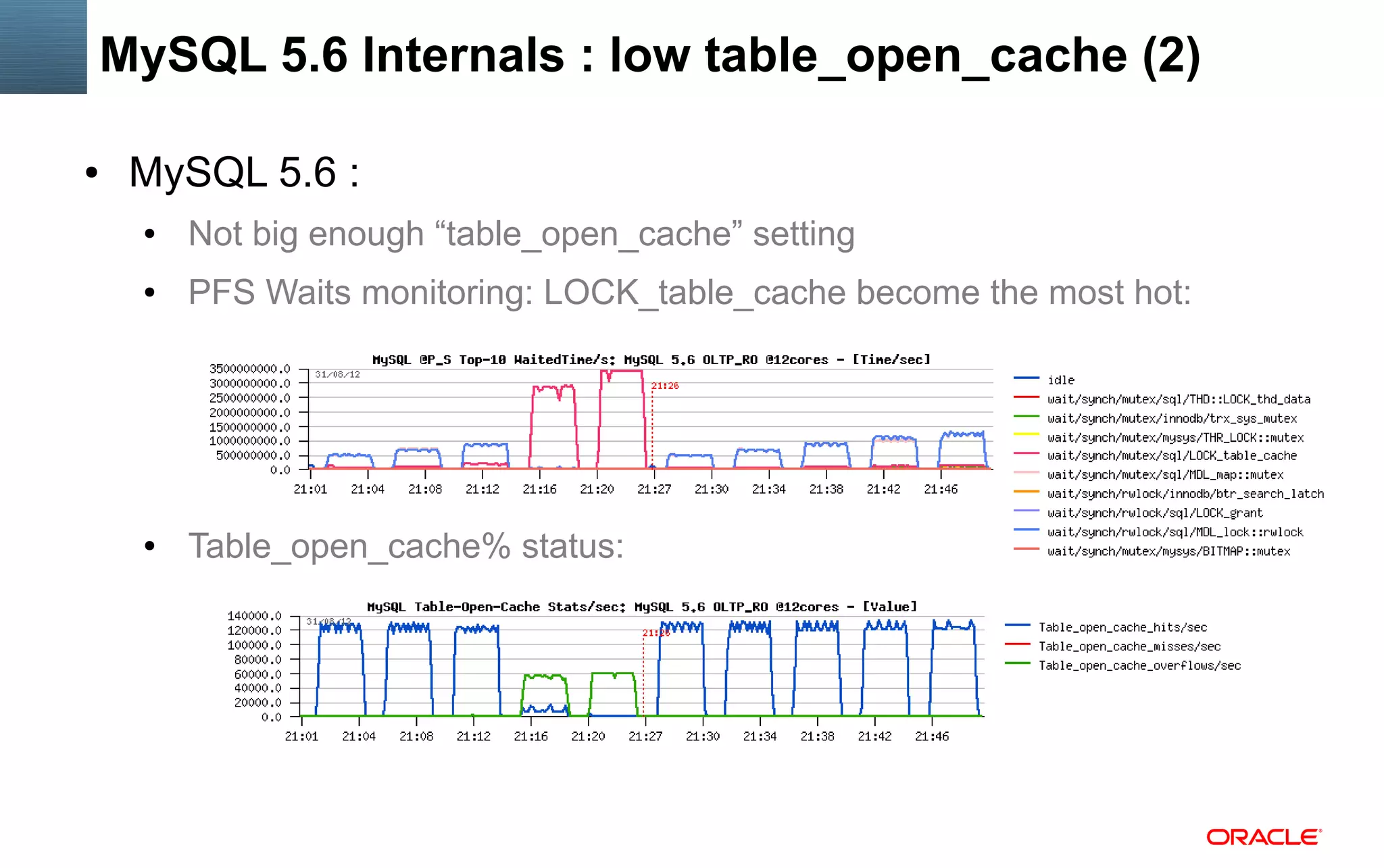

MySQL 5.6 Internals : low table_open_cache (2)
●

MySQL 5.6 :
●

Not big enough “table_open_cache” setting

●

PFS Waits monitoring: LOCK_table_cache become the most hot:

●

Table_open_cache% status:

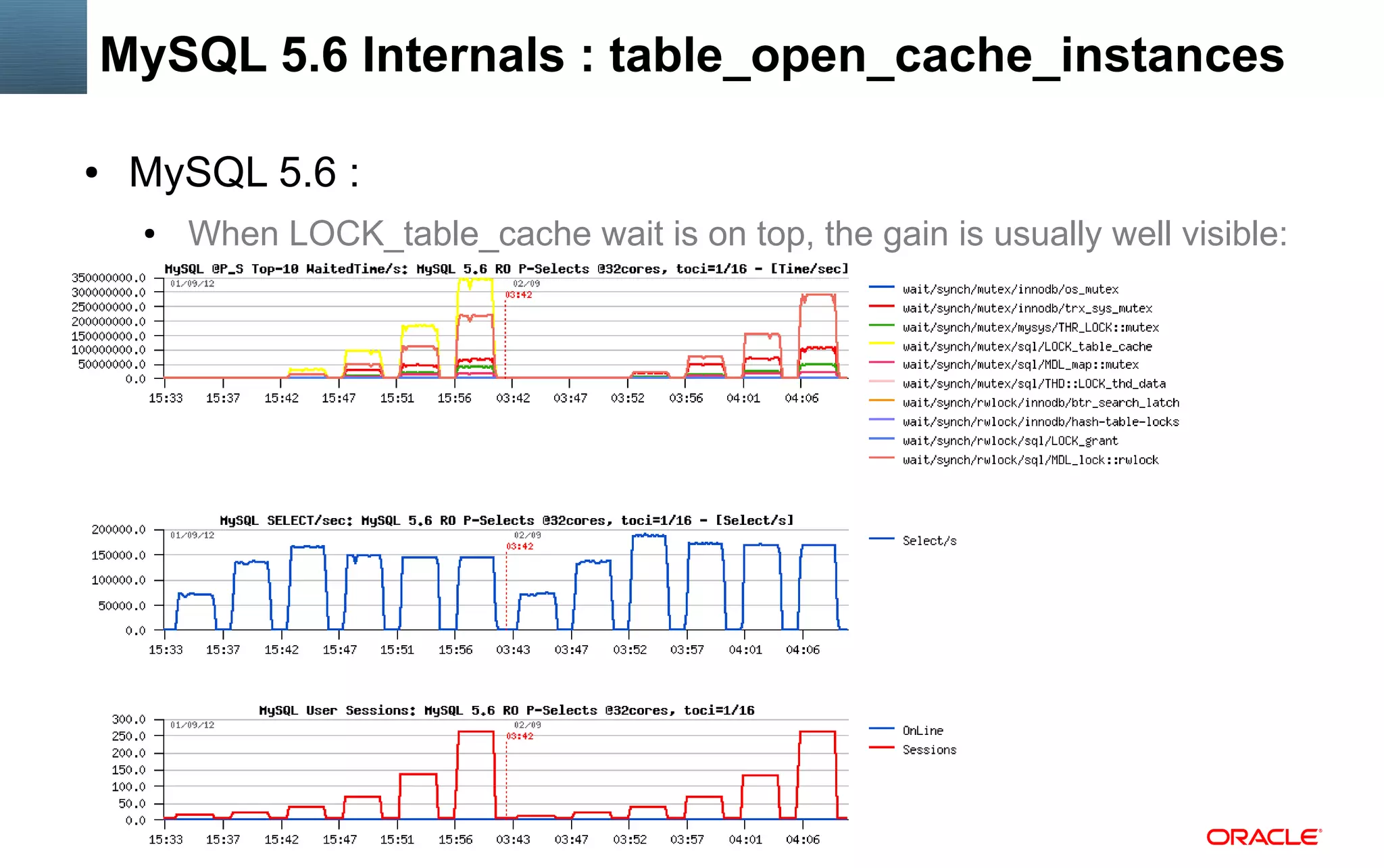

MySQL 5.6 Internals : table_open_cache_instances
●

MySQL 5.6 :
●

When LOCK_table_cache wait is on top, the gain is usually well visible:

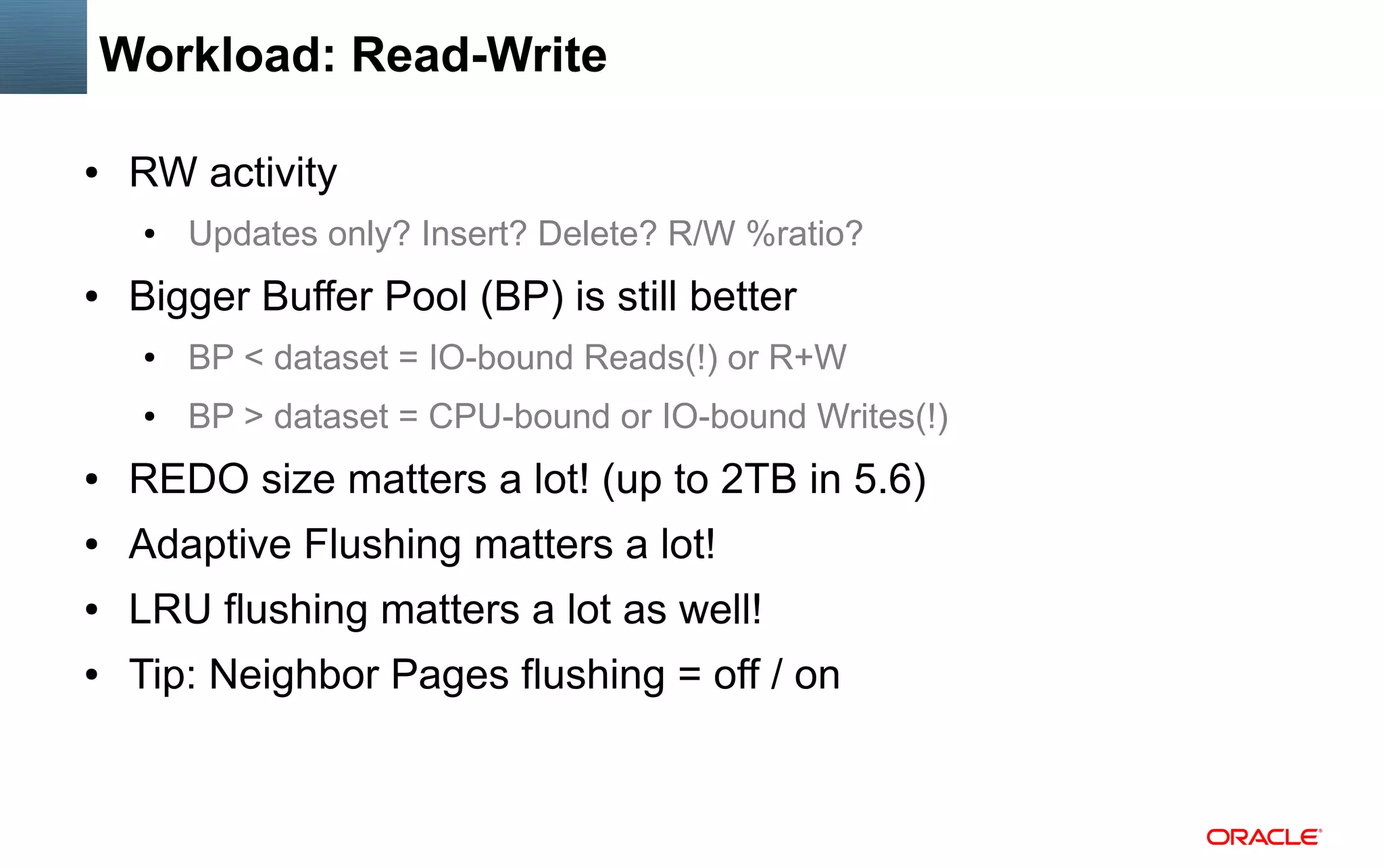

Workload: Read-Write
●

RW activity
●

●

Updates only? Insert? Delete? R/W %ratio?

Bigger Buffer Pool (BP) is still better
●

BP < dataset = IO-bound Reads(!) or R+W

●

BP > dataset = CPU-bound or IO-bound Writes(!)

●

REDO size matters a lot! (up to 2TB in 5.6)

●

Adaptive Flushing matters a lot!

●

LRU flushing matters a lot as well!

●

Tip: Neighbor Pages flushing = off / on
But let me tell you now the
whole story first! ;-)

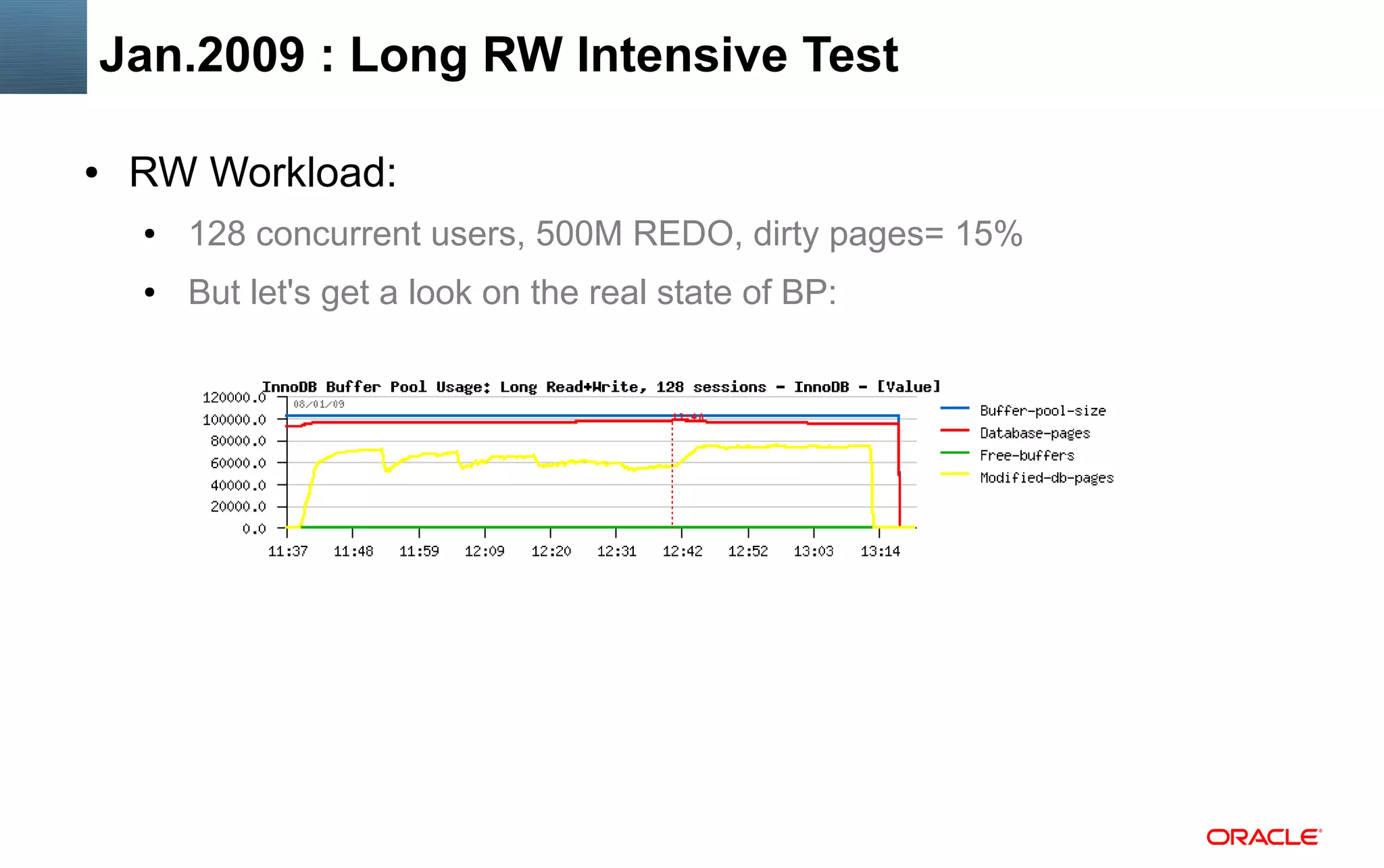

Jan.2009 : Long RW Intensive Test
●

RW Workload:
●

128 concurrent users, 500M REDO, dirty pages= 15%

●

But let's get a look on the real state of BP:

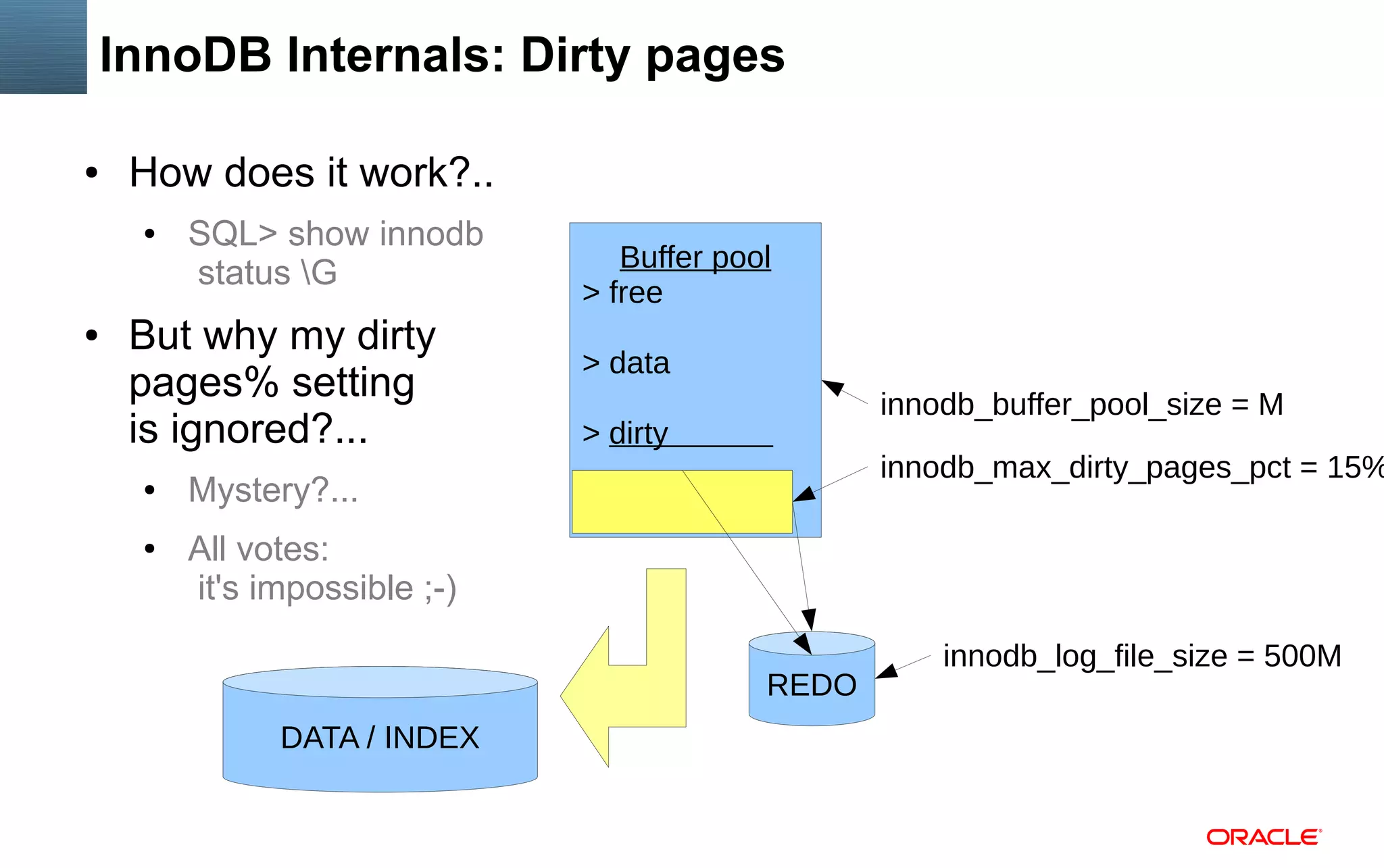

InnoDB Internals: Dirty pages
●

How does it work?..
●

●

SQL> show innodb
status G

But why my dirty
pages% setting
is ignored?...
●

●

Buffer pool
> free
> data
innodb_buffer_pool_size = M

> dirty

innodb_max_dirty_pages_pct = 15%

Mystery?...
All votes:
it's impossible ;-)
REDO
DATA / INDEX

innodb_log_file_size = 500M

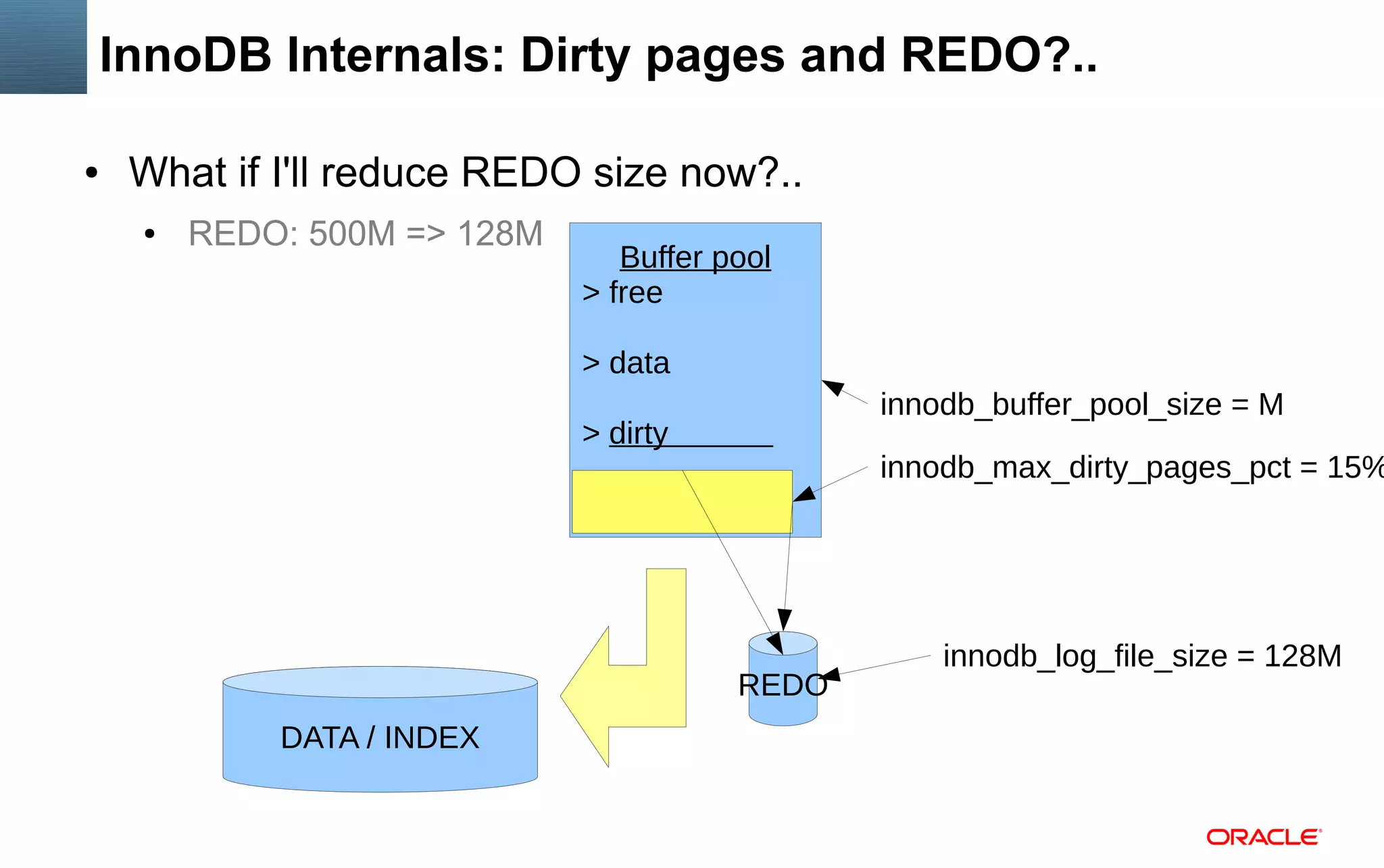

InnoDB Internals: Dirty pages and REDO?..
●

What if I'll reduce REDO size now?..
●

REDO: 500M => 128M

Buffer pool
> free
> data
innodb_buffer_pool_size = M

> dirty

innodb_max_dirty_pages_pct = 15%

REDO
DATA / INDEX

innodb_log_file_size = 128M

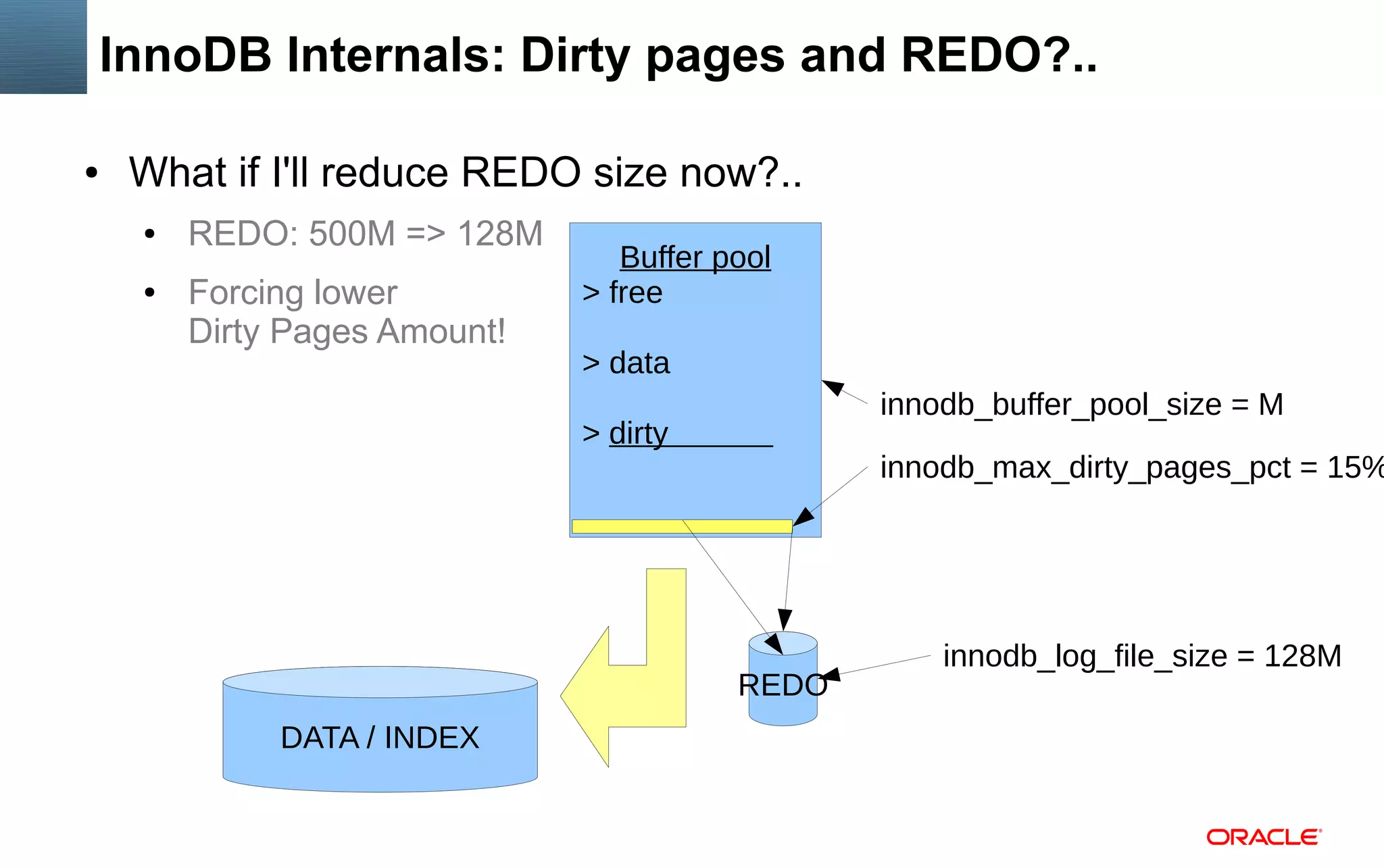

InnoDB Internals: Dirty pages and REDO?..
●

What if I'll reduce REDO size now?..
●

●

REDO: 500M => 128M
Forcing lower
Dirty Pages Amount!

Buffer pool
> free
> data
innodb_buffer_pool_size = M

> dirty

innodb_max_dirty_pages_pct = 15%

REDO
DATA / INDEX

innodb_log_file_size = 128M
Any Changes on RW Test now?..
●

REDO = 500M

●

REDO = 128M

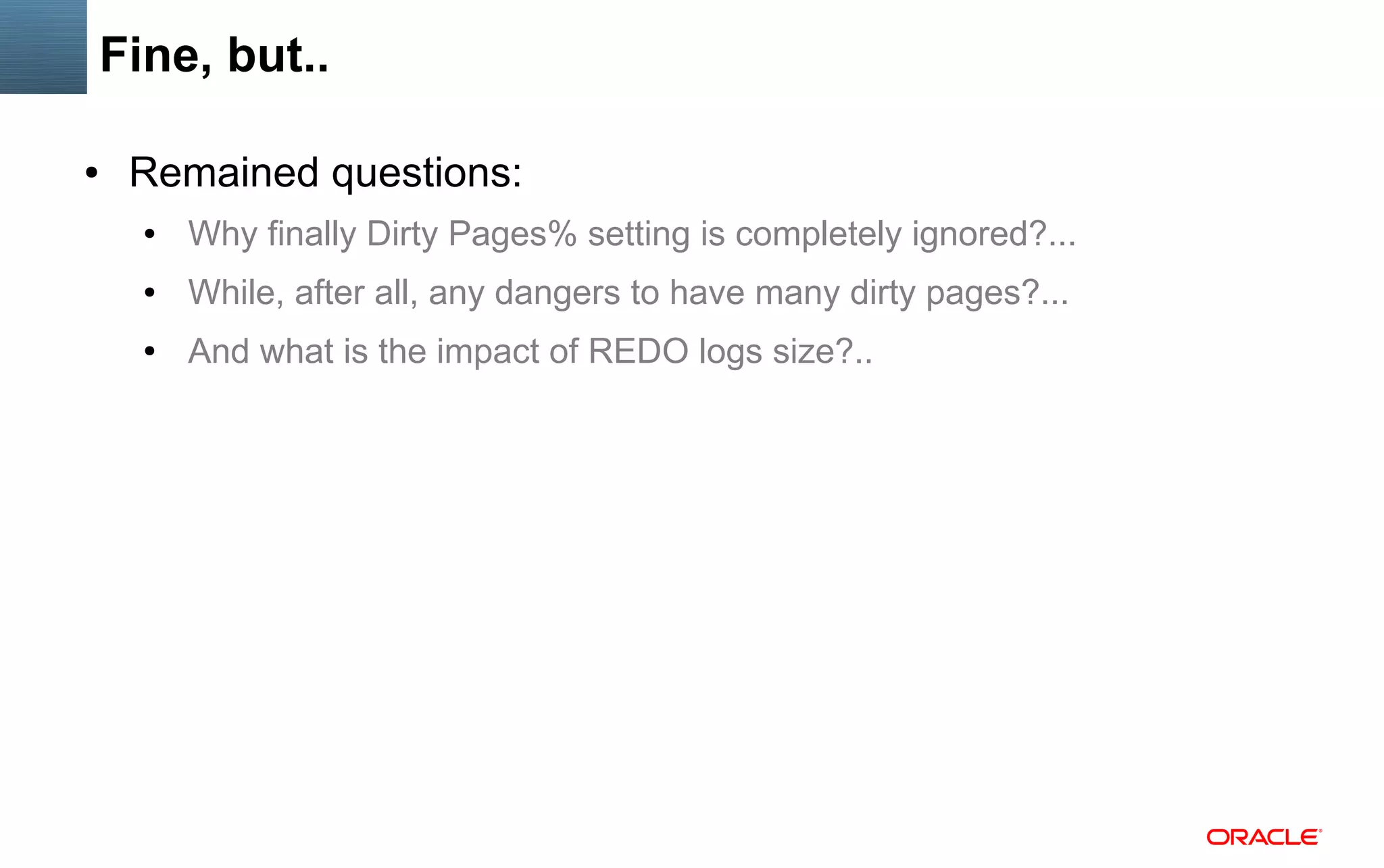

Fine, but..
●

Remained questions:
●

Why finally Dirty Pages% setting is completely ignored?...

●

While, after all, any dangers to have many dirty pages?...

●

And what is the impact of REDO logs size?..

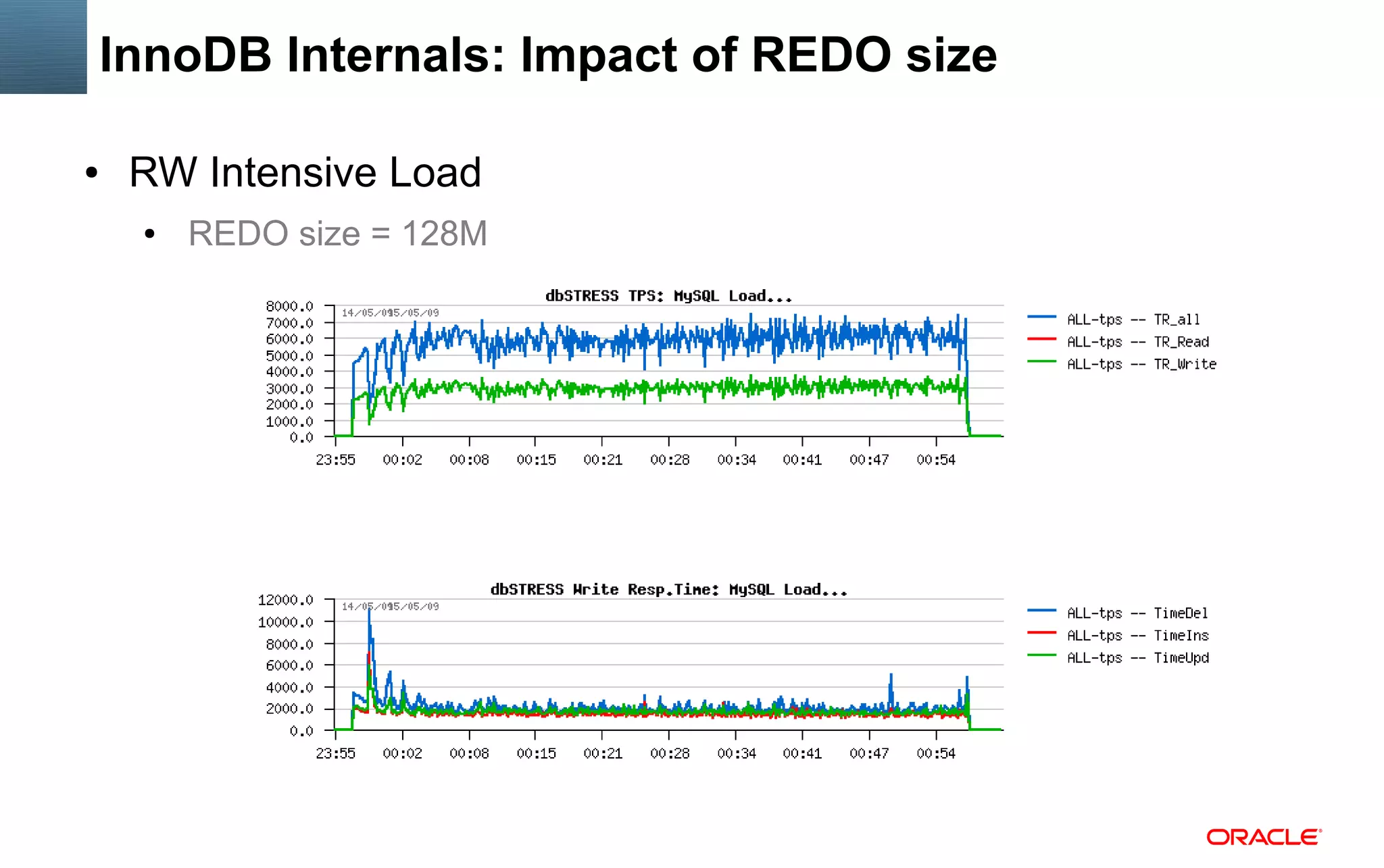

InnoDB Internals: Impact of REDO size
●

RW Intensive Load
●

REDO size = 128M

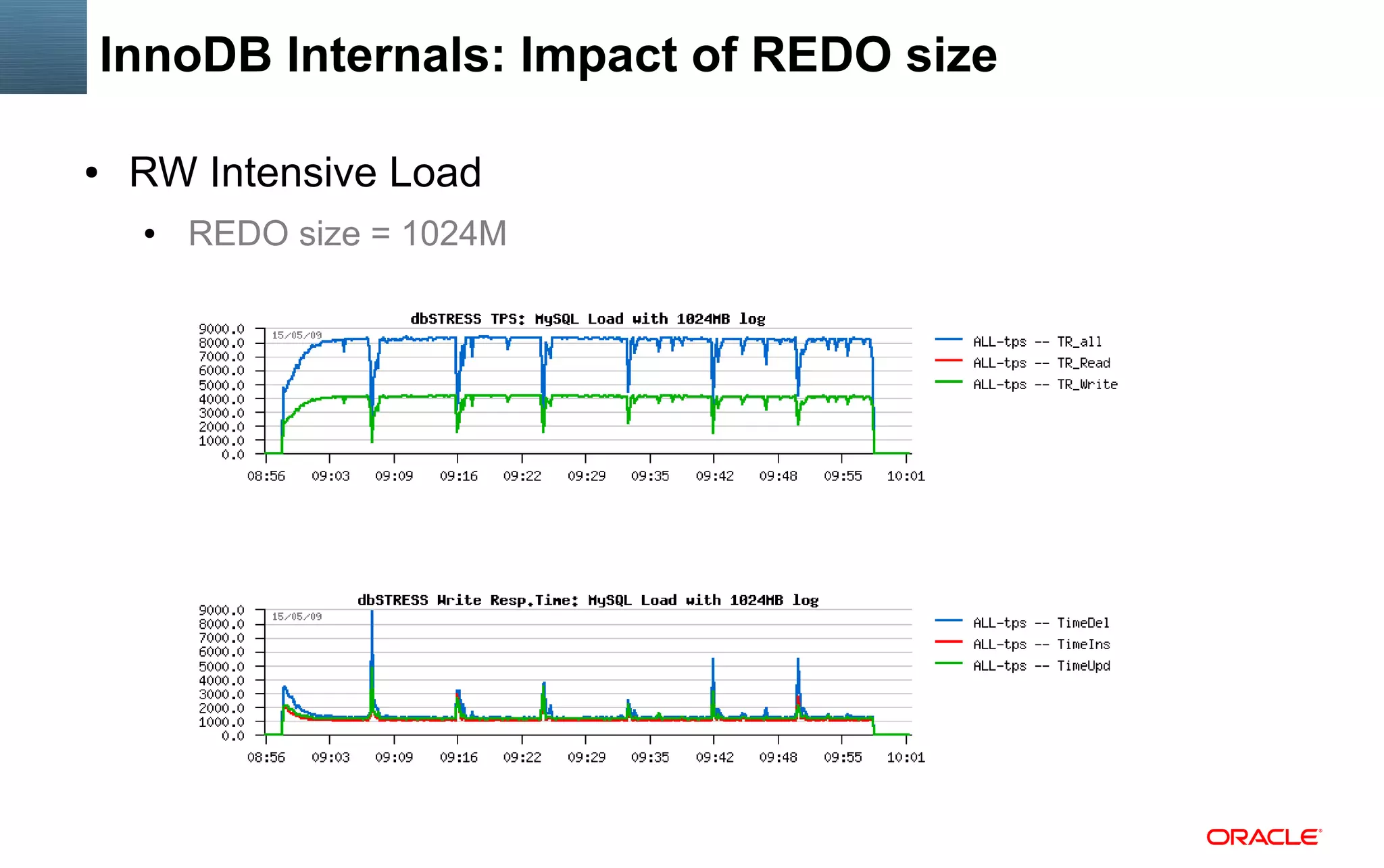

InnoDB Internals: Impact of REDO size
●

RW Intensive Load
●

REDO size = 1024M

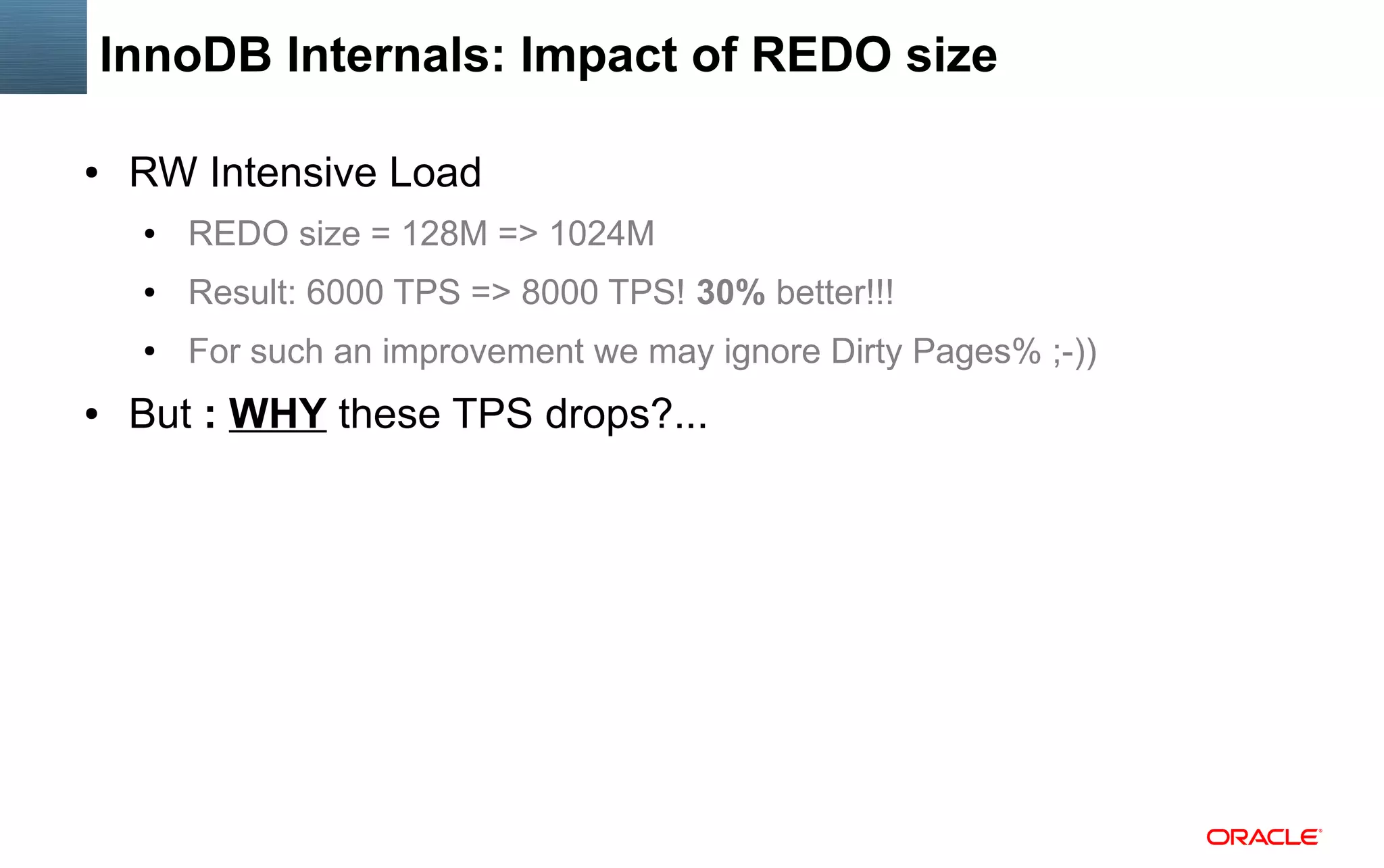

InnoDB Internals: Impact of REDO size
●

RW Intensive Load
●

●

Result: 6000 TPS => 8000 TPS! 30% better!!!

●

●

REDO size = 128M => 1024M
For such an improvement we may ignore Dirty Pages% ;-))

But : WHY these TPS drops?...

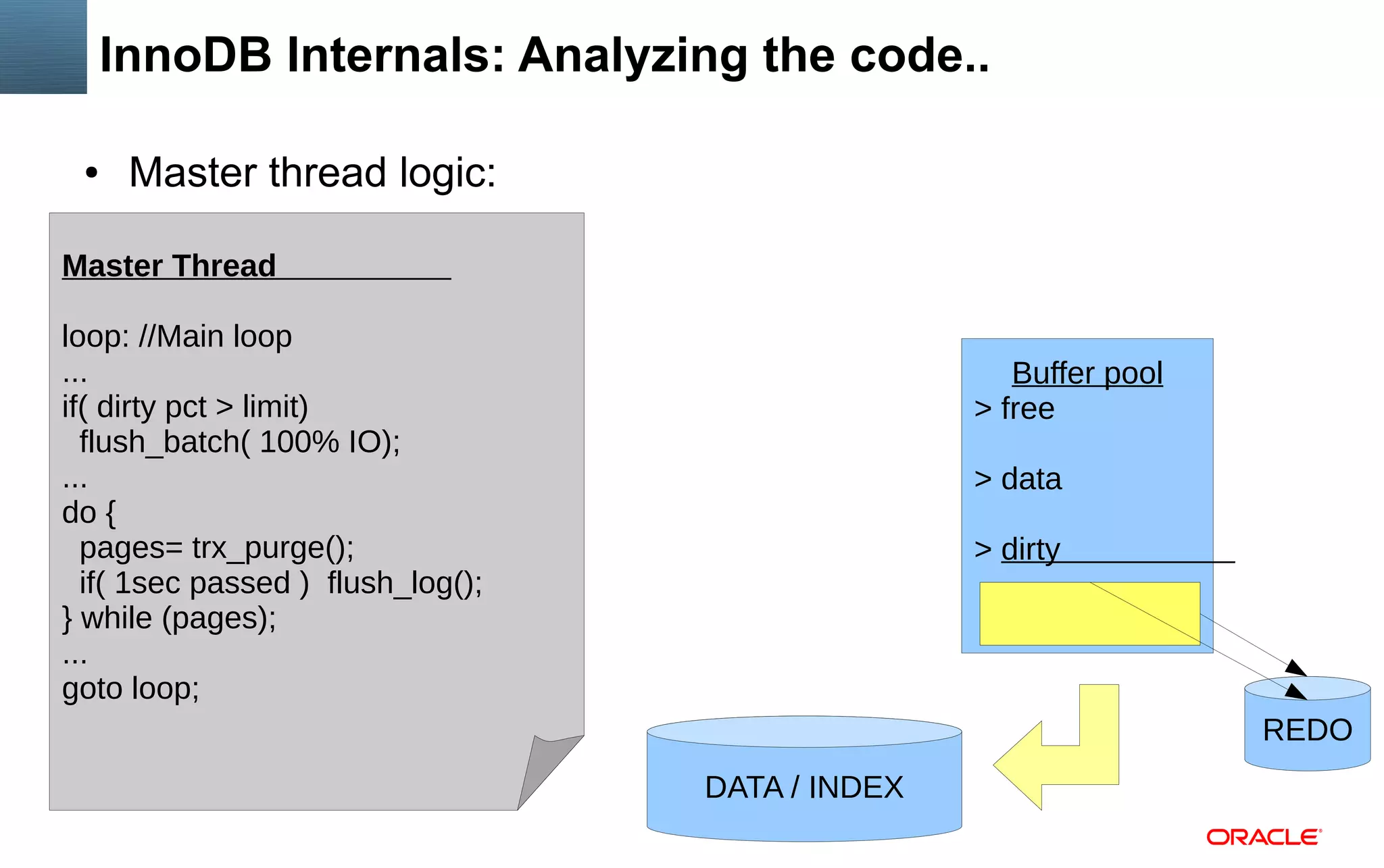

InnoDB Internals: Analyzing the code..
●

Master thread logic:

Master Thread
loop: //Main loop
...
if( dirty pct > limit)
flush_batch( 100% IO);
...
do {
pages= trx_purge();
if( 1sec passed ) flush_log();
} while (pages);
...
goto loop;

Buffer pool
> free
> data
> dirty

REDO
DATA / INDEX

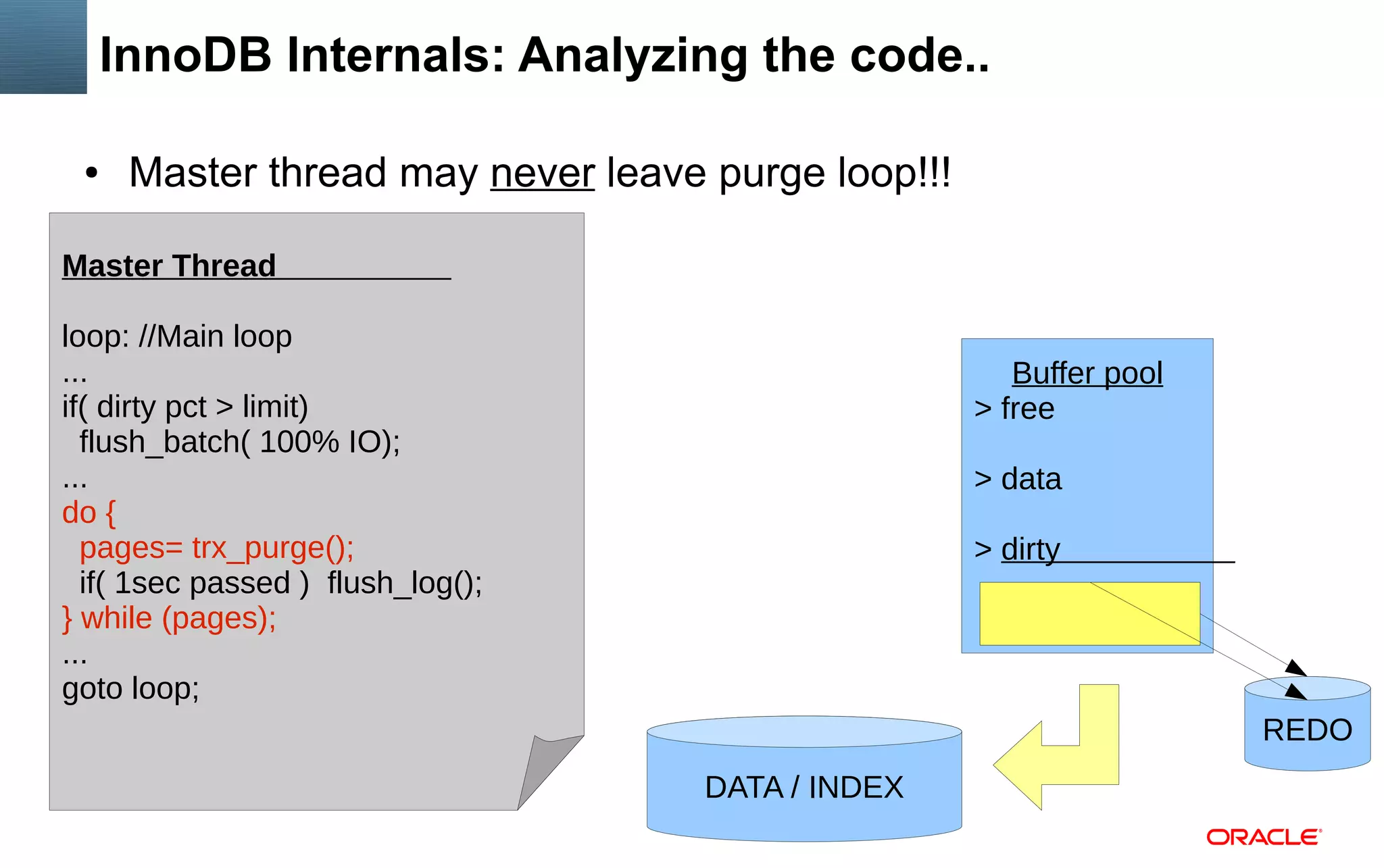

InnoDB Internals: Analyzing the code..
●

Master thread may never leave purge loop!!!

Master Thread
loop: //Main loop
...
if( dirty pct > limit)
flush_batch( 100% IO);
...
do {
pages= trx_purge();
if( 1sec passed ) flush_log();
} while (pages);
...
goto loop;

Buffer pool
> free
> data
> dirty

REDO
DATA / INDEX
InnoDB Internals: Analyzing the code..
●

But if Master thread is never leave purge loop...

●

Who is then flushing Dirty Pages?...
Buffer pool
> free
> data
> dirty

REDO
DATA / INDEX

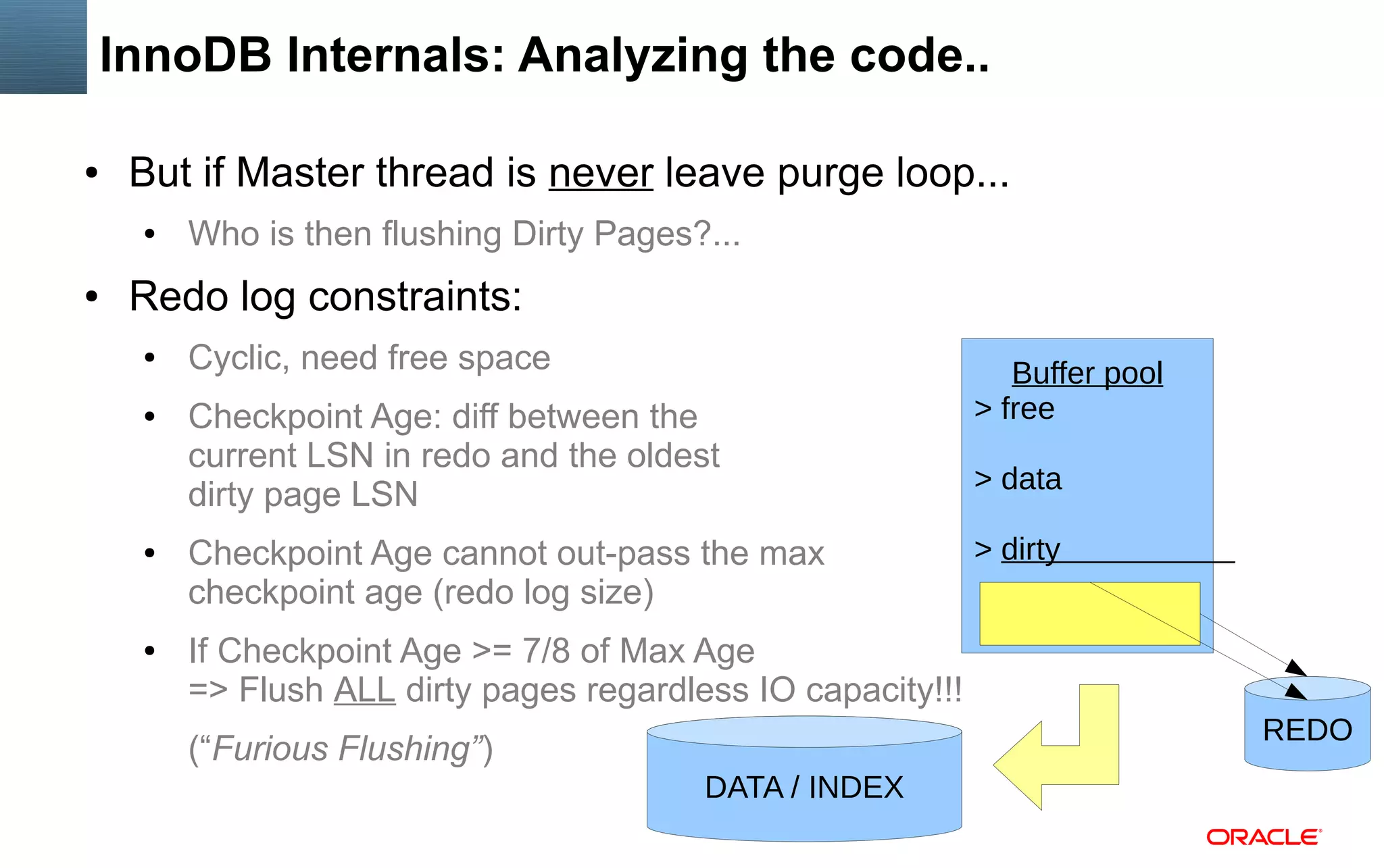

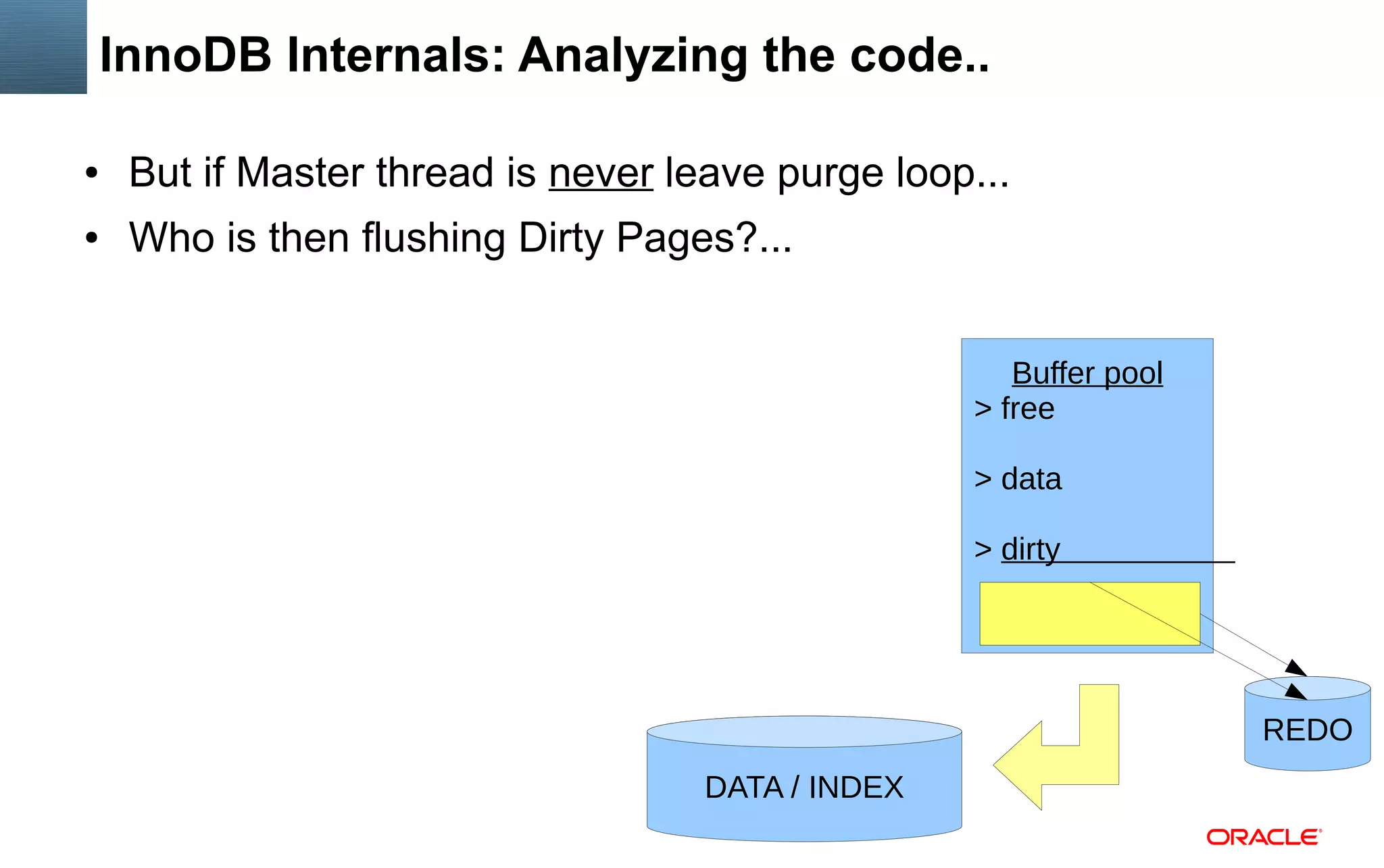

InnoDB Internals: Analyzing the code..
●

But if Master thread is never leave purge loop...
●

●

Who is then flushing Dirty Pages?...

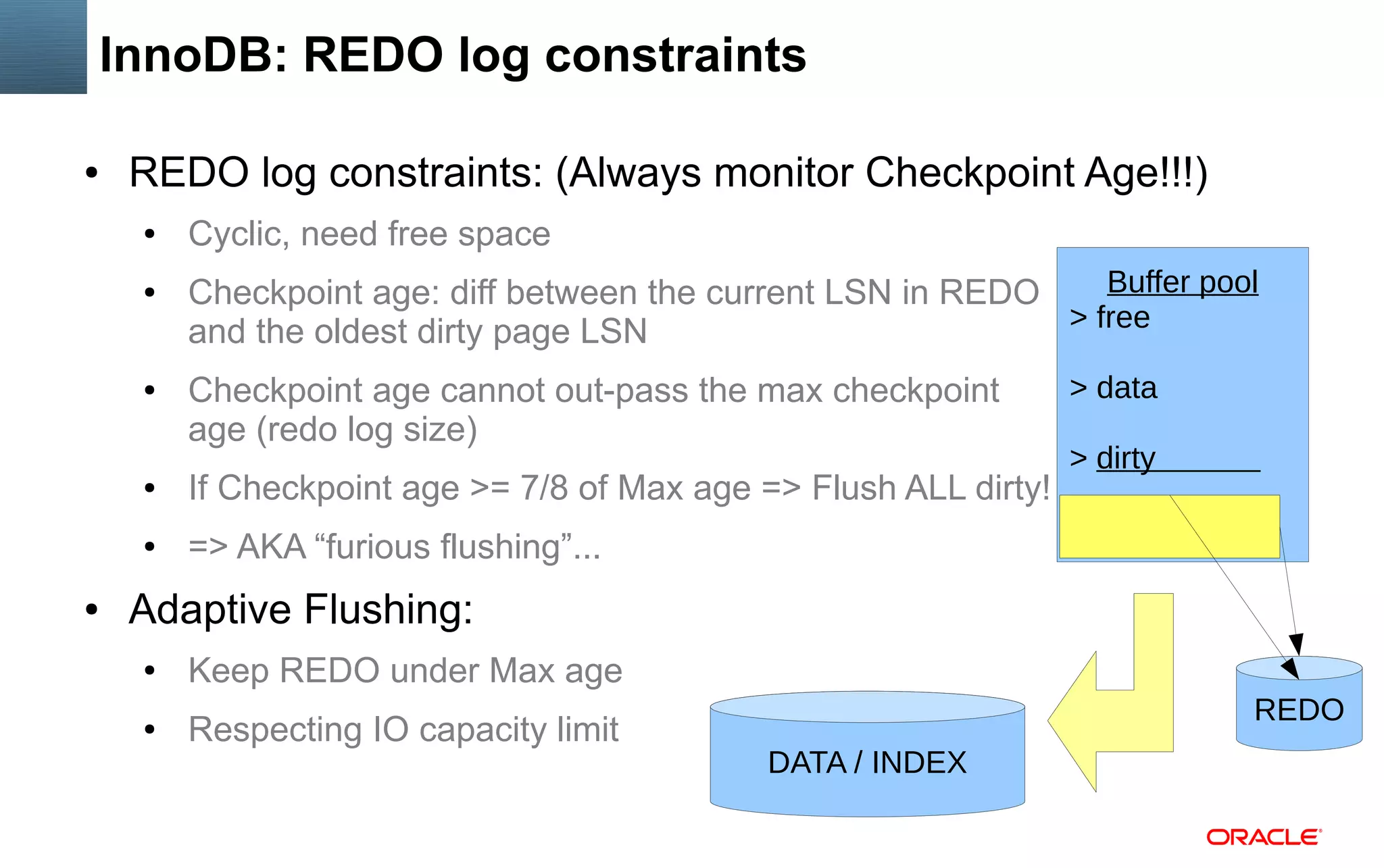

Redo log constraints:
●

●

●

●

Cyclic, need free space
Checkpoint Age: diff between the
current LSN in redo and the oldest
dirty page LSN
Checkpoint Age cannot out-pass the max
checkpoint age (redo log size)

Buffer pool
> free
> data
> dirty

If Checkpoint Age >= 7/8 of Max Age
=> Flush ALL dirty pages regardless IO capacity!!!
REDO

(“Furious Flushing”)
DATA / INDEX

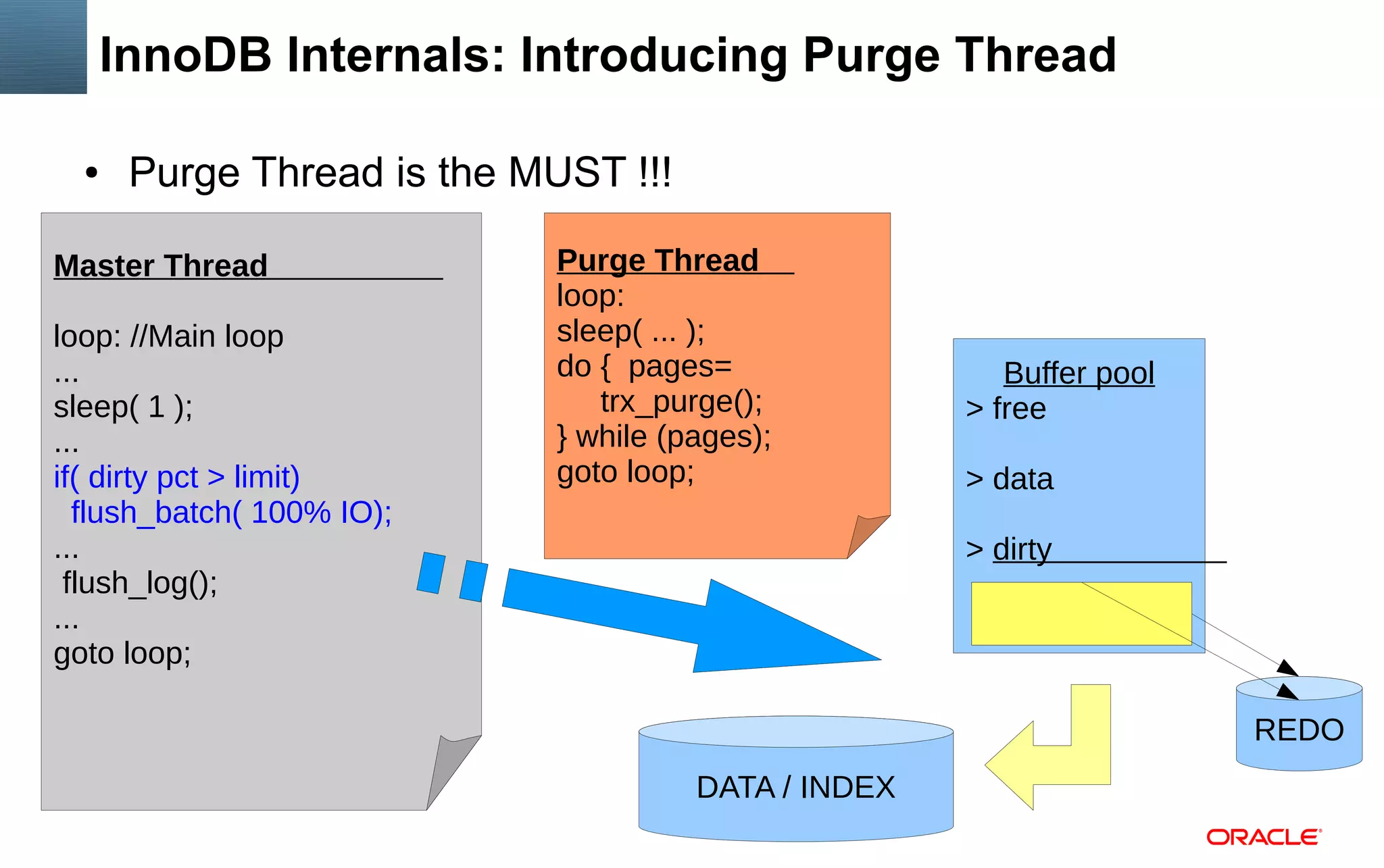

InnoDB Internals: Introducing Purge Thread
●

Purge Thread is the MUST !!!

Master Thread
loop: //Main loop
...
sleep( 1 );
...
if( dirty pct > limit)
flush_batch( 100% IO);
...
flush_log();
...
goto loop;

Purge Thread
loop:
sleep( ... );
do { pages=
trx_purge();
} while (pages);
goto loop;

Buffer pool
> free
> data
> dirty

REDO
DATA / INDEX

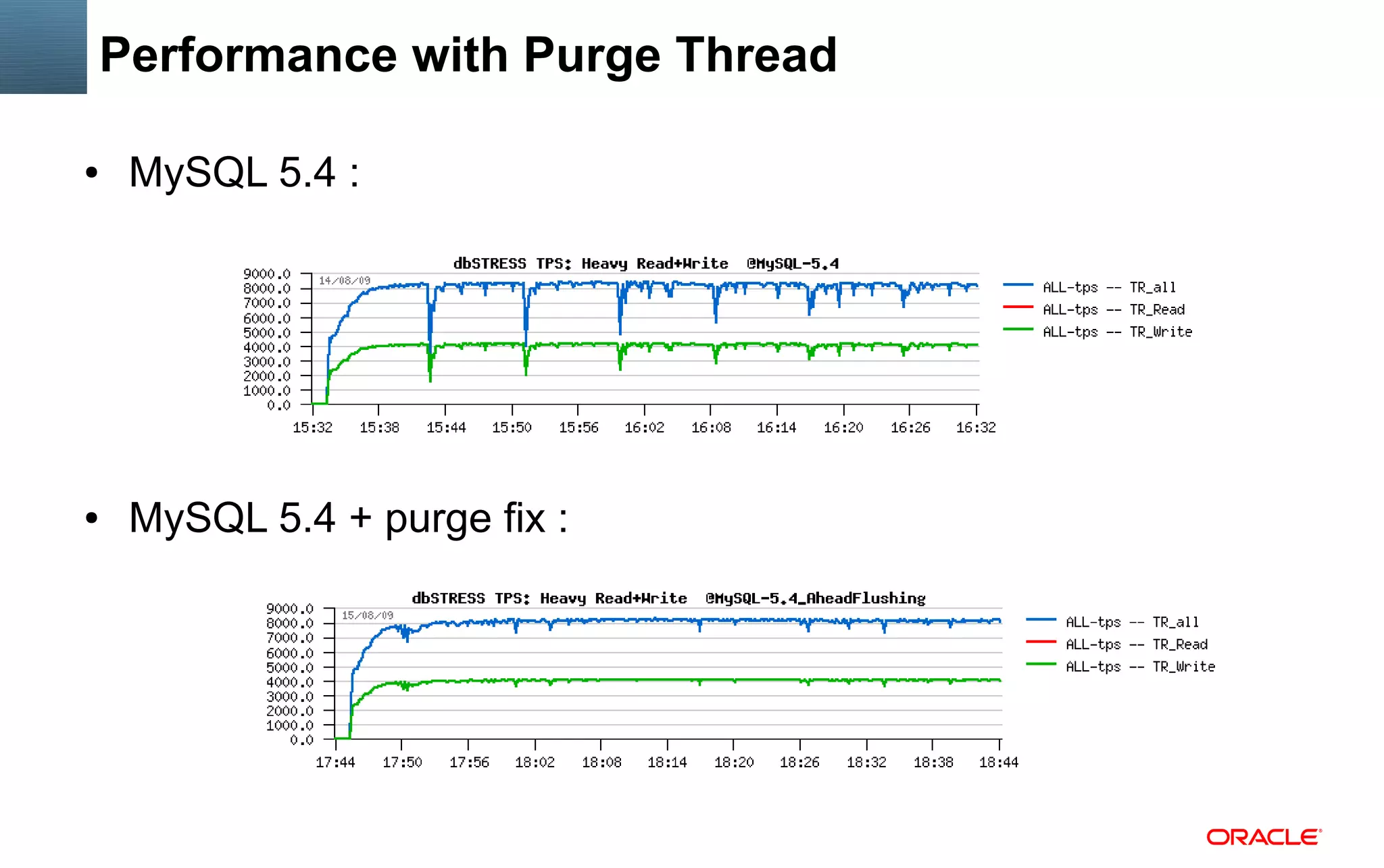

Performance with Purge Thread
●

MySQL 5.4 :

●

MySQL 5.4 + purge fix :

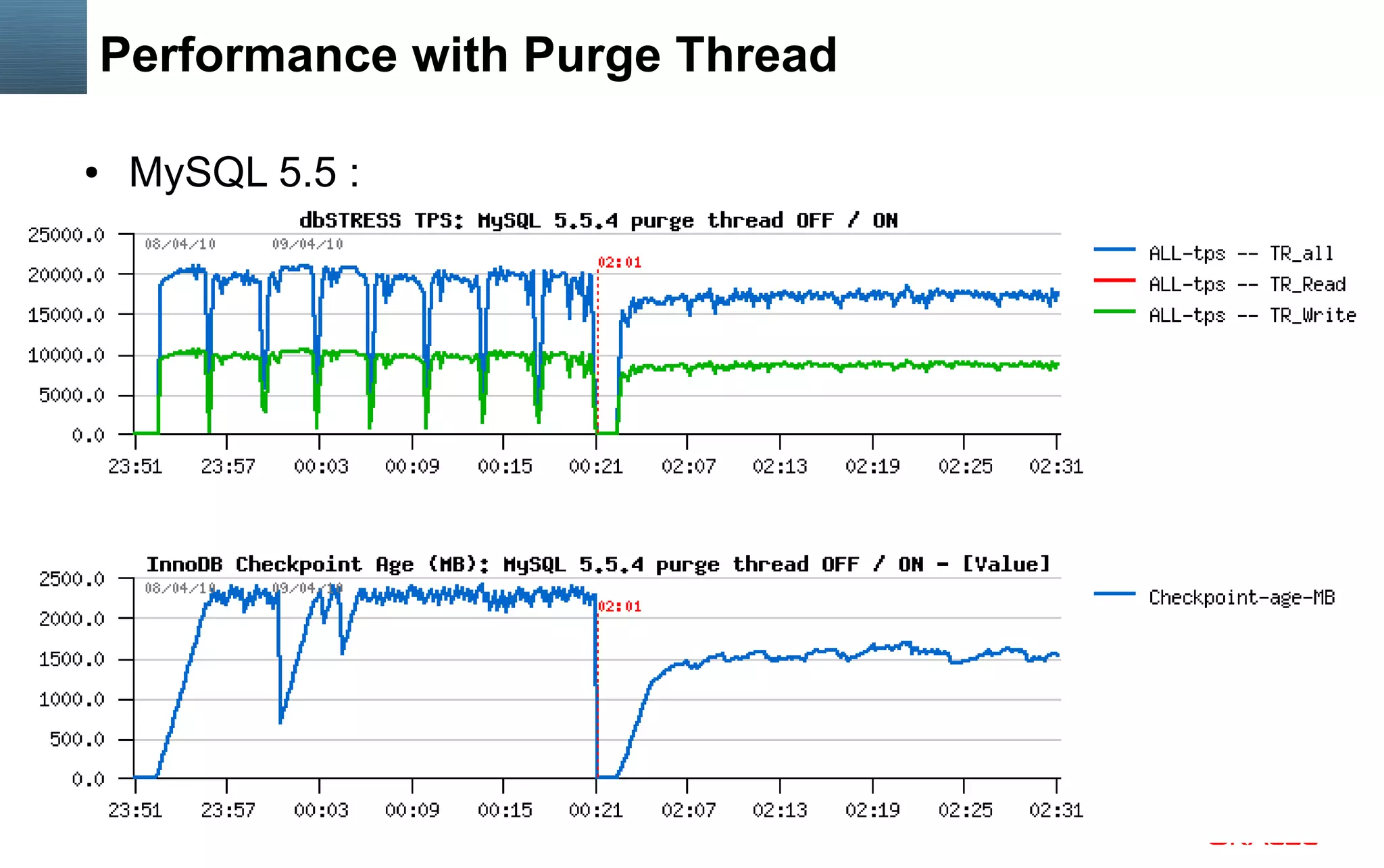

Performance with Purge Thread
●

MySQL 5.5 :

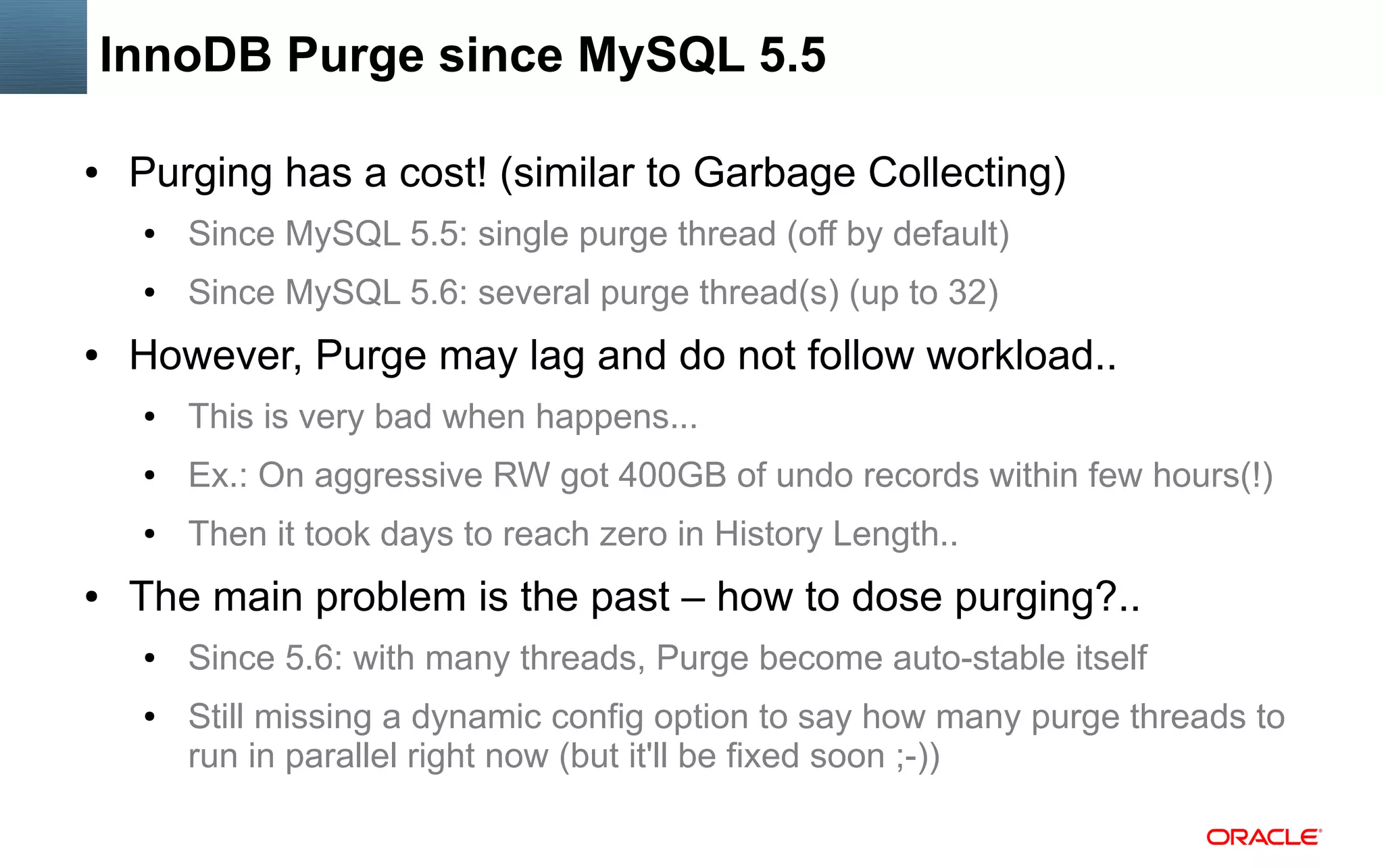

InnoDB Purge since MySQL 5.5
●

Purging has a cost! (similar to Garbage Collecting)
●

●

●

Since MySQL 5.5: single purge thread (off by default)
Since MySQL 5.6: several purge thread(s) (up to 32)

However, Purge may lag and do not follow workload..
●

●

Ex.: On aggressive RW got 400GB of undo records within few hours(!)

●

●

This is very bad when happens...
Then it took days to reach zero in History Length..

The main problem is the past – how to dose purging?..
●

●

Since 5.6: with many threads, Purge become auto-stable itself
Still missing a dynamic config option to say how many purge threads to
run in parallel right now (but it'll be fixed soon ;-))

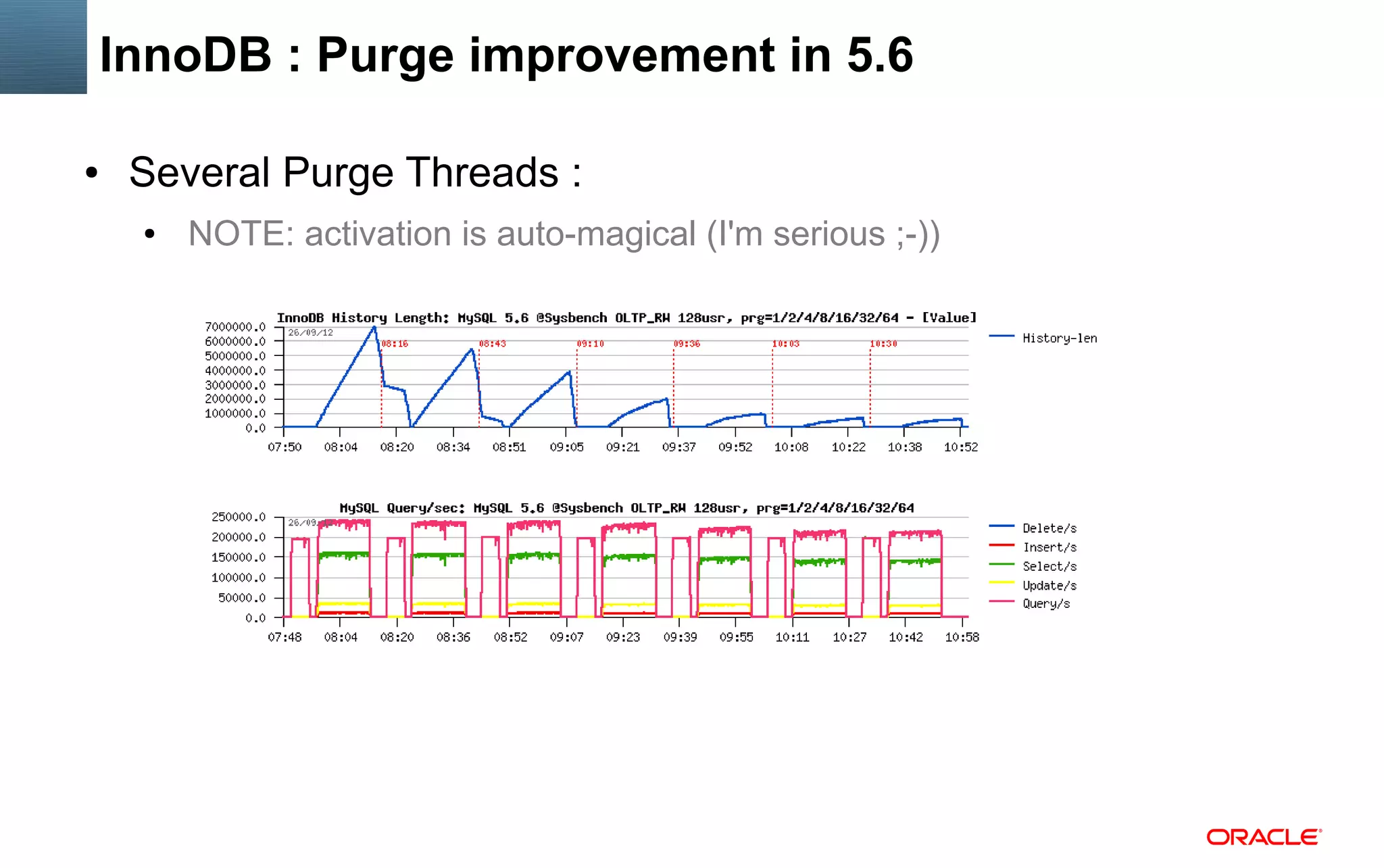

InnoDB : Purge improvement in 5.6
●

Several Purge Threads :
●

NOTE: activation is auto-magical (I'm serious ;-))

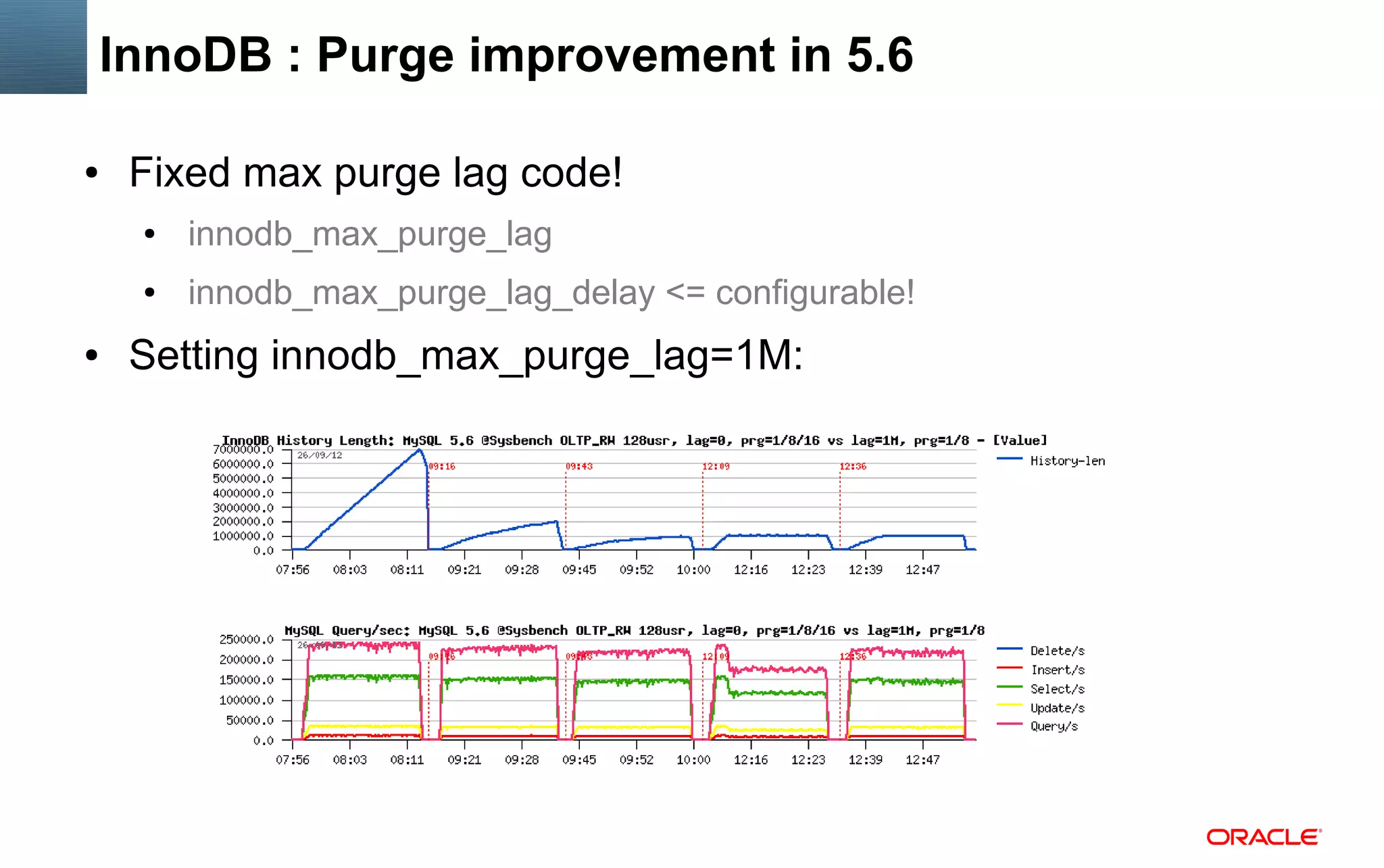

InnoDB : Purge improvement in 5.6
●

Fixed max purge lag code!
●

●

●

innodb_max_purge_lag
innodb_max_purge_lag_delay <= configurable!

Setting innodb_max_purge_lag=1M:

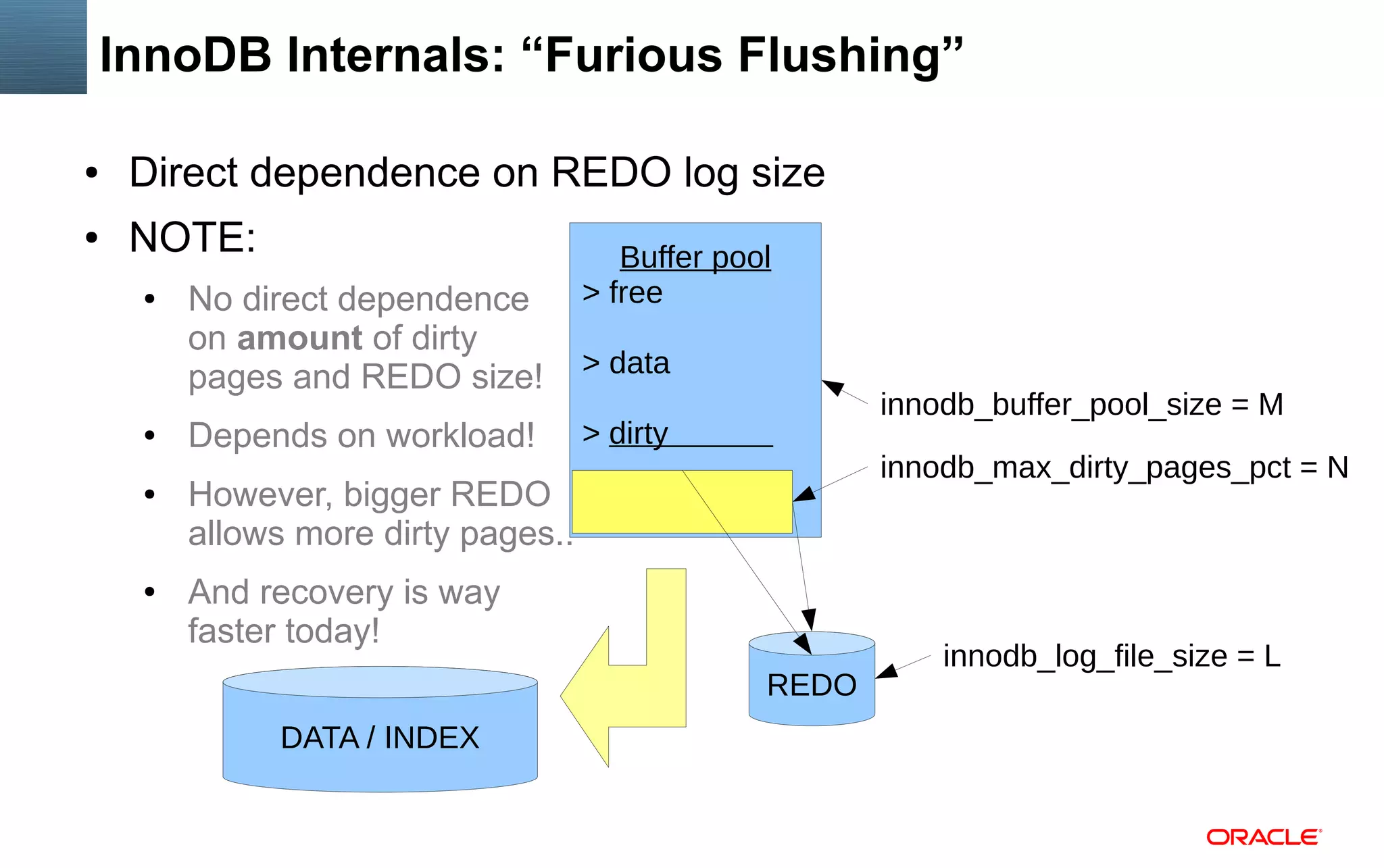

InnoDB Internals: “Furious Flushing”
●

Direct dependence on REDO log size

●

NOTE:
●

●

●

●

No direct dependence
on amount of dirty
pages and REDO size!
Depends on workload!

Buffer pool
> free
> data
innodb_buffer_pool_size = M

> dirty

innodb_max_dirty_pages_pct = N

However, bigger REDO
allows more dirty pages..
And recovery is way
faster today!
REDO
DATA / INDEX

innodb_log_file_size = L
InnoDB: REDO log constraints
●

REDO log constraints: (Always monitor Checkpoint Age!!!)
●

●

●

Cyclic, need free space
Buffer pool
Checkpoint age: diff between the current LSN in REDO
> free
and the oldest dirty page LSN

Checkpoint age cannot out-pass the max checkpoint
age (redo log size)

●

●

●

If Checkpoint age >= 7/8 of Max age => Flush ALL dirty!

> data
> dirty

=> AKA “furious flushing”...

Adaptive Flushing:
●

Keep REDO under Max age

●

Respecting IO capacity limit

REDO
DATA / INDEX

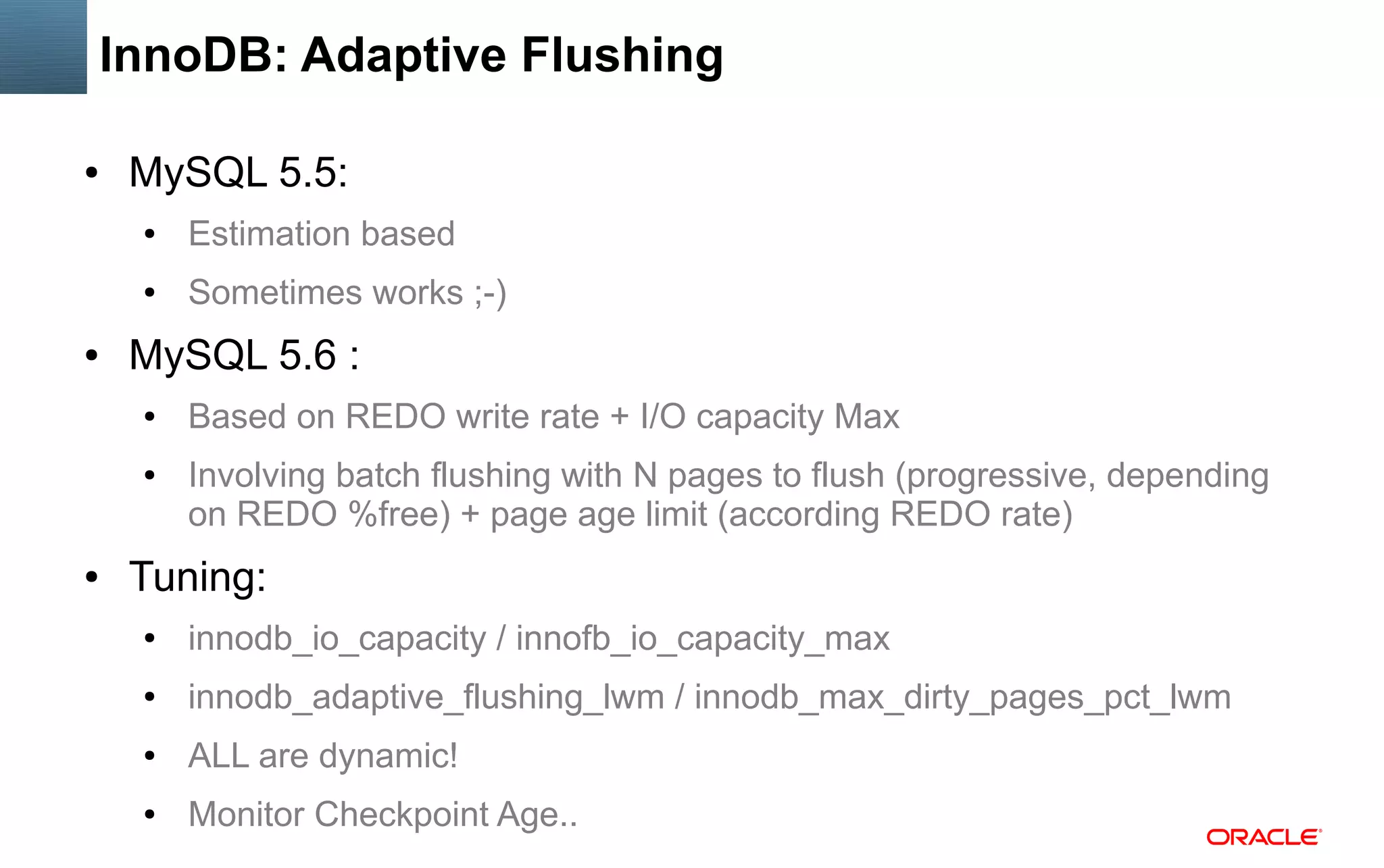

InnoDB: Adaptive Flushing
●

MySQL 5.5:
●

●

●

Estimation based
Sometimes works ;-)

MySQL 5.6 :
●

●

●

Based on REDO write rate + I/O capacity Max
Involving batch flushing with N pages to flush (progressive, depending
on REDO %free) + page age limit (according REDO rate)

Tuning:
●

innodb_io_capacity / innofb_io_capacity_max

●

innodb_adaptive_flushing_lwm / innodb_max_dirty_pages_pct_lwm

●

ALL are dynamic!

●

Monitor Checkpoint Age..

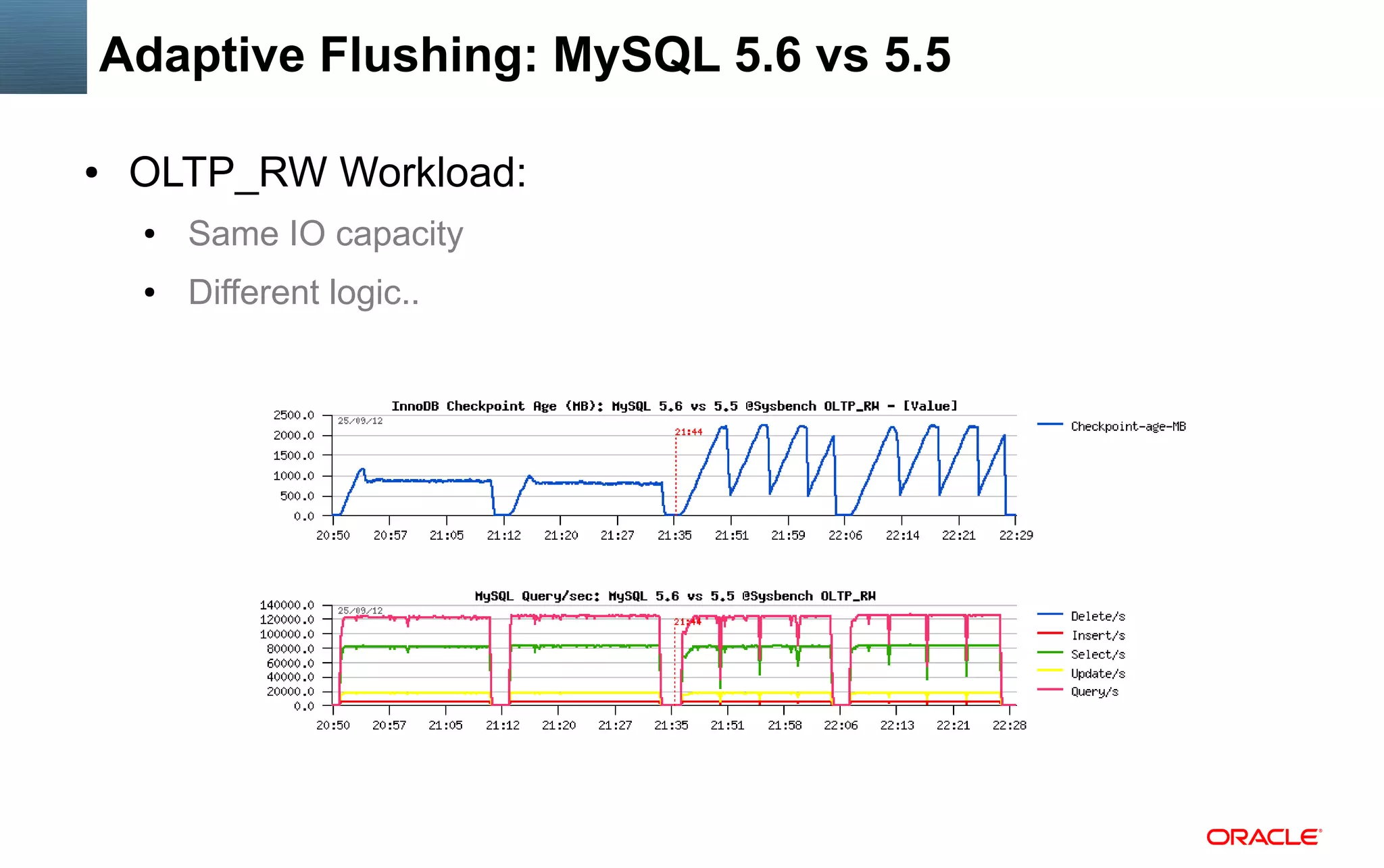

Adaptive Flushing: MySQL 5.6 vs 5.5
●

OLTP_RW Workload:
●

Same IO capacity

●

Different logic..

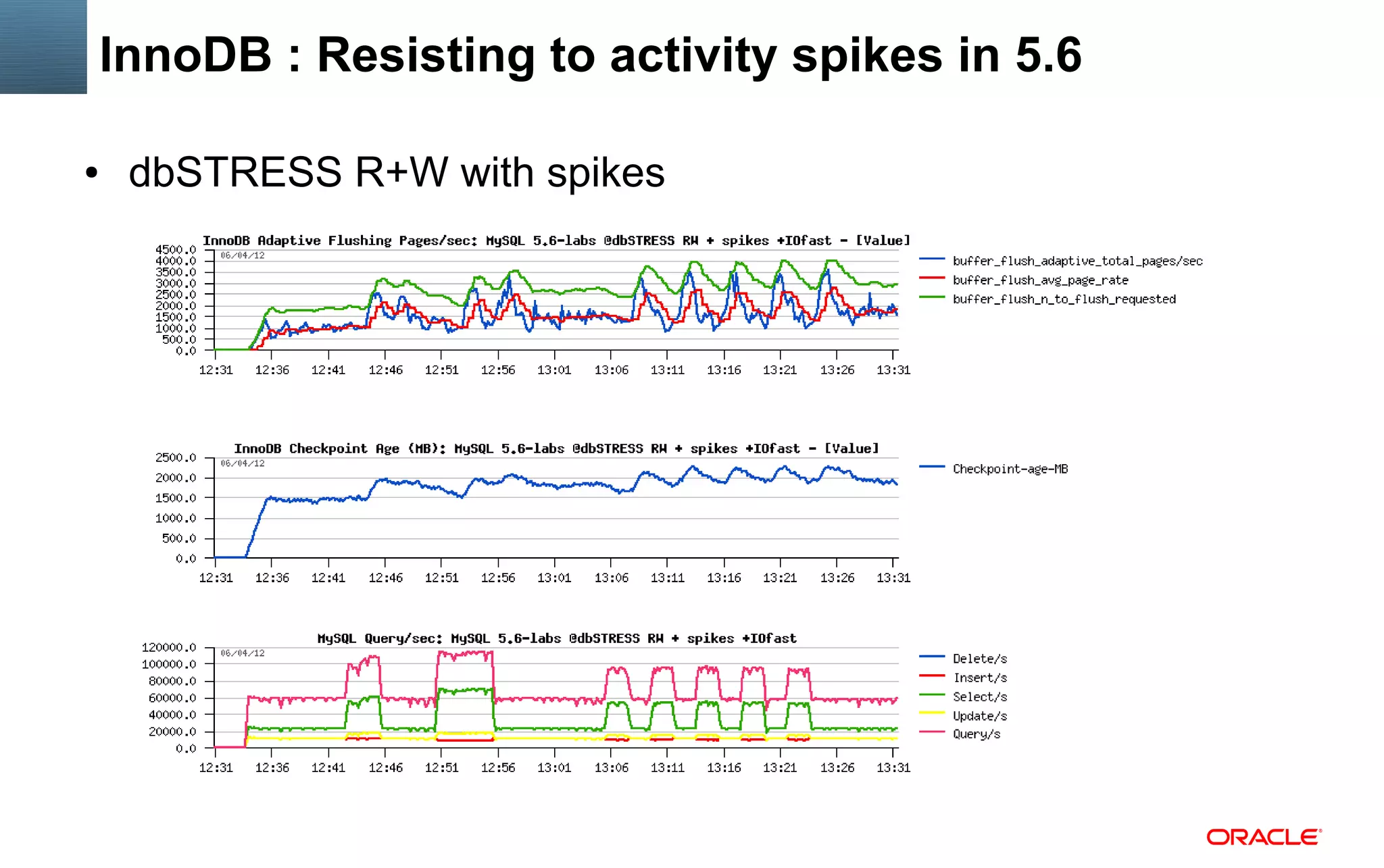

InnoDB : Resisting to activity spikes in 5.6
●

dbSTRESS R+W with spikes
InnoDB Adaptive Flushing: Fine Tuning
●

Monitor your Flushing rate / capabilities..
●

Adapt IO capacity and REDO size :

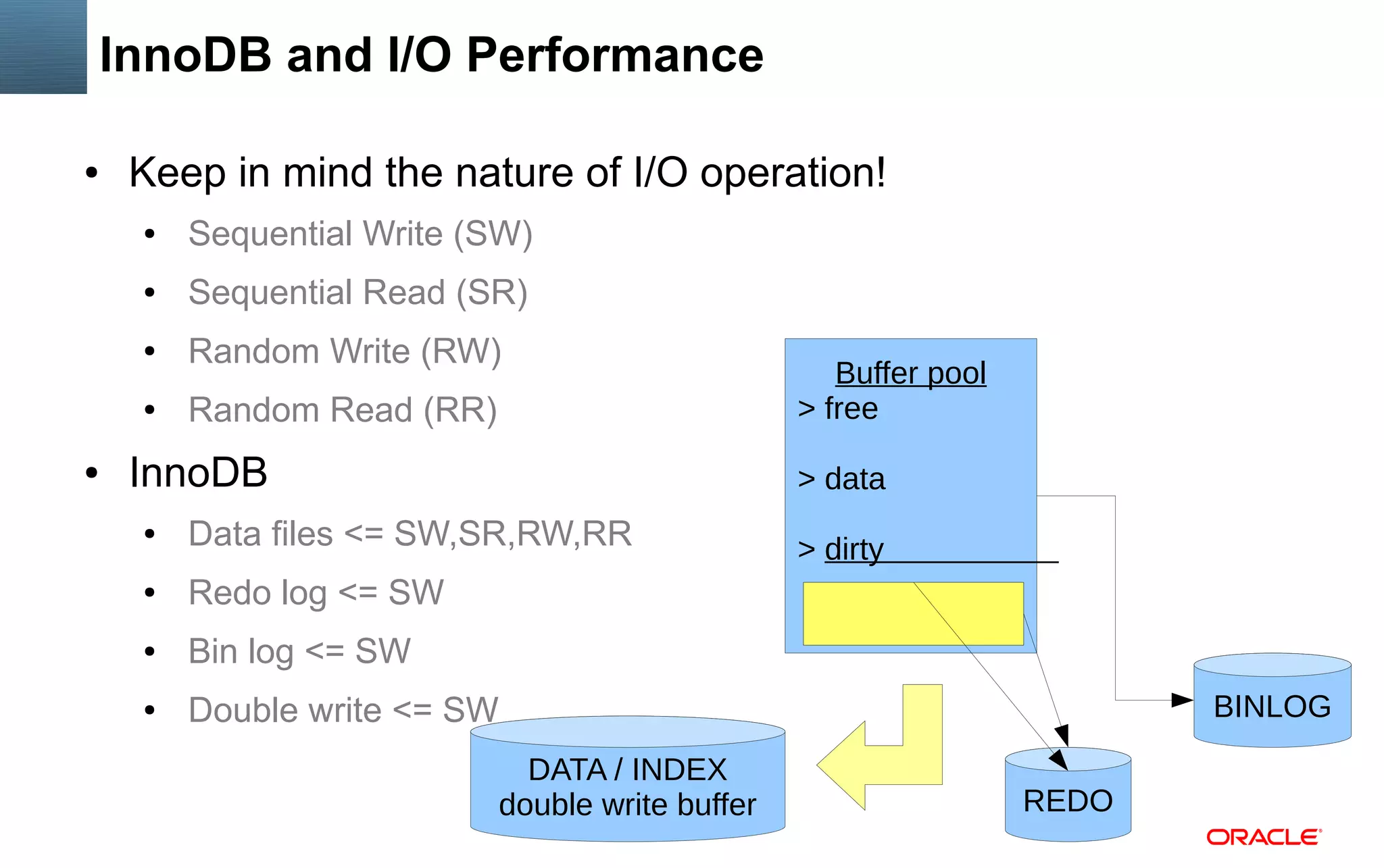

InnoDB and I/O Performance
●

Keep in mind the nature of I/O operation!
●

●

Sequential Read (SR)

●

Random Write (RW)

●

●

Sequential Write (SW)

Random Read (RR)

InnoDB

Buffer pool
> free
> data

●

Data files <= SW,SR,RW,RR

●

Redo log <= SW

●

Bin log <= SW

●

Double write <= SW

> dirty

BINLOG
DATA / INDEX
double write buffer

REDO

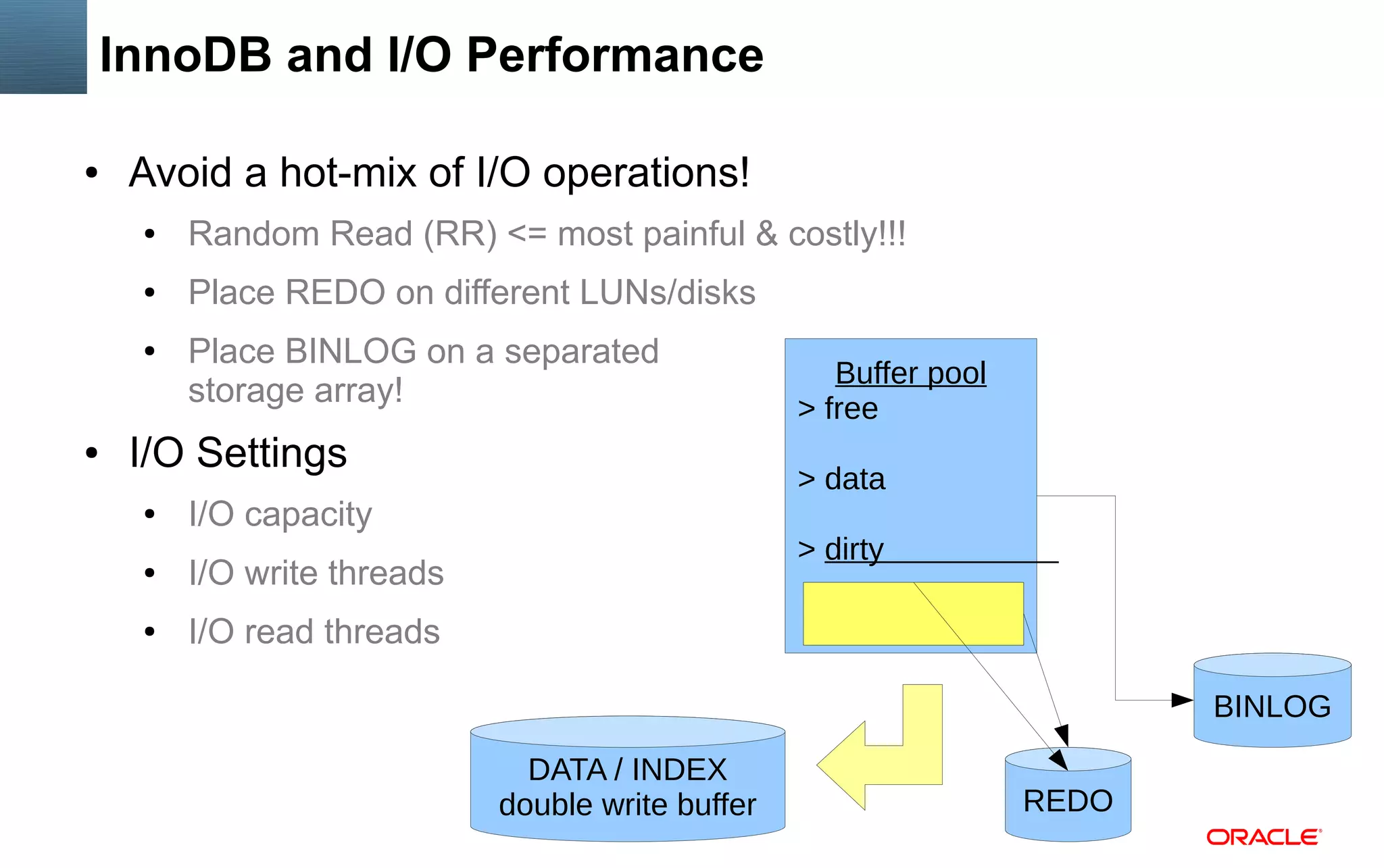

InnoDB and I/O Performance
●

Avoid a hot-mix of I/O operations!
●

Random Read (RR) <= most painful & costly!!!

●

Place REDO on different LUNs/disks

●

●

Place BINLOG on a separated
storage array!

I/O Settings
●

I/O write threads

●

> data

I/O capacity

●

Buffer pool
> free

I/O read threads

> dirty

BINLOG
DATA / INDEX
double write buffer

REDO
InnoDB: Doublewrite Buffer
●

Protecting from partially written pages
●

Data first written into Doublewrite buffer (sys.tablespace)

●

Then flushed to the datafiles

●

●

On recovery: if partially written page discovered => use its image from
doublewrite buffer

What is the cost?..
●

Doublewrite I/O is sequential, so should be fast

●

Writes will do less sync calls:
–

Instead of sync on every page write

–

Sync once on doublewrite buffer write

–

Then once on the datafile(s) for the same chunk of pages
InnoDB: Doublewrite buffer real impact?
●

Usually:
●

●

●

performance remains the same (or better)
+ recovery guarantee!

In some cases:
●

Up to 30% performance degradation...

●

Why?...

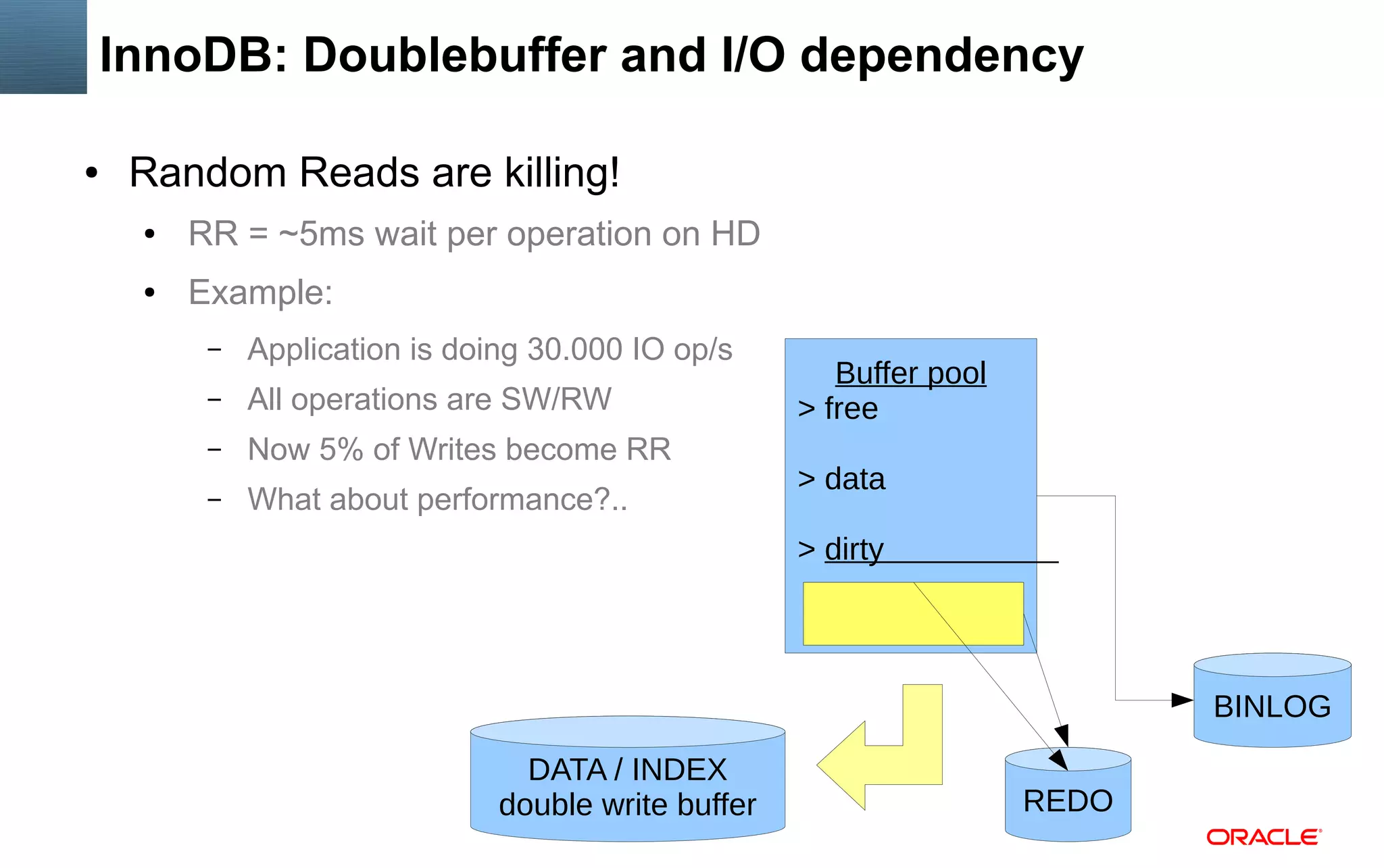

InnoDB: Doublebuffer and I/O dependency
●

Random Reads are killing!
●

RR = ~5ms wait per operation on HD

●

Example:
–

Application is doing 30.000 IO op/s

–

All operations are SW/RW

–

Now 5% of Writes become RR

–

What about performance?..

Buffer pool
> free
> data
> dirty

BINLOG
DATA / INDEX
double write buffer

REDO

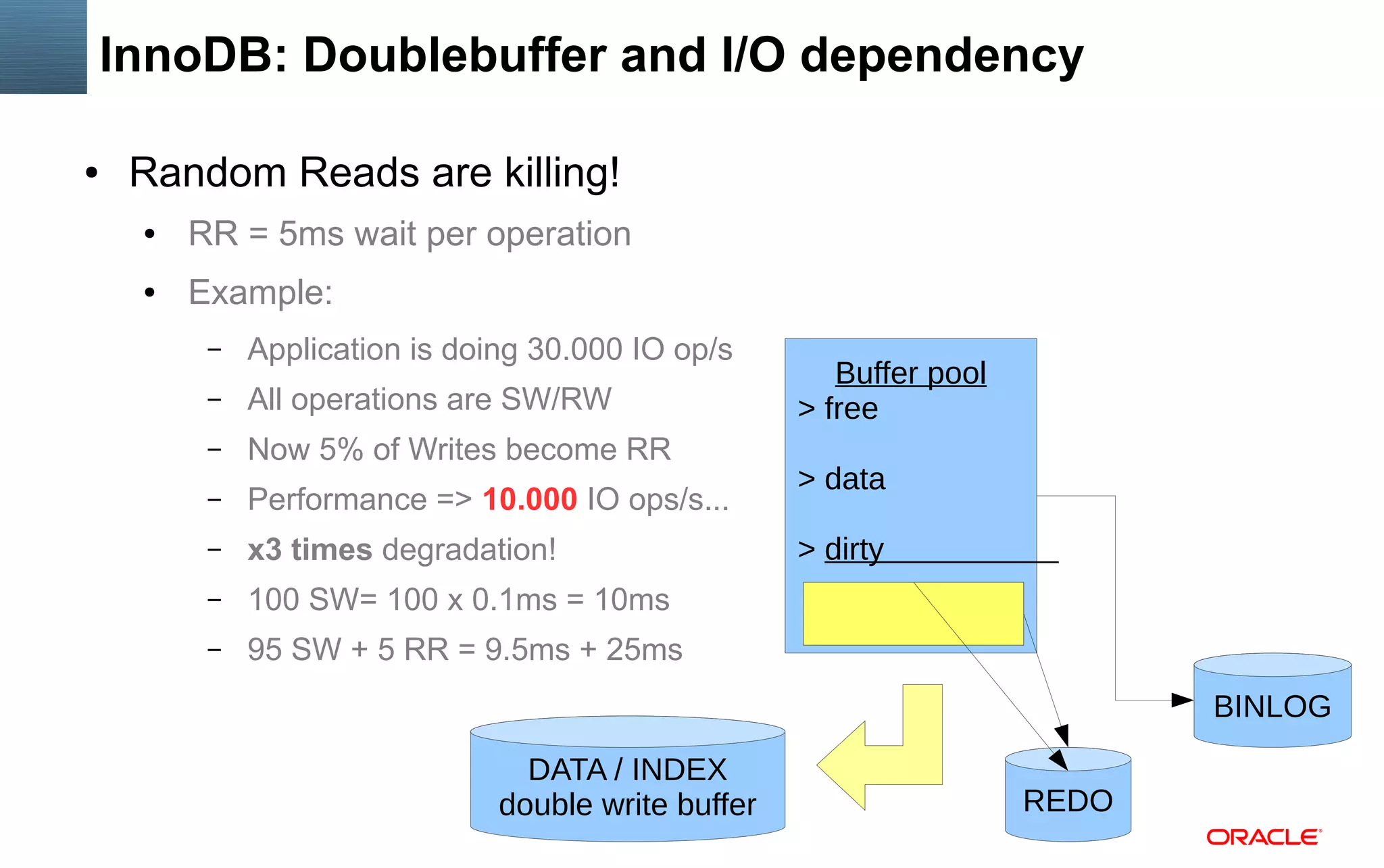

InnoDB: Doublebuffer and I/O dependency
●

Random Reads are killing!
●

RR = 5ms wait per operation

●

Example:
–

Application is doing 30.000 IO op/s

–

All operations are SW/RW

–

Now 5% of Writes become RR

–

Performance => 10.000 IO ops/s...

–

x3 times degradation!

–

100 SW= 100 x 0.1ms = 10ms

–

95 SW + 5 RR = 9.5ms + 25ms

Buffer pool
> free
> data
> dirty

BINLOG
DATA / INDEX
double write buffer

REDO

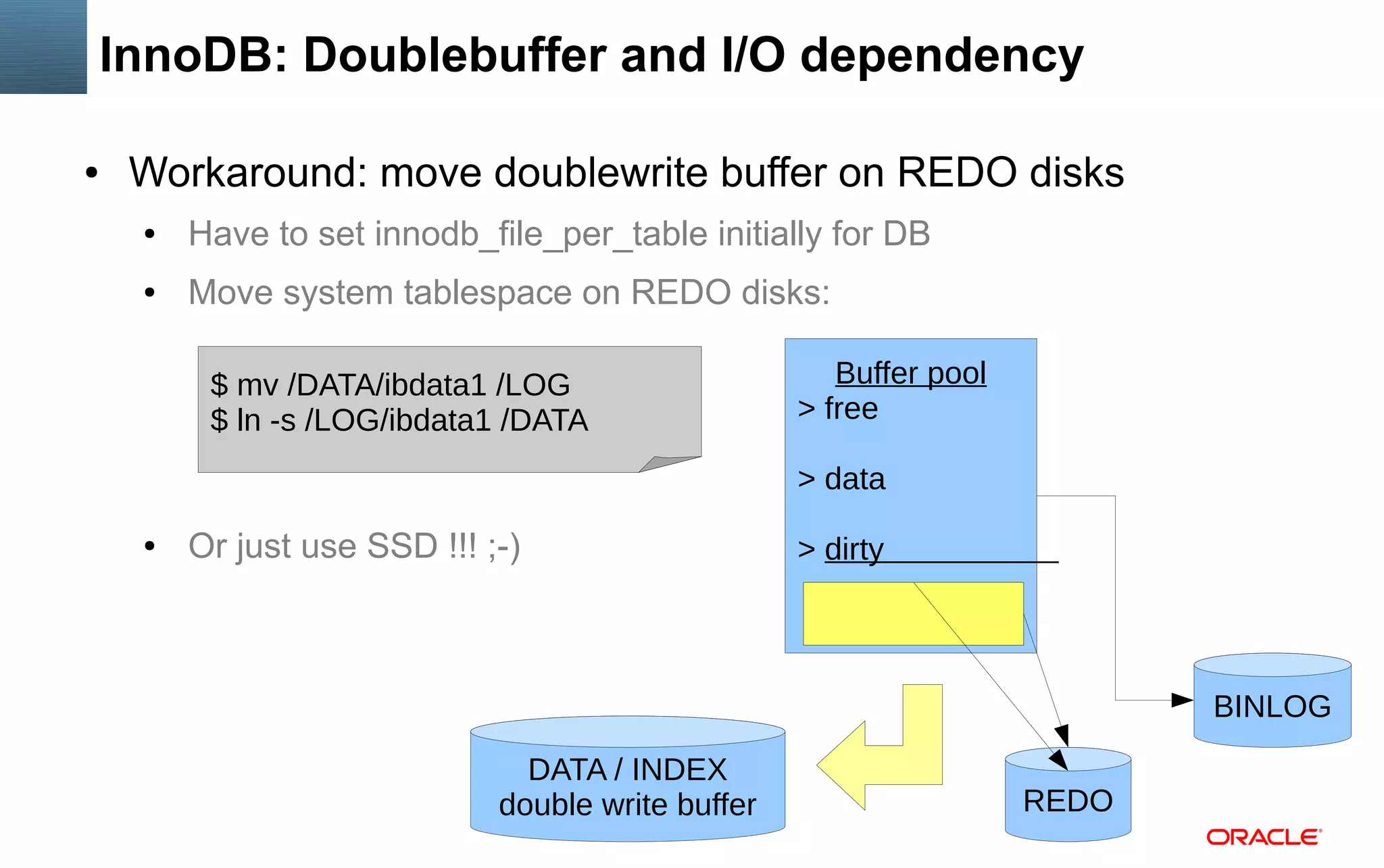

InnoDB: Doublebuffer and I/O dependency
●

Workaround: move doublewrite buffer on REDO disks
●

Have to set innodb_file_per_table initially for DB

●

Move system tablespace on REDO disks:
$ mv /DATA/ibdata1 /LOG
$ ln -s /LOG/ibdata1 /DATA

Buffer pool
> free
> data

●

Or just use SSD !!! ;-)

> dirty

BINLOG
DATA / INDEX
double write buffer

REDO

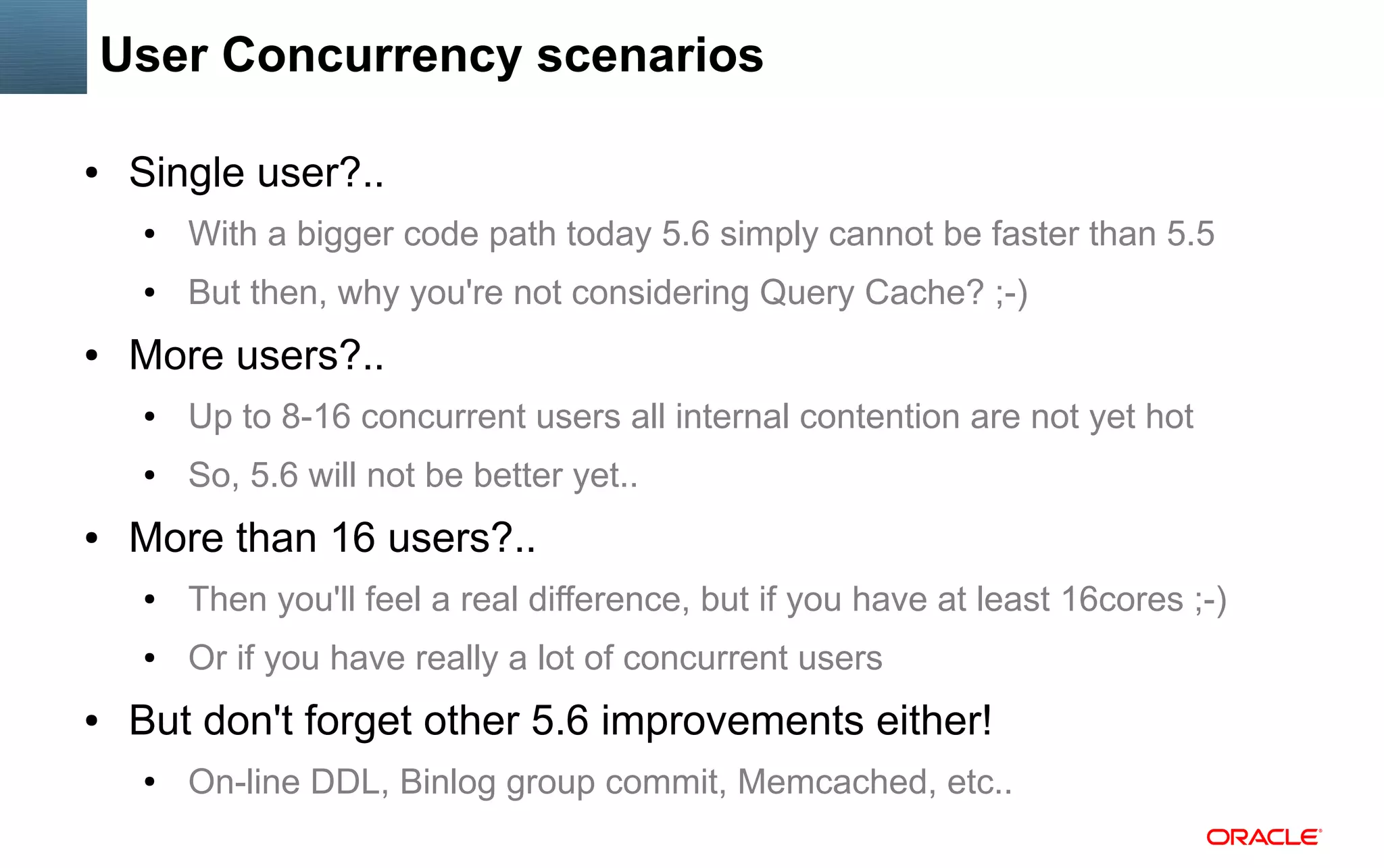

User Concurrency scenarios
●

Single user?..
●

●

●

With a bigger code path today 5.6 simply cannot be faster than 5.5
But then, why you're not considering Query Cache? ;-)

More users?..
●

●

●

Up to 8-16 concurrent users all internal contention are not yet hot
So, 5.6 will not be better yet..

More than 16 users?..
●

●

●

Then you'll feel a real difference, but if you have at least 16cores ;-)
Or if you have really a lot of concurrent users

But don't forget other 5.6 improvements either!
●

On-line DDL, Binlog group commit, Memcached, etc..

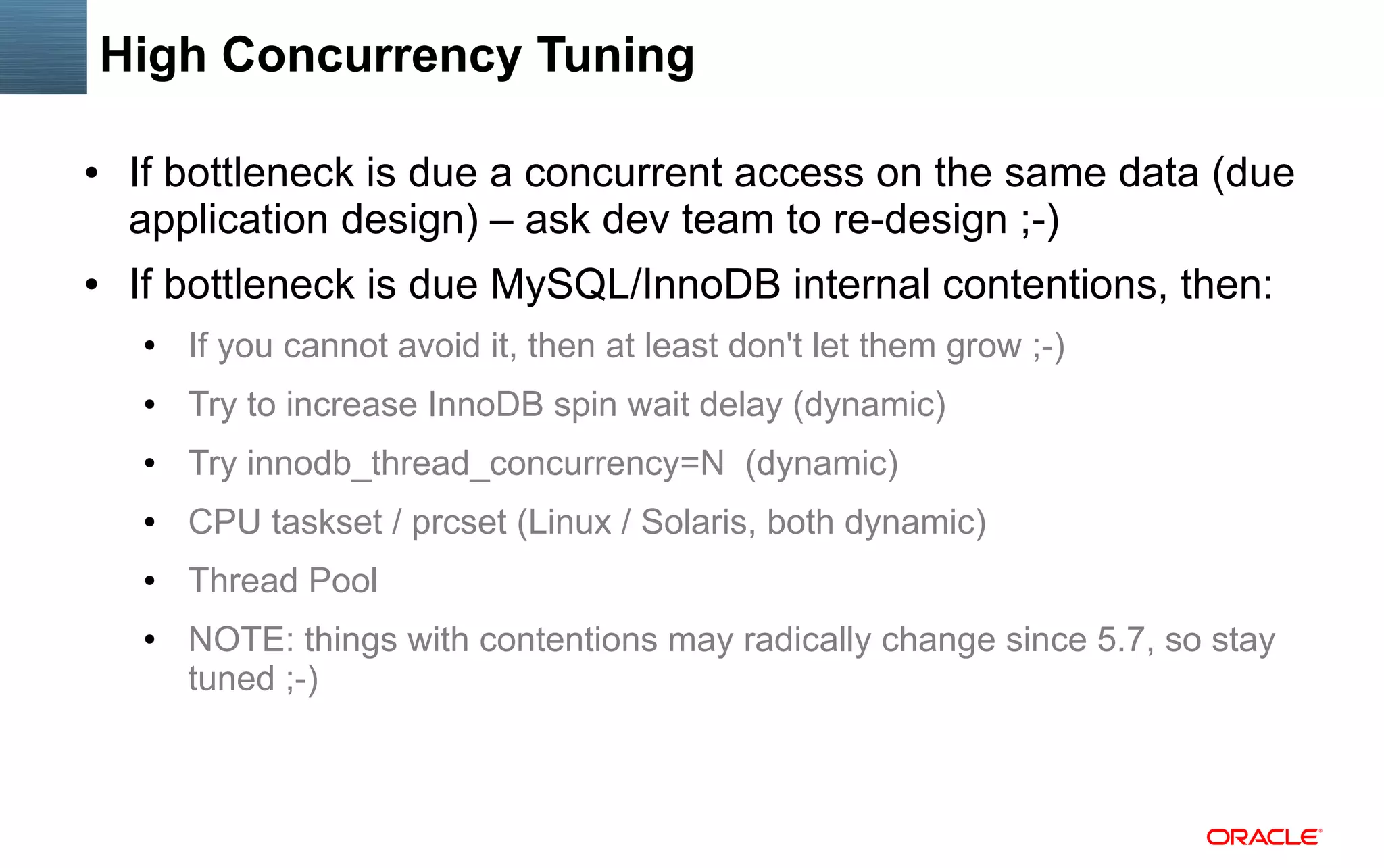

High Concurrency Tuning
●

●

If bottleneck is due a concurrent access on the same data (due
application design) – ask dev team to re-design ;-)
If bottleneck is due MySQL/InnoDB internal contentions, then:
●

If you cannot avoid it, then at least don't let them grow ;-)

●

Try to increase InnoDB spin wait delay (dynamic)

●

Try innodb_thread_concurrency=N (dynamic)

●

CPU taskset / prcset (Linux / Solaris, both dynamic)

●

Thread Pool

●

NOTE: things with contentions may radically change since 5.7, so stay
tuned ;-)

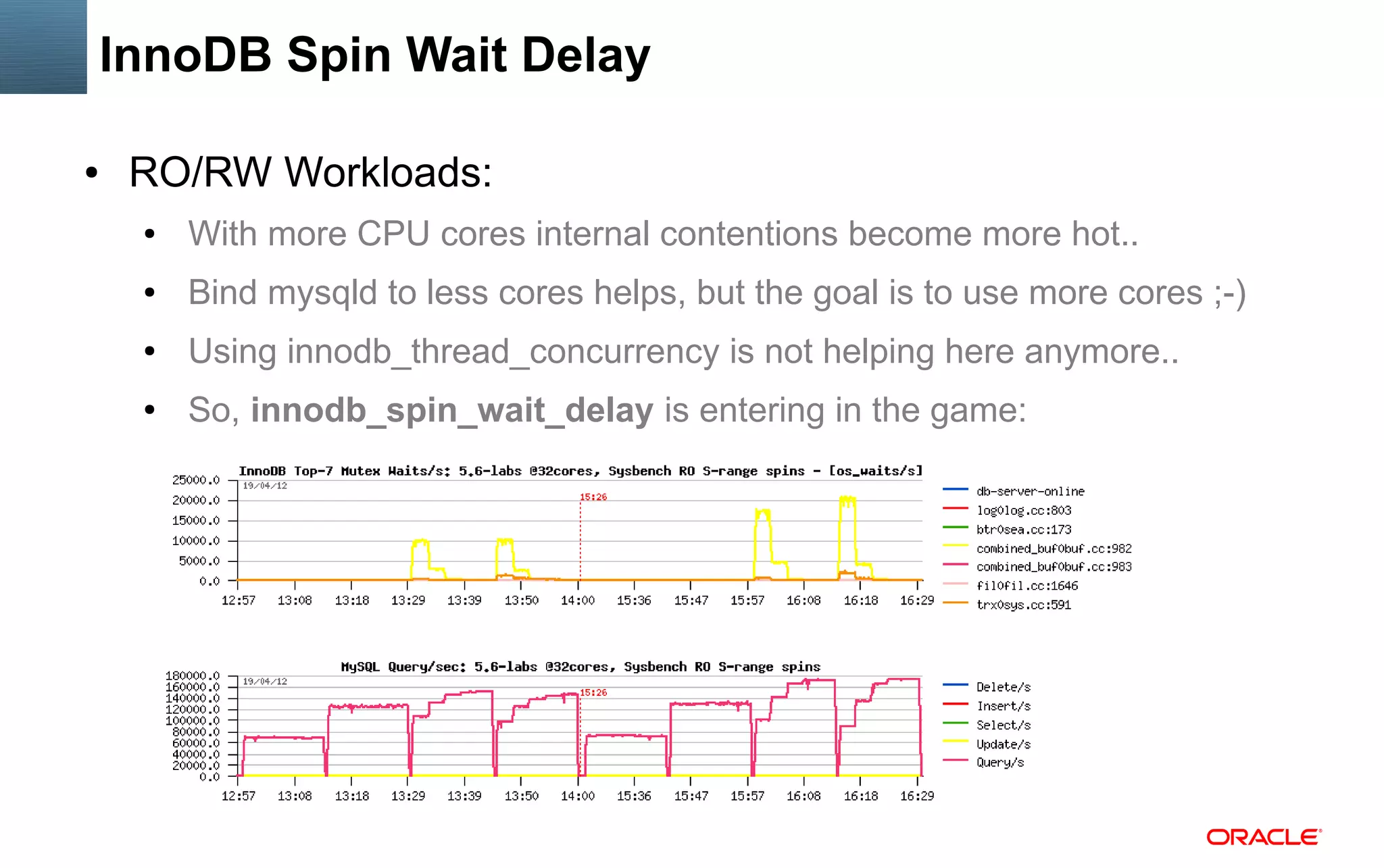

InnoDB Spin Wait Delay
●

RO/RW Workloads:
●

With more CPU cores internal contentions become more hot..

●

Bind mysqld to less cores helps, but the goal is to use more cores ;-)

●

Using innodb_thread_concurrency is not helping here anymore..

●

So, innodb_spin_wait_delay is entering in the game:

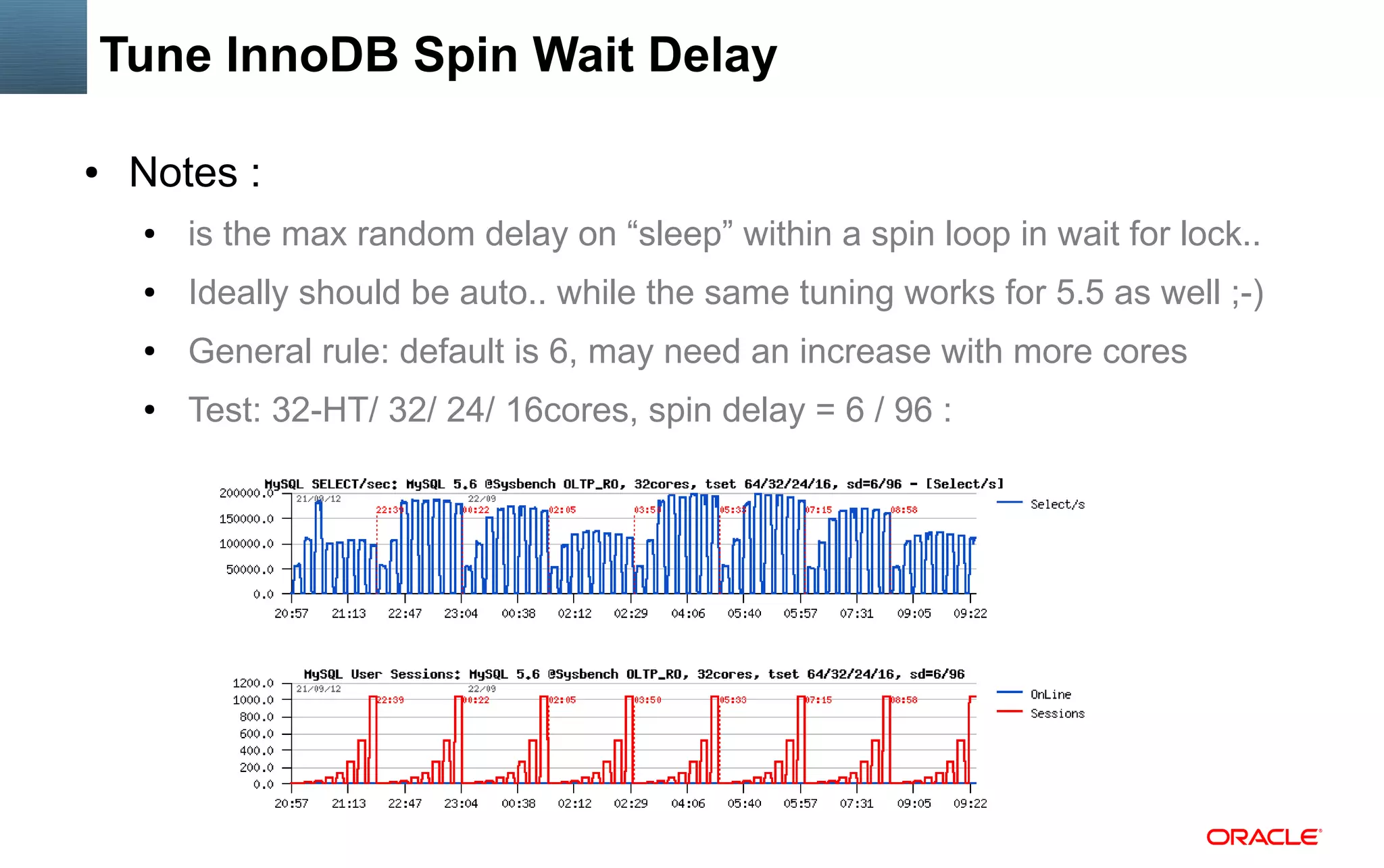

Tune InnoDB Spin Wait Delay
●

Notes :
●

is the max random delay on “sleep” within a spin loop in wait for lock..

●

Ideally should be auto.. while the same tuning works for 5.5 as well ;-)

●

General rule: default is 6, may need an increase with more cores

●

Test: 32-HT/ 32/ 24/ 16cores, spin delay = 6 / 96 :

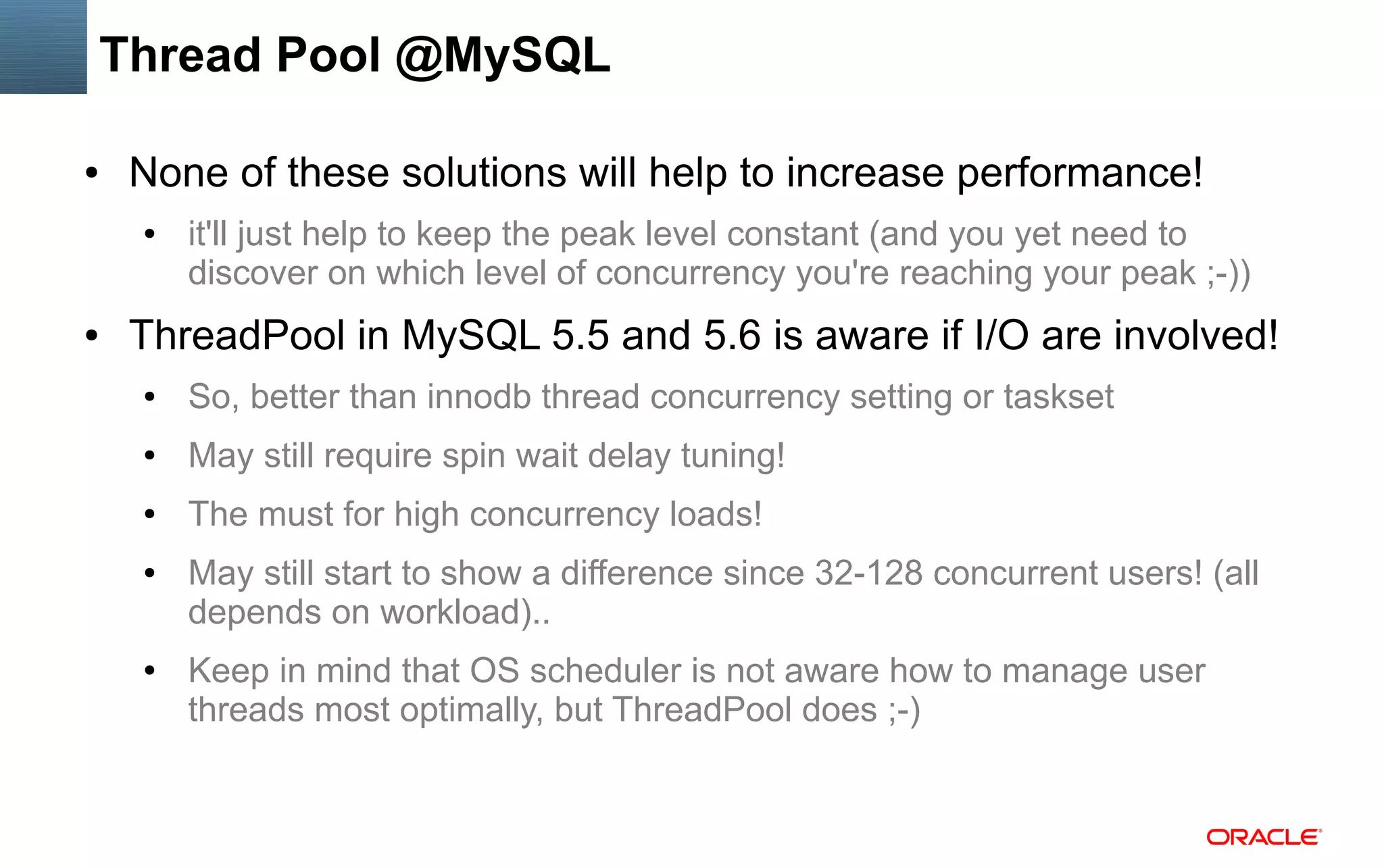

Thread Pool @MySQL
●

None of these solutions will help to increase performance!
●

●

it'll just help to keep the peak level constant (and you yet need to
discover on which level of concurrency you're reaching your peak ;-))

ThreadPool in MySQL 5.5 and 5.6 is aware if I/O are involved!
●

So, better than innodb thread concurrency setting or taskset

●

May still require spin wait delay tuning!

●

The must for high concurrency loads!

●

●

May still start to show a difference since 32-128 concurrent users! (all
depends on workload)..
Keep in mind that OS scheduler is not aware how to manage user
threads most optimally, but ThreadPool does ;-)

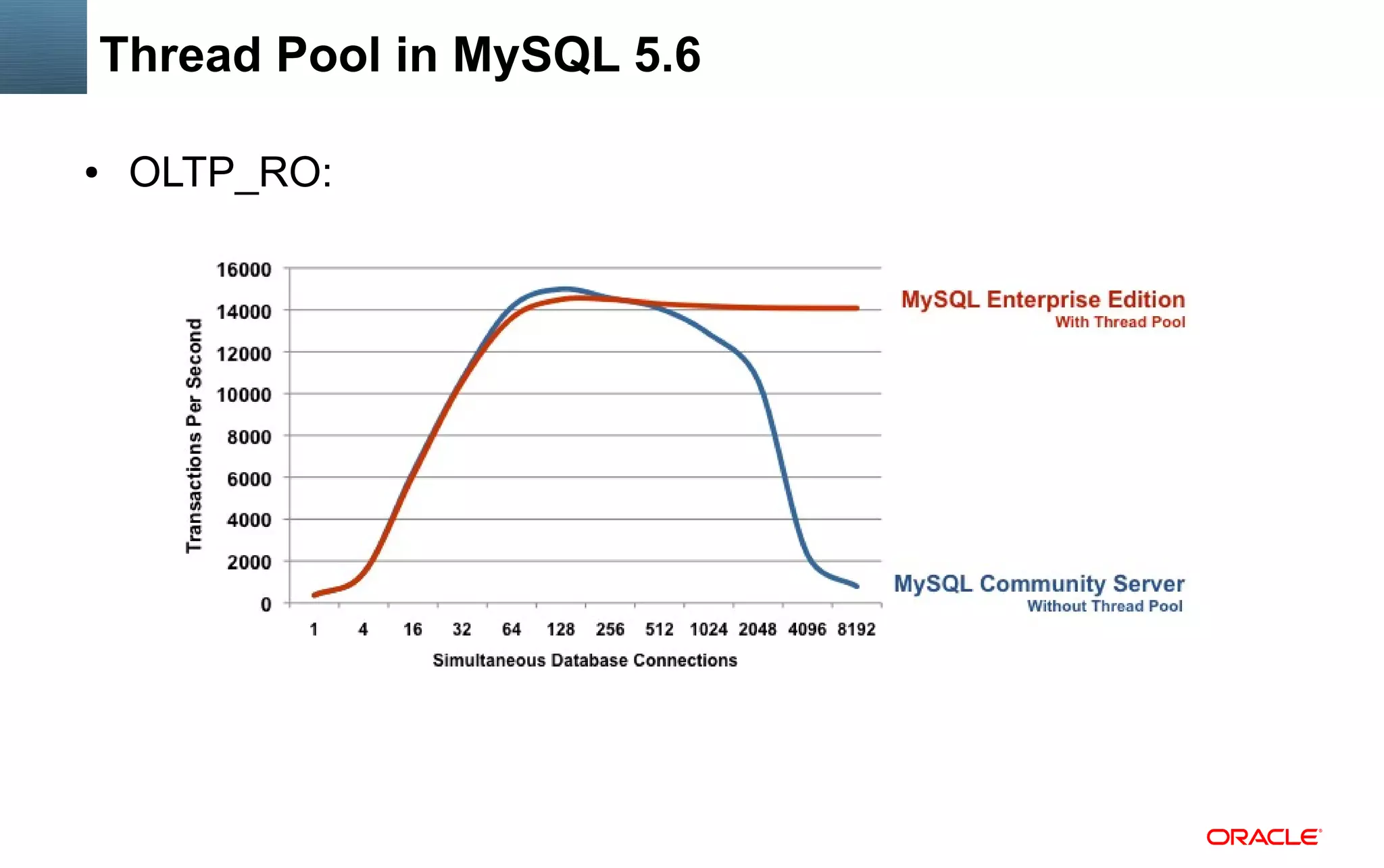

Thread Pool in MySQL 5.6
●

OLTP_RO:

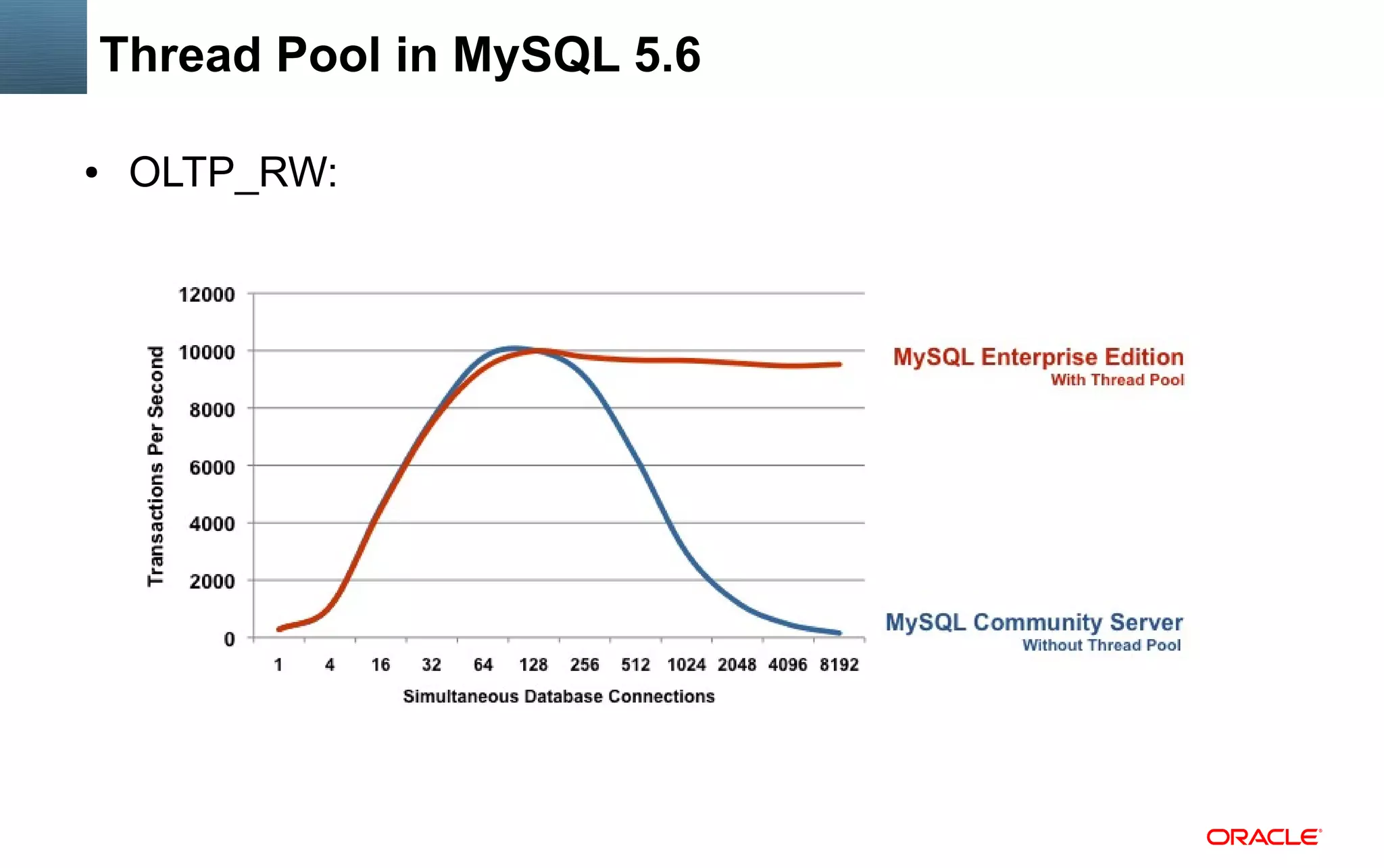

Thread Pool in MySQL 5.6
●

OLTP_RW:

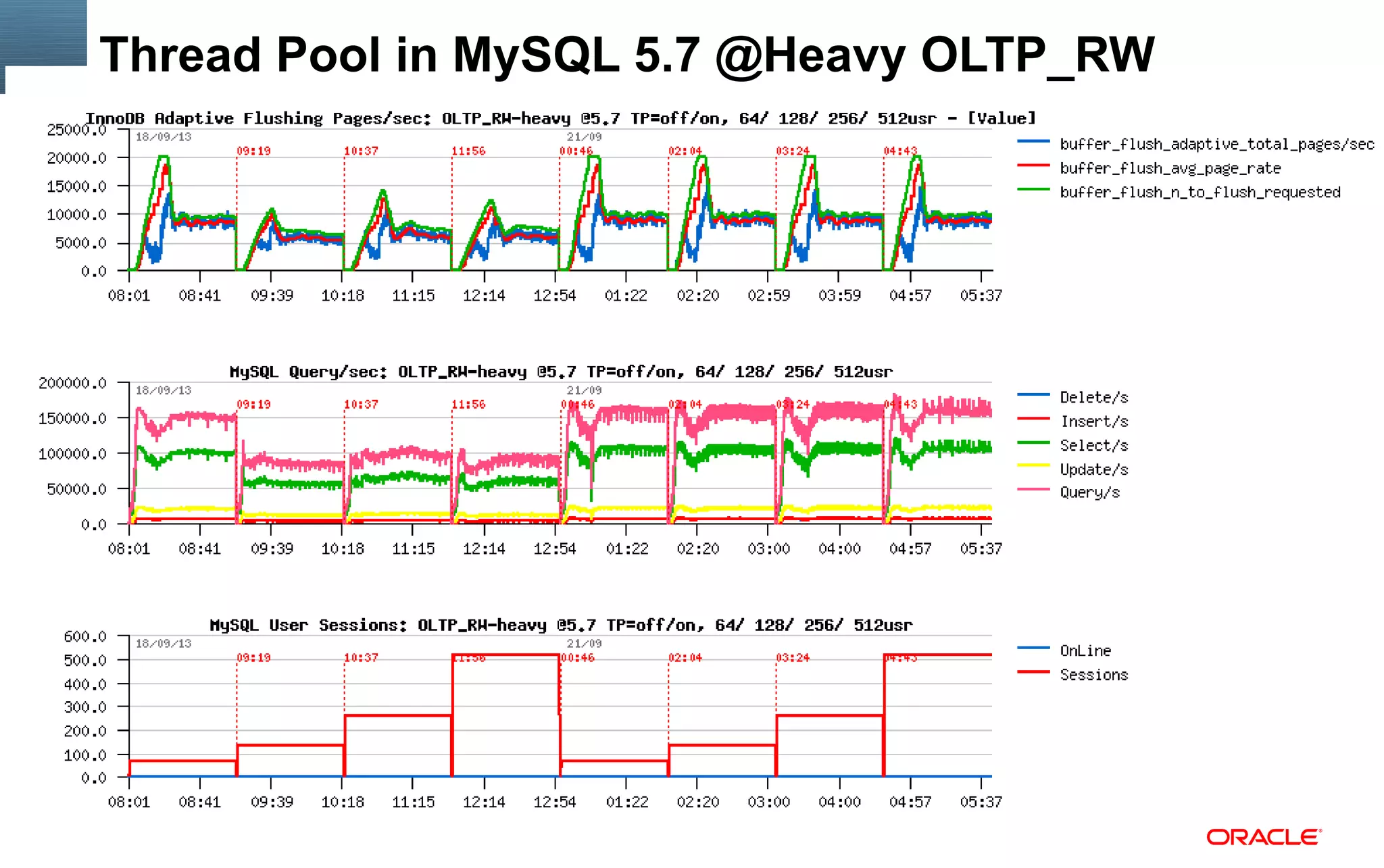

Thread Pool in MySQL 5.7 @Heavy OLTP_RW

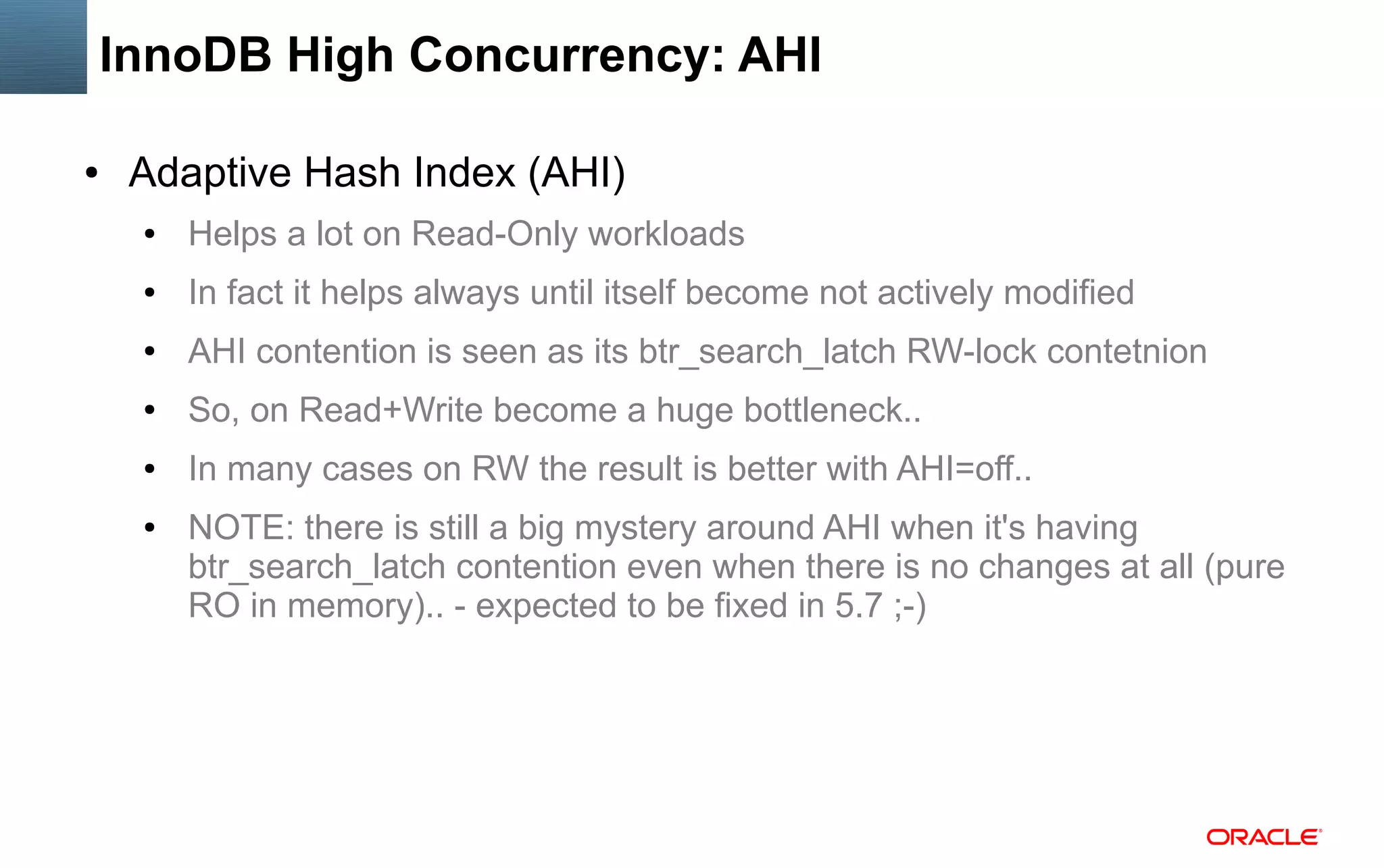

InnoDB High Concurrency: AHI
●

Adaptive Hash Index (AHI)
●

Helps a lot on Read-Only workloads

●

In fact it helps always until itself become not actively modified

●

AHI contention is seen as its btr_search_latch RW-lock contetnion

●

So, on Read+Write become a huge bottleneck..

●

In many cases on RW the result is better with AHI=off..

●

NOTE: there is still a big mystery around AHI when it's having
btr_search_latch contention even when there is no changes at all (pure
RO in memory).. - expected to be fixed in 5.7 ;-)

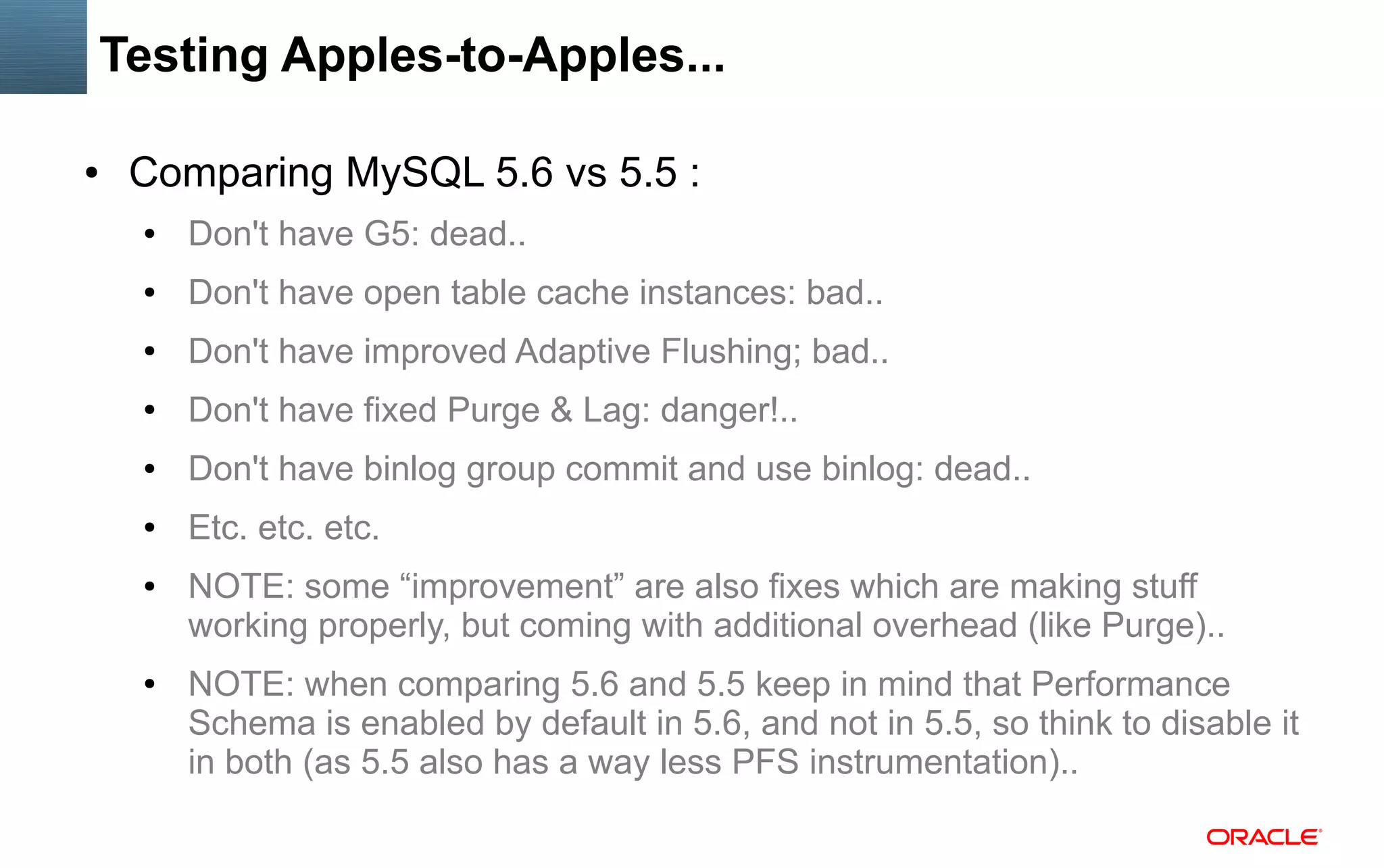

Testing Apples-to-Apples...
●

Comparing MySQL 5.6 vs 5.5 :
●

Don't have G5: dead..

●

Don't have open table cache instances: bad..

●

Don't have improved Adaptive Flushing; bad..

●

Don't have fixed Purge & Lag: danger!..

●

Don't have binlog group commit and use binlog: dead..

●

Etc. etc. etc.

●

●

NOTE: some “improvement” are also fixes which are making stuff
working properly, but coming with additional overhead (like Purge)..
NOTE: when comparing 5.6 and 5.5 keep in mind that Performance
Schema is enabled by default in 5.6, and not in 5.5, so think to disable it
in both (as 5.5 also has a way less PFS instrumentation)..

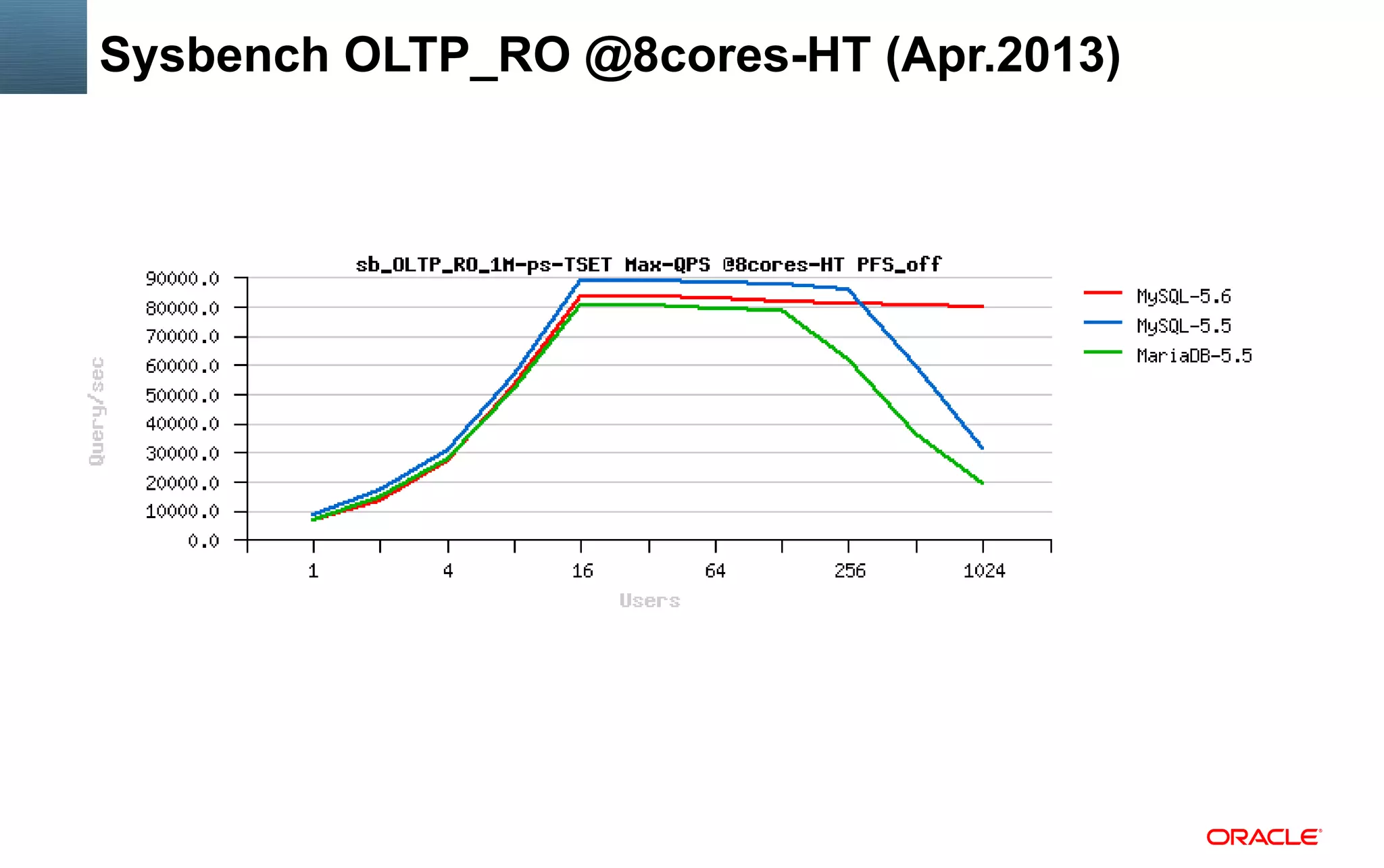

Sysbench OLTP_RO @8cores-HT (Apr.2013)

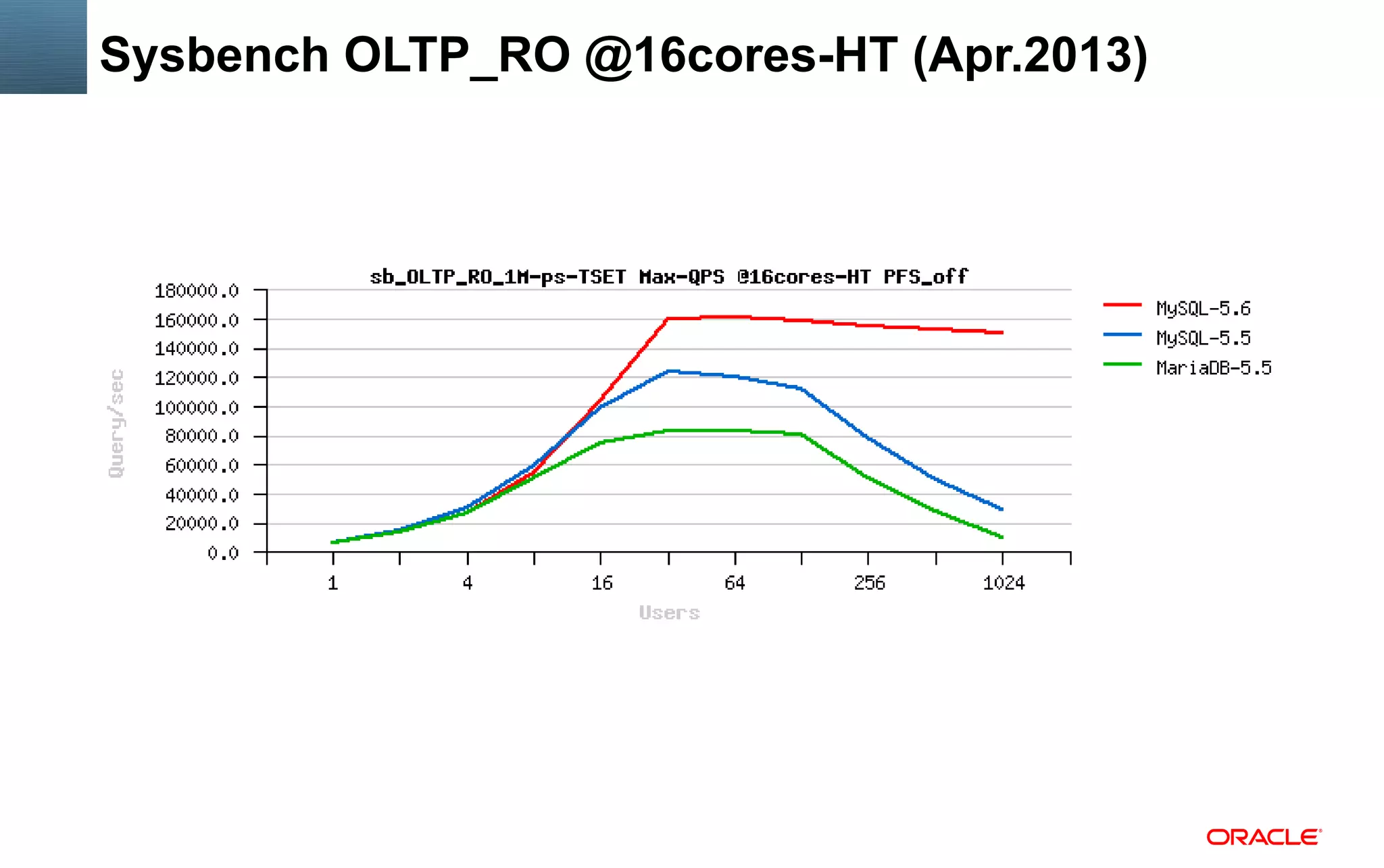

Sysbench OLTP_RO @16cores-HT (Apr.2013)

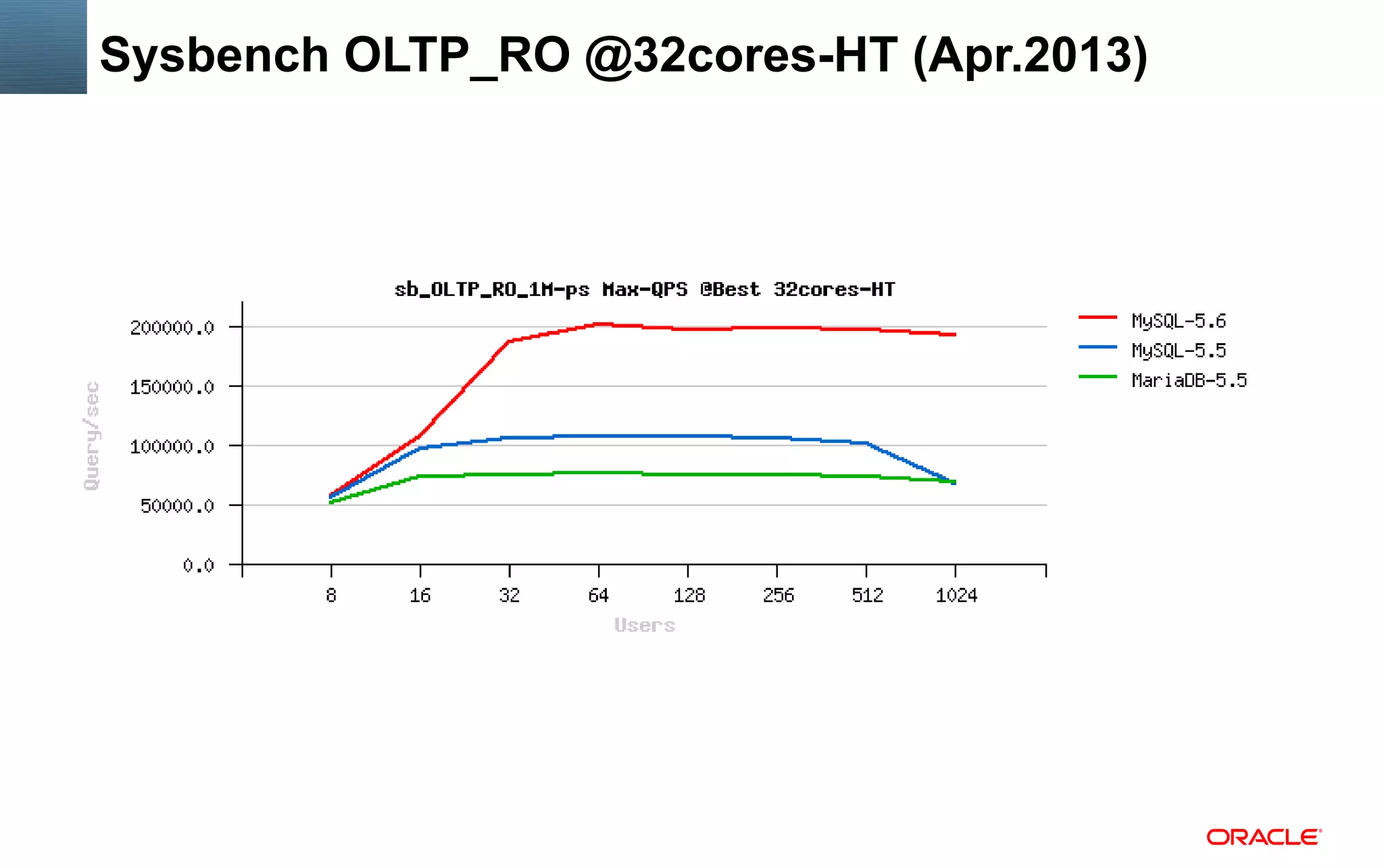

Sysbench OLTP_RO @32cores-HT (Apr.2013)

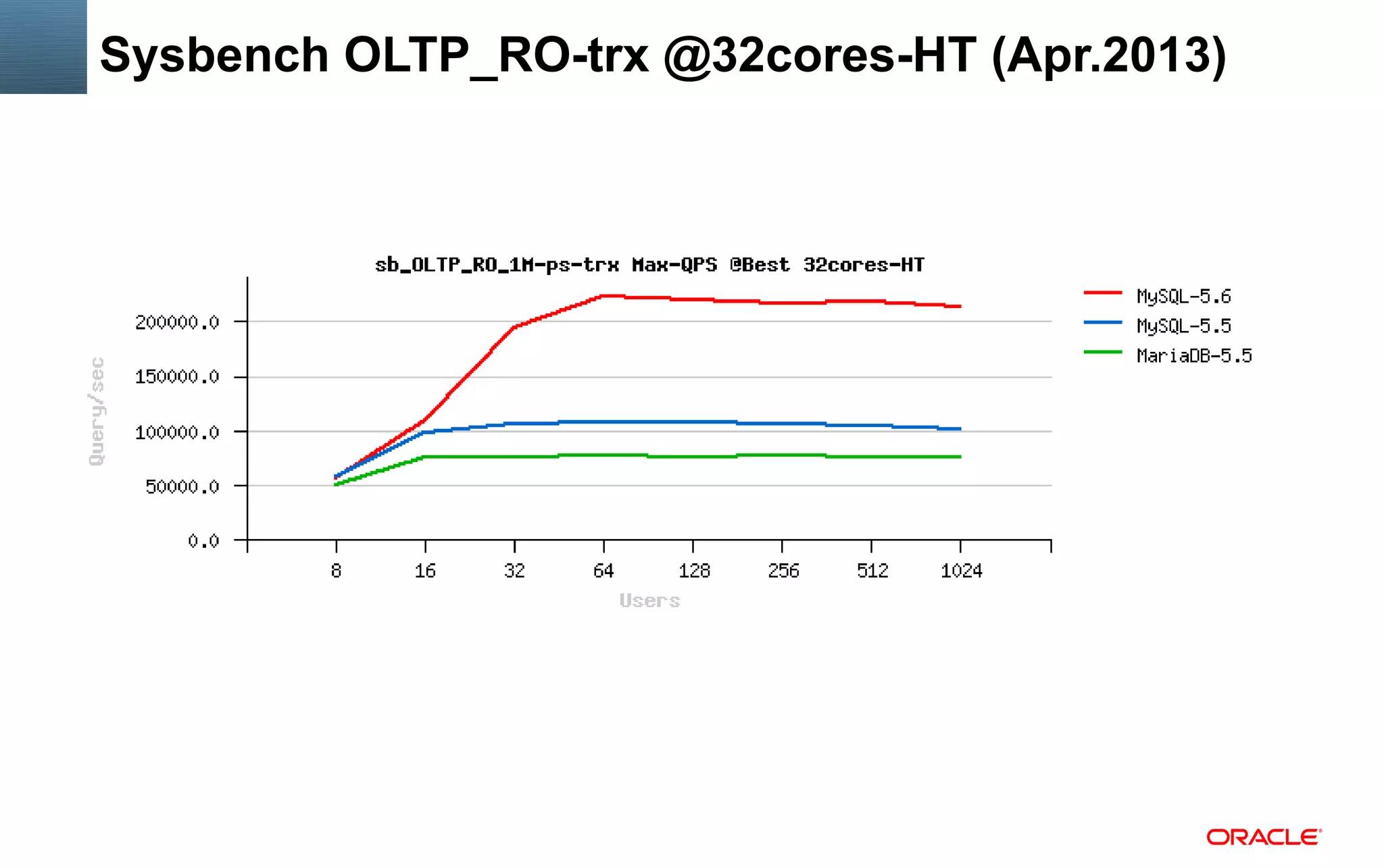

Sysbench OLTP_RO-trx @32cores-HT (Apr.2013)

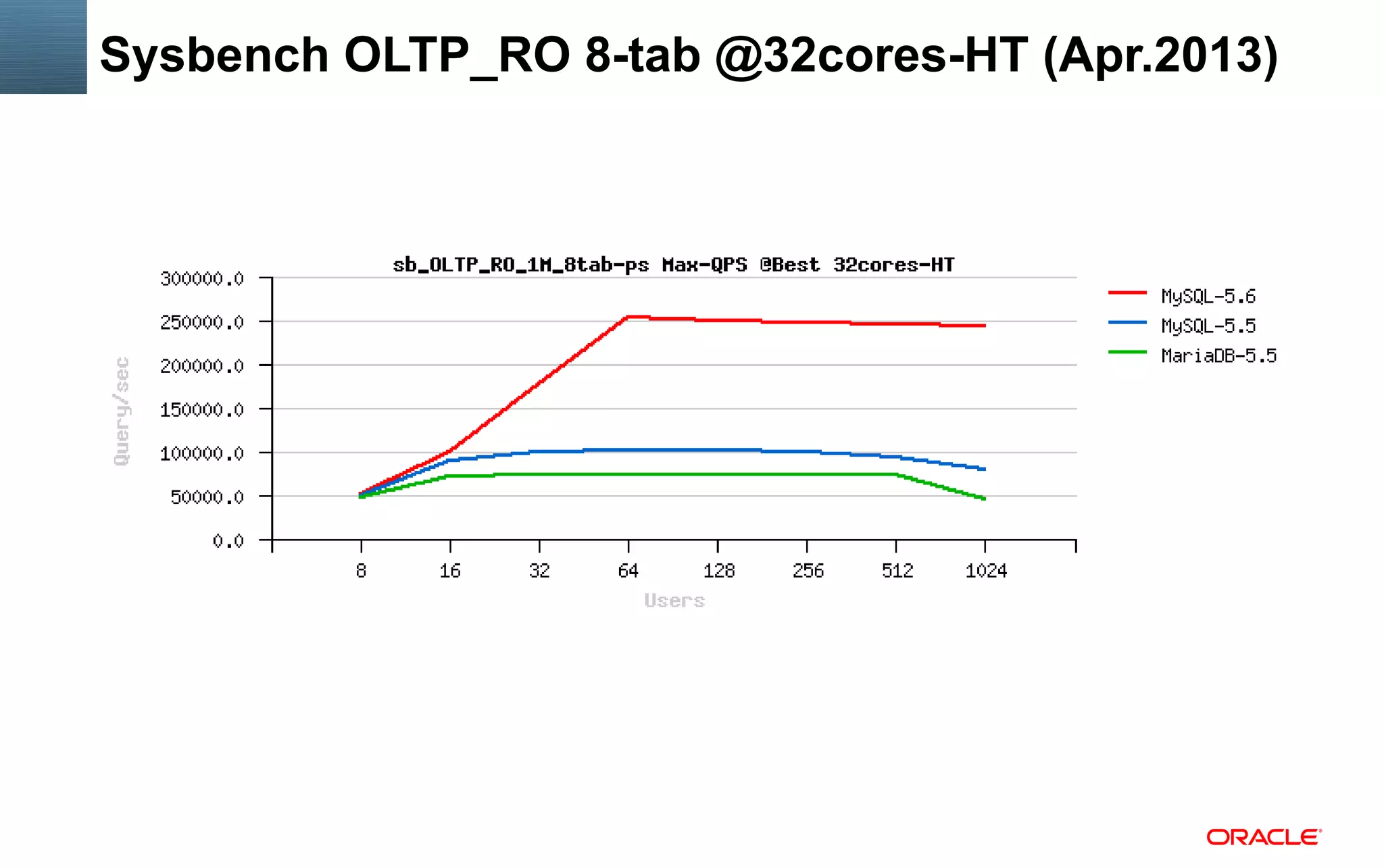

Sysbench OLTP_RO 8-tab @32cores-HT (Apr.2013)

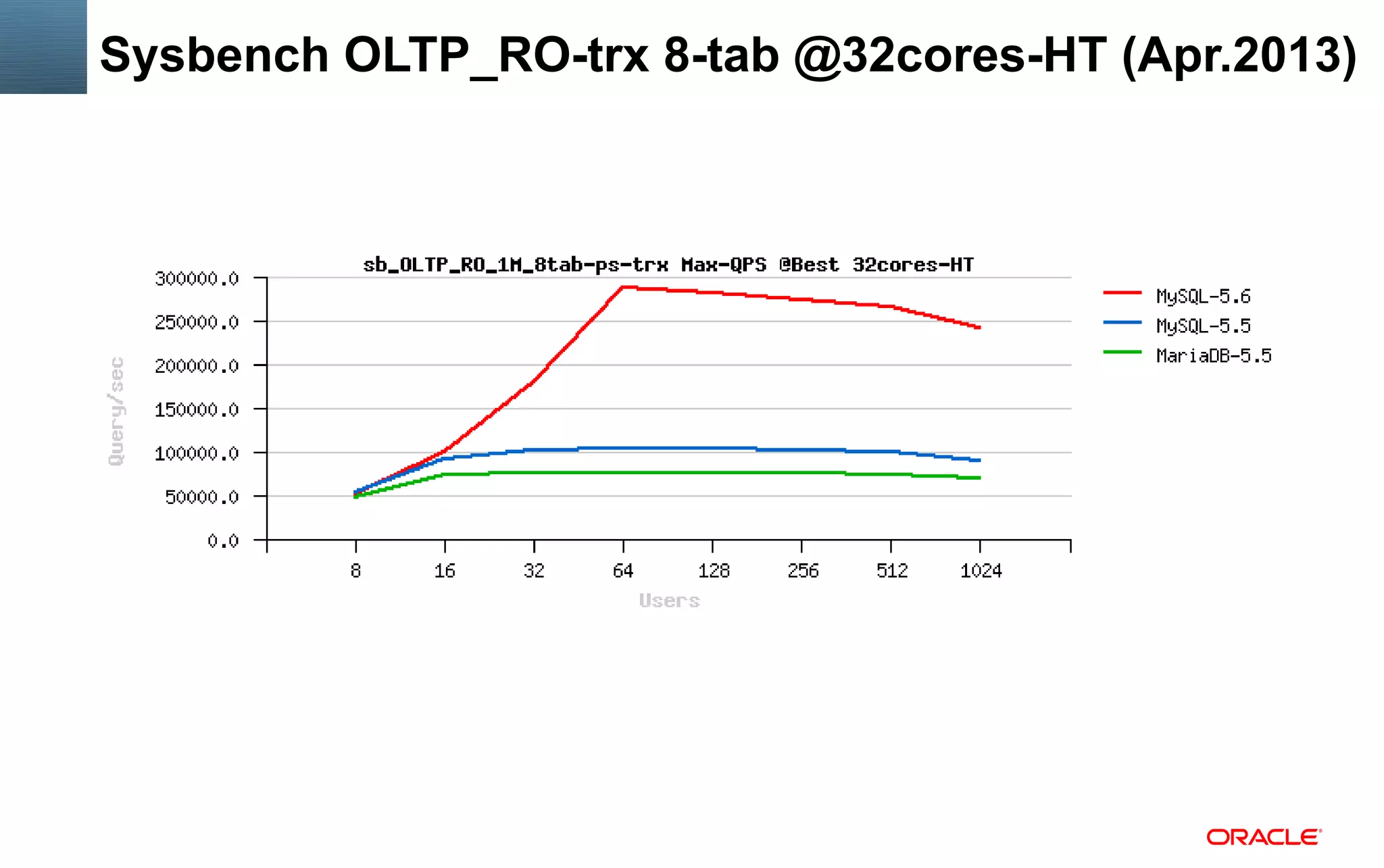

Sysbench OLTP_RO-trx 8-tab @32cores-HT (Apr.2013)

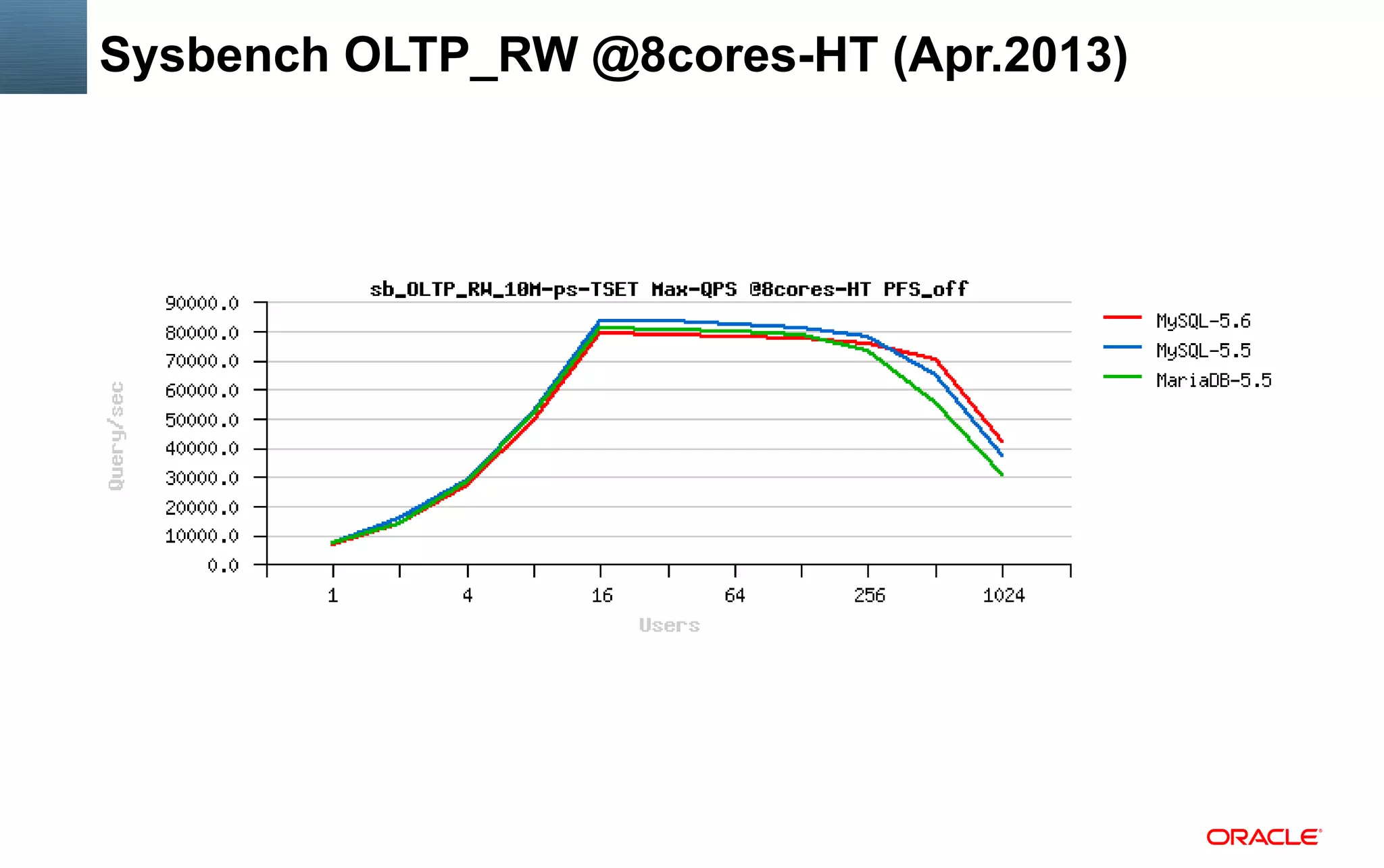

Sysbench OLTP_RW @8cores-HT (Apr.2013)

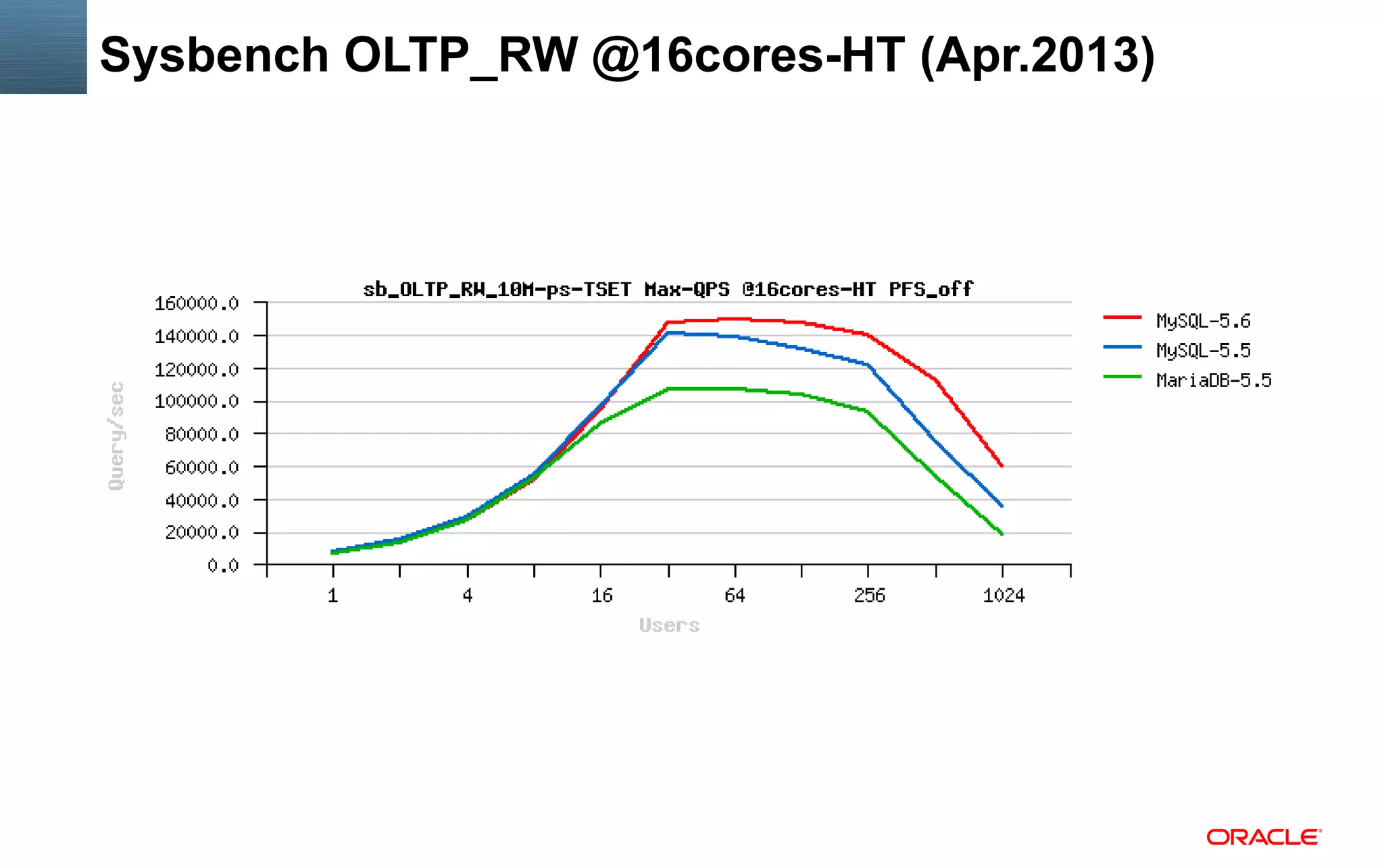

Sysbench OLTP_RW @16cores-HT (Apr.2013)

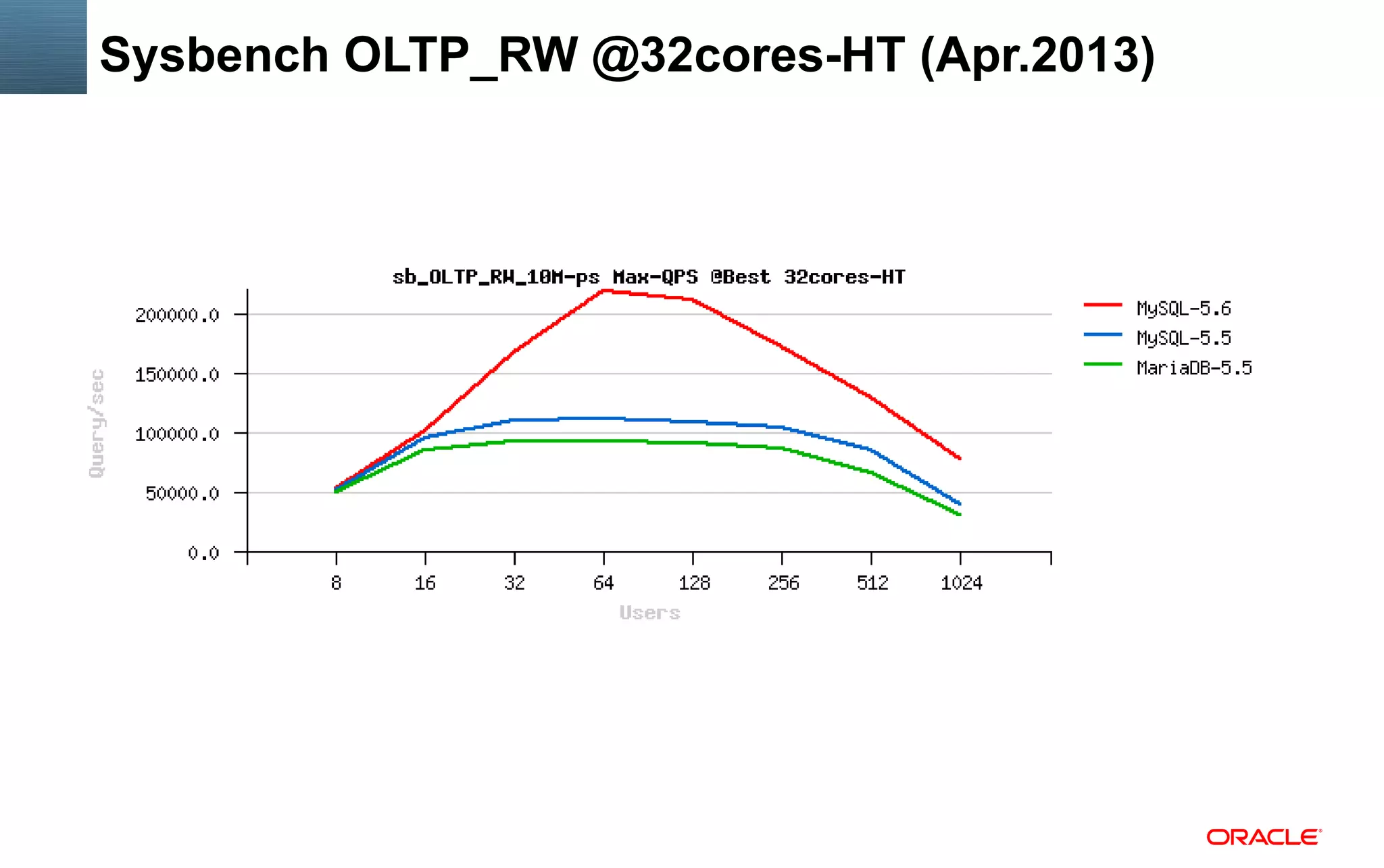

Sysbench OLTP_RW @32cores-HT (Apr.2013)

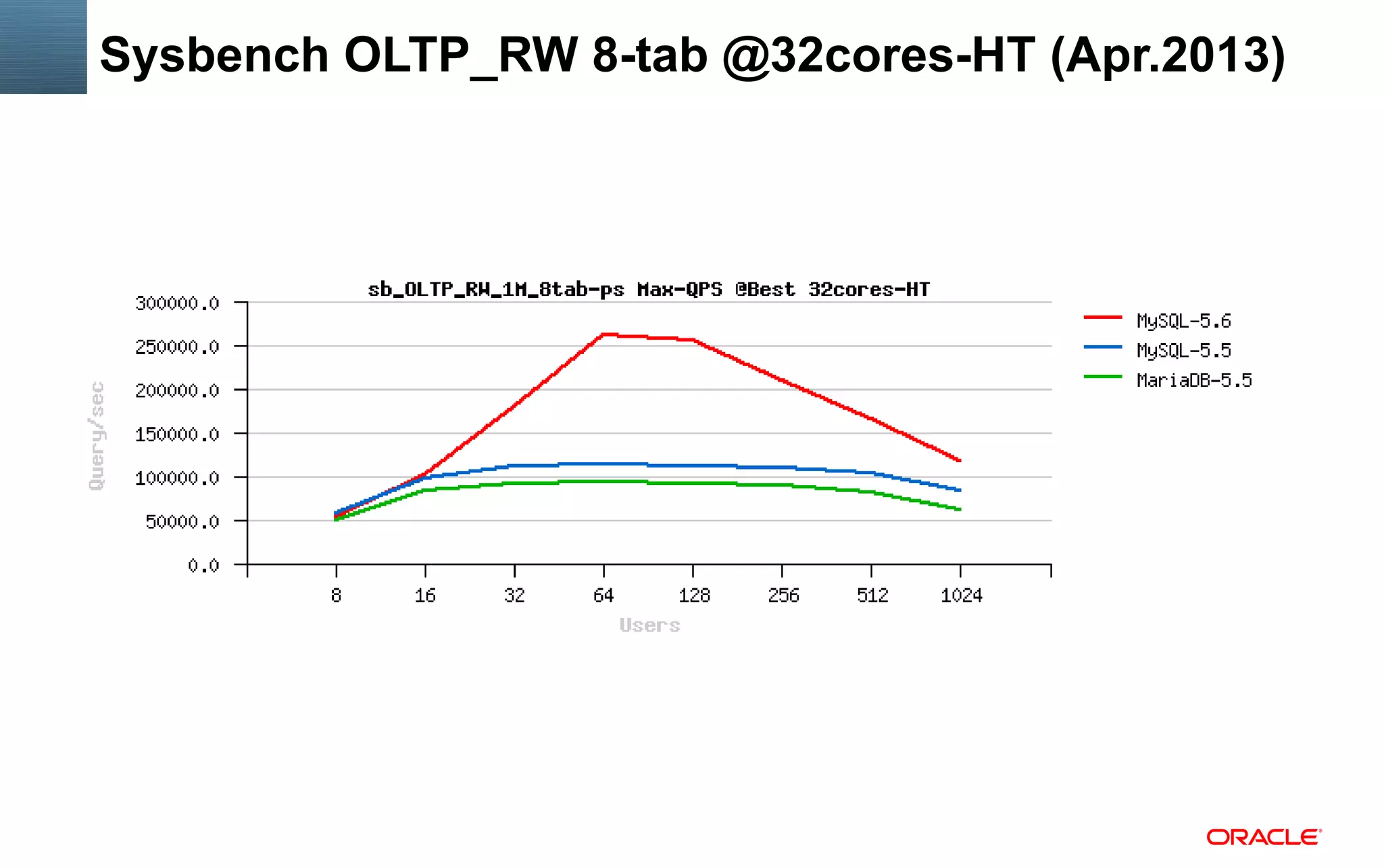

Sysbench OLTP_RW 8-tab @32cores-HT (Apr.2013)
MySQL 5.6: Pending issues
●

Index lock..

●

Lock_sys contention..

●

Trx_sys contention..

●

MDL scalability..

●

Flushing limits..

●

LRU flushing..

●

Design bug on block locking.. (was here from the beginning)

●

Not able yet to use 100% I/O capacity on a powerful storage..

●

“Mysterious” contentions on dbSTRESS..

●

etc..

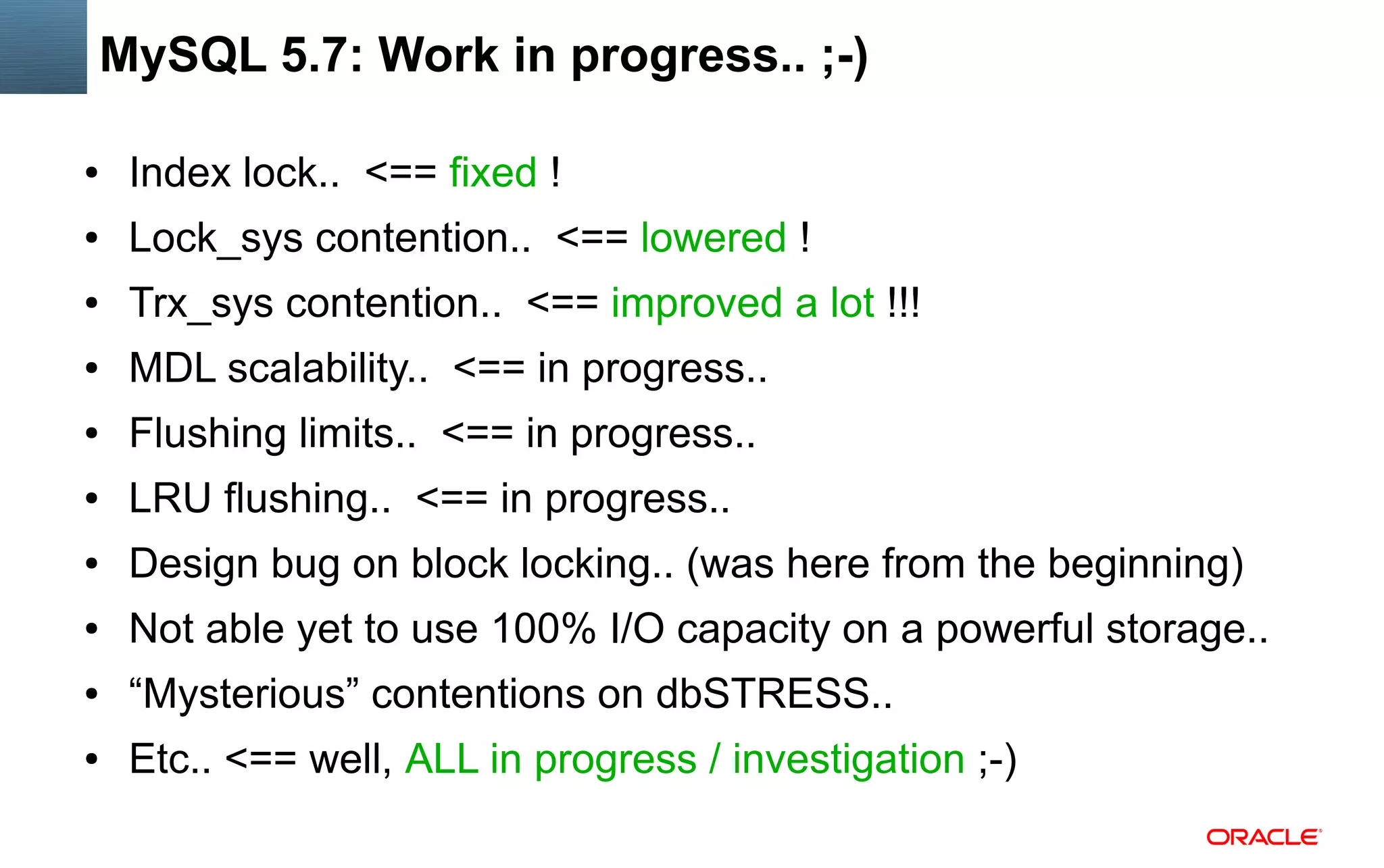

MySQL 5.7: Work in progress.. ;-)
●

Index lock.. <== fixed !

●

Lock_sys contention.. <== lowered !

●

Trx_sys contention.. <== improved a lot !!!

●

MDL scalability.. <== in progress..

●

Flushing limits.. <== in progress..

●

LRU flushing.. <== in progress..

●

Design bug on block locking.. (was here from the beginning)

●

Not able yet to use 100% I/O capacity on a powerful storage..

●

“Mysterious” contentions on dbSTRESS..

●

Etc.. <== well, ALL in progress / investigation ;-)
MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RO Point-Selects 8-tables: 500K QPS !!!
●

UNIX socket, sysbench 0.4.8 (older, using less CPU)

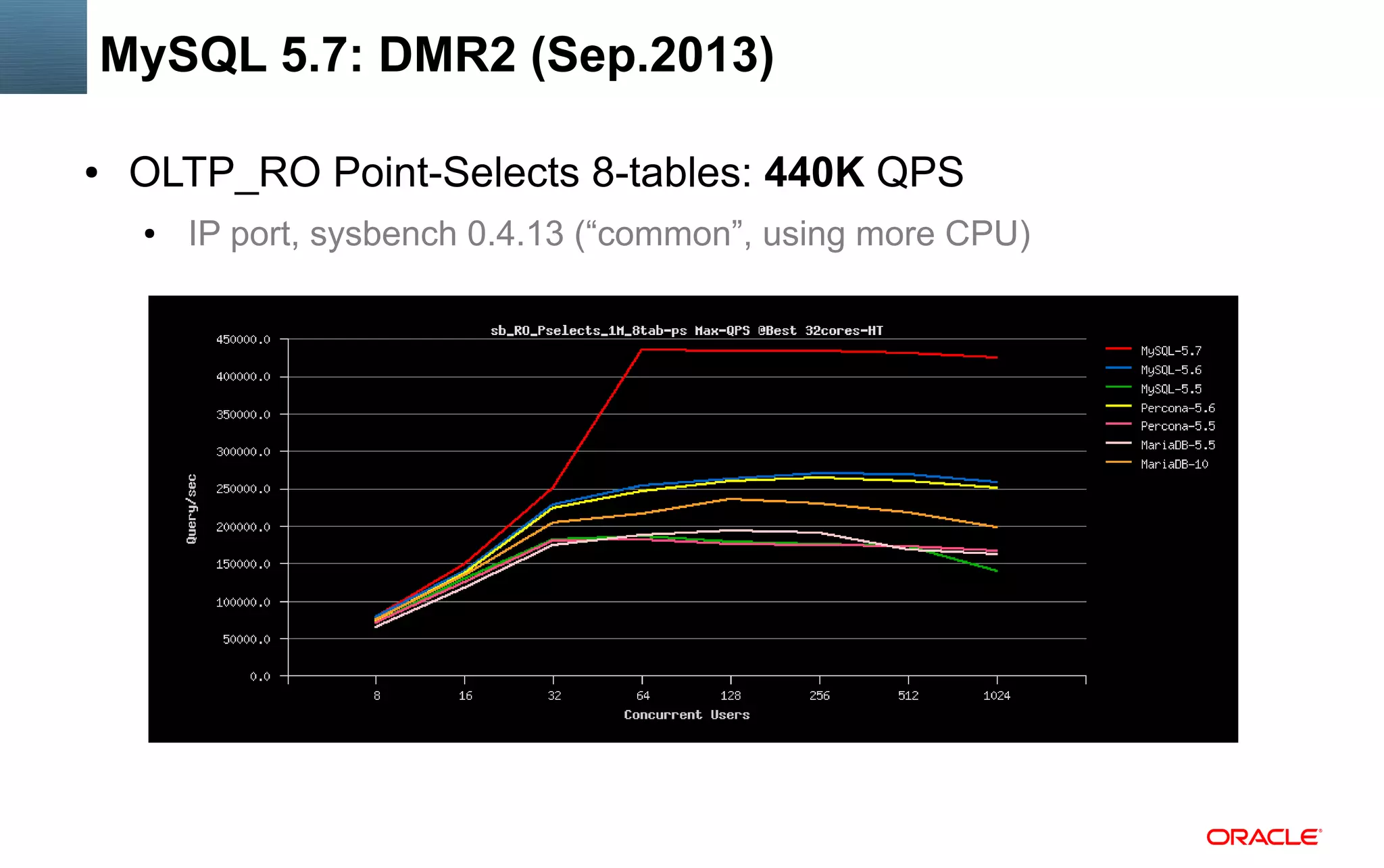

MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RO Point-Selects 8-tables: 440K QPS
●

IP port, sysbench 0.4.13 (“common”, using more CPU)
MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RO Point-Selects-TRX 8-tables: 200K QPS
●

IP port, sysbench 0.4.13 (“common”, using more CPU)

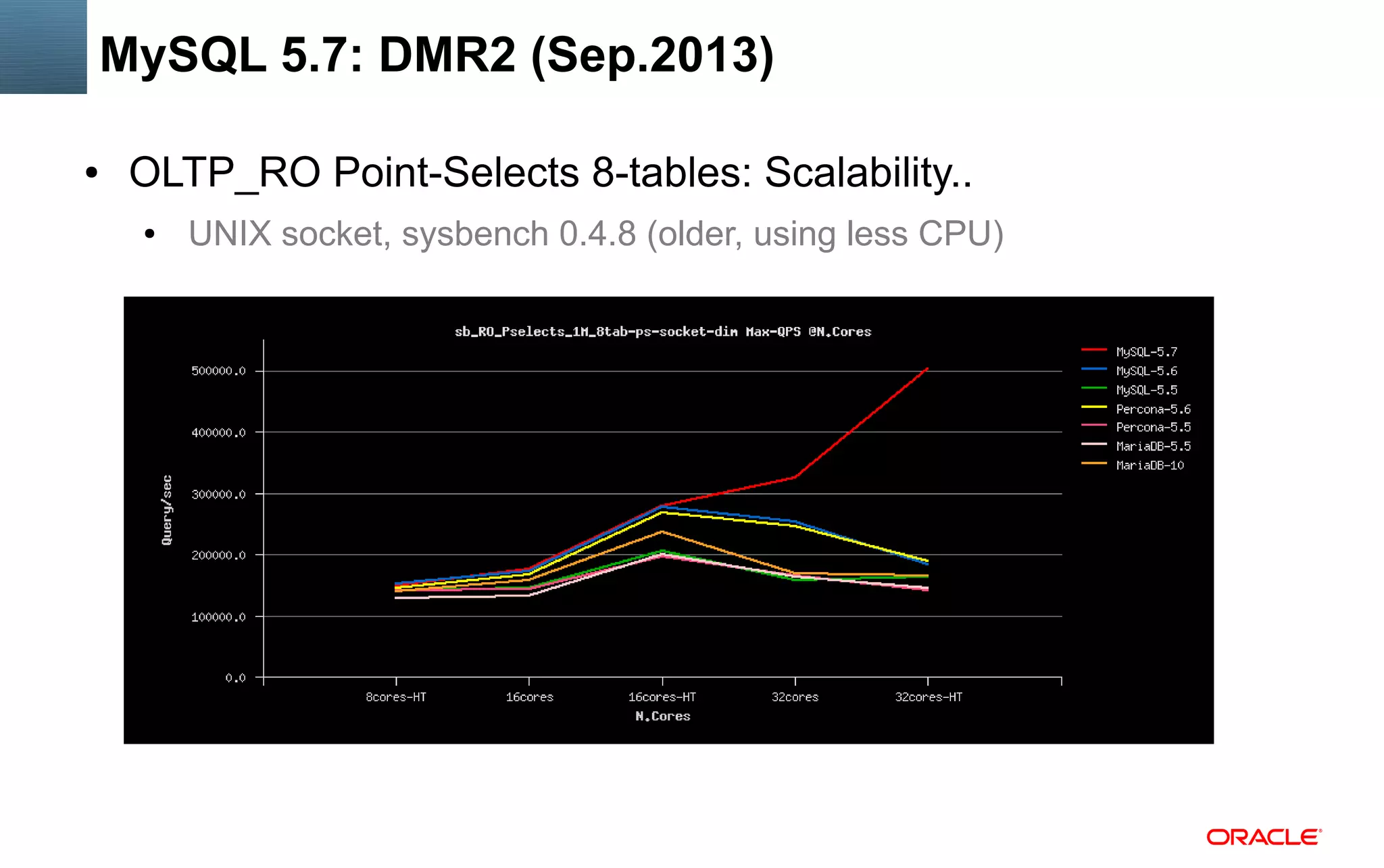

MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RO Point-Selects 8-tables: Scalability..
●

UNIX socket, sysbench 0.4.8 (older, using less CPU)

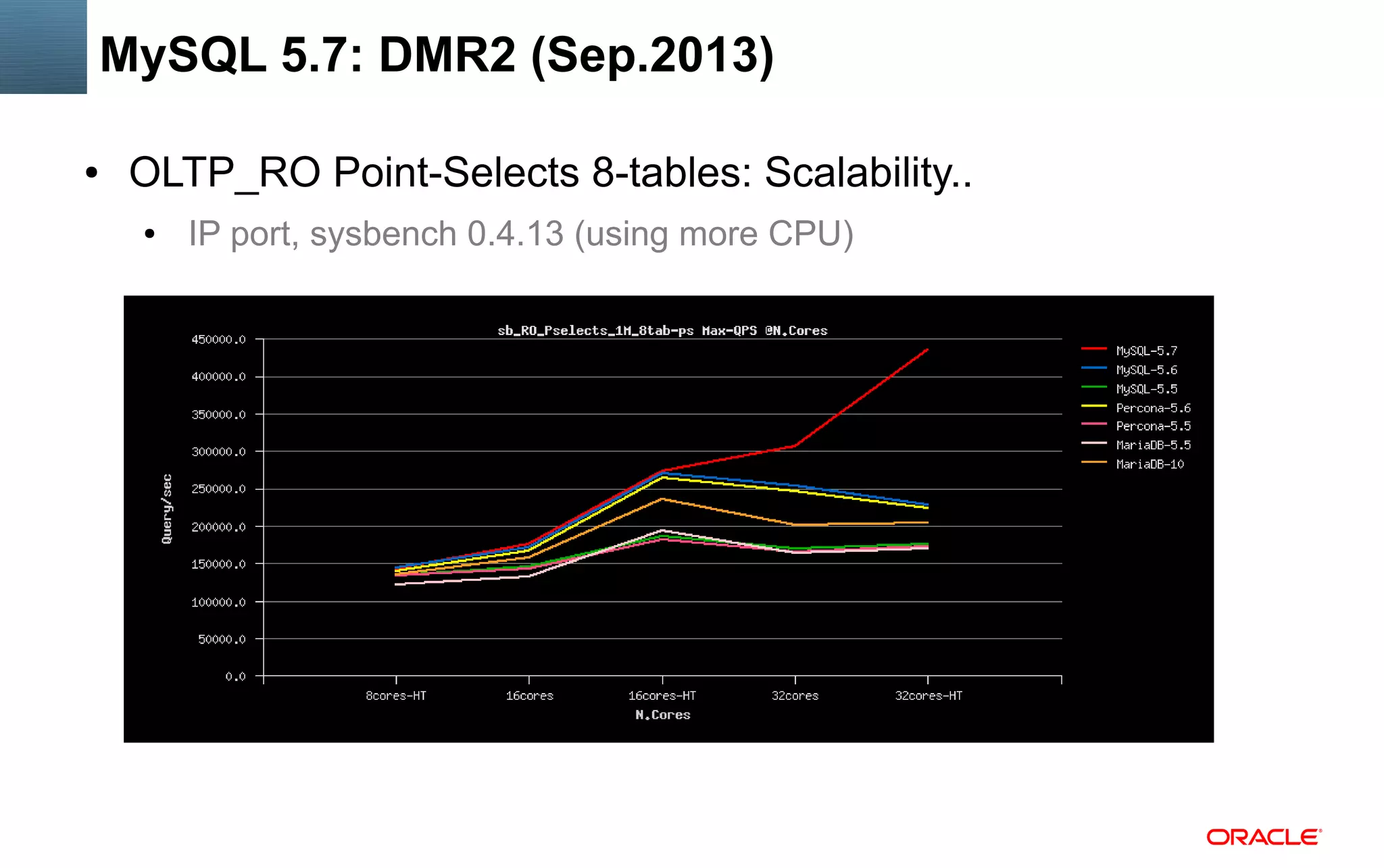

MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RO Point-Selects 8-tables: Scalability..
●

IP port, sysbench 0.4.13 (using more CPU)

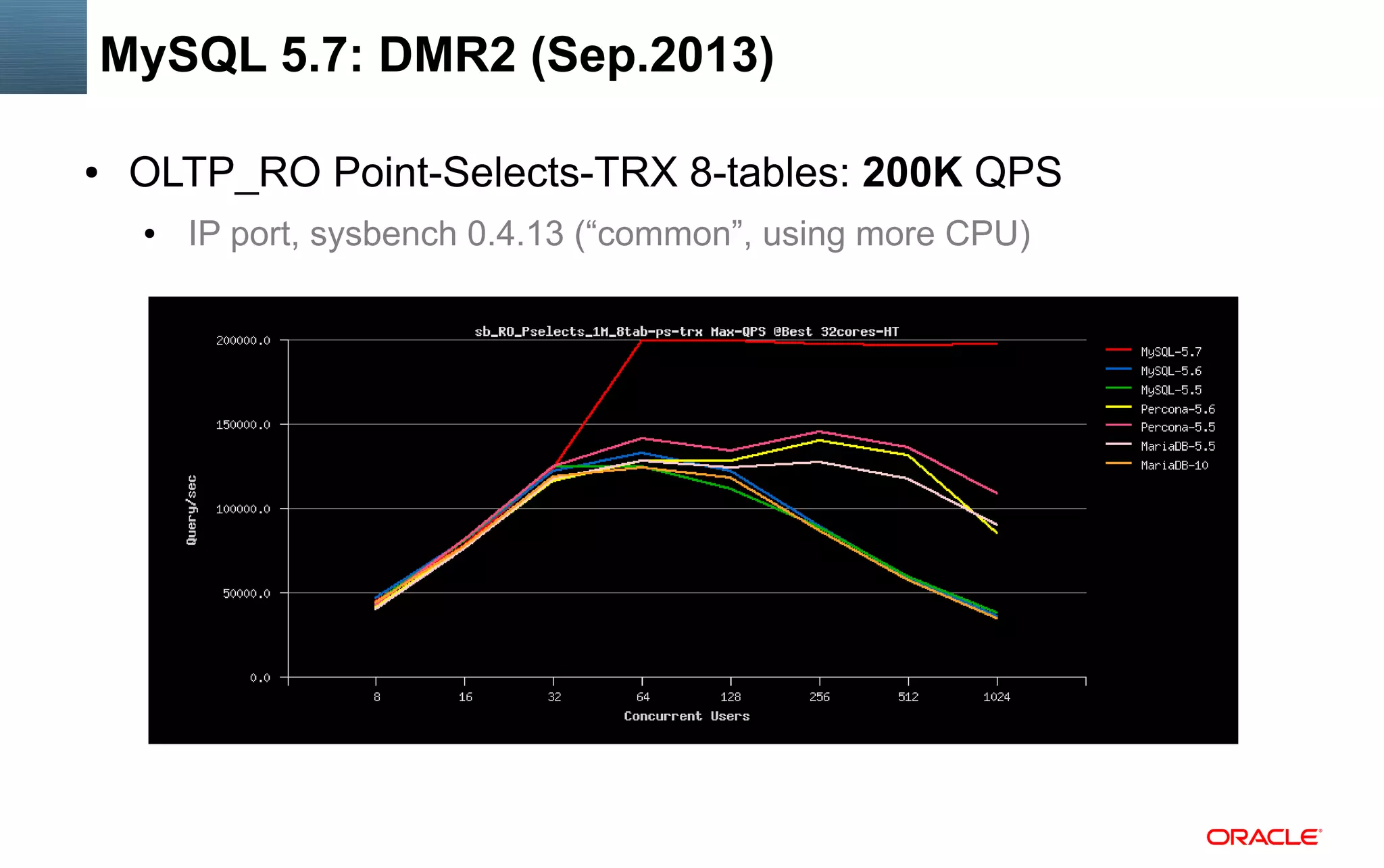

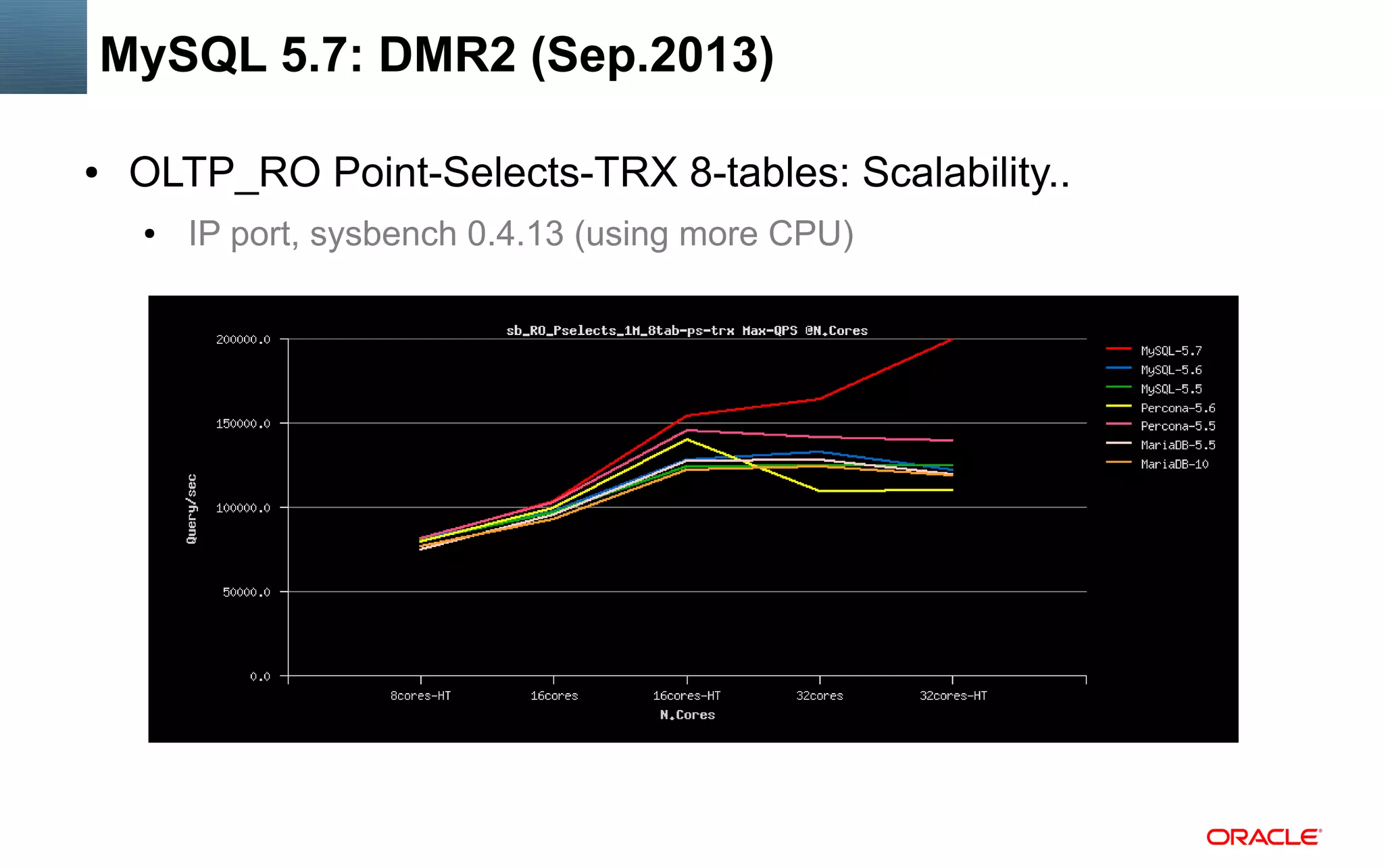

MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RO Point-Selects-TRX 8-tables: Scalability..
●

IP port, sysbench 0.4.13 (using more CPU)

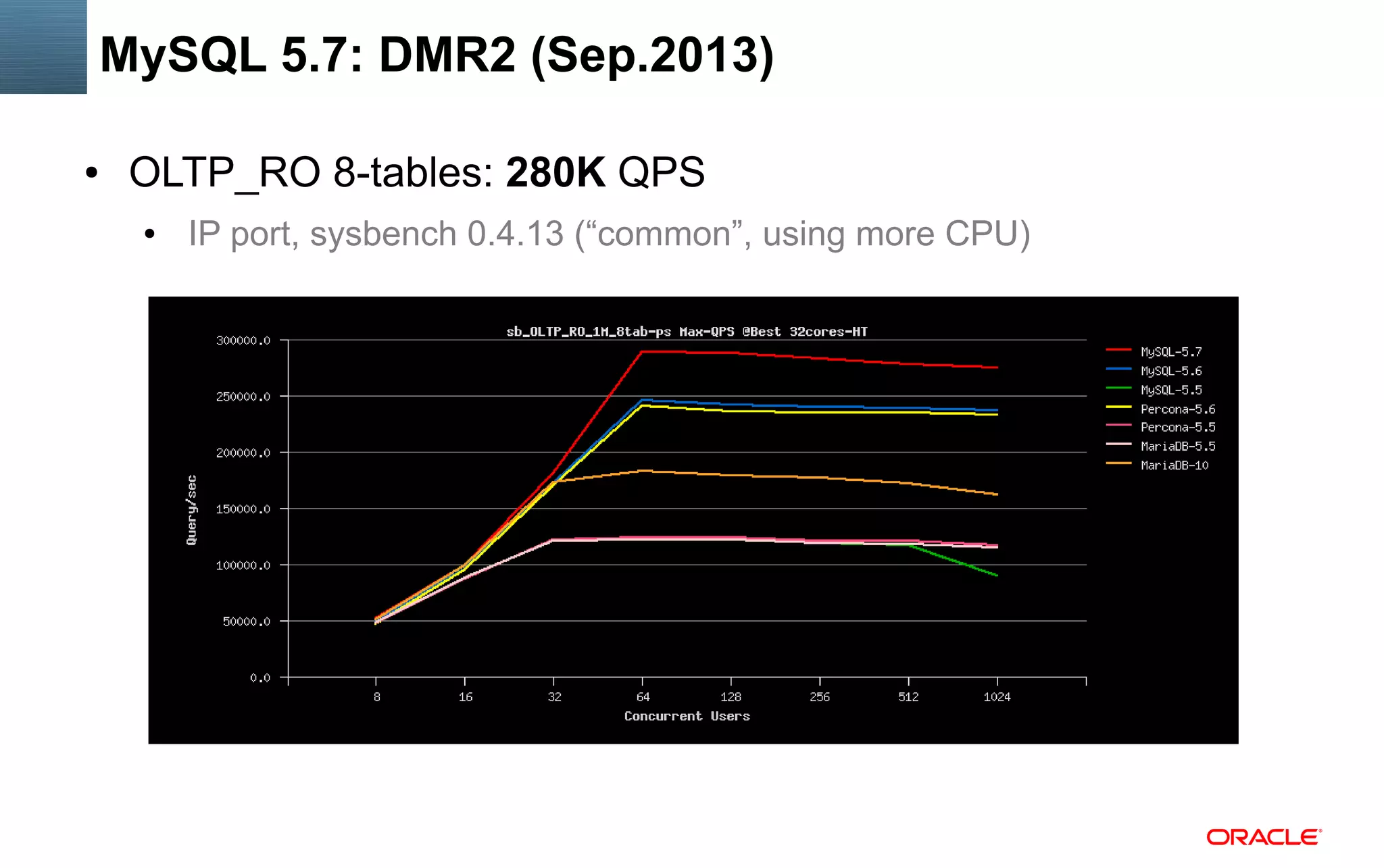

MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RO 8-tables: 280K QPS
●

IP port, sysbench 0.4.13 (“common”, using more CPU)

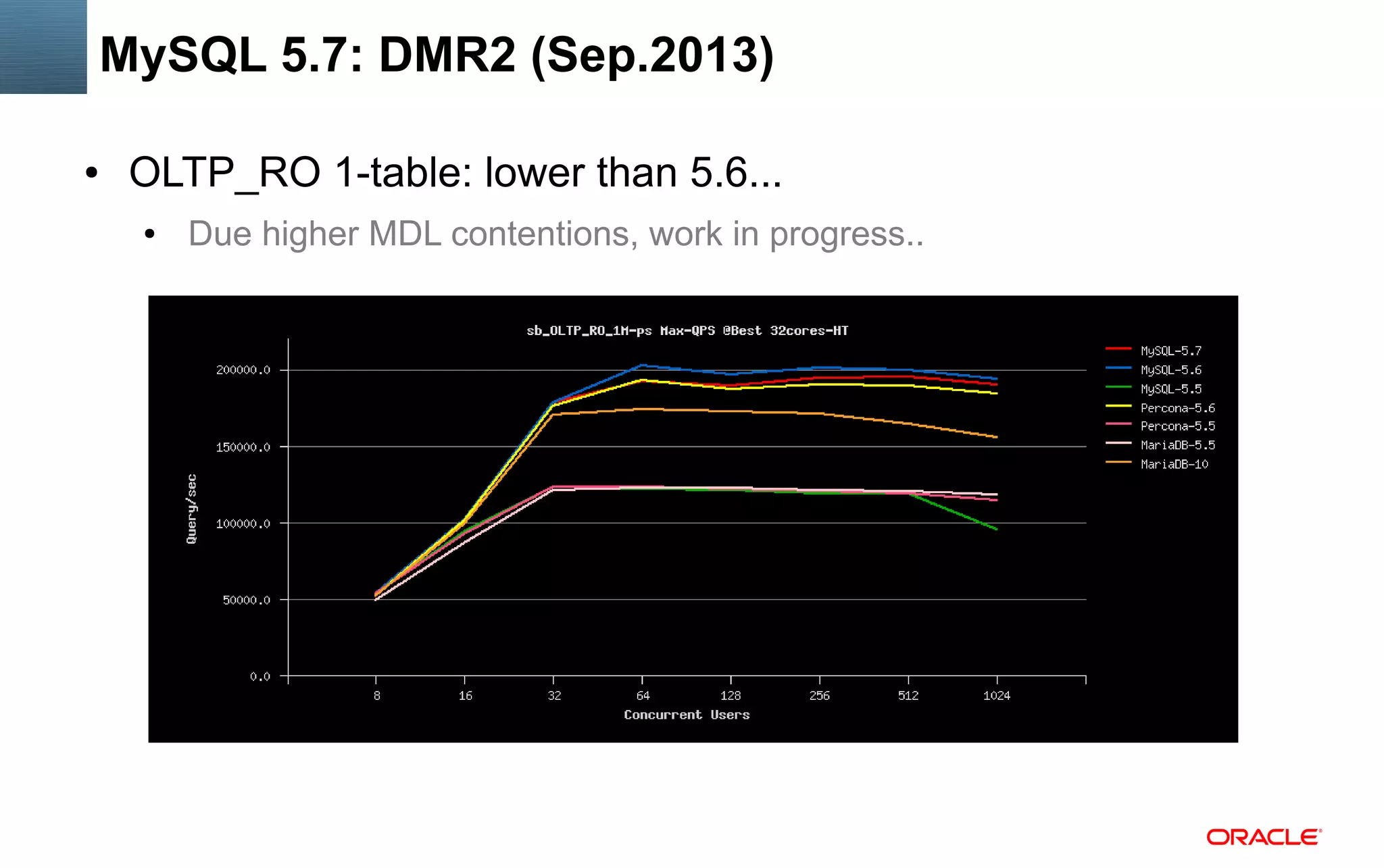

MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RO 1-table: lower than 5.6...
●

Due higher MDL contentions, work in progress..

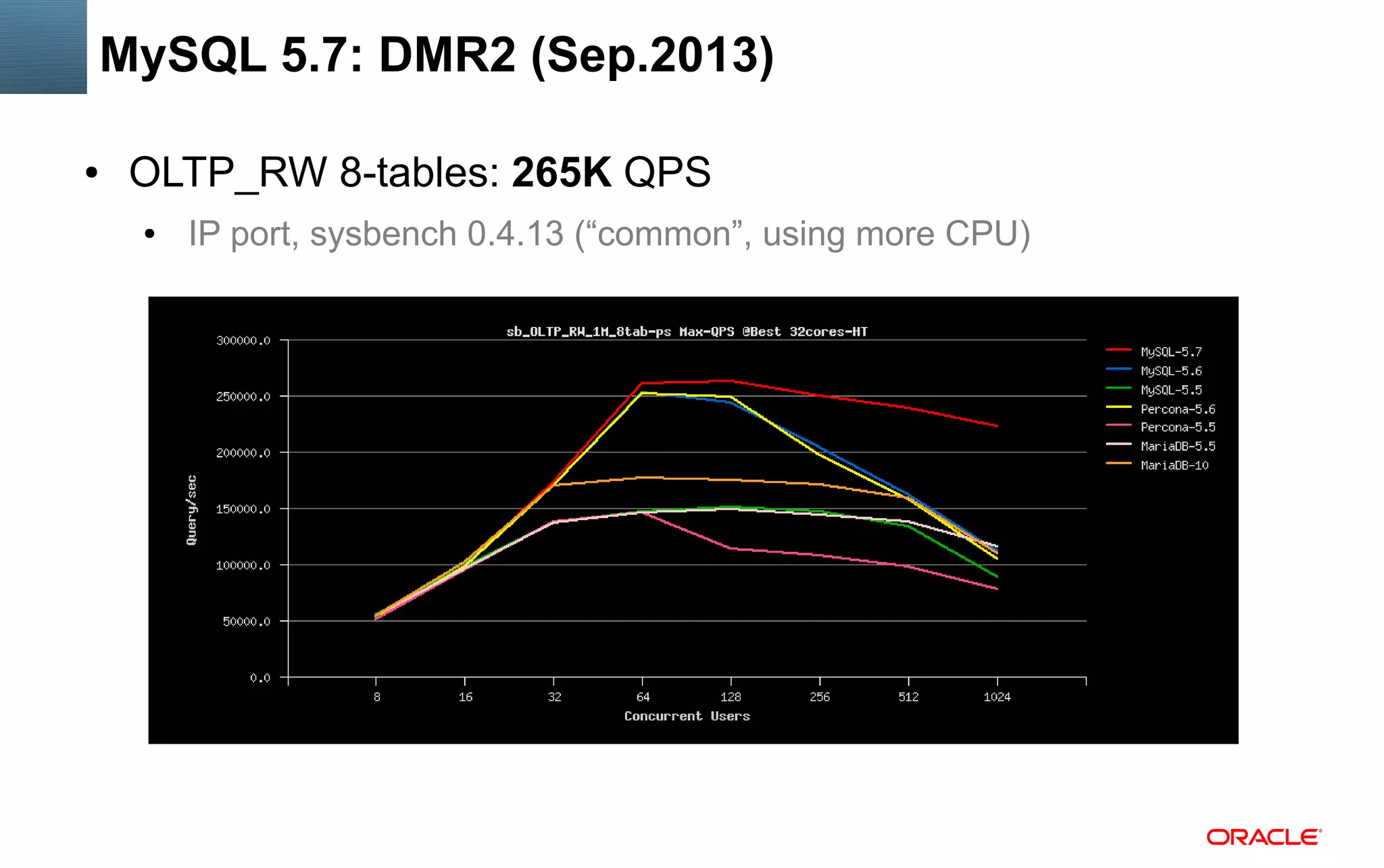

MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RW 8-tables: 265K QPS
●

IP port, sysbench 0.4.13 (“common”, using more CPU)

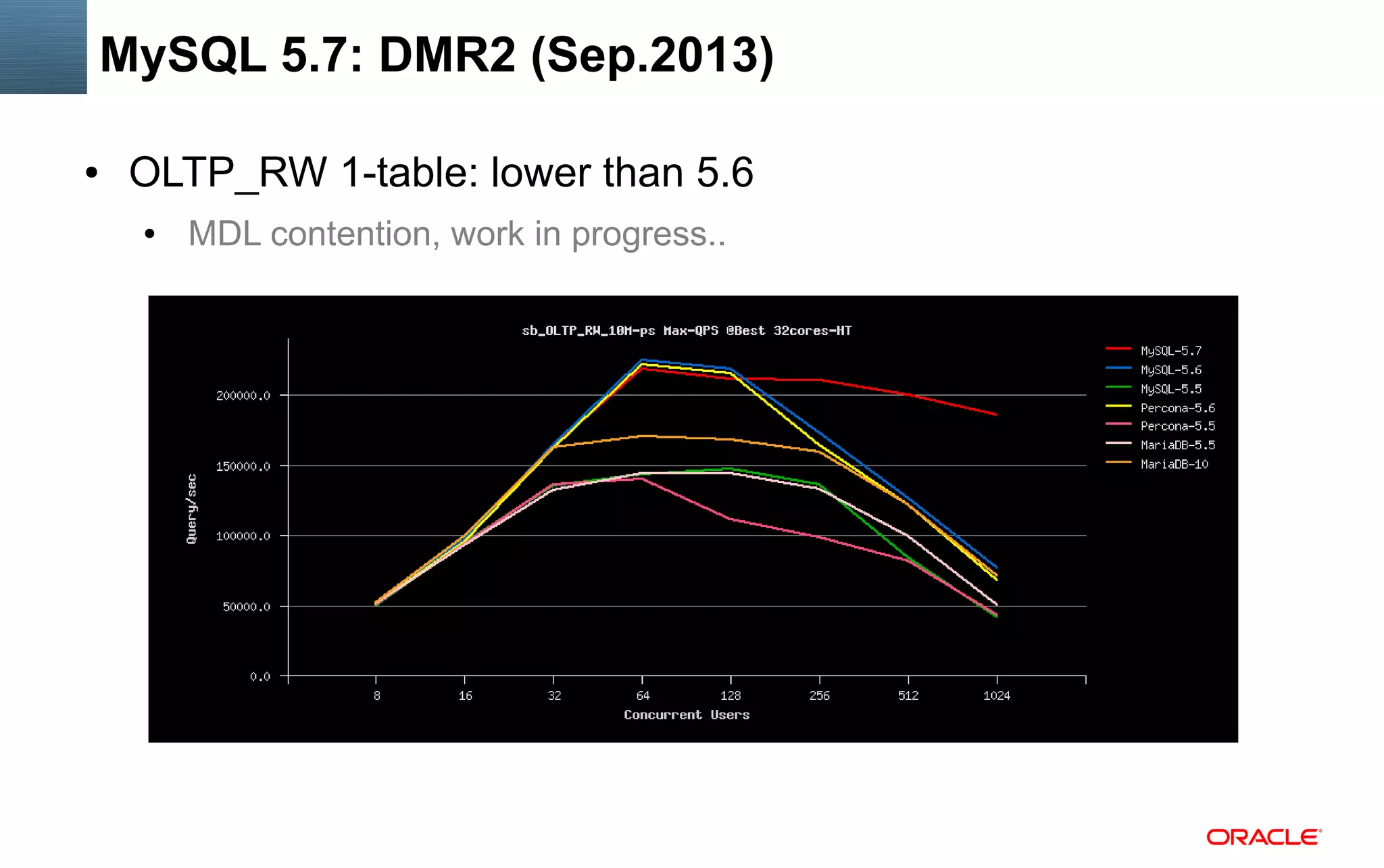

MySQL 5.7: DMR2 (Sep.2013)
●

OLTP_RW 1-table: lower than 5.6
●

MDL contention, work in progress..
THANK YOU !!!
●

All details about presented materials you may find on:
●

http://dimitrik.free.fr - dim_STAT, Benchmark Reports

●

http://dimitrik.free.fr/blog - Articles about MySQL Performance

More Related Content

What's hot

The Linux Block Layer - Built for Fast Storage
The Linux Block Layer - Built for Fast StorageThe Linux Block Layer - Built for Fast Storage
The Linux Block Layer - Built for Fast Storage
Kernel TLV

ProxySQL High Avalability and Configuration Management Overview
ProxySQL High Avalability and Configuration Management OverviewProxySQL High Avalability and Configuration Management Overview
ProxySQL High Avalability and Configuration Management Overview
René Cannaò

Deploying PostgreSQL on Kubernetes
Deploying PostgreSQL on KubernetesDeploying PostgreSQL on Kubernetes
Deploying PostgreSQL on Kubernetes
Jimmy Angelakos

Patroni - HA PostgreSQL made easy
Patroni - HA PostgreSQL made easyPatroni - HA PostgreSQL made easy
Patroni - HA PostgreSQL made easy
Alexander Kukushkin

Linux Networking Explained
Linux Networking ExplainedLinux Networking Explained
Linux Networking Explained
Thomas Graf

PostgreSQL WAL for DBAs
PostgreSQL WAL for DBAs PostgreSQL WAL for DBAs
PostgreSQL WAL for DBAs
PGConf APAC

Accelerating Envoy and Istio with Cilium and the Linux Kernel
Accelerating Envoy and Istio with Cilium and the Linux KernelAccelerating Envoy and Istio with Cilium and the Linux Kernel
Accelerating Envoy and Istio with Cilium and the Linux Kernel
Thomas Graf

DevConf 2014 Kernel Networking Walkthrough
DevConf 2014   Kernel Networking WalkthroughDevConf 2014   Kernel Networking Walkthrough
DevConf 2014 Kernel Networking Walkthrough
Thomas Graf

EBPF and Linux Networking
EBPF and Linux NetworkingEBPF and Linux Networking
EBPF and Linux Networking
PLUMgrid

Room 3 - 7 - Nguyễn Như Phúc Huy - Vitastor: a fast and simple Ceph-like bloc...
Room 3 - 7 - Nguyễn Như Phúc Huy - Vitastor: a fast and simple Ceph-like bloc...Room 3 - 7 - Nguyễn Như Phúc Huy - Vitastor: a fast and simple Ceph-like bloc...
Room 3 - 7 - Nguyễn Như Phúc Huy - Vitastor: a fast and simple Ceph-like bloc...
Vietnam Open Infrastructure User Group

OSMC 2021 | pg_stat_monitor: A cool extension for better database (PostgreSQL...
OSMC 2021 | pg_stat_monitor: A cool extension for better database (PostgreSQL...OSMC 2021 | pg_stat_monitor: A cool extension for better database (PostgreSQL...
OSMC 2021 | pg_stat_monitor: A cool extension for better database (PostgreSQL...
NETWAYS

Kafka replication apachecon_2013
Kafka replication apachecon_2013Kafka replication apachecon_2013
Kafka replication apachecon_2013
Jun Rao

Using CloudStack With Clustered LVM
Using CloudStack With Clustered LVMUsing CloudStack With Clustered LVM
Using CloudStack With Clustered LVM
Marcus L Sorensen

Kvm performance optimization for ubuntu
Kvm performance optimization for ubuntuKvm performance optimization for ubuntu
Kvm performance optimization for ubuntu
Sim Janghoon

MySQL Advanced Administrator 2021 - 네오클로바
MySQL Advanced Administrator 2021 - 네오클로바MySQL Advanced Administrator 2021 - 네오클로바
MySQL Advanced Administrator 2021 - 네오클로바
NeoClova

MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
Jean-François Gagné

MySQL InnoDB Cluster - Group Replication
MySQL InnoDB Cluster - Group ReplicationMySQL InnoDB Cluster - Group Replication
MySQL InnoDB Cluster - Group Replication
Frederic Descamps

Fluentd with MySQL
Fluentd with MySQLFluentd with MySQL
Fluentd with MySQL
I Goo Lee

Streaming Data Analytics with ksqlDB and Superset | Robert Stolz, Preset
Streaming Data Analytics with ksqlDB and Superset | Robert Stolz, PresetStreaming Data Analytics with ksqlDB and Superset | Robert Stolz, Preset
Streaming Data Analytics with ksqlDB and Superset | Robert Stolz, Preset
HostedbyConfluent

High Availability PostgreSQL with Zalando Patroni
High Availability PostgreSQL with Zalando PatroniHigh Availability PostgreSQL with Zalando Patroni
High Availability PostgreSQL with Zalando Patroni
Zalando Technology


What's hot (20)

The Linux Block Layer - Built for Fast Storage
The Linux Block Layer - Built for Fast StorageThe Linux Block Layer - Built for Fast Storage
The Linux Block Layer - Built for Fast Storage

ProxySQL High Avalability and Configuration Management Overview
ProxySQL High Avalability and Configuration Management OverviewProxySQL High Avalability and Configuration Management Overview
ProxySQL High Avalability and Configuration Management Overview

Deploying PostgreSQL on Kubernetes
Deploying PostgreSQL on KubernetesDeploying PostgreSQL on Kubernetes
Deploying PostgreSQL on Kubernetes

Patroni - HA PostgreSQL made easy
Patroni - HA PostgreSQL made easyPatroni - HA PostgreSQL made easy
Patroni - HA PostgreSQL made easy

Linux Networking Explained
Linux Networking ExplainedLinux Networking Explained
Linux Networking Explained

PostgreSQL WAL for DBAs
PostgreSQL WAL for DBAs PostgreSQL WAL for DBAs
PostgreSQL WAL for DBAs

Accelerating Envoy and Istio with Cilium and the Linux Kernel
Accelerating Envoy and Istio with Cilium and the Linux KernelAccelerating Envoy and Istio with Cilium and the Linux Kernel
Accelerating Envoy and Istio with Cilium and the Linux Kernel

DevConf 2014 Kernel Networking Walkthrough
DevConf 2014   Kernel Networking WalkthroughDevConf 2014   Kernel Networking Walkthrough
DevConf 2014 Kernel Networking Walkthrough

EBPF and Linux Networking
EBPF and Linux NetworkingEBPF and Linux Networking
EBPF and Linux Networking

Room 3 - 7 - Nguyễn Như Phúc Huy - Vitastor: a fast and simple Ceph-like bloc...
Room 3 - 7 - Nguyễn Như Phúc Huy - Vitastor: a fast and simple Ceph-like bloc...Room 3 - 7 - Nguyễn Như Phúc Huy - Vitastor: a fast and simple Ceph-like bloc...
Room 3 - 7 - Nguyễn Như Phúc Huy - Vitastor: a fast and simple Ceph-like bloc...

OSMC 2021 | pg_stat_monitor: A cool extension for better database (PostgreSQL...
OSMC 2021 | pg_stat_monitor: A cool extension for better database (PostgreSQL...OSMC 2021 | pg_stat_monitor: A cool extension for better database (PostgreSQL...
OSMC 2021 | pg_stat_monitor: A cool extension for better database (PostgreSQL...

Kafka replication apachecon_2013
Kafka replication apachecon_2013Kafka replication apachecon_2013
Kafka replication apachecon_2013

Using CloudStack With Clustered LVM
Using CloudStack With Clustered LVMUsing CloudStack With Clustered LVM
Using CloudStack With Clustered LVM

Kvm performance optimization for ubuntu
Kvm performance optimization for ubuntuKvm performance optimization for ubuntu
Kvm performance optimization for ubuntu

MySQL Advanced Administrator 2021 - 네오클로바
MySQL Advanced Administrator 2021 - 네오클로바MySQL Advanced Administrator 2021 - 네오클로바
MySQL Advanced Administrator 2021 - 네오클로바

MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...

MySQL InnoDB Cluster - Group Replication
MySQL InnoDB Cluster - Group ReplicationMySQL InnoDB Cluster - Group Replication
MySQL InnoDB Cluster - Group Replication

Fluentd with MySQL
Fluentd with MySQLFluentd with MySQL
Fluentd with MySQL

Streaming Data Analytics with ksqlDB and Superset | Robert Stolz, Preset
Streaming Data Analytics with ksqlDB and Superset | Robert Stolz, PresetStreaming Data Analytics with ksqlDB and Superset | Robert Stolz, Preset
Streaming Data Analytics with ksqlDB and Superset | Robert Stolz, Preset

High Availability PostgreSQL with Zalando Patroni
High Availability PostgreSQL with Zalando PatroniHigh Availability PostgreSQL with Zalando Patroni
High Availability PostgreSQL with Zalando Patroni


Viewers also liked

MySQL Performance Tuning. Part 1: MySQL Configuration (includes MySQL 5.7)
MySQL Performance Tuning. Part 1: MySQL Configuration (includes MySQL 5.7)MySQL Performance Tuning. Part 1: MySQL Configuration (includes MySQL 5.7)
MySQL Performance Tuning. Part 1: MySQL Configuration (includes MySQL 5.7)
Aurimas Mikalauskas

Ten Reasons Why You Should Prefer PostgreSQL to MySQL
Ten Reasons Why You Should Prefer PostgreSQL to MySQLTen Reasons Why You Should Prefer PostgreSQL to MySQL
Ten Reasons Why You Should Prefer PostgreSQL to MySQL
anandology

InnoDB: архитектура транзакционного хранилища (Константин Осипов)
InnoDB: архитектура транзакционного хранилища (Константин Осипов)InnoDB: архитектура транзакционного хранилища (Константин Осипов)
InnoDB: архитектура транзакционного хранилища (Константин Осипов)
Ontico

MySQL Performance Tuning at COSCUP 2014
MySQL Performance Tuning at COSCUP 2014MySQL Performance Tuning at COSCUP 2014
MySQL Performance Tuning at COSCUP 2014
Ryusuke Kajiyama

The Great Debate: PostgreSQL vs MySQL
The Great Debate: PostgreSQL vs MySQLThe Great Debate: PostgreSQL vs MySQL
The Great Debate: PostgreSQL vs MySQL
EDB

PostgreSQL and MySQL
PostgreSQL and MySQLPostgreSQL and MySQL
PostgreSQL and MySQL
PostgreSQL Experts, Inc.

Developing Information Schema Plugins
Developing Information Schema PluginsDeveloping Information Schema Plugins
Developing Information Schema Plugins
Mark Leith

MySQL for Oracle DBAs
MySQL for Oracle DBAsMySQL for Oracle DBAs
MySQL for Oracle DBAs
Mark Leith

Introduction to MySQL Enterprise Monitor
Introduction to MySQL Enterprise MonitorIntroduction to MySQL Enterprise Monitor
Introduction to MySQL Enterprise Monitor
Mark Leith

Extending MySQL Enterprise Monitor
Extending MySQL Enterprise MonitorExtending MySQL Enterprise Monitor
Extending MySQL Enterprise Monitor
Mark Leith

Getting to Know MySQL Enterprise Monitor
Getting to Know MySQL Enterprise MonitorGetting to Know MySQL Enterprise Monitor
Getting to Know MySQL Enterprise Monitor
Mark Leith

Performance schema and_ps_helper
Performance schema and_ps_helperPerformance schema and_ps_helper
Performance schema and_ps_helper
Mark Leith

MySQL 5.7: Core Server Changes
MySQL 5.7: Core Server ChangesMySQL 5.7: Core Server Changes
MySQL 5.7: Core Server Changes
Morgan Tocker

MySQL NoSQL APIs
MySQL NoSQL APIsMySQL NoSQL APIs
MySQL NoSQL APIs
Morgan Tocker

Performance Schema for MySQL Troubleshooting
 Performance Schema for MySQL Troubleshooting Performance Schema for MySQL Troubleshooting
Performance Schema for MySQL Troubleshooting
Sveta Smirnova

Optimizing MySQL
Optimizing MySQLOptimizing MySQL
Optimizing MySQL
Morgan Tocker

Mysql tech day_paris_ps_and_sys
Mysql tech day_paris_ps_and_sysMysql tech day_paris_ps_and_sys
Mysql tech day_paris_ps_and_sys
Mark Leith

Performance schema and sys schema
Performance schema and sys schemaPerformance schema and sys schema
Performance schema and sys schema
Mark Leith

How to Monitor MySQL
How to Monitor MySQLHow to Monitor MySQL
How to Monitor MySQL
Server Density

My sql 5.7-upcoming-changes-v2
My sql 5.7-upcoming-changes-v2My sql 5.7-upcoming-changes-v2
My sql 5.7-upcoming-changes-v2
Morgan Tocker


Viewers also liked (20)

MySQL Performance Tuning. Part 1: MySQL Configuration (includes MySQL 5.7)
MySQL Performance Tuning. Part 1: MySQL Configuration (includes MySQL 5.7)MySQL Performance Tuning. Part 1: MySQL Configuration (includes MySQL 5.7)
MySQL Performance Tuning. Part 1: MySQL Configuration (includes MySQL 5.7)

Ten Reasons Why You Should Prefer PostgreSQL to MySQL
Ten Reasons Why You Should Prefer PostgreSQL to MySQLTen Reasons Why You Should Prefer PostgreSQL to MySQL
Ten Reasons Why You Should Prefer PostgreSQL to MySQL

InnoDB: архитектура транзакционного хранилища (Константин Осипов)
InnoDB: архитектура транзакционного хранилища (Константин Осипов)InnoDB: архитектура транзакционного хранилища (Константин Осипов)
InnoDB: архитектура транзакционного хранилища (Константин Осипов)

MySQL Performance Tuning at COSCUP 2014
MySQL Performance Tuning at COSCUP 2014MySQL Performance Tuning at COSCUP 2014
MySQL Performance Tuning at COSCUP 2014

The Great Debate: PostgreSQL vs MySQL
The Great Debate: PostgreSQL vs MySQLThe Great Debate: PostgreSQL vs MySQL
The Great Debate: PostgreSQL vs MySQL

PostgreSQL and MySQL
PostgreSQL and MySQLPostgreSQL and MySQL
PostgreSQL and MySQL

Developing Information Schema Plugins
Developing Information Schema PluginsDeveloping Information Schema Plugins
Developing Information Schema Plugins

MySQL for Oracle DBAs
MySQL for Oracle DBAsMySQL for Oracle DBAs
MySQL for Oracle DBAs

Introduction to MySQL Enterprise Monitor
Introduction to MySQL Enterprise MonitorIntroduction to MySQL Enterprise Monitor
Introduction to MySQL Enterprise Monitor

Extending MySQL Enterprise Monitor
Extending MySQL Enterprise MonitorExtending MySQL Enterprise Monitor
Extending MySQL Enterprise Monitor

Getting to Know MySQL Enterprise Monitor
Getting to Know MySQL Enterprise MonitorGetting to Know MySQL Enterprise Monitor
Getting to Know MySQL Enterprise Monitor

Performance schema and_ps_helper
Performance schema and_ps_helperPerformance schema and_ps_helper
Performance schema and_ps_helper

MySQL 5.7: Core Server Changes
MySQL 5.7: Core Server ChangesMySQL 5.7: Core Server Changes
MySQL 5.7: Core Server Changes

MySQL NoSQL APIs
MySQL NoSQL APIsMySQL NoSQL APIs
MySQL NoSQL APIs

Performance Schema for MySQL Troubleshooting
 Performance Schema for MySQL Troubleshooting Performance Schema for MySQL Troubleshooting
Performance Schema for MySQL Troubleshooting

Optimizing MySQL
Optimizing MySQLOptimizing MySQL
Optimizing MySQL

Mysql tech day_paris_ps_and_sys
Mysql tech day_paris_ps_and_sysMysql tech day_paris_ps_and_sys
Mysql tech day_paris_ps_and_sys

Performance schema and sys schema
Performance schema and sys schemaPerformance schema and sys schema
Performance schema and sys schema

How to Monitor MySQL
How to Monitor MySQLHow to Monitor MySQL
How to Monitor MySQL

My sql 5.7-upcoming-changes-v2
My sql 5.7-upcoming-changes-v2My sql 5.7-upcoming-changes-v2
My sql 5.7-upcoming-changes-v2


Similar to MySQL 5.6 Performance

The Proper Care and Feeding of a MySQL Database for Busy Linux Admins -- SCaL...
The Proper Care and Feeding of a MySQL Database for Busy Linux Admins -- SCaL...The Proper Care and Feeding of a MySQL Database for Busy Linux Admins -- SCaL...
The Proper Care and Feeding of a MySQL Database for Busy Linux Admins -- SCaL...
Dave Stokes

Proper Care and Feeding of a MySQL Database for Busy Linux Administrators
Proper Care and Feeding of a MySQL Database for Busy Linux AdministratorsProper Care and Feeding of a MySQL Database for Busy Linux Administrators
Proper Care and Feeding of a MySQL Database for Busy Linux Administrators
Dave Stokes

MariaDB / MySQL tripping hazard and how to get out again?
MariaDB / MySQL tripping hazard and how to get out again?MariaDB / MySQL tripping hazard and how to get out again?
MariaDB / MySQL tripping hazard and how to get out again?
FromDual GmbH

Creating a Benchmarking Infrastructure That Just Works
Creating a Benchmarking Infrastructure That Just WorksCreating a Benchmarking Infrastructure That Just Works
Creating a Benchmarking Infrastructure That Just Works
Tim Callaghan

The Peoper Care and Feeding of a MySQL Server for Busy Linux Admin
The Peoper Care and Feeding of a MySQL Server for Busy Linux AdminThe Peoper Care and Feeding of a MySQL Server for Busy Linux Admin
The Peoper Care and Feeding of a MySQL Server for Busy Linux Admin
Dave Stokes

kranonit S06E01 Игорь Цинько: High load
kranonit S06E01 Игорь Цинько: High loadkranonit S06E01 Игорь Цинько: High load
kranonit S06E01 Игорь Цинько: High load
Krivoy Rog IT Community

Linuxfest Northwest Proper Care and Feeding Of a MySQL for Busy Linux Admins
Linuxfest Northwest Proper Care and Feeding Of a MySQL for Busy Linux AdminsLinuxfest Northwest Proper Care and Feeding Of a MySQL for Busy Linux Admins
Linuxfest Northwest Proper Care and Feeding Of a MySQL for Busy Linux Admins
Dave Stokes

UKOUG 2011: Practical MySQL Tuning
UKOUG 2011: Practical MySQL TuningUKOUG 2011: Practical MySQL Tuning
UKOUG 2011: Practical MySQL Tuning
FromDual GmbH

XPages Blast - Ideas, Tips and More
XPages Blast - Ideas, Tips and MoreXPages Blast - Ideas, Tips and More
XPages Blast - Ideas, Tips and More
Teamstudio

The 5 Minute MySQL DBA
The 5 Minute MySQL DBAThe 5 Minute MySQL DBA
The 5 Minute MySQL DBA
Irawan Soetomo

Doctrine Project
Doctrine ProjectDoctrine Project
Doctrine Project
Daniel Lima

Applying profilers to my sql (fosdem 2017)
Applying profilers to my sql (fosdem 2017)Applying profilers to my sql (fosdem 2017)
Applying profilers to my sql (fosdem 2017)
Valeriy Kravchuk

Dynamic tracing of MariaDB on Linux - problems and solutions (MariaDB Server ...
Dynamic tracing of MariaDB on Linux - problems and solutions (MariaDB Server ...Dynamic tracing of MariaDB on Linux - problems and solutions (MariaDB Server ...
Dynamic tracing of MariaDB on Linux - problems and solutions (MariaDB Server ...
Valeriy Kravchuk

How MySQL can boost (or kill) your application v2
How MySQL can boost (or kill) your application v2How MySQL can boost (or kill) your application v2
How MySQL can boost (or kill) your application v2
Federico Razzoli

Snowflake Automated Deployments / CI/CD Pipelines
Snowflake Automated Deployments / CI/CD PipelinesSnowflake Automated Deployments / CI/CD Pipelines
Snowflake Automated Deployments / CI/CD Pipelines
Drew Hansen

Linux /proc filesystem for MySQL DBAs - FOSDEM 2021
Linux  /proc filesystem for MySQL DBAs - FOSDEM 2021Linux  /proc filesystem for MySQL DBAs - FOSDEM 2021
Linux /proc filesystem for MySQL DBAs - FOSDEM 2021
Valeriy Kravchuk

01 demystifying mysq-lfororacledbaanddeveloperv1
01 demystifying mysq-lfororacledbaanddeveloperv101 demystifying mysq-lfororacledbaanddeveloperv1
01 demystifying mysq-lfororacledbaanddeveloperv1
Ivan Ma

MySQL Performance schema missing_manual_flossuk
MySQL Performance schema missing_manual_flossukMySQL Performance schema missing_manual_flossuk
MySQL Performance schema missing_manual_flossuk
Valeriy Kravchuk

Hadoop Operations: Keeping the Elephant Running Smoothly
Hadoop Operations: Keeping the Elephant Running SmoothlyHadoop Operations: Keeping the Elephant Running Smoothly
Hadoop Operations: Keeping the Elephant Running Smoothly
Michael Arnold

Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎
YUCHENG HU


Similar to MySQL 5.6 Performance (20)

The Proper Care and Feeding of a MySQL Database for Busy Linux Admins -- SCaL...
The Proper Care and Feeding of a MySQL Database for Busy Linux Admins -- SCaL...The Proper Care and Feeding of a MySQL Database for Busy Linux Admins -- SCaL...
The Proper Care and Feeding of a MySQL Database for Busy Linux Admins -- SCaL...

Proper Care and Feeding of a MySQL Database for Busy Linux Administrators
Proper Care and Feeding of a MySQL Database for Busy Linux AdministratorsProper Care and Feeding of a MySQL Database for Busy Linux Administrators
Proper Care and Feeding of a MySQL Database for Busy Linux Administrators

MariaDB / MySQL tripping hazard and how to get out again?
MariaDB / MySQL tripping hazard and how to get out again?MariaDB / MySQL tripping hazard and how to get out again?
MariaDB / MySQL tripping hazard and how to get out again?

Creating a Benchmarking Infrastructure That Just Works
Creating a Benchmarking Infrastructure That Just WorksCreating a Benchmarking Infrastructure That Just Works
Creating a Benchmarking Infrastructure That Just Works

The Peoper Care and Feeding of a MySQL Server for Busy Linux Admin
The Peoper Care and Feeding of a MySQL Server for Busy Linux AdminThe Peoper Care and Feeding of a MySQL Server for Busy Linux Admin
The Peoper Care and Feeding of a MySQL Server for Busy Linux Admin

kranonit S06E01 Игорь Цинько: High load
kranonit S06E01 Игорь Цинько: High loadkranonit S06E01 Игорь Цинько: High load
kranonit S06E01 Игорь Цинько: High load

Linuxfest Northwest Proper Care and Feeding Of a MySQL for Busy Linux Admins
Linuxfest Northwest Proper Care and Feeding Of a MySQL for Busy Linux AdminsLinuxfest Northwest Proper Care and Feeding Of a MySQL for Busy Linux Admins
Linuxfest Northwest Proper Care and Feeding Of a MySQL for Busy Linux Admins

UKOUG 2011: Practical MySQL Tuning
UKOUG 2011: Practical MySQL TuningUKOUG 2011: Practical MySQL Tuning
UKOUG 2011: Practical MySQL Tuning

XPages Blast - Ideas, Tips and More
XPages Blast - Ideas, Tips and MoreXPages Blast - Ideas, Tips and More
XPages Blast - Ideas, Tips and More

The 5 Minute MySQL DBA
The 5 Minute MySQL DBAThe 5 Minute MySQL DBA
The 5 Minute MySQL DBA

Doctrine Project
Doctrine ProjectDoctrine Project
Doctrine Project

Applying profilers to my sql (fosdem 2017)
Applying profilers to my sql (fosdem 2017)Applying profilers to my sql (fosdem 2017)
Applying profilers to my sql (fosdem 2017)

Dynamic tracing of MariaDB on Linux - problems and solutions (MariaDB Server ...
Dynamic tracing of MariaDB on Linux - problems and solutions (MariaDB Server ...Dynamic tracing of MariaDB on Linux - problems and solutions (MariaDB Server ...
Dynamic tracing of MariaDB on Linux - problems and solutions (MariaDB Server ...

How MySQL can boost (or kill) your application v2
How MySQL can boost (or kill) your application v2How MySQL can boost (or kill) your application v2
How MySQL can boost (or kill) your application v2

Snowflake Automated Deployments / CI/CD Pipelines
Snowflake Automated Deployments / CI/CD PipelinesSnowflake Automated Deployments / CI/CD Pipelines
Snowflake Automated Deployments / CI/CD Pipelines

Linux /proc filesystem for MySQL DBAs - FOSDEM 2021
Linux  /proc filesystem for MySQL DBAs - FOSDEM 2021Linux  /proc filesystem for MySQL DBAs - FOSDEM 2021
Linux /proc filesystem for MySQL DBAs - FOSDEM 2021

01 demystifying mysq-lfororacledbaanddeveloperv1
01 demystifying mysq-lfororacledbaanddeveloperv101 demystifying mysq-lfororacledbaanddeveloperv1
01 demystifying mysq-lfororacledbaanddeveloperv1

MySQL Performance schema missing_manual_flossuk
MySQL Performance schema missing_manual_flossukMySQL Performance schema missing_manual_flossuk
MySQL Performance schema missing_manual_flossuk

Hadoop Operations: Keeping the Elephant Running Smoothly
Hadoop Operations: Keeping the Elephant Running SmoothlyHadoop Operations: Keeping the Elephant Running Smoothly
Hadoop Operations: Keeping the Elephant Running Smoothly

Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎


More from MYXPLAIN

Query Optimization with MySQL 5.6: Old and New Tricks
Query Optimization with MySQL 5.6: Old and New TricksQuery Optimization with MySQL 5.6: Old and New Tricks
Query Optimization with MySQL 5.6: Old and New Tricks
MYXPLAIN

Need for Speed: MySQL Indexing
Need for Speed: MySQL IndexingNeed for Speed: MySQL Indexing
Need for Speed: MySQL Indexing
MYXPLAIN

Advanced Query Optimizer Tuning and Analysis
Advanced Query Optimizer Tuning and AnalysisAdvanced Query Optimizer Tuning and Analysis
Advanced Query Optimizer Tuning and Analysis
MYXPLAIN

MySQL Index Cookbook
MySQL Index CookbookMySQL Index Cookbook
MySQL Index Cookbook
MYXPLAIN

Advanced MySQL Query and Schema Tuning
Advanced MySQL Query and Schema TuningAdvanced MySQL Query and Schema Tuning
Advanced MySQL Query and Schema Tuning
MYXPLAIN

Are You Getting the Best of your MySQL Indexes
Are You Getting the Best of your MySQL IndexesAre You Getting the Best of your MySQL Indexes
Are You Getting the Best of your MySQL Indexes
MYXPLAIN

How to Design Indexes, Really
How to Design Indexes, ReallyHow to Design Indexes, Really
How to Design Indexes, Really
MYXPLAIN

MySQL Indexing - Best practices for MySQL 5.6
MySQL Indexing - Best practices for MySQL 5.6MySQL Indexing - Best practices for MySQL 5.6
MySQL Indexing - Best practices for MySQL 5.6
MYXPLAIN

56 Query Optimization
56 Query Optimization56 Query Optimization
56 Query Optimization
MYXPLAIN

Tools and Techniques for Index Design
Tools and Techniques for Index DesignTools and Techniques for Index Design
Tools and Techniques for Index Design
MYXPLAIN

Powerful Explain in MySQL 5.6
Powerful Explain in MySQL 5.6Powerful Explain in MySQL 5.6
Powerful Explain in MySQL 5.6
MYXPLAIN

Optimizing Queries with Explain
Optimizing Queries with ExplainOptimizing Queries with Explain
Optimizing Queries with Explain
MYXPLAIN

The Power of MySQL Explain
The Power of MySQL ExplainThe Power of MySQL Explain
The Power of MySQL Explain
MYXPLAIN

Improving Performance with Better Indexes
Improving Performance with Better IndexesImproving Performance with Better Indexes
Improving Performance with Better Indexes
MYXPLAIN

Explaining the MySQL Explain
Explaining the MySQL ExplainExplaining the MySQL Explain
Explaining the MySQL Explain
MYXPLAIN

Covering indexes
Covering indexesCovering indexes
Covering indexes
MYXPLAIN

MySQL Optimizer Overview
MySQL Optimizer OverviewMySQL Optimizer Overview
MySQL Optimizer Overview
MYXPLAIN

Advanced query optimization
Advanced query optimizationAdvanced query optimization
Advanced query optimization
MYXPLAIN


More from MYXPLAIN (18)

Query Optimization with MySQL 5.6: Old and New Tricks
Query Optimization with MySQL 5.6: Old and New TricksQuery Optimization with MySQL 5.6: Old and New Tricks
Query Optimization with MySQL 5.6: Old and New Tricks

Need for Speed: MySQL Indexing
Need for Speed: MySQL IndexingNeed for Speed: MySQL Indexing
Need for Speed: MySQL Indexing

Advanced Query Optimizer Tuning and Analysis
Advanced Query Optimizer Tuning and AnalysisAdvanced Query Optimizer Tuning and Analysis
Advanced Query Optimizer Tuning and Analysis

MySQL Index Cookbook
MySQL Index CookbookMySQL Index Cookbook
MySQL Index Cookbook

Advanced MySQL Query and Schema Tuning
Advanced MySQL Query and Schema TuningAdvanced MySQL Query and Schema Tuning
Advanced MySQL Query and Schema Tuning

Are You Getting the Best of your MySQL Indexes
Are You Getting the Best of your MySQL IndexesAre You Getting the Best of your MySQL Indexes
Are You Getting the Best of your MySQL Indexes

How to Design Indexes, Really
How to Design Indexes, ReallyHow to Design Indexes, Really
How to Design Indexes, Really

MySQL Indexing - Best practices for MySQL 5.6
MySQL Indexing - Best practices for MySQL 5.6MySQL Indexing - Best practices for MySQL 5.6
MySQL Indexing - Best practices for MySQL 5.6

56 Query Optimization
56 Query Optimization56 Query Optimization
56 Query Optimization

Tools and Techniques for Index Design
Tools and Techniques for Index DesignTools and Techniques for Index Design
Tools and Techniques for Index Design

Powerful Explain in MySQL 5.6
Powerful Explain in MySQL 5.6Powerful Explain in MySQL 5.6
Powerful Explain in MySQL 5.6

Optimizing Queries with Explain
Optimizing Queries with ExplainOptimizing Queries with Explain
Optimizing Queries with Explain

The Power of MySQL Explain
The Power of MySQL ExplainThe Power of MySQL Explain
The Power of MySQL Explain

Improving Performance with Better Indexes
Improving Performance with Better IndexesImproving Performance with Better Indexes
Improving Performance with Better Indexes

Explaining the MySQL Explain
Explaining the MySQL ExplainExplaining the MySQL Explain
Explaining the MySQL Explain

Covering indexes
Covering indexesCovering indexes
Covering indexes

MySQL Optimizer Overview
MySQL Optimizer OverviewMySQL Optimizer Overview
MySQL Optimizer Overview

Advanced query optimization
Advanced query optimizationAdvanced query optimization
Advanced query optimization


Recently uploaded

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing
Aftab Hussain

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
Edge AI and Vision Alliance

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
SOFTTECHHUB

Large Language Model (LLM) and it’s Geospatial Applications
Large Language Model (LLM) and it’s Geospatial ApplicationsLarge Language Model (LLM) and it’s Geospatial Applications
Large Language Model (LLM) and it’s Geospatial Applications
Rohit Gautam

Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !
KatiaHIMEUR1

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
SOFTTECHHUB

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students
KAMESHS29

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity
mikeeftimakis1

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6
DianaGray10

Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...
Zilliz

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
James Anderson

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Albert Hoitingh

Data structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdfData structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdf
TIPNGVN2

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”
Claudio Di Ciccio

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
Neo4j

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
Neo4j

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
Matthew Sinclair


Recently uploaded (20)

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...

Large Language Model (LLM) and it’s Geospatial Applications
Large Language Model (LLM) and it’s Geospatial ApplicationsLarge Language Model (LLM) and it’s Geospatial Applications
Large Language Model (LLM) and it’s Geospatial Applications

Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6

Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024

Data structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdfData structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdf

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024


MySQL 5.6 Performance

  • 1. 1 Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12
  • 2. MySQL 5.6 Performance: Tuning and “Best” Practices.. Dimitri KRAVTCHUK MySQL Performance Architect @Oracle 2 Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 Insert Picture Here
  • 3. The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle.
  • 4. Are you Dimitri?.. § Yes, it's me :-) § Hello from Paris! ;-) § Passionated by Systems and Databases Performance § Previous 15 years @Sun Benchmark Center § Started working on MySQL Performance since v3.23 § But during all that time just for fun only ;-) § Since last years officially @MySQL Performance full time now § http://dimitrik.free.fr/blog / @dimitrik_fr
  • 5. Agenda § Overview § Analyzing MySQL Workload § Analyzing and Understanding of MySQL Internals § Performance improvements in MySQL 5.6 (and 5.7) § Benchmark results § Pending issues.. §Q&A
  • 7. Why benchmarking MySQL?.. ● Any solution may look “good enough”...
  • 8. Why benchmarking MySQL?.. ● Until it did not reach its limit..
  • 9. Why benchmarking MySQL?.. ● And even improved solution may not resist to increasing load..
  • 10. Why benchmarking MySQL?.. ● And reach a similar limit..
  • 11. Why benchmarking MySQL?.. ● A good benchmark testing may help you understand ahead the resistance of your solution to incoming potential problems ;-)
  • 12. Why benchmarking MySQL?.. ● But keep it in mind: ● Even a very powerful solution but leaved in wrong hands may still be easily broken!... :-)
  • 13. The Main MySQL Performance Tuning #1 Best Practice is... ???..
  • 14. The Main MySQL Performance Tuning #1 Best Practice is... ???.. USE YOUR BRAIN !!! :-)
  • 15. The Main MySQL Performance Tuning #1 Best Practice is... ???.. USE YOUR BRAIN !!! :-) AND THIS IS THE AND THIS IS THE MAIN SLIDE! ;-)) MAIN SLIDE! ;-))
  • 16. Before we started.. ● Please, keep in mind: ● NOBODY knows everything ;-)) ● There is no absolute true in any topic around.. ● The best answer in most cases will be probably “It depends..” ;-)) ● So, again, “USE YOUR BRAIN!” is the best advice and the best option ● Also, knowledge and understanding of problems are changing all the time.. ● And probably even what I'll tell you today is already obsolete. ;-)) ● Enjoy thinking and digging problems deeply ;-)) ● MySQL Performance is a very fun topic (specially current days ;-))
  • 17. Different Approach for different problems ● You are discovering a production workload.. ● ● You are trying to understand why your production is running slower time to time.. ● ● Tracing, debugging, analyzing, discovering of new problems ;-) You are looking for a new platform for existing production workload (or new apps under dev.).. ● ● Full discovery.. Workload simulation, benchmarking, discovering of the next level issues.. etc...
  • 18. They all have something in common! ● Monitoring !.. ● Choose a tool you're familiar with (or install one and become familiar) ● Use a tool you can completely trust ;-) ● ● ● ● Keep in mind that sometimes you may need a 5-10sec interval measurements (or even less).. - not every tool is allowing.. Keep a history of your monitoring to be able to compare “good” and “bad” cases.. When something is starting to go wrong, usually it'll be not in the place which was always problematic, but in the place started to have a different behavior.. - and your goal is to find it ;-) Always monitor your HW and OS !!!
  • 19. MySQL Enterprise Monitor (MEM) v.3.0 ● Absolutely fantastic product! ● Try it! (and buy it if you like it! ;-) - improve your daily work experience!)
  • 20. Monitoring & Analyzing with dim_STAT (as you ask ;) ● All my graphs are built with it (download: http://dimitrik.free.fr) ● All System load stats (CPU, I/O, Network, RAM, Processes,...) ● Manly for Solaris & Linux, but any other UNIX too :-) ● Add-Ons for Oracle, MySQL, PostgreSQL, Java, etc. ● MySQL Add-Ons: – – mysqlLOAD : compact data, multi-host monitoring oriented – mysqlWAITS : top wait events from Performance SCHEMA – InnodbSTAT : most important data from “show innodb status” – innodbMUTEX : monitoring InnoDB mutex waits – ● mysqlSTAT : all available data from “show status” innodbMETRICS : all counters from the METRICS table And any other you want to add! :-)
  • 21. Think “Database Performance” from the beginning! ● Server: ● ● OS is important! - Linux, Solaris, etc.. (and Windows too!) ● ● Having faster CPU is still better! 32 cores is good enough ;-) Right malloc() lib!! (Linux: jemalloc, Solaris: libumem) Storage: ● ● SSD helping random access! (index/data) more and more cheaper ● FS is important! - ZFS, UFS, QFS, VxFS, EXT3, EXT4, XFS, etc.. ● O_DIRECT or not O_DIRECT, AIO or not AIO, and be aware of bugs! ;-) ● ● Don't use slow disks! (except if this is a test validation goal :-)) Do some generic I/O tests first (Sysbench, IObench, iozone, etc.) Don't forget network !! :-) (faster is better, 10Gbit is great!)
  • 22. Seek for your best option.. Performance Lower Price Security
  • 23. What to monitor on Linux?.. ● First of all use the best Linux for you! ● ● Install & use “jemalloc”; if XFS has problems, use EXT4 (nobarrier!) ● ● Or ORACLE Linux if you don't know which one to choose ;-) Use AIO + O_DIRECT, don't use “cfq” IO scheduler!.. Always keep an eye on: ● RunQueue(!), CPU, RAM, Swap in/outProcesses: vmstat, top, psSTAT ● Storage level: iostat, .. ● Network: netLOAD, nicstat, … ● Overall system activity: # perf top -z – ● perf: excellent profiler! IMPORTANT : system monitoring usually helps to dig DB issues!
  • 24. Know/ test/ check your platform limits / “features”.. ● My backup is finished on Linux faster than on Solaris same HW ● ● ● Be sure first there is really no more I/O activity once backup is “finished” Keep in mind Linux buffering.. Linux distro: MySQL Performance has x4 regression! Fix it! ● How did you see it? – Our QA test is taking x4 times more time.. ● Which engine? – InnoDB.. ● What is innodb_flush_log_at_trx_commit value? – set to 1.. why? ● Tried innodb_flush_log_at_trx_commit=2 ?.. – Oh! You fixed it!! Thanks!! ● Wait, what did you “improve” recently in distro? – FS flushing, why?.. ● Well, the test in fact is proving that you did not “sync” on every fsync() before, that's all.. But now in your FS flushing you get it fixed ;-)
  • 25. The Infinitive Loop of Database Tuning... Application Application DB Engine DB Engine OS OS Server Server Storage Storage #1 Monitoring ●#1 Monitoring ●#2 Tuning ●#2 Tuning ●#3 Optimization ●#3 Optimization ●#4 Improvement(s) ●#4 Improvement(s) ●#5 … ●#5 … ●... ●... ●goto #1 ●goto #1 ●
  • 26. The Infinitive Loop of Database Tuning... Even if in Even if in 95% cases 95% cases the problem the problem Is here!!! :-) Is here!!! :-) Application Application DB Engine DB Engine OS OS Server Server Storage Storage #1 Monitoring ●#1 Monitoring ●#2 Tuning ●#2 Tuning ●#3 Optimization ●#3 Optimization ●#4 Improvement(s) ●#4 Improvement(s) ●#5 … ●#5 … ●... ●... ●goto #1 ●goto #1 ●
  • 28. MySQL Design ● Multi-Threaded database ● ● Simplified data access! ● ● Fast context switch! Concurrent access?.. Scalability?.. Storage Engines ● Initially: MyISAM only ● Then, with InnoDB: started to match expectations of a “true RDBMS” ;-) ● Many other engines (MEMORY, CSV, NDB, PBXT, etc.) ● CREATE TABLE ... ENGINE=<NAME_OF_ENGINE> ● ALTER TABLE ... ENGINE=<NAME_OF_ENGINE> ● Did you choose a right Engine?..
  • 29. MyISAM Engine (since 1994) ● Non-transactional! / No fast recovery! :-) ● Cache ● ● Data => FS cache ● ● Index only mysql> flush tables; Single Writer @Table ● Main bottleneck! => single writer ● Solutions: delayed inserts, low priority ● Query plan: Index forcing may be necessary (hint) ● Extremely simple and lightweight
  • 30. Why MySQL + MyISAM was successful ?.. ● Full Text search queries out-of-the-box! ● SELECT count(*) ... :-)) ● Extremely SIMPLE! ● my.conf => configuration parameters; mysql.server start / stop ● Database => directory ● Table => directory/Table.MYD, Table.MYI, Table.frm ● $ cp Base1/Table.* /other/mysql/Base2 ● Data binary compatibility! (ex: reports via NFS) ● Replication ready! ● Very FAST! (until some limit :-)) ● RW workload is killing.. (but on 2CPU servers it was ok ;-))
  • 31. RW Benchmark MyISAM vs PostgreSQL (in 2000) TPS MySQL PostgreSQL Sessions
  • 32. InnoDB changing the game (since 2001) ● Row-level locking ● Index-only reads ● True transactions / UNDO ● Auto recovery ● Double write / Checksums ● Tablespaces or File-per-Table option ● Buffer pool ● Multi-threaded ● Currently the fastest transactional disk-based MySQL Storage Engine!
  • 33. MySQL Performance (traditionally, in the past) ● Choose the right Engine for each of your table/database ● Read-Only / Text search => MyISAM ● Read+Write / Transactions => InnoDB ● Short/Small Transactions + DB fits in RAM => NDB ● Tune / Optimize your queries ● Once scalability limit is reached => go for Distributed: ● ● Master / Slave(s) => role-based workload ● ● Sharding Any other similar :-) Scalability = Main Performance Problem!... ● But with Big Users on that time anyway: Google, Facebook, Amazon..
  • 34. Things are changing constantly, stay tuned ;-) ● MySQL/InnoDB Scalability: ● ● 2008 : up to 4CPU cores ● 2009 : up to 16CPU cores (+Sun) ● 2010 : up to 32CPU cores (+Oracle) ● 2012 : up to 48CPU cores.. ● 2014 : …?? ;-) ● ● 2007 : up to 2CPU... NOTE: on the same HW performance is better from version to version! InnoDB today: ● At least x4-8 times better performance than 2-3 years ago ;-) ● Capable of over 100K 300K 500K QPS(!) + FTS & Memcached
  • 35. Hope you did not miss it ;-)
  • 36. Hope you did not miss it ;-) (2)
  • 37. Hope you did not miss it ;-) (3)
  • 38. How easy is to see the same in Production now?.. ;-)
  • 39. Starting points ● What are your network limits?.. ● ● ● Latency? Max throughput? What CPU% is spent just for network? Do you use prepared statements? (reducing traffic) Can you use persistent connections? ● ● Greatly improved in 5.6, yet more in 5.7 (55K Connect/s in 5.7 currently) ● Higher QPS if more queries executed before disconnect! ● ● Connect / Disconnect has its limits.. Thread cache size matters! Do you use transactions on read-only requests?.. ● ● QPS is improved since 5.6 and yet more in 5.7 But you cannot get a rid from a traffic overhead due BEGIN / COMMIT exchanges
  • 40. Analyzing MySQL Workload ● Understand the load first : ● Hot queries <== could be improved?.. ● Hot tables / files <== storage ok? DB design?.. ● Bad query execution plans.. <== improve, force index, etc. ● Row Lock contentions due Application Design <== will not scale.. ● Deadlocks due Application Logic.. <== will not scale.. ● NOTE: be sure you're not hitting some HW / OS limits (and MySQL is in fact out of scope ;-))
  • 41. Performance Schema since MySQL 5.6: Gold Mine! ● Query digest (enabled by default) : ● ● SELECT all queries having > N rows read ● ● SELECT all queries with execution time > N ms SELECT queries having table scans, not using indexes, etc.. FILE_IO (enabled by default) : ● ● ● Time spent on every IO operation for every database file Amount of each kind of IO operations for every file Table Locks (enabled by default) : ● ● See which tables are the most accessed ==> Just with these 3 metrics you already have an idea if things are still going well or not.. - and MEM is excellent here! ;-)
  • 42. Classic MySQL Monitoring ● SHOW Commands: ● ● mysql> show global status ; ● mysql> show processlist ; ● mysql> show engine innodb status ; ● mysql> show engine innodb mutex ; ● ● mysql> status ; INFORMATION_SCHEMA.* , InnoDB METRICS table, etc.. Important : ● only PFS instrumentation / query is truly lock free.. ● every query during its execution uses 1 CPU core full time! ● excessive requesting may significantly lower an overall performance!
  • 43. So far, what do you have to look on?.. ● MySQL Server general: ● ● Query/sec, Select/sec, Commit/sec, Connect/sec, Connections, Abort... InnoDB: ● BP usage/ dirty%/ page hit% ● Checkpoint Age, REDO logs rates (MB/sec, Writes/sec, Sync time/sec) ● Adaptive Flushing rates, Sync Flushing rates, Sync Flushing waits ● LRU Flushing stats, User Threads LRU Flushing, .. ● History List Length (purge) ● Mutex Waits (InnoDB, PFS) ● File IO Waits (PFS) ● etc...
  • 44. Suspecting a problem?.. - Benchmark! ● Have a clear goal! ● ● Otherwise: I've obtained all these results, and now... so what?.. Want to simulate your production workload?.. ● ● ● Then just simulate it! (many SW available, not always OSS/free) Hard to simulate? - adapt some generic tests Want to know capacity limits of a given platform? ● ● Still try to focus on the test which are most significant for you! Want just to validate config settings impacts? ● ● ● Focus on tests which are potentially depending on these settings Or any, if the goal to prove there are not depending ;-) Well, just keep thinking about what you're doing ;-)
  • 45. Test Workload ● Before to do something complex... ● Be sure first you're comfortable with “basic” operations! ● ● Many tables? ● Short queries? ● ● Single table? Long queries? Remember: any complex load just represents a mix of simple operations.. ● So, start from as simple as possible.. ● And then increase complexity progressively..
  • 46. Popular “Generic” Test Workloads @MySQL ● Sysbench ● ● OLTP, RO/RW, 1-table, since v0.5 N-table, lots load options, deadlocks DBT2 / TPCC-like ● ● ● OLTP, RW, very complex, growing db, no options, deadlocks In fact using mostly only 2 tables! (thanks Performance Schema ;-)) dbSTRESS ● ● linkbench (Facebook) ● ● OLTP, RO/RW, several tables, one most hot, configurable, no deadlocks OLTP, RW, very intensive DBT3 ● DWH, complex heavy query, loved by Optimizer Team ;-)
  • 47. MySQL Performance: No Silver Bullet !!! Internal Limits.. Internal Limits.. There is There is No Silver No Silver Bullet!!! Bullet!!! MySQL MySQL Configuration Settings.. Configuration Settings.. InnoDB InnoDB Server, OS, FS Server, OS, FS Query Optimization.. Query Optimization.. Storage Storage BBU, SSD BBU, SSD Application Contentions.. Application Contentions..
  • 48. MySQL Config settings ● Ask yourself right questions and start with some basic params: ● ● Double write buffer? Checksums? ● innodb_flush_log_at_trx_commit= 1 / 2 ?? ● Flush Method = O_DIRECT + ASYNC ● Binlog Sync? - binlog group commit is since MySQL 5.6 only! ● File per table? ● IO capacity = 2000 ● ● Buffer Pool size / Buffer Pool Instances Etc.. Then adapt then to discovered your HW/OS and MySQL Internal limits!..
  • 49. Example: Sort Buffer Size ● OLTP_RO Point-Selects 8-tables ● Sort Buffer Size: 32K, 256K, 1M, 2M, 4M
  • 50. Example: Sort Buffer Size (2) ● OLTP_RO 8-tables ● Sort Buffer Size: 32K, 256K, 1M, 2M, 4M
  • 51. Example: Buffer Pool Instances ● RW intensive workload: ● BP instances = 1/ 2/ 4/ 8
  • 52. Workload: Read-Only oriented ● Bigger Buffer Pool (BP) is better ● BP < dataset = IO-bound ● TRX list (kernel_mutex, since 5.6: trx_sys mutex) ● Read view ● Auto-commit or transactions?.. ● ● Prepared statements ● ● Grouping many queries within a single transaction may also largely reduce MDL locking, but still keep them short ! (check with PFS) Observed 10% performance improvement in 5.6 (while Parser time is not more than 3% according to profiler).. Read-Only transactions!
  • 53. InnoDB: Read-Only Transactions in 5.6 ● Sysbench OLTP_RO Point-Selects: ● Concurrent user sessions: 1, 2, 4 .. 1024 ● Using of transactions in sysbench = 0 / 1
  • 54. InnoDB: Read-Only Transactions in 5.6 (Apr.2013) ● Sysbench OLTP_RO Point-Selects: ● Concurrent user sessions: 1, 2, 4 .. 1024 ● Using of transactions in sysbench = 0
  • 55. InnoDB : false sharing of cache-line = true killer ● RO or RW Workloads ● Same symptoms in 5.5 & 5.6 : no QPS improvement between 16 and 32 user sessions:
  • 56. InnoDB : false sharing of cache-line fixed! ● RO or RW Workloads ● “G5” patch! :-) ● Over x2(!) times better on Sysbench OLTP_RO, ● x6(!) times better on SIMPLE-Ranges! ● NOTE: the fix is not applicable on 5.5..
  • 57. MySQL Internals: “killer” LOCK_open mutex ● MySQL 5.5 and before: ● Keep “table_open_cache” setting big enough! ● Monitor global status for '%opened%' ● ● Once this contention become the most hot – well, time to upgrade to 5.6 ;-)) Since MySQL 5.6: ● Fixed: several table open cache instances ● But it doesn't mean you can use a small “table_open_cache” either ;-) ● Monitor PFS Waits! ● Monitor “table_open_cache%” status variables! ● Keep “table_open_cache_instances” at least bigger than 1
  • 58. MySQL 5.6 Internals : low table_open_cache ● MySQL 5.6 : ● Not big enough “table_open_cache” setting
  • 59. MySQL 5.6 Internals : low table_open_cache (2) ● MySQL 5.6 : ● Not big enough “table_open_cache” setting ● PFS Waits monitoring: LOCK_table_cache become the most hot: ● Table_open_cache% status:
  • 60. MySQL 5.6 Internals : table_open_cache_instances ● MySQL 5.6 : ● When LOCK_table_cache wait is on top, the gain is usually well visible:
  • 61. Workload: Read-Write ● RW activity ● ● Updates only? Insert? Delete? R/W %ratio? Bigger Buffer Pool (BP) is still better ● BP < dataset = IO-bound Reads(!) or R+W ● BP > dataset = CPU-bound or IO-bound Writes(!) ● REDO size matters a lot! (up to 2TB in 5.6) ● Adaptive Flushing matters a lot! ● LRU flushing matters a lot as well! ● Tip: Neighbor Pages flushing = off / on
  • 62. But let me tell you now the whole story first! ;-)
  • 63. Jan.2009 : Long RW Intensive Test ● RW Workload: ● 128 concurrent users, 500M REDO, dirty pages= 15% ● But let's get a look on the real state of BP:
  • 64. InnoDB Internals: Dirty pages ● How does it work?.. ● ● SQL> show innodb status G But why my dirty pages% setting is ignored?... ● ● Buffer pool > free > data innodb_buffer_pool_size = M > dirty innodb_max_dirty_pages_pct = 15% Mystery?... All votes: it's impossible ;-) REDO DATA / INDEX innodb_log_file_size = 500M
  • 65. InnoDB Internals: Dirty pages and REDO?.. ● What if I'll reduce REDO size now?.. ● REDO: 500M => 128M Buffer pool > free > data innodb_buffer_pool_size = M > dirty innodb_max_dirty_pages_pct = 15% REDO DATA / INDEX innodb_log_file_size = 128M
  • 66. InnoDB Internals: Dirty pages and REDO?.. ● What if I'll reduce REDO size now?.. ● ● REDO: 500M => 128M Forcing lower Dirty Pages Amount! Buffer pool > free > data innodb_buffer_pool_size = M > dirty innodb_max_dirty_pages_pct = 15% REDO DATA / INDEX innodb_log_file_size = 128M
  • 67. Any Changes on RW Test now?.. ● REDO = 500M ● REDO = 128M
  • 68. Fine, but.. ● Remained questions: ● Why finally Dirty Pages% setting is completely ignored?... ● While, after all, any dangers to have many dirty pages?... ● And what is the impact of REDO logs size?..
  • 69. InnoDB Internals: Impact of REDO size ● RW Intensive Load ● REDO size = 128M
  • 70. InnoDB Internals: Impact of REDO size ● RW Intensive Load ● REDO size = 1024M
  • 71. InnoDB Internals: Impact of REDO size ● RW Intensive Load ● ● Result: 6000 TPS => 8000 TPS! 30% better!!! ● ● REDO size = 128M => 1024M For such an improvement we may ignore Dirty Pages% ;-)) But : WHY these TPS drops?...
  • 72. InnoDB Internals: Analyzing the code.. ● Master thread logic: Master Thread loop: //Main loop ... if( dirty pct > limit) flush_batch( 100% IO); ... do { pages= trx_purge(); if( 1sec passed ) flush_log(); } while (pages); ... goto loop; Buffer pool > free > data > dirty REDO DATA / INDEX
  • 73. InnoDB Internals: Analyzing the code.. ● Master thread may never leave purge loop!!! Master Thread loop: //Main loop ... if( dirty pct > limit) flush_batch( 100% IO); ... do { pages= trx_purge(); if( 1sec passed ) flush_log(); } while (pages); ... goto loop; Buffer pool > free > data > dirty REDO DATA / INDEX
  • 74. InnoDB Internals: Analyzing the code.. ● But if Master thread is never leave purge loop... ● Who is then flushing Dirty Pages?... Buffer pool > free > data > dirty REDO DATA / INDEX
  • 75. InnoDB Internals: Analyzing the code.. ● But if Master thread is never leave purge loop... ● ● Who is then flushing Dirty Pages?... Redo log constraints: ● ● ● ● Cyclic, need free space Checkpoint Age: diff between the current LSN in redo and the oldest dirty page LSN Checkpoint Age cannot out-pass the max checkpoint age (redo log size) Buffer pool > free > data > dirty If Checkpoint Age >= 7/8 of Max Age => Flush ALL dirty pages regardless IO capacity!!! REDO (“Furious Flushing”) DATA / INDEX
  • 76. InnoDB Internals: Introducing Purge Thread ● Purge Thread is the MUST !!! Master Thread loop: //Main loop ... sleep( 1 ); ... if( dirty pct > limit) flush_batch( 100% IO); ... flush_log(); ... goto loop; Purge Thread loop: sleep( ... ); do { pages= trx_purge(); } while (pages); goto loop; Buffer pool > free > data > dirty REDO DATA / INDEX
  • 77. Performance with Purge Thread ● MySQL 5.4 : ● MySQL 5.4 + purge fix :
  • 78. Performance with Purge Thread ● MySQL 5.5 :
  • 79. InnoDB Purge since MySQL 5.5 ● Purging has a cost! (similar to Garbage Collecting) ● ● ● Since MySQL 5.5: single purge thread (off by default) Since MySQL 5.6: several purge thread(s) (up to 32) However, Purge may lag and do not follow workload.. ● ● Ex.: On aggressive RW got 400GB of undo records within few hours(!) ● ● This is very bad when happens... Then it took days to reach zero in History Length.. The main problem is the past – how to dose purging?.. ● ● Since 5.6: with many threads, Purge become auto-stable itself Still missing a dynamic config option to say how many purge threads to run in parallel right now (but it'll be fixed soon ;-))
  • 80. InnoDB : Purge improvement in 5.6 ● Several Purge Threads : ● NOTE: activation is auto-magical (I'm serious ;-))
  • 81. InnoDB : Purge improvement in 5.6 ● Fixed max purge lag code! ● ● ● innodb_max_purge_lag innodb_max_purge_lag_delay <= configurable! Setting innodb_max_purge_lag=1M:
  • 82. InnoDB Internals: “Furious Flushing” ● Direct dependence on REDO log size ● NOTE: ● ● ● ● No direct dependence on amount of dirty pages and REDO size! Depends on workload! Buffer pool > free > data innodb_buffer_pool_size = M > dirty innodb_max_dirty_pages_pct = N However, bigger REDO allows more dirty pages.. And recovery is way faster today! REDO DATA / INDEX innodb_log_file_size = L
  • 83. InnoDB: REDO log constraints ● REDO log constraints: (Always monitor Checkpoint Age!!!) ● ● ● Cyclic, need free space Buffer pool Checkpoint age: diff between the current LSN in REDO > free and the oldest dirty page LSN Checkpoint age cannot out-pass the max checkpoint age (redo log size) ● ● ● If Checkpoint age >= 7/8 of Max age => Flush ALL dirty! > data > dirty => AKA “furious flushing”... Adaptive Flushing: ● Keep REDO under Max age ● Respecting IO capacity limit REDO DATA / INDEX
  • 84. InnoDB: Adaptive Flushing ● MySQL 5.5: ● ● ● Estimation based Sometimes works ;-) MySQL 5.6 : ● ● ● Based on REDO write rate + I/O capacity Max Involving batch flushing with N pages to flush (progressive, depending on REDO %free) + page age limit (according REDO rate) Tuning: ● innodb_io_capacity / innofb_io_capacity_max ● innodb_adaptive_flushing_lwm / innodb_max_dirty_pages_pct_lwm ● ALL are dynamic! ● Monitor Checkpoint Age..
  • 85. Adaptive Flushing: MySQL 5.6 vs 5.5 ● OLTP_RW Workload: ● Same IO capacity ● Different logic..
  • 86. InnoDB : Resisting to activity spikes in 5.6 ● dbSTRESS R+W with spikes
  • 87. InnoDB Adaptive Flushing: Fine Tuning ● Monitor your Flushing rate / capabilities.. ● Adapt IO capacity and REDO size :
  • 88. InnoDB and I/O Performance ● Keep in mind the nature of I/O operation! ● ● Sequential Read (SR) ● Random Write (RW) ● ● Sequential Write (SW) Random Read (RR) InnoDB Buffer pool > free > data ● Data files <= SW,SR,RW,RR ● Redo log <= SW ● Bin log <= SW ● Double write <= SW > dirty BINLOG DATA / INDEX double write buffer REDO
  • 89. InnoDB and I/O Performance ● Avoid a hot-mix of I/O operations! ● Random Read (RR) <= most painful & costly!!! ● Place REDO on different LUNs/disks ● ● Place BINLOG on a separated storage array! I/O Settings ● I/O write threads ● > data I/O capacity ● Buffer pool > free I/O read threads > dirty BINLOG DATA / INDEX double write buffer REDO
  • 90. InnoDB: Doublewrite Buffer ● Protecting from partially written pages ● Data first written into Doublewrite buffer (sys.tablespace) ● Then flushed to the datafiles ● ● On recovery: if partially written page discovered => use its image from doublewrite buffer What is the cost?.. ● Doublewrite I/O is sequential, so should be fast ● Writes will do less sync calls: – Instead of sync on every page write – Sync once on doublewrite buffer write – Then once on the datafile(s) for the same chunk of pages
  • 91. InnoDB: Doublewrite buffer real impact? ● Usually: ● ● ● performance remains the same (or better) + recovery guarantee! In some cases: ● Up to 30% performance degradation... ● Why?...
  • 92. InnoDB: Doublebuffer and I/O dependency ● Random Reads are killing! ● RR = ~5ms wait per operation on HD ● Example: – Application is doing 30.000 IO op/s – All operations are SW/RW – Now 5% of Writes become RR – What about performance?.. Buffer pool > free > data > dirty BINLOG DATA / INDEX double write buffer REDO
  • 93. InnoDB: Doublebuffer and I/O dependency ● Random Reads are killing! ● RR = 5ms wait per operation ● Example: – Application is doing 30.000 IO op/s – All operations are SW/RW – Now 5% of Writes become RR – Performance => 10.000 IO ops/s... – x3 times degradation! – 100 SW= 100 x 0.1ms = 10ms – 95 SW + 5 RR = 9.5ms + 25ms Buffer pool > free > data > dirty BINLOG DATA / INDEX double write buffer REDO
  • 94. InnoDB: Doublebuffer and I/O dependency ● Workaround: move doublewrite buffer on REDO disks ● Have to set innodb_file_per_table initially for DB ● Move system tablespace on REDO disks: $ mv /DATA/ibdata1 /LOG $ ln -s /LOG/ibdata1 /DATA Buffer pool > free > data ● Or just use SSD !!! ;-) > dirty BINLOG DATA / INDEX double write buffer REDO
  • 95. User Concurrency scenarios ● Single user?.. ● ● ● With a bigger code path today 5.6 simply cannot be faster than 5.5 But then, why you're not considering Query Cache? ;-) More users?.. ● ● ● Up to 8-16 concurrent users all internal contention are not yet hot So, 5.6 will not be better yet.. More than 16 users?.. ● ● ● Then you'll feel a real difference, but if you have at least 16cores ;-) Or if you have really a lot of concurrent users But don't forget other 5.6 improvements either! ● On-line DDL, Binlog group commit, Memcached, etc..
  • 96. High Concurrency Tuning ● ● If bottleneck is due a concurrent access on the same data (due application design) – ask dev team to re-design ;-) If bottleneck is due MySQL/InnoDB internal contentions, then: ● If you cannot avoid it, then at least don't let them grow ;-) ● Try to increase InnoDB spin wait delay (dynamic) ● Try innodb_thread_concurrency=N (dynamic) ● CPU taskset / prcset (Linux / Solaris, both dynamic) ● Thread Pool ● NOTE: things with contentions may radically change since 5.7, so stay tuned ;-)
  • 97. InnoDB Spin Wait Delay ● RO/RW Workloads: ● With more CPU cores internal contentions become more hot.. ● Bind mysqld to less cores helps, but the goal is to use more cores ;-) ● Using innodb_thread_concurrency is not helping here anymore.. ● So, innodb_spin_wait_delay is entering in the game:
  • 98. Tune InnoDB Spin Wait Delay ● Notes : ● is the max random delay on “sleep” within a spin loop in wait for lock.. ● Ideally should be auto.. while the same tuning works for 5.5 as well ;-) ● General rule: default is 6, may need an increase with more cores ● Test: 32-HT/ 32/ 24/ 16cores, spin delay = 6 / 96 :
  • 99. Thread Pool @MySQL ● None of these solutions will help to increase performance! ● ● it'll just help to keep the peak level constant (and you yet need to discover on which level of concurrency you're reaching your peak ;-)) ThreadPool in MySQL 5.5 and 5.6 is aware if I/O are involved! ● So, better than innodb thread concurrency setting or taskset ● May still require spin wait delay tuning! ● The must for high concurrency loads! ● ● May still start to show a difference since 32-128 concurrent users! (all depends on workload).. Keep in mind that OS scheduler is not aware how to manage user threads most optimally, but ThreadPool does ;-)
  • 100. Thread Pool in MySQL 5.6 ● OLTP_RO:
  • 101. Thread Pool in MySQL 5.6 ● OLTP_RW:
  • 102. Thread Pool in MySQL 5.7 @Heavy OLTP_RW
  • 103. InnoDB High Concurrency: AHI ● Adaptive Hash Index (AHI) ● Helps a lot on Read-Only workloads ● In fact it helps always until itself become not actively modified ● AHI contention is seen as its btr_search_latch RW-lock contetnion ● So, on Read+Write become a huge bottleneck.. ● In many cases on RW the result is better with AHI=off.. ● NOTE: there is still a big mystery around AHI when it's having btr_search_latch contention even when there is no changes at all (pure RO in memory).. - expected to be fixed in 5.7 ;-)
  • 104. Testing Apples-to-Apples... ● Comparing MySQL 5.6 vs 5.5 : ● Don't have G5: dead.. ● Don't have open table cache instances: bad.. ● Don't have improved Adaptive Flushing; bad.. ● Don't have fixed Purge & Lag: danger!.. ● Don't have binlog group commit and use binlog: dead.. ● Etc. etc. etc. ● ● NOTE: some “improvement” are also fixes which are making stuff working properly, but coming with additional overhead (like Purge).. NOTE: when comparing 5.6 and 5.5 keep in mind that Performance Schema is enabled by default in 5.6, and not in 5.5, so think to disable it in both (as 5.5 also has a way less PFS instrumentation)..
  • 109. Sysbench OLTP_RO 8-tab @32cores-HT (Apr.2013)
  • 110. Sysbench OLTP_RO-trx 8-tab @32cores-HT (Apr.2013)
  • 114. Sysbench OLTP_RW 8-tab @32cores-HT (Apr.2013)
  • 115. MySQL 5.6: Pending issues ● Index lock.. ● Lock_sys contention.. ● Trx_sys contention.. ● MDL scalability.. ● Flushing limits.. ● LRU flushing.. ● Design bug on block locking.. (was here from the beginning) ● Not able yet to use 100% I/O capacity on a powerful storage.. ● “Mysterious” contentions on dbSTRESS.. ● etc..
  • 116. MySQL 5.7: Work in progress.. ;-) ● Index lock.. <== fixed ! ● Lock_sys contention.. <== lowered ! ● Trx_sys contention.. <== improved a lot !!! ● MDL scalability.. <== in progress.. ● Flushing limits.. <== in progress.. ● LRU flushing.. <== in progress.. ● Design bug on block locking.. (was here from the beginning) ● Not able yet to use 100% I/O capacity on a powerful storage.. ● “Mysterious” contentions on dbSTRESS.. ● Etc.. <== well, ALL in progress / investigation ;-)
  • 117. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RO Point-Selects 8-tables: 500K QPS !!! ● UNIX socket, sysbench 0.4.8 (older, using less CPU)
  • 118. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RO Point-Selects 8-tables: 440K QPS ● IP port, sysbench 0.4.13 (“common”, using more CPU)
  • 119. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RO Point-Selects-TRX 8-tables: 200K QPS ● IP port, sysbench 0.4.13 (“common”, using more CPU)
  • 120. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RO Point-Selects 8-tables: Scalability.. ● UNIX socket, sysbench 0.4.8 (older, using less CPU)
  • 121. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RO Point-Selects 8-tables: Scalability.. ● IP port, sysbench 0.4.13 (using more CPU)
  • 122. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RO Point-Selects-TRX 8-tables: Scalability.. ● IP port, sysbench 0.4.13 (using more CPU)
  • 123. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RO 8-tables: 280K QPS ● IP port, sysbench 0.4.13 (“common”, using more CPU)
  • 124. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RO 1-table: lower than 5.6... ● Due higher MDL contentions, work in progress..
  • 125. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RW 8-tables: 265K QPS ● IP port, sysbench 0.4.13 (“common”, using more CPU)
  • 126. MySQL 5.7: DMR2 (Sep.2013) ● OLTP_RW 1-table: lower than 5.6 ● MDL contention, work in progress..
  • 127. THANK YOU !!! ● All details about presented materials you may find on: ● http://dimitrik.free.fr - dim_STAT, Benchmark Reports ● http://dimitrik.free.fr/blog - Articles about MySQL Performance
