Oracle GoldenGate 21c
New Features and Best Practices
8/18/2021
Presentation will start 3 minutes after
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc
About RheoData
A global systems integrator headquartered in Atlanta, Georgia. Providing solutions across the enterprise with
architecture design/assessments, implementation, data replication, and professional services to ensure high-
quality enterprise systems leveraging Oracle and Microsoft technologies. RheoData works hand-in-hand with
our strategic partners and their sales teams to build and deploy high performance and scalable enterprise
solutions in addition to providing clients with cost savings professional services for turnkey enterprise
management.
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc
Our Mission:
Enabling businesses to transform through
automation at a time when companies must
change in order to scale
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc
License Management for Oracle,
HashiCorp, and Cloud
Get the most out of your license
DBA
Services
Remote and
On-Site
Professional Services
Where and when you need it the most
Migrations
Zero Downtime
Health Checks
How are you running?
On-Call Support
Managed Services
Tactical Assistance Program (TAP)
Experts to help design and manage complex architecture
Take Cloud to next level
Automation of Cloud
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc
Speaker
Bobby Curtis, MBA
Atlanta, GA
• Author
• Speaker
• Former Product Manger for GoldenGate
• Oracle ACE Director (Alumni)
@dbasolved
https://dbasolved.com
bobby.curtis@rheodata.com
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

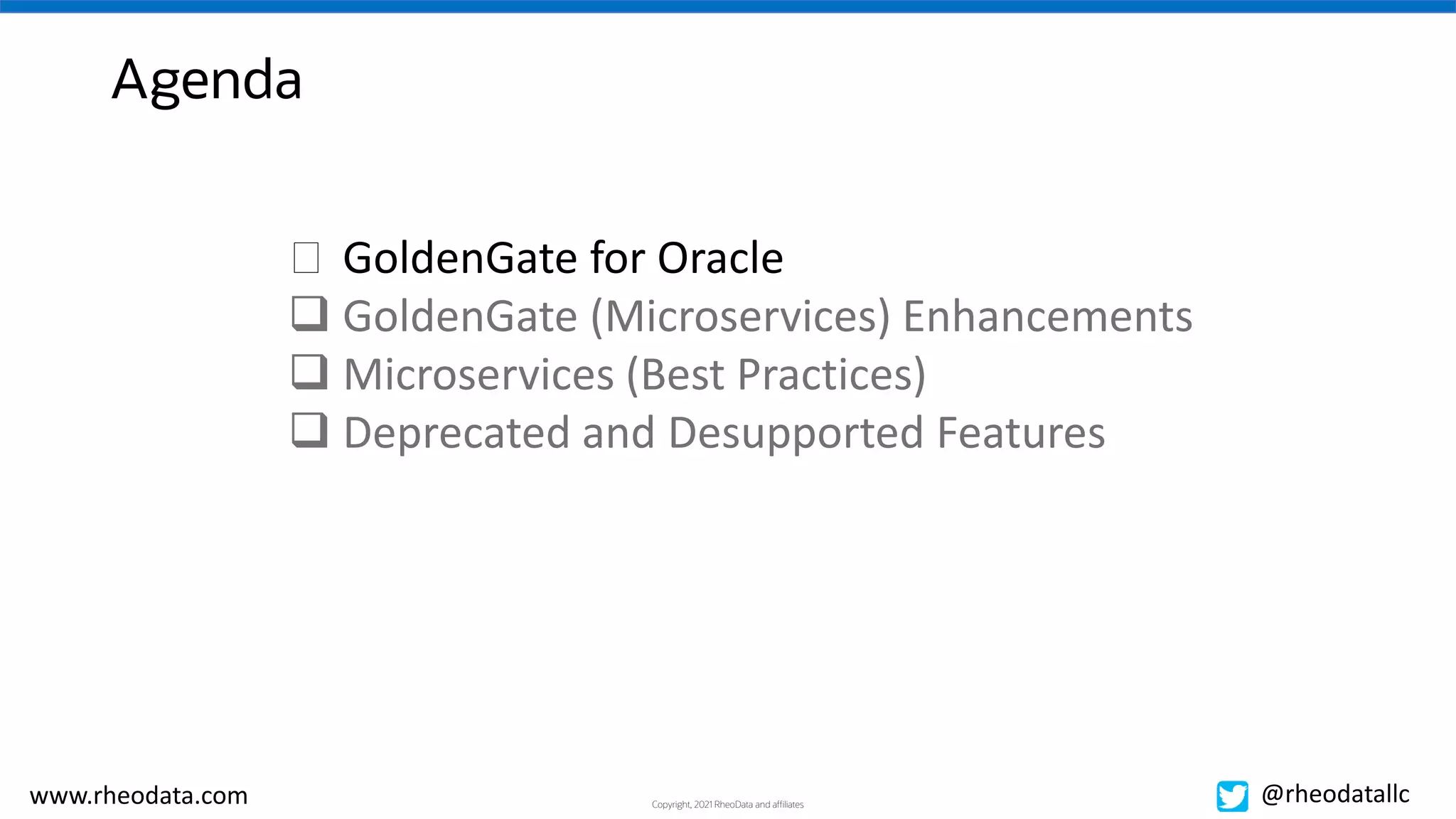

Agenda
� GoldenGate for Oracle
 GoldenGate (Microservices) Enhancements
 Microservices (Best Practices)
 Deprecated and Desupported Features
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

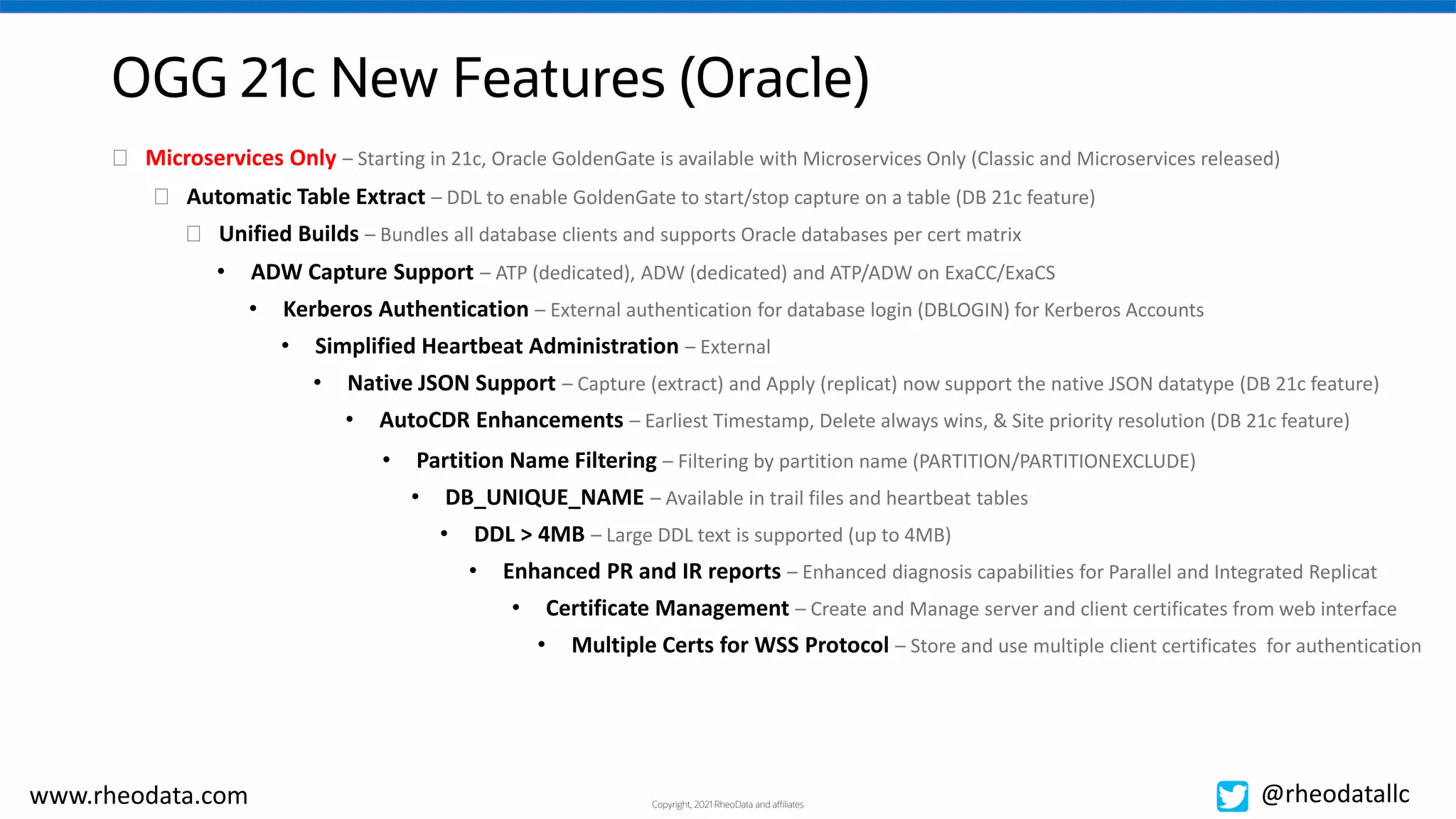

OGG 21c New Features (Oracle)
� Automatic Table Extract – DDL to enable GoldenGate to start/stop capture on a table (DB 21c feature)
� Unified Builds – Bundles all database clients and supports Oracle databases per cert matrix
• ADW Capture Support – ATP (dedicated), ADW (dedicated) and ATP/ADW on ExaCC/ExaCS
• Kerberos Authentication – External authentication for database login (DBLOGIN) for Kerberos Accounts
• Simplified Heartbeat Administration – External
• Native JSON Support – Capture (extract) and Apply (replicat) now support the native JSON datatype (DB 21c feature)
• AutoCDR Enhancements – Earliest Timestamp, Delete always wins, & Site priority resolution (DB 21c feature)
• Partition Name Filtering – Filtering by partition name (PARTITION/PARTITIONEXCLUDE)
• DB_UNIQUE_NAME – Available in trail files and heartbeat tables
• DDL > 4MB – Large DDL text is supported (up to 4MB)
• Enhanced PR and IR reports – Enhanced diagnosis capabilities for Parallel and Integrated Replicat
• Certificate Management – Create and Manage server and client certificates from web interface
• Multiple Certs for WSS Protocol – Store and use multiple client certificates for authentication
� Microservices Only – Starting in 21c, Oracle GoldenGate is available with Microservices Only (Classic and Microservices released)
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

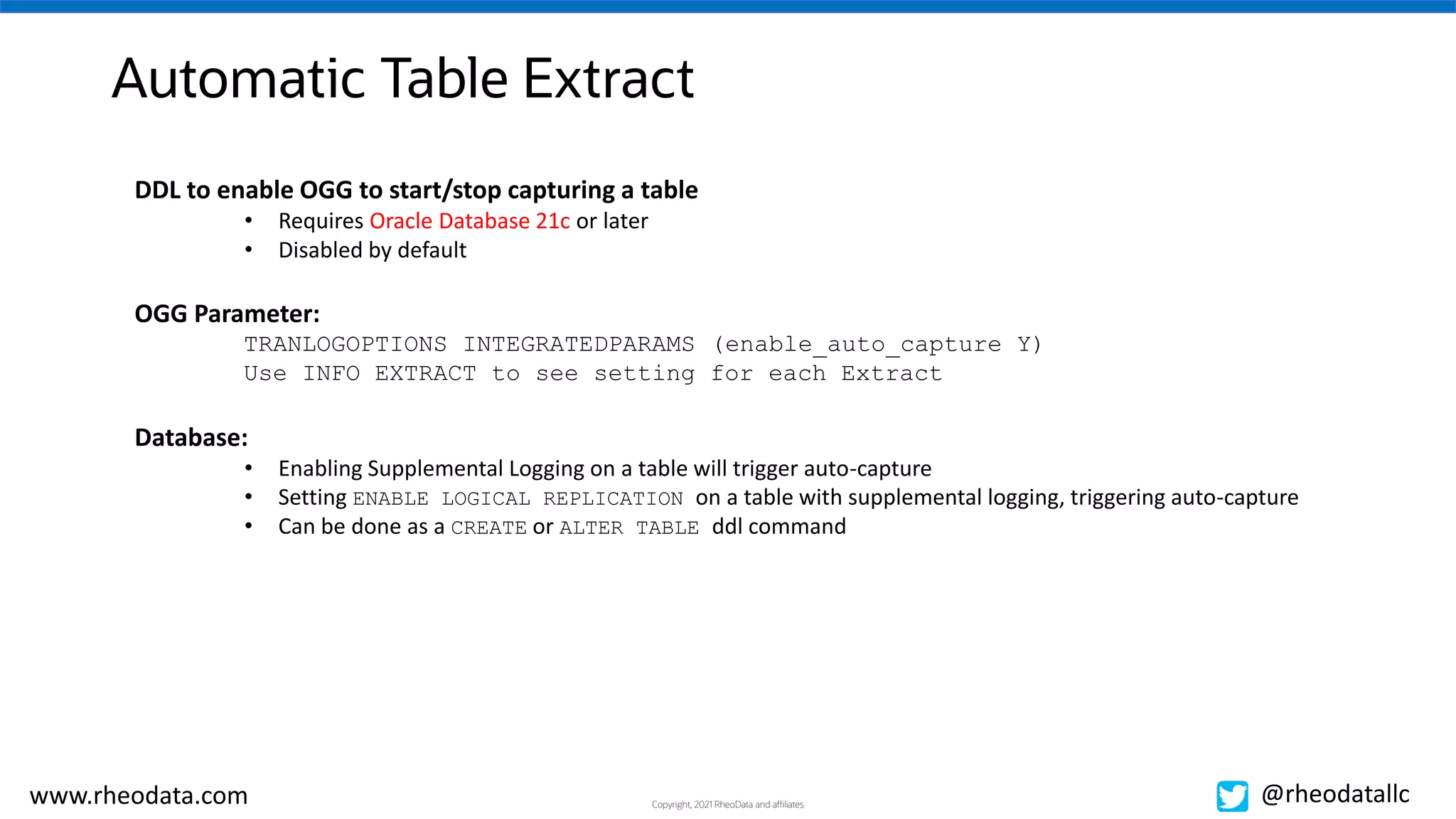

Automatic Table Extract
DDL to enable OGG to start/stop capturing a table
• Requires Oracle Database 21c or later
• Disabled by default
OGG Parameter:
TRANLOGOPTIONS INTEGRATEDPARAMS (enable_auto_capture Y)
Use INFO EXTRACT to see setting for each Extract
Database:
• Enabling Supplemental Logging on a table will trigger auto-capture
• Setting ENABLE LOGICAL REPLICATION on a table with supplemental logging, triggering auto-capture
• Can be done as a CREATE or ALTER TABLE ddl command
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

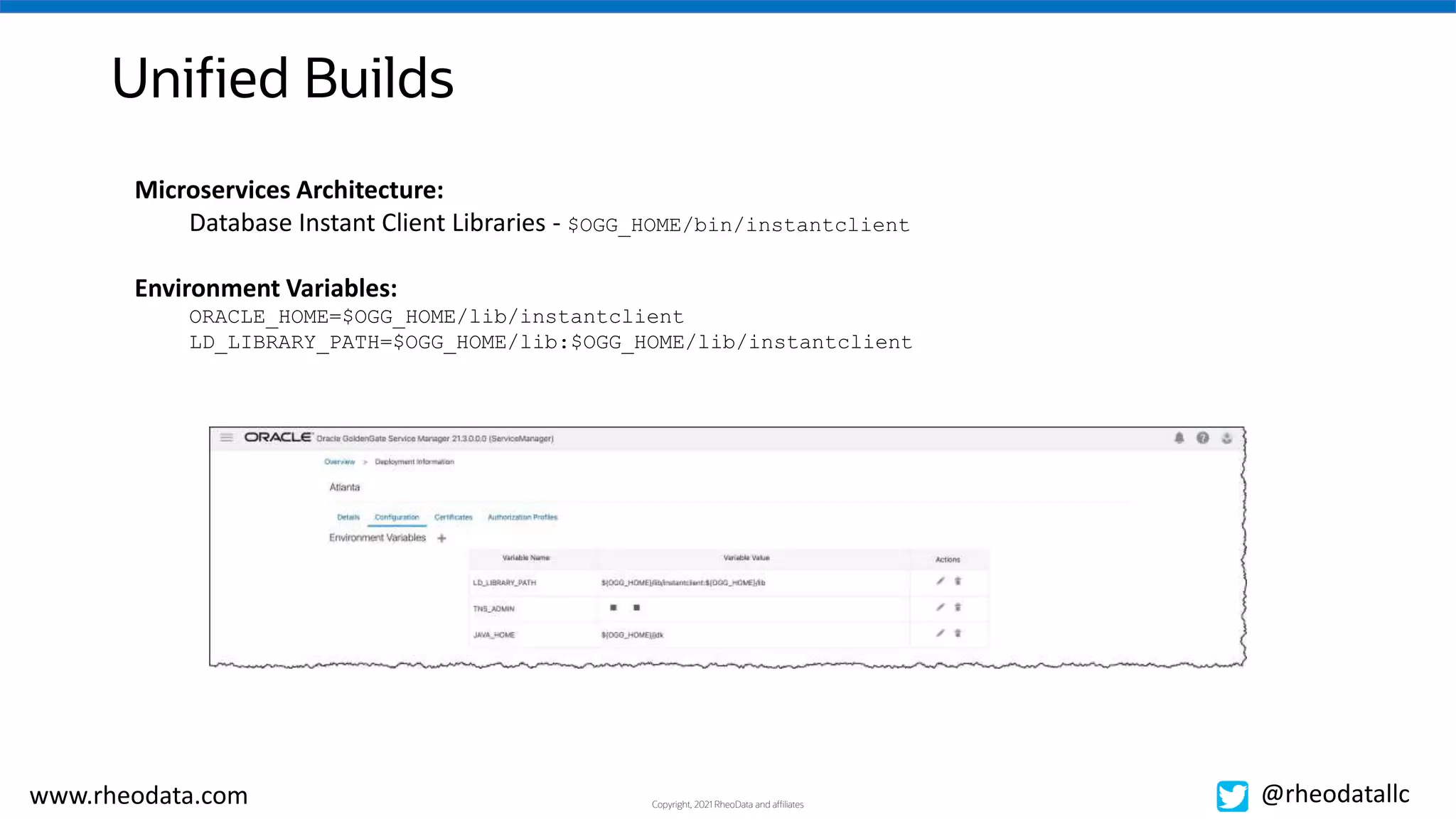

Unified Builds
Microservices Architecture:
Database Instant Client Libraries - $OGG_HOME/bin/instantclient
Environment Variables:
ORACLE_HOME=$OGG_HOME/lib/instantclient
LD_LIBRARY_PATH=$OGG_HOME/lib:$OGG_HOME/lib/instantclient
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

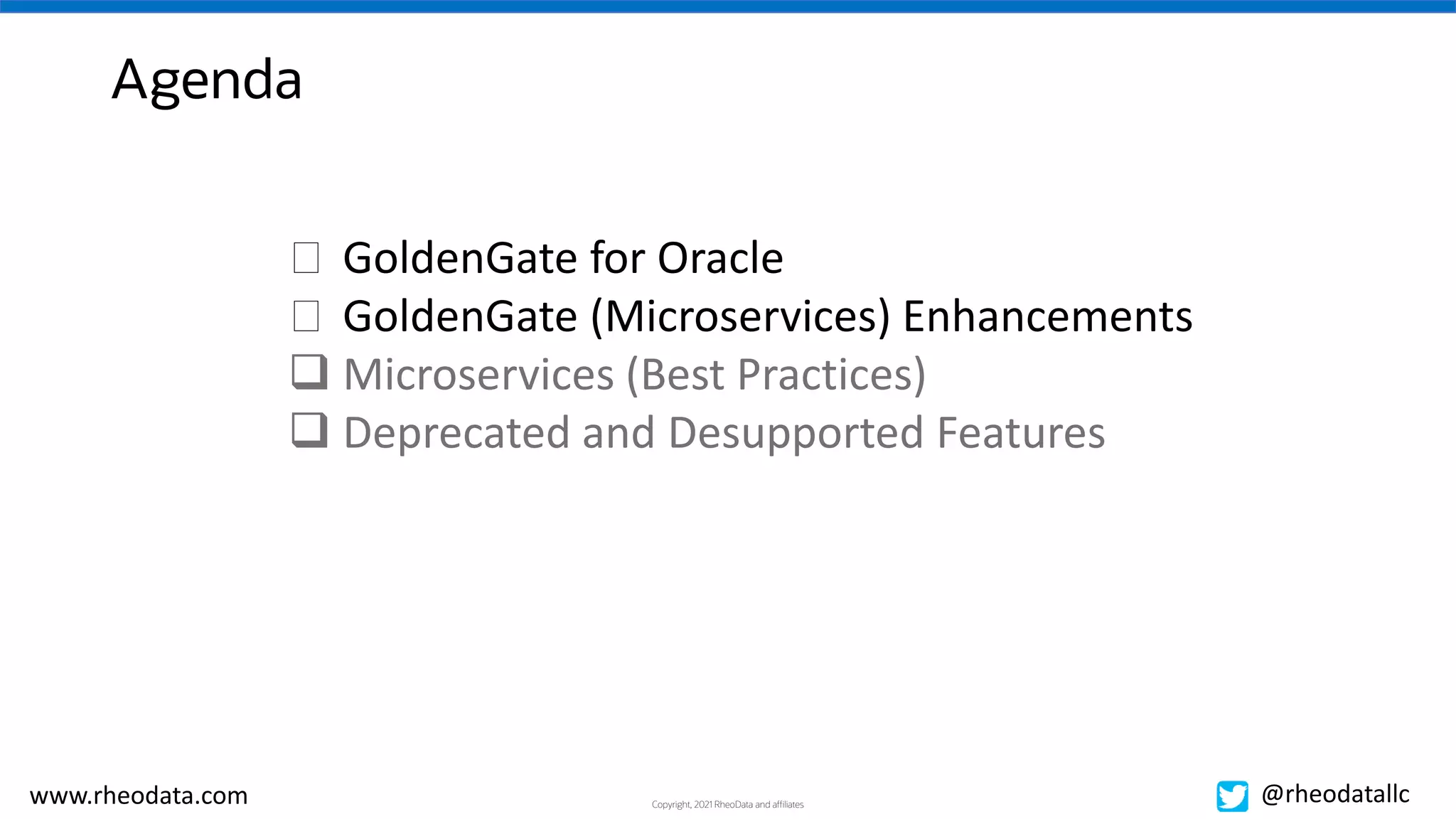

Agenda
� GoldenGate for Oracle
� GoldenGate (Microservices) Enhancements
 Microservices (Best Practices)
 Deprecated and Desupported Features
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

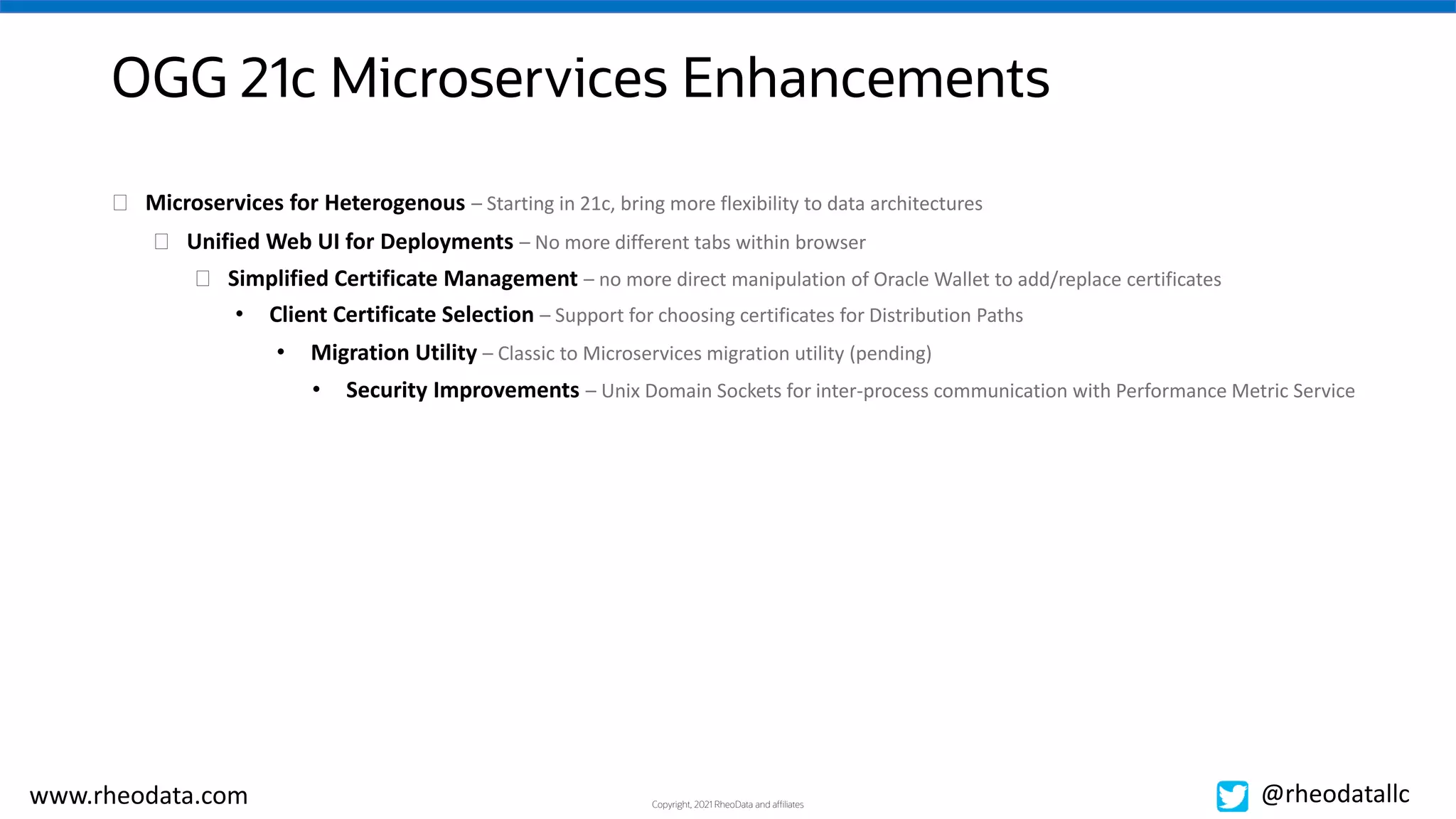

OGG 21c Microservices Enhancements
� Unified Web UI for Deployments – No more different tabs within browser
� Simplified Certificate Management – no more direct manipulation of Oracle Wallet to add/replace certificates
• Client Certificate Selection – Support for choosing certificates for Distribution Paths
• Migration Utility – Classic to Microservices migration utility (pending)
• Security Improvements – Unix Domain Sockets for inter-process communication with Performance Metric Service
� Microservices for Heterogenous – Starting in 21c, bring more flexibility to data architectures
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

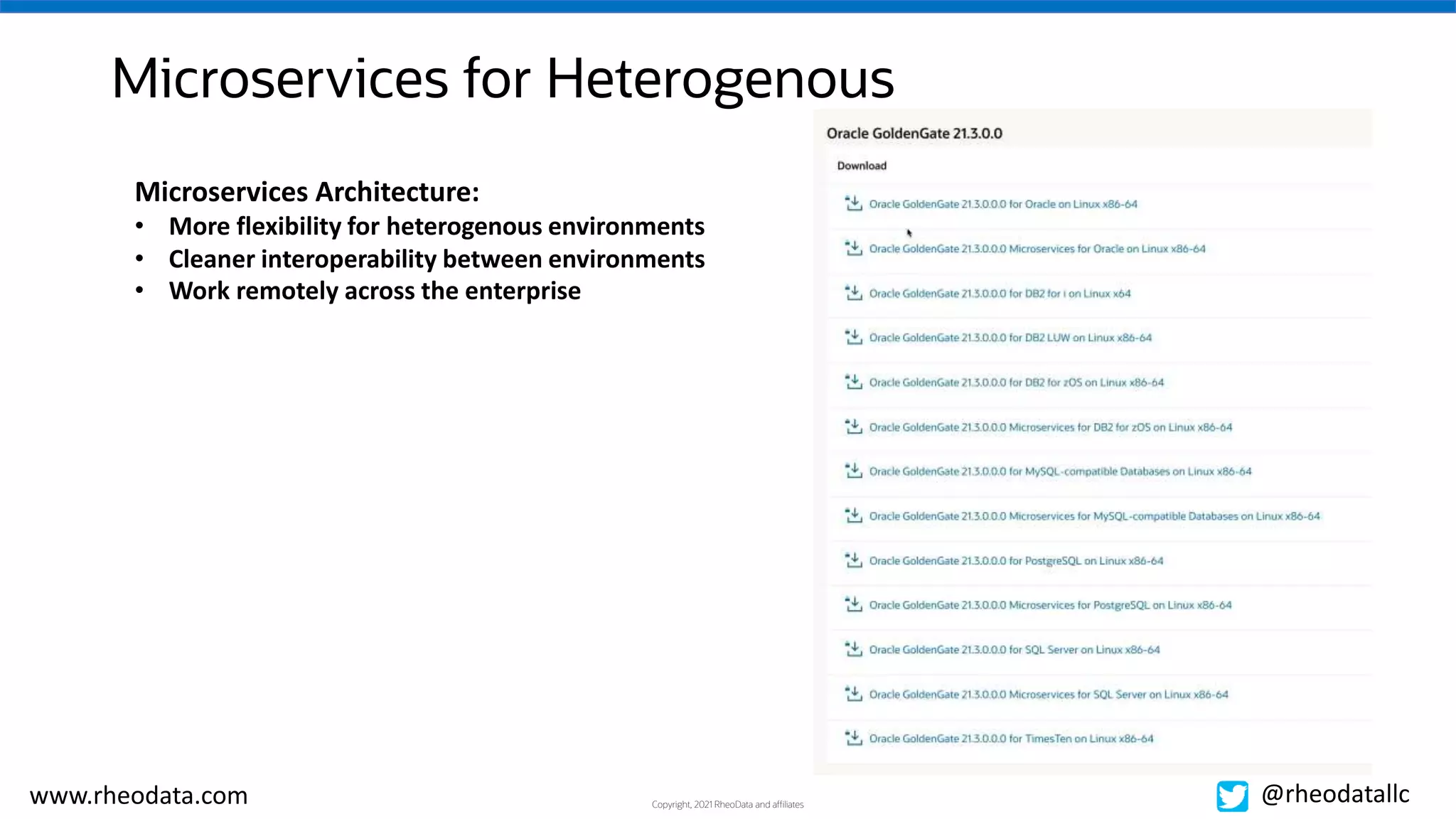

Microservices for Heterogenous
Microservices Architecture:
• More flexibility for heterogenous environments
• Cleaner interoperability between environments
• Work remotely across the enterprise
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

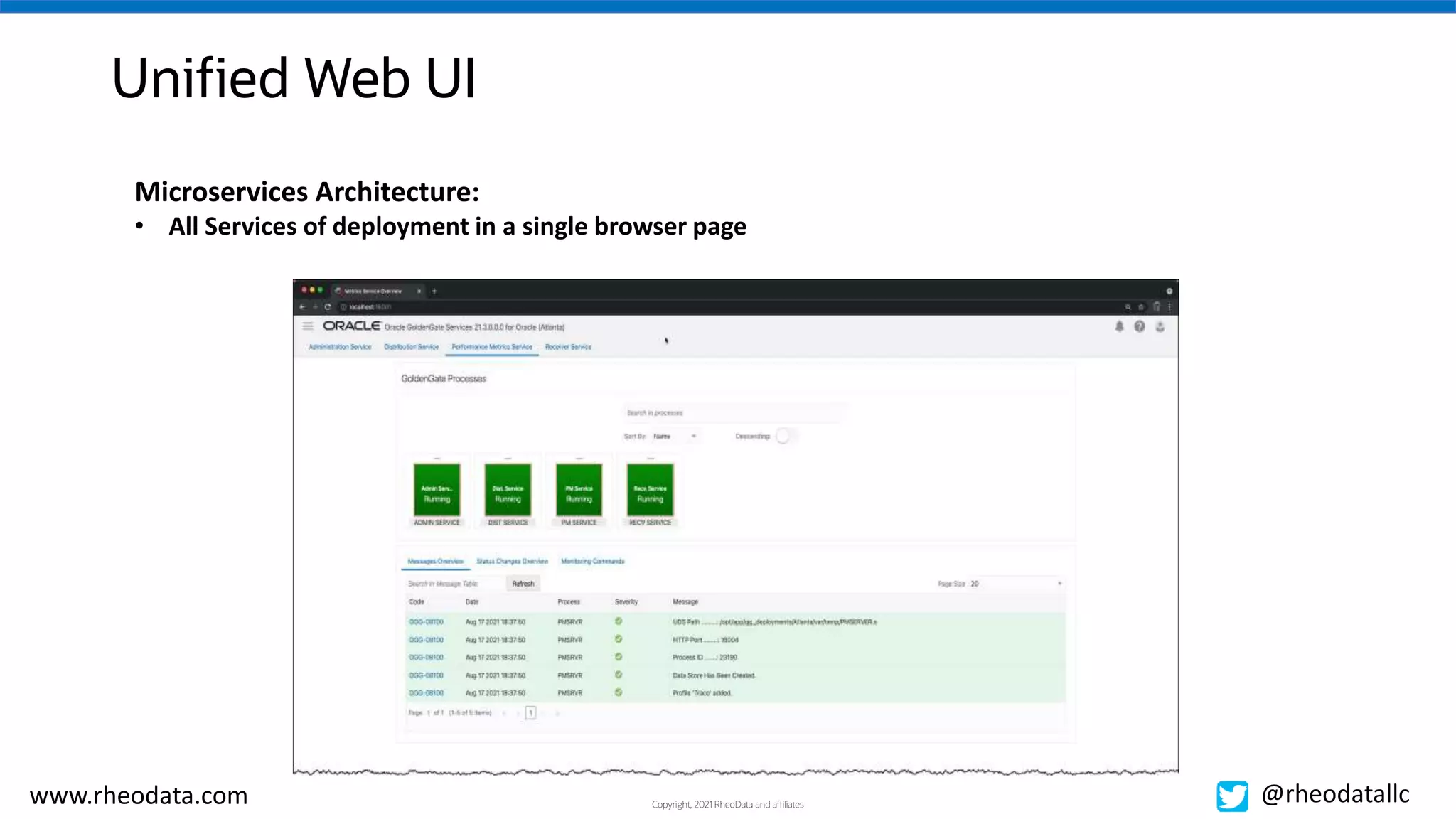

Unified Web UI
Microservices Architecture:
• All Services of deployment in a single browser page
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

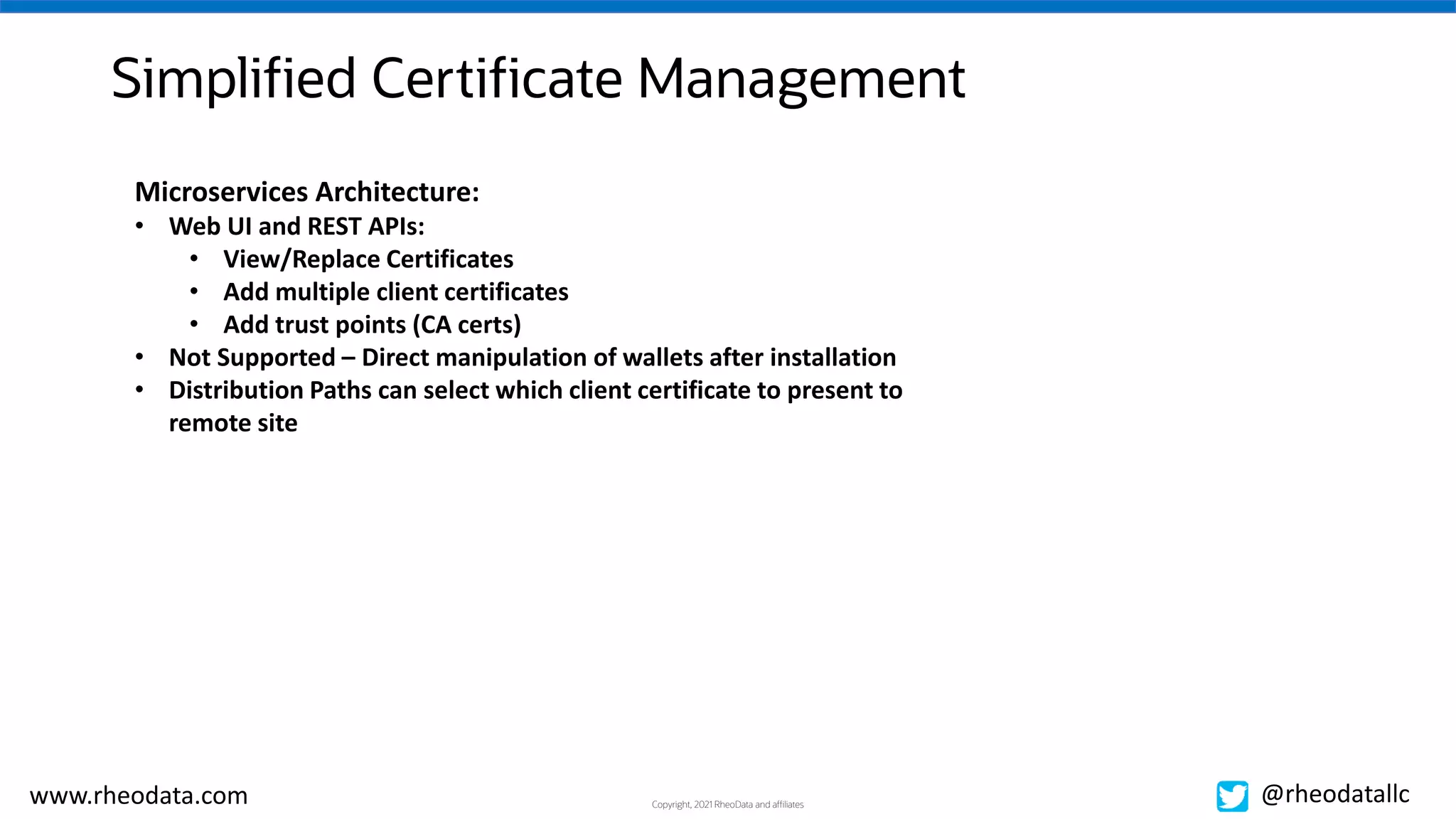

Simplified Certificate Management
Microservices Architecture:
• Web UI and REST APIs:
• View/Replace Certificates
• Add multiple client certificates
• Add trust points (CA certs)
• Not Supported – Direct manipulation of wallets after installation
• Distribution Paths can select which client certificate to present to
remote site
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

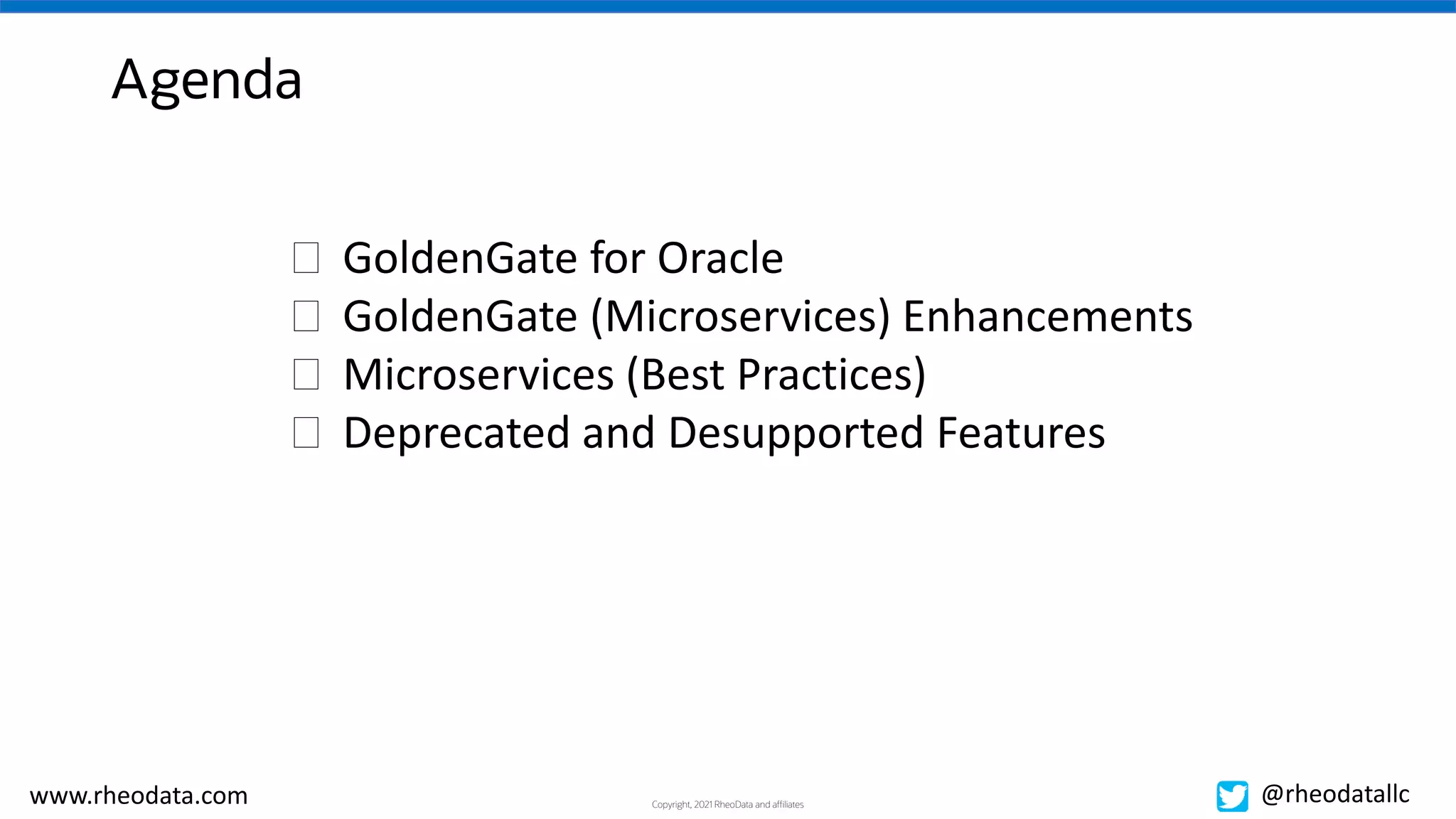

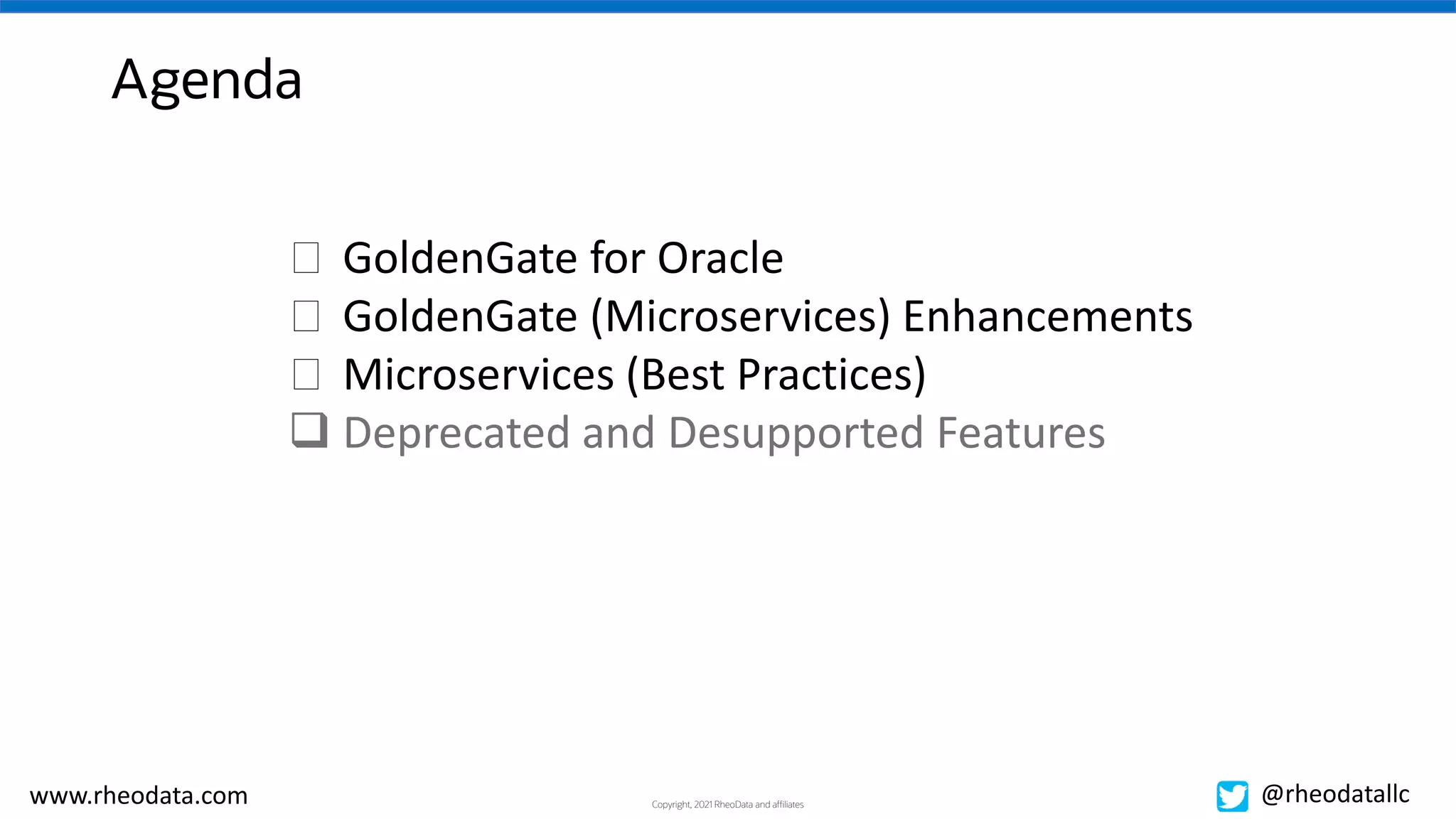

Agenda
� GoldenGate for Oracle
� GoldenGate (Microservices) Enhancements
� Microservices (Best Practices)
 Deprecated and Desupported Features
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

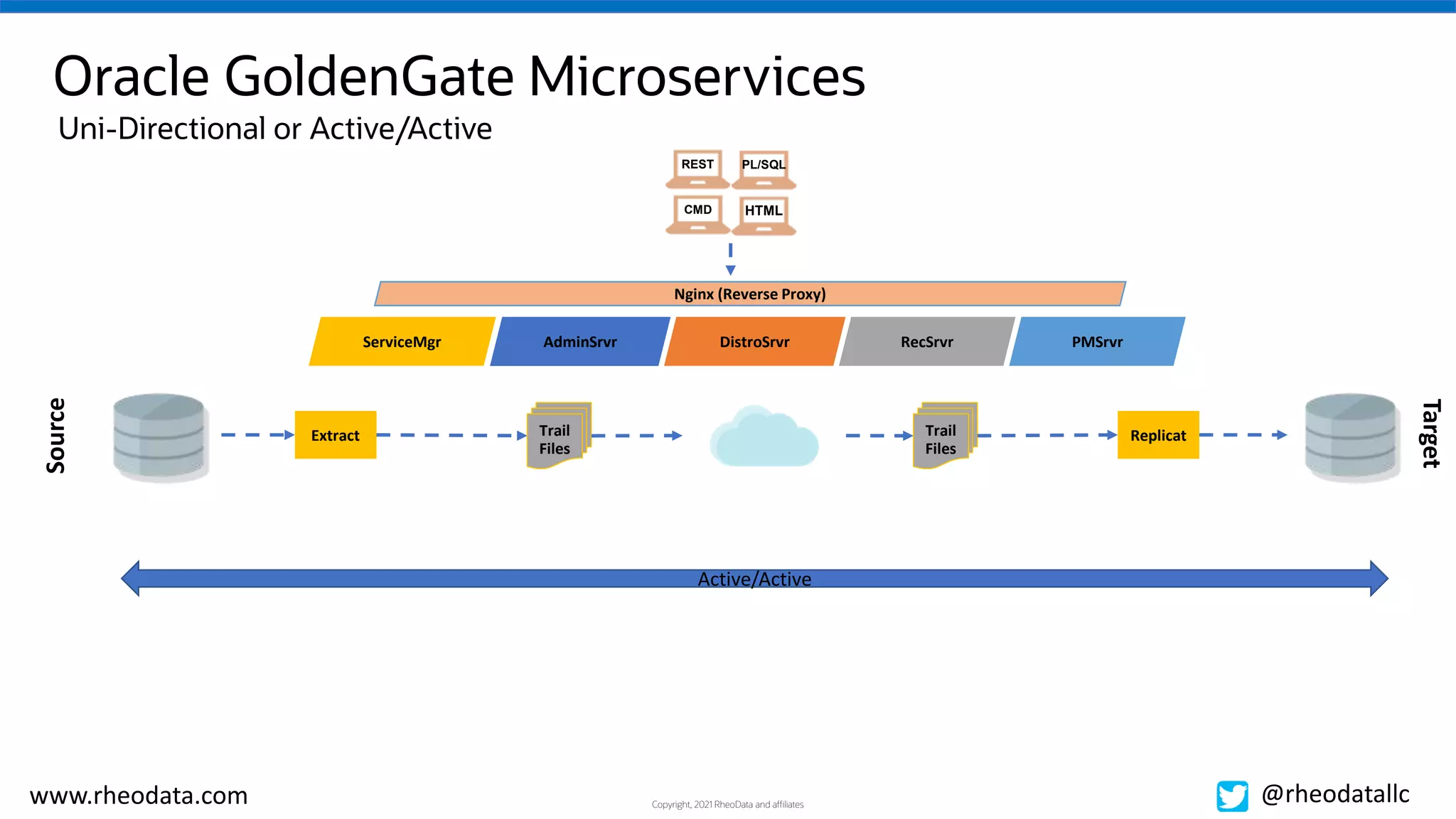

Oracle GoldenGate Microservices
Source
Target
Uni-Directional or Active/Active
Extract Replicat
Trail
Files
Trail
Files
Active/Active
AdminSrvr DistroSrvr RecSrvr
ServiceMgr PMSrvr
Nginx (Reverse Proxy)
CMD
REST
HTML
PL/SQL
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

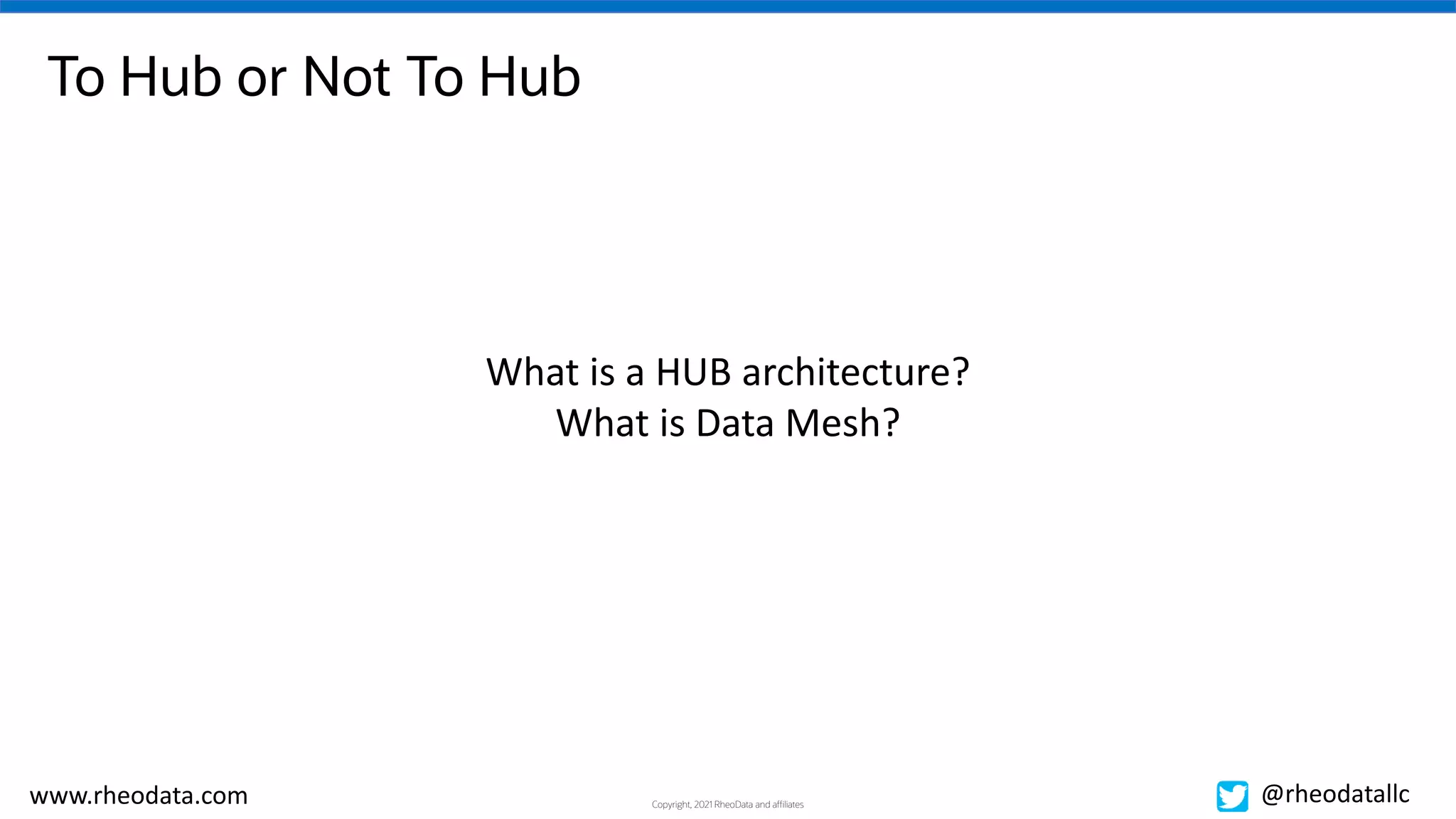

To Hub or Not To Hub
What is a HUB architecture?
What is Data Mesh?
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

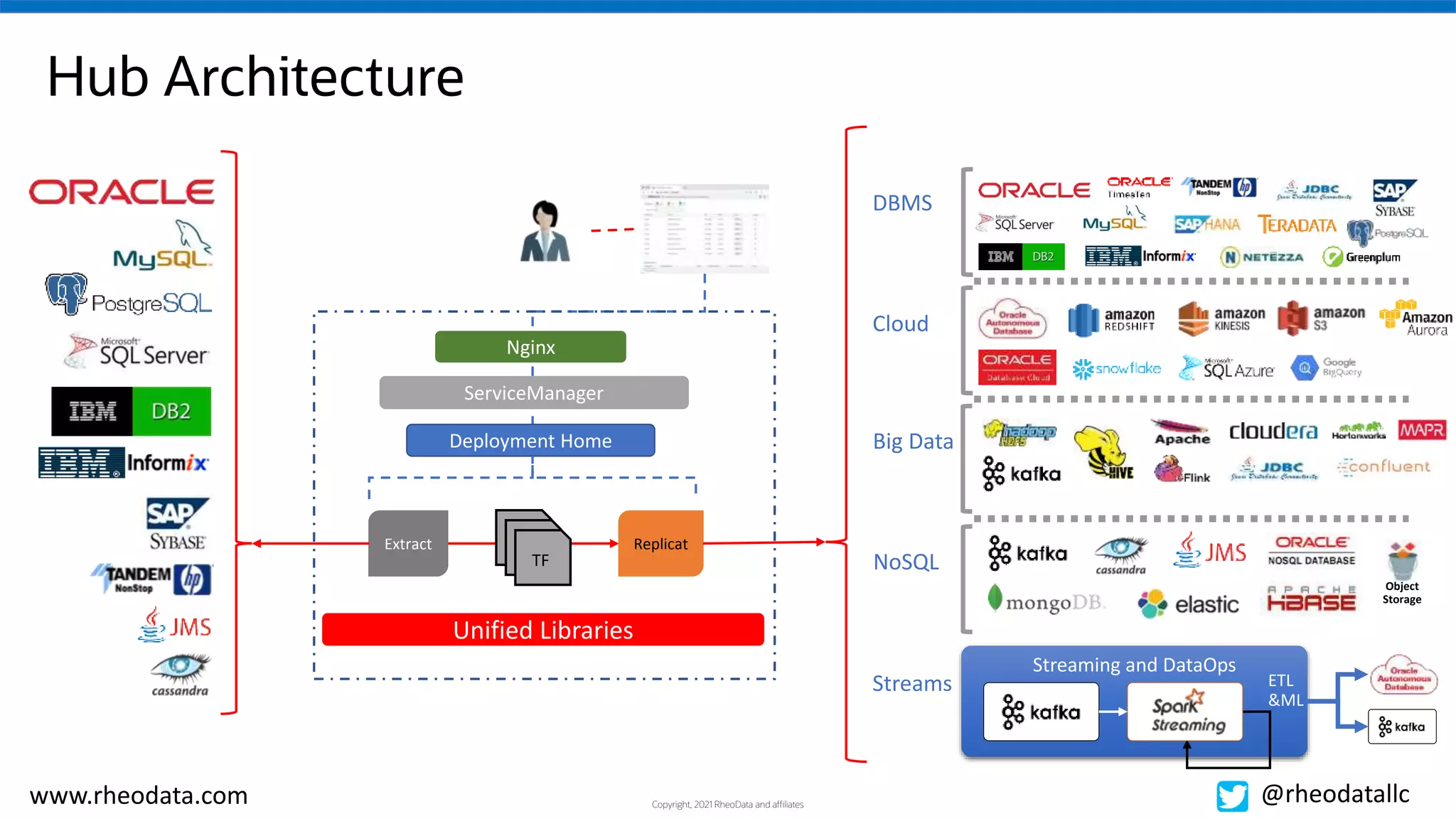

ServiceManager
Deployment Home
TF
Nginx
Extract Replicat
Hub Architecture
Unified Libraries
Streaming and DataOps
ETL
&ML
DBMS
Cloud
Big Data
NoSQL
Streams
Object
Storage
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

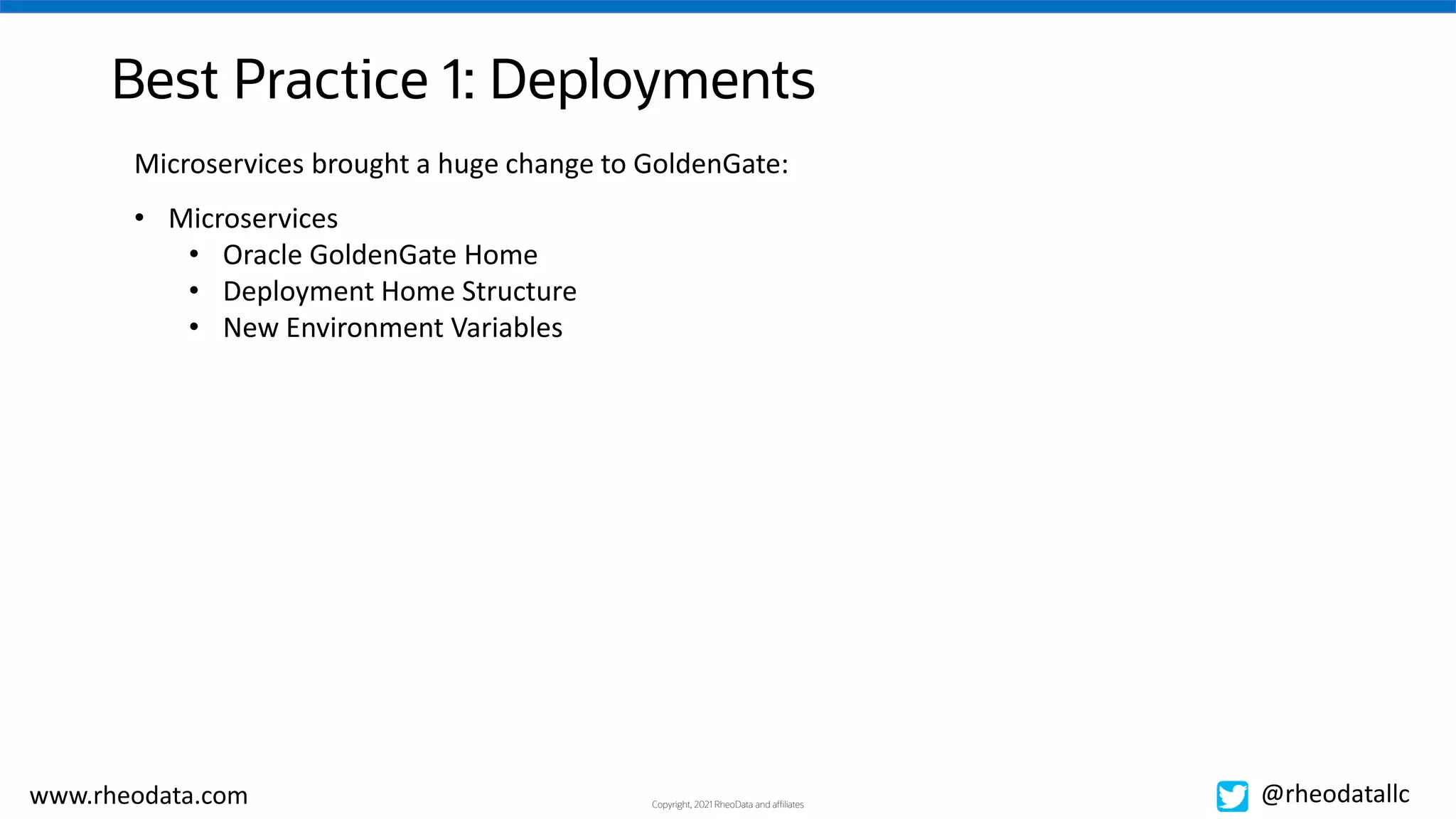

Best Practice 1: Deployments
Microservices brought a huge change to GoldenGate:
• Microservices
• Oracle GoldenGate Home
• Deployment Home Structure
• New Environment Variables
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

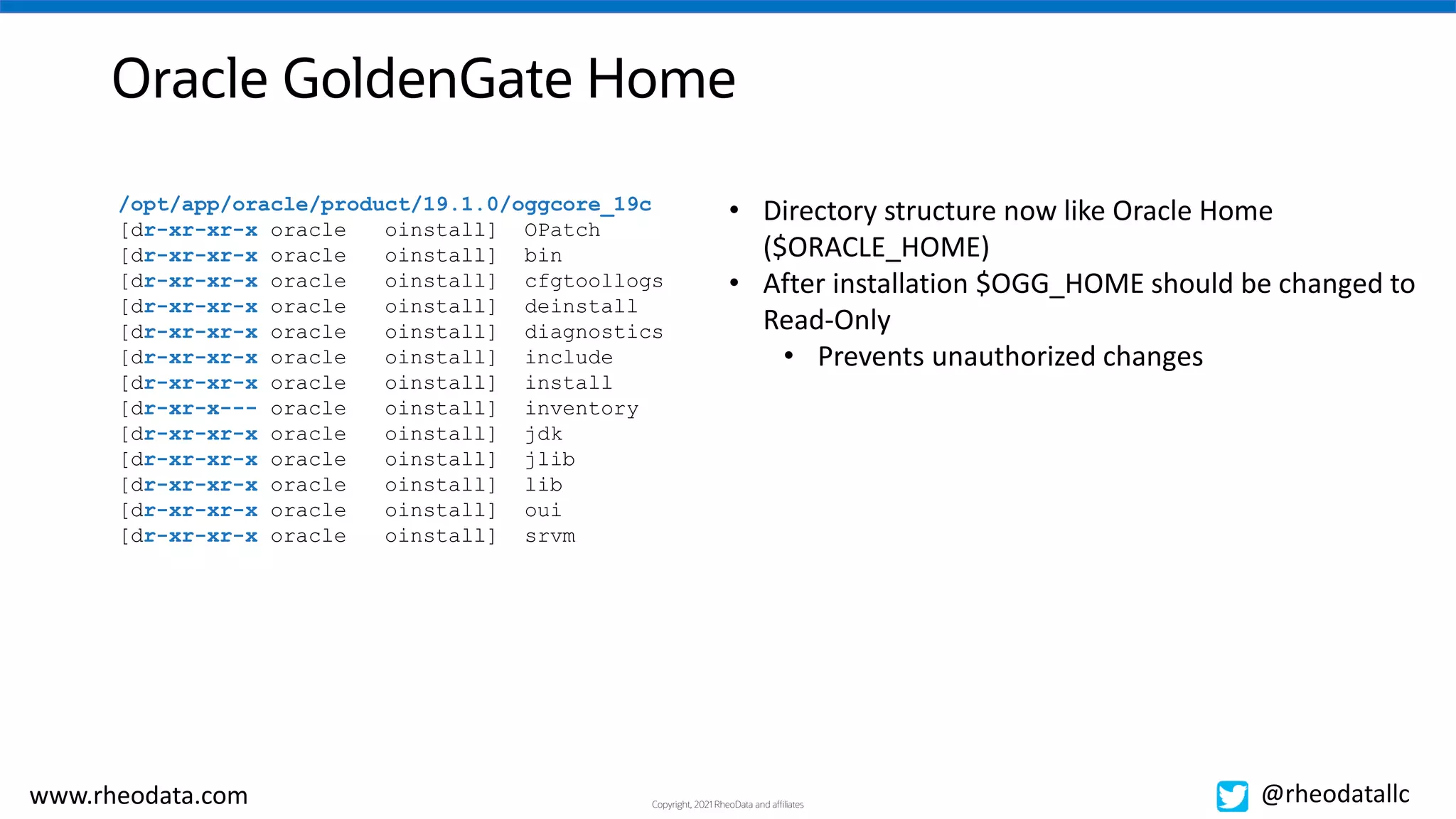

Oracle GoldenGate Home
/opt/app/oracle/product/19.1.0/oggcore_19c
[dr-xr-xr-x oracle oinstall] OPatch
[dr-xr-xr-x oracle oinstall] bin
[dr-xr-xr-x oracle oinstall] cfgtoollogs
[dr-xr-xr-x oracle oinstall] deinstall
[dr-xr-xr-x oracle oinstall] diagnostics
[dr-xr-xr-x oracle oinstall] include
[dr-xr-xr-x oracle oinstall] install
[dr-xr-x--- oracle oinstall] inventory
[dr-xr-xr-x oracle oinstall] jdk
[dr-xr-xr-x oracle oinstall] jlib
[dr-xr-xr-x oracle oinstall] lib
[dr-xr-xr-x oracle oinstall] oui
[dr-xr-xr-x oracle oinstall] srvm
• Directory structure now like Oracle Home
($ORACLE_HOME)
• After installation $OGG_HOME should be changed to
Read-Only
• Prevents unauthorized changes
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

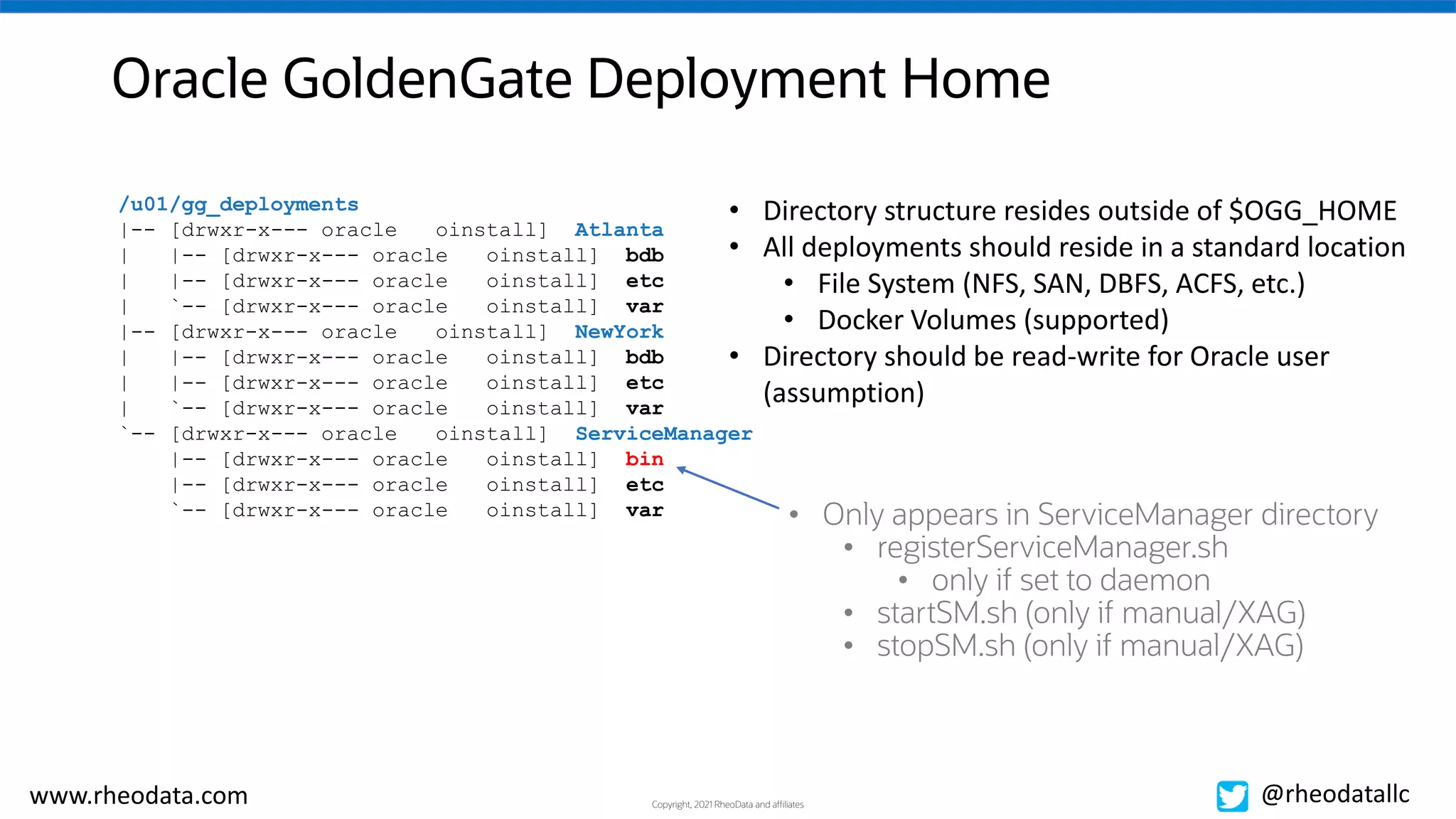

Oracle GoldenGate Deployment Home
/u01/gg_deployments
|-- [drwxr-x--- oracle oinstall] Atlanta
| |-- [drwxr-x--- oracle oinstall] bdb
| |-- [drwxr-x--- oracle oinstall] etc
| `-- [drwxr-x--- oracle oinstall] var
|-- [drwxr-x--- oracle oinstall] NewYork
| |-- [drwxr-x--- oracle oinstall] bdb
| |-- [drwxr-x--- oracle oinstall] etc
| `-- [drwxr-x--- oracle oinstall] var
`-- [drwxr-x--- oracle oinstall] ServiceManager
|-- [drwxr-x--- oracle oinstall] bin
|-- [drwxr-x--- oracle oinstall] etc
`-- [drwxr-x--- oracle oinstall] var
• Directory structure resides outside of $OGG_HOME
• All deployments should reside in a standard location
• File System (NFS, SAN, DBFS, ACFS, etc.)
• Docker Volumes (supported)
• Directory should be read-write for Oracle user
(assumption)
• Only appears in ServiceManager directory
• registerServiceManager.sh
• only if set to daemon
• startSM.sh (only if manual/XAG)
• stopSM.sh (only if manual/XAG)
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

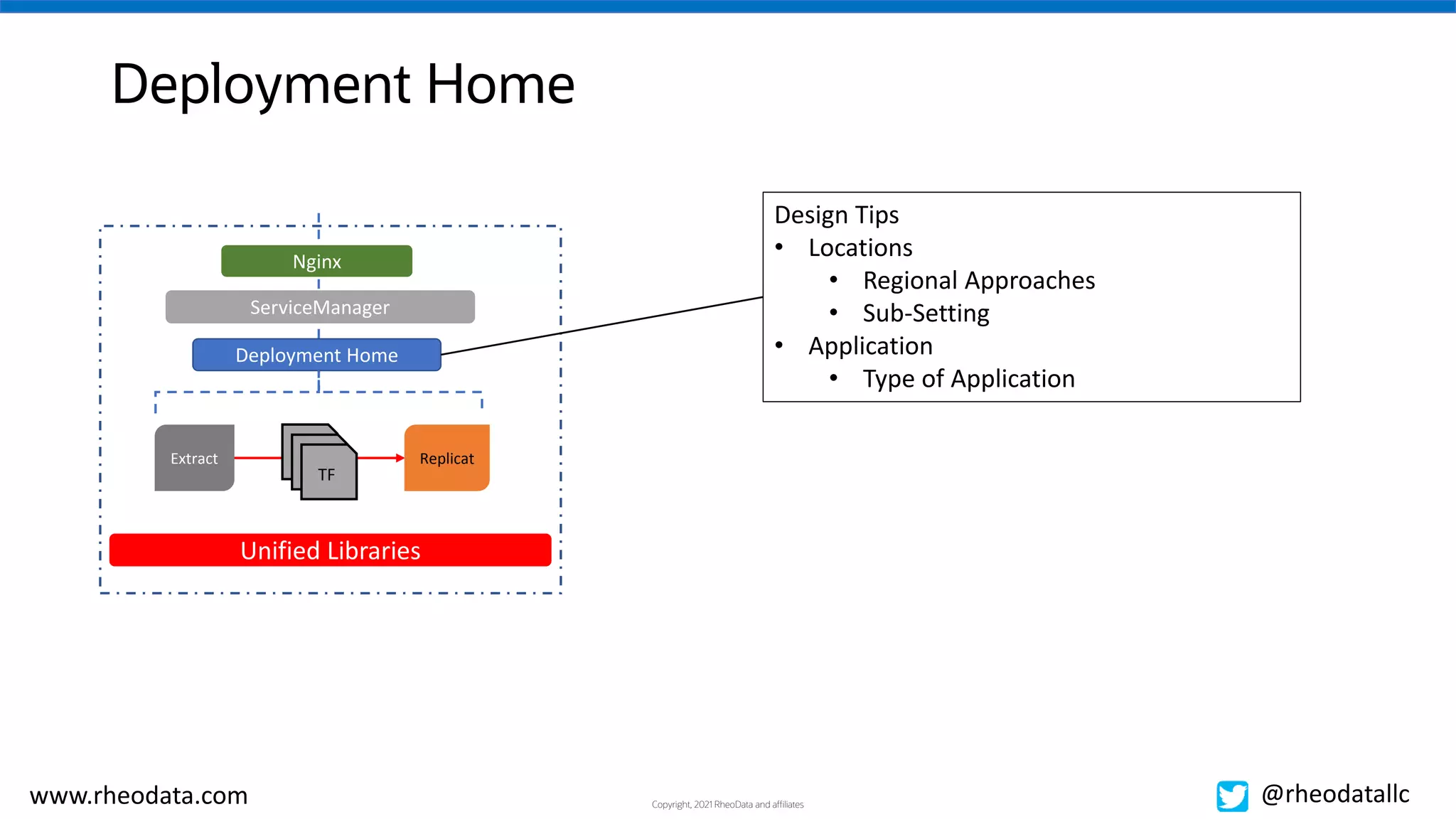

Deployment Home
ServiceManager
Deployment Home
TF
Nginx
Extract Replicat
Design Tips
• Locations
• Regional Approaches
• Sub-Setting
• Application
• Type of Application
Unified Libraries
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

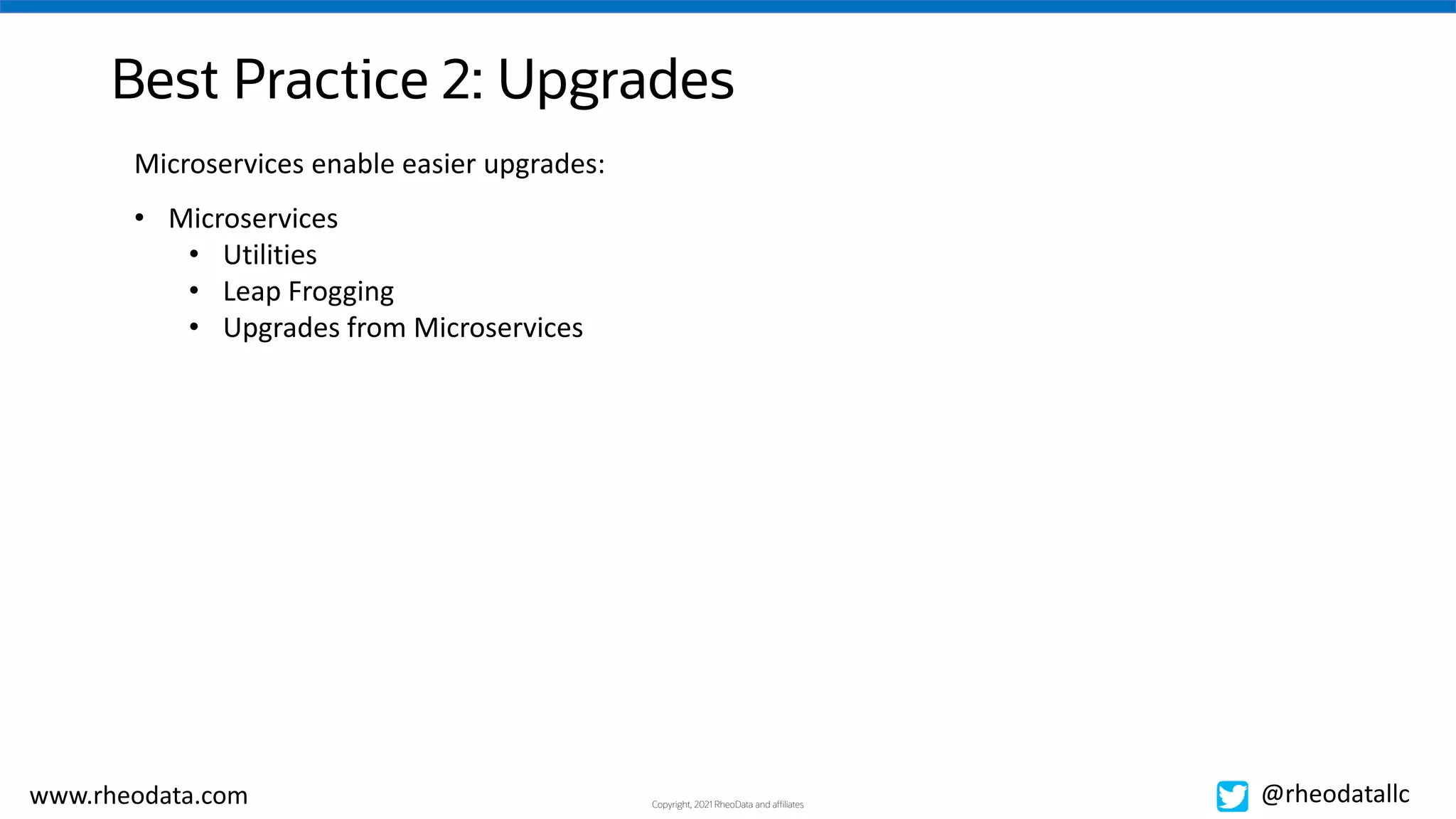

Best Practice 2: Upgrades
Microservices enable easier upgrades:
• Microservices
• Utilities
• Leap Frogging
• Upgrades from Microservices
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

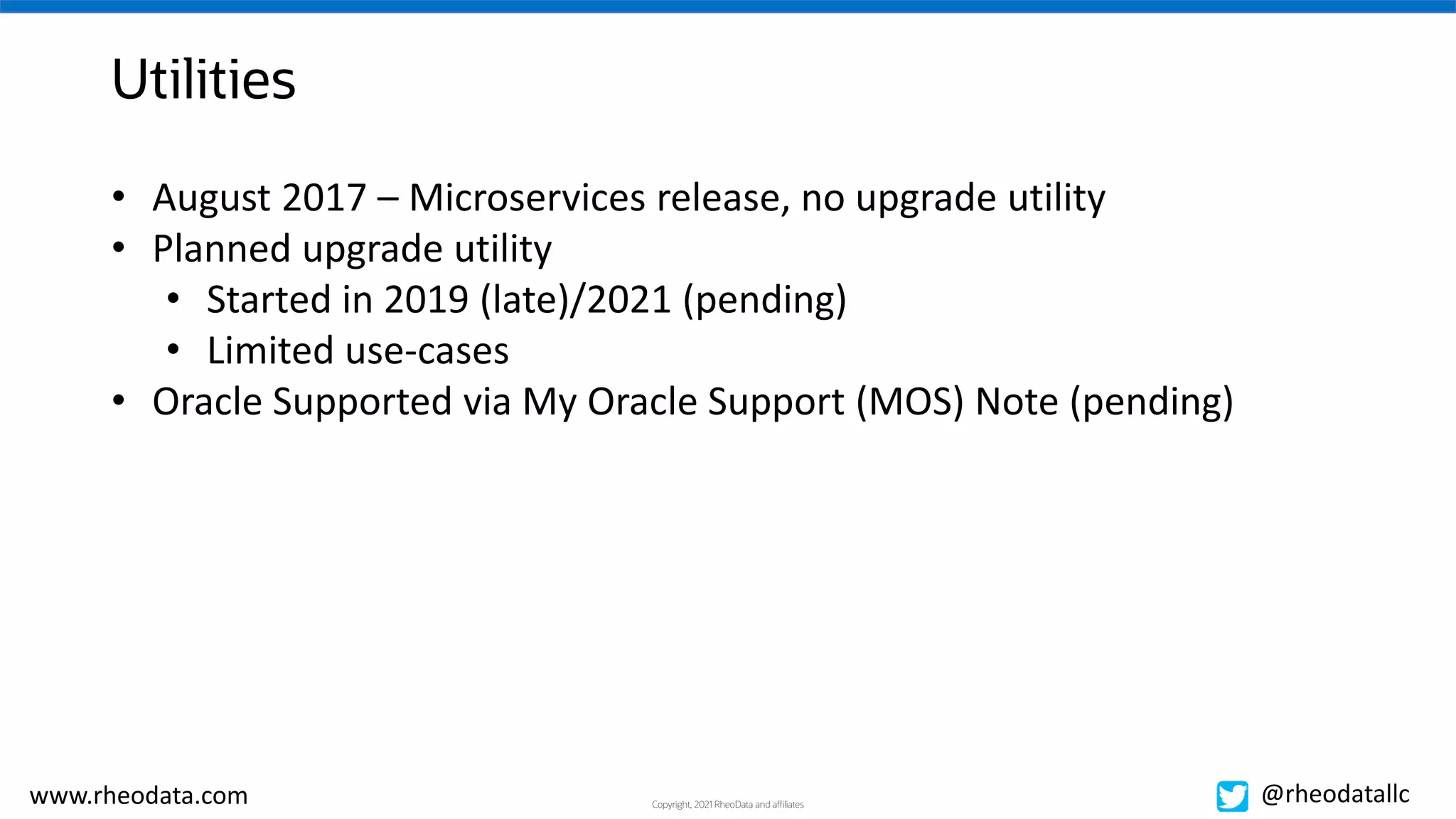

Utilities
• August 2017 – Microservices release, no upgrade utility
• Planned upgrade utility
• Started in 2019 (late)/2021 (pending)
• Limited use-cases
• Oracle Supported via My Oracle Support (MOS) Note (pending)
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

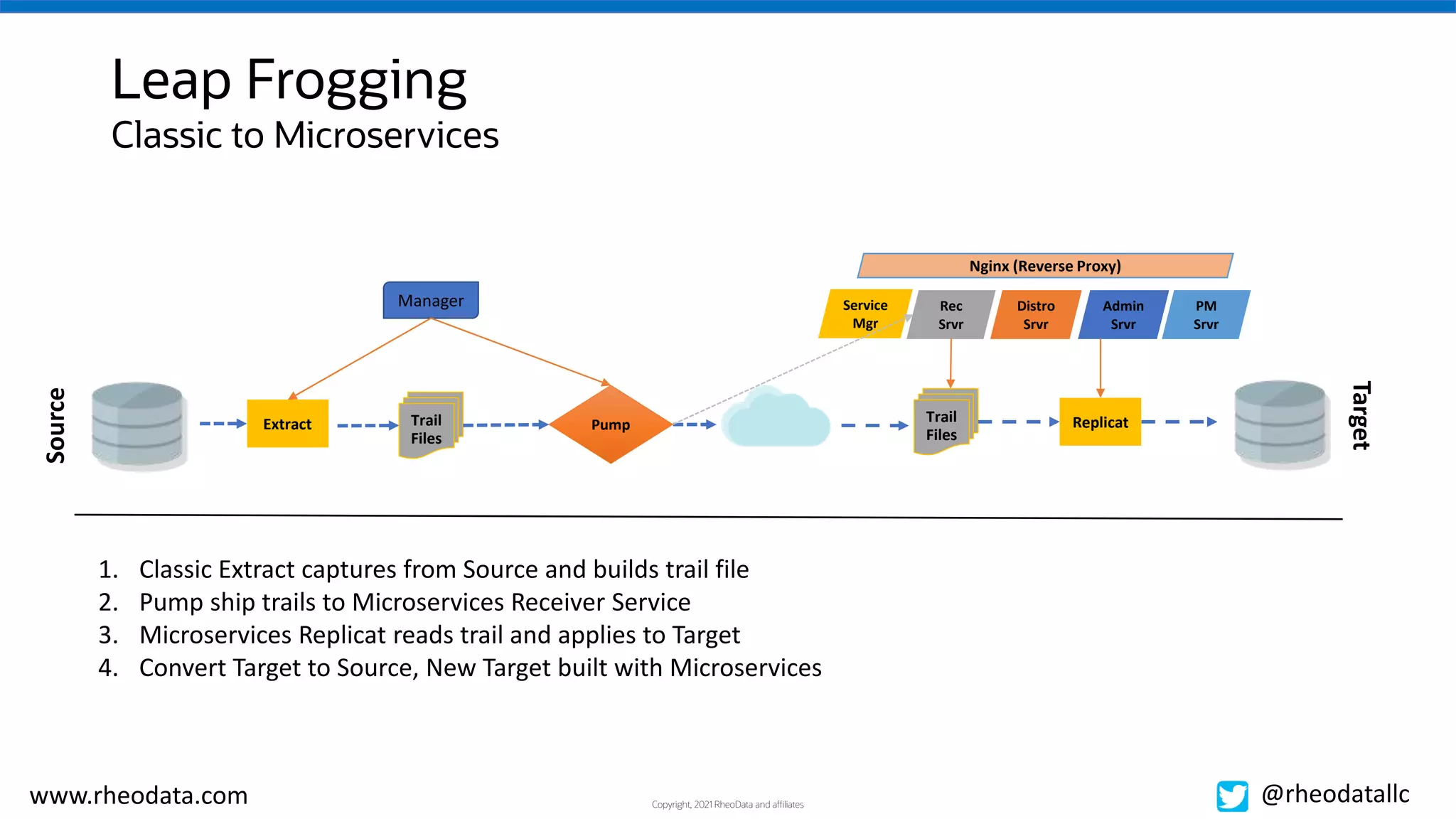

Leap Frogging
Source
Extract Pump
Trail
Files
Manager
Target
Replicat
Trail
Files
Admin
Srvr
Distro
Srvr
Rec
Srvr
Service
Mgr
PM
Srvr
Nginx (Reverse Proxy)
1. Classic Extract captures from Source and builds trail file
2. Pump ship trails to Microservices Receiver Service
3. Microservices Replicat reads trail and applies to Target
4. Convert Target to Source, New Target built with Microservices
Classic to Microservices
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

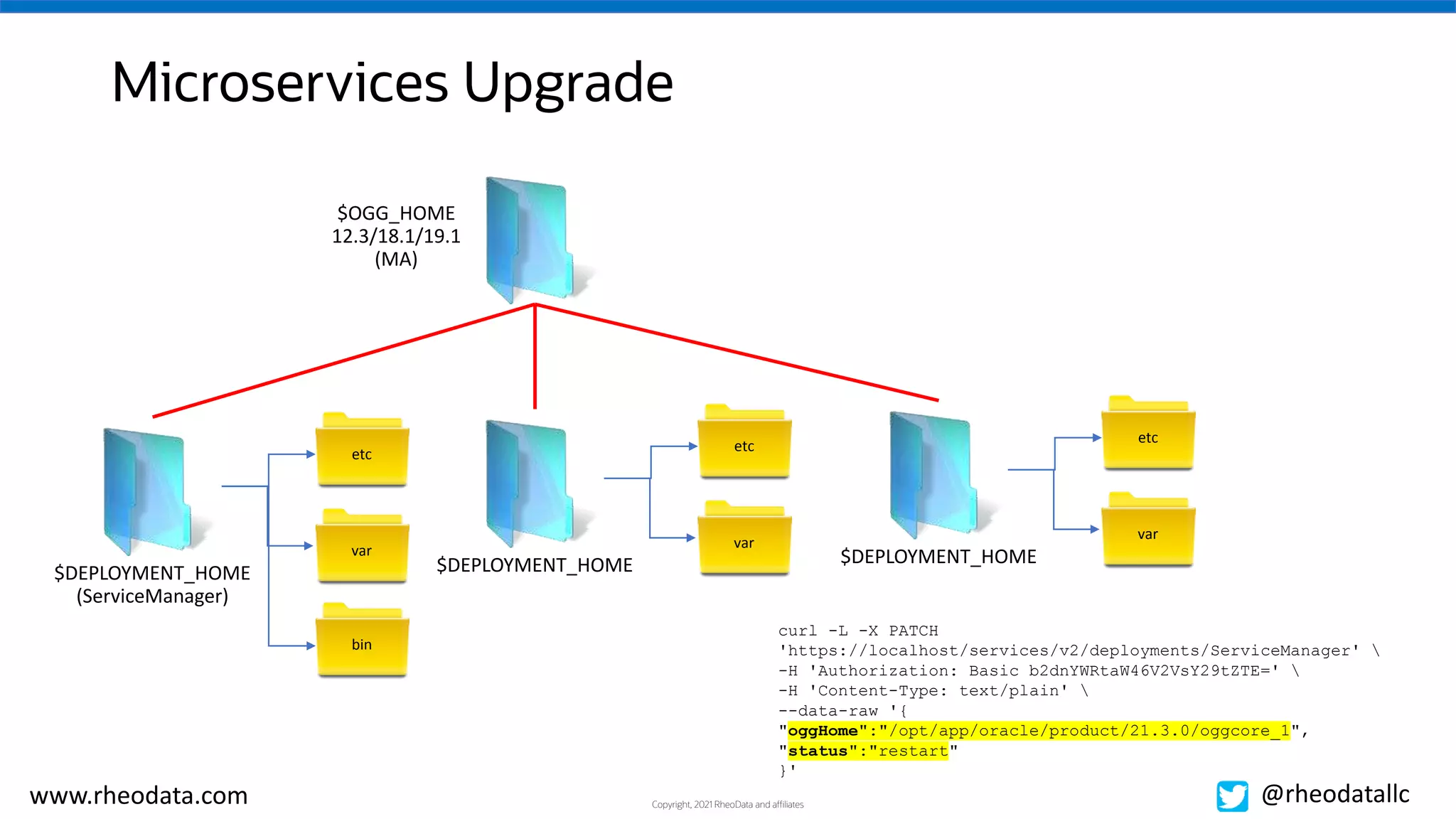

$OGG_HOME
12.3/18.1/19.1
(MA)
etc
$DEPLOYMENT_HOME
(ServiceManager)
var
bin
etc
$DEPLOYMENT_HOME
var
etc
$DEPLOYMENT_HOME
var
Microservices Upgrade
curl -L -X PATCH
'https://localhost/services/v2/deployments/ServiceManager'
-H 'Authorization: Basic b2dnYWRtaW46V2VsY29tZTE='
-H 'Content-Type: text/plain'
--data-raw '{
"oggHome":"/opt/app/oracle/product/21.3.0/oggcore_1",
"status":"restart"
}'
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

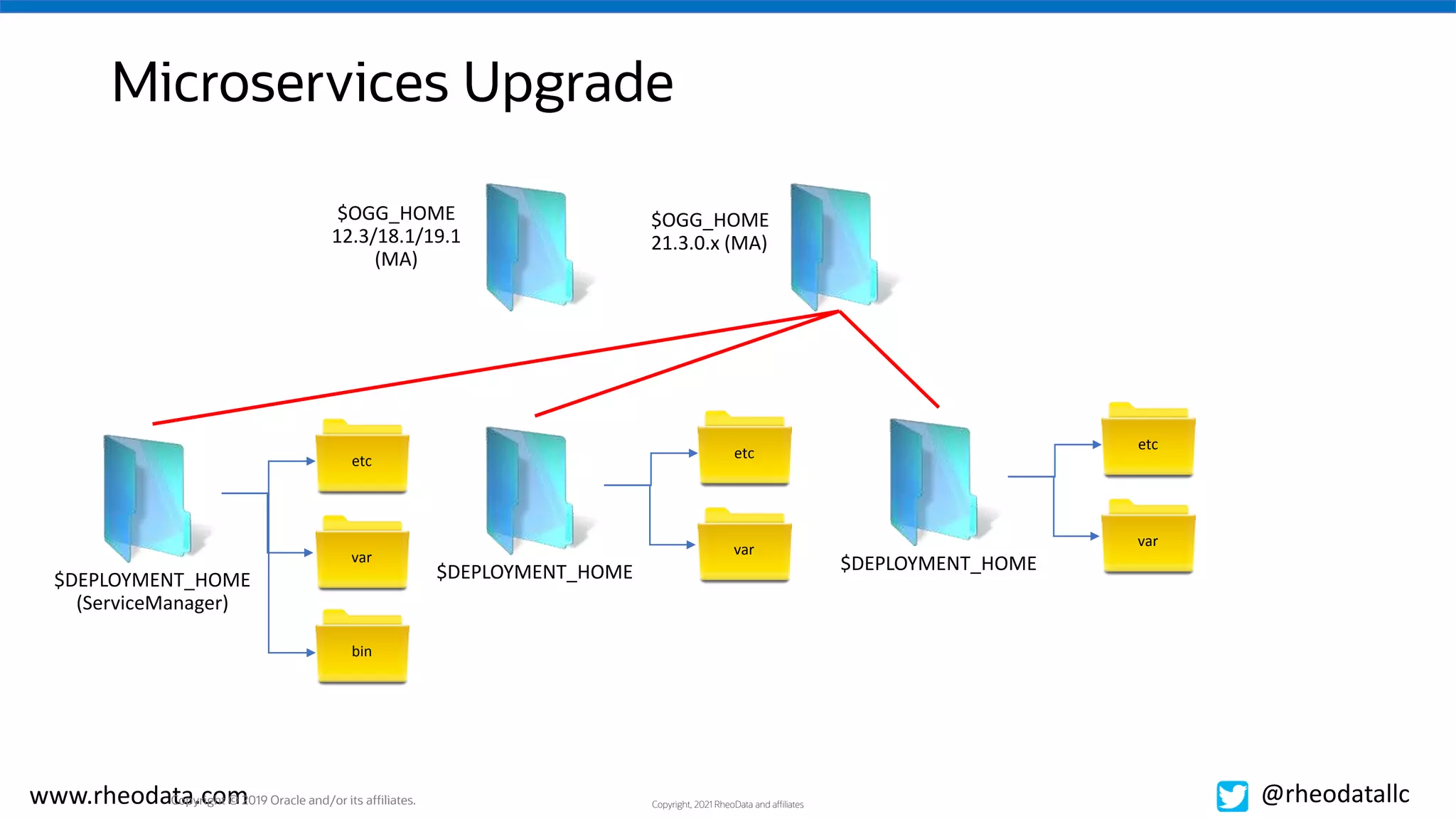

Copyright © 2019 Oracle and/or its affiliates.
etc
$DEPLOYMENT_HOME
(ServiceManager)
var
bin
etc
$DEPLOYMENT_HOME
var
etc
$DEPLOYMENT_HOME
var
$OGG_HOME
21.3.0.x (MA)

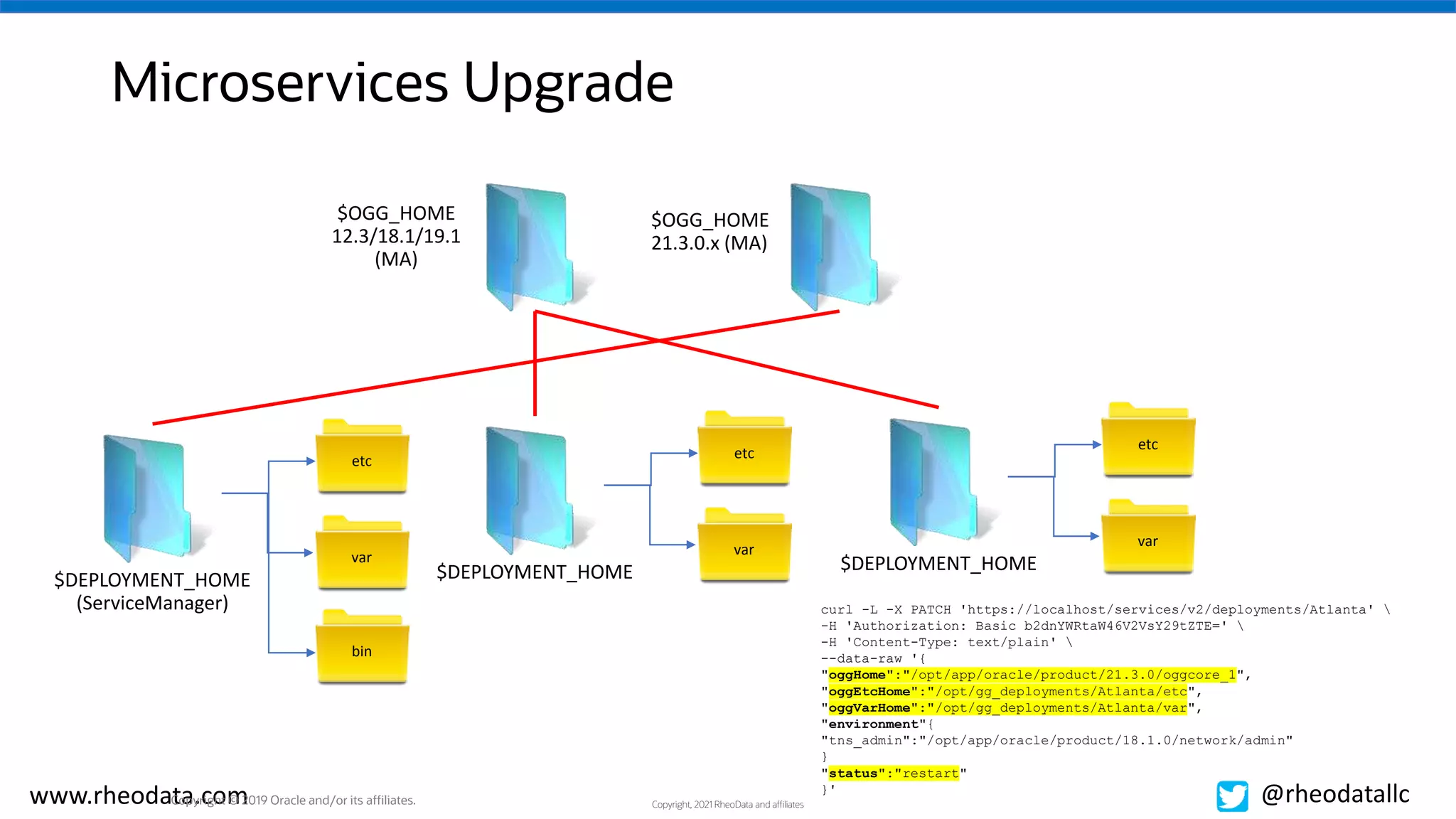

Microservices Upgrade
curl -L -X PATCH 'https://localhost/services/v2/deployments/Atlanta'
-H 'Authorization: Basic b2dnYWRtaW46V2VsY29tZTE='
-H 'Content-Type: text/plain'
--data-raw '{
"oggHome":"/opt/app/oracle/product/21.3.0/oggcore_1",
"oggEtcHome":"/opt/gg_deployments/Atlanta/etc",
"oggVarHome":"/opt/gg_deployments/Atlanta/var",
"environment"{
"tns_admin":"/opt/app/oracle/product/18.1.0/network/admin"
}
"status":"restart"
}'
$OGG_HOME
12.3/18.1/19.1
(MA)
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc
Copyright © 2019 Oracle and/or its affiliates.
etc
$DEPLOYMENT_HOME
(ServiceManager)
var
bin
etc
$DEPLOYMENT_HOME
var
etc
$DEPLOYMENT_HOME
var
$OGG_HOME
21.3.0.x (MA)
Microservices Upgrade
$OGG_HOME
12.3/18.1/19.1
(MA)
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

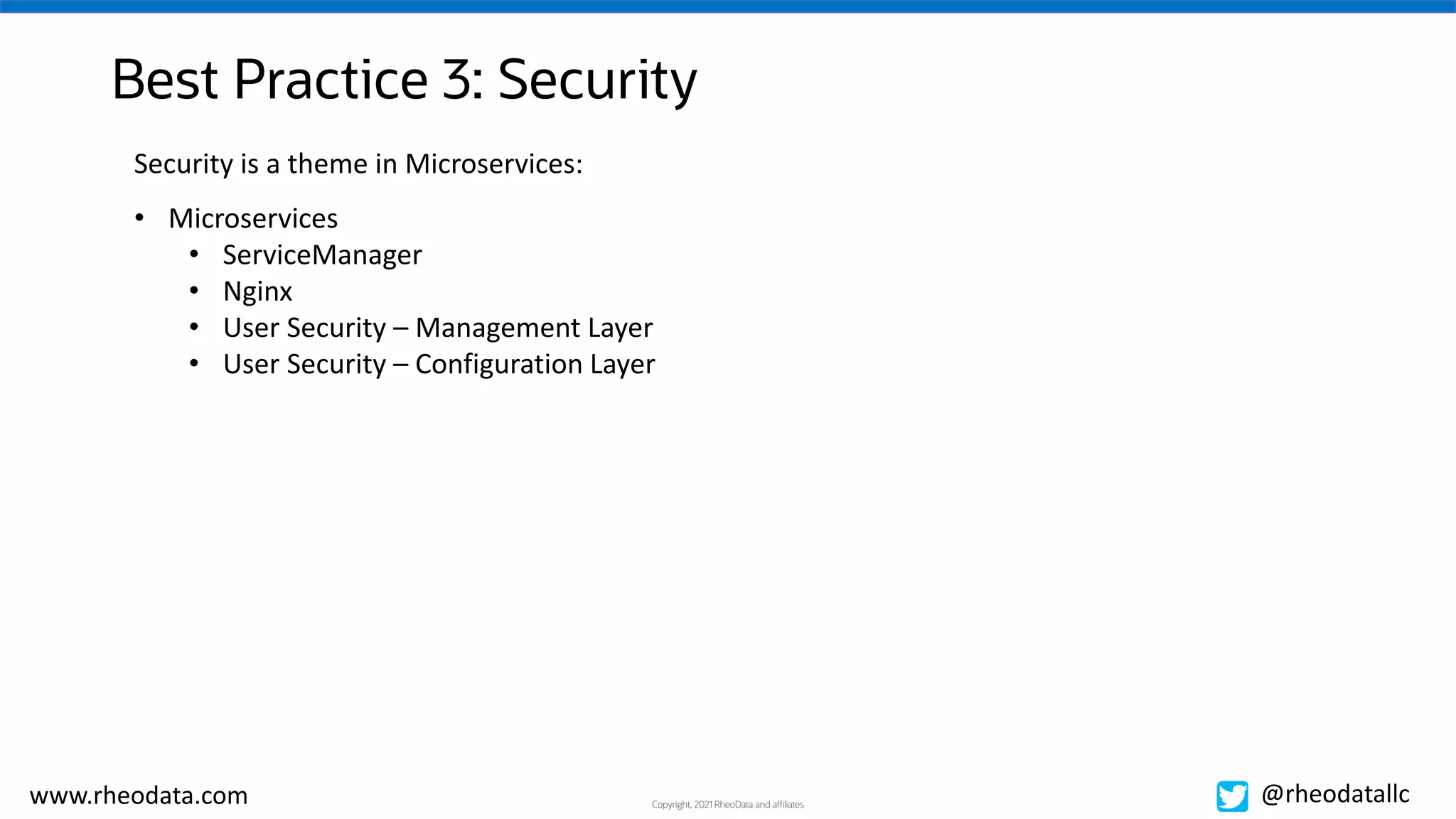

Best Practice 3: Security
Security is a theme in Microservices:
• Microservices
• ServiceManager
• Nginx
• User Security – Management Layer
• User Security – Configuration Layer
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc
Unsecure or Secure - ServiceManager
ServiceManager
Deployment Home
TF
Nginx
Extract Replicat
11g 12c 19c
18c
Secure
• SSL/TLS security enables and affects all
underlying deployment homes
• Must have Oracle Wallet with Certificates
for host and distribution path
Unsecure
• SSL/TLS security disabled and affects all
underlying deployment homes
Cannot mix security, all or nothing approach
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

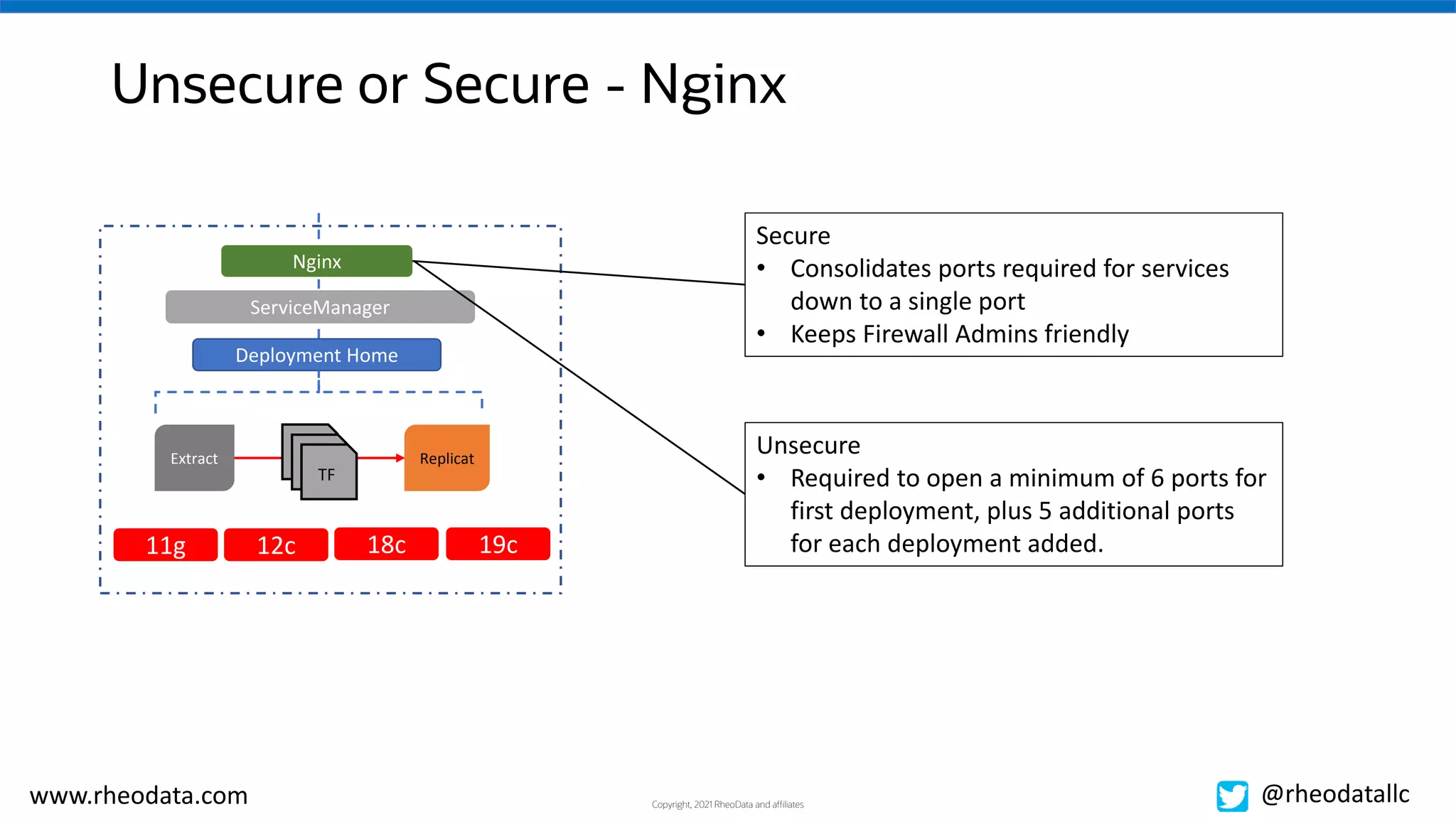

Unsecure or Secure - Nginx
ServiceManager
Deployment Home
TF
Nginx
Extract Replicat
11g 12c 19c
18c
Secure
• Consolidates ports required for services
down to a single port
• Keeps Firewall Admins friendly
Unsecure
• Required to open a minimum of 6 ports for
first deployment, plus 5 additional ports
for each deployment added.
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

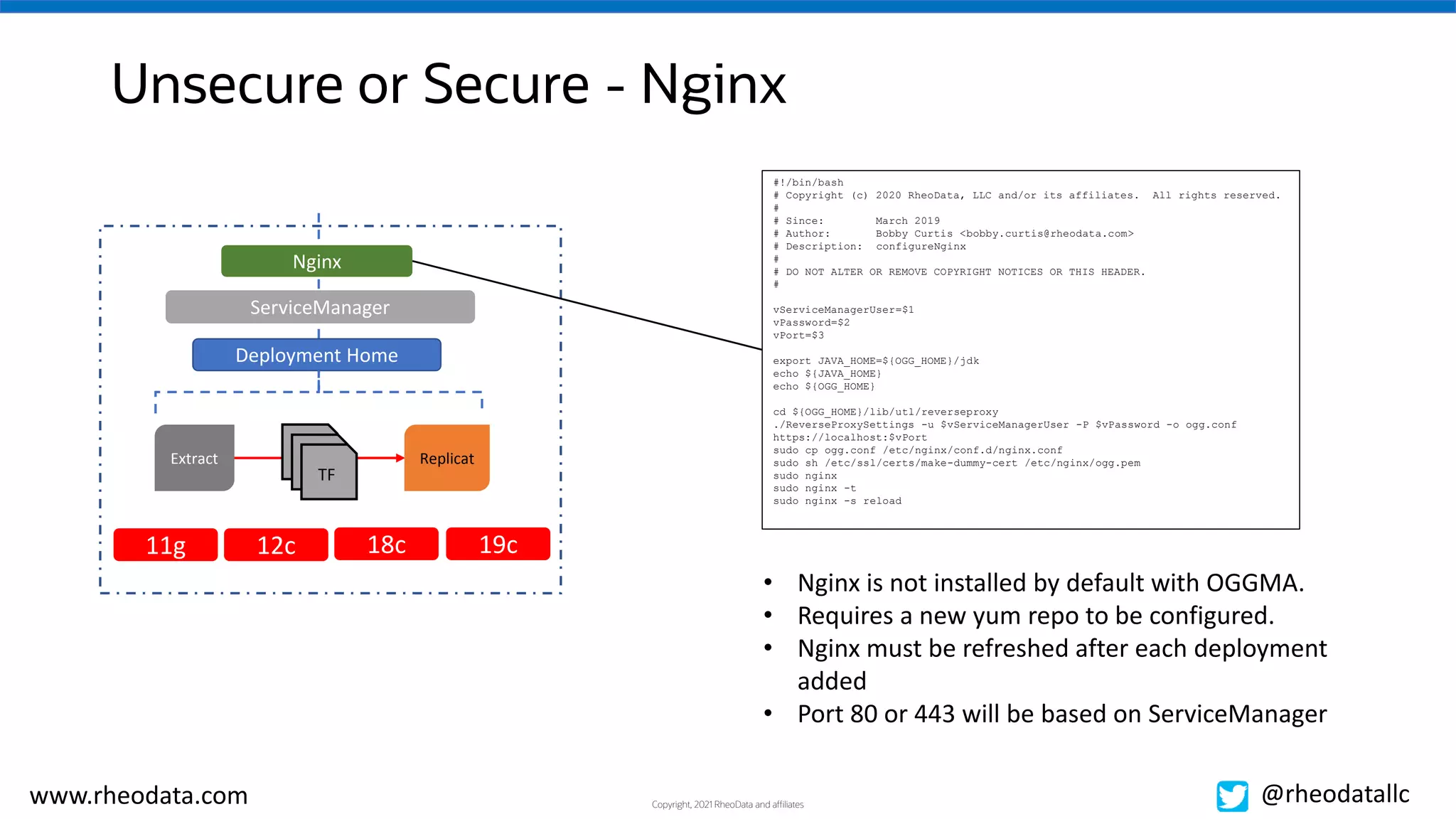

Unsecure or Secure - Nginx
ServiceManager
Deployment Home
TF
Nginx
Extract Replicat
11g 12c 19c
18c
#!/bin/bash
# Copyright (c) 2020 RheoData, LLC and/or its affiliates. All rights reserved.
#
# Since: March 2019
# Author: Bobby Curtis <bobby.curtis@rheodata.com>
# Description: configureNginx
#
# DO NOT ALTER OR REMOVE COPYRIGHT NOTICES OR THIS HEADER.
#
vServiceManagerUser=$1
vPassword=$2
vPort=$3
export JAVA_HOME=${OGG_HOME}/jdk
echo ${JAVA_HOME}
echo ${OGG_HOME}
cd ${OGG_HOME}/lib/utl/reverseproxy
./ReverseProxySettings -u $vServiceManagerUser -P $vPassword -o ogg.conf
https://localhost:$vPort
sudo cp ogg.conf /etc/nginx/conf.d/nginx.conf
sudo sh /etc/ssl/certs/make-dummy-cert /etc/nginx/ogg.pem
sudo nginx
sudo nginx -t
sudo nginx -s reload
• Nginx is not installed by default with OGGMA.
• Requires a new yum repo to be configured.
• Nginx must be refreshed after each deployment
added
• Port 80 or 443 will be based on ServiceManager
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

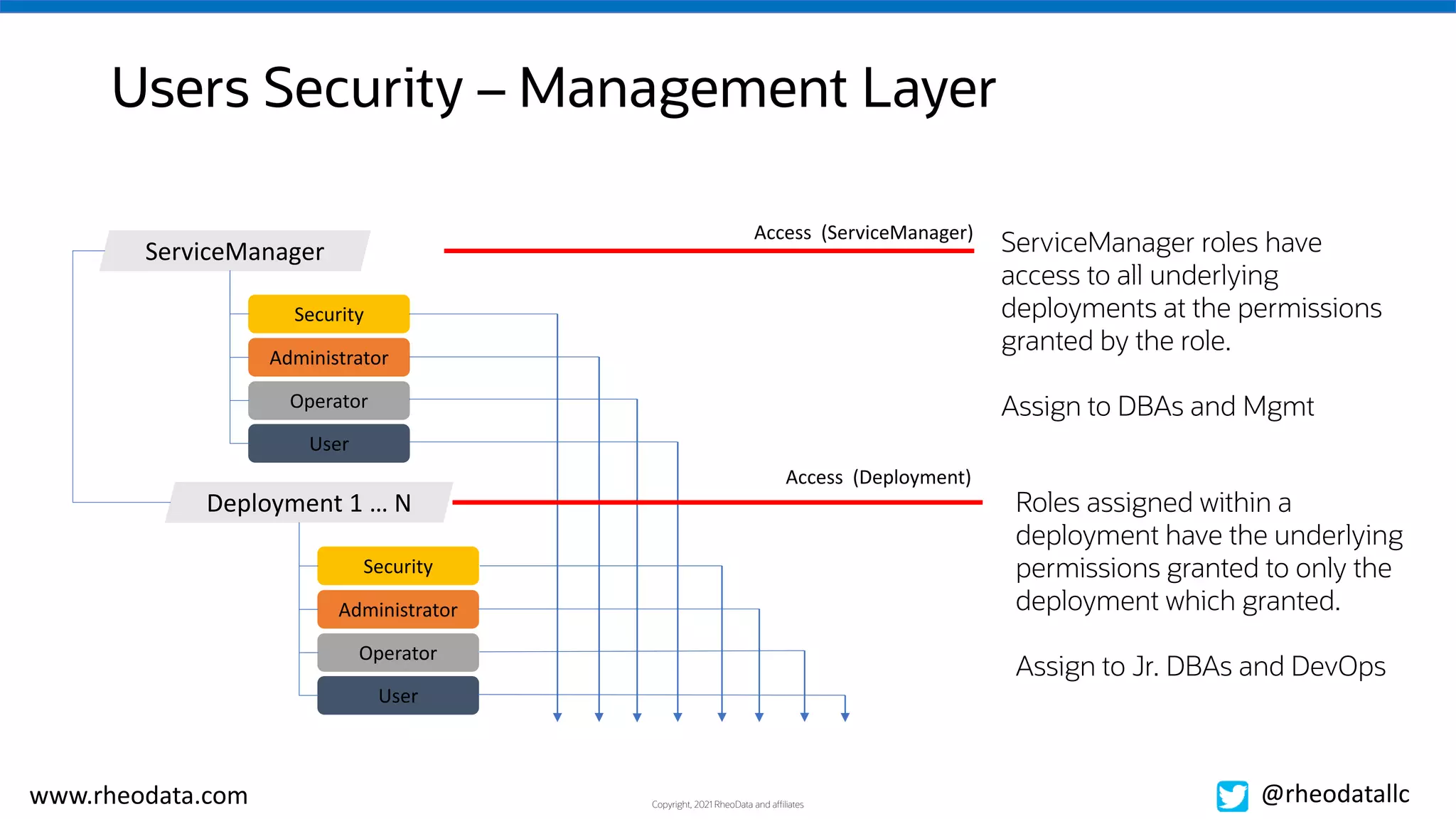

Users Security – Management Layer
ServiceManager
Deployment 1 … N
Security
Administrator
Operator
User
Security
Administrator
Operator
User
Access (ServiceManager)
Access (Deployment)
ServiceManager roles have
access to all underlying
deployments at the permissions
granted by the role.
Assign to DBAs and Mgmt
Roles assigned within a
deployment have the underlying
permissions granted to only the
deployment which granted.
Assign to Jr. DBAs and DevOps
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

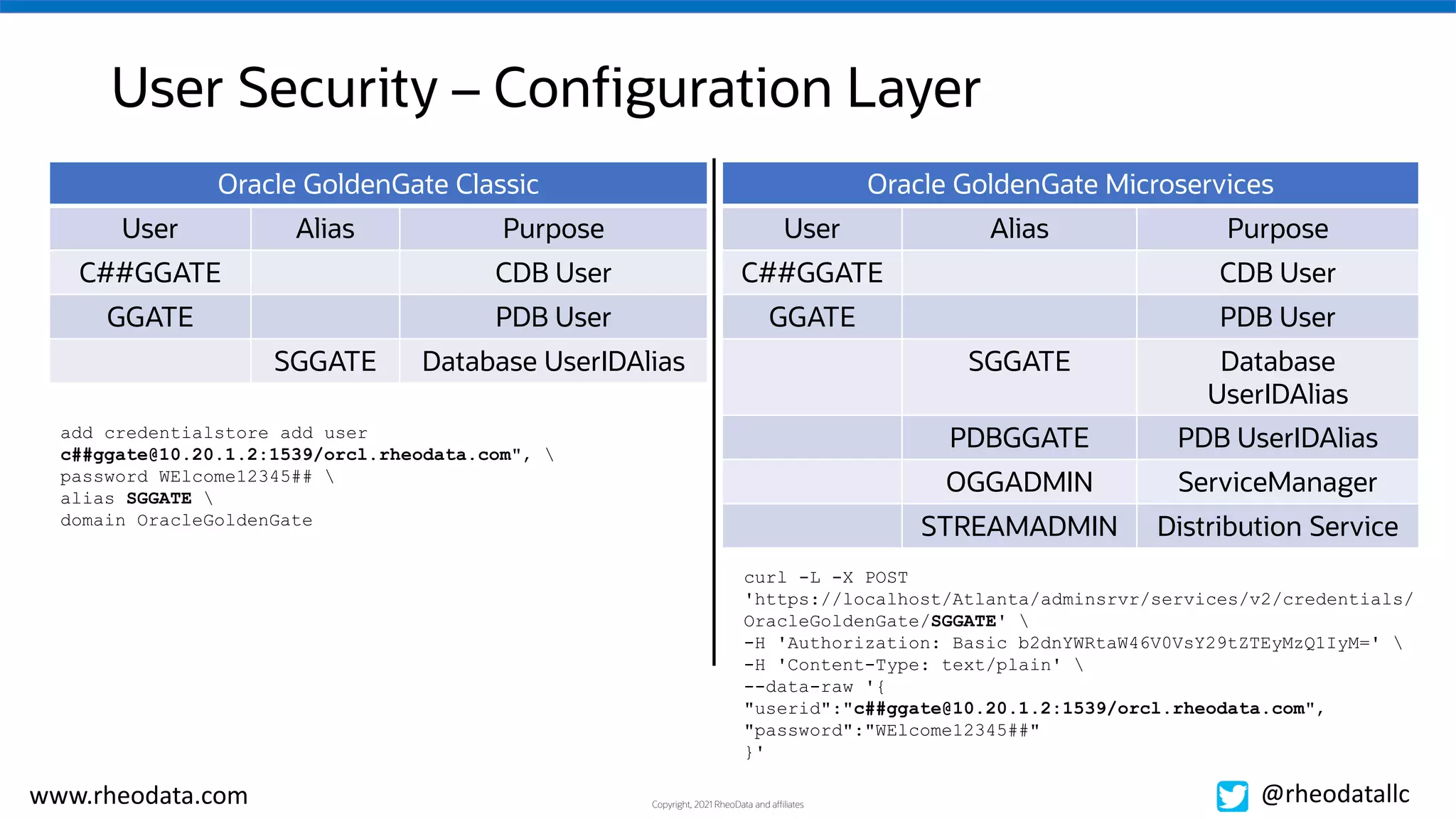

User Security – Configuration Layer
Oracle GoldenGate Classic
User Alias Purpose
C##GGATE CDB User
GGATE PDB User
SGGATE Database UserIDAlias
Oracle GoldenGate Microservices
User Alias Purpose
C##GGATE CDB User
GGATE PDB User
SGGATE Database
UserIDAlias
PDBGGATE PDB UserIDAlias
OGGADMIN ServiceManager
STREAMADMIN Distribution Service
curl -L -X POST
'https://localhost/Atlanta/adminsrvr/services/v2/credentials/
OracleGoldenGate/SGGATE'
-H 'Authorization: Basic b2dnYWRtaW46V0VsY29tZTEyMzQ1IyM='
-H 'Content-Type: text/plain'
--data-raw '{
"userid":"c##ggate@10.20.1.2:1539/orcl.rheodata.com",
"password":"WElcome12345##"
}'
add credentialstore add user
c##ggate@10.20.1.2:1539/orcl.rheodata.com",
password WElcome12345##
alias SGGATE
domain OracleGoldenGate
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

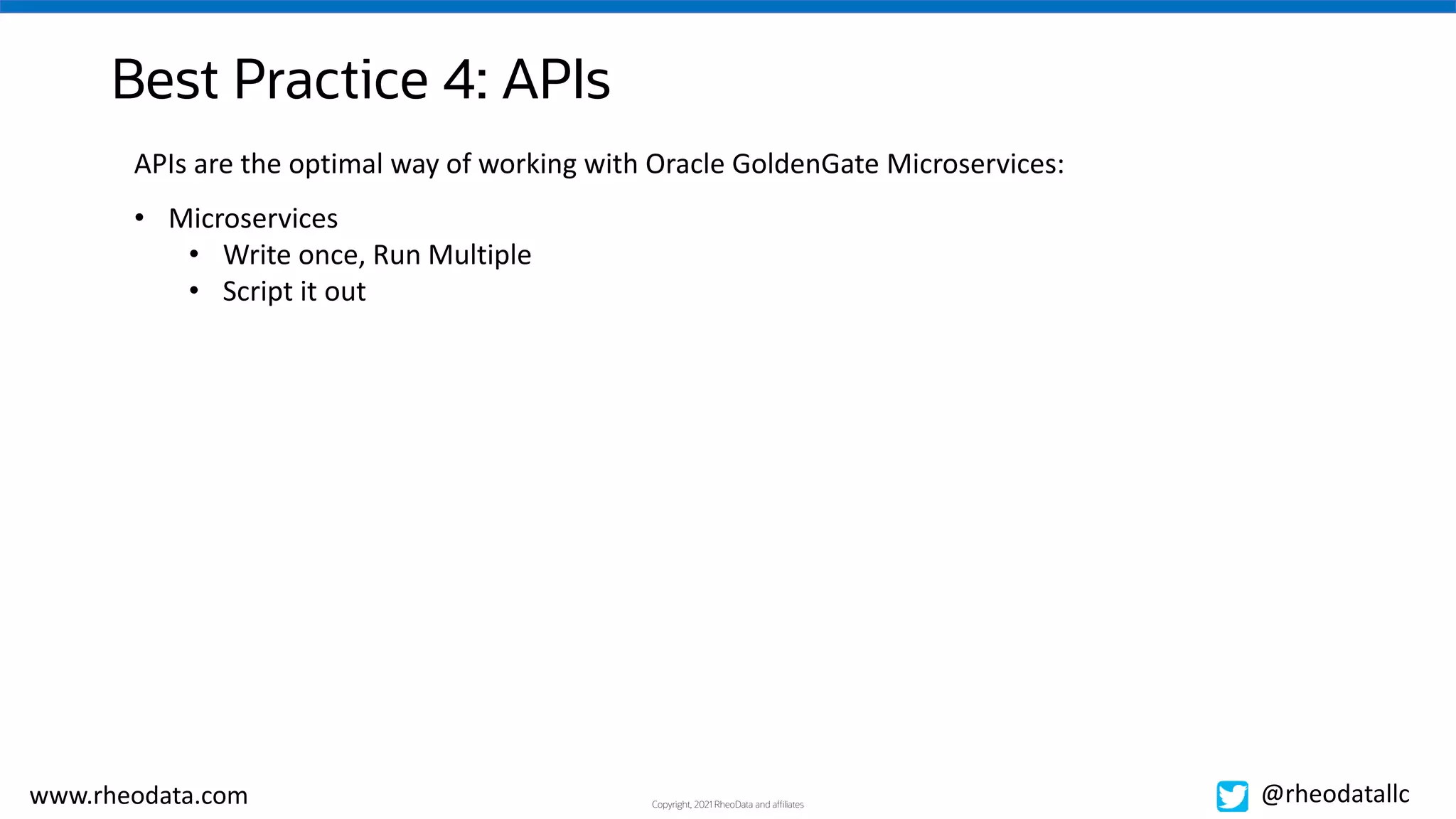

Best Practice 4: APIs
APIs are the optimal way of working with Oracle GoldenGate Microservices:
• Microservices
• Write once, Run Multiple
• Script it out
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

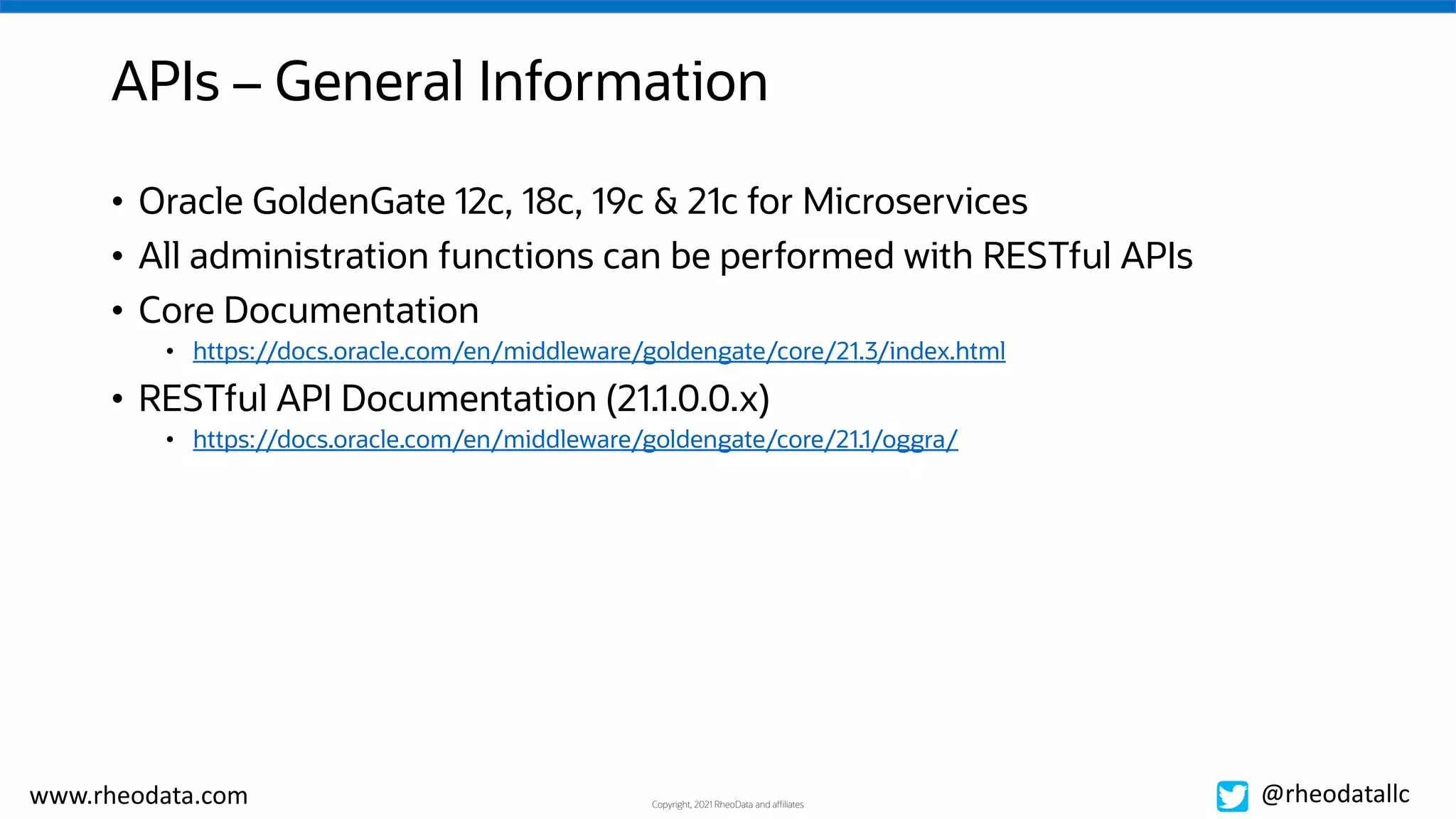

APIs – General Information
• Oracle GoldenGate 12c, 18c, 19c & 21c for Microservices
• All administration functions can be performed with RESTful APIs
• Core Documentation
• https://docs.oracle.com/en/middleware/goldengate/core/21.3/index.html
• RESTful API Documentation (21.1.0.0.x)
• https://docs.oracle.com/en/middleware/goldengate/core/21.1/oggra/
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

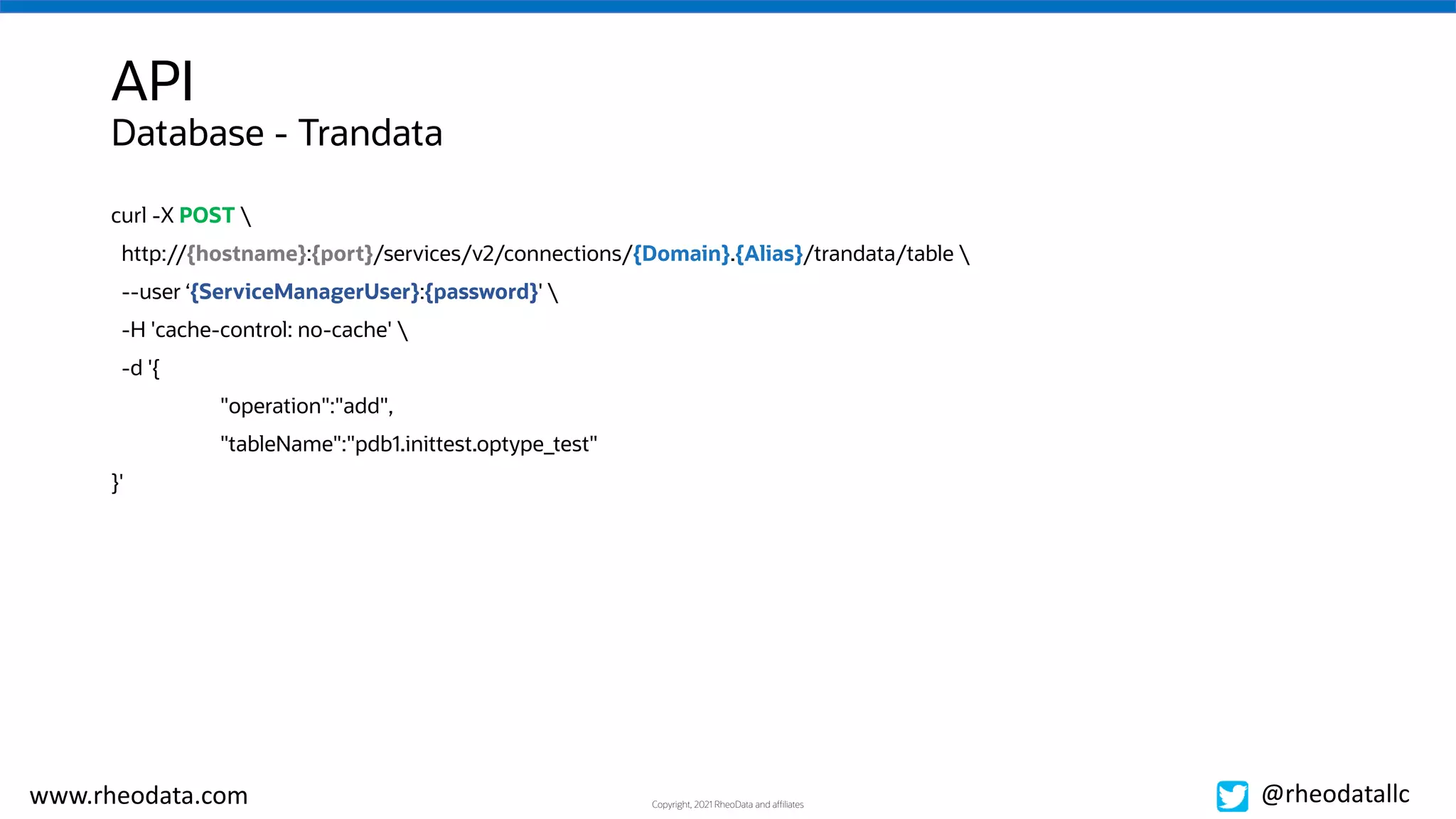

API
curl -X POST
http://{hostname}:{port}/services/v2/connections/{Domain}.{Alias}/trandata/table
--user ‘{ServiceManagerUser}:{password}'
-H 'cache-control: no-cache'
-d '{
"operation":"add",
"tableName":"pdb1.inittest.optype_test"
}'
Database - Trandata
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

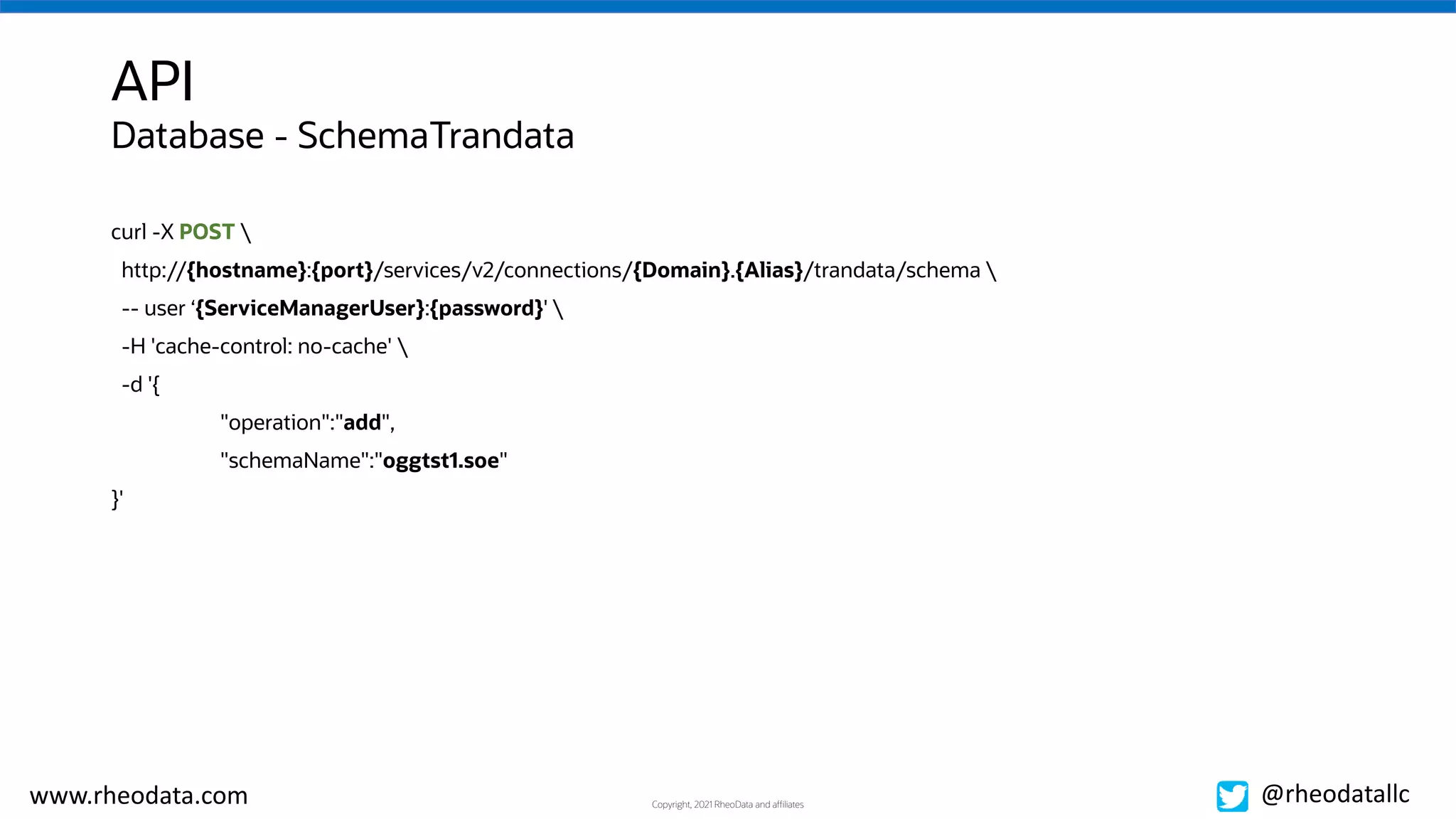

API
curl -X POST
http://{hostname}:{port}/services/v2/connections/{Domain}.{Alias}/trandata/schema
-- user ‘{ServiceManagerUser}:{password}'
-H 'cache-control: no-cache'
-d '{
"operation":"add",
"schemaName":"oggtst1.soe"
}'
Database - SchemaTrandata
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

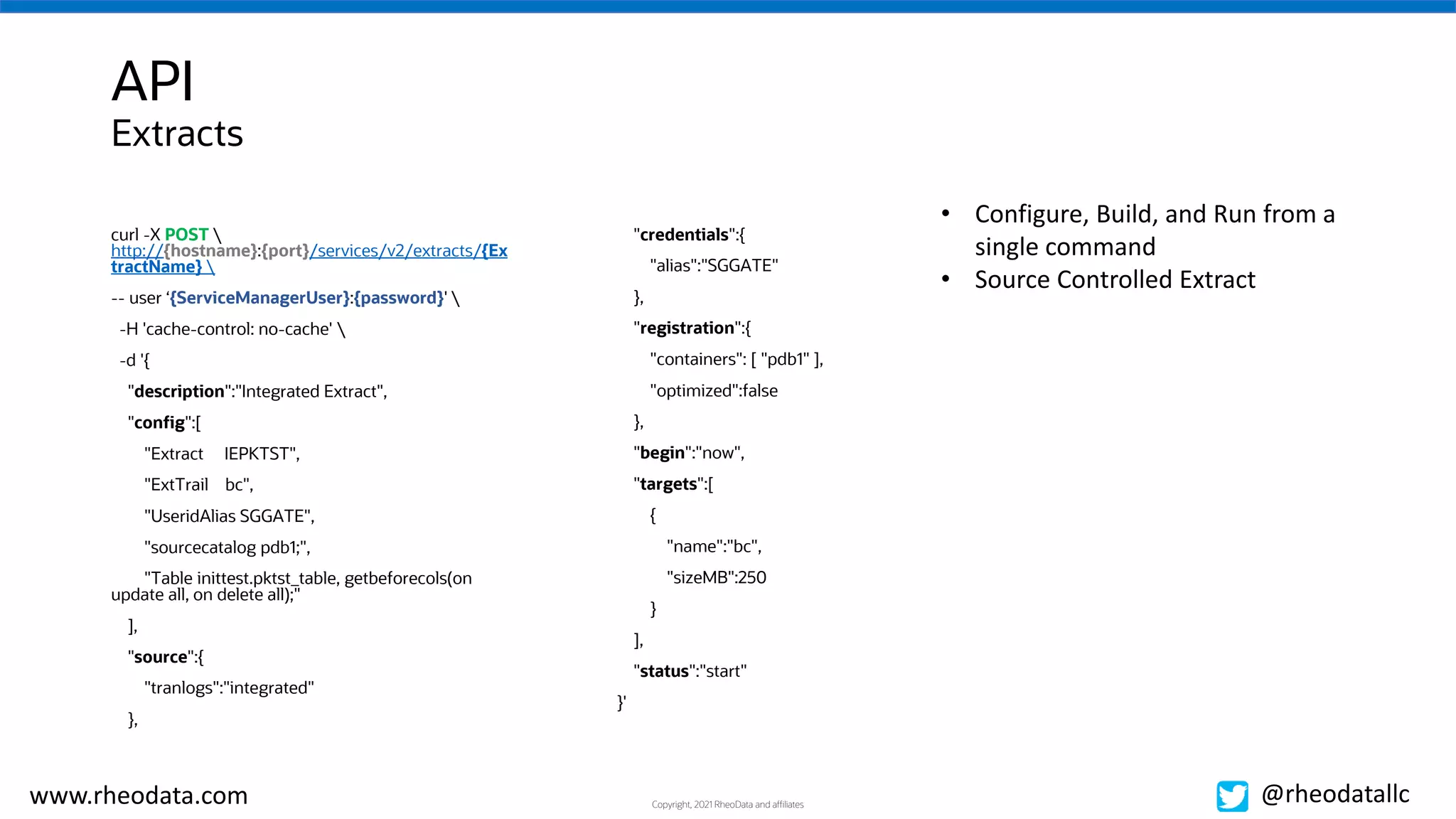

API
curl -X POST
http://{hostname}:{port}/services/v2/extracts/{Ex
tractName}
-- user ‘{ServiceManagerUser}:{password}'
-H 'cache-control: no-cache'
-d '{
"description":"Integrated Extract",
"config":[
"Extract IEPKTST",
"ExtTrail bc",
"UseridAlias SGGATE",
"sourcecatalog pdb1;",
"Table inittest.pktst_table, getbeforecols(on
update all, on delete all);"
],
"source":{
"tranlogs":"integrated"
},
"credentials":{
"alias":"SGGATE"
},
"registration":{
"containers": [ "pdb1" ],
"optimized":false
},
"begin":"now",
"targets":[
{
"name":"bc",
"sizeMB":250
}
],
"status":"start"
}'
• Configure, Build, and Run from a
single command
• Source Controlled Extract
Extracts
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

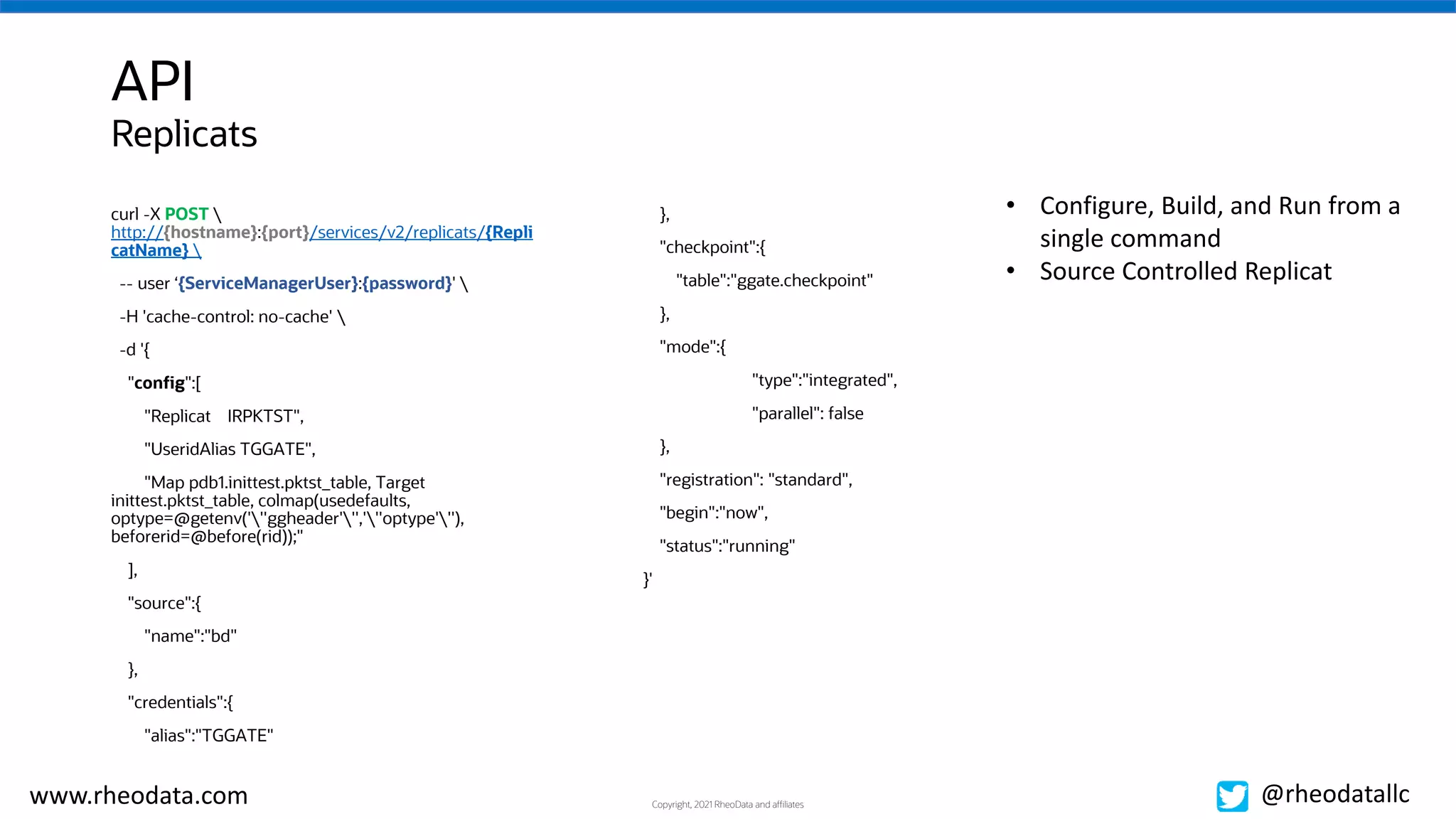

API
• Configure, Build, and Run from a
single command
• Source Controlled Replicat
curl -X POST
http://{hostname}:{port}/services/v2/replicats/{Repli
catName}
-- user ‘{ServiceManagerUser}:{password}'
-H 'cache-control: no-cache'
-d '{
"config":[
"Replicat IRPKTST",
"UseridAlias TGGATE",
"Map pdb1.inittest.pktst_table, Target
inittest.pktst_table, colmap(usedefaults,
optype=@getenv('''ggheader''','''optype'''),
beforerid=@before(rid));"
],
"source":{
"name":"bd"
},
"credentials":{
"alias":"TGGATE"
},
"checkpoint":{
"table":"ggate.checkpoint"
},
"mode":{
"type":"integrated",
"parallel": false
},
"registration": "standard",
"begin":"now",
"status":"running"
}'
Replicats
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc
Agenda
� GoldenGate for Oracle
� GoldenGate (Microservices) Enhancements
� Microservices (Best Practices)
� Deprecated and Desupported Features
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

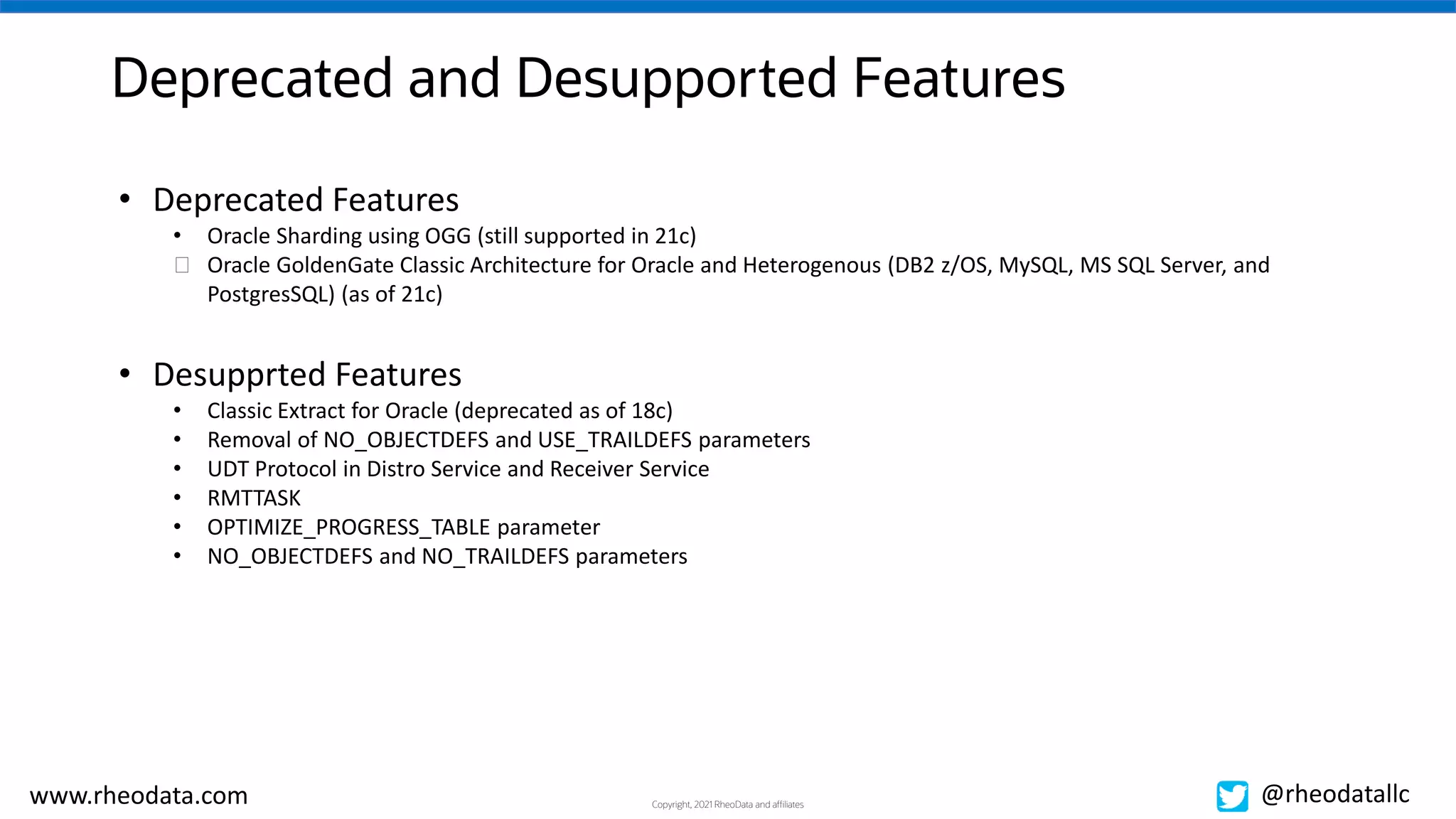

Deprecated and Desupported Features
• Deprecated Features
• Oracle Sharding using OGG (still supported in 21c)
� Oracle GoldenGate Classic Architecture for Oracle and Heterogenous (DB2 z/OS, MySQL, MS SQL Server, and
PostgresSQL) (as of 21c)
• Desupprted Features
• Classic Extract for Oracle (deprecated as of 18c)
• Removal of NO_OBJECTDEFS and USE_TRAILDEFS parameters
• UDT Protocol in Distro Service and Receiver Service
• RMTTASK
• OPTIMIZE_PROGRESS_TABLE parameter
• NO_OBJECTDEFS and NO_TRAILDEFS parameters
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc

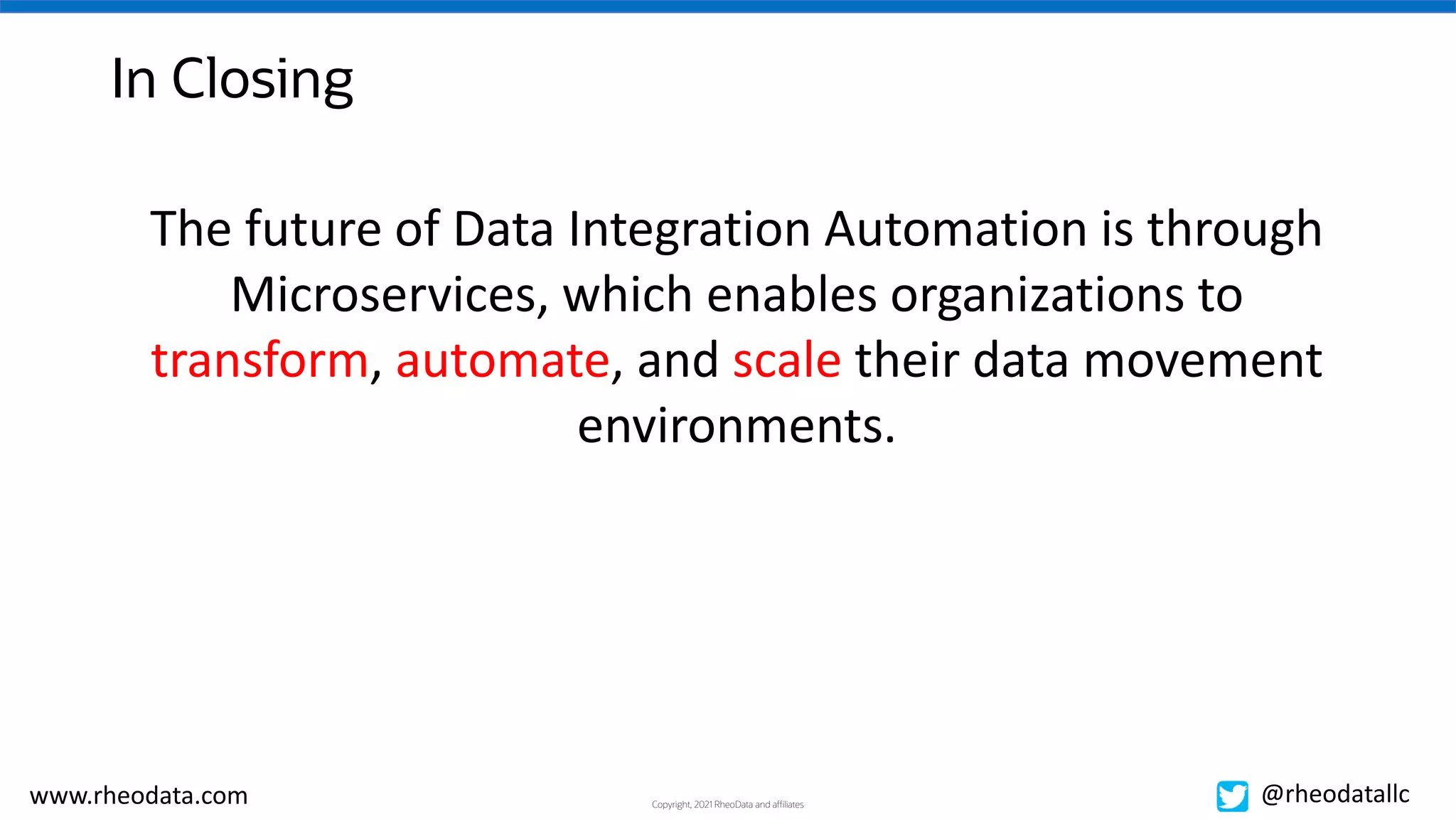

In Closing
The future of Data Integration Automation is through
Microservices, which enables organizations to
transform, automate, and scale their data movement
environments.
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc
https://www.linkedin.com/company/rheodata
@rheodatallc
info@rheodata.com
LinkedIn
Twitter
Email
Copyright, 2021 RheoData and affiliates
www.rheodata.com @rheodatallc
Contact RheoData
info@rheodata.com
@rheodatallc http://rheodata.com
Transform, Automate, Scale … today and in the future!

More Related Content

What's hot

Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAsOracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Zohar Elkayam

Oracle Database Migration to Oracle Cloud Infrastructure
Oracle Database Migration to Oracle Cloud InfrastructureOracle Database Migration to Oracle Cloud Infrastructure
Oracle Database Migration to Oracle Cloud Infrastructure
SinanPetrusToma

Hit Refresh with Oracle GoldenGate Microservices
Hit Refresh with Oracle GoldenGate MicroservicesHit Refresh with Oracle GoldenGate Microservices
Hit Refresh with Oracle GoldenGate Microservices
Bobby Curtis

Exploring Oracle Database Performance Tuning Best Practices for DBAs and Deve...
Exploring Oracle Database Performance Tuning Best Practices for DBAs and Deve...Exploring Oracle Database Performance Tuning Best Practices for DBAs and Deve...
Exploring Oracle Database Performance Tuning Best Practices for DBAs and Deve...
Aaron Shilo

Understanding oracle rac internals part 2 - slides
Understanding oracle rac internals   part 2 - slidesUnderstanding oracle rac internals   part 2 - slides
Understanding oracle rac internals part 2 - slides
Mohamed Farouk

Best Practices for the Most Impactful Oracle Database 18c and 19c Features
Best Practices for the Most Impactful Oracle Database 18c and 19c FeaturesBest Practices for the Most Impactful Oracle Database 18c and 19c Features
Best Practices for the Most Impactful Oracle Database 18c and 19c Features
Markus Michalewicz

Oracle sql high performance tuning
Oracle sql high performance tuningOracle sql high performance tuning
Oracle sql high performance tuning
Guy Harrison

Oracle ASM Training
Oracle ASM TrainingOracle ASM Training
Oracle ASM Training
Vigilant Technologies

Oracle GoldenGate 18c - REST API Examples
Oracle GoldenGate 18c - REST API ExamplesOracle GoldenGate 18c - REST API Examples
Oracle GoldenGate 18c - REST API Examples
Bobby Curtis

Oracle Database performance tuning using oratop
Oracle Database performance tuning using oratopOracle Database performance tuning using oratop
Oracle Database performance tuning using oratop
Sandesh Rao

What to Expect From Oracle database 19c
What to Expect From Oracle database 19cWhat to Expect From Oracle database 19c
What to Expect From Oracle database 19c
Maria Colgan

Oracle Database 12c : Multitenant
Oracle Database 12c : MultitenantOracle Database 12c : Multitenant
Oracle Database 12c : Multitenant
Digicomp Academy Suisse Romande SA

New Generation Oracle RAC Performance
New Generation Oracle RAC PerformanceNew Generation Oracle RAC Performance
New Generation Oracle RAC Performance
Anil Nair

Oracle 12c and its pluggable databases
Oracle 12c and its pluggable databasesOracle 12c and its pluggable databases
Oracle 12c and its pluggable databases
Gustavo Rene Antunez

Oracle data guard for beginners
Oracle data guard for beginnersOracle data guard for beginners
Oracle data guard for beginners
Pini Dibask

Oracle GoldenGate
Oracle GoldenGate Oracle GoldenGate
Oracle GoldenGate
oracleonthebrain

Oracle RAC 19c and Later - Best Practices #OOWLON
Oracle RAC 19c and Later - Best Practices #OOWLONOracle RAC 19c and Later - Best Practices #OOWLON
Oracle RAC 19c and Later - Best Practices #OOWLON
Markus Michalewicz

Oracle Performance Tools of the Trade
Oracle Performance Tools of the TradeOracle Performance Tools of the Trade
Oracle Performance Tools of the Trade
Carlos Sierra

Oracle db performance tuning
Oracle db performance tuningOracle db performance tuning
Oracle db performance tuning
Simon Huang

Oracle Golden Gate Interview Questions
Oracle Golden Gate Interview QuestionsOracle Golden Gate Interview Questions
Oracle Golden Gate Interview Questions
Arun Sharma


What's hot (20)

Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAsOracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs

Oracle Database Migration to Oracle Cloud Infrastructure
Oracle Database Migration to Oracle Cloud InfrastructureOracle Database Migration to Oracle Cloud Infrastructure
Oracle Database Migration to Oracle Cloud Infrastructure

Hit Refresh with Oracle GoldenGate Microservices
Hit Refresh with Oracle GoldenGate MicroservicesHit Refresh with Oracle GoldenGate Microservices
Hit Refresh with Oracle GoldenGate Microservices

Exploring Oracle Database Performance Tuning Best Practices for DBAs and Deve...
Exploring Oracle Database Performance Tuning Best Practices for DBAs and Deve...Exploring Oracle Database Performance Tuning Best Practices for DBAs and Deve...
Exploring Oracle Database Performance Tuning Best Practices for DBAs and Deve...

Understanding oracle rac internals part 2 - slides
Understanding oracle rac internals   part 2 - slidesUnderstanding oracle rac internals   part 2 - slides
Understanding oracle rac internals part 2 - slides

Best Practices for the Most Impactful Oracle Database 18c and 19c Features
Best Practices for the Most Impactful Oracle Database 18c and 19c FeaturesBest Practices for the Most Impactful Oracle Database 18c and 19c Features
Best Practices for the Most Impactful Oracle Database 18c and 19c Features

Oracle sql high performance tuning
Oracle sql high performance tuningOracle sql high performance tuning
Oracle sql high performance tuning

Oracle ASM Training
Oracle ASM TrainingOracle ASM Training
Oracle ASM Training

Oracle GoldenGate 18c - REST API Examples
Oracle GoldenGate 18c - REST API ExamplesOracle GoldenGate 18c - REST API Examples
Oracle GoldenGate 18c - REST API Examples

Oracle Database performance tuning using oratop
Oracle Database performance tuning using oratopOracle Database performance tuning using oratop
Oracle Database performance tuning using oratop

What to Expect From Oracle database 19c
What to Expect From Oracle database 19cWhat to Expect From Oracle database 19c
What to Expect From Oracle database 19c

Oracle Database 12c : Multitenant
Oracle Database 12c : MultitenantOracle Database 12c : Multitenant
Oracle Database 12c : Multitenant

New Generation Oracle RAC Performance
New Generation Oracle RAC PerformanceNew Generation Oracle RAC Performance
New Generation Oracle RAC Performance

Oracle 12c and its pluggable databases
Oracle 12c and its pluggable databasesOracle 12c and its pluggable databases
Oracle 12c and its pluggable databases

Oracle data guard for beginners
Oracle data guard for beginnersOracle data guard for beginners
Oracle data guard for beginners

Oracle GoldenGate
Oracle GoldenGate Oracle GoldenGate
Oracle GoldenGate

Oracle RAC 19c and Later - Best Practices #OOWLON
Oracle RAC 19c and Later - Best Practices #OOWLONOracle RAC 19c and Later - Best Practices #OOWLON
Oracle RAC 19c and Later - Best Practices #OOWLON

Oracle Performance Tools of the Trade
Oracle Performance Tools of the TradeOracle Performance Tools of the Trade
Oracle Performance Tools of the Trade

Oracle db performance tuning
Oracle db performance tuningOracle db performance tuning
Oracle db performance tuning

Oracle Golden Gate Interview Questions
Oracle Golden Gate Interview QuestionsOracle Golden Gate Interview Questions
Oracle Golden Gate Interview Questions


Similar to Oracle GoldenGate 21c New Features and Best Practices

2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods t...
2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods t...2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods t...
2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods t...
Marcus Vinicius Miguel Pedro

ECO 2022 - OCI and HashiCorp Terraform
ECO 2022 - OCI and HashiCorp TerraformECO 2022 - OCI and HashiCorp Terraform
ECO 2022 - OCI and HashiCorp Terraform
Bobby Curtis

2019 - OOW - Database Migration Methods from On-Premise to Cloud
2019 - OOW - Database Migration Methods from On-Premise to Cloud2019 - OOW - Database Migration Methods from On-Premise to Cloud
2019 - OOW - Database Migration Methods from On-Premise to Cloud
Marcus Vinicius Miguel Pedro

Whats new in Oracle Database 12c release 12.1.0.2
Whats new in Oracle Database 12c release 12.1.0.2Whats new in Oracle Database 12c release 12.1.0.2
Whats new in Oracle Database 12c release 12.1.0.2
Connor McDonald

Database As A Service: OEM + ODA (OOW 15 Presentation)
Database As A Service: OEM + ODA (OOW 15 Presentation)Database As A Service: OEM + ODA (OOW 15 Presentation)
Database As A Service: OEM + ODA (OOW 15 Presentation)
Bobby Curtis

VMworld 2013: Virtualizing Mission Critical Oracle RAC with vSphere and vCOPS
VMworld 2013: Virtualizing Mission Critical Oracle RAC with vSphere and vCOPSVMworld 2013: Virtualizing Mission Critical Oracle RAC with vSphere and vCOPS
VMworld 2013: Virtualizing Mission Critical Oracle RAC with vSphere and vCOPS
VMworld

I one Service Offerings
I one Service OfferingsI one Service Offerings
I one Service Offerings
iONE ITSolutions

[db tech showcase Tokyo 2018] #dbts2018 #B31 『1,2,3 and Done! 3 easy ways to ...
[db tech showcase Tokyo 2018] #dbts2018 #B31 『1,2,3 and Done! 3 easy ways to ...[db tech showcase Tokyo 2018] #dbts2018 #B31 『1,2,3 and Done! 3 easy ways to ...
[db tech showcase Tokyo 2018] #dbts2018 #B31 『1,2,3 and Done! 3 easy ways to ...
Insight Technology, Inc.

Oracle RAC - New Generation
Oracle RAC - New GenerationOracle RAC - New Generation
Oracle RAC - New Generation
Anil Nair

Resume_Mohammed_Ali_Updated
Resume_Mohammed_Ali_UpdatedResume_Mohammed_Ali_Updated
Resume_Mohammed_Ali_Updated
Mohammed Ali

2020 - OCI Key Concepts for Oracle DBAs
2020 - OCI Key Concepts for Oracle DBAs2020 - OCI Key Concepts for Oracle DBAs
2020 - OCI Key Concepts for Oracle DBAs
Marcus Vinicius Miguel Pedro

MongoDB World 2019: Why NBCUniversal Migrated to MongoDB Atlas
MongoDB World 2019: Why NBCUniversal Migrated to MongoDB AtlasMongoDB World 2019: Why NBCUniversal Migrated to MongoDB Atlas
MongoDB World 2019: Why NBCUniversal Migrated to MongoDB Atlas
MongoDB

[db tech showcase Tokyo 2017] C34: Replacing Oracle Database at DBS Bank ~Ora...
[db tech showcase Tokyo 2017] C34: Replacing Oracle Database at DBS Bank ~Ora...[db tech showcase Tokyo 2017] C34: Replacing Oracle Database at DBS Bank ~Ora...
[db tech showcase Tokyo 2017] C34: Replacing Oracle Database at DBS Bank ~Ora...
Insight Technology, Inc.

Migrating on premises workload to azure sql database
Migrating on premises workload to azure sql databaseMigrating on premises workload to azure sql database
Migrating on premises workload to azure sql database
PARIKSHIT SAVJANI

Scaling paypal workloads with oracle rac ss
Scaling paypal workloads with oracle rac ssScaling paypal workloads with oracle rac ss
Scaling paypal workloads with oracle rac ss
Anil Nair

Oracle GoldenGate Microservices Overview ( with Demo )
Oracle GoldenGate Microservices Overview ( with Demo )Oracle GoldenGate Microservices Overview ( with Demo )
Oracle GoldenGate Microservices Overview ( with Demo )
Mari Kupatadze

Triple C - Centralize, Cloudify and Consolidate Dozens of Oracle Databases (O...
Triple C - Centralize, Cloudify and Consolidate Dozens of Oracle Databases (O...Triple C - Centralize, Cloudify and Consolidate Dozens of Oracle Databases (O...
Triple C - Centralize, Cloudify and Consolidate Dozens of Oracle Databases (O...
Lucas Jellema

Resume
ResumeResume
Resume
Rohit Sharma

Oracle OpenWorld 2014 Review Part Four - PaaS Middleware
Oracle OpenWorld 2014 Review Part Four - PaaS MiddlewareOracle OpenWorld 2014 Review Part Four - PaaS Middleware
Oracle OpenWorld 2014 Review Part Four - PaaS Middleware
Getting value from IoT, Integration and Data Analytics

Why NBC Universal Migrated to MongoDB Atlas
Why NBC Universal Migrated to MongoDB AtlasWhy NBC Universal Migrated to MongoDB Atlas
Why NBC Universal Migrated to MongoDB Atlas
Datavail


Similar to Oracle GoldenGate 21c New Features and Best Practices (20)

2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods t...
2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods t...2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods t...
2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods t...

ECO 2022 - OCI and HashiCorp Terraform
ECO 2022 - OCI and HashiCorp TerraformECO 2022 - OCI and HashiCorp Terraform
ECO 2022 - OCI and HashiCorp Terraform

2019 - OOW - Database Migration Methods from On-Premise to Cloud
2019 - OOW - Database Migration Methods from On-Premise to Cloud2019 - OOW - Database Migration Methods from On-Premise to Cloud
2019 - OOW - Database Migration Methods from On-Premise to Cloud

Whats new in Oracle Database 12c release 12.1.0.2
Whats new in Oracle Database 12c release 12.1.0.2Whats new in Oracle Database 12c release 12.1.0.2
Whats new in Oracle Database 12c release 12.1.0.2

Database As A Service: OEM + ODA (OOW 15 Presentation)
Database As A Service: OEM + ODA (OOW 15 Presentation)Database As A Service: OEM + ODA (OOW 15 Presentation)
Database As A Service: OEM + ODA (OOW 15 Presentation)

VMworld 2013: Virtualizing Mission Critical Oracle RAC with vSphere and vCOPS
VMworld 2013: Virtualizing Mission Critical Oracle RAC with vSphere and vCOPSVMworld 2013: Virtualizing Mission Critical Oracle RAC with vSphere and vCOPS
VMworld 2013: Virtualizing Mission Critical Oracle RAC with vSphere and vCOPS

I one Service Offerings
I one Service OfferingsI one Service Offerings
I one Service Offerings

[db tech showcase Tokyo 2018] #dbts2018 #B31 『1,2,3 and Done! 3 easy ways to ...
[db tech showcase Tokyo 2018] #dbts2018 #B31 『1,2,3 and Done! 3 easy ways to ...[db tech showcase Tokyo 2018] #dbts2018 #B31 『1,2,3 and Done! 3 easy ways to ...
[db tech showcase Tokyo 2018] #dbts2018 #B31 『1,2,3 and Done! 3 easy ways to ...

Oracle RAC - New Generation
Oracle RAC - New GenerationOracle RAC - New Generation
Oracle RAC - New Generation

Resume_Mohammed_Ali_Updated
Resume_Mohammed_Ali_UpdatedResume_Mohammed_Ali_Updated
Resume_Mohammed_Ali_Updated

2020 - OCI Key Concepts for Oracle DBAs
2020 - OCI Key Concepts for Oracle DBAs2020 - OCI Key Concepts for Oracle DBAs
2020 - OCI Key Concepts for Oracle DBAs

MongoDB World 2019: Why NBCUniversal Migrated to MongoDB Atlas
MongoDB World 2019: Why NBCUniversal Migrated to MongoDB AtlasMongoDB World 2019: Why NBCUniversal Migrated to MongoDB Atlas
MongoDB World 2019: Why NBCUniversal Migrated to MongoDB Atlas

[db tech showcase Tokyo 2017] C34: Replacing Oracle Database at DBS Bank ~Ora...
[db tech showcase Tokyo 2017] C34: Replacing Oracle Database at DBS Bank ~Ora...[db tech showcase Tokyo 2017] C34: Replacing Oracle Database at DBS Bank ~Ora...
[db tech showcase Tokyo 2017] C34: Replacing Oracle Database at DBS Bank ~Ora...

Migrating on premises workload to azure sql database
Migrating on premises workload to azure sql databaseMigrating on premises workload to azure sql database
Migrating on premises workload to azure sql database

Scaling paypal workloads with oracle rac ss
Scaling paypal workloads with oracle rac ssScaling paypal workloads with oracle rac ss
Scaling paypal workloads with oracle rac ss

Oracle GoldenGate Microservices Overview ( with Demo )
Oracle GoldenGate Microservices Overview ( with Demo )Oracle GoldenGate Microservices Overview ( with Demo )
Oracle GoldenGate Microservices Overview ( with Demo )

Triple C - Centralize, Cloudify and Consolidate Dozens of Oracle Databases (O...
Triple C - Centralize, Cloudify and Consolidate Dozens of Oracle Databases (O...Triple C - Centralize, Cloudify and Consolidate Dozens of Oracle Databases (O...
Triple C - Centralize, Cloudify and Consolidate Dozens of Oracle Databases (O...

Resume
ResumeResume
Resume

Oracle OpenWorld 2014 Review Part Four - PaaS Middleware
Oracle OpenWorld 2014 Review Part Four - PaaS MiddlewareOracle OpenWorld 2014 Review Part Four - PaaS Middleware
Oracle OpenWorld 2014 Review Part Four - PaaS Middleware

Why NBC Universal Migrated to MongoDB Atlas
Why NBC Universal Migrated to MongoDB AtlasWhy NBC Universal Migrated to MongoDB Atlas
Why NBC Universal Migrated to MongoDB Atlas


More from Bobby Curtis

RheoData_23ai_Vector-Datatype-Webinar-2024.pptx
RheoData_23ai_Vector-Datatype-Webinar-2024.pptxRheoData_23ai_Vector-Datatype-Webinar-2024.pptx
RheoData_23ai_Vector-Datatype-Webinar-2024.pptx
Bobby Curtis

MySQLHeatwave-TheBasics.pptx
MySQLHeatwave-TheBasics.pptxMySQLHeatwave-TheBasics.pptx
MySQLHeatwave-TheBasics.pptx
Bobby Curtis

Improve PostgreSQL replication with Oracle GoldenGate
Improve PostgreSQL replication with Oracle GoldenGateImprove PostgreSQL replication with Oracle GoldenGate
Improve PostgreSQL replication with Oracle GoldenGate
Bobby Curtis

Terraform & Oracle Cloud Infrastructure
Terraform & Oracle Cloud InfrastructureTerraform & Oracle Cloud Infrastructure
Terraform & Oracle Cloud Infrastructure
Bobby Curtis

Oracle GoldenGate on Docker
Oracle GoldenGate on DockerOracle GoldenGate on Docker
Oracle GoldenGate on Docker
Bobby Curtis

OOW19 - HOL5221
OOW19 - HOL5221OOW19 - HOL5221
OOW19 - HOL5221
Bobby Curtis

GoldenGate CDR from UKOUG 2017
GoldenGate CDR from UKOUG 2017GoldenGate CDR from UKOUG 2017
GoldenGate CDR from UKOUG 2017
Bobby Curtis

Oracle GoldenGate and Baseball - 5 Keys for Moving to the Cloud
Oracle GoldenGate and Baseball - 5 Keys for Moving to the CloudOracle GoldenGate and Baseball - 5 Keys for Moving to the Cloud
Oracle GoldenGate and Baseball - 5 Keys for Moving to the Cloud
Bobby Curtis

Oracle GoldenGate Studio Intro
Oracle GoldenGate Studio IntroOracle GoldenGate Studio Intro
Oracle GoldenGate Studio Intro
Bobby Curtis

5 Keys to Oracle GoldenGate Implemenations
5 Keys to Oracle GoldenGate Implemenations5 Keys to Oracle GoldenGate Implemenations
5 Keys to Oracle GoldenGate Implemenations
Bobby Curtis

Enable GoldenGate Monitoring with OEM 12c/JAgent
Enable GoldenGate Monitoring with OEM 12c/JAgentEnable GoldenGate Monitoring with OEM 12c/JAgent
Enable GoldenGate Monitoring with OEM 12c/JAgent
Bobby Curtis

Extreme replication at IOUG Collaborate 15
Extreme replication at IOUG Collaborate 15Extreme replication at IOUG Collaborate 15
Extreme replication at IOUG Collaborate 15
Bobby Curtis

Examining Oracle GoldenGate Trail Files
Examining Oracle GoldenGate Trail FilesExamining Oracle GoldenGate Trail Files
Examining Oracle GoldenGate Trail Files
Bobby Curtis

Exachk and oem12c - IOUG C15LV
Exachk and oem12c - IOUG C15LVExachk and oem12c - IOUG C15LV
Exachk and oem12c - IOUG C15LV
Bobby Curtis

Extreme Replication - RMOUG Presentation
Extreme Replication - RMOUG PresentationExtreme Replication - RMOUG Presentation
Extreme Replication - RMOUG Presentation
Bobby Curtis

IOUG Data Integration SIG w/ Oracle GoldenGate Solutions and Configuration
IOUG Data Integration SIG w/ Oracle GoldenGate Solutions and ConfigurationIOUG Data Integration SIG w/ Oracle GoldenGate Solutions and Configuration
IOUG Data Integration SIG w/ Oracle GoldenGate Solutions and Configuration
Bobby Curtis

Oracle virtualbox basic to rac attack
Oracle virtualbox basic to rac attackOracle virtualbox basic to rac attack
Oracle virtualbox basic to rac attack
Bobby Curtis

Oracle GoldenGate 12c CDR Presentation for ECO
Oracle GoldenGate 12c CDR Presentation for ECOOracle GoldenGate 12c CDR Presentation for ECO
Oracle GoldenGate 12c CDR Presentation for ECO
Bobby Curtis

How many ways to monitor oracle golden gate - OOW14
How many ways to monitor oracle golden gate - OOW14How many ways to monitor oracle golden gate - OOW14
How many ways to monitor oracle golden gate - OOW14
Bobby Curtis

Exachk and oem12c
Exachk and oem12cExachk and oem12c
Exachk and oem12c
Bobby Curtis


More from Bobby Curtis (20)

RheoData_23ai_Vector-Datatype-Webinar-2024.pptx
RheoData_23ai_Vector-Datatype-Webinar-2024.pptxRheoData_23ai_Vector-Datatype-Webinar-2024.pptx
RheoData_23ai_Vector-Datatype-Webinar-2024.pptx

MySQLHeatwave-TheBasics.pptx
MySQLHeatwave-TheBasics.pptxMySQLHeatwave-TheBasics.pptx
MySQLHeatwave-TheBasics.pptx

Improve PostgreSQL replication with Oracle GoldenGate
Improve PostgreSQL replication with Oracle GoldenGateImprove PostgreSQL replication with Oracle GoldenGate
Improve PostgreSQL replication with Oracle GoldenGate

Terraform & Oracle Cloud Infrastructure
Terraform & Oracle Cloud InfrastructureTerraform & Oracle Cloud Infrastructure
Terraform & Oracle Cloud Infrastructure

Oracle GoldenGate on Docker
Oracle GoldenGate on DockerOracle GoldenGate on Docker
Oracle GoldenGate on Docker

OOW19 - HOL5221
OOW19 - HOL5221OOW19 - HOL5221
OOW19 - HOL5221

GoldenGate CDR from UKOUG 2017
GoldenGate CDR from UKOUG 2017GoldenGate CDR from UKOUG 2017
GoldenGate CDR from UKOUG 2017

Oracle GoldenGate and Baseball - 5 Keys for Moving to the Cloud
Oracle GoldenGate and Baseball - 5 Keys for Moving to the CloudOracle GoldenGate and Baseball - 5 Keys for Moving to the Cloud
Oracle GoldenGate and Baseball - 5 Keys for Moving to the Cloud

Oracle GoldenGate Studio Intro
Oracle GoldenGate Studio IntroOracle GoldenGate Studio Intro
Oracle GoldenGate Studio Intro

5 Keys to Oracle GoldenGate Implemenations
5 Keys to Oracle GoldenGate Implemenations5 Keys to Oracle GoldenGate Implemenations
5 Keys to Oracle GoldenGate Implemenations

Enable GoldenGate Monitoring with OEM 12c/JAgent
Enable GoldenGate Monitoring with OEM 12c/JAgentEnable GoldenGate Monitoring with OEM 12c/JAgent
Enable GoldenGate Monitoring with OEM 12c/JAgent

Extreme replication at IOUG Collaborate 15
Extreme replication at IOUG Collaborate 15Extreme replication at IOUG Collaborate 15
Extreme replication at IOUG Collaborate 15

Examining Oracle GoldenGate Trail Files
Examining Oracle GoldenGate Trail FilesExamining Oracle GoldenGate Trail Files
Examining Oracle GoldenGate Trail Files

Exachk and oem12c - IOUG C15LV
Exachk and oem12c - IOUG C15LVExachk and oem12c - IOUG C15LV
Exachk and oem12c - IOUG C15LV

Extreme Replication - RMOUG Presentation
Extreme Replication - RMOUG PresentationExtreme Replication - RMOUG Presentation
Extreme Replication - RMOUG Presentation

IOUG Data Integration SIG w/ Oracle GoldenGate Solutions and Configuration
IOUG Data Integration SIG w/ Oracle GoldenGate Solutions and ConfigurationIOUG Data Integration SIG w/ Oracle GoldenGate Solutions and Configuration
IOUG Data Integration SIG w/ Oracle GoldenGate Solutions and Configuration

Oracle virtualbox basic to rac attack
Oracle virtualbox basic to rac attackOracle virtualbox basic to rac attack
Oracle virtualbox basic to rac attack

Oracle GoldenGate 12c CDR Presentation for ECO
Oracle GoldenGate 12c CDR Presentation for ECOOracle GoldenGate 12c CDR Presentation for ECO
Oracle GoldenGate 12c CDR Presentation for ECO

How many ways to monitor oracle golden gate - OOW14
How many ways to monitor oracle golden gate - OOW14How many ways to monitor oracle golden gate - OOW14
How many ways to monitor oracle golden gate - OOW14

Exachk and oem12c
Exachk and oem12cExachk and oem12c
Exachk and oem12c


Recently uploaded

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
SynapseIndia

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
Neo4j

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
SynapseIndia

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
digitalxplive

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
shanihomely

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide
Shiv Technolabs

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024
Nicolás Lopéz

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
maigasapphire

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx
ssuser1915fe1

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus
Zilliz

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
kumarjarun2010

Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdfAcumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
BrainSell Technologies

The importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT StandardizationThe importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT Standardization
Axel Rennoch

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
Edge AI and Vision Alliance


Recently uploaded (20)

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE

Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdfAcumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf

The importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT StandardizationThe importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT Standardization

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...


Oracle GoldenGate 21c New Features and Best Practices

  • 1. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Oracle GoldenGate 21c New Features and Best Practices 8/18/2021 Presentation will start 3 minutes after
  • 2. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc About RheoData A global systems integrator headquartered in Atlanta, Georgia. Providing solutions across the enterprise with architecture design/assessments, implementation, data replication, and professional services to ensure high- quality enterprise systems leveraging Oracle and Microsoft technologies. RheoData works hand-in-hand with our strategic partners and their sales teams to build and deploy high performance and scalable enterprise solutions in addition to providing clients with cost savings professional services for turnkey enterprise management.
  • 3. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Our Mission: Enabling businesses to transform through automation at a time when companies must change in order to scale
  • 4. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc License Management for Oracle, HashiCorp, and Cloud Get the most out of your license DBA Services Remote and On-Site Professional Services Where and when you need it the most Migrations Zero Downtime Health Checks How are you running? On-Call Support Managed Services Tactical Assistance Program (TAP) Experts to help design and manage complex architecture Take Cloud to next level Automation of Cloud
  • 5. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Speaker Bobby Curtis, MBA Atlanta, GA • Author • Speaker • Former Product Manger for GoldenGate • Oracle ACE Director (Alumni) @dbasolved https://dbasolved.com bobby.curtis@rheodata.com
  • 6. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Agenda � GoldenGate for Oracle  GoldenGate (Microservices) Enhancements  Microservices (Best Practices)  Deprecated and Desupported Features
  • 7. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc OGG 21c New Features (Oracle) � Automatic Table Extract – DDL to enable GoldenGate to start/stop capture on a table (DB 21c feature) � Unified Builds – Bundles all database clients and supports Oracle databases per cert matrix • ADW Capture Support – ATP (dedicated), ADW (dedicated) and ATP/ADW on ExaCC/ExaCS • Kerberos Authentication – External authentication for database login (DBLOGIN) for Kerberos Accounts • Simplified Heartbeat Administration – External • Native JSON Support – Capture (extract) and Apply (replicat) now support the native JSON datatype (DB 21c feature) • AutoCDR Enhancements – Earliest Timestamp, Delete always wins, & Site priority resolution (DB 21c feature) • Partition Name Filtering – Filtering by partition name (PARTITION/PARTITIONEXCLUDE) • DB_UNIQUE_NAME – Available in trail files and heartbeat tables • DDL > 4MB – Large DDL text is supported (up to 4MB) • Enhanced PR and IR reports – Enhanced diagnosis capabilities for Parallel and Integrated Replicat • Certificate Management – Create and Manage server and client certificates from web interface • Multiple Certs for WSS Protocol – Store and use multiple client certificates for authentication � Microservices Only – Starting in 21c, Oracle GoldenGate is available with Microservices Only (Classic and Microservices released)
  • 8. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Automatic Table Extract DDL to enable OGG to start/stop capturing a table • Requires Oracle Database 21c or later • Disabled by default OGG Parameter: TRANLOGOPTIONS INTEGRATEDPARAMS (enable_auto_capture Y) Use INFO EXTRACT to see setting for each Extract Database: • Enabling Supplemental Logging on a table will trigger auto-capture • Setting ENABLE LOGICAL REPLICATION on a table with supplemental logging, triggering auto-capture • Can be done as a CREATE or ALTER TABLE ddl command
  • 9. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Unified Builds Microservices Architecture: Database Instant Client Libraries - $OGG_HOME/bin/instantclient Environment Variables: ORACLE_HOME=$OGG_HOME/lib/instantclient LD_LIBRARY_PATH=$OGG_HOME/lib:$OGG_HOME/lib/instantclient
  • 10. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Agenda � GoldenGate for Oracle � GoldenGate (Microservices) Enhancements  Microservices (Best Practices)  Deprecated and Desupported Features
  • 11. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc OGG 21c Microservices Enhancements � Unified Web UI for Deployments – No more different tabs within browser � Simplified Certificate Management – no more direct manipulation of Oracle Wallet to add/replace certificates • Client Certificate Selection – Support for choosing certificates for Distribution Paths • Migration Utility – Classic to Microservices migration utility (pending) • Security Improvements – Unix Domain Sockets for inter-process communication with Performance Metric Service � Microservices for Heterogenous – Starting in 21c, bring more flexibility to data architectures
  • 12. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Microservices for Heterogenous Microservices Architecture: • More flexibility for heterogenous environments • Cleaner interoperability between environments • Work remotely across the enterprise
  • 13. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Unified Web UI Microservices Architecture: • All Services of deployment in a single browser page
  • 14. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Simplified Certificate Management Microservices Architecture: • Web UI and REST APIs: • View/Replace Certificates • Add multiple client certificates • Add trust points (CA certs) • Not Supported – Direct manipulation of wallets after installation • Distribution Paths can select which client certificate to present to remote site
  • 15. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Agenda � GoldenGate for Oracle � GoldenGate (Microservices) Enhancements � Microservices (Best Practices)  Deprecated and Desupported Features
  • 16. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Oracle GoldenGate Microservices Source Target Uni-Directional or Active/Active Extract Replicat Trail Files Trail Files Active/Active AdminSrvr DistroSrvr RecSrvr ServiceMgr PMSrvr Nginx (Reverse Proxy) CMD REST HTML PL/SQL
  • 17. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc To Hub or Not To Hub What is a HUB architecture? What is Data Mesh?
  • 18. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc ServiceManager Deployment Home TF Nginx Extract Replicat Hub Architecture Unified Libraries Streaming and DataOps ETL &ML DBMS Cloud Big Data NoSQL Streams Object Storage
  • 19. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Best Practice 1: Deployments Microservices brought a huge change to GoldenGate: • Microservices • Oracle GoldenGate Home • Deployment Home Structure • New Environment Variables
  • 20. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Oracle GoldenGate Home /opt/app/oracle/product/19.1.0/oggcore_19c [dr-xr-xr-x oracle oinstall] OPatch [dr-xr-xr-x oracle oinstall] bin [dr-xr-xr-x oracle oinstall] cfgtoollogs [dr-xr-xr-x oracle oinstall] deinstall [dr-xr-xr-x oracle oinstall] diagnostics [dr-xr-xr-x oracle oinstall] include [dr-xr-xr-x oracle oinstall] install [dr-xr-x--- oracle oinstall] inventory [dr-xr-xr-x oracle oinstall] jdk [dr-xr-xr-x oracle oinstall] jlib [dr-xr-xr-x oracle oinstall] lib [dr-xr-xr-x oracle oinstall] oui [dr-xr-xr-x oracle oinstall] srvm • Directory structure now like Oracle Home ($ORACLE_HOME) • After installation $OGG_HOME should be changed to Read-Only • Prevents unauthorized changes
  • 21. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Oracle GoldenGate Deployment Home /u01/gg_deployments |-- [drwxr-x--- oracle oinstall] Atlanta | |-- [drwxr-x--- oracle oinstall] bdb | |-- [drwxr-x--- oracle oinstall] etc | `-- [drwxr-x--- oracle oinstall] var |-- [drwxr-x--- oracle oinstall] NewYork | |-- [drwxr-x--- oracle oinstall] bdb | |-- [drwxr-x--- oracle oinstall] etc | `-- [drwxr-x--- oracle oinstall] var `-- [drwxr-x--- oracle oinstall] ServiceManager |-- [drwxr-x--- oracle oinstall] bin |-- [drwxr-x--- oracle oinstall] etc `-- [drwxr-x--- oracle oinstall] var • Directory structure resides outside of $OGG_HOME • All deployments should reside in a standard location • File System (NFS, SAN, DBFS, ACFS, etc.) • Docker Volumes (supported) • Directory should be read-write for Oracle user (assumption) • Only appears in ServiceManager directory • registerServiceManager.sh • only if set to daemon • startSM.sh (only if manual/XAG) • stopSM.sh (only if manual/XAG)
  • 22. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Deployment Home ServiceManager Deployment Home TF Nginx Extract Replicat Design Tips • Locations • Regional Approaches • Sub-Setting • Application • Type of Application Unified Libraries
  • 23. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Best Practice 2: Upgrades Microservices enable easier upgrades: • Microservices • Utilities • Leap Frogging • Upgrades from Microservices
  • 24. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Utilities • August 2017 – Microservices release, no upgrade utility • Planned upgrade utility • Started in 2019 (late)/2021 (pending) • Limited use-cases • Oracle Supported via My Oracle Support (MOS) Note (pending)
  • 25. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Leap Frogging Source Extract Pump Trail Files Manager Target Replicat Trail Files Admin Srvr Distro Srvr Rec Srvr Service Mgr PM Srvr Nginx (Reverse Proxy) 1. Classic Extract captures from Source and builds trail file 2. Pump ship trails to Microservices Receiver Service 3. Microservices Replicat reads trail and applies to Target 4. Convert Target to Source, New Target built with Microservices Classic to Microservices
  • 26. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc $OGG_HOME 12.3/18.1/19.1 (MA) etc $DEPLOYMENT_HOME (ServiceManager) var bin etc $DEPLOYMENT_HOME var etc $DEPLOYMENT_HOME var Microservices Upgrade curl -L -X PATCH 'https://localhost/services/v2/deployments/ServiceManager' -H 'Authorization: Basic b2dnYWRtaW46V2VsY29tZTE=' -H 'Content-Type: text/plain' --data-raw '{ "oggHome":"/opt/app/oracle/product/21.3.0/oggcore_1", "status":"restart" }'
  • 27. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Copyright © 2019 Oracle and/or its affiliates. etc $DEPLOYMENT_HOME (ServiceManager) var bin etc $DEPLOYMENT_HOME var etc $DEPLOYMENT_HOME var $OGG_HOME 21.3.0.x (MA) Microservices Upgrade curl -L -X PATCH 'https://localhost/services/v2/deployments/Atlanta' -H 'Authorization: Basic b2dnYWRtaW46V2VsY29tZTE=' -H 'Content-Type: text/plain' --data-raw '{ "oggHome":"/opt/app/oracle/product/21.3.0/oggcore_1", "oggEtcHome":"/opt/gg_deployments/Atlanta/etc", "oggVarHome":"/opt/gg_deployments/Atlanta/var", "environment"{ "tns_admin":"/opt/app/oracle/product/18.1.0/network/admin" } "status":"restart" }' $OGG_HOME 12.3/18.1/19.1 (MA)
  • 28. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Copyright © 2019 Oracle and/or its affiliates. etc $DEPLOYMENT_HOME (ServiceManager) var bin etc $DEPLOYMENT_HOME var etc $DEPLOYMENT_HOME var $OGG_HOME 21.3.0.x (MA) Microservices Upgrade $OGG_HOME 12.3/18.1/19.1 (MA)
  • 29. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Best Practice 3: Security Security is a theme in Microservices: • Microservices • ServiceManager • Nginx • User Security – Management Layer • User Security – Configuration Layer
  • 30. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Unsecure or Secure - ServiceManager ServiceManager Deployment Home TF Nginx Extract Replicat 11g 12c 19c 18c Secure • SSL/TLS security enables and affects all underlying deployment homes • Must have Oracle Wallet with Certificates for host and distribution path Unsecure • SSL/TLS security disabled and affects all underlying deployment homes Cannot mix security, all or nothing approach
  • 31. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Unsecure or Secure - Nginx ServiceManager Deployment Home TF Nginx Extract Replicat 11g 12c 19c 18c Secure • Consolidates ports required for services down to a single port • Keeps Firewall Admins friendly Unsecure • Required to open a minimum of 6 ports for first deployment, plus 5 additional ports for each deployment added.
  • 32. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Unsecure or Secure - Nginx ServiceManager Deployment Home TF Nginx Extract Replicat 11g 12c 19c 18c #!/bin/bash # Copyright (c) 2020 RheoData, LLC and/or its affiliates. All rights reserved. # # Since: March 2019 # Author: Bobby Curtis <bobby.curtis@rheodata.com> # Description: configureNginx # # DO NOT ALTER OR REMOVE COPYRIGHT NOTICES OR THIS HEADER. # vServiceManagerUser=$1 vPassword=$2 vPort=$3 export JAVA_HOME=${OGG_HOME}/jdk echo ${JAVA_HOME} echo ${OGG_HOME} cd ${OGG_HOME}/lib/utl/reverseproxy ./ReverseProxySettings -u $vServiceManagerUser -P $vPassword -o ogg.conf https://localhost:$vPort sudo cp ogg.conf /etc/nginx/conf.d/nginx.conf sudo sh /etc/ssl/certs/make-dummy-cert /etc/nginx/ogg.pem sudo nginx sudo nginx -t sudo nginx -s reload • Nginx is not installed by default with OGGMA. • Requires a new yum repo to be configured. • Nginx must be refreshed after each deployment added • Port 80 or 443 will be based on ServiceManager
  • 33. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Users Security – Management Layer ServiceManager Deployment 1 … N Security Administrator Operator User Security Administrator Operator User Access (ServiceManager) Access (Deployment) ServiceManager roles have access to all underlying deployments at the permissions granted by the role. Assign to DBAs and Mgmt Roles assigned within a deployment have the underlying permissions granted to only the deployment which granted. Assign to Jr. DBAs and DevOps
  • 34. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc User Security – Configuration Layer Oracle GoldenGate Classic User Alias Purpose C##GGATE CDB User GGATE PDB User SGGATE Database UserIDAlias Oracle GoldenGate Microservices User Alias Purpose C##GGATE CDB User GGATE PDB User SGGATE Database UserIDAlias PDBGGATE PDB UserIDAlias OGGADMIN ServiceManager STREAMADMIN Distribution Service curl -L -X POST 'https://localhost/Atlanta/adminsrvr/services/v2/credentials/ OracleGoldenGate/SGGATE' -H 'Authorization: Basic b2dnYWRtaW46V0VsY29tZTEyMzQ1IyM=' -H 'Content-Type: text/plain' --data-raw '{ "userid":"c##ggate@10.20.1.2:1539/orcl.rheodata.com", "password":"WElcome12345##" }' add credentialstore add user c##ggate@10.20.1.2:1539/orcl.rheodata.com", password WElcome12345## alias SGGATE domain OracleGoldenGate
  • 35. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Best Practice 4: APIs APIs are the optimal way of working with Oracle GoldenGate Microservices: • Microservices • Write once, Run Multiple • Script it out
  • 36. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc APIs – General Information • Oracle GoldenGate 12c, 18c, 19c & 21c for Microservices • All administration functions can be performed with RESTful APIs • Core Documentation • https://docs.oracle.com/en/middleware/goldengate/core/21.3/index.html • RESTful API Documentation (21.1.0.0.x) • https://docs.oracle.com/en/middleware/goldengate/core/21.1/oggra/
  • 37. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc API curl -X POST http://{hostname}:{port}/services/v2/connections/{Domain}.{Alias}/trandata/table --user ‘{ServiceManagerUser}:{password}' -H 'cache-control: no-cache' -d '{ "operation":"add", "tableName":"pdb1.inittest.optype_test" }' Database - Trandata
  • 38. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc API curl -X POST http://{hostname}:{port}/services/v2/connections/{Domain}.{Alias}/trandata/schema -- user ‘{ServiceManagerUser}:{password}' -H 'cache-control: no-cache' -d '{ "operation":"add", "schemaName":"oggtst1.soe" }' Database - SchemaTrandata
  • 39. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc API curl -X POST http://{hostname}:{port}/services/v2/extracts/{Ex tractName} -- user ‘{ServiceManagerUser}:{password}' -H 'cache-control: no-cache' -d '{ "description":"Integrated Extract", "config":[ "Extract IEPKTST", "ExtTrail bc", "UseridAlias SGGATE", "sourcecatalog pdb1;", "Table inittest.pktst_table, getbeforecols(on update all, on delete all);" ], "source":{ "tranlogs":"integrated" }, "credentials":{ "alias":"SGGATE" }, "registration":{ "containers": [ "pdb1" ], "optimized":false }, "begin":"now", "targets":[ { "name":"bc", "sizeMB":250 } ], "status":"start" }' • Configure, Build, and Run from a single command • Source Controlled Extract Extracts
  • 40. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc API • Configure, Build, and Run from a single command • Source Controlled Replicat curl -X POST http://{hostname}:{port}/services/v2/replicats/{Repli catName} -- user ‘{ServiceManagerUser}:{password}' -H 'cache-control: no-cache' -d '{ "config":[ "Replicat IRPKTST", "UseridAlias TGGATE", "Map pdb1.inittest.pktst_table, Target inittest.pktst_table, colmap(usedefaults, optype=@getenv('''ggheader''','''optype'''), beforerid=@before(rid));" ], "source":{ "name":"bd" }, "credentials":{ "alias":"TGGATE" }, "checkpoint":{ "table":"ggate.checkpoint" }, "mode":{ "type":"integrated", "parallel": false }, "registration": "standard", "begin":"now", "status":"running" }' Replicats
  • 41. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Agenda � GoldenGate for Oracle � GoldenGate (Microservices) Enhancements � Microservices (Best Practices) � Deprecated and Desupported Features
  • 42. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Deprecated and Desupported Features • Deprecated Features • Oracle Sharding using OGG (still supported in 21c) � Oracle GoldenGate Classic Architecture for Oracle and Heterogenous (DB2 z/OS, MySQL, MS SQL Server, and PostgresSQL) (as of 21c) • Desupprted Features • Classic Extract for Oracle (deprecated as of 18c) • Removal of NO_OBJECTDEFS and USE_TRAILDEFS parameters • UDT Protocol in Distro Service and Receiver Service • RMTTASK • OPTIMIZE_PROGRESS_TABLE parameter • NO_OBJECTDEFS and NO_TRAILDEFS parameters
  • 43. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc In Closing The future of Data Integration Automation is through Microservices, which enables organizations to transform, automate, and scale their data movement environments.
  • 44. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc https://www.linkedin.com/company/rheodata @rheodatallc info@rheodata.com LinkedIn Twitter Email
  • 45. Copyright, 2021 RheoData and affiliates www.rheodata.com @rheodatallc Contact RheoData info@rheodata.com @rheodatallc http://rheodata.com Transform, Automate, Scale … today and in the future!

Editor's Notes

  1. Thanks Trevor! For the last few years, everyone has heard about Cloud, Cloud, Cloud…. Every vendor has their own cloud strategy and how to get customers into their cloud, but what people are not talking about is what happens after the customer is in their cloud. Afterall, platform modernization is all about moving to a new platform and doing so via a lift-n-shift.
  2. Thanks Trevor! For the last few years, everyone has heard about Cloud, Cloud, Cloud…. Every vendor has their own cloud strategy and how to get customers into their cloud, but what people are not talking about is what happens after the customer is in their cloud. Afterall, platform modernization is all about moving to a new platform and doing so via a lift-n-shift.
