Femtocells provide an essential solution for improving mobile broadband coverage, capacity and reducing churn. They leverage a user's fixed broadband to provide indoor cellular coverage through a small home base station. Femtocell solutions involve femtocell access points and gateways to extend coverage from the macro network and offload traffic using the user's broadband backhaul. Trillium provides protocol software and reference applications to power femtocell solutions for both 3G and LTE networks.

1. Femtocell Solutions Why Small Cells Are Essential for Mobile Broadband

2. Femtocell = “The 3C Solution for 3G” C overage, C hurn, C apacity Coverage “ Raising the bar” in indoor environments Churn A happy customer is a sticky customer Capacity Core network offload increases macro cell capacity

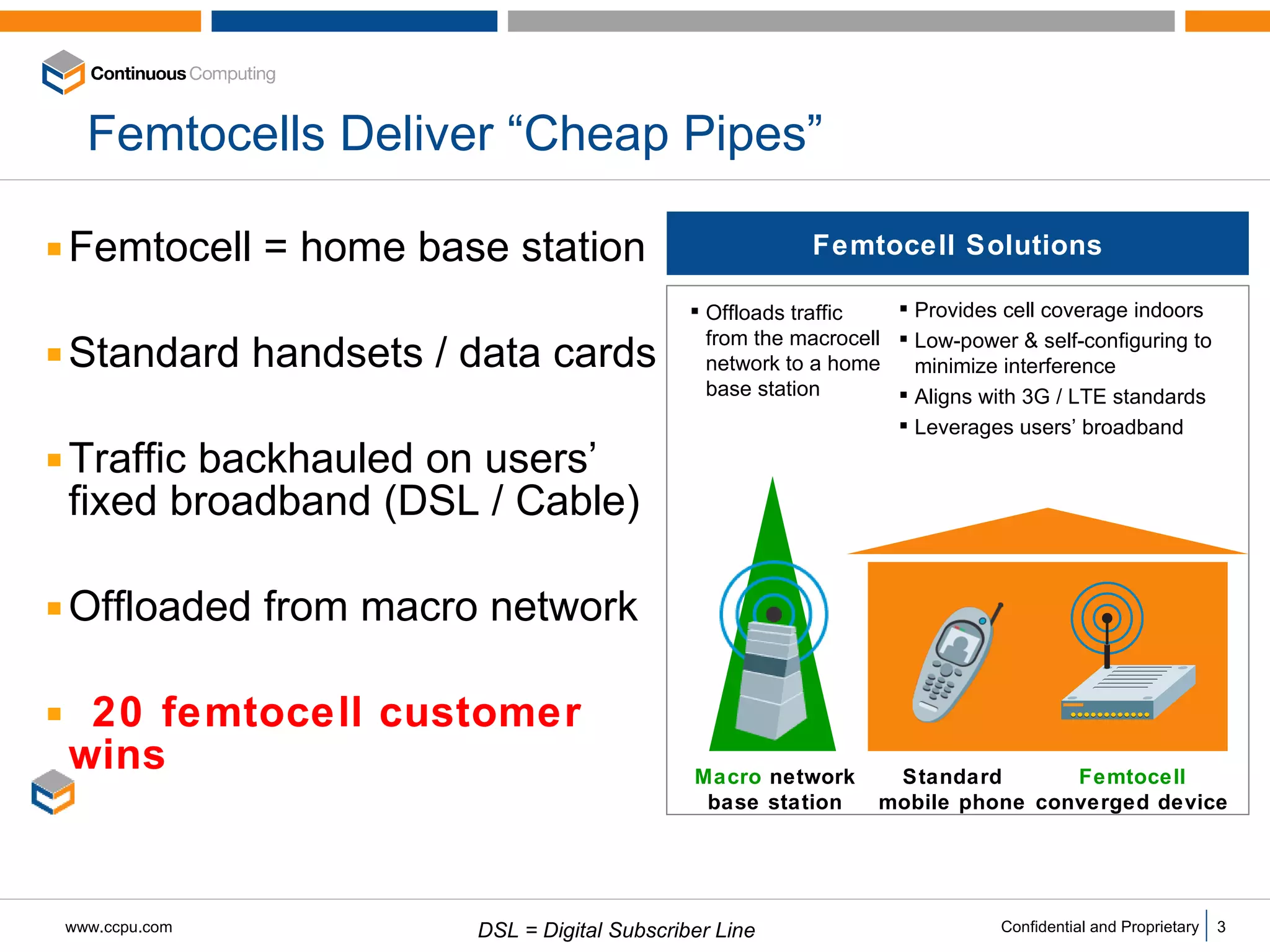

3. Femtocells Deliver “Cheap Pipes” Femtocell = home base station Standard handsets / data cards Traffic backhauled on users’ fixed broadband (DSL / Cable) Offloaded from macro network 20 femtocell customer wins Standard mobile phone Femtocell Solutions Macro network base station Femtocell converged device Provides cell coverage indoors Low-power & self-configuring to minimize interference Aligns with 3G / LTE standards Leverages users’ broadband Offloads traffic from the macrocell network to a home base station DSL = Digital Subscriber Line

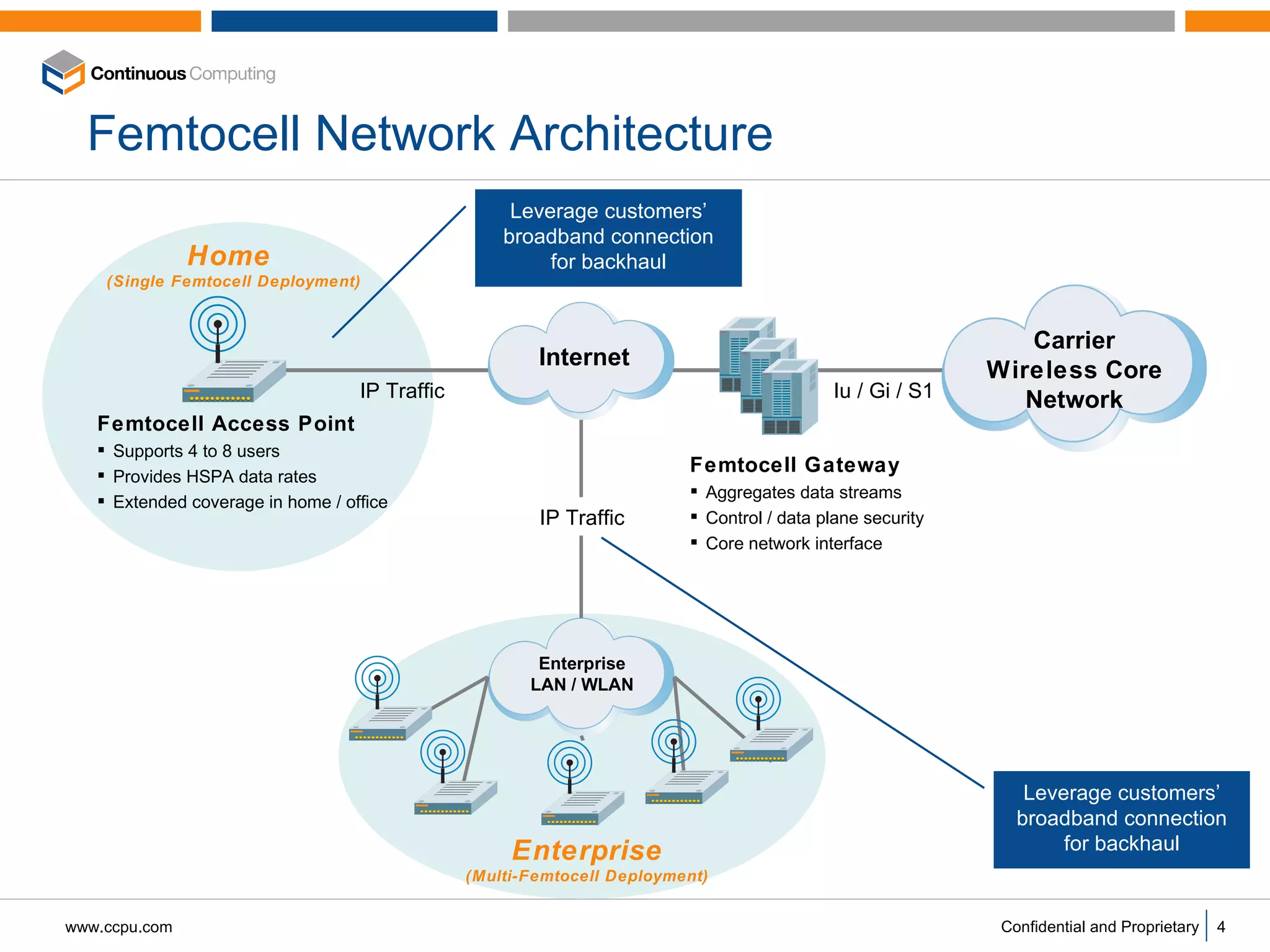

4. Femtocell Network Architecture Femtocell Access Point Supports 4 to 8 users Provides HSPA data rates Extended coverage in home / office Leverage customers’ broadband connection for backhaul Enterprise LAN / WLAN Leverage customers’ broadband connection for backhaul Femtocell Gateway Aggregates data streams Control / data plane security Core network interface Iu / Gi / S1 IP Traffic IP Traffic Home (Single Femtocell Deployment) Enterprise (Multi-Femtocell Deployment) Internet Carrier Wireless Core Network

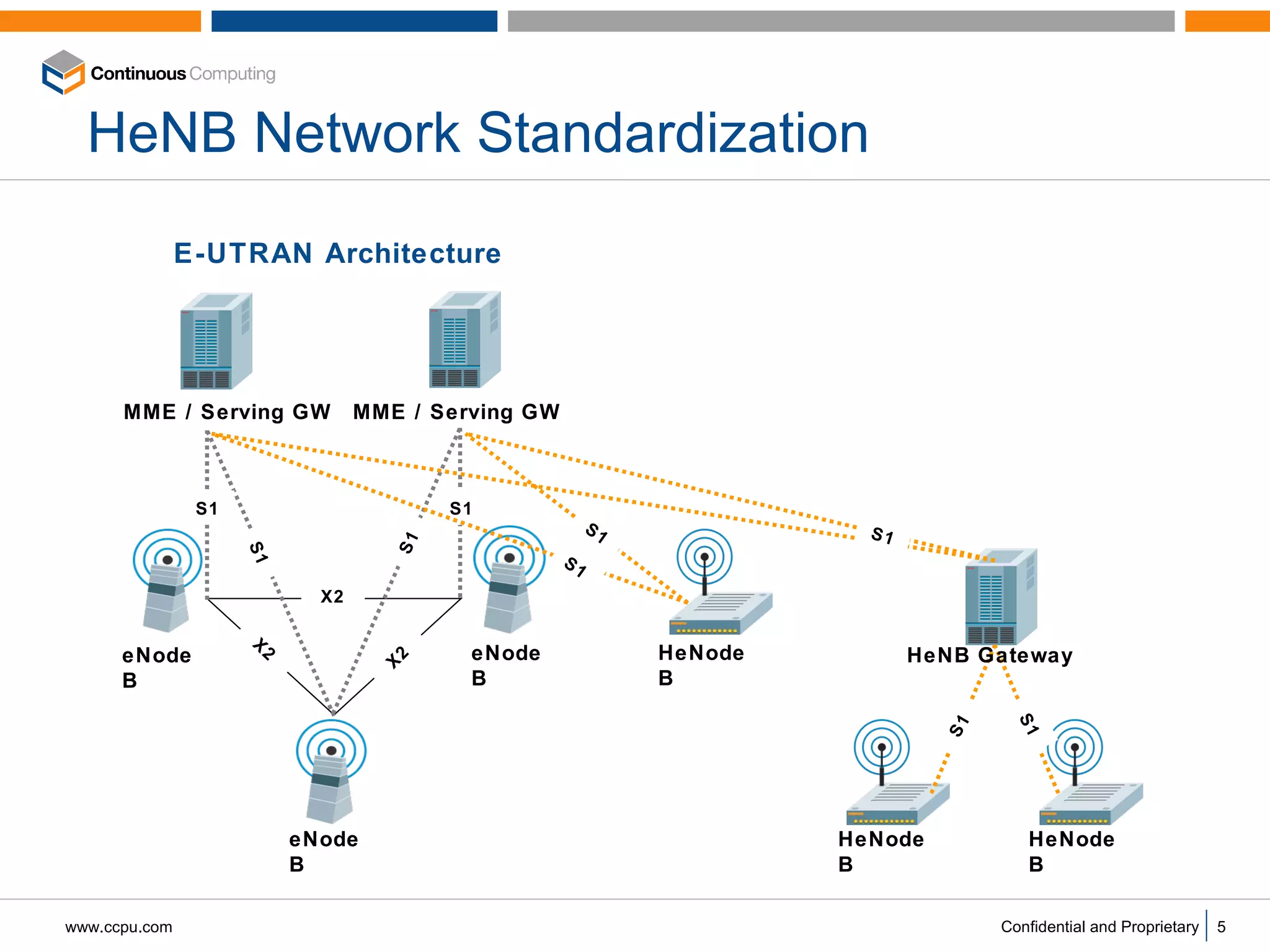

5. HeNB Network Standardization eNodeB eNodeB eNodeB MME / Serving GW X2 X2 X2 S1 S1 S1 S1 E-UTRAN Architecture MME / Serving GW S1 S1 S1 S1 HeNodeB HeNodeB HeNodeB HeNB Gateway S1

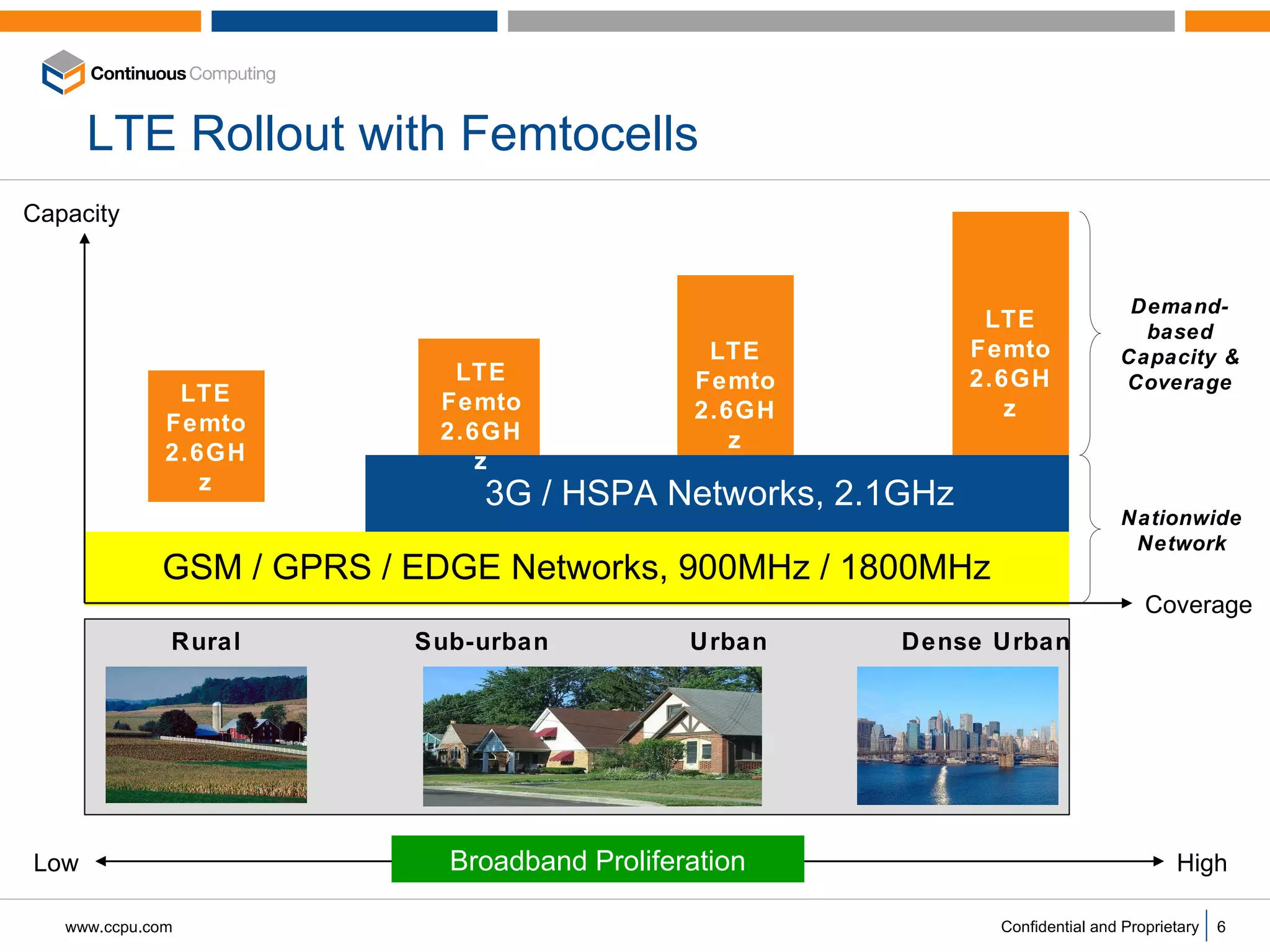

6. LTE Rollout with Femtocells Capacity Dense Urban Urban Sub-urban Rural Broadband Proliferation High Low GSM / GPRS / EDGE Networks, 900MHz / 1800MHz 3G / HSPA Networks, 2.1GHz LTE Femto 2.6GHz LTE Femto 2.6GHz LTE Femto 2.6GHz LTE Femto 2.6GHz Coverage Nationwide Network Demand-based Capacity & Coverage

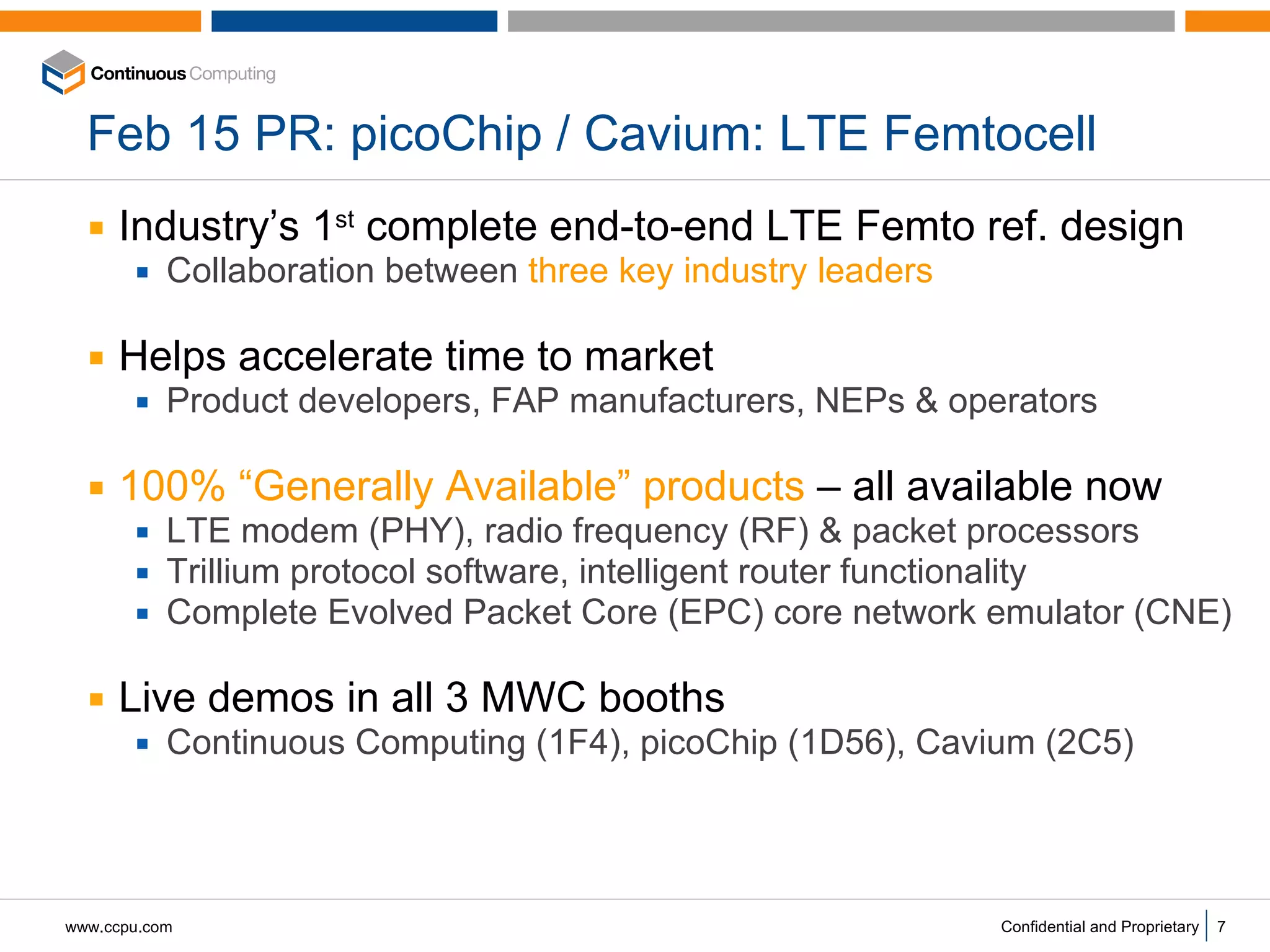

7. Feb 15 PR: picoChip / Cavium: LTE Femtocell Industry’s 1 st complete end-to-end LTE Femto ref. design Collaboration between three key industry leaders Helps accelerate time to market Product developers, FAP manufacturers, NEPs & operators 100% “Generally Available” products – all available now LTE modem (PHY), radio frequency (RF) & packet processors Trillium protocol software, intelligent router functionality Complete Evolved Packet Core (EPC) core network emulator (CNE) Live demos in all 3 MWC booths Continuous Computing (1F4), picoChip (1D56), Cavium (2C5)

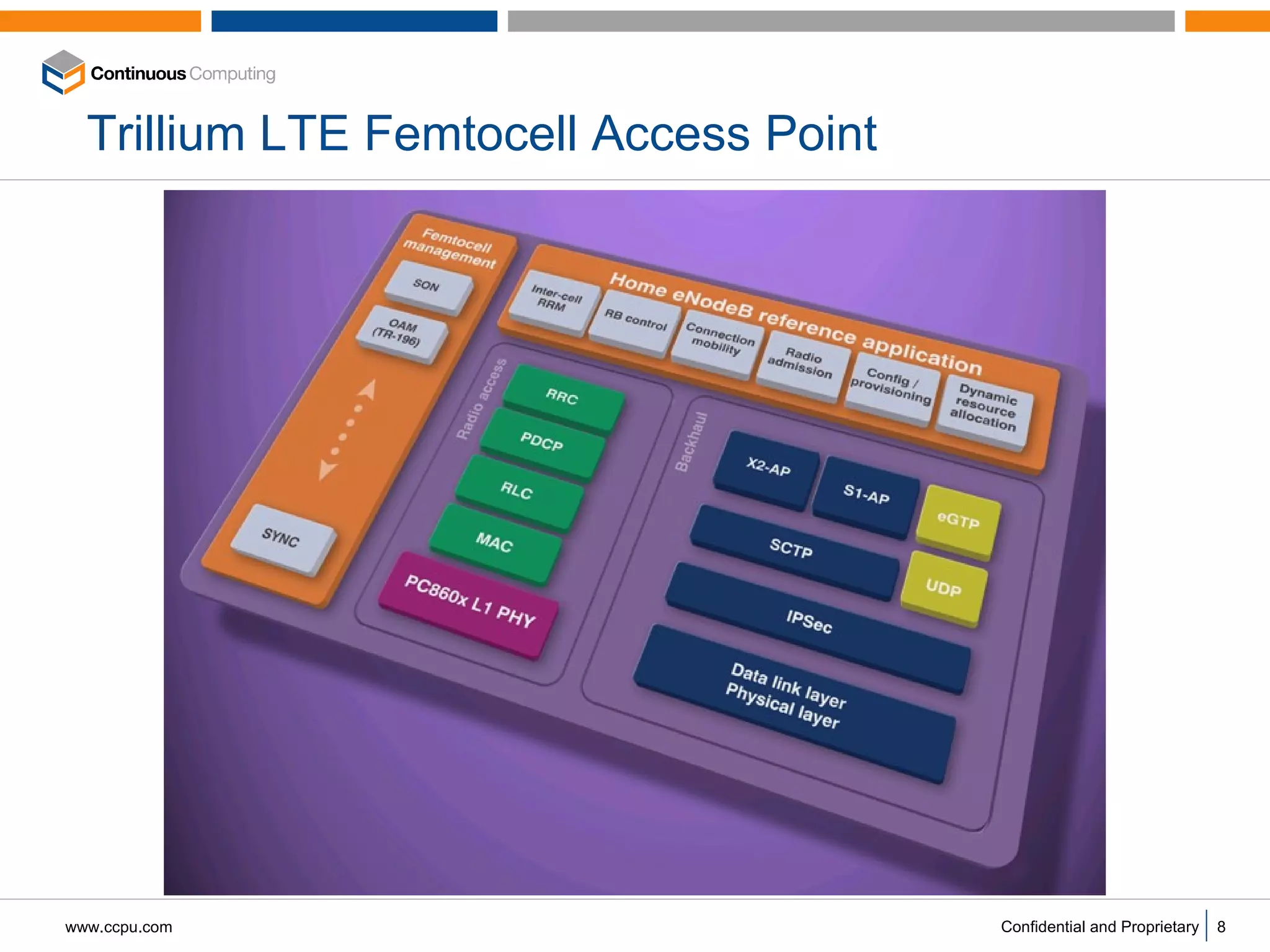

8. Trillium LTE Femtocell Access Point

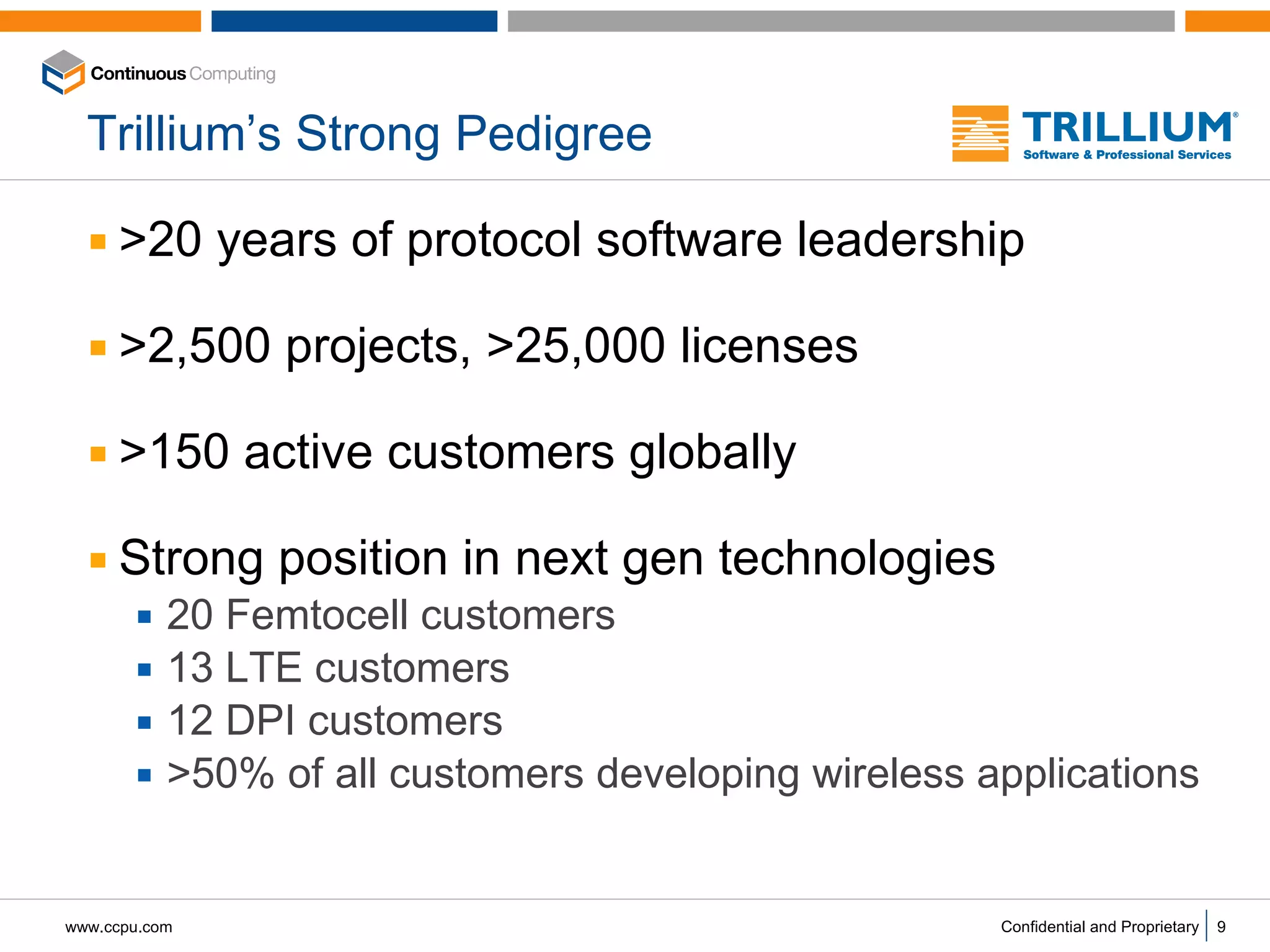

9. Trillium’s Strong Pedigree >20 years of protocol software leadership >2,500 projects, >25,000 licenses >150 active customers globally Strong position in next gen technologies 20 Femtocell customers 13 LTE customers 12 DPI customers >50% of all customers developing wireless applications

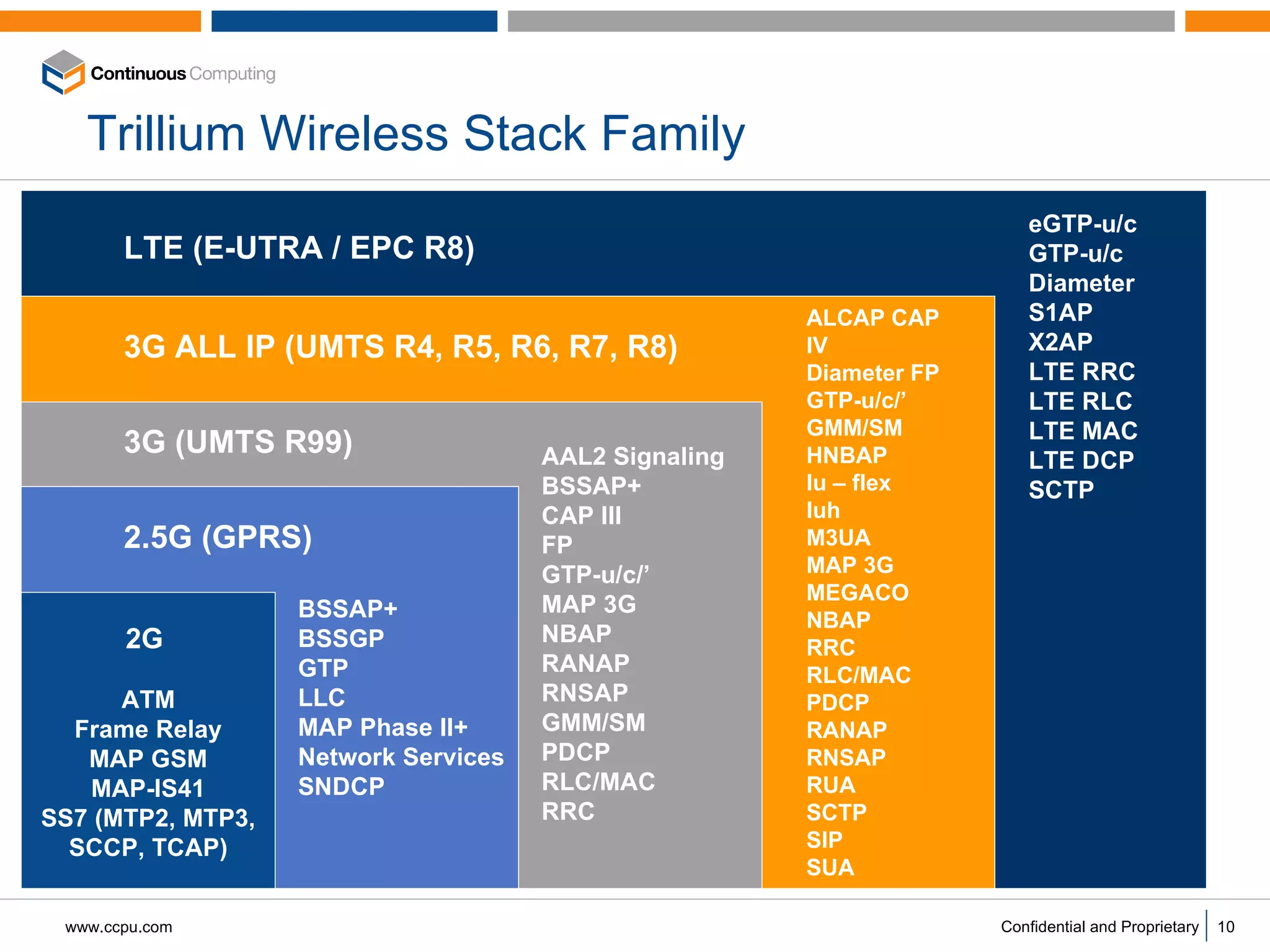

10. Trillium Wireless Stack Family 2G ATM Frame Relay MAP GSM MAP-IS41 SS7 (MTP2, MTP3, SCCP, TCAP) 2.5G (GPRS) BSSAP+ BSSGP GTP LLC MAP Phase II+ Network Services SNDCP 3G (UMTS R99) 3G ALL IP (UMTS R4, R5, R6, R7, R8) AAL2 Signaling BSSAP+ CAP III FP GTP-u/c/’ MAP 3G NBAP RANAP RNSAP GMM/SM PDCP RLC/MAC RRC ALCAP CAP IV Diameter FP GTP-u/c/’ GMM/SM HNBAP Iu – flex Iuh M3UA MAP 3G MEGACO NBAP RRC RLC/MAC PDCP RANAP RNSAP RUA SCTP SIP SUA LTE (E-UTRA / EPC R8) eGTP-u/c GTP-u/c Diameter S1AP X2AP LTE RRC LTE RLC LTE MAC LTE DCP SCTP

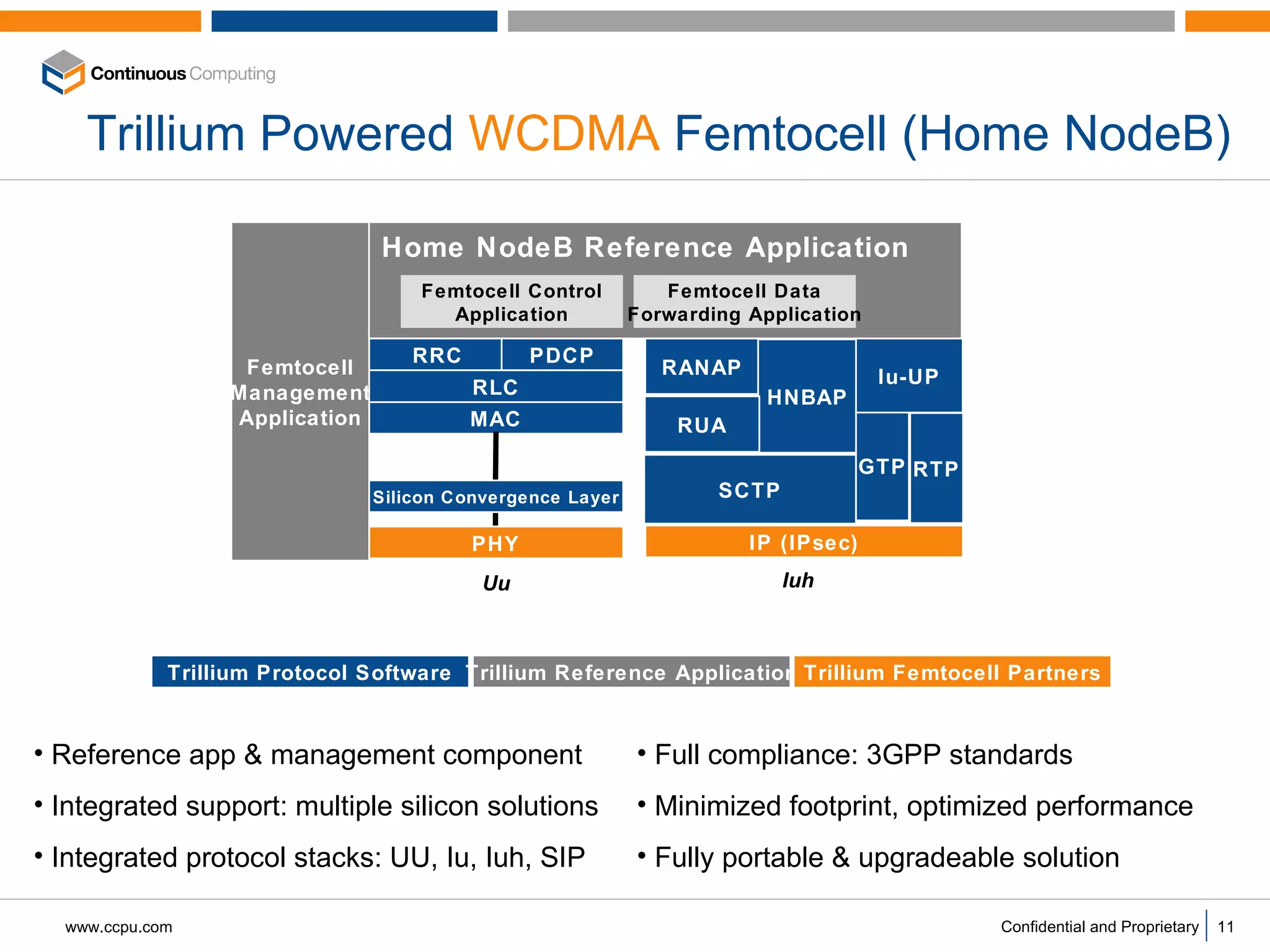

11. Trillium Powered WCDMA Femtocell (Home NodeB) PHY MAC Femtocell Management Application RRC RLC PDCP Femtocell Control Application Home NodeB Reference Application Silicon Convergence Layer Femtocell Data Forwarding Application IP (IPsec) RANAP SCTP HNBAP GTP RUA Iu-UP Uu Iuh RTP Trillium Protocol Software Trillium Reference Application Trillium Femtocell Partners Reference app & management component Integrated support: multiple silicon solutions Integrated protocol stacks: UU, Iu, Iuh, SIP Full compliance: 3GPP standards Minimized footprint, optimized performance Fully portable & upgradeable solution

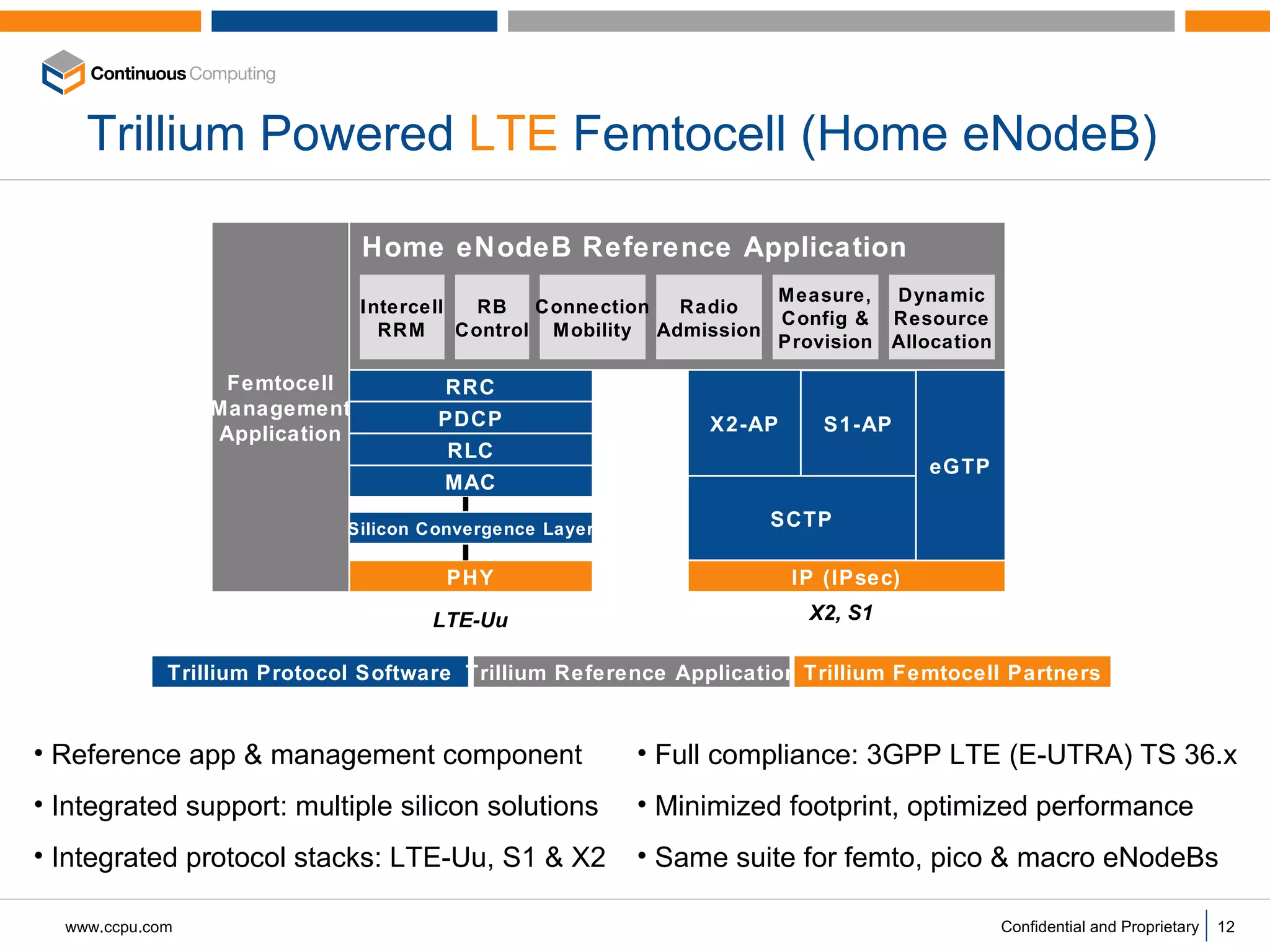

12. Trillium Powered LTE Femtocell (Home eNodeB) PHY MAC Femtocell Management Application RRC RLC IP (IPsec) X2-AP SCTP S1-AP eGTP PDCP Intercell RRM RB Control Connection Mobility Radio Admission Measure, Config & Provision Dynamic Resource Allocation Home eNodeB Reference Application Silicon Convergence Layer LTE-Uu X2, S1 Reference app & management component Integrated support: multiple silicon solutions Integrated protocol stacks: LTE-Uu, S1 & X2 Trillium Protocol Software Trillium Reference Application Trillium Femtocell Partners Full compliance: 3GPP LTE (E-UTRA) TS 36.x Minimized footprint, optimized performance Same suite for femto, pico & macro eNodeBs

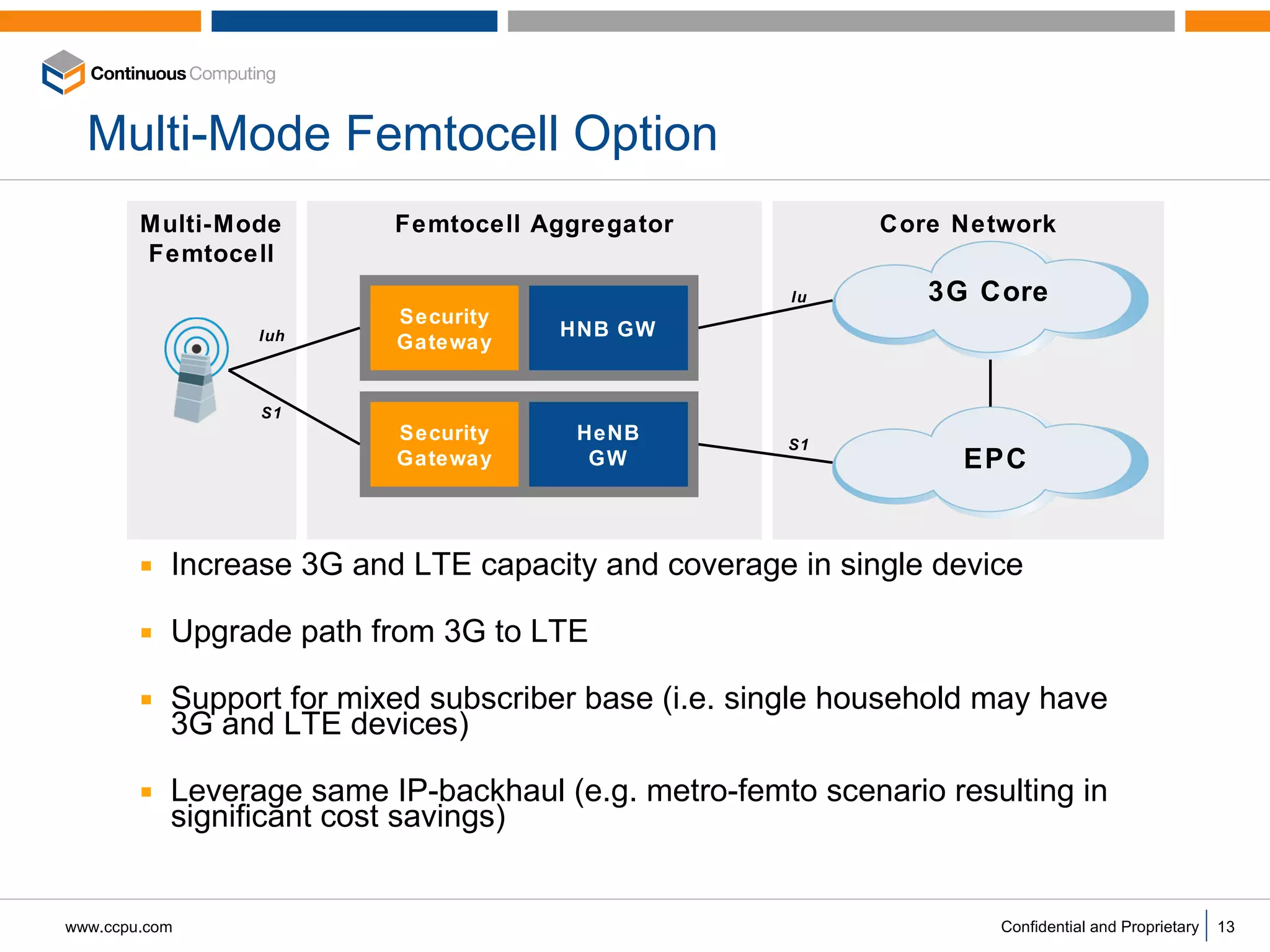

13. Multi-Mode Femtocell Option Increase 3G and LTE capacity and coverage in single device Upgrade path from 3G to LTE Support for mixed subscriber base (i.e. single household may have 3G and LTE devices) Leverage same IP-backhaul (e.g. metro-femto scenario resulting in significant cost savings) Core Network Multi-Mode Femtocell Femtocell Aggregator 3G Core Security Gateway HNB GW Iuh Security Gateway HeNB GW EPC Iu S1 S1

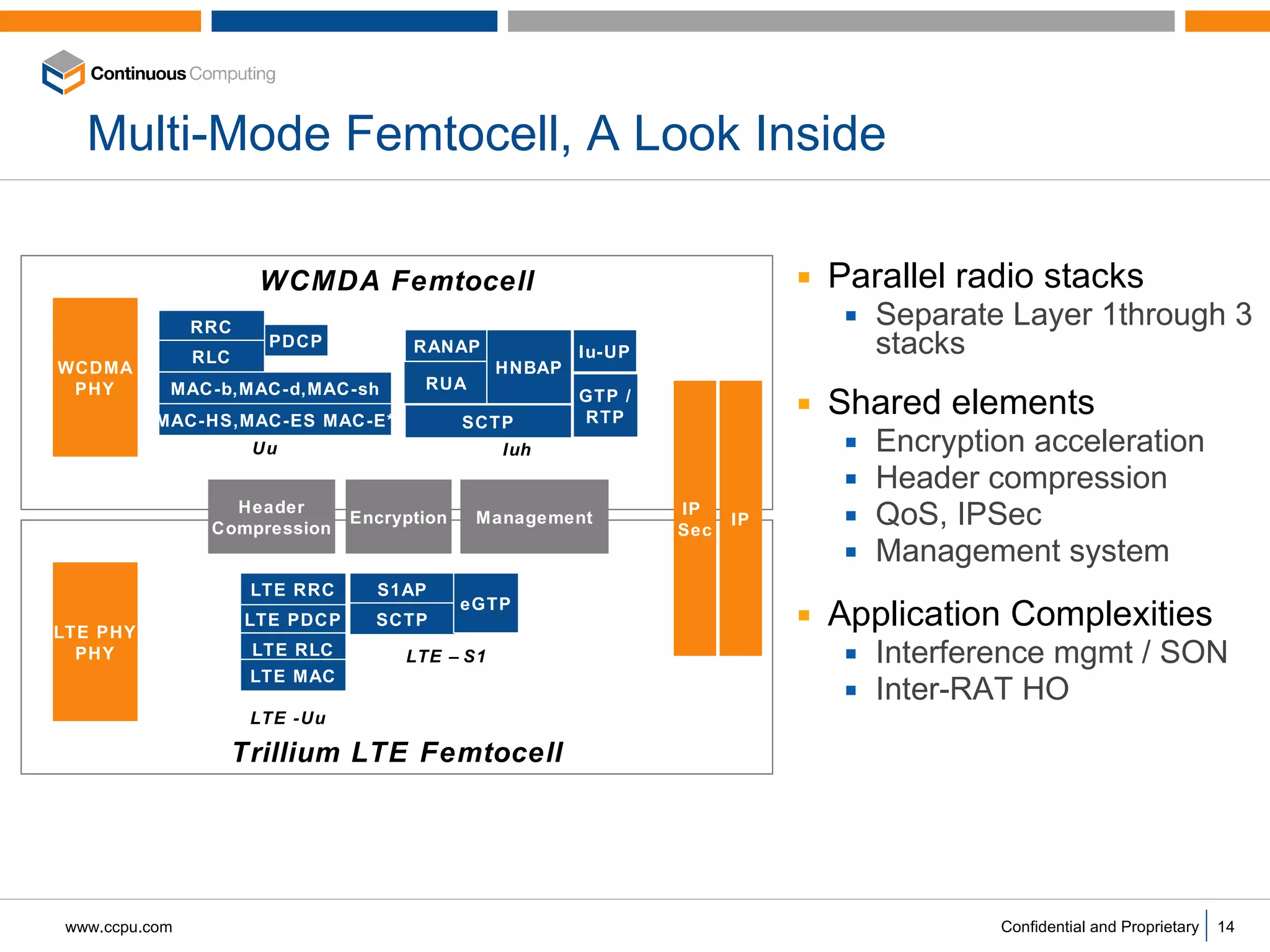

14. Multi-Mode Femtocell, A Look Inside Parallel radio stacks Separate Layer 1through 3 stacks Shared elements Encryption acceleration Header compression QoS, IPSec Management system Application Complexities Interference mgmt / SON Inter-RAT HO Trillium LTE Femtocell WCMDA Femtocell RRC RLC MAC-b,MAC-d,MAC-sh MAC-HS,MAC-ES MAC-E* WCDMA PHY IP Sec GTP / RTP RANAP RUA SCTP PDCP HNBAP Iu-UP LTE PHY PHY LTE RRC LTE RLC LTE MAC LTE PDCP Encryption Header Compression IP Management S1AP SCTP eGTP LTE -Uu LTE –S1 Uu Iuh

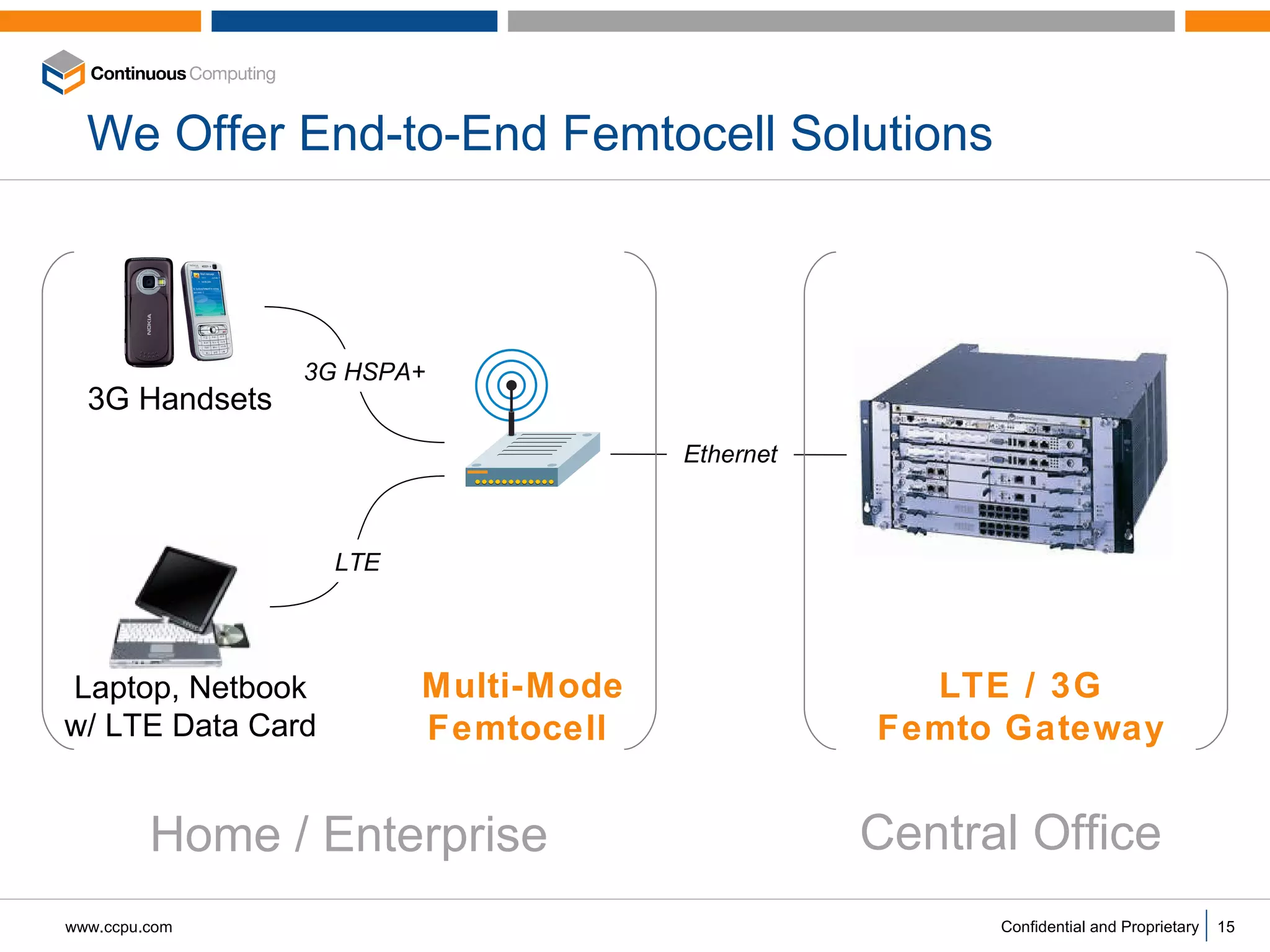

15. We Offer End-to-End Femtocell Solutions 3G Handsets Laptop, Netbook w/ LTE Data Card Multi-Mode Femtocell 3G HSPA+ Ethernet LTE / 3G Femto Gateway Home / Enterprise Central Office LTE

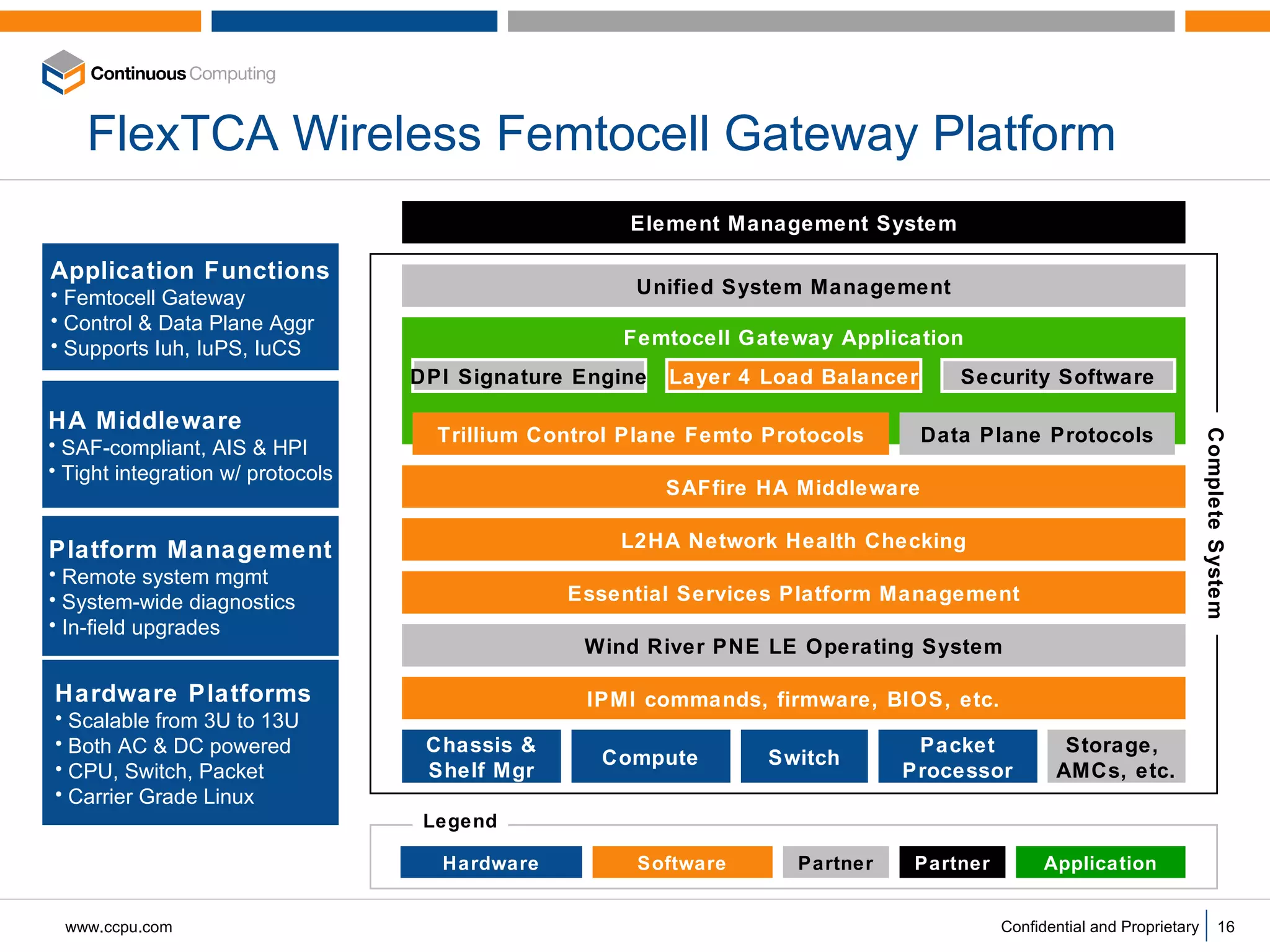

16. FlexTCA Wireless Femtocell Gateway Platform Femtocell Gateway Application Essential Services Platform Management SAFfire HA Middleware Trillium Control Plane Femto Protocols Packet Processor Wind River PNE LE Operating System Chassis & Shelf Mgr Compute Switch IPMI commands, firmware, BIOS, etc. L2HA Network Health Checking Storage, AMCs, etc. Unified System Management Element Management System Security Software Layer 4 Load Balancer DPI Signature Engine Data Plane Protocols Hardware Software Legend Partner Application Partner Complete System Application Functions Femtocell Gateway Control & Data Plane Aggr Supports Iuh, IuPS, IuCS HA Middleware SAF-compliant, AIS & HPI Tight integration w/ protocols Platform Management Remote system mgmt System-wide diagnostics In-field upgrades Hardware Platforms Scalable from 3U to 13U Both AC & DC powered CPU, Switch, Packet Carrier Grade Linux

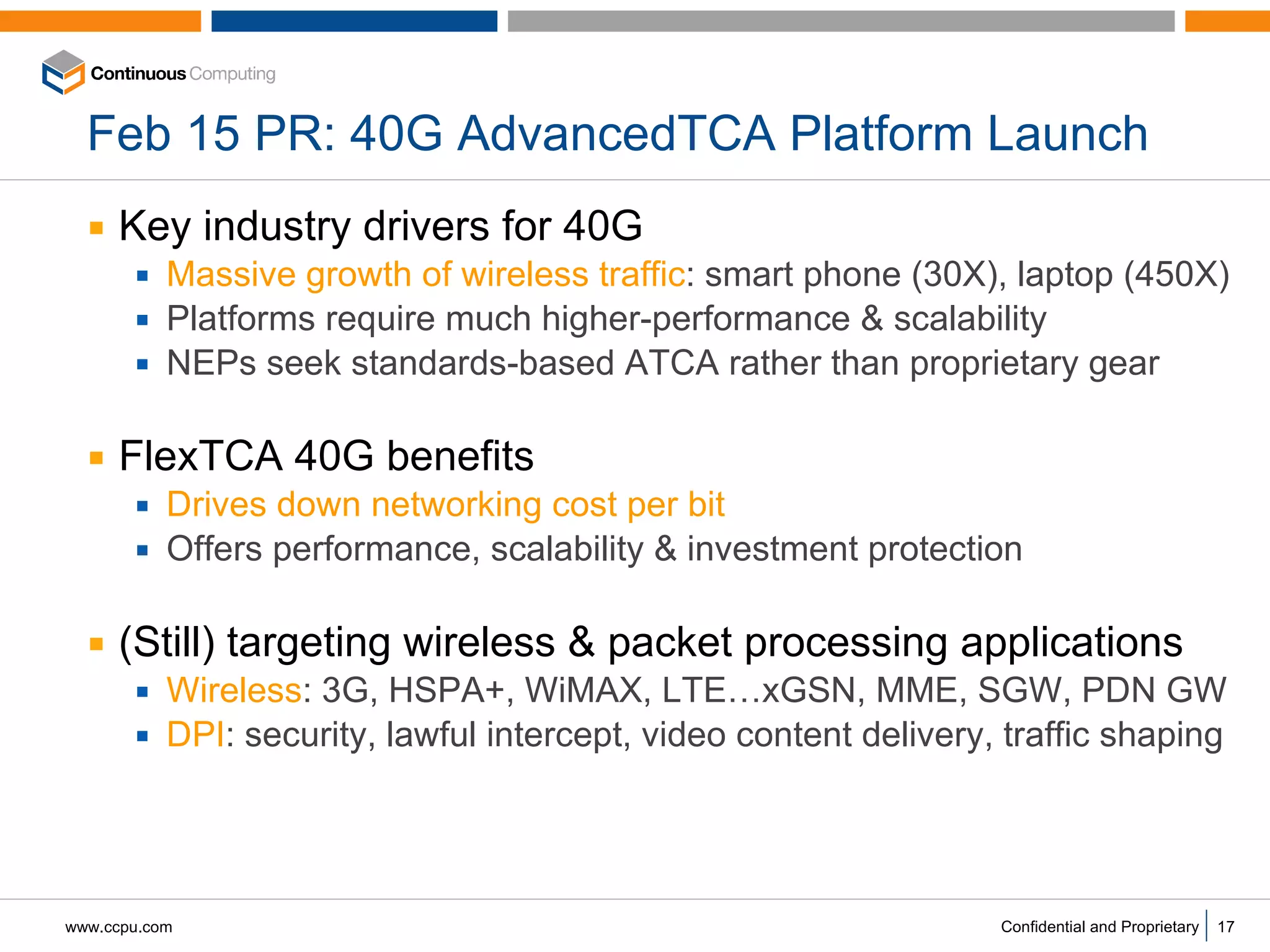

17. Feb 15 PR: 40G AdvancedTCA Platform Launch Key industry drivers for 40G Massive growth of wireless traffic : smart phone (30X), laptop (450X) Platforms require much higher-performance & scalability NEPs seek standards-based ATCA rather than proprietary gear FlexTCA 40G benefits Drives down networking cost per bit Offers performance, scalability & investment protection (Still) targeting wireless & packet processing applications Wireless : 3G, HSPA+, WiMAX, LTE…xGSN, MME, SGW, PDN GW DPI : security, lawful intercept, video content delivery, traffic shaping

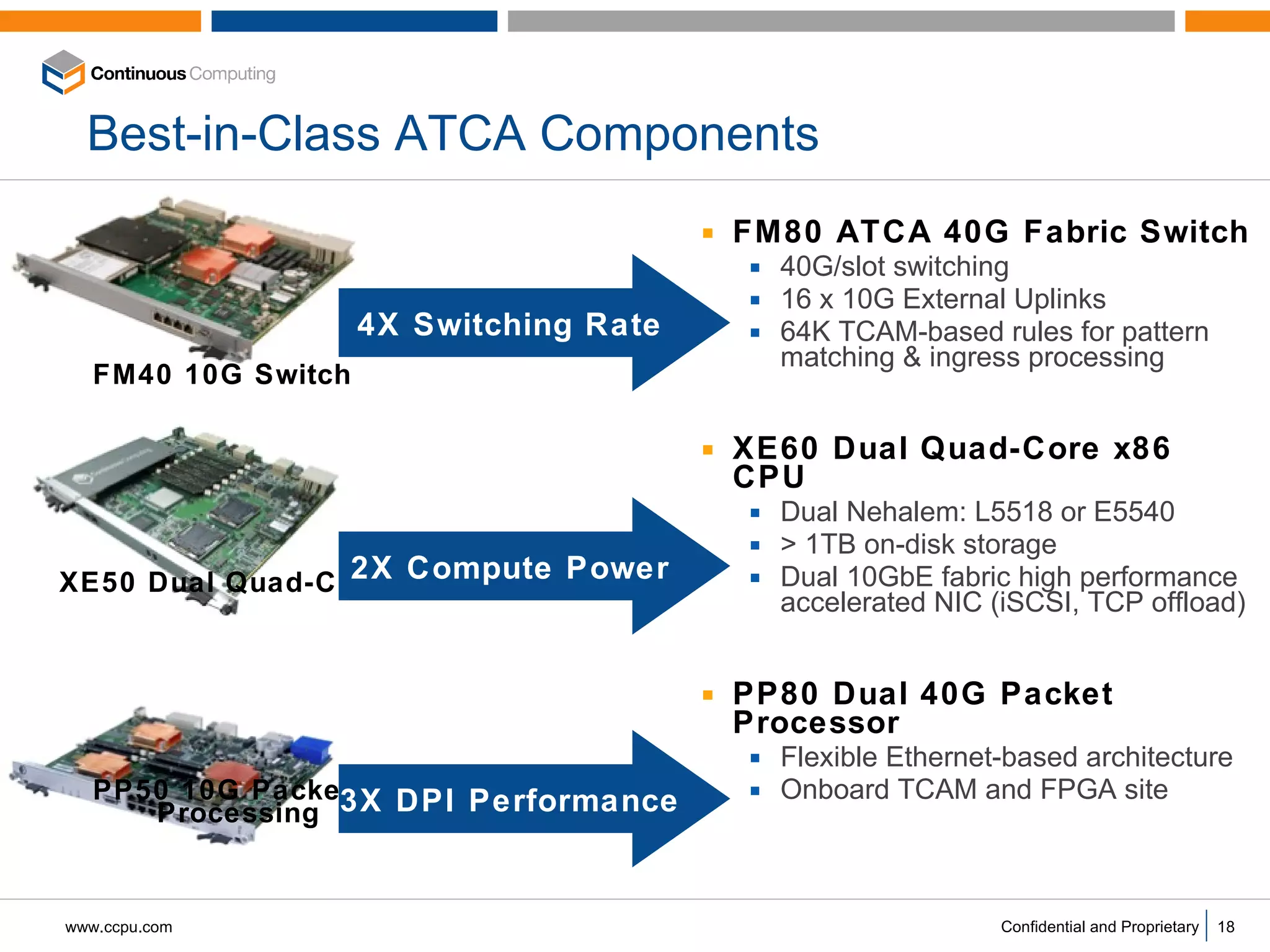

18. Best-in-Class ATCA Components FM80 ATCA 40G Fabric Switch 40G/slot switching 16 x 10G External Uplinks 64K TCAM-based rules for pattern matching & ingress processing XE60 Dual Quad-Core x86 CPU Dual Nehalem: L5518 or E5540 > 1TB on-disk storage Dual 10GbE fabric high performance accelerated NIC (iSCSI, TCP offload) PP80 Dual 40G Packet Processor Flexible Ethernet-based architecture Onboard TCAM and FPGA site FM40 10G Switch XE50 Dual Quad-Core PP50 10G Packet Processing 4X Switching Rate 2X Compute Power 3X DPI Performance

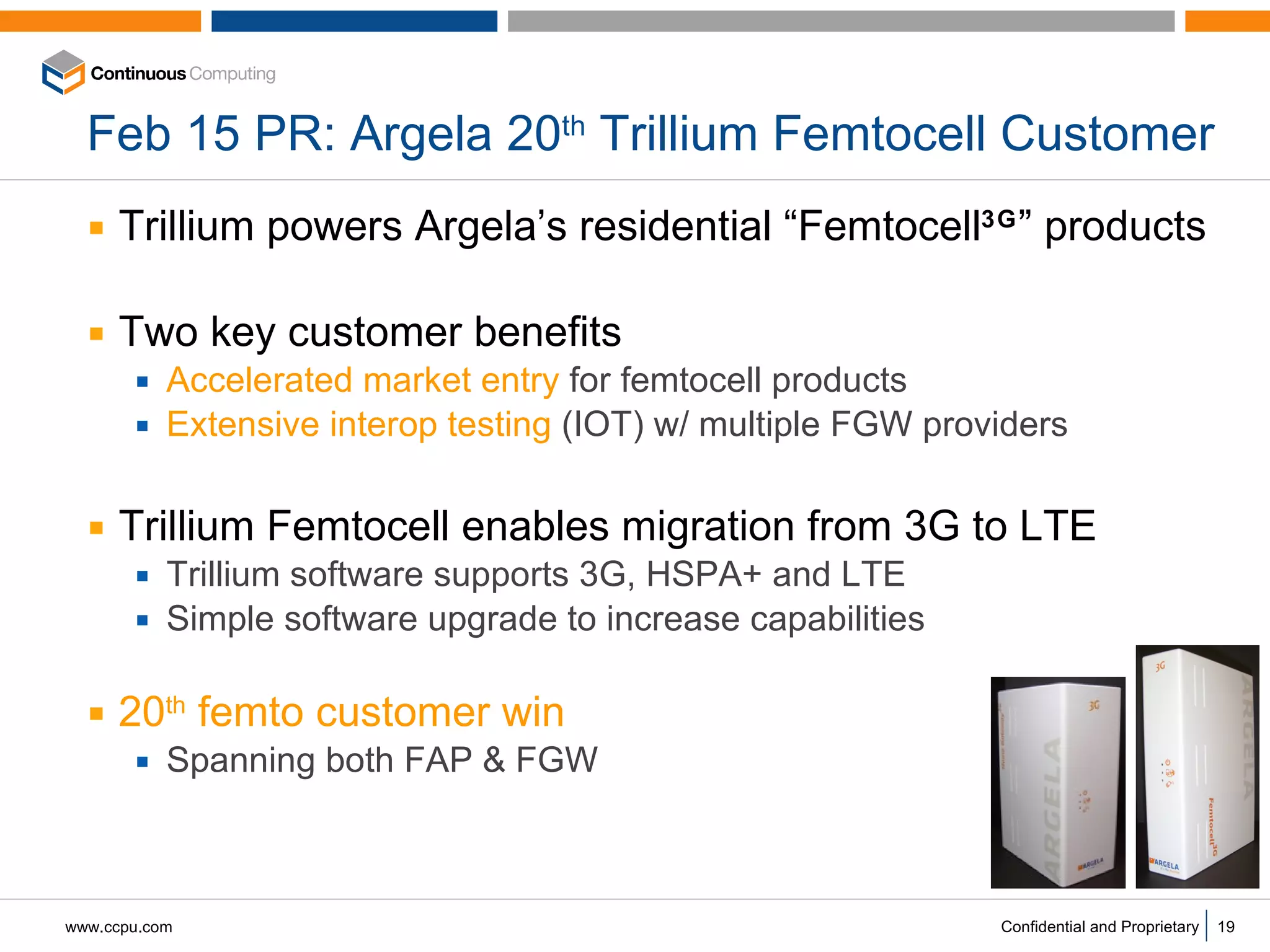

19. Feb 15 PR: Argela 20 th Trillium Femtocell Customer Trillium powers Argela’s residential “Femtocell 3G ” products Two key customer benefits Accelerated market entry for femtocell products Extensive interop testing (IOT) w/ multiple FGW providers Trillium Femtocell enables migration from 3G to LTE Trillium software supports 3G, HSPA+ and LTE Simple software upgrade to increase capabilities 20 th femto customer win Spanning both FAP & FGW

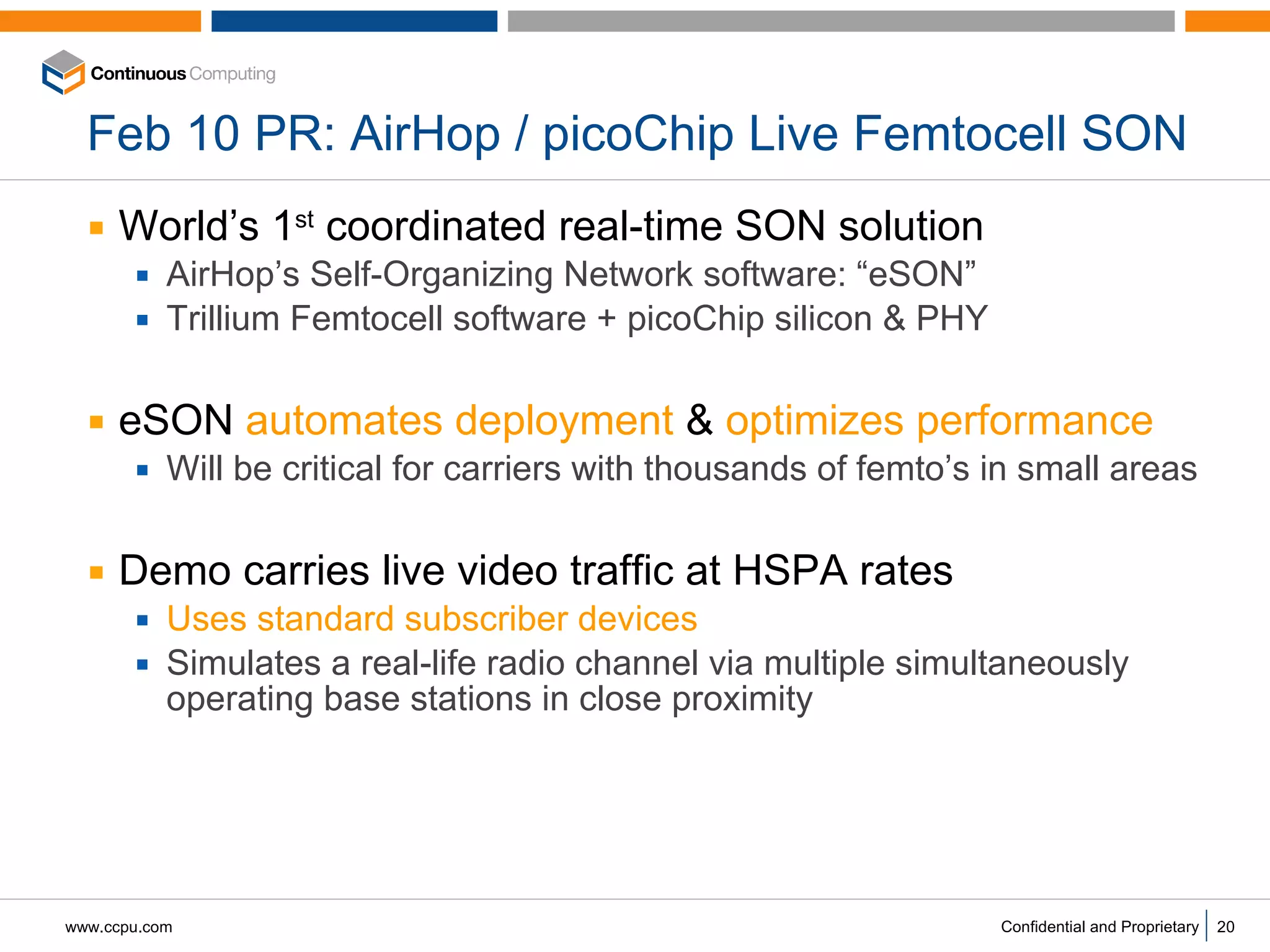

20. Feb 10 PR: AirHop / picoChip Live Femtocell SON World’s 1 st coordinated real-time SON solution AirHop’s Self-Organizing Network software: “eSON” Trillium Femtocell software + picoChip silicon & PHY eSON automates deployment & optimizes performance Will be critical for carriers with thousands of femto’s in small areas Demo carries live video traffic at HSPA rates Uses standard subscriber devices Simulates a real-life radio channel via multiple simultaneously operating base stations in close proximity

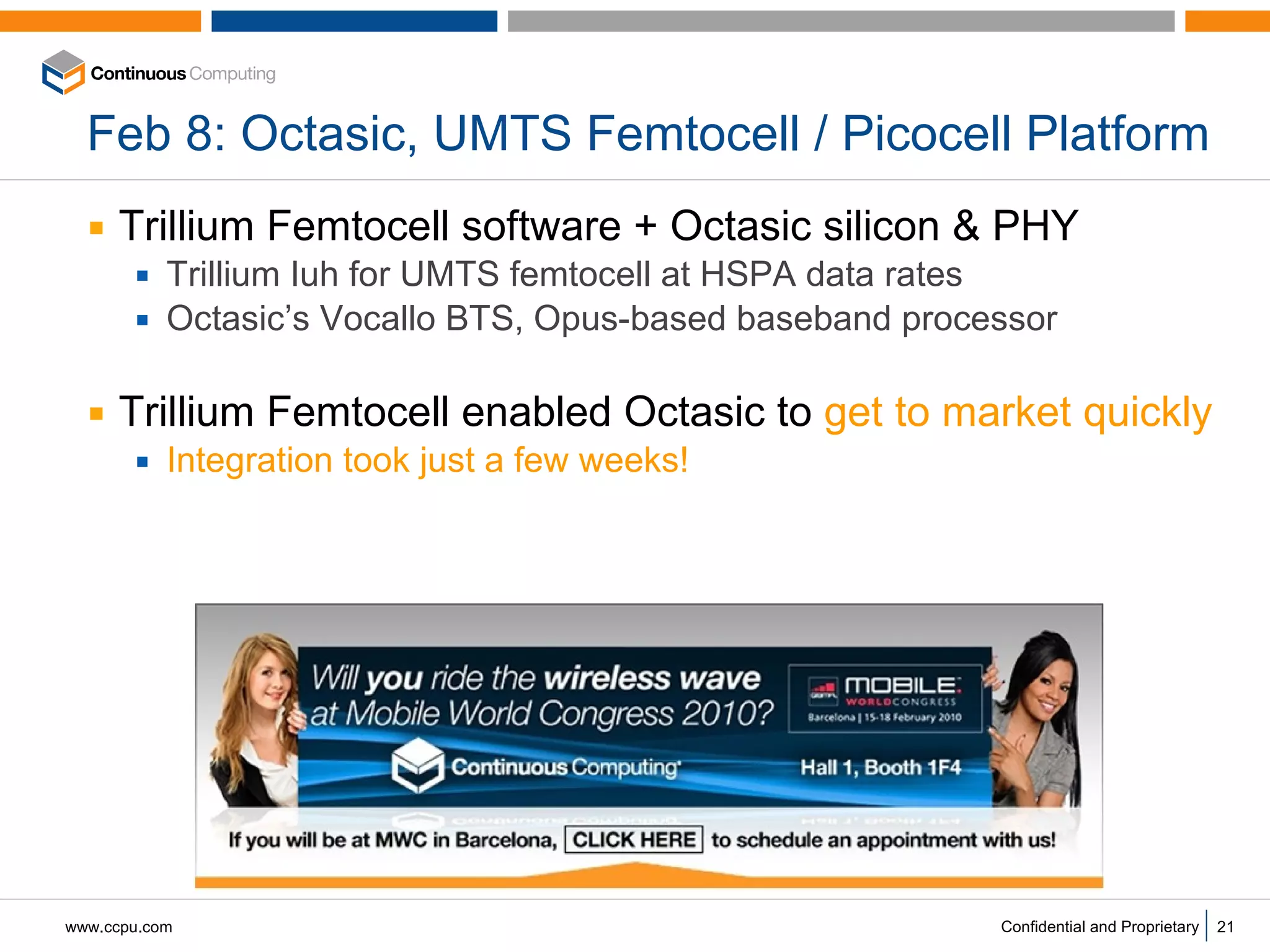

21. Feb 8: Octasic, UMTS Femtocell / Picocell Platform Trillium Femtocell software + Octasic silicon & PHY Trillium Iuh for UMTS femtocell at HSPA data rates Octasic’s Vocallo BTS, Opus-based baseband processor Trillium Femtocell enabled Octasic to get to market quickly Integration took just a few weeks!

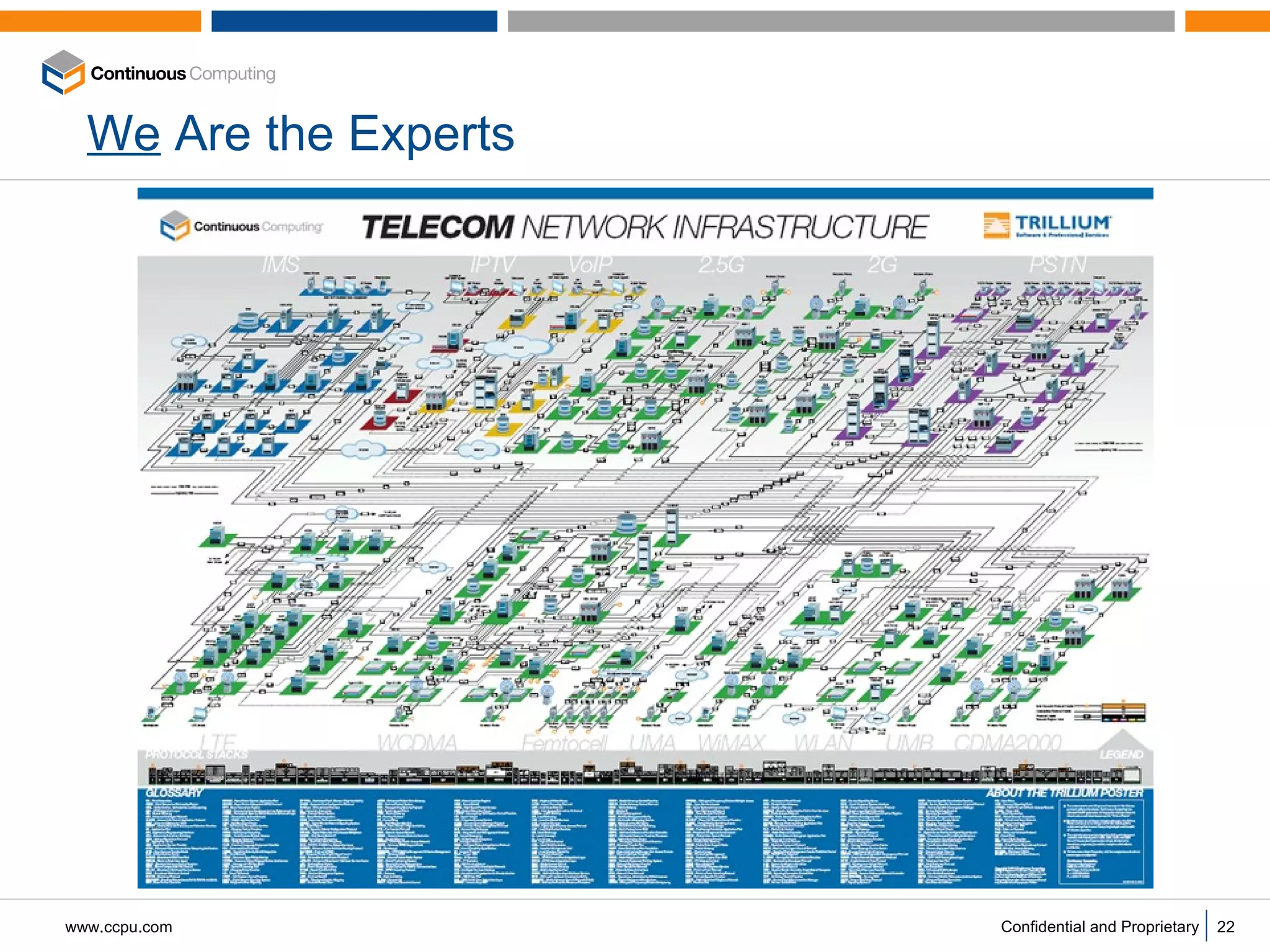

22. We Are the Experts

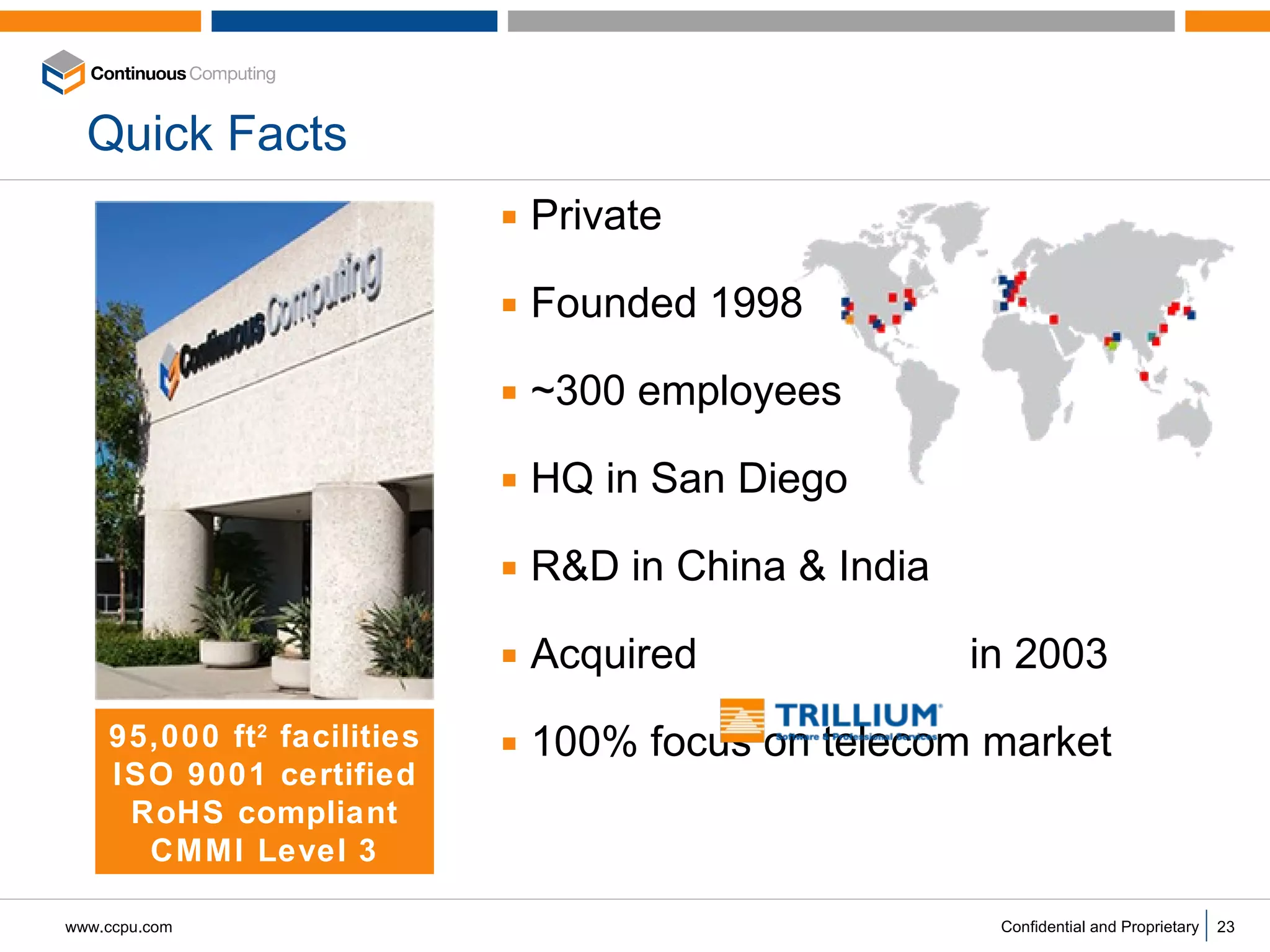

23. Private Founded 1998 ~300 employees HQ in San Diego R&D in China & India Acquired in 2003 100% focus on telecom market Quick Facts 95,000 ft 2 facilities ISO 9001 certified RoHS compliant CMMI Level 3

24. Our Customers = Our Success North America APAC EMEA

25. What We Do: Mobile Broadband Professional Services ATCA Platforms LTE Femtocell DPI Protocol Software LTE = Long Term Evolution, DPI = Deep Packet Inspection

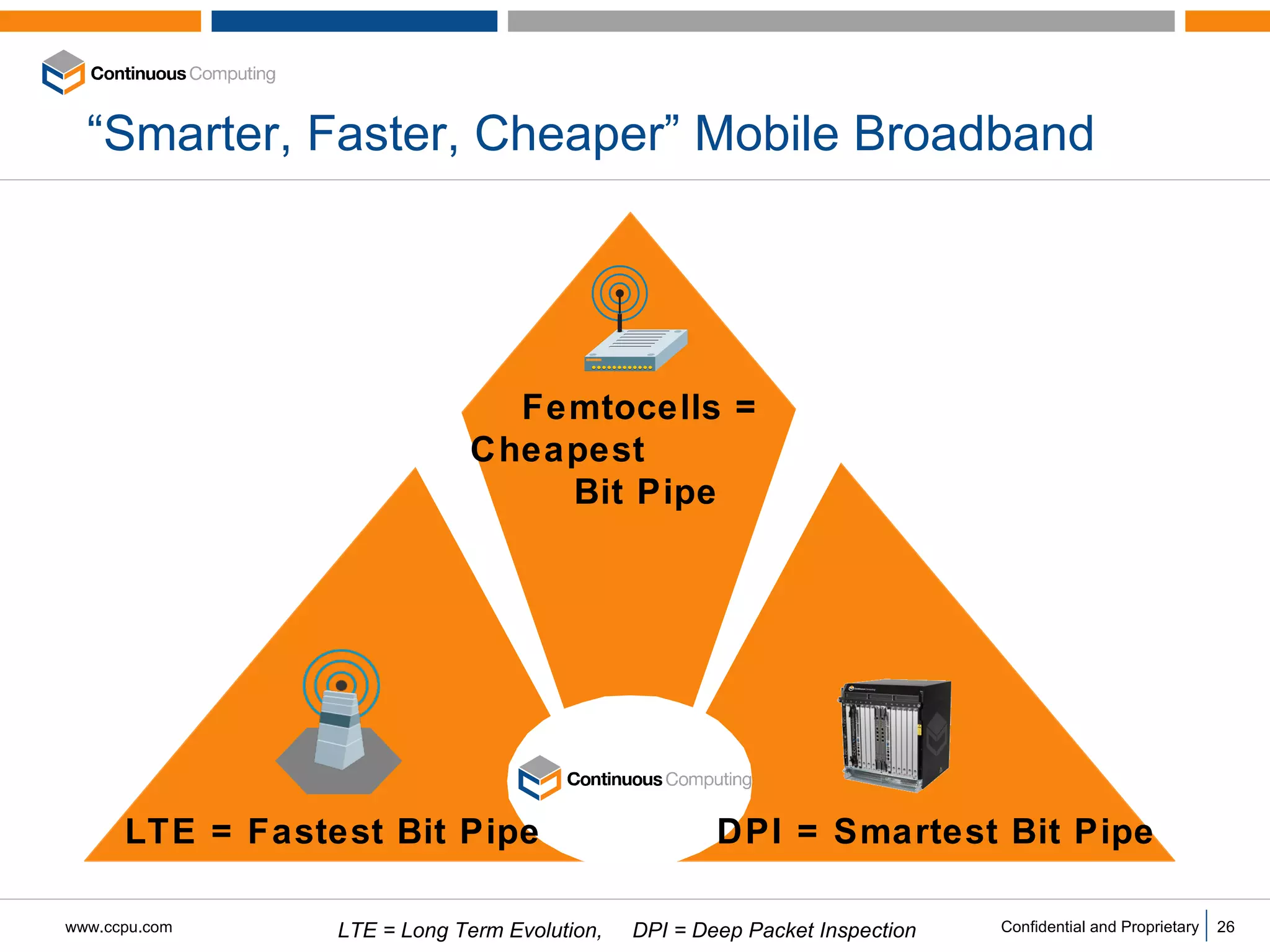

26. “Smarter, Faster, Cheaper” Mobile Broadband DPI = Smartest Bit Pipe LTE = Fastest Bit Pipe Femtocells = Cheapest Bit Pipe LTE = Long Term Evolution, DPI = Deep Packet Inspection

27. Corporate Summary Seasoned leadership Systems-level solutions Best-in-class customers Large, fast-growing markets International Sales and R&D Smarter, Faster, Cheaper Mobile Broadband
