- 1. Mobile Broadband –Threats and Opportunities Woojune Kim VP of Technology, Airvana Inc.

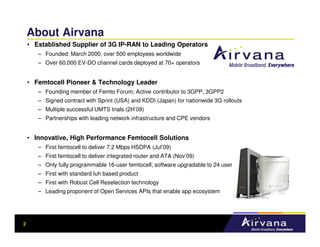

- 2. About Airvana • Established Supplier of 3G IP-RAN to Leading Operators – Founded: March 2000, over 500 employees worldwide – Over 60,000 EV-DO channel cards deployed at 70+ operators • Femtocell Pioneer & Technology Leader – Founding member of Femto Forum; Active contributor to 3GPP, 3GPP2 – Signed contract with Sprint (USA) and KDDI (Japan) for nationwide 3G rollouts – Multiple successful UMTS trials (2H’09) – Partnerships with leading network infrastructure and CPE vendors • Innovative, High Performance Femtocell Solutions – First femtocell to deliver 7.2 Mbps HSDPA (Jul’09) – First femtocell to deliver integrated router and ATA (Nov’09) – Only fully programmable 16-user femtocell; software upgradable to 24 user – First with standard Iuh based product – First with Robust Cell Reselection technology – Leading proponent of Open Services APIs that enable app ecosystem 2
- 3. Our Thesis • MobileData is growing Exponentially • Macro-cellular architecture cannot meet the long-term demands of mobile broadband • Transformation of cellular architecture through use of small cells is inevitable 3
- 4.
- 5. Mobile Data Trafficis Growing Exponentially Mobile broadband explosion continues unabated. Smartphones are driving the industry and network usage. Services, services, services! 5

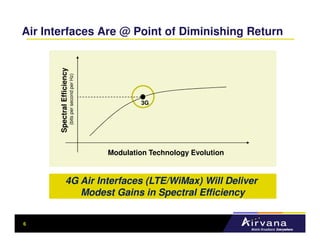

- 6. Air Interfaces Are@ Point of Diminishing Return Spectral Efficiency (bits per second per Hz) 3G Modulation Technology Evolution 4G Air Interfaces (LTE/WiMax) Will Deliver Modest Gains in Spectral Efficiency 6

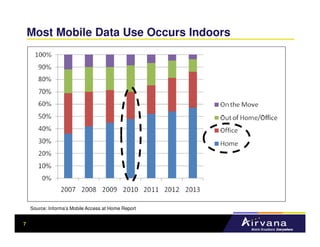

- 7. Most Mobile DataUse Occurs Indoors Source: Informa’s Mobile Access at Home Report 7

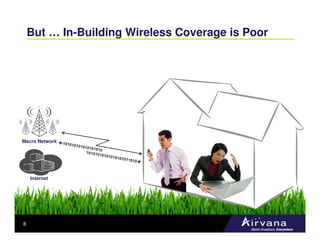

- 8. But … In-BuildingWireless Coverage is Poor Macro Network Internet 8
- 9. What Can WeDo ? 9

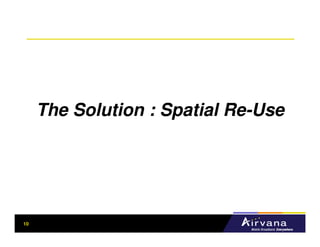

- 10. The Solution :Spatial Re-Use 10

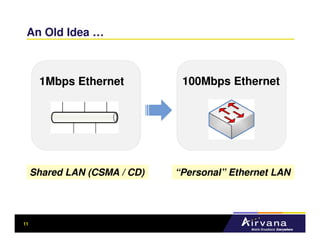

- 11. An Old Idea… 1Mbps Ethernet 100Mbps Ethernet Shared LAN (CSMA / CD) “Personal” Ethernet LAN 11

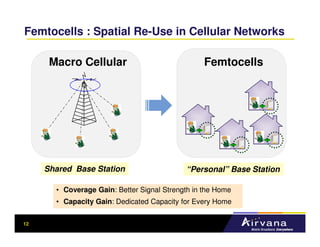

- 12. Femtocells : SpatialRe-Use in Cellular Networks Macro Cellular Femtocells Shared Base Station “Personal” Base Station • Coverage Gain: Better Signal Strength in the Home • Capacity Gain: Dedicated Capacity for Every Home 12

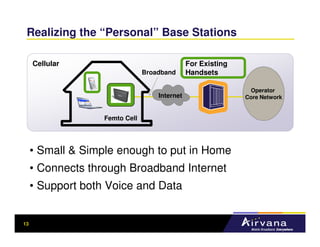

- 13. Realizing the “Personal”Base Stations Cellular For Existing Broadband Handsets Operator Internet Core Network Femto Cell • Small & Simple enough to put in Home • Connects through Broadband Internet • Support both Voice and Data 13
- 14. Significant Improvement inUser Experience Femto Users Only Average User Throughput (Kbps) Macro Users Only Network Usage (Load) Consistent High-Throughput Data Performance 14
- 15. What about Wi-Fi? For Dual Mode Broadband Handsets Operator Internet Core Network WiFi Access Point • Useful for Data Offload • But Not so Good for Voice (phone number, emergency calls ?) • Not available on all phones 15

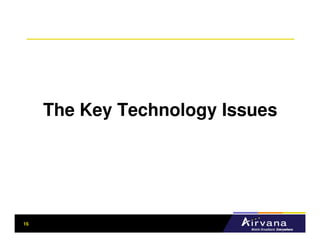

- 16. The Key TechnologyIssues 16

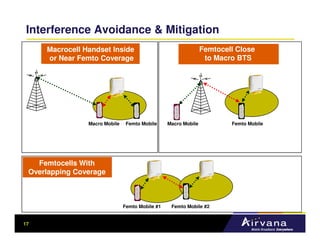

- 17. Interference Avoidance &Mitigation Macrocell Handset Inside Femtocell Close or Near Femto Coverage to Macro BTS Macro Mobile Femto Mobile Macro Mobile Femto Mobile Femtocells With Overlapping Coverage Femto Mobile #1 Femto Mobile #2 17
- 18. Femtozone Applications • Femtocellsas the center of the connected home – Aware of both mobile and home networks – Knows when user is home – Connects user to home from away Femtocell Apps enable Richer Mobile Apps 18

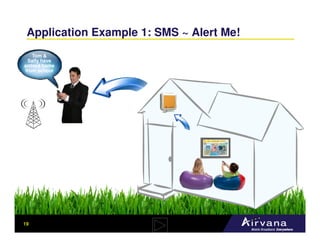

- 19. Application Example 1:SMS ~ Alert Me! Tom & Sally have arrived home from school 19

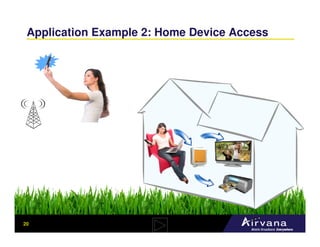

- 20. Application Example 2:Home Device Access 20

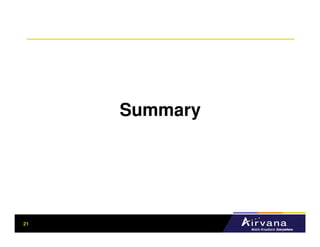

- 21.
- 22. Femtocells : aDisruptive Proposition Consumer Operator • Improved Coverage • Radically Lower Costs • Wireline Voice Quality • Improved Customer Satisfaction • Superior Broadband Experience • Lower Churn • Lower Home Phone Costs • New Service Revenue • Innovative New Services • Strategic Presence in Home 22
- 23. Thank You Thank You 23
