1. ATCA’s Big Femtocell Opportunity
5th Annual ATCA Summit
October 27, 2009
Manish Singh
Vice President, Product Line Management
www.ccpu.com Confidential and Proprietary

2. At a Glance
Over 150 Customers Worldwide
Protocol Software
LTE
DPI
Femtocell
ATCA & Professional
cPCI Hardware Services
www.ccpu.com
See our display in the Exhibit Area
www.ccpu.com Confidential and Proprietary 2

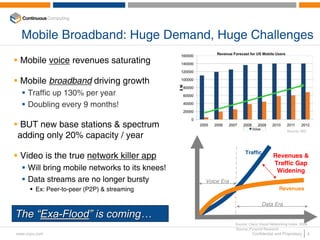

3. Mobile Broadband: Huge Demand, Huge Challenges
Mobile voice revenues saturating
Mobile broadband driving growth
Traffic up 130% per year
Doubling every 9 months!
BUT new base stations & spectrum
Source: IDC
adding only 20% capacity / year
Traffic
Video is the true network killer app Revenues &
Traffic Gap
Will bring mobile networks to its knees! Widening
Data streams are no longer bursty Voice Era
Ex: Peer-to-peer (P2P) & streaming Revenues
Data Era
The “Exa-Flood” is coming…
Source: Cisco Visual Networking Index, 2009
Source: Pyramid Research
www.ccpu.com Confidential and Proprietary 3

4. What Is Driving this Growth?
Demographics Devices Demand
Internet Applications
Internet Generation Mobile Internet Devices
& Content
www.ccpu.com Confidential and Proprietary 4

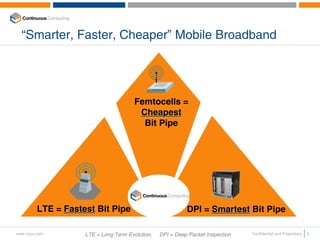

5. “Smarter, Faster, Cheaper” Mobile Broadband
Femtocells =
Cheapest
Bit Pipe
LTE = Fastest Bit Pipe DPI = Smartest Bit Pipe
www.ccpu.com LTE = Long Term Evolution, DPI = Deep Packet Inspection Confidential and Proprietary 5

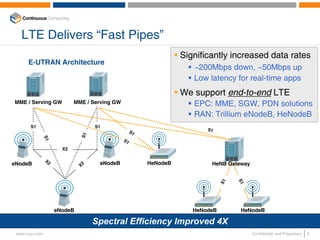

6. LTE Delivers “Fast Pipes”
Significantly increased data rates
E-UTRAN Architecture
~200Mbps down, ~50Mbps up
Low latency for real-time apps
We support end-to-end LTE
MME / Serving GW MME / Serving GW EPC: MME, SGW, PDN solutions
RAN: Trillium eNodeB, HeNodeB
S1 S1
S1 S1
S1
S1
S1
X2
X2
eNodeB X2
eNodeB HeNodeB HeNB Gateway
S1
S1
eNodeB HeNodeB HeNodeB
Spectral Efficiency Improved 4X
www.ccpu.com Confidential and Proprietary 6

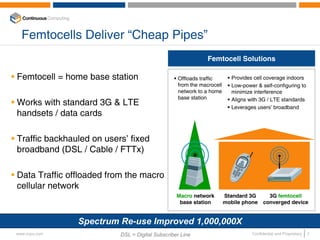

7. Femtocells Deliver “Cheap Pipes”
Femtocell Solutions
Femtocell = home base station Offloads traffic Provides cell coverage indoors
from the macrocell Low-power & self-configuring to
network to a home minimize interference
base station Aligns with 3G / LTE standards
Works with standard 3G & LTE Leverages users’ broadband
handsets / data cards
Traffic backhauled on users’ fixed
broadband (DSL / Cable / FTTx)
Data Traffic offloaded from the macro
cellular network
Macro network Standard 3G 3G femtocell
base station mobile phone converged device
Spectrum Re-use Improved 1,000,000X
www.ccpu.com DSL = Digital Subscriber Line Confidential and Proprietary 7

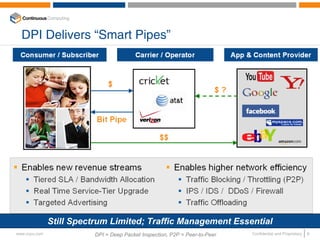

8. DPI Delivers “Smart Pipes”
Still Spectrum Limited; Traffic Management Essential
www.ccpu.com DPI = Deep Packet Inspection, P2P = Peer-to-Peer Confidential and Proprietary 8

9. Dominant Trends
Hardware = Cost Reduction
Cost per bit over the life of a project
Implications
Standards
Outsourcing
Commoditization
Software = Revenue Growth
Portability & scalability
Implications
Open-ness
Cleverness
Instability
www.ccpu.com Confidential and Proprietary 9

10. ATCA 40G = Lower Cost / Bit
FM80 ATCA 40G Fabric Switch
40G/slot switching
4X Switching Rate Advanced rules processing
FM40 10G Switch
XE80 Dual 6-Core x86 CPU
Up to 64GB DDR3 memory
Dual 10GbE fabric high performance
2X Compute Power accelerated NIC (TOE, RDMA, iSCSI)
4 x 10G external connectivity
XE60 Dual Quad-Core
PP80 40G Packet Processor
Flexible Ethernet-based architecture
4X DPI Performance
Onboard expansion sites
PP50 10G Packet Processing
www.ccpu.com Confidential and Proprietary 10

11. ATCA’s Opportunities
App-Specific Solutions LTE Evolved Packet Core
1. Adaptive Traffic Shaping 4. Mobility Management Entity
Dynamic bandwidth allocation Control plane
RAN-aware Shaper Bearer setup & release
2. Internet Offload (DPI) 5. Serving Gateway
Lower Capex in wireless core Bearer plane
10 DPI customer wins Fast path packet processing
3. Femtocell Gateway 6. PDN Gateway
Edge traffic aggregation Bearer plane
Key interface to core network Fast path packet processing
SW-upgradeable: 3G to LTE DPI for shaping & security
www.ccpu.com Confidential and Proprietary 11

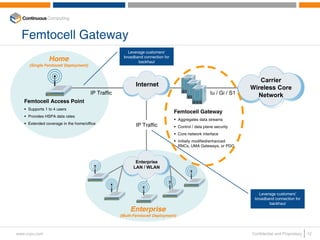

12. Femtocell Gateway
Leverage customers’
Home broadband connection for
backhaul
(Single Femtocell Deployment)
Carrier
Internet
Wireless Core
IP Traffic Iu / Gi / S1 Network
Femtocell Access Point
Supports 1 to 4 users
Femtocell Gateway
Provides HSPA data rates
Aggregates data streams
Extended coverage in the home/office IP Traffic Control / data plane security
Core network interface
Initially modified/enhanced
RNCs, UMA Gateways, or PDG
Enterprise
LAN / WLAN
Leverage customers’
broadband connection for
backhaul
Enterprise
(Multi-Femtocell Deployment)
www.ccpu.com Confidential and Proprietary 12

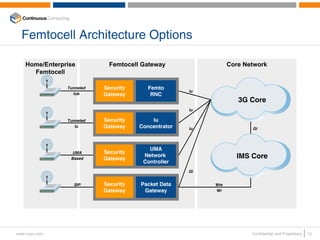

13. Femtocell Architecture Options
Home/Enterprise Femtocell Gateway Core Network
Femtocell
Tunneled Security Femto
Iu
Iub Gateway RNC
3G Core
Iu
Tunneled Security Iu
Iu Gateway Concentrator Iu Gi
UMA
UMA Security
Based Gateway
Network IMS Core
Controller
Gi
SIP Security Packet Data Wm
Gateway Gateway Wi
www.ccpu.com Confidential and Proprietary 13

14. Femto Gateway (FGW) Solution
Element Management System
Unified System Management
Femto Gateway Application
Continuous Computing System
Continuous Computing System
DPI Signature Engine Layer 4 Load Balancer Security Software
Trillium Control Plane Protocols Data Plane Protocols
SAFfire HA Middleware
L2HA Network Health Checking
Essential Services Platform Management
Wind River PNE LE Operating System
IPMI commands, firmware, BIOS, etc.
Chassis & Packet Storage,
Compute Switch
Shelf Mgr Processor AMCs, etc.
Legend
Hardware Software Partner Partner Application
www.ccpu.com Confidential and Proprietary 14

15. 3GPP-Standardized Iuh (Dec 2008)
Iuh interface between FAP and FGW
Iu-CS
Architectures remove SS7 bottlenecks
Gateway
Security
Femto MSC
Iuh Gateway
Scalable to support mass FAP Iu-PS
FAP
deployment
SGSN
New Iuh
Support Iu-flex with NNSF in FGW
Control Application Forwarding Application
Protocol specifications released RRC PDCP RANAP HNBAP Iu-UP
Stack Manager
RANAP over RUA for traditional UMTS RLC RUA
operations MAC-b,MAC-d,MAC-sh SCTP
GTP /
RTP
HNBAP for FAP-specific requirements
MAC-HS,MAC-ES MAC-E*
Standard Iu user plane
PHY IP (IPsec)
New Iuh
www.ccpu.com Confidential and Proprietary 15

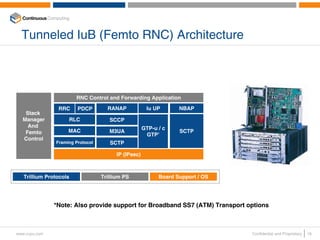

16. Tunneled IuB (Femto RNC) Architecture
RNC Control and Forwarding Application
RRC PDCP RANAP Iu UP NBAP
Stack
Manager RLC SCCP
And GTP-u / c
Femto MAC M3UA SCTP
GTP’
Control
Framing Protocol SCTP
IP (IPsec)
Trillium Protocols Trillium PS Board Support / OS
*Note: Also provide support for Broadband SS7 (ATM) Transport options
www.ccpu.com Confidential and Proprietary 16

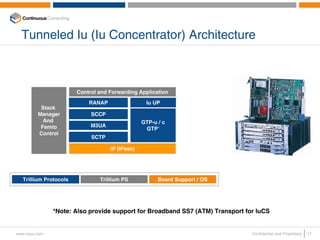

17. Tunneled Iu (Iu Concentrator) Architecture
Control and Forwarding Application
RANAP Iu UP
Stack
Manager SCCP
And GTP-u / c
Femto M3UA
GTP’
Control
SCTP
IP (IPsec)
Trillium Protocols Trillium PS Board Support / OS
*Note: Also provide support for Broadband SS7 (ATM) Transport for IuCS
www.ccpu.com Confidential and Proprietary 17

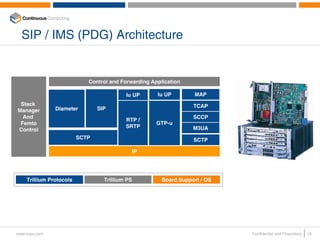

18. SIP / IMS (PDG) Architecture
Control and Forwarding Application
Iu UP Iu UP MAP
Stack TCAP
Manager Diameter SIP
And SCCP
RTP /
Femto GTP-u
SRTP M3UA
Control
SCTP SCTP
IP
Trillium Protocols Trillium PS Board Support / OS
www.ccpu.com Confidential and Proprietary 18

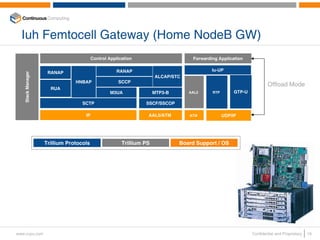

19. Iuh Femtocell Gateway (Home NodeB GW)
Control Application Forwarding Application
RANAP Iu-UP
RANAP
Stack Manager
ALCAP/STC
HNBAP SCCP
Offload Mode
RUA
M3UA MTP3-B AAL2 RTP GTP-U
SCTP SSCF/SSCOP
IP AAL5/ATM ATM UDP/IP
Trillium Protocols Trillium PS Board Support / OS
www.ccpu.com Confidential and Proprietary 19

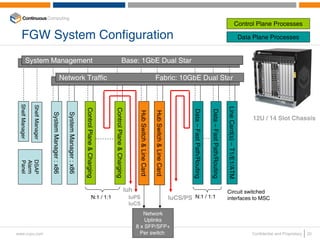

20. Control Plane Processes
FGW System Configuration Data Plane Processes
System Management Base: 1GbE Dual Star
Network Traffic Fabric: 10GbE Dual Star
Shelf Manager
Shelf Manager
Line Card(s) – T1/E1/ATM
Control Plane & Charging
Control Plane & Charging
Data – Fast Path/Routing
Data – Fast Path/Routing
Hub Switch & Line Card
Hub Switch & Line Card
System Manager : x86
System Manager : x86
12U / 14 Slot Chassis
DSAP
Alarm
Panel
Iuh Circuit switched
N:1 / 1:1 IuPS IuCS/PS N:1 / 1:1 interfaces to MSC
IuCS
Network
Uplinks
8 x SFP/SFP+
www.ccpu.com Per switch Confidential and Proprietary 20

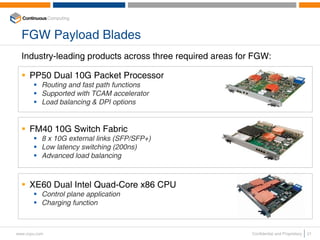

21. FGW Payload Blades
Industry-leading products across three required areas for FGW:
PP50 Dual 10G Packet Processor
Routing and fast path functions
Supported with TCAM accelerator
Load balancing & DPI options
FM40 10G Switch Fabric
8 x 10G external links (SFP/SFP+)
Low latency switching (200ns)
Advanced load balancing
XE60 Dual Intel Quad-Core x86 CPU
Control plane application
Charging function
www.ccpu.com Confidential and Proprietary 21

22. Femto Gateway Performance
Small Form Factor Gateway
5 – 10Gbps, up to 70K FAPs (3G)
2U form factor
Medium Capacity Gateway
20-40Gbps, >120K FAPs (3G)
6U form factor
Large Capacity Gateway
40-80Gbps, >250K FAPs (3G)
12U form factor
www.ccpu.com Confidential and Proprietary 22

23. LTE Femto Gateway
E-UTRAN Architecture
MME / Serving GW MME / Serving GW
S1 S1
S1 S1
S1
S1
S1
X2
X2
eNodeB X2
eNodeB HeNodeB HeNB Gateway
S1
S1
eNodeB HeNodeB HeNodeB
www.ccpu.com Confidential and Proprietary 23

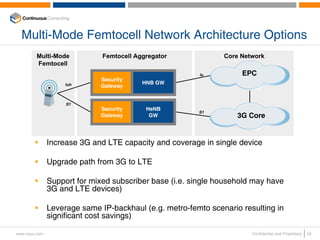

24. Multi-Mode Femtocell Network Architecture Options
Multi-Mode Femtocell Aggregator Core Network
Femtocell
Iu EPC
Security
Iuh HNB GW
Gateway
S1
Security HeNB
S1
Gateway GW 3G Core
Increase 3G and LTE capacity and coverage in single device
Upgrade path from 3G to LTE
Support for mixed subscriber base (i.e. single household may have
3G and LTE devices)
Leverage same IP-backhaul (e.g. metro-femto scenario resulting in
significant cost savings)
www.ccpu.com Confidential and Proprietary 24

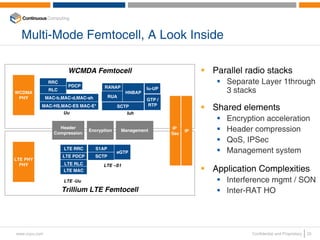

25. Multi-Mode Femtocell, A Look Inside
WCMDA Femtocell Parallel radio stacks
RRC
PDCP
Separate Layer 1through
RANAP
WCDMA
RLC
HNBAP
Iu-UP
3 stacks
PHY MAC-b,MAC-d,MAC-sh RUA
GTP /
MAC-HS,MAC-ES MAC-E*
Uu
SCTP RTP
Shared elements
Iuh
Encryption acceleration
Header
Compression
Encryption Management IP
Sec
IP Header compression
QoS, IPSec
LTE RRC S1AP
eGTP Management system
LTE PDCP SCTP
LTE PHY
PHY LTE RLC LTE –S1
LTE MAC Application Complexities
LTE -Uu Interference mgmt / SON
Trillium LTE Femtocell Inter-RAT HO
www.ccpu.com Confidential and Proprietary 25

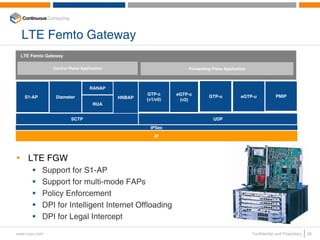

26. LTE Femto Gateway
LTE Femto Gateway
Control Plane Application Forwarding Plane Application
RANAP
GTP-c eGTP-c PMIP
S1-AP Diameter HNBAP GTP-u eGTP-u
(v1/v0) (v2)
RUA
SCTP UDP
IPSec
IP
LTE FGW
Support for S1-AP
Support for multi-mode FAPs
Policy Enforcement
DPI for Intelligent Internet Offloading
DPI for Legal Intercept
www.ccpu.com Confidential and Proprietary 26

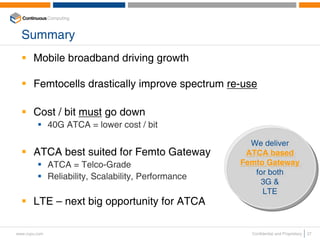

27. Summary
Mobile broadband driving growth
Femtocells drastically improve spectrum re-use
Cost / bit must go down
40G ATCA = lower cost / bit
We deliver
We deliver
ATCA best suited for Femto Gateway ATCA based
ATCA based
ATCA = Telco-Grade Femto Gateway
Femto Gateway
for both
for both
Reliability, Scalability, Performance
3G &
3G &
LTE
LTE
LTE – next big opportunity for ATCA
www.ccpu.com Confidential and Proprietary 27

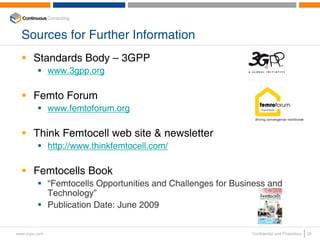

28. Sources for Further Information
Standards Body – 3GPP
www.3gpp.org
Femto Forum
www.femtoforum.org
Think Femtocell web site & newsletter
http://www.thinkfemtocell.com/
Femtocells Book
“Femtocells Opportunities and Challenges for Business and
Technology”
Publication Date: June 2009
www.ccpu.com Confidential and Proprietary 28

29. Questions & Comments
Manish Singh
Vice President, Product Line Management
http://www.ccpu.com/solutions/wireless/femtogateway.html
www.ccpu.com Confidential and Proprietary
