Multithreading Fundamentals
The document presents an in-depth analysis of .NET multithreading primitives as they relate to hardware and the Windows kernel, with an emphasis on memory models, atomicity, and synchronization techniques. It discusses various hardware architectures, latency, and the effects of caching and buffering. Additionally, it outlines application programming tools for concurrency and synchronization within the .NET framework, highlighting the importance of using efficient structures such as concurrent collections and thread pools.
More Related Content
Similar to Multithreading Fundamentals
Multithreading Fundamentals
- 1. @gfraiteur a deep investigationon how .NET multithreading primitives map to hardware and Windows Kernel You Thought You Understood Multithreading Gaël Fraiteur PostSharp Technologies Founder & Principal Engineer
- 2. @gfraiteur Hello! My name isGAEL. No, I don’t think my accent is funny. my twitter

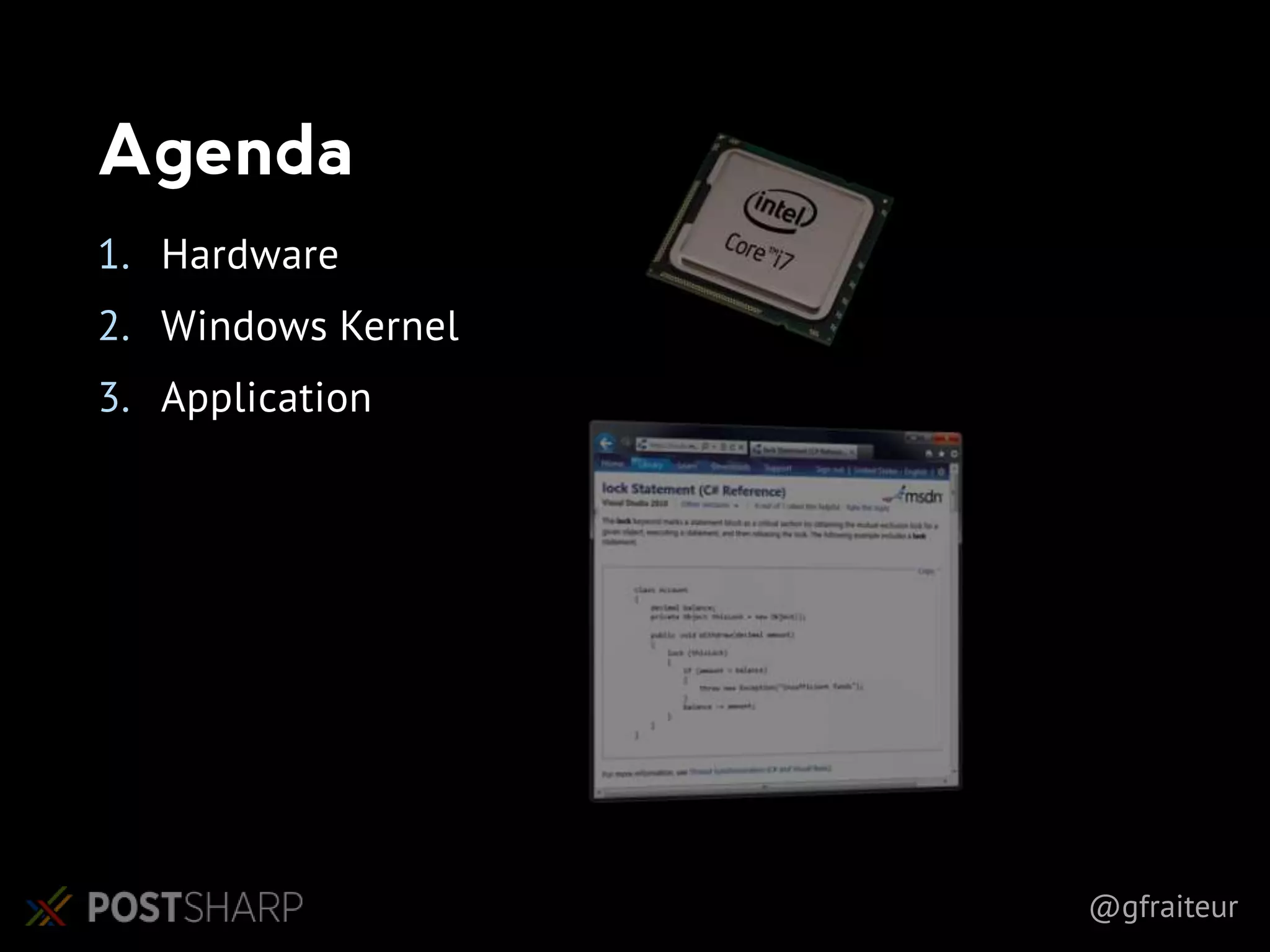

- 3. @gfraiteur Agenda 1. Hardware 2. WindowsKernel 3. Application
- 4.

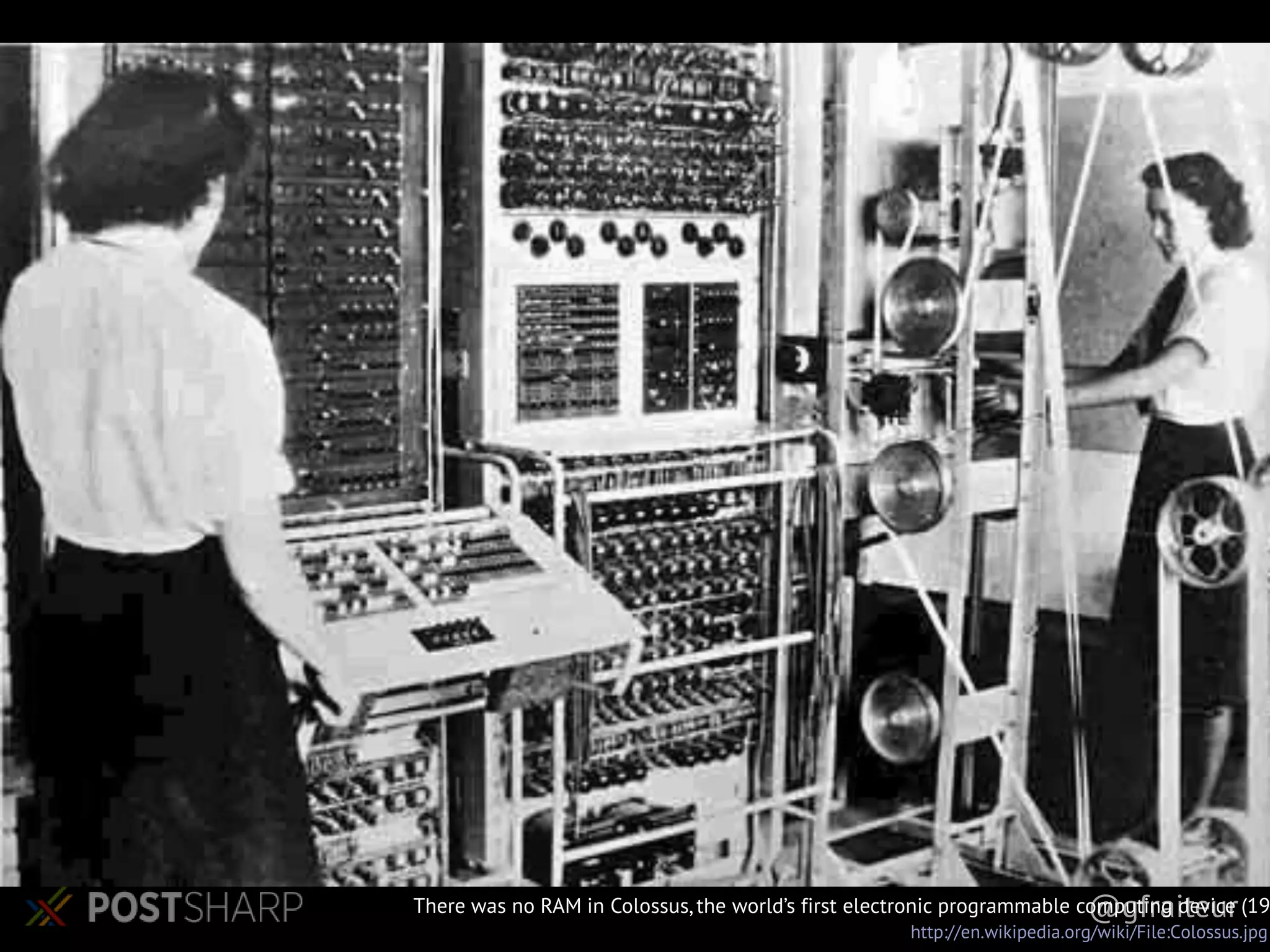

- 5. @gfraiteurThere was noRAM in Colossus, the world’s first electronic programmable computing device (19 http://en.wikipedia.org/wiki/File:Colossus.jpg
- 6.

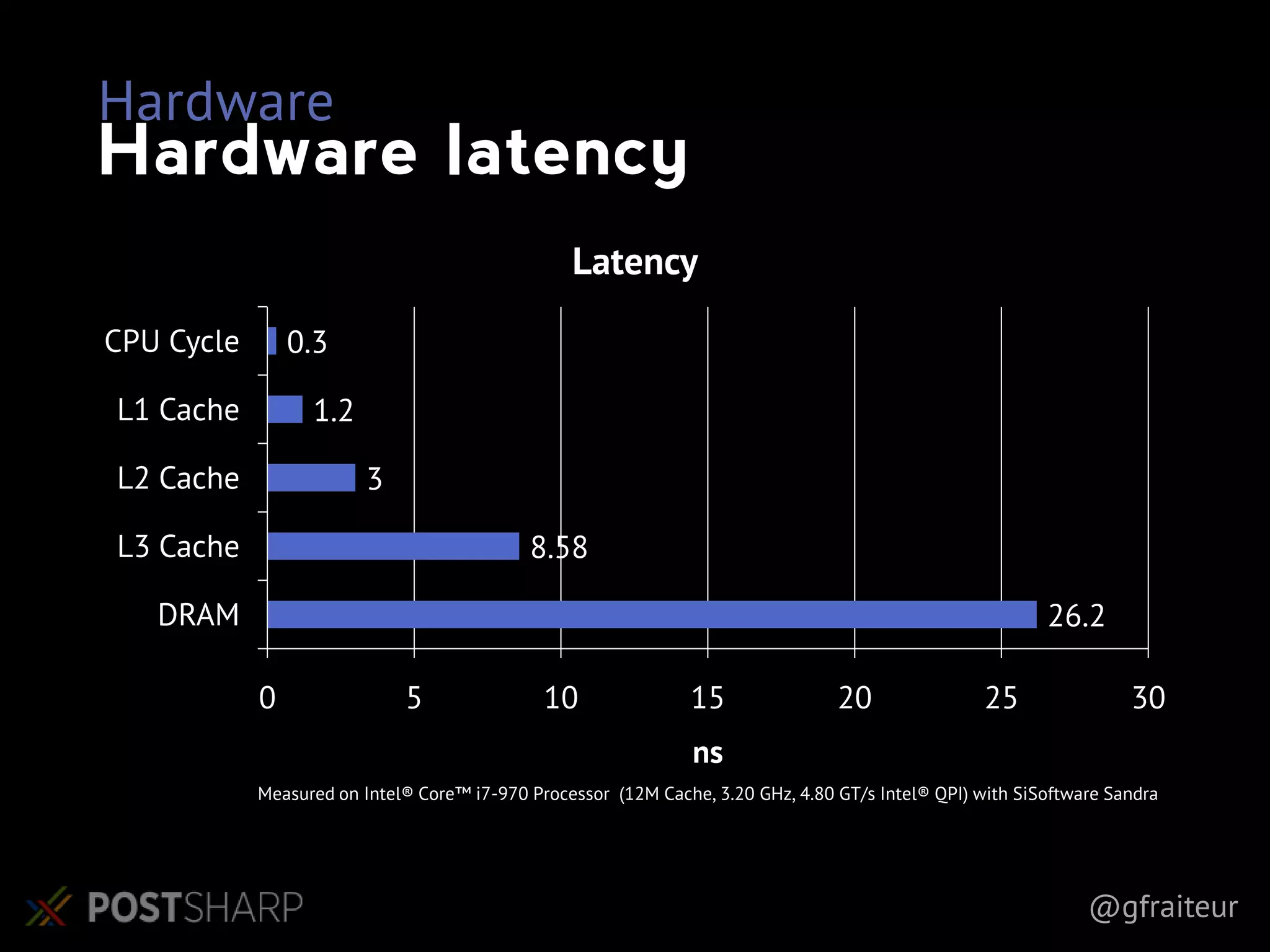

- 7. @gfraiteur Hardware Hardware latency 26.2 8.58 3 1.2 0.3 0 510 15 20 25 30 DRAM L3 Cache L2 Cache L1 Cache CPU Cycle ns Latency Measured on Intel® Core™ i7-970 Processor (12M Cache, 3.20 GHz, 4.80 GT/s Intel® QPI) with SiSoftware Sandra

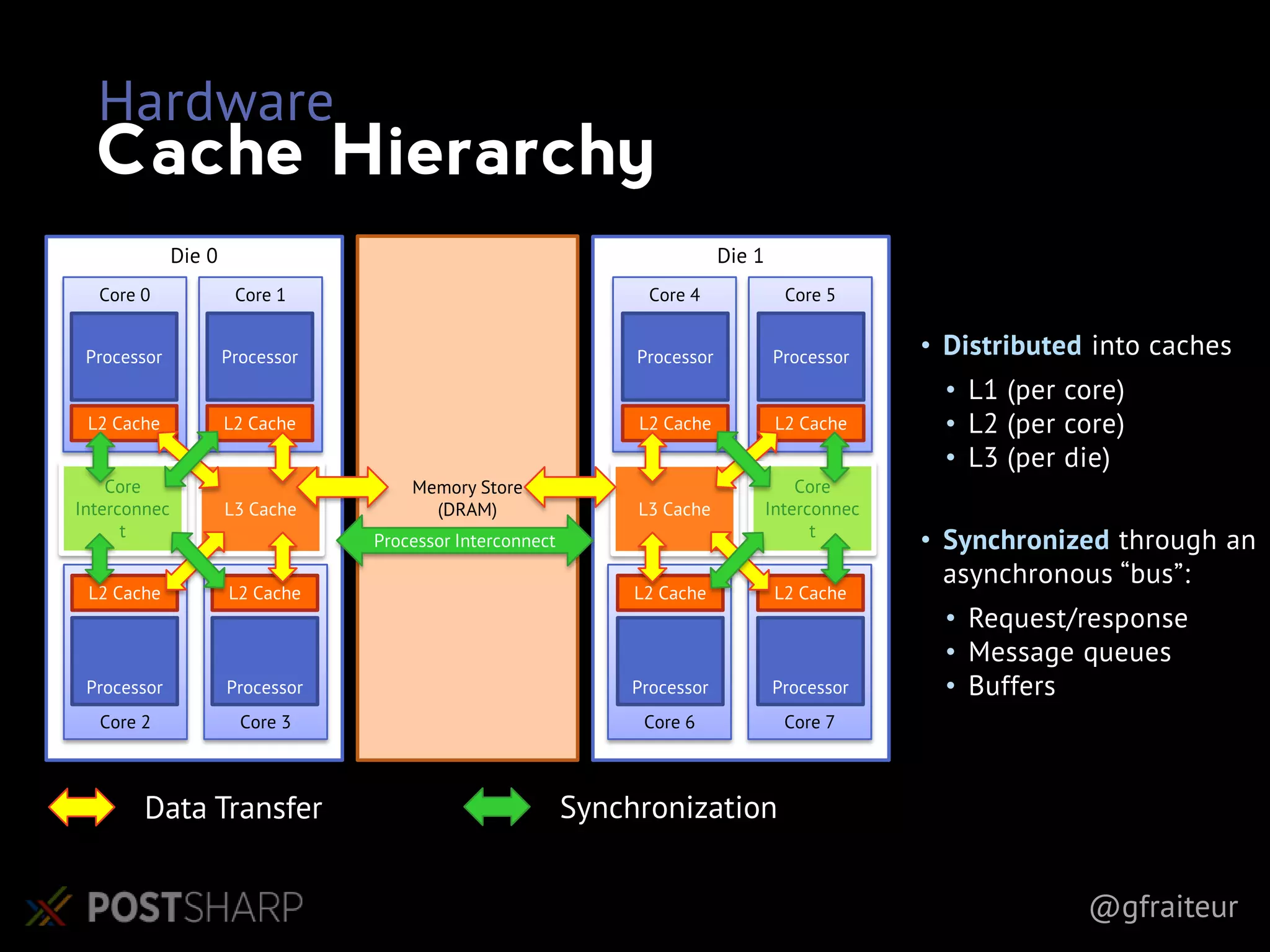

- 8. @gfraiteur Hardware Cache Hierarchy • Distributedinto caches • L1 (per core) • L2 (per core) • L3 (per die) Die 1 Core 4 Processor Core 5 Processor Core 7 Processor L2 Cache Core 6 Processor L2 Cache Memory Store (DRAM) Die 0 Core 1 Processor Core 0 Processor Core 2 Processor L2 Cache Core 3 Processor L2 Cache L2 Cache L3 Cache L2 CacheL2 Cache L3 Cache L2 Cache Data Transfer Core Interconnec t Core Interconnec t Processor Interconnect Synchronization • Synchronized through an asynchronous “bus”: • Request/response • Message queues • Buffers

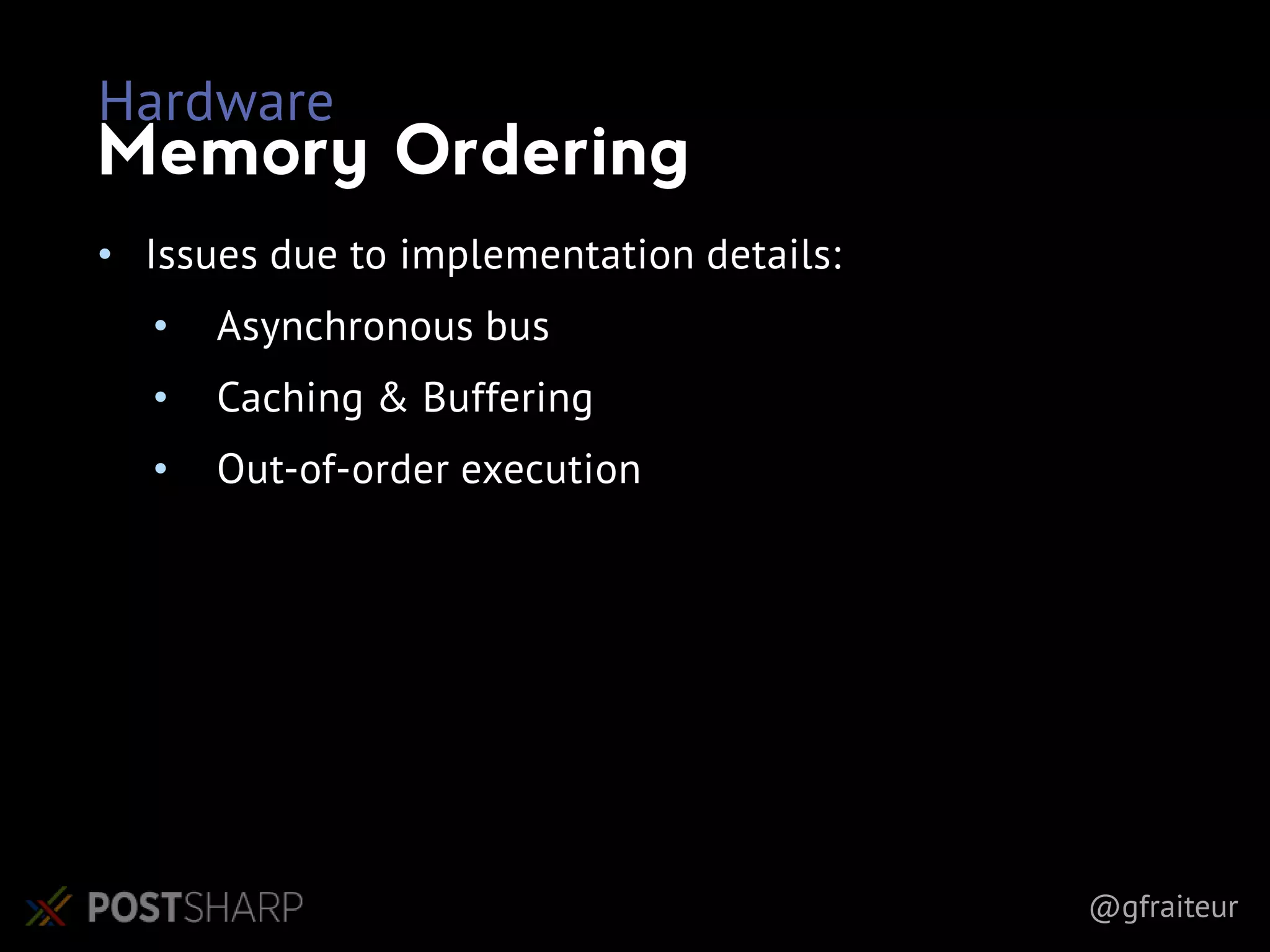

- 9. @gfraiteur Hardware Memory Ordering • Issuesdue to implementation details: • Asynchronous bus • Caching & Buffering • Out-of-order execution

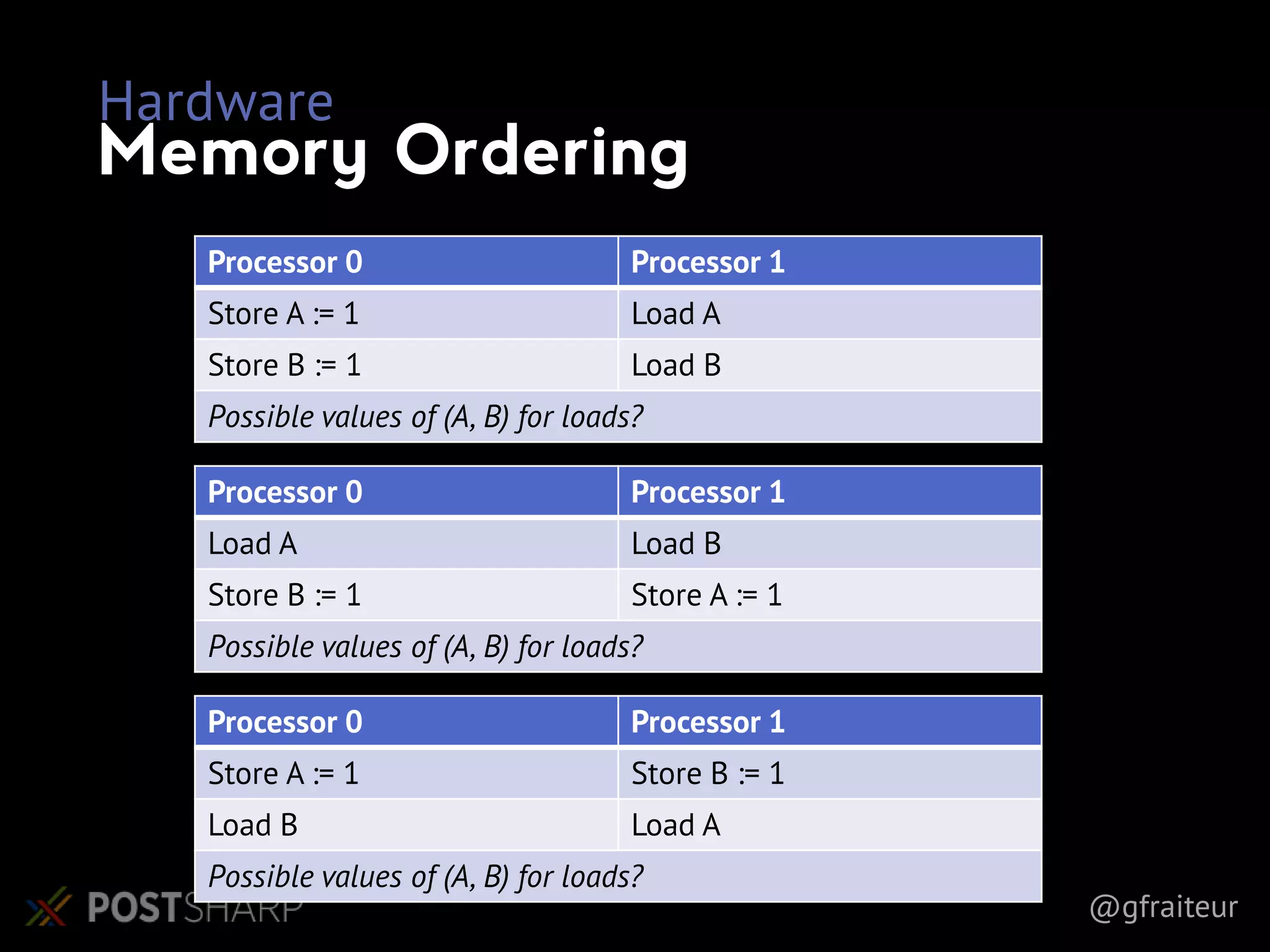

- 10. @gfraiteur Hardware Memory Ordering Processor 0Processor 1 Store A := 1 Load A Store B := 1 Load B Possible values of (A, B) for loads? Processor 0 Processor 1 Load A Load B Store B := 1 Store A := 1 Possible values of (A, B) for loads? Processor 0 Processor 1 Store A := 1 Store B := 1 Load B Load A Possible values of (A, B) for loads?

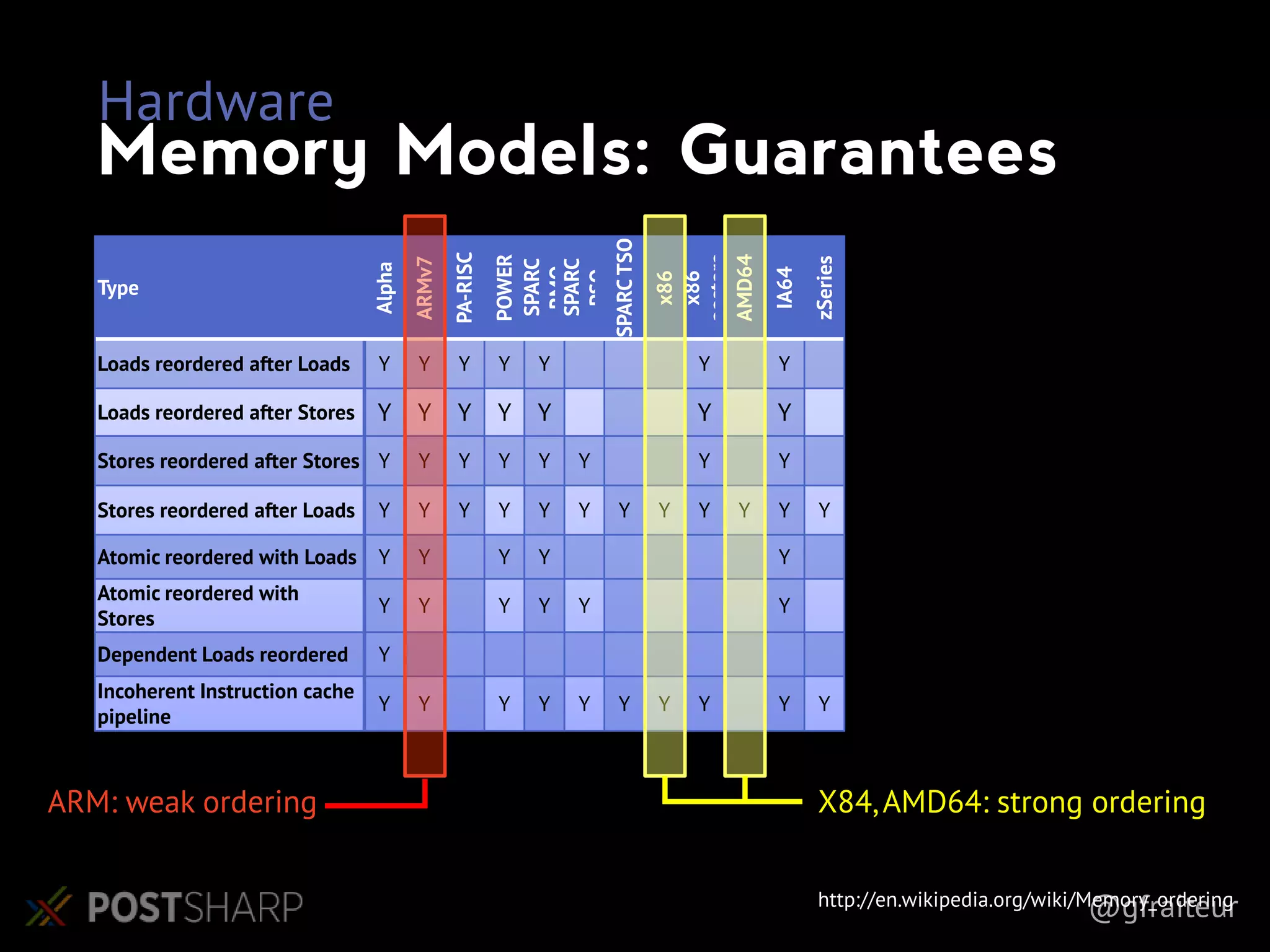

- 11. @gfraiteur Hardware Memory Models: Guarantees Type Alpha ARMv7 PA-RISC POWER SPARC RMO SPARC PSO SPARCTSO x86 x86 oostore AMD64 IA64 zSeries Loadsreordered after Loads Y Y Y Y Y Y Y Loads reordered after Stores Y Y Y Y Y Y Y Stores reordered after Stores Y Y Y Y Y Y Y Y Stores reordered after Loads Y Y Y Y Y Y Y Y Y Y Y Y Atomic reordered with Loads Y Y Y Y Y Atomic reordered with Stores Y Y Y Y Y Y Dependent Loads reordered Y Incoherent Instruction cache pipeline Y Y Y Y Y Y Y Y Y Y http://en.wikipedia.org/wiki/Memory_ordering X84,AMD64: strong orderingARM: weak ordering

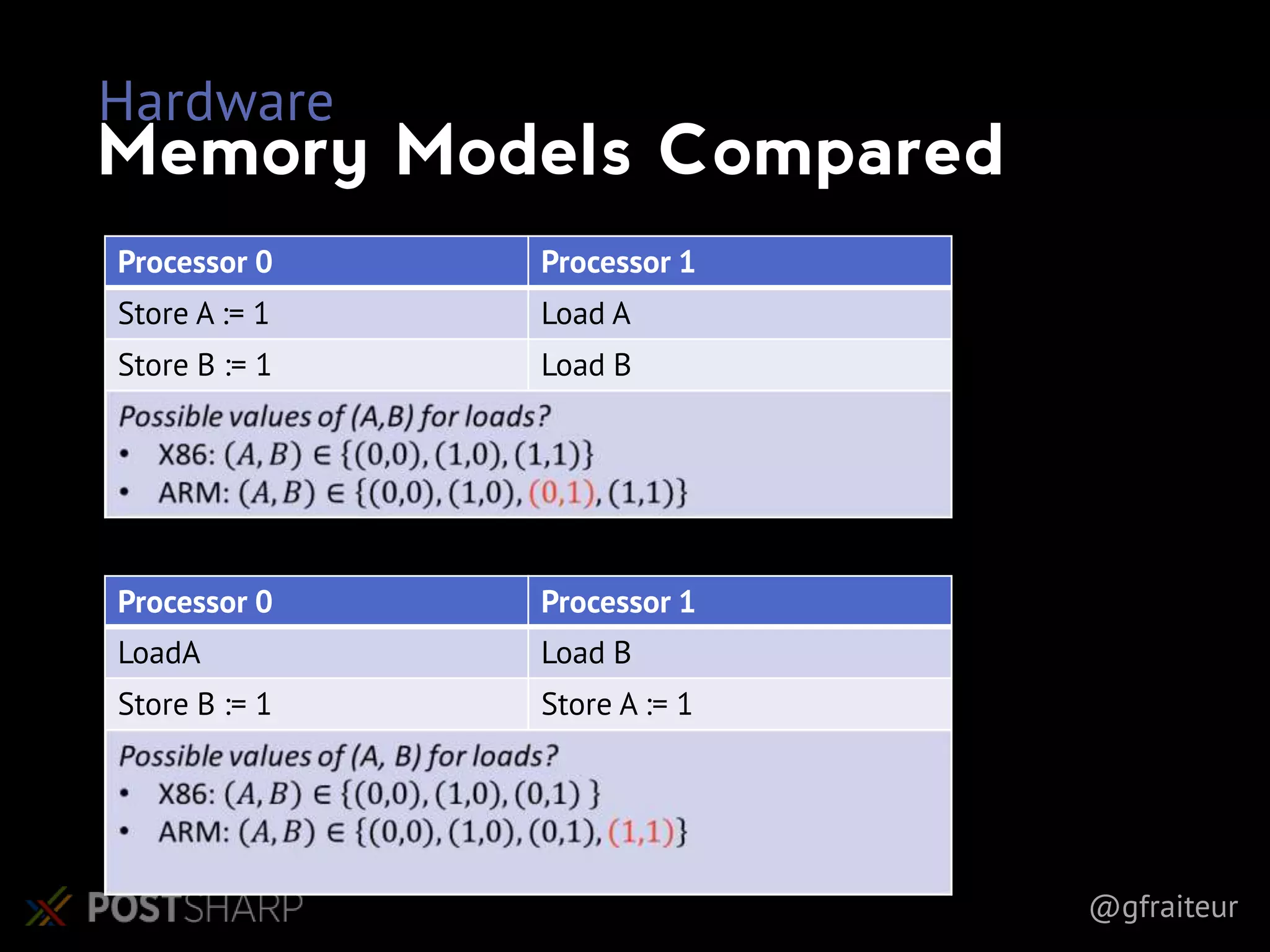

- 12. @gfraiteur Hardware Memory Models Compared Processor0 Processor 1 Store A := 1 Load A Store B := 1 Load B Processor 0 Processor 1 LoadA Load B Store B := 1 Store A := 1

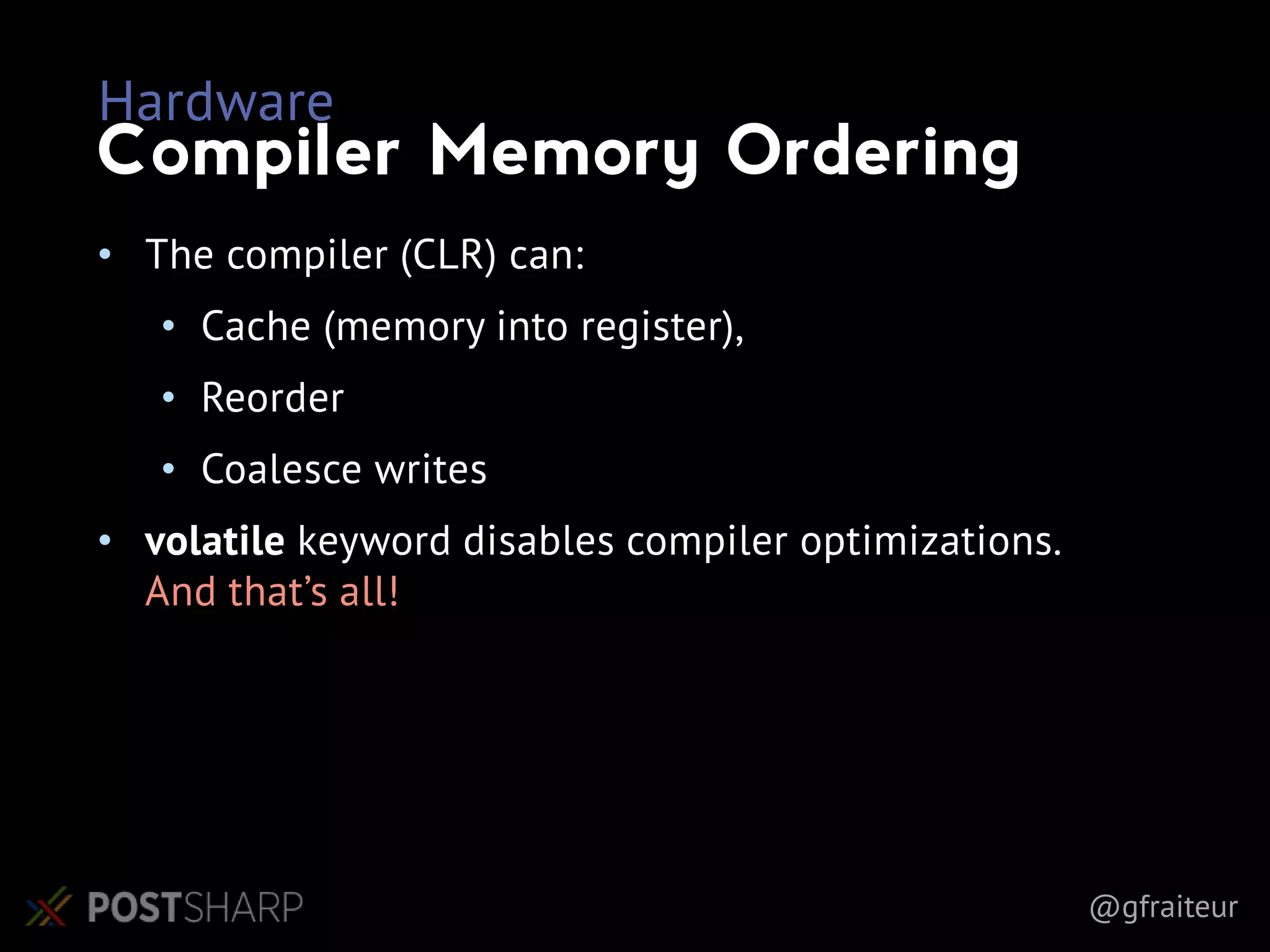

- 13. @gfraiteur Hardware Compiler Memory Ordering •The compiler (CLR) can: • Cache (memory into register), • Reorder • Coalesce writes • volatile keyword disables compiler optimizations. And that’s all!
- 14. @gfraiteur Hardware Thread.MemoryBarrier() Processor 0 Processor1 Store A := 1 Store B := 1 Thread.MemoryBarrier() Thread.MemoryBarrier() Load B Load A Barriers serialize access to memory.
- 15. @gfraiteur Hardware Atomicity Processor 0 Processor1 Store A := (long) 0xFFFFFFFF Load A • Up to native word size (IntPtr) • Properly aligned fields (attention to struct fields!)

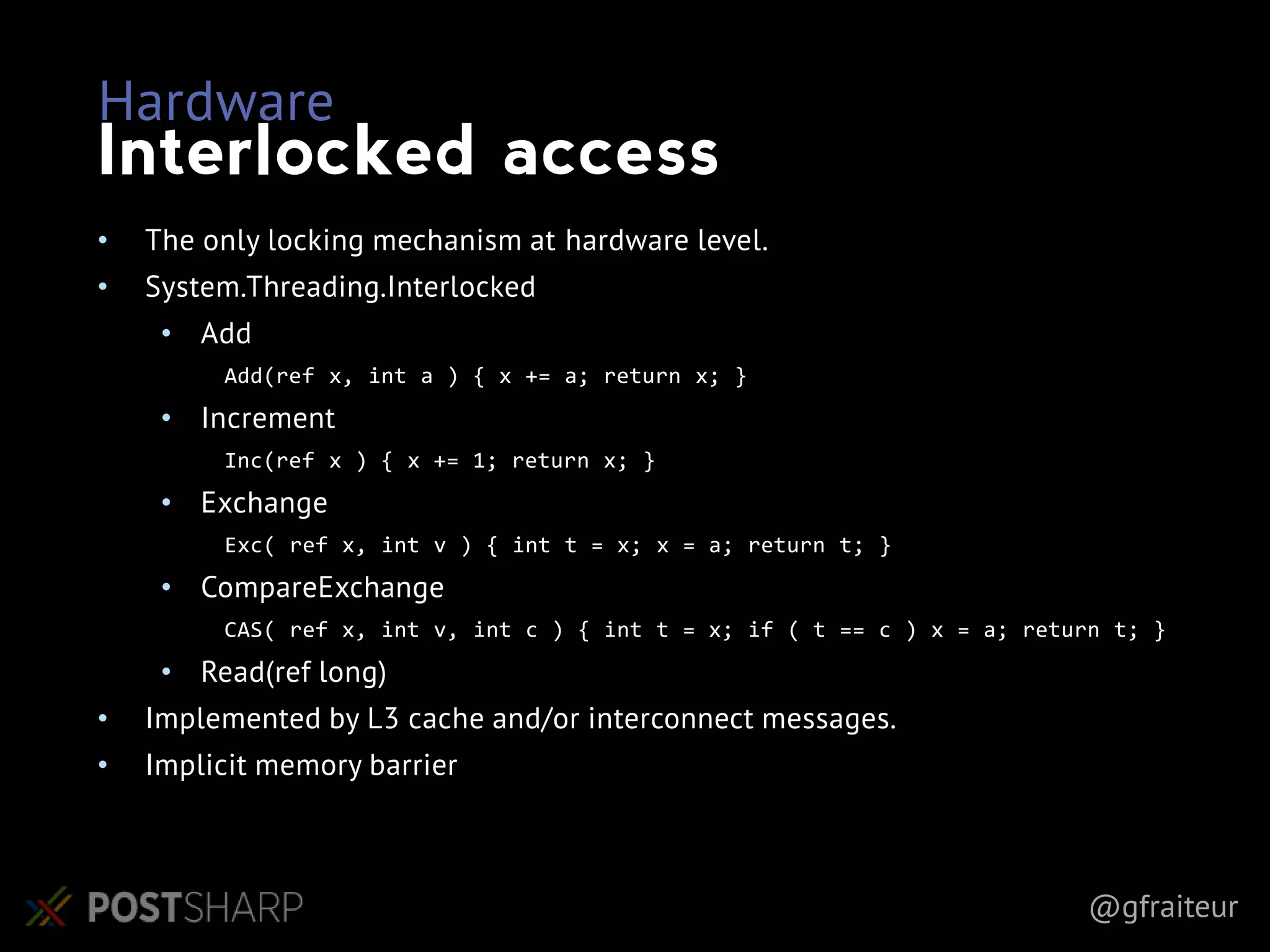

- 16. @gfraiteur Hardware Interlocked access • Theonly locking mechanism at hardware level. • System.Threading.Interlocked • Add Add(ref x, int a ) { x += a; return x; } • Increment Inc(ref x ) { x += 1; return x; } • Exchange Exc( ref x, int v ) { int t = x; x = a; return t; } • CompareExchange CAS( ref x, int v, int c ) { int t = x; if ( t == c ) x = a; return t; } • Read(ref long) • Implemented by L3 cache and/or interconnect messages. • Implicit memory barrier
- 17. @gfraiteur Hardware Cost of interlocked 9.75 8.58 5.5 1.87 1.2 02 4 6 8 10 12 Interlocked increment (contended, same socket) L3 Cache Interlocked increment (non-contended) Non-interlocked increment L1 Cache ns Latency Measured on Intel® Core™ i7-970 Processor (12M Cache, 3.20 GHz, 4.80 GT/s Intel® QPI) with C# code. Cache latencies measured with SiSoftware Sandra.
- 18. @gfraiteur Hardware Cost of cachecoherency
- 19. @gfraiteur Multitasking • No thread,no process at hardware level • There no such thing as “wait” • One core never does more than 1 “thing” at the same time (except HyperThreading) • Task-State Segment: • CPU State • Permissions (I/O, IRQ) • Memory Mapping • A task runs until interrupted by hardware or OS
- 20. @gfraiteur Lab: Non-Blocking Algorithms •Non-blocking stack (4.5 MT/s) • Ring buffer (13.2 MT/s)
- 21.
- 22.
- 23. @gfraiteur • Program (Sequence ofInstructions) • CPU State • Wait Dependencies • (other things) • Virtual Address Space • Resources • At least 1 thread • (other things) Processes and Threads Process Thread Windows Kernel

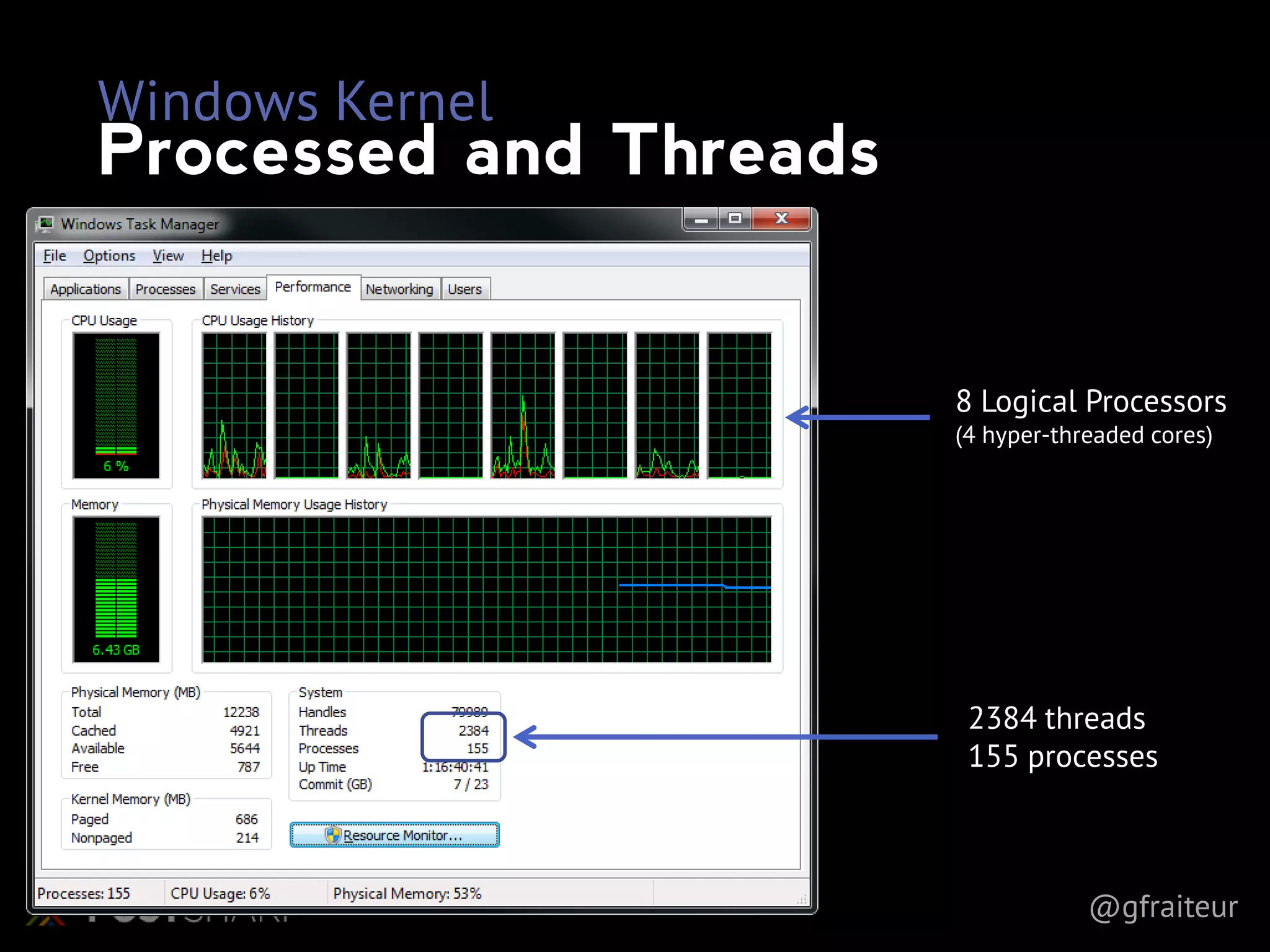

- 24. @gfraiteur Windows Kernel Processed andThreads 8 Logical Processors (4 hyper-threaded cores) 2384 threads 155 processes

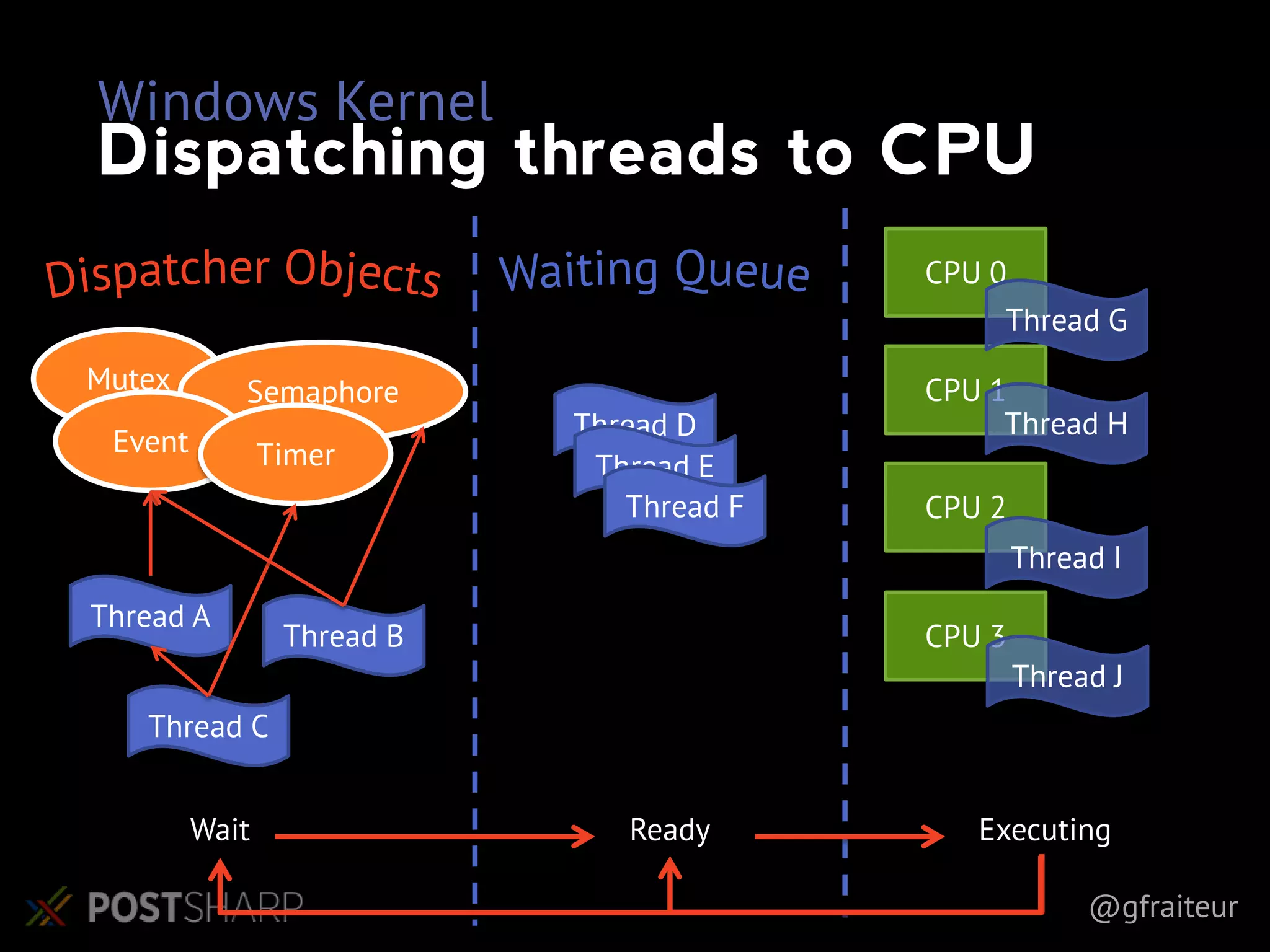

- 25. @gfraiteur Windows Kernel Dispatching threadsto CPU Executing CPU 0 CPU 1 CPU 2 CPU 3 Thread H Thread G Thread I Thread J Mutex Semaphore Event Timer Thread A Thread C Thread B Wait Thread D Thread E Thread F Ready

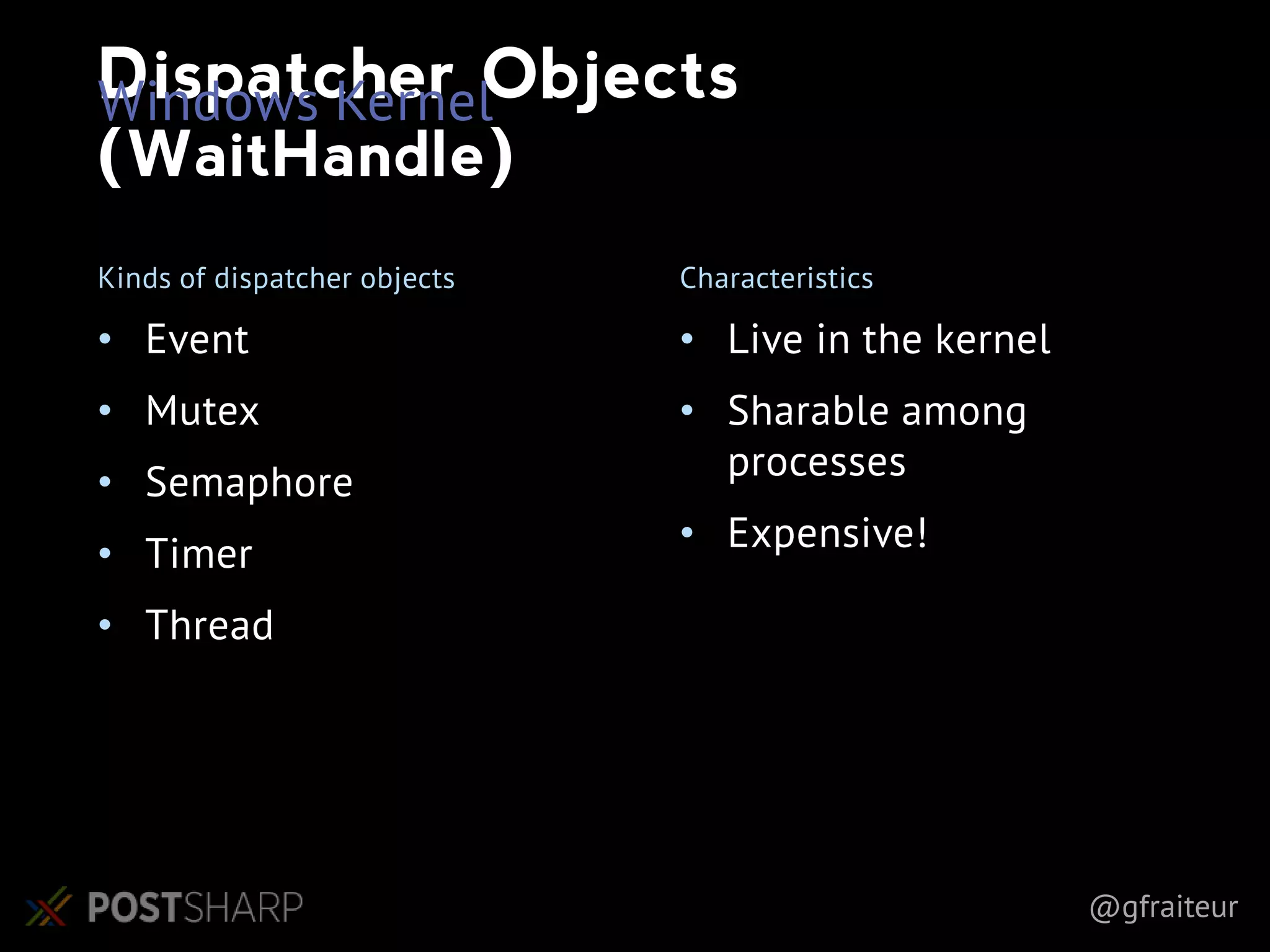

- 26. @gfraiteur • Live inthe kernel • Sharable among processes • Expensive! • Event • Mutex • Semaphore • Timer • Thread Dispatcher Objects (WaitHandle) Kinds of dispatcher objects Characteristics Windows Kernel
- 27. @gfraiteur Windows Kernel Cost ofkernel dispatching 2 6 10 295 2,093 1 10 100 1000 10000 Normal increment Non-contented interlocked increment Contented interlocked increment Access kernel dispatcher object Create+dispose kernel dispatcher object Duration (ns) Measured on Intel® Core™ i7-970 Processor (12M Cache, 3.20 GHz, 4.80 GT/s Intel® QPI)
- 28. @gfraiteur Windows Kernel Wait Methods •Thread.Sleep • Thread.Yield • Thread.Join • WaitHandle.Wait • (Thread.SpinWait)

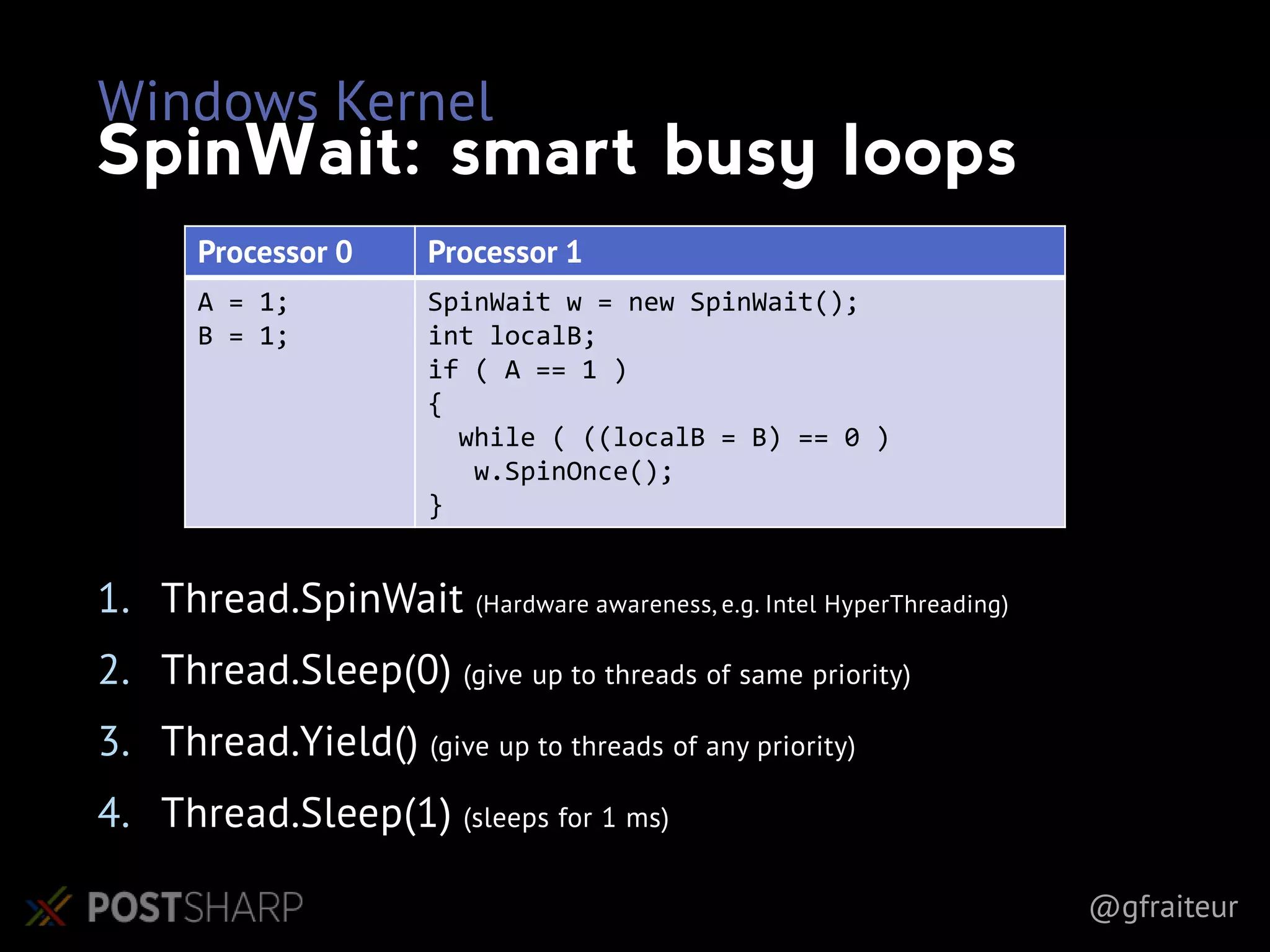

- 29. @gfraiteur Windows Kernel SpinWait: smartbusy loops 1. Thread.SpinWait (Hardware awareness, e.g. Intel HyperThreading) 2. Thread.Sleep(0) (give up to threads of same priority) 3. Thread.Yield() (give up to threads of any priority) 4. Thread.Sleep(1) (sleeps for 1 ms) Processor 0 Processor 1 A = 1; B = 1; SpinWait w = new SpinWait(); int localB; if ( A == 1 ) { while ( ((localB = B) == 0 ) w.SpinOnce(); }
- 30.
- 31. @gfraiteur Application Programming Design Objectives •Ease of use • High performance from applications!
- 32. @gfraiteur Application Programming Instruments fromthe platform Hardware • Interlocked • SpinWait • Volatile Operating System • Thread • WaitHandle (mutex, event, semaphore, …) • Timer
- 33. @gfraiteur Application Programming New Instruments Concurrency& Synchronization •Monitor (Lock), SpinLock •ReaderWriterLock •Lazy, LazyInitializer •Barrier, CountdownEvent Data Structures •BlockingCollection •Concurrent(Queue|Stack|Bag|Dictionary) •ThreadLocal,ThreadStatic Thread Dispatching •ThreadPool •Dispatcher, ISynchronizeInvoke •BackgroundWorker Frameworks •PLINQ •Tasks •Async/Await
- 34.

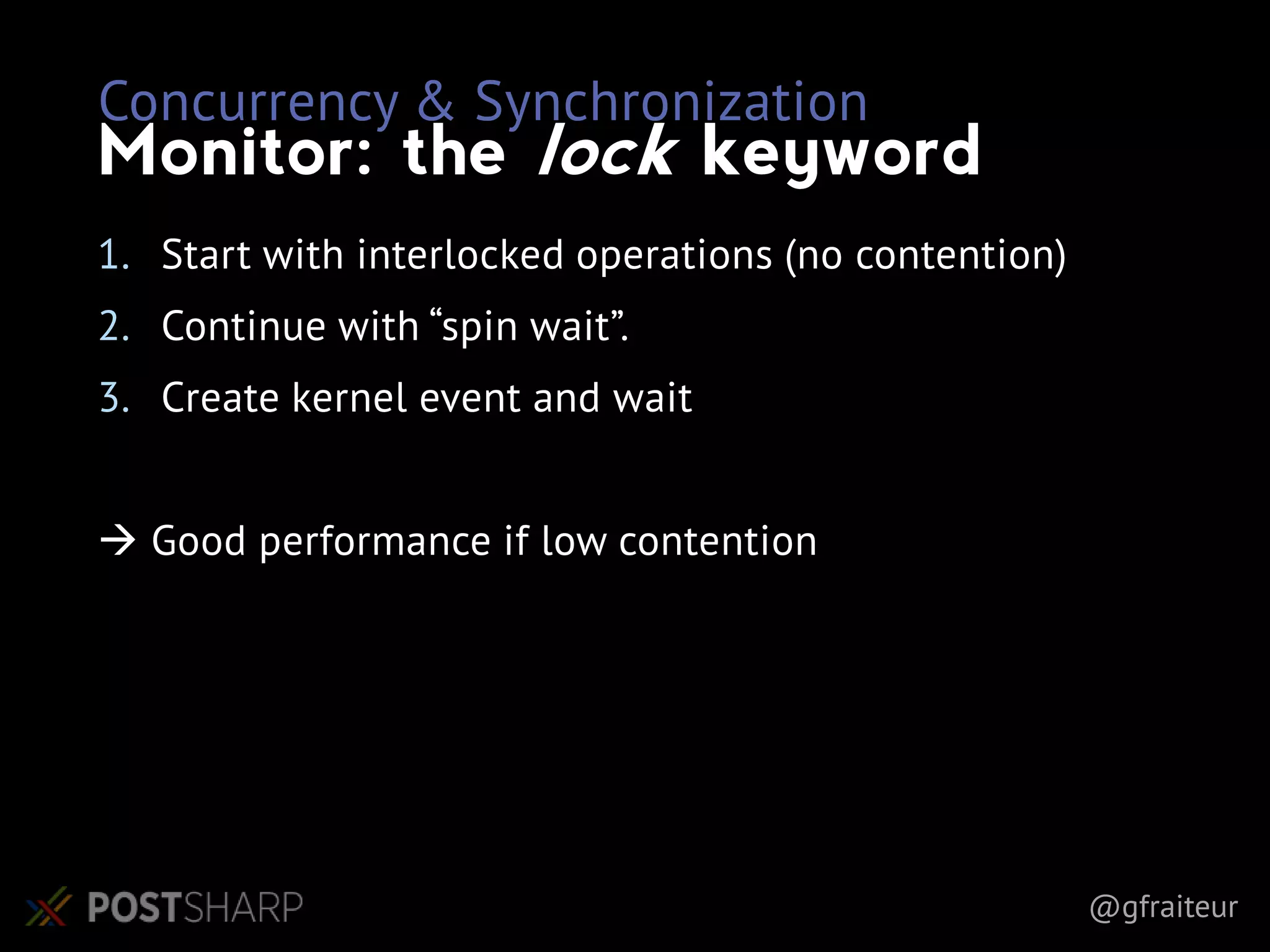

- 35. @gfraiteur Concurrency & Synchronization Monitor:the lock keyword 1. Start with interlocked operations (no contention) 2. Continue with “spin wait”. 3. Create kernel event and wait Good performance if low contention

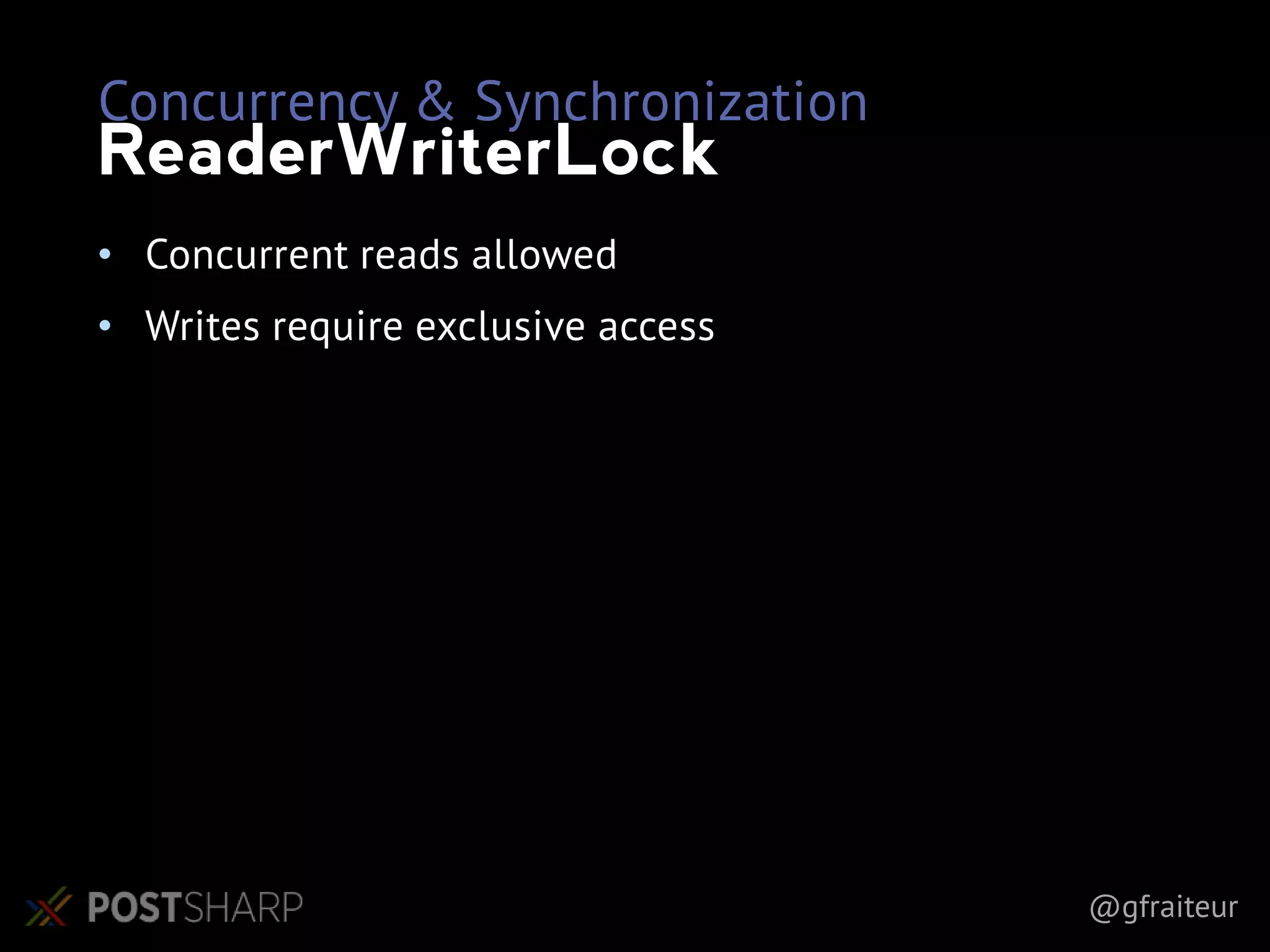

- 36. @gfraiteur Concurrency & Synchronization ReaderWriterLock •Concurrent reads allowed • Writes require exclusive access
- 37. @gfraiteur Concurrency & Synchronization Lab:ReaderWriterLock
- 38.
- 39. @gfraiteur Data Structures BlockingCollection • Usecase: pass messages between threads • TryTake: wait for an item and take it • Add: wait for free capacity (if limited) and add item to queue • CompleteAdding: no more item
- 40.
- 41. @gfraiteur Data Structures ConcurrentStack node top ProducerA Producer B Producer C Consumer A Consumer B Consumer C Consumers and producers compete for the top of the stack node
- 42. @gfraiteur Data Structures ConcurrentQueue node nodetail Producer A Producer B Producer C Consumer A Consumer B Consumer C head Consumers compete for the head. Producers compete for the tail. Both compete for the same node if the queue is empty.
- 43. @gfraiteur Data Structures ConcurrentBag Thread A Bag ThreadLocal Storage A Thread Local Storage B node node node node Producer A Consumer A Thread B Producer B Consumer B • Threads preferentially consume nodes they produced themselves. • No ordering
- 44. @gfraiteur Data Structures ConcurrentDictionary • TryAdd •TryUpdate (CompareExchange) • TryRemove • AddOrUpdate • GetOrAdd
- 45.

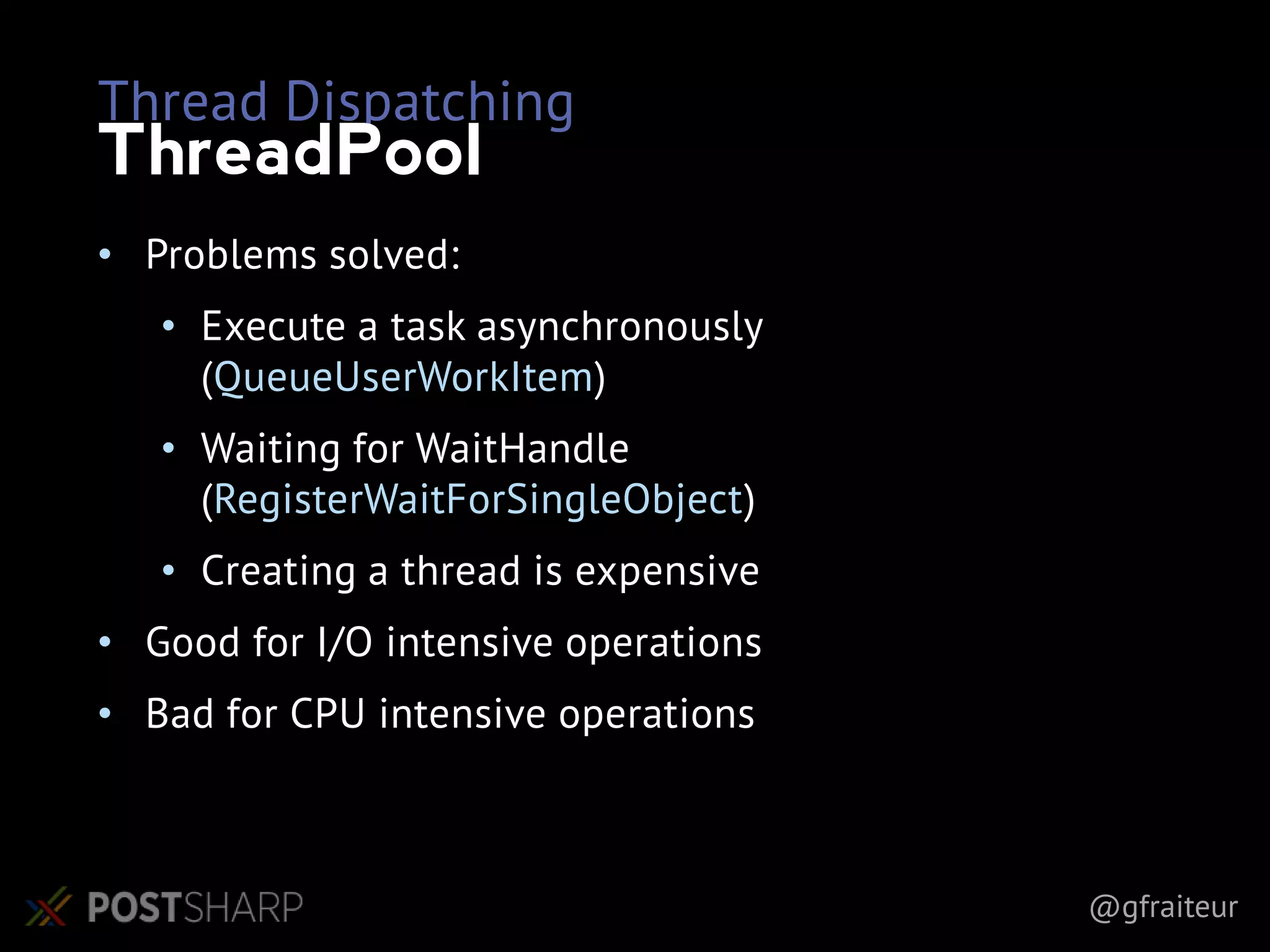

- 46. @gfraiteur Thread Dispatching ThreadPool • Problemssolved: • Execute a task asynchronously (QueueUserWorkItem) • Waiting for WaitHandle (RegisterWaitForSingleObject) • Creating a thread is expensive • Good for I/O intensive operations • Bad for CPU intensive operations
- 47. @gfraiteur Thread Dispatching Dispatcher • Executea task in the UI thread • Synchronously: Dispatcher.Invoke • Asynchonously: Dispatcher.BeginInvoke • Under the hood, uses the HWND message loop
- 48.
- 49.
- 50.
- 51.
