1. Practical Windows Kernel Exploitation
Spencer (@zeroSteiner) McIntyre DerbyCon 5.0 Friday September 25th, 2015

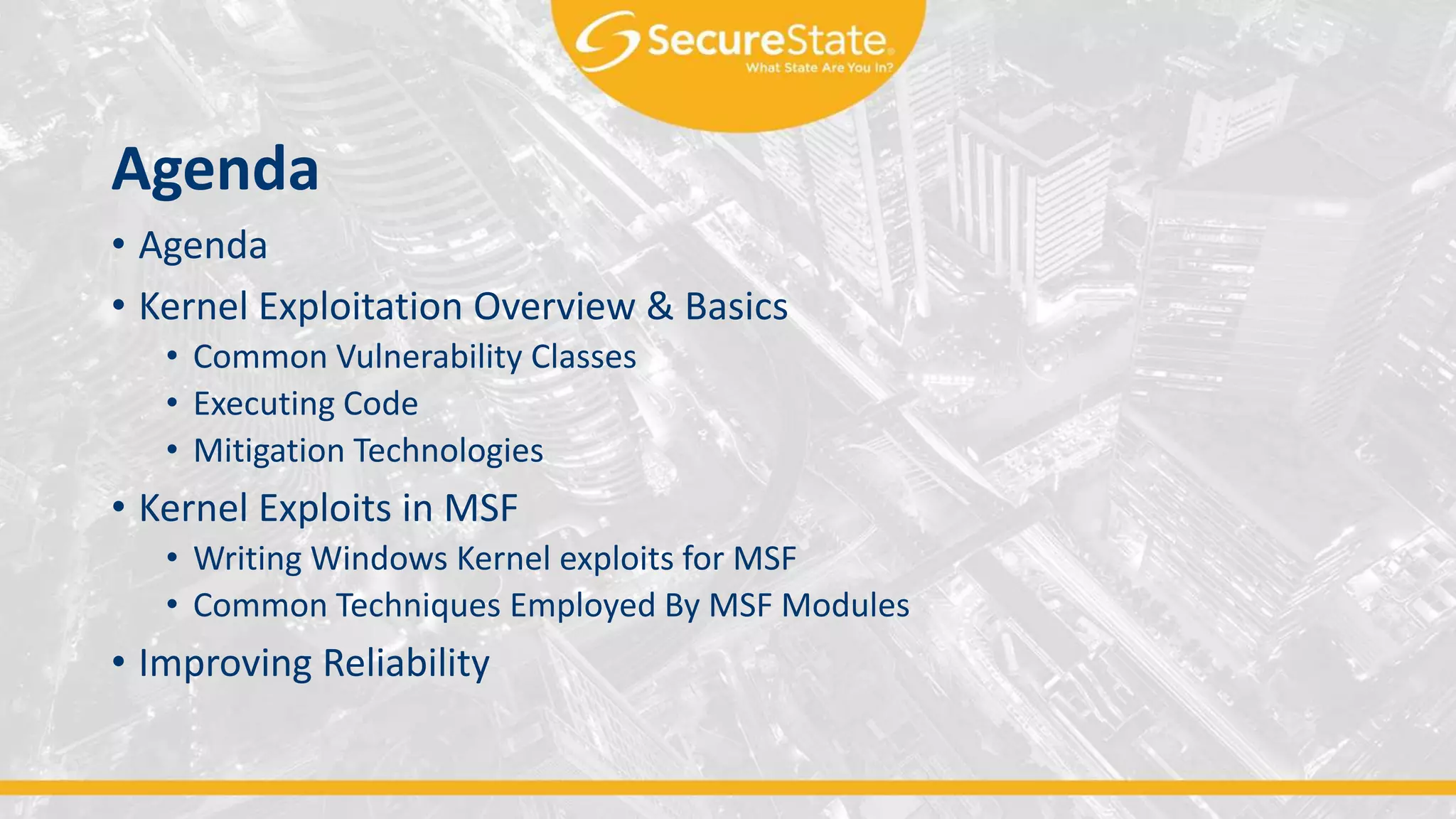

2. Agenda
• Agenda
• Kernel Exploitation Overview & Basics
• Common Vulnerability Classes
• Executing Code
• Mitigation Technologies
• Kernel Exploits in MSF
• Writing Windows Kernel exploits for MSF
• Common Techniques Employed By MSF Modules
• Improving Reliability

3. About Me
• Spencer McIntyre
• Work at SecureState
• Research, Development, “Special” Projects
• BSOD-inducer
• Avid open source contributor
• Metasploit among others
• Python enthusiast

4. BSOD Warning
• BSODs are imminent
• None of the solutions here are fit-all
• Just aggregated from personal experience
Bug check from MS14-040 due to corrupted structures

5. Windows Kernel Exploitation Basics

6. Overview
• Why Kernel Exploitation?
• Downward trend of RCE over last couple years
• Last “Great” RCE MS08-067
• New RCE are generally in 3rd party software / libraries
• The kernel is always there
• Upward trend of client side exploitation as a foothold
• Social engineering
• Some great vulnerabilities coming from Pwn2Own and the wild

7. Recent Windows Kernel Vulnerabilities
Name Advisory / Details Released Public Exploit Code?
MS14-058 / CVE-2014-4113 October 14th, 2014 Yes
MS14-070 / CVE-2014-4076 November 11th, 2014 Yes
MS15-010 February 10th, 2015 Yes
MS15-034 / CVE-2015-1635 April 14th, 2015 Yes (DoS)
MS15-051 / CVE-2015-1701 April 18th, 2015 Yes
MS15-078 / CVE-2015-2426 July 29th, 2015 Yes
MS15-097 / CVE-2015-2510 September 8th, 2015 Yes (DoS)
• Incomplete list of recent “notable” vulnerabilities as of September 24th, 2015
• Notable because additional details were published outside the MSB / CVE
boilerplate verbiage

8. Common Vulnerability Classes
• Write-What-Where
• NULL Pointer Dereference
• Use After Free (UAF)
• Honorable Mention: Stack Buffer Overflow
• Exist, but not particularly common in Kernel land

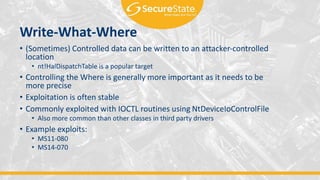

9. Write-What-Where
• (Sometimes) Controlled data can be written to an attacker-controlled
location
• nt!HalDispatchTable is a popular target
• Controlling the Where is generally more important as it needs to be
more precise
• Exploitation is often stable
• Commonly exploited with IOCTL routines using NtDeviceIoControlFile
• Also more common than other classes in third party drivers
• Example exploits:
• MS11-080
• MS14-070

10. NULL Pointer Dereference
• Occurs when a NULL pointer is referred to as an object
• Exploitation is often stable
• NULL page can not always be mapped, mitigations exist
• Sometimes negative numbers from error statuses are used as pointers
• MS14-058 / CVE-2014-4113 for example
• Can be beneficial on 64-bit systems if truncated to a 32-bit number (resulting in
0x00000000ffffffff being used)
• Example Exploits:
• MS13-081
• MS14-058

11. Use After Free
• Pointer to an object is used after it has been freed
• Successful exploitation often requires re-allocating the freed object
• Not always reliable, depends on successful reallocation
• Failure to reallocate causes corruption of other structures
• More on this later
• Examples:
• MS15-010

12. Vulnerability To Code Execution
• Techniques dependent on class
• Write-What-Where
• Well documented, overwrite nt!HalDispatchTable+0x4
• HalDispatchTable can be resolved from the ntkrnlpa.exe
• Triggered on demand with NtQueryIntervalProfile
• NULL Pointer Dereference & UAF
• Similar in the sense that they are object-dependent
• UAF is more difficult to set up the object (not in user-land address space)

13. NULL Pointer Dereference / UAF
• An object is corrupted
• For UAF a replacement object is created
• No easy way to determine a suitable object
• Object size, layout and destination heap all must be considered
• Object needs to provide a primitive
• Generally Write-What-Where or Call

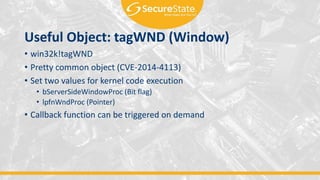

14. Useful Object: tagWND (Window)
• win32k!tagWND
• Pretty common object (CVE-2014-4113)
• Set two values for kernel code execution
• bServerSideWindowProc (Bit flag)
• lpfnWndProc (Pointer)
• Callback function can be triggered on demand

15. Mitigation Technologies
• Commonly encountered on modern systems
• The days of jmp esp died with XP
• Address Space Layout Randomization (ASLR)
• Only a semi-issue due to already having code execution
• Only need to worry about kernel addresses
• Driver bases can be determined
• Memory leaks or read primitives can disclose additional kernel addresses
• LoadLibrary & GetProcAddress are your friends
• Data Execution Prevention (DEP)
• NtAllocateVirtualMemory, VirtualProtect
• SMEP can be an issue (more on this later)

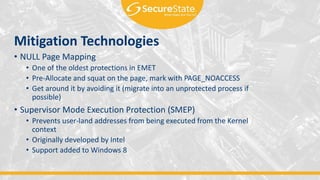

16. Mitigation Technologies
• NULL Page Mapping
• One of the oldest protections in EMET
• Pre-Allocate and squat on the page, mark with PAGE_NOACCESS
• Get around it by avoiding it (migrate into an unprotected process if
possible)
• Supervisor Mode Execution Protection (SMEP)
• Prevents user-land addresses from being executed from the Kernel
context
• Originally developed by Intel
• Support added to Windows 8

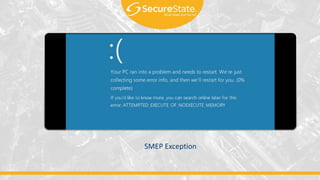

17. SMEP Exception

18. Disabling SMEP
• Some well-documented techniques
• See the “Further Reading & Resources” slide
• Use a ROP gadget in nt!KiConfigureDynamicProcessor to clear the
SMEP bit in the CR4 register
• Resolve the kernel address of the ROP gadget
• A few drawbacks to this approach
• Can’t be resolved with GetProcAddress like nt!HalDispatchTable
• Its in the PAGELK section on Windows 8.1
• Requires running in the native architecture, i.e. not WOW64
• If the kernel can’t be loaded (WOW64 or sandbox) a read primitive
needs to be available for resolution

19. Windows Kernel Exploits In Metasploit

20. Metasploit Windows Kernel Modules
• Divided into two categories based on implementation
• Ruby (relying heavily on RailGun)
• C (implemented as a Reflectively-loadable DLL)
• Don’t have to be local privilege escalation but almost all are
• Almost all directly steal / duplicate the token
• An alternative approach is to “clear” the ACL of a SYSTEM process to
inject into (e.g. ms13_053_schlamperei)
• Msf::Exploit::Local::WindowsKernel mixin for convenience
methods

21. Ruby Implementations
• Might be eventually deprecated in favor of RDLL1
• Well suited for simple NtDeviceIoControlFile-centric exploits
• e.g. MS11-080, MS14-002, MS14-070
• Benefits are that the exploit is a self-contained ruby file
• Failed attempts result in a lost session due to self-corruption
1 Details in issue #4715 https://github.com/rapid7/metasploit-framework/issues/4715

22. C Implementations
• Much more flexible
• Threads can be used
• Can be faster to write if extensive Windows API calls are necessary
• PoC exploits can be developed as standalone executables
• Primary benefit is the exploit can be injected into a dummy
process
• Results in stability if the exploit fails without a BSOD

23. Writing a Kernel Exploit for Metasploit
• C / Reflective DLL style is preferred
• General Steps:
1. Environment detection
• Is the session a meterpreter or running as SYSTEM?
2. Vulnerability check
• Often implemented in the “check” function, result is verified
• Checks are often for the file version and running services
3. Start a dummy process to host the malicious DLL
• If in a sandbox, load the DLL in the session process
4. The RDLL will (hopefully) exploit the vulnerability successfully and open
a new session

24. Shellcode
• Options are traditional raw bytecode or C,
but only for RDLLs
• C implementation is preferable and more
reliable
• Different version of Windows have
different token offsets
• Generic implementation uses
PsLookupProcessByProcessId then find
and replace
• Works across Windows versions

25. Exploit Reliability

26. Sources of Instability
• Corrupted structures
• Token reference count
• Returning control after elevation

27. Corrupted Structures
• Certain objects are in a shared region between user & kernel lands1
• Handle table information without a system call for efficiency
• user32!gSharedInfo is available since Windows 7
• Region is read-only
• Back it up
• Read-only so restore from within the shellcode
• If structures are corrupted and code execution does not occur a BSOD
is imminent without a reliable write primitive
• nt!HalDispatchTable
1https://media.blackhat.com/bh-us-11/Mandt/BH_US_11_Mandt_win32k_WP.pdf

28. Token Reference Count
• “Stealing” the token can cause issues
• Token object has a reference count
• Possible workarounds
• Clear an ACL from a process
• Process still might die and cause instability
• Duplicate the token
• Not practical from raw shellcode
• Backup original token, Steal the token, Spawn a new shell, Restore the token
• Is practical from raw shellcode
• Exploit must be reliably triggered twice

29. Returning Control
• What to do if process dies after elevation?
• Find a suitable location to return control to
• Unwind the stack via assembly
• Microsoft uses a standard calling convention
• Not applicable in every situation, depends on the call
• Trivial to differentiate a user-land address vs kernel-land

30. Returning Control
• Last call in user-land ntdll!KiFastSystemCallRet
• First call in kernel-land nt!KiSystemServicePostCall
• KiSystemServicePostCall performs cleanup
operations and restores the user-mode context
• Can not directly return to user-land
• System call will probably fail but the status can be
set
• Be careful about allowing it to succeed

31. Returning Control
• Resulting shellcode is 29-bytes
• Not that size matters when
dealing with a local
Source:
https://gist.github.com/zeroSteiner/08802a798aeee05cb80a

32. 64-bit Exploitation
• Starting to pick up
• Exploits being written in C to support both architectures
• x64 uses one calling convention, only one
• WOW64 complicates things
• For Metasploit, migrate into or spawn a native process
• Check for pointer truncation
• Might help, might not

33. Closing Thoughts
• Kernel exploitation is flexible
• Code execution ahead of time can be leveraged
• Size matters not
• Hypothesis: Kernel exploitation is going to stick around for a while
• Practice and learn with a vulnerable driver
• https://github.com/hacksysteam/HackSysExtremeVulnerableDriver

34. Windows 10
• SMEP ROP gadget still in nt!KiConfigureDynamicProcessor
• Same instructions, different offset
• win32k.sys now split into 3 modules
• win32k.sys, win32kbase.sys and win32kfull.sys

35. Questions? Ask them.

36. Further Reading & Resources
• Kernel Attacks Through User-Mode Callbacks
• Tarjei Mandt, Black Hat USA 2011
• https://media.blackhat.com/bh-us-11/Mandt/BH_US_11_Mandt_win32k_WP.pdf
• SMEP: What is it, and how to beat it on Windows
• Mateusz ‘j00ru’ Jurczyk & Gynvael Coldwind
• http://j00ru.vexillium.org/?p=783
• Windows Kernel Exploitation Basics - Part 2 : Arbitrary Memory Overwrite
exploitation using HalDispatchTable
• dimanche , July 17th, 2011
• http://poppopret.blogspot.com/2011/07/windows-kernel-exploitation-basics-part.html
• Polishing Chrome for Fun and Profit
• Nils & Jon, August 29th, 2013
• https://labs.mwrinfosecurity.com/system/assets/538/original/mwri_polishing-chrome-
slides-nsc_2013-09-06.pdf

37. Further Reading & Resources
• Pwn2Own 2014: AFD.sys Dangling Pointer Vulnerability
• Sebastian Apelt, July 11th, 2014
• http://www.siberas.de/papers/Pwn2Own_2014_AFD.sys_privilege_escalation
.pdf
• One-Bit To Rule Them All: Bypassing Windows’ 10 Protections using a
Single Bit
• Udi Yavo, Februrary 10th, 2015
• http://breakingmalware.com/vulnerabilities/one-bit-rule-bypassing-windows-
10-protections-using-single-bit/

38. • Spencer McIntyre
• Twitter: @zeroSteiner
Thank You For Your Time!
