This document discusses analyzing network traffic patterns in Hadoop clusters. Packet capture data was collected from example Hadoop workloads and analyzed using Gephi. Initial results show the network structure and communication between nodes for batch processing (TeraSort) and real-time streaming (Twitter collection). Further analysis aims to classify components, understand dependencies, and identify anomalies over time to better understand typical and atypical workload behavior.

1. 1© Cloudera, Inc. All rights reserved.
Mirko Kämpf
Solutions Architect
@semanpix
mirko@cloudera.com
Network Traffic Analysis of Hadoop Clusters
Understand the common usage patterns and
identify typical / atypical workloads
Marton Balassi
Solutions Architect
@MartonBalassi
mbalassi@cloudera.com

2. 2© Cloudera, Inc. All rights reserved.

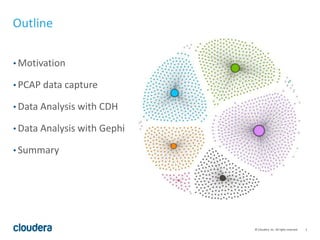

Outline
• Motivation
• PCAP data capture
• Data Analysis with CDH
• Data Analysis with Gephi
• Summary

3. 3© Cloudera, Inc. All rights reserved.
Understand the network load of a Hadoop cluster
• Network communication is often the limiting factor in distributed computing
• Storing files on DFS, heartbeats, data processing all have a footprint
• The current standard visual tools aggregate data on the host level
• Intrusion detection is critical in enterprise systems (Apache Spot)

4. 4© Cloudera, Inc. All rights reserved.
PCAP Data Capture
• Packet capture, the standard API for capturing network traffic
• Implementations: Libpcap for UNIX, WinPcap for Windows
• Multiple analysis tools: tcpdump, nmap, Wireshark, Snort amongst others
Our approach:
• Used pcapy, the Python pcap
extension for capturing
• The capturing is initiated on the
individual machines
• The captured data is written to the
local fs in Avro format, while the
capturing is active
• Focus on network structure, packet
data is ignored
Avro schema for PCAP data

5. 5© Cloudera, Inc. All rights reserved.

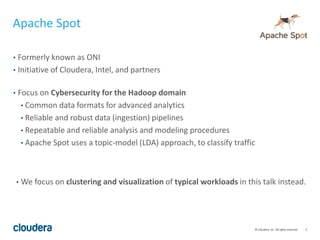

• Formerly known as ONI
• Initiative of Cloudera, Intel, and partners
• Focus on Cybersecurity for the Hadoop domain
• Common data formats for advanced analytics
• Reliable and robust data (ingestion) pipelines
• Repeatable and reliable analysis and modeling procedures
• Apache Spot uses a topic-model (LDA) approach, to classify traffic
Apache Spot
• We focus on clustering and visualization of typical workloads in this talk instead.

6. 6© Cloudera, Inc. All rights reserved.

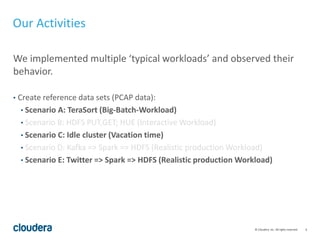

We implemented multiple ‘typical workloads’ and observed their
behavior.
• Create reference data sets (PCAP data):
• Scenario A: TeraSort (Big-Batch-Workload)
• Scenario B: HDFS PUT,GET; HUE (Interactive Workload)
• Scenario C: Idle cluster (Vacation time)
• Scenario D: Kafka => Spark => HDFS (Realistic production Workload)
• Scenario E: Twitter => Spark => HDFS (Realistic production Workload)
Our Activities

7. 7© Cloudera, Inc. All rights reserved.
How it Works ...
• We collect raw data in Avro format, using the Snaffer (pcapy) script.
• We transform the events to networks, using Hive (SQL API on Hadoop).
• We analyze and visualize the networks using Gephi (open graph viz platform).

8. 8© Cloudera, Inc. All rights reserved.

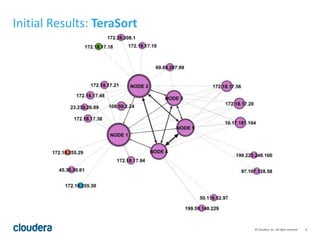

Initial Results: TeraSort

9. 9© Cloudera, Inc. All rights reserved.

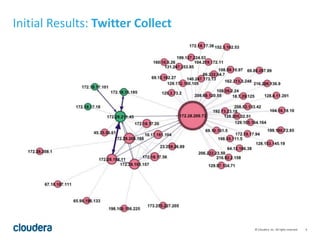

Initial Results: Twitter Collect

10. 10© Cloudera, Inc. All rights reserved.

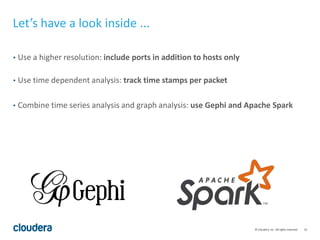

• Use a higher resolution: include ports in addition to hosts only
• Use time dependent analysis: track time stamps per packet
• Combine time series analysis and graph analysis: use Gephi and Apache Spark
Let’s have a look inside ...

11. 11© Cloudera, Inc. All rights reserved.
???

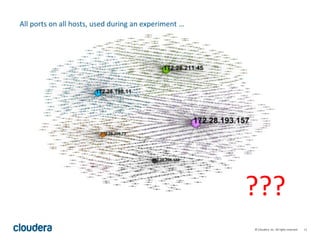

All ports on all hosts, used during an experiment …

12. 12© Cloudera, Inc. All rights reserved.

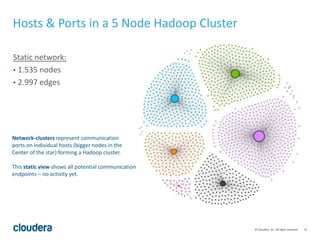

Hosts & Ports in a 5 Node Hadoop Cluster
Static network:
• 1.535 nodes
• 2.997 edges
Network-clusters represent communication
ports on individual hosts (bigger nodes in the
Center of the star) forming a Hadoop cluster.
This static view shows all potential communication
endpoints – no activity yet.

13. 13© Cloudera, Inc. All rights reserved.

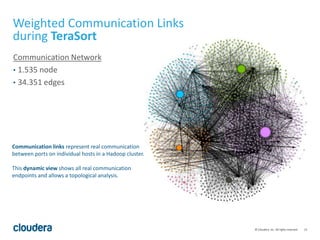

Weighted Communication Links
during TeraSort
Communication Network
• 1.535 node
• 34.351 edges
Communication links represent real communication
between ports on individual hosts in a Hadoop cluster.
This dynamic view shows all real communication
endpoints and allows a topological analysis.

14. 15© Cloudera, Inc. All rights reserved.

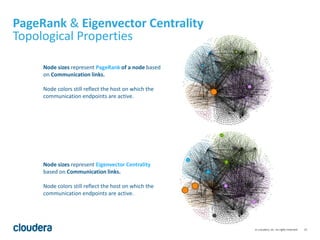

PageRank & Eigenvector Centrality
Topological Properties
Node sizes represent PageRank of a node based
on Communication links.
Node colors still reflect the host on which the
communication endpoints are active.
Node sizes represent Eigenvector Centrality
based on Communication links.
Node colors still reflect the host on which the
communication endpoints are active.

15. 16© Cloudera, Inc. All rights reserved.

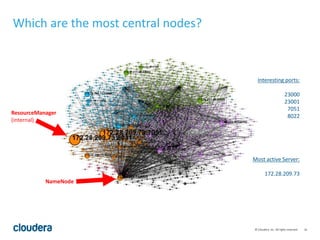

Which are the most central nodes?
NameNode
ResourceManager
(internal) t.
Interesting ports:
23000
23001
7051
8022
Most active Server:
172.28.209.73

16. 17© Cloudera, Inc. All rights reserved.

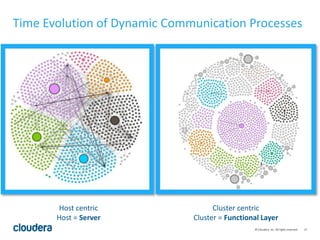

Time Evolution of Dynamic Communication Processes
Host centric
Host = Server
Cluster centric
Cluster = Functional Layer

17. 18© Cloudera, Inc. All rights reserved.

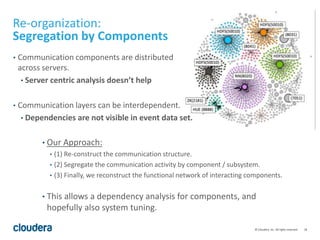

Re-organization:
Segregation by Components
• Communication components are distributed
across servers.
• Server centric analysis doesn’t help
• Communication layers can be interdependent.
• Dependencies are not visible in event data set.
• Our Approach:
• (1) Re-construct the communication structure.
• (2) Segregate the communication activity by component / subsystem.
• (3) Finally, we reconstruct the functional network of interacting components.
• This allows a dependency analysis for components, and
hopefully also system tuning.

18. 19© Cloudera, Inc. All rights reserved.
!!! WARNING !!!
Absolute values can be misleading.

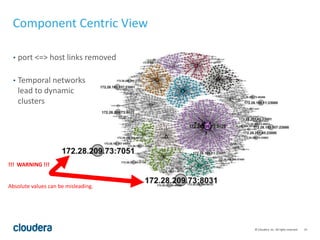

Component Centric View
• port <=> host links removed
• Temporal networks
lead to dynamic
clusters

19. 20© Cloudera, Inc. All rights reserved.

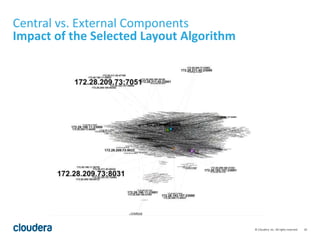

Central vs. External Components
Impact of the Selected Layout Algorithm

20. 21© Cloudera, Inc. All rights reserved.

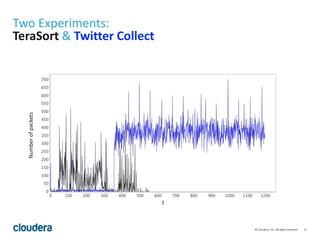

Two Experiments:
TeraSort & Twitter Collect
Numberofpackets

21. 22© Cloudera, Inc. All rights reserved.

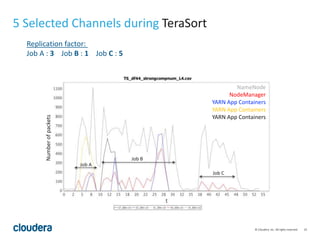

5 Selected Channels during TeraSort
Numberofpackets
NameNode
NodeManager
YARN App Containers
YARN App Containers
YARN App Containers
Job A
Job B
Job C
Replication factor:
Job A : 3 Job B : 1 Job C : 5

22. 23© Cloudera, Inc. All rights reserved.

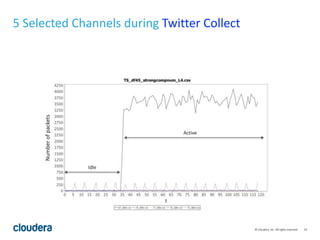

5 Selected Channels during Twitter Collect
Numberofpackets
Active
Idle

23. 24© Cloudera, Inc. All rights reserved.

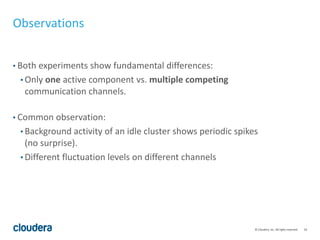

Observations
• Both experiments show fundamental differences:
• Only one active component vs. multiple competing
communication channels.
• Common observation:
• Background activity of an idle cluster shows periodic spikes
(no surprise).
• Different fluctuation levels on different channels

24. 25© Cloudera, Inc. All rights reserved.

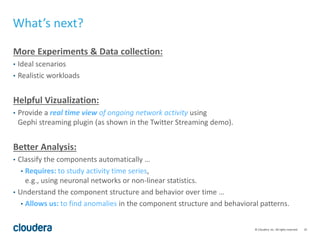

What’s next?
More Experiments & Data collection:
• Ideal scenarios
• Realistic workloads
Helpful Vizualization:
• Provide a real time view of ongoing network activity using
Gephi streaming plugin (as shown in the Twitter Streaming demo).
Better Analysis:
• Classify the components automatically …
• Requires: to study activity time series,
e.g., using neuronal networks or non-linear statistics.
• Understand the component structure and behavior over time …
• Allows us: to find anomalies in the component structure and behavioral patterns.
