This document covers an introduction to combinational logic circuits and Boolean algebra. It discusses Boolean algebra rules like complementation, AND, OR, distribution, commutation, association, De Morgan's laws, and provides examples of simplifying logic expressions using these rules. It also discusses Karnaugh maps and their use in reducing Boolean expressions and designing combinational circuits from expressions. The document concludes with assignments on simplifying Boolean algebra equations.

1. By
Mr. C.R.Shinde
Electrical Engineering Department
Matoshri College of Engineering & Research centre, Nashik

2. Unit 01 : Design of combinational circuit
M1:-Introductions
M2:- Booleans algebra, De-Morgan theory.
M3:- Karnaugh map: structure for two, three and four Variables, SOP and
POS form reduction of Boolean expressions by K-map.
M4:- Design of combinational circuits using Boolean expression and K-
map.
M5:- encoder, decoder, half and full adder.
Unit 1_Module1 Matoshri College of Engineering & Research Center Nashik 2

3. Module2
Booleans algebra,
De-Morgan theory.
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 3

4. Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 4
AND GATE
OR GATE
NOT GATE

5. Introduction to Booleans algebra
 It is set of rules, used to simplify the given logic
expression without changing its functionality
 It is used when number of variables less
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 5
George Boole
1815-1864
NOT
AND AND AND
OR
NEED 5 LOGIC GATES
NOT
AND AND
OR
NEED 4 LOGIC GATES

6. Rule 1:- complement
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 6

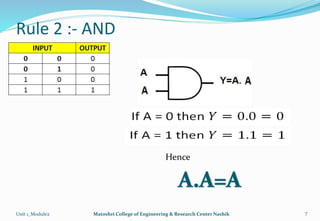

7. Rule 2 :- AND
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 7
Hence

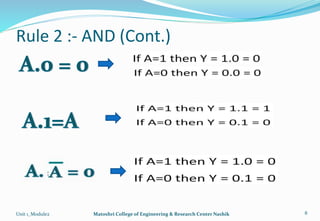

8. Rule 2 :- AND (Cont.)
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 8

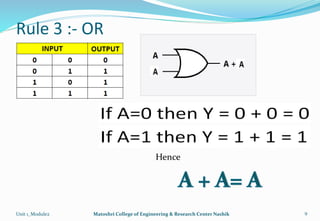

9. Rule 3 :- OR
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 9
Hence

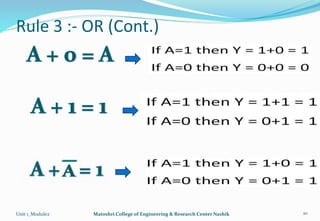

10. Rule 3 :- OR (Cont.)
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 10

11. Rule 4 :- Distributive law
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 11

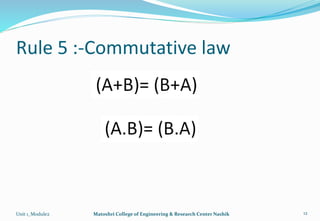

12. Rule 5 :-Commutative law
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 12

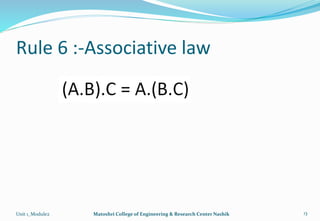

13. Rule 6 :-Associative law
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 13

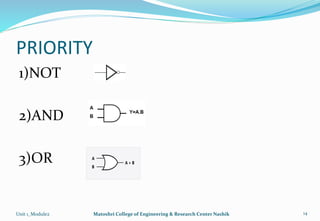

14. PRIORITY
1)NOT
2)AND
3)OR
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 14

15. Rule 7 :- de-morgans law
The whole complement of a product of variables is equal to
the sum of the complements of variable
The whole complement of a sum of variables is equal to
the product of the complements of variable
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 15

16. Rule 7 :- de-morgans law
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 16

17. Boolean algebra Examples
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 17
V V

18. Simplification Using Boolean Algebra
 AB+A(B+C)+B(B+C)
• (distributive law)
 AB+AB+AC+BB+BC
• (rule 7; BB=B)
 AB+AB+AC+B+BC
 (rule 5; AB+AB=AB)
 AB+AC+B+BC
 (rule 10; B+BC=B)
 AB+AC+B
 (rule 10; AB+B=B)
 B+AC A
B
C
B+A
C
A
B
C AB+A(B+C)+B(B+C)

19. Boolean algebra Examples
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 19

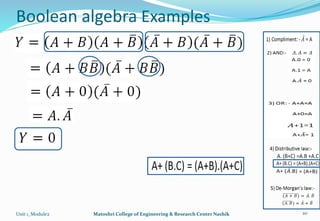

20. Boolean algebra Examples
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 20

21. Boolean algebra Examples
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 21

22. Boolean algebra Examples
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 22

23. De-Morgans Examples
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 23

24. De-Morgans Examples
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 24

25. ASSIGNMENTS 1
Simplify Following Boolean Algebra Equation
Y= AB + A(B+C) + B(B+C)
Y=(A+B+C).(A+B)
Y= AB+ABC+AB
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 25

26. ASSIGNMENTS 1
Unit 1_Module2 Matoshri College of Engineering & Research Center Nashik 26
C
B
A
AC
AB
ABC
C
B
A
C
B
A
C
B
A
BC
A
C
B
A
BD
C
B
A







 ]
)
(
[
Simplify Following Boolean Algebra Equation
