1Pivotal Confidential–Internal Use Only 1Pivotal Confidential–Internal Use Only Modern Data Architecture Alexey Grishchenko
2Pivotal Confidential–Internal Use Only About me Enterprise Architect @ Pivotal  7 years in data processing  5 years with MPP  4 years with Hadoop  Spark contributor  http://0x0fff.com

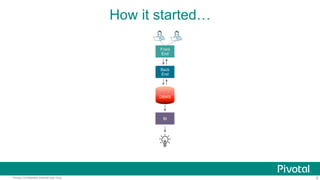

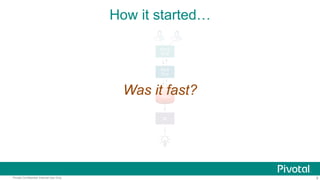

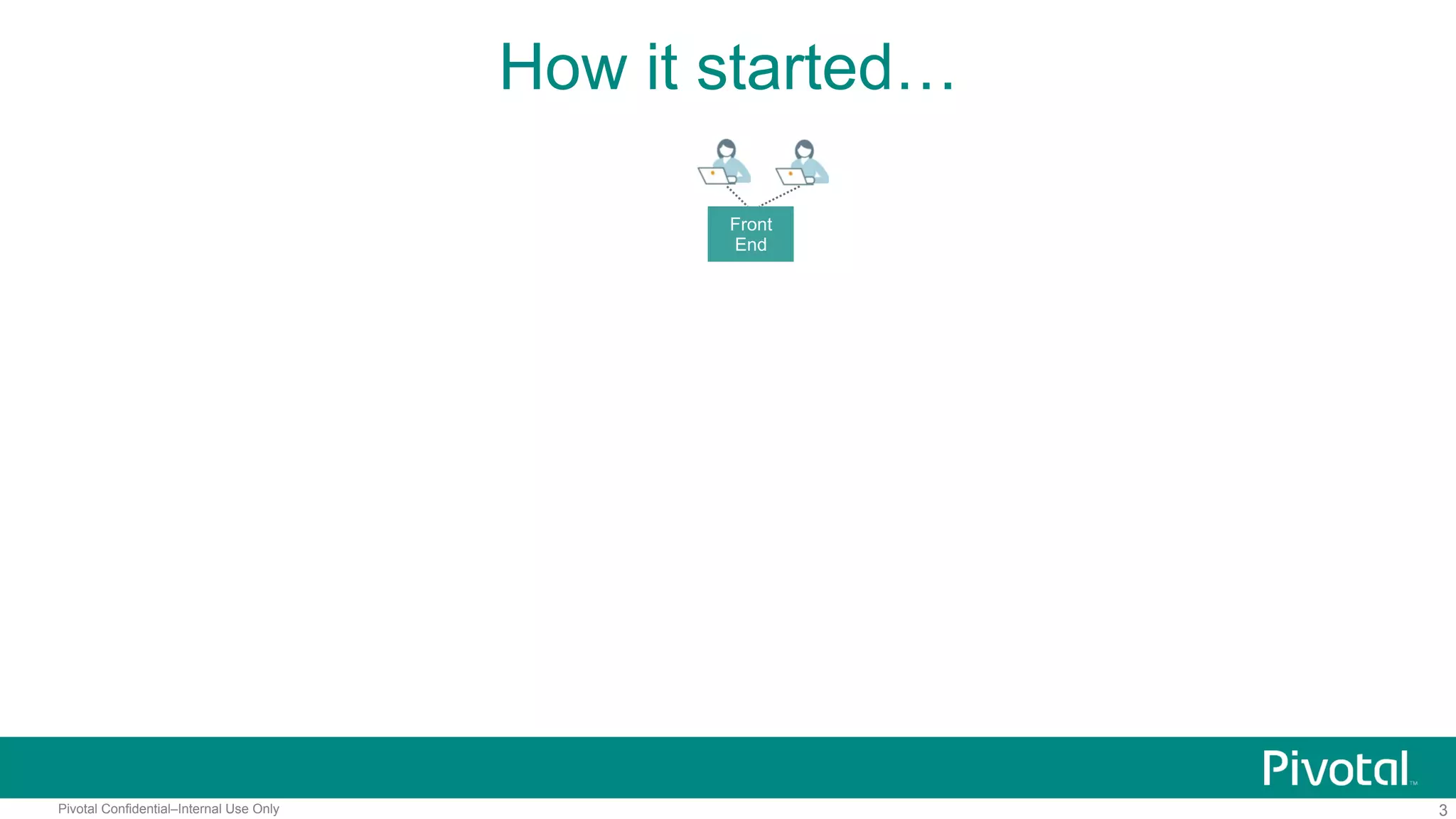

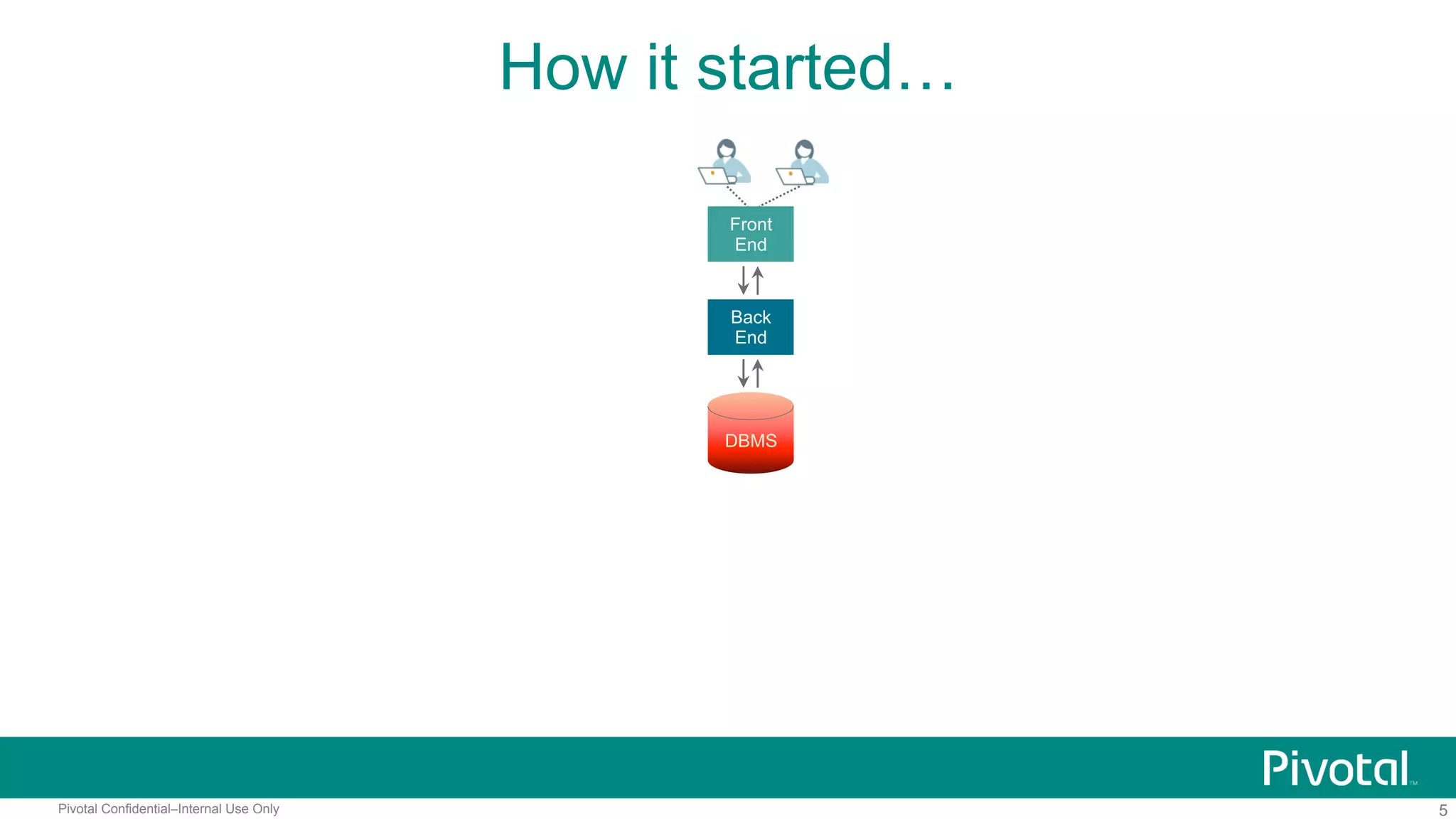

3Pivotal Confidential–Internal Use Only How it started… Front End

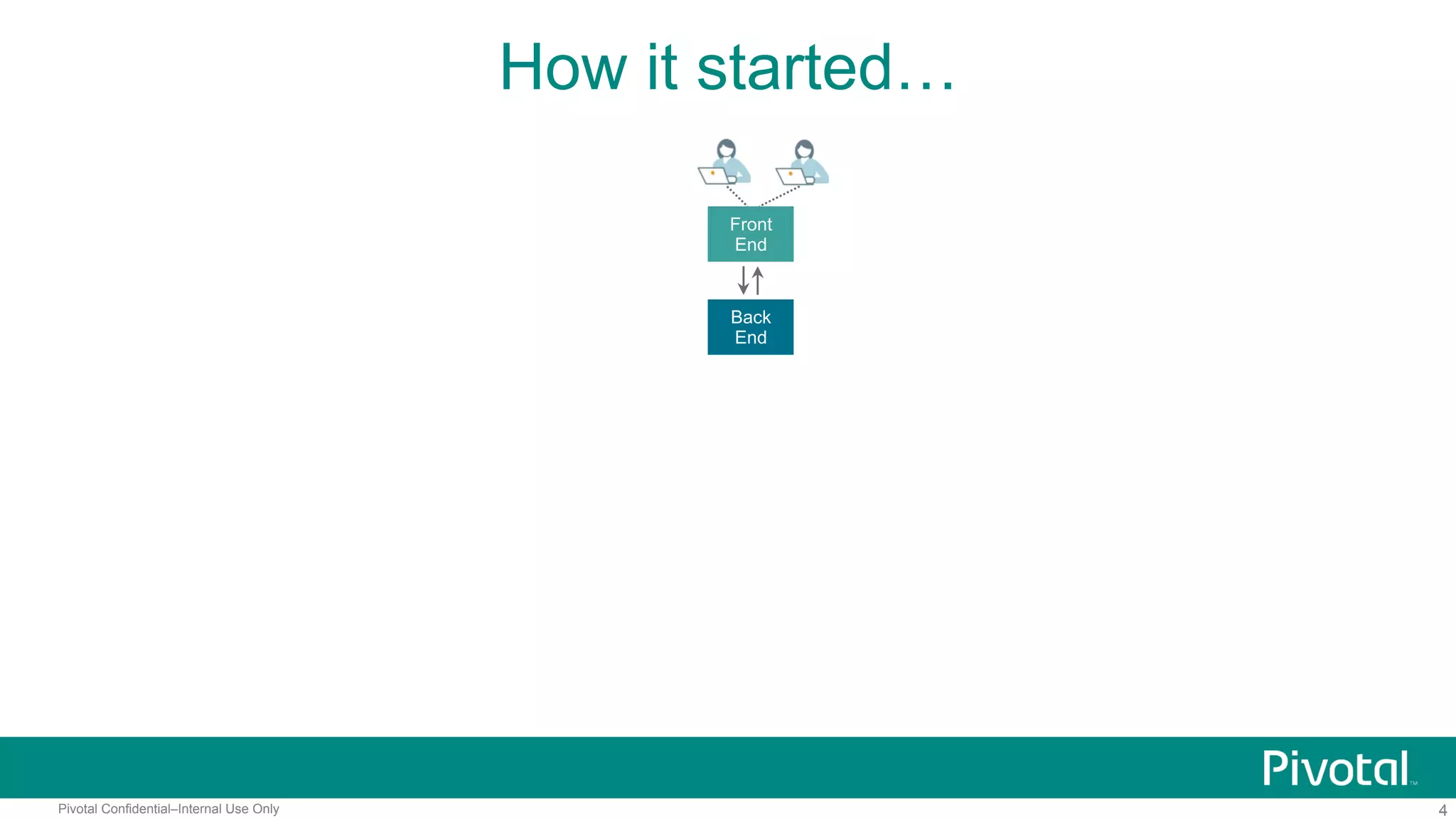

4Pivotal Confidential–Internal Use Only How it started… Front End Back End
5Pivotal Confidential–Internal Use Only How it started… Front End Back End DBMS
6Pivotal Confidential–Internal Use Only How it started… Front End Back End DBMS What about BI?
7Pivotal Confidential–Internal Use Only How it started… Front End Back End DBMS Just put it there!

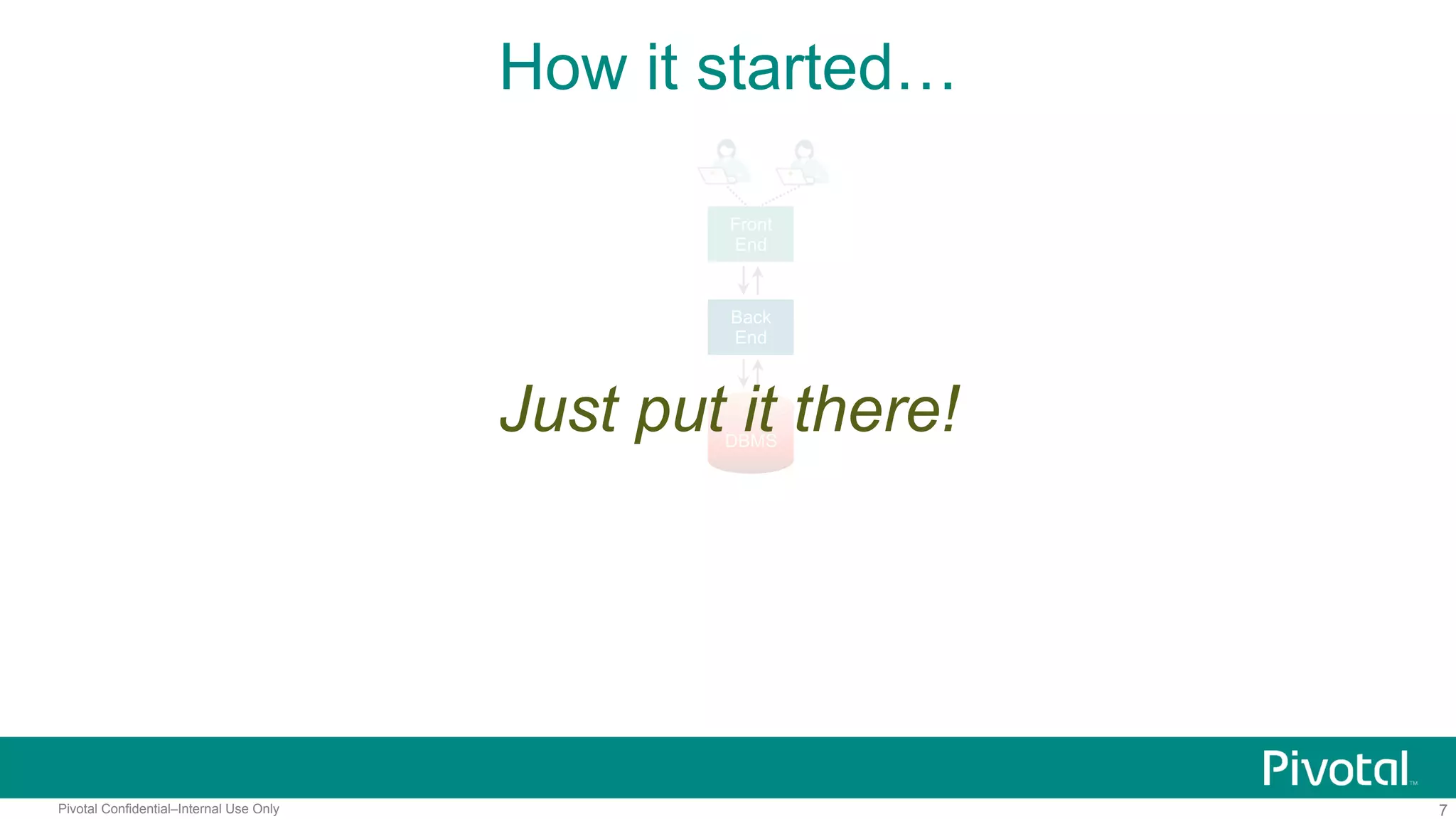

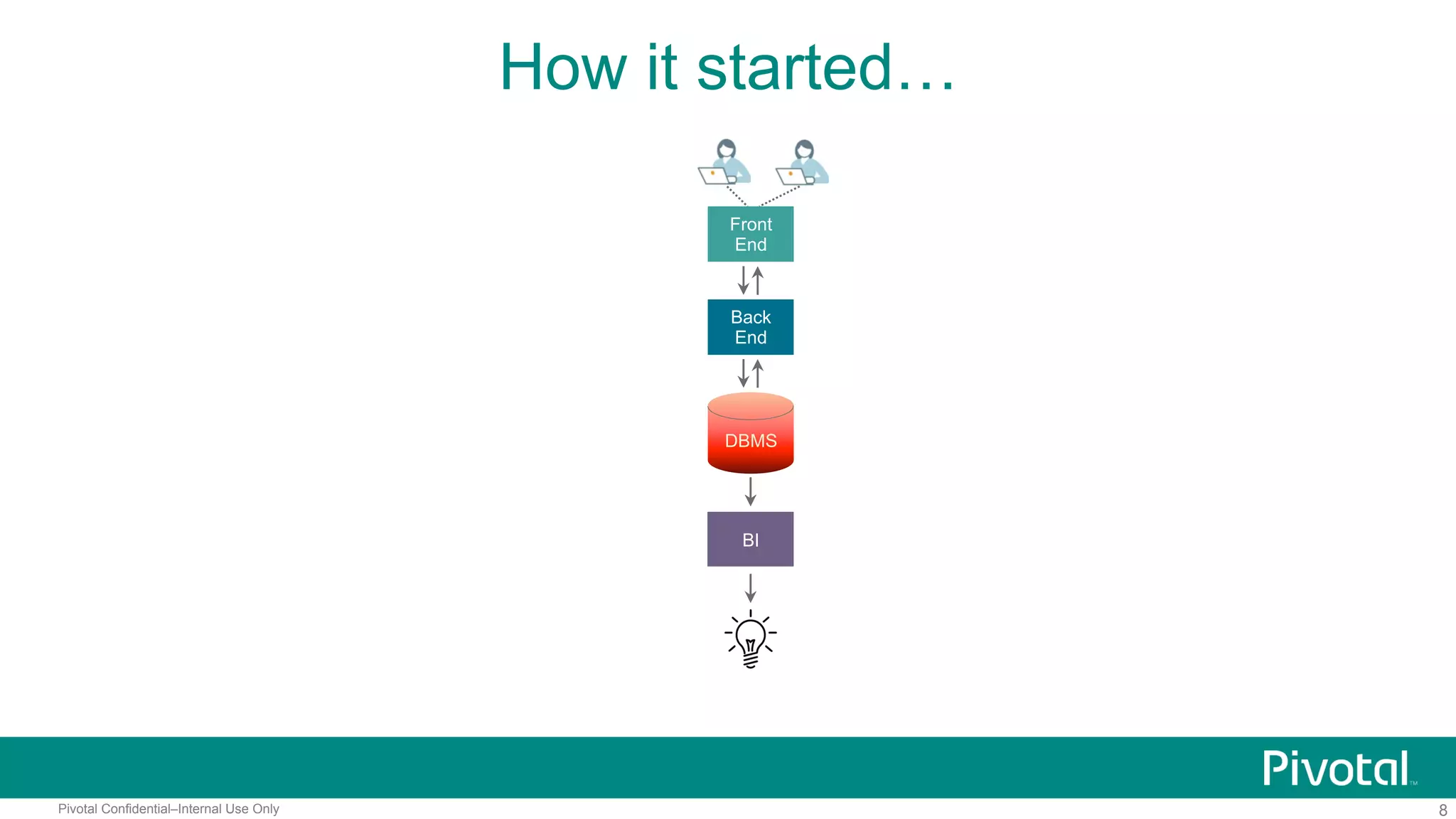

8Pivotal Confidential–Internal Use Only How it started… Front End Back End DBMS BI

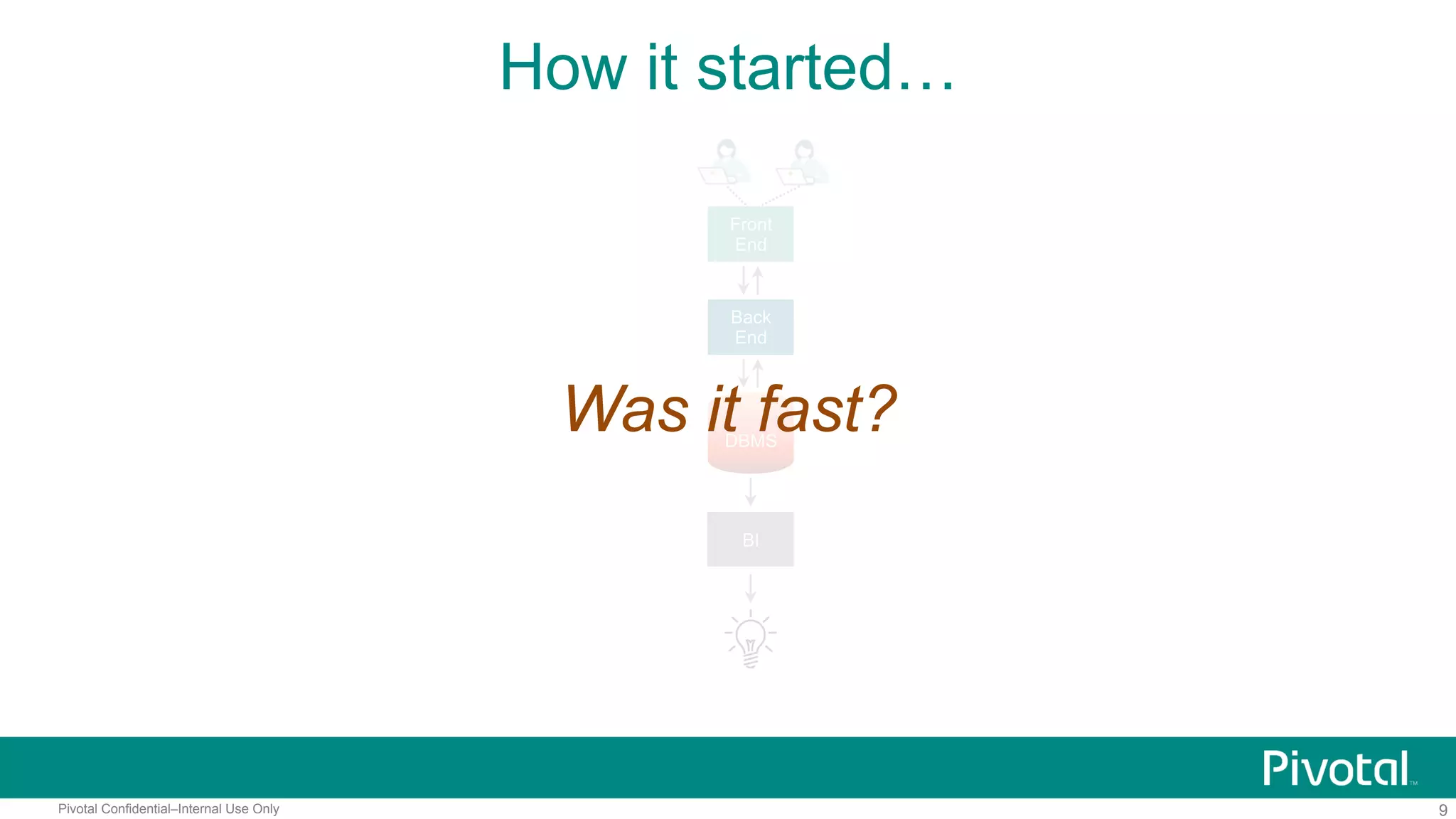

9Pivotal Confidential–Internal Use Only How it started… Front End Back End DBMS BI Was it fast?

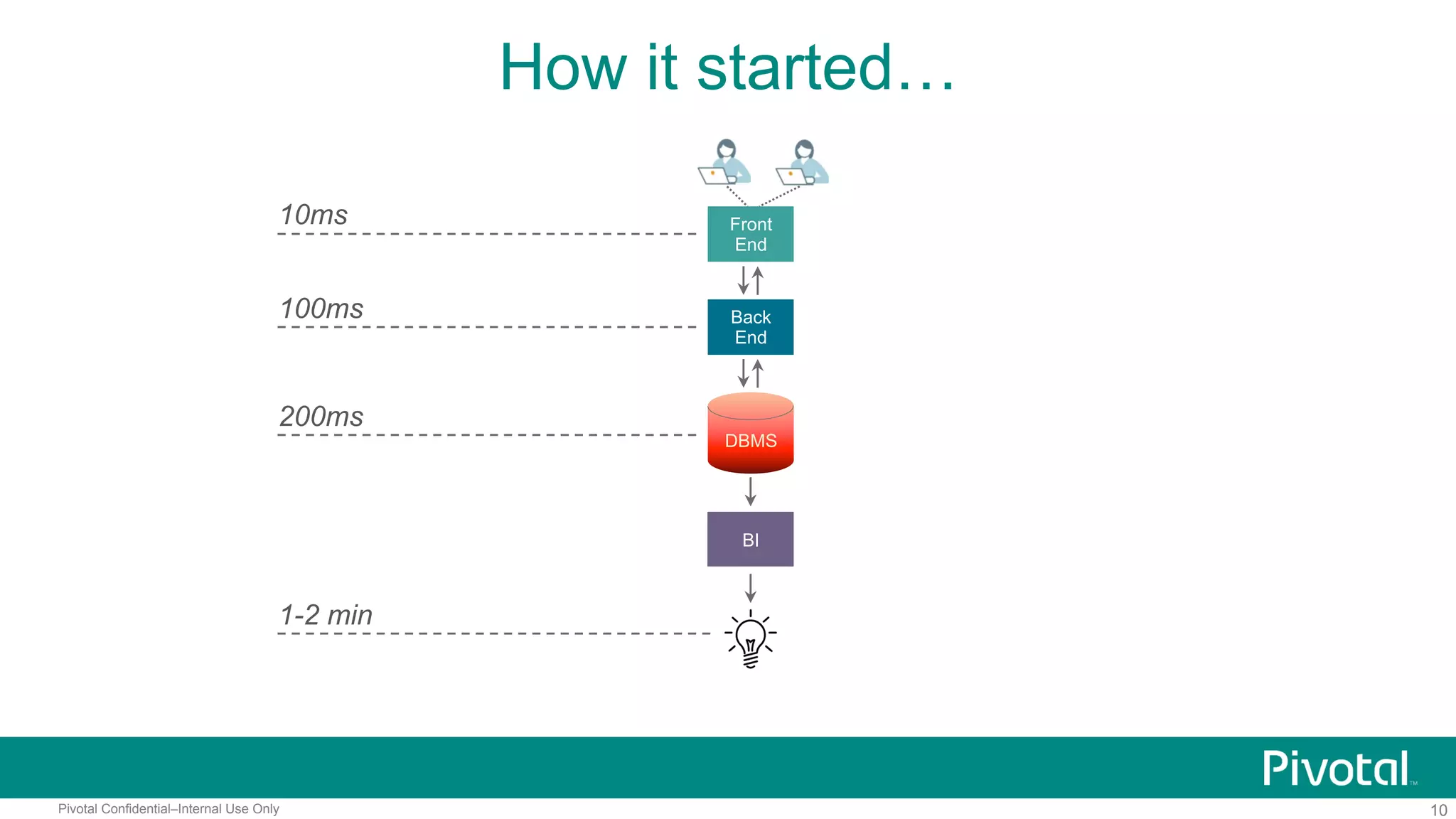

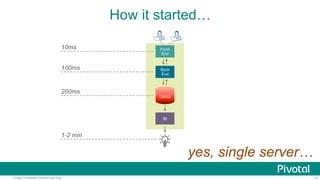

10Pivotal Confidential–Internal Use Only How it started… Front End 10ms Back End DBMS BI 100ms 200ms 1-2 min

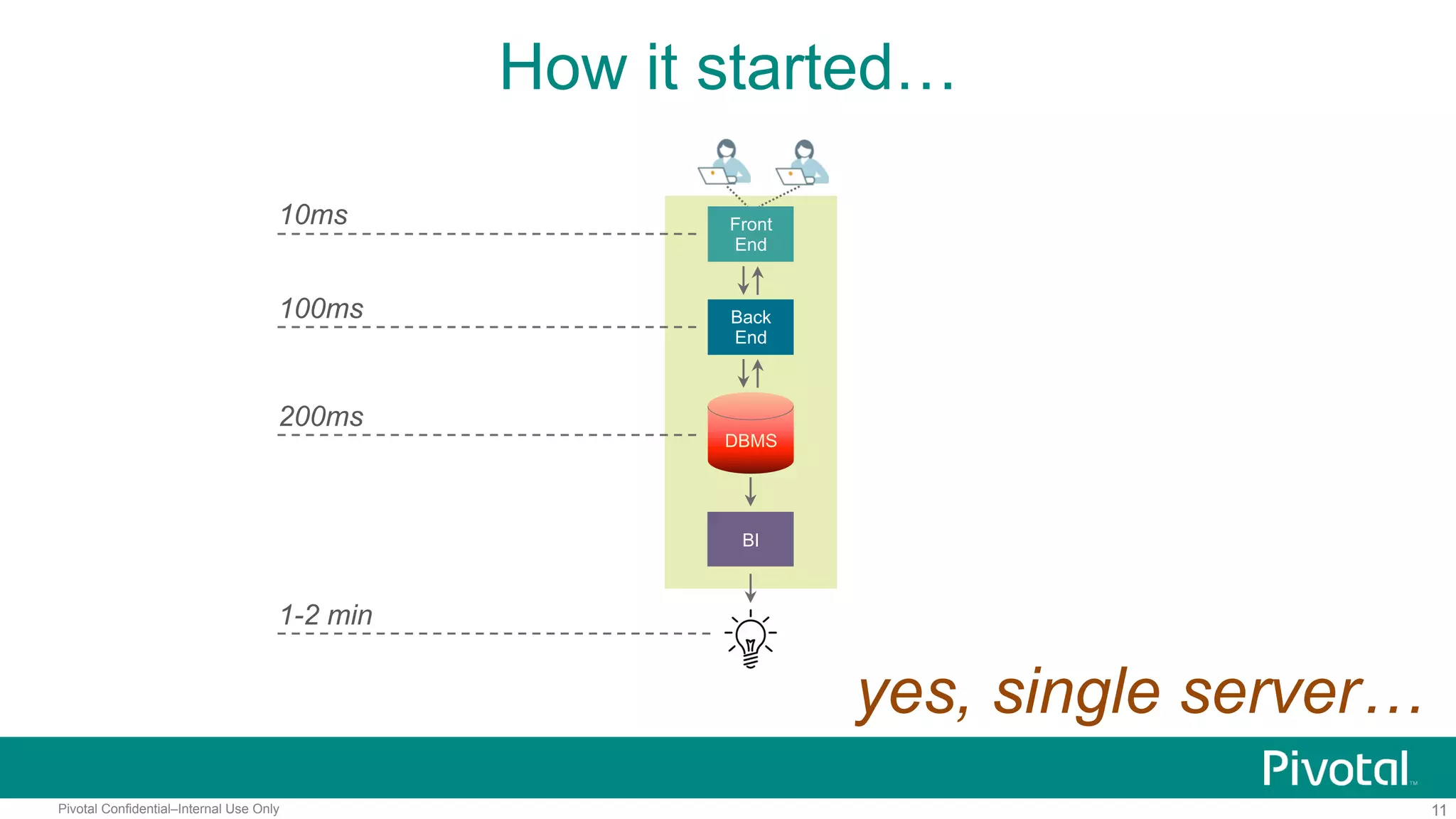

11Pivotal Confidential–Internal Use Only How it started… Front End 10ms Back End DBMS BI 100ms 200ms 1-2 min yes, single server…

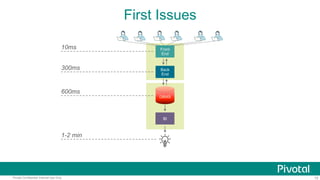

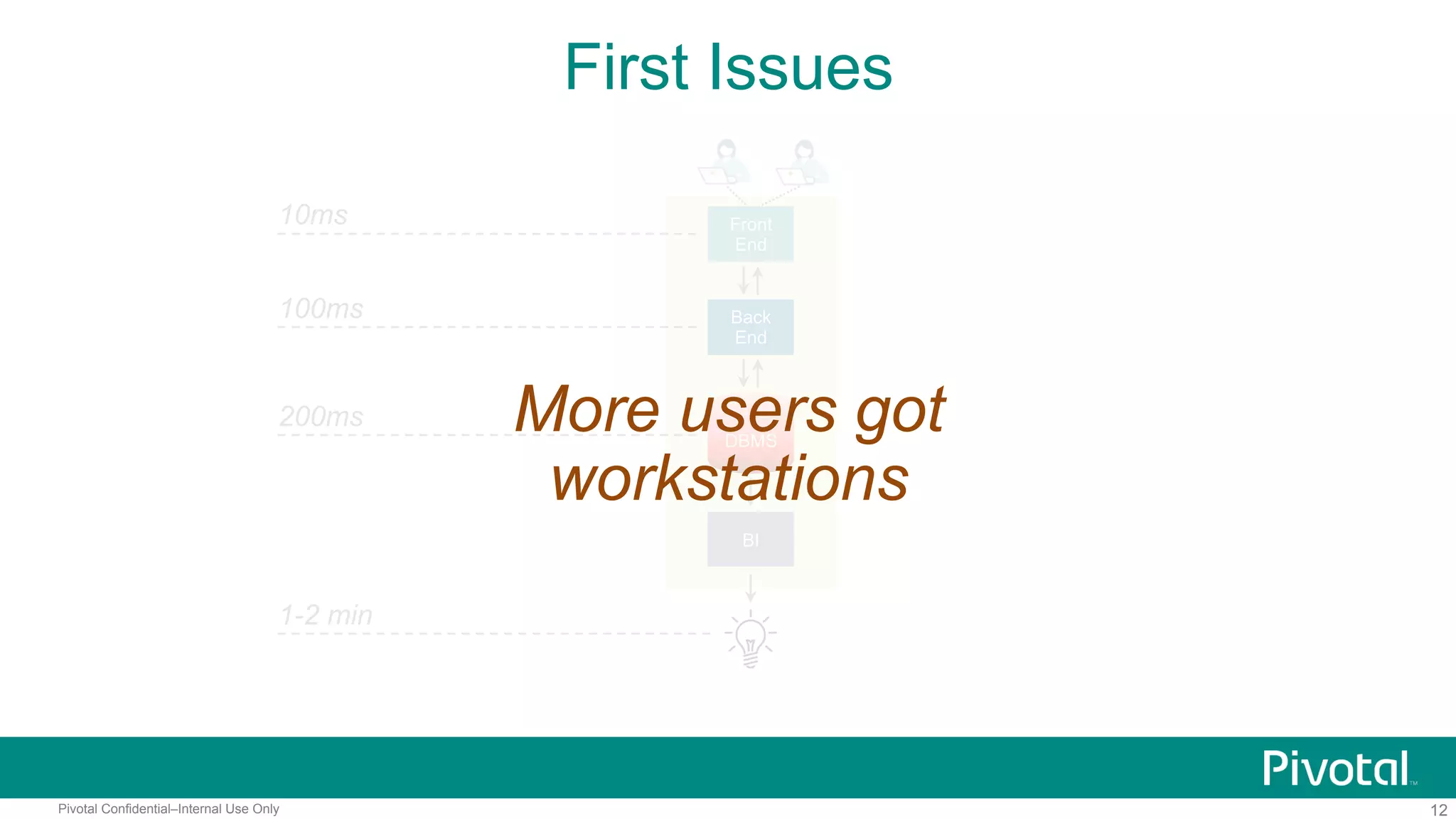

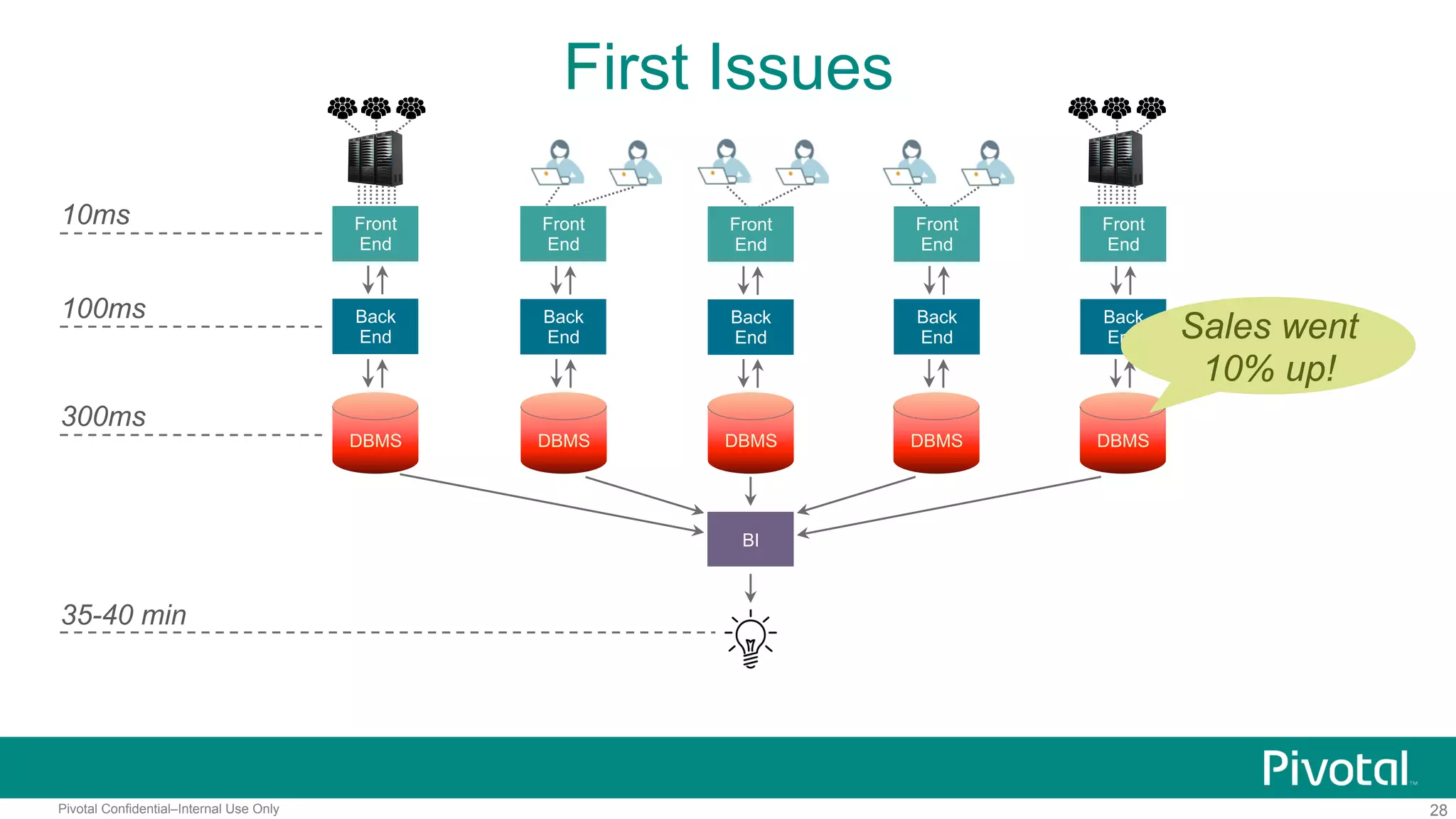

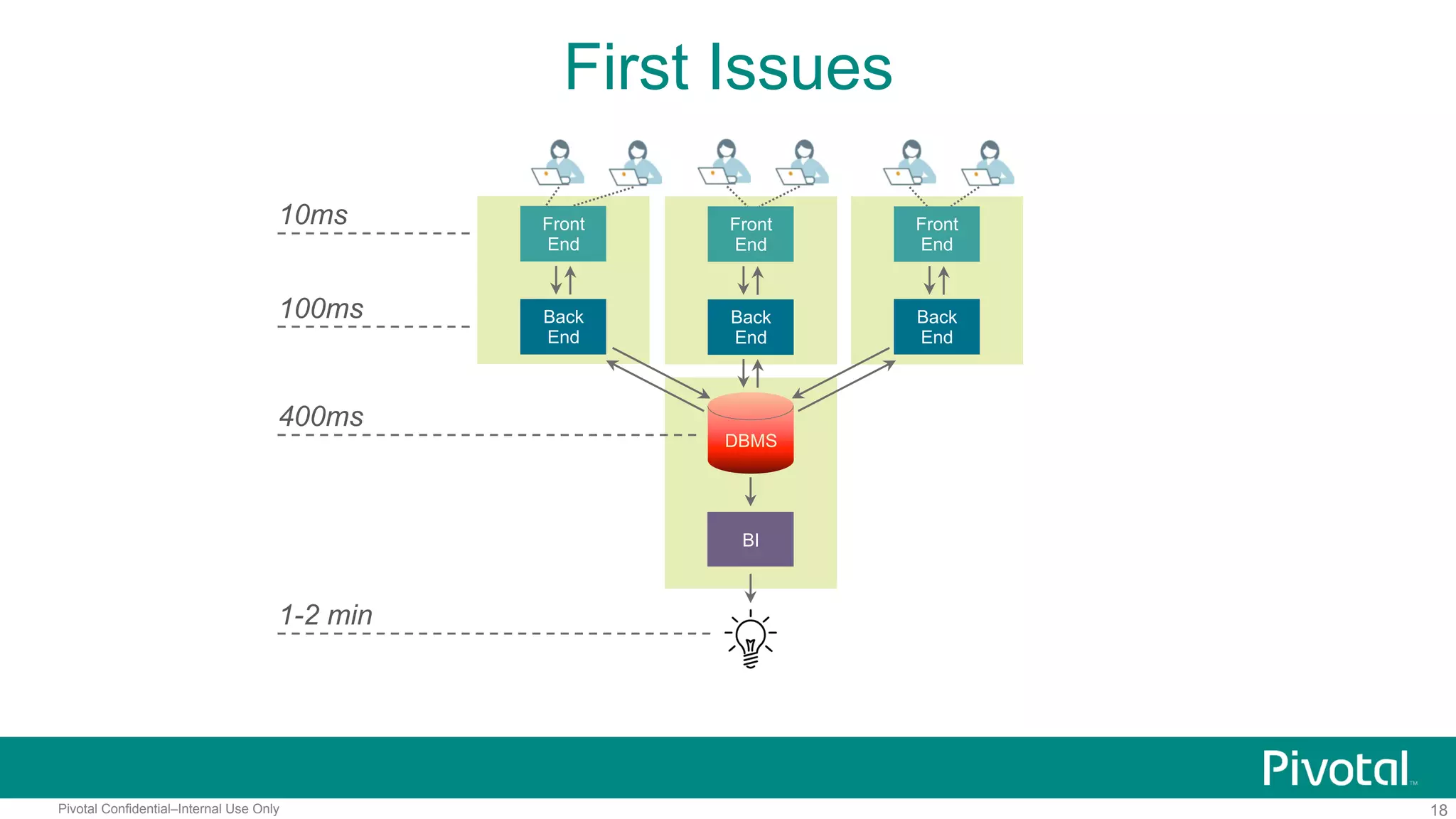

12Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 200ms 1-2 min More users got workstations

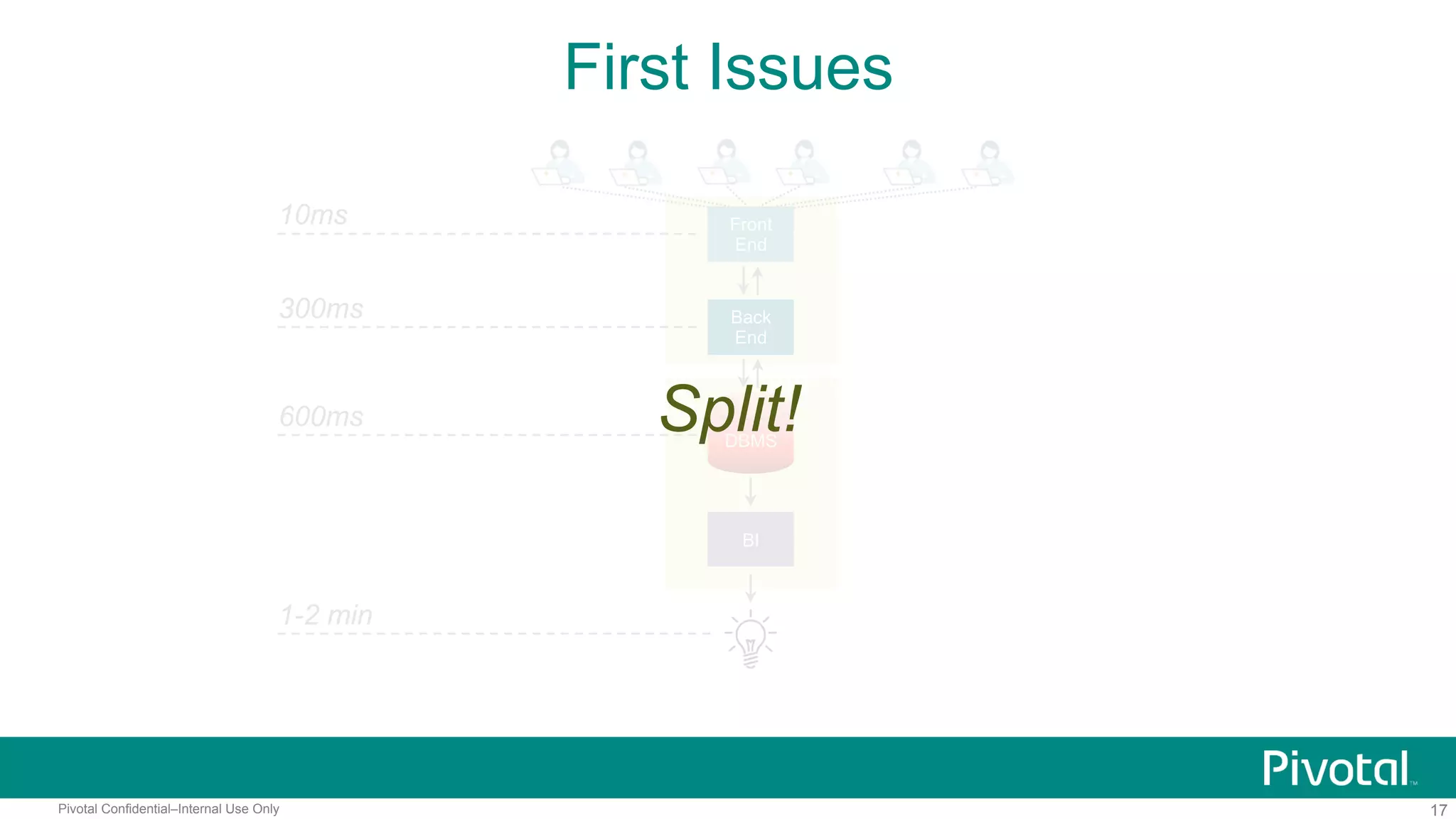

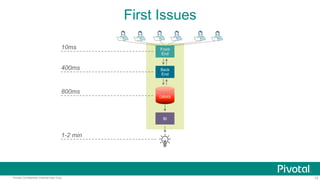

13Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 400ms 800ms 1-2 min

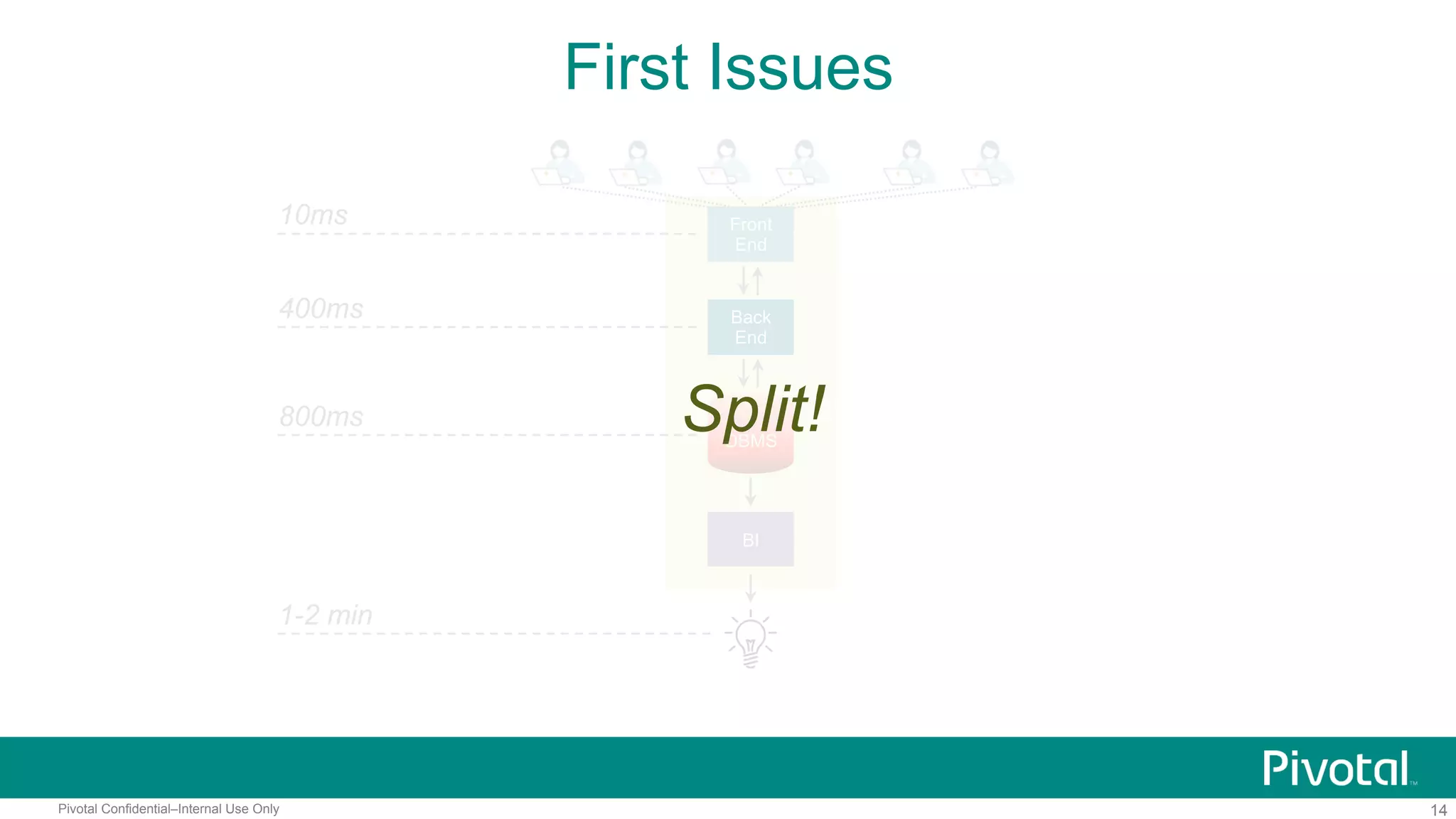

14Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 400ms 800ms 1-2 min Split!

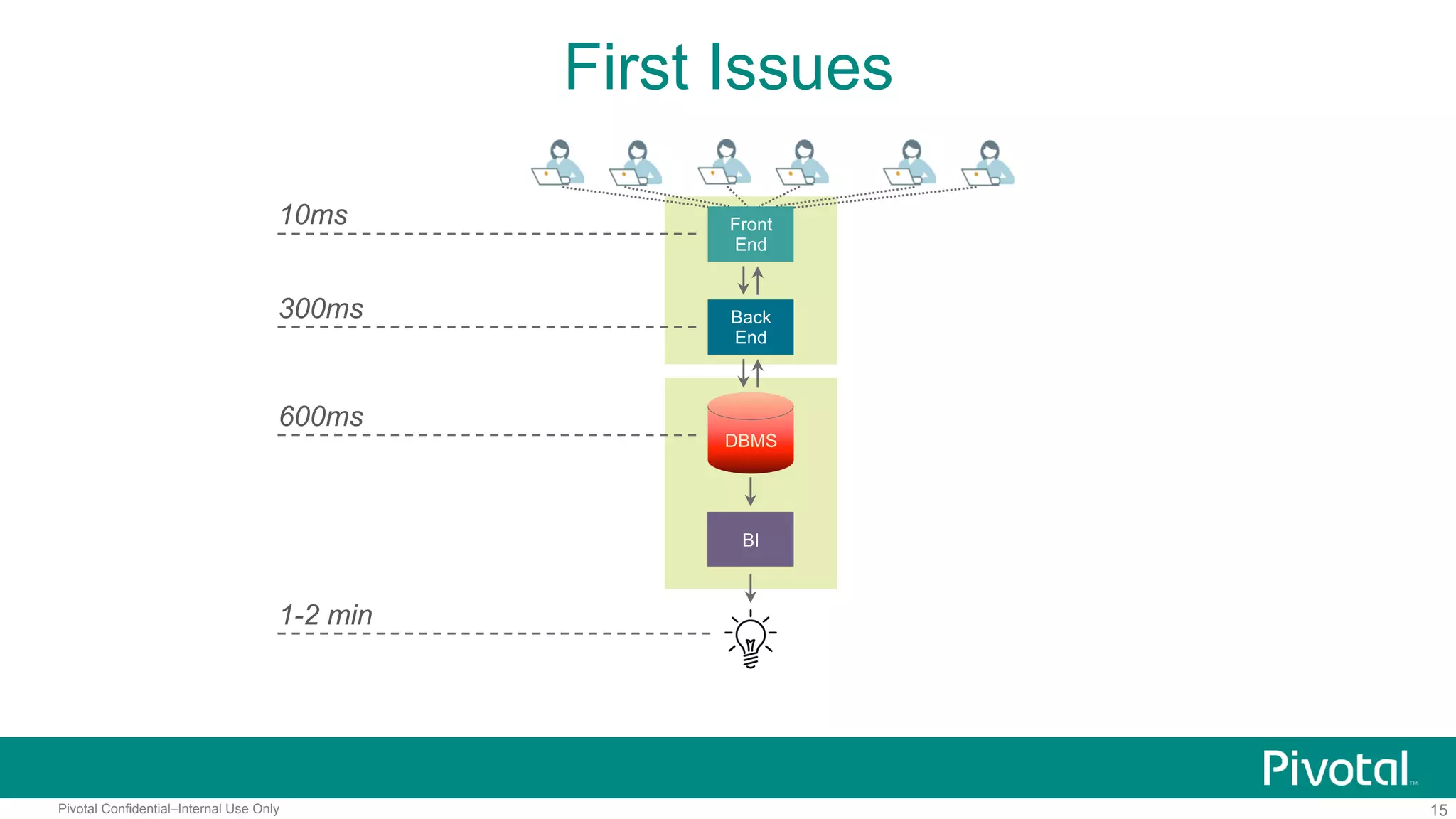

15Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 300ms 600ms 1-2 min

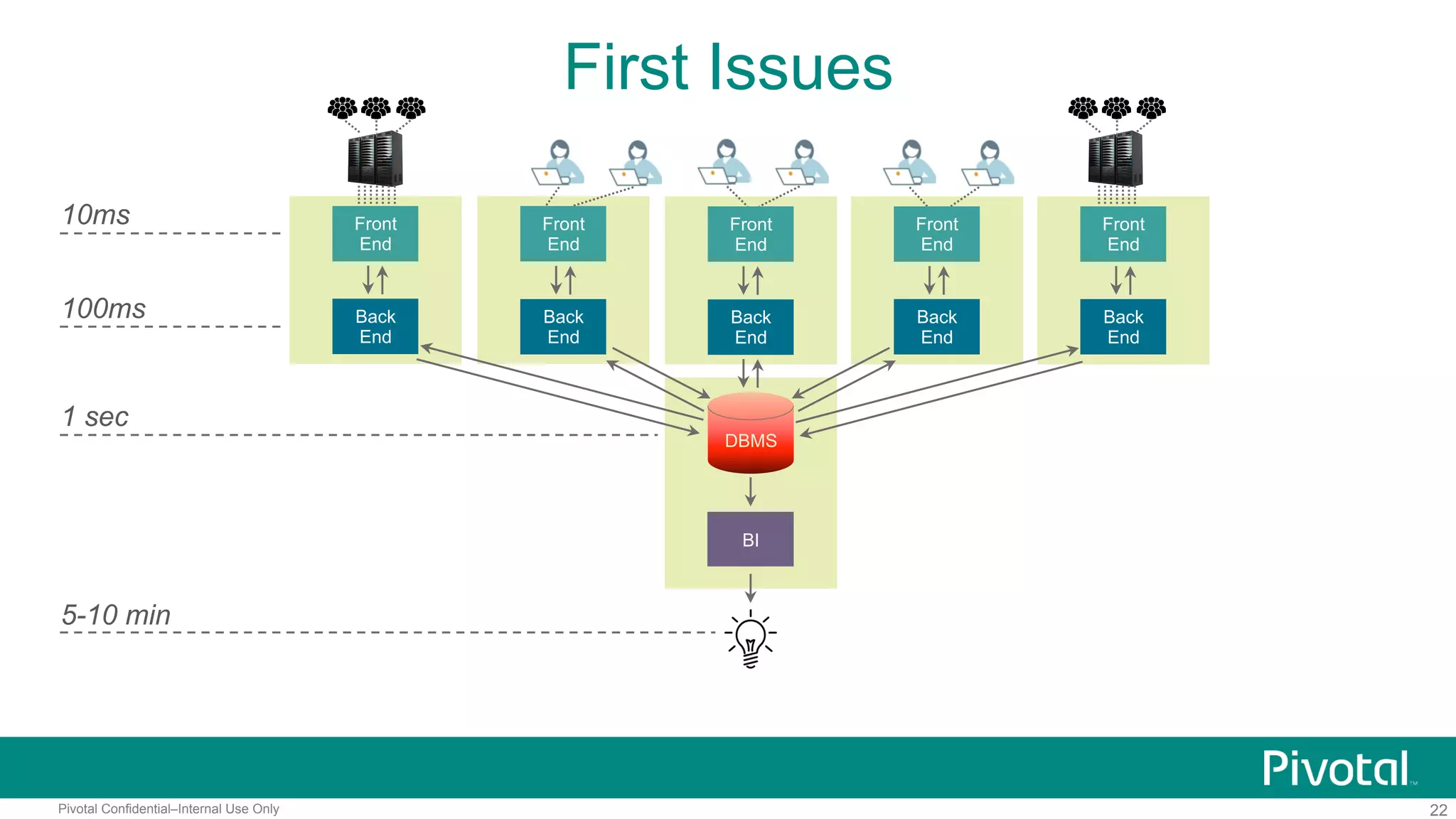

16Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 300ms 600ms 1-2 min Even more users?
17Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 300ms 600ms 1-2 min Split!
18Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 400ms 1-2 min Front End Back End Front End Back End

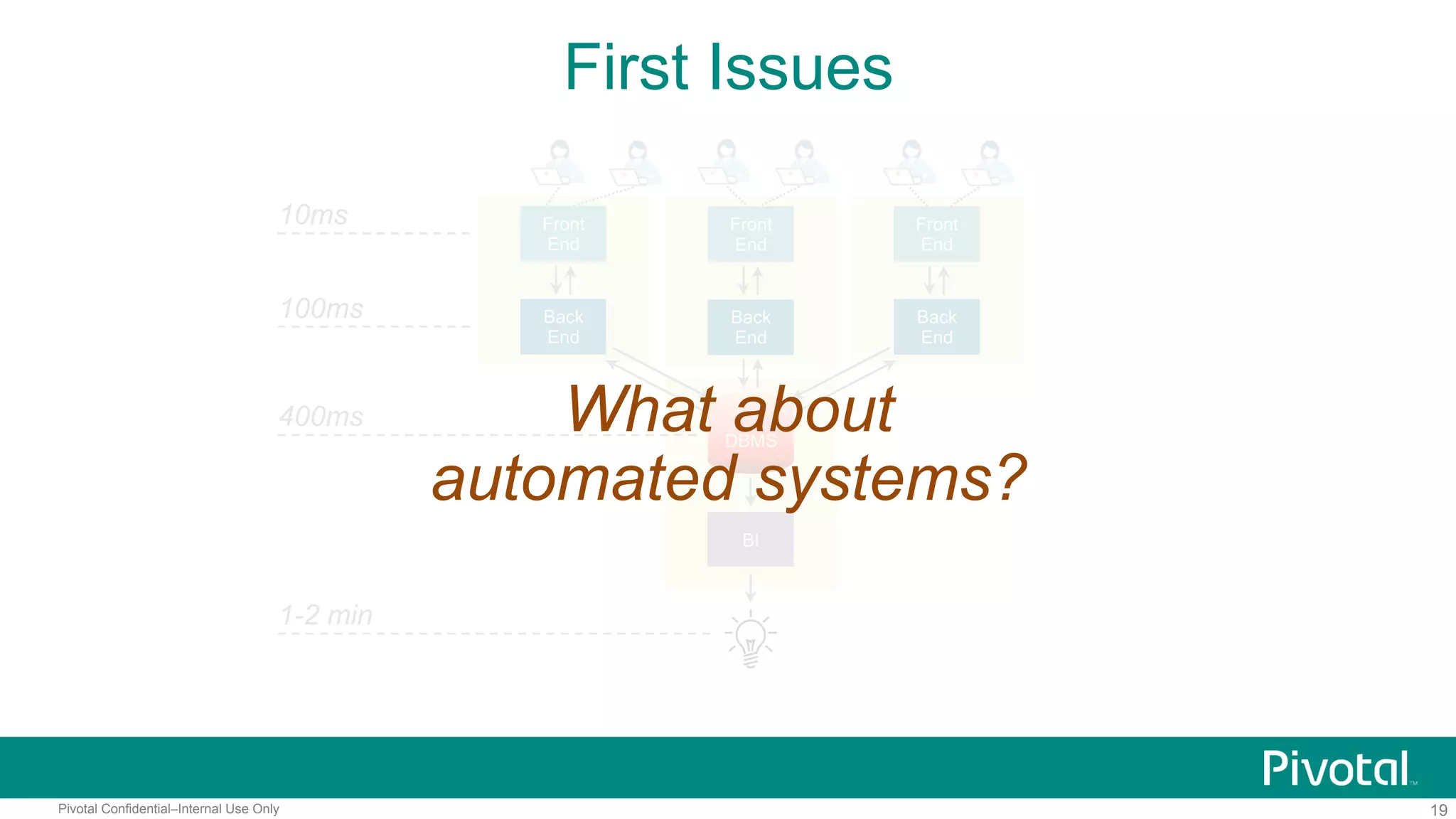

19Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 400ms 1-2 min Front End Back End Front End Back End What about automated systems?

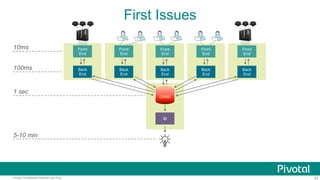

20Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 1 sec 5-10 min Front End Back End Front End Back End Front End Back End Front End Back End
21Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 1 sec 5-10 min Front End Back End Front End Back End Front End Back End Front End Back End Database, please, live!
22Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 1 sec 5-10 min Front End Back End Front End Back End Front End Back End Front End Back End
23Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 800ms 15-20 min Front End Back End Front End Back End Front End Back End Front End Back End

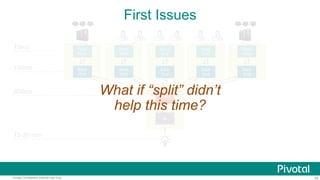

24Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 800ms 15-20 min Front End Back End Front End Back End Front End Back End Front End Back End What if “split” didn’t help this time?
25Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 800ms 15-20 min Front End Back End Front End Back End Front End Back End Front End Back End Split more! Eventually it will help…

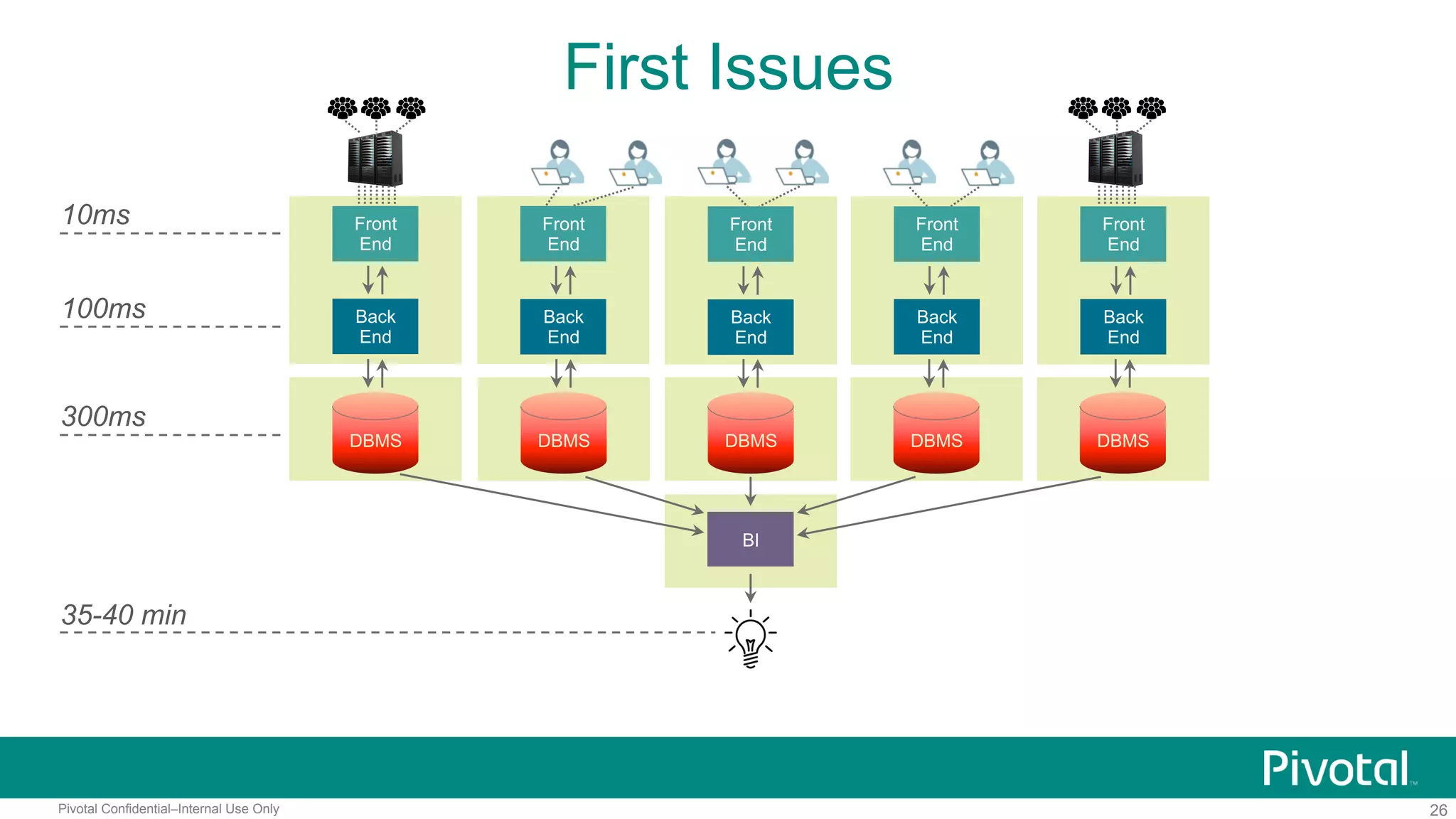

26Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 300ms 35-40 min Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS

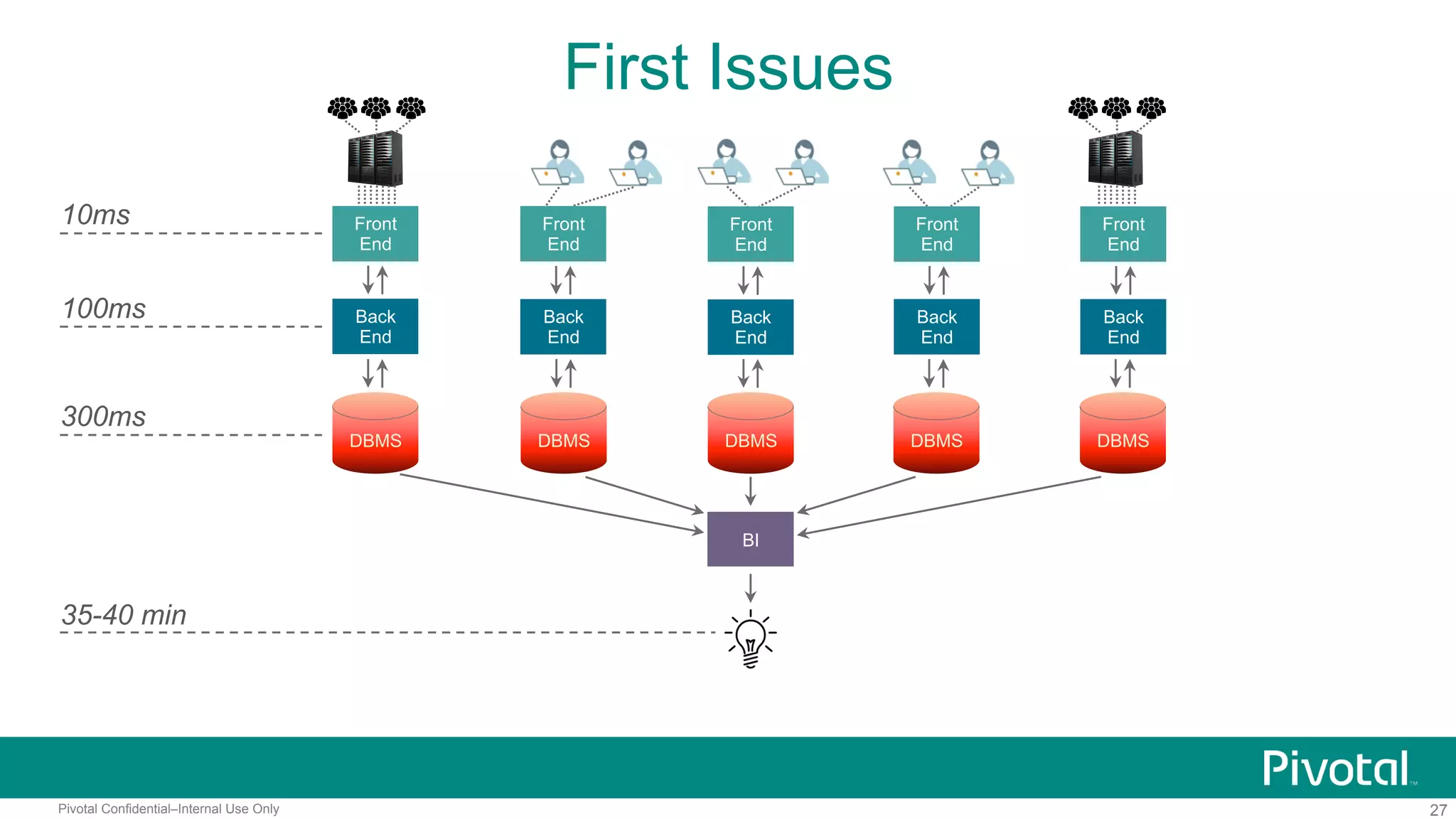

27Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 300ms 35-40 min Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS

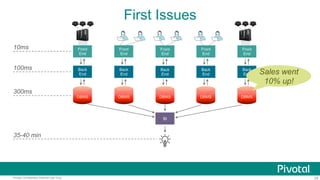

28Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 300ms 35-40 min Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS Sales went 10% up!
29Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 300ms 35-40 min Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS Sales went 10% up! Sales went 20% down!

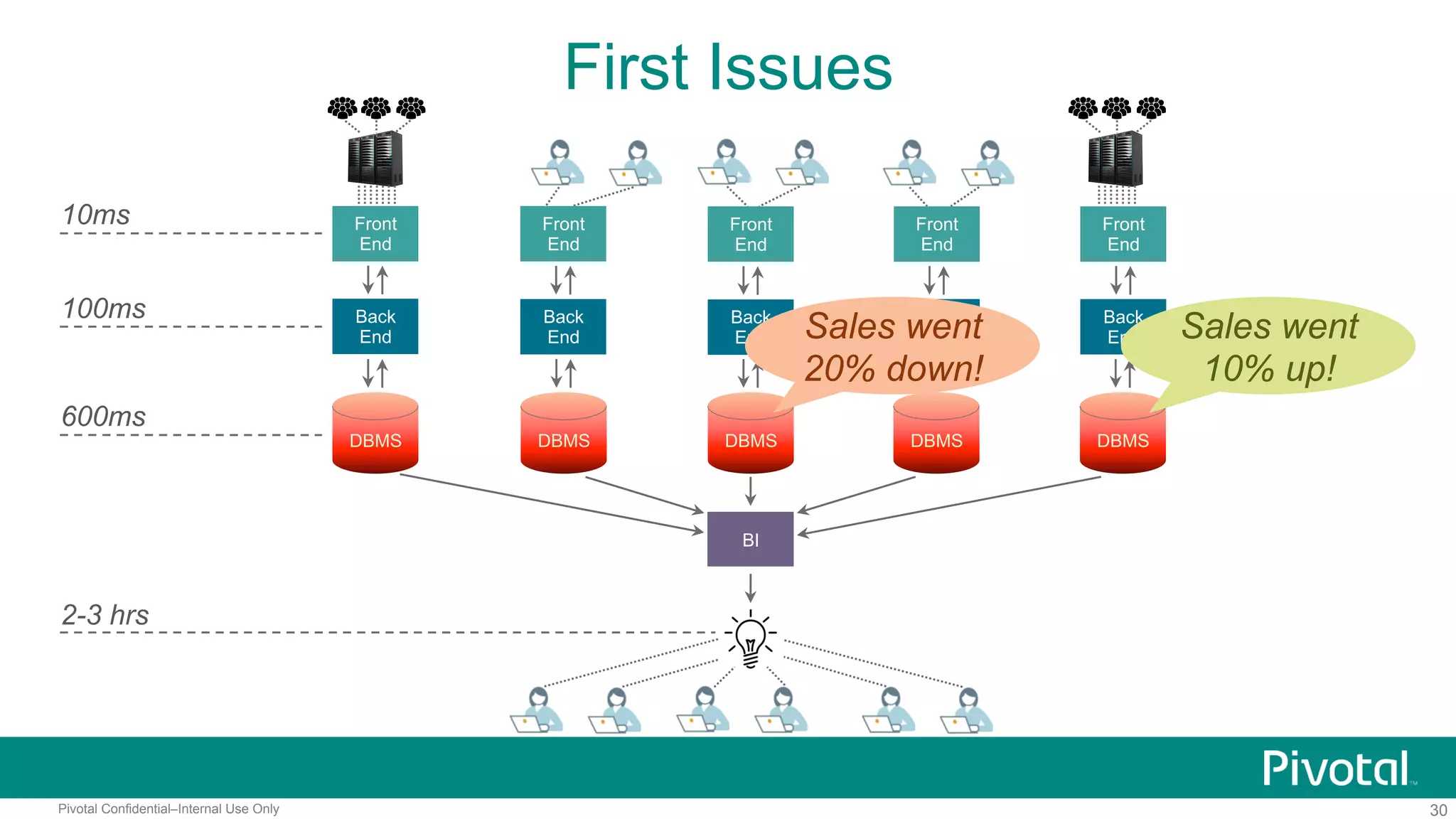

30Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 600ms 2-3 hrs Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS Sales went 10% up! Sales went 20% down!

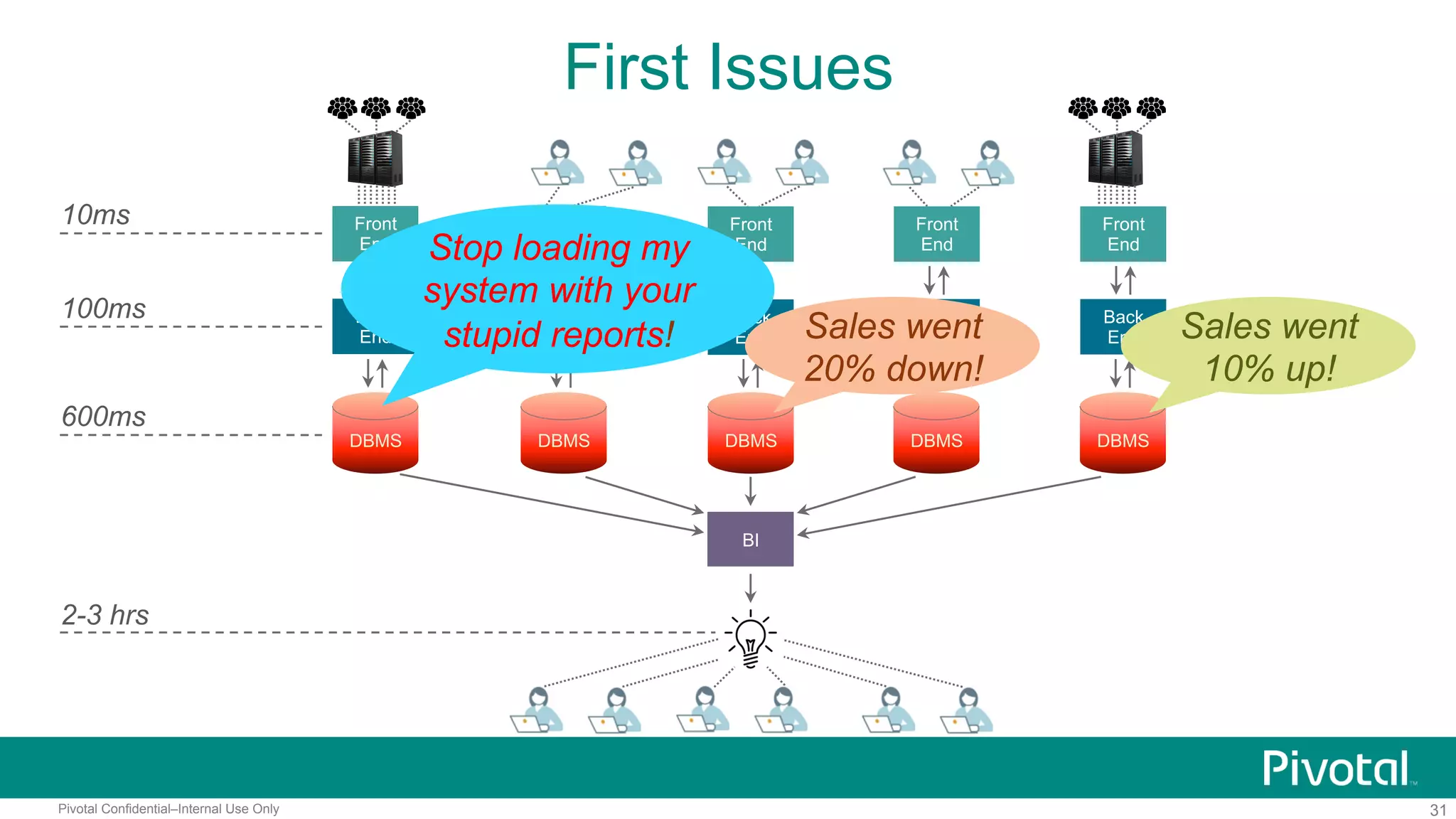

31Pivotal Confidential–Internal Use Only First Issues Front End 10ms Back End DBMS BI 100ms 600ms 2-3 hrs Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS Sales went 10% up! Sales went 20% down! Stop loading my system with your stupid reports!

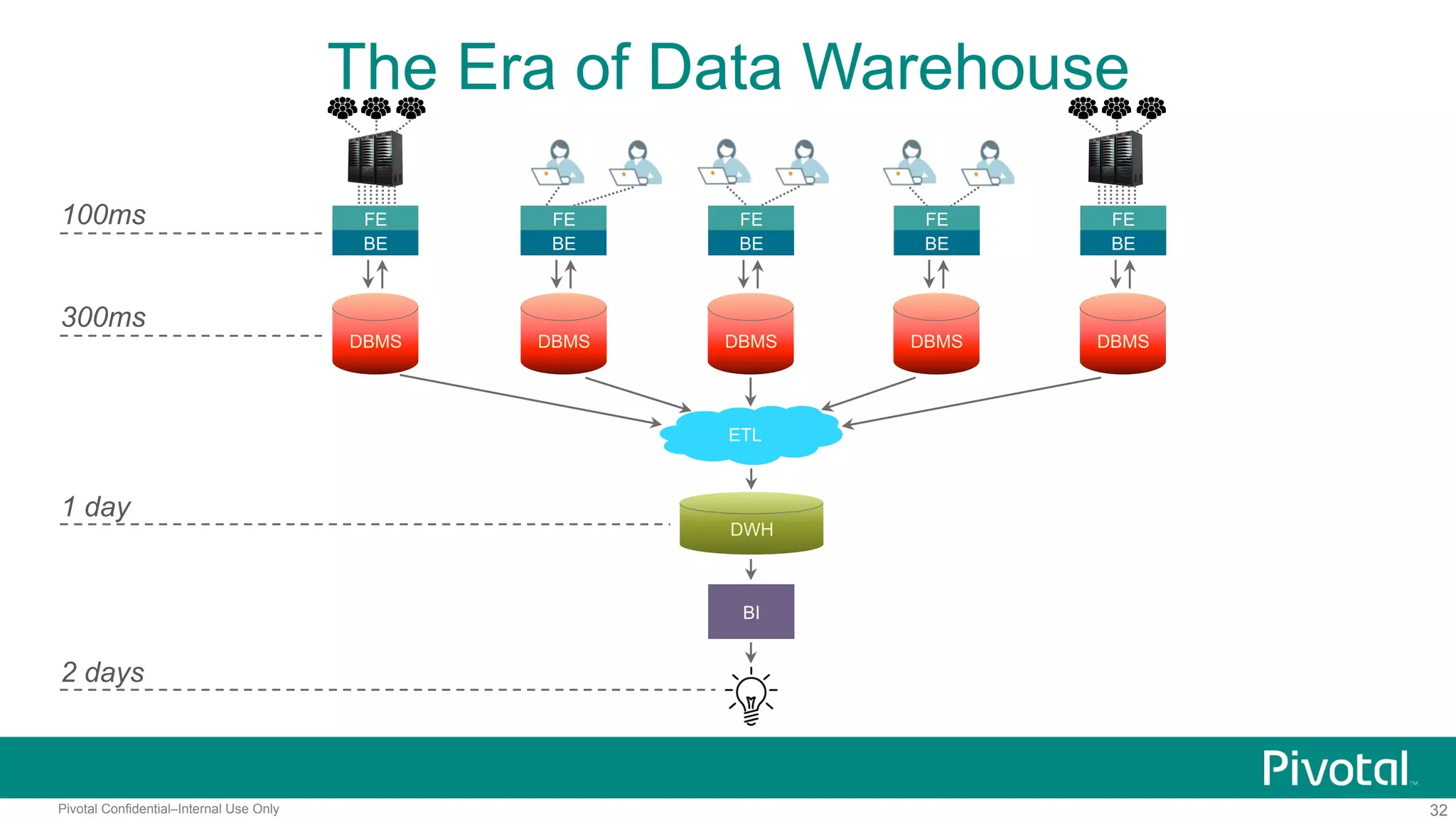

32Pivotal Confidential–Internal Use Only BI The Era of Data Warehouse 100ms DBMS 300ms 2 days FE BE DBMS DBMSDBMSDBMS FE BE FE BE FE BE FE BE ETL DWH 1 day

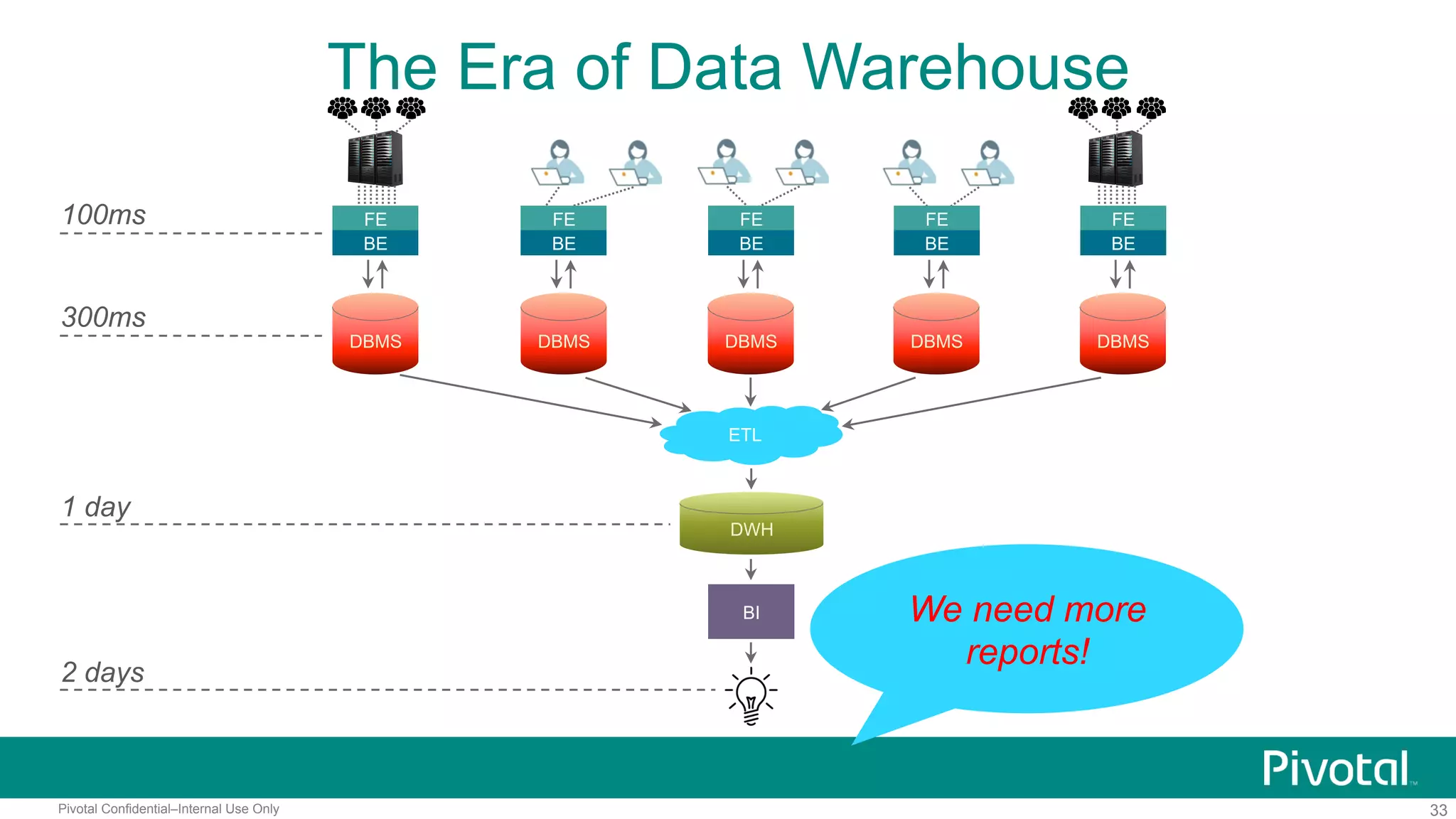

33Pivotal Confidential–Internal Use Only BI The Era of Data Warehouse 100ms DBMS 300ms 2 days FE BE DBMS DBMSDBMSDBMS FE BE FE BE FE BE FE BE ETL DWH 1 day We need more reports!

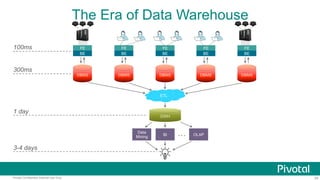

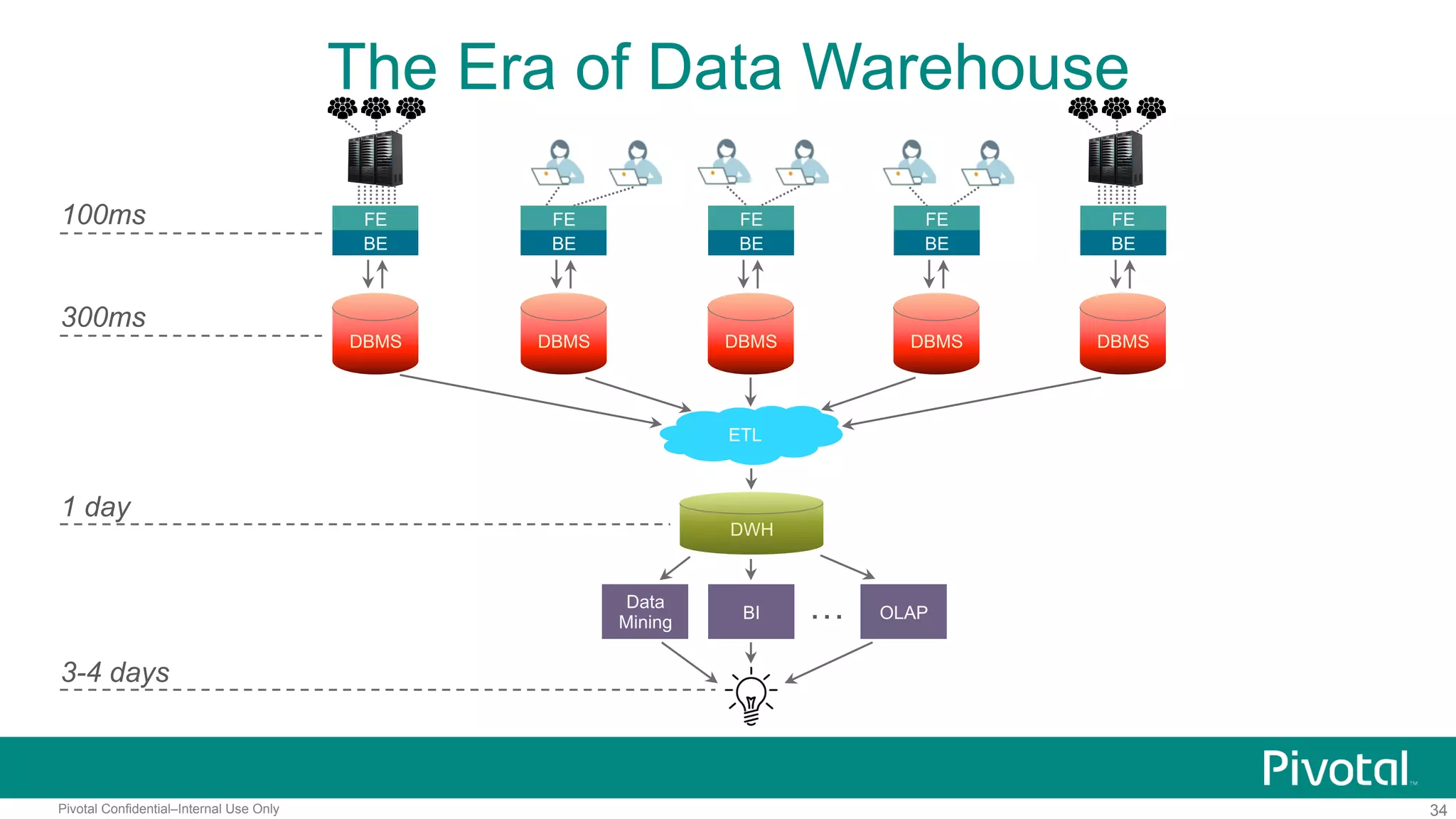

34Pivotal Confidential–Internal Use Only BI The Era of Data Warehouse 100ms DBMS 300ms 3-4 days FE BE DBMS DBMSDBMSDBMS FE BE FE BE FE BE FE BE ETL DWH 1 day Data Mining OLAP…

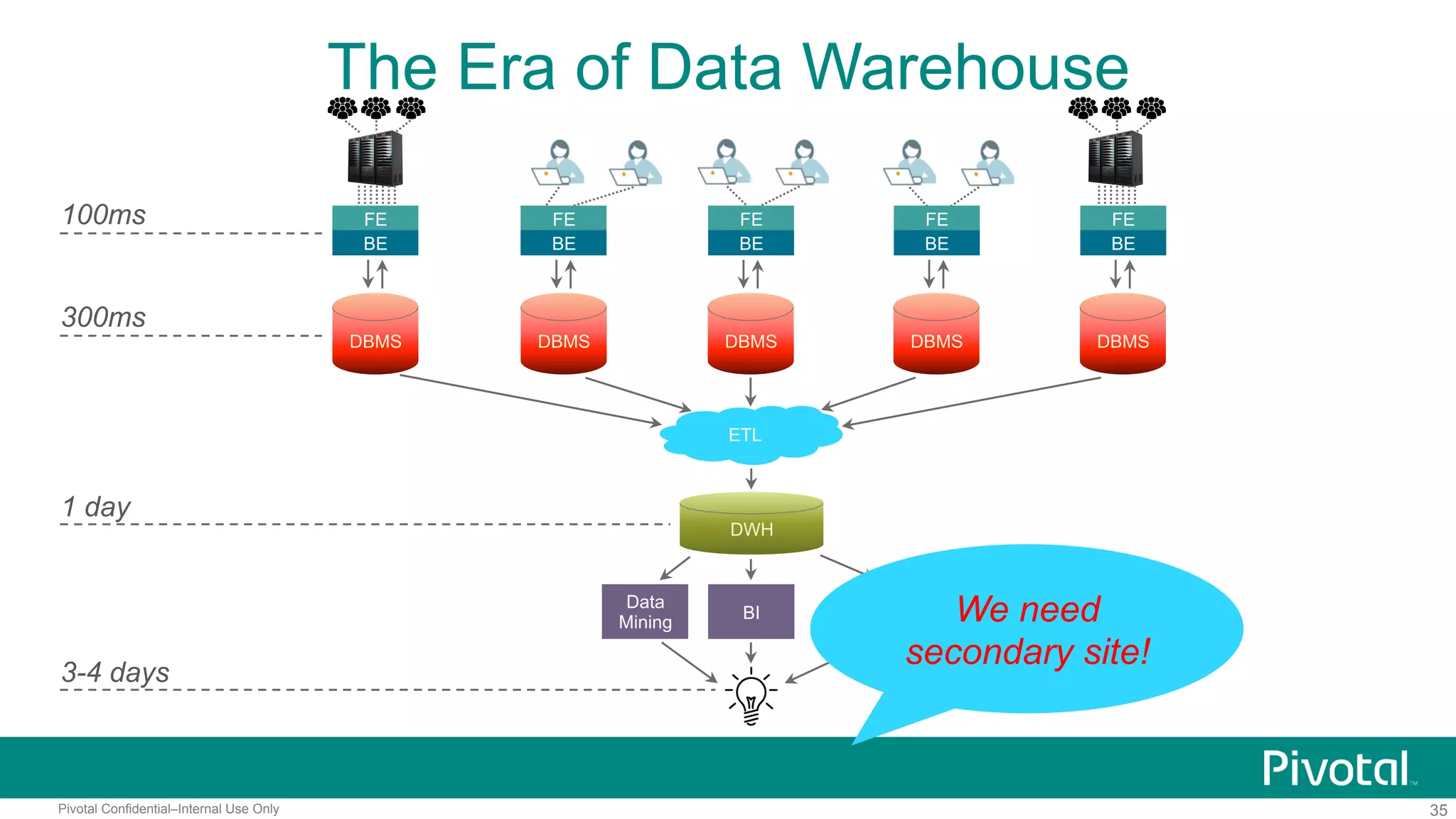

35Pivotal Confidential–Internal Use Only BI The Era of Data Warehouse 100ms DBMS 300ms 3-4 days FE BE DBMS DBMSDBMSDBMS FE BE FE BE FE BE FE BE ETL DWH 1 day Data Mining OLAP… We need secondary site!

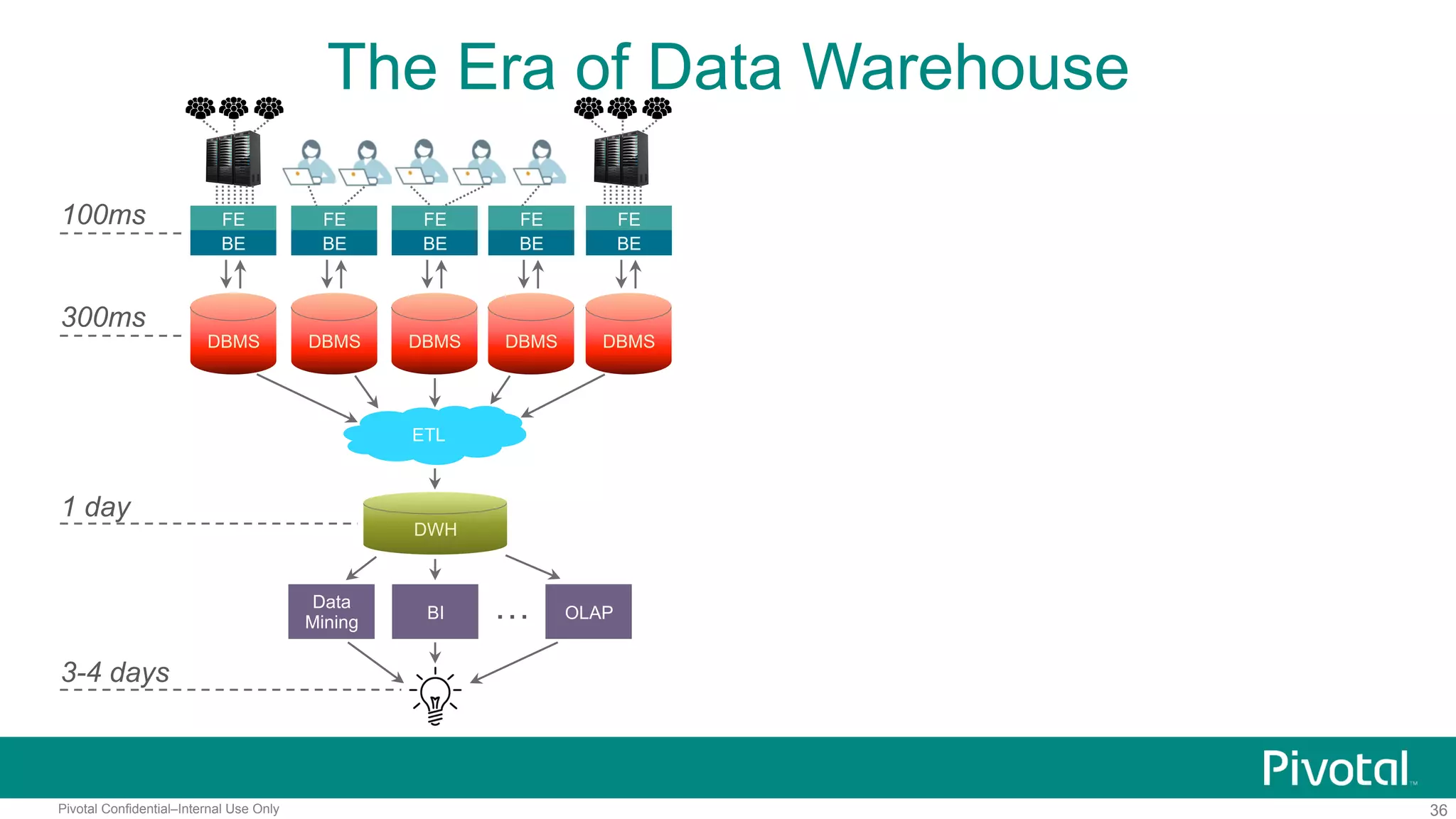

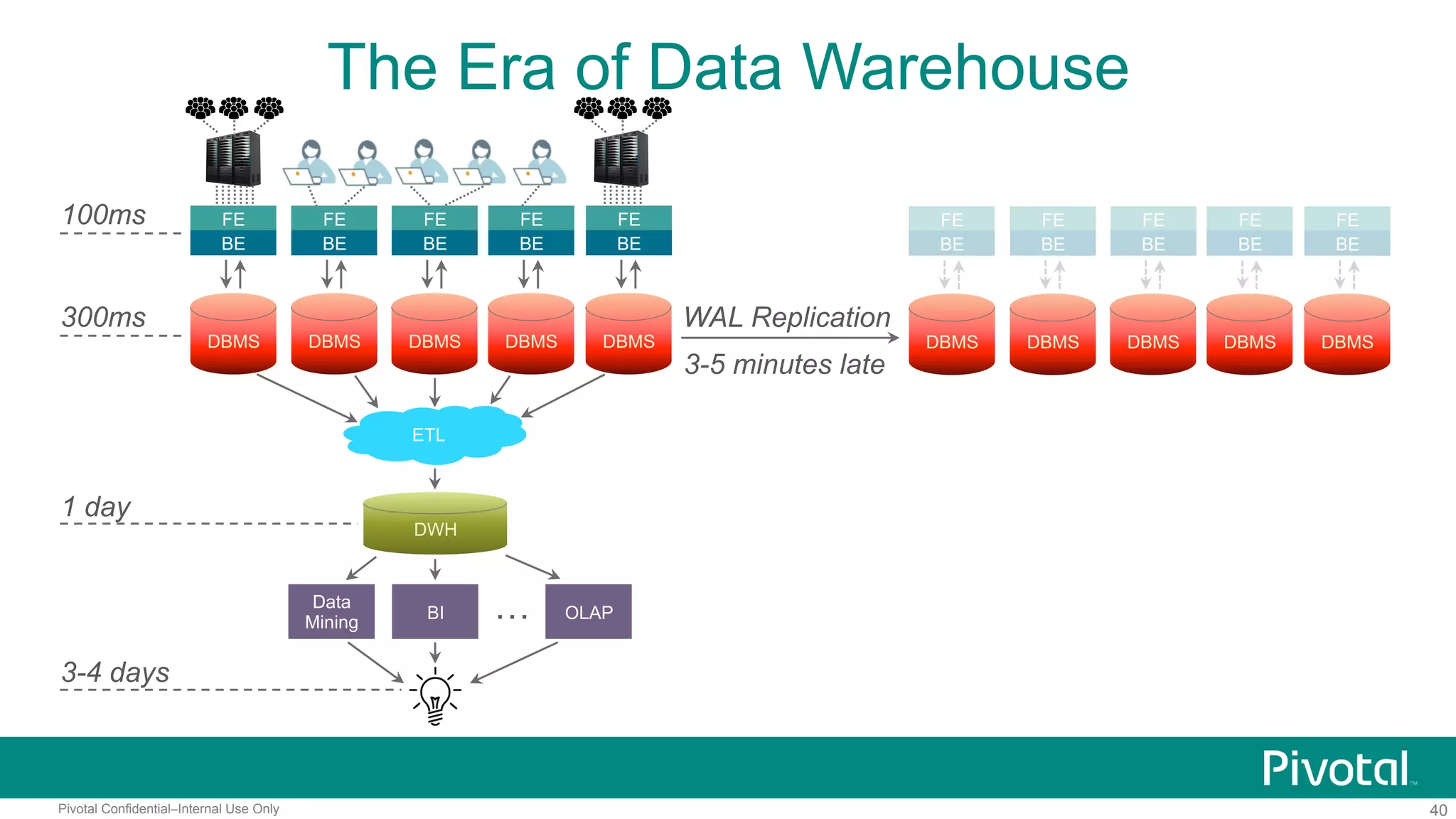

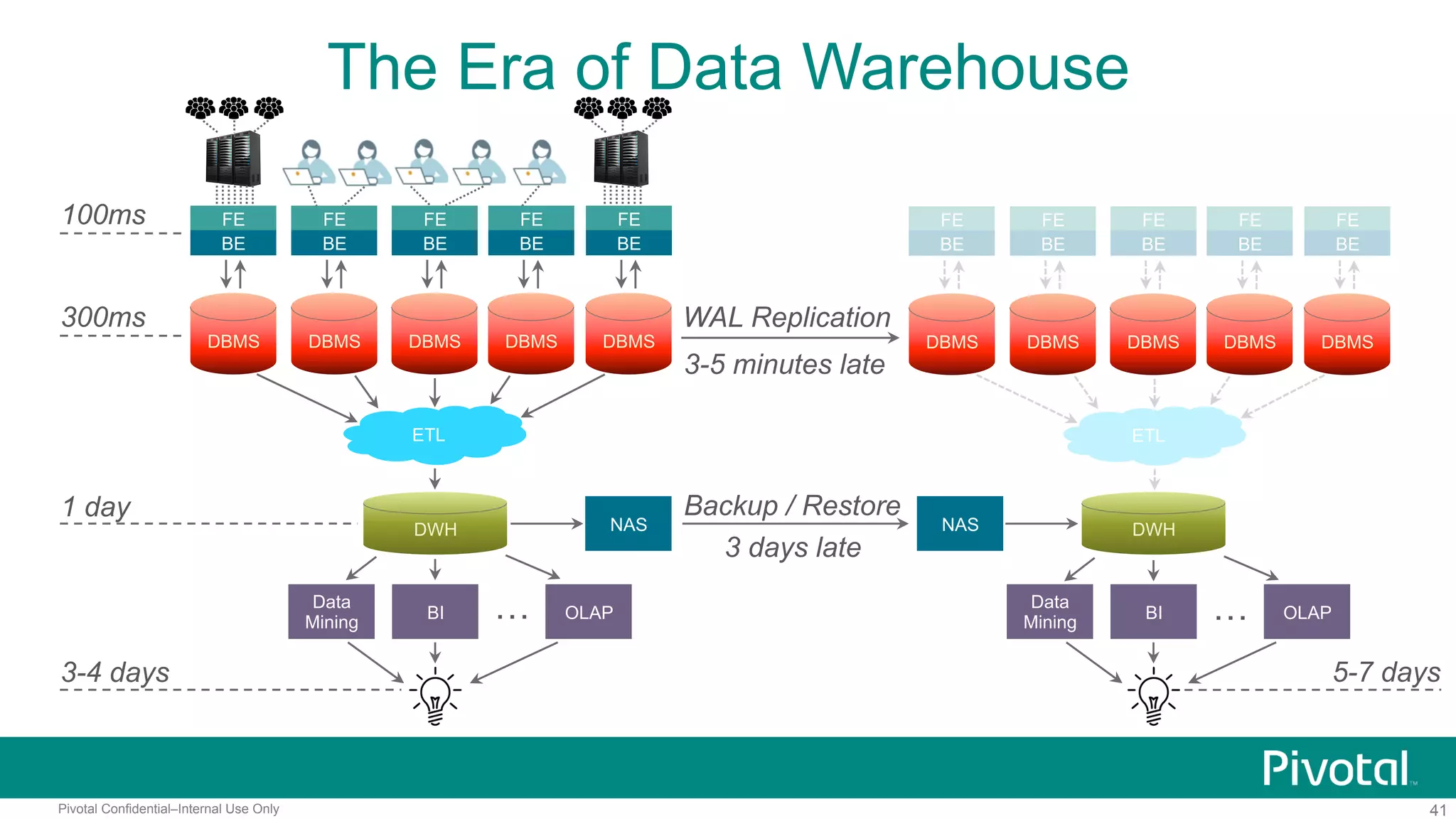

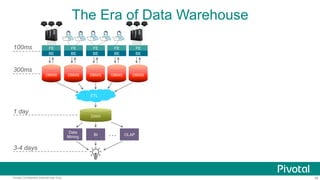

36Pivotal Confidential–Internal Use Only The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP…
37Pivotal Confidential–Internal Use Only The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE WAL Replication 3-5 minutes late
38Pivotal Confidential–Internal Use Only The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE WAL Replication 3-5 minutes late

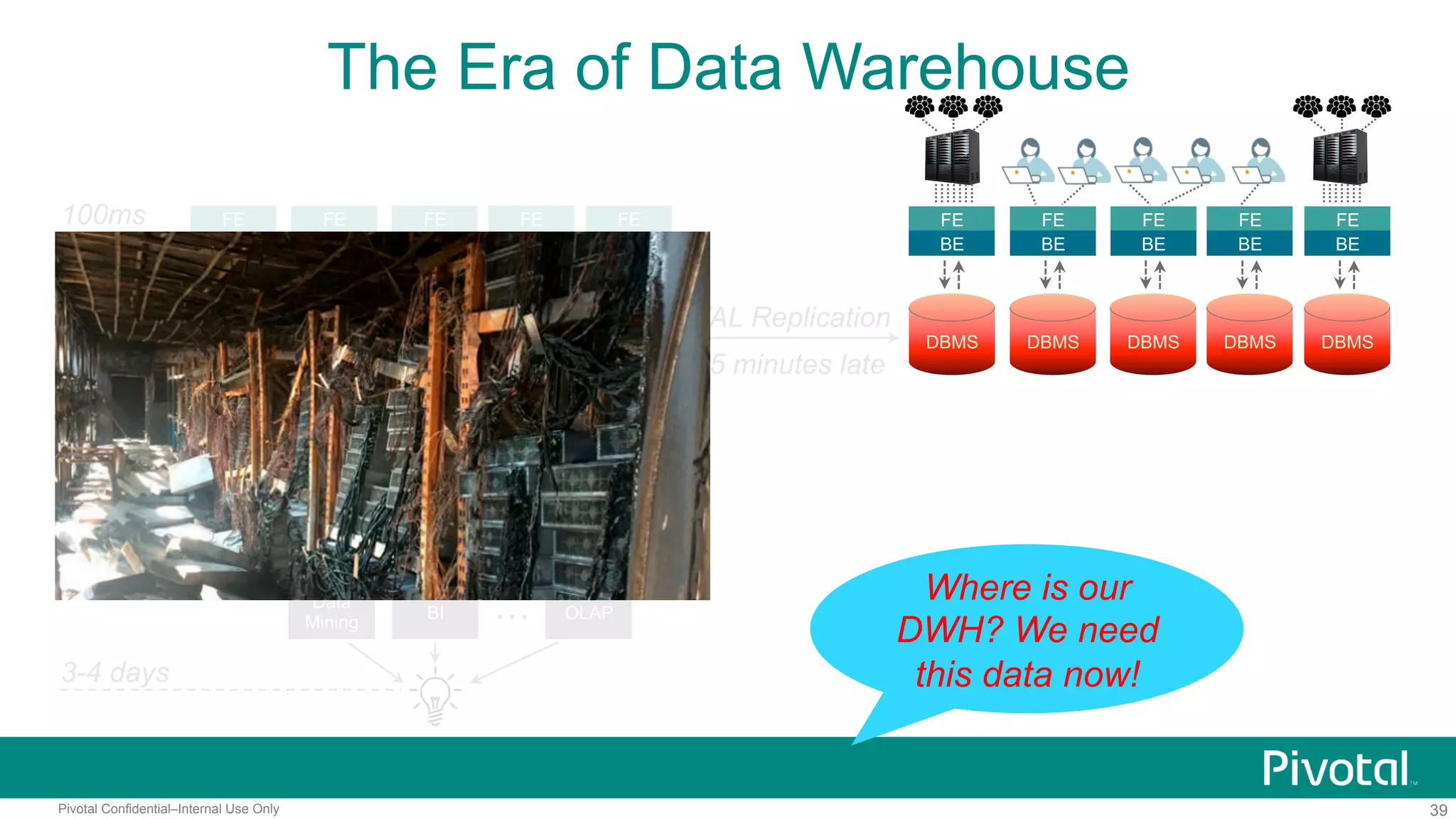

39Pivotal Confidential–Internal Use Only The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE WAL Replication 3-5 minutes late Where is our DWH? We need this data now!
40Pivotal Confidential–Internal Use Only The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE WAL Replication 3-5 minutes late
41Pivotal Confidential–Internal Use Only ETL The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS
42Pivotal Confidential–Internal Use Only ETL The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS Why is this data so old?
43Pivotal Confidential–Internal Use Only ETL The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS

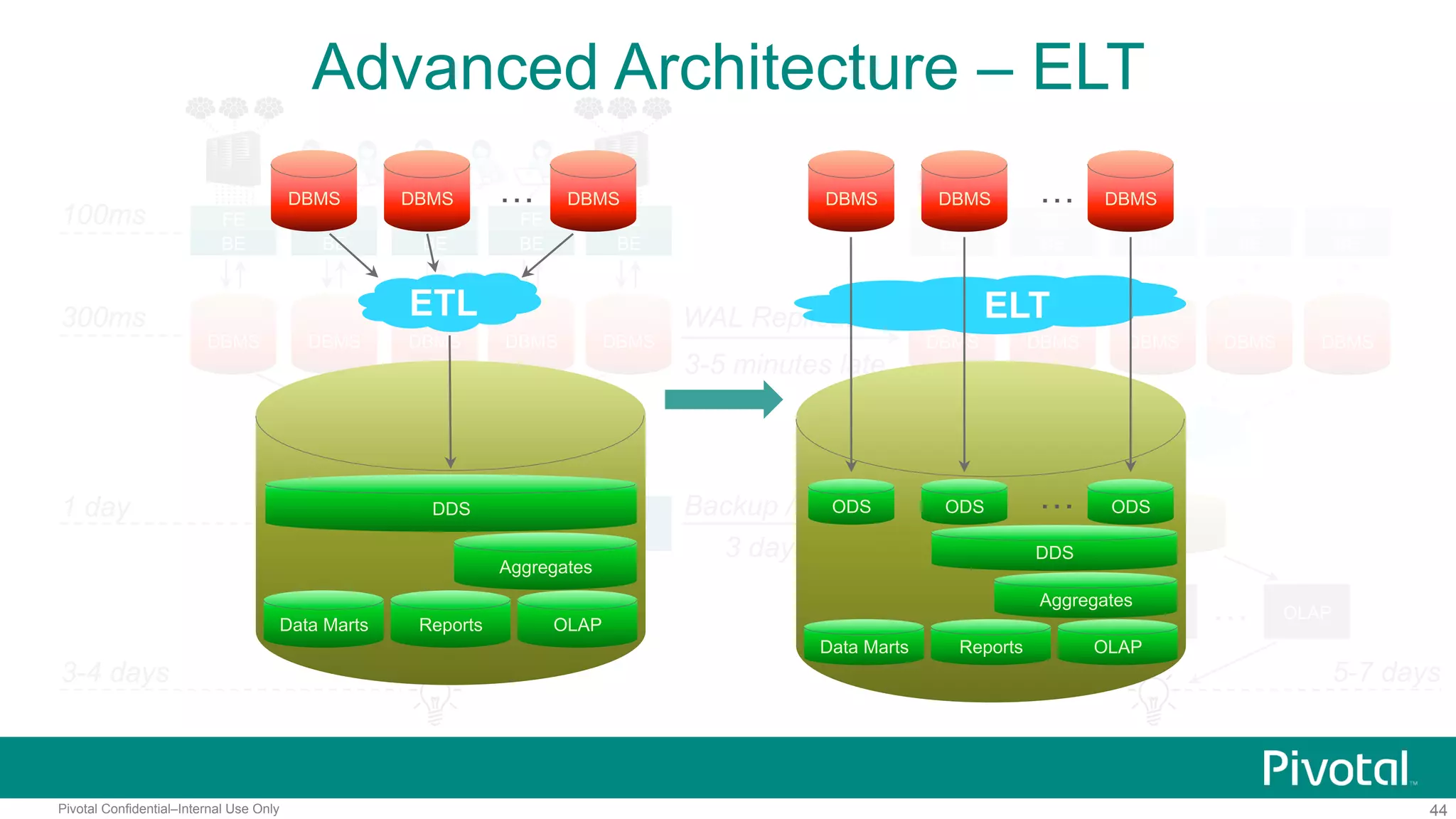

44Pivotal Confidential–Internal Use Only ETL Advanced Architecture – ELT 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS DBMS DBMS DBMS… ETL DDS Data Marts Reports Aggregates OLAP DBMS DBMS DBMS… ELT DDS Data Marts Reports Aggregates OLAP ODS ODS ODS…

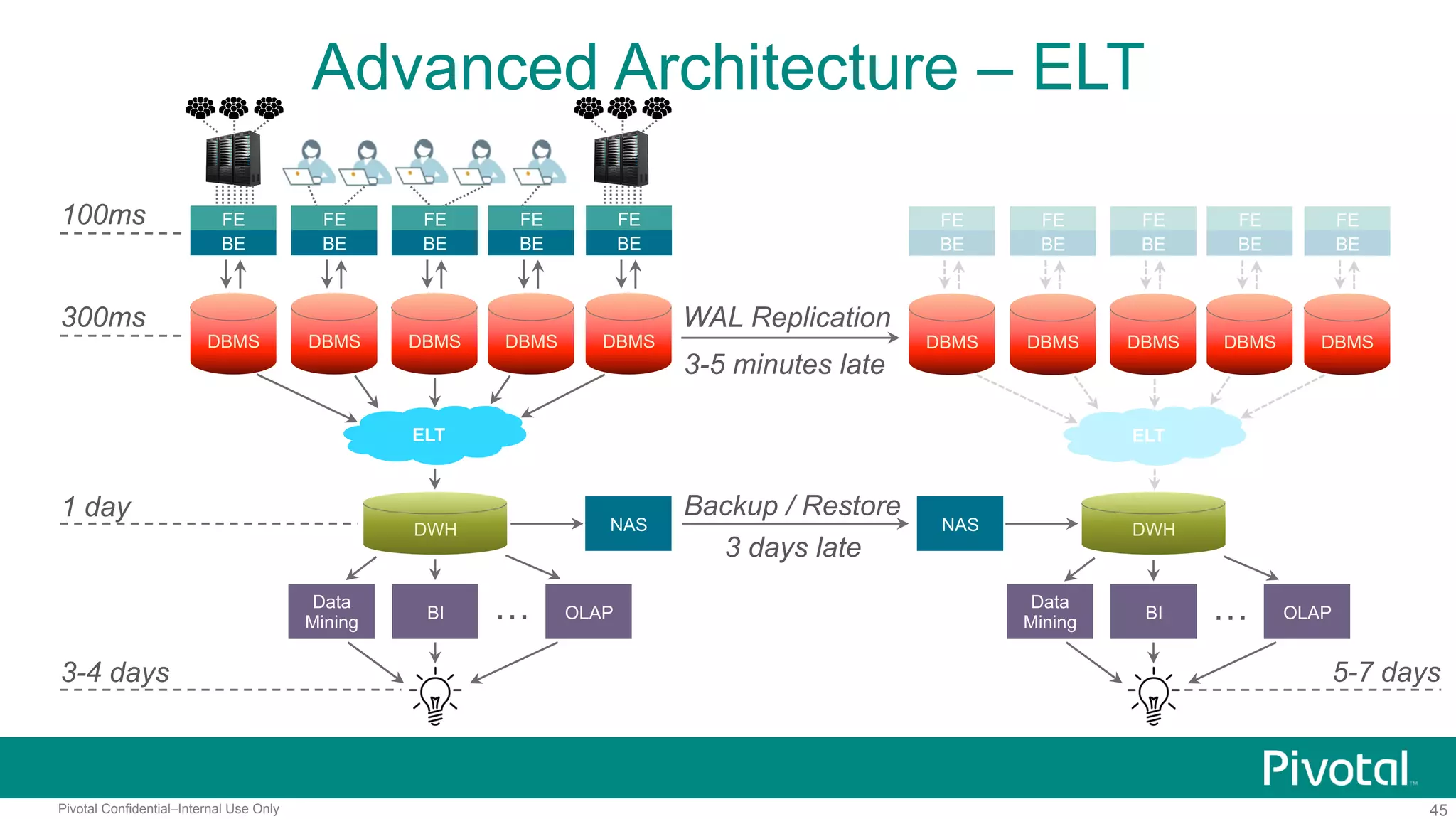

45Pivotal Confidential–Internal Use Only ELT Advanced Architecture – ELT 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS

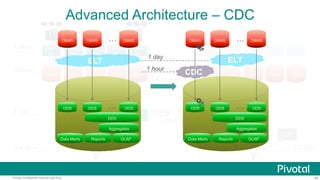

46Pivotal Confidential–Internal Use Only ELT Advanced Architecture – CDC 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS DBMS DBMS DBMS… ELT DDS Data Marts Reports Aggregates OLAP ODS ODS ODS… DBMS DBMS DBMS… ELT DDS Data Marts Reports Aggregates OLAP ODS ODS ODS… CDC 1 day 1 hour

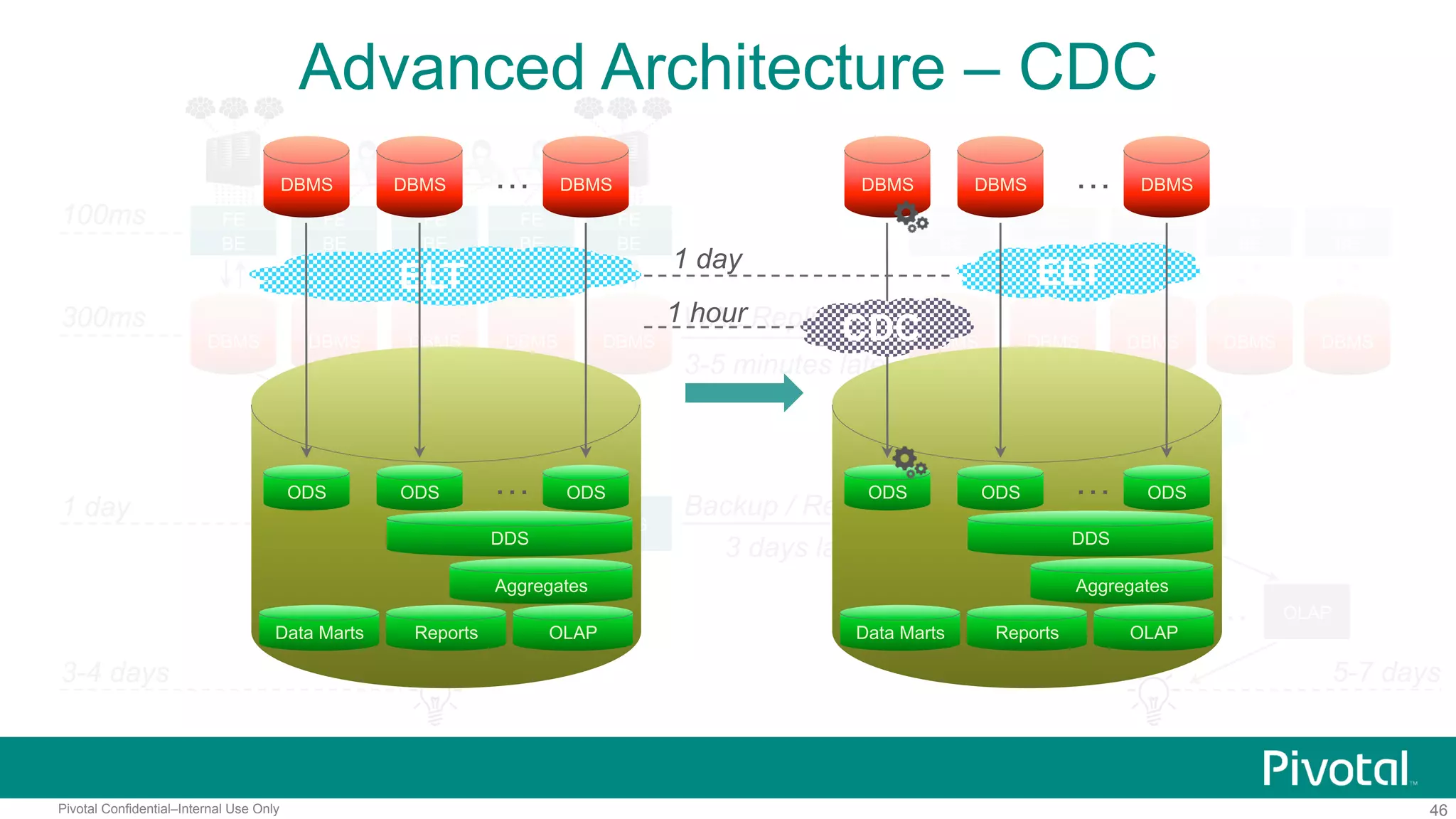

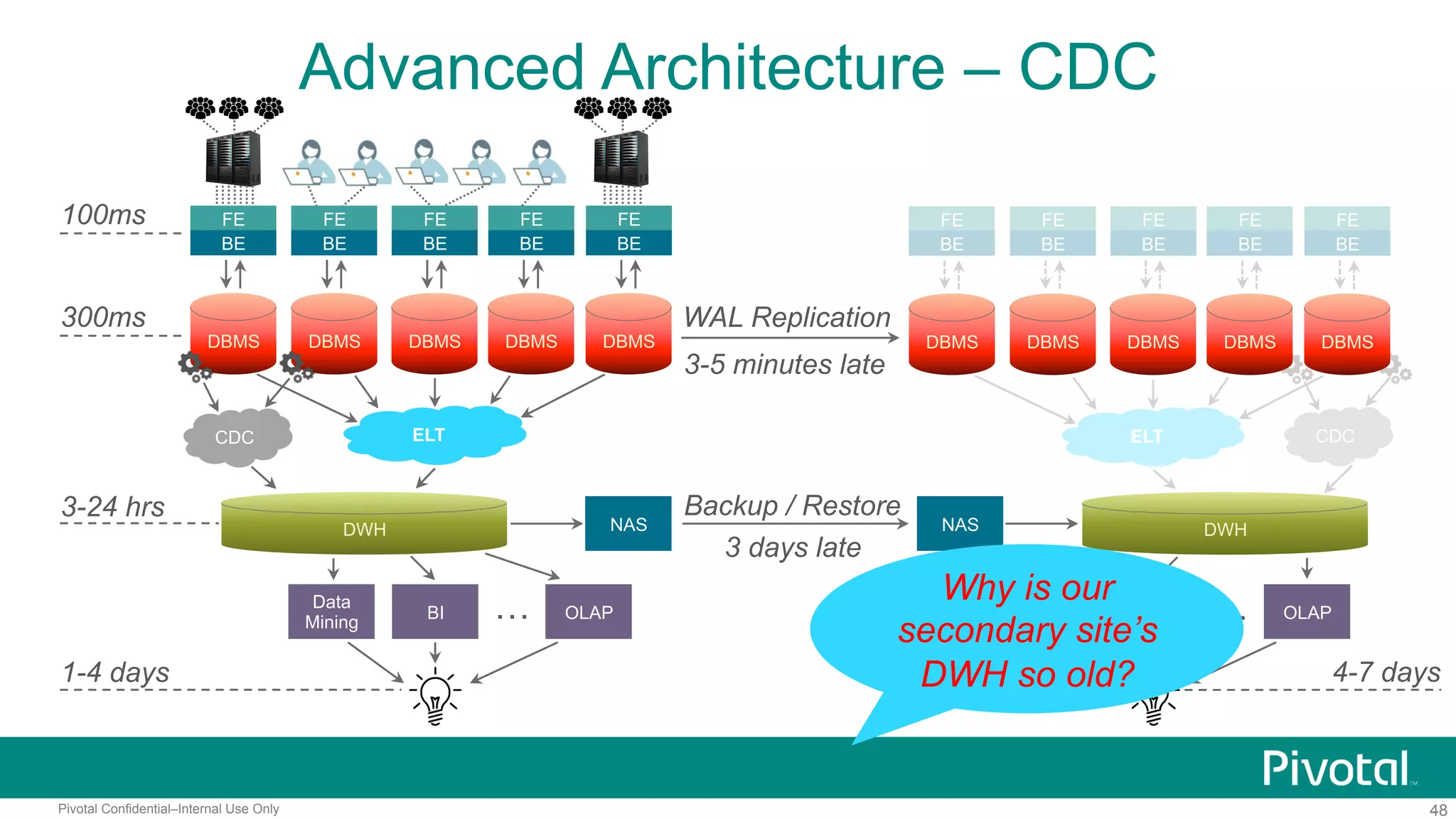

47Pivotal Confidential–Internal Use Only ELT CDC Advanced Architecture – CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH
48Pivotal Confidential–Internal Use Only ELT CDC Advanced Architecture – CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Why is our secondary site’s DWH so old?
49Pivotal Confidential–Internal Use Only ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Moving Forward

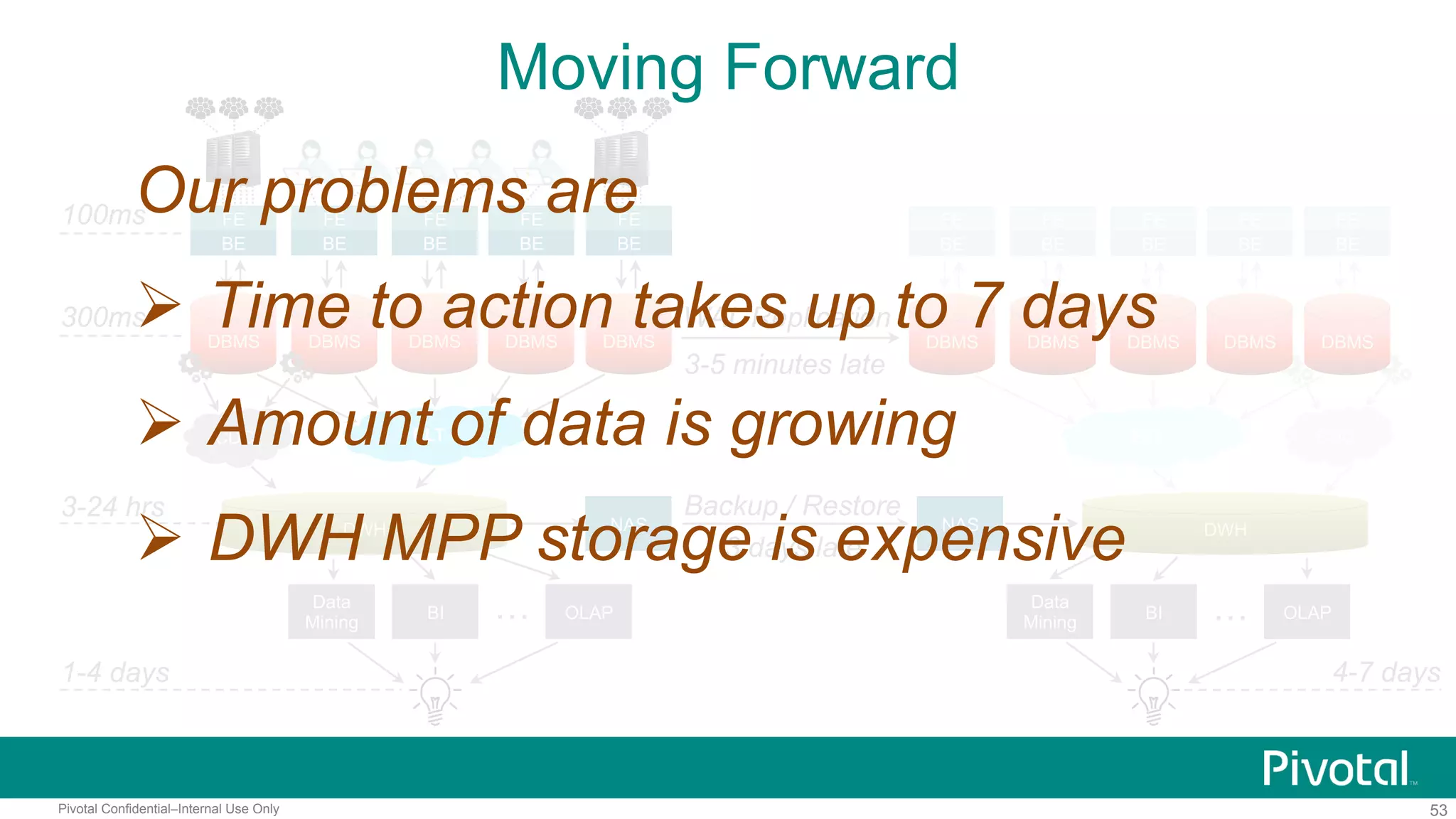

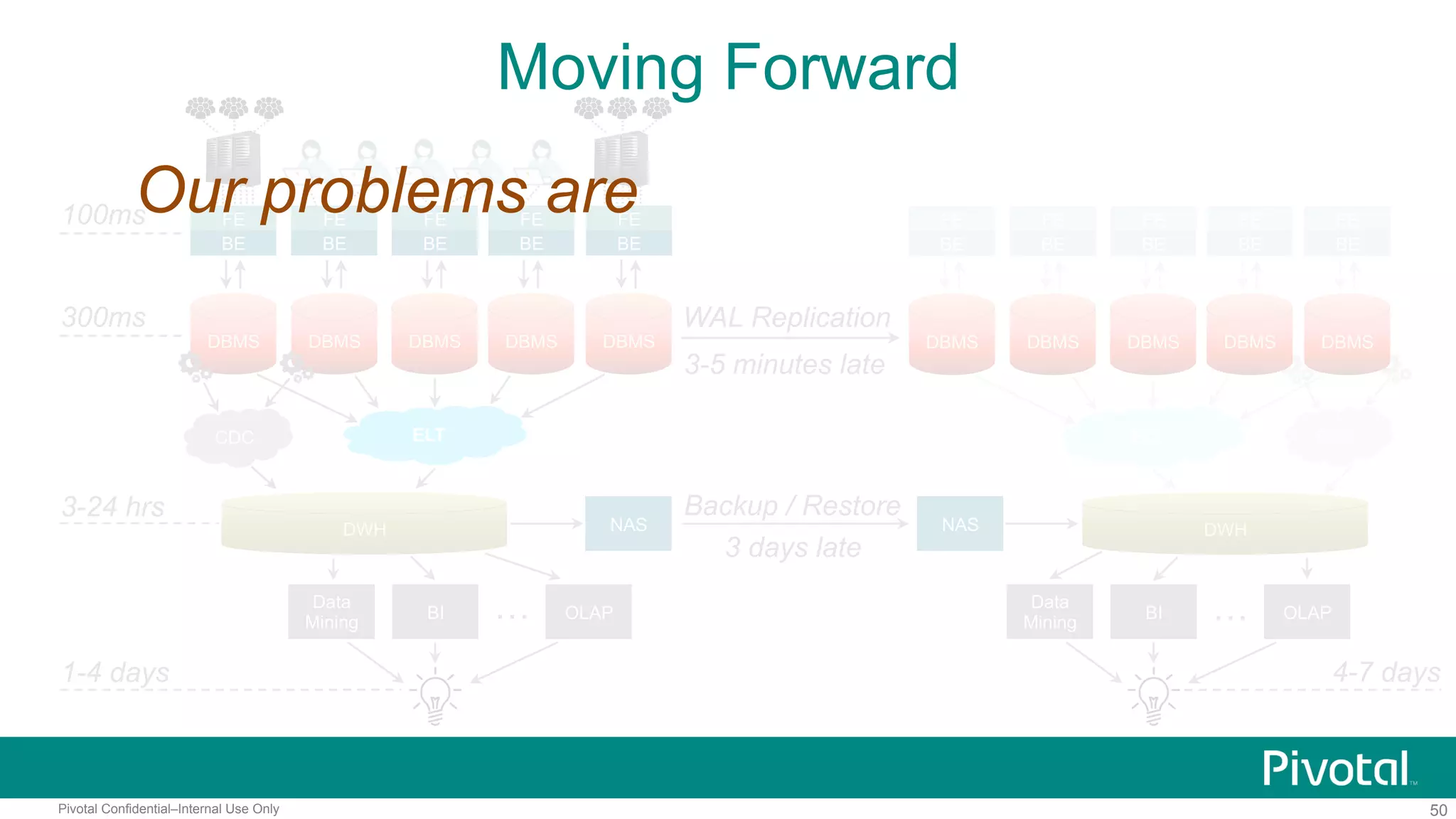

50Pivotal Confidential–Internal Use Only ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are Moving Forward

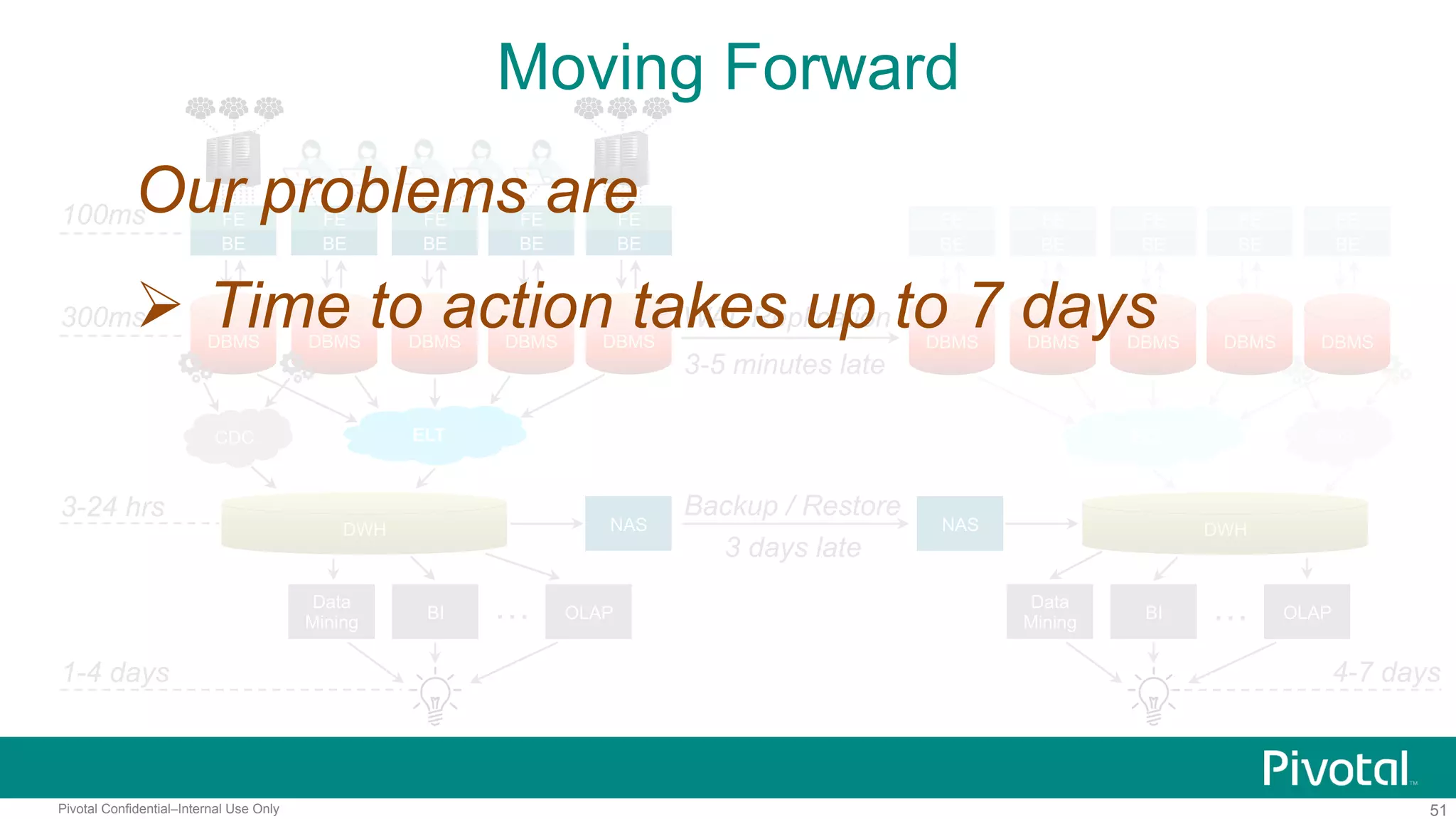

51Pivotal Confidential–Internal Use Only ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days Moving Forward

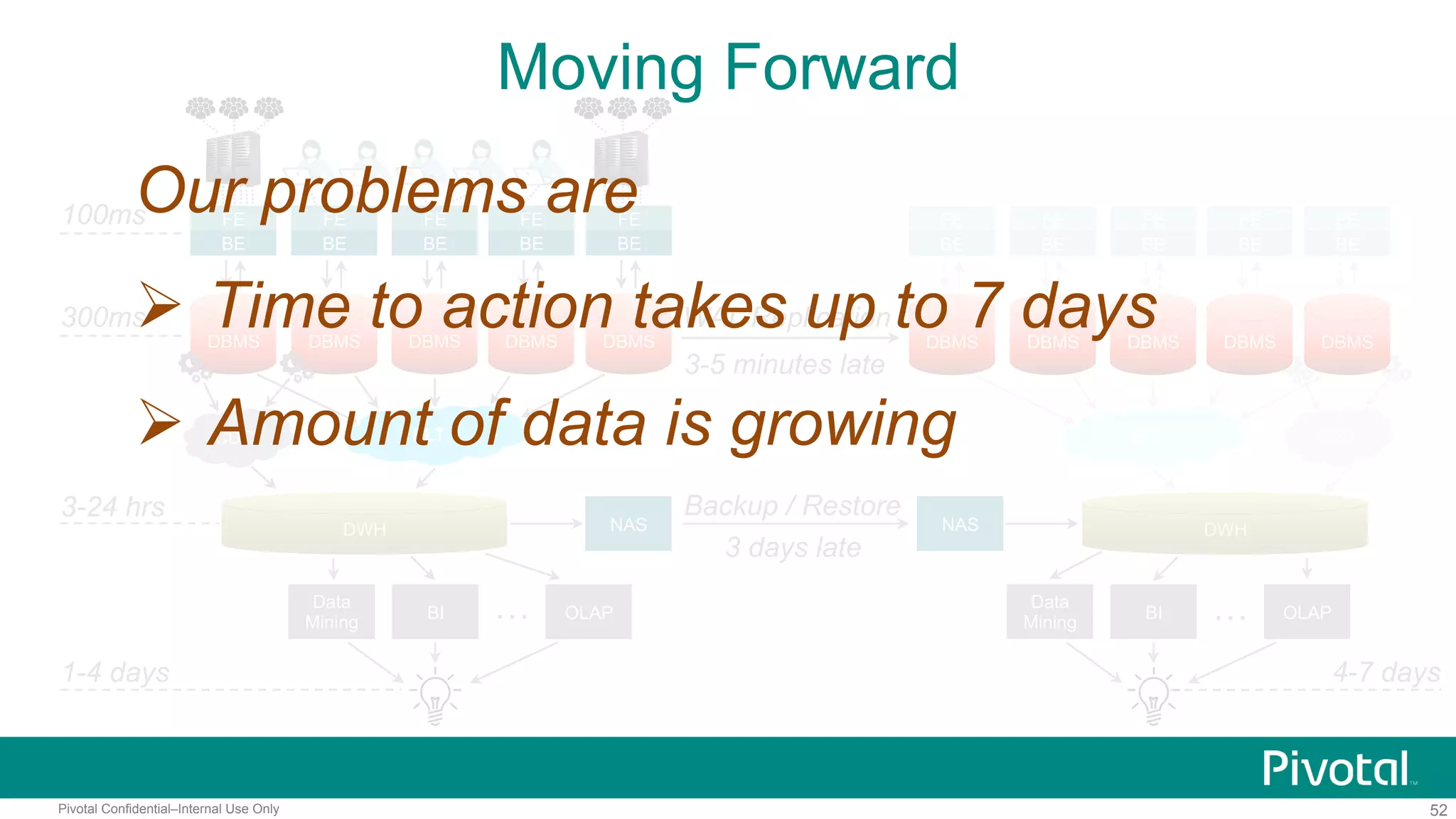

52Pivotal Confidential–Internal Use Only ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days  Amount of data is growing Moving Forward
53Pivotal Confidential–Internal Use Only ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days  Amount of data is growing  DWH MPP storage is expensive Moving Forward

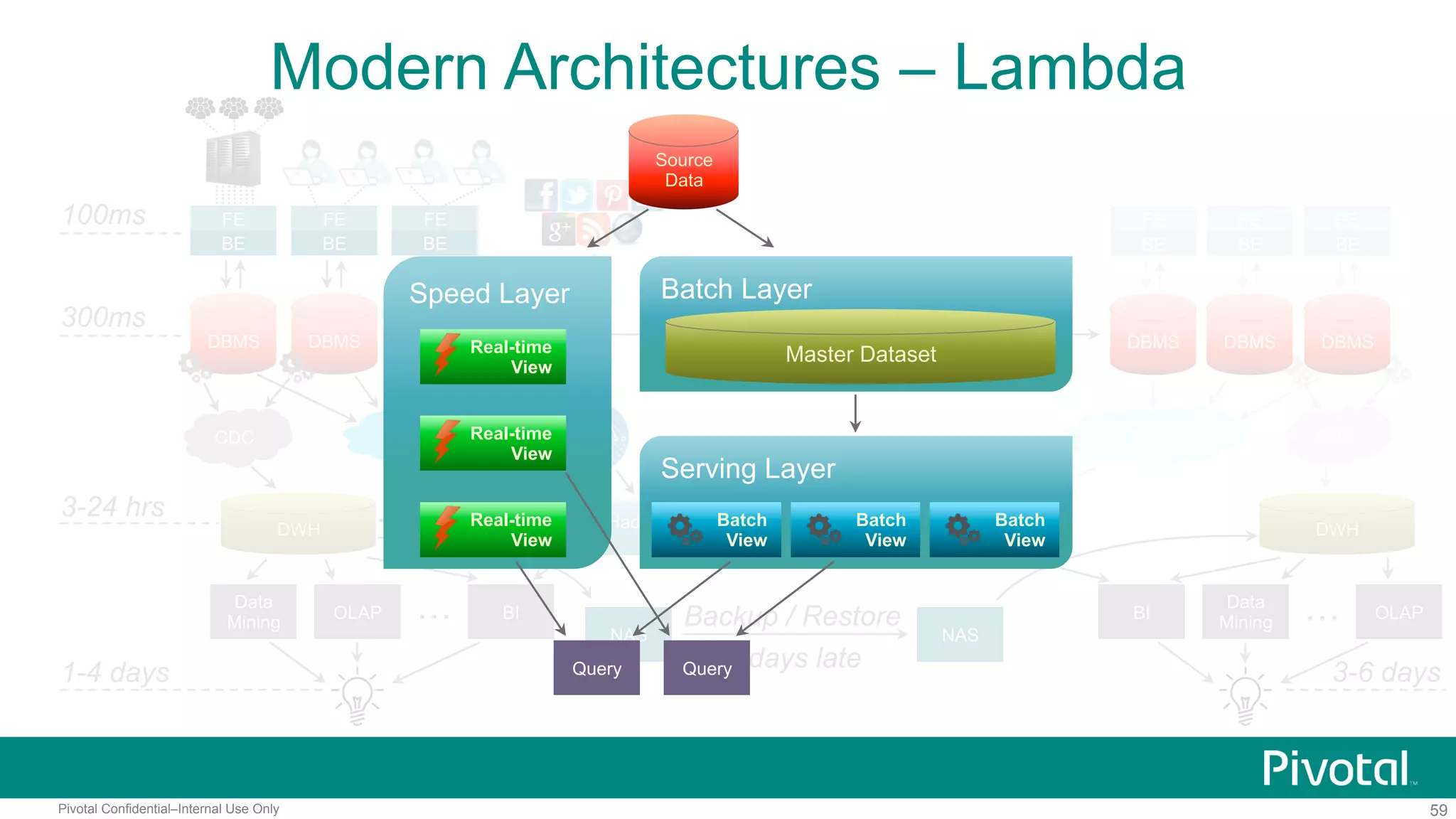

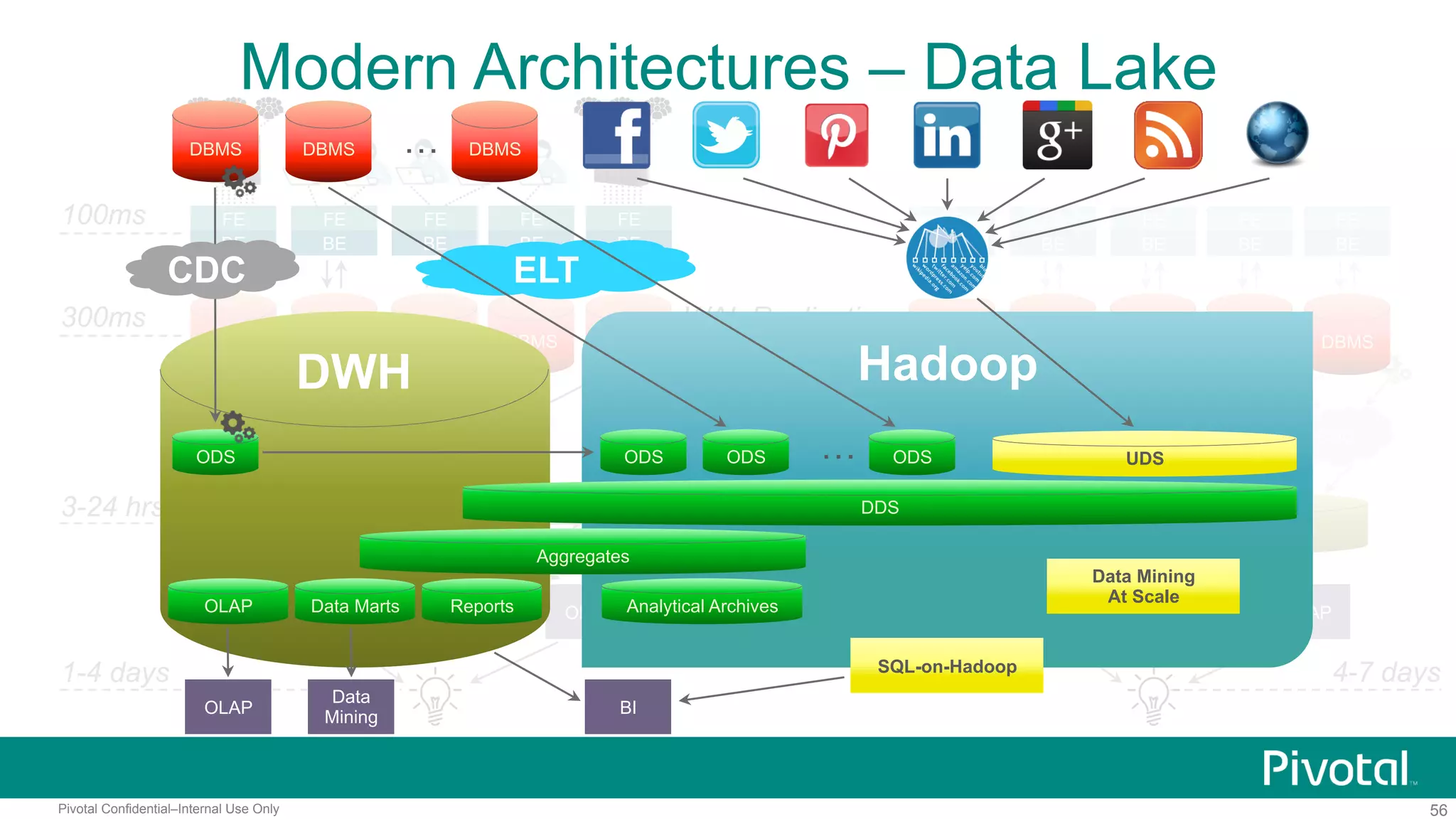

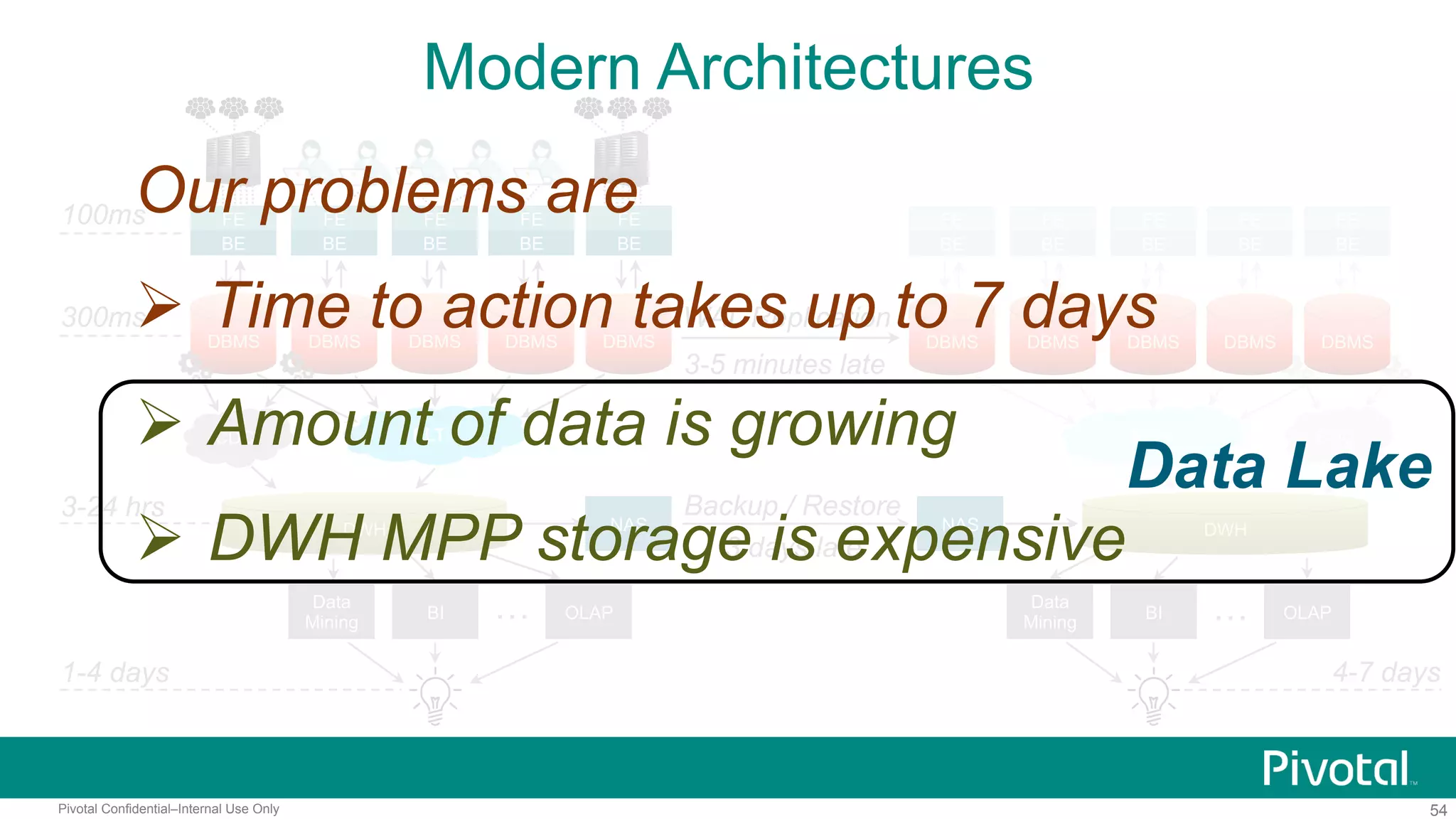

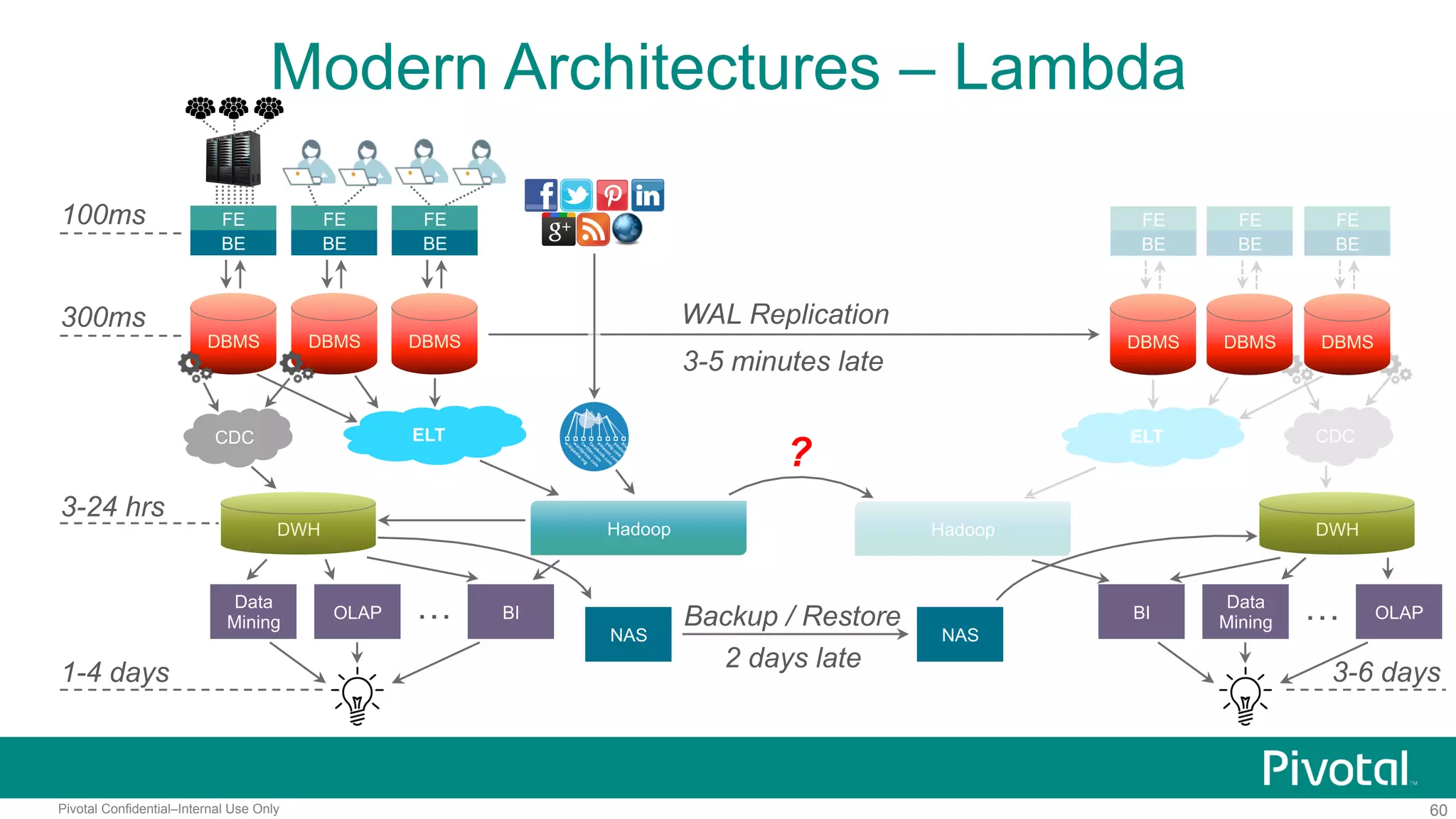

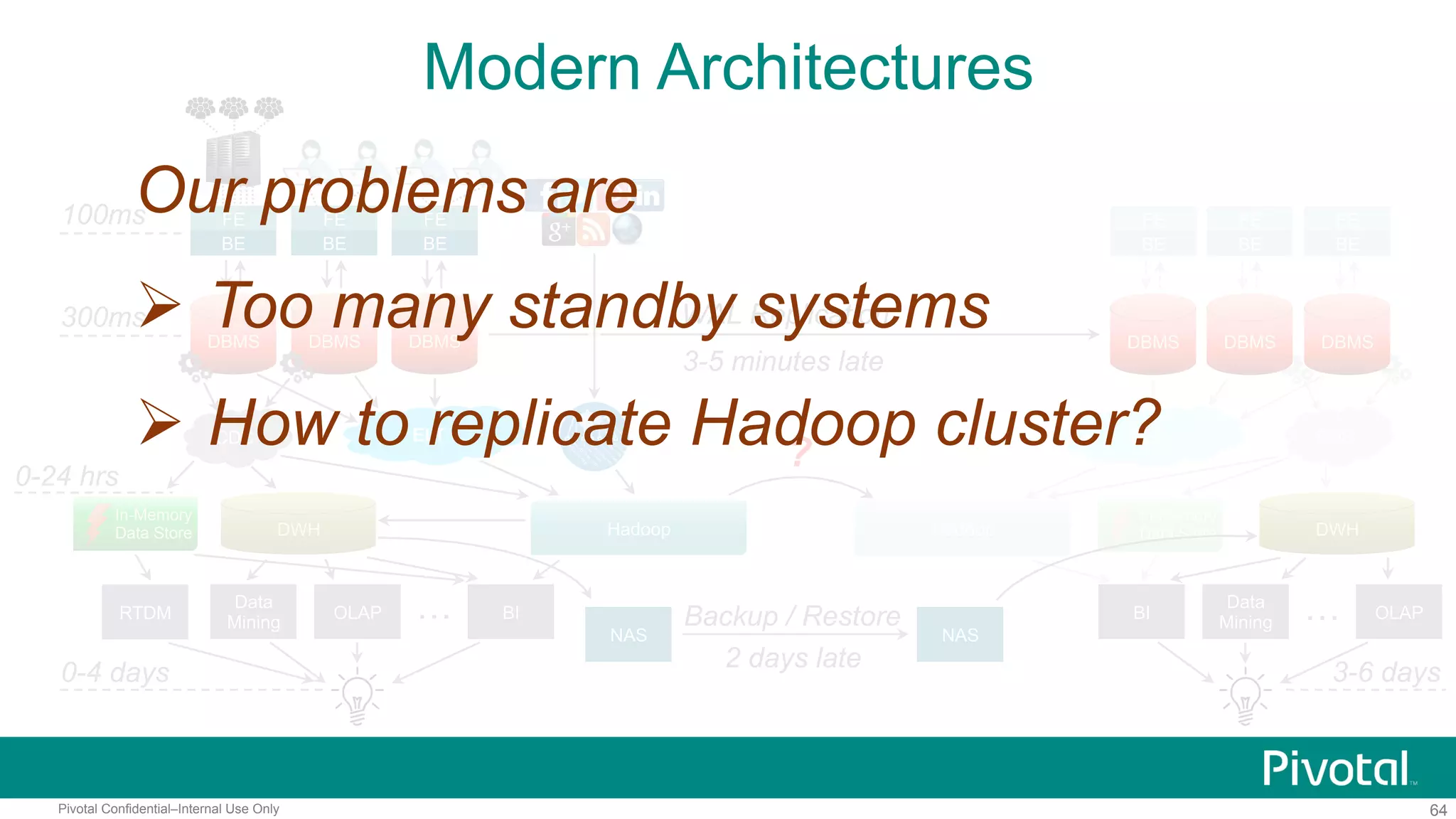

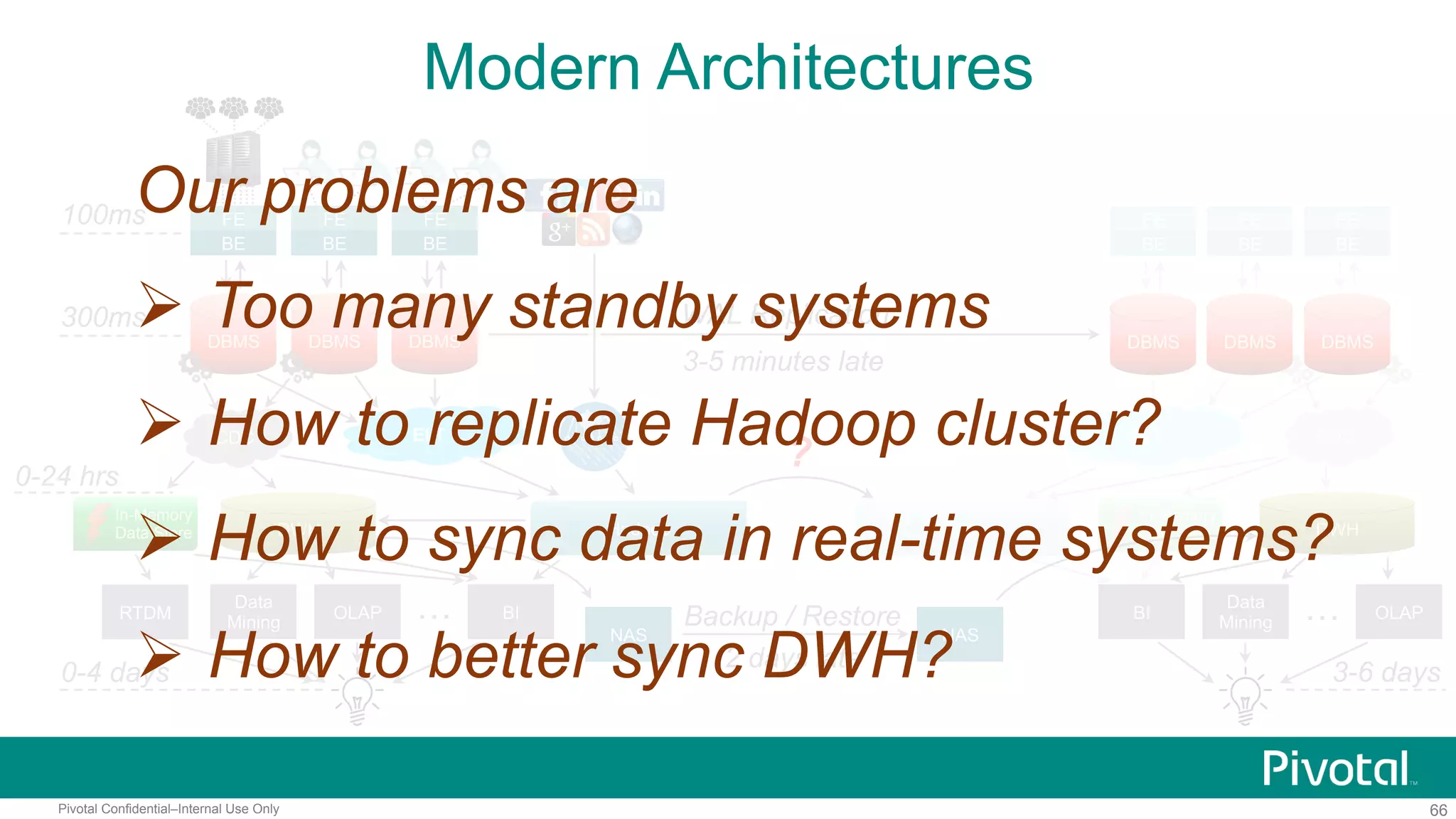

54Pivotal Confidential–Internal Use Only ELT CDC Modern Architectures 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days  Amount of data is growing  DWH MPP storage is expensive Data Lake

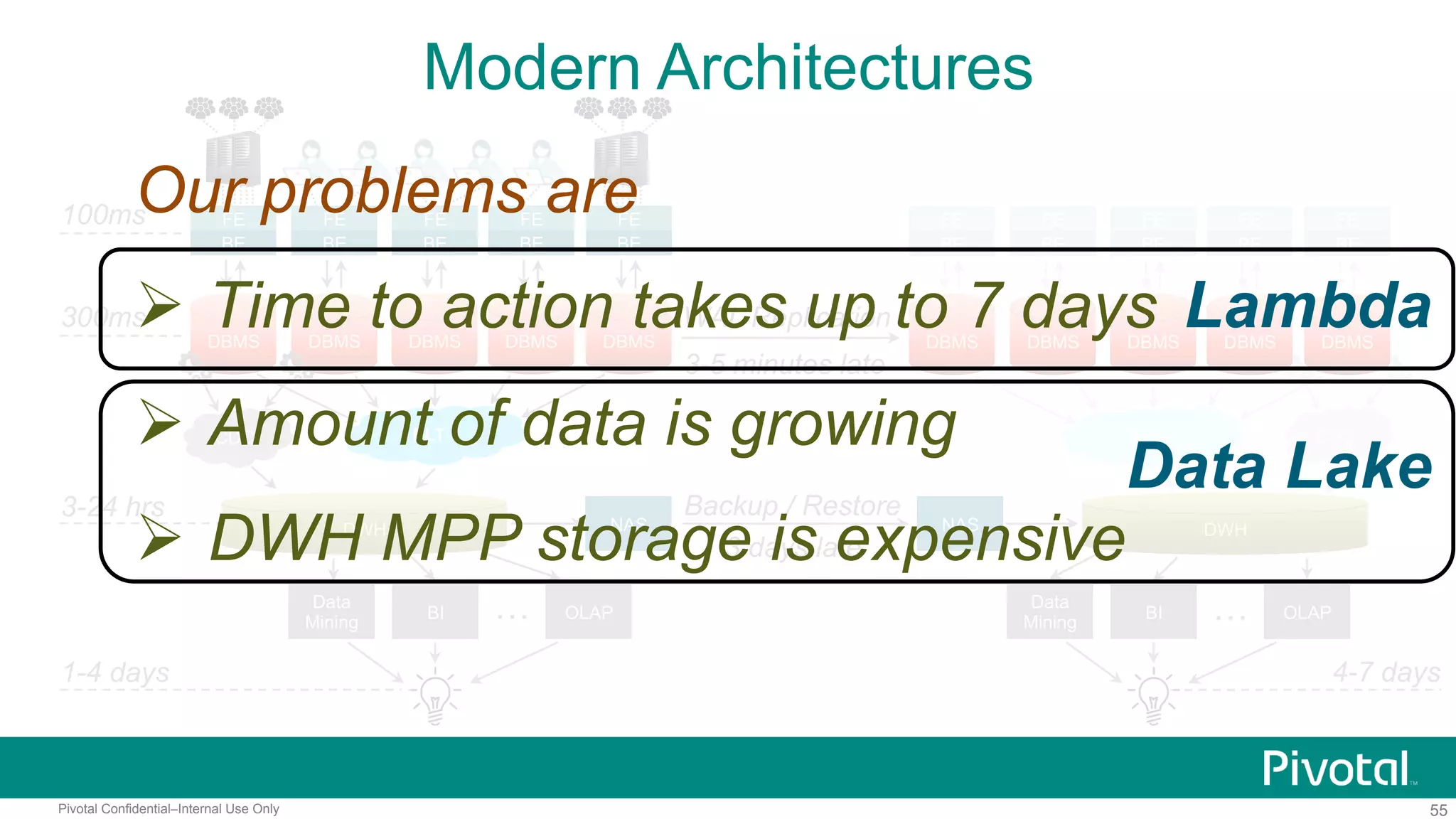

55Pivotal Confidential–Internal Use Only ELT CDC Modern Architectures 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days  Amount of data is growing  DWH MPP storage is expensive Lambda Data Lake
56Pivotal Confidential–Internal Use Only ELT CDC Modern Architectures – Data Lake 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Hadoop DBMS DBMS DBMS… ELT DDS OLAP Data Marts Aggregates Reports ODS ODS ODS… CDC DWH ODS UDS Analytical Archives BI Data Mining OLAP SQL-on-Hadoop Data Mining At Scale

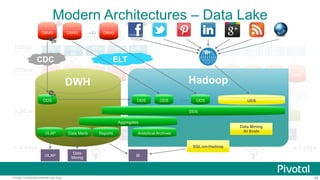

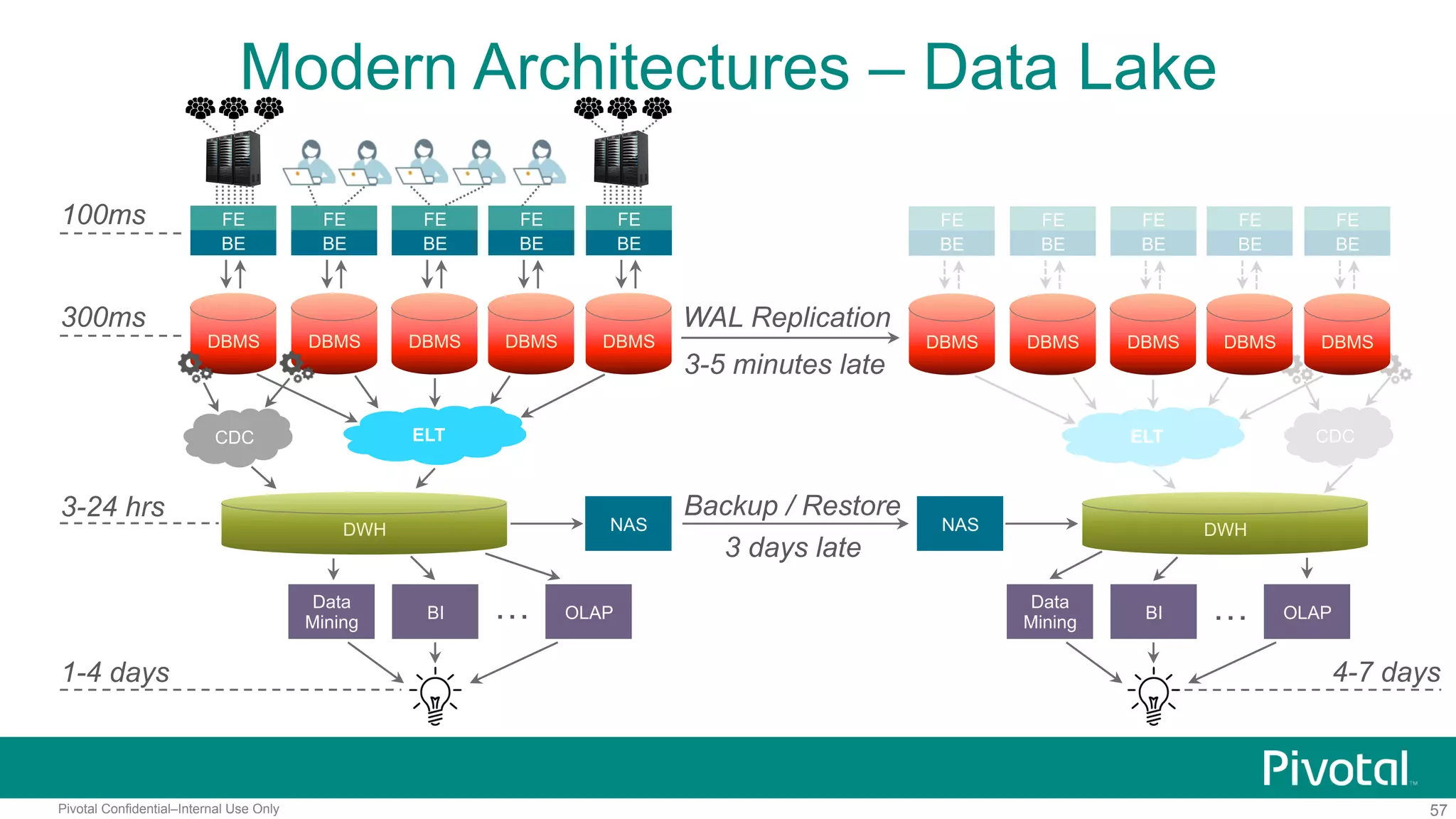

57Pivotal Confidential–Internal Use Only ELT CDC Modern Architectures – Data Lake 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH
58Pivotal Confidential–Internal Use Only ELT CDC Modern Architectures – Data Lake 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late Data Mining BI OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ?
59Pivotal Confidential–Internal Use Only ELT CDC Modern Architectures – Lambda 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late Data Mining BI OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? Source Data Speed Layer Batch Layer Serving Layer Query Query Master Dataset Batch View Batch View Batch View Real-time View Real-time View Real-time View
60Pivotal Confidential–Internal Use Only ELT CDC Modern Architectures – Lambda 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late Data Mining BI OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ?

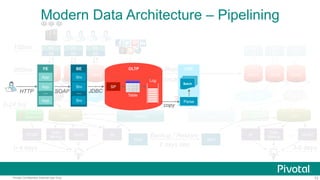

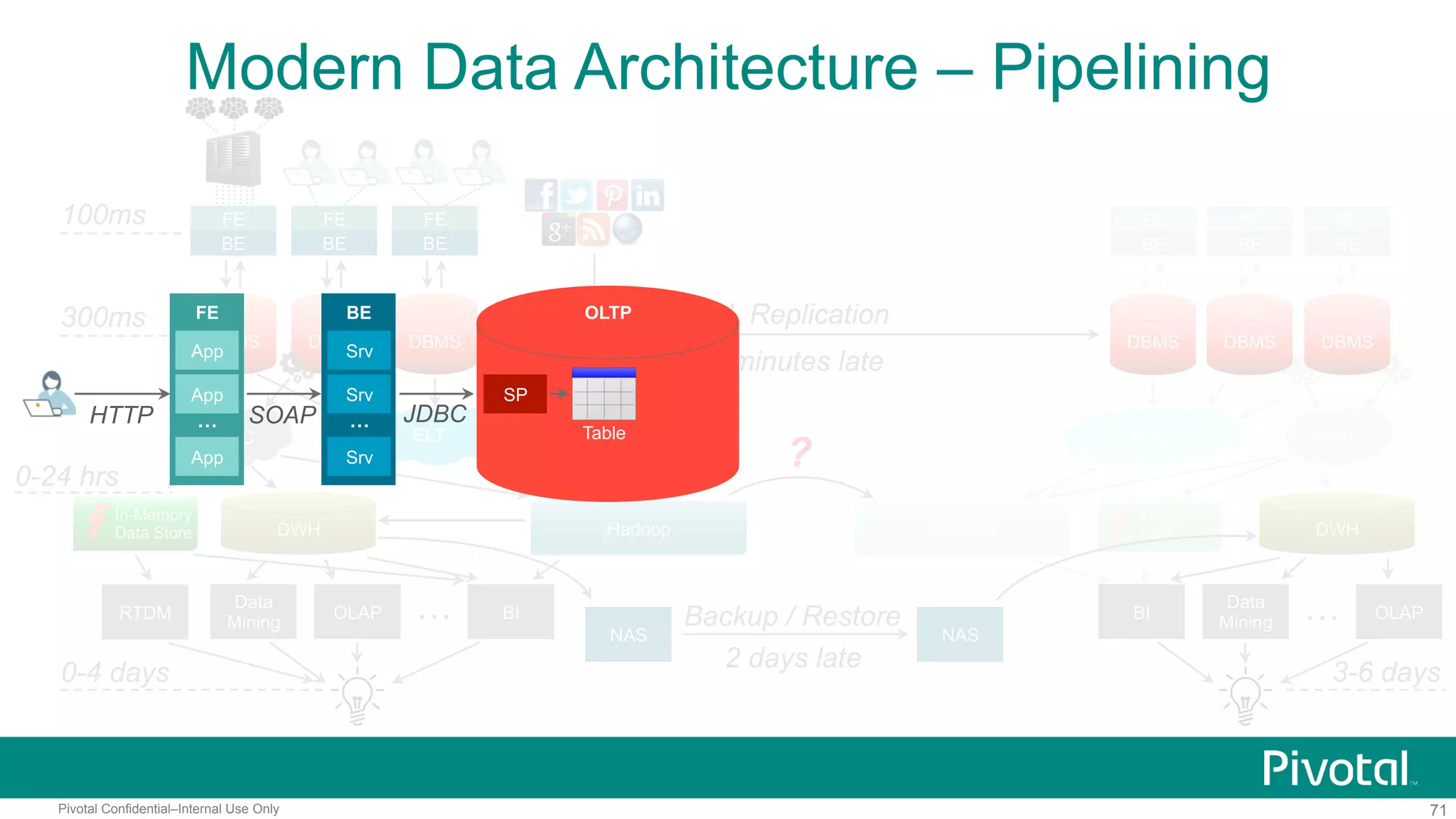

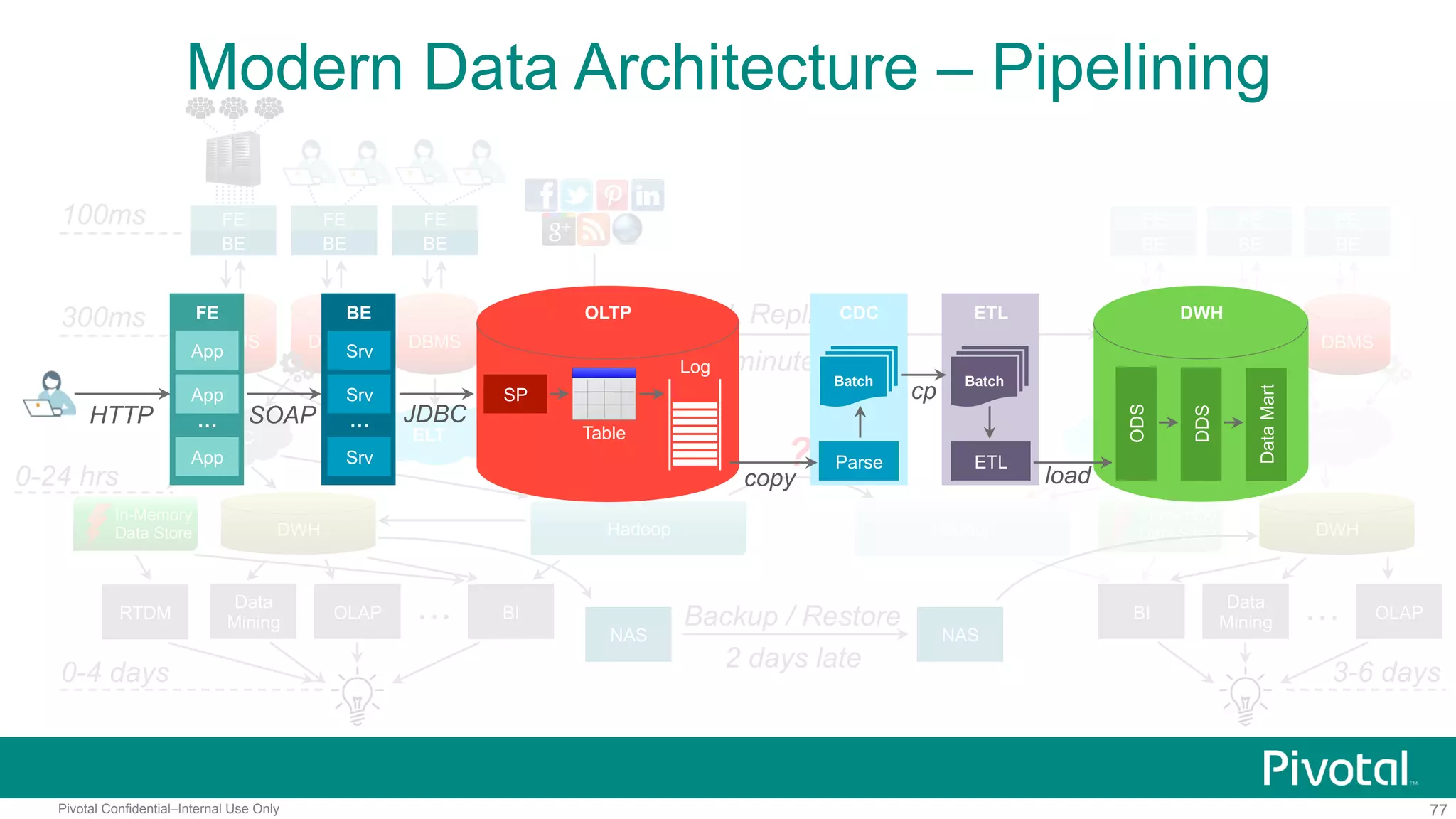

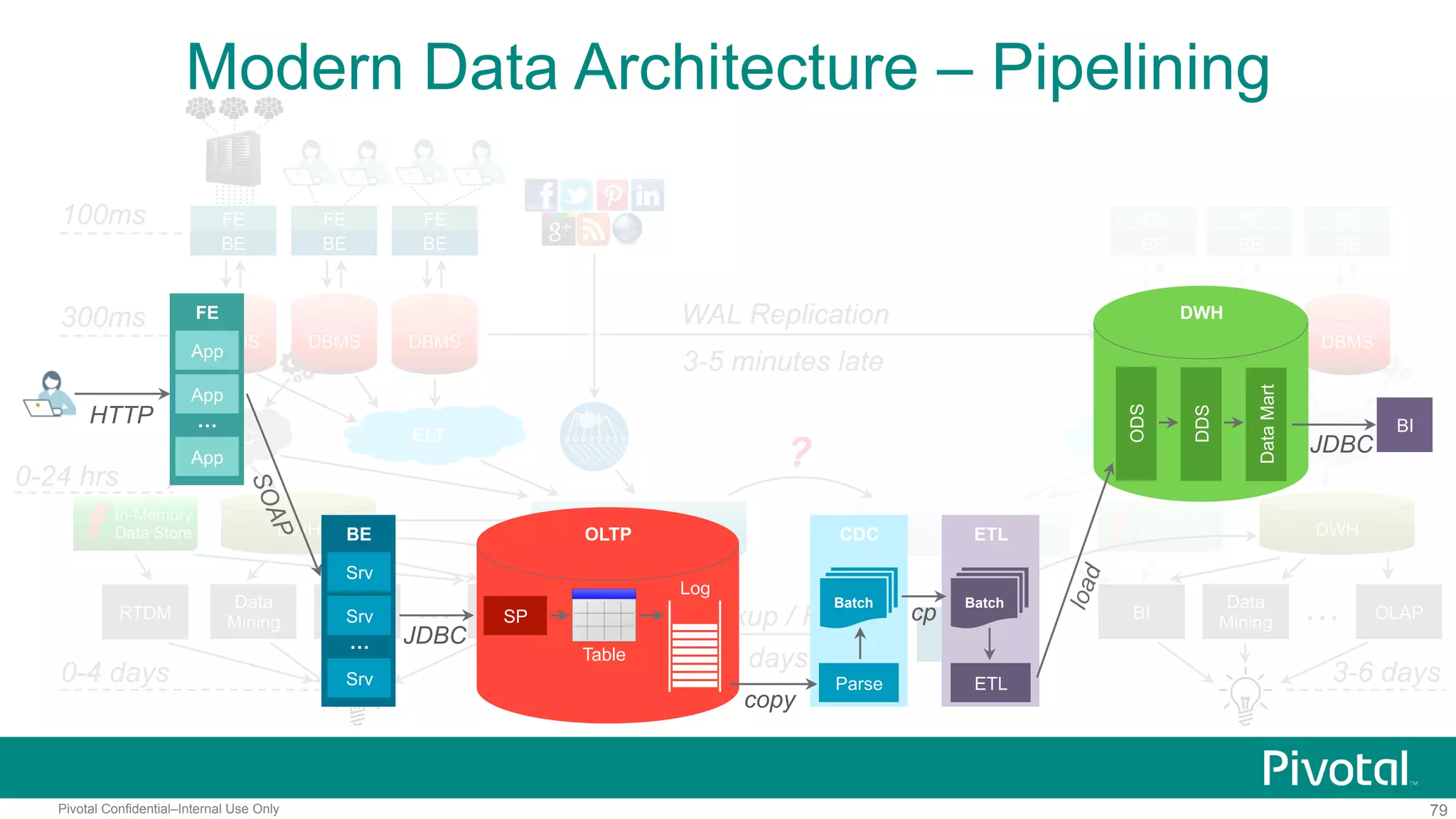

61Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC Modern Architectures – Lambda 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining
62Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are
63Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems
64Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems  How to replicate Hadoop cluster?
65Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems  How to replicate Hadoop cluster?  How to sync data in real-time systems?
66Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems  How to replicate Hadoop cluster?  How to sync data in real-time systems?  How to better sync DWH?

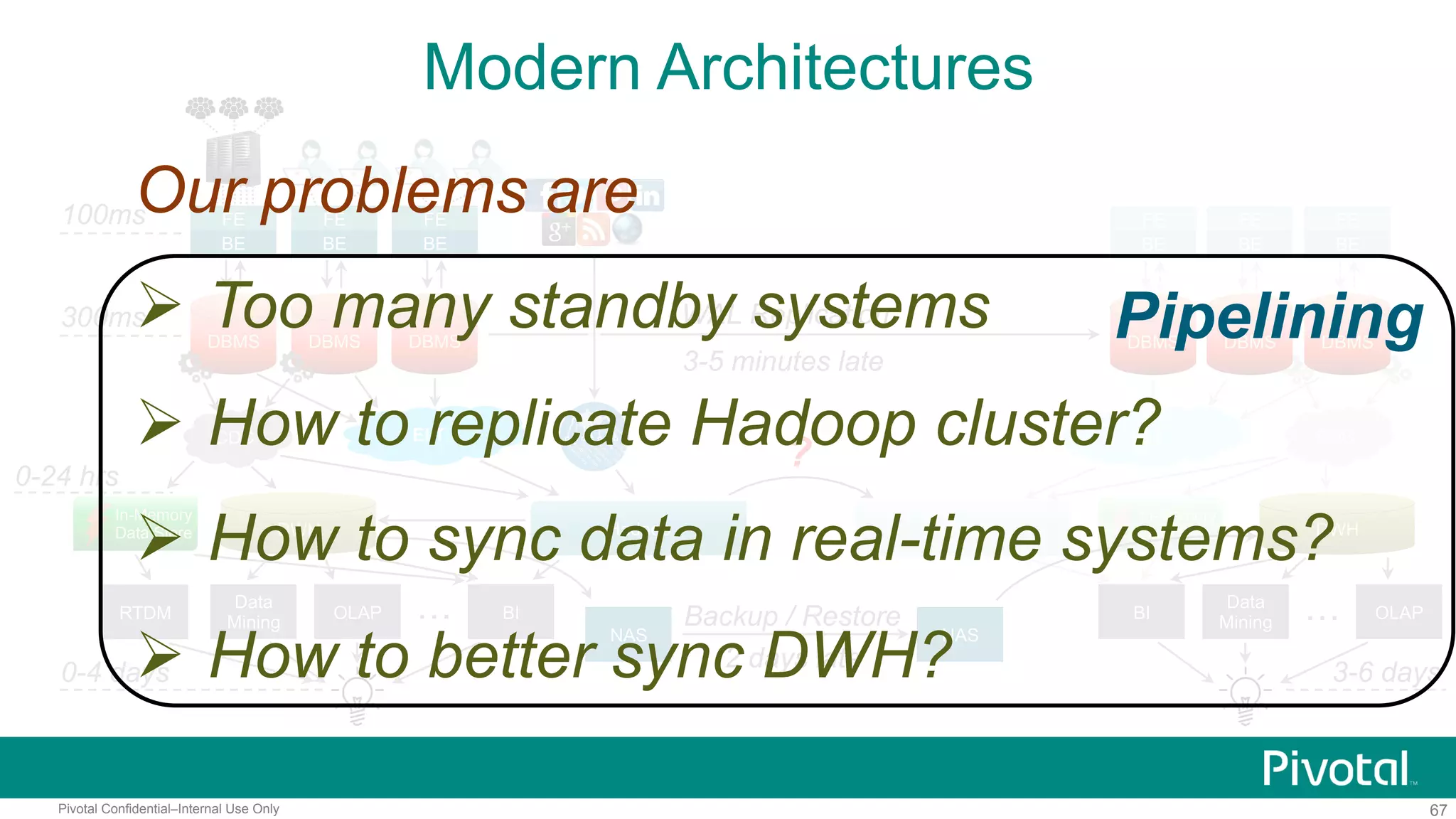

67Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems  How to replicate Hadoop cluster?  How to sync data in real-time systems?  How to better sync DWH? Pipelining
68Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining

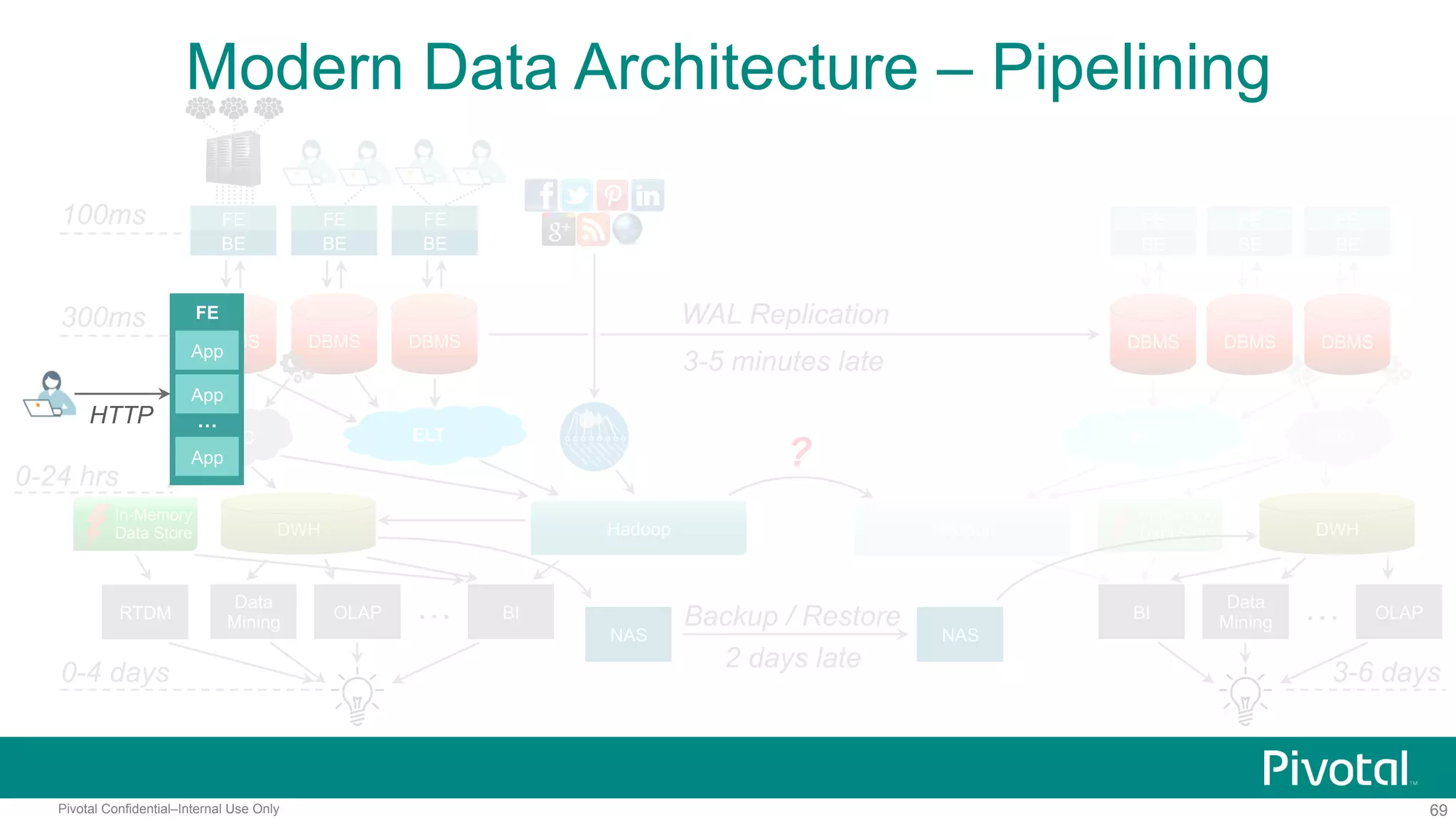

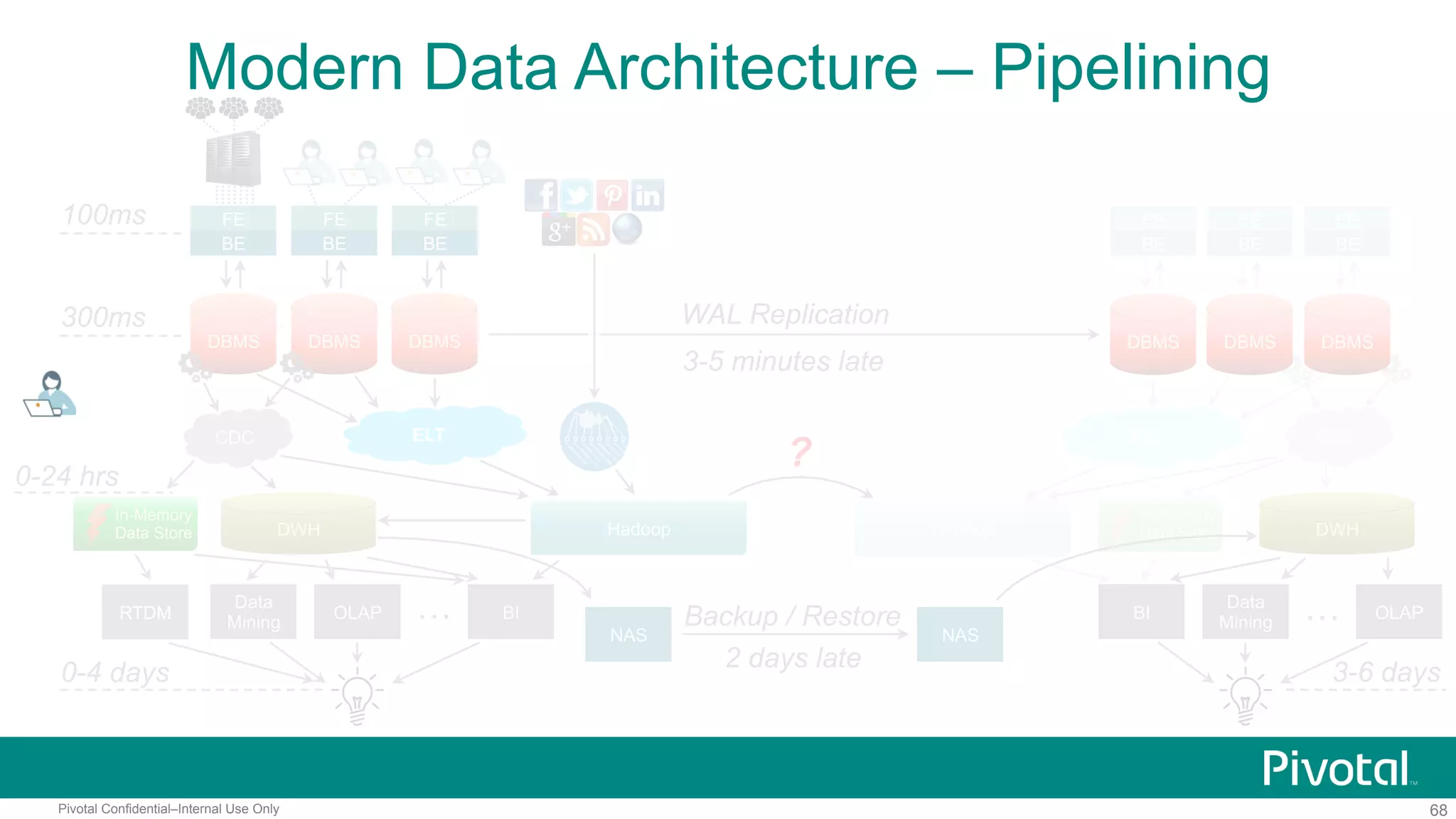

69Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP

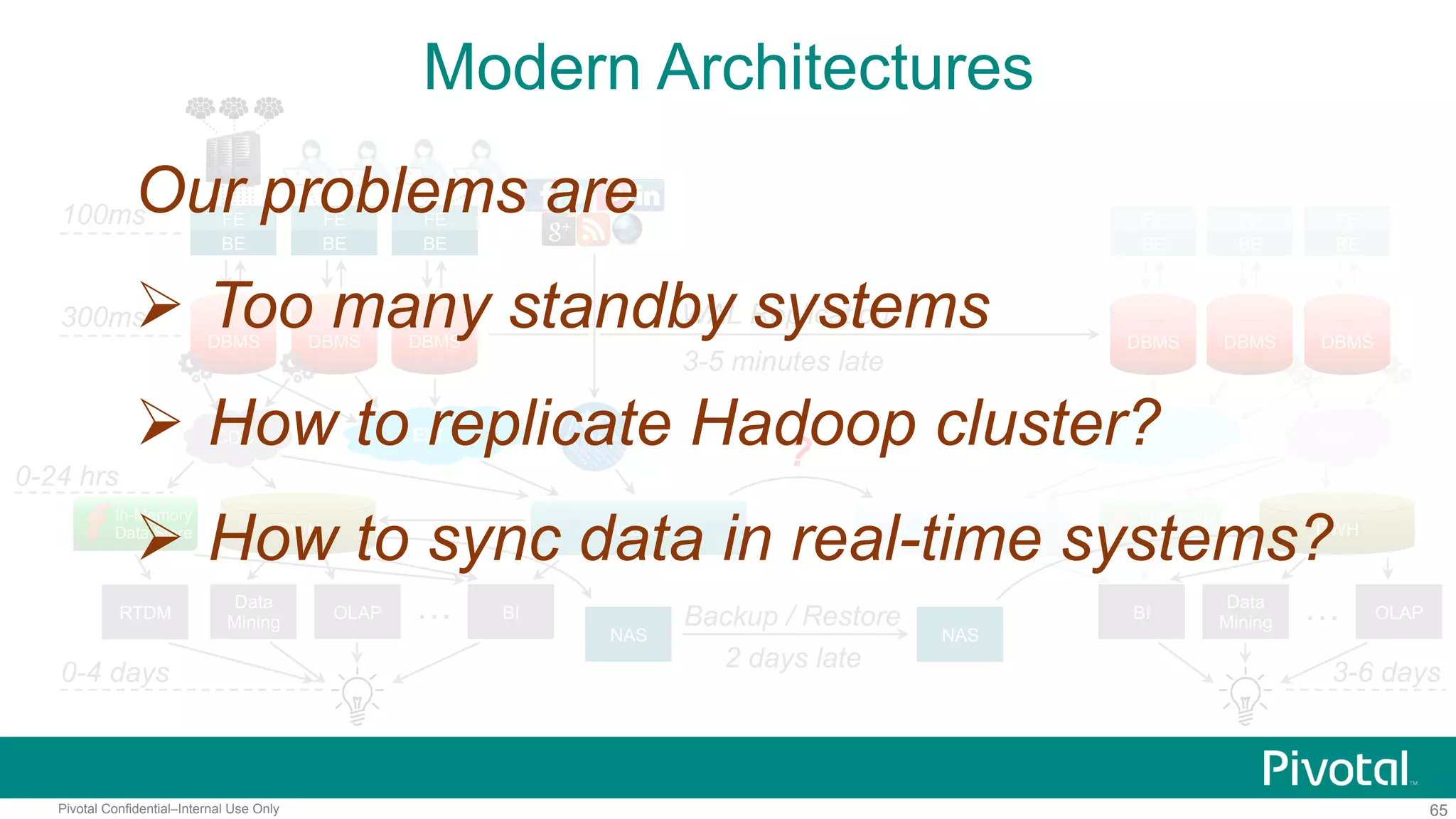

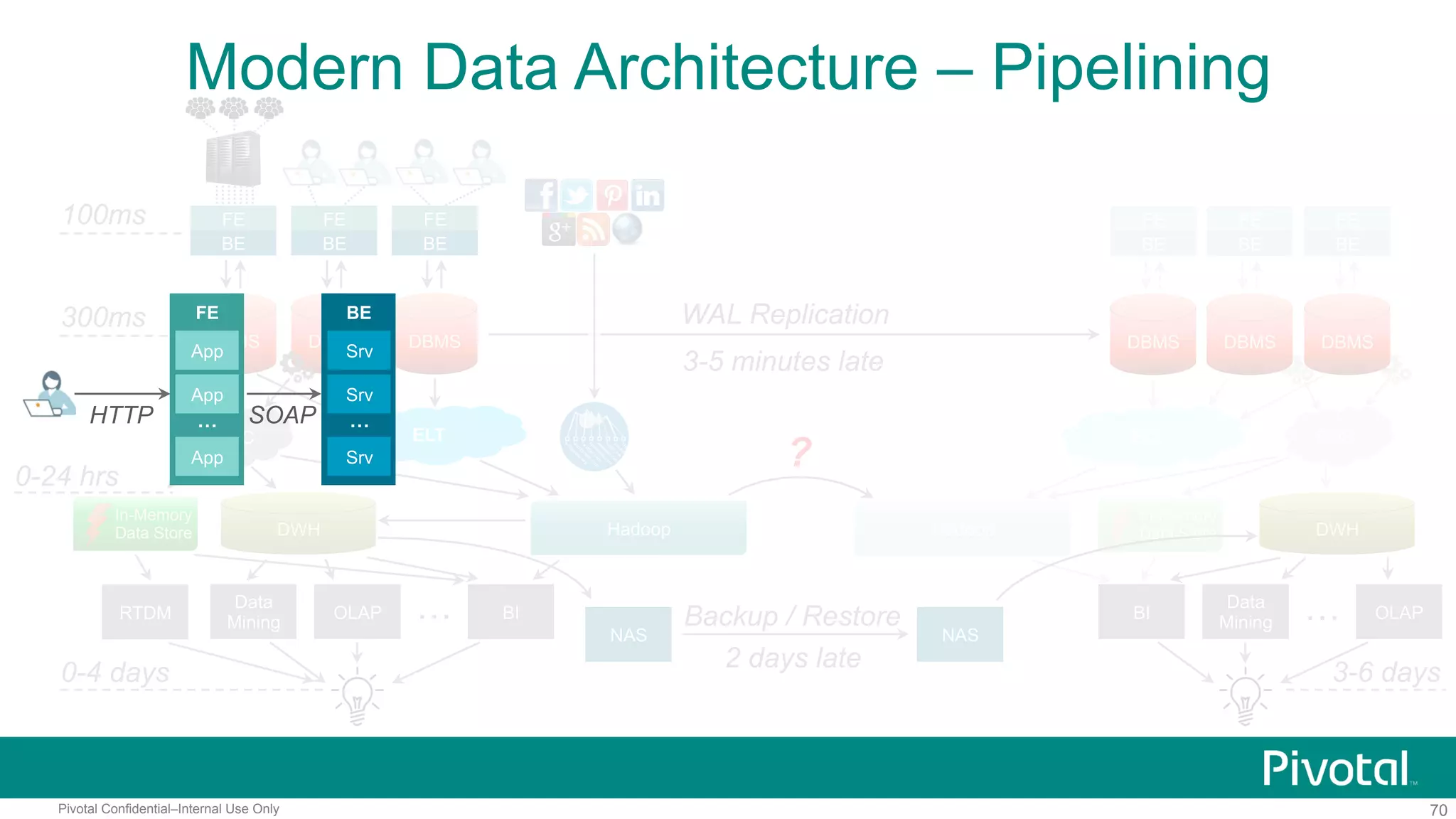

70Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP
71Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Table
72Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table

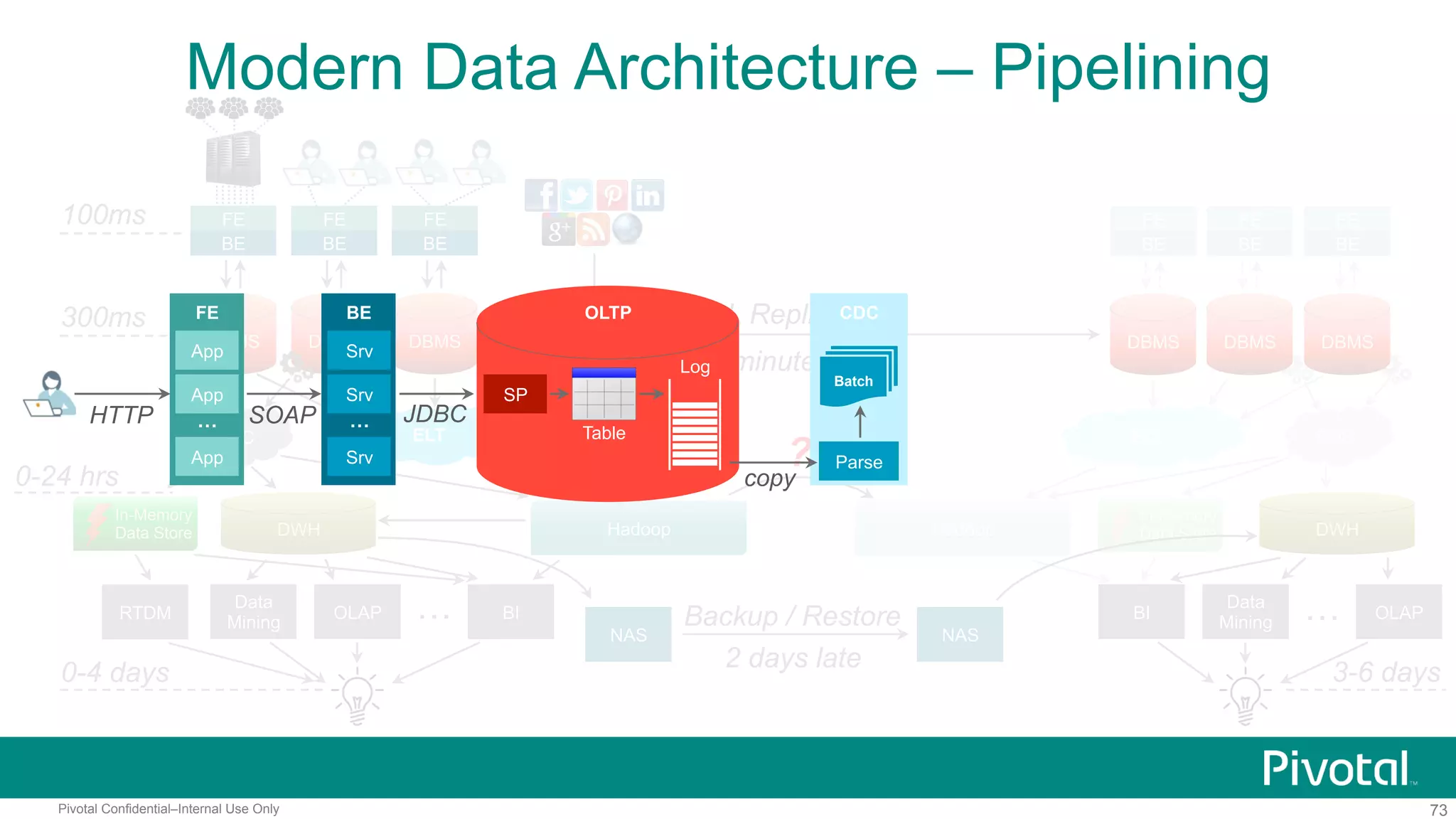

73Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch
74Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL

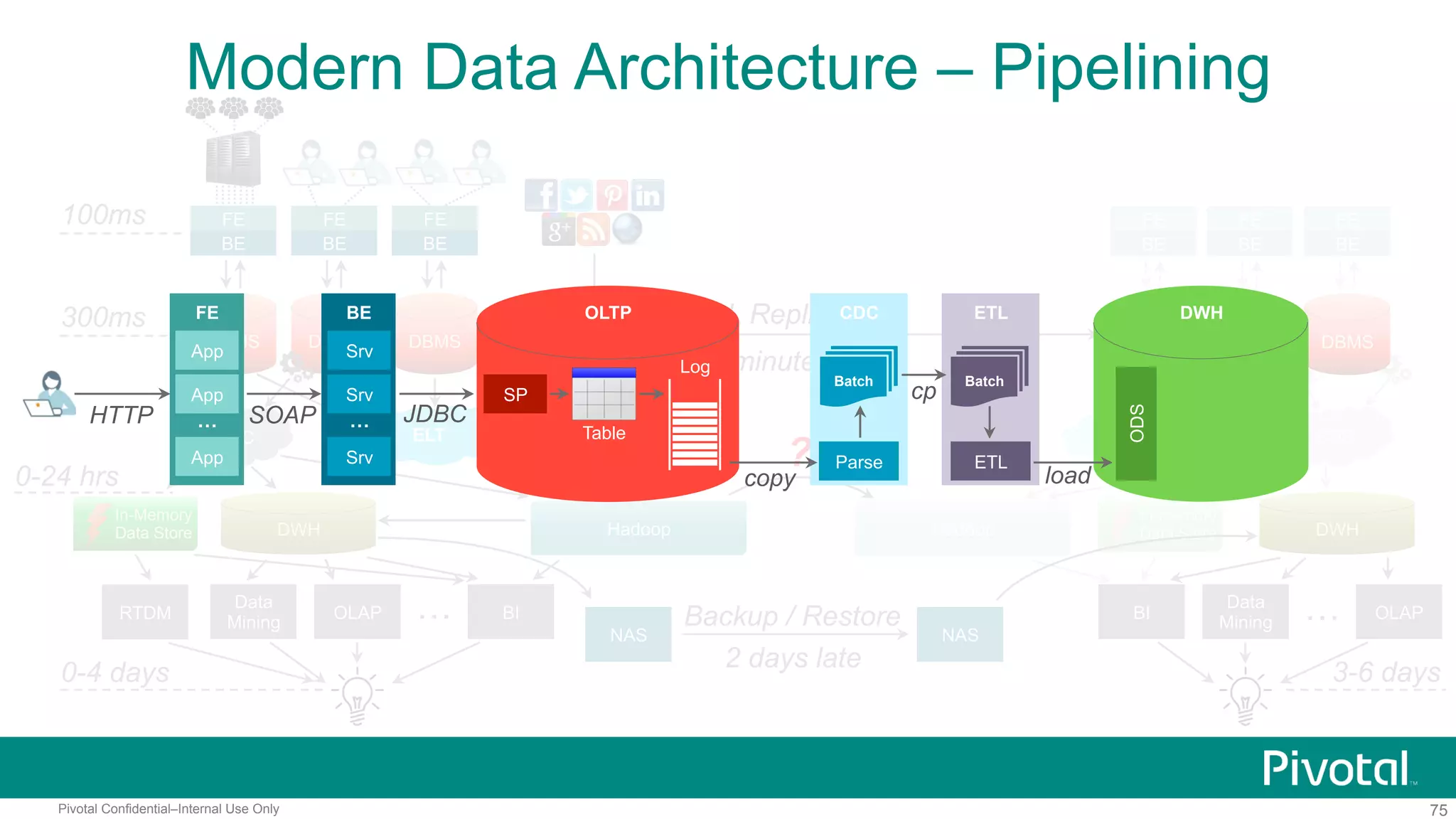

75Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL load ODS DWH

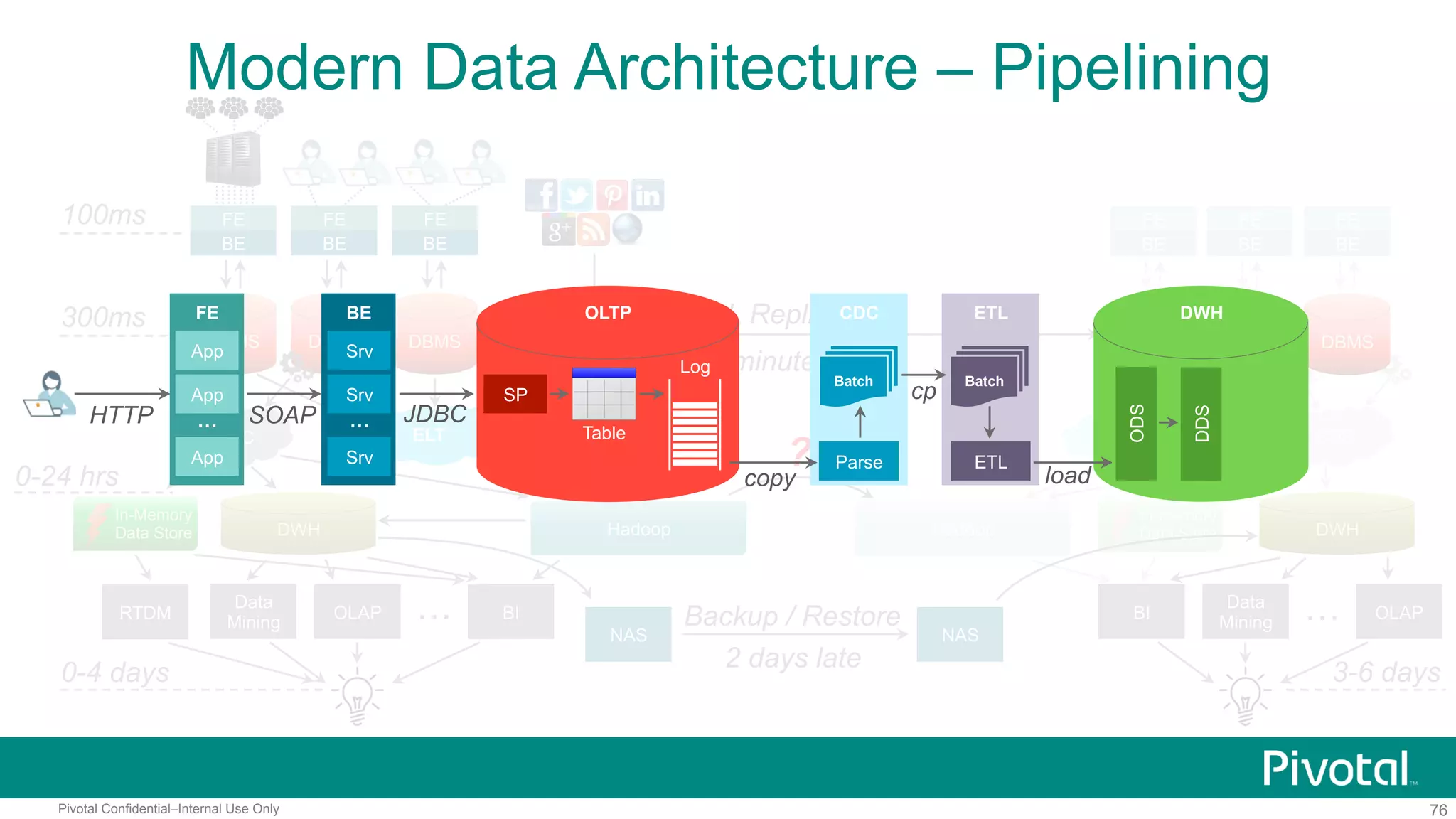

76Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL load ODS DDS DWH

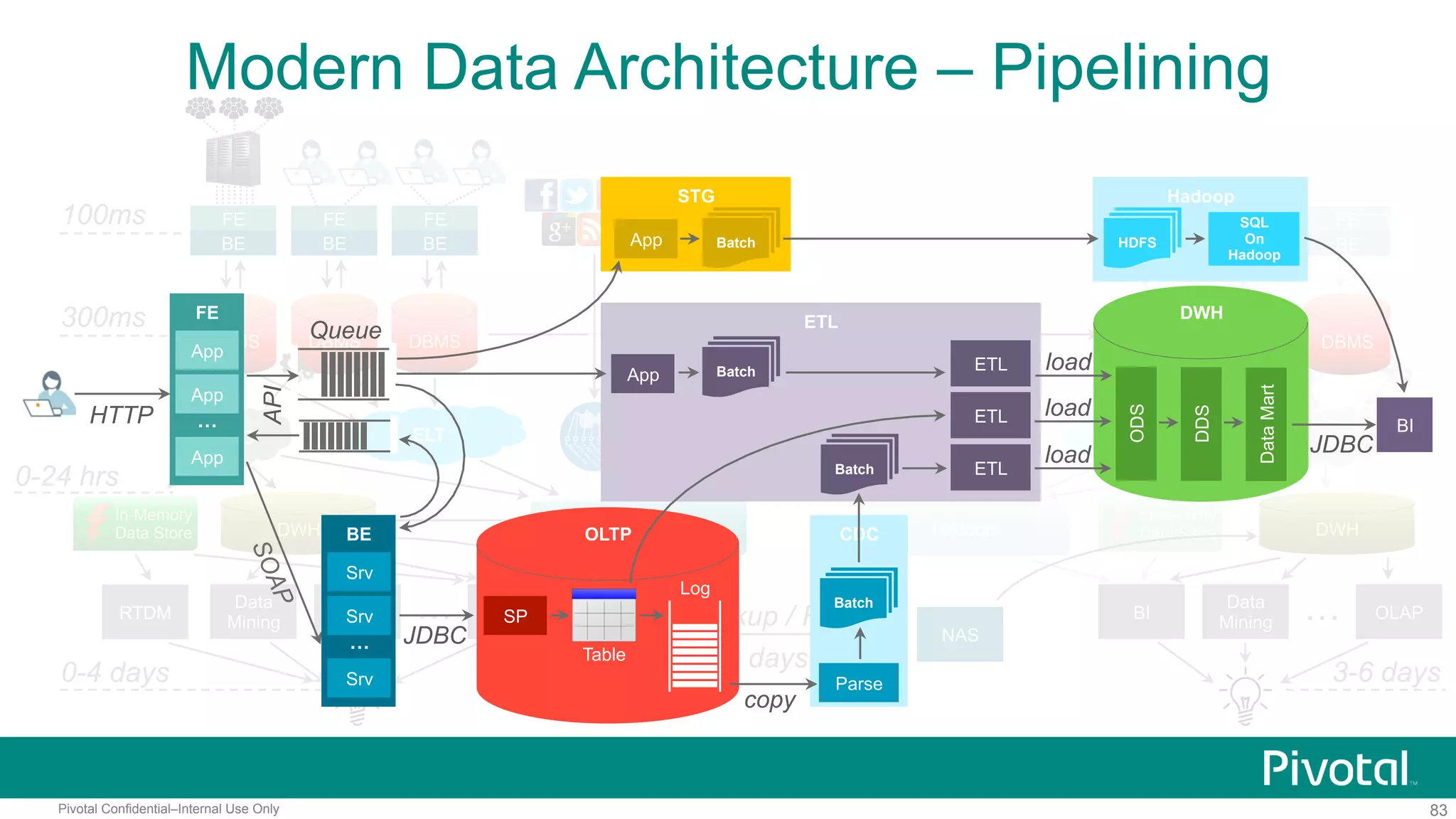

77Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL load ODS DDS DataMart DWH

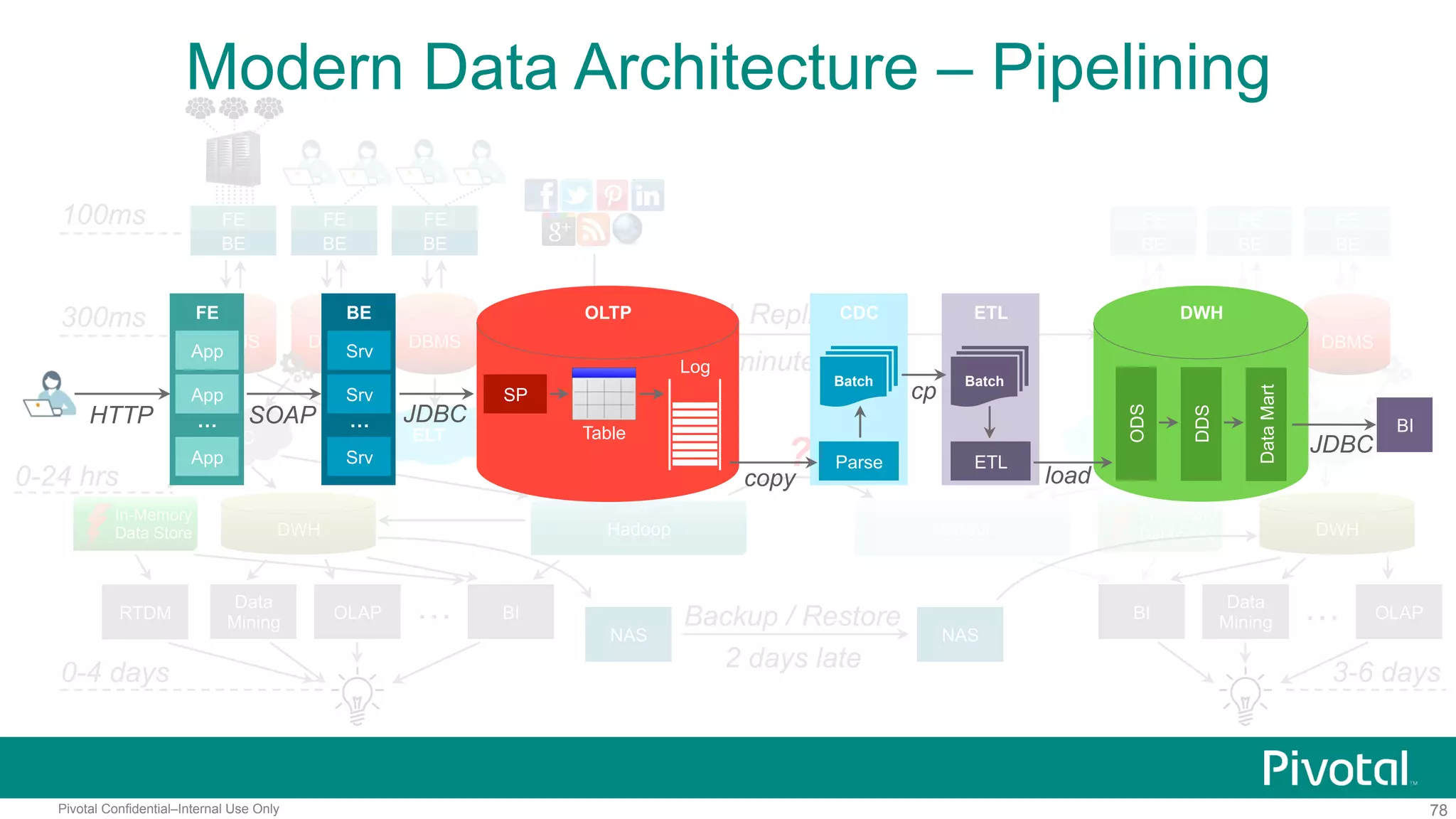

78Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL load ODS DDS DataMart DWH JDBC

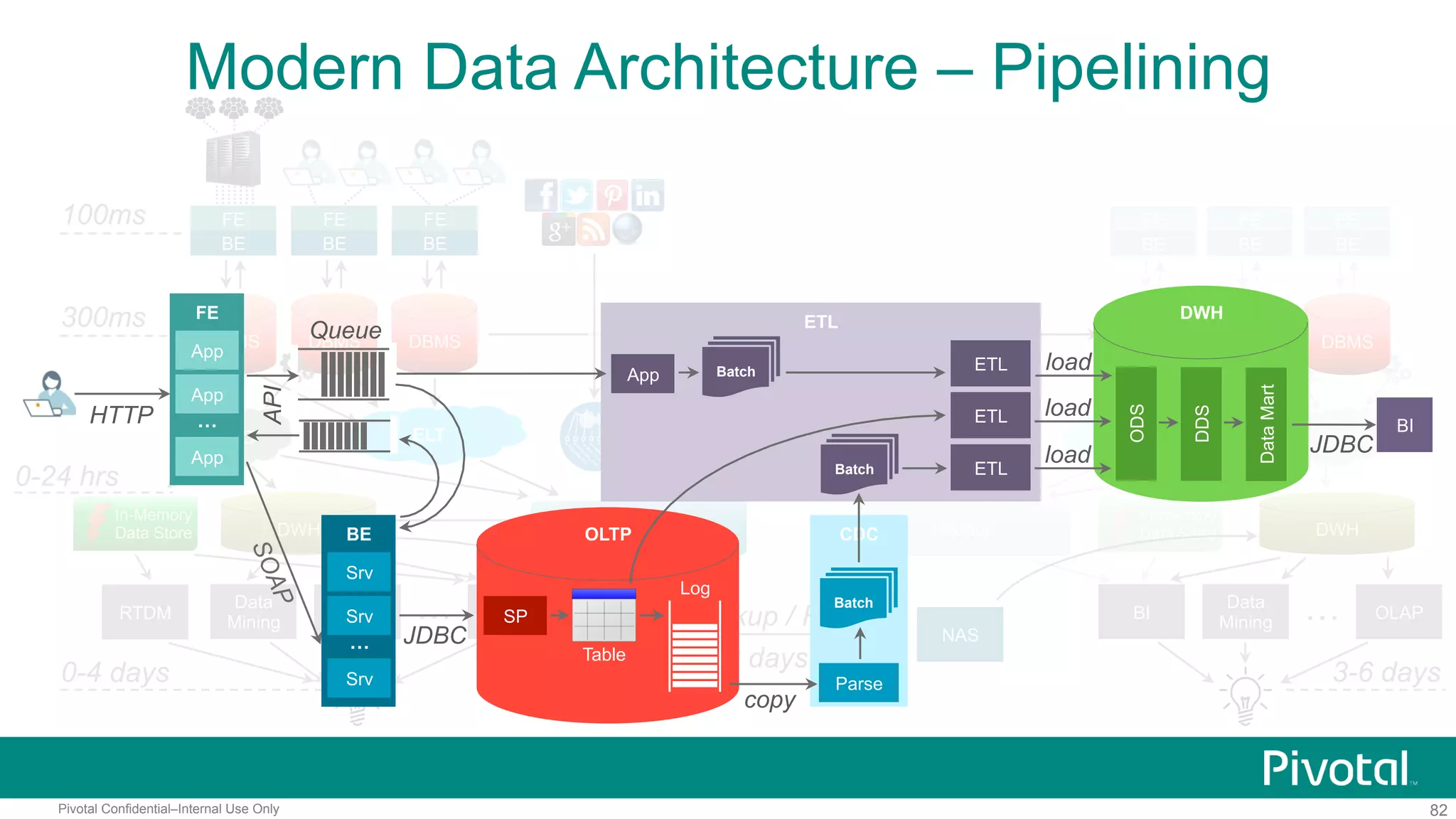

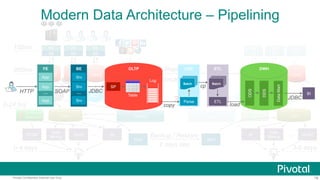

79Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL ODS DDS DataMart DWH JDBC

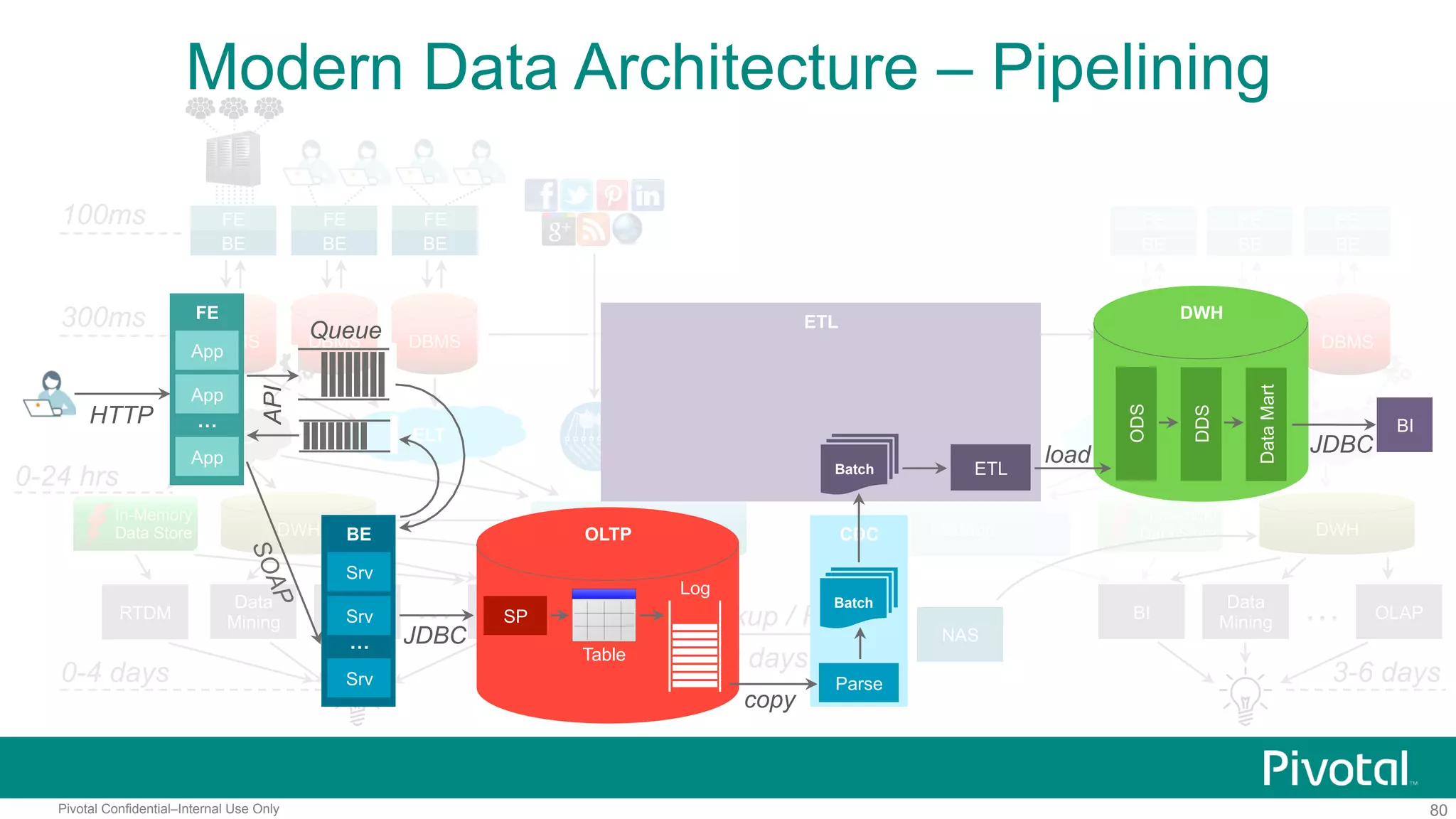

80Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatch
81Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatch loadETL
82Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatchApp ETLBatch load loadETL

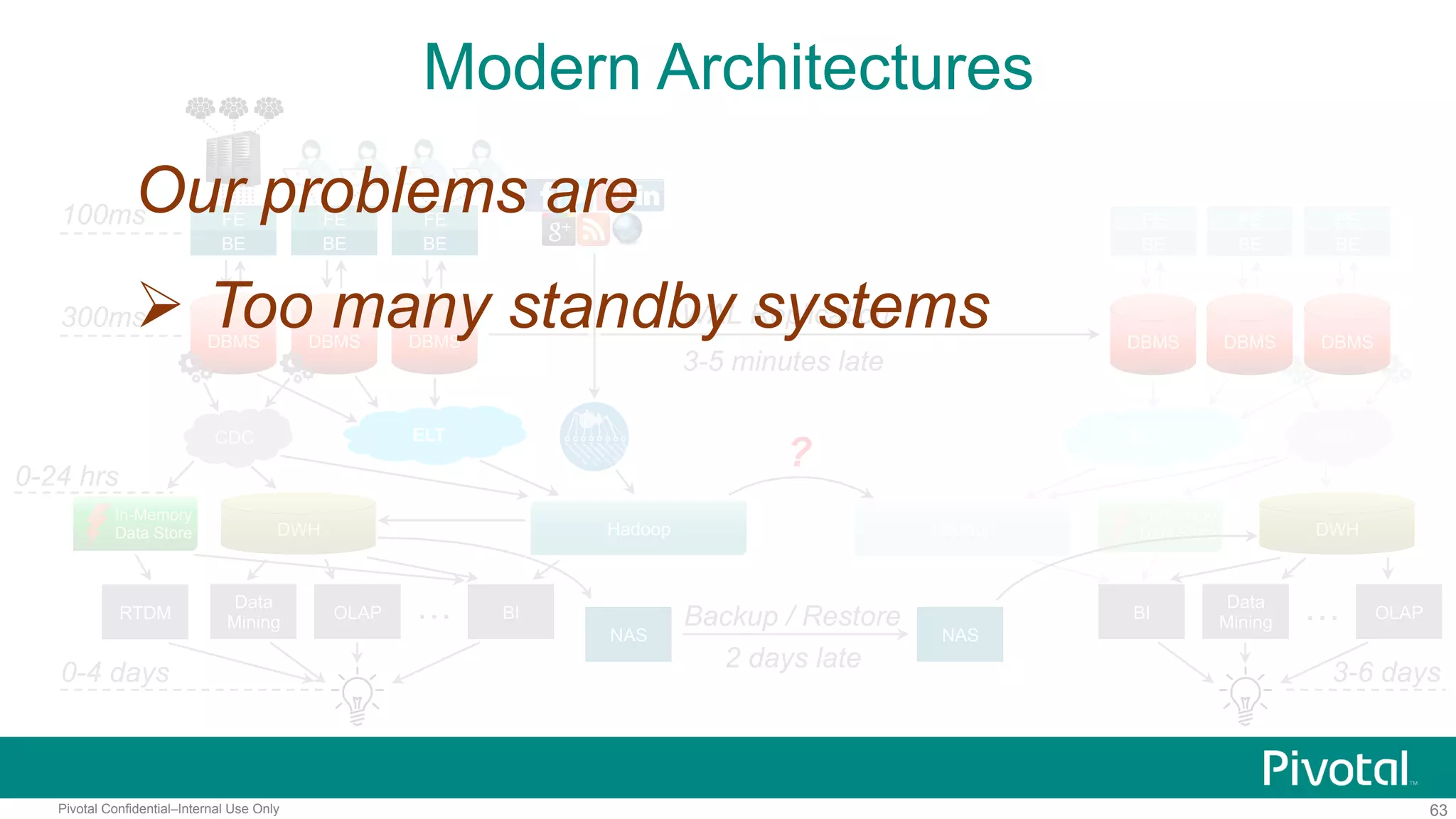

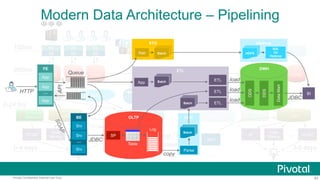

83Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatchApp ETLBatch load loadETL STG BatchApp Hadoop HDFS SQL On Hadoop

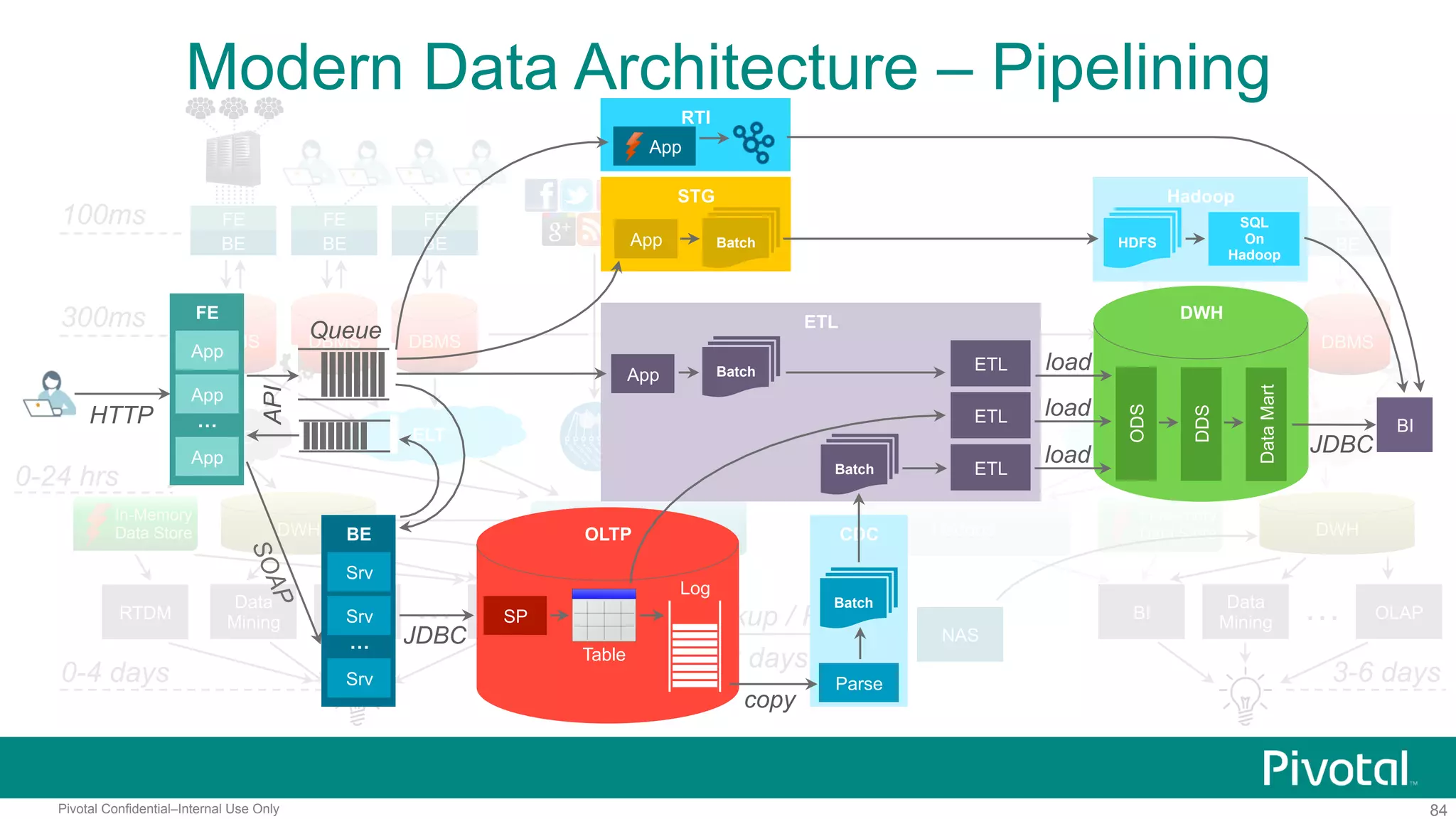

84Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatchApp ETLBatch load loadETL STG BatchApp Hadoop HDFS SQL On Hadoop RTI App

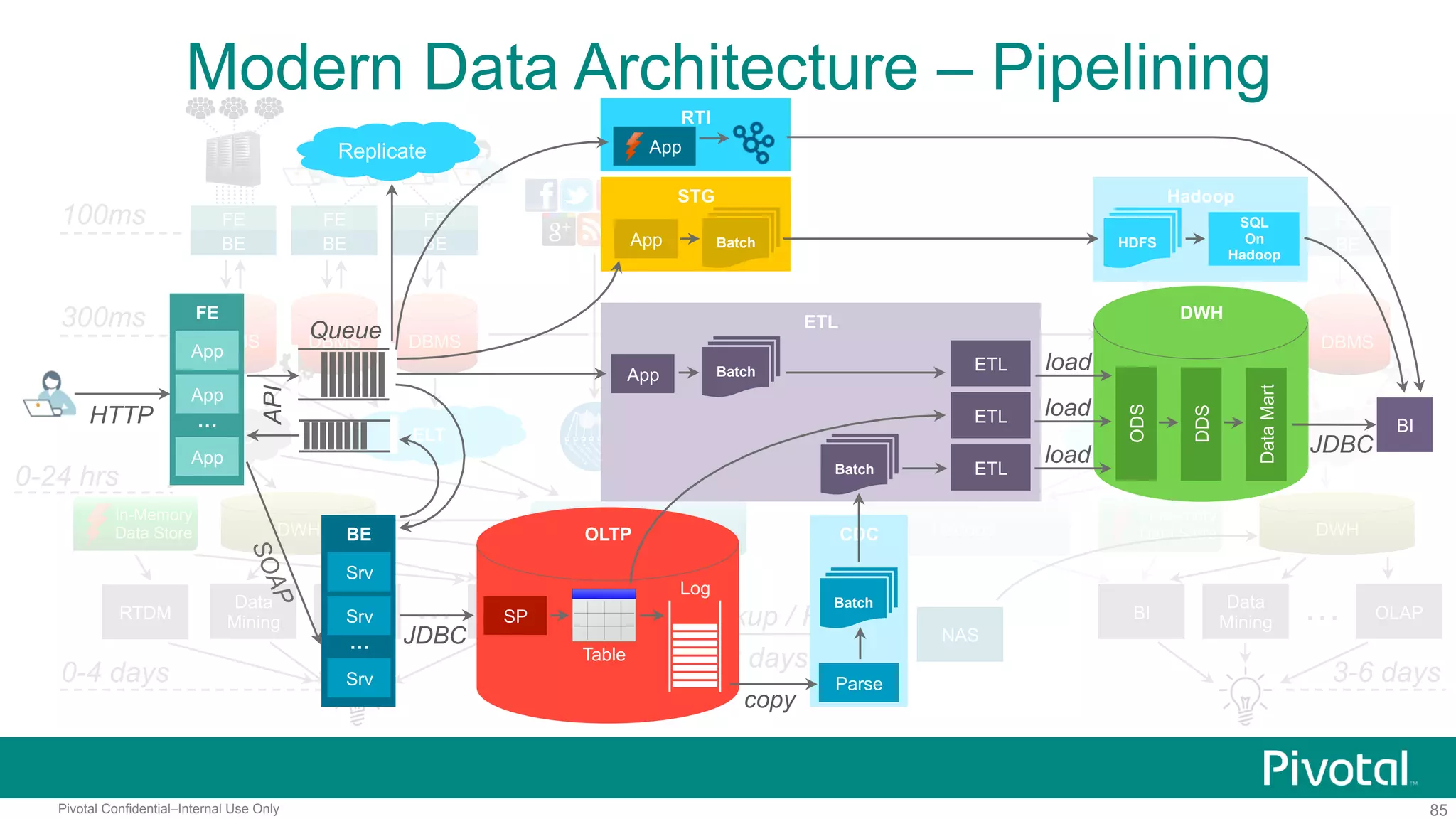

85Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatchApp ETLBatch load loadETL STG BatchApp Hadoop HDFS SQL On Hadoop RTI AppReplicate
86Pivotal Confidential–Internal Use Only In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining

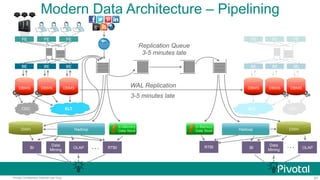

87Pivotal Confidential–Internal Use Only ELT CDC FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH OLAP Data Mining RTBI… FE BE FE BE FE BE CDC Hadoop In-Memory Data Store BI Modern Data Architecture – Pipelining Replication Queue 3-5 minutes late In-Memory Data Store OLAP… DWHHadoop BI Data Mining RTBI DBMS DBMS DBMSWAL Replication 3-5 minutes late

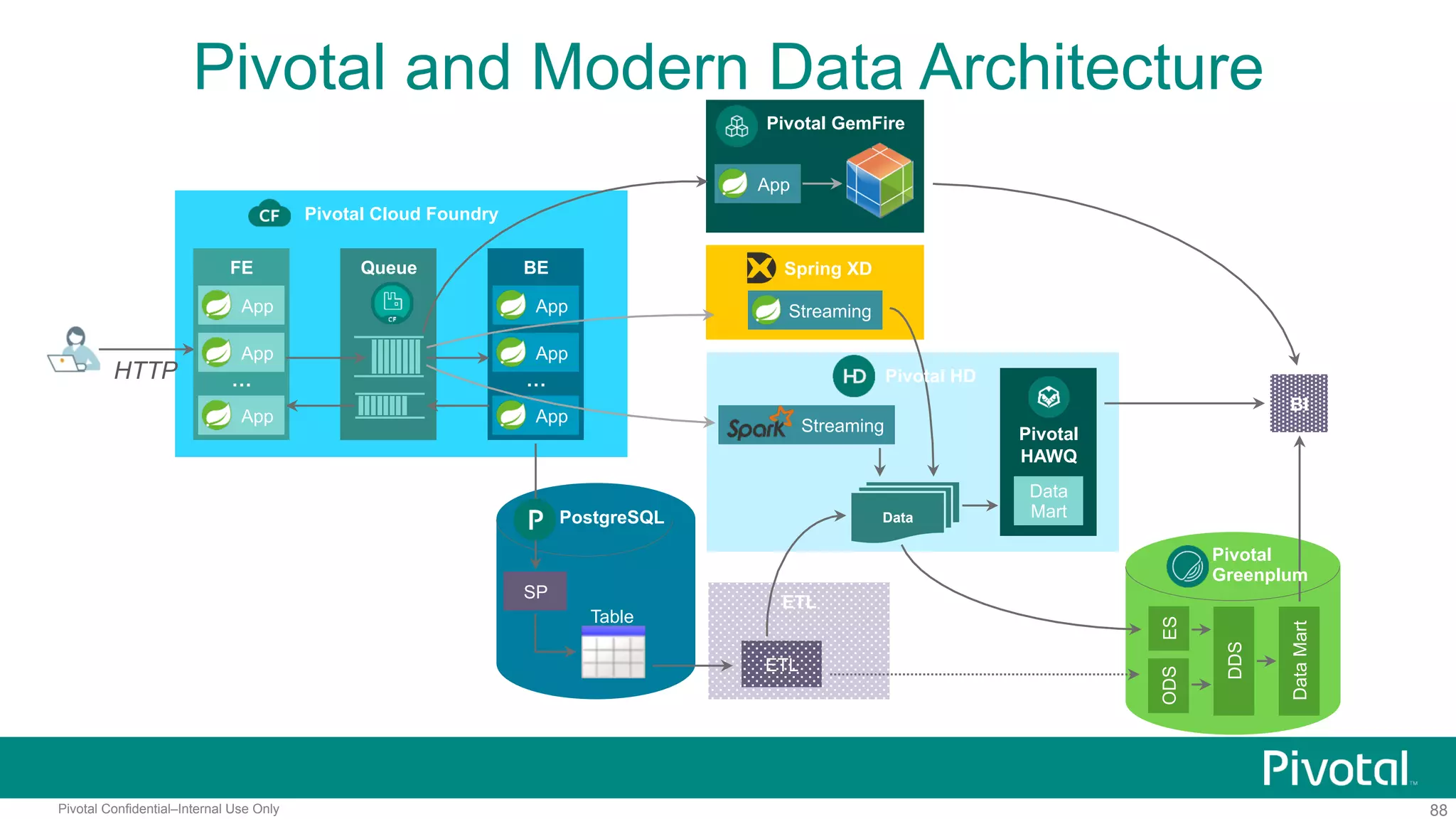

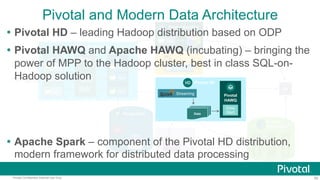

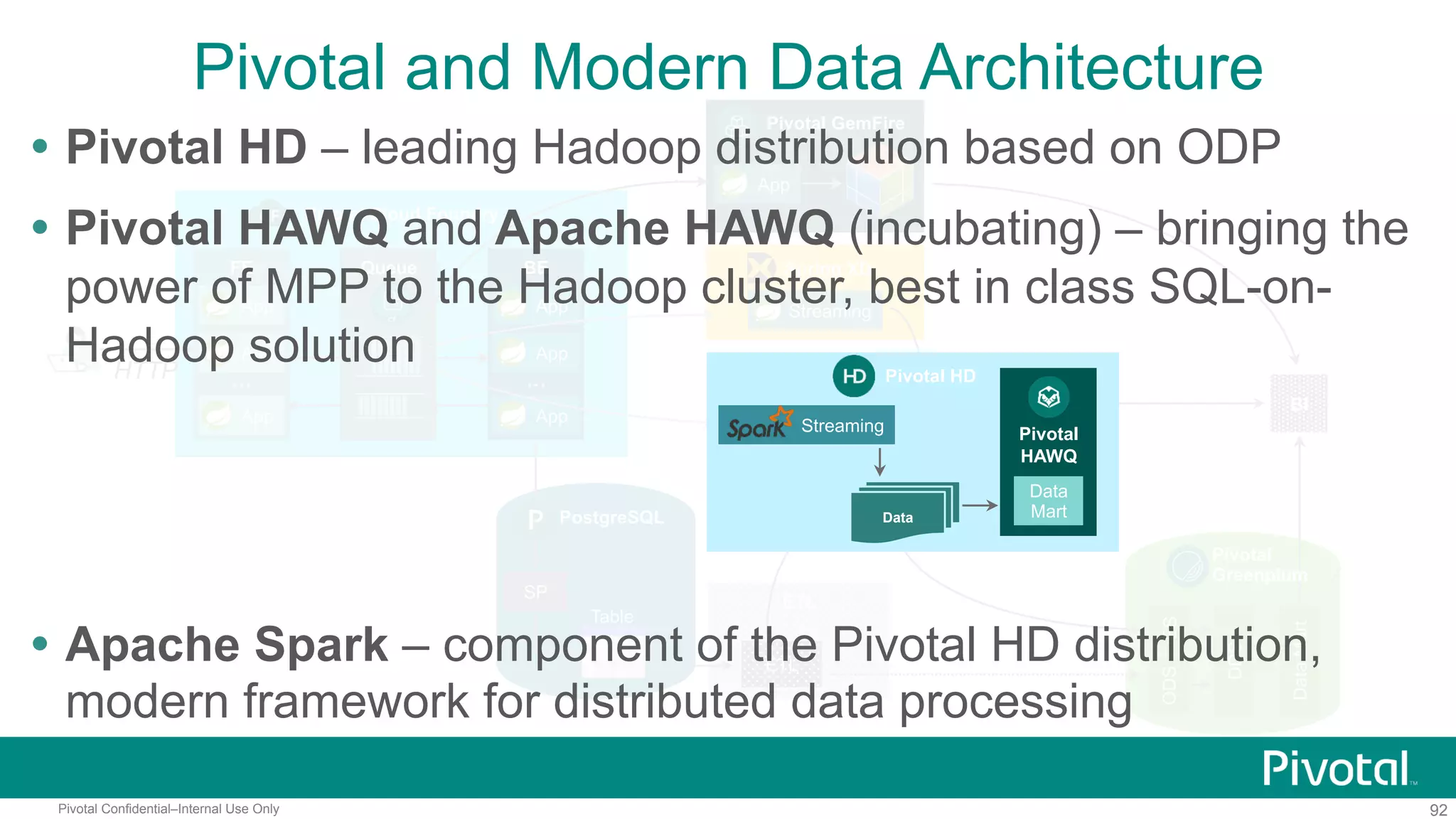

88Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL
89Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture BI HTTP Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL Pivotal Cloud Foundry FE … App App App Queue BE … App App App  Pivotal Labs – agile software development for next-generation applications  Pivotal Cloud Foundry – PaaS for customer applications  RabbitMQ – distributed message queue service on top of PCF  Spring IO – foundation platform for modern applications
90Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL Pivotal GemFire App Pivotal GemFire and Apache Geode (incubating) – in-memory data grid enabling real-time data processing and real-time decision making for enterprises

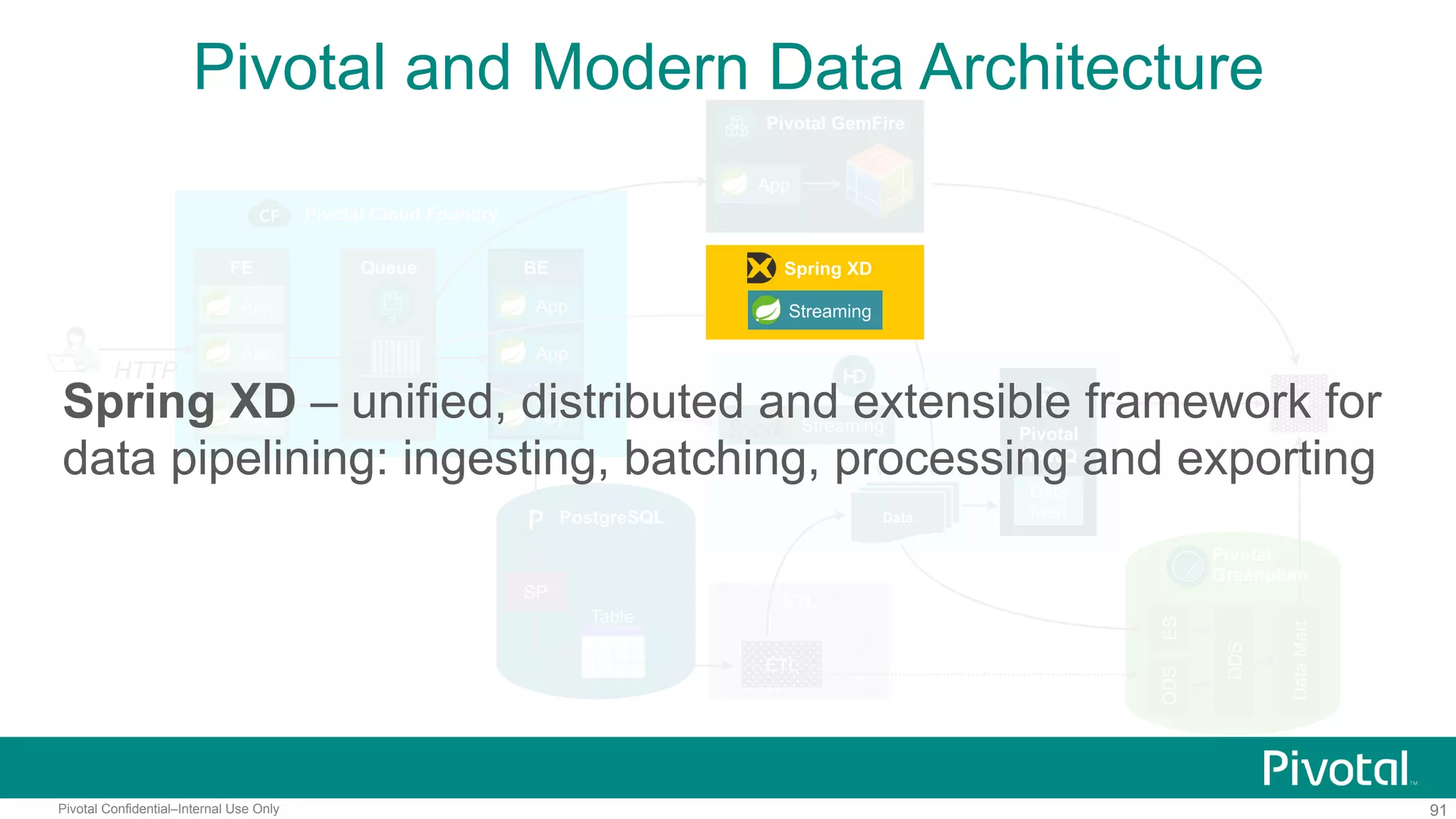

91Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL Spring XD Streaming Spring XD – unified, distributed and extensible framework for data pipelining: ingesting, batching, processing and exporting
92Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming ES DDS DataMart Pivotal Greenplum PostgreSQL SP Table ODS ETL ETL Streaming Data Pivotal HD Pivotal HAWQ Data Mart  Pivotal HD – leading Hadoop distribution based on ODP  Pivotal HAWQ and Apache HAWQ (incubating) – bringing the power of MPP to the Hadoop cluster, best in class SQL-on- Hadoop solution  Apache Spark – component of the Pivotal HD distribution, modern framework for distributed data processing
93Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data Mart ODS ETL ETL PostgreSQL SP Table  Pivotal PostgreSQL – commercially supported by Pivotal open source distribution of PostgreSQL

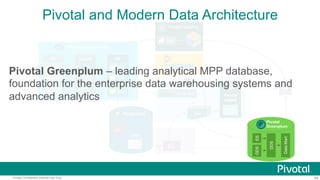

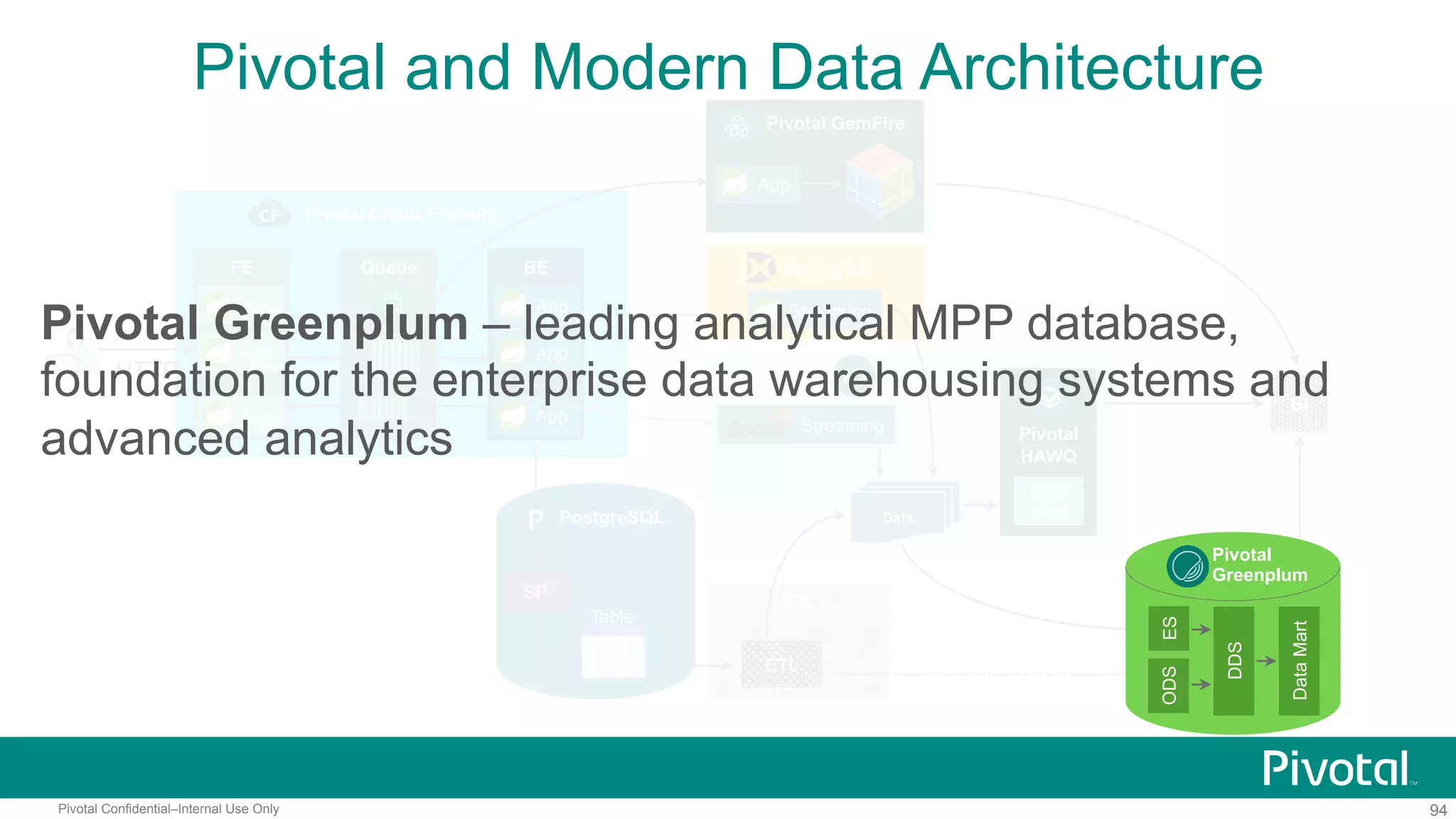

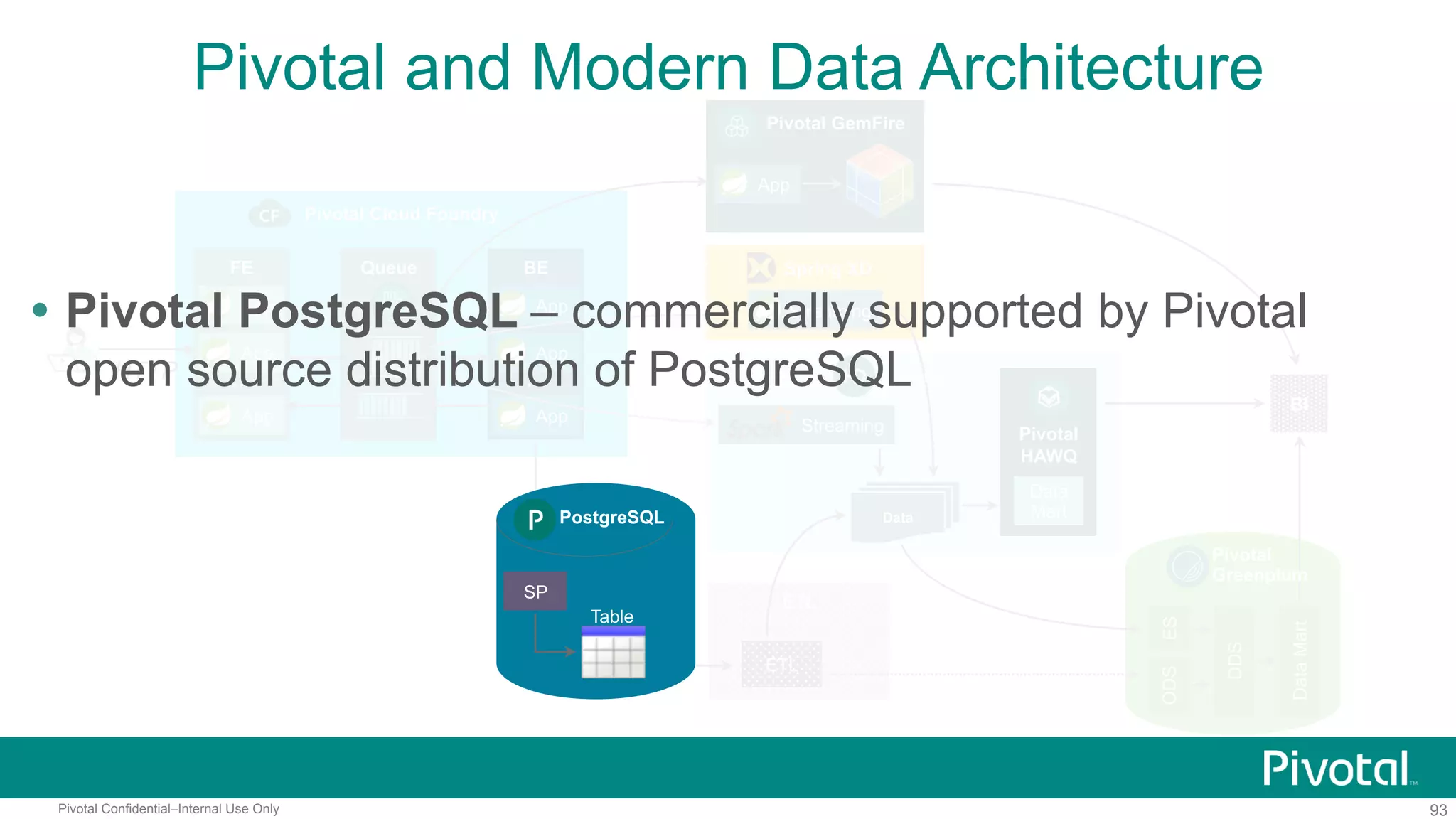

94Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ Data MartPostgreSQL SP Table ETL ETL ES DDS DataMart Pivotal Greenplum ODS Pivotal Greenplum – leading analytical MPP database, foundation for the enterprise data warehousing systems and advanced analytics

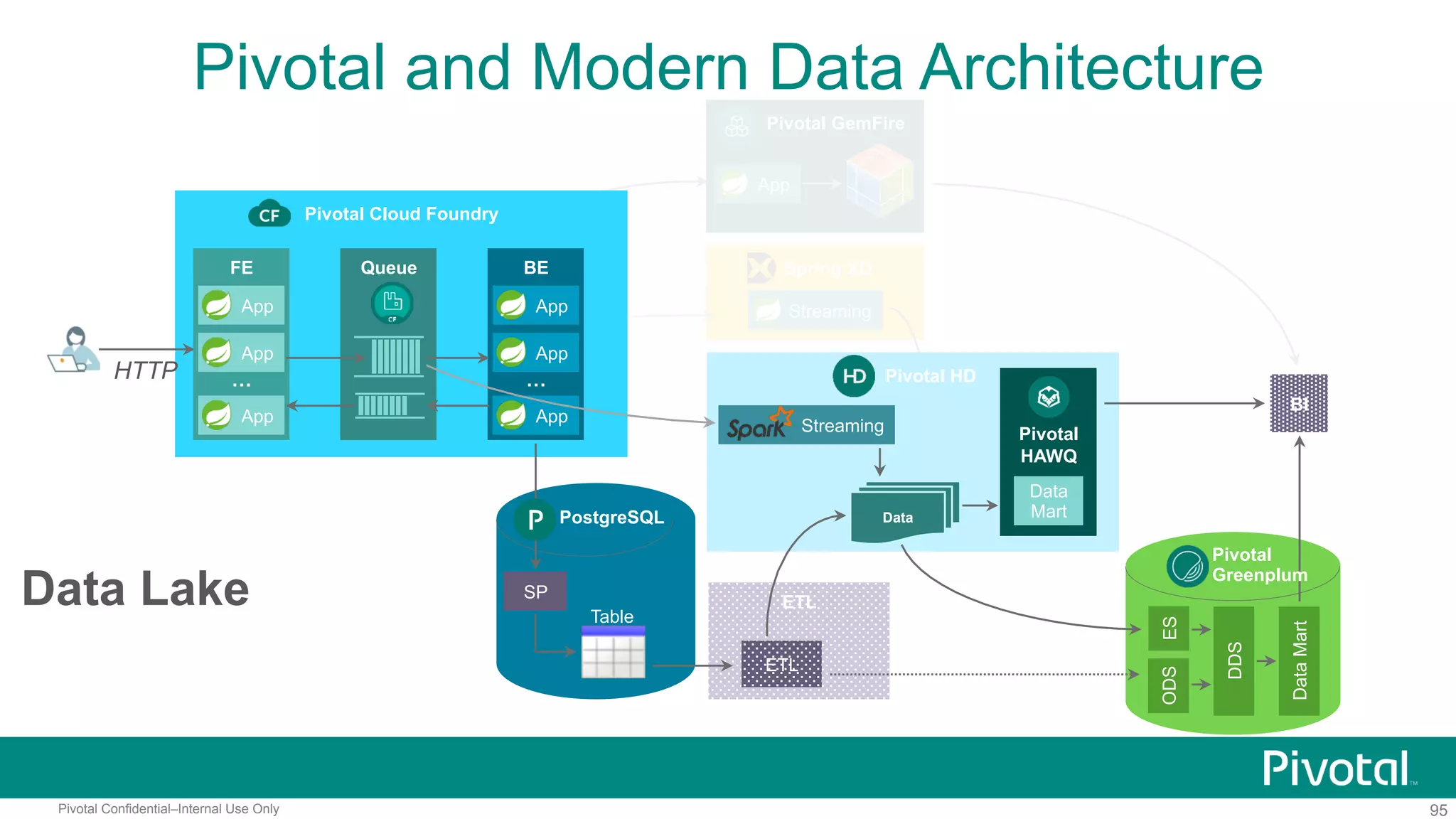

95Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture Pivotal GemFire App Spring XD Streaming BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL Data Lake
96Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Spring XD Streaming ES DDS DataMart Pivotal Greenplum PostgreSQL SP Table ODS ETL ETL Pivotal GemFire App Streaming Data Pivotal HD Pivotal HAWQ Data Mart BI Lambda Architecture

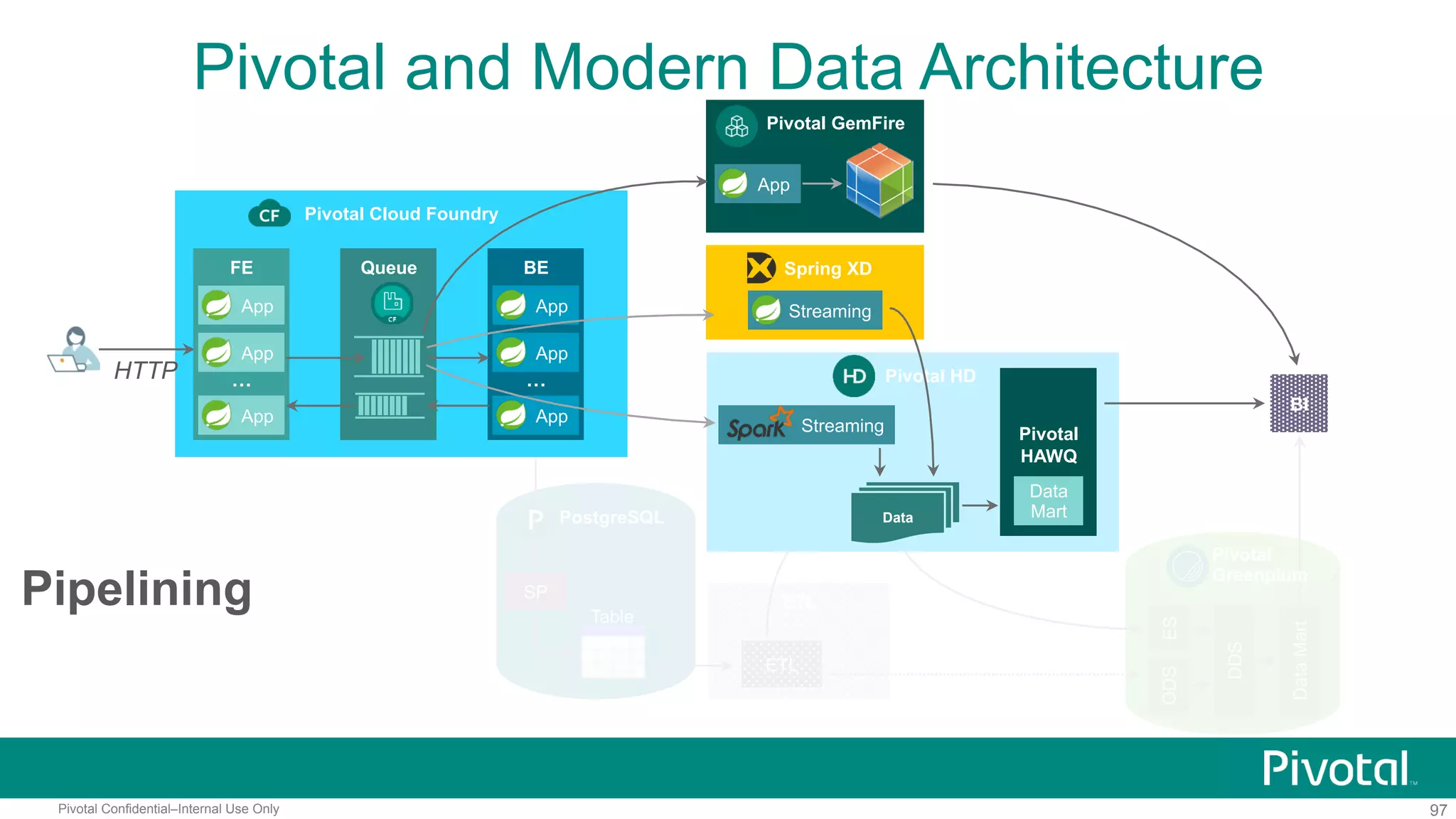

97Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture ES DDS DataMart Pivotal Greenplum PostgreSQL SP Table ODS ETL ETL Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Streaming Pivotal HD BI Pivotal GemFire App Spring XD Streaming Data Pivotal HAWQ Data Mart Pipelining
98Pivotal Confidential–Internal Use Only Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL
99Pivotal Confidential–Internal Use Only 99Pivotal Confidential–Internal Use Only Questions?
BUILT FOR THE SPEED OF BUSINESS

More Related Content

PDF
Data platform architecture
bySudheer Kondla

PDF
Data Architecture Best Practices for Today’s Rapidly Changing Data Landscape
byDATAVERSITY

PDF
Denodo Data Virtualization Platform: Overview (session 1 from Architect to Ar...
byDenodo

PPTX
Building the Data Lake with Azure Data Factory and Data Lake Analytics
byKhalid Salama

PPTX
Modern Data Warehousing with the Microsoft Analytics Platform System
byJames Serra

PDF
Modern Data Architecture
byMark Hewitt

PPTX
Design Principles for a Modern Data Warehouse
byRob Winters

PDF
Information & Data Architecture
bySammer Qader

Data platform architecture
bySudheer Kondla

Data Architecture Best Practices for Today’s Rapidly Changing Data Landscape
byDATAVERSITY

Denodo Data Virtualization Platform: Overview (session 1 from Architect to Ar...
byDenodo

Building the Data Lake with Azure Data Factory and Data Lake Analytics
byKhalid Salama

Modern Data Warehousing with the Microsoft Analytics Platform System
byJames Serra

Modern Data Architecture
byMark Hewitt

Design Principles for a Modern Data Warehouse
byRob Winters

Information & Data Architecture
bySammer Qader


What's hot

PDF
Modern Data architecture Design
byKujambu Murugesan

PDF
Introduction SQL Analytics on Lakehouse Architecture
byDatabricks

PDF
Moving to Databricks & Delta
byDatabricks

PPTX
DW Migration Webinar-March 2022.pptx
byDatabricks

PPTX
[DSC Europe 22] Lakehouse architecture with Delta Lake and Databricks - Draga...
byDataScienceConferenc1

PPTX
Databricks Platform.pptx
byAlex Ivy

PDF
Data Mesh
byPiethein Strengholt

PPTX
Databricks Fundamentals
byDalibor Wijas

PPTX
Free Training: How to Build a Lakehouse
byDatabricks

PDF
Data Warehouse or Data Lake, Which Do I Choose?
byDATAVERSITY

PDF
Designing An Enterprise Data Fabric
byAlan McSweeney

PDF
Data Mesh Part 4 Monolith to Mesh
byJeffrey T. Pollock

PDF
Webinar Data Mesh - Part 3
byJeffrey T. Pollock

PDF
Modernizing to a Cloud Data Architecture
byDatabricks

PPTX
Building a modern data warehouse
byJames Serra

PDF
Data Product Architectures
byBenjamin Bengfort

PDF
Owning Your Own (Data) Lake House
byData Con LA

PDF
Data Architecture vs Data Modeling
byDATAVERSITY

PPTX
Data Quality Patterns in the Cloud with Azure Data Factory
byMark Kromer

PDF
Databricks + Snowflake: Catalyzing Data and AI Initiatives
byDatabricks

Modern Data architecture Design
byKujambu Murugesan

Introduction SQL Analytics on Lakehouse Architecture
byDatabricks

Moving to Databricks & Delta
byDatabricks

DW Migration Webinar-March 2022.pptx
byDatabricks

[DSC Europe 22] Lakehouse architecture with Delta Lake and Databricks - Draga...
byDataScienceConferenc1

Databricks Platform.pptx
byAlex Ivy

Data Mesh
byPiethein Strengholt

Databricks Fundamentals
byDalibor Wijas

Free Training: How to Build a Lakehouse
byDatabricks

Data Warehouse or Data Lake, Which Do I Choose?
byDATAVERSITY

Designing An Enterprise Data Fabric
byAlan McSweeney

Data Mesh Part 4 Monolith to Mesh
byJeffrey T. Pollock

Webinar Data Mesh - Part 3
byJeffrey T. Pollock

Modernizing to a Cloud Data Architecture
byDatabricks

Building a modern data warehouse
byJames Serra

Data Product Architectures
byBenjamin Bengfort

Owning Your Own (Data) Lake House
byData Con LA

Data Architecture vs Data Modeling
byDATAVERSITY

Data Quality Patterns in the Cloud with Azure Data Factory
byMark Kromer

Databricks + Snowflake: Catalyzing Data and AI Initiatives
byDatabricks


Viewers also liked

PPTX
Apache Spark Architecture
byAlexey Grishchenko

PDF
Simplifying Big Data Analytics with Apache Spark
byDatabricks

PDF
Introduction to Spark Internals
byPietro Michiardi

PDF
Apache Spark 2.0: Faster, Easier, and Smarter
byDatabricks

PDF
Architectural Overview of MapR's Apache Hadoop Distribution
bymcsrivas

PDF
Apache Spark in Depth: Core Concepts, Architecture & Internals
byAnton Kirillov

PPTX
Deep Learning for Fraud Detection
byDataWorks Summit/Hadoop Summit

PDF
Hands on MapR -- Viadea
byviadea

PDF
MapR Tutorial Series
byselvaraaju

PDF
MapR M7: Providing an enterprise quality Apache HBase API
bymcsrivas

PPTX
MapR and Cisco Make IT Better
byMapR Technologies

PDF
Apache Spark & Hadoop
byMapR Technologies

PDF
MapR Data Analyst
byselvaraaju

Apache Spark Architecture
byAlexey Grishchenko

Simplifying Big Data Analytics with Apache Spark
byDatabricks

Introduction to Spark Internals
byPietro Michiardi

Apache Spark 2.0: Faster, Easier, and Smarter
byDatabricks

Architectural Overview of MapR's Apache Hadoop Distribution
bymcsrivas

Apache Spark in Depth: Core Concepts, Architecture & Internals
byAnton Kirillov

Deep Learning for Fraud Detection
byDataWorks Summit/Hadoop Summit

Hands on MapR -- Viadea
byviadea

MapR Tutorial Series
byselvaraaju

MapR M7: Providing an enterprise quality Apache HBase API
bymcsrivas

MapR and Cisco Make IT Better
byMapR Technologies

Apache Spark & Hadoop
byMapR Technologies

MapR Data Analyst
byselvaraaju


Similar to Modern Data Architecture

PPT
Data Warehousing Datamining Concepts
byraulmisir

PPTX
Business Analytics
byICFAI Business School

PPT
Business Intelligence with SQL Server
byPeter Gfader

PPT
Corporate-data-warehousing-training
byUnmesh Baile

PDF
Business intelligence an Overview
byZahra Mansoori

PDF
Cs437 lecture 1-6
byAneeb_Khawar

PPTX
Database-Management-Systems-An-Introduction (1).pptx
byDinarRoe

ODP
Database Shootout: What's best for BI?
byJos van Dongen

PPT
How To Buy Data Warehouse
byEric Sun

PDF
EMC Pivotal overview deck
bymister_moun

PPT
Msbi by quontra us
byQUONTRASOLUTIONS

PDF
BI on Big Data Presentation
byArcadia Data

PPTX
SoftServe BI/BigData Workshop in Utah
bySerhiy (Serge) Haziyev

PPT
Introduction To Msbi By Yasir
byguest7c8e5f

PPTX
Bi overview
byManish Goyal ITIL, ISEB, Prince2

PPT
Data ware housing- Introduction to data ware housing
byVibrant Technologies & Computers

PPTX
Day 1 (Lecture 1): Data Management- The Foundation of all Analytics
byAseda Owusua Addai-Deseh

PPTX
Modernizing Your Data Warehouse using APS
byStéphane Fréchette

PPTX
Big Data and the BI Wild West
byDataWorks Summit

PPTX
ERP technology Areas.pptx
byssuserdd904d

Data Warehousing Datamining Concepts
byraulmisir

Business Analytics
byICFAI Business School

Business Intelligence with SQL Server
byPeter Gfader

Corporate-data-warehousing-training
byUnmesh Baile

Business intelligence an Overview
byZahra Mansoori

Cs437 lecture 1-6
byAneeb_Khawar

Database-Management-Systems-An-Introduction (1).pptx
byDinarRoe

Database Shootout: What's best for BI?
byJos van Dongen

How To Buy Data Warehouse
byEric Sun

EMC Pivotal overview deck
bymister_moun

Msbi by quontra us
byQUONTRASOLUTIONS

BI on Big Data Presentation
byArcadia Data

SoftServe BI/BigData Workshop in Utah
bySerhiy (Serge) Haziyev

Introduction To Msbi By Yasir
byguest7c8e5f

Bi overview
byManish Goyal ITIL, ISEB, Prince2

Data ware housing- Introduction to data ware housing
byVibrant Technologies & Computers

Day 1 (Lecture 1): Data Management- The Foundation of all Analytics
byAseda Owusua Addai-Deseh

Modernizing Your Data Warehouse using APS
byStéphane Fréchette

Big Data and the BI Wild West
byDataWorks Summit

ERP technology Areas.pptx
byssuserdd904d


Recently uploaded

PPTX
Chapter-2 cyber security data sources.pptx
bySenaitDesalegn2

PDF
The Gemini Advantage: A Strategic Overview of Google’s Multimodal AI Ecosystem
byRohit Garg

PDF
Comparing Versions in MySQL Key Differences and Insights.pdf
bySQL DBM

PPTX
Advanced Python Course With Certification
byinderjeetsingh0589

PDF
OLAP (Online Analytical Processing) is a technology used for quickly analyzin...
bykibreabtsigabu16

PPTX
Engineering Project Proposal by Slidesgo.pptx
bythub2306144

PPTX
Introduction to Data Warehouse and Schema.pptx
byputusurya12

PDF
MATERI HUAWEI AI ALL yang di upload langsung oleh dosen perguruan tinggi.pdf
byscopptelkom25

PDF
Steven Imrisek | Quantitative UX Research Portfolio: Two Digital Health Case ...
bysteven180178

PDF
The Hidden Risks in Linux Power Monitoring and How to Fix Them
byNiCE IT Management Solutions GmbH

PDF
2= https___10-0-0-0-1.ph_.pdf10.0.0.0.1,
byPanel Router

PPT
Java Swing in java object oriented progaming.ppt
byCarlos701746

PDF
System Center 2025 Migration: Preparing for a Smooth Transition
byNiCE IT Management Solutions GmbH

PPTX
Chapter 4, Blocksmbjkhnl;m',\;lkjhcgjvbkln;m.pptx
byfrsatabdullah1

PPT
Data Structures in java programing and ICT.ppt
byCarlos701746

PPTX
Pollution_Assignment_GurveerKaur_1112.pptx
bydeeppc8900

PPT
fgfdgdgdgdfgerst4t4tqwweqe3eawdsfsdsdsdd
bymohamedtarekabdelrou

PPTX
Data_Analysis_Plan-corrected-Biostatistics.pptx
byFahmida Swati

PPT
Acids and alkalis ppt.ppt SVfhasvas jhsvdhsvduisa
byleonciaamolato001

PPTX
Chinese economy in the era a modern world
byAnwaar Ahmed

Chapter-2 cyber security data sources.pptx
bySenaitDesalegn2

The Gemini Advantage: A Strategic Overview of Google’s Multimodal AI Ecosystem
byRohit Garg

Comparing Versions in MySQL Key Differences and Insights.pdf
bySQL DBM

Advanced Python Course With Certification
byinderjeetsingh0589

OLAP (Online Analytical Processing) is a technology used for quickly analyzin...
bykibreabtsigabu16

Engineering Project Proposal by Slidesgo.pptx
bythub2306144

Introduction to Data Warehouse and Schema.pptx
byputusurya12

MATERI HUAWEI AI ALL yang di upload langsung oleh dosen perguruan tinggi.pdf
byscopptelkom25

Steven Imrisek | Quantitative UX Research Portfolio: Two Digital Health Case ...
bysteven180178

The Hidden Risks in Linux Power Monitoring and How to Fix Them
byNiCE IT Management Solutions GmbH

2= https___10-0-0-0-1.ph_.pdf10.0.0.0.1,
byPanel Router

Java Swing in java object oriented progaming.ppt
byCarlos701746

System Center 2025 Migration: Preparing for a Smooth Transition
byNiCE IT Management Solutions GmbH

Chapter 4, Blocksmbjkhnl;m',\;lkjhcgjvbkln;m.pptx
byfrsatabdullah1

Data Structures in java programing and ICT.ppt
byCarlos701746

Pollution_Assignment_GurveerKaur_1112.pptx
bydeeppc8900

fgfdgdgdgdfgerst4t4tqwweqe3eawdsfsdsdsdd
bymohamedtarekabdelrou

Data_Analysis_Plan-corrected-Biostatistics.pptx
byFahmida Swati

Acids and alkalis ppt.ppt SVfhasvas jhsvdhsvduisa
byleonciaamolato001

Chinese economy in the era a modern world
byAnwaar Ahmed


Modern Data Architecture

  • 1.
    1Pivotal Confidential–Internal UseOnly 1Pivotal Confidential–Internal Use Only Modern Data Architecture Alexey Grishchenko
  • 2.
    2Pivotal Confidential–Internal UseOnly About me Enterprise Architect @ Pivotal  7 years in data processing  5 years with MPP  4 years with Hadoop  Spark contributor  http://0x0fff.com
  • 3.
    3Pivotal Confidential–Internal UseOnly How it started… Front End
  • 4.
    4Pivotal Confidential–Internal UseOnly How it started… Front End Back End
  • 5.
    5Pivotal Confidential–Internal UseOnly How it started… Front End Back End DBMS
  • 6.
    6Pivotal Confidential–Internal UseOnly How it started… Front End Back End DBMS What about BI?
  • 7.
    7Pivotal Confidential–Internal UseOnly How it started… Front End Back End DBMS Just put it there!
  • 8.
    8Pivotal Confidential–Internal UseOnly How it started… Front End Back End DBMS BI
  • 9.
    9Pivotal Confidential–Internal UseOnly How it started… Front End Back End DBMS BI Was it fast?
  • 10.
    10Pivotal Confidential–Internal UseOnly How it started… Front End 10ms Back End DBMS BI 100ms 200ms 1-2 min
  • 11.
    11Pivotal Confidential–Internal UseOnly How it started… Front End 10ms Back End DBMS BI 100ms 200ms 1-2 min yes, single server…
  • 12.
    12Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 200ms 1-2 min More users got workstations
  • 13.
    13Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 400ms 800ms 1-2 min
  • 14.
    14Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 400ms 800ms 1-2 min Split!
  • 15.
    15Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 300ms 600ms 1-2 min
  • 16.
    16Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 300ms 600ms 1-2 min Even more users?
  • 17.
    17Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 300ms 600ms 1-2 min Split!
  • 18.
    18Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 400ms 1-2 min Front End Back End Front End Back End
  • 19.
    19Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 400ms 1-2 min Front End Back End Front End Back End What about automated systems?
  • 20.
    20Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 1 sec 5-10 min Front End Back End Front End Back End Front End Back End Front End Back End
  • 21.
    21Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 1 sec 5-10 min Front End Back End Front End Back End Front End Back End Front End Back End Database, please, live!
  • 22.
    22Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 1 sec 5-10 min Front End Back End Front End Back End Front End Back End Front End Back End
  • 23.
    23Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 800ms 15-20 min Front End Back End Front End Back End Front End Back End Front End Back End
  • 24.
    24Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 800ms 15-20 min Front End Back End Front End Back End Front End Back End Front End Back End What if “split” didn’t help this time?
  • 25.
    25Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 800ms 15-20 min Front End Back End Front End Back End Front End Back End Front End Back End Split more! Eventually it will help…
  • 26.
    26Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 300ms 35-40 min Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS
  • 27.
    27Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 300ms 35-40 min Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS
  • 28.
    28Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 300ms 35-40 min Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS Sales went 10% up!
  • 29.
    29Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 300ms 35-40 min Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS Sales went 10% up! Sales went 20% down!
  • 30.
    30Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 600ms 2-3 hrs Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS Sales went 10% up! Sales went 20% down!
  • 31.
    31Pivotal Confidential–Internal UseOnly First Issues Front End 10ms Back End DBMS BI 100ms 600ms 2-3 hrs Front End Back End Front End Back End Front End Back End Front End Back End DBMS DBMSDBMSDBMS Sales went 10% up! Sales went 20% down! Stop loading my system with your stupid reports!
  • 32.
    32Pivotal Confidential–Internal UseOnly BI The Era of Data Warehouse 100ms DBMS 300ms 2 days FE BE DBMS DBMSDBMSDBMS FE BE FE BE FE BE FE BE ETL DWH 1 day
  • 33.
    33Pivotal Confidential–Internal UseOnly BI The Era of Data Warehouse 100ms DBMS 300ms 2 days FE BE DBMS DBMSDBMSDBMS FE BE FE BE FE BE FE BE ETL DWH 1 day We need more reports!
  • 34.
    34Pivotal Confidential–Internal UseOnly BI The Era of Data Warehouse 100ms DBMS 300ms 3-4 days FE BE DBMS DBMSDBMSDBMS FE BE FE BE FE BE FE BE ETL DWH 1 day Data Mining OLAP…
  • 35.
    35Pivotal Confidential–Internal UseOnly BI The Era of Data Warehouse 100ms DBMS 300ms 3-4 days FE BE DBMS DBMSDBMSDBMS FE BE FE BE FE BE FE BE ETL DWH 1 day Data Mining OLAP… We need secondary site!
  • 36.
    36Pivotal Confidential–Internal UseOnly The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP…
  • 37.
    37Pivotal Confidential–Internal UseOnly The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE WAL Replication 3-5 minutes late
  • 38.
    38Pivotal Confidential–Internal UseOnly The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE WAL Replication 3-5 minutes late
  • 39.
    39Pivotal Confidential–Internal UseOnly The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE WAL Replication 3-5 minutes late Where is our DWH? We need this data now!
  • 40.
    40Pivotal Confidential–Internal UseOnly The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE WAL Replication 3-5 minutes late
  • 41.
    41Pivotal Confidential–Internal UseOnly ETL The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS
  • 42.

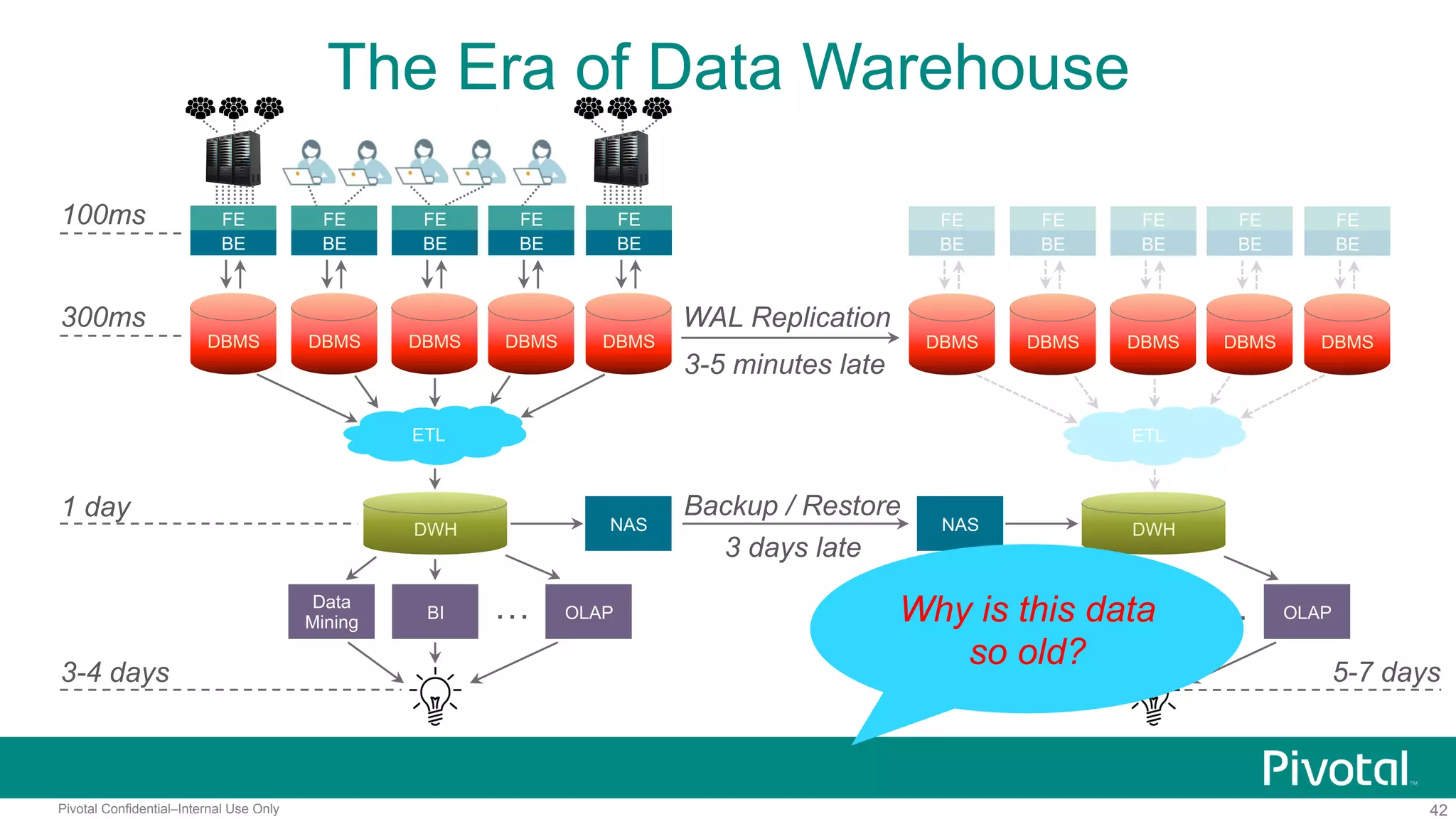

    42Pivotal Confidential–Internal UseOnly ETL The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS Why is this data so old?
  • 43.
    43Pivotal Confidential–Internal UseOnly ETL The Era of Data Warehouse 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS
  • 44.
    44Pivotal Confidential–Internal UseOnly ETL Advanced Architecture – ELT 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ETL DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS DBMS DBMS DBMS… ETL DDS Data Marts Reports Aggregates OLAP DBMS DBMS DBMS… ELT DDS Data Marts Reports Aggregates OLAP ODS ODS ODS…
  • 45.
    45Pivotal Confidential–Internal UseOnly ELT Advanced Architecture – ELT 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS
  • 46.
    46Pivotal Confidential–Internal UseOnly ELT Advanced Architecture – CDC 100ms 300ms 3-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 1 day BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late DWH BI Data Mining OLAP… 5-7 days DBMS DBMS DBMS DBMS DBMS DBMS DBMS DBMS… ELT DDS Data Marts Reports Aggregates OLAP ODS ODS ODS… DBMS DBMS DBMS… ELT DDS Data Marts Reports Aggregates OLAP ODS ODS ODS… CDC 1 day 1 hour
  • 47.
    47Pivotal Confidential–Internal UseOnly ELT CDC Advanced Architecture – CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH
  • 48.
    48Pivotal Confidential–Internal UseOnly ELT CDC Advanced Architecture – CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Why is our secondary site’s DWH so old?
  • 49.
    49Pivotal Confidential–Internal UseOnly ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Moving Forward
  • 50.
    50Pivotal Confidential–Internal UseOnly ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are Moving Forward
  • 51.
    51Pivotal Confidential–Internal UseOnly ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days Moving Forward
  • 52.
    52Pivotal Confidential–Internal UseOnly ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days  Amount of data is growing Moving Forward
  • 53.
    53Pivotal Confidential–Internal UseOnly ELT CDC 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days  Amount of data is growing  DWH MPP storage is expensive Moving Forward
  • 54.
    54Pivotal Confidential–Internal UseOnly ELT CDC Modern Architectures 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days  Amount of data is growing  DWH MPP storage is expensive Data Lake
  • 55.
    55Pivotal Confidential–Internal UseOnly ELT CDC Modern Architectures 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Our problems are  Time to action takes up to 7 days  Amount of data is growing  DWH MPP storage is expensive Lambda Data Lake
  • 56.
    56Pivotal Confidential–Internal UseOnly ELT CDC Modern Architectures – Data Lake 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH Hadoop DBMS DBMS DBMS… ELT DDS OLAP Data Marts Aggregates Reports ODS ODS ODS… CDC DWH ODS UDS Analytical Archives BI Data Mining OLAP SQL-on-Hadoop Data Mining At Scale
  • 57.
    57Pivotal Confidential–Internal UseOnly ELT CDC Modern Architectures – Data Lake 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs BI Data Mining OLAP… FE BE FE BE FE BE FE BE FE BE WAL Replication 3-5 minutes late NAS NAS Backup / Restore 3 days late BI Data Mining OLAP… 4-7 days DBMS DBMS DBMS DBMS DBMS CDC DWH
  • 58.
    58Pivotal Confidential–Internal UseOnly ELT CDC Modern Architectures – Data Lake 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late Data Mining BI OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ?
  • 59.

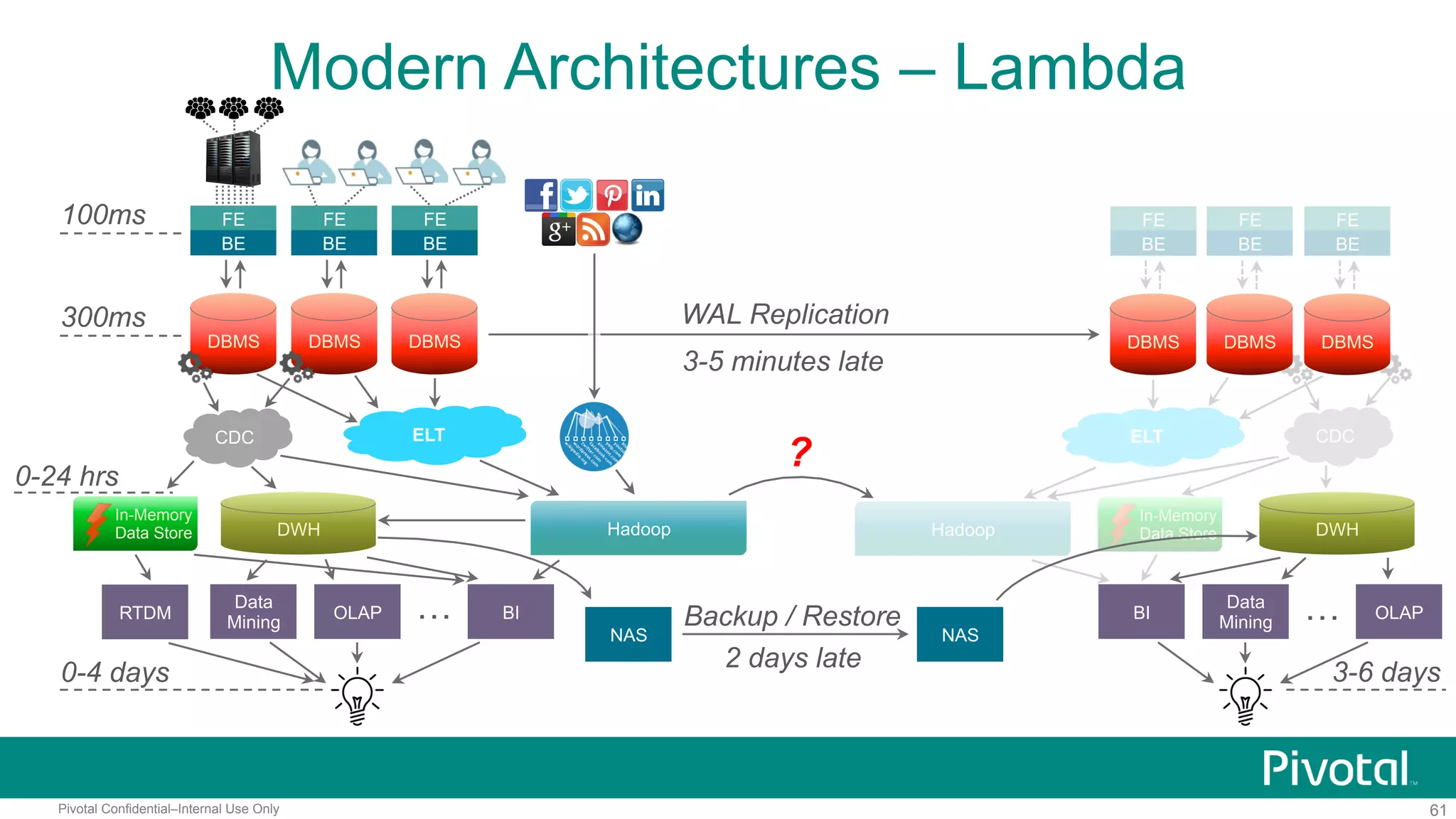

    59Pivotal Confidential–Internal UseOnly ELT CDC Modern Architectures – Lambda 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late Data Mining BI OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? Source Data Speed Layer Batch Layer Serving Layer Query Query Master Dataset Batch View Batch View Batch View Real-time View Real-time View Real-time View
  • 60.
    60Pivotal Confidential–Internal UseOnly ELT CDC Modern Architectures – Lambda 100ms 300ms 1-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 3-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late Data Mining BI OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ?
  • 61.
    61Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC Modern Architectures – Lambda 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining
  • 62.
    62Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are
  • 63.
    63Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems
  • 64.
    64Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems  How to replicate Hadoop cluster?
  • 65.
    65Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems  How to replicate Hadoop cluster?  How to sync data in real-time systems?
  • 66.
    66Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems  How to replicate Hadoop cluster?  How to sync data in real-time systems?  How to better sync DWH?
  • 67.
    67Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC Modern Architectures 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Our problems are  Too many standby systems  How to replicate Hadoop cluster?  How to sync data in real-time systems?  How to better sync DWH? Pipelining
  • 68.
    68Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining
  • 69.
    69Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP
  • 70.
    70Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP
  • 71.
    71Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Table
  • 72.
    72Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table
  • 73.
    73Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch
  • 74.

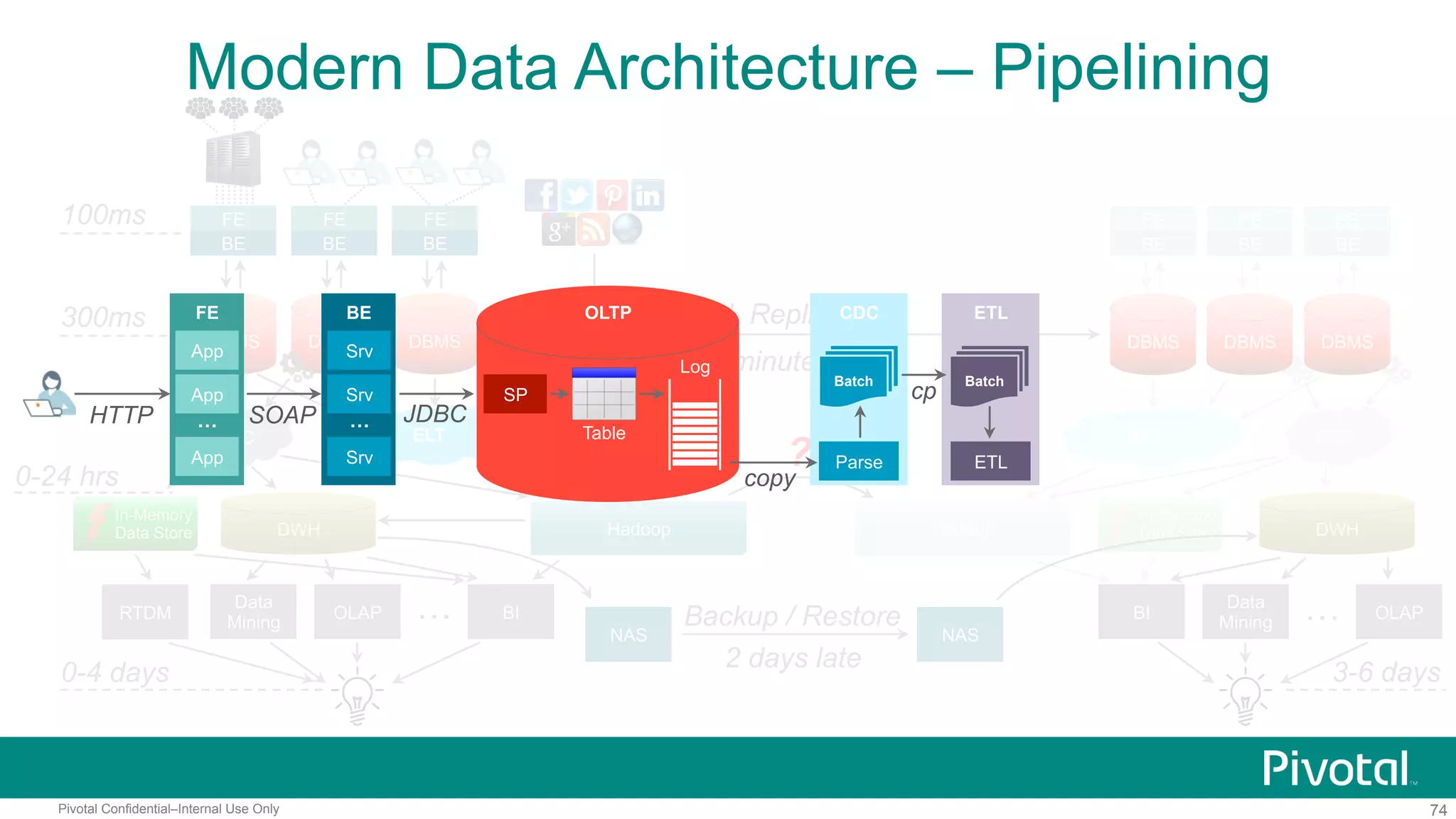

    74Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL
  • 75.
    75Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL load ODS DWH
  • 76.
    76Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL load ODS DDS DWH
  • 77.
    77Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL load ODS DDS DataMart DWH
  • 78.
    78Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv …SOAP OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL load ODS DDS DataMart DWH JDBC
  • 79.
    79Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch ETL cp Batch ETL ODS DDS DataMart DWH JDBC
  • 80.
    80Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatch
  • 81.
    81Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatch loadETL
  • 82.
    82Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatchApp ETLBatch load loadETL
  • 83.
    83Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatchApp ETLBatch load loadETL STG BatchApp Hadoop HDFS SQL On Hadoop
  • 84.
    84Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatchApp ETLBatch load loadETL STG BatchApp Hadoop HDFS SQL On Hadoop RTI App
  • 85.
    85Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining FE BI App App App …HTTP BE Srv Srv Srv … OLTP SP JDBC Log Table CDC copy Parse Batch load ODS DDS DataMart DWH JDBC API Queue ETL ETLBatchApp ETLBatch load loadETL STG BatchApp Hadoop HDFS SQL On Hadoop RTI AppReplicate
  • 86.
    86Pivotal Confidential–Internal UseOnly In-Memory Data Store ELT CDC 100ms 300ms 0-4 days FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH 0-24 hrs OLAP Data Mining BI… FE BE FE BE FE BE NAS NAS Backup / Restore 2 days late OLAP… 3-6 days DBMS DBMS DBMS WAL Replication 3-5 minutes late CDC DWHHadoop Hadoop ? In-Memory Data Store RTDM BI Data Mining Modern Data Architecture – Pipelining
  • 87.

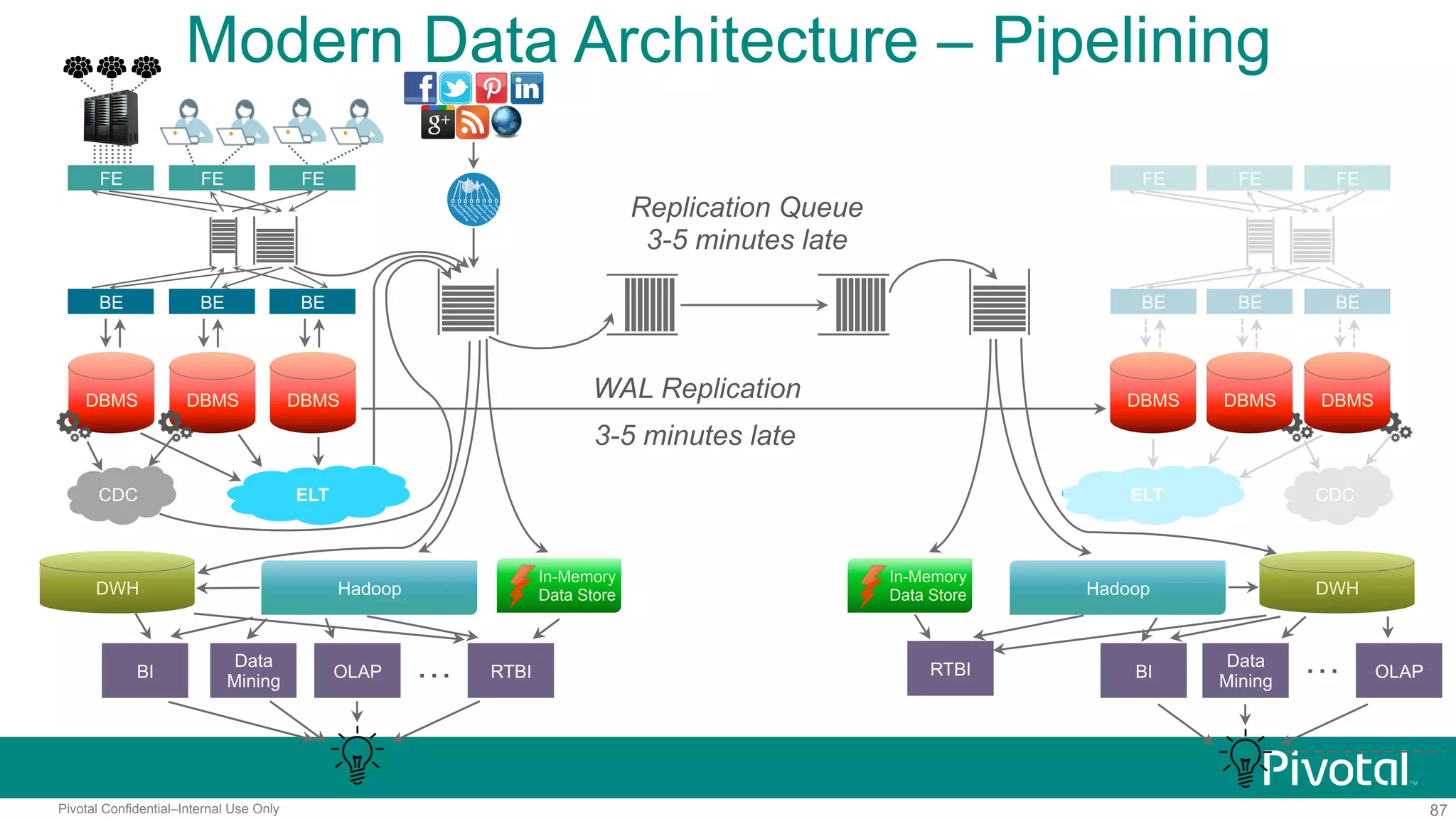

    87Pivotal Confidential–Internal UseOnly ELT CDC FE BE DBMS DBMS FE BE DBMS FE BE ELT DWH OLAP Data Mining RTBI… FE BE FE BE FE BE CDC Hadoop In-Memory Data Store BI Modern Data Architecture – Pipelining Replication Queue 3-5 minutes late In-Memory Data Store OLAP… DWHHadoop BI Data Mining RTBI DBMS DBMS DBMSWAL Replication 3-5 minutes late
  • 88.

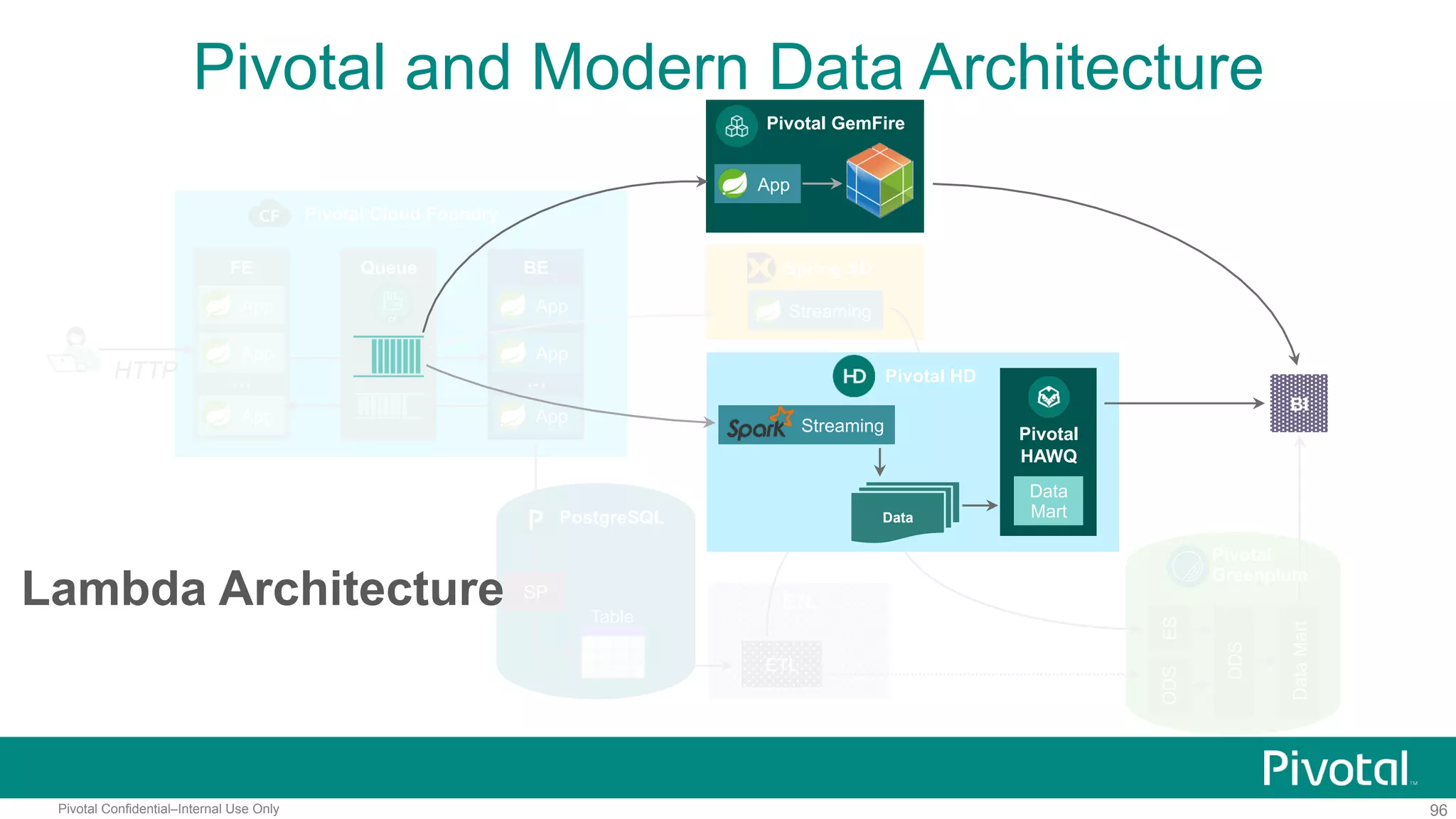

    88Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL
  • 89.

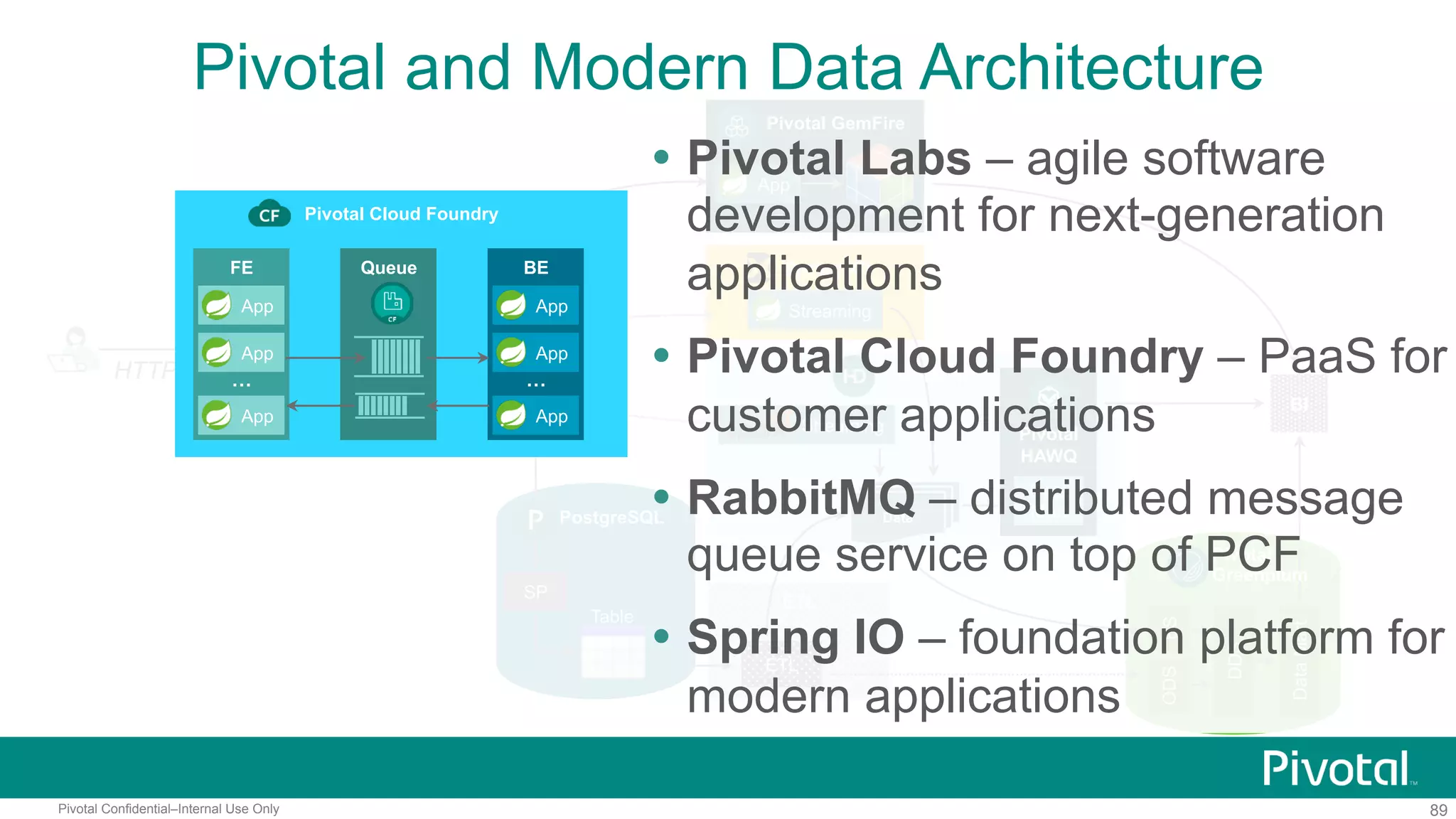

    89Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture BI HTTP Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL Pivotal Cloud Foundry FE … App App App Queue BE … App App App  Pivotal Labs – agile software development for next-generation applications  Pivotal Cloud Foundry – PaaS for customer applications  RabbitMQ – distributed message queue service on top of PCF  Spring IO – foundation platform for modern applications
  • 90.

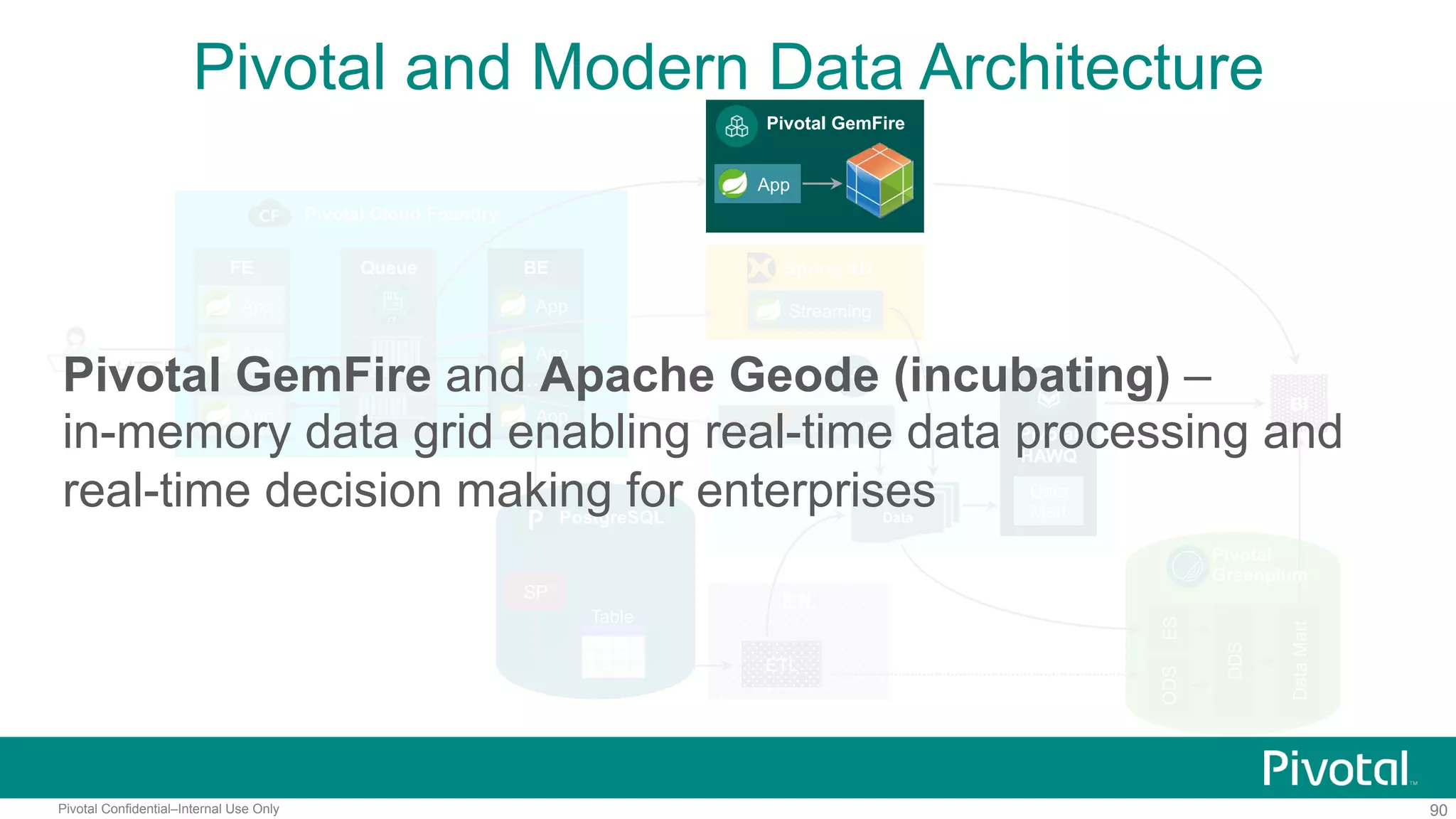

    90Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL Pivotal GemFire App Pivotal GemFire and Apache Geode (incubating) – in-memory data grid enabling real-time data processing and real-time decision making for enterprises
  • 91.
    91Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL Spring XD Streaming Spring XD – unified, distributed and extensible framework for data pipelining: ingesting, batching, processing and exporting
  • 92.
    92Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming ES DDS DataMart Pivotal Greenplum PostgreSQL SP Table ODS ETL ETL Streaming Data Pivotal HD Pivotal HAWQ Data Mart  Pivotal HD – leading Hadoop distribution based on ODP  Pivotal HAWQ and Apache HAWQ (incubating) – bringing the power of MPP to the Hadoop cluster, best in class SQL-on- Hadoop solution  Apache Spark – component of the Pivotal HD distribution, modern framework for distributed data processing
  • 93.
    93Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data Mart ODS ETL ETL PostgreSQL SP Table  Pivotal PostgreSQL – commercially supported by Pivotal open source distribution of PostgreSQL
  • 94.
    94Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ Data MartPostgreSQL SP Table ETL ETL ES DDS DataMart Pivotal Greenplum ODS Pivotal Greenplum – leading analytical MPP database, foundation for the enterprise data warehousing systems and advanced analytics
  • 95.
    95Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture Pivotal GemFire App Spring XD Streaming BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL Data Lake
  • 96.
    96Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Spring XD Streaming ES DDS DataMart Pivotal Greenplum PostgreSQL SP Table ODS ETL ETL Pivotal GemFire App Streaming Data Pivotal HD Pivotal HAWQ Data Mart BI Lambda Architecture
  • 97.
    97Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture ES DDS DataMart Pivotal Greenplum PostgreSQL SP Table ODS ETL ETL Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Streaming Pivotal HD BI Pivotal GemFire App Spring XD Streaming Data Pivotal HAWQ Data Mart Pipelining
  • 98.
    98Pivotal Confidential–Internal UseOnly Pivotal and Modern Data Architecture BI Pivotal Cloud Foundry HTTP FE … App App App Queue BE … App App App Pivotal GemFire App Spring XD Streaming Streaming Data Pivotal HD Pivotal HAWQ ES DDS DataMart Pivotal Greenplum Data MartPostgreSQL SP Table ODS ETL ETL
  • 99.
    99Pivotal Confidential–Internal UseOnly 99Pivotal Confidential–Internal Use Only Questions?
  • 100.
    BUILT FOR THESPEED OF BUSINESS
