“MLOps: Managing Data and Workflows for Efficient Model Development and Deployment,” a Presentation from Airbus
The document outlines the principles and tools employed by Airbus' innovation center for managing machine learning operations (MLOps). It highlights the lifecycle of a machine learning project, emphasizing the need for well-structured data pipelines, project scoping, data labeling, and performance monitoring. The document also discusses challenges in data management and offers insights into the development of a vision-based perception system for autonomous flight called Wayfinder.
More Related Content
Similar to “MLOps: Managing Data and Workflows for Efficient Model Development and Deployment,” a Presentation from Airbus
“MLOps: Managing Data and Workflows for Efficient Model Development and Deployment,” a Presentation from Airbus
- 1. AN AIRBUS INNOVATIONCENTER MLOps: Managing Data and Workflows for Efficient Model Development and Deployment Konstantinos Balafas – Head of AI Data Carlo Dal Mutto – Director of Engineering Acubed by Airbus
- 2. AN AIRBUS INNOVATIONCENTER ML Ops and Data Ops
- 3. AN AIRBUS INNOVATIONCENTER System Productization (MLOPS) 3 ML model ML training infra Dev-ops Data labelling MLOPS Discipline that comprises a set of tools and principles to support progress through the lifecycle of a ML project ML deployment Data collection Data labelling Data storage Data verification Pre/post processing Configuration management Process management Deployment infrastructure Monitoring © 2022 Airbus
- 4. AN AIRBUS INNOVATIONCENTER ML Project Lifecycle 4 Scoping Data Modeling Deployment Define project Define data and establish baseline Label and organize data Select and train model Perform data analysis Deploy in production Monitor and maintain system © 2022 Airbus

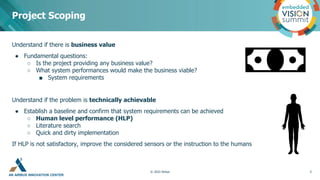

- 5. AN AIRBUS INNOVATIONCENTER Understand if there is business value ● Fundamental questions: ○ Is the project providing any business value? ○ What system performances would make the business viable? ■ System requirements Understand if the problem is technically achievable ● Establish a baseline and confirm that system requirements can be achieved ○ Human level performance (HLP) ○ Literature search ○ Quick and dirty implementation If HLP is not satisfactory, improve the considered sensors or the instruction to the humans Project Scoping 5 © 2022 Airbus
- 6. AN AIRBUS INNOVATIONCENTER Data are first-class citizens in data-centric AI New trend: big data → good data Which data ● Raw vs processed data ● Metadata ○ Provenance: where the data came from ○ Lineage: which are the processing steps applied to the data Data pipeline Data 6 Labelling Cleaning Engineering Raw data Partitioning Dev. dataset Test dataset © 2022 Airbus
- 7. AN AIRBUS INNOVATIONCENTER Data pipeline Data 7 Labelling Cleaning Engineering Raw data Partitioning Dev. dataset Test dataset Diversity is more important than quantity Need to be deliberate about new data Leverage already collected data in an iterative fashion for data driven decisions Core ETL Tools and Processes Identify data that cannot or should not be used downstream Validate quality of Data Acquisition (time syncing, outliers, etc.) Potentially engineer ML features In-house manual labeling typically yields highest quality but is not scalable Algorithmic solutions exist ML models Data labeling vendors QA is paramount Partitioning strategy should be requirements-driven Prevent target leakage Ensure that models are evaluated on a representative dataset Dataset versioning is critical Several code version control-inspired solutions Raw dataset or metadata-driven versioning Many high-quality vendors exist © 2022 Airbus
- 8. AN AIRBUS INNOVATIONCENTER Data pipeline - Key challenges Data 8 Labelling Cleaning Engineering Raw data Partitioning Dev. dataset Test dataset Costly Significant upfront investment and ongoing maintenance Difficult balance between scalability and quality Dataset lineage becomes very complex While automation steps are possible, it is very difficult to remove manual steps entirely from this loop © 2022 Airbus

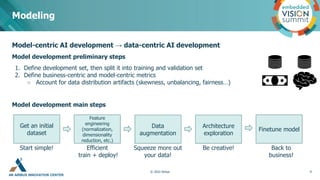

- 9. AN AIRBUS INNOVATIONCENTER Model-centric AI development → data-centric AI development Model development preliminary steps 1. Define development set, then split it into training and validation set 2. Define business-centric and model-centric metrics ○ Account for data distribution artifacts (skewness, unbalancing, fairness…) Model development main steps Modeling 9 Get an initial dataset Feature engineering (normalization, dimensionality reduction, etc.) Data augmentation Architecture exploration Finetune model Efficient train + deploy! Start simple! Squeeze more out your data! Be creative! Back to business! © 2022 Airbus
- 10. AN AIRBUS INNOVATIONCENTER Types of deployment • New product/problem capability • Automate/assist human • Replace a previous model/pipeline Deployment 10 Human only Monitoring ● Define which metrics should be tracked during deployment ● Implement monitoring dashboards (manage under- vs over-monitoring) ● Pipeline monitoring. For each component monitor: input metrics, output metrics, software metrics Gradual deployment → progressively increase amount of automation Shadow mode AI assistance Partial automation Full automation © 2022 Airbus
- 11. AN AIRBUS INNOVATIONCENTER Post-Deployment 11 Metrics on input data (concept shift) Metrics on model performance (require ground truth) Decision point implies continuous monitoring and event-triggered outer loop Avoid catastrophic forgetting Training data should represent operational conditions Dataset versioning is important to ensure reliable model evaluation and avoid target leakage Necessary in the absence of ground truth Diversity is key New data need to “look and feel” like old data © 2022 Airbus
- 12. AN AIRBUS INNOVATIONCENTER Wayfinder
- 13. AN AIRBUS INNOVATIONCENTER Project Wayfinder 13
- 14. AN AIRBUS INNOVATIONCENTER • Develop a vision-based perception system for autonomous flight • Development streams • Sensing development (cameras, radars, INSs) • SW development • Perception development (including ML) Problem Statement 14 © 2022 Airbus

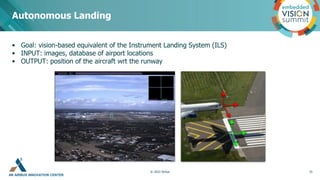

- 15. AN AIRBUS INNOVATIONCENTER • Goal: vision-based equivalent of the Instrument Landing System (ILS) • INPUT: images, database of airport locations • OUTPUT: position of the aircraft wrt the runway Autonomous Landing 15 © 2022 Airbus
- 16. AN AIRBUS INNOVATIONCENTER ML Ops and Data Ops at Wayfinder
- 17. AN AIRBUS INNOVATIONCENTER ML Ops and Data Ops Data Ops ● Image quality analysis ● Image annotation ● Dataset/label versioning ● Data consumption and “insights” ML Ops ● Train/validate/test split ● Model versioning ○ efficient experiment tracking ○ Verification & Validation ● Model monitoring 17 © 2022 Airbus
- 18. AN AIRBUS INNOVATIONCENTER ● Need to determine whether an image is suitable for training (or testing!) before an image is included in an ML-bound dataset ● Leveraging “classical” CV techniques (e.g. brightness, contrast) ● Exploit model predictions/confidence as an additional dimension Image Quality Analysis 18 © 2022 Airbus
- 19. AN AIRBUS INNOVATIONCENTER ● Requirements ○ Need to calculate ground truth for model training ○ Very high accuracy requirements ○ Need to scale to millions of images ● Solution ○ Leverage an ensemble of: ■ Classical CV techniques ■ Machine learning models ■ Human annotation ○ Establish both a per-image and per-algorithm “quality” metric ○ Develop a dense 3D database of airport features Image Annotation 19 © 2022 Airbus
- 20. AN AIRBUS INNOVATIONCENTER Image Annotation Pipeline 20 Image collection Selection of images to manually label Outsource manual labeling Label audit Labeling using CV techniques Labeling using ML techniques Label quality metrics Label fusion ML training © 2022 Airbus

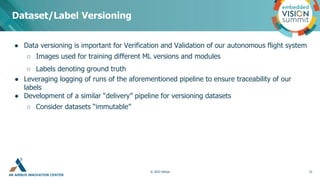

- 21. AN AIRBUS INNOVATIONCENTER ● Data versioning is important for Verification and Validation of our autonomous flight system ○ Images used for training different ML versions and modules ○ Labels denoting ground truth ● Leveraging logging of runs of the aforementioned pipeline to ensure traceability of our labels ● Development of a similar “delivery” pipeline for versioning datasets ○ Consider datasets “immutable” Dataset/Label Versioning 21 © 2022 Airbus
- 22. AN AIRBUS INNOVATIONCENTER ● Collected data has value beyond ML ● Enable data-driven decisions across Wayfinder ○ Data labeling ○ Future data collection ○ Systems-level requirements ● Developing purpose-built dashboards Data Consumption and Insights 22 © 2022 Airbus
- 23. AN AIRBUS INNOVATIONCENTER ● Train/validate/test split ○ Account for sequential nature of data ○ Ensure similar distributions of key features across sets ○ Ensure sufficient coverage across operational envelope ● Model versioning ○ Efficient experiment tracking ○ V&V efforts ML Ops: Pre-Deployment 23 © 2022 Airbus
- 24. AN AIRBUS INNOVATIONCENTER ● Current state ○ Model is evaluated on a per-project pre-defined test set that has been curated to meet system requirements ● Monitoring Constraints ○ Ground truth is unavailable “online” ○ Expected large volumes of diverse data arriving in multiple batches ● Moving forward ○ Establish an annotation and evaluation strategy ○ Objective is to maximize diversity of a continuously growing evaluation set based on ■ Image content ■ Key metadata “dimensions” (e.g. airports, weather conditions, aircraft position, etc.) ■ Current model performance (and/or model confidence on different predictions) ML Ops: Post-Deployment 24 © 2022 Airbus
- 25. AN AIRBUS INNOVATIONCENTER There are several operational and conceptual challenges associated with ML and Data Ops ● Labeling ● Data curation ● Monitoring We try to address them by: ● Breaking down the data life-cycle in semantic stages ● Organizing our code in modular pipelines ● Leveraging both classical and ML-based Computer Vision algorithms ● Automating the different pipeline steps to the extent possible Conclusions 25 © 2022 Airbus
- 26. AN AIRBUS INNOVATIONCENTER Thank you!
- 27. AN AIRBUS INNOVATIONCENTER We are hiring! acubed.airbus.com/careers
