1. Welcome to our
Presentation
Topic : Assembly Language programming of 8086
Submitted by :
Pias Kumar
Student
Daffodil International University
1

2. What is microprocessor?
• A microprocessor is a component
that performs the instructions
and tasks involved in computer
processing. In a computer system,
the microprocessor is the central
unit that executes and manages
the logical instructions passed to
it.
2

3. The 8086 Microprocessor
• 8086 Microprocessor is an enhanced
version of 8085Microprocessor that
was designed by Intel in 1976. It is a
16-bit Microprocessor having 20
address lines and16 data lines that
provides up to 1MB storage. It
consists of powerful instruction set,
which provides operations like
multiplication and division easily.
3

4. Internal Architecture of 8086
• The 8086 microprocessor is
internally divided into two separate
functional units.
• These are the Bus Interface Unit
(BIU) and the Execution Unit (EU).
4

5. 8086 Processor Architecture :
5

6. Bus Interface Unit (BIU)
6

7. 7

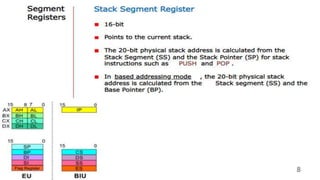

8. 8

9. 9

10. Execution Unit (EU)
10

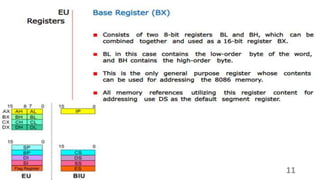

11. 11

12. 12

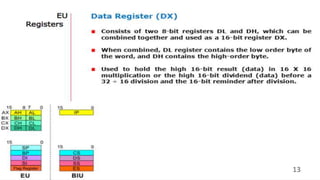

13. 13

14. Code Example: Output:
14

15. Code Example:
Addition
MOV BL,3
MOV CL,4
ADD BL,CL ; RESULT IN BL
Subtraction
MOV BL,8
MOV CL,4
SUB BL,CL ; RESULT IN BL
Multiplication
MOV AL,2
MOV BL,3
MUL BL ; RESULT IN AL
Division
MOV AL,8
MOV CL,4
DIV BL ; RESULT IN AL
15

16. Code Example:
MOV AX,@DATA
MOV DS,DX ;CONNECT WITH DATA TO MAIN FUNCTION
……………………………………………………………………………………
LEA DX,MSG3 ; TO STRING OUTPUT
MOV AH,9 ; LEA = LOAD EFFECTIVE ADDRESS
INT 21H
………………………………………………………………………………….,.
LEVEL:
MOV BL,10
MOV CL,0
INC CL
CMP CL,BL
JLE LEVEL
JG LEVEL2
LEVEL2:
MOV AH,2
MOV DL,CL
INT 21H
JMP EXIT
16

17. 17
