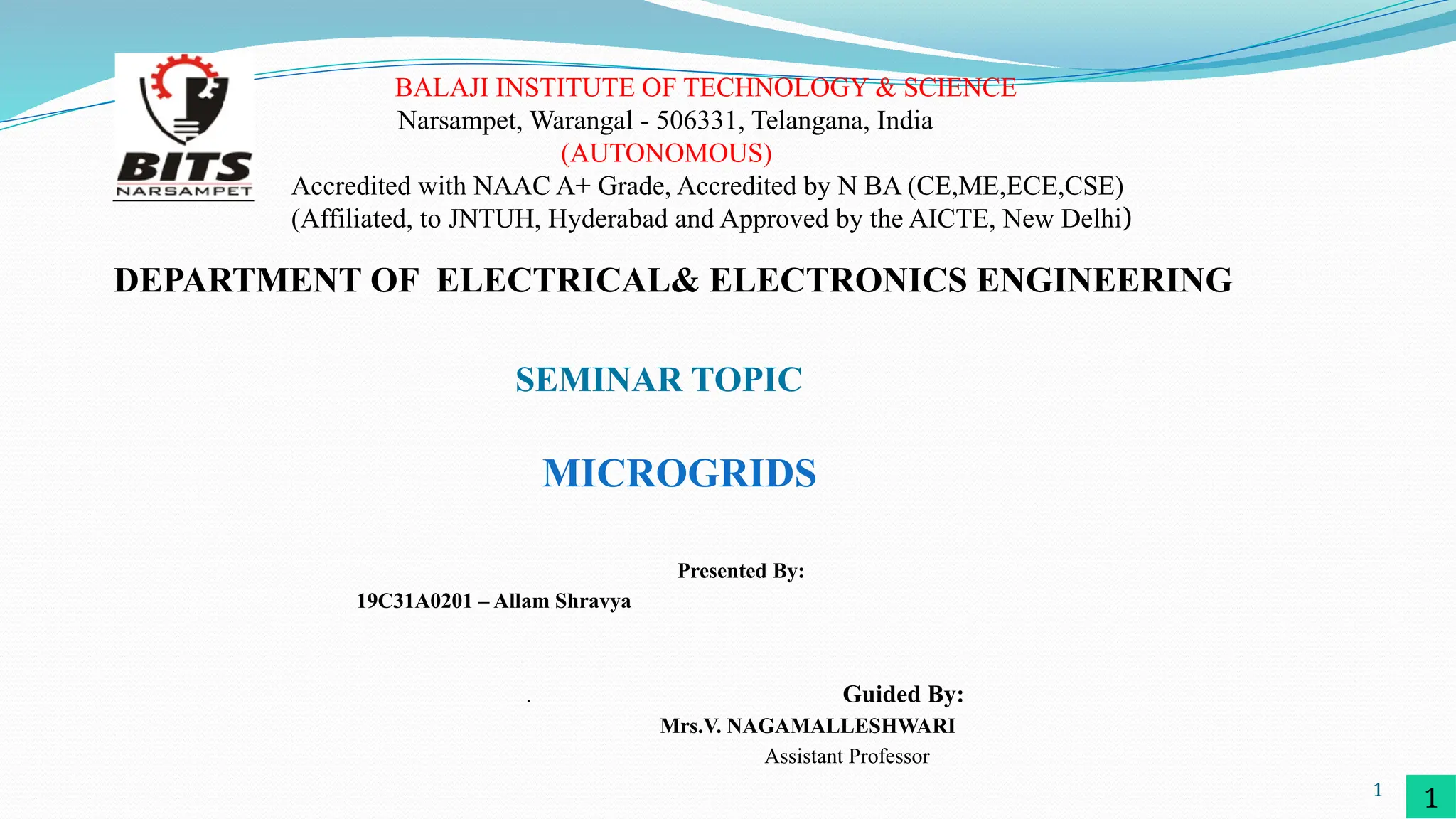

SEMINAR TOPIC
MICROGRIDS
Presented By:
19C31A0201 – Allam Shravya
. Guided By:
Mrs.V. NAGAMALLESHWARI
Assistant Professor
BALAJI INSTITUTE OF TECHNOLOGY & SCIENCE
Narsampet, Warangal - 506331, Telangana, India
(AUTONOMOUS)
Accredited with NAAC A+ Grade, Accredited by N BA (CE,ME,ECE,CSE)
(Affiliated, to JNTUH, Hyderabad and Approved by the AICTE, New Delhi)
1

2. 2

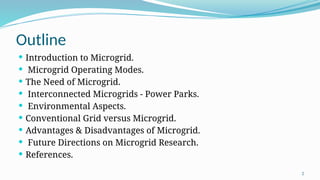

Outline
 Introduction to Microgrid.
 Microgrid Operating Modes.
 The Need of Microgrid.
 Interconnected Microgrids - Power Parks.
 Environmental Aspects.
 Conventional Grid versus Microgrid.
 Advantages & Disadvantages of Microgrid.
 Future Directions on Microgrid Research.
 References.

3. 3
Introduction To Microgrid
What is Microgrid?
It is a small-scale power supply network that is designed to provide
power for a small community.
It enables local power generation for local loads.
It comprises of various small power generating sources that makes
it highly flexible and efficient.

4. 4
Introduction To Microgrid
What is Microgrid?
 It is connected to both the local generating units and the utility
grid thus preventing power outages.Excess power can be sold to
the utility grid.
 Size of the Microgrid may range from housing estate to municipal
regions.

5. 5
Introduction To Microgrid

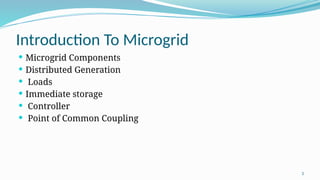

 Microgrid Components
 Distributed Generation
 Loads
 Immediate storage
 Controller
 Point of Common Coupling

6. 6

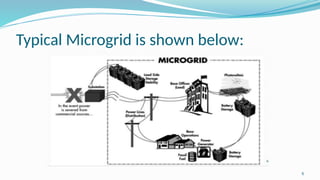

Typical Microgrid is shown below:

7. 7

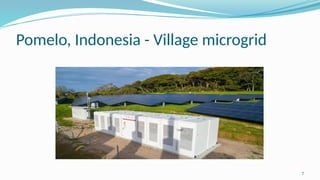

Pomelo, Indonesia - Village microgrid

8. 8

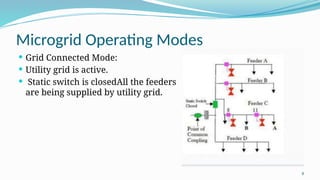

Microgrid Operating Modes
 Grid Connected Mode:
 Utility grid is active.
 Static switch is closedAll the feeders
are being supplied by utility grid.

9. 9

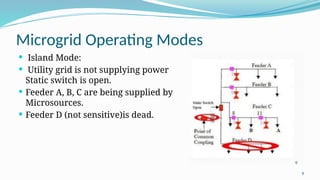

Microgrid Operating Modes
 Island Mode:
 Utility grid is not supplying power
Static switch is open.
 Feeder A, B, C are being supplied by
Microsources.
 Feeder D (not sensitive)is dead.

10. 10

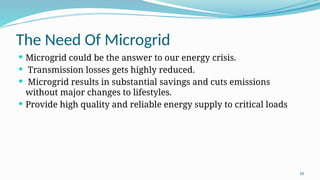

The Need Of Microgrid
 Microgrid could be the answer to our energy crisis.
 Transmission losses gets highly reduced.
 Microgrid results in substantial savings and cuts emissions
without major changes to lifestyles.
 Provide high quality and reliable energy supply to critical loads

11. 11
Interconnected Microgrids
 Interconnected Microgrids - Power Parks
 Practical size of Microgrids is limited to a few MVA.
 For larger loads, it is desirable to interconnect many Microgrids to
form a larger Microgrid network called Power Parks.
 The advantages of this Microgrid structure insures greater
stability and controllability for the Power Parks.

12. 12

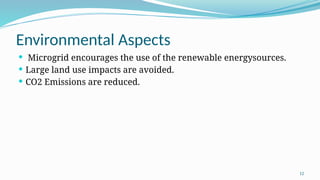

Environmental Aspects
 Microgrid encourages the use of the renewable energysources.
 Large land use impacts are avoided.
 CO2 Emissions are reduced.

13. 13
Conventional Grid vs. Microgrid
 Efficiency of conventional grid is very low as compared to
Microgrid.
 Large amount of energy in the form of heat is wasted in
conventional grid.
 Power sources in case of Microgrid (often referred to as
Microsources) are small and are located in close proximity to load.

14. 14
Advantages & Disadvantages

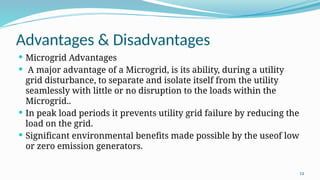

 Microgrid Advantages
 A major advantage of a Microgrid, is its ability, during a utility
grid disturbance, to separate and isolate itself from the utility
seamlessly with little or no disruption to the loads within the
Microgrid..
 In peak load periods it prevents utility grid failure by reducing the
load on the grid.
 Significant environmental benefits made possible by the useof low
or zero emission generators.

15. 15
Advantages & Disadvantages
 • Microgrid Advantages
 The use of both electricity and heat permitted by the close
proximity of the generator to the user, thereby increasing the
overall energy efficiency.
 Microgrid can act to mitigate the electricity costs to its users by
generating some or all of its electricity needs.

16. 16
Advantages & Disadvantages
 Microgrid Disadvantages
 Voltage, frequency and power quality are three main parameters
that must be considered and controlled to acceptable standards
whilst the power and energy balance is maintained.
 Electrical energy needs to be stored in battery banks thus
requiring more space and maintenance.
 Resynchronization with the utility grid is difficult.

17. 17
Advantages & Disadvantages
 Microgrid Disadvantages

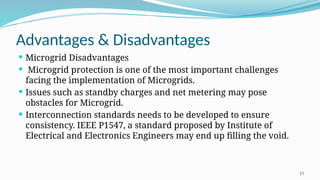

 Microgrid protection is one of the most important challenges
facing the implementation of Microgrids.
 Issues such as standby charges and net metering may pose
obstacles for Microgrid.
 Interconnection standards needs to be developed to ensure
consistency. IEEE P1547, a standard proposed by Institute of
Electrical and Electronics Engineers may end up filling the void.

18. 18

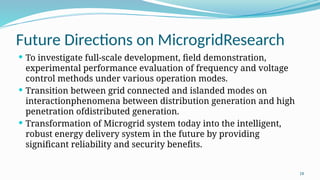

Future Directions on MicrogridResearch
 To investigate full-scale development, field demonstration,
experimental performance evaluation of frequency and voltage
control methods under various operation modes.
 Transition between grid connected and islanded modes on
interactionphenomena between distribution generation and high
penetration ofdistributed generation.
 Transformation of Microgrid system today into the intelligent,
robust energy delivery system in the future by providing
significant reliability and security benefits.

19. 19

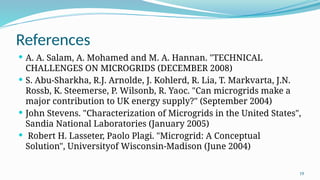

References
 A. A. Salam, A. Mohamed and M. A. Hannan. "TECHNICAL
CHALLENGES ON MICROGRIDS (DECEMBER 2008)
 S. Abu-Sharkha, R.J. Arnolde, J. Kohlerd, R. Lia, T. Markvarta, J.N.
Rossb, K. Steemerse, P. Wilsonb, R. Yaoc. "Can microgrids make a
major contribution to UK energy supply?" (September 2004)
 John Stevens. "Characterization of Microgrids in the United States",
Sandia National Laboratories (January 2005)
 Robert H. Lasseter, Paolo Plagi. "Microgrid: A Conceptual
Solution", Universityof Wisconsin-Madison (June 2004)

20. 20

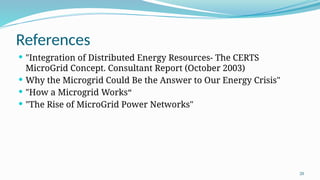

References
 "Integration of Distributed Energy Resources- The CERTS
MicroGrid Concept. Consultant Report (October 2003)
 Why the Microgrid Could Be the Answer to Our Energy Crisis"
 "How a Microgrid Works“
 "The Rise of MicroGrid Power Networks"

21. 21
TO BE CONTINUED
