A microcontroller is a small computer on a single integrated circuit containing a processor core, memory, and input/output peripherals. The first microcontroller, the Intel 4004, was created in 1971. Microcontrollers can be categorized by architecture (Harvard or Von Neumann) or by vendor. Programming a microcontroller involves writing code, burning the program onto the microcontroller chip using a programmer tool, and then connecting it to external devices. Microcontrollers are widely used in applications such as engine control systems, medical devices, power systems, remote controls, and more.

1. Prepared by:
Md Redwan Islam
Student no. 1006066
BUET EEE’10 sec-B1.

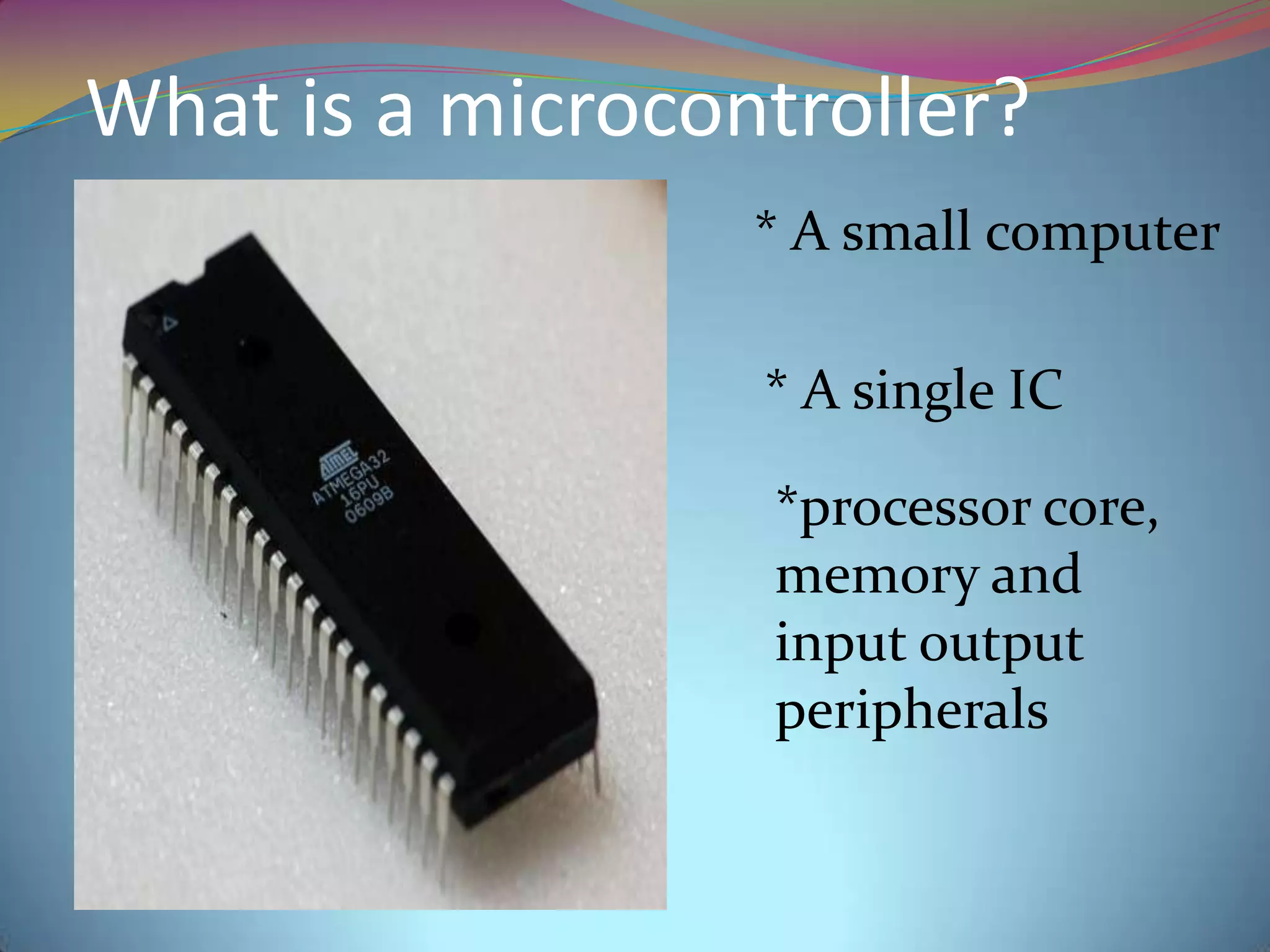

2. What is a microcontroller?
* A small computer
* A single IC
*processor core,
memory and
input output
peripherals

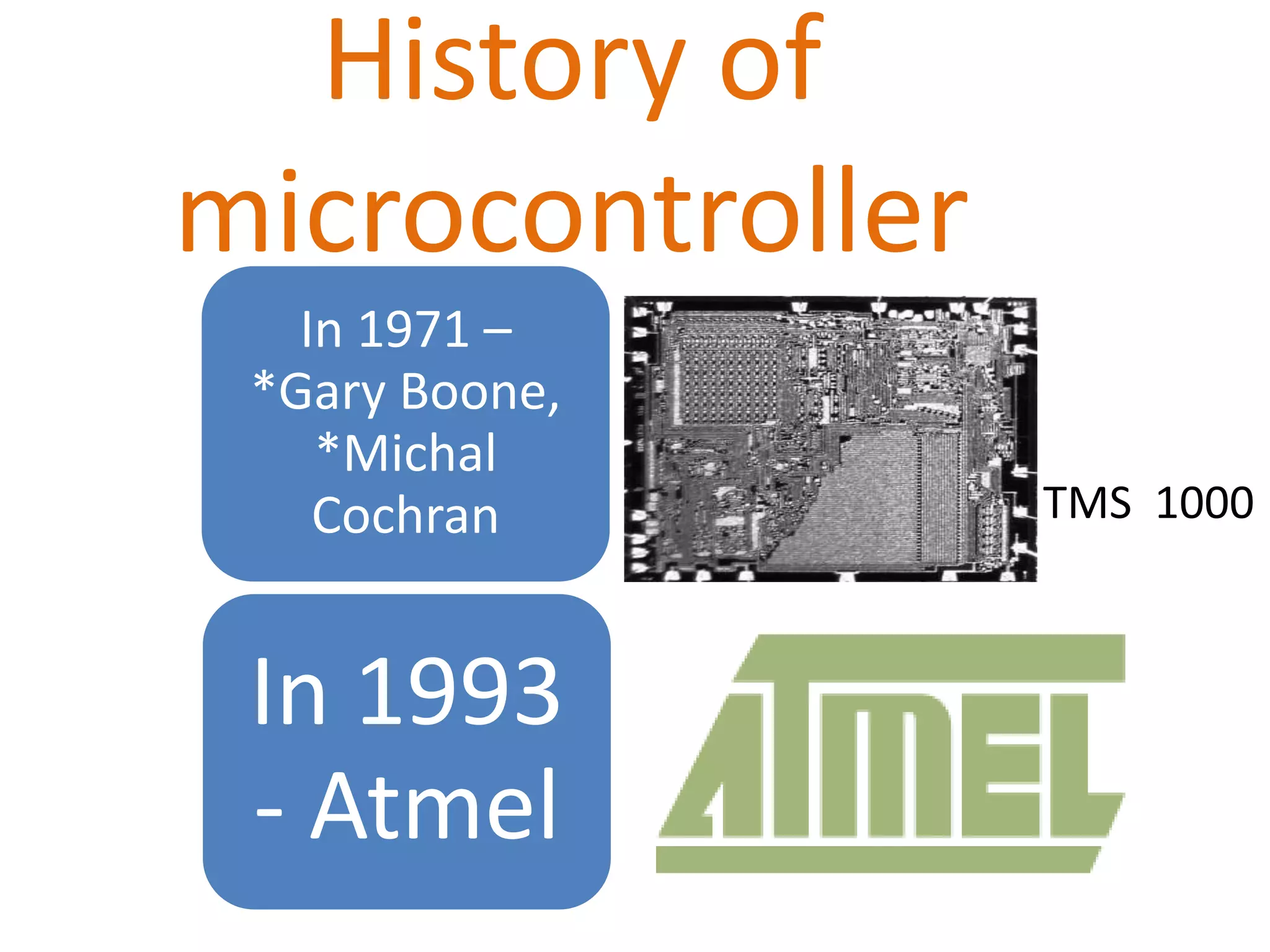

3. History of
microcontroller
In 1971 –
*Gary Boone,
*Michal
Cochran TMS 1000
In 1993
- Atmel

4. no
Computer ‘windows’ User
program

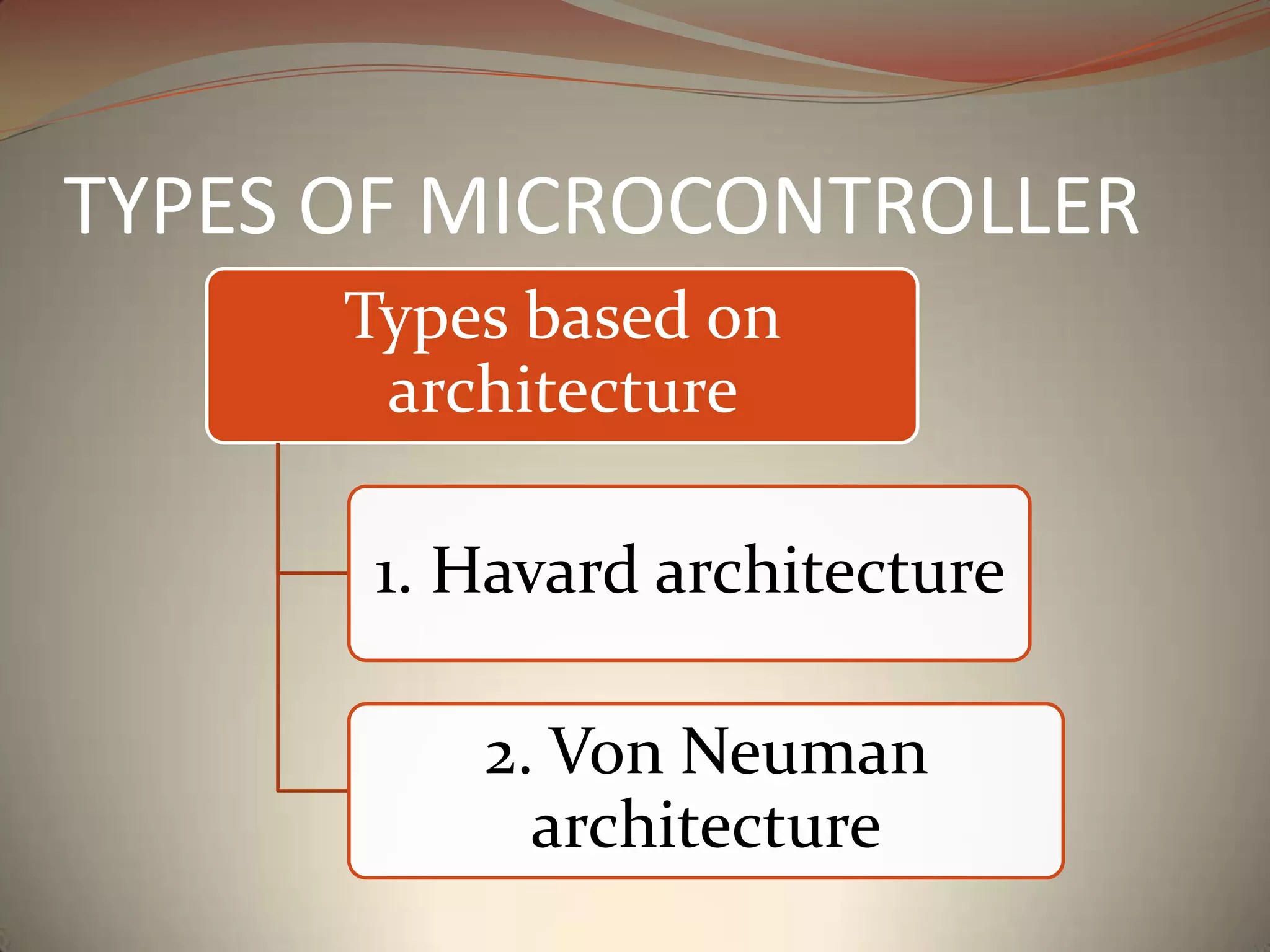

5. TYPES OF MICROCONTROLLER
Types based on
architecture
1. Havard architecture
2. Von Neuman
architecture

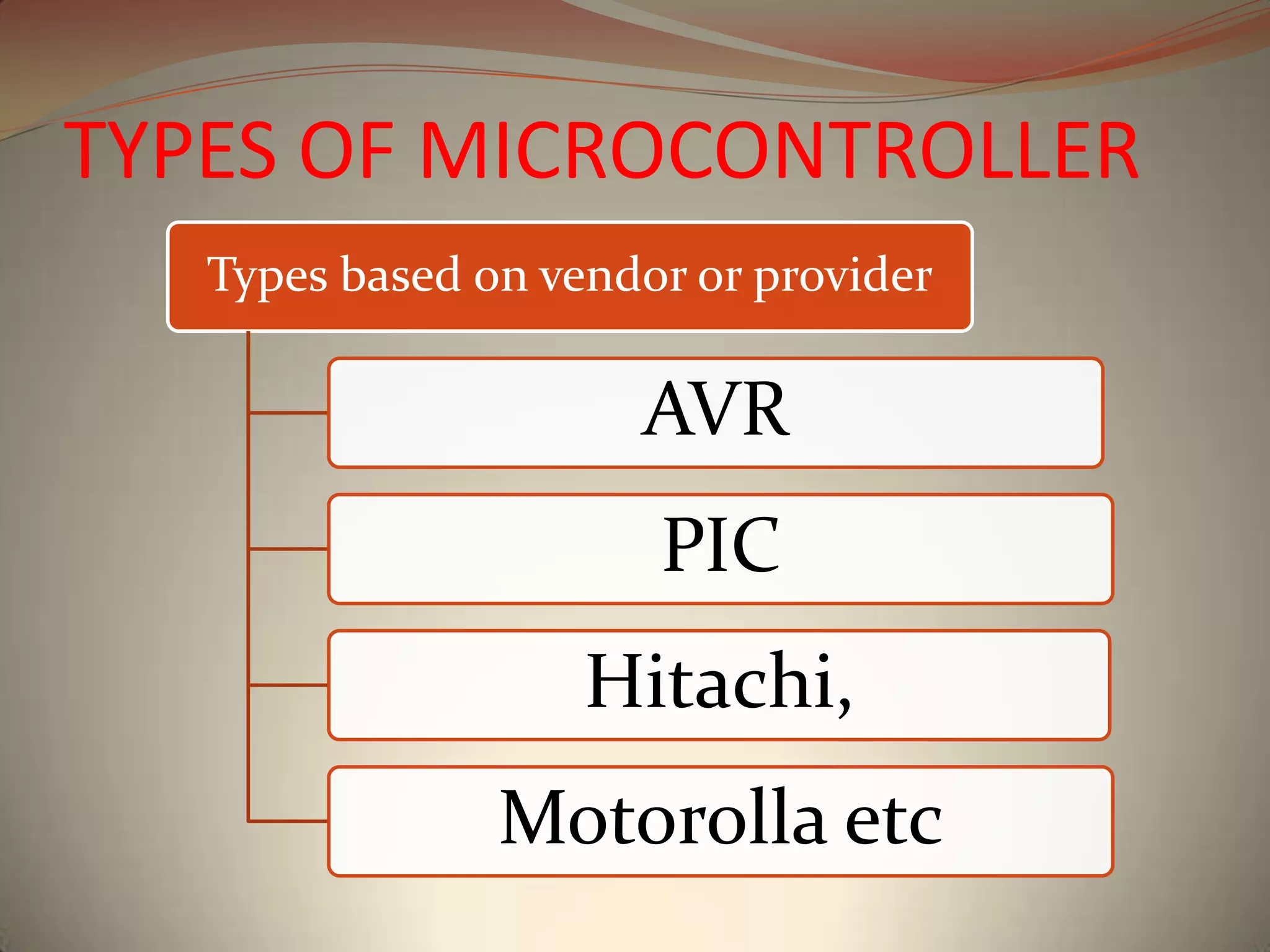

6. TYPES OF MICROCONTROLLER
Types based on vendor or provider
AVR
PIC
Hitachi,
Motorolla etc

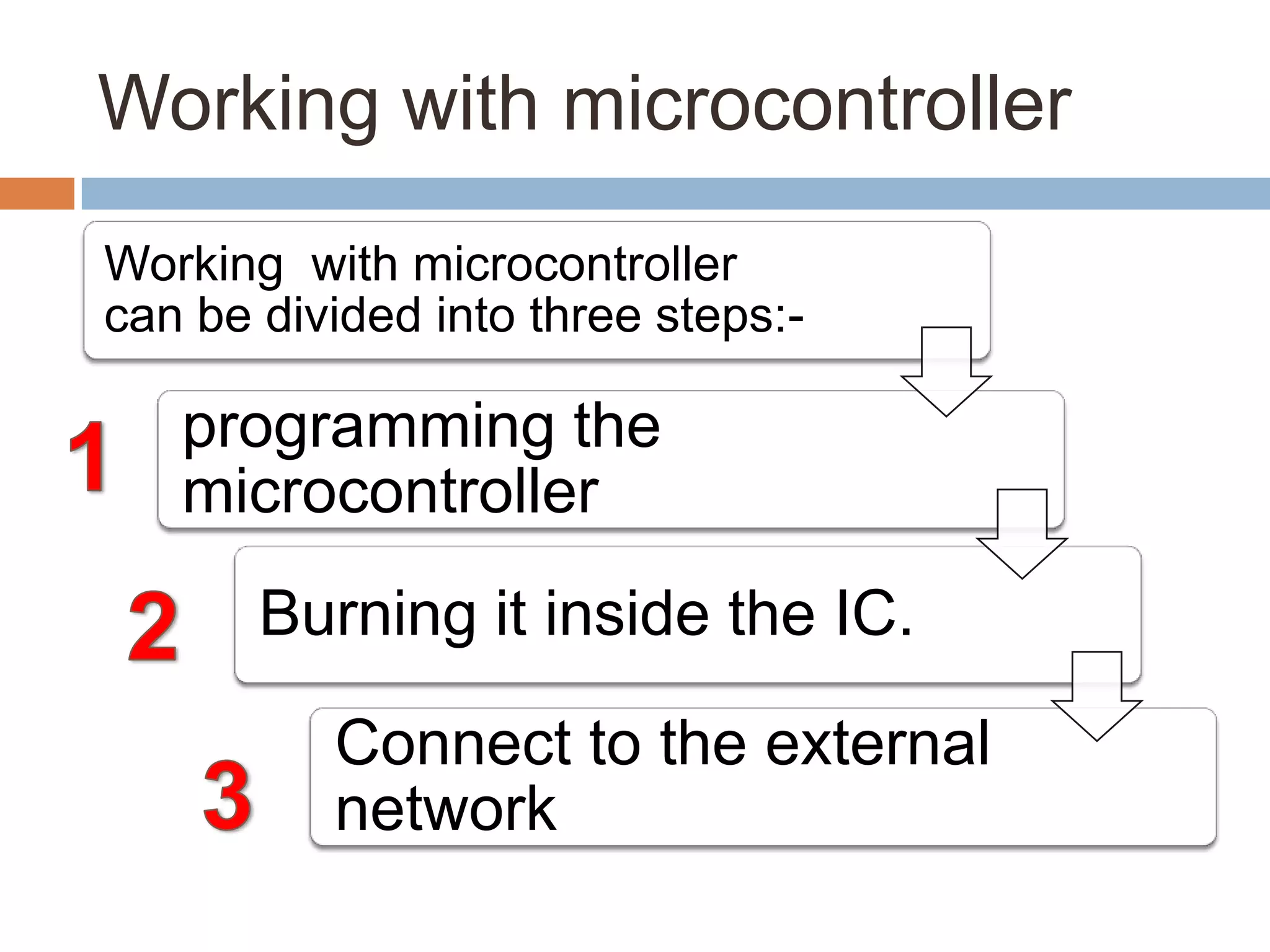

7. Working with microcontroller
Working with microcontroller
can be divided into three steps:-
programming the
microcontroller
Burning it inside the IC.
Connect to the external
network

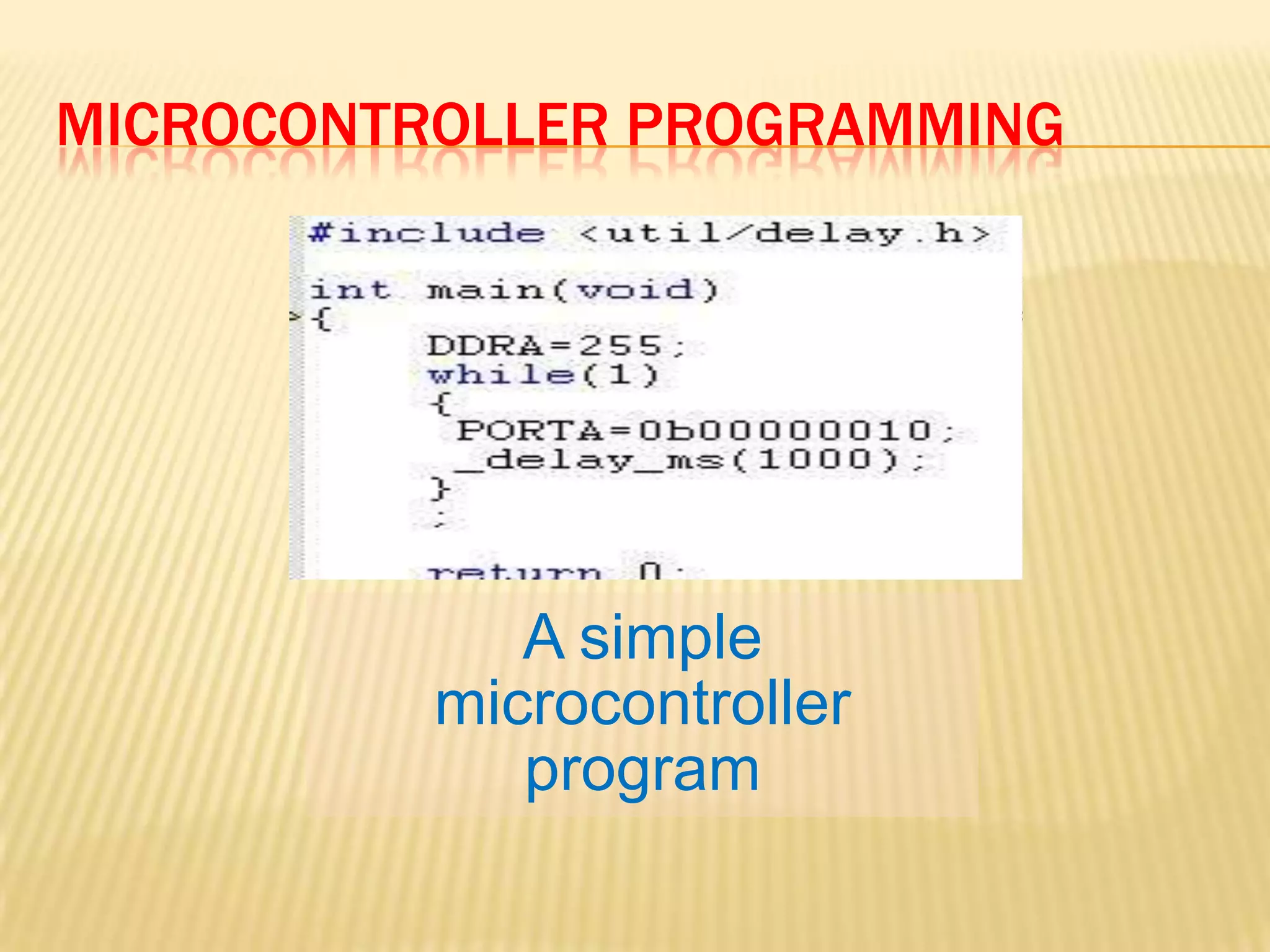

8. MICROCONTROLLER PROGRAMMING
A simple
microcontroller
program

9. MICROCONTROLLER PROGRAMMING
Microcontroller
programming is
very much similar
to the programming
language ‘C’.

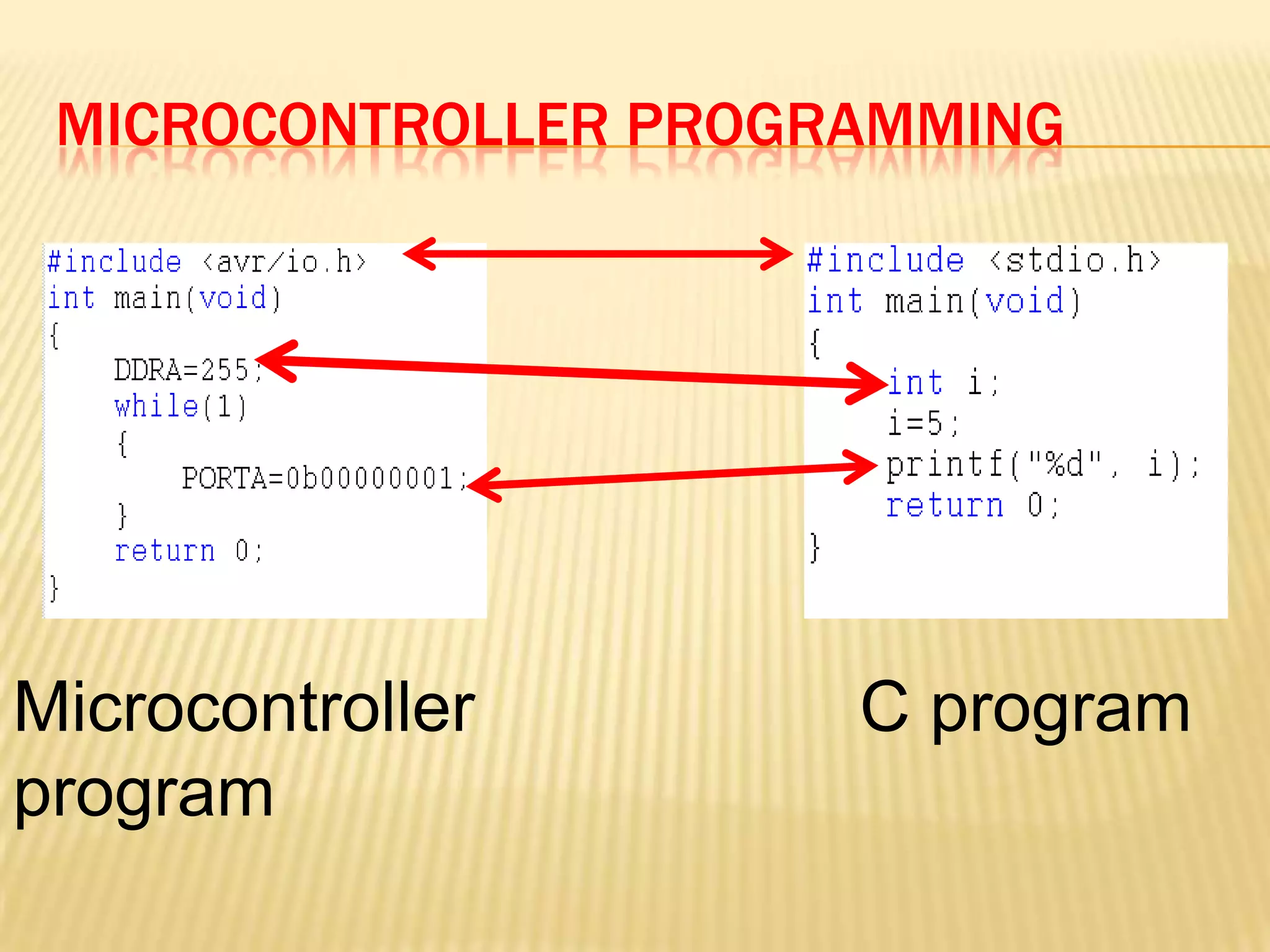

10. MICROCONTROLLER PROGRAMMING
Microcontroller C program
program

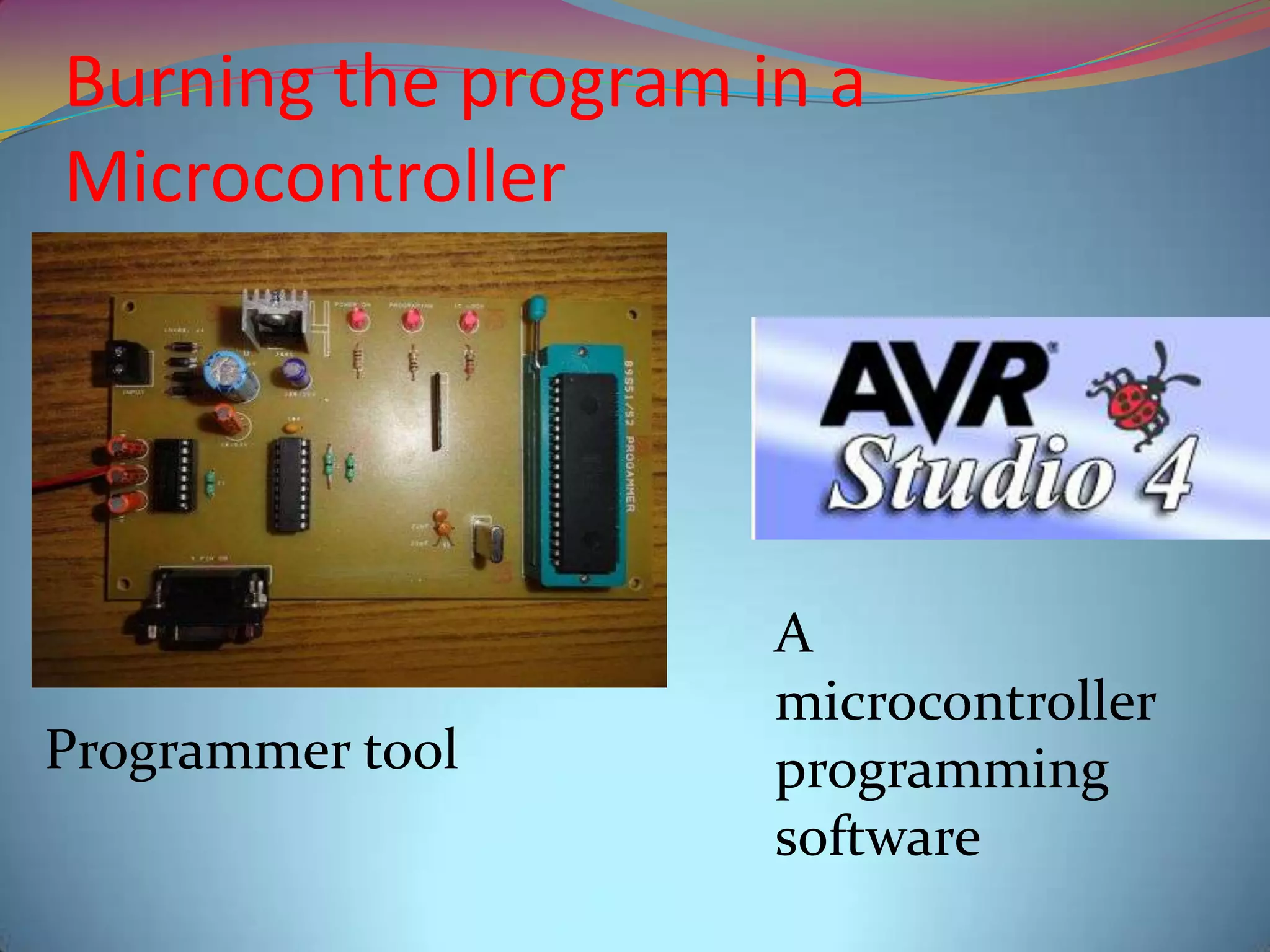

11. Burning the program in a
Microcontroller
A
microcontroller
Programmer tool programming
software

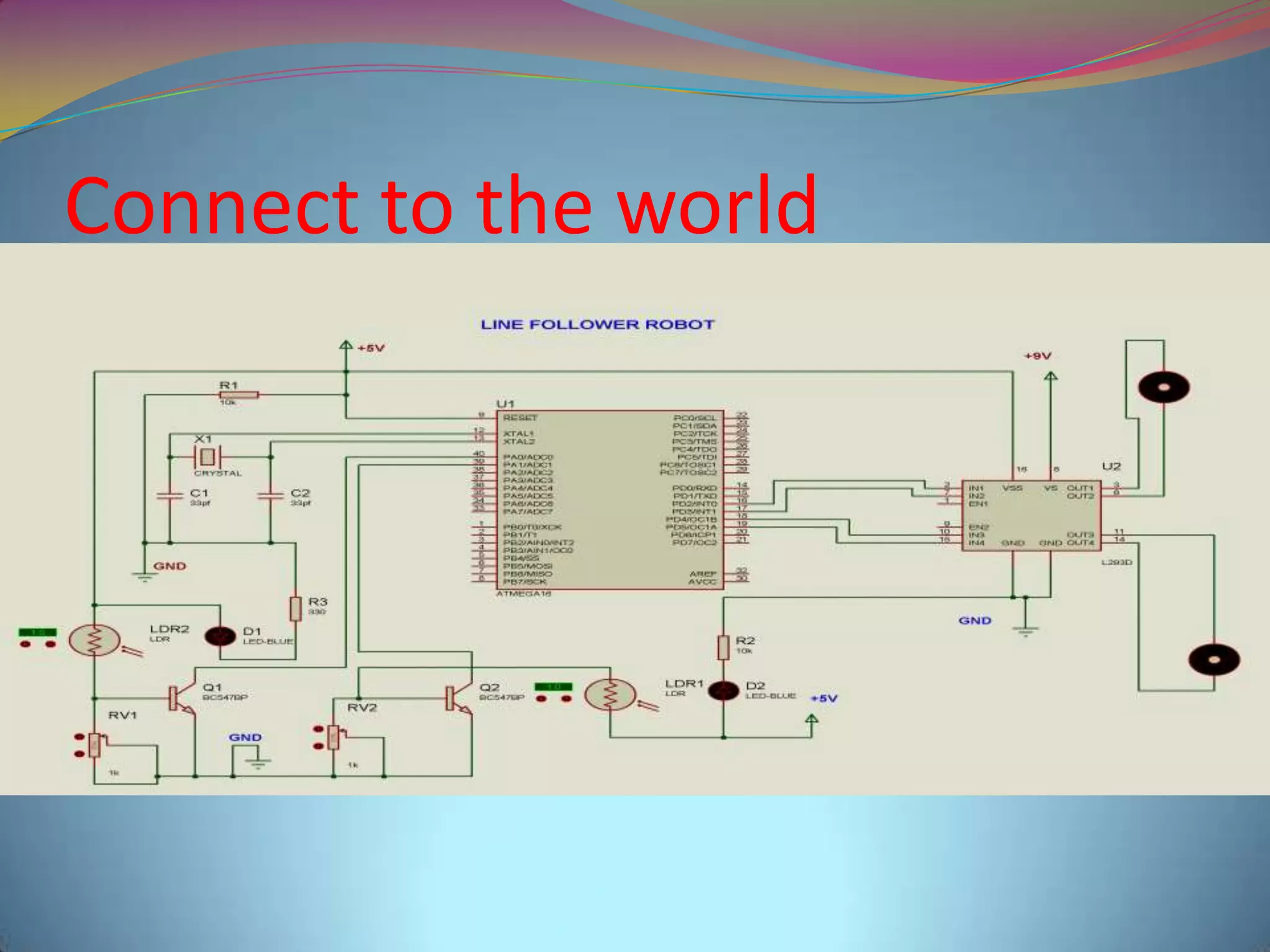

12. Connect to the world

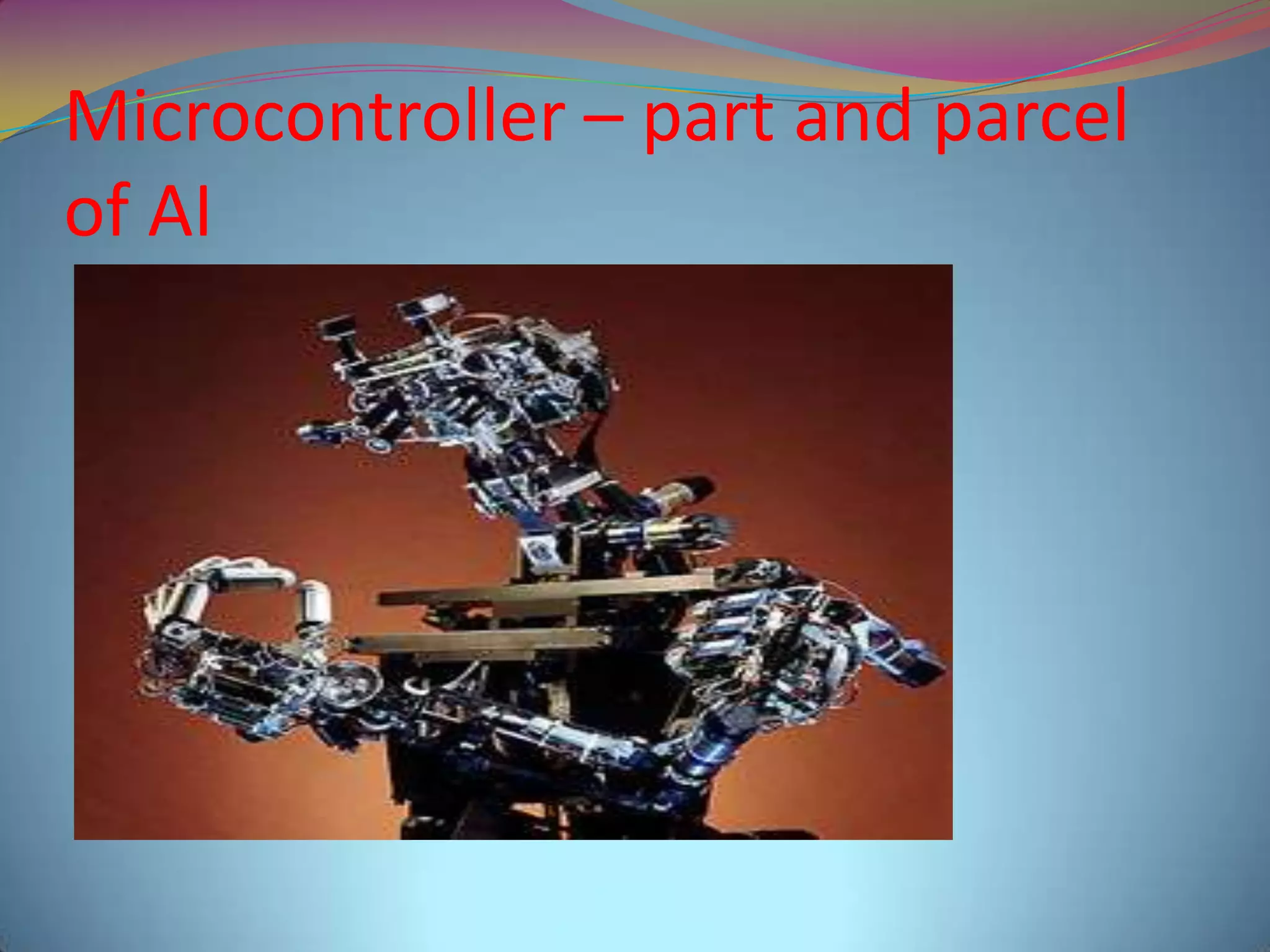

13. Microcontroller – part and parcel
of AI

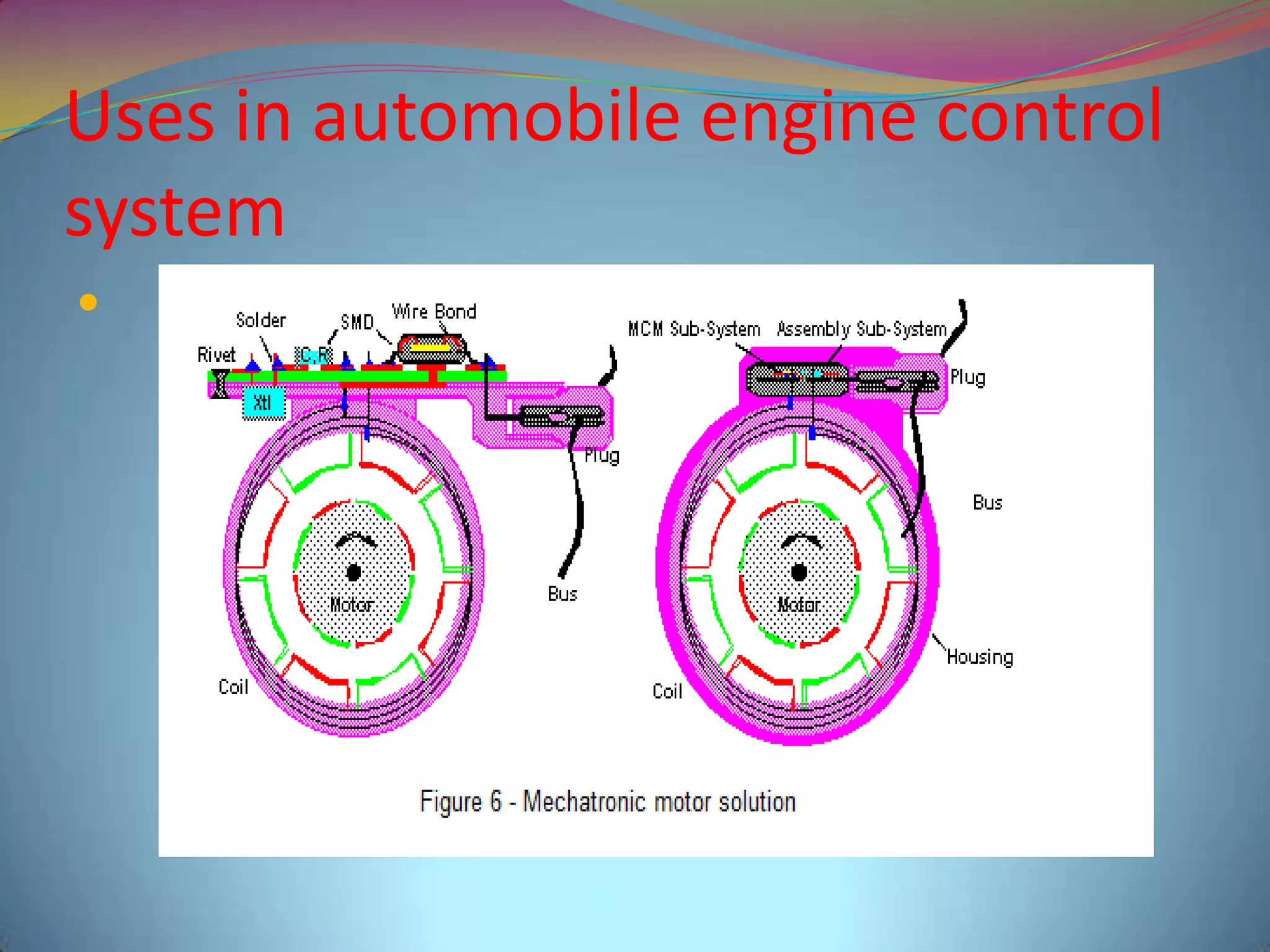

15. Uses in automobile engine control
system


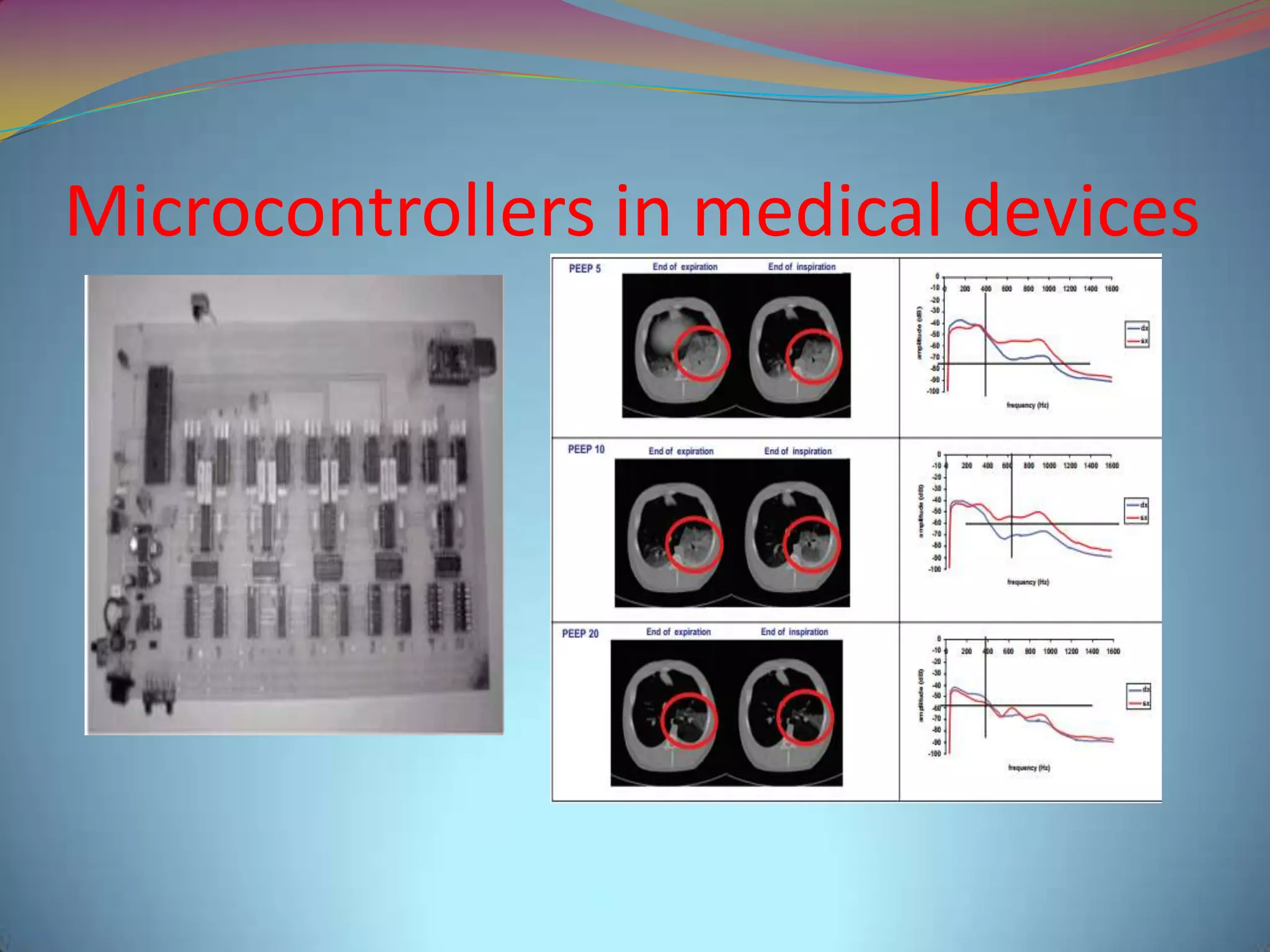

16. Microcontrollers in medical devices

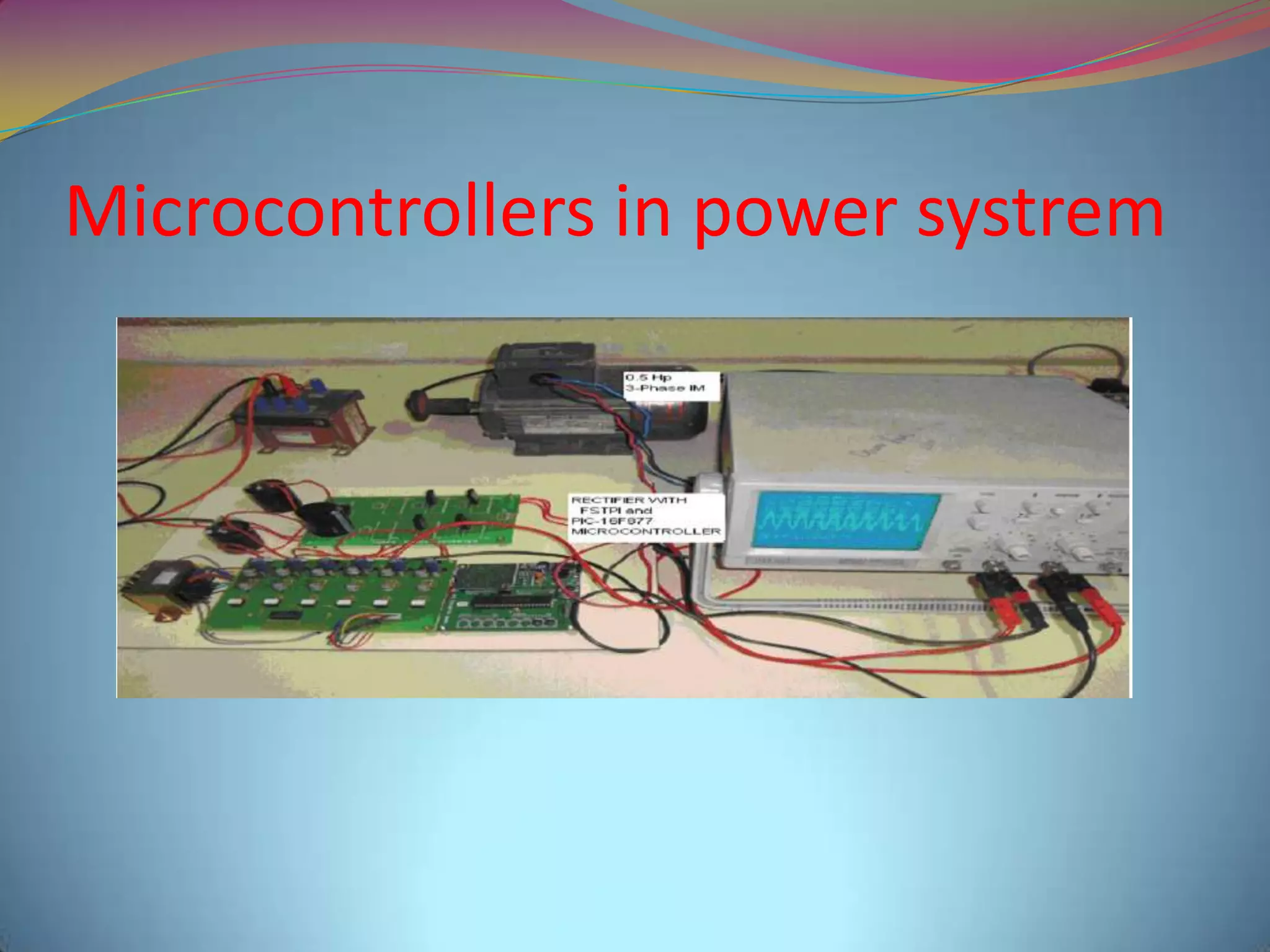

17. Microcontrollers in power systrem

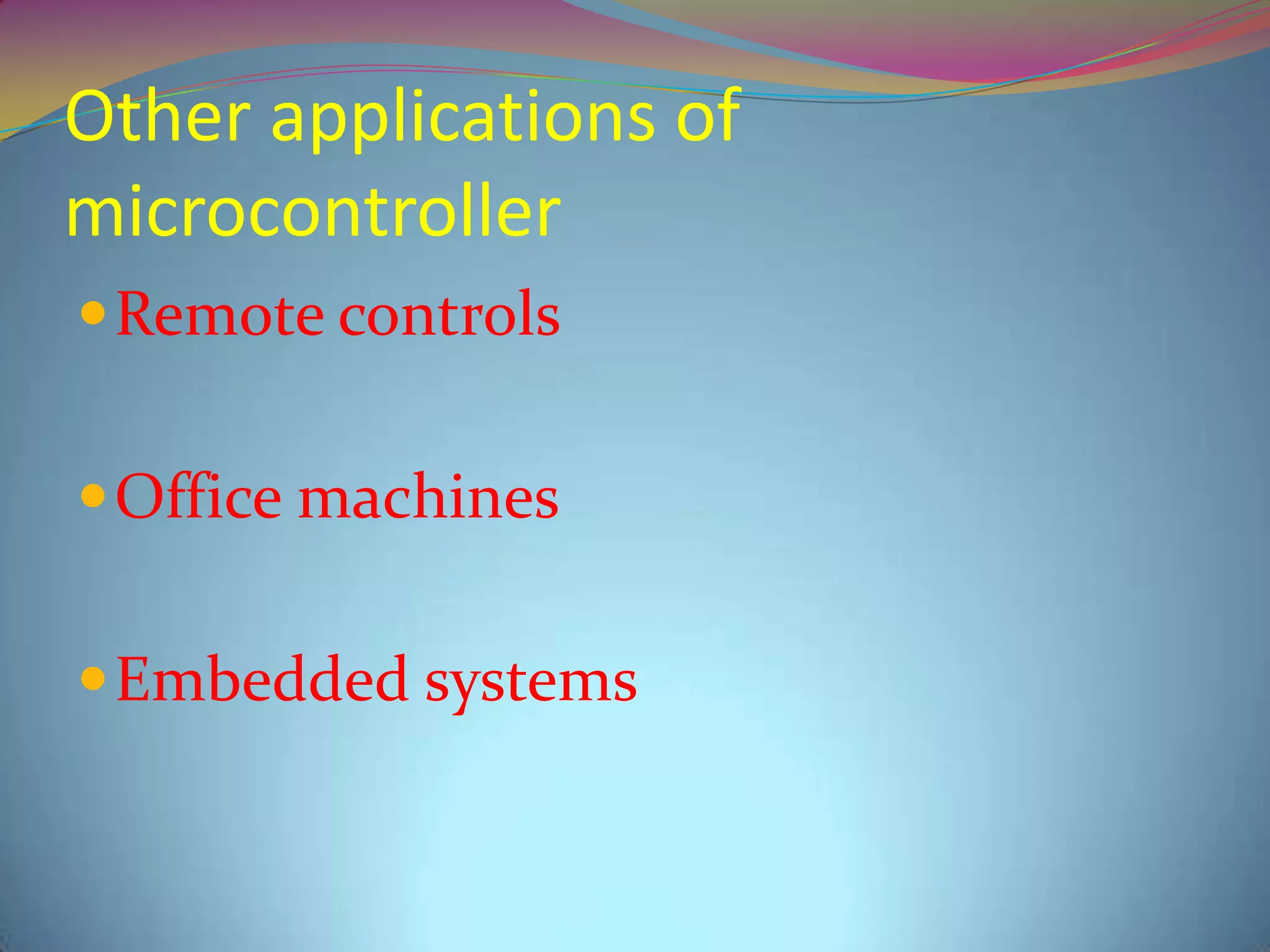

18. Other applications of
microcontroller
 Remote controls
 Office machines
 Embedded systems
