Embedded Systems

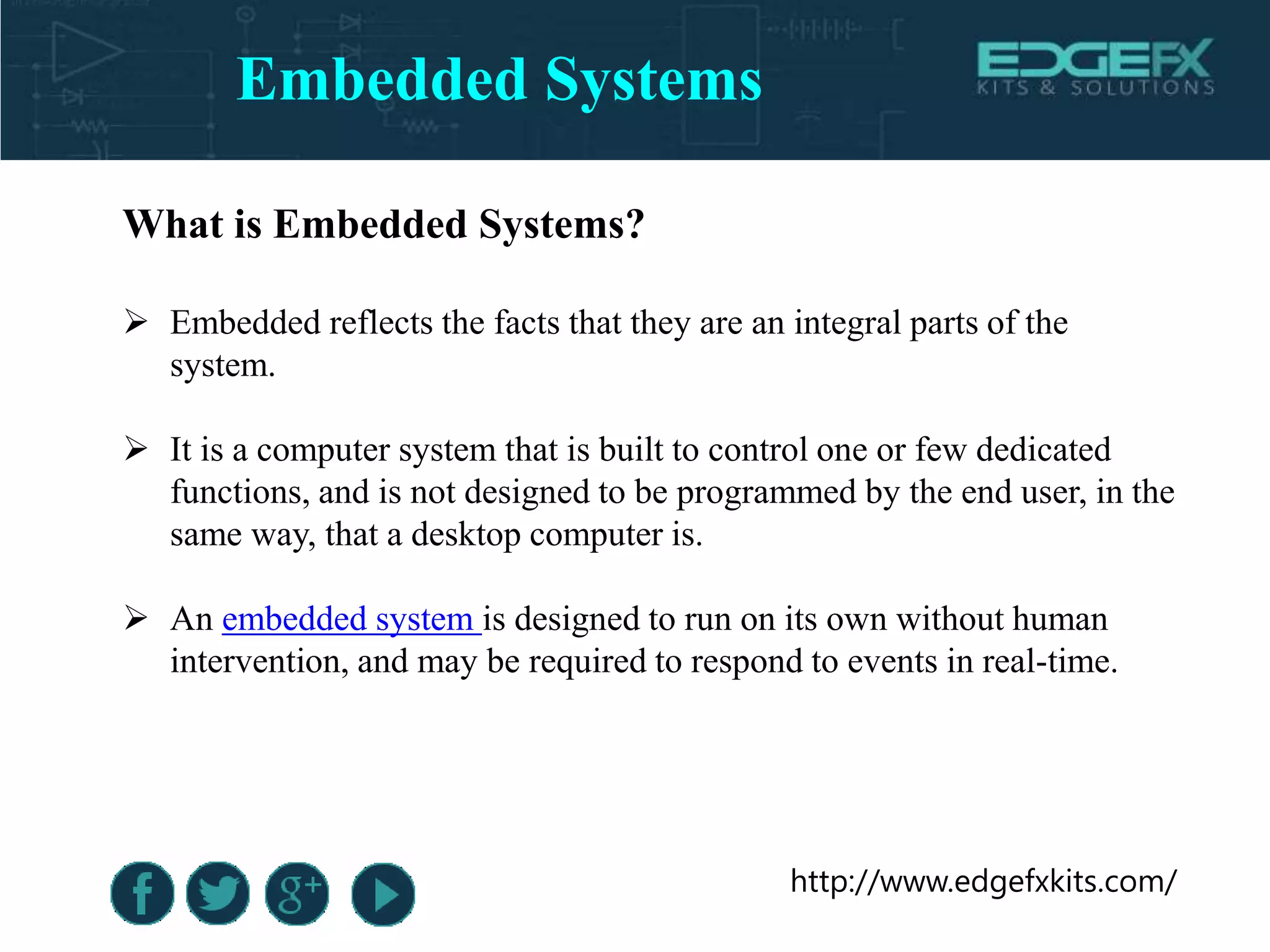

What is Embedded Systems?
 Embedded reflects the facts that they are an integral parts of the
system.
 It is a computer system that is built to control one or few dedicated
functions, and is not designed to be programmed by the end user, in the
same way, that a desktop computer is.
 An embedded system is designed to run on its own without human
intervention, and may be required to respond to events in real-time.
Embedded Systems

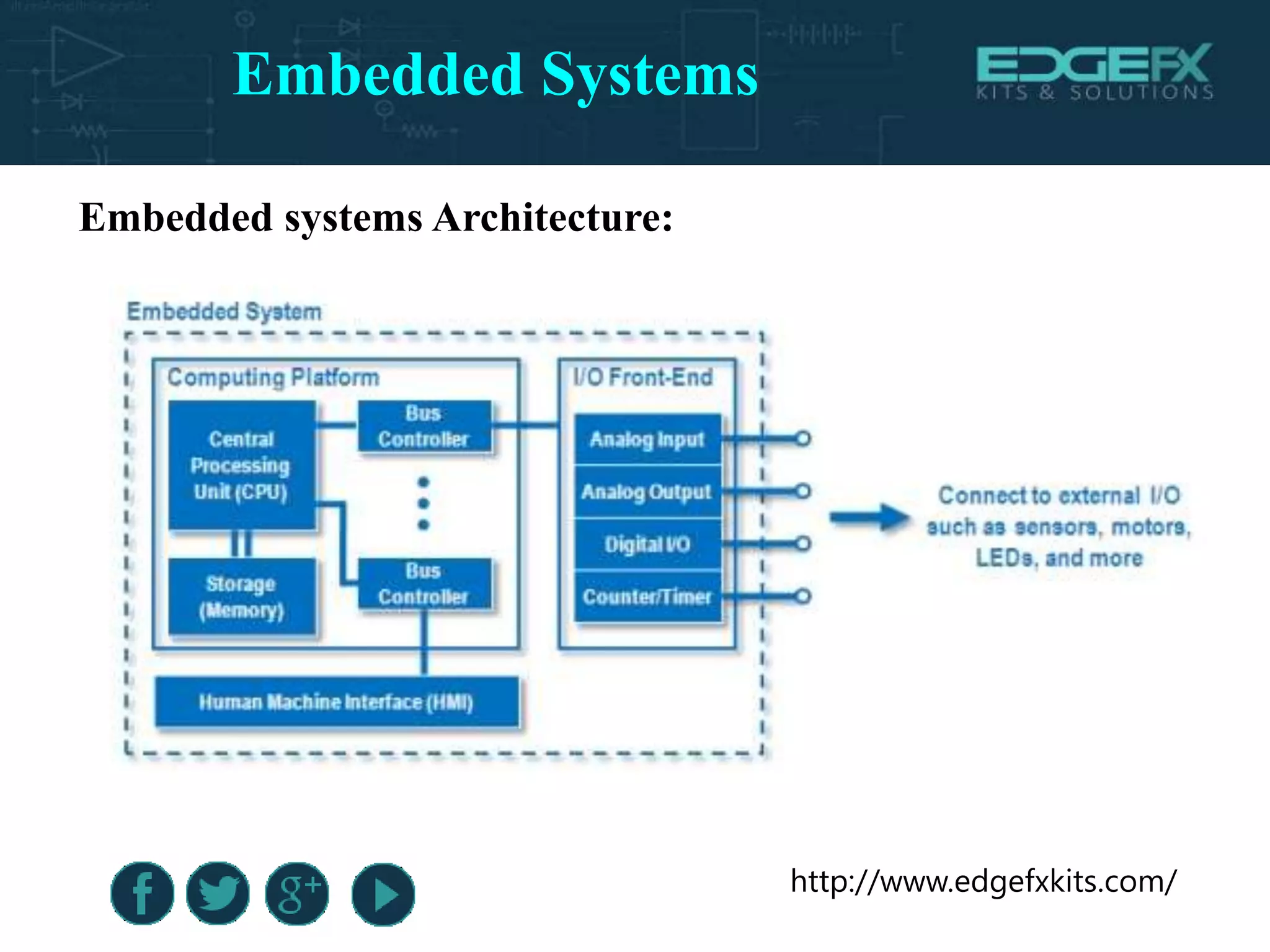

Embedded systems Architecture:
Embedded Systems

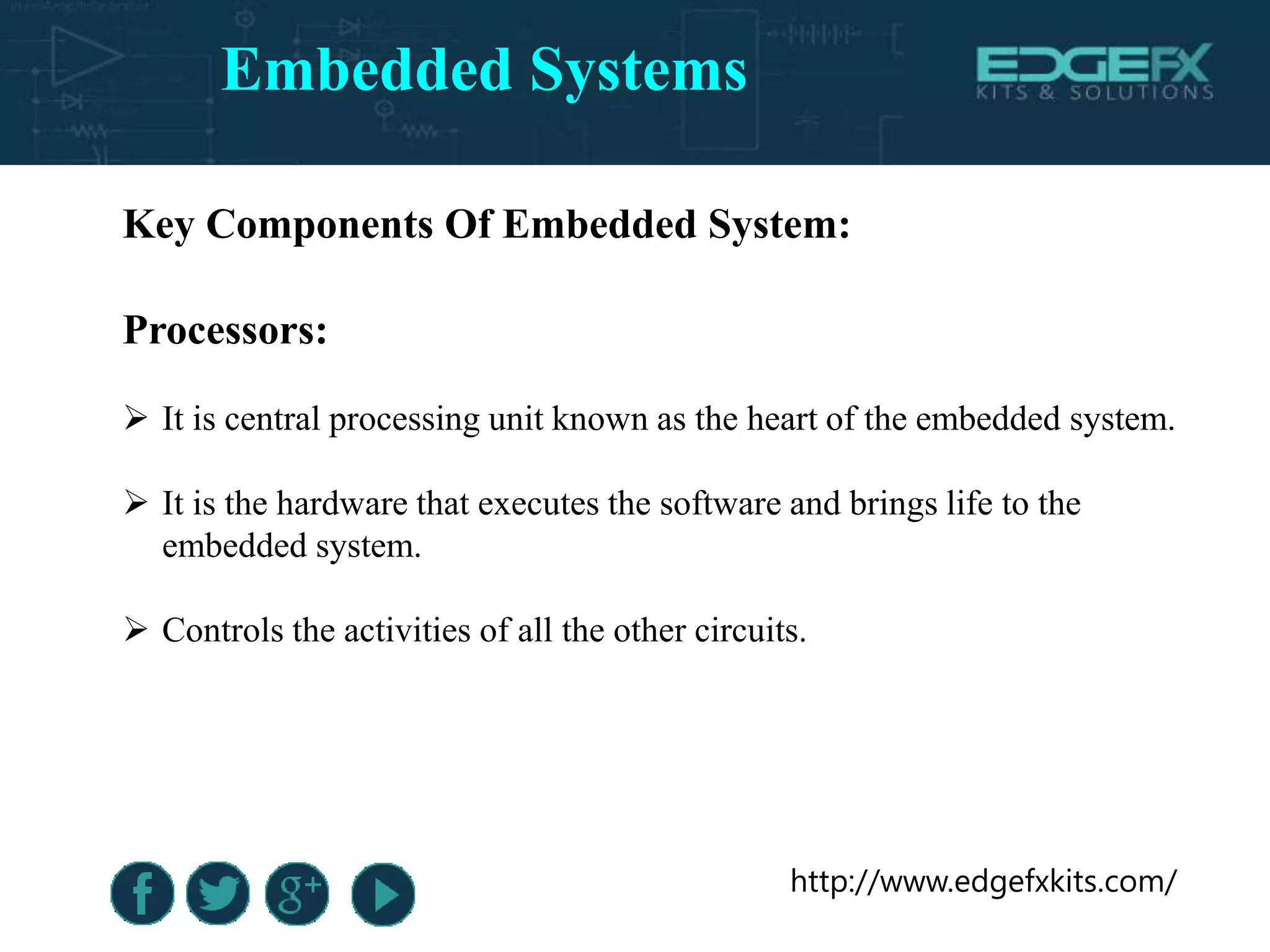

Key Components Of Embedded System:
Processors:
 It is central processing unit known as the heart of the embedded system.
 It is the hardware that executes the software and brings life to the
embedded system.
 Controls the activities of all the other circuits.
Embedded Systems

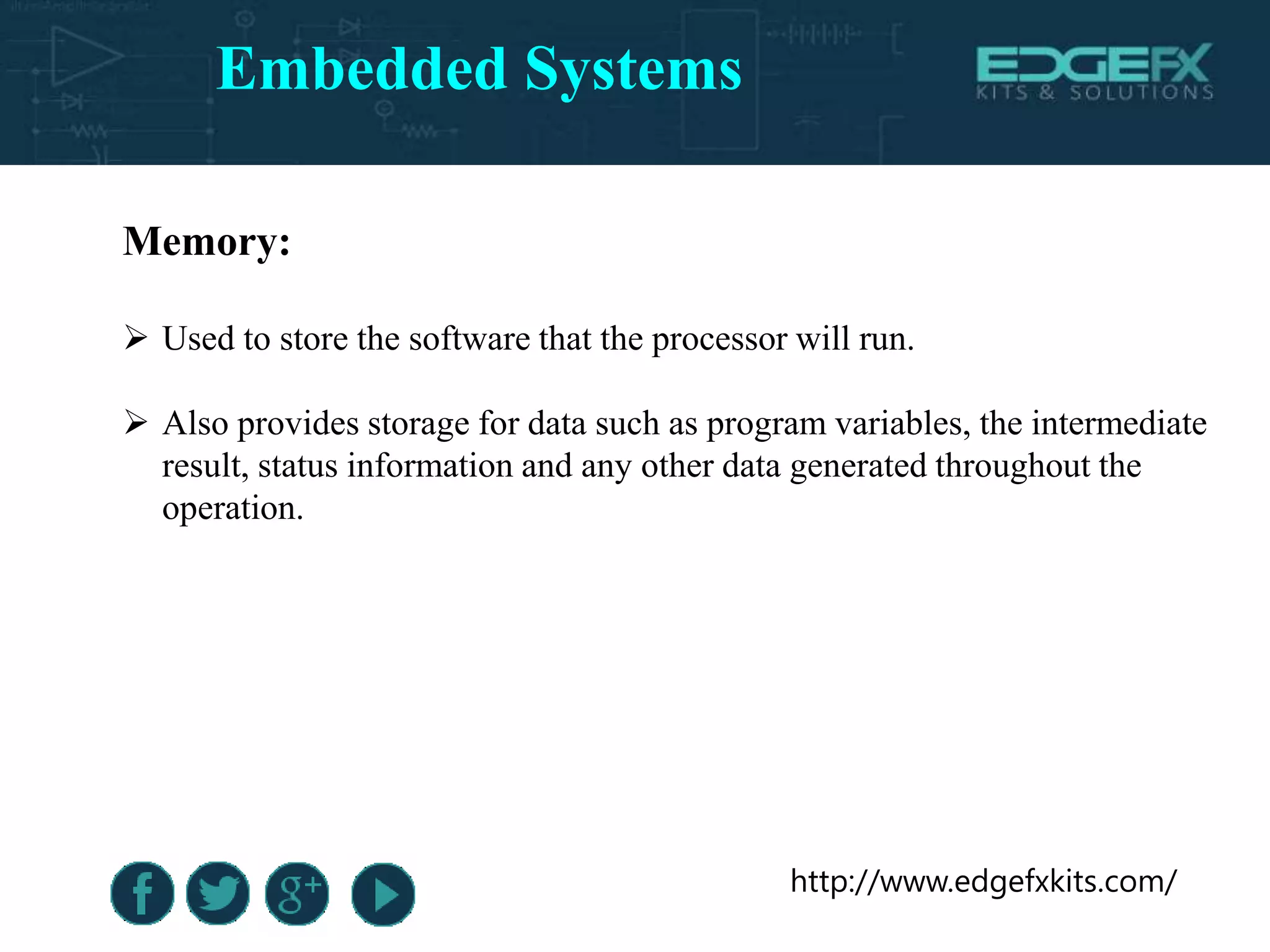

Memory:
 Used to store the software that the processor will run.
 Also provides storage for data such as program variables, the intermediate
result, status information and any other data generated throughout the
operation.
Embedded Systems

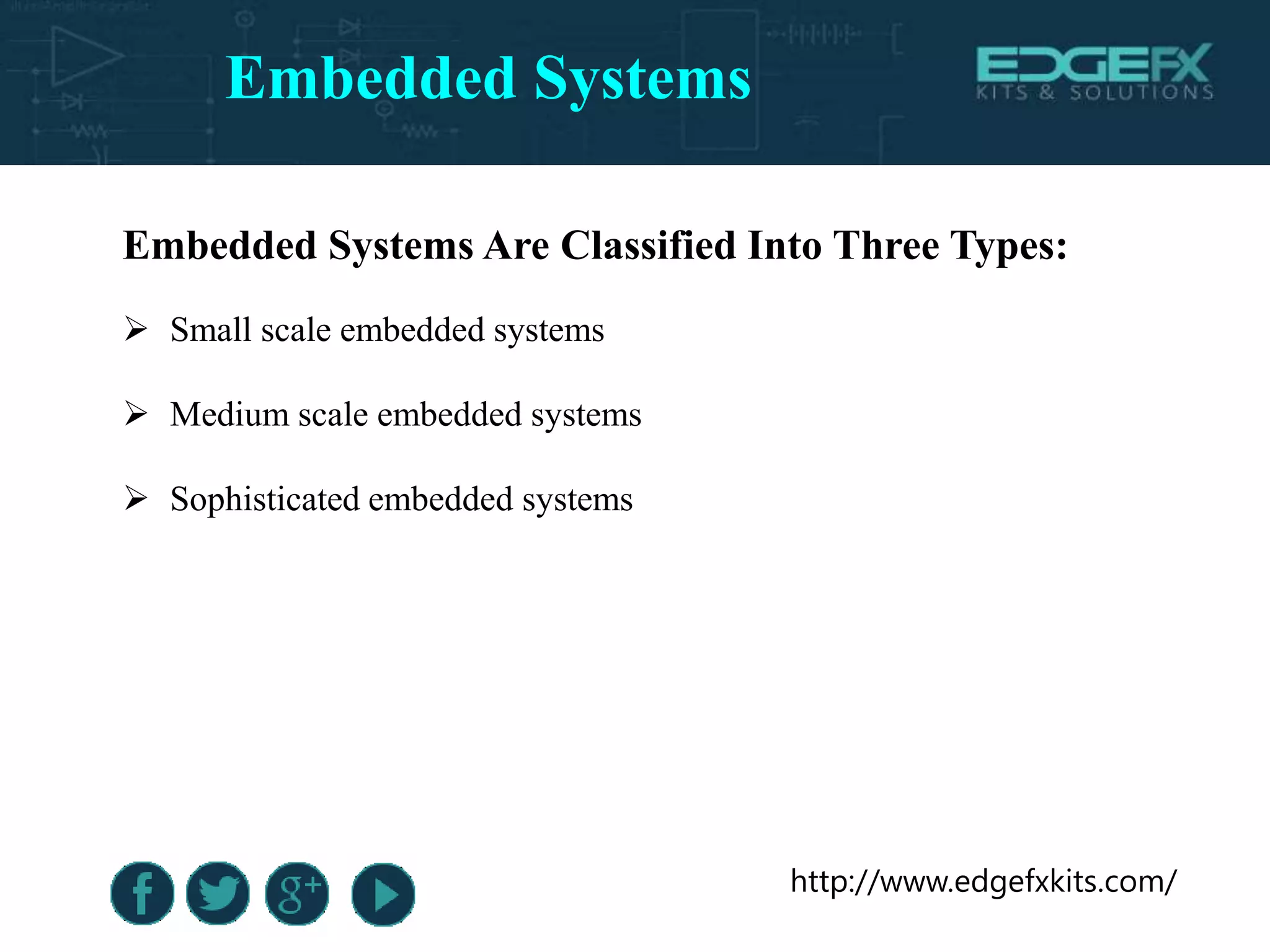

Embedded Systems Are Classified Into Three Types:
 Small scale embedded systems
 Medium scale embedded systems
 Sophisticated embedded systems
Embedded Systems

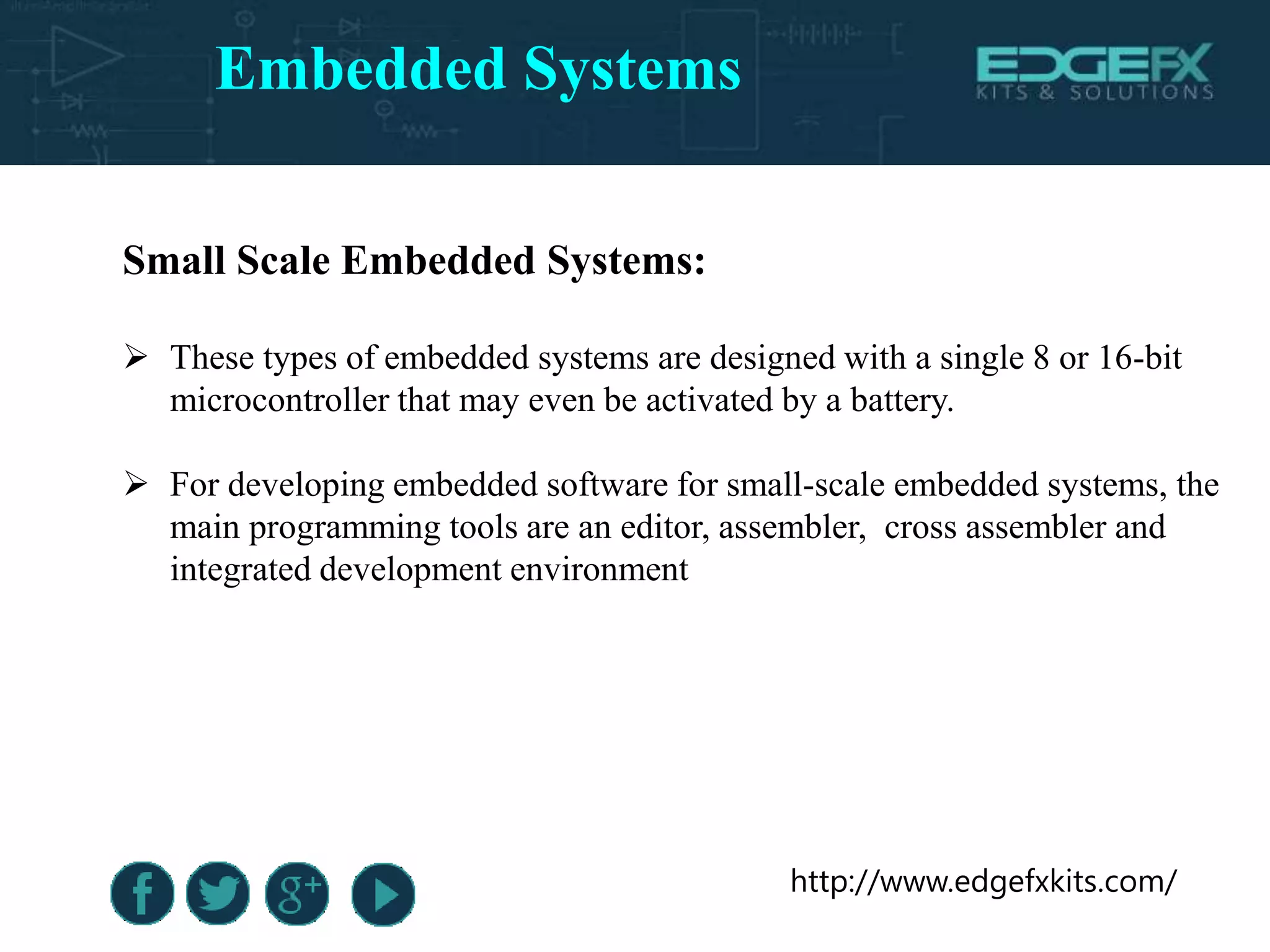

Small Scale Embedded Systems:
 These types of embedded systems are designed with a single 8 or 16-bit
microcontroller that may even be activated by a battery.
 For developing embedded software for small-scale embedded systems, the
main programming tools are an editor, assembler, cross assembler and
integrated development environment
Embedded Systems

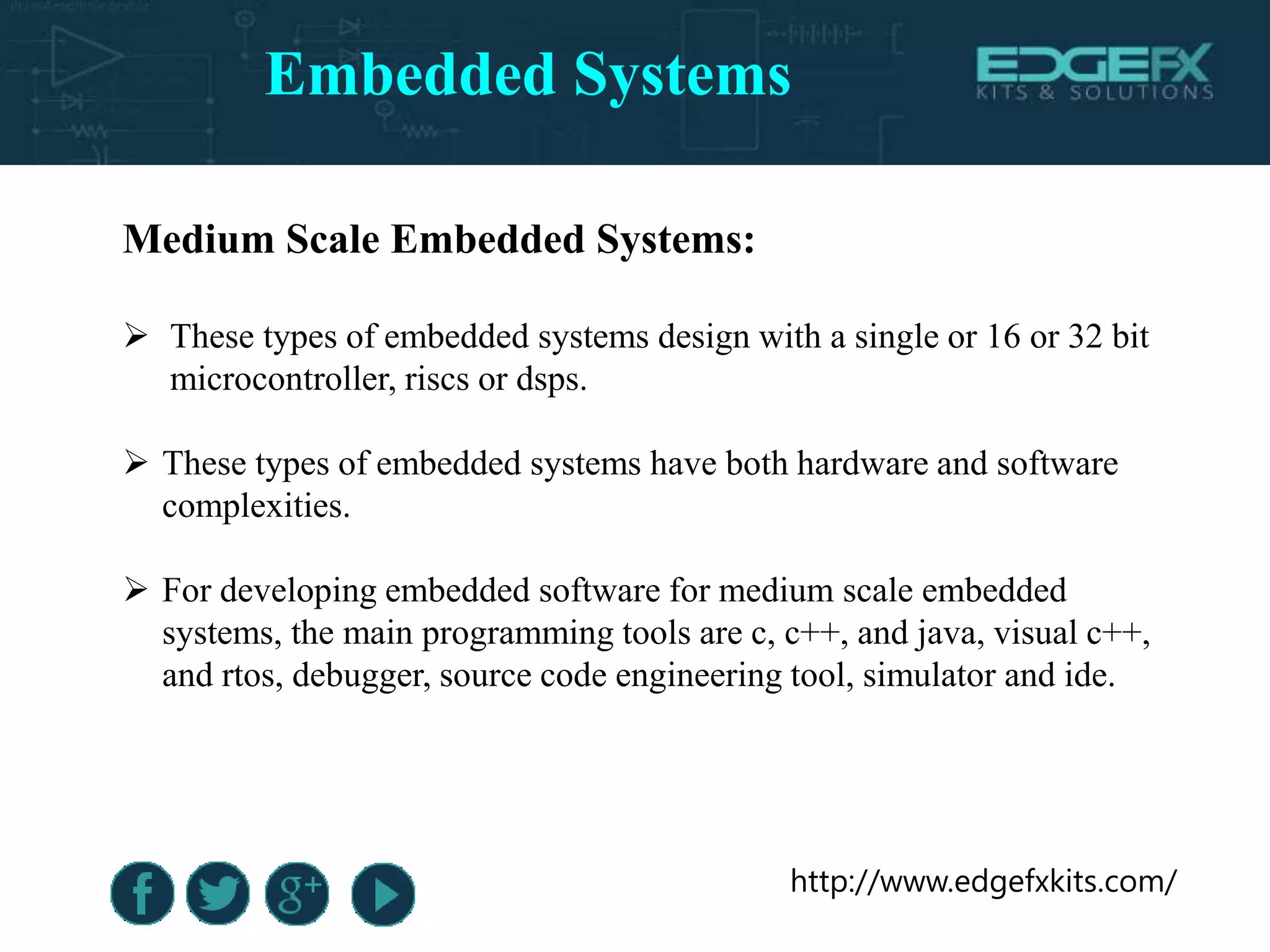

Medium Scale Embedded Systems:
 These types of embedded systems design with a single or 16 or 32 bit
microcontroller, riscs or dsps.
 These types of embedded systems have both hardware and software
complexities.
 For developing embedded software for medium scale embedded
systems, the main programming tools are c, c++, and java, visual c++,
and rtos, debugger, source code engineering tool, simulator and ide.
Embedded Systems

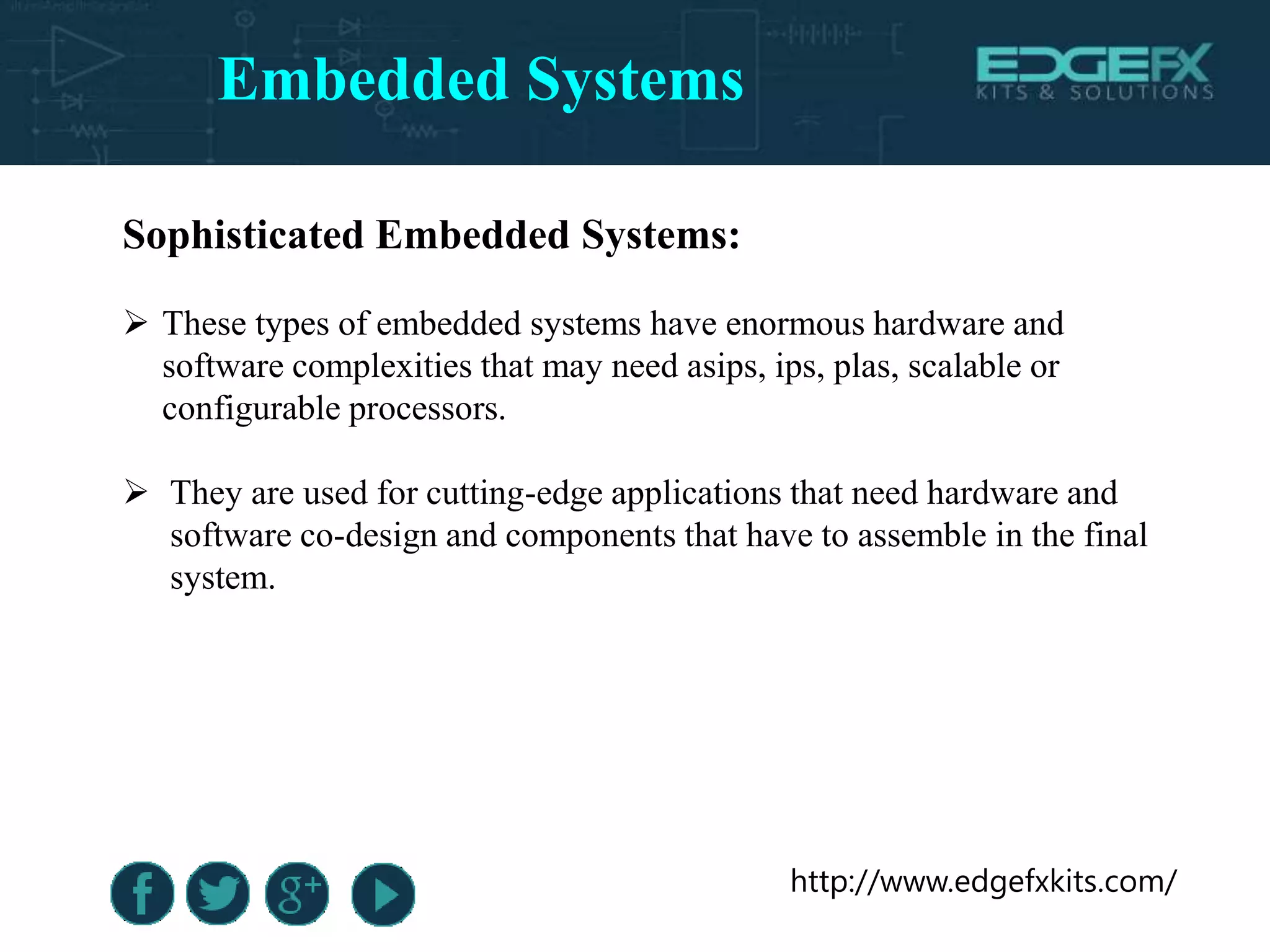

Sophisticated Embedded Systems:
 These types of embedded systems have enormous hardware and
software complexities that may need asips, ips, plas, scalable or
configurable processors.
 They are used for cutting-edge applications that need hardware and
software co-design and components that have to assemble in the final
system.
Embedded Systems

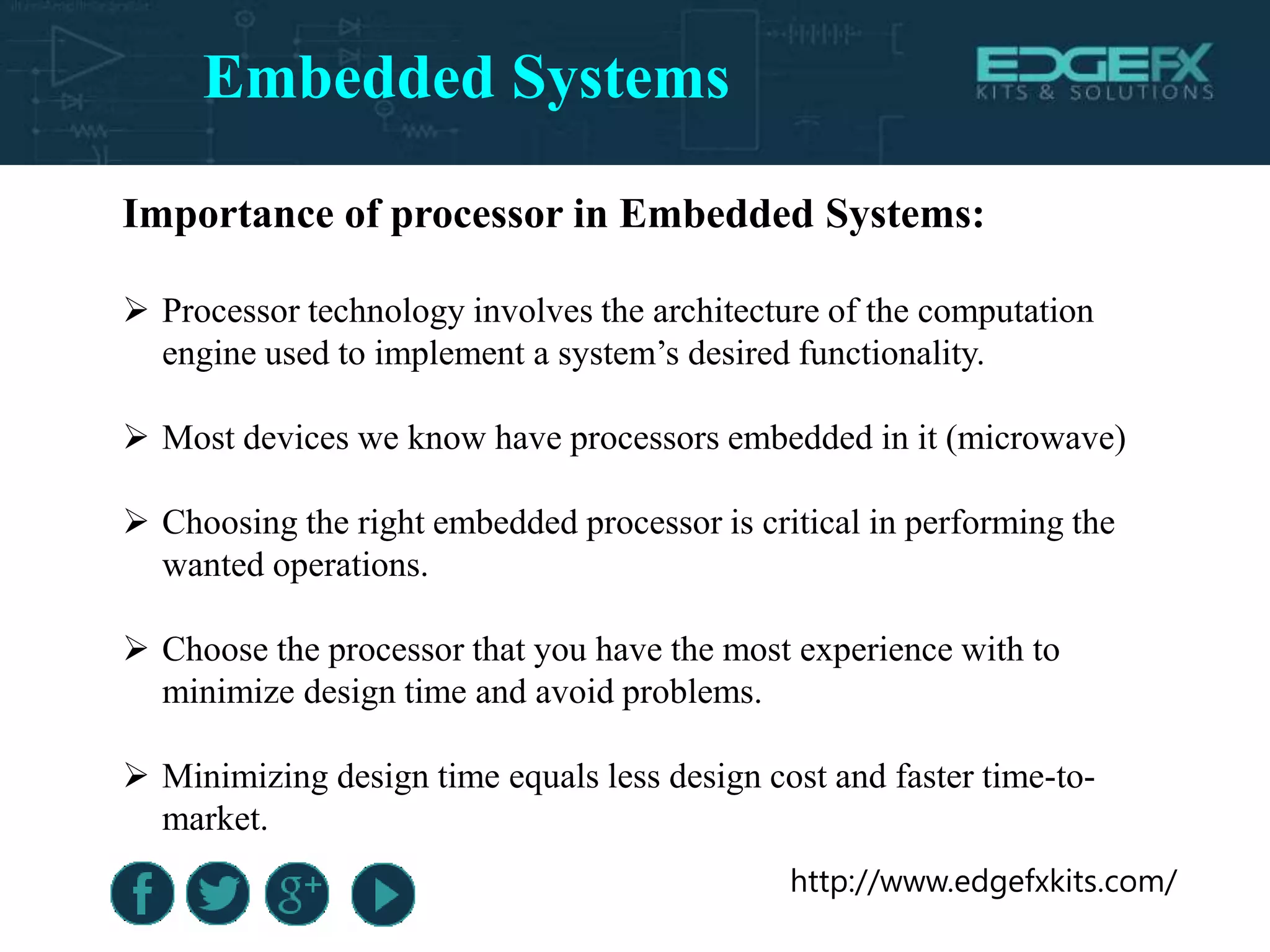

Importance of processor in Embedded Systems:
 Processor technology involves the architecture of the computation
engine used to implement a system’s desired functionality.
 Most devices we know have processors embedded in it (microwave)
 Choosing the right embedded processor is critical in performing the
wanted operations.
 Choose the processor that you have the most experience with to
minimize design time and avoid problems.
 Minimizing design time equals less design cost and faster time-to-
market.
Embedded Systems

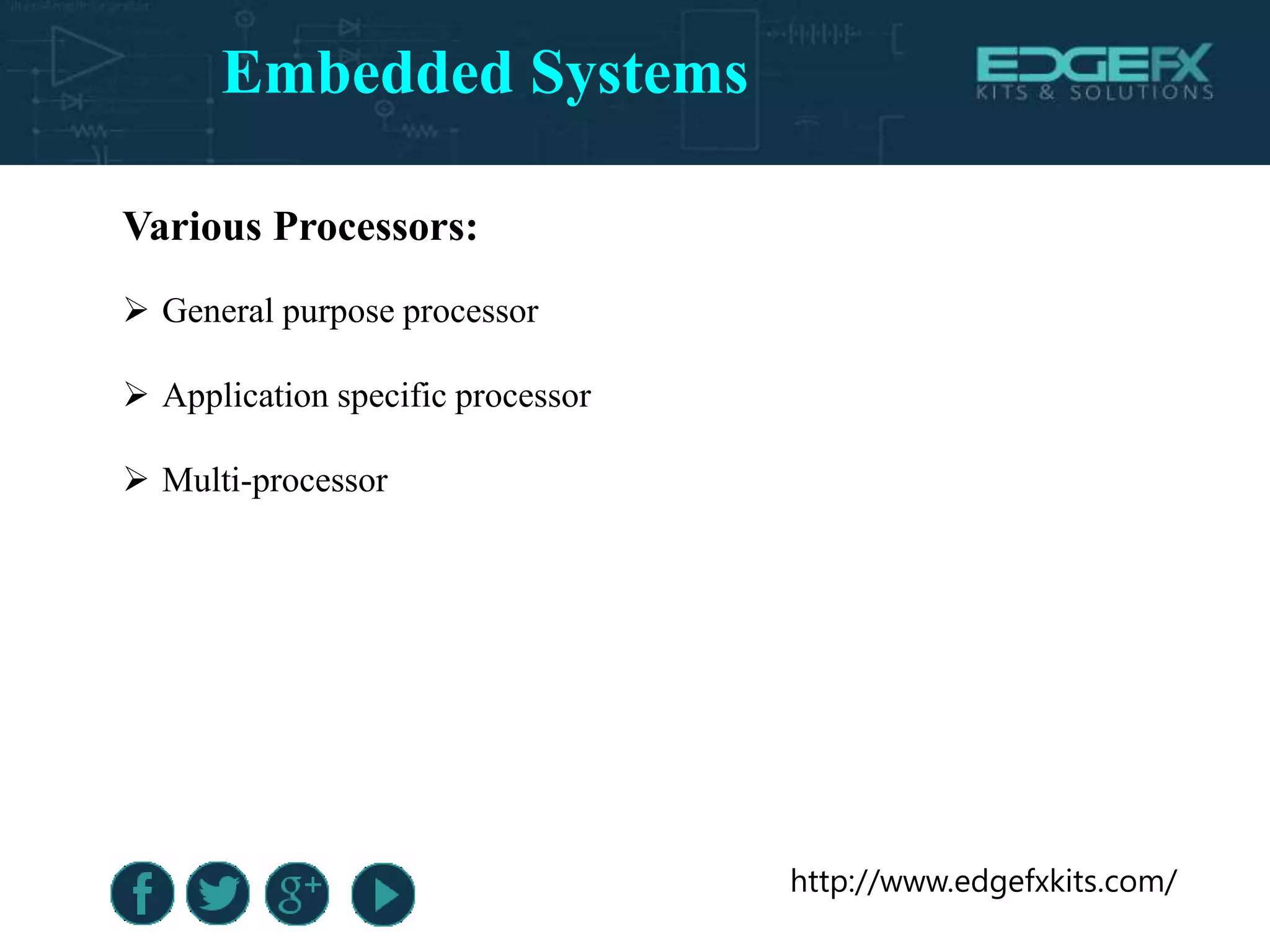

Various Processors:
 General purpose processor
 Application specific processor
 Multi-processor
Embedded Systems

General purpose processor:
 The system designer only needs to program the processor’s memory to
carry out the required functionality of the software portion
Multiprocessing:
 Multiprocessing is the use of two or more central processing units
within a single computer system.
 The term also refers to the ability of a system to support more than one
processor and the ability to allocate tasks between them
Embedded Systems

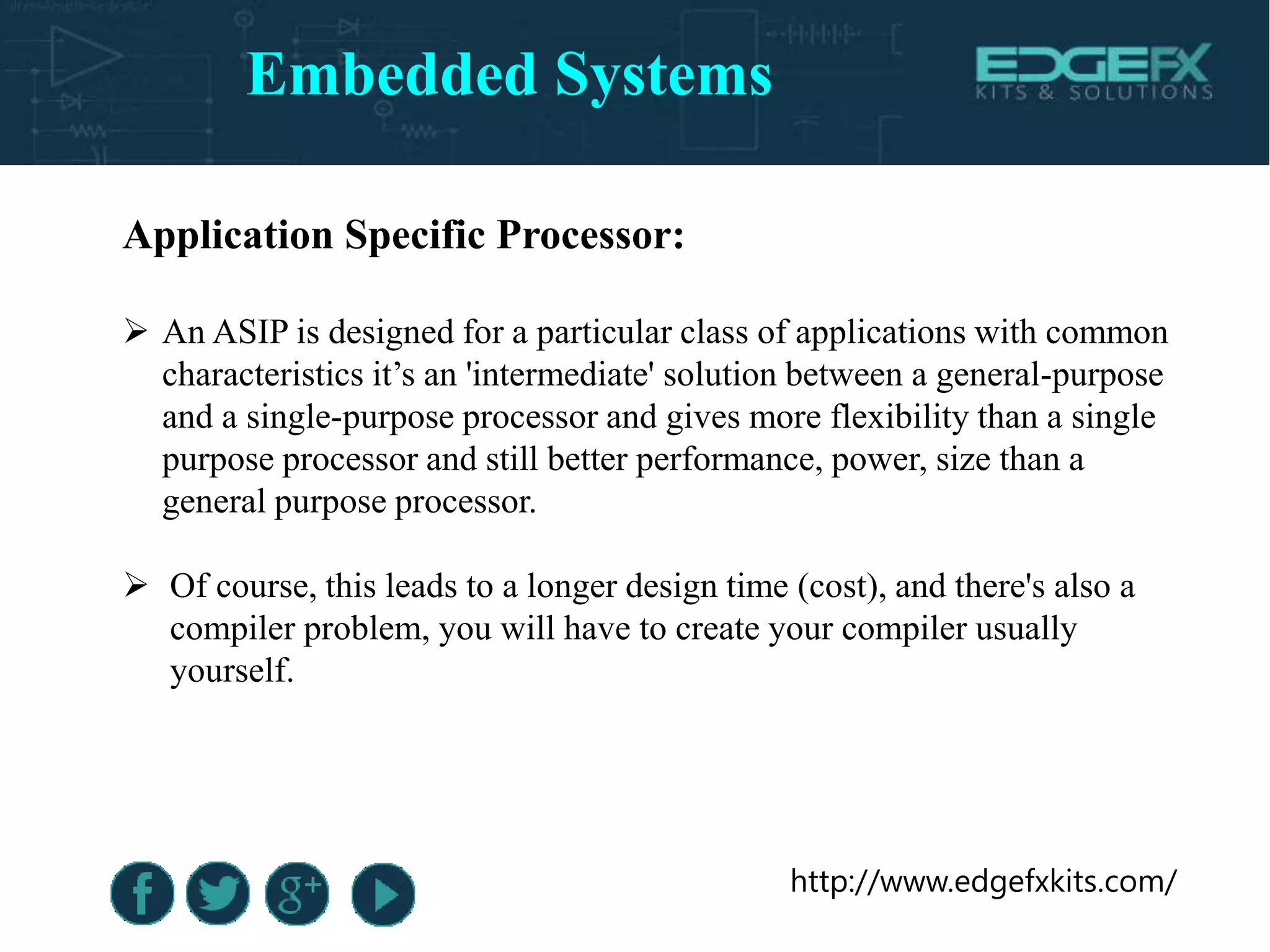

Application Specific Processor:
 An ASIP is designed for a particular class of applications with common
characteristics it’s an 'intermediate' solution between a general-purpose
and a single-purpose processor and gives more flexibility than a single
purpose processor and still better performance, power, size than a
general purpose processor.
 Of course, this leads to a longer design time (cost), and there's also a
compiler problem, you will have to create your compiler usually
yourself.
Embedded Systems

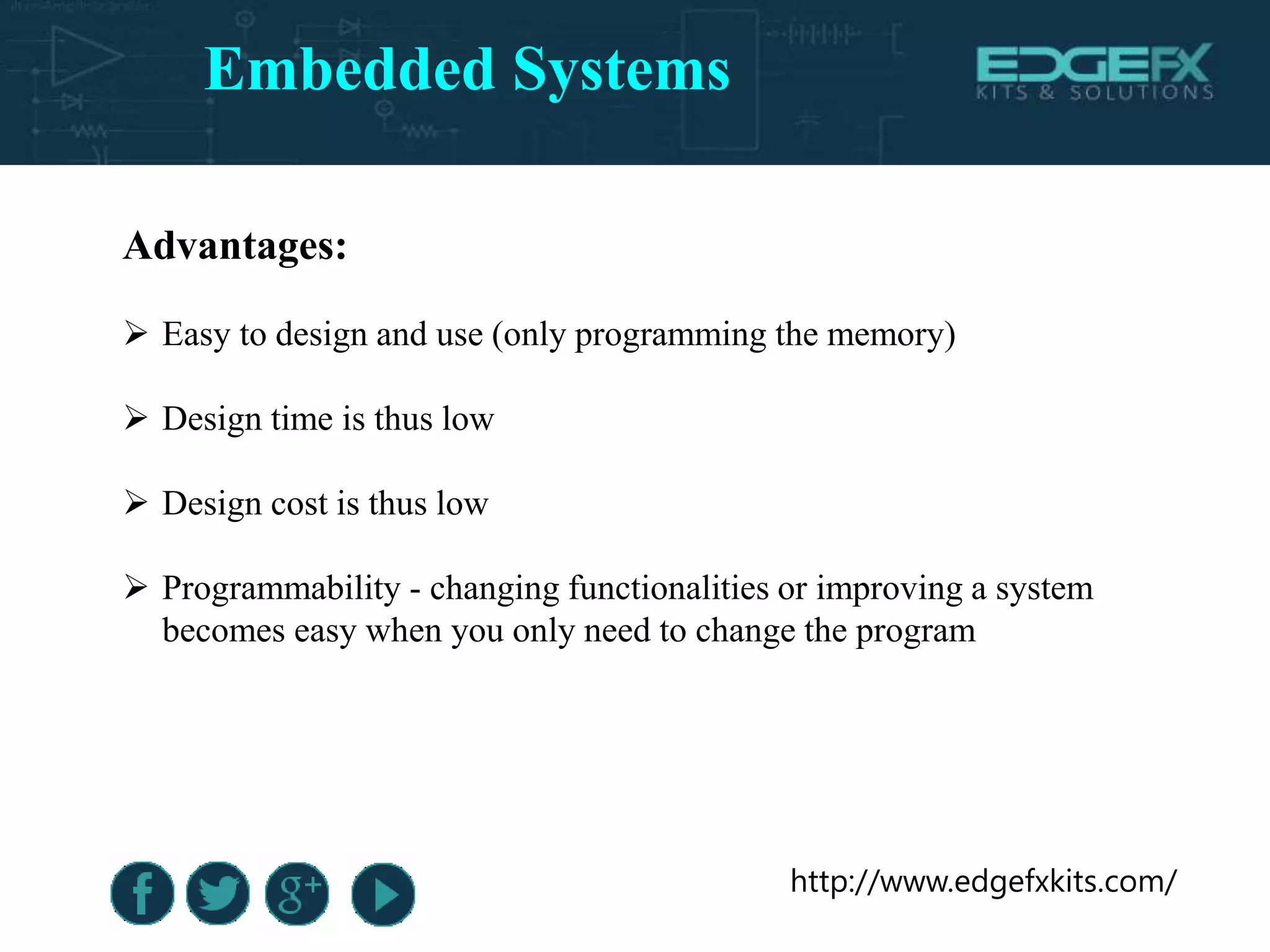

Advantages:
 Easy to design and use (only programming the memory)
 Design time is thus low
 Design cost is thus low
 Programmability - changing functionalities or improving a system
becomes easy when you only need to change the program
Embedded Systems

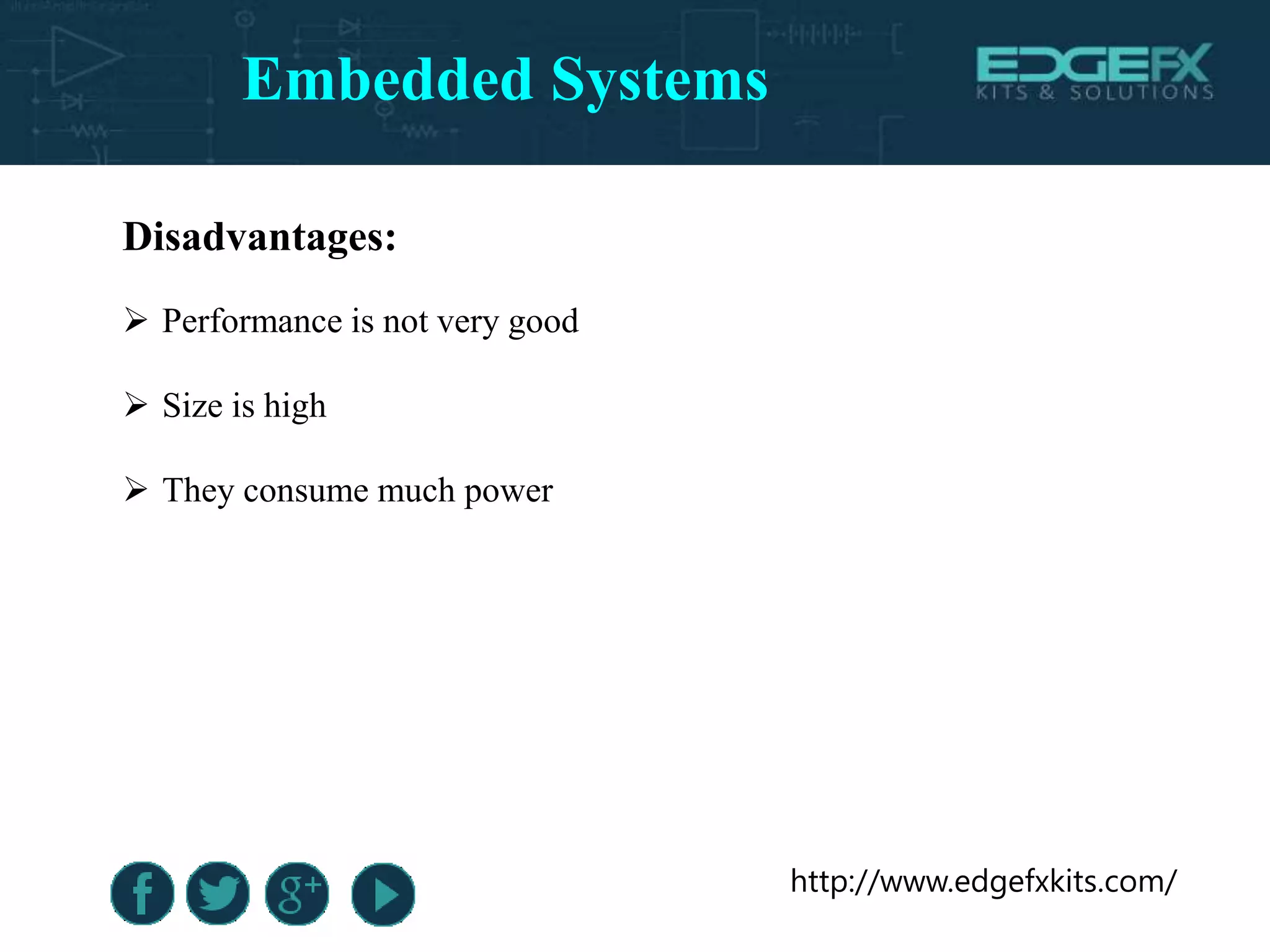

Disadvantages:
 Performance is not very good
 Size is high
 They consume much power
Embedded Systems

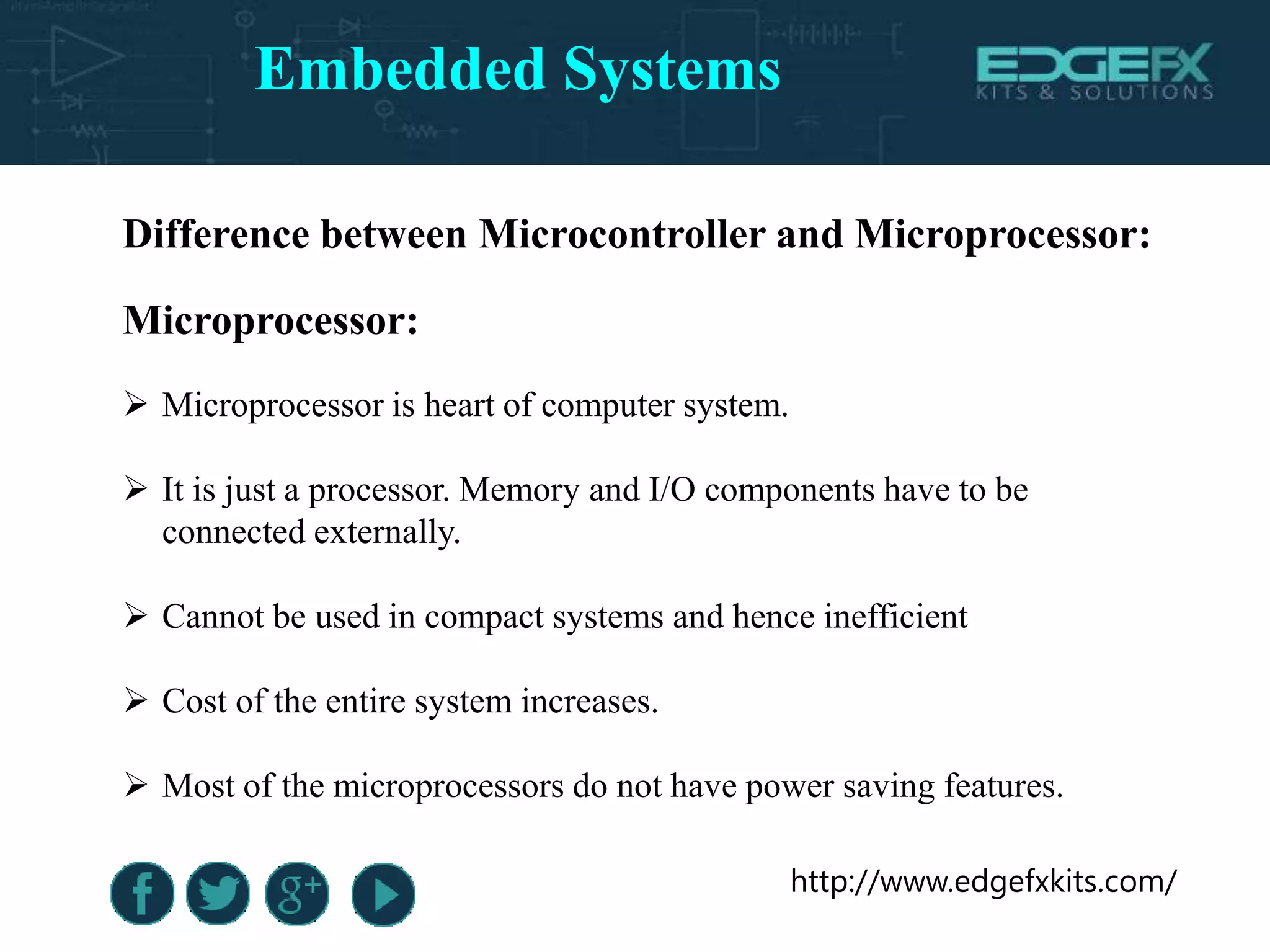

Difference between Microcontroller and Microprocessor:
Microprocessor:
 Microprocessor is heart of computer system.
 It is just a processor. Memory and I/O components have to be
connected externally.
 Cannot be used in compact systems and hence inefficient
 Cost of the entire system increases.
 Most of the microprocessors do not have power saving features.
Embedded Systems

Micro Controller:
 Micro controller is a heart of embedded system.
 Microcontroller has external processor along with internal memory and i/o
components
 Can be used in compact systems and hence it is an efficient technique.
 Cost of the entire system is low.
 Most of the micro controllers have power saving modes like idle mode and
power saving mode. This helps to reduce power consumption even further.
Embedded Systems

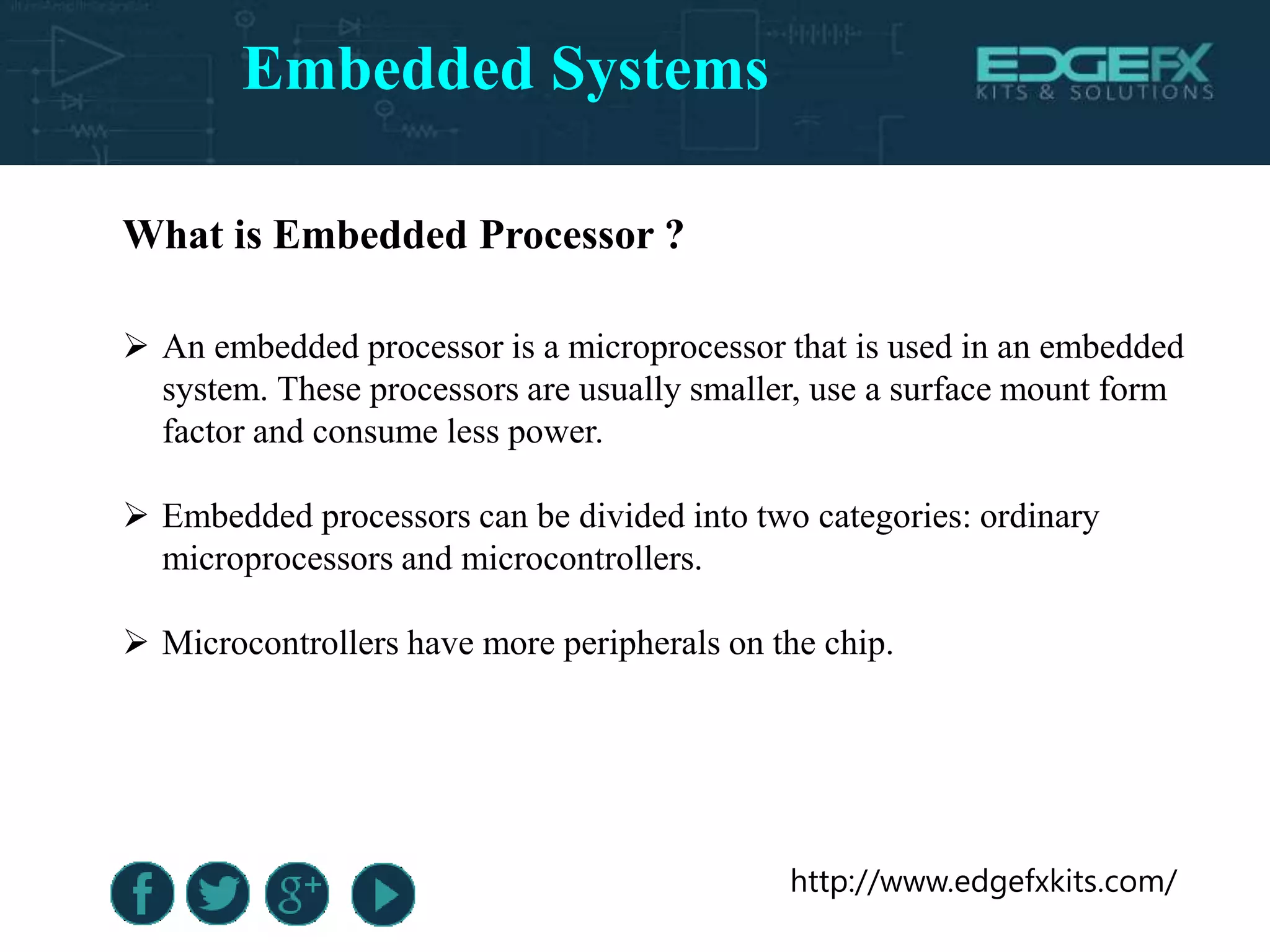

What is Embedded Processor ?
 An embedded processor is a microprocessor that is used in an embedded
system. These processors are usually smaller, use a surface mount form
factor and consume less power.
 Embedded processors can be divided into two categories: ordinary
microprocessors and microcontrollers.
 Microcontrollers have more peripherals on the chip.
Embedded Systems

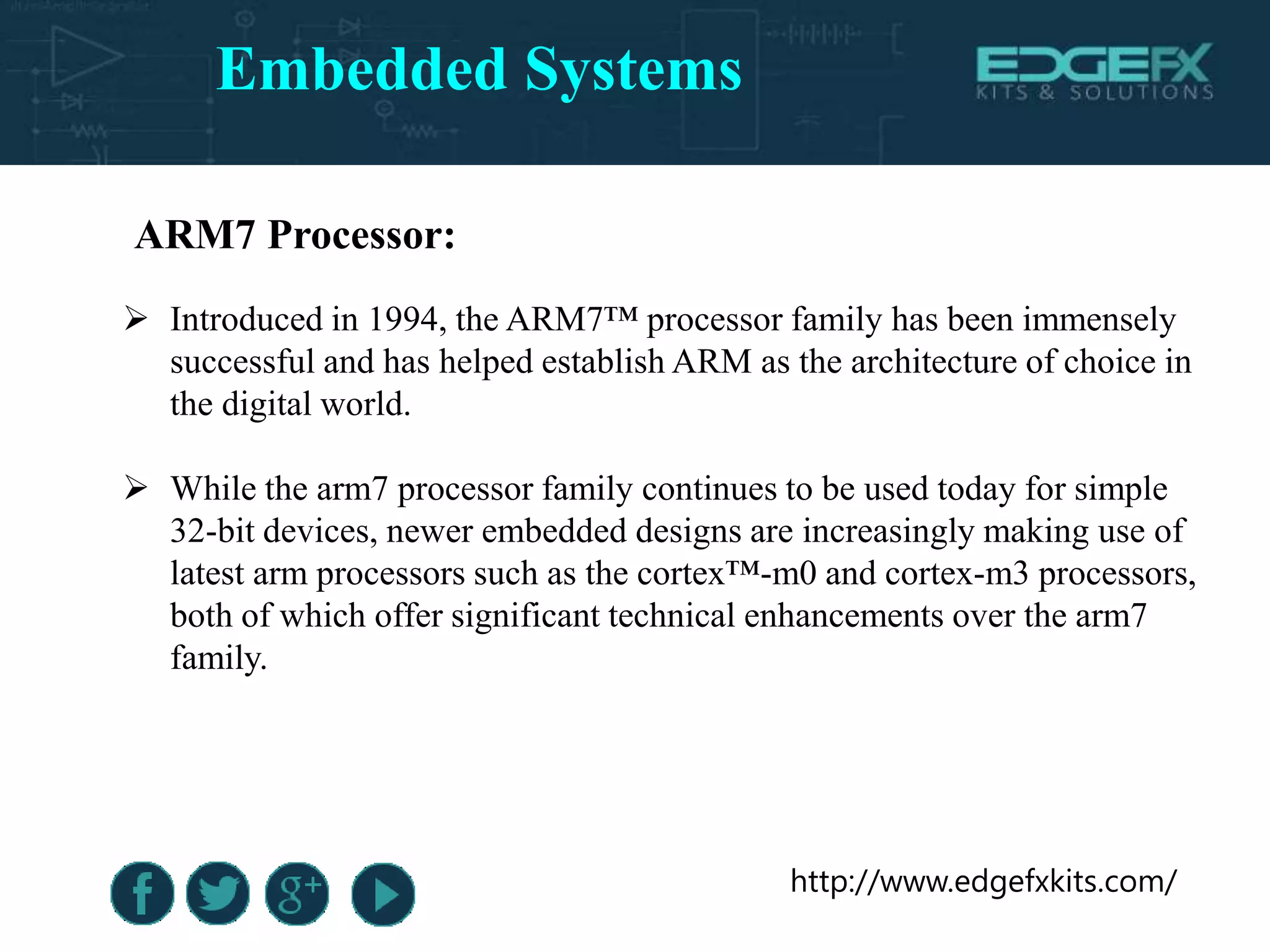

ARM7 Processor:
 Introduced in 1994, the ARM7™ processor family has been immensely
successful and has helped establish ARM as the architecture of choice in
the digital world.
 While the arm7 processor family continues to be used today for simple
32-bit devices, newer embedded designs are increasingly making use of
latest arm processors such as the cortex™-m0 and cortex-m3 processors,
both of which offer significant technical enhancements over the arm7
family.
Embedded Systems

Embedded Systems

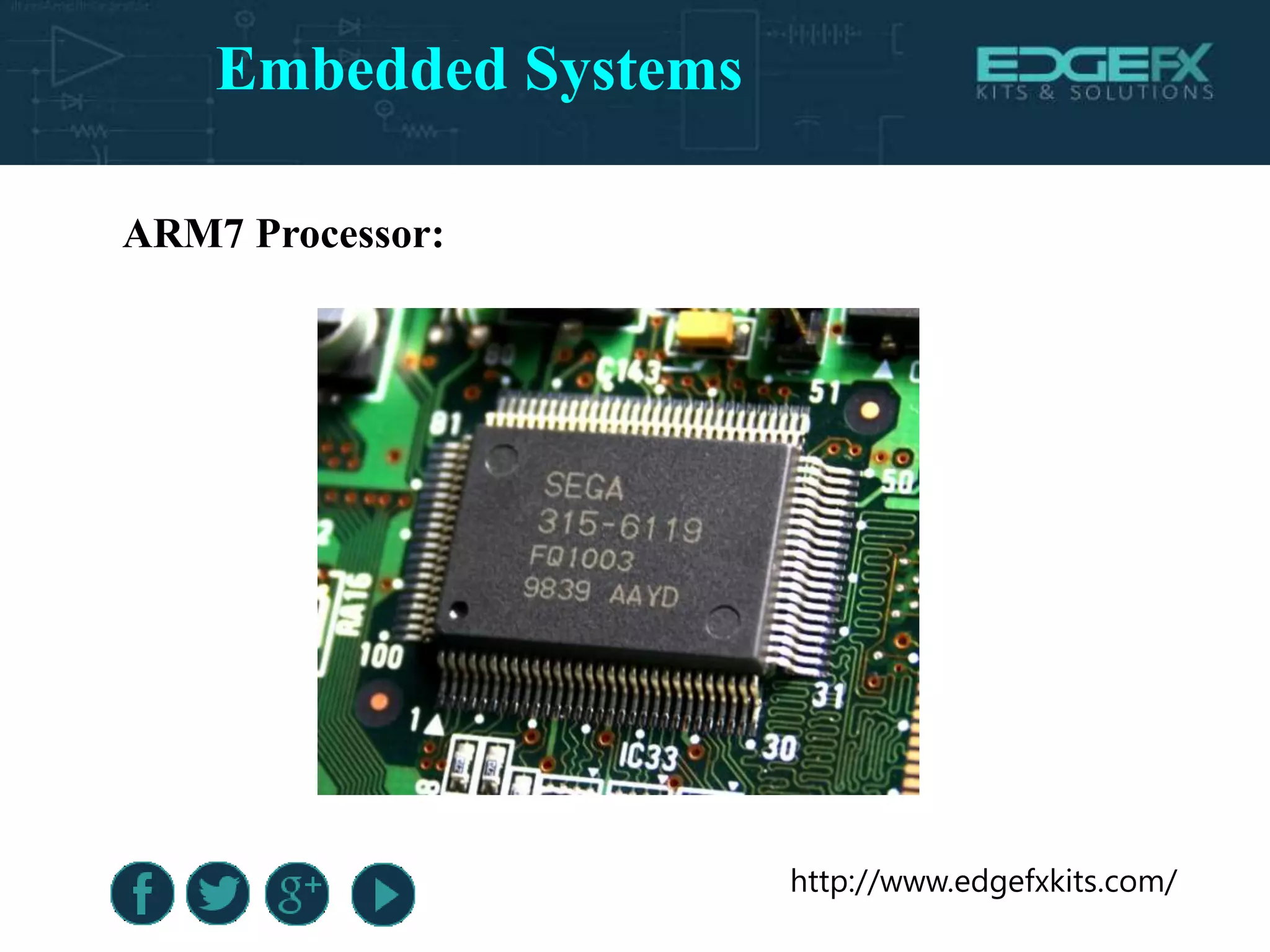

ARM7 Processor:

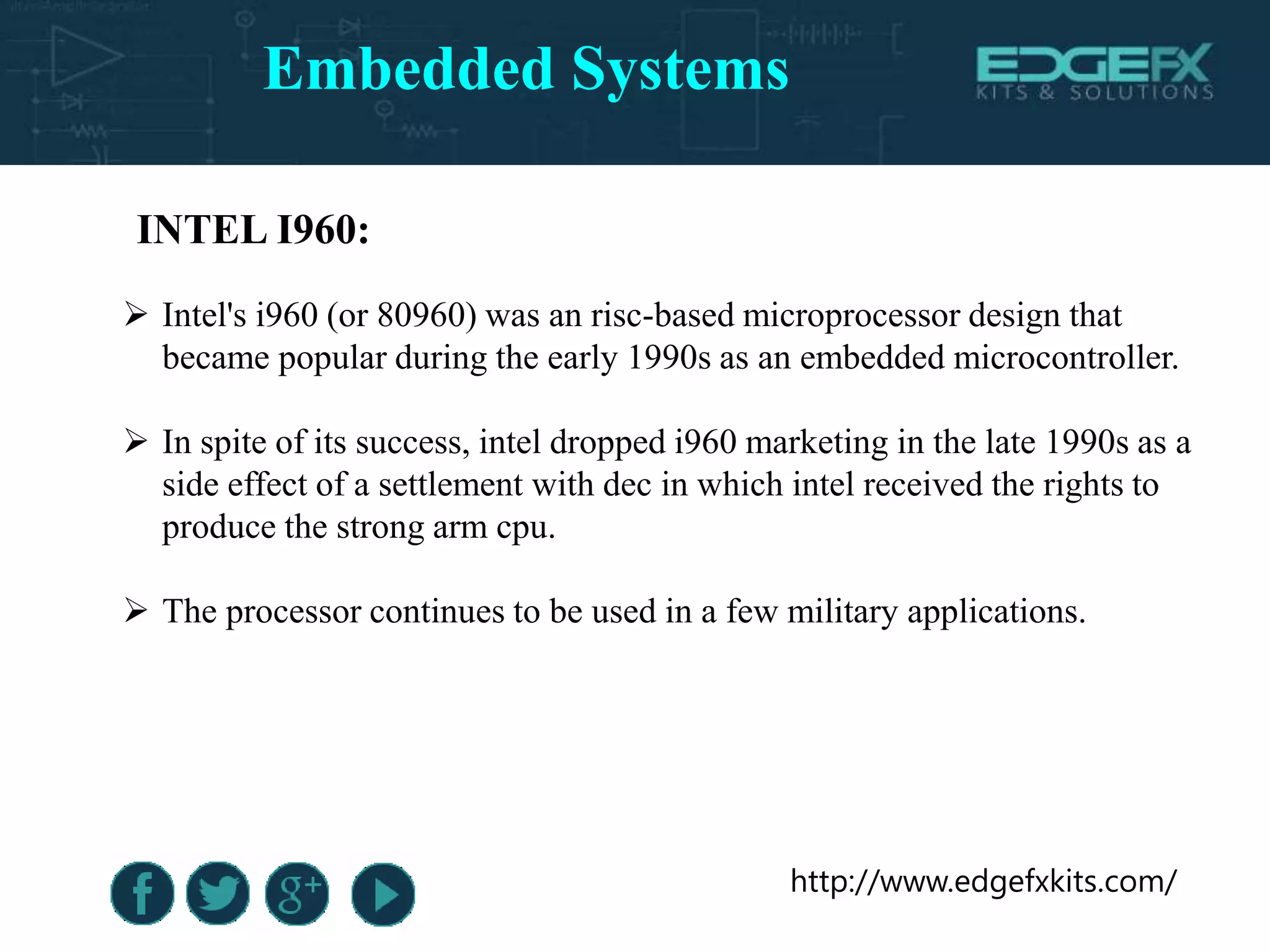

INTEL I960:
 Intel's i960 (or 80960) was an risc-based microprocessor design that
became popular during the early 1990s as an embedded microcontroller.
 In spite of its success, intel dropped i960 marketing in the late 1990s as a
side effect of a settlement with dec in which intel received the rights to
produce the strong arm cpu.
 The processor continues to be used in a few military applications.
Embedded Systems

Embedded Systems
INTEL I960:

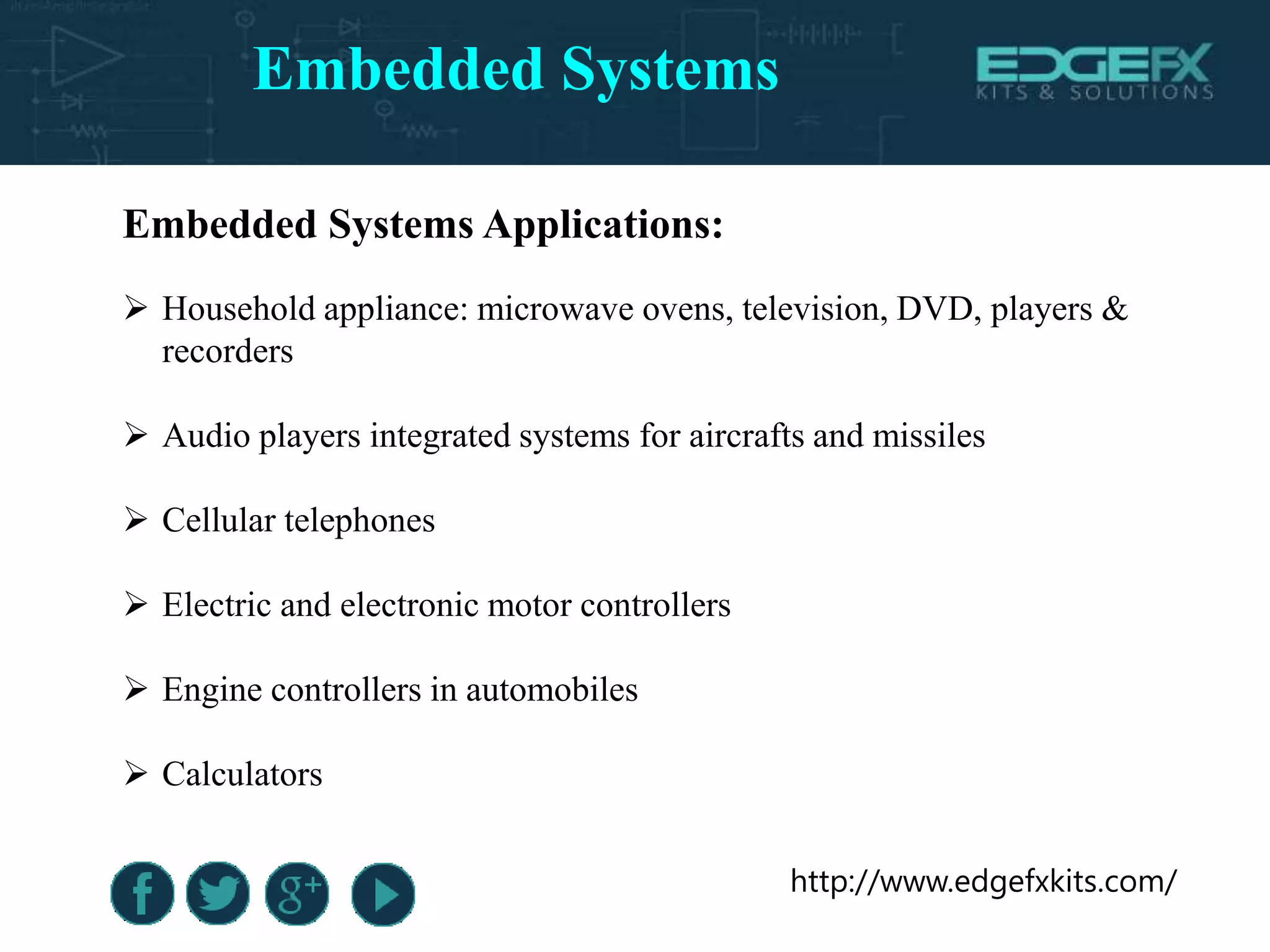

Embedded Systems Applications:
 Household appliance: microwave ovens, television, DVD, players &
recorders
 Audio players integrated systems for aircrafts and missiles
 Cellular telephones
 Electric and electronic motor controllers
 Engine controllers in automobiles
 Calculators
Embedded Systems

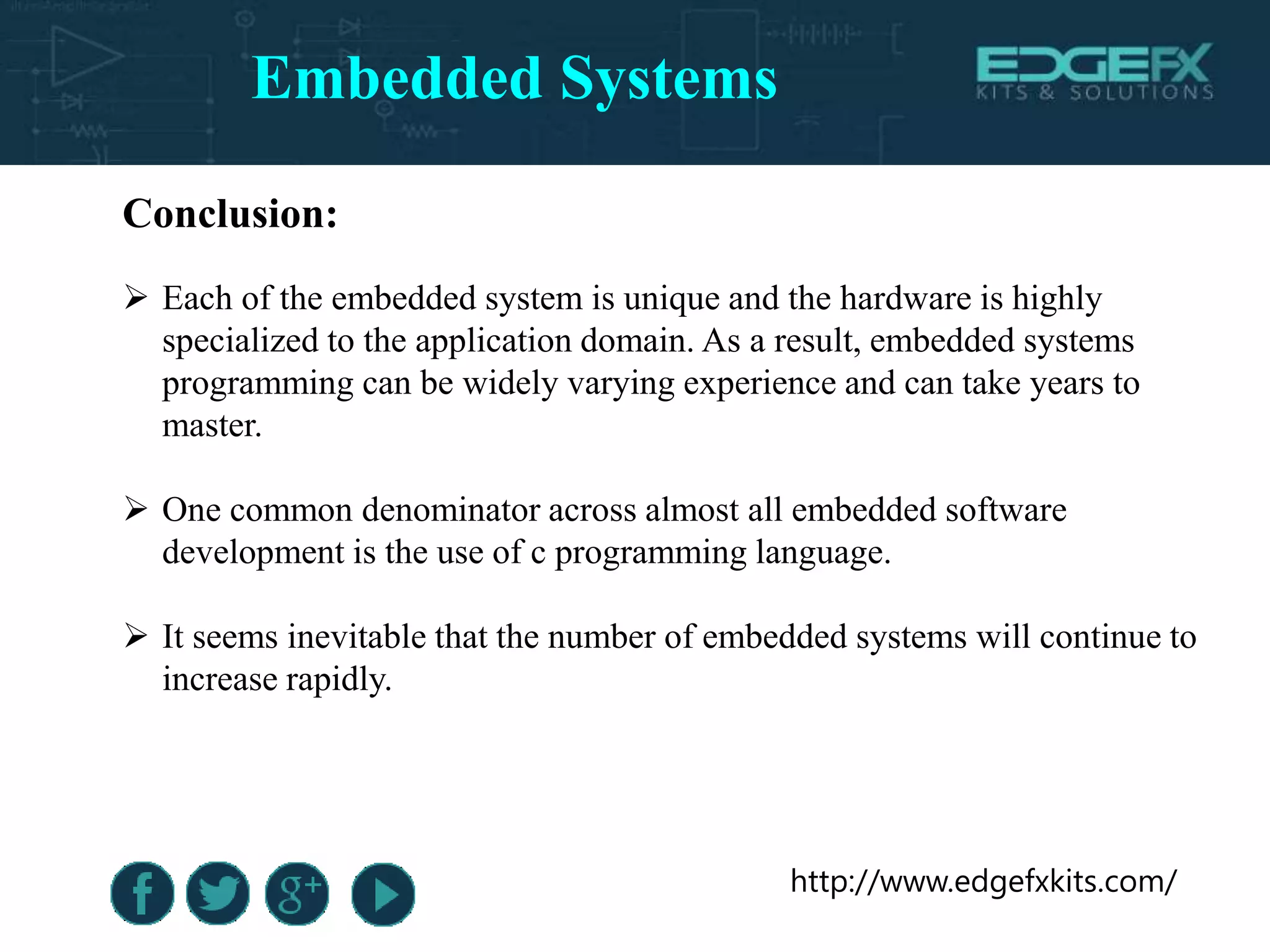

Conclusion:
 Each of the embedded system is unique and the hardware is highly
specialized to the application domain. As a result, embedded systems
programming can be widely varying experience and can take years to
master.
 One common denominator across almost all embedded software
development is the use of c programming language.
 It seems inevitable that the number of embedded systems will continue to
increase rapidly.
