This document provides information on mobile elevated work platforms (MEWPs), also known as man lifts. It begins with definitions of MEWPs and what they are used for, which is to safely move workers to elevated work positions. Potential hazards of MEWPs are then outlined, including entrapment, overturning, falling, collision, and overloading. The document also discusses inspection, maintenance, load capacity, and control measures to mitigate risks. It provides a quiz to test understanding and concludes with causes of MEWP accidents.

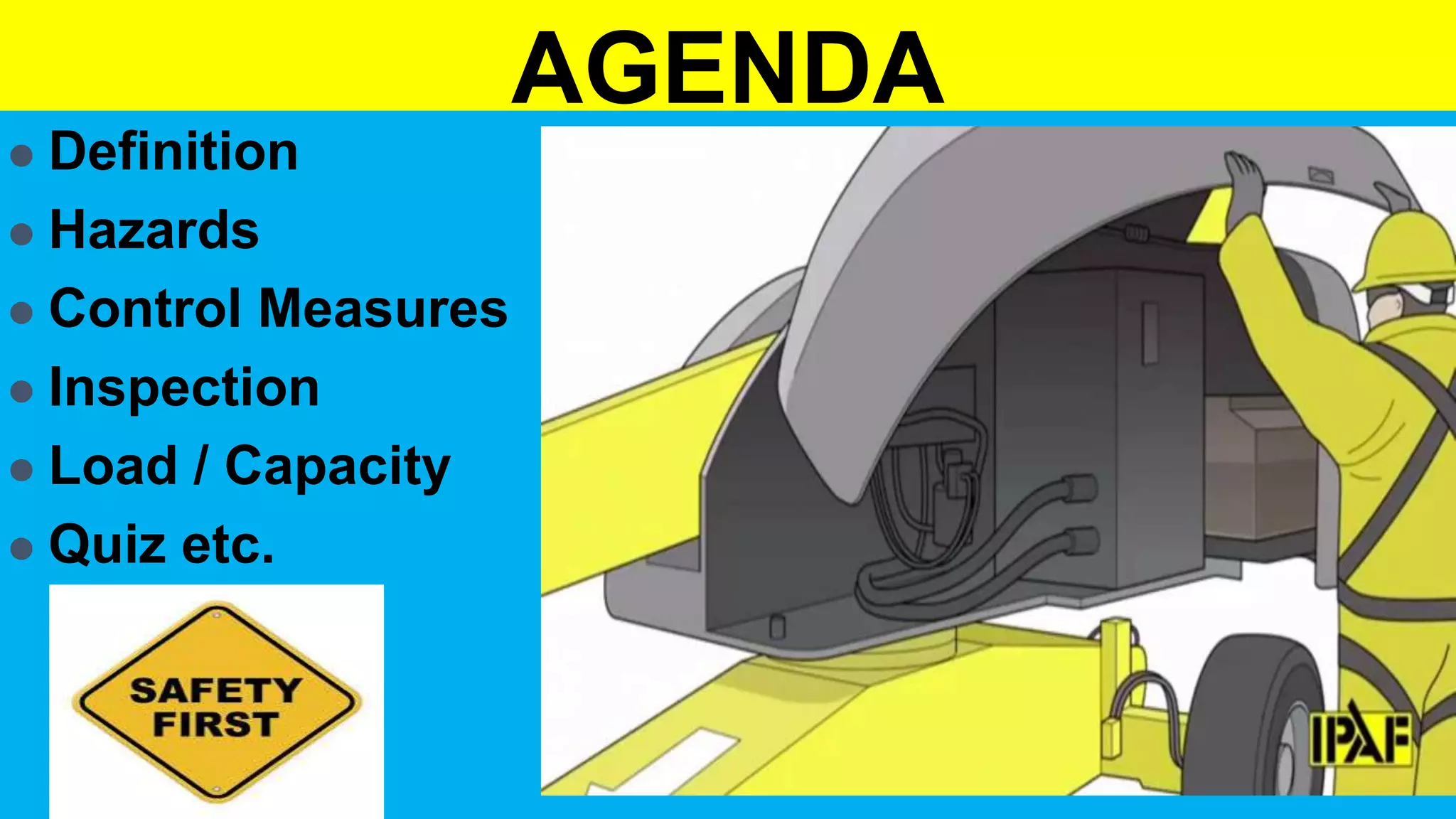

2. AGENDA
 Definition
 Hazards
 Control Measures
 Inspection
 Load / Capacity
 Quiz etc.

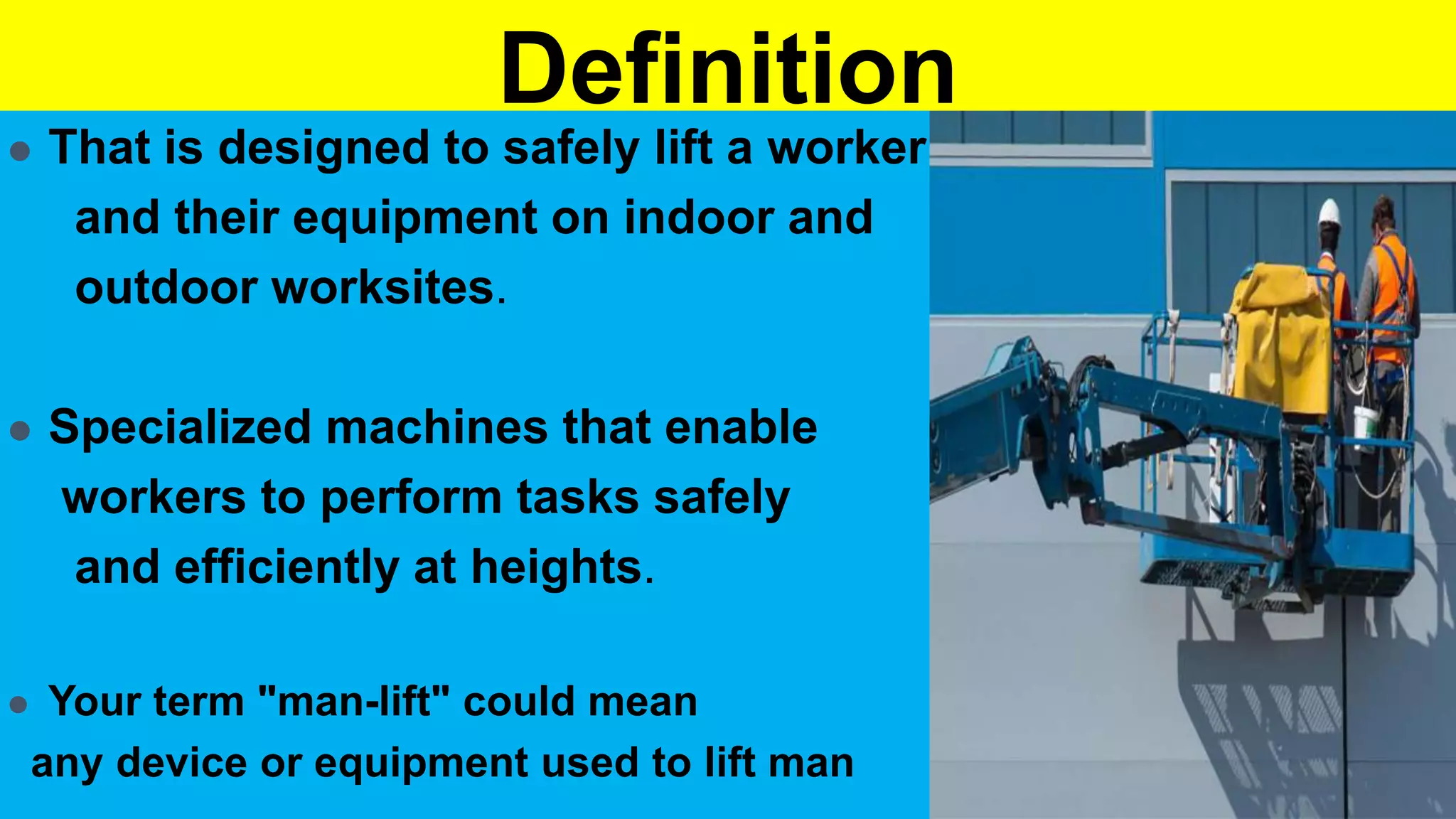

3. Definition
 That is designed to safely lift a worker
and their equipment on indoor and
outdoor worksites.
 Specialized machines that enable
workers to perform tasks safely
and efficiently at heights.
 Your term "man-lift" could mean
any device or equipment used to lift man

4. Definition
 They are used to move people to working
positions where they can carry out work from
the work platform, and then return them
to the starting level.
 They are not intended to be used to transfer
people from one level to another or for people
to exit the basket at height

5. Definition
What are MEWPs used for?
 A MEWP is a mobile machine.
 It is used to move persons to working positions where they
are carrying out work from the work platform, with the
intention that persons are getting on and off the work
platform only at access positions at ground level or on the
chassis.

6. MEWP HAZARDS
 Entrapment: operator trapped between
part of the basket and a fixed structure,
e.g. when maneuvering in confined
overhead areas of steel work.
 Overturning: the machine may
overturn throwing the operator
from the basket.

7. MEWP HAZARDS
 Falling:
an operator may fall
from the basket during
work activities,
or Materials
 Collision: the vehicle may collide with
pedestrians, Arcing or contact with
overhead cables, Overhead obstructions
or nearby vehicles.

8. Pre-Start Inspection
Before each day or at the beginning of each shift,
The aerial and/or Man lift shall be given a visual
inspection including but not limited to the following:
1. Operating and emergency controls
2. Safety devices
3. Personal protective devices
4. Air, hydraulic, and fuel systems leaks
5. Cables and wiring harnesses
6. Loose or missing parts
7. Tires and wheels
8. Warnings, control markings, and operating manuals (must be legible)
9. Guardrail system
10. Other items specified by the manufacturer

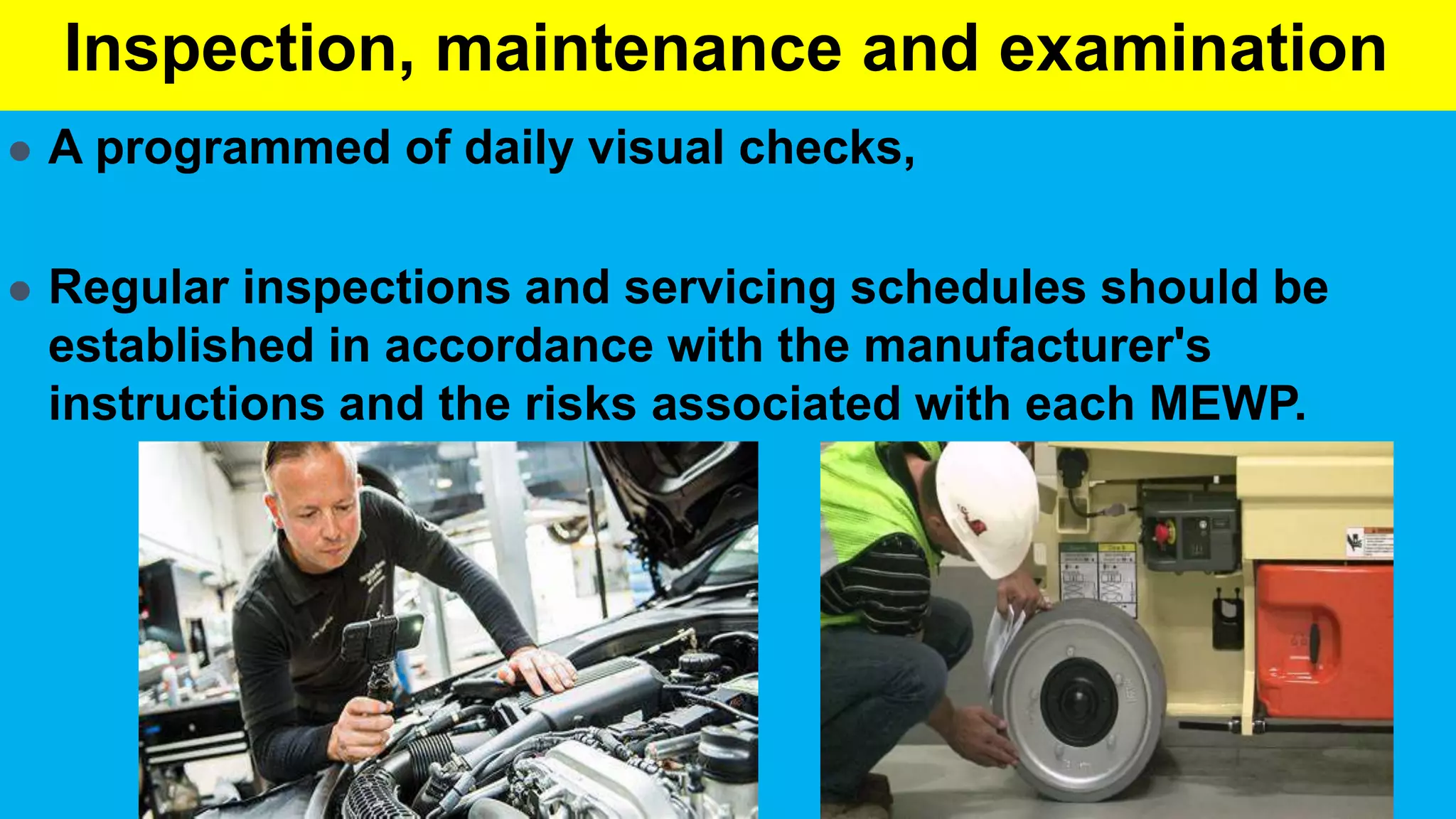

9. Inspection, maintenance and examination
 A programmed of daily visual checks,
 Regular inspections and servicing schedules should be
established in accordance with the manufacturer's
instructions and the risks associated with each MEWP.

10. Inspection, maintenance and examination
 Operators should be encouraged
to report defects or problems.
 Reported problems should be put right quickly
and the MEWP taken out of service if the item is
safety critical.

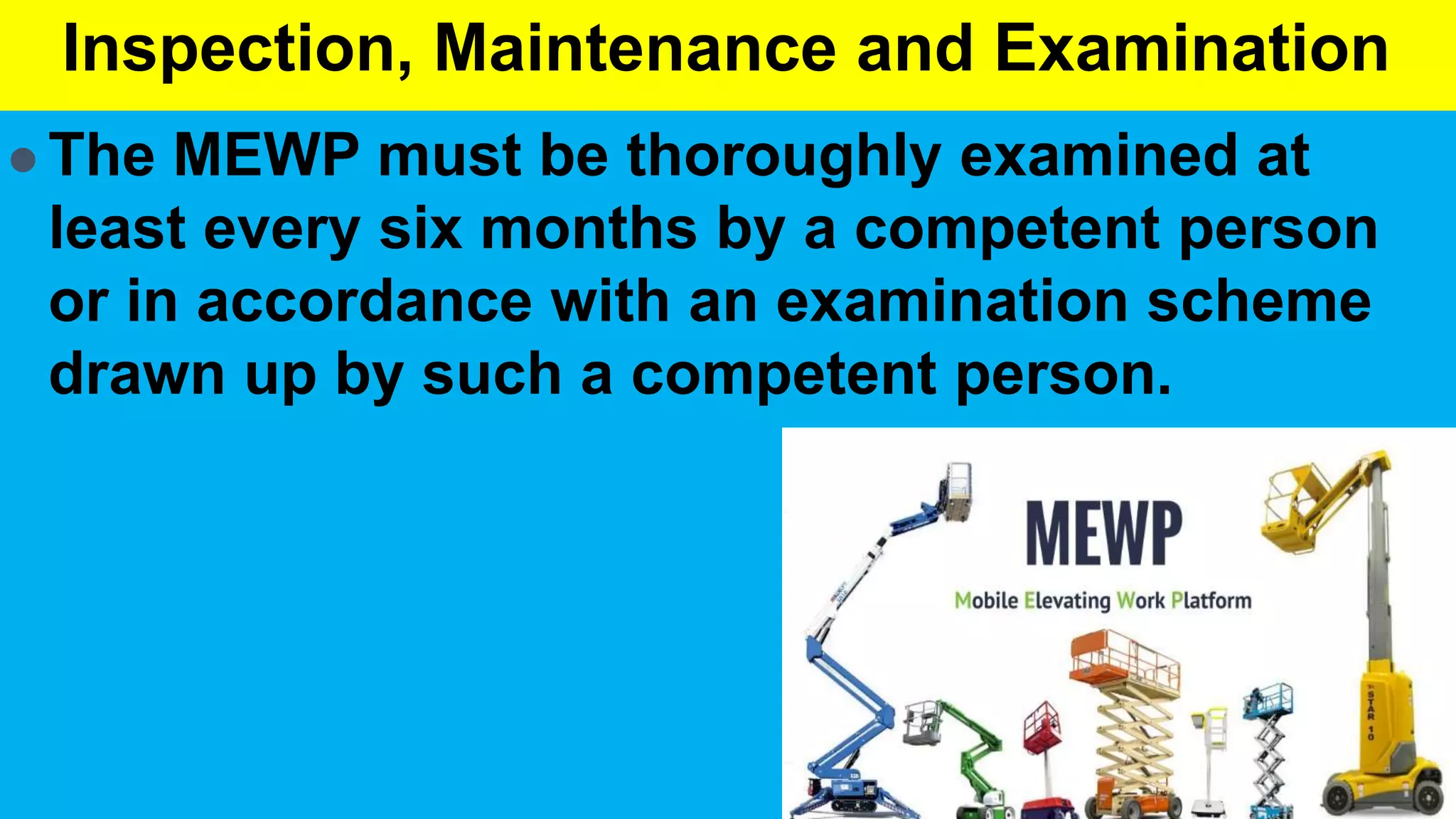

11. Inspection, Maintenance and Examination
 The MEWP must be thoroughly examined at
least every six months by a competent person
or in accordance with an examination scheme
drawn up by such a competent person.

12. Load Capacity
 Boom and basket load limits Shall not exceed
manufacturer specified limits
 Maximum Occupants: 2
 Occupants and equipment must not exceeded 500 lbs / 227 kgs

13. Overloading of MEWP
Overloading a MEWP can lead to instability and potentially serious
accidents.
It is important to ensure that the equipment is used within its safe
working load limit.
Always follow the manufacturer’s instructions and safety
procedures if you are using a MEWP or any other type of powered
access equipment.

14. Controlling the risk
•It is important to select the right
MEWP for the job and site.
•Have a plan for rescuing someone
from a MEWP and practice it
•Someone on the ground should know what to do
in an emergency and how to operate the
machine's ground controls.

15. Controlling the risk
Confined overhead working:
•Operators should know the dangers,
•The safe system of work to be followed.
•If there are overhead structures against which an operator
could be trapped and then pushed onto the MEWP controls,
consider selecting a MEWP that has been designed to
prevent such accidental contact.
•Keeping the platform tidy will reduce the risk of the operator
tripping or losing balance while in the basket.

16. Controlling the risk
Ground conditions:
•The platform should be used on firm and level ground.
•Any temporary covers should be strong
enough to withstand the applied pressure.
•Localised ground features, eg trenches,
•manholes and uncompacted backfill,
•can all lead to overturning

17. Controlling the risk
Guardrails:
Make sure the work platform is fitted
with effective guard rails and toe boards.
Arresting falls:
a harness with a short work restraint lanyard
must be secured to a suitable manufacturer
Provided anchorage point within the basket to
stop the wearer from getting into a position
where they could fall from the carrier.

18. Controlling the risk
Falling objects:
Barrier off the area around the
platform so that falling tools or
Objects do not strike people below.
Weather:
•High winds can tilt platforms and make them unstable.
•Set a maximum safe wind speed for operation.
•Storms and snowfalls can also damage platforms.
•Inspect the platform before use after severe weather.

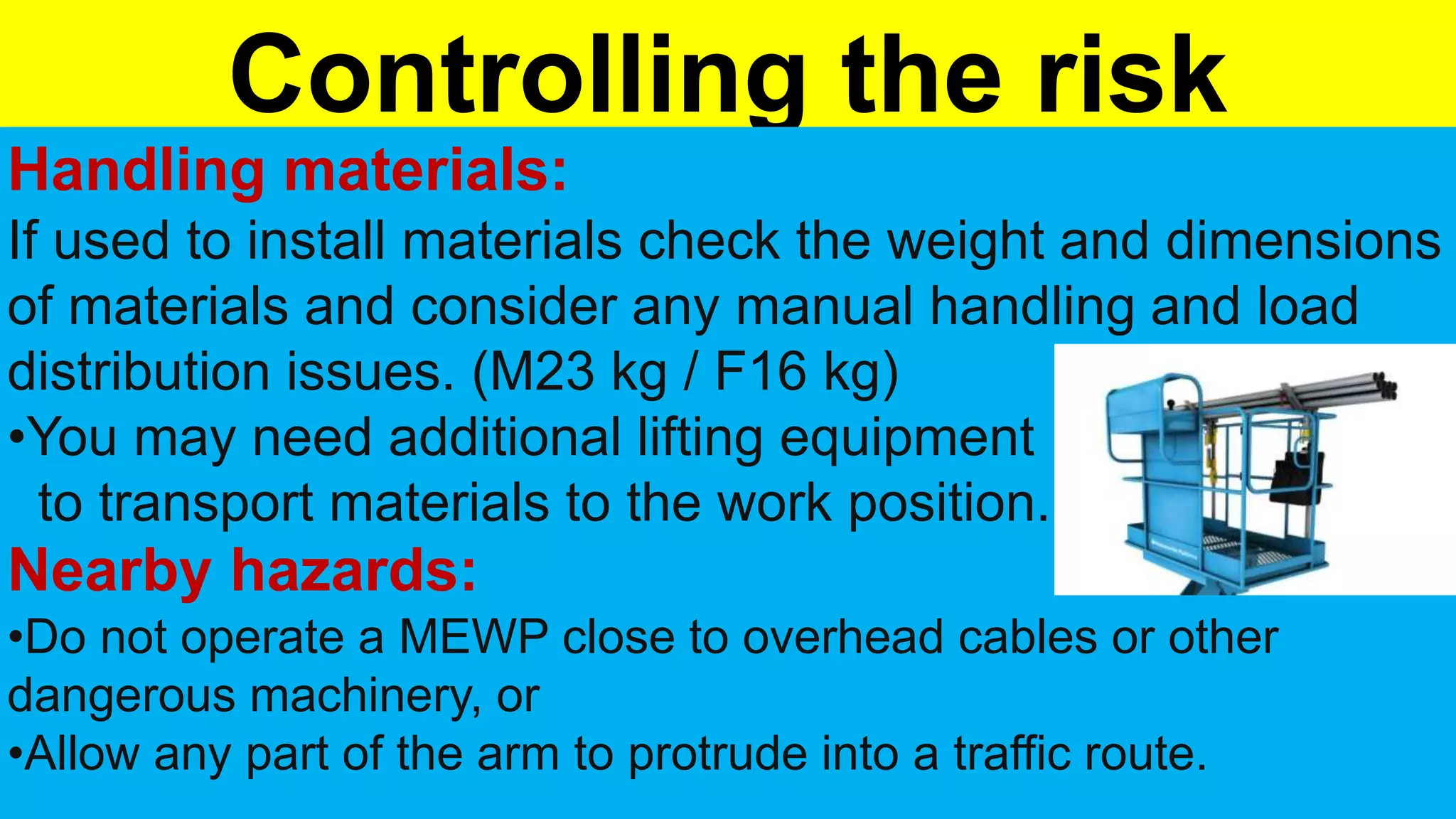

19. Controlling the risk
Handling materials:
If used to install materials check the weight and dimensions
of materials and consider any manual handling and load
distribution issues. (M23 kg / F16 kg)
•You may need additional lifting equipment
to transport materials to the work position.
Nearby hazards:
•Do not operate a MEWP close to overhead cables or other
dangerous machinery, or
•Allow any part of the arm to protrude into a traffic route.

20. General Precaution
 Guardrails incorporated into the cradle.
 Controls of the MEWP should be inside the cradle
 so that the person actually working at height has
some control.
 Must be inspected as an item of lifting equipment
designed to carry people.
 Wind speed Max 12.5 m/s –meter per second
(28 mph-miles per hour) 45KMPH
 Noise 103 db
 Don’t move without any Banks man
 During work standby person should be near MEPW

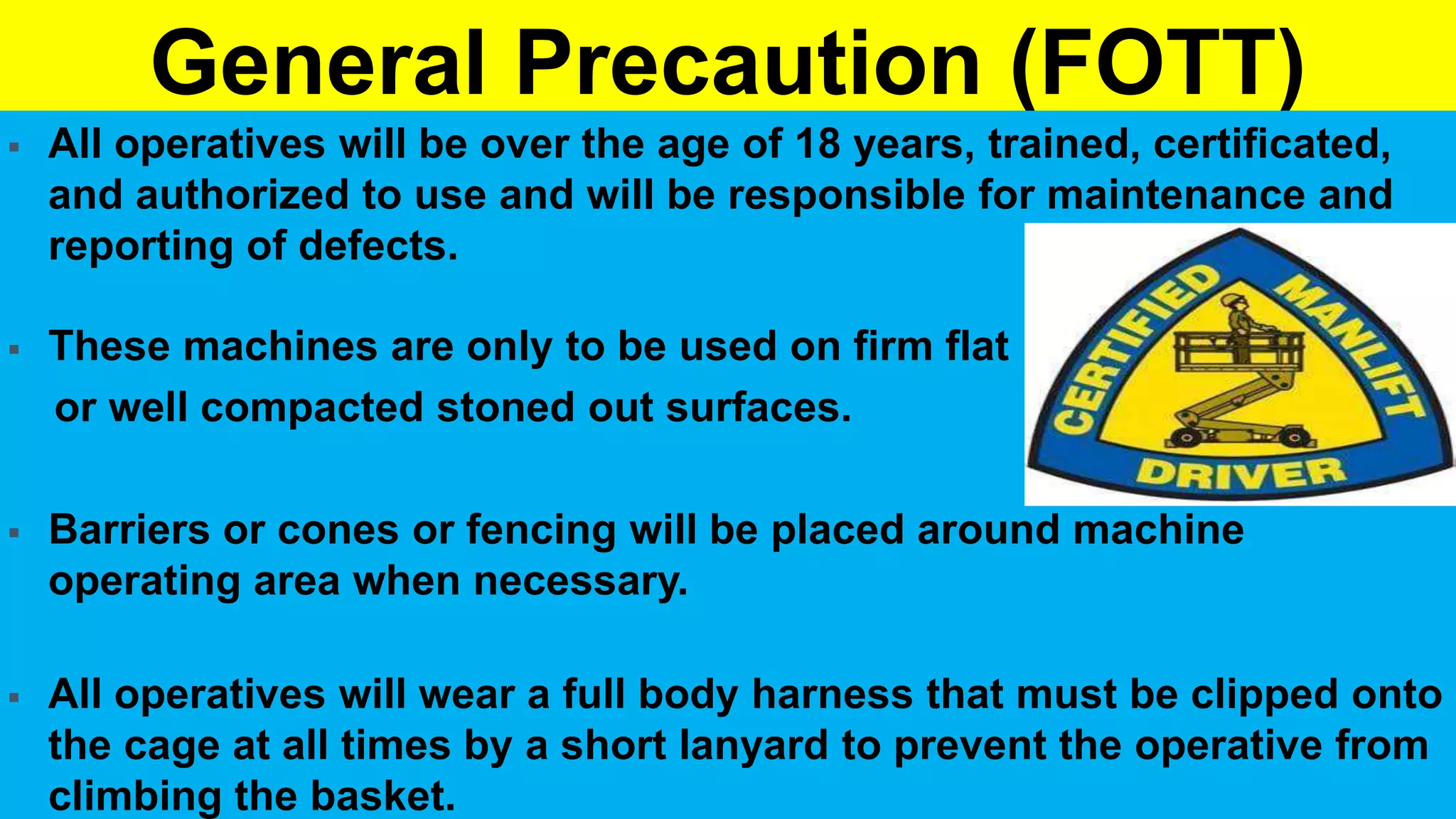

21. General Precaution (FOTT)
 All operatives will be over the age of 18 years, trained, certificated,
and authorized to use and will be responsible for maintenance and
reporting of defects.
 These machines are only to be used on firm flat
or well compacted stoned out surfaces.
 Barriers or cones or fencing will be placed around machine
operating area when necessary.
 All operatives will wear a full body harness that must be clipped onto
the cage at all times by a short lanyard to prevent the operative from
climbing the basket.

22. General Precaution (FOTT)
 Materials will not be allowed to accumulate on platform.
 Guards and fencing on moving
parts must always be in place.
 Machine must only be used on suitable surfaces and
operatives must be in possession of necessary information
(manual) etc. to enable safe operation of machine.
 A competent operative must inspect machines weekly and
maintain a record.
 Man lift movement shall be controlled by flagman.

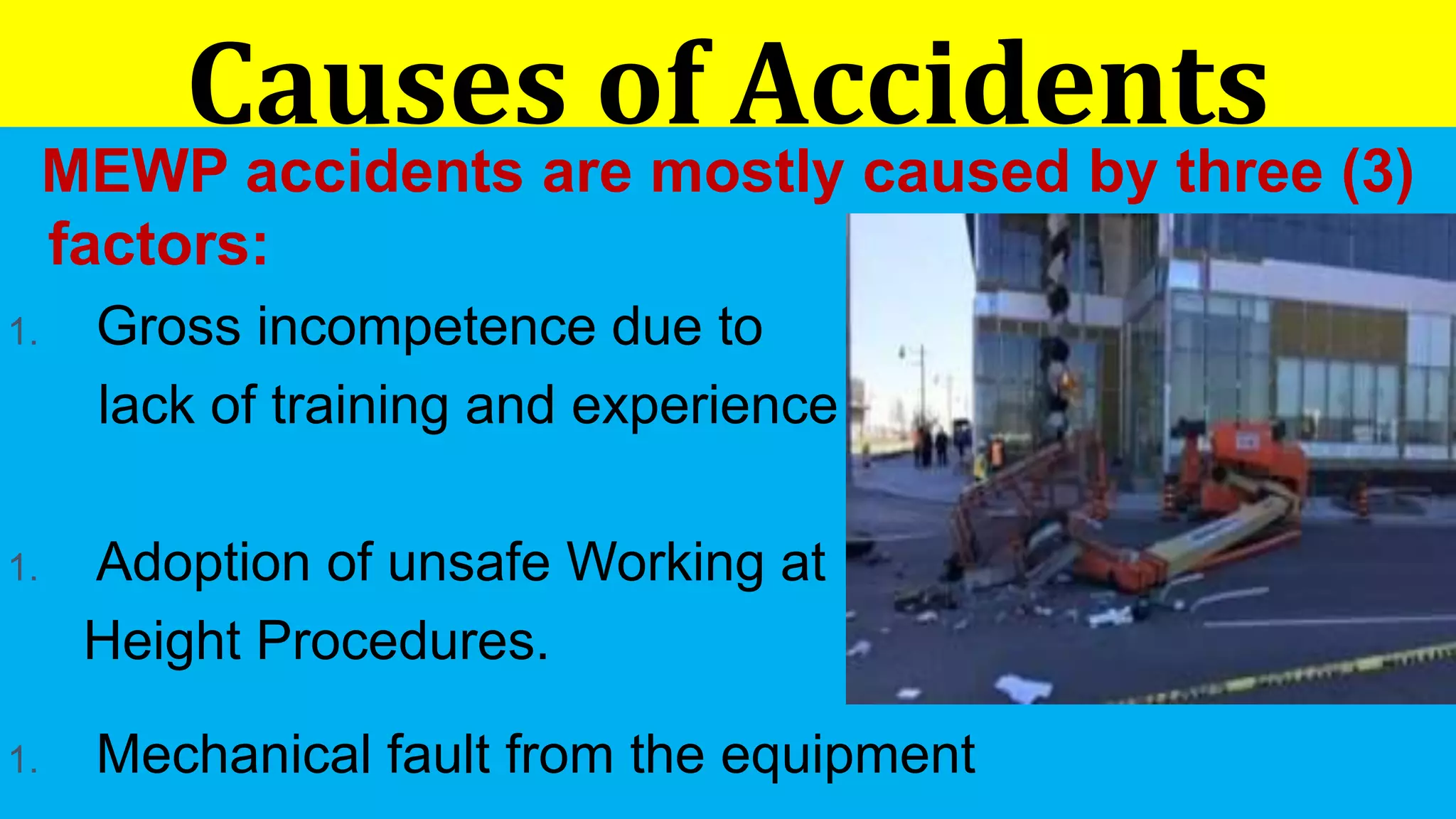

23. Causes of Accidents
MEWP accidents are mostly caused by three (3)
factors:
1. Gross incompetence due to
lack of training and experience
1. Adoption of unsafe Working at
Height Procedures.
1. Mechanical fault from the equipment

24. QUIZ
What do the initials M.E.W.P. stand for?
A. Maximum envelope with postage
B. Maximum elevation with people
C. Mobile elevating work platform..

25. QUIZ
 Man lift occupants may position themselves
outside of the guardrails if they are tied off.
A. True
B. False..

26. QUIZ
 It is safe to position the basket on a building
ledge, roof, or any other object and boom down
to increase the stability of the basket.
A. True
B. False..

27. QUIZ
 Who is responsible for safety in your workplace?
A. Supervisor
B. Managers
C. Employees
D. Everyone has a role in keeping the workplace safe..

28. QUIZ
What must you check before using a Man lift?
A. The surface is level and stable.
B. No overhead obstructions.
C. Both A and B..
D. Neither.

29. QUIZ
When moving the machine, the user should visually
verify that other people are clear and that potholes or
objects that would affect the stability of the lift are
avoided.
A. True..
B. False

30. QUIZ
When going to do a lifting in a deserted/loose soil vicinity with
mobile elevated working platforms what will you do?
Answer: Some Knowledge:
 Generally, MEWPs are not used to
lift any equipment other than tools
and accessories and it is important
to ensure that the MEWP is suitable
for lifting the tools and accessories.
 Do not balance material on the handrails unless they have been
specifically designed for the purpose by the manufacturer.

31. Thank you
