한컴MDS_NVIDIA Jetson Platform
The document provides technical specifications for various Jetson series GPUs, including Jetson TX2, AGX Xavier, and Nano, detailing their computing power, power consumption, and connectivity options. It highlights the main features such as CPU architecture, GPU cores, memory, and video encoding capabilities. Additionally, it outlines the dimensions and special characteristics of each model for potential industrial applications.
More Related Content
Similar to 한컴MDS_NVIDIA Jetson Platform
한컴MDS_NVIDIA Jetson Platform
- 1.
- 2.

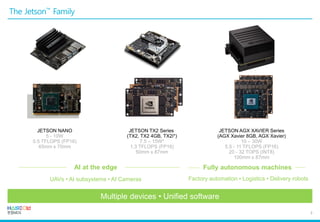

- 3. 3 Multiple devices •Unified software AI at the edge Fully autonomous machines UAVs • AI subsystems • AI Cameras Factory automation • Logistics • Delivery robots JETSON TX2 Series (TX2, TX2 4GB, TX2i*) 7.5 – 15W* 1.3 TFLOPS (FP16) 50mm x 87mm JETSON AGX XAVIER Series (AGX Xavier 8GB, AGX Xavier) 10 – 30W 5.5 - 11 TFLOPS (FP16) 20 - 32 TOPS (INT8) 100mm x 87mm JETSON NANO 5 - 10W 0.5 TFLOPS (FP16) 45mm x 70mm

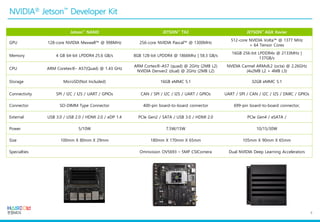

- 4. 4 Jetson™ NANO JETSON™TX2 JETSON™ AGX Xavier GPU 128-core NVIDIA Mexwell™ @ 998MHz 256-core NVIDIA Pascal™ @ 1300MHz 512-core NVIDIA Volta™ @ 1377 MHz + 64 Tensor Cores Memory 4 GB 64-bit LPDDR4 25.6 GB/s 8GB 128-bit LPDDR4 @ 1866Mhz | 58.3 GB/s 16GB 256-bit LPDDR4x @ 2133MHz | 137GB/s CPU ARM Coretex®- A57(Quad) @ 1.43 GHz ARM Cortex®-A57 (quad) @ 2GHz (2MB L2) NVIDIA Denver2 (dual) @ 2GHz (2MB L2) NVIDIA Carmel ARMv8.2 (octa) @ 2.26GHz (4x2MB L2 + 4MB L3) Storage MicroSD(Not Included) 16GB eMMC 5.1 32GB eMMC 5.1 Connectivity SPI / I2C / I2S / UART / GPIOs CAN / SPI / I2C / I2S / UART / GPIOs UART / SPI / CAN / I2C / I2S / DMIC / GPIOs Connector SO-DIMM Type Connector 400-pin board-to-board connector 699-pin board-to-board connector, External USB 3.0 / USB 2.0 / HDMI 2.0 / eDP 1.4 PCIe Gen2 / SATA / USB 3.0 / HDMI 2.0 PCIe Gen4 / eSATA / Power 5/10W 7.5W/15W 10/15/30W Size 100mm X 80mm X 29mm 180mm X 170mm X 65mm 105mm X 90mm X 65mm Specialties Omnivision OV5693 – 5MP CSIComera Dual NVIDIA Deep Learning Accelerators
- 5. 5 Jetson™ NANO JETSON™TX2 JETSON™ AGX Xavier TX2(4GB) TX2(8GB) Industrial JAX (8GB) JAX (16GB) Performance 472GFLOPs 1.33TFLOPS / 1.3TOPs 1.26TFLOPS 5.5TFLOPS / 11.1TOPs 11TFLOPS / 22TOPs GPU 128-Core NVIDIA Maxwell™ 256-Core NVIDIA Pascal™ 384 Core Volta™ + NVDLA 512 Core Volta™ + NVDLA DLA X X 4.1 TFLOPS (FP16) 8.2 TOPS (INT8) 5 TFLOPS (FP16) 10 TOPS (INT8) Memory 4 GB 64-bit LPDDR4 29.8 GB/s 4GB 128-bit LPDDR4 51 GB/s 8GB 128-bit LPDDR4 60 GB/s 8GB 128-bit LPDDR4 51 GB/s 8GB 256-bit LPDDR4x 1333MHz - 85 GB/s 16GB 256-bit LPDDR4x 2133MHz - 137 GB/s CPU Quad-core ARM A57 (1.5 GHz) Dual-core Denver and Quad-core A57 2GHz (2x) 2MB L2 6-core Carmel ARM CPU 1.3GHz (3x) 2MB L2+4MB L3 8-core Carmel ARM CPU 2.26GHz (4x) 2MB L2+4MBL3 Storage 16GB 16GB 32GB 32GB 32GB Video Encode Decode 4K @ 30 (H.264/H.265) 4K @ 60 (H.264/H.265) 2x 4K @ 30 (HEVC) 2x 4K @ 30 12-bit support 2x 4K @ 60 (HEVC) 2x 4K @ 60 (HEVC) 4x 4K @ 60 (HEVC) 2x 8K @ 30 (HEVC) Connector 260-pin Edge (SO-DIMM) Connector 400-pin board-to-board connector 699-pin board-to-board connector Camera 12 lanes (3x4 or 4x2) MIPI CSI-2 DPHY 1.1 (1.5 Gbps) 12 lanes MIPI CSI-2, D-PHY 1.2 (30 Gbps) 16 lanes (4x4|6x2|6x1) MIPI CSI-2 8 lanes SLVS-EC, D-PHY 1.2 (2.5Gbps, 40 Gbps) C-PHY 1.1 (1.75Gsym/s 64 Gbps) C-PHY 1.1 (2.5Gsym/s 109 Gbps) Wi-Fi/Bluetooth X X O X X Power 5W / 10W 7.5W/15W 10W/20W 10W/20W 10W/15W/30W Size 69.6mm X 45mm 87mm X 50mm 100mm X 87mm
- 6. 6 Carmel ARM V8.2CPU 8 Cores 4x2MB L2, 4MB L3 10-wide Superscalar Cache coherent CPU complex Volta Tensor Core GPU FP32/FP16/INT8 Multi-Precision 512 CUDA Tensor Cores 2.8 CUDA TFLOPS (FP16) 22.6 Tensor Core DL TOPS Multimedia Engines Encode, Decode, Video Image Compositor H.264, H.265, VP9 HDMI and DP Display support DLA – Designed for Inference 5.7 TFLOPS FP16 11.4 TOPS INT8 Computer Vision Engines Vision Accelerator Stereo & Optical Flow Engine HDR ISP Boot, Power & Security Boot and power management processor TEE + ARM TrustZone AES, RSA, SHA Industry Standard IO Always on Sensor processor engine (AON/SPE) CAN, DMIC, GPIO, I2C, I2S, PMC, SPI, UART Industry Standard High-Speed IO PCle Gen4 Root and Endpoint RGMII Ethernet USB 3.1 and 2.0 USB 3.1 Gen2 Host and Device Memory 256-Bit LPDDR4X 16GB, 137 GB/s

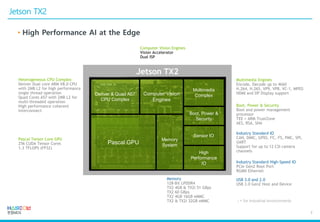

- 7. 7 Jetson TX2 Denver &Quad A57 CPU Complex Boot, Power & Security Sensor IO Pascal GPU High Performance IO Multimedia Complex Heterogeneous CPU Complex Denver Dual core ARM V8.0 CPU with 2MB L2 for high performance single thread operation Quad Cores A57 with 2MB L2 for multi-threaded operation High performance coherent interconnect Pascal Tensor Core GPU 256 CUDA Tensor Cores 1.3 TFLOPS (FP32) Multimedia Engines Encode, Decode up to 4k60 H.264, H.265, VP9, VP8, VC-1, MPEG HDMI and DP Display support Computer Vision Engines Vision Accelerator Dual ISP Boot, Power & Security Boot and power management processor TEE + ARM TrustZone AES, RSA, SHA Industry Standard IO CAN, DMIC, GPIO, I2C, I2S, PMC, SPI, UART Support for up to 12 CSI camera channels Industry Standard High-Speed IO PCle Gen2 Root Port RGMII Ethernet USB 3.0 and 2.0 USB 3.0 Gen2 Host and Device Memory 128-Bit LPDDR4 TX2 4GB & TX2i 51 GBps TX2 60 GBps TX2 4GB 16GB eMMC TX2 & TX2i 32GB eMMC Memory System Computer Vision Engines *i = for industrial environments

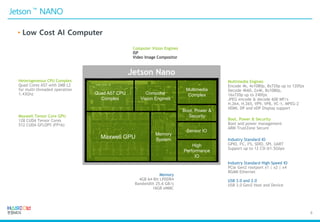

- 8. 8 Heterogeneous CPU Complex QuadCores A57 with 2MB L2 for multi-threaded operation 1.43Ghz Maxwell Tensor Core GPU 128 CUDA Tensor Cores 512 CUDA GFLOPS (FP16) Computer Vision Engines ISP Video Image Compositor Boot, Power & Security Boot and power management ARM TrustZone Secure Industry Standard IO GPIO, I2C, I2S, SDIO, SPI, UART Support up to 12 CSI @1.5Gbps Industry Standard High-Speed IO PCle Gen2 rootport x1 | x2 | x4 RGMII Ethernet USB 3.0 and 2.0 USB 3.0 Gen2 Host and Device Memory 4GB 64-Bit LPDDR4 Bandwidth 25.6 GB/s 16GB eMMC Jetson Nano Quad A57 CPU Complex Boot, Power & Security Sensor IO Maxwell GPU High Performance IO Multimedia Complex Memory System Computer Vision Engines Multimedia Engines Encode 4k, 4x1080p, 8x720p up to 120fps Decode 4k60, 2x4k, 8x1080p, 16x720p up to 240fps JPEG encode & decode 600 MP/s H.264, H.265, VP9, VP8, VC-1, MPEG-2 HDMI, DP and eDP Display support
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
