1. Porting Qt for Embedded Linux on
Embedded Processors
Frank Walzer – Texas Instruments

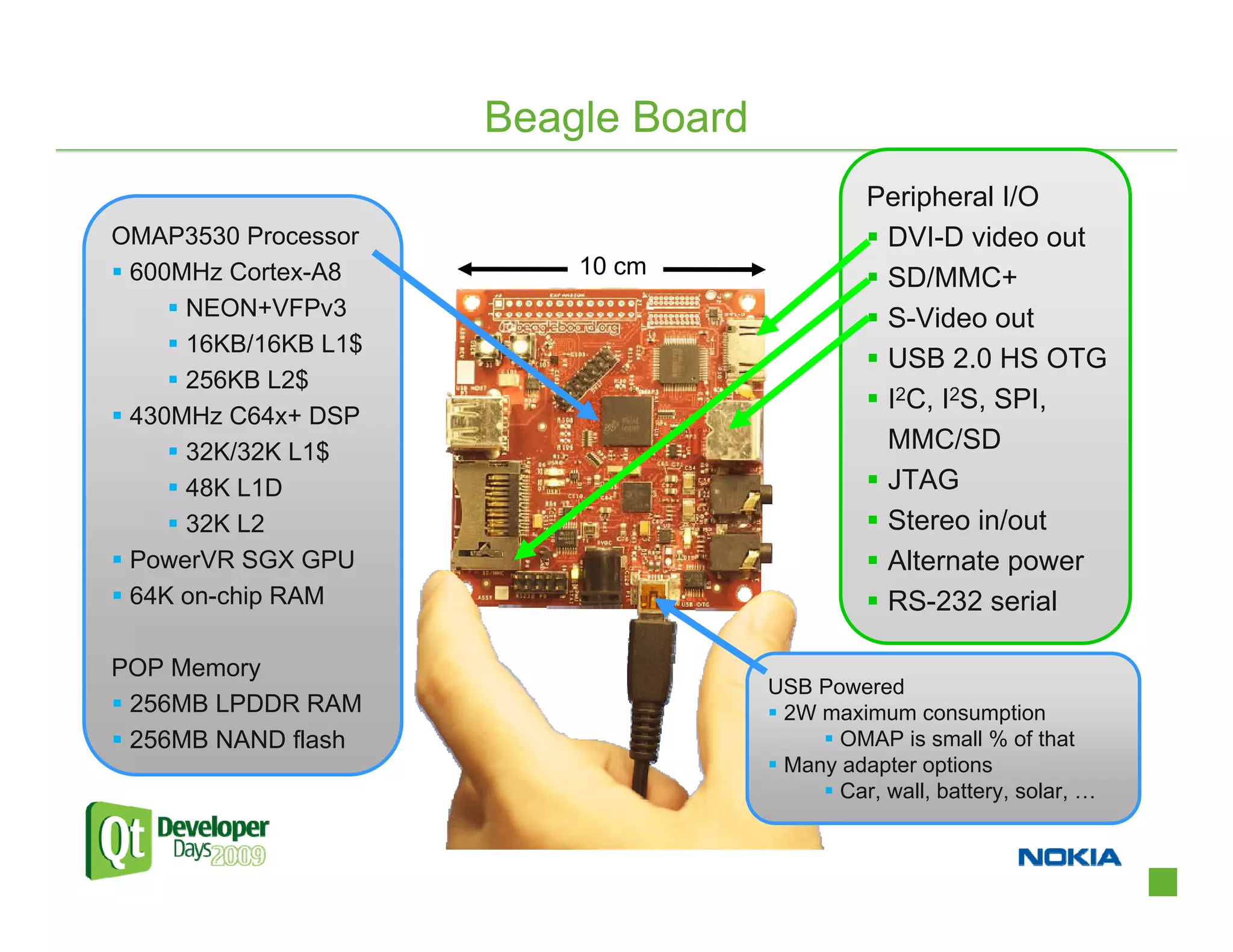

2. Beagle Board
Peripheral I/O
OMAP3530 Processor DVI-D video out
600MHz Cortex-A8 10 cm
SD/MMC+
NEON+VFPv3 S-Video out
16KB/16KB L1$
USB 2.0 HS OTG
256KB L2$
I2C, I2S, SPI,
430MHz C64x+ DSP
32K/32K L1$ MMC/SD
48K L1D JTAG
32K L2 Stereo in/out
PowerVR SGX GPU Alternate power
64K on-chip RAM RS-232 serial
POP Memory
USB Powered
256MB LPDDR RAM 2W maximum consumption
256MB NAND flash OMAP is small % of that
Many adapter options
Car, wall, battery, solar, …

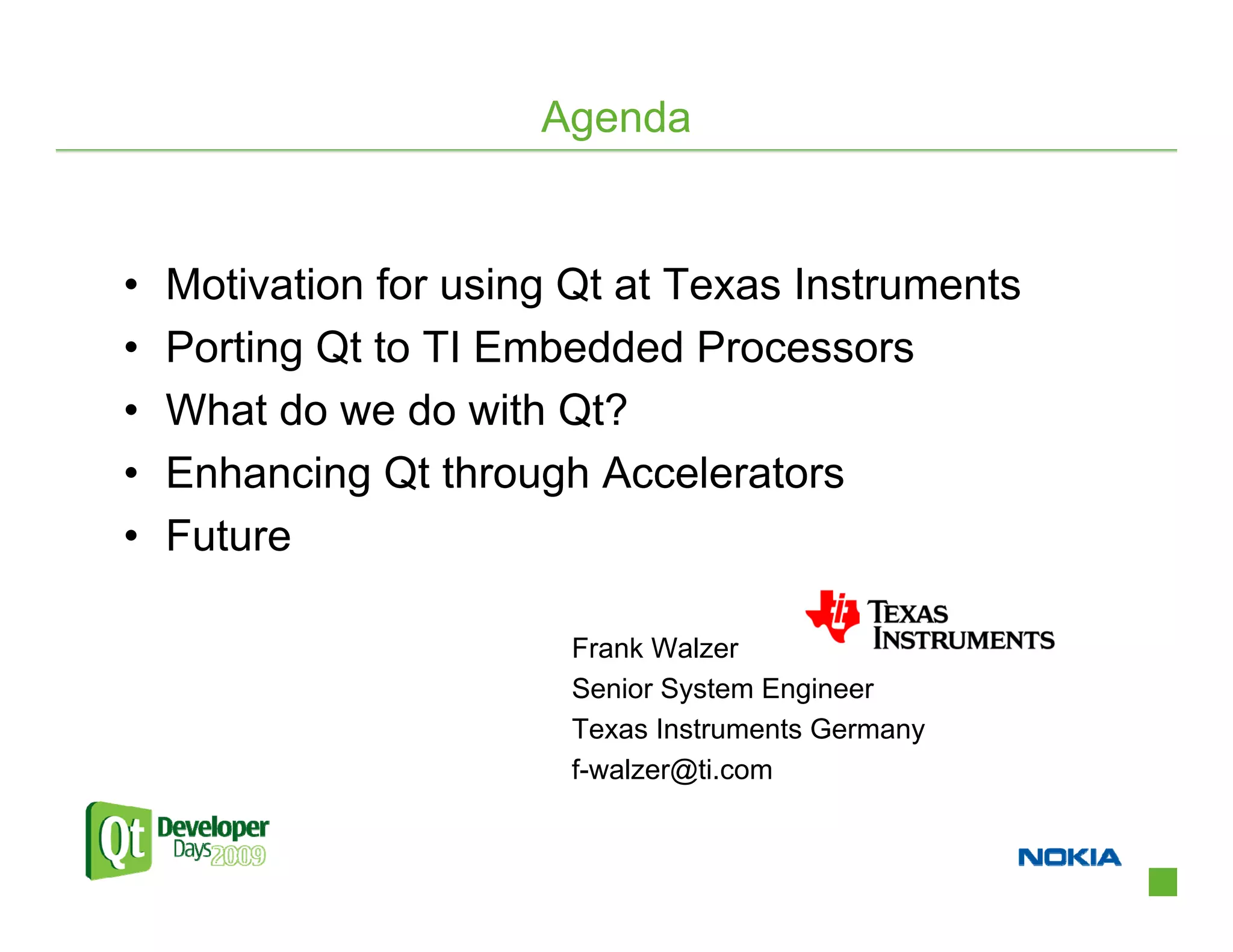

3. Agenda
• Motivation for using Qt at Texas Instruments
• Porting Qt to TI Embedded Processors
• What do we do with Qt?
• Enhancing Qt through Accelerators
• Future
Frank Walzer
Senior System Engineer
Texas Instruments Germany
f-walzer@ti.com

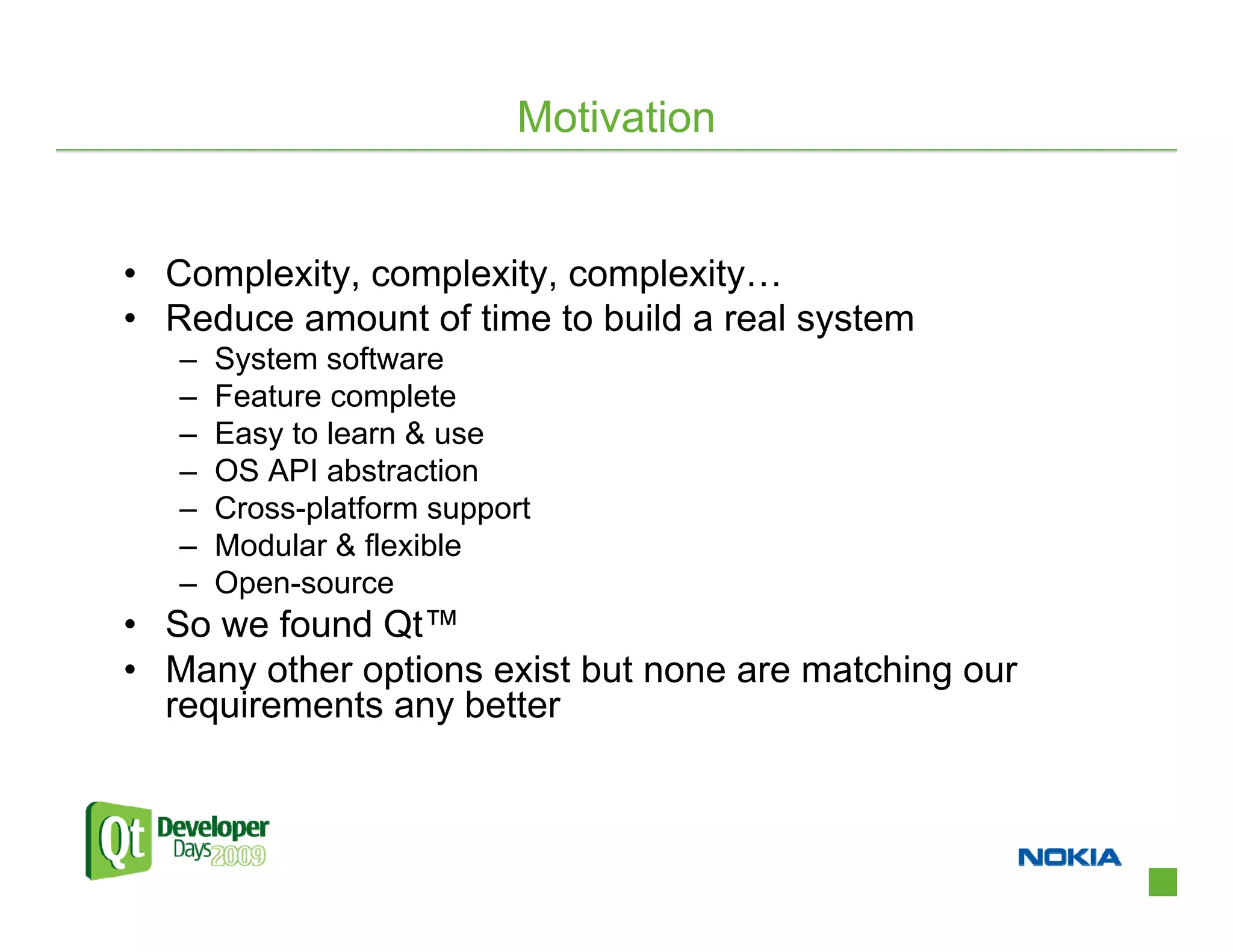

4. Motivation
• Complexity, complexity, complexity…
• Reduce amount of time to build a real system
– System software
– Feature complete
– Easy to learn & use
– OS API abstraction
– Cross-platform support
– Modular & flexible
– Open-source
• So we found Qt™
• Many other options exist but none are matching our
requirements any better

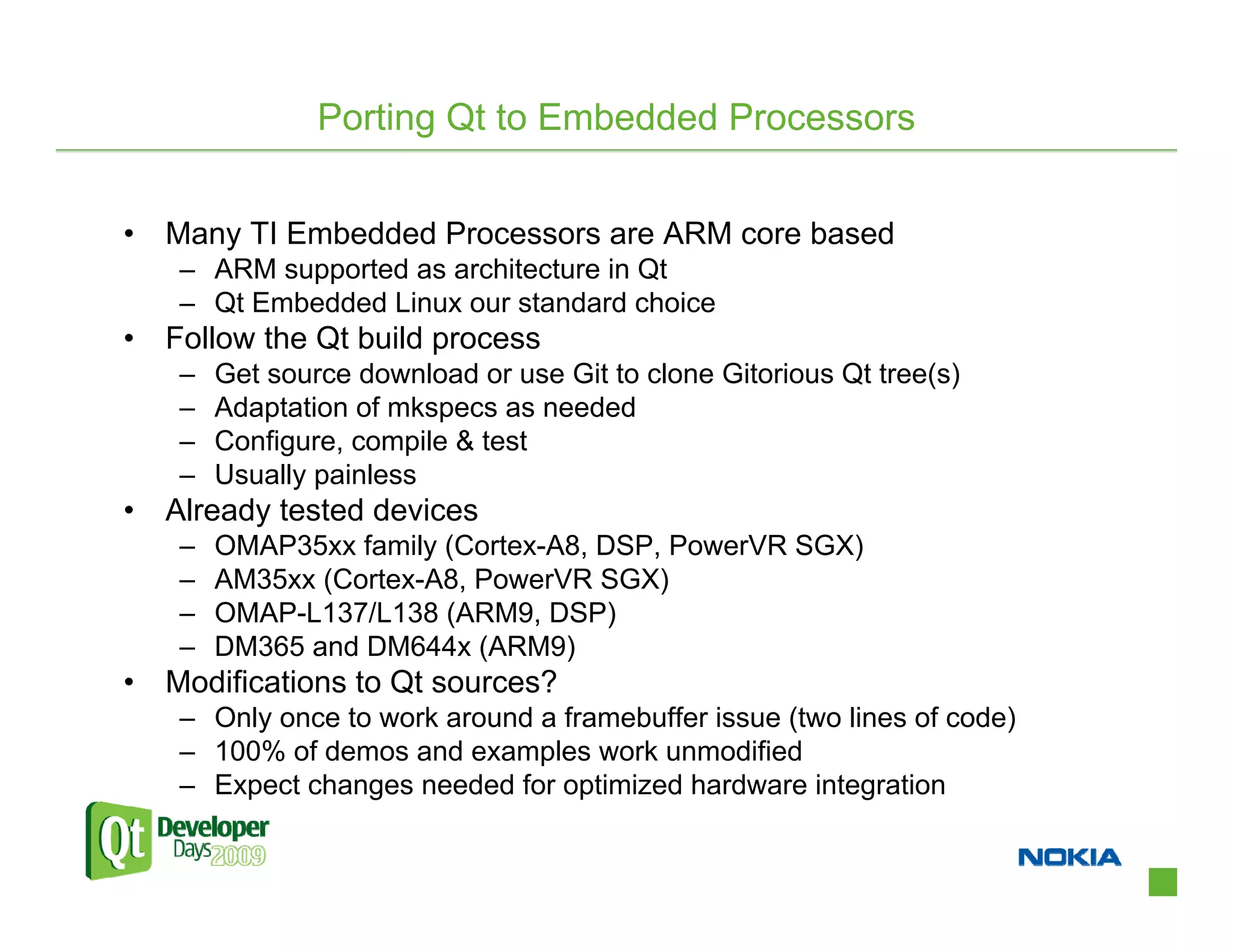

5. Porting Qt to Embedded Processors
• Many TI Embedded Processors are ARM core based
– ARM supported as architecture in Qt
– Qt Embedded Linux our standard choice
• Follow the Qt build process
– Get source download or use Git to clone Gitorious Qt tree(s)
– Adaptation of mkspecs as needed
– Configure, compile & test
– Usually painless
• Already tested devices
– OMAP35xx family (Cortex-A8, DSP, PowerVR SGX)
– AM35xx (Cortex-A8, PowerVR SGX)
– OMAP-L137/L138 (ARM9, DSP)
– DM365 and DM644x (ARM9)
• Modifications to Qt sources?
– Only once to work around a framebuffer issue (two lines of code)
– 100% of demos and examples work unmodified
– Expect changes needed for optimized hardware integration

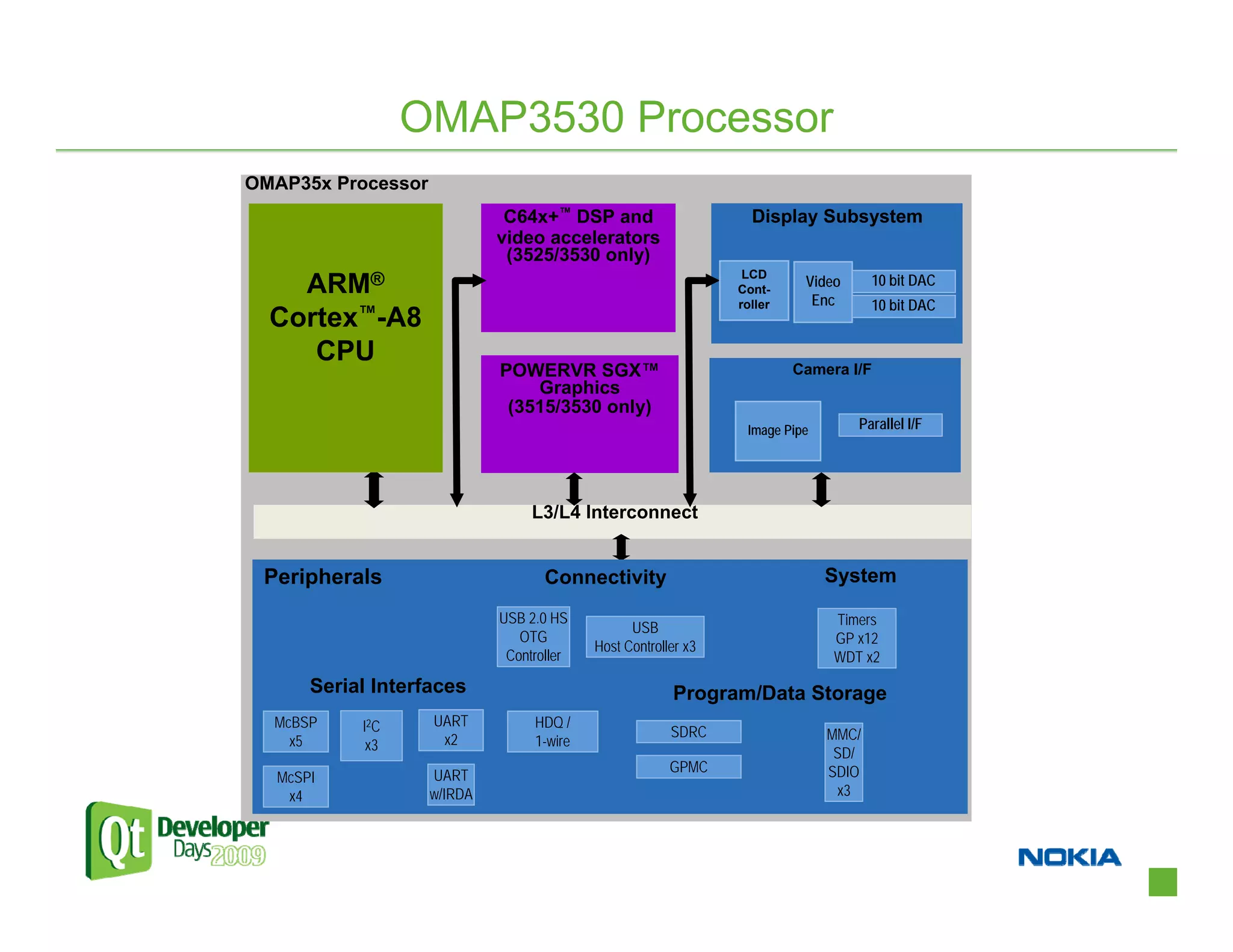

6. OMAP3530 Processor
OMAP35x Processor
C64x+™ DSP and Display Subsystem
video accelerators
(3525/3530 only)
LCD
ARM® Video 10 bit DAC
Cont-
roller Enc 10 bit DAC
Cortex™-A8
CPU
POWERVR SGX™ Camera I/F
Graphics
(3515/3530 only)
Image Pipe Parallel I/F
L3/L4 Interconnect
Peripherals Connectivity System
USB 2.0 HS Timers
USB
OTG GP x12
Host Controller x3
Controller WDT x2
Serial Interfaces Program/Data Storage
McBSP I2C UART HDQ /
x2 SDRC MMC/
x5 x3 1-wire
SD/
GPMC SDIO
McSPI UART
x4 w/IRDA x3

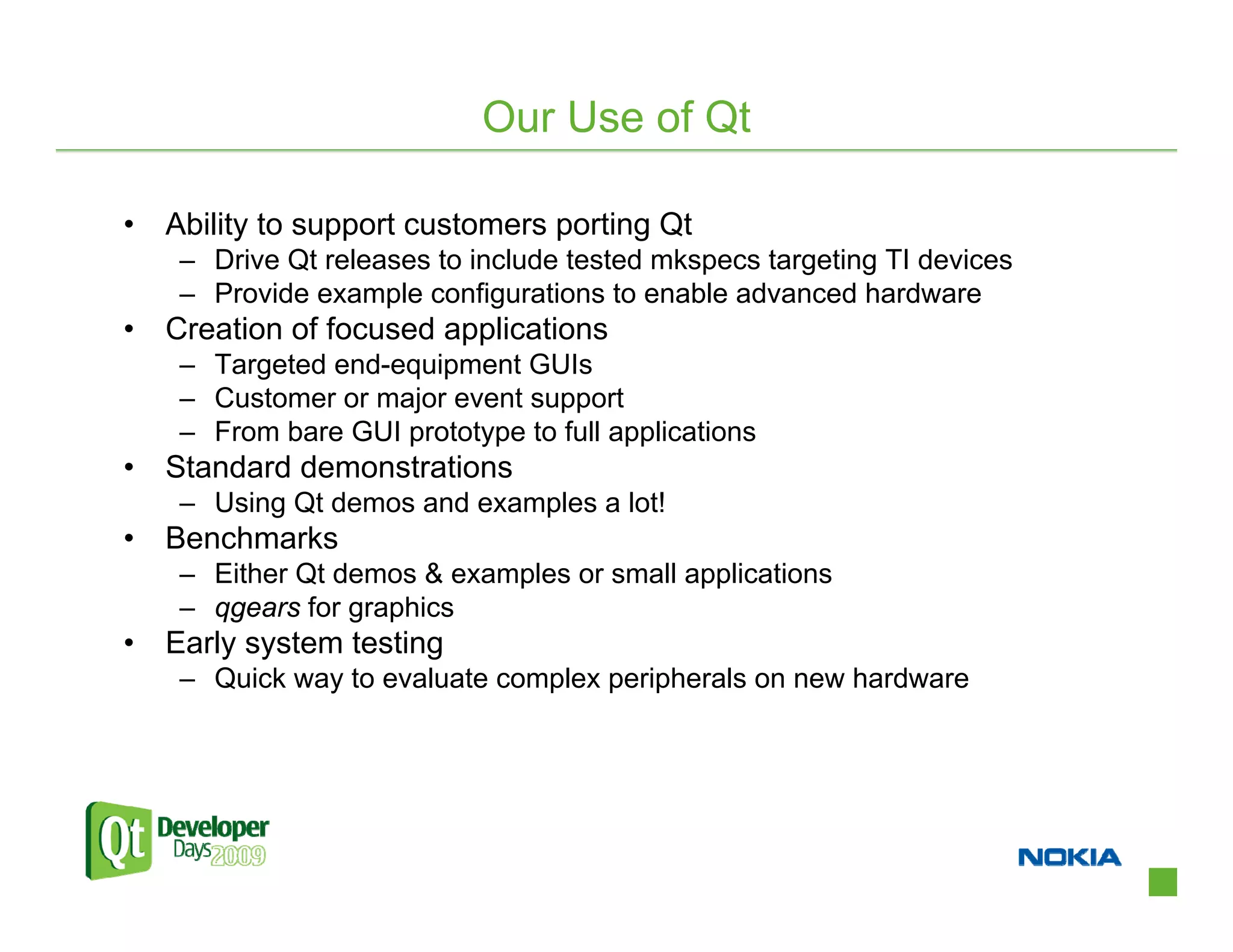

7. Our Use of Qt
• Ability to support customers porting Qt
– Drive Qt releases to include tested mkspecs targeting TI devices
– Provide example configurations to enable advanced hardware
• Creation of focused applications
– Targeted end-equipment GUIs
– Customer or major event support
– From bare GUI prototype to full applications
• Standard demonstrations
– Using Qt demos and examples a lot!
• Benchmarks
– Either Qt demos & examples or small applications
– qgears for graphics
• Early system testing
– Quick way to evaluate complex peripherals on new hardware

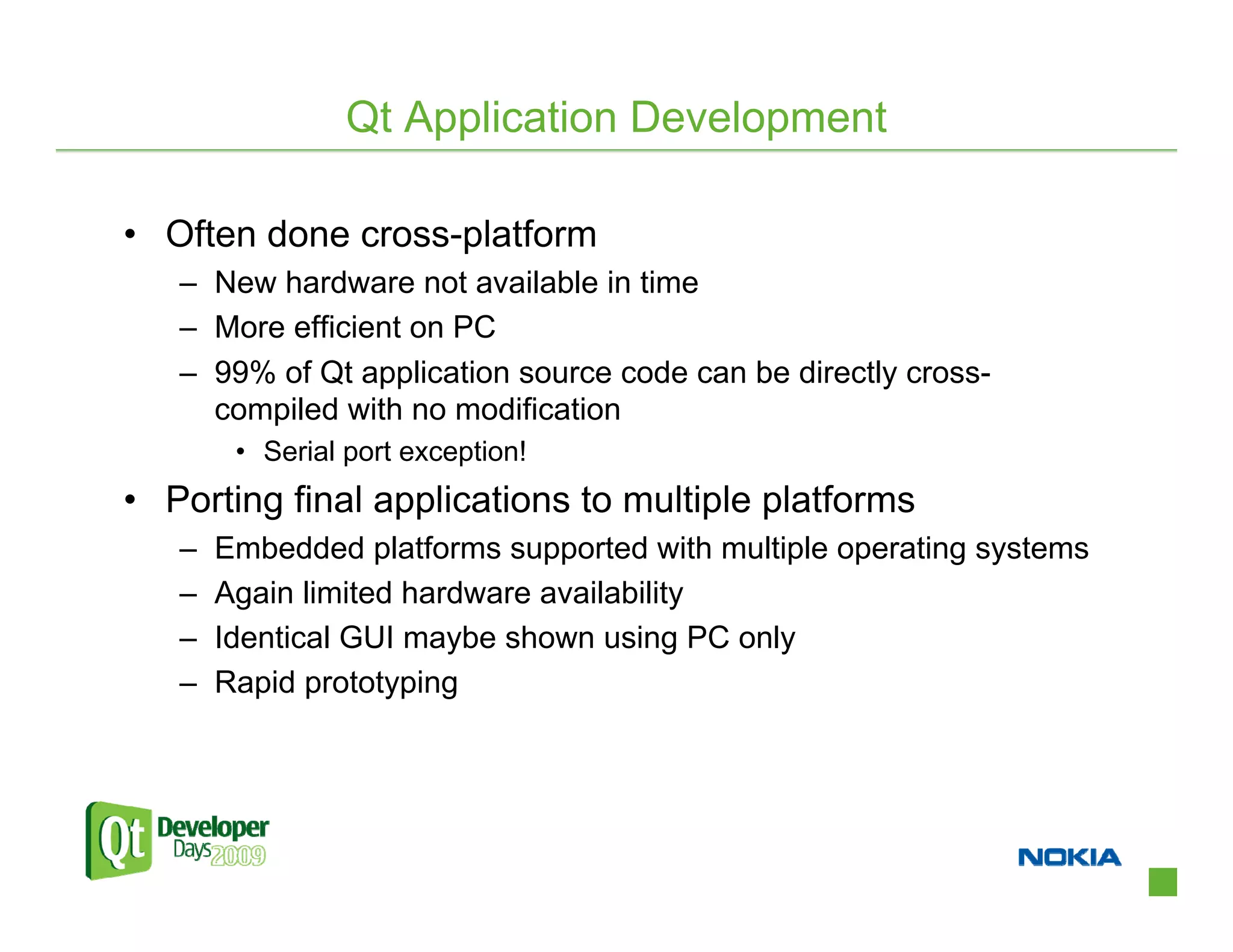

8. Qt Application Development
• Often done cross-platform
– New hardware not available in time
– More efficient on PC
– 99% of Qt application source code can be directly cross-
compiled with no modification
• Serial port exception!
• Porting final applications to multiple platforms
– Embedded platforms supported with multiple operating systems
– Again limited hardware availability
– Identical GUI maybe shown using PC only
– Rapid prototyping

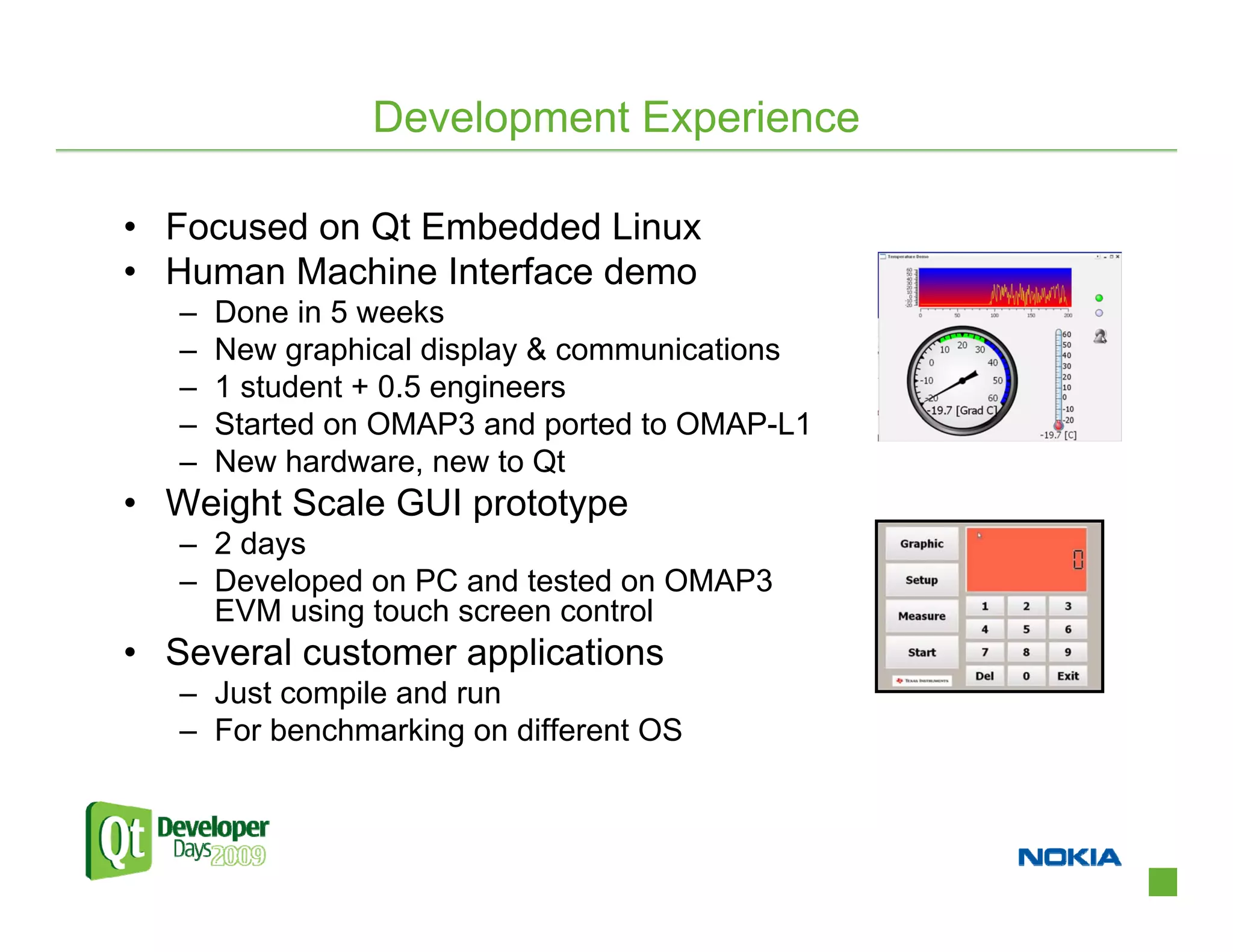

9. Development Experience
• Focused on Qt Embedded Linux
• Human Machine Interface demo
– Done in 5 weeks
– New graphical display & communications
– 1 student + 0.5 engineers
– Started on OMAP3 and ported to OMAP-L1
– New hardware, new to Qt
• Weight Scale GUI prototype
– 2 days
– Developed on PC and tested on OMAP3
EVM using touch screen control
• Several customer applications
– Just compile and run
– For benchmarking on different OS

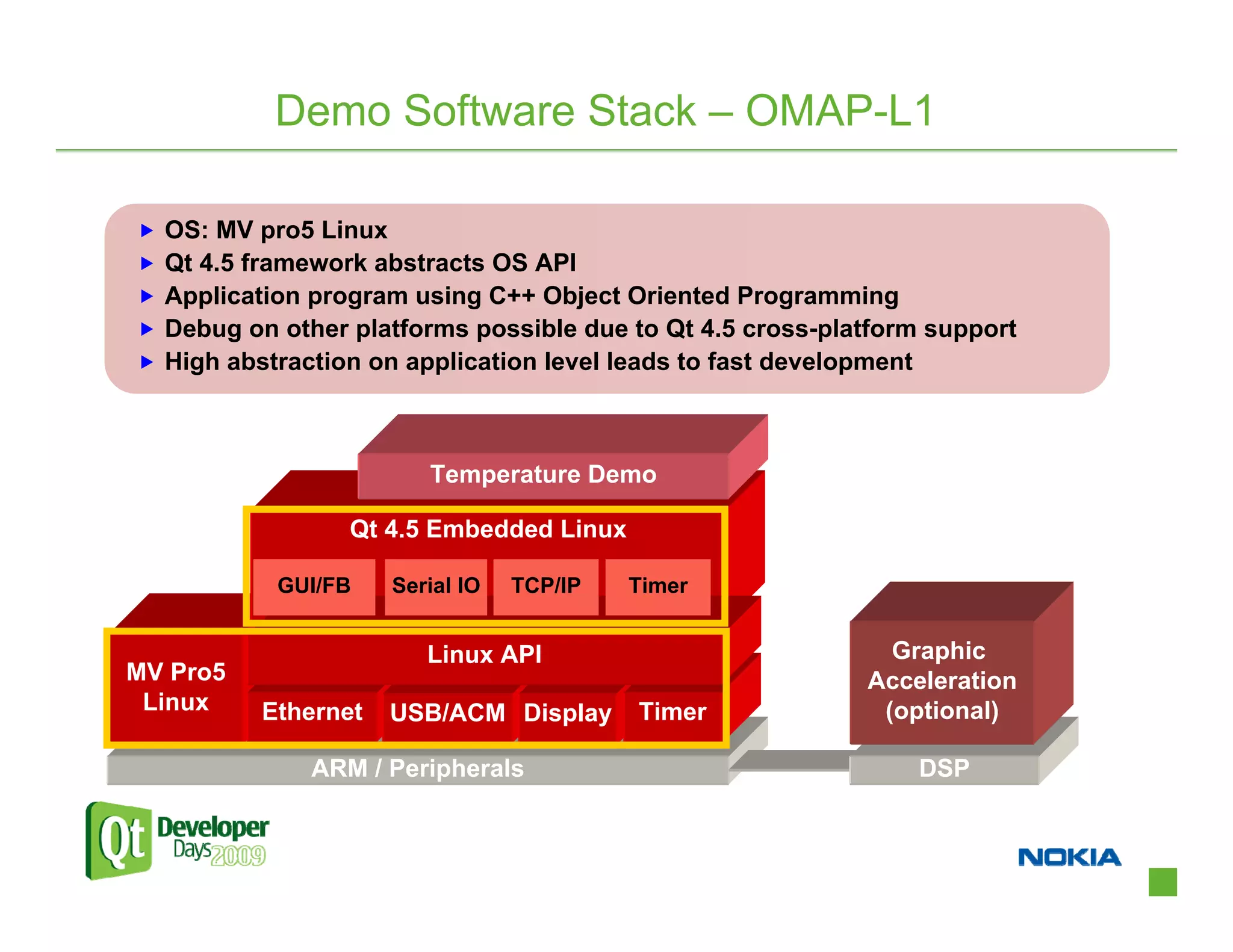

10. Demo Software Stack – OMAP-L1
OS: MV pro5 Linux
Qt 4.5 framework abstracts OS API
Application program using C++ Object Oriented Programming
Debug on other platforms possible due to Qt 4.5 cross-platform support
High abstraction on application level leads to fast development
Temperature Demo
Qt 4.5 Embedded Linux
GUI/FB Serial IO TCP/IP Timer
Linux API Graphic
MV Pro5 Acceleration
Linux Ethernet USB/ACM Display Timer (optional)
ARM / Peripherals DSP

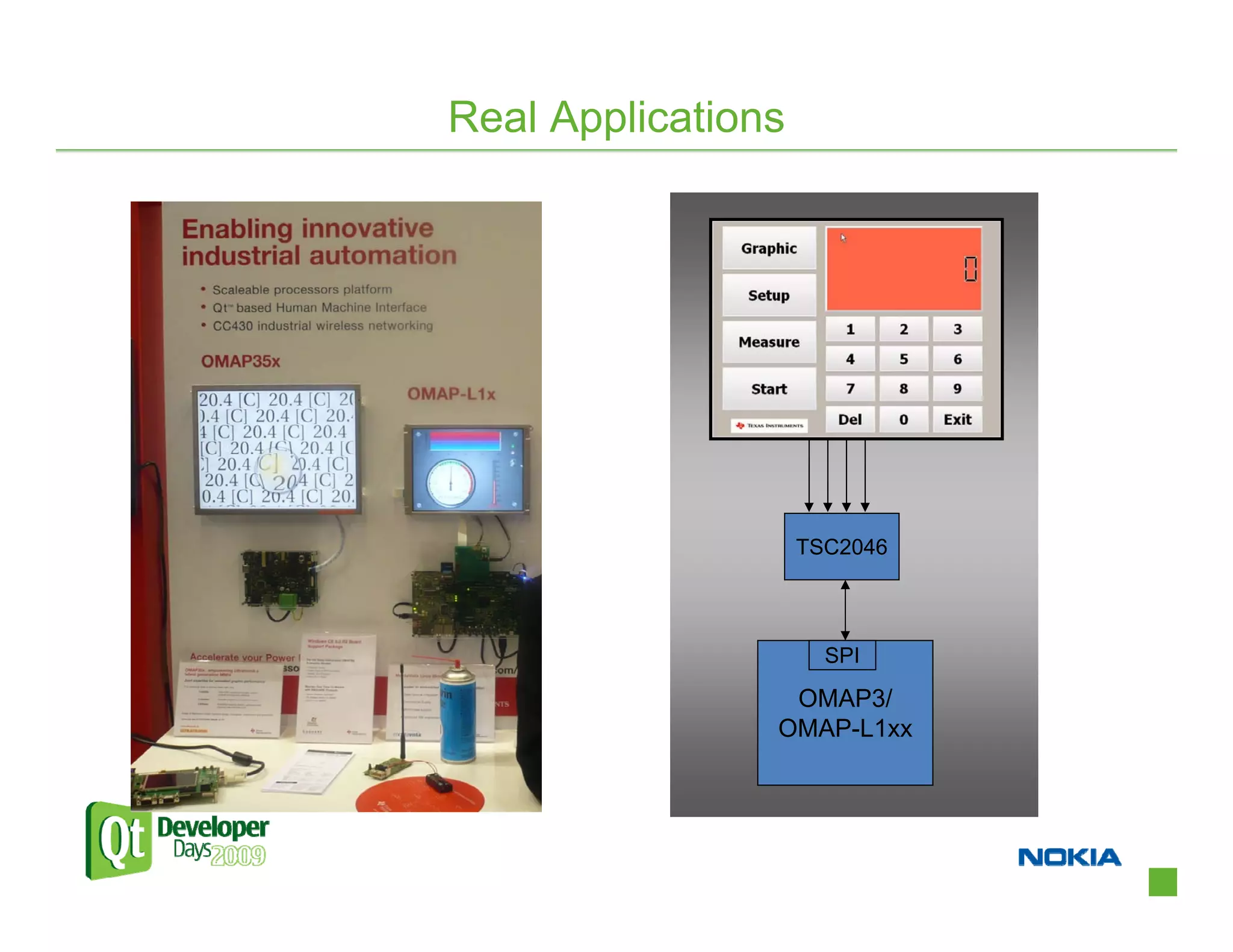

11. Real Applications
TSC2046
SPI
OMAP3/
OMAP-L1xx

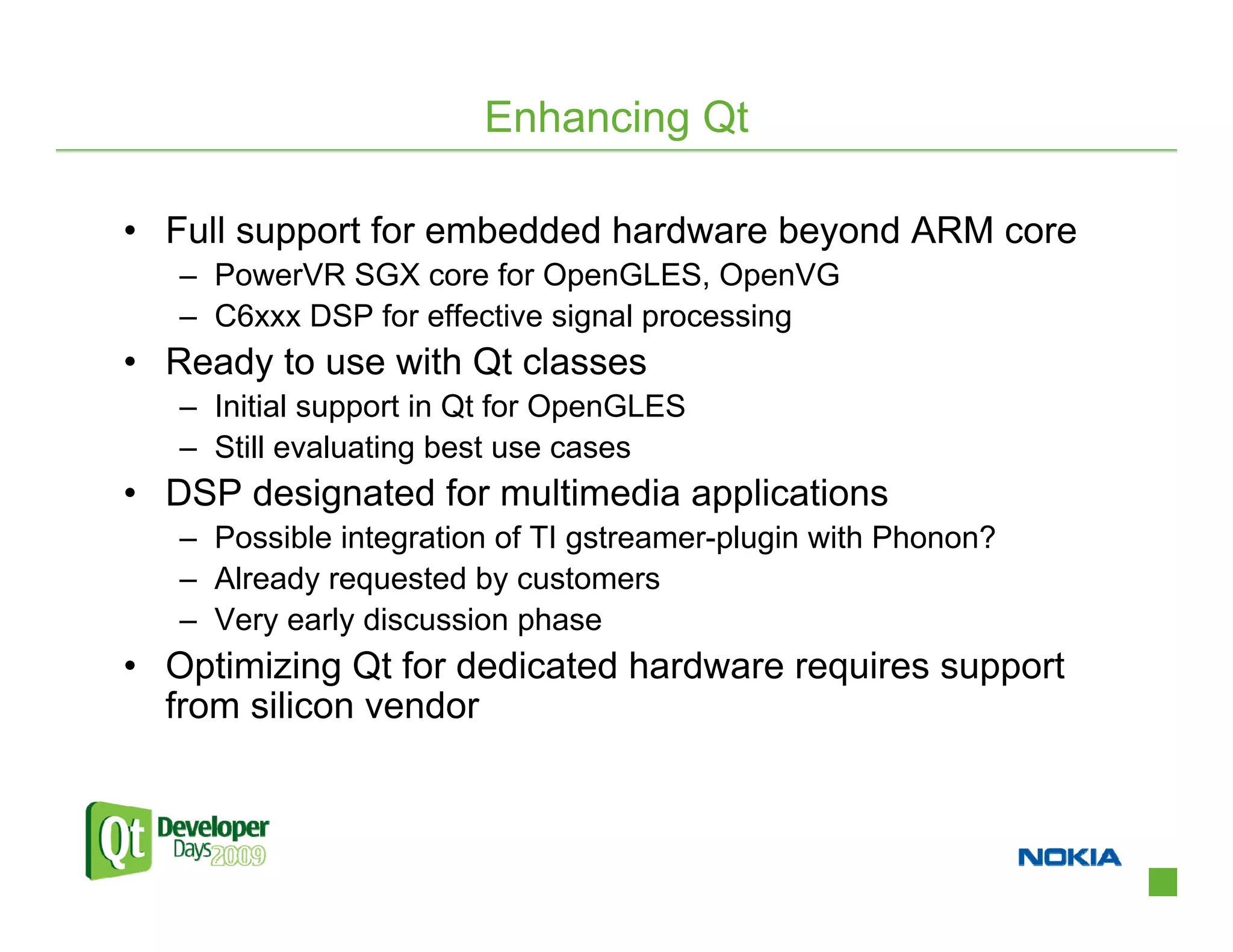

12. Enhancing Qt
• Full support for embedded hardware beyond ARM core
– PowerVR SGX core for OpenGLES, OpenVG
– C6xxx DSP for effective signal processing
• Ready to use with Qt classes
– Initial support in Qt for OpenGLES
– Still evaluating best use cases
• DSP designated for multimedia applications
– Possible integration of TI gstreamer-plugin with Phonon?
– Already requested by customers
– Very early discussion phase
• Optimizing Qt for dedicated hardware requires support
from silicon vendor

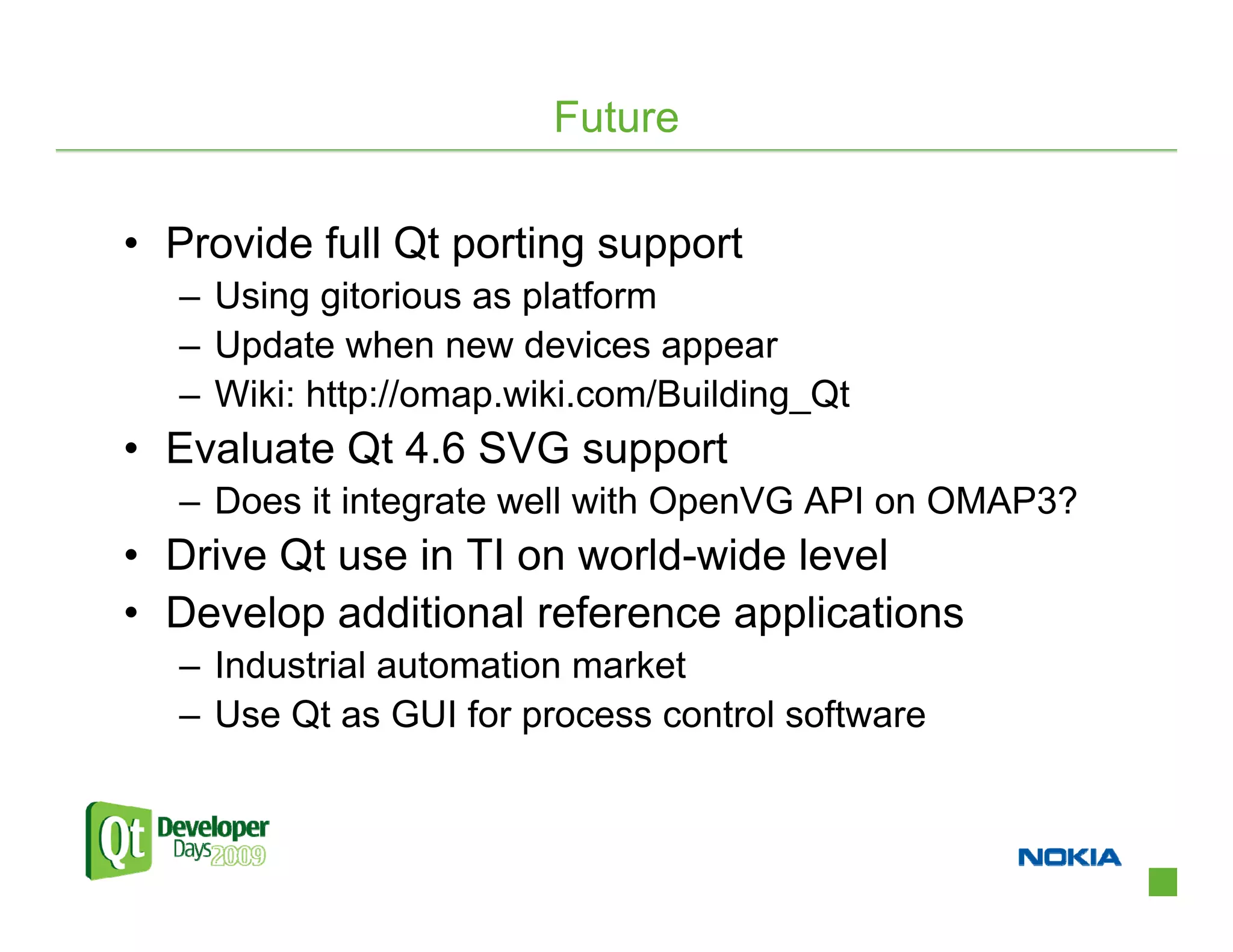

13. Future
• Provide full Qt porting support
– Using gitorious as platform
– Update when new devices appear
– Wiki: http://omap.wiki.com/Building_Qt
• Evaluate Qt 4.6 SVG support
– Does it integrate well with OpenVG API on OMAP3?
• Drive Qt use in TI on world-wide level
• Develop additional reference applications
– Industrial automation market
– Use Qt as GUI for process control software

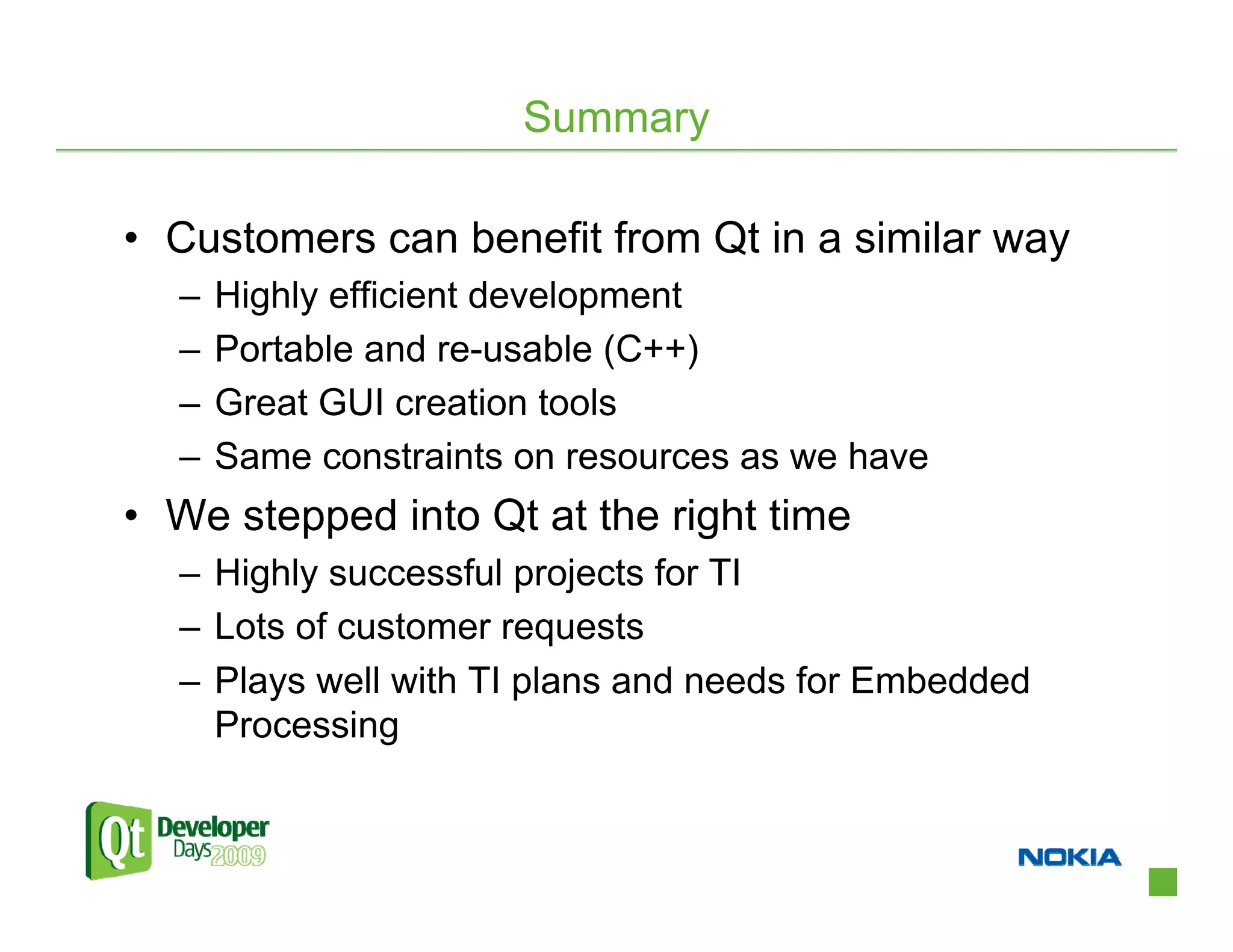

14. Summary
• Customers can benefit from Qt in a similar way
– Highly efficient development
– Portable and re-usable (C++)
– Great GUI creation tools
– Same constraints on resources as we have
• We stepped into Qt at the right time
– Highly successful projects for TI
– Lots of customer requests
– Plays well with TI plans and needs for Embedded
Processing

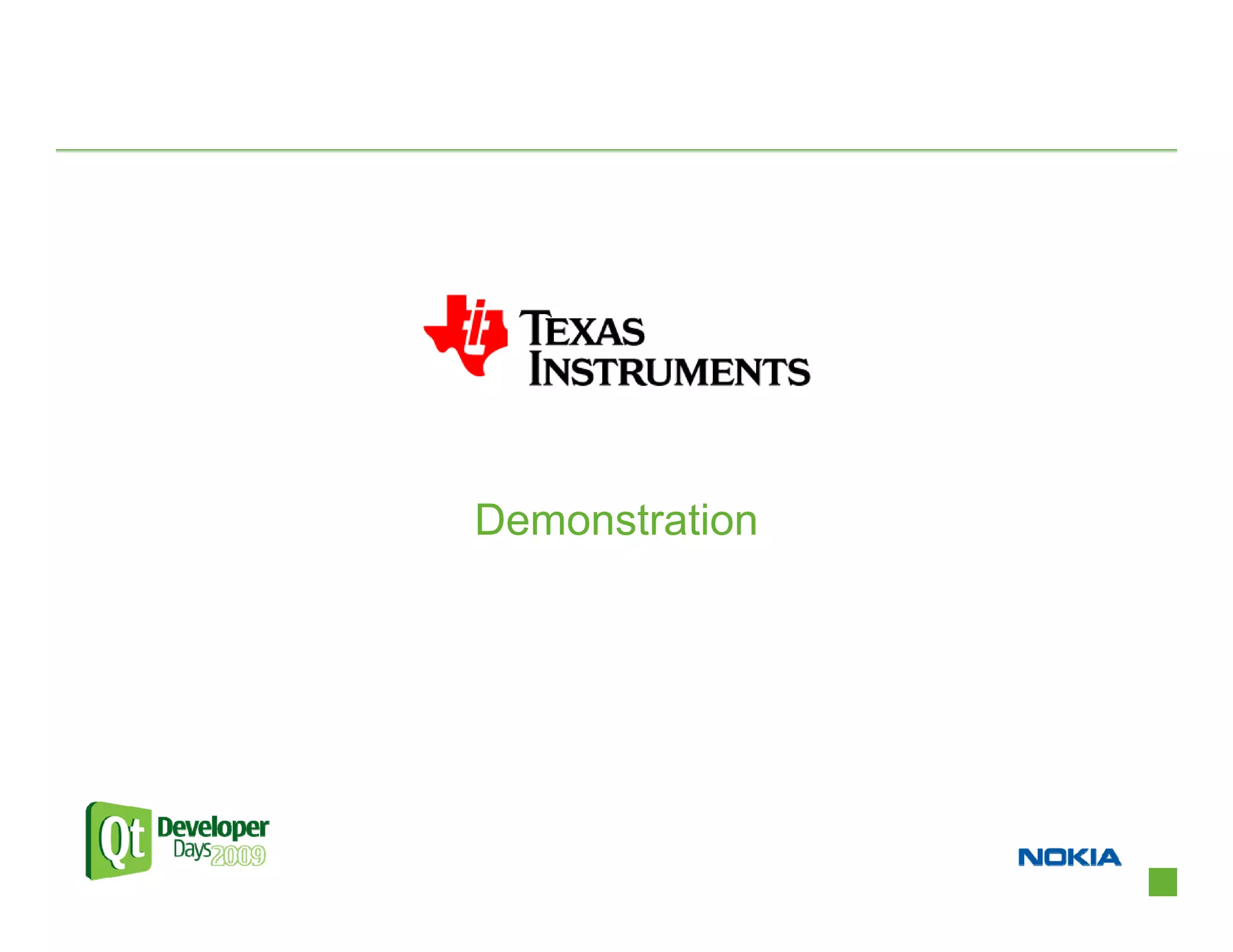

15. Demonstration
