LODHA INTERNATIONAL
MANUFACTURER & EXPORTER OF PHARMACEUTICAL MACHINERIES
MANUAL CAPSULE FILLING MACHINE
Manual Capsule Filling Machine Loading Tray
The Manual Capsule Filling Machine is one of the oldest as well as the most widely uses form of capsule
filling. The machine is designed & manufactured with utmost care to handle all capsule sizes ranging from
00 to 5 and to give you trouble free services year after year.
The Manual Capsule Filling Machine is widely uses in Research Laboratories, Academic Institution,
Herbal/Ayurvedic preparation and medium to small scale manufacturing industries.
Technical Specification
Production Output 6000 to 8000 Capsules/hour
Capsule Combinations 00/0/1/2/3/4 and 5
Sequence of holes 25 x 12 = 300
Overall Dimension 405mm X 300mm X 455mm
Net Weight 43 Kgs.
Gross Weight 50 Kgs.
Next pages contain picture wise working operation presentation of this machine…

2. LODHA INTERNATIONAL LLP
Registered Office: 301, Shalibhadra Tower ,Near Naranpura Railway Crossing, Naranpura, Ahmedabad, Gujarat - 380013, India
Mobile: +91 – 9537131331, +91 – 9512131331, Email: info@lodhainternational.net , Web: www.capsulesmachine.com, www.lodhainternational.net

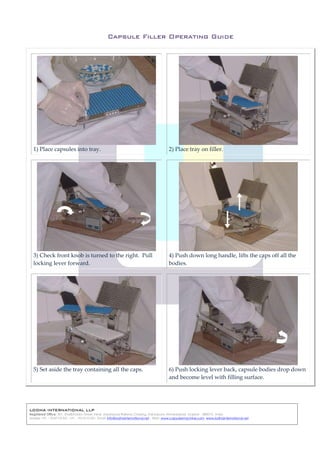

Capsule Filler Operating Guide
1) Place capsules into tray. 2) Place tray on filler.
3) Check front knob is turned to the right. Pull
locking lever forward.
4) Push down long handle, lifts the caps off all the
bodies.
5) Set aside the tray containing all the caps. 6) Push locking lever back, capsule bodies drop down
and become level with filling surface.

3. LODHA INTERNATIONAL LLP
Registered Office: 301, Shalibhadra Tower ,Near Naranpura Railway Crossing, Naranpura, Ahmedabad, Gujarat - 380013, India
Mobile: +91 – 9537131331, +91 – 9512131331, Email: info@lodhainternational.net , Web: www.capsulesmachine.com, www.lodhainternational.net
7) Place powder tray on filler: keeps powder
from spilling.
8) Pour & spread the pre-measured powder. Move
extra powder onto powder tray's shelf.
9) Lower tamper and lock. 10) Turn handle to compress powder: allows you to
fill more powder in each capsule.
11) Raise tamper & spread extra powder from
shelf into capsules: ensures uniform fill weights.
12) Return the tray containing caps to filler.

4. LODHA INTERNATIONAL LLP
Registered Office: 301, Shalibhadra Tower ,Near Naranpura Railway Crossing, Naranpura, Ahmedabad, Gujarat - 380013, India
Mobile: +91 – 9537131331, +91 – 9512131331, Email: info@lodhainternational.net , Web: www.capsulesmachine.com, www.lodhainternational.net

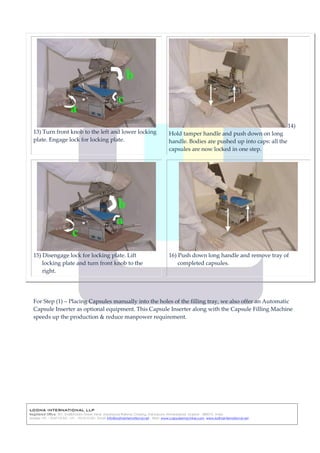

13) Turn front knob to the left and lower locking
plate. Engage lock for locking plate.
14)
Hold tamper handle and push down on long
handle. Bodies are pushed up into caps: all the
capsules are now locked in one step.
15) Disengage lock for locking plate. Lift
locking plate and turn front knob to the
right.
16) Push down long handle and remove tray of
completed capsules.
For Step (1) – Placing Capsules manually into the holes of the filling tray, we also offer an Automatic
Capsule Inserter as optional equipment. This Capsule Inserter along with the Capsule Filling Machine
speeds up the production & reduce manpower requirement.
