Slides from my Pittsburgh TechFest 2014 talk, "Machine Learning for Modern Developers". This talk covers basic concepts and math for statistical machine learning, focusing on the problem of classification. Want some working code from the demos? Head over here: https://github.com/cacois/ml-classification-examples

1. Machine Learning For Modern
Developers
C. Aaron Cois, PhD

2. Wanna chat?
@aaroncois
www.codehenge.net
github.com/cacois

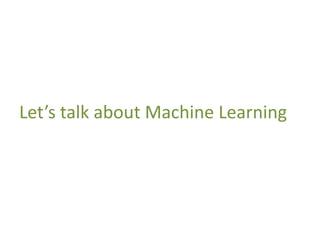

3. Let’s talk about Machine Learning

4. The Expectation

5. The Sales Pitch

6. The Reaction

7. My Customers

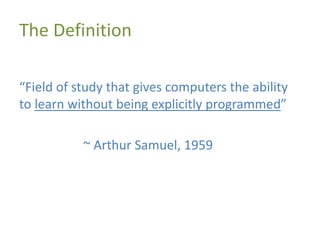

8. The Definition
“Field of study that gives computers the ability
to learn without being explicitly programmed”
~ Arthur Samuel, 1959

9. That sounds like Artificial Intelligence

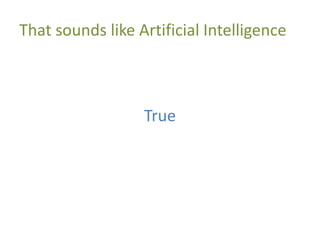

10. That sounds like Artificial Intelligence
True

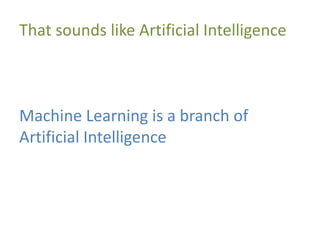

11. That sounds like Artificial Intelligence
Machine Learning is a branch of
Artificial Intelligence

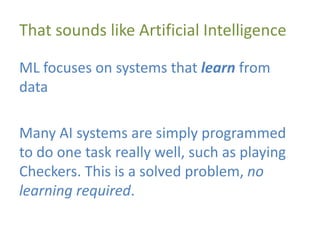

12. That sounds like Artificial Intelligence
ML focuses on systems that learn from
data
Many AI systems are simply programmed
to do one task really well, such as playing
Checkers. This is a solved problem, no
learning required.

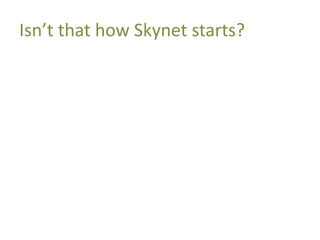

13. Isn’t that how Skynet starts?

14. Isn’t that how Skynet starts?
Ya, probably

15. Isn’t that how Skynet starts?

16. But it’s also how we do this…

17. …and this…

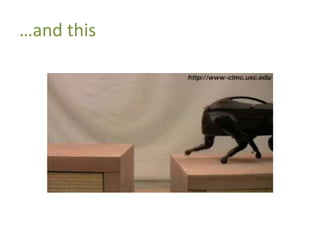

18. …and this

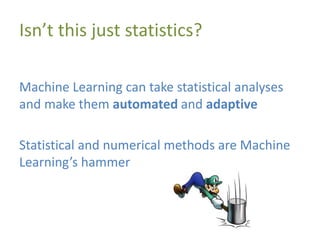

19. Isn’t this just statistics?
Machine Learning can take statistical analyses
and make them automated and adaptive
Statistical and numerical methods are Machine
Learning’s hammer

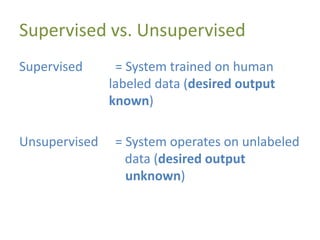

20. Supervised vs. Unsupervised
Supervised = System trained on human
labeled data (desired output
known)
Unsupervised = System operates on unlabeled
data (desired output
unknown)

21. Supervised learning is all about
generalizing a function or mapping
between inputs and outputs

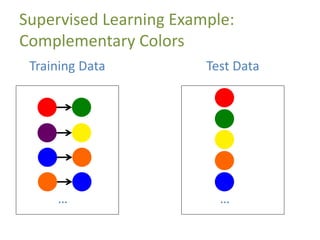

22. Supervised Learning Example:
Complementary Colors
…
Training Data
…
Test Data

23. Supervised Learning Example:
Complementary Colors
…
Training Data
f( ) =
…
Test Data

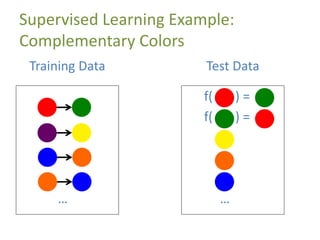

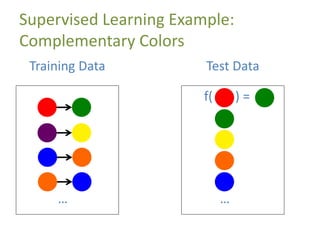

24. Supervised Learning Example:
Complementary Colors
…
Training Data
f( ) =
f( ) =
…
Test Data

25. Let’s Talk Data

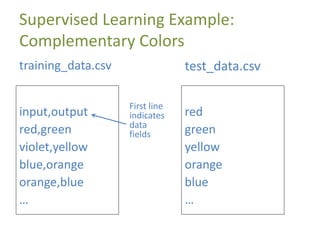

26. Supervised Learning Example:
Complementary Colors
input,output
red,green
violet,yellow
blue,orange
orange,blue
…
training_data.csv
red
green
yellow
orange
blue
…
test_data.csv
First line
indicates
data
fields

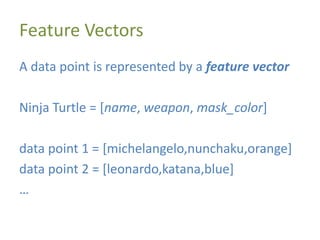

27. Feature Vectors
A data point is represented by a feature vector
Ninja Turtle = [name, weapon, mask_color]
data point 1 = [michelangelo,nunchaku,orange]
data point 2 = [leonardo,katana,blue]
…

29. Feature Space
Feature vectors define a point in an n-
dimensional feature space
0
0.1
0.2
0.3
0.4
0.5
0.6
0 0.2 0.4 0.6 0.8 1 1.2
If my feature vectors
contain only 2 values,
this defines a point in
2-D space:
(x,y) = (1.0,0.5)

30. High-Dimensional Feature Spaces
Most feature vectors are much higher
dimensionality, such as:
FVlaptop = [name,screen size,weight,battery life,
proc,proc speed,ram,price,hard drive,OS]
This means we can’t easily display it visually, but
statistics and matrix math work just fine

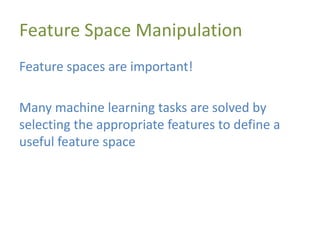

31. Feature Space Manipulation
Feature spaces are important!
Many machine learning tasks are solved by
selecting the appropriate features to define a
useful feature space

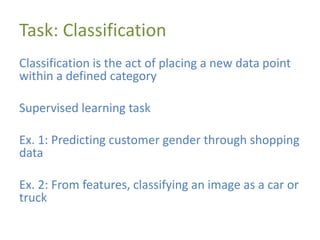

32. Task: Classification
Classification is the act of placing a new data point
within a defined category
Supervised learning task
Ex. 1: Predicting customer gender through shopping
data
Ex. 2: From features, classifying an image as a car or
truck

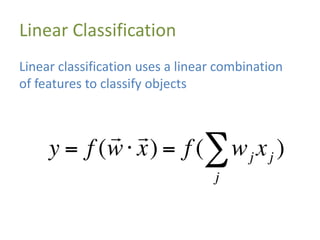

33. Linear Classification
Linear classification uses a linear combination
of features to classify objects

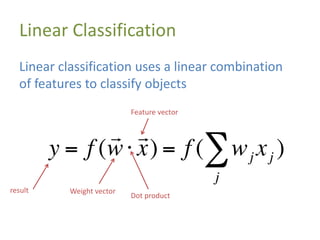

34. Linear Classification
Linear classification uses a linear combination
of features to classify objects
result Weight vector
Feature vector
Dot product

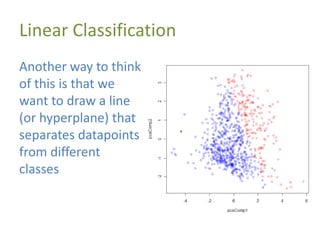

35. Linear Classification
Another way to think
of this is that we
want to draw a line
(or hyperplane) that
separates datapoints
from different
classes

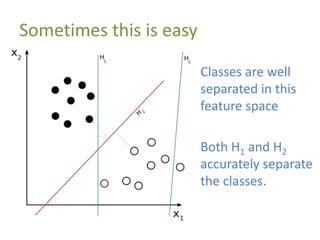

36. Sometimes this is easy
Classes are well
separated in this
feature space
Both H1 and H2
accurately separate
the classes.

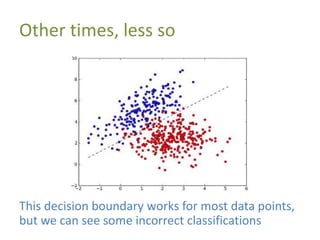

37. Other times, less so
This decision boundary works for most data points,
but we can see some incorrect classifications

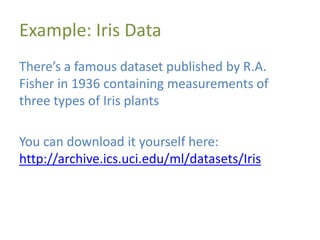

38. Example: Iris Data
There’s a famous dataset published by R.A.
Fisher in 1936 containing measurements of
three types of Iris plants
You can download it yourself here:
http://archive.ics.uci.edu/ml/datasets/Iris

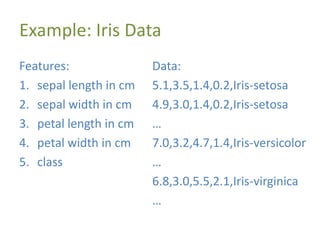

39. Example: Iris Data
Features:
1. sepal length in cm
2. sepal width in cm
3. petal length in cm
4. petal width in cm
5. class
Data:
5.1,3.5,1.4,0.2,Iris-setosa
4.9,3.0,1.4,0.2,Iris-setosa
…
7.0,3.2,4.7,1.4,Iris-versicolor
…
6.8,3.0,5.5,2.1,Iris-virginica
…

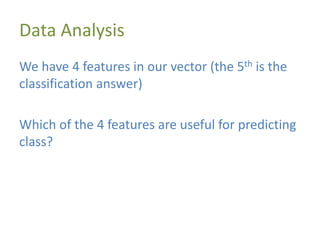

40. Data Analysis
We have 4 features in our vector (the 5th is the
classification answer)
Which of the 4 features are useful for predicting
class?

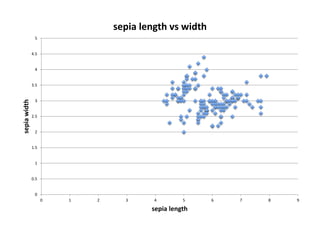

41. 0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
0 1 2 3 4 5 6 7 8 9
sepiawidth
sepia length
sepia length vs width

42. Different feature spaces give different
insight

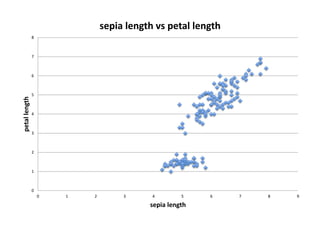

43. 0
1
2
3
4
5
6
7
8
0 1 2 3 4 5 6 7 8 9
petallength
sepia length
sepia length vs petal length

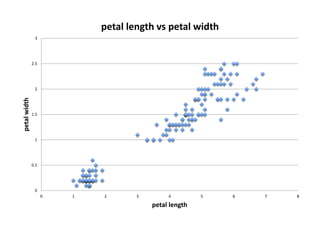

44. 0
0.5
1
1.5
2
2.5
3
0 1 2 3 4 5 6 7 8
petalwidth
petal length
petal length vs petal width

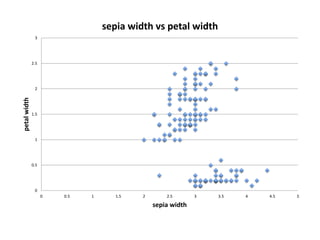

45. 0
0.5
1
1.5
2
2.5
3
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
petalwidth
sepia width
sepia width vs petal width

46. Half the battle is choosing the features
that best represent the discrimination
you want

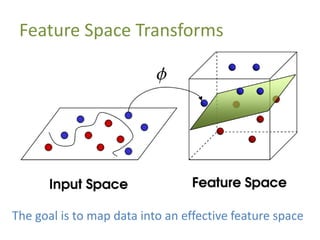

47. Feature Space Transforms
The goal is to map data into an effective feature space

48. Demo

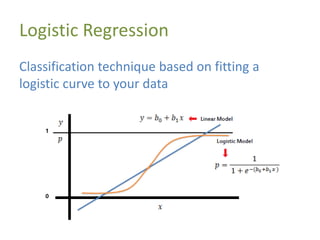

49. Logistic Regression
Classification technique based on fitting a
logistic curve to your data

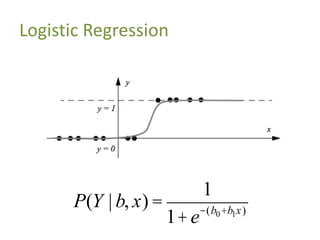

50. Logistic Regression
P(Y | b, x) =
1
1+e-(b0+b1x)

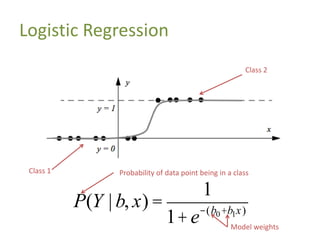

51. Logistic Regression
Class 2
Class 1 Probability of data point being in a class
Model weights
P(Y | b, x) =
1
1+e-(b0+b1x)

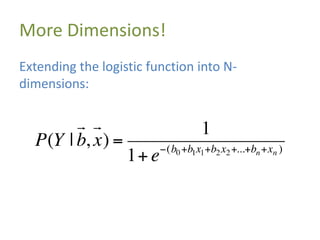

52. More Dimensions!
Extending the logistic function into N-
dimensions:

53. More Dimensions!
Extending the logistic function into N-
dimensions:
Vectors!
More weights!

54. Tools
Torch7

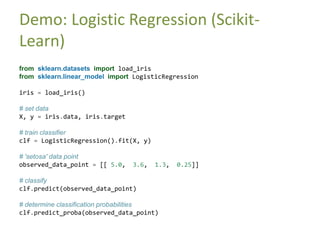

55. Demo: Logistic Regression (Scikit-
Learn)
from sklearn.datasets import load_iris
from sklearn.linear_model import LogisticRegression
iris = load_iris()
# set data
X, y = iris.data, iris.target
# train classifier
clf = LogisticRegression().fit(X, y)
# 'setosa' data point
observed_data_point = [[ 5.0, 3.6, 1.3, 0.25]]
# classify
clf.predict(observed_data_point)
# determine classification probabilities
clf.predict_proba(observed_data_point)

56. Learning
In all cases so far, “learning” is just a matter of
finding the best values for your weights
Simply, find the function that fits the training
data the best
More dimensions more features we can
consider

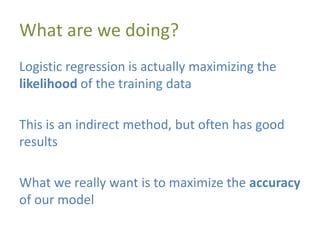

57. What are we doing?
Logistic regression is actually maximizing the
likelihood of the training data
This is an indirect method, but often has good
results
What we really want is to maximize the accuracy
of our model

58. Support Vector Machines (SVMs)
Remember how a large number of lines could
separate my classes?

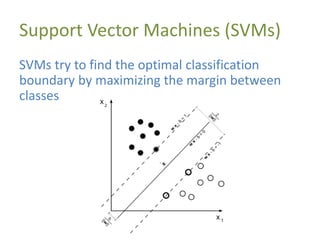

59. Support Vector Machines (SVMs)
SVMs try to find the optimal classification
boundary by maximizing the margin between
classes

60. Bigger margins mean better
classification of new data points

61. Points on the edge of a class are called Support
Vectors
Support
vectors

62. Demo: Support Vector Machines
(Scikit-Learn)
from sklearn.datasets import load_iris
from sklearn.svm import LinearSVC
iris = load_iris()
# set data
X, y = iris.data, iris.target
# run regression
clf = LinearSVC().fit(X, y)
# 'setosa' data point
observed_data_point = [[ 5.0, 3.6, 1.3, 0.25]]
# classify
clf.predict(observed_data_point)

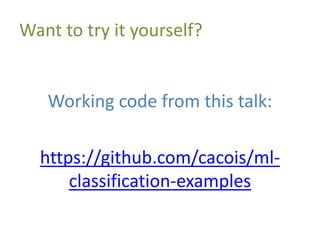

63. Want to try it yourself?
Working code from this talk:
https://github.com/cacois/ml-
classification-examples

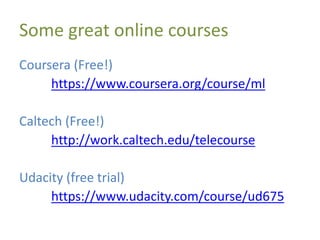

64. Some great online courses
Coursera (Free!)
https://www.coursera.org/course/ml
Caltech (Free!)
http://work.caltech.edu/telecourse
Udacity (free trial)
https://www.udacity.com/course/ud675

66. AMA
@aaroncois
www.codehenge.net
github.com/cacois
