This document discusses using machine learning with R for data analysis. It covers topics like preparing data, running models, and interpreting results. It explains techniques like regression, classification, dimensionality reduction, and clustering. Regression is used to predict numbers given other numbers, while classification identifies categories. Dimensionality reduction finds combinations of variables with maximum variance. Clustering groups similar data points. R is recommended for its statistical analysis, functions, and because it is free and open source. Examples are provided for techniques like linear regression, support vector machines, principal component analysis, and k-means clustering.

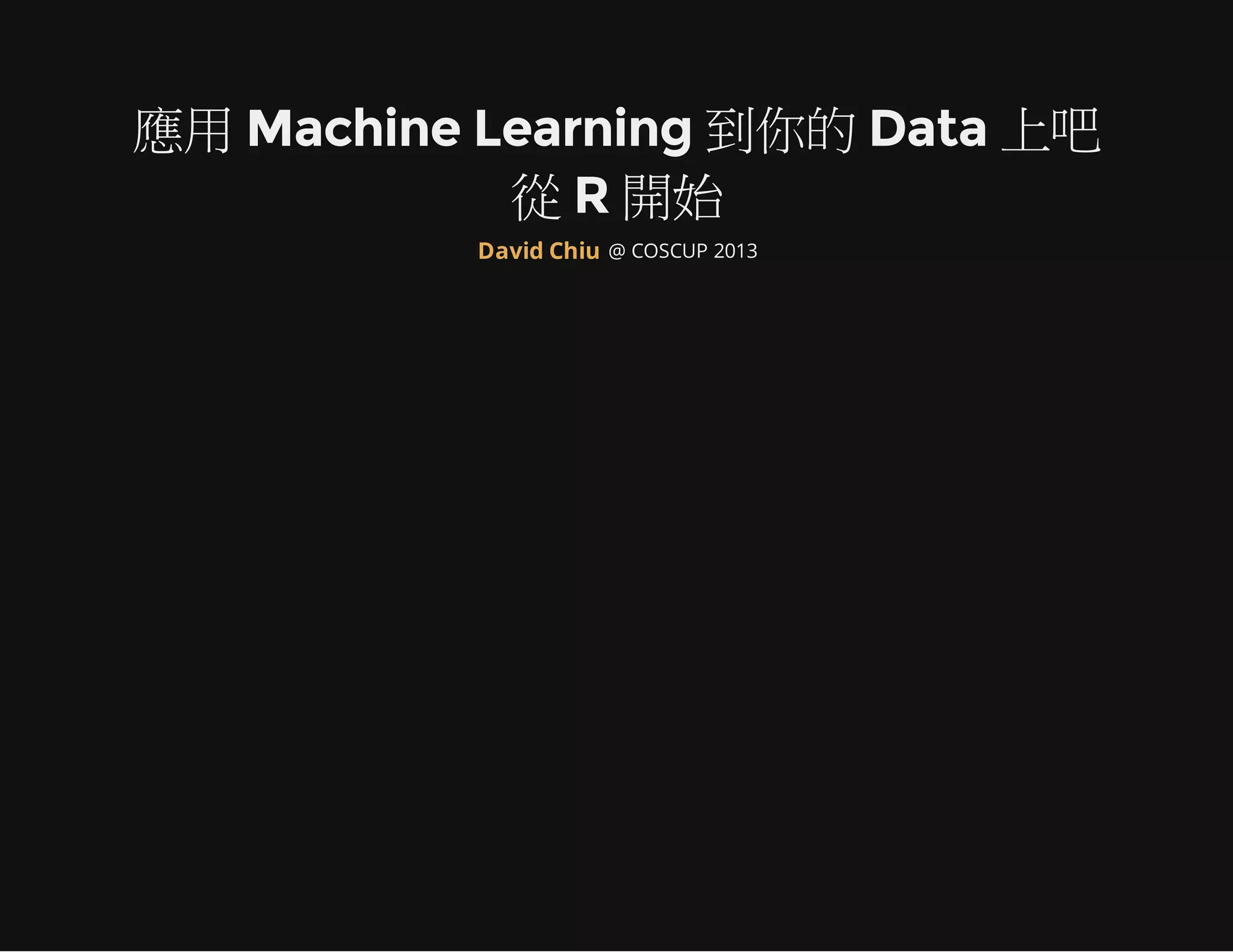

1. 應用 Machine Learning 到你的 Data 上吧
從 R 開始
@ COSCUP 2013David Chiu

2. About Me
Trend Micro
Taiwan R User Group
ywchiu-tw.appspot.com

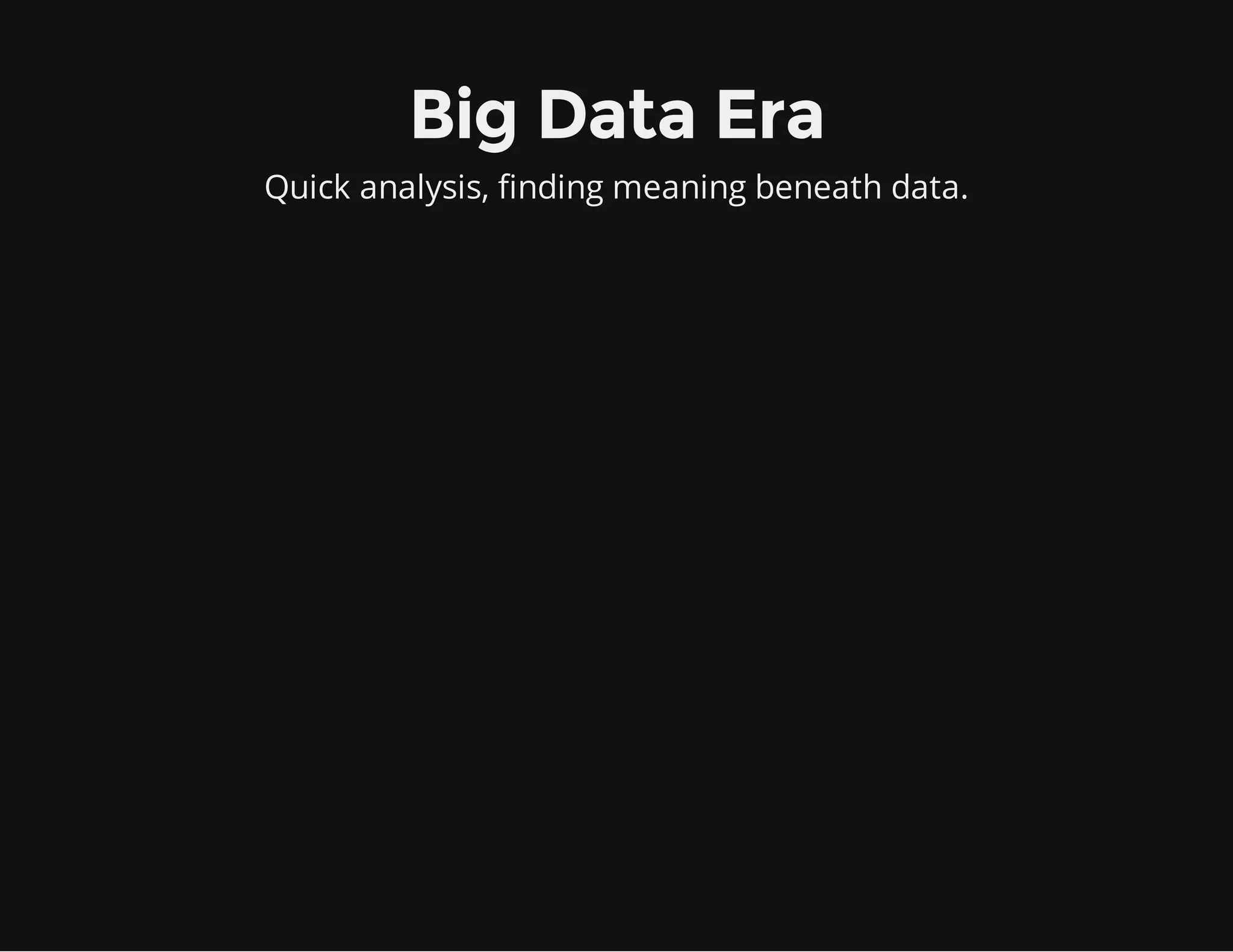

3. Big Data Era
Quick analysis, finding meaning beneath data.

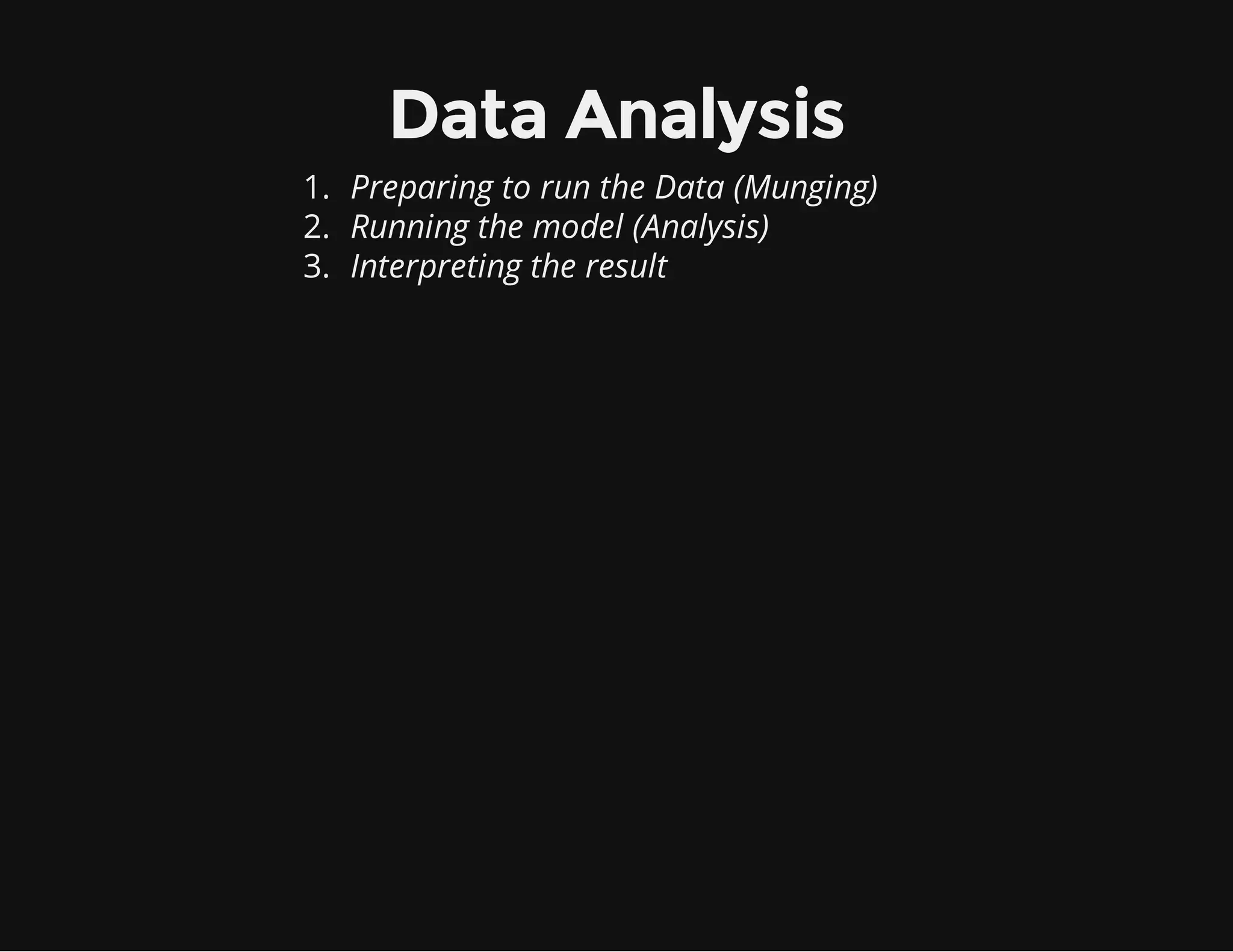

4. Data Analysis
1. Preparing to run the Data (Munging)
2. Running the model (Analysis)
3. Interpreting the result

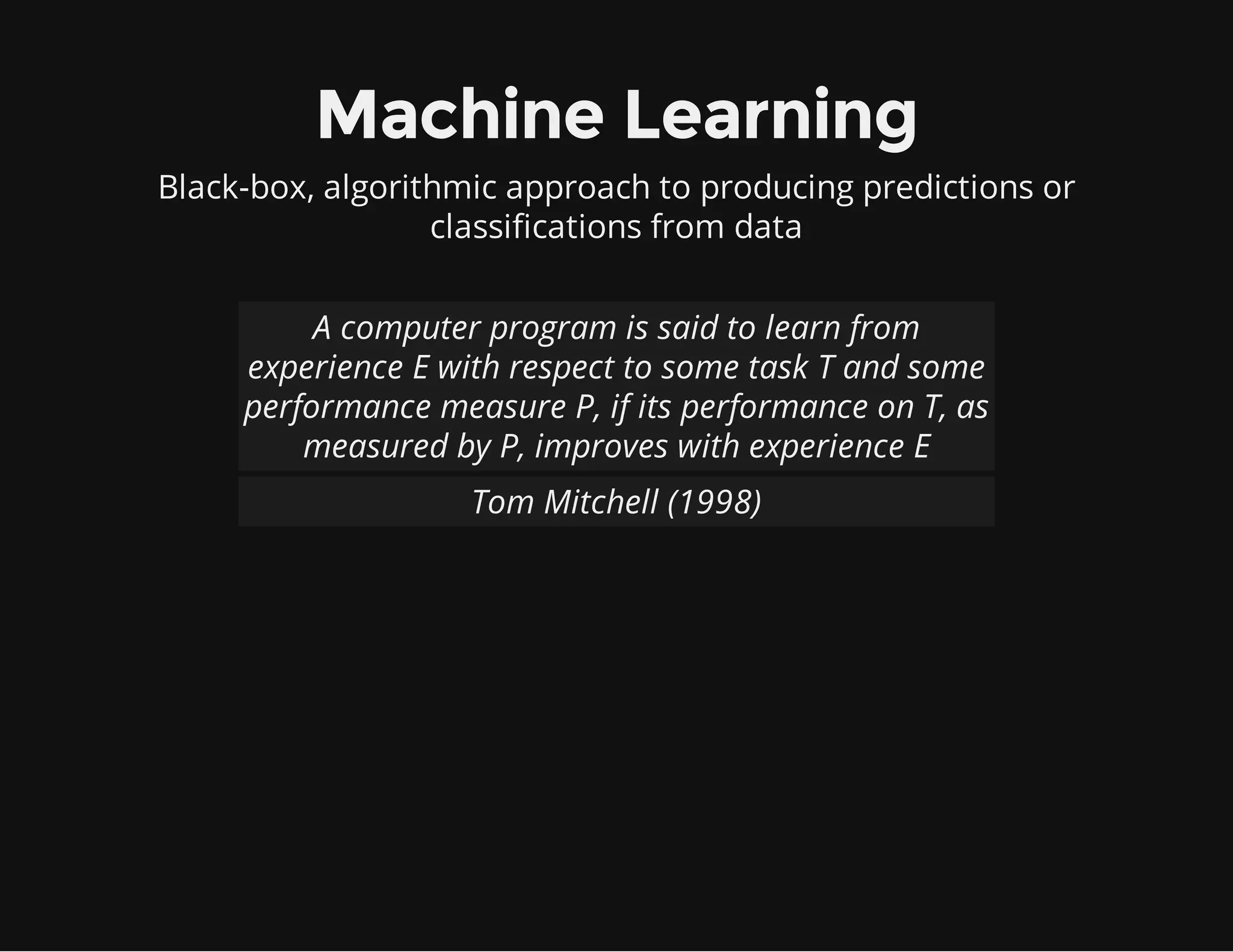

5. Machine Learning
Black-box, algorithmic approach to producing predictions or
classifications from data
A computer program is said to learn from
experience E with respect to some task T and some
performance measure P, if its performance on T, as
measured by P, improves with experience E
Tom Mitchell (1998)

6. Using to do Machine
Learning
Using R

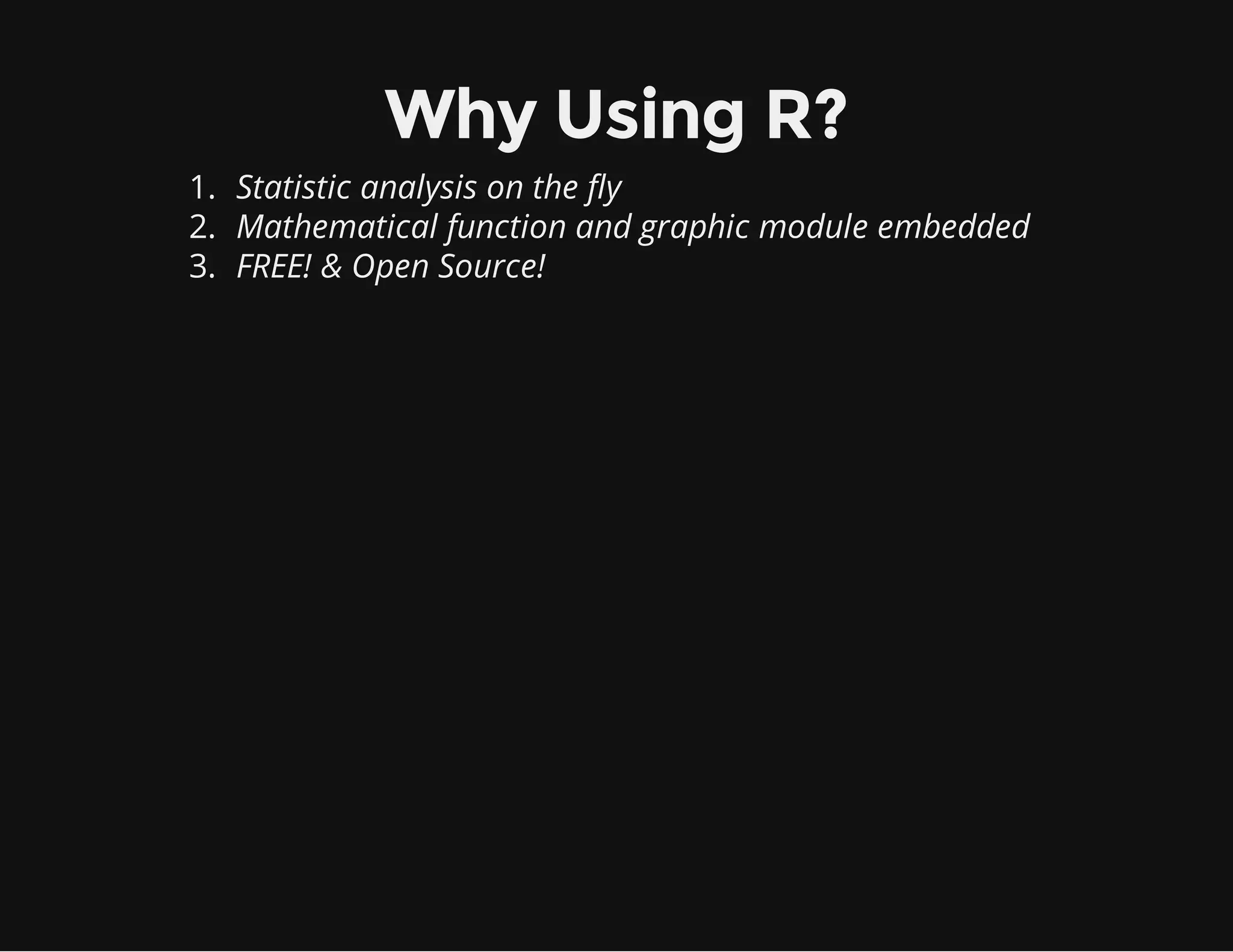

7. Why Using R?
1. Statistic analysis on the fly
2. Mathematical function and graphic module embedded
3. FREE! & Open Source!

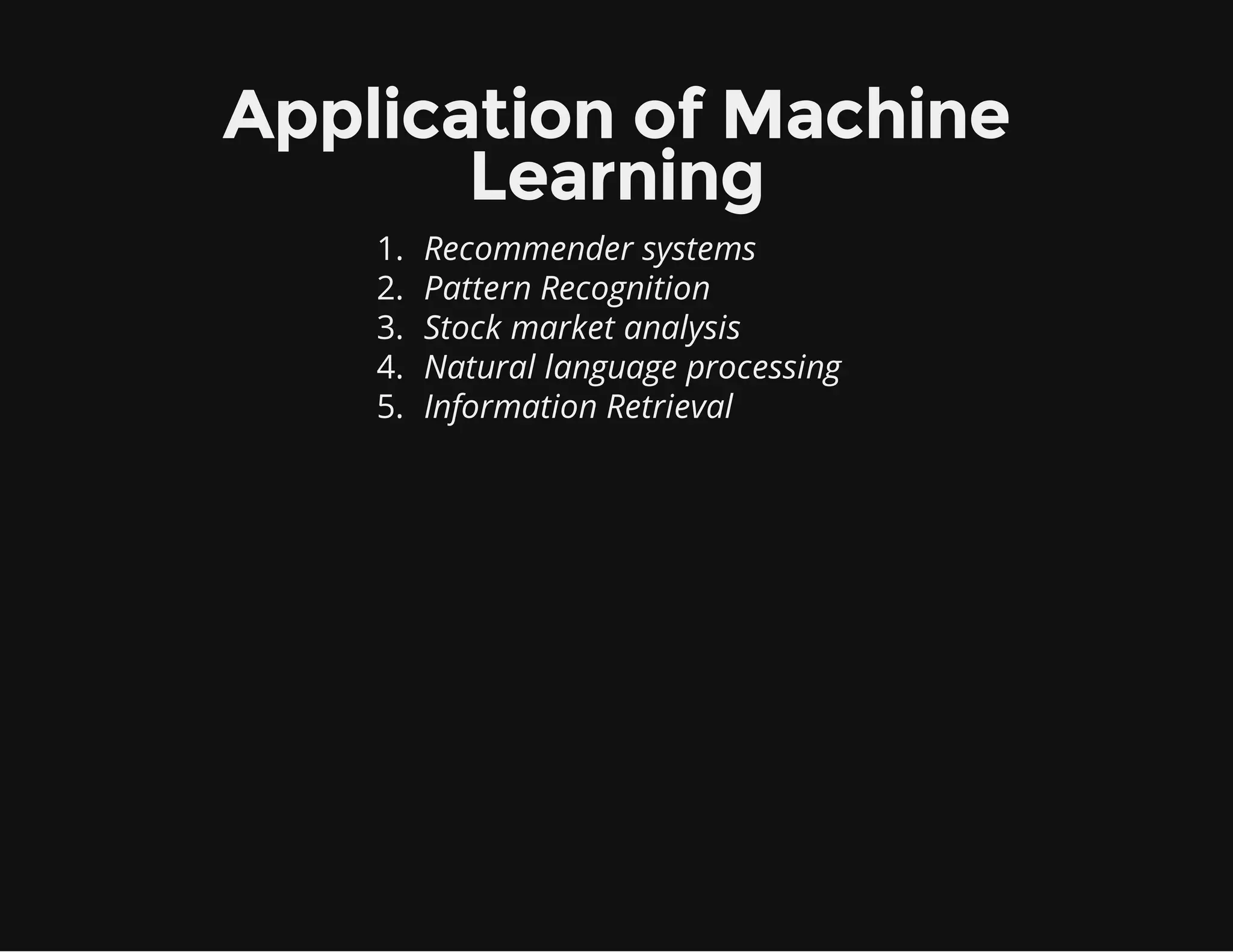

8. Application of Machine
Learning
1. Recommender systems
2. Pattern Recognition
3. Stock market analysis
4. Natural language processing
5. Information Retrieval

9. Facial Recognition

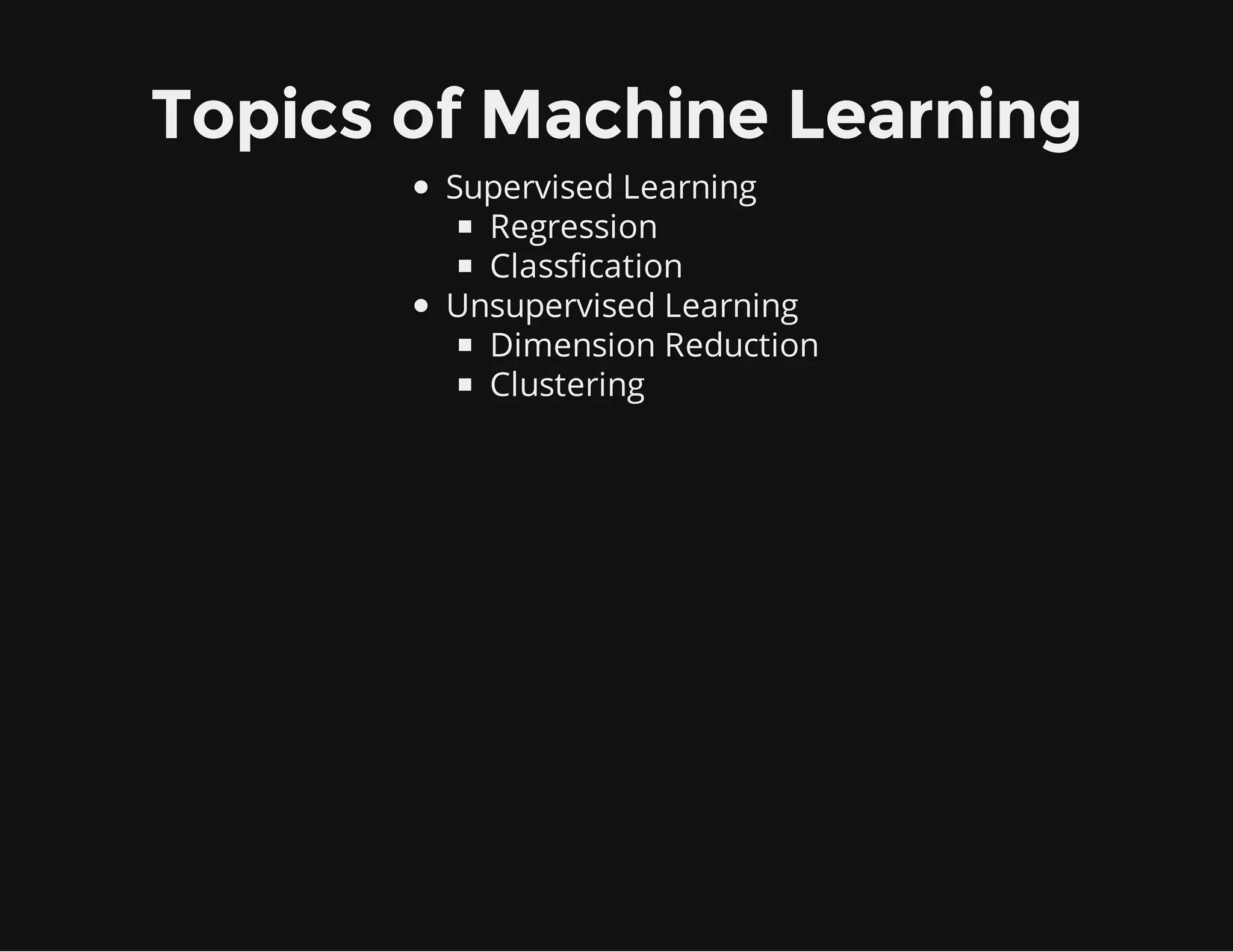

10. Topics of Machine Learning
Supervised Learning
Regression
Classfication
Unsupervised Learning
Dimension Reduction
Clustering

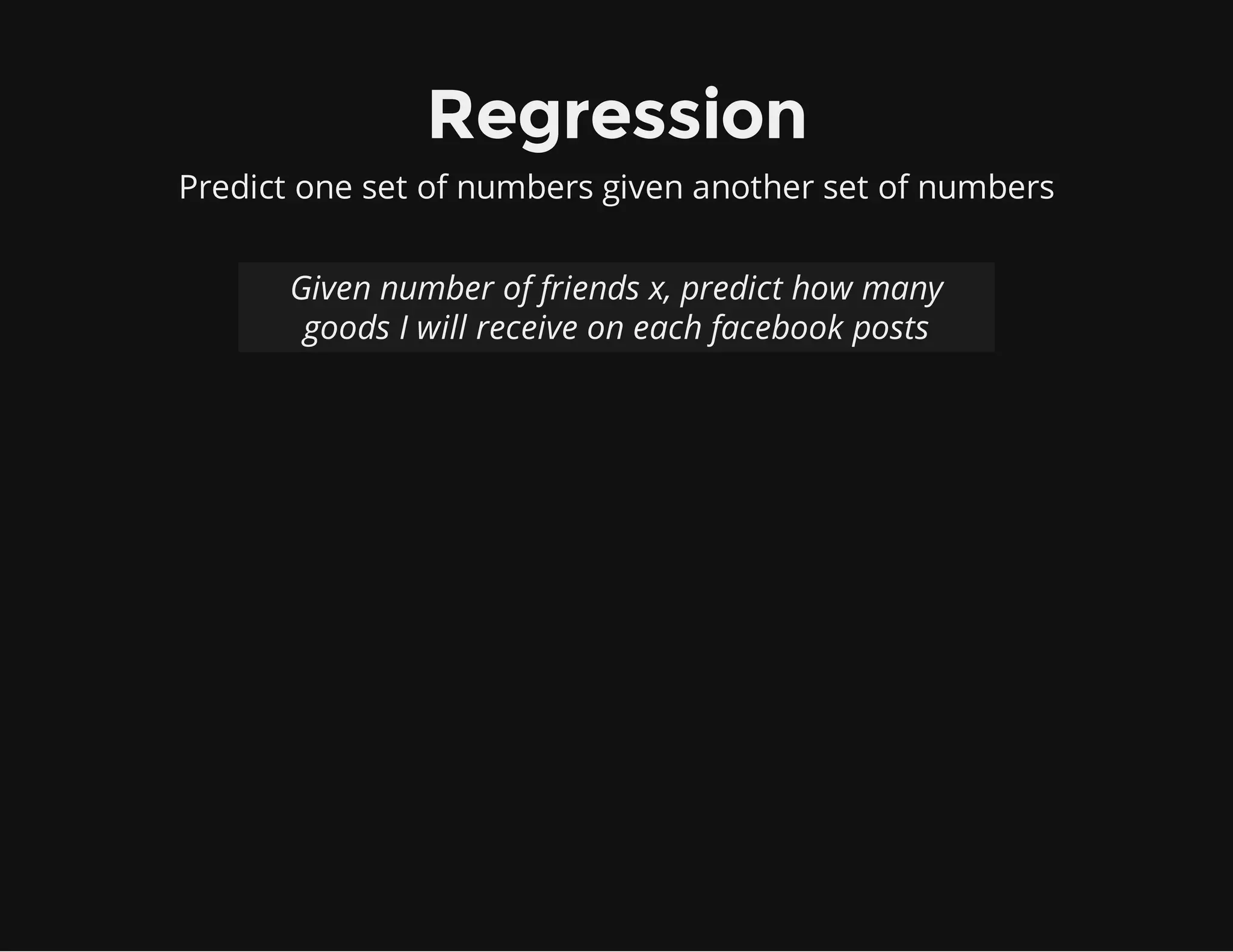

11. Regression
Predict one set of numbers given another set of numbers
Given number of friends x, predict how many
goods I will receive on each facebook posts

12. Scatter Plot
dataset <- read.csv('fbgood.txt',head=TRUE, sep='t', row.names=1)
x = dataset$friends
y = dataset$getgoods
plot(x,y)

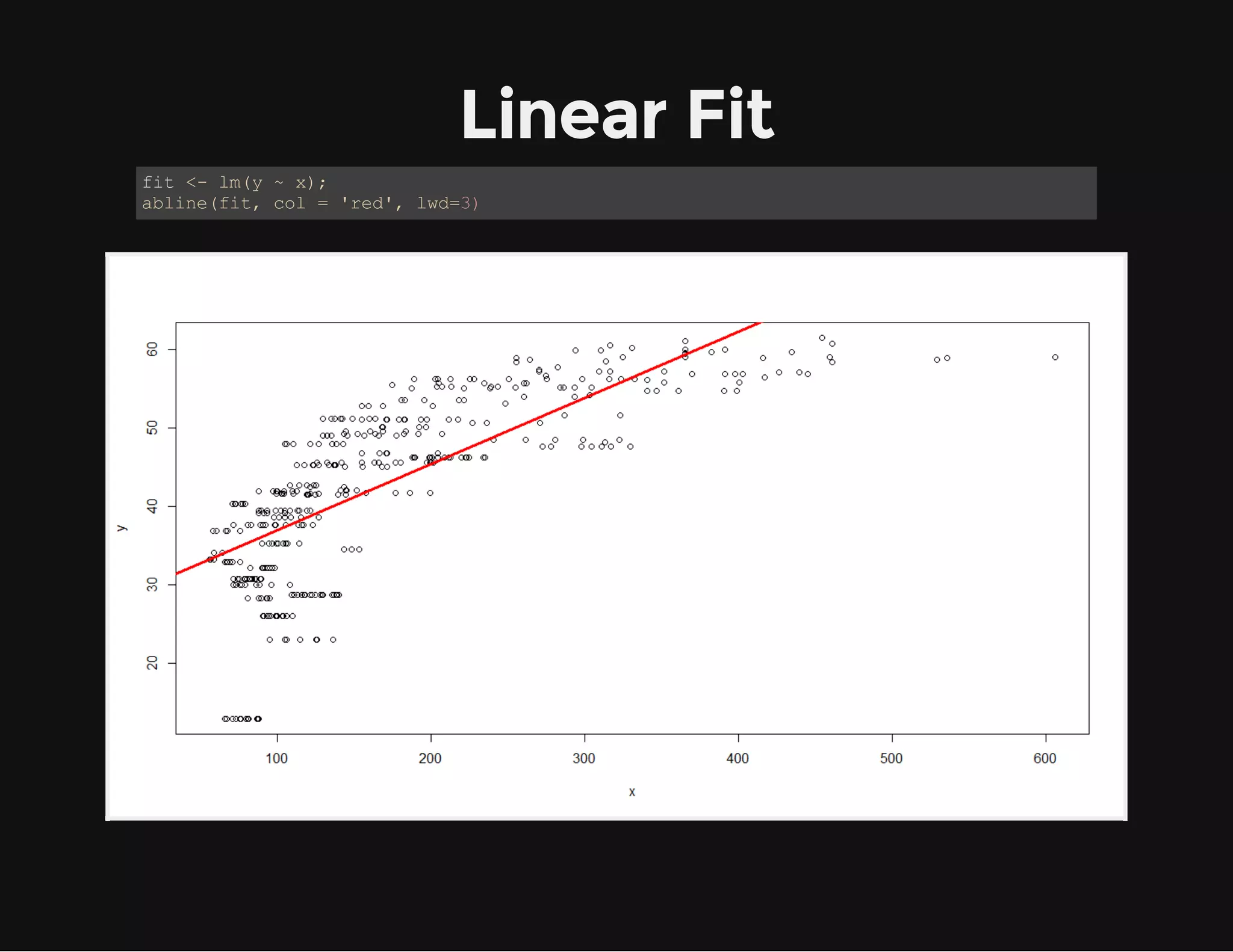

13. Linear Fit
fit <- lm(y ~ x);
abline(fit, col = 'red', lwd=3)

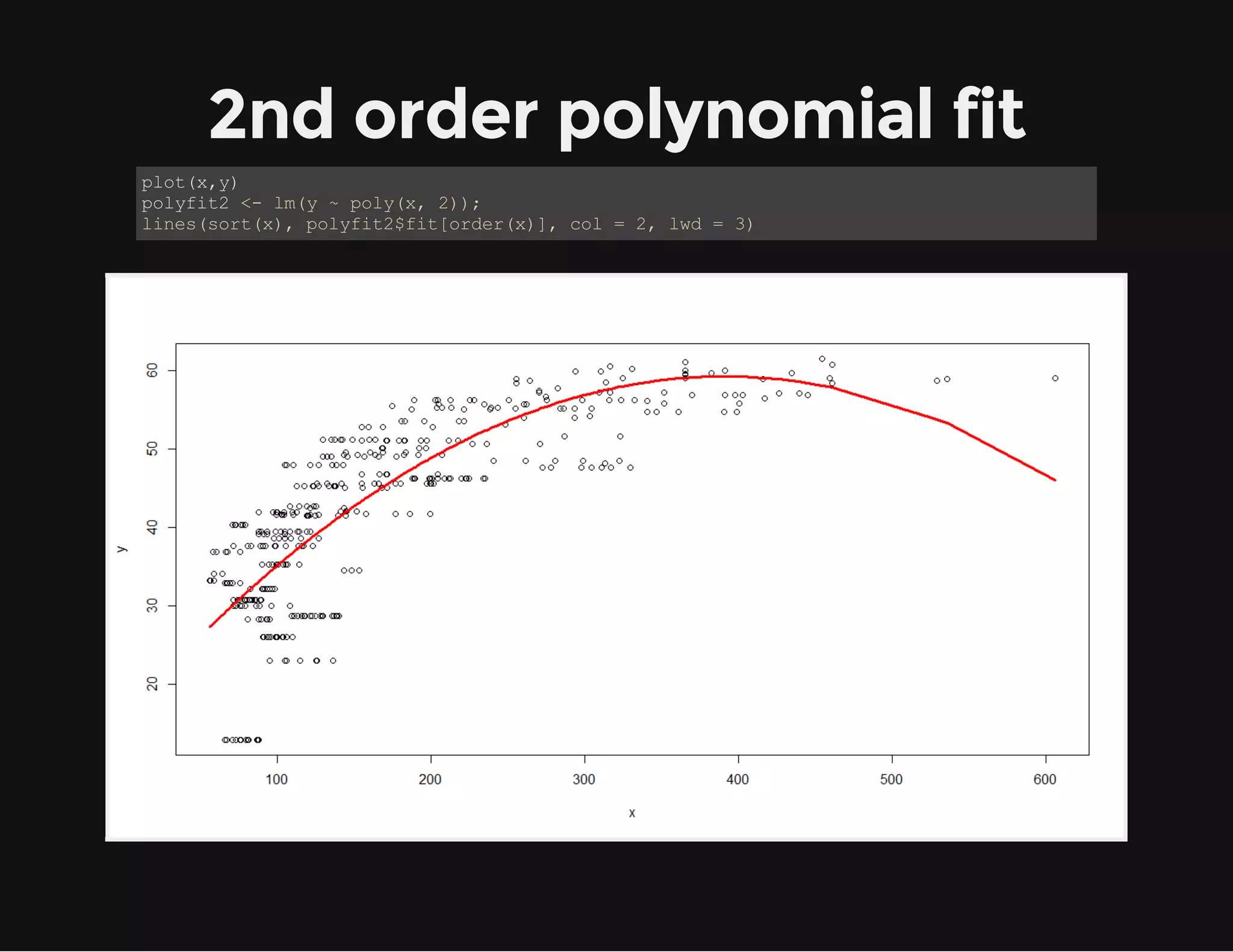

14. 2nd order polynomial fit
plot(x,y)
polyfit2 <- lm(y ~ poly(x, 2));
lines(sort(x), polyfit2$fit[order(x)], col = 2, lwd = 3)

15. 3rd order polynomial fit
plot(x,y)
polyfit3 <- lm(y ~ poly(x, 3));
lines(sort(x), polyfit3$fit[order(x)], col = 2, lwd = 3)

16. Other Regression Packages
MASS rlm - Robust Regression
GLM - Generalized linear Models
GAM - Generalized Additive Models

17. Classfication
Identifying to which of a set of categories a new observation belongs,
on the basis of a training set of data
Given features of bank costumer, predict whether
the client will subscribe a term deposit

18. Data Description
Features:
age,job,marital,education,default,balance,housing,loan,contact
Labels:
Customers subscribe a term deposit (Yes/No)

19. Classify Data With LibSVM
library(e1071)
dataset <- read.csv('bank.csv',head=TRUE, sep=';')
dati = split.data(dataset, p = 0.7)
train = dati$train
test = dati$test
model <- svm(y~., data = train, probability = TRUE)
pred <- predict(model, test[,1:(dim(test)[[2]]-1)], probability = TRUE)

20. Verify the predictions
table(pred,test[,dim(test)[2]])
pred no yes
no 1183 99
yes 27 47

21. Using ROC for assessment
library(ROCR)
pred.prob <- attr(pred, "probabilities")
pred.to.roc <- pred.prob[, 2]
pred.rocr <- prediction(pred.to.roc, as.factor(test[,(dim(test)[[2]])]))
perf.rocr <- performance(pred.rocr, measure = "auc", x.measure = "cutoff")
perf.tpr.rocr <- performance(pred.rocr, "tpr","fpr")
plot(perf.tpr.rocr, colorize=T, main=paste("AUC:",(perf.rocr@y.values)))

22. Then, get your thesis

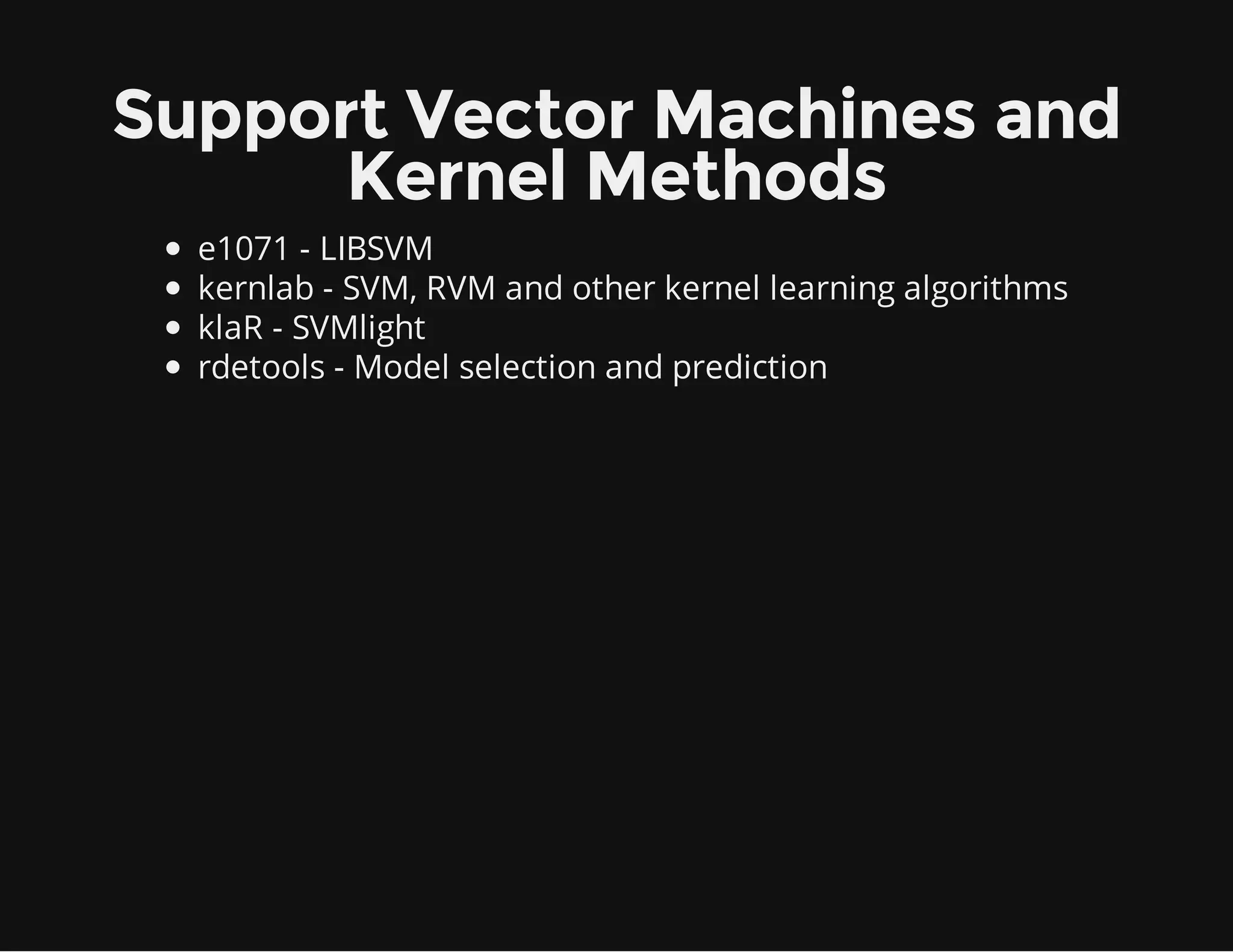

23. Support Vector Machines and
Kernel Methods
e1071 - LIBSVM
kernlab - SVM, RVM and other kernel learning algorithms
klaR - SVMlight
rdetools - Model selection and prediction

24. Dimension Reduction
Seeks linear combinations of the columns of X with maximalvariance
Calculate a new index to measure economy index
of each Taiwan city/county

25. Economic Index of Taiwan
County
縣市
營利事業銷售額
經濟發展支出佔歲出比例
得收入者平均每人可支配所得
2012年《天下雜誌》幸福城市大調查 - 第505期

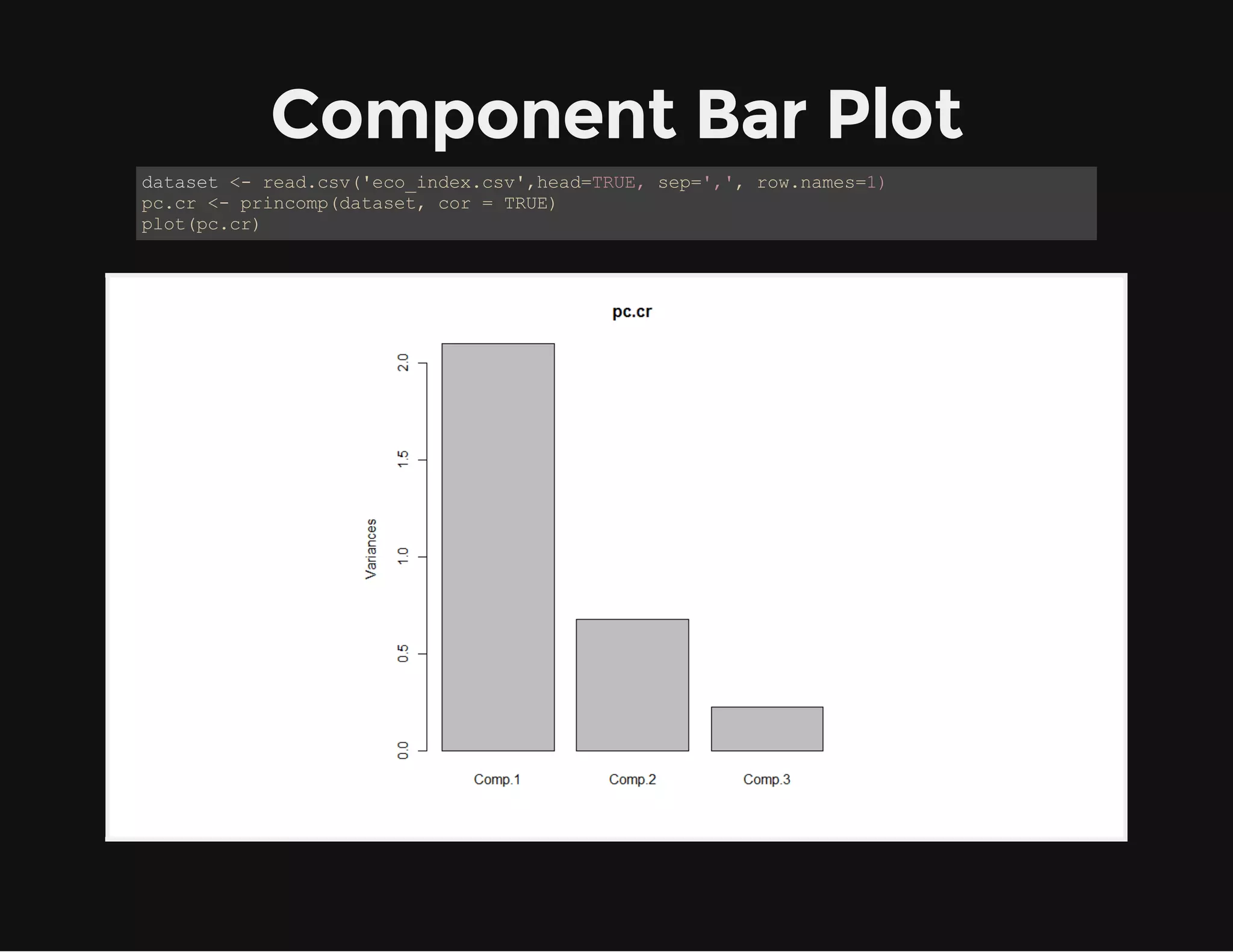

26. Component Bar Plot
dataset <- read.csv('eco_index.csv',head=TRUE, sep=',', row.names=1)
pc.cr <- princomp(dataset, cor = TRUE)
plot(pc.cr)

27. Component Line Plot
screeplot(pc.cr, type="lines")
abline(h=1, lty=3)

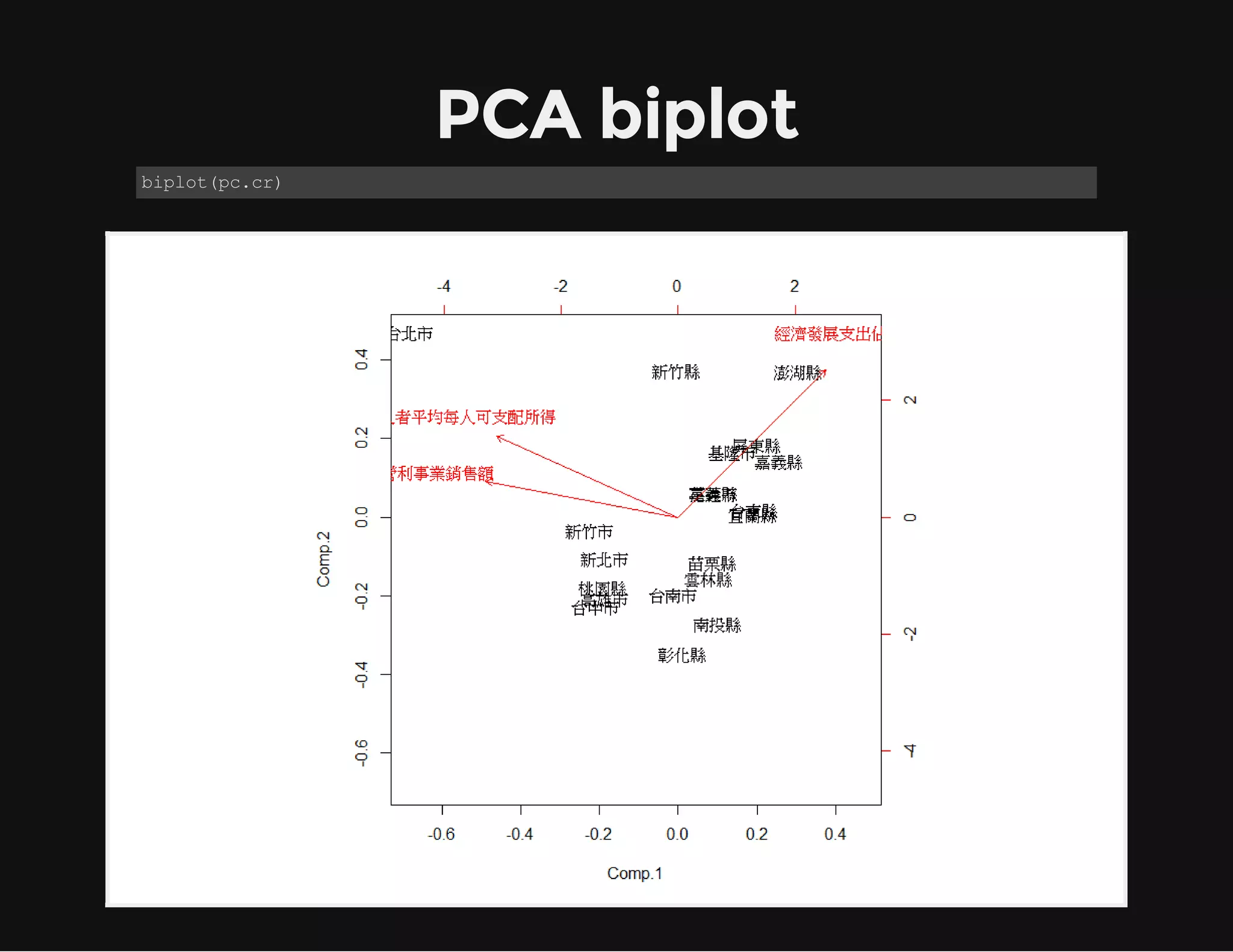

28. PCA biplot
biplot(pc.cr)

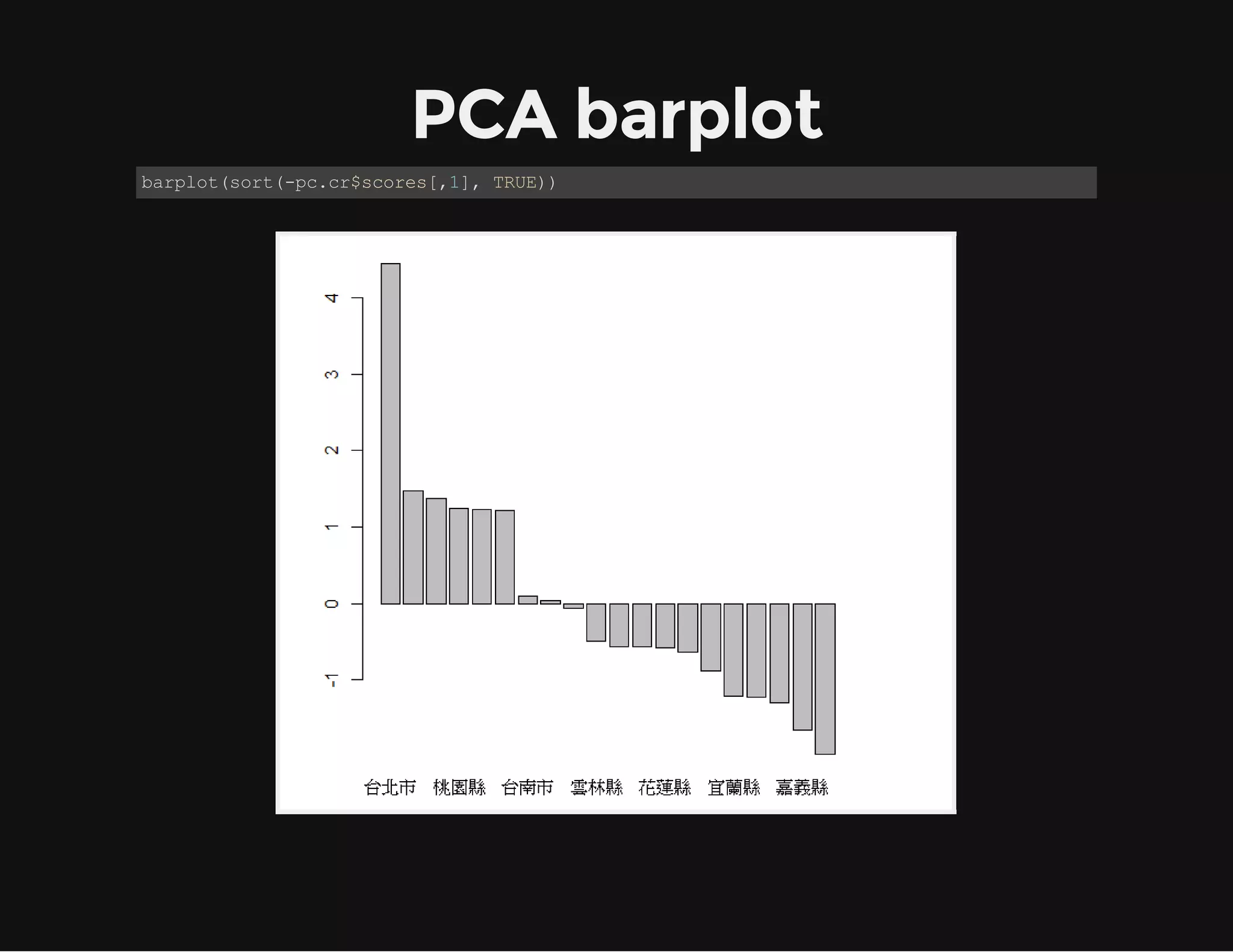

29. PCA barplot
barplot(sort(-pc.cr$scores[,1], TRUE))

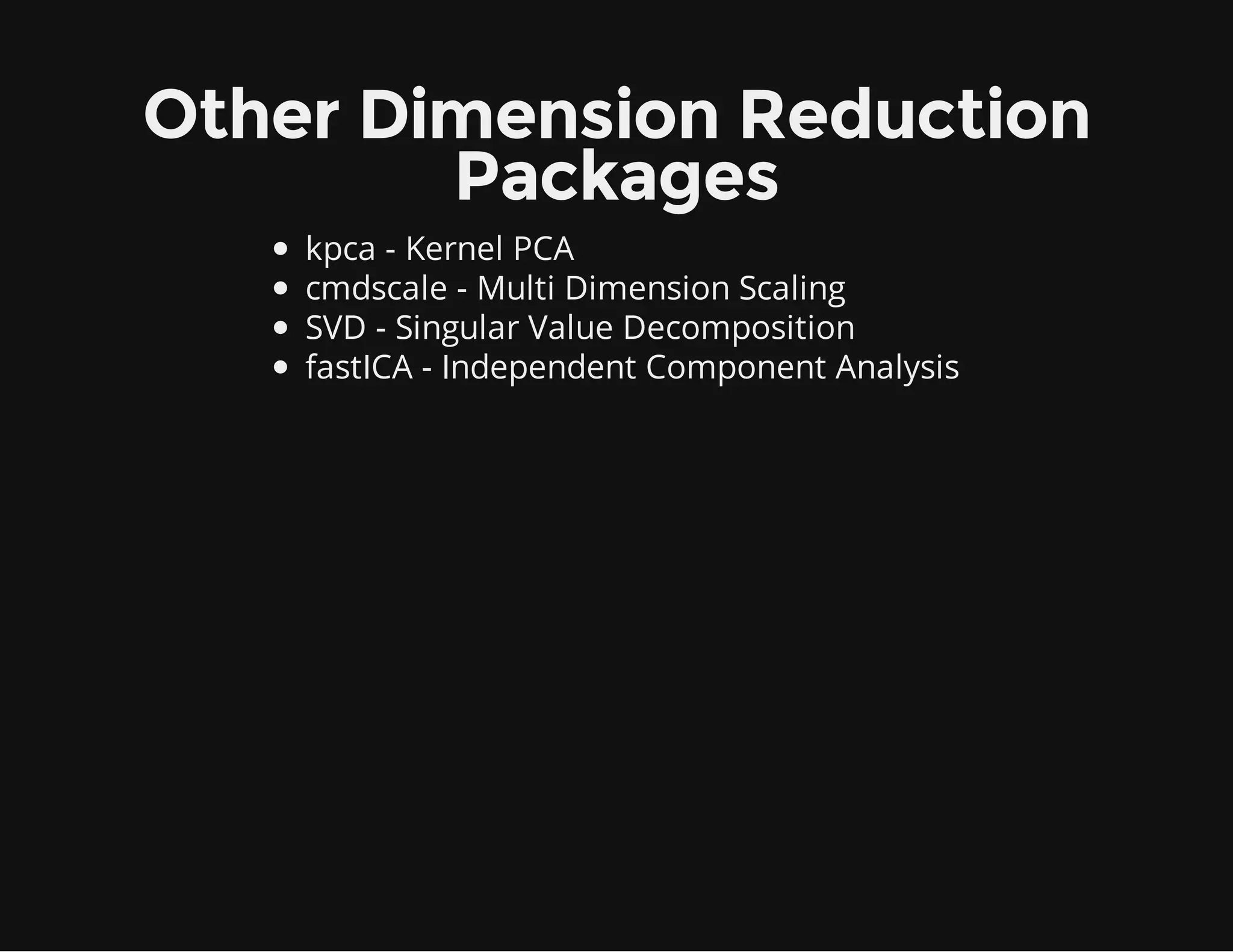

30. Other Dimension Reduction
Packages
kpca - Kernel PCA
cmdscale - Multi Dimension Scaling
SVD - Singular Value Decomposition
fastICA - Independent Component Analysis

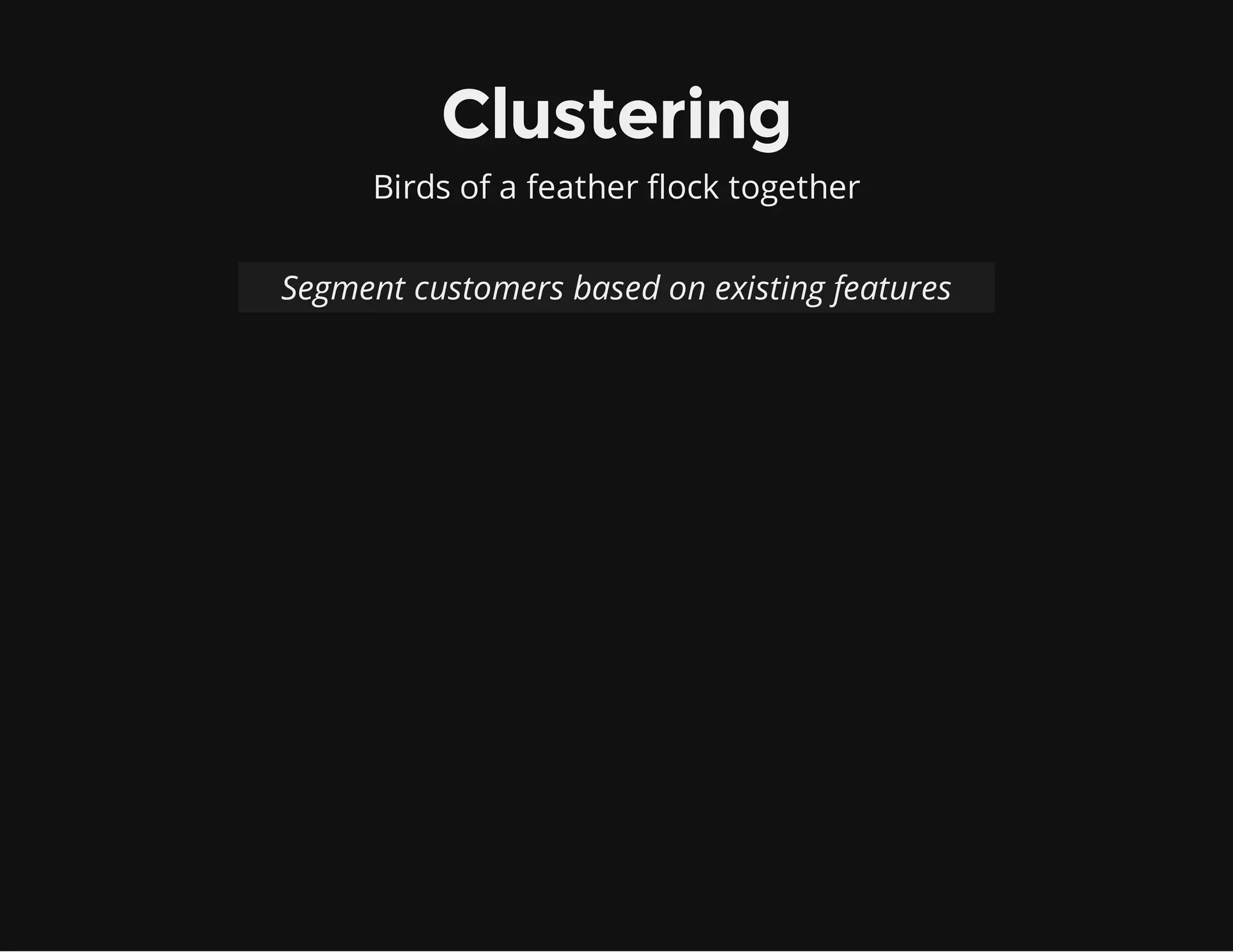

31. Clustering
Birds of a feather flock together
Segment customers based on existing features

32. Customer Segmentation
Clustering by 4 features
Visit Time
Average Expense
Loyalty Days
Age

33. Determing Clusters
mydata <- read.csv('costumer_segment.txt',head=TRUE, sep='t')
mydata <- scale(mydata)
d <- dist(mydata, method = "euclidean")
fit <- hclust(d, method="ward")
plot(fit)

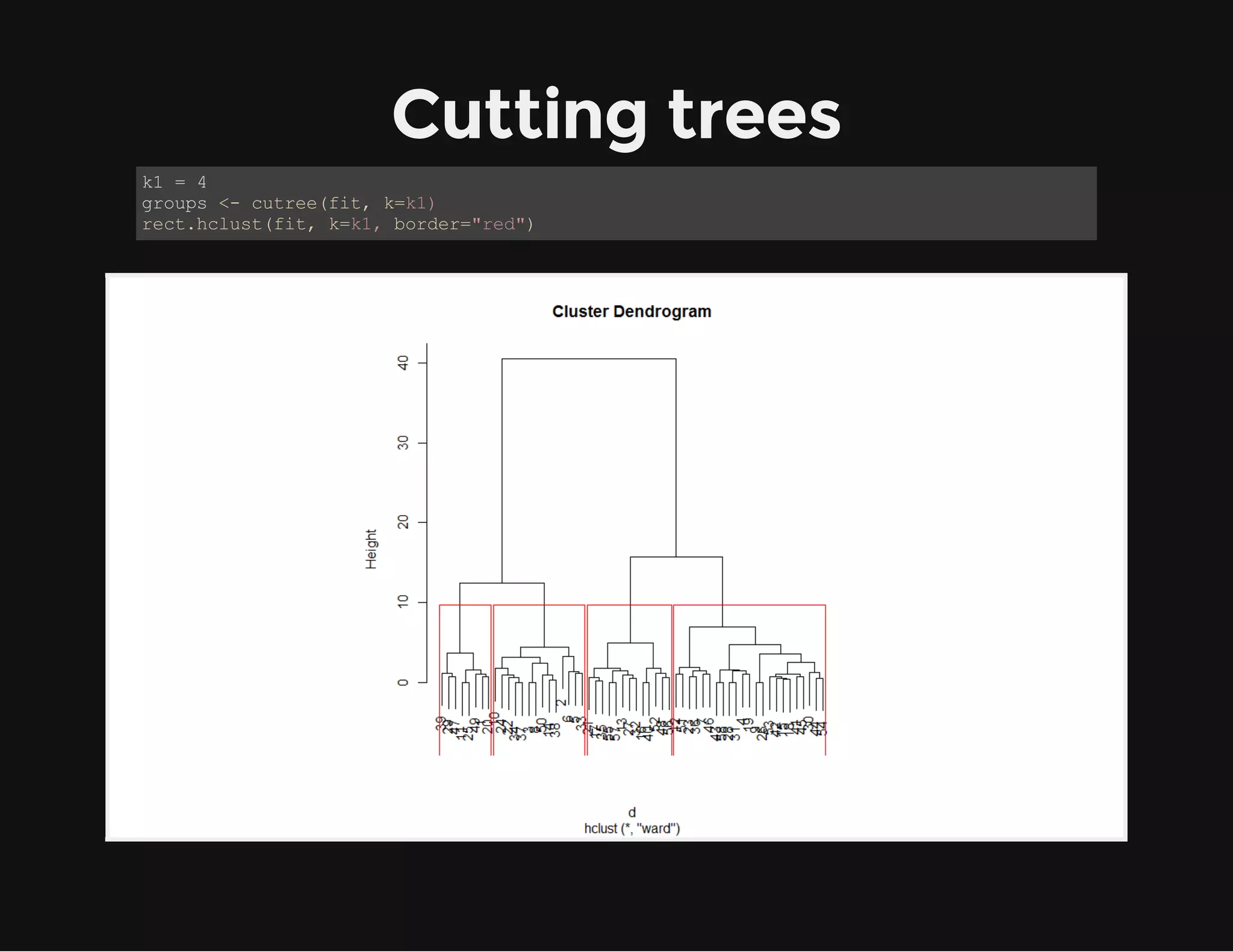

34. Cutting trees
k1 = 4
groups <- cutree(fit, k=k1)
rect.hclust(fit, k=k1, border="red")

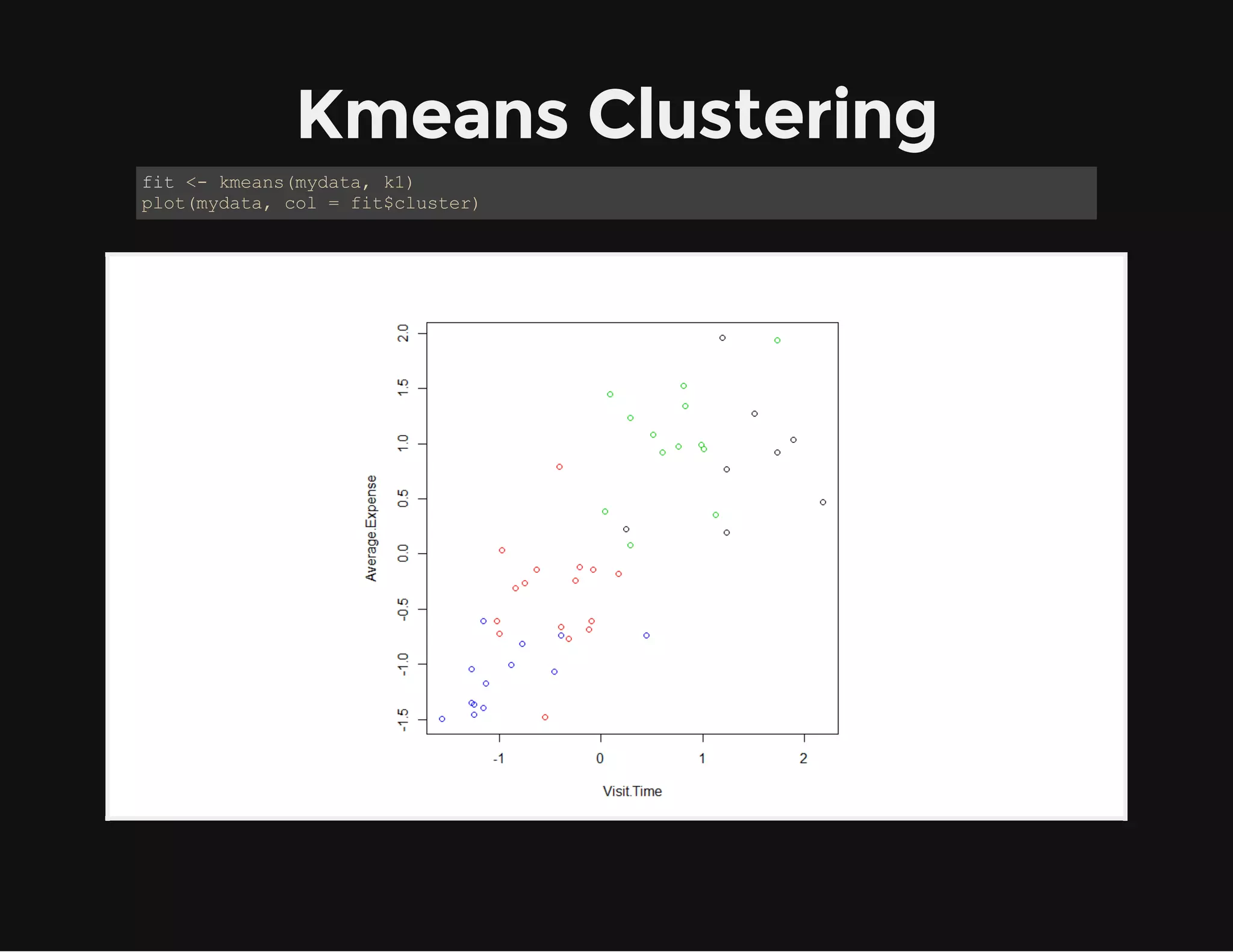

35. Kmeans Clustering
fit <- kmeans(mydata, k1)
plot(mydata, col = fit$cluster)

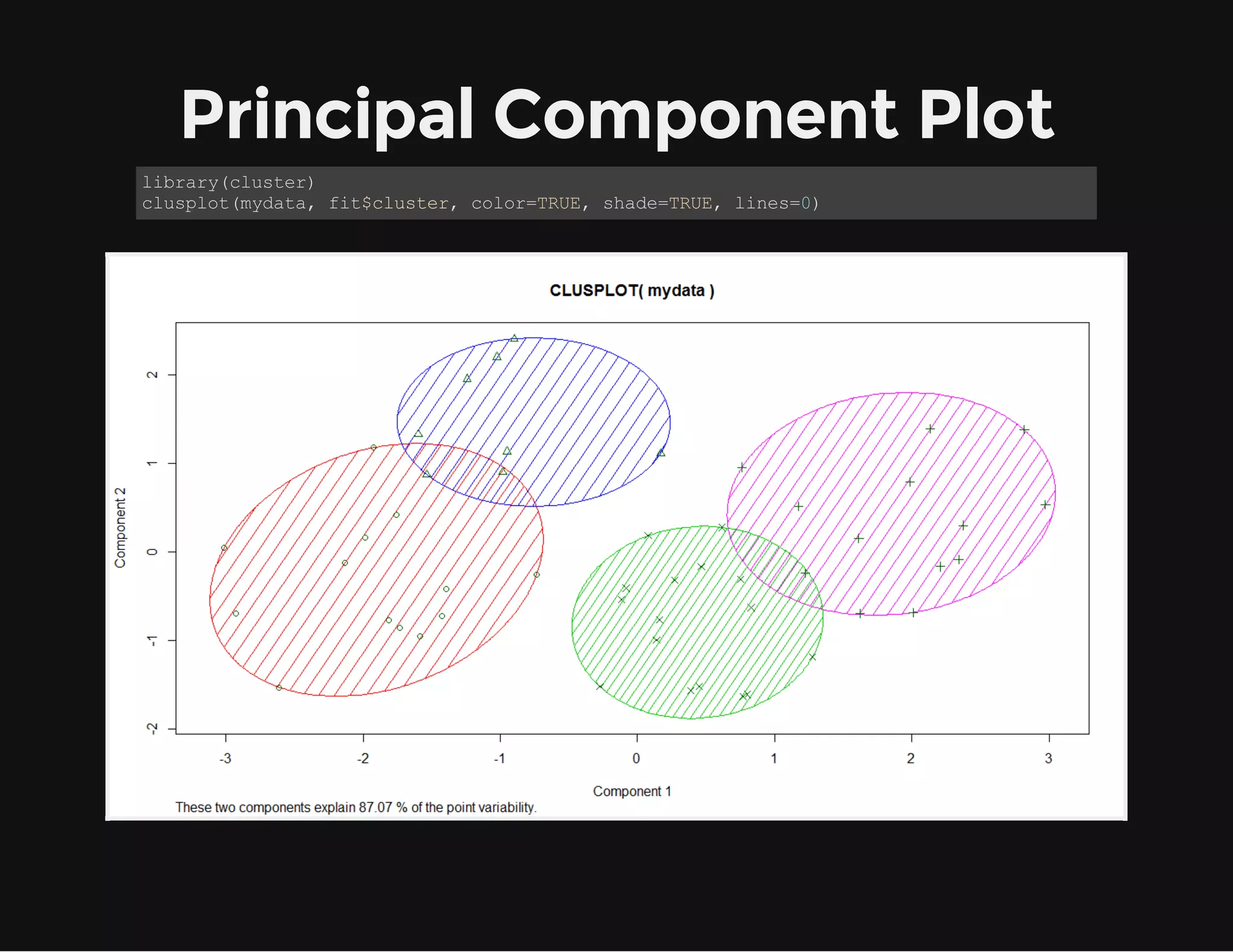

36. Principal Component Plot
library(cluster)
clusplot(mydata, fit$cluster, color=TRUE, shade=TRUE, lines=0)

37. Other Clustering Packages
kernlab - Spectral Clustering
specc - Spectral Clustering
fpc - DBSCAN

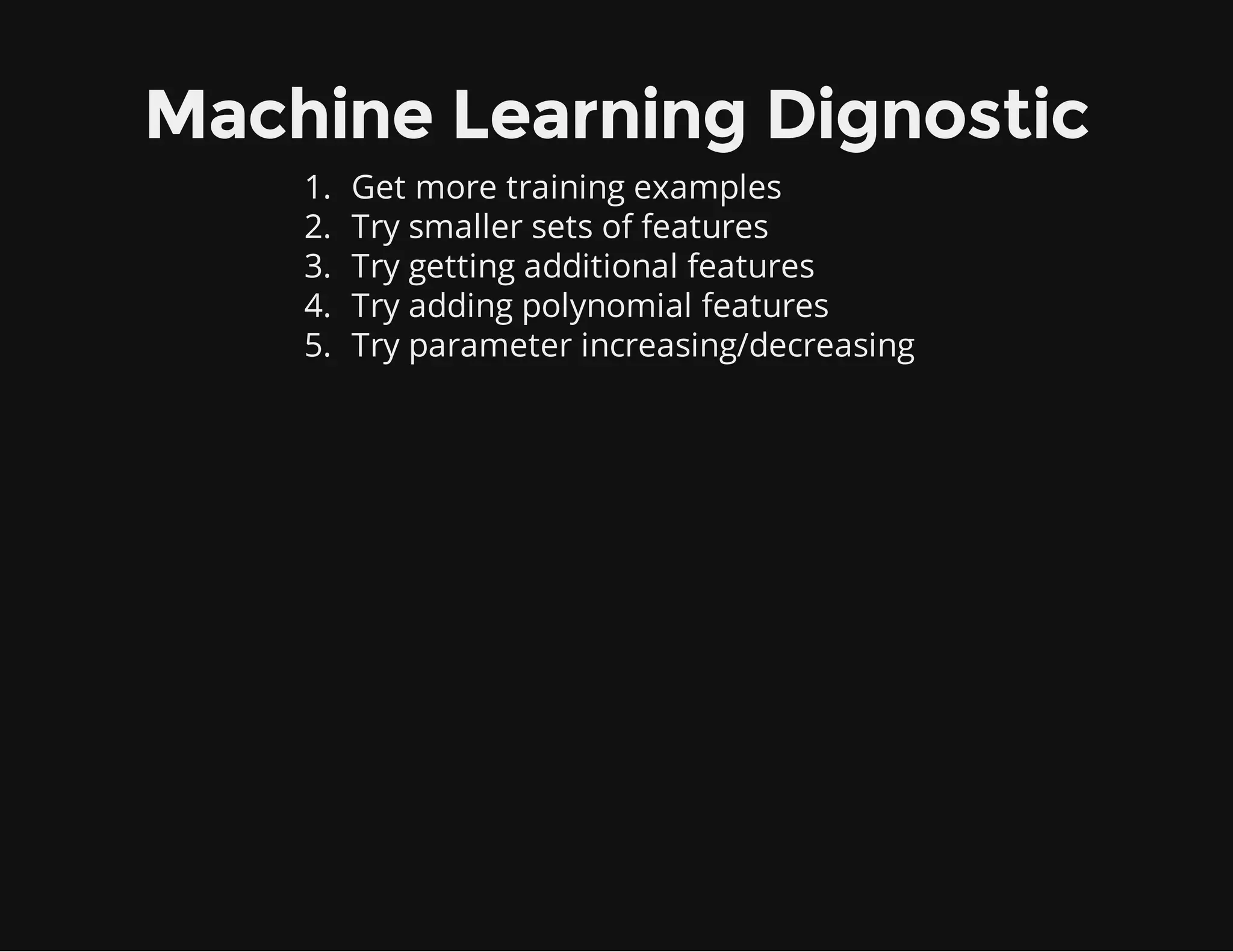

38. Machine Learning Dignostic
1. Get more training examples
2. Try smaller sets of features
3. Try getting additional features
4. Try adding polynomial features
5. Try parameter increasing/decreasing

39. Overfitting
Trainging error to be low, test error to be highe. g. θJtraining θJtest

40. Use
For Data Analysis

41. THANK YOU
Please Come and Visit Taiwan R User
Group
