SESSION: 03 LONG WALL AND SHORT WALL METHOD
Example:
2. Find out quantities of following items of work
i. Superstructure brick work ii. Plastering iii. Flooring
Wall thick-0.3 m
Procedure:
1. To get length of long wall or short wall, calculate first the center line length of
individual walls.
Example: Refer above diagram for detail
Center to center distance of long wall = Length of wall + ½ width of left side wall +
½ width of right side wall
= 6.0 m + ½ x 0.3 + ½ x 0.3
= 6.3 m
Center to center distance of short wall = Length of wall + ½ width of left side wall +
½ width of right side wall
= 6.0 m + ½ x 0.3 + ½ x 0.3
= 6.3 m

2. SAIYYED SIR
saiyyed73@gmail.com

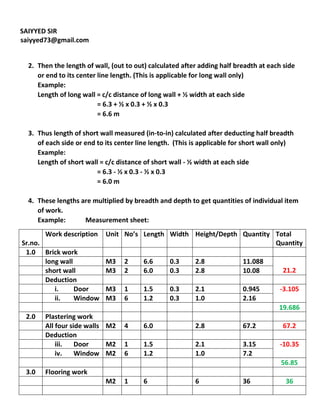

2. Then the length of wall, (out to out) calculated after adding half breadth at each side
or end to its center line length. (This is applicable for long wall only)
Example:
Length of long wall = c/c distance of long wall + ½ width at each side
= 6.3 + ½ x 0.3 + ½ x 0.3
= 6.6 m
3. Thus length of short wall measured (in-to-in) calculated after deducting half breadth
of each side or end to its center line length. (This is applicable for short wall only)
Example:
Length of short wall = c/c distance of short wall - ½ width at each side
= 6.3 - ½ x 0.3 - ½ x 0.3
= 6.0 m
4. These lengths are multiplied by breadth and depth to get quantities of individual item
of work.
Example: Measurement sheet:
Sr.no.
Work description Unit No’s Length Width Height/Depth Quantity Total
Quantity
1.0 Brick work
long wall M3 2 6.6 0.3 2.8 11.088
21.2short wall M3 2 6.0 0.3 2.8 10.08
Deduction
i. Door M3 1 1.5 0.3 2.1 0.945 -3.105
ii. Window M3 6 1.2 0.3 1.0 2.16
19.686
2.0 Plastering work
All four side walls M2 4 6.0 2.8 67.2 67.2
Deduction
iii. Door M2 1 1.5 2.1 3.15 -10.35
iv. Window M2 6 1.2 1.0 7.2
56.85
3.0 Flooring work
M2 1 6 6 36 36
