Dr. Eva Lantsoght provides an overview of her current activities related to load testing research at TU Delft. She discusses (1) her involvement in developing new load testing standards in several countries, (2) conferences where she has presented on the topic, (3) load testing projects she has conducted including beam experiments and full-scale bridge tests, and (4) recommendations for preparing and executing proof load tests on existing bridges.

1.  
Dr. ir. Eva Lantsoght
5/22/2020
1

2.  Current activities relatedto load
testing
 Overviewof load testing
researchTU Delft
 Recommendations
o Preparation of proof load tests
o Execution of proof load tests
 Summary and conclusions Slab shear experiments, TU Delft
5/22/2020 2

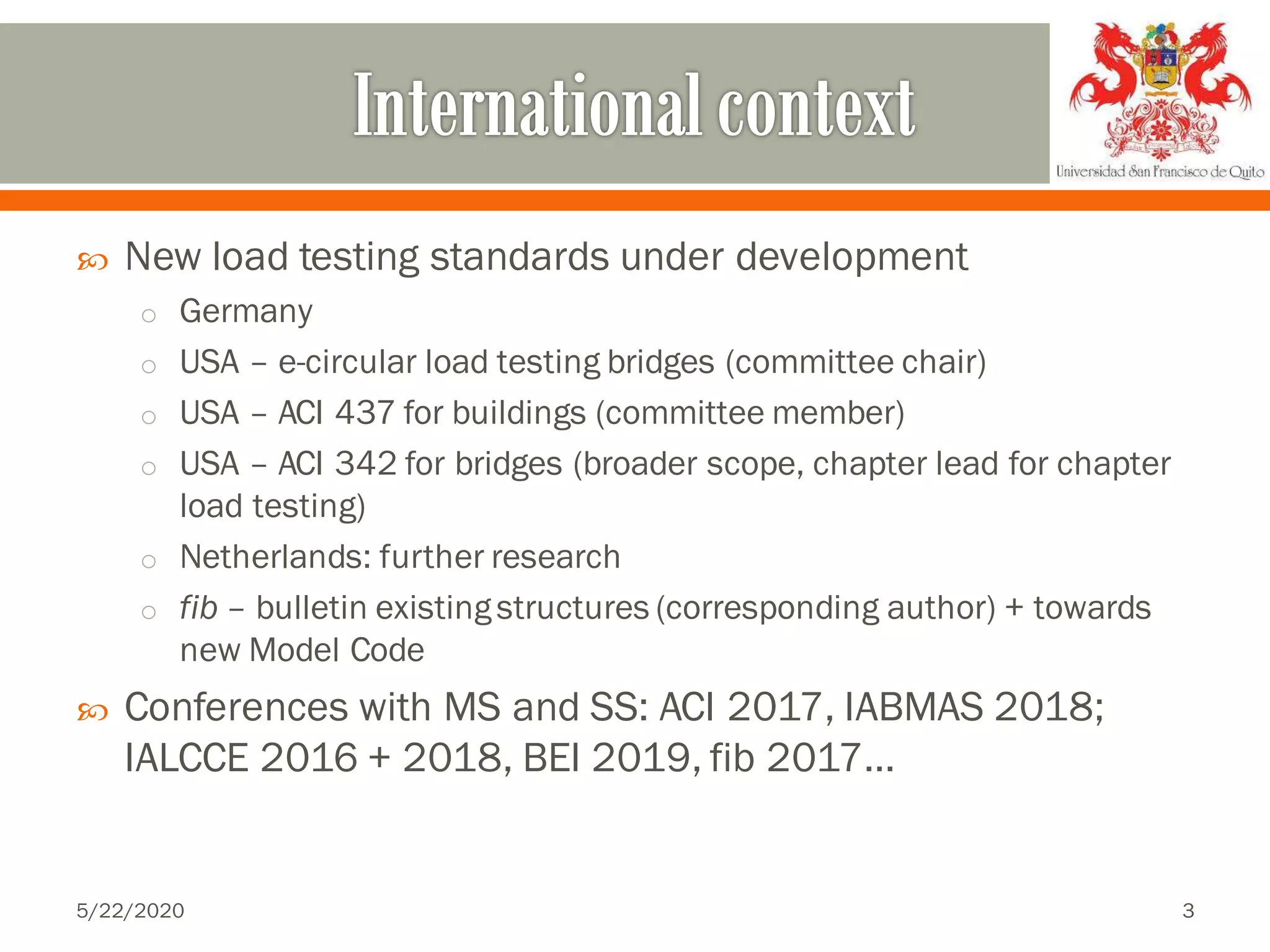

3.  New load testing standards under development
o Germany
o USA – e-circular load testing bridges (committee chair)
o USA – ACI 437 for buildings (committee member)
o USA – ACI 342 for bridges (broader scope, chapter lead for chapter
load testing)
o Netherlands: further research
o fib – bulletin existingstructures (corresponding author) + towards
new Model Code
 Conferences with MS and SS: ACI 2017, IABMAS 2018;
IALCCE 2016 + 2018, BEI 2019, fib 2017…
5/22/2020 3

4. 5/22/2020 4

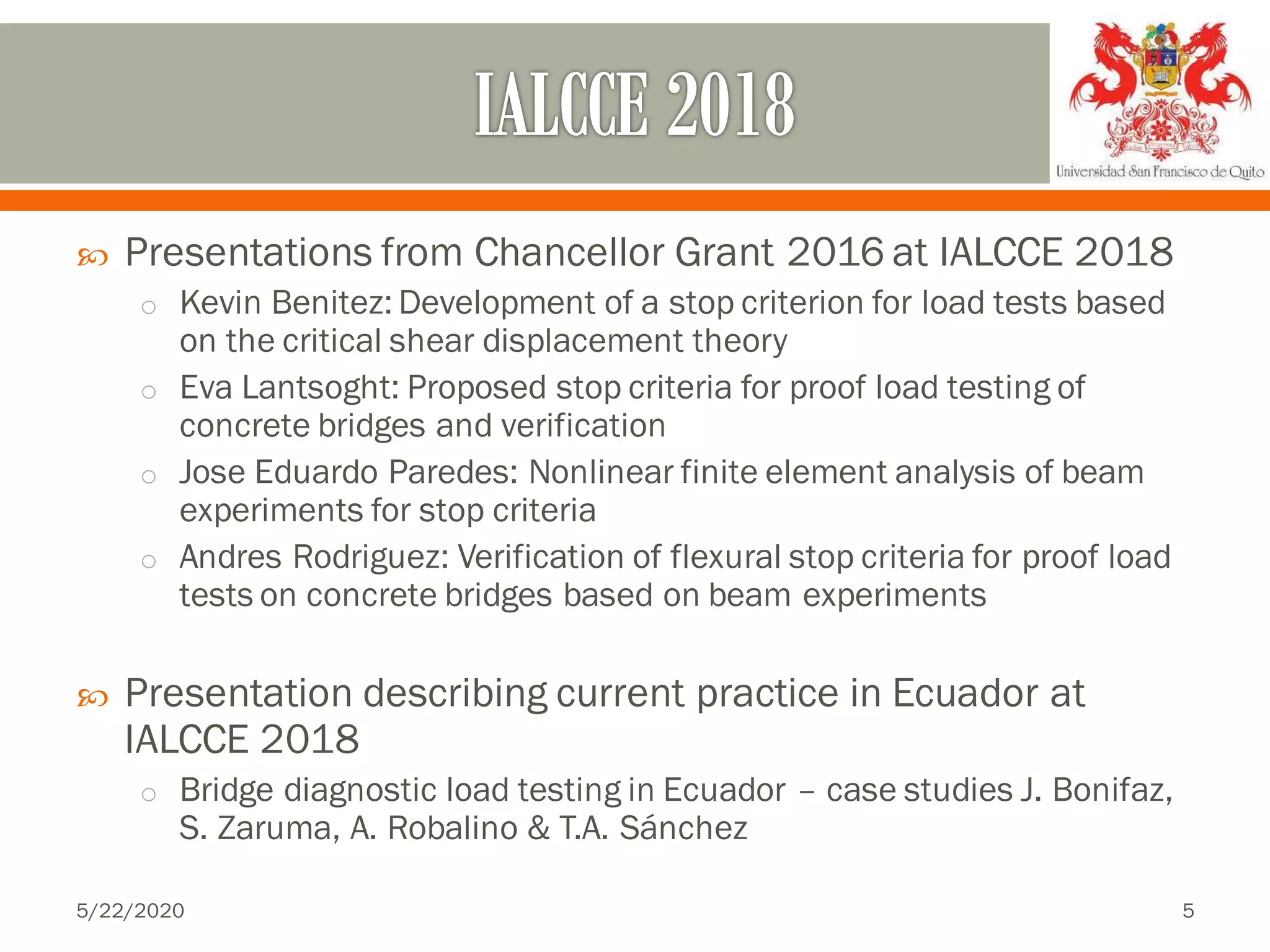

5.  Presentations from Chancellor Grant 2016 at IALCCE 2018
o Kevin Benitez: Development of a stop criterion for load tests based
on the critical shear displacement theory
o Eva Lantsoght: Proposed stop criteria for proof load testing of
concrete bridges and verification
o Jose Eduardo Paredes: Nonlinear finite element analysis of beam
experiments for stop criteria
o Andres Rodriguez: Verification of flexural stop criteria for proof load
tests on concrete bridges based on beam experiments
 Presentation describing current practice in Ecuador at
IALCCE 2018
o Bridge diagnostic load testing in Ecuador – case studies J. Bonifaz,
S. Zaruma, A. Robalino & T.A. Sánchez
5/22/2020 5

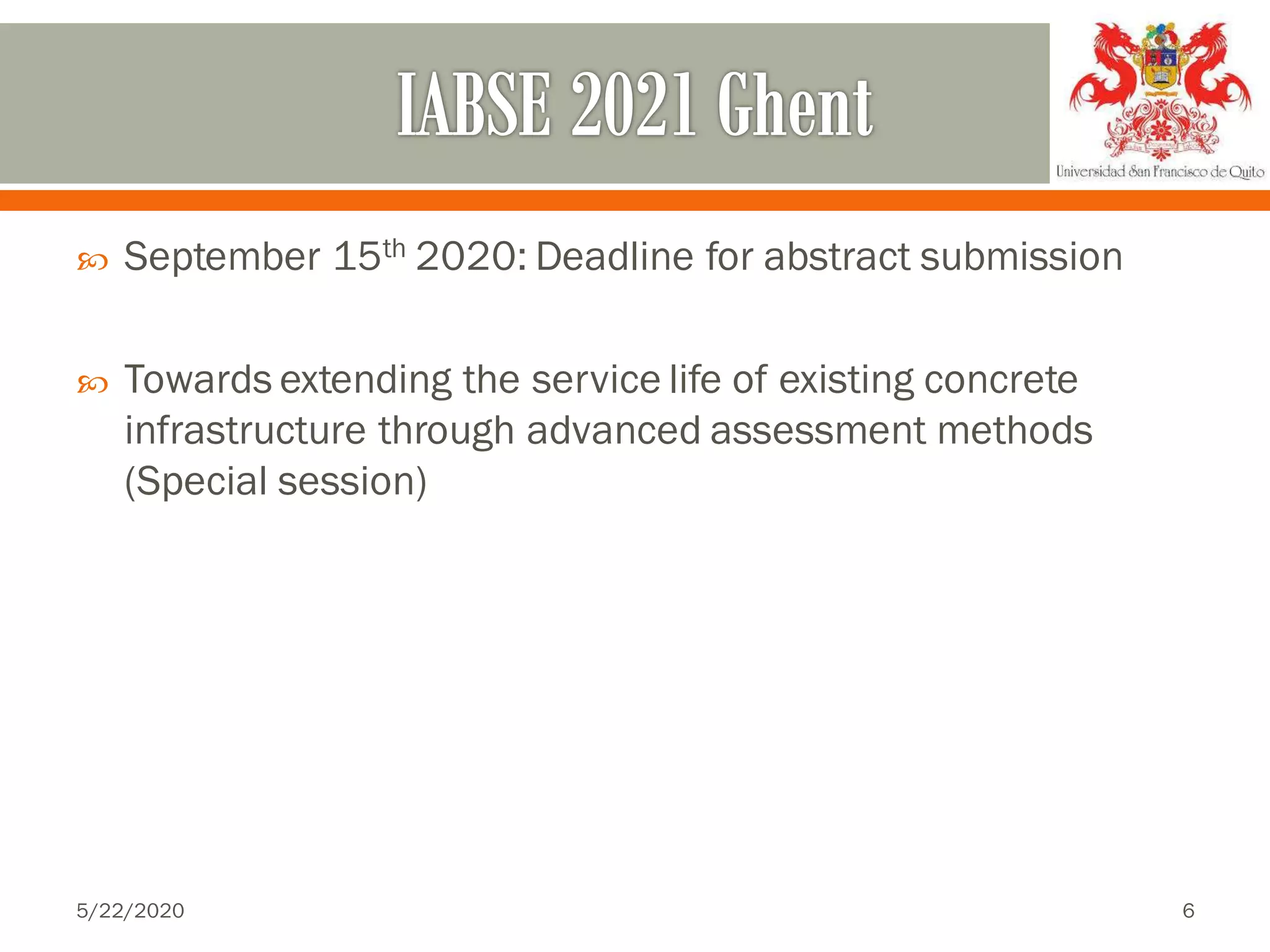

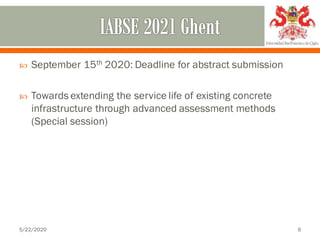

6.  September 15th 2020: Deadline for abstract submission
 Towards extending the service life of existing concrete
infrastructure through advanced assessment methods
(Special session)
5/22/2020 6

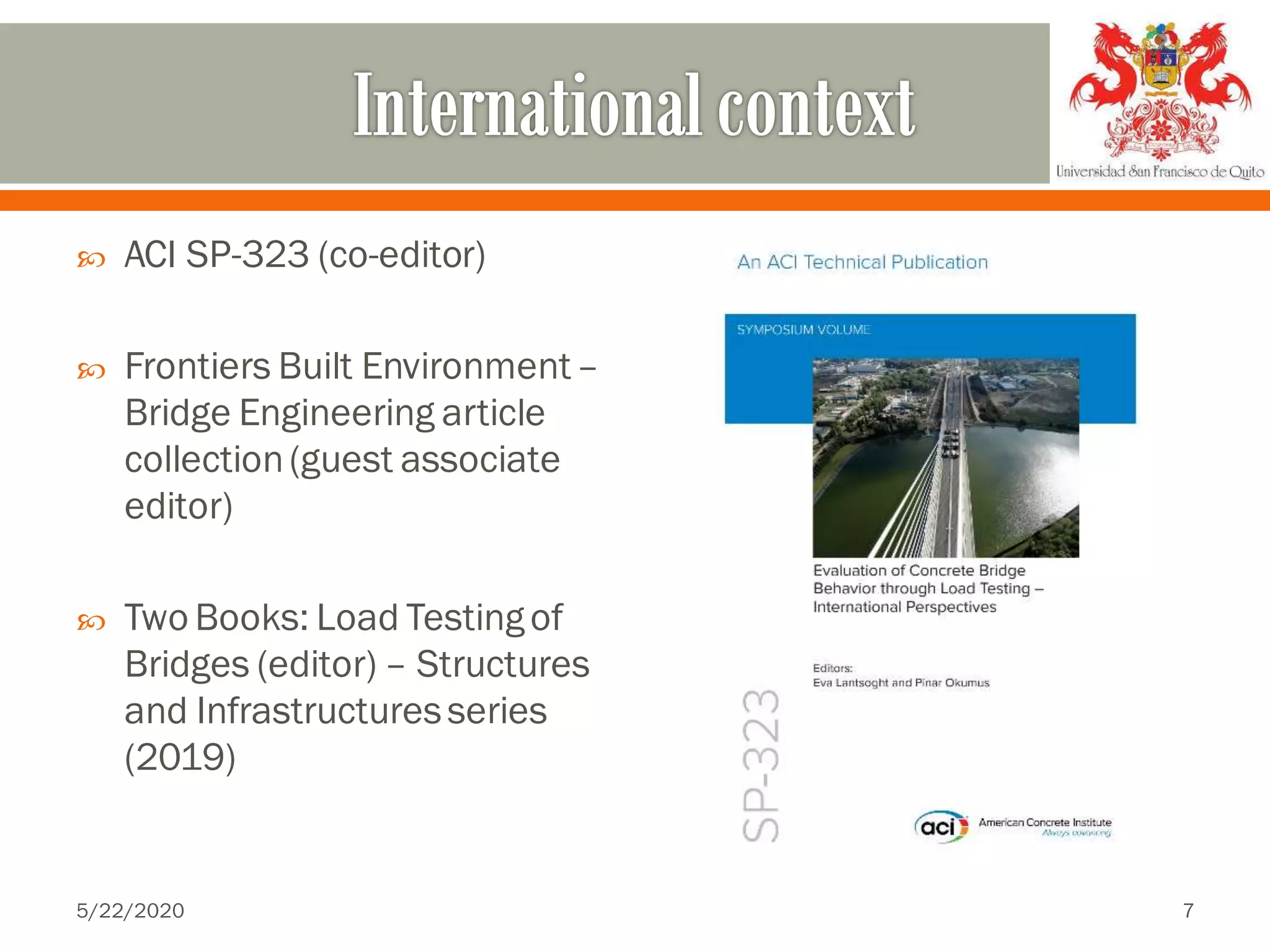

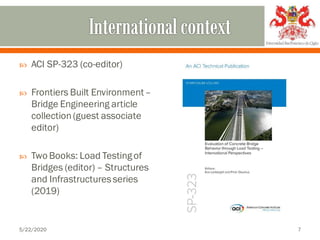

7.  ACI SP-323 (co-editor)
 Frontiers Built Environment–
Bridge Engineering article
collection(guest associate
editor)
 Two Books: Load Testingof
Bridges (editor) – Structures
and Infrastructuresseries
(2019)
5/22/2020 7

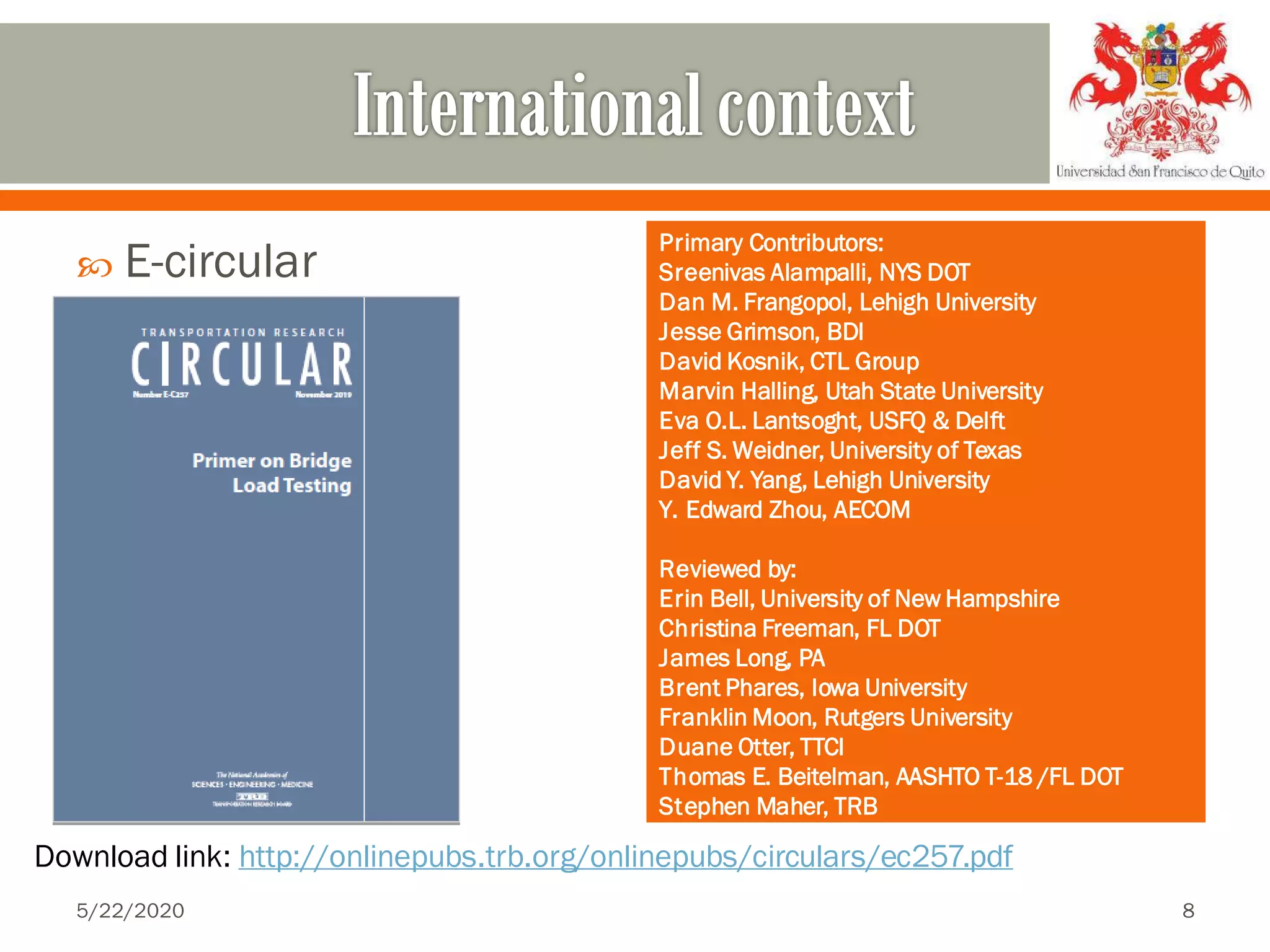

8.  E-circular
5/22/2020 8
Download link: http://onlinepubs.trb.org/onlinepubs/circulars/ec257.pdf
Primary Contributors:
Sreenivas Alampalli, NYS DOT
Dan M. Frangopol, Lehigh University
Jesse Grimson, BDI
David Kosnik, CTL Group
Marvin Halling, Utah State University
Eva O.L. Lantsoght, USFQ & Delft
Jeff S. Weidner, University of Texas
David Y. Yang, Lehigh University
Y. Edward Zhou, AECOM
Reviewed by:
Erin Bell, University of New Hampshire
Christina Freeman, FL DOT
James Long, PA
Brent Phares, Iowa University
Franklin Moon, Rutgers University
Duane Otter, TTCI
Thomas E. Beitelman, AASHTO T-18 /FL DOT
Stephen Maher, TRB

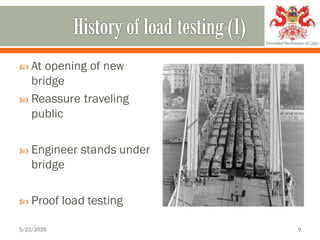

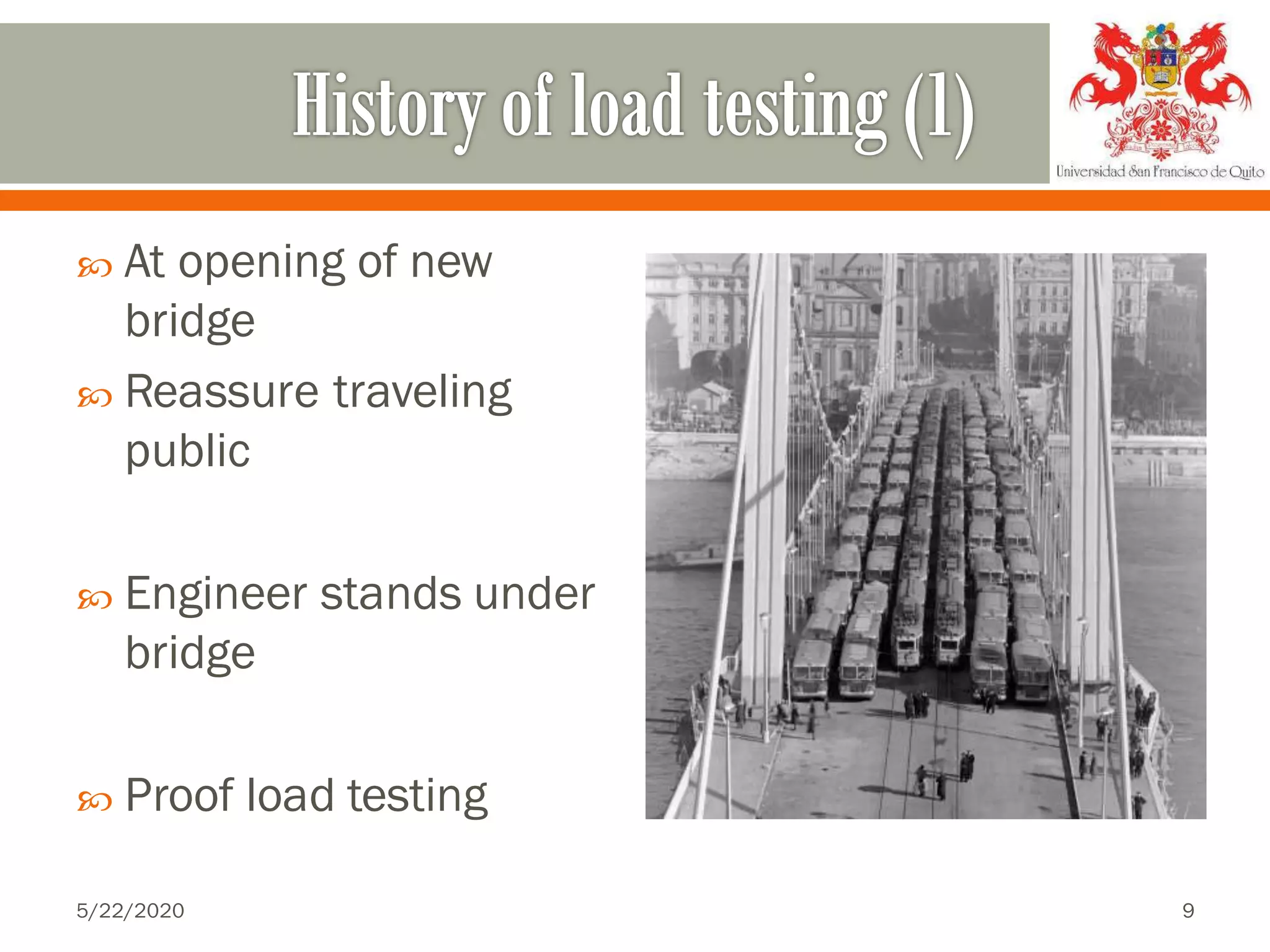

9.  At opening of new
bridge
 Reassure traveling
public
 Engineer stands under
bridge
 Proof load testing
5/22/2020 9

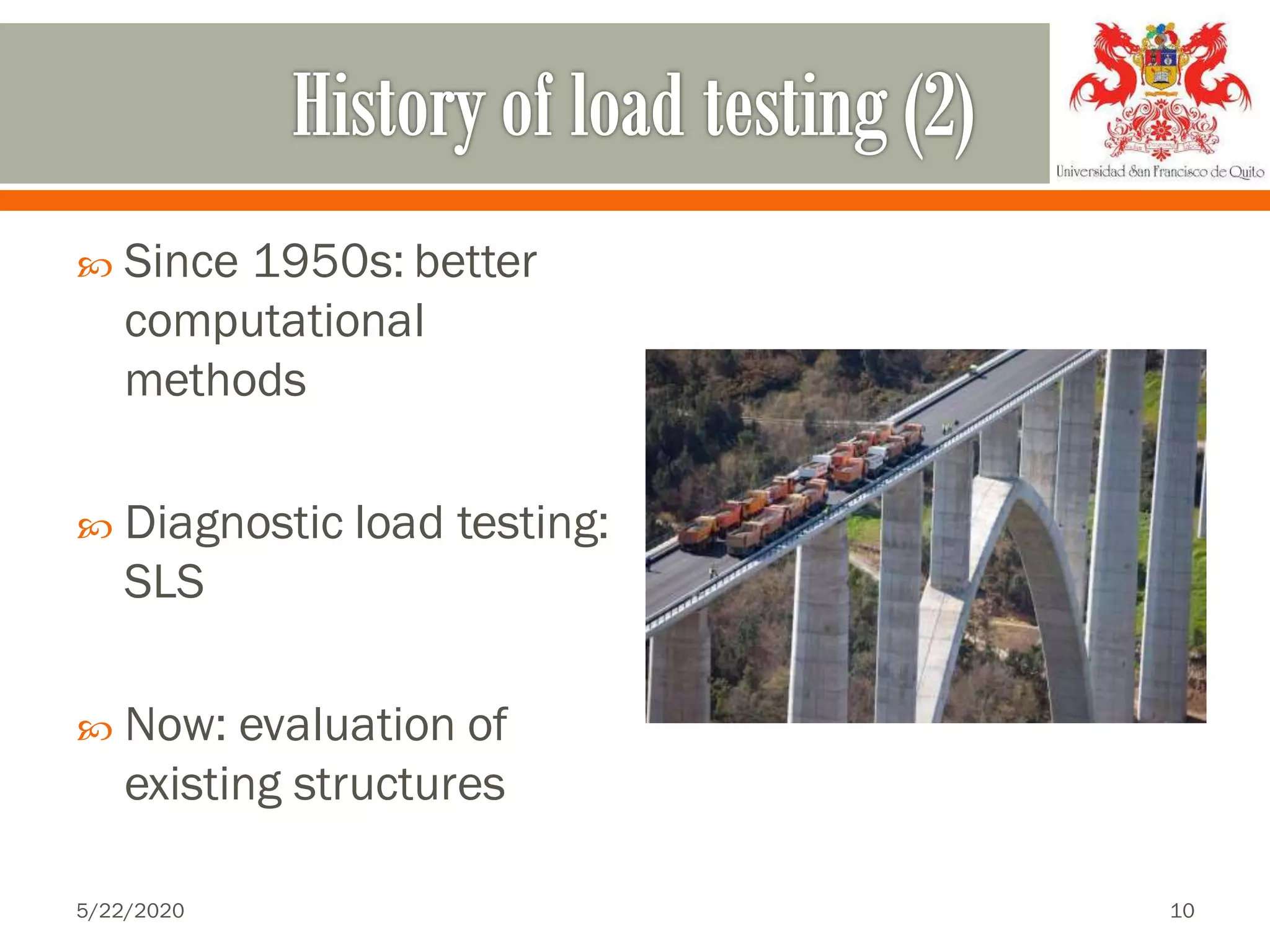

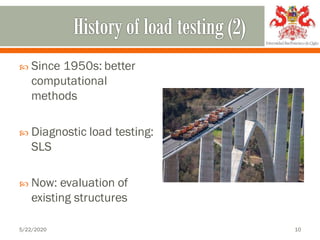

10.  Since 1950s: better
computational
methods
 Diagnostic load testing:
SLS
 Now: evaluation of
existing structures
5/22/2020 10

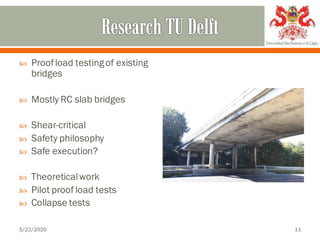

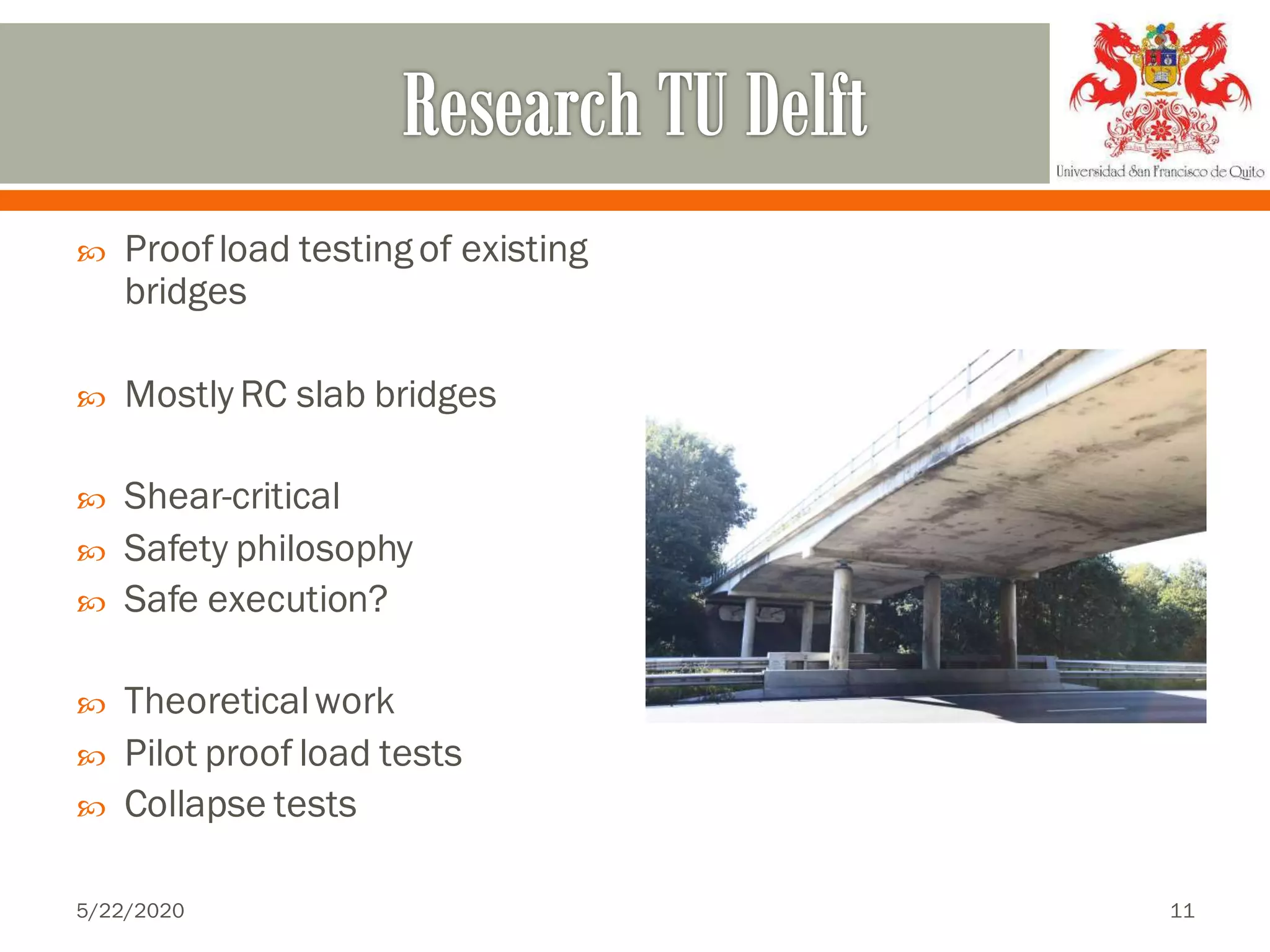

11.  Proofload testingof existing
bridges
 Mostly RC slab bridges
 Shear-critical
 Safety philosophy
 Safe execution?
 Theoreticalwork
 Pilot proof load tests
 Collapse tests
5/22/2020 11

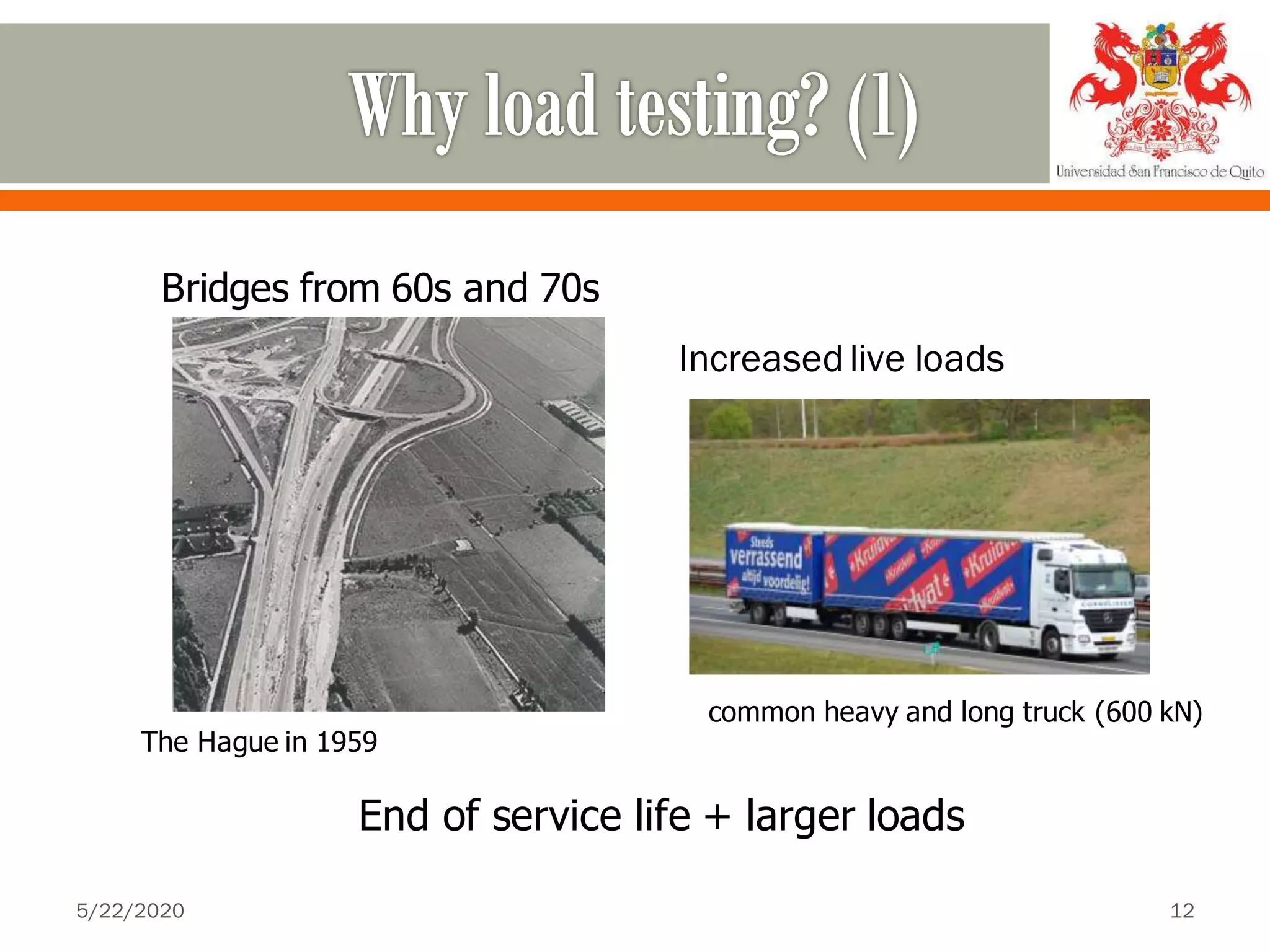

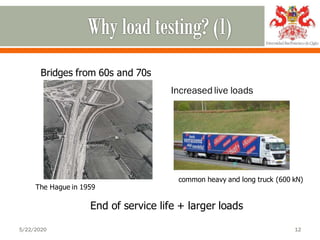

12. Bridges from 60s and 70s
The Hague in 1959
Increasedlive loads
common heavy and long truck (600 kN)
End of service life + larger loads
5/22/2020 12

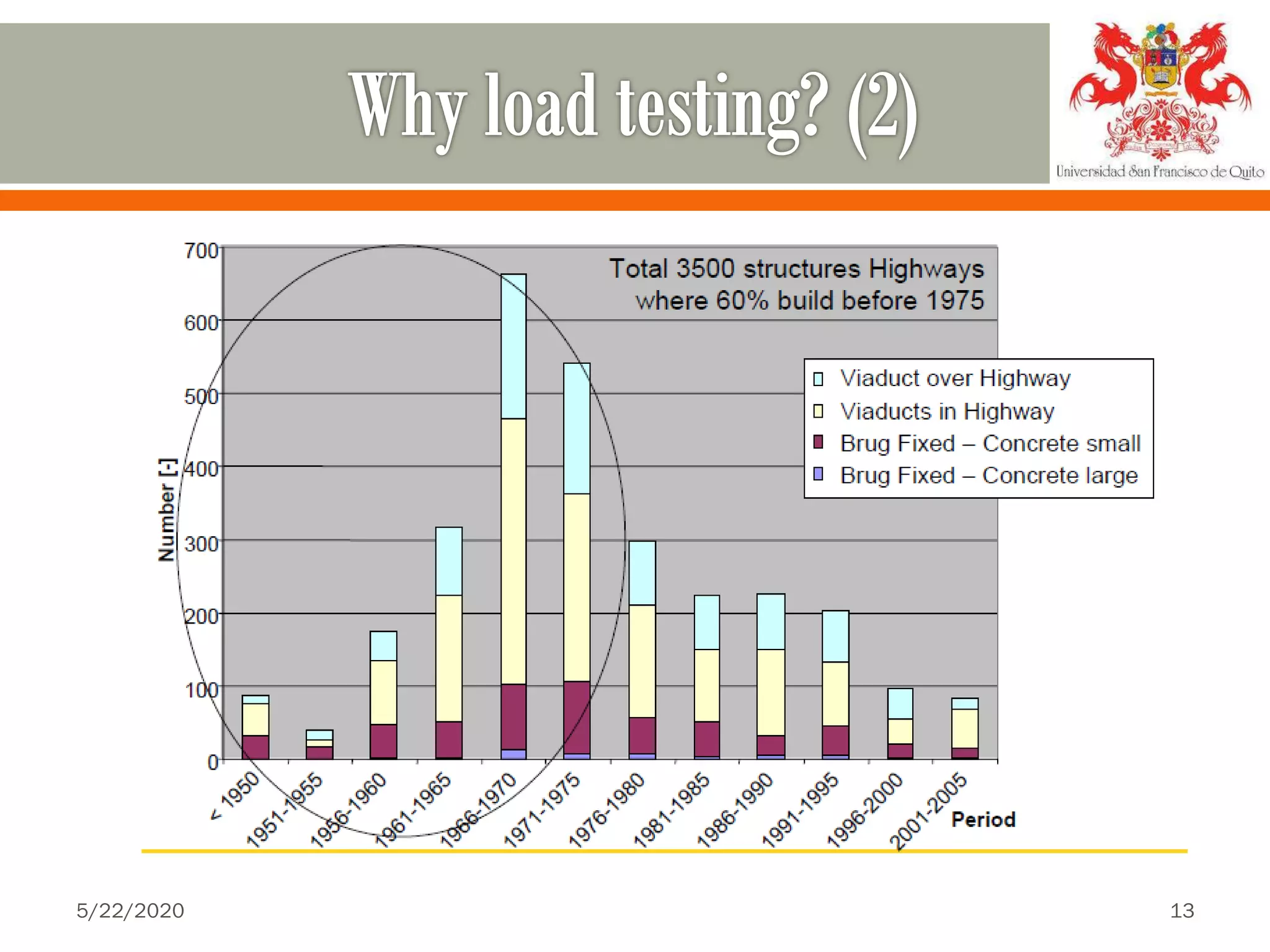

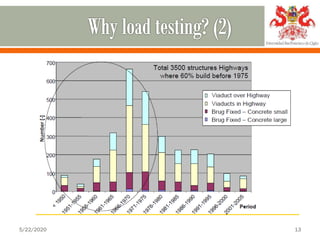

13. 5/22/2020 13

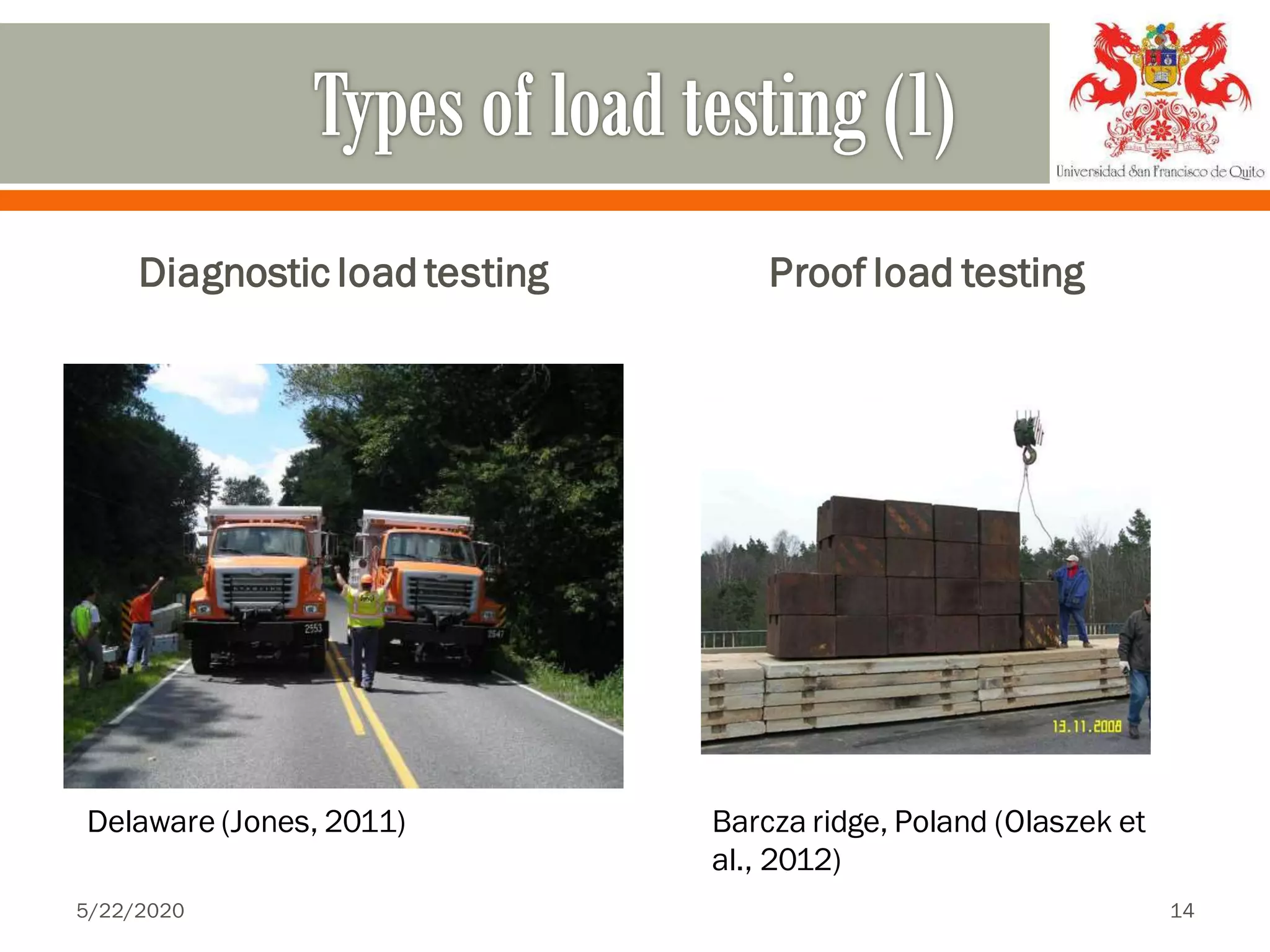

14. Diagnostic load testing Proof load testing
5/22/2020 14
Barcza ridge, Poland (Olaszek et
al., 2012)
Delaware (Jones, 2011)

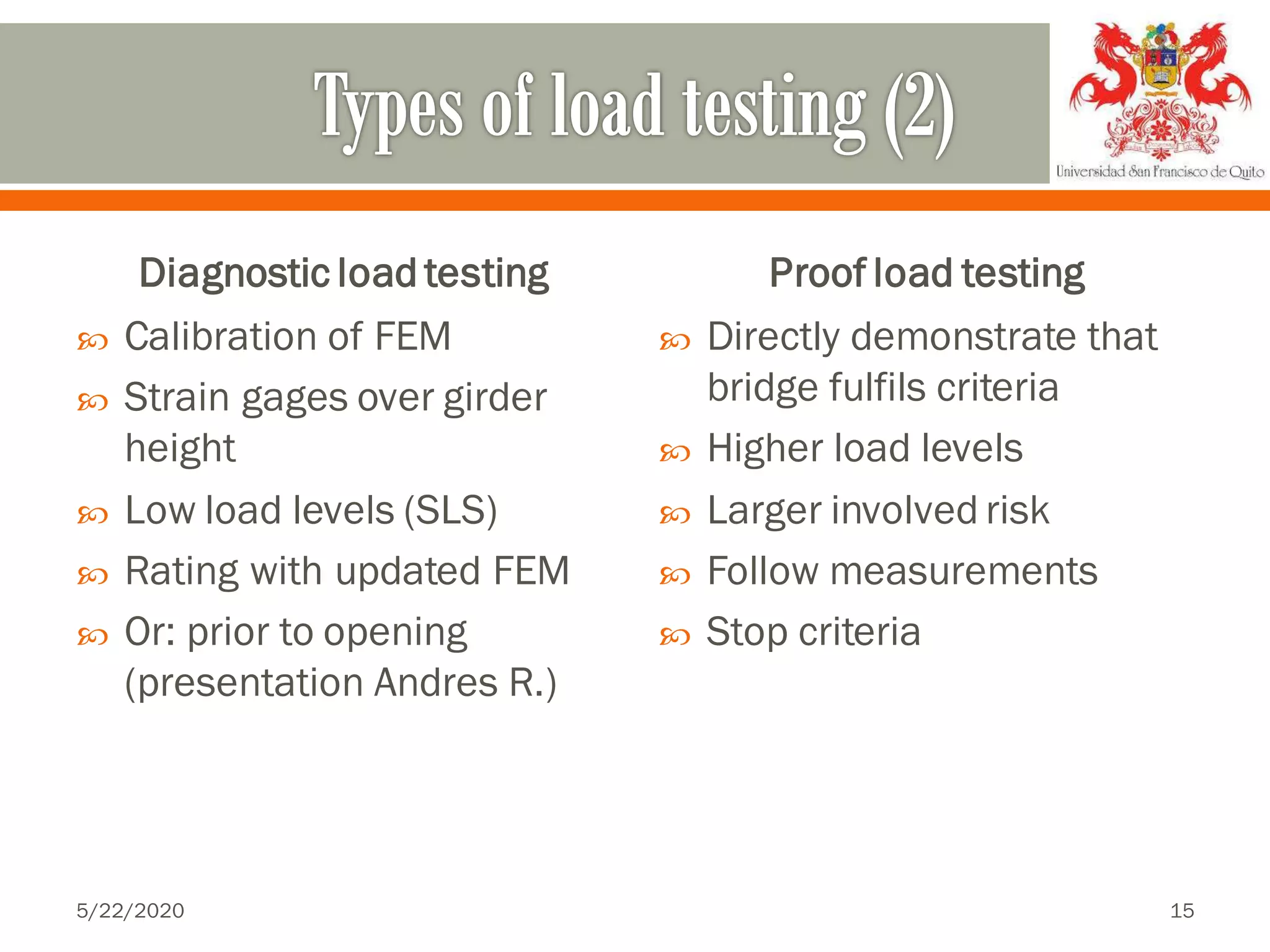

15. Diagnostic load testing
 Calibration of FEM
 Strain gages over girder
height
 Low load levels (SLS)
 Rating with updated FEM
 Or: prior to opening
(presentation Andres R.)
Proof load testing
 Directly demonstrate that
bridge fulfils criteria
 Higher load levels
 Larger involved risk
 Follow measurements
 Stop criteria
5/22/2020 15

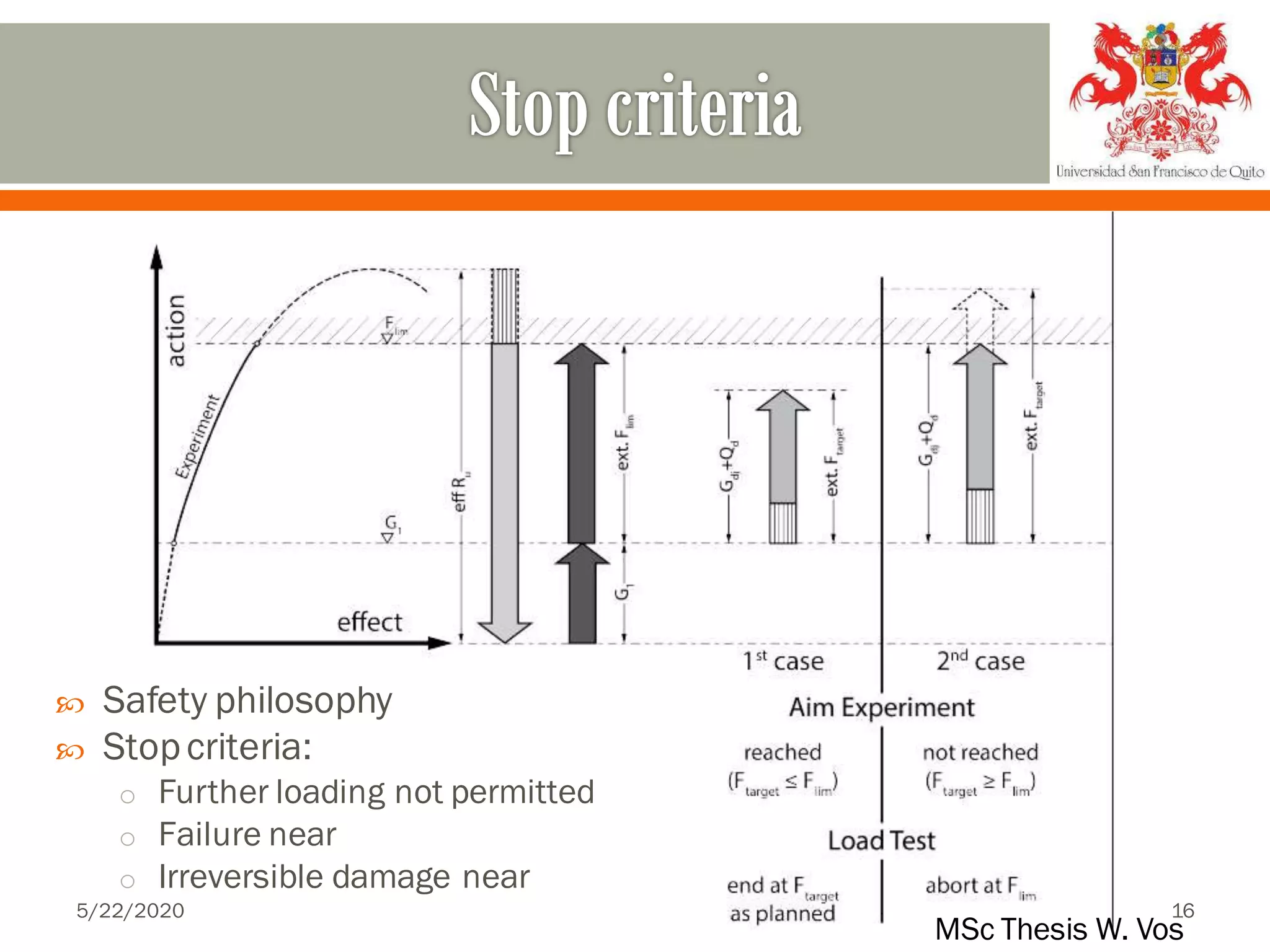

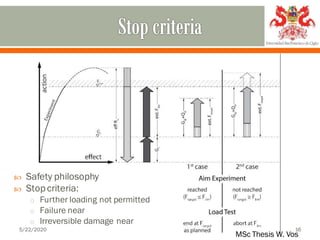

16.  Safety philosophy
 Stopcriteria:
o Further loading not permitted
o Failure near
o Irreversible damage near
MSc Thesis W. Vos
5/22/2020 16

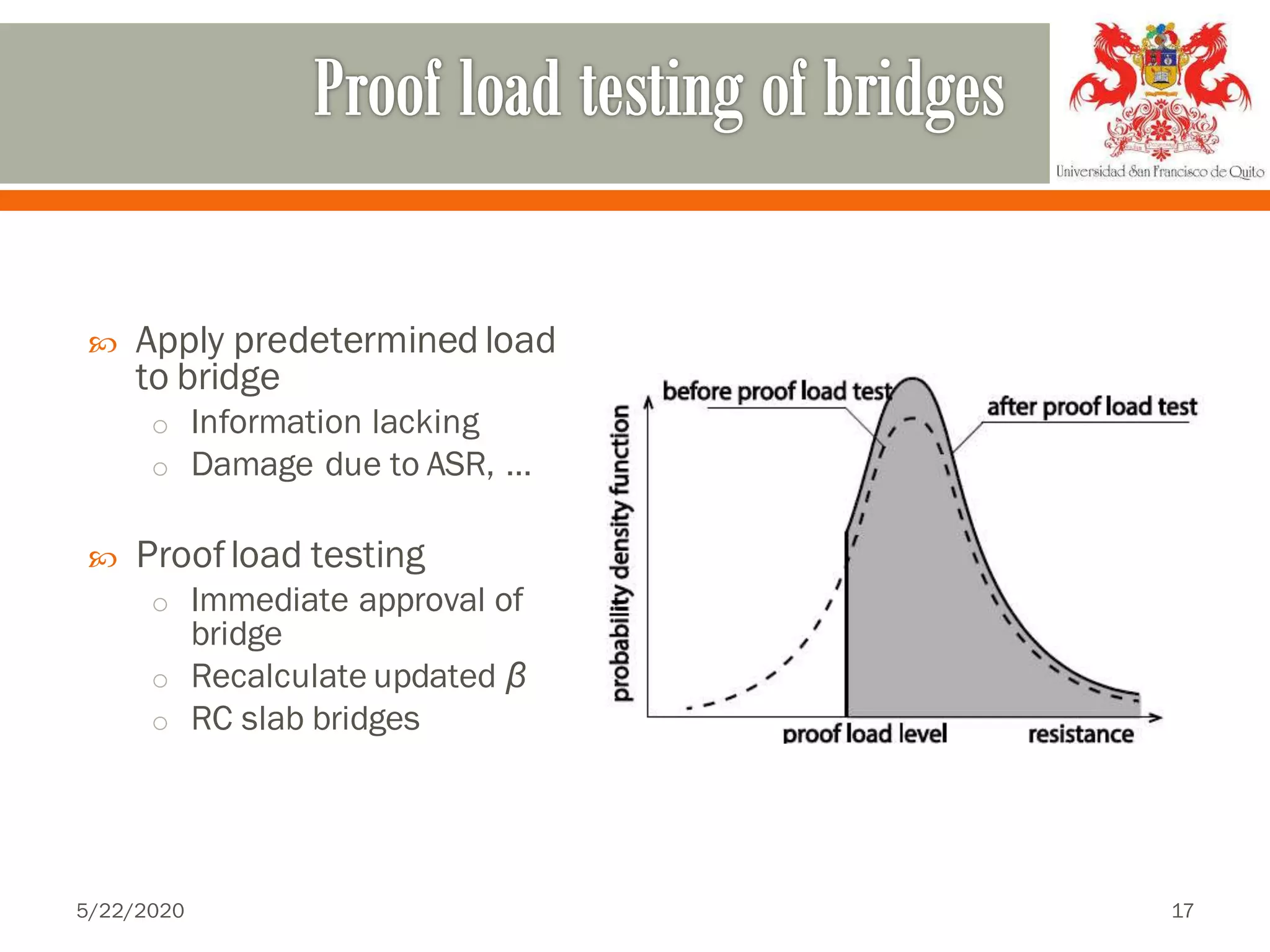

17.  Apply predetermined load
to bridge
o Information lacking
o Damage due to ASR, …
 Proofload testing
o Immediate approval of
bridge
o Recalculate updated β
o RC slab bridges
5/22/2020 17

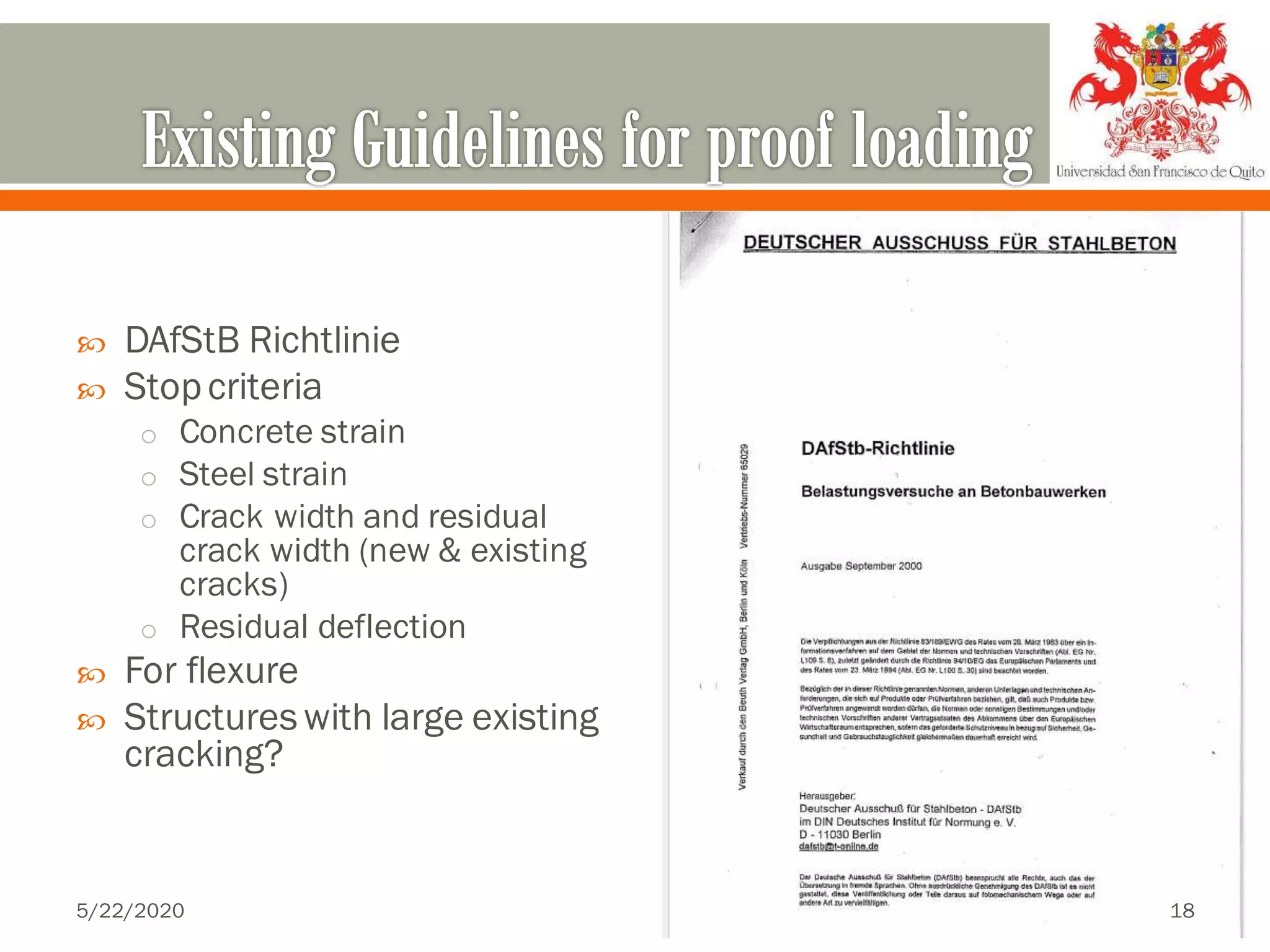

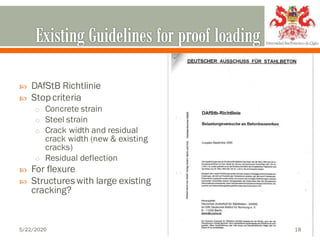

18.  DAfStB Richtlinie
 Stopcriteria
o Concrete strain
o Steel strain
o Crack width and residual
crack width (new & existing
cracks)
o Residual deflection
 For flexure
 Structures with large existing
cracking?
5/22/2020 18

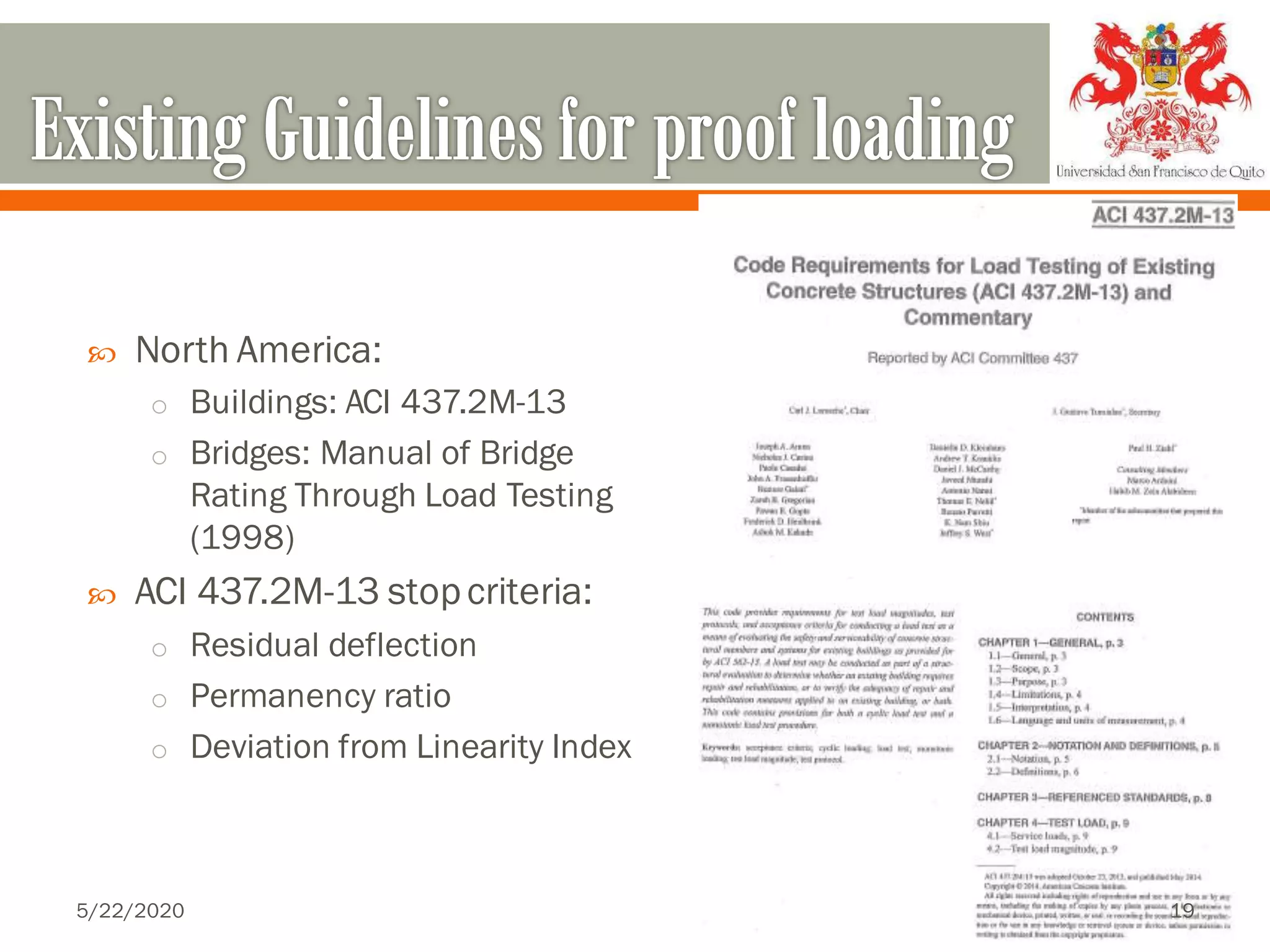

19.  North America:
o Buildings: ACI 437.2M-13
o Bridges: Manual of Bridge
Rating Through Load Testing
(1998)
 ACI 437.2M-13 stopcriteria:
o Residual deflection
o Permanency ratio
o Deviation from Linearity Index
5/22/2020 19

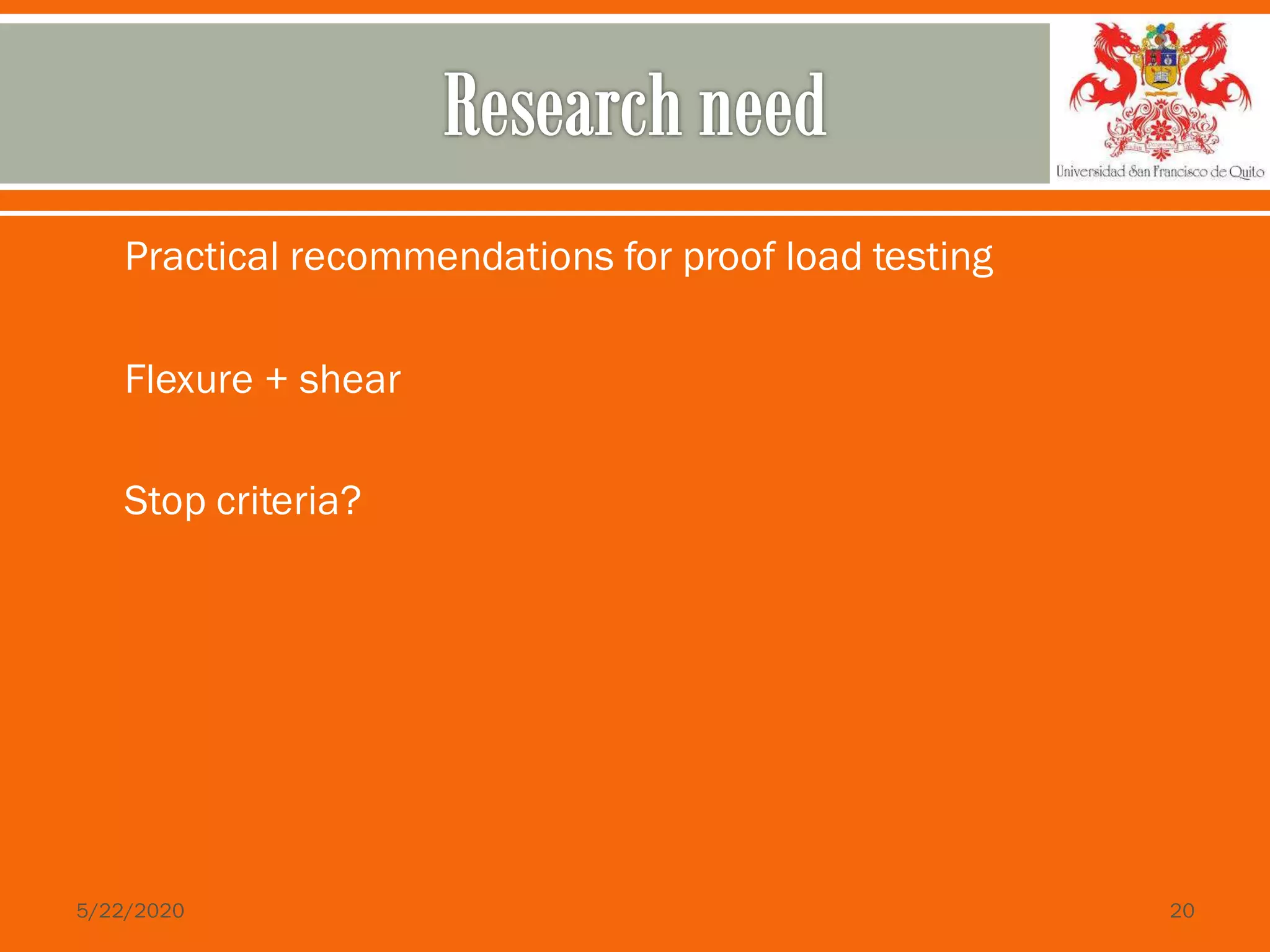

20.  Practical recommendations for proof load testing
 Flexure + shear
 Stop criteria?
5/22/2020 20

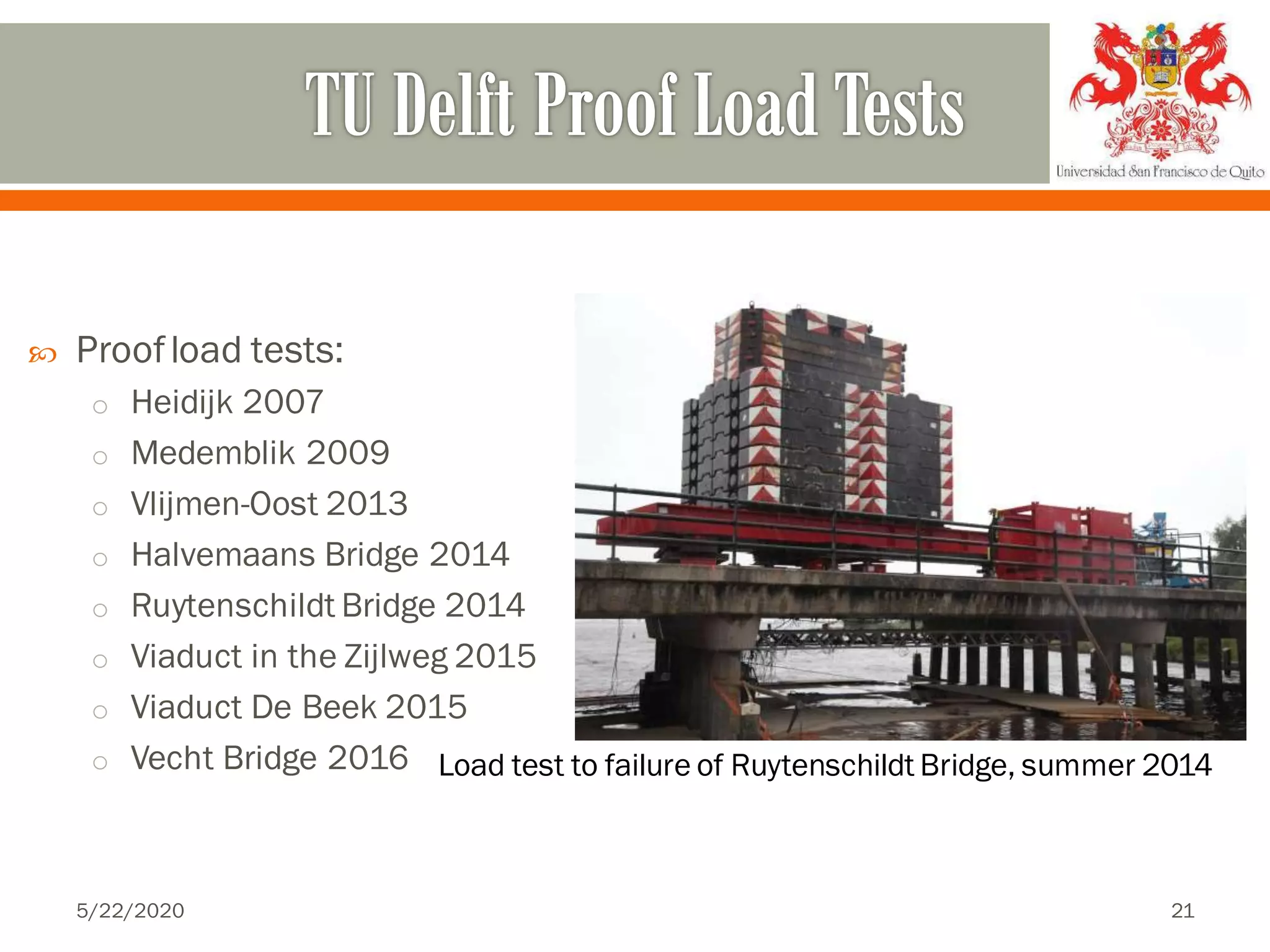

21.  Proofload tests:
o Heidijk 2007
o Medemblik 2009
o Vlijmen-Oost 2013
o Halvemaans Bridge 2014
o Ruytenschildt Bridge 2014
o Viaduct in the Zijlweg 2015
o Viaduct De Beek 2015
o Vecht Bridge 2016 Load test to failure of Ruytenschildt Bridge, summer 2014
5/22/2020 21

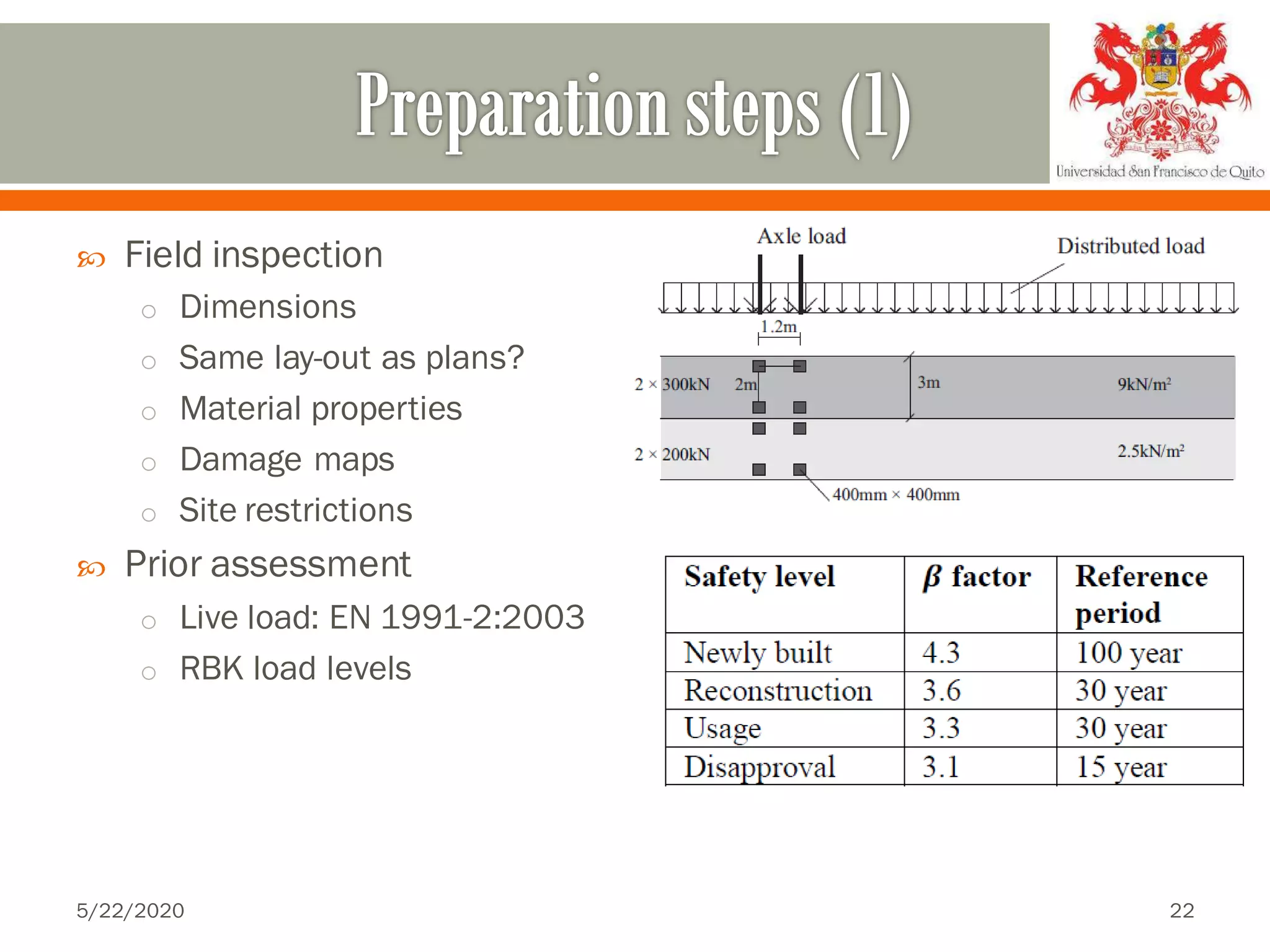

22.  Field inspection
o Dimensions
o Same lay-out as plans?
o Material properties
o Damage maps
o Site restrictions
 Prior assessment
o Live load: EN 1991-2:2003
o RBK load levels
5/22/2020 22

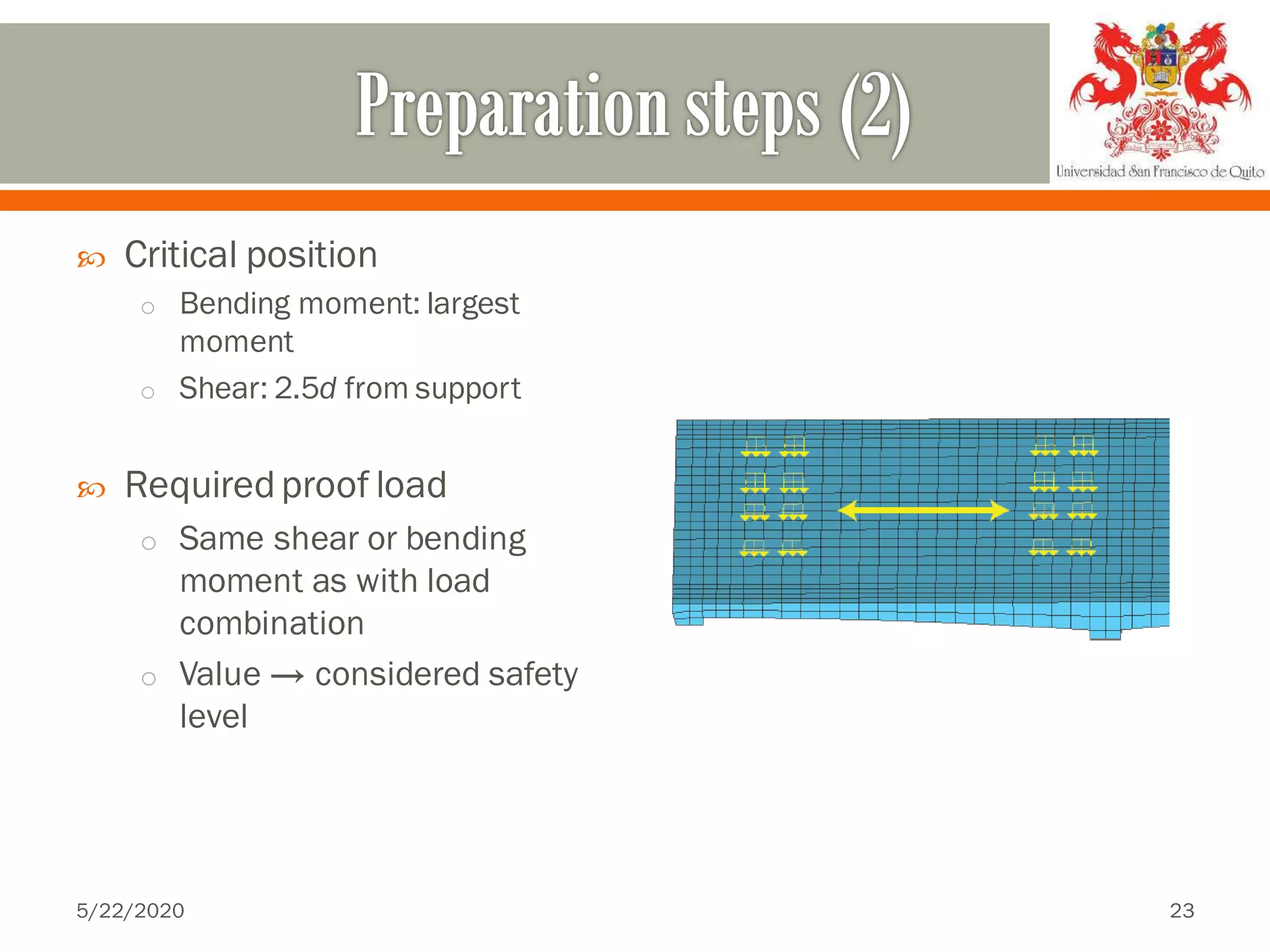

23.  Critical position
o Bending moment: largest
moment
o Shear: 2.5d from support
 Requiredproof load
o Same shear or bending
moment as with load
combination
o Value → considered safety
level
5/22/2020 23

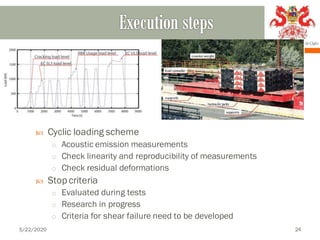

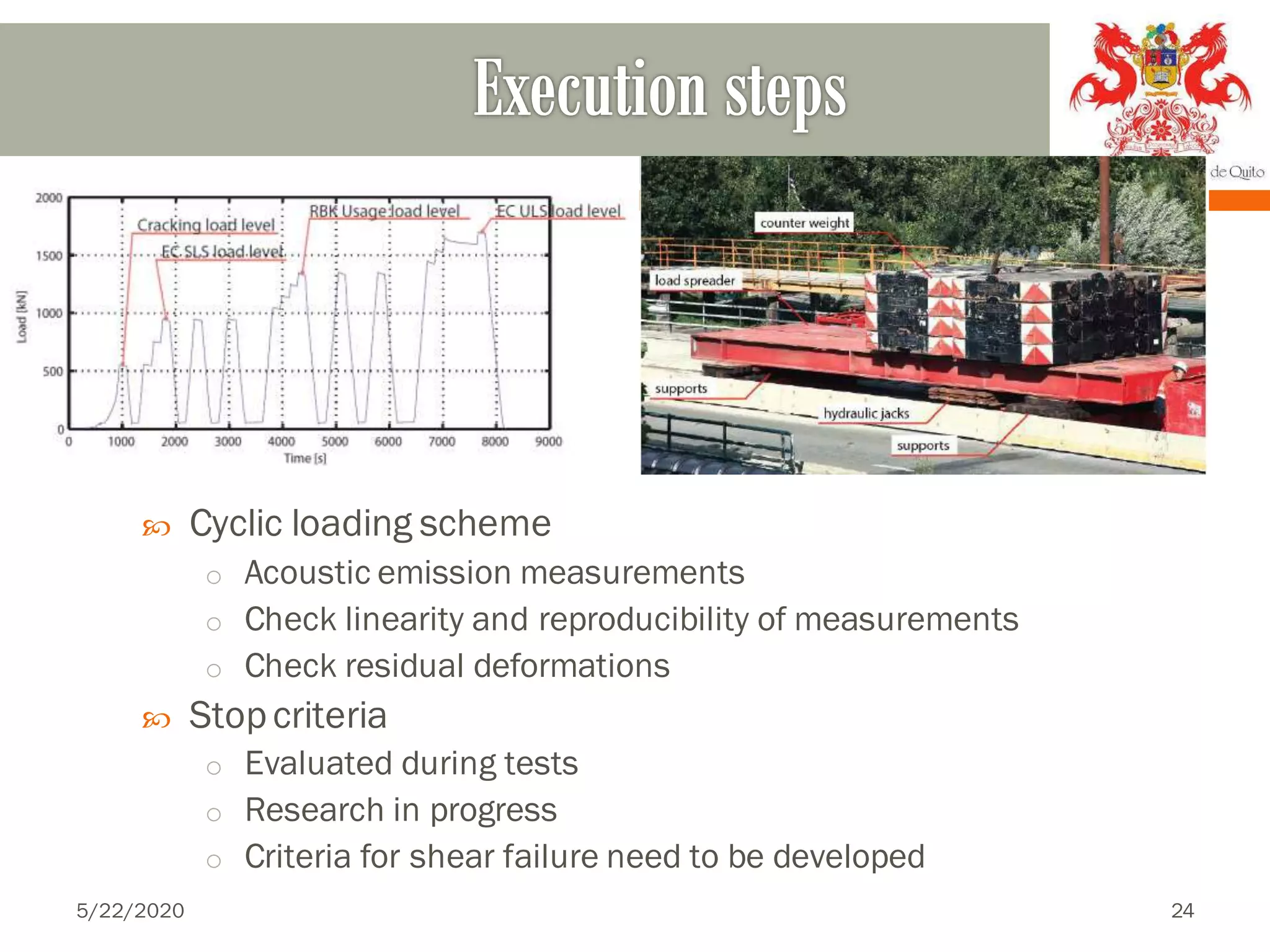

24.  Cyclic loading scheme
o Acoustic emission measurements
o Check linearity and reproducibility of measurements
o Check residual deformations
 Stopcriteria
o Evaluated during tests
o Research in progress
o Criteria for shear failure need to be developed
5/22/2020 24

25. 5/22/2020 25

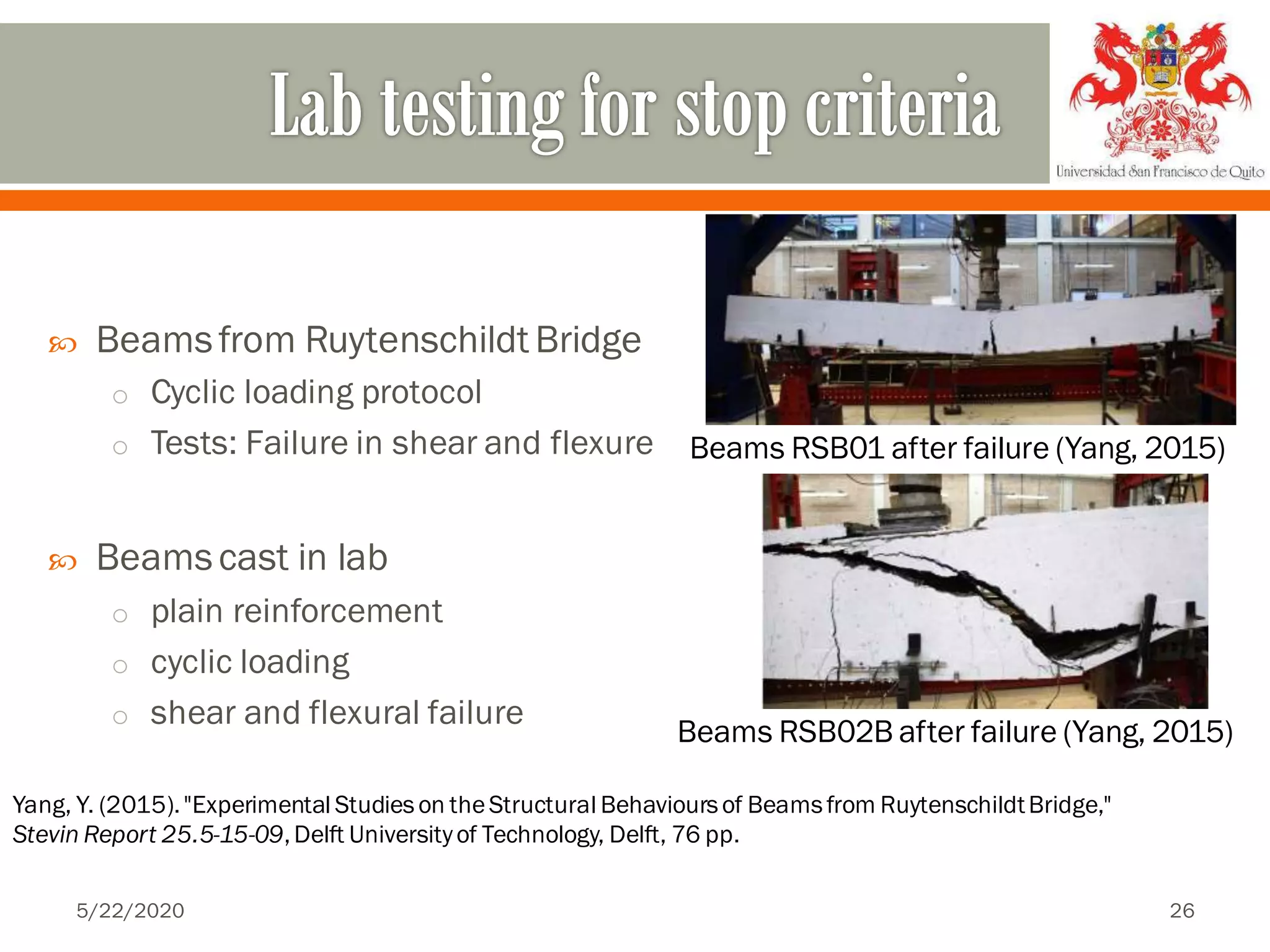

26.  Beamsfrom Ruytenschildt Bridge
o Cyclic loading protocol
o Tests: Failure in shear and flexure
 Beamscast in lab
o plain reinforcement
o cyclic loading
o shear and flexural failure
Beams RSB01 after failure (Yang, 2015)
Yang, Y. (2015)."Experimental Studieson theStructural Behavioursof Beamsfrom RuytenschildtBridge,"
Stevin Report 25.5-15-09,Delft Universityof Technology, Delft, 76 pp.
Beams RSB02B after failure (Yang, 2015)
5/22/2020 26

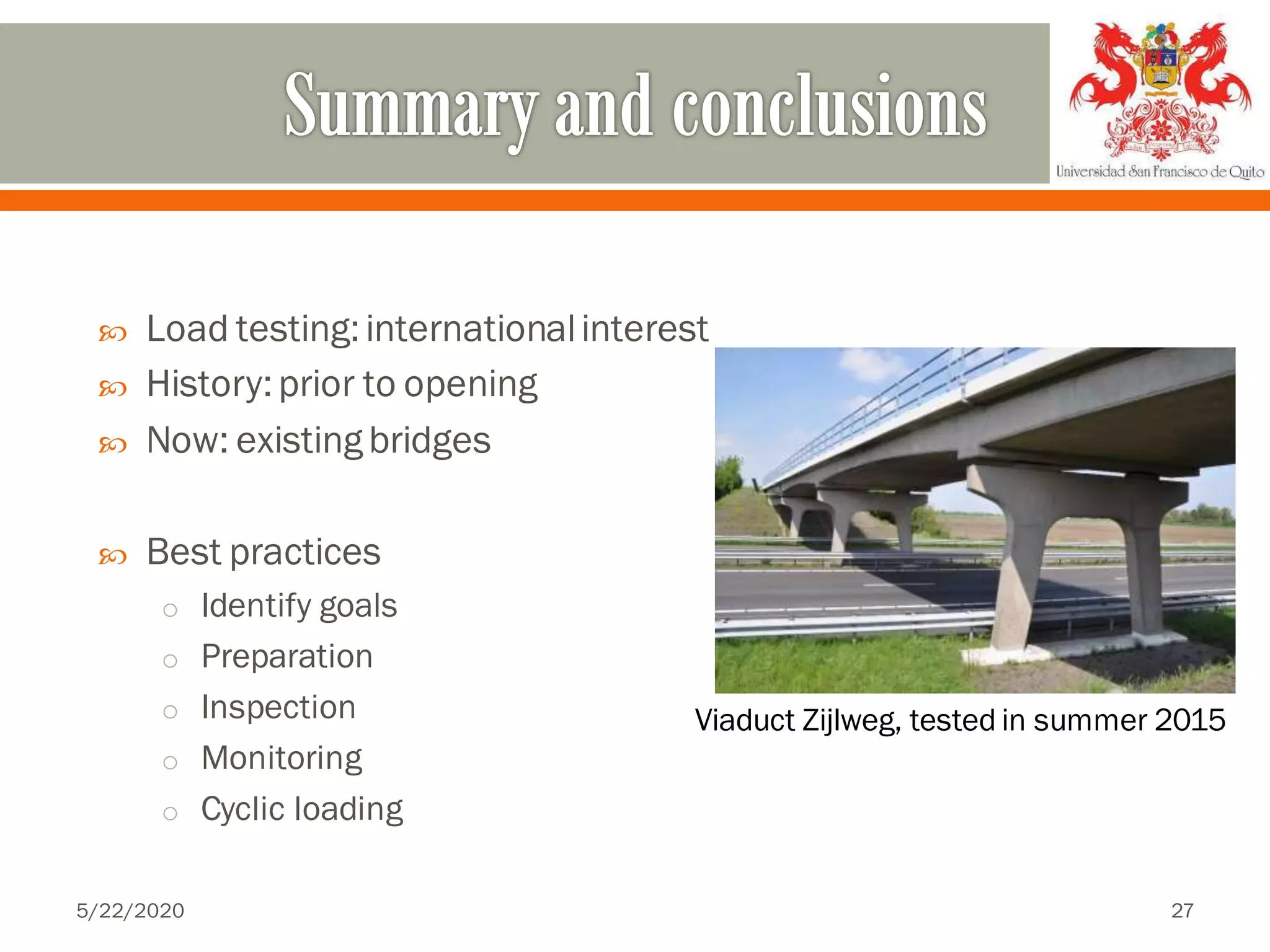

27.  Load testing:internationalinterest
 History:prior to opening
 Now: existingbridges
 Best practices
o Identify goals
o Preparation
o Inspection
o Monitoring
o Cyclic loading
Viaduct Zijlweg, tested in summer 2015
5/22/2020 27

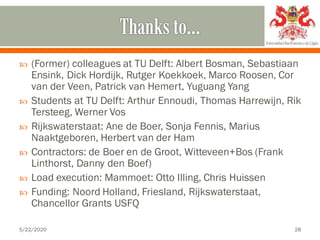

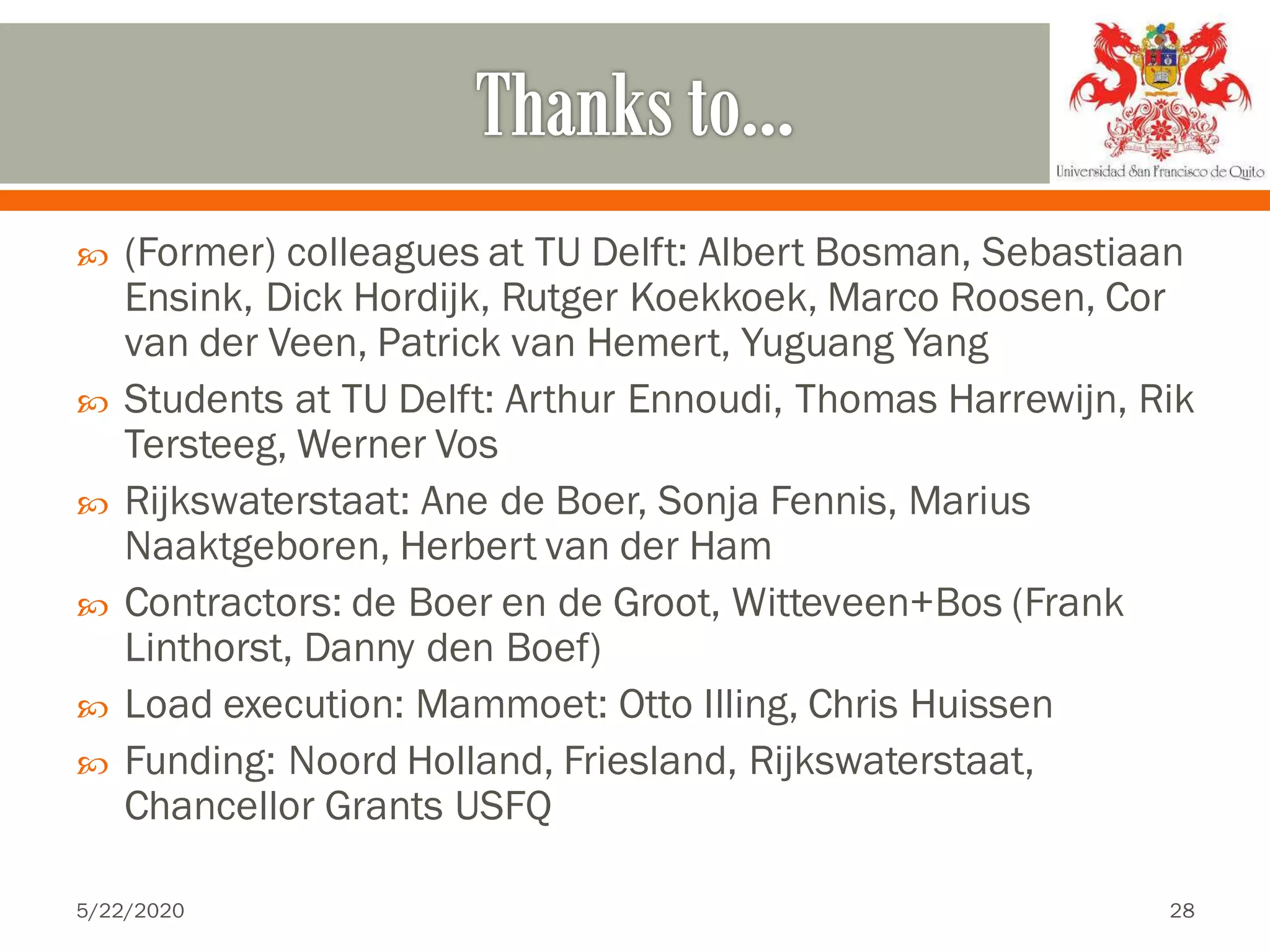

28.  (Former) colleagues at TU Delft: Albert Bosman, Sebastiaan
Ensink, Dick Hordijk, Rutger Koekkoek, Marco Roosen, Cor
van der Veen, Patrick van Hemert, Yuguang Yang
 Students at TU Delft: Arthur Ennoudi, Thomas Harrewijn, Rik
Tersteeg, Werner Vos
 Rijkswaterstaat: Ane de Boer, Sonja Fennis, Marius
Naaktgeboren, Herbert van der Ham
 Contractors: de Boer en de Groot, Witteveen+Bos (Frank
Linthorst, Danny den Boef)
 Load execution: Mammoet: Otto Illing, Chris Huissen
 Funding: Noord Holland, Friesland, Rijkswaterstaat,
Chancellor Grants USFQ
5/22/2020 28

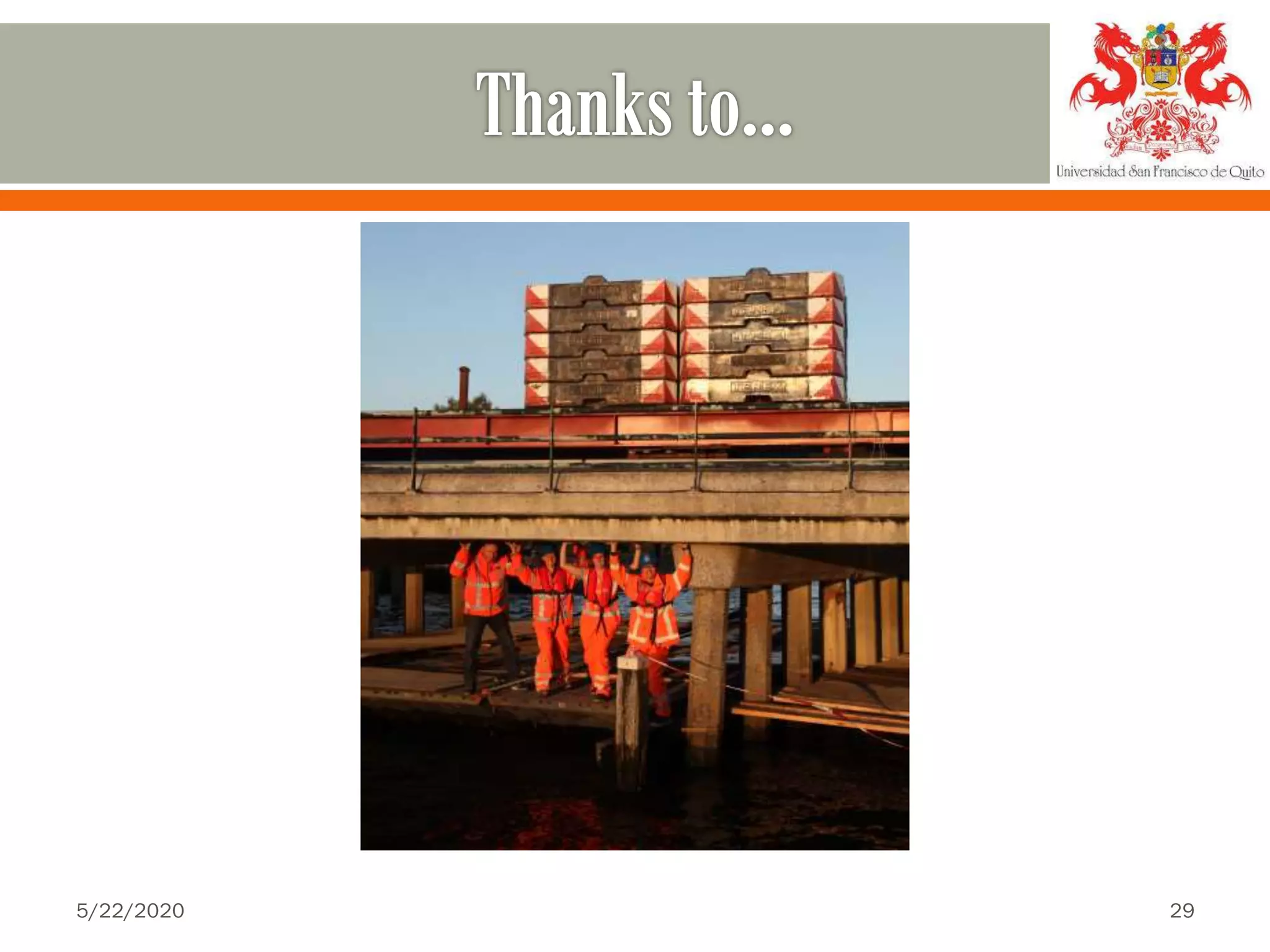

29. 5/22/2020 29

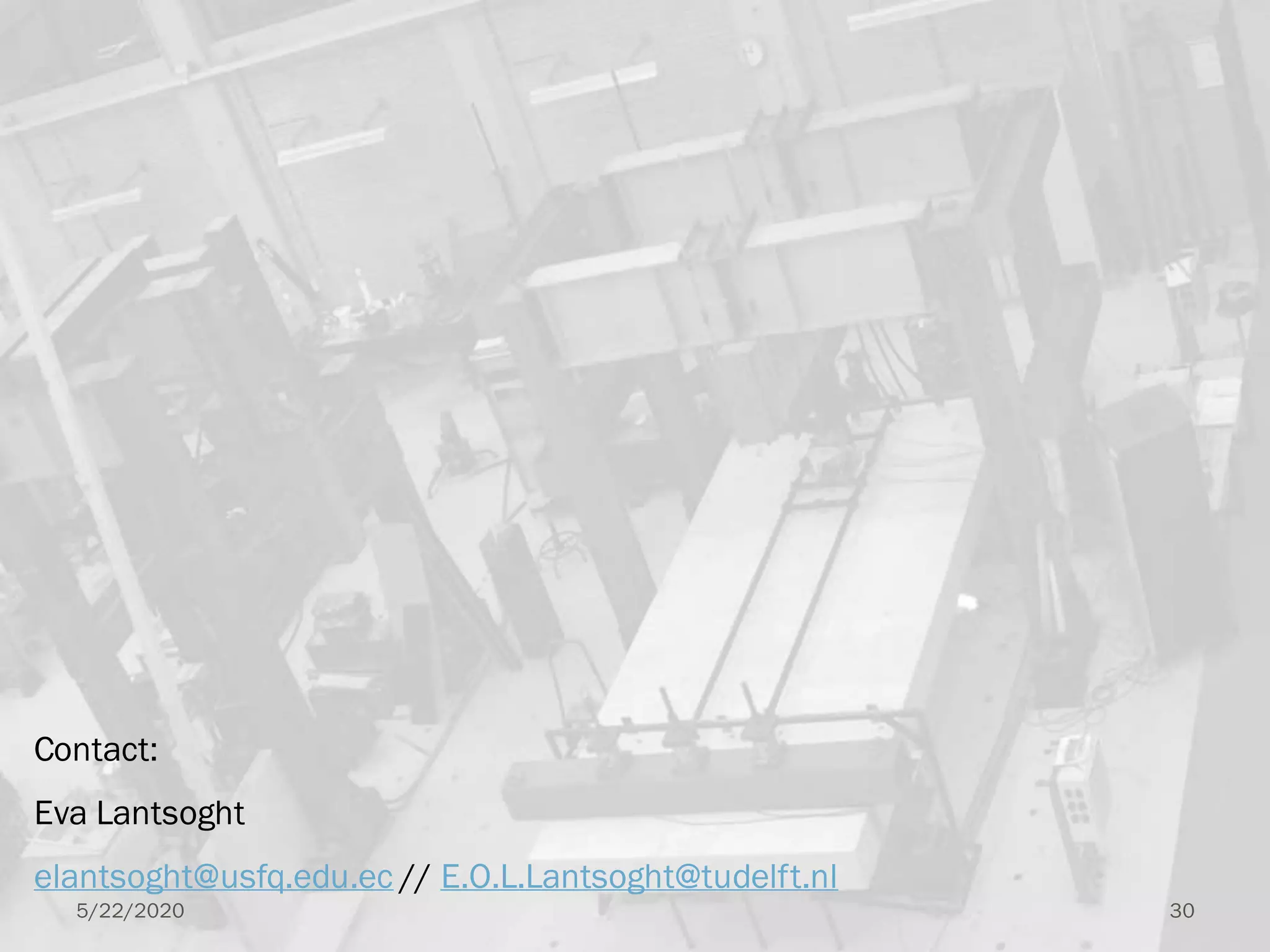

30. Contact:
Eva Lantsoght
elantsoght@usfq.edu.ec // E.O.L.Lantsoght@tudelft.nl
5/22/2020 30
