Stop criteria for proof load tests verified with field and laboratory testing of the Ruytenschildt Bridge
The document presents an investigation on proof load testing conducted on the Ruytenschildt bridge, focusing on the analysis of stop criteria for both field and laboratory experiments. It details the testing methods, results, and comparisons with existing guidelines, highlighting the need for updated stop criteria to ensure safety against bending moment and shear forces. The conclusions emphasize the importance of further testing for shear in addition to the bending moment criteria proving satisfactory.
More Related Content
Similar to Stop criteria for proof load tests verified with field and laboratory testing of the Ruytenschildt Bridge
Stop criteria for proof load tests verified with field and laboratory testing of the Ruytenschildt Bridge

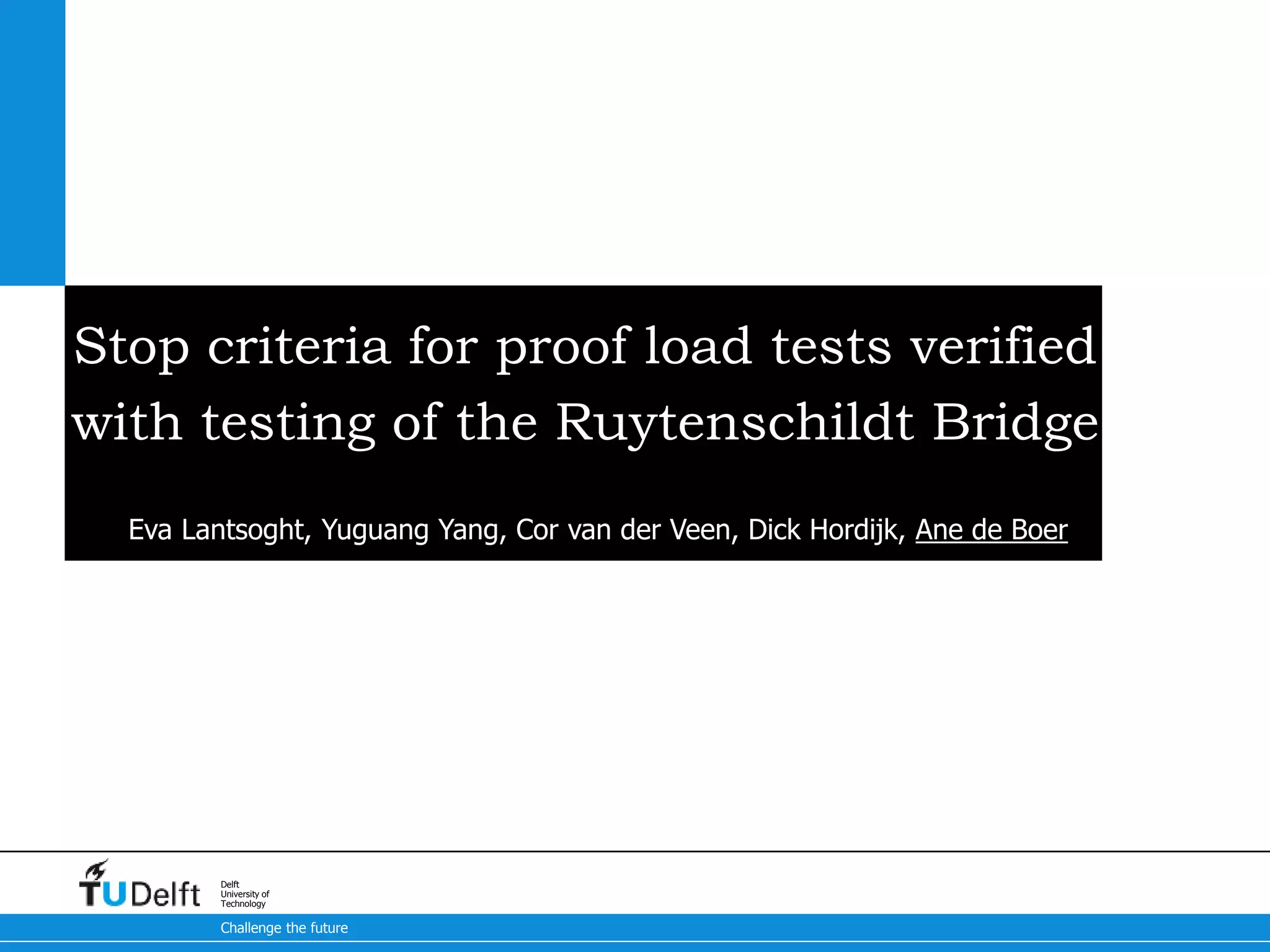

- 1. Challenge the future Delft Universityof Technology Stop criteria for proof load tests verified with testing of the Ruytenschildt Bridge Eva Lantsoght, Yuguang Yang, Cor van der Veen, Dick Hordijk, Ane de Boer

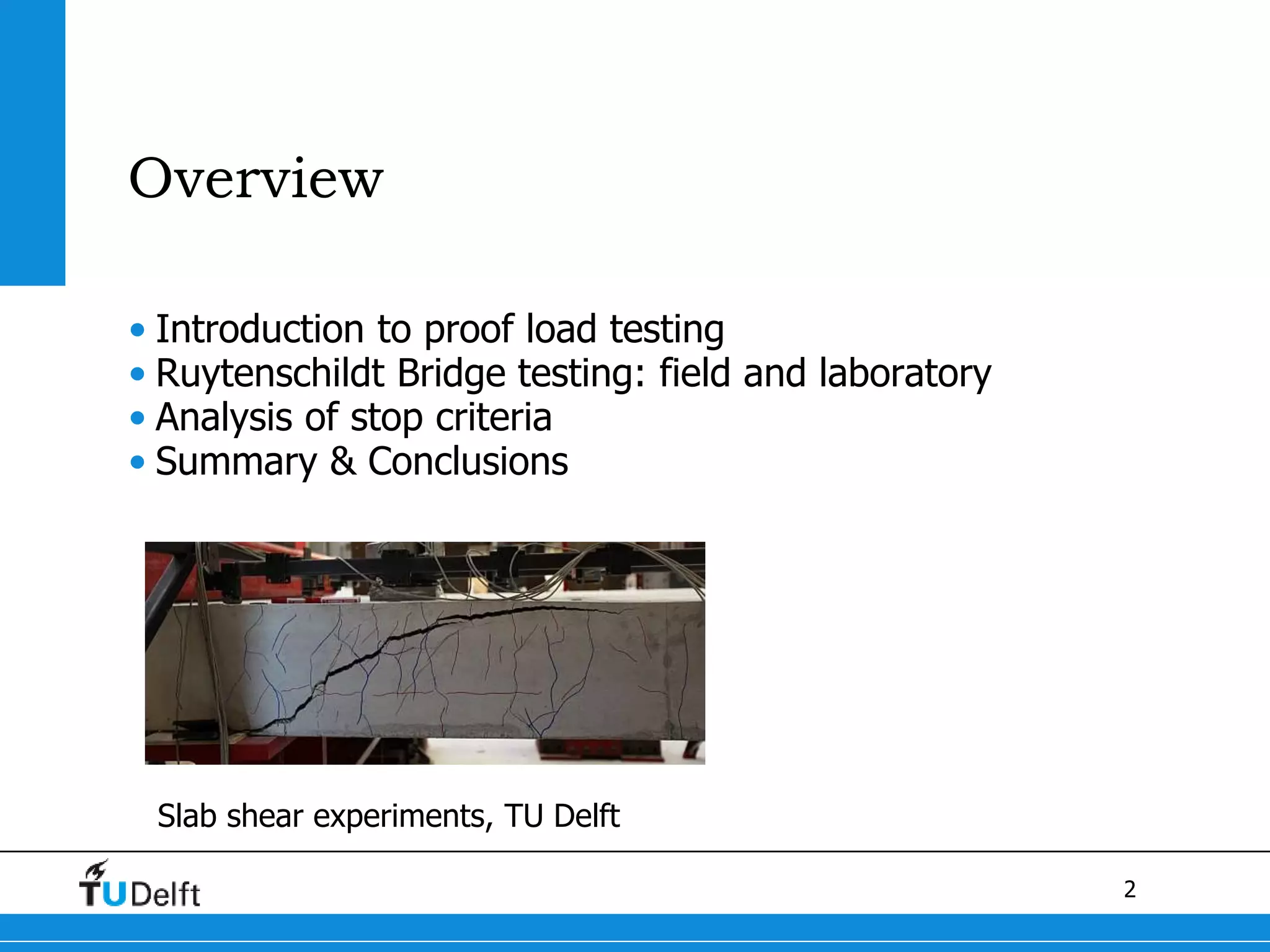

- 2. 2 Overview • Introduction toproof load testing • Ruytenschildt Bridge testing: field and laboratory • Analysis of stop criteria • Summary & Conclusions Slab shear experiments, TU Delft

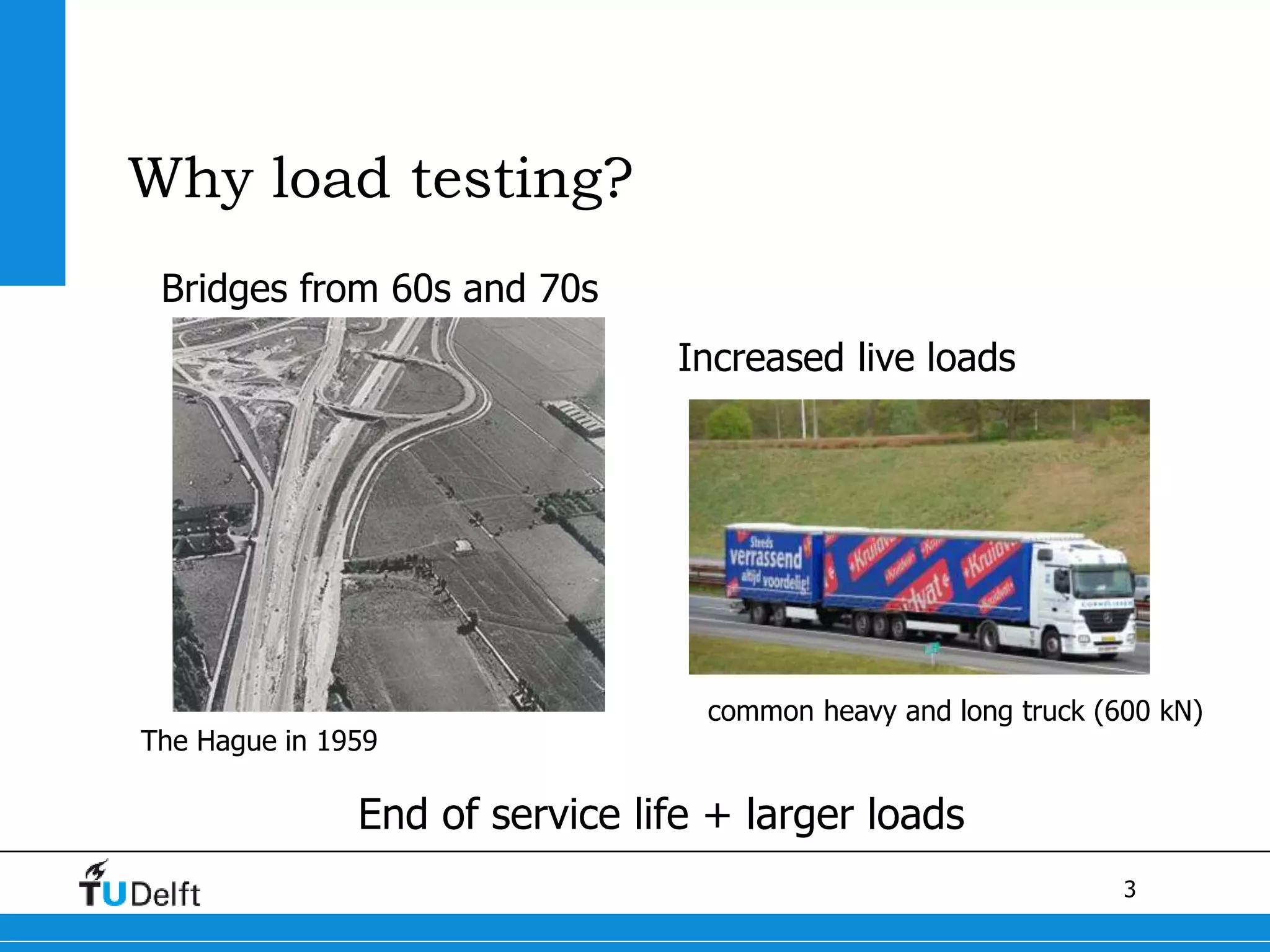

- 3. 3 Why load testing? Bridgesfrom 60s and 70s The Hague in 1959 Increased live loads common heavy and long truck (600 kN) End of service life + larger loads

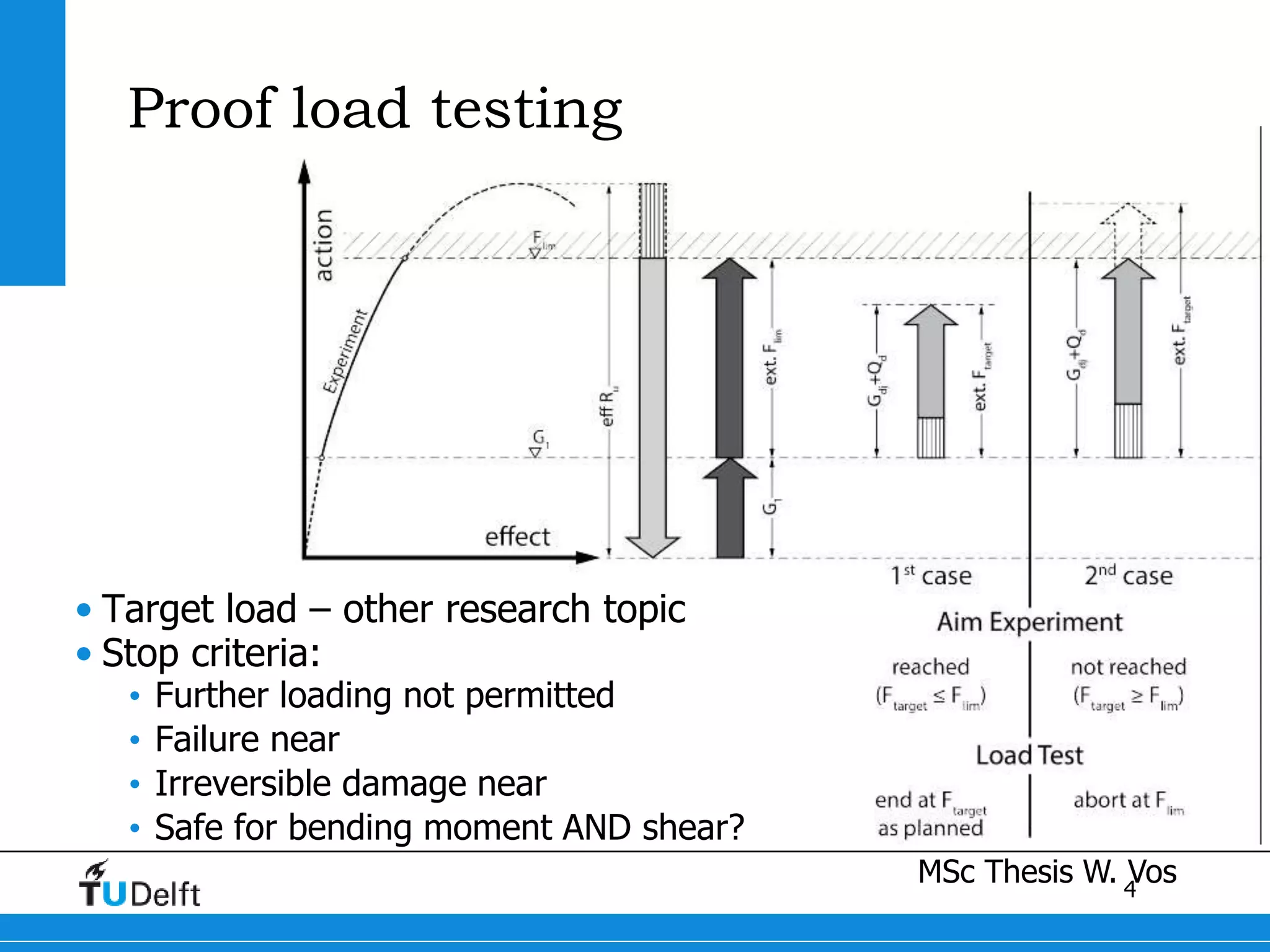

- 4. 4 Proof load testing •Target load – other research topic • Stop criteria: • Further loading not permitted • Failure near • Irreversible damage near • Safe for bending moment AND shear? MSc Thesis W. Vos

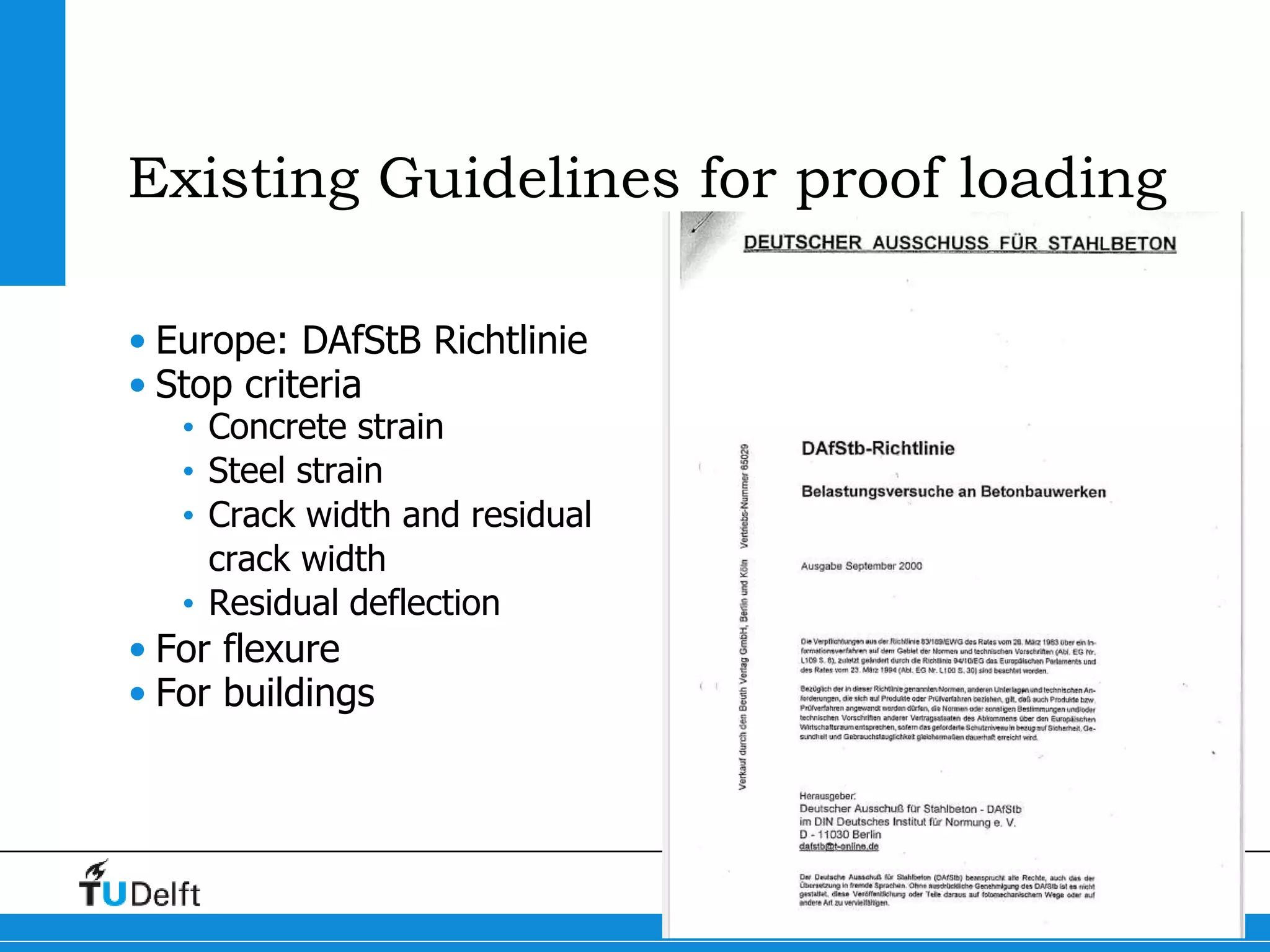

- 5. 5 Existing Guidelines forproof loading • Europe: DAfStB Richtlinie • Stop criteria • Concrete strain • Steel strain • Crack width and residual crack width • Residual deflection • For flexure • For buildings

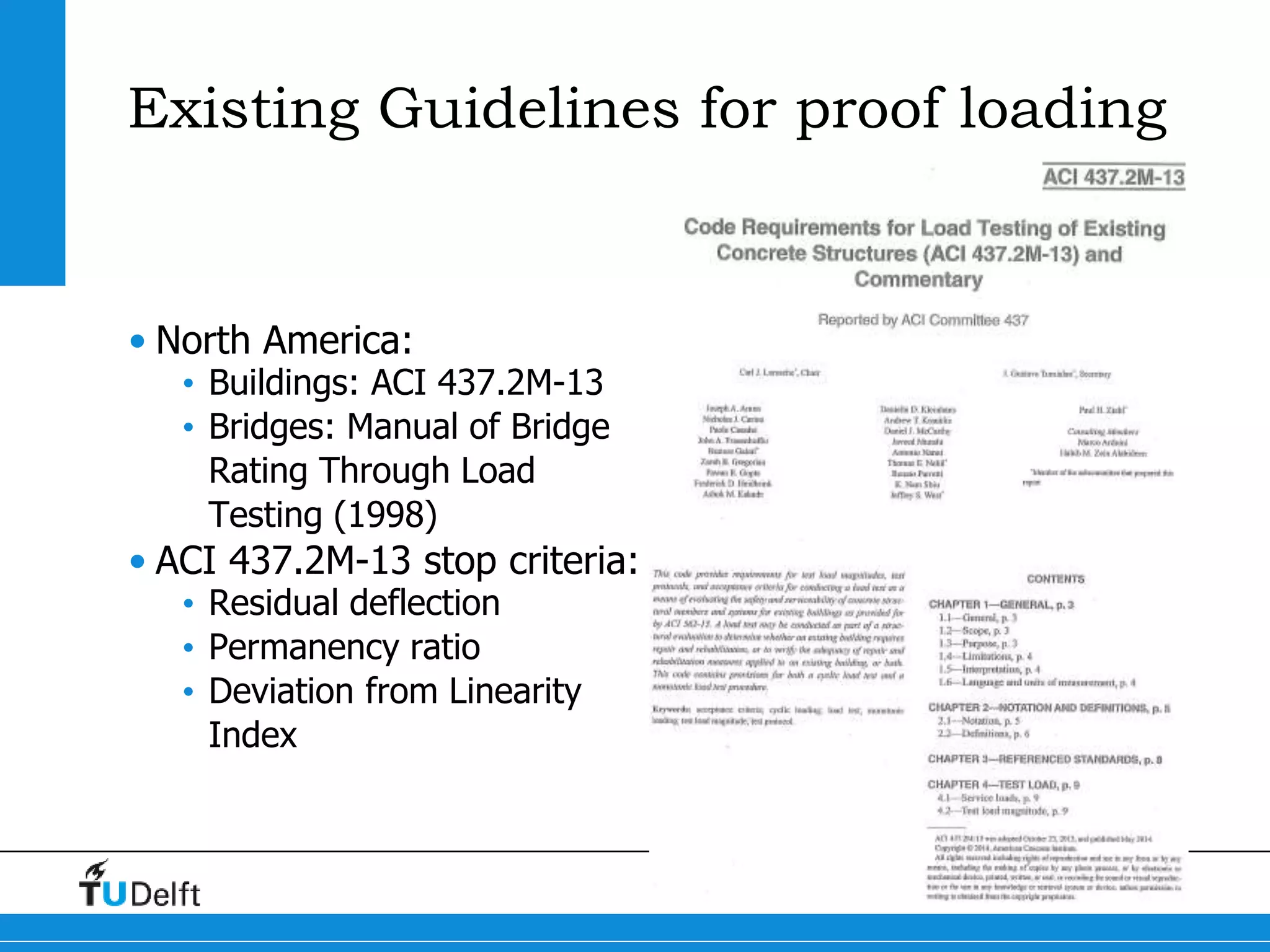

- 6. 6 Existing Guidelines forproof loading • North America: • Buildings: ACI 437.2M-13 • Bridges: Manual of Bridge Rating Through Load Testing (1998) • ACI 437.2M-13 stop criteria: • Residual deflection • Permanency ratio • Deviation from Linearity Index

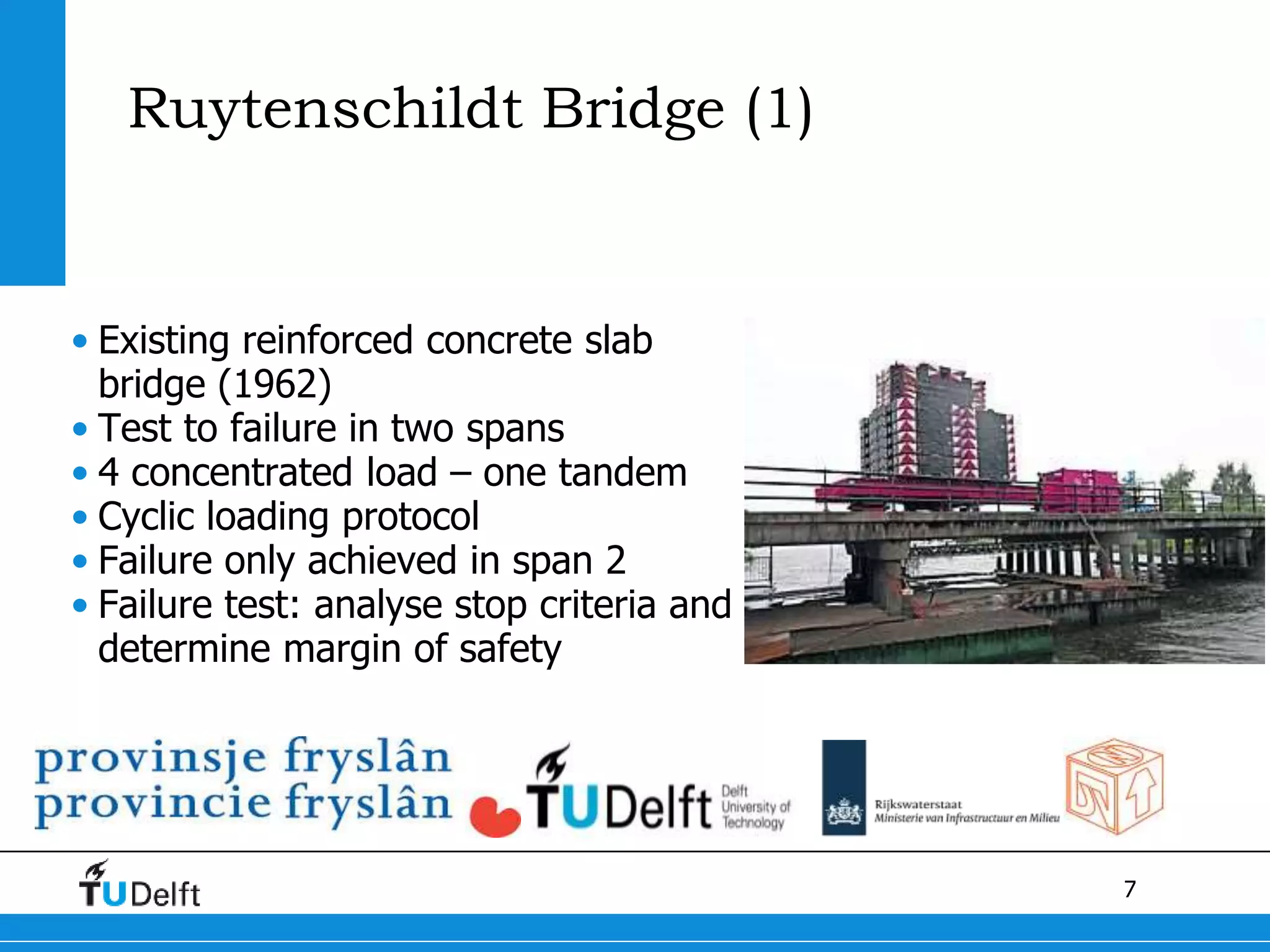

- 7. 7 Ruytenschildt Bridge (1) •Existing reinforced concrete slab bridge (1962) • Test to failure in two spans • 4 concentrated load – one tandem • Cyclic loading protocol • Failure only achieved in span 2 • Failure test: analyse stop criteria and determine margin of safety

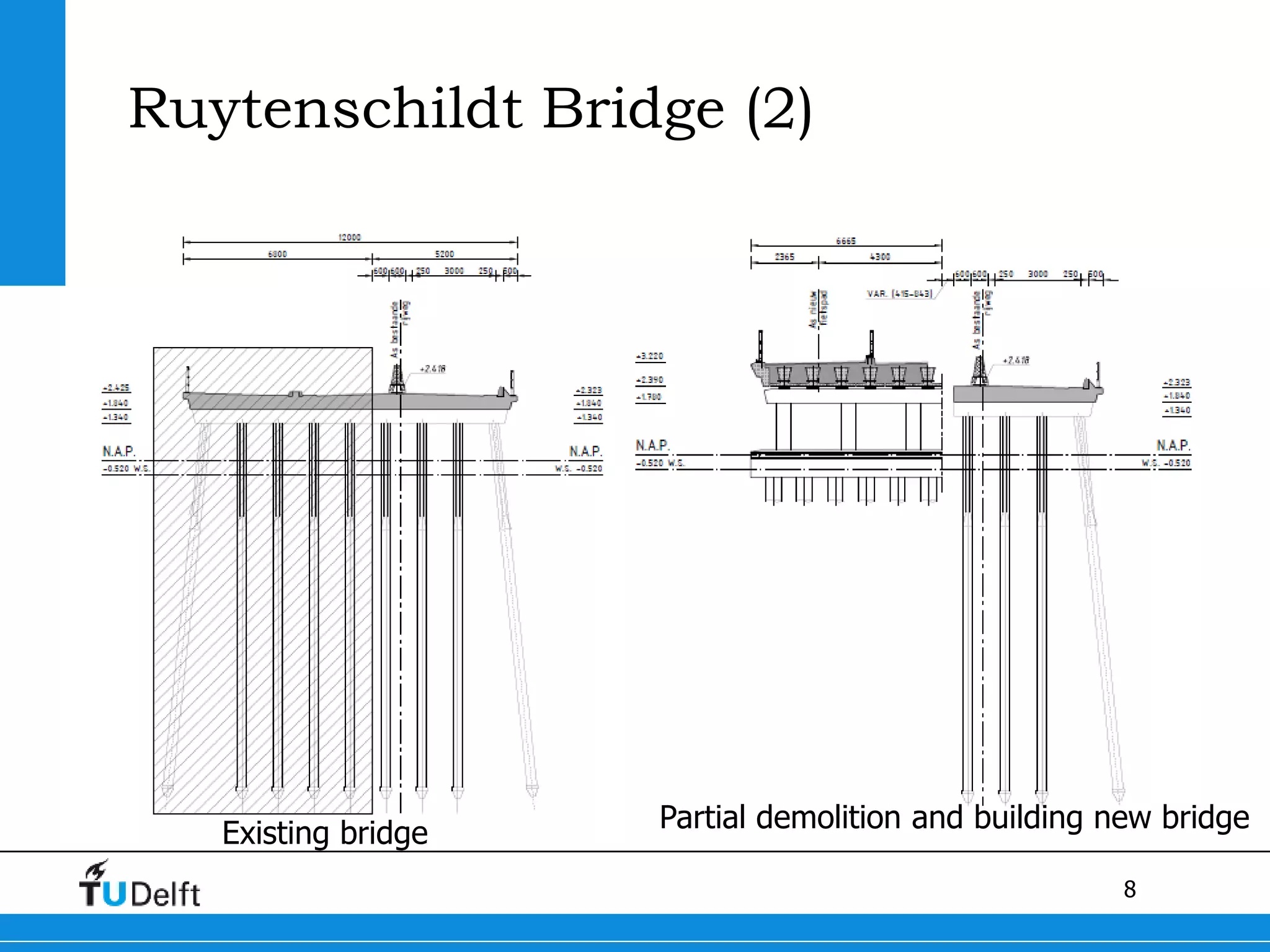

- 8. 8 Ruytenschildt Bridge (2) Existingbridge Partial demolition and building new bridge

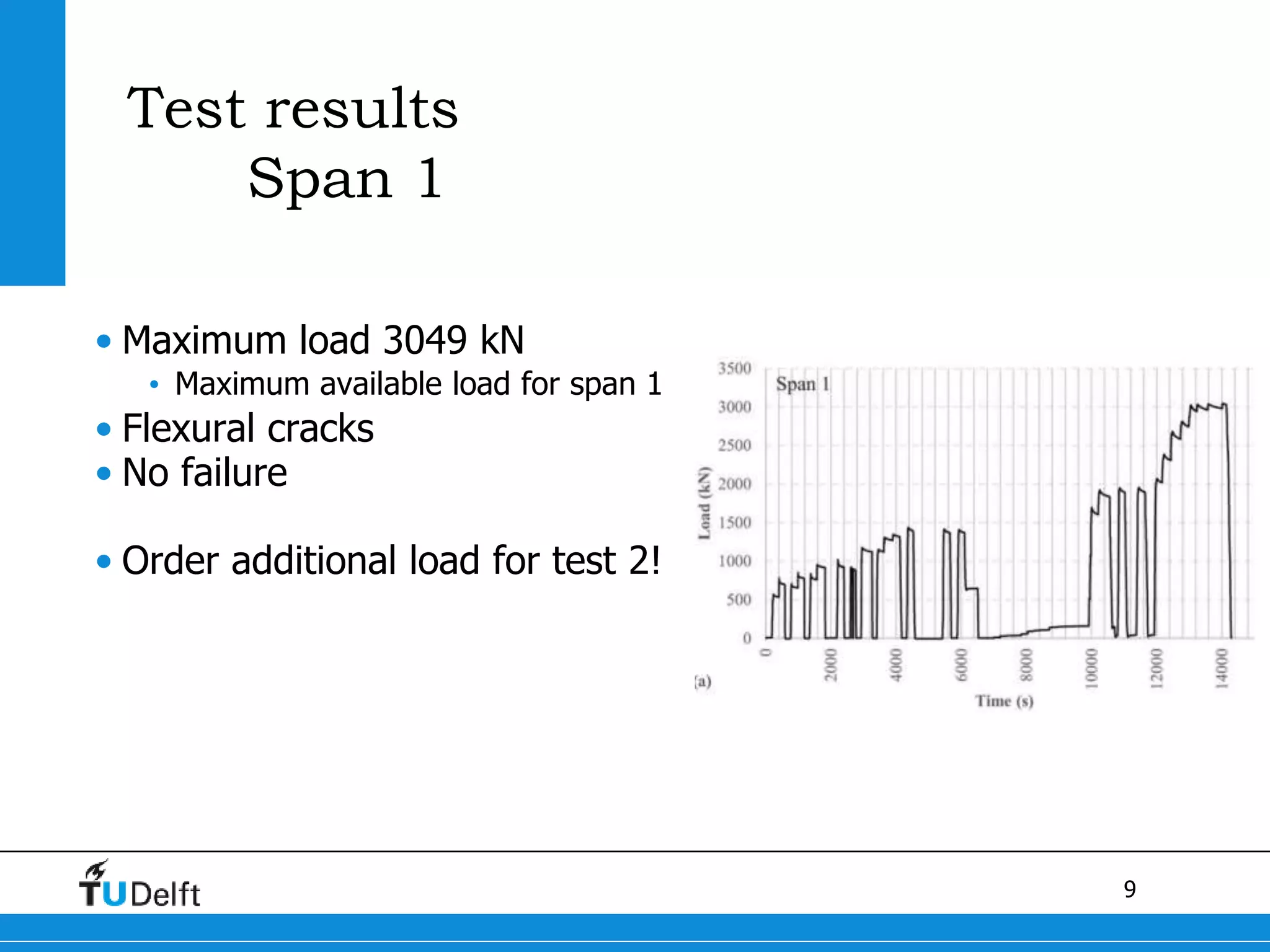

- 9. 9 Test results Span 1 •Maximum load 3049 kN • Maximum available load for span 1 • Flexural cracks • No failure • Order additional load for test 2!

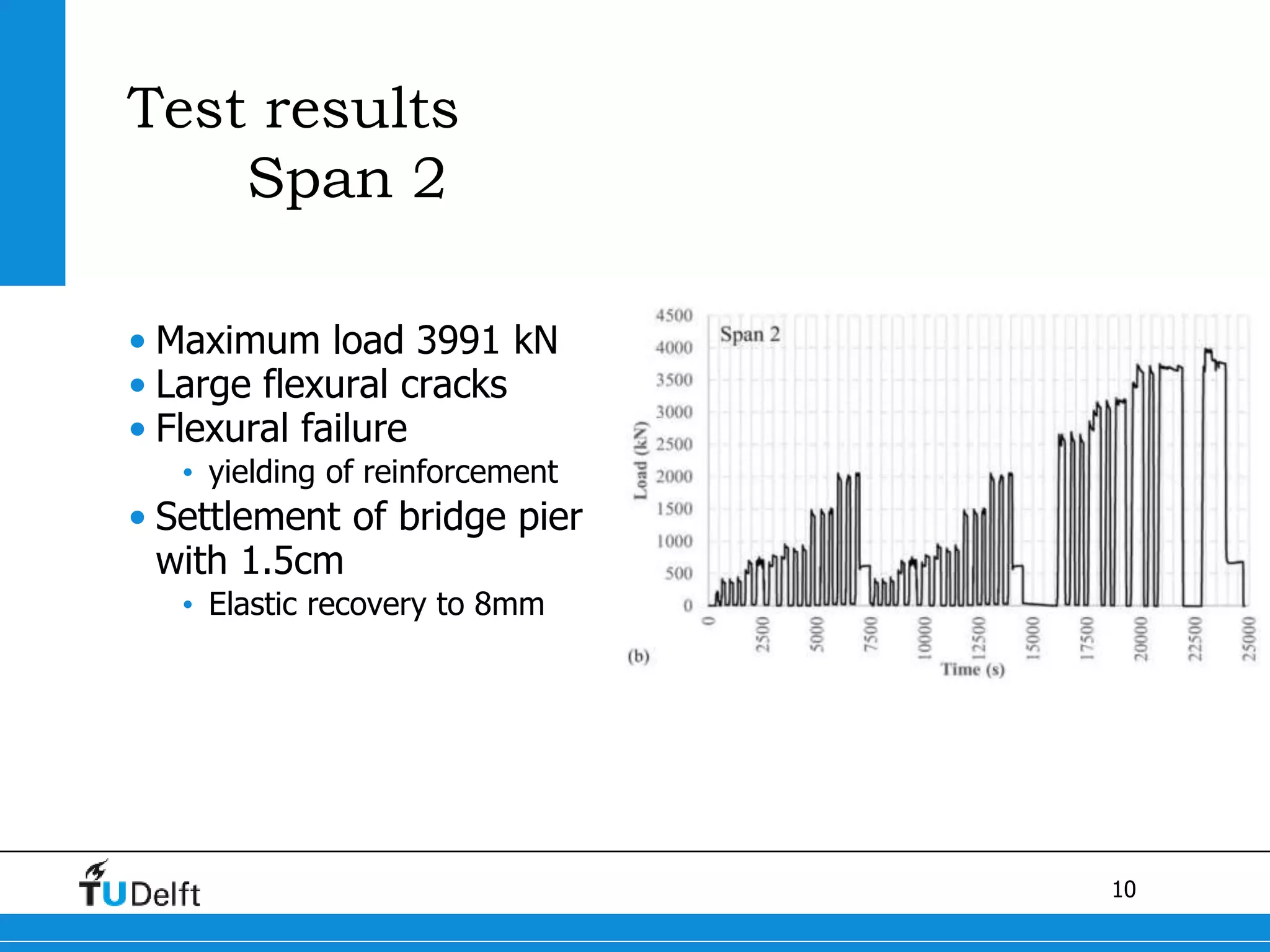

- 10. 10 Test results Span 2 •Maximum load 3991 kN • Large flexural cracks • Flexural failure • yielding of reinforcement • Settlement of bridge pier with 1.5cm • Elastic recovery to 8mm
- 11.

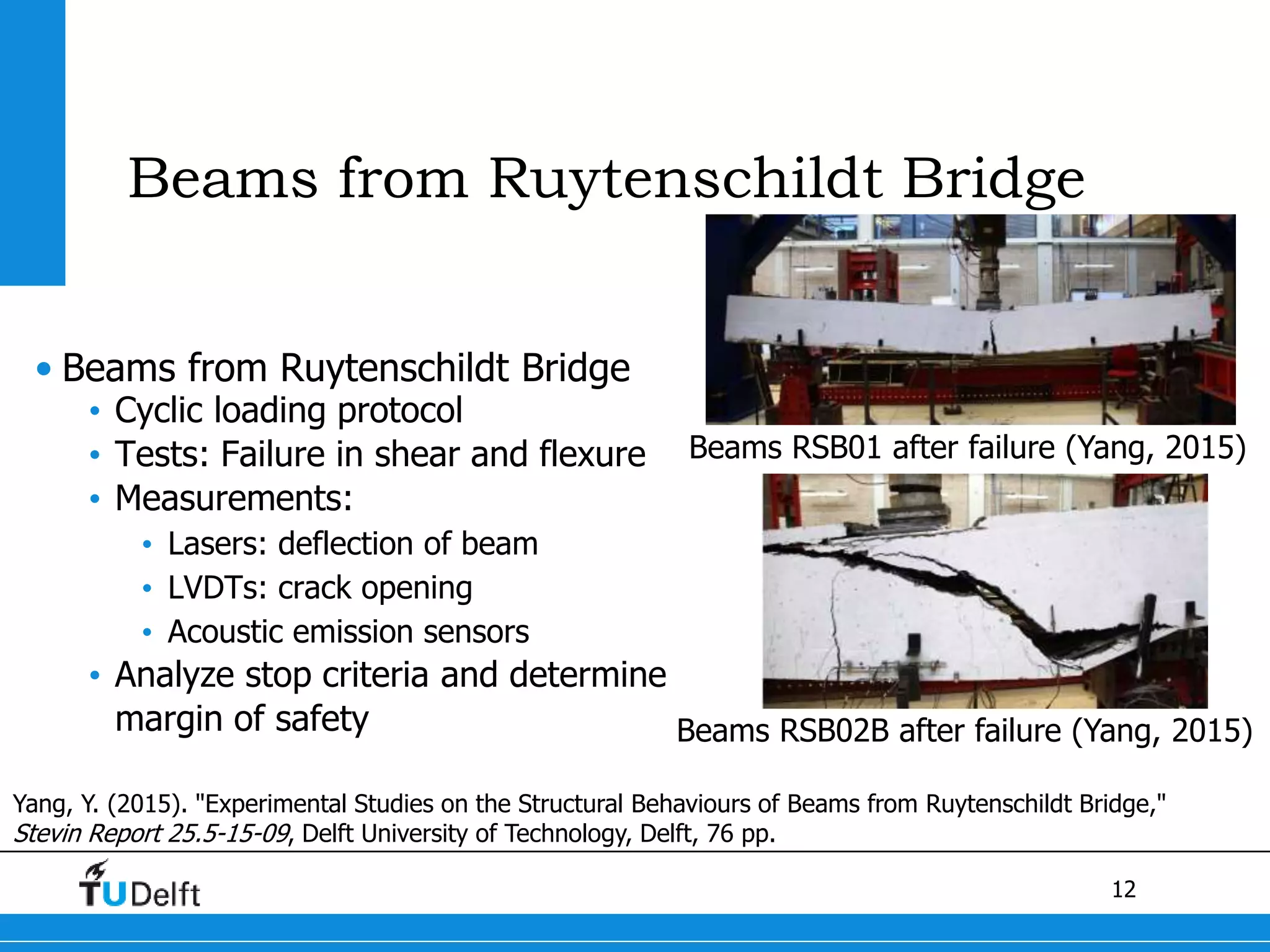

- 12. 12 Beams from RuytenschildtBridge • Beams from Ruytenschildt Bridge • Cyclic loading protocol • Tests: Failure in shear and flexure • Measurements: • Lasers: deflection of beam • LVDTs: crack opening • Acoustic emission sensors • Analyze stop criteria and determine margin of safety Beams RSB01 after failure (Yang, 2015) Yang, Y. (2015). "Experimental Studies on the Structural Behaviours of Beams from Ruytenschildt Bridge," Stevin Report 25.5-15-09, Delft University of Technology, Delft, 76 pp. Beams RSB02B after failure (Yang, 2015)

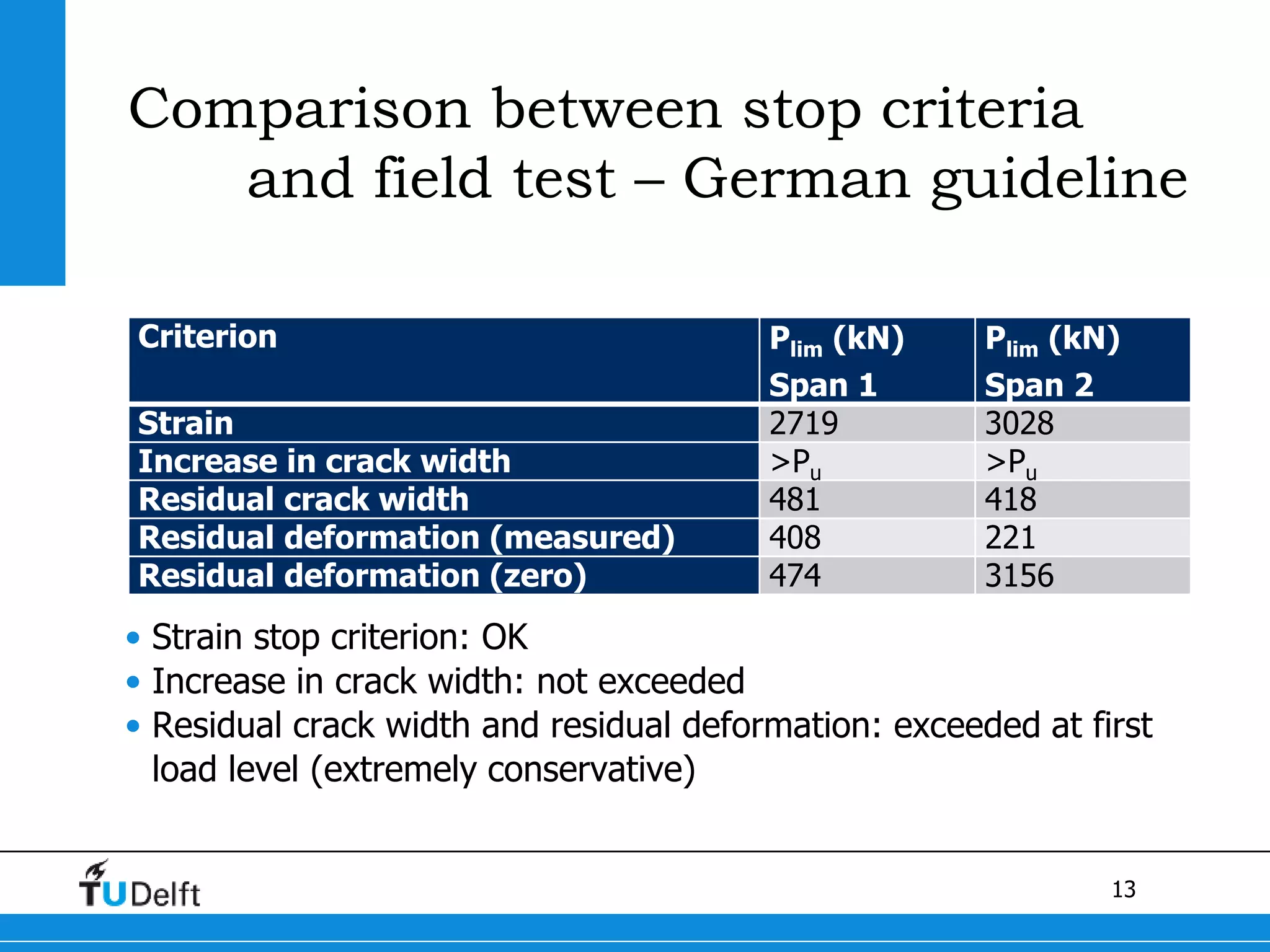

- 13. 13 Comparison between stopcriteria and field test – German guideline Criterion Plim (kN) Span 1 Plim (kN) Span 2 Strain 2719 3028 Increase in crack width >Pu >Pu Residual crack width 481 418 Residual deformation (measured) 408 221 Residual deformation (zero) 474 3156 • Strain stop criterion: OK • Increase in crack width: not exceeded • Residual crack width and residual deformation: exceeded at first load level (extremely conservative)

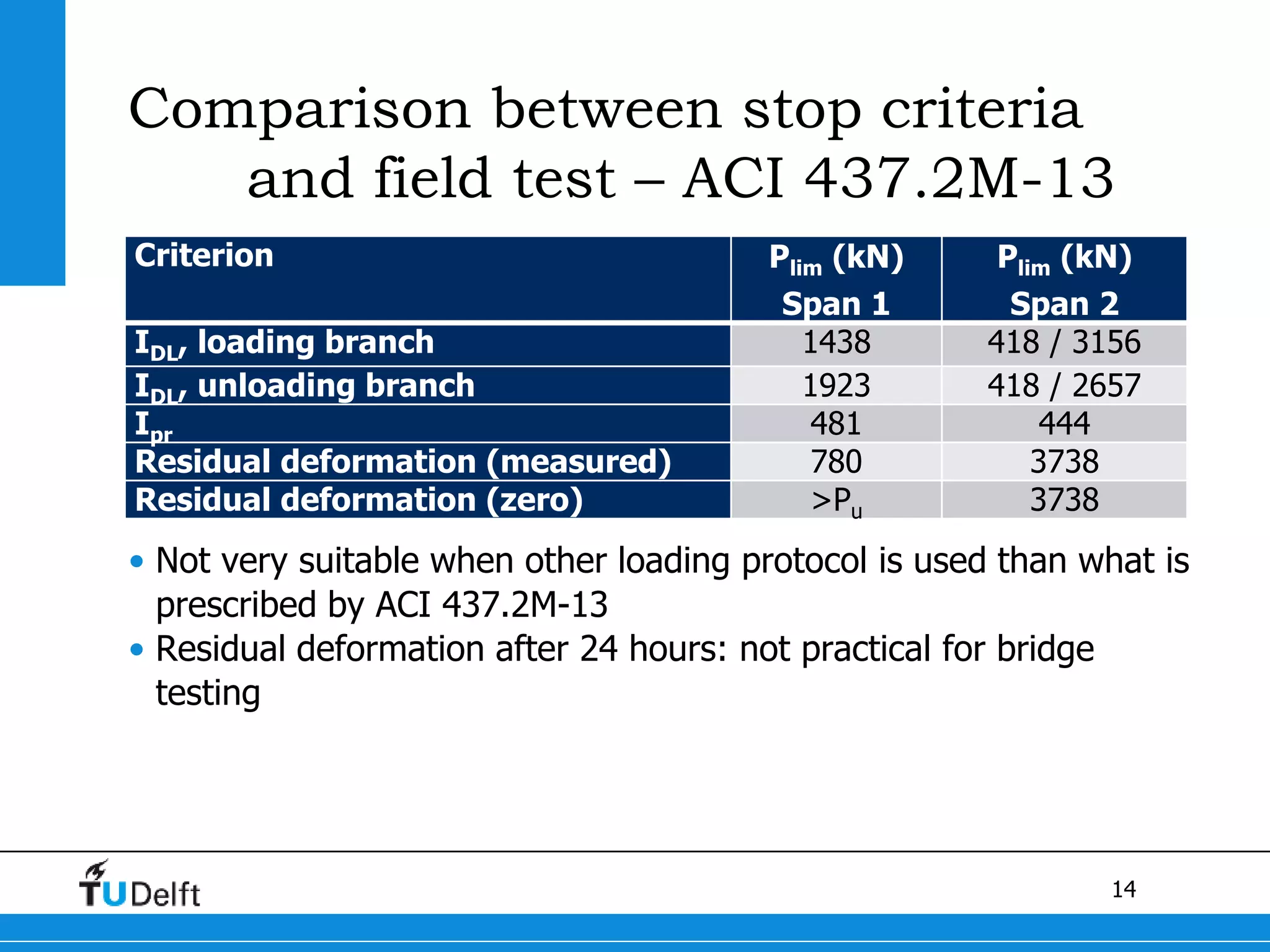

- 14. 14 Comparison between stopcriteria and field test – ACI 437.2M-13 Criterion Plim (kN) Span 1 Plim (kN) Span 2 IDL, loading branch 1438 418 / 3156 IDL, unloading branch 1923 418 / 2657 Ipr 481 444 Residual deformation (measured) 780 3738 Residual deformation (zero) >Pu 3738 • Not very suitable when other loading protocol is used than what is prescribed by ACI 437.2M-13 • Residual deformation after 24 hours: not practical for bridge testing

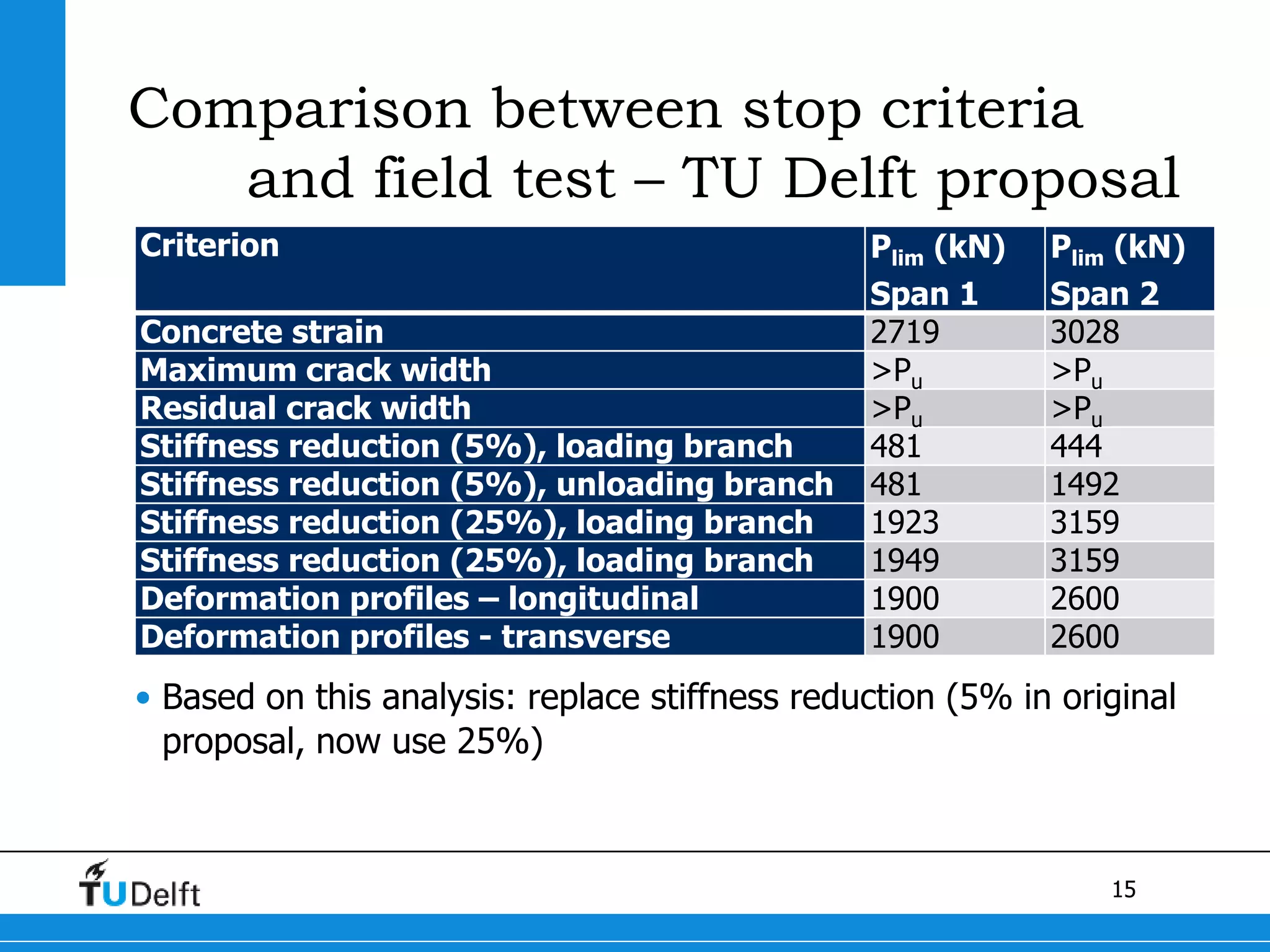

- 15. 15 Comparison between stopcriteria and field test – TU Delft proposal Criterion Plim (kN) Span 1 Plim (kN) Span 2 Concrete strain 2719 3028 Maximum crack width >Pu >Pu Residual crack width >Pu >Pu Stiffness reduction (5%), loading branch 481 444 Stiffness reduction (5%), unloading branch 481 1492 Stiffness reduction (25%), loading branch 1923 3159 Stiffness reduction (25%), loading branch 1949 3159 Deformation profiles – longitudinal 1900 2600 Deformation profiles - transverse 1900 2600 • Based on this analysis: replace stiffness reduction (5% in original proposal, now use 25%)

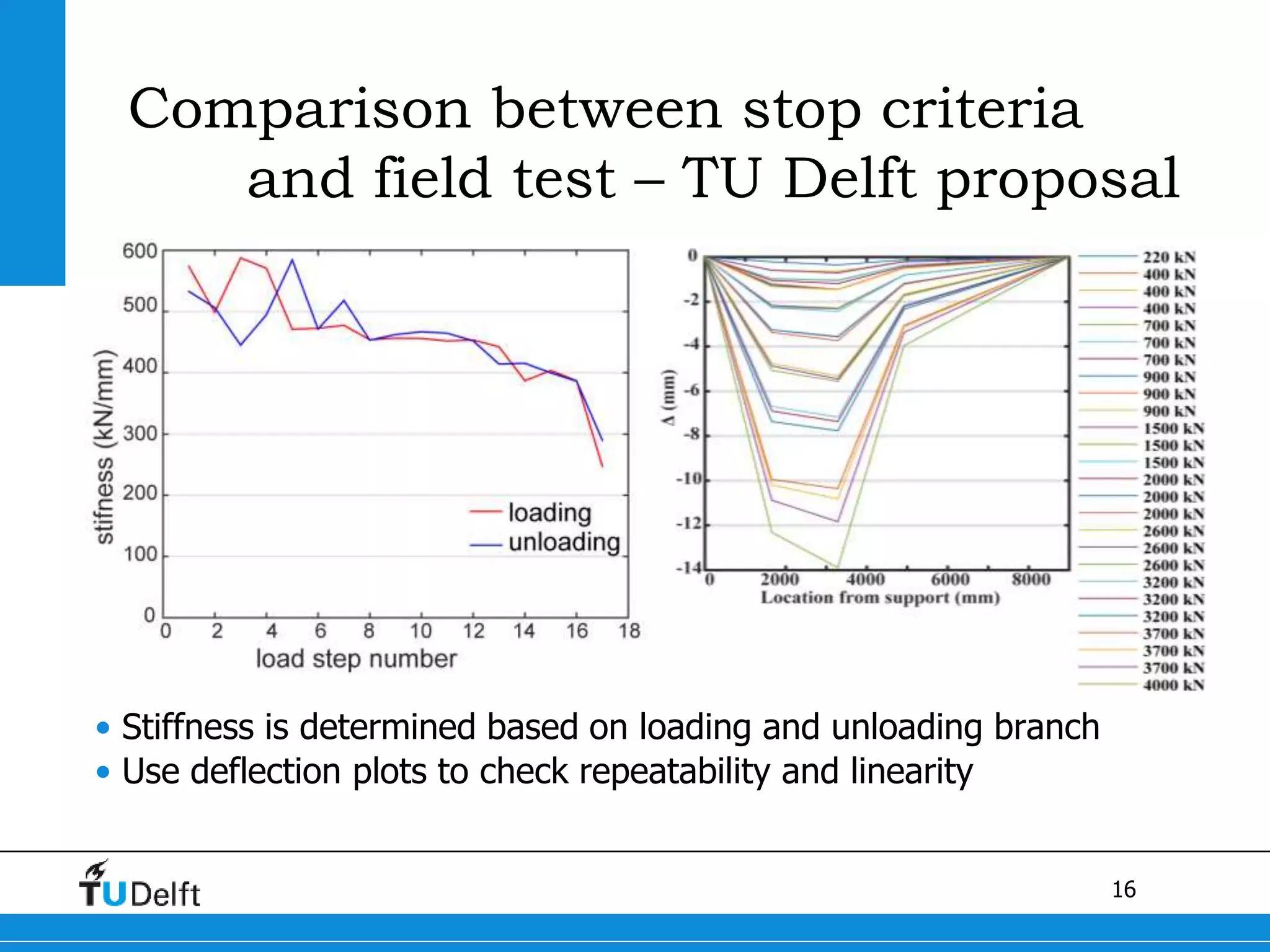

- 16. 16 Comparison between stopcriteria and field test – TU Delft proposal • Stiffness is determined based on loading and unloading branch • Use deflection plots to check repeatability and linearity

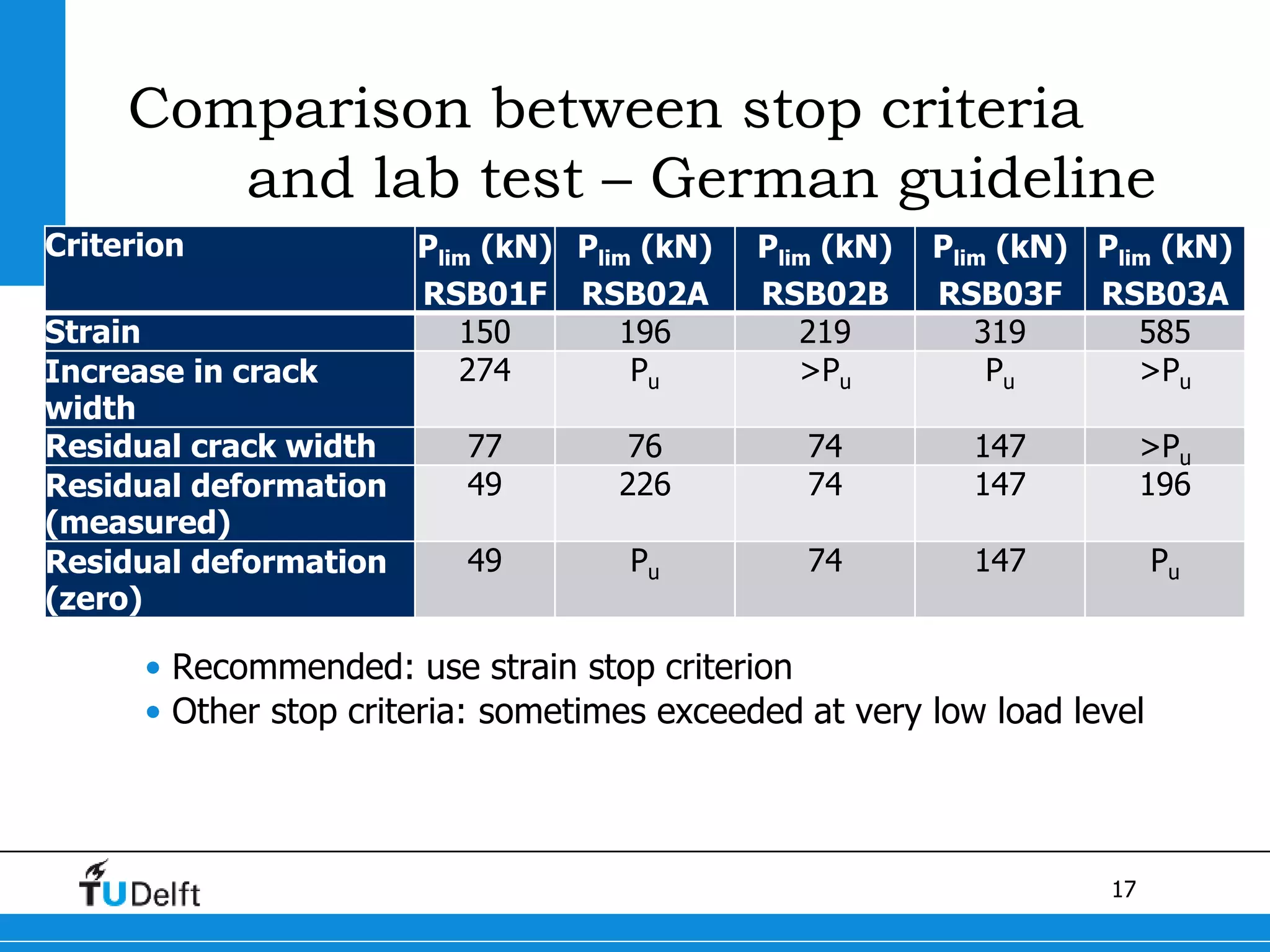

- 17. 17 Comparison between stopcriteria and lab test – German guideline Criterion Plim (kN) RSB01F Plim (kN) RSB02A Plim (kN) RSB02B Plim (kN) RSB03F Plim (kN) RSB03A Strain 150 196 219 319 585 Increase in crack width 274 Pu >Pu Pu >Pu Residual crack width 77 76 74 147 >Pu Residual deformation (measured) 49 226 74 147 196 Residual deformation (zero) 49 Pu 74 147 Pu • Recommended: use strain stop criterion • Other stop criteria: sometimes exceeded at very low load level

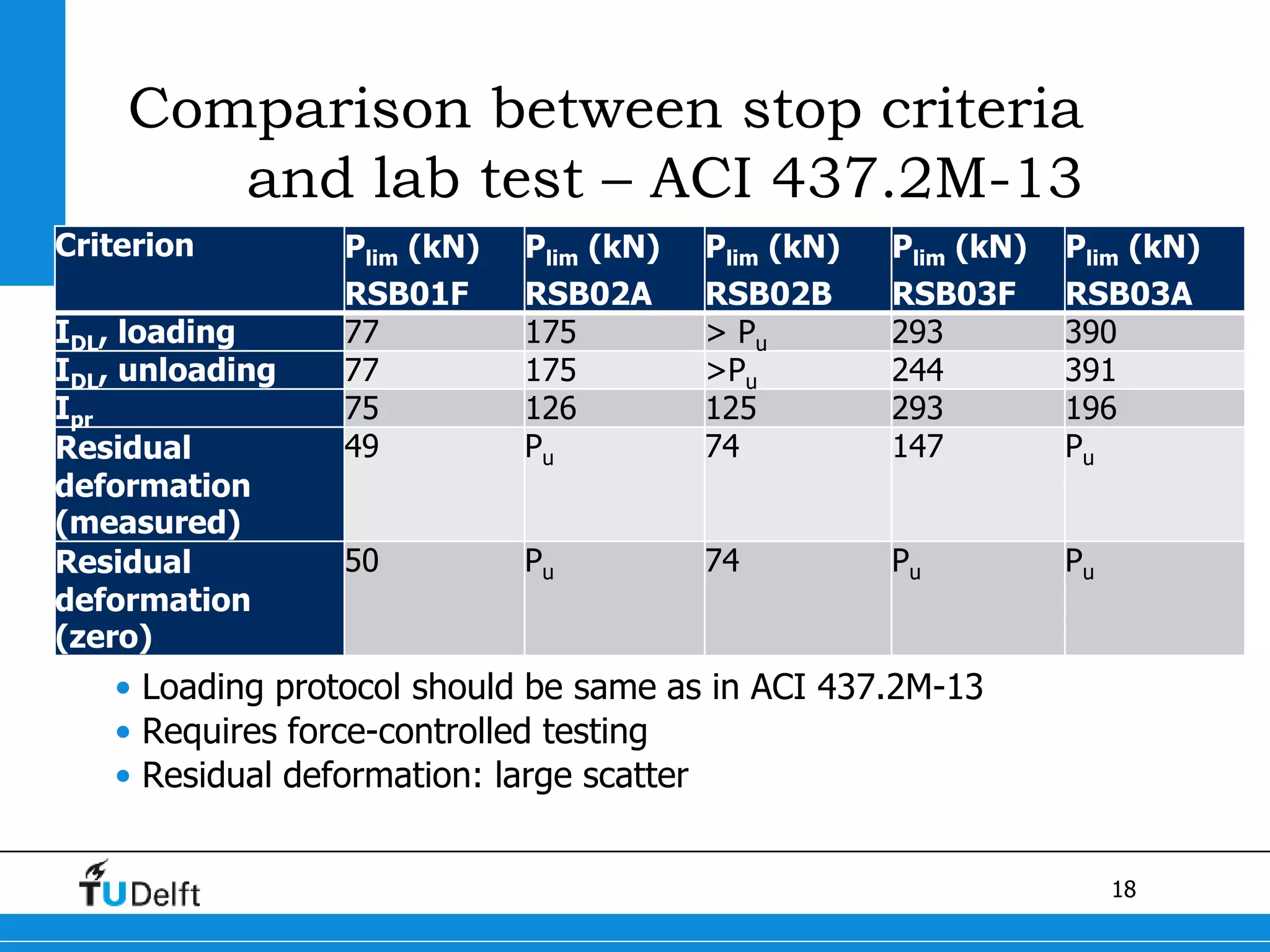

- 18. 18 Comparison between stopcriteria and lab test – ACI 437.2M-13 Criterion Plim (kN) RSB01F Plim (kN) RSB02A Plim (kN) RSB02B Plim (kN) RSB03F Plim (kN) RSB03A IDL, loading 77 175 > Pu 293 390 IDL, unloading 77 175 >Pu 244 391 Ipr 75 126 125 293 196 Residual deformation (measured) 49 Pu 74 147 Pu Residual deformation (zero) 50 Pu 74 Pu Pu • Loading protocol should be same as in ACI 437.2M-13 • Requires force-controlled testing • Residual deformation: large scatter

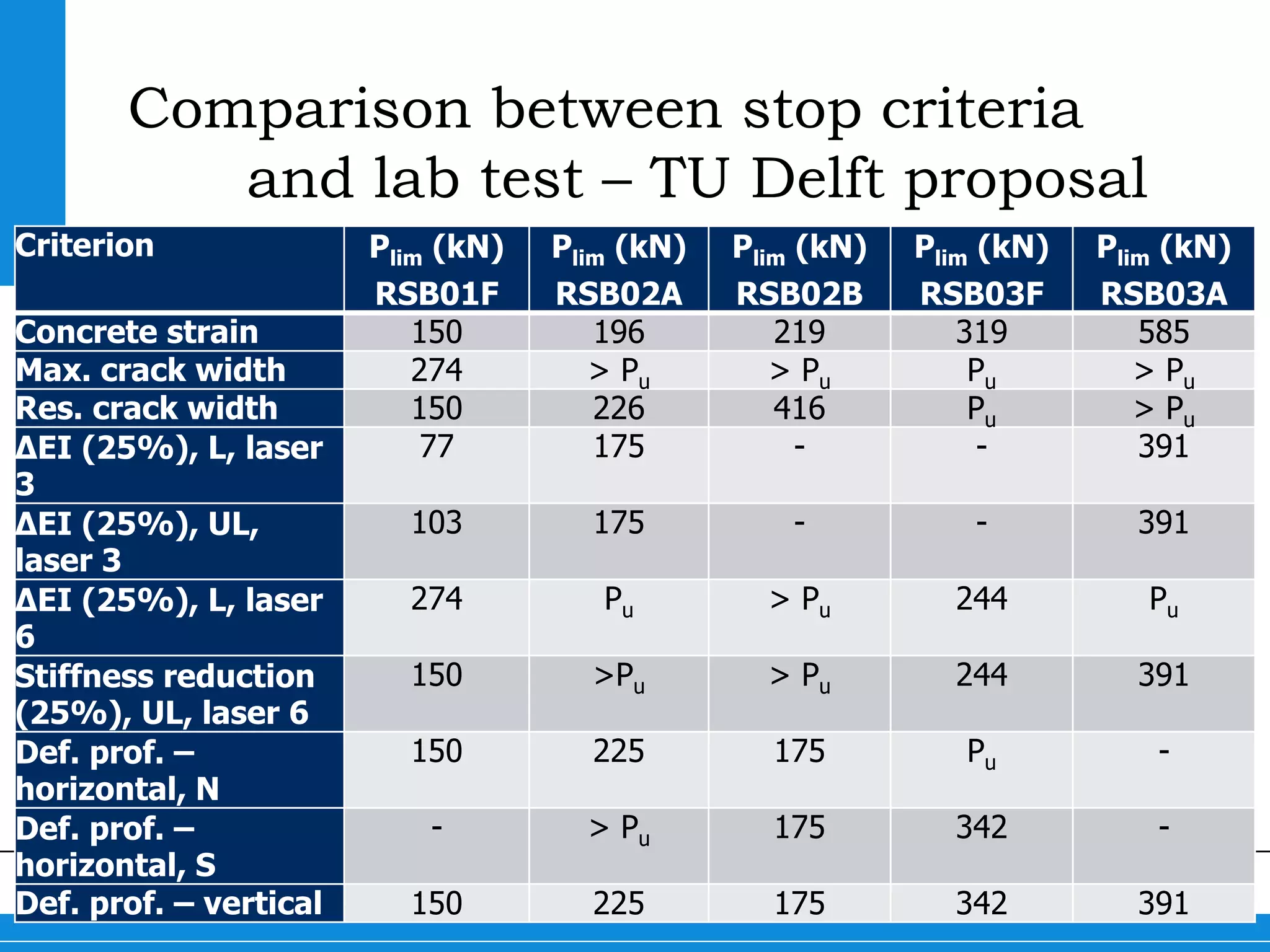

- 19. 19 Comparison between stopcriteria and lab test – TU Delft proposal Criterion Plim (kN) RSB01F Plim (kN) RSB02A Plim (kN) RSB02B Plim (kN) RSB03F Plim (kN) RSB03A Concrete strain 150 196 219 319 585 Max. crack width 274 > Pu > Pu Pu > Pu Res. crack width 150 226 416 Pu > Pu ΔEI (25%), L, laser 3 77 175 - - 391 ΔEI (25%), UL, laser 3 103 175 - - 391 ΔEI (25%), L, laser 6 274 Pu > Pu 244 Pu Stiffness reduction (25%), UL, laser 6 150 >Pu > Pu 244 391 Def. prof. – horizontal, N 150 225 175 Pu - Def. prof. – horizontal, S - > Pu 175 342 - Def. prof. – vertical 150 225 175 342 391

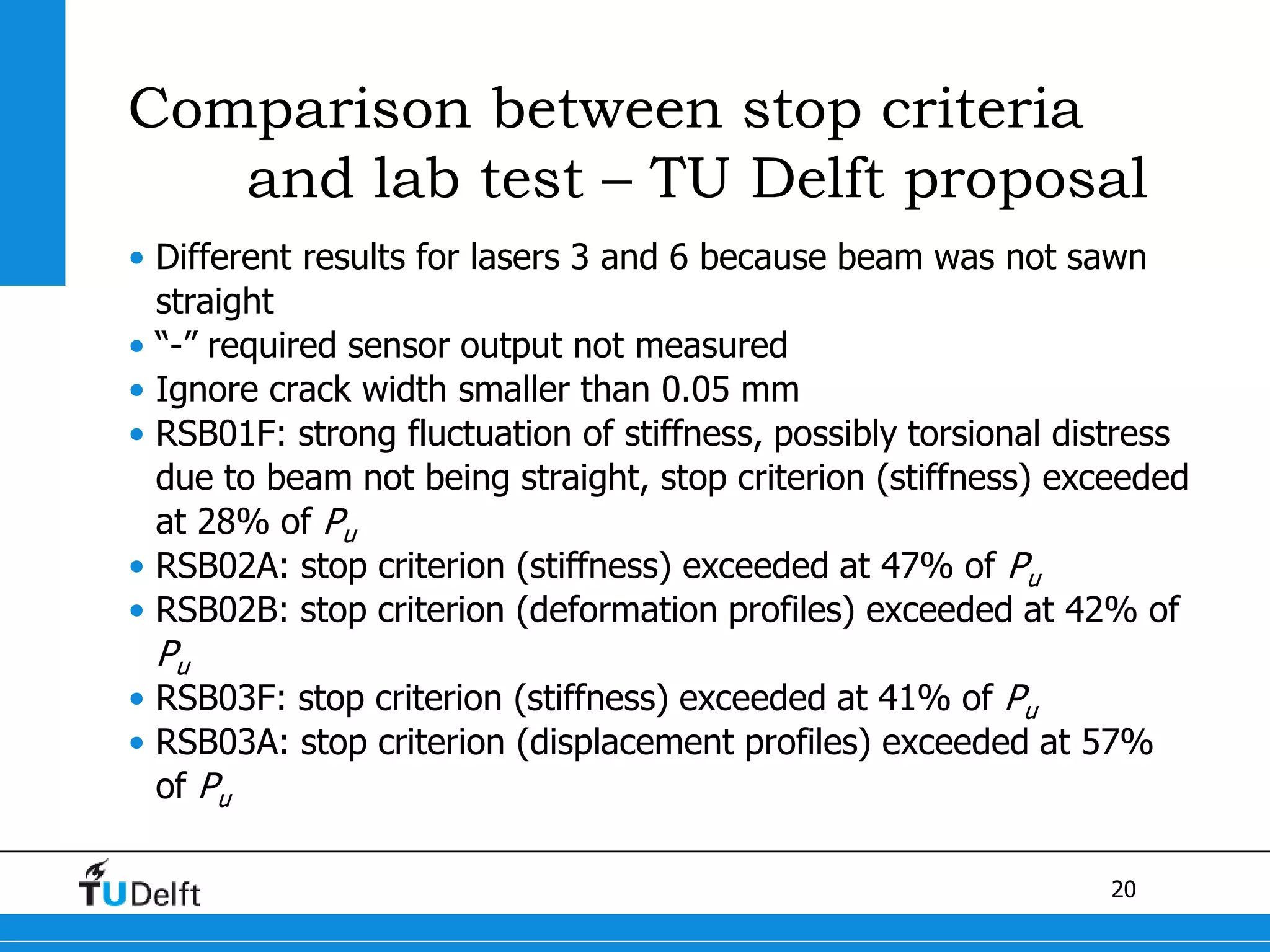

- 20. 20 Comparison between stopcriteria and lab test – TU Delft proposal • Different results for lasers 3 and 6 because beam was not sawn straight • “-” required sensor output not measured • Ignore crack width smaller than 0.05 mm • RSB01F: strong fluctuation of stiffness, possibly torsional distress due to beam not being straight, stop criterion (stiffness) exceeded at 28% of Pu • RSB02A: stop criterion (stiffness) exceeded at 47% of Pu • RSB02B: stop criterion (deformation profiles) exceeded at 42% of Pu • RSB03F: stop criterion (stiffness) exceeded at 41% of Pu • RSB03A: stop criterion (displacement profiles) exceeded at 57% of Pu

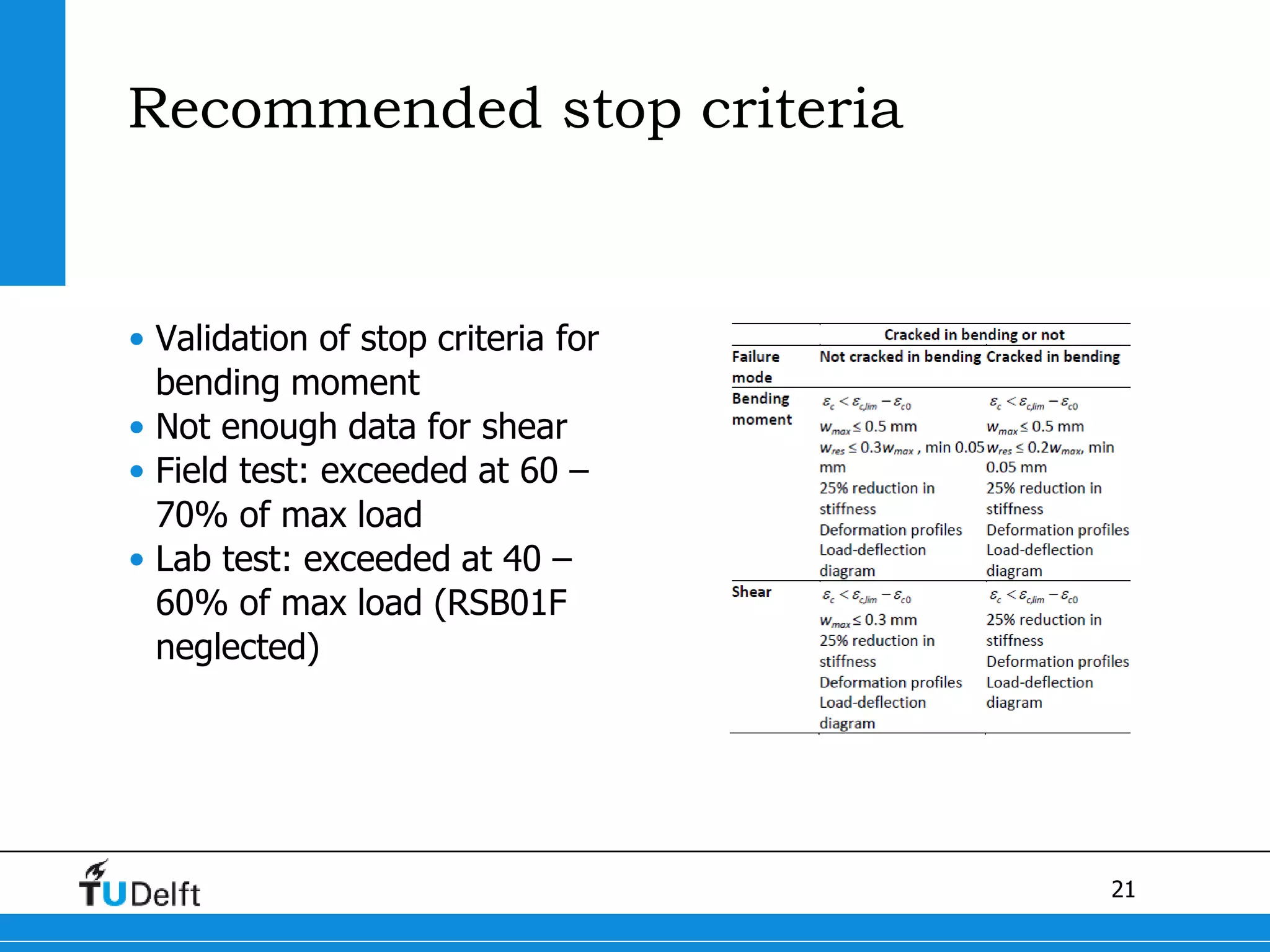

- 21. 21 Recommended stop criteria •Validation of stop criteria for bending moment • Not enough data for shear • Field test: exceeded at 60 – 70% of max load • Lab test: exceeded at 40 – 60% of max load (RSB01F neglected)

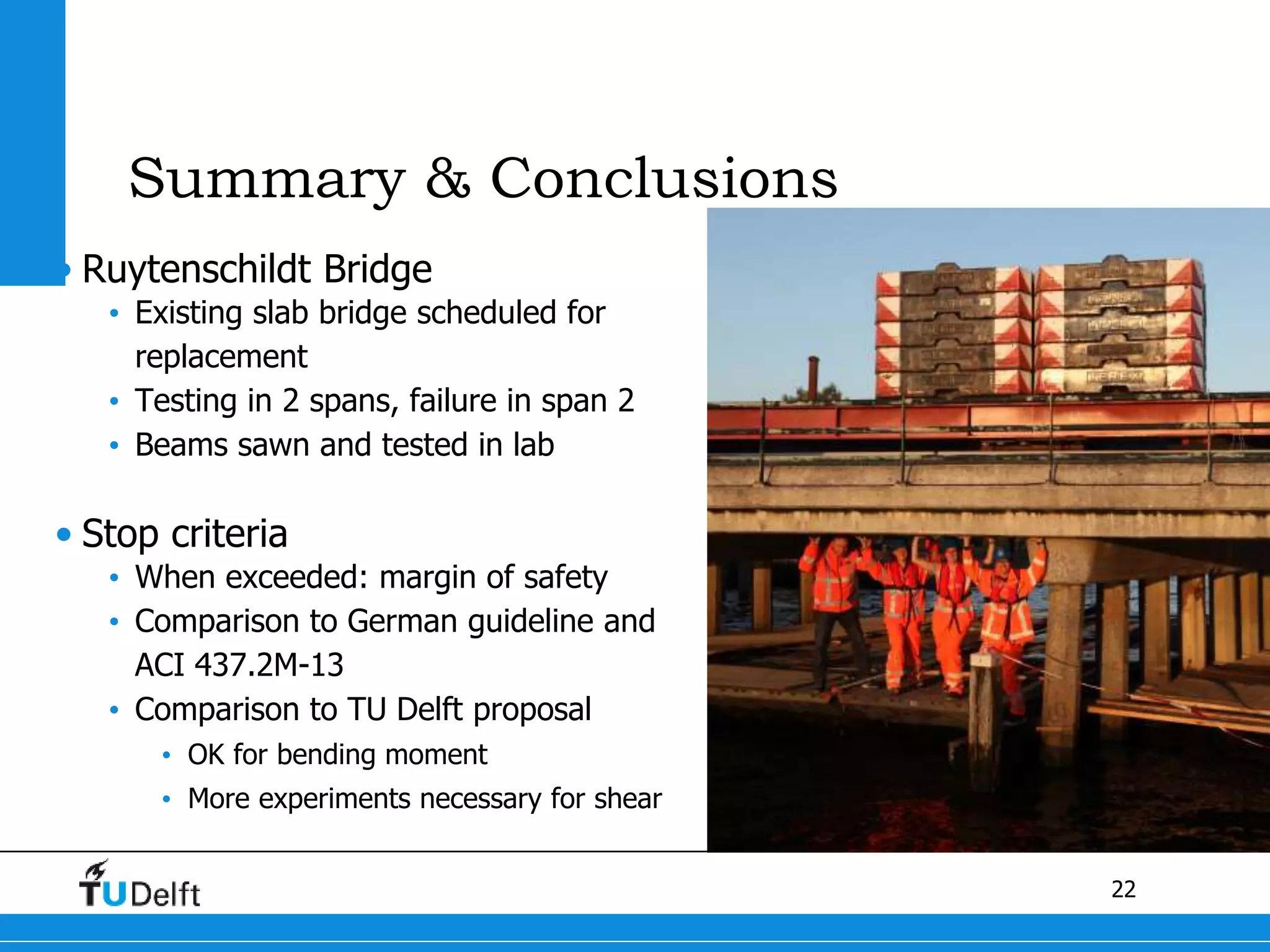

- 22. 22 Summary & Conclusions •Ruytenschildt Bridge • Existing slab bridge scheduled for replacement • Testing in 2 spans, failure in span 2 • Beams sawn and tested in lab • Stop criteria • When exceeded: margin of safety • Comparison to German guideline and ACI 437.2M-13 • Comparison to TU Delft proposal • OK for bending moment • More experiments necessary for shear

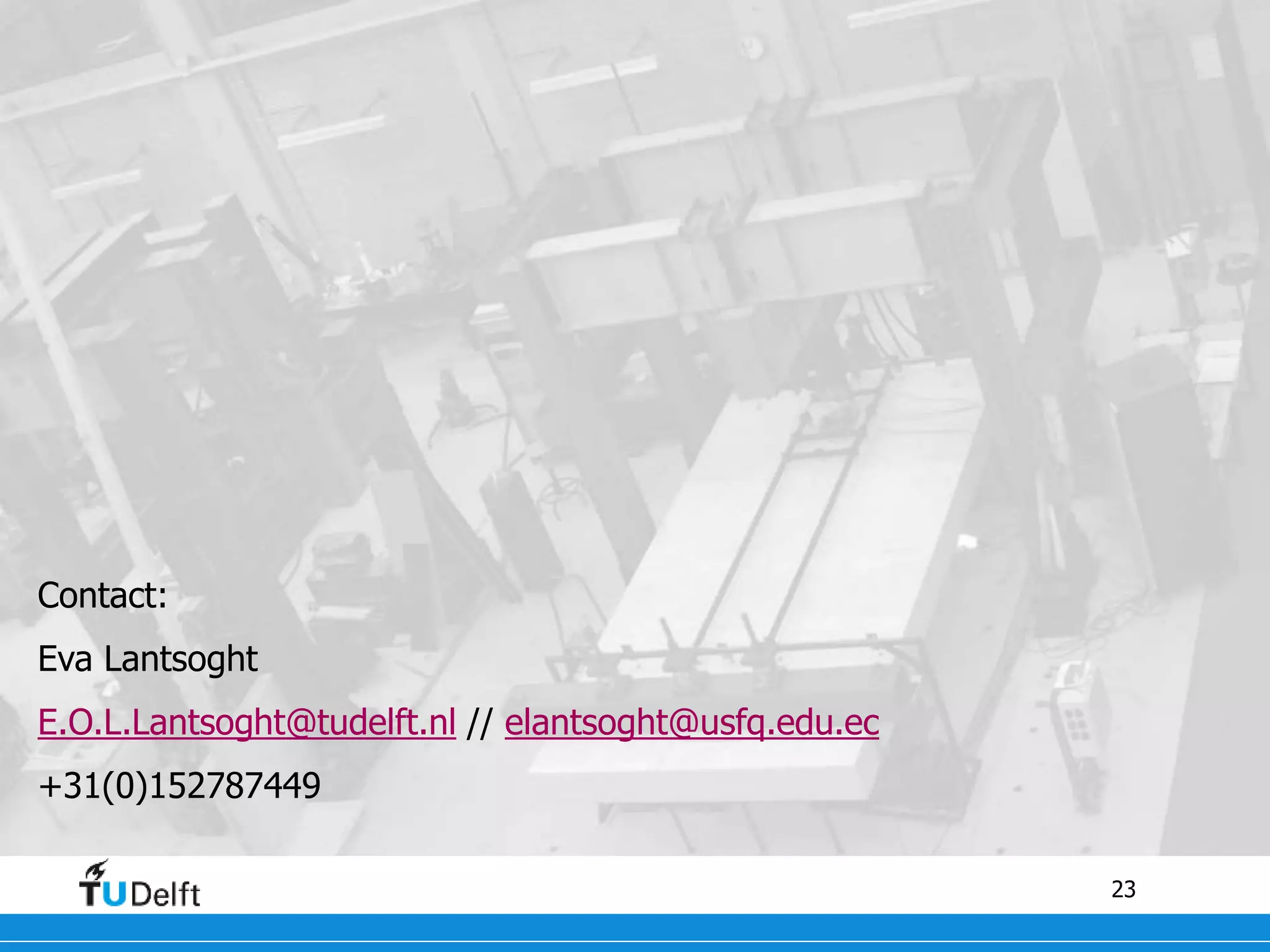

- 23. 23 Contact: Eva Lantsoght E.O.L.Lantsoght@tudelft.nl //elantsoght@usfq.edu.ec +31(0)152787449
