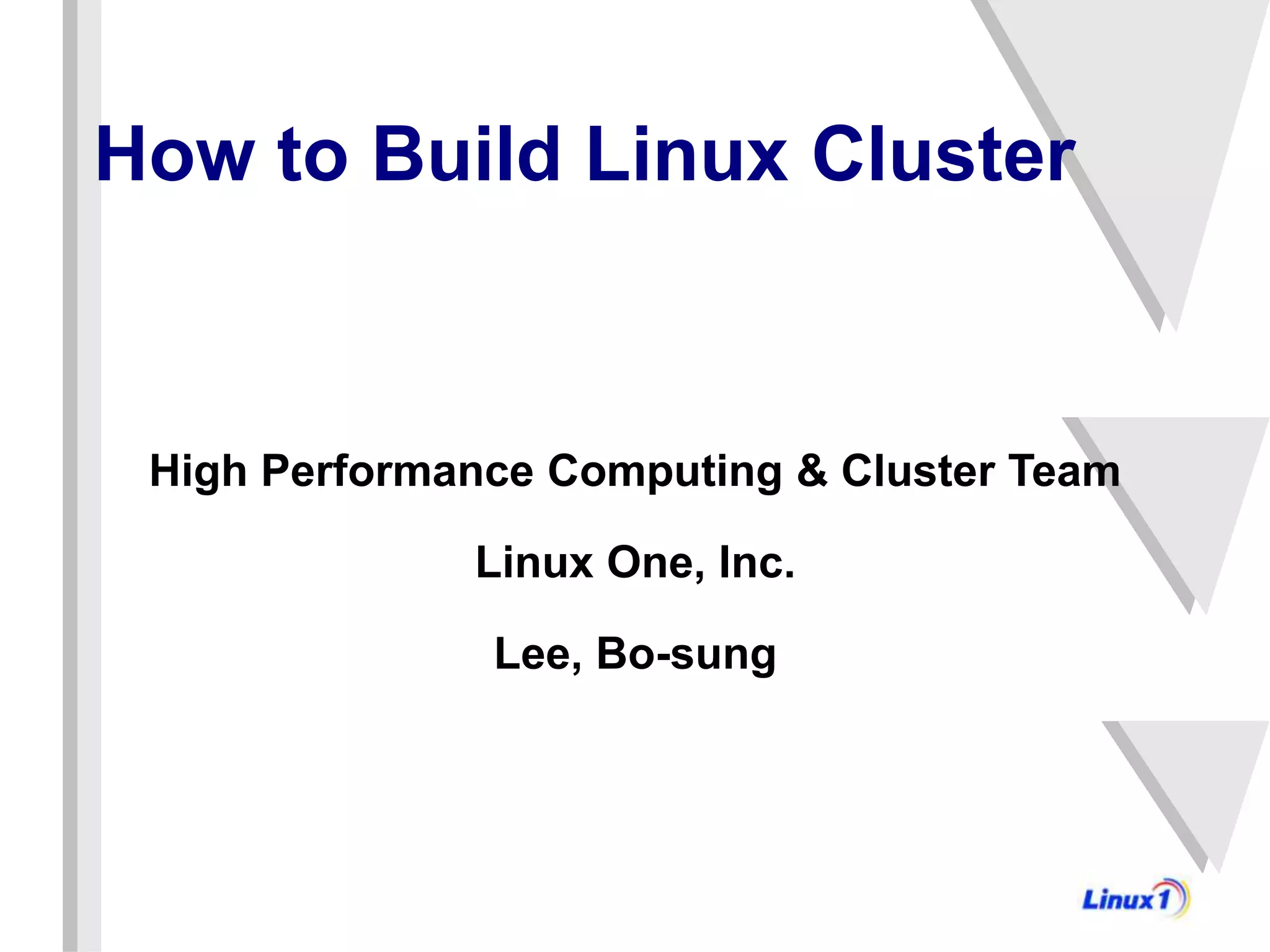

1. How to Build Linux Cluster
High Performance Computing & Cluster Team
Linux One, Inc.
Lee, Bo-sung

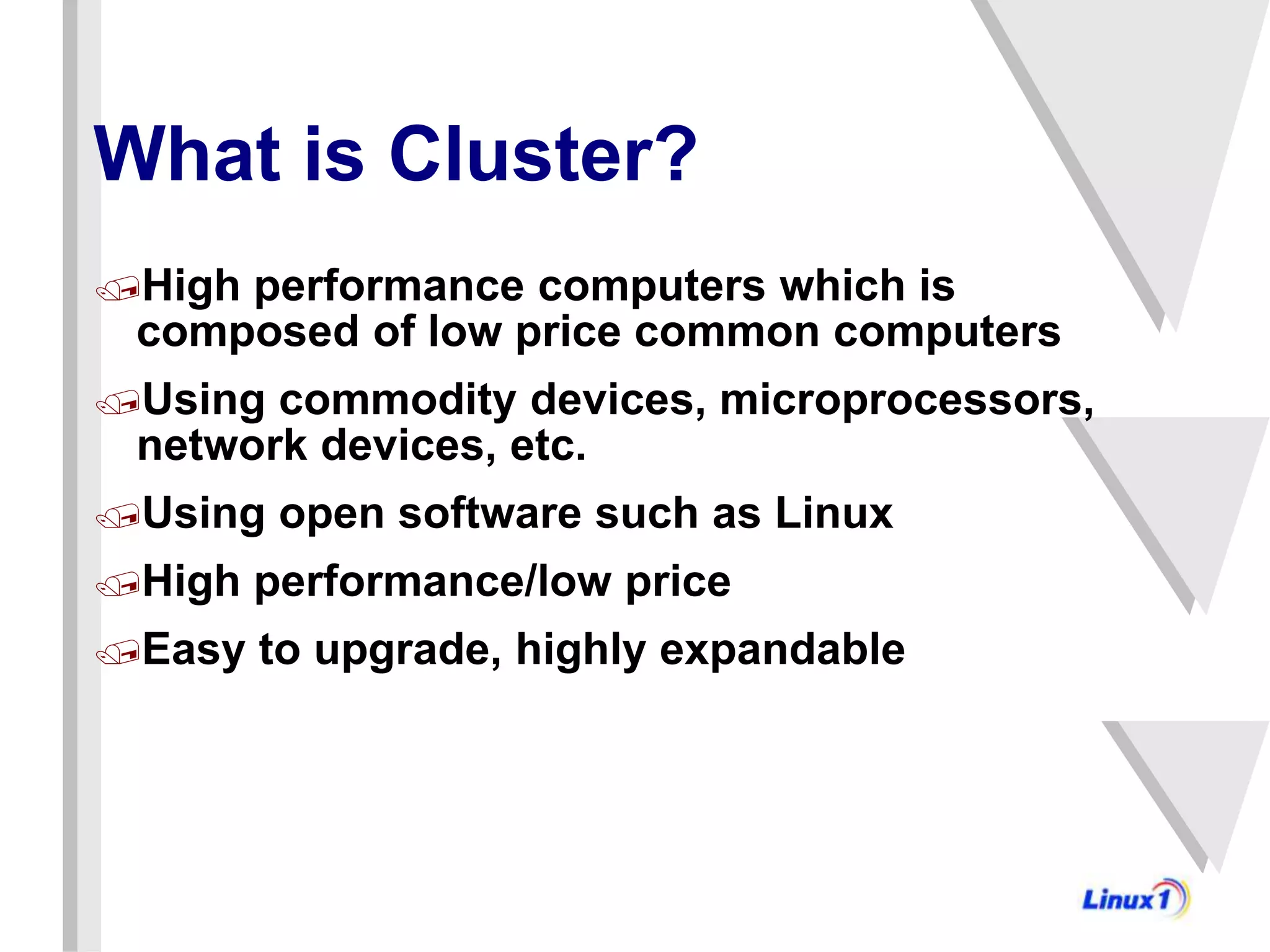

2. What is Cluster?
High performance computers which is
composed of low price common computers
Using commodity devices, microprocessors,
network devices, etc.
Using open software such as Linux
High performance/low price
Easy to upgrade, highly expandable
3. Class of Cluster Computer
Beowulf Cluster
Developed for large scale computing, such as
aerodynamics, atmosphere, physics, etc.
Similar to MPP super computers
High Availability Cluster
Developed for non-stop services
Automatic fail-over
Web/Mail Cluster
Developed for fast internet services
4. Beowulf Cluster
First developed at 1994 in NASA
New trend in developing supercomputers
replace with high price vector supercomputers
Low price supercomputing is possible
high performance/low price processors
high speed network devices available
Numerous beowulf clusters developed
Used in various computational science fields
5. Avalon Cluster
- 140 Alpha Nodes (128 MB, 3GB)
- Alpha PC 164 LX Motherboard
- 128 MB SDRAM , 3GB Disk
- Linux RedHat 5.0
- 3Com Superstack II 3900
36-port Switch
- Cyclades Cyclom 32-YeP serial
concentrators
- 10 Gflops for $150k
- Submitted for the 1998 Gordon Bell
Price/Performance Prize with 70 Nodes
- Ranks at #113 on Top500
Supercomputers List (1998)
6. High Availability Cluster
Need of High Availability System
“Whatever can go wrong, will go wrong”
Fault Tolerant System
Specially designed, low volume, expensive hardware
High Availability System
Popular, high volume, cheaper hardware
8. Web Server Cluster
Support for large concurrent user's request
Support up to 100,000 concurrent request
E-commerce, cyber stock, etc.
High Performance and High Availability
Load balancing algorithm
Need large storage / DB server
Distributed file system ( e.g. CODA)
9. Web Server Cluster Concept
Load Balancer
Web Server 1
Web Server 4
Web Server 3
Web Server 2
100 Mbps Switch
File/DB
Server
RAID Storage
1 TB or 2 TB
(RAID Level 5)
SCS
I
Backborn Network
TCP/I
P
10. How to Build Linux Cluster
Cluster Requirements
SSI(Single System Image)
seen as single system to end user
File System Requirements
global file system with NFS
Cluster Management Software
need to manage as single system
High Speed Interconnection Network
Channel bonding / Gigabit / Myrinet / SAN
11. Single System Image
Operational Transparency
Single point of entry and control point
Single file hierarchy
Single virtual networking
Single memory space
Single job management / user interface
Availability Support
Single I/O space / process space
13. File System Requirements
Single file system is very hard to implement
GFS(Global File System)
Physically distributed, Logically single I/O space
Hard to implement
NFS(Network File System) is widely used
Slow, unsafe, and hard to manage
Strongly dependent on network performance
autofs make faster mount/umount NFS
Must be seen as single file system to end users
14. Cluster Management Tools
Management system as single workstation
Manage distributed user database ( passwd, group )
Single point software installation / uninstallation
Automatic system cloning and recovery
If one node fails, automatic recovery is essential
Propagation of system image to cluster node
System monitoring on control node
Smile CMS, bWatch, Ptools, etc.
16. High Speed Interconnection
Network
Number of cluster node increase, high speed
interconnection network is essential
Ethernet is popular but has some limitations
100 Mbps Ethernet is cheap but slow
Gigabit Ethernet will replace 100 Mbps sooner
TCP/IP has some limitations
Channel bonding
Myrinet / SAN / SCI will be used in special
cluster
17. High Speed Interconnection
Network
Gigabit
Need not special treatment in building cluster
For general cluster, gigabit is acceptable
Myrinet
Programmable and very fast interconnection network
For special cluster such as Beowulf cluster
Show poor performance in TCP/IP network
SCI / SAN
at present, very expensive
18. Cluster Related Software in
Linux
Autofs
automatic mount of file system
used in commercial cluster such as IBM SP2
rdist, rsync. cron
make cluster nodes identical, faster and efficient
time synchronization, update user data base
kernel patch for cluster system
Linux virtual server project, GFS, ip channel bonding
19. Conclusions
Linux cluster will be popular in various fields
High Performance Computing Fields
High Availability Server
High Performance Web/Mail Server
Linux is continuously enhanced
New package and tools are available
Need to develop software and tools for
clustering
Management, device drivers are need for cluster
