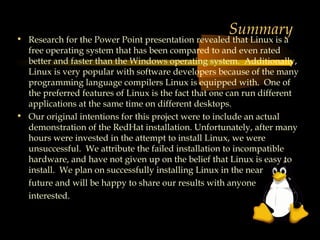

2. Summary
• Research for the Power Point presentation revealed that Linux is a
free operating system that has been compared to and even rated
better and faster than the Windows operating system. Additionally,
Linux is very popular with software developers because of the many
programming language compilers Linux is equipped with. One of
the preferred features of Linux is the fact that one can run different
applications at the same time on different desktops.
• Our original intentions for this project were to include an actual
demonstration of the RedHat installation. Unfortunately, after many
hours were invested in the attempt to install Linux, we were
unsuccessful. We attribute the failed installation to incompatible
hardware, and have not given up on the belief that Linux is easy to
install. We plan on successfully installing Linux in the near
future and will be happy to share our results with anyone
interested.

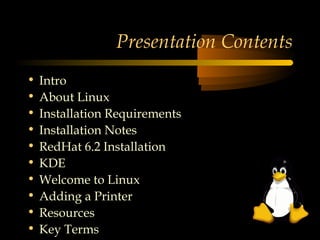

3. Presentation Contents
• Intro
• About Linux
• Installation Requirements
• Installation Notes
• RedHat 6.2 Installation
• KDE
• Welcome to Linux

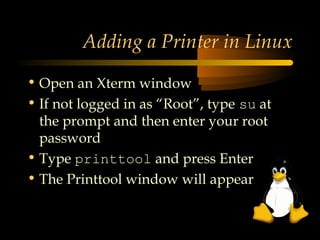

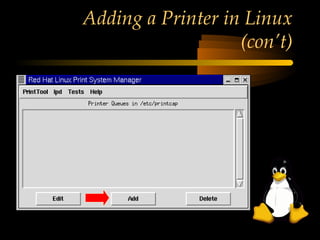

• Adding a Printer
• Resources
• Key Terms

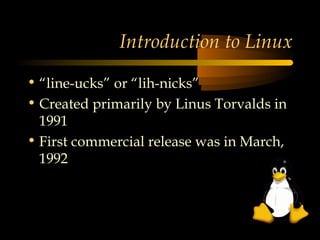

5. Introduction to Linux
• “line-ucks” or “lih-nicks”
• Created primarily by Linus Torvalds in
1991
• First commercial release was in March,
1992

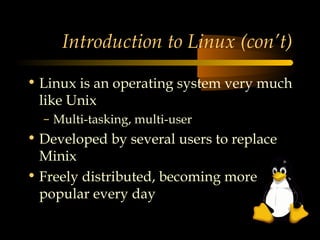

6. Introduction to Linux (con’t)
• Linux is an operating system very much
like Unix
– Multi-tasking, multi-user
• Developed by several users to replace
Minix
• Freely distributed, becoming more
popular every day

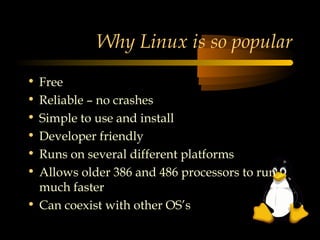

7. Why Linux is so popular
• Free
• Reliable – no crashes
• Simple to use and install
• Developer friendly
• Runs on several different platforms
• Allows older 386 and 486 processors to run
much faster
• Can coexist with other OS’s

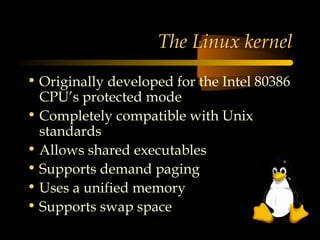

9. The Linux kernel
• Originally developed for the Intel 80386
CPU’s protected mode
• Completely compatible with Unix
standards
• Allows shared executables
• Supports demand paging
• Uses a unified memory
• Supports swap space

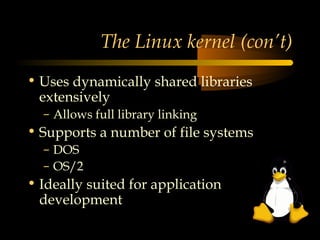

10. The Linux kernel (con’t)
• Uses dynamically shared libraries
extensively
– Allows full library linking
• Supports a number of file systems
– DOS
– OS/2
• Ideally suited for application
development

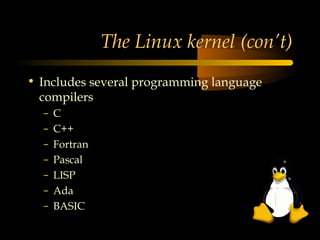

11. The Linux kernel (con’t)
• Includes several programming language
compilers
– C
– C++
– Fortran
– Pascal
– LISP
– Ada
– BASIC

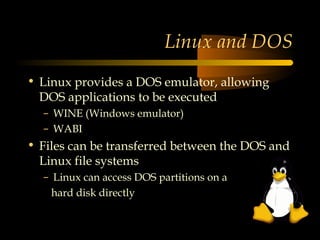

12. Linux and DOS
• Linux provides a DOS emulator, allowing
DOS applications to be executed
– WINE (Windows emulator)
– WABI
• Files can be transferred between the DOS and
Linux file systems
– Linux can access DOS partitions on a
hard disk directly

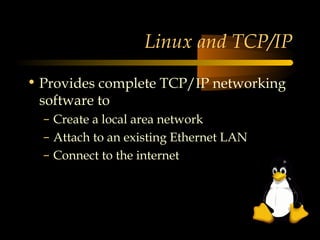

13. Linux and TCP/IP
• Provides complete TCP/IP networking
software to
– Create a local area network
– Attach to an existing Ethernet LAN
– Connect to the internet
14. Linux environments
• Text-based
• Graphical user interface (GUI) – called
“X” or “X Window”
– Very popular, especially with users new to
Linux
• KDE
• GNOME
15. Importance of Linux’s XFree86
• XFree86 is Linux’s GUI
• Easy to use
• Very similar to Windows environment
– Windows users can make easy transition
• Can install and run Windows
applications

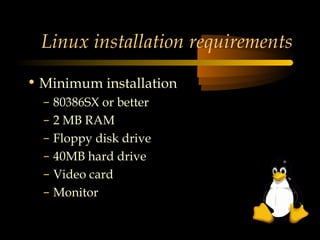

17. Linux installation requirements
• Minimum installation
– 80386SX or better
– 2 MB RAM
– Floppy disk drive
– 40MB hard drive
– Video card
– Monitor

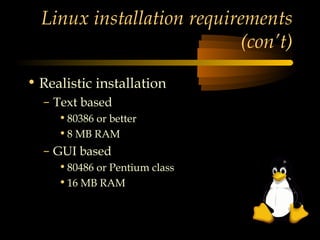

18. Linux installation requirements
(con’t)
• Realistic installation
– Text based
• 80386 or better
• 8 MB RAM
– GUI based
• 80486 or Pentium class
• 16 MB RAM

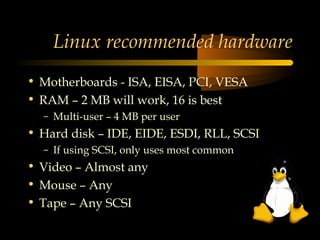

19. Linux recommended hardware
• Motherboards - ISA, EISA, PCI, VESA
• RAM – 2 MB will work, 16 is best
– Multi-user – 4 MB per user
• Hard disk – IDE, EIDE, ESDI, RLL, SCSI
– If using SCSI, only uses most common
• Video – Almost any
• Mouse – Any
• Tape – Any SCSI

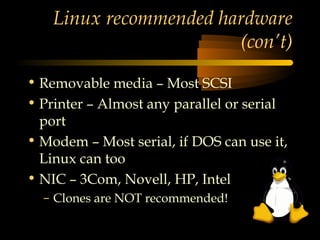

20. Linux recommended hardware
(con’t)
• Removable media – Most SCSI
• Printer – Almost any parallel or serial
port
• Modem – Most serial, if DOS can use it,
Linux can too
• NIC – 3Com, Novell, HP, Intel
– Clones are NOT recommended!

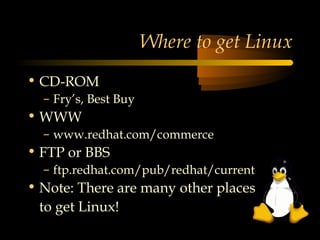

22. Where to get Linux
• CD-ROM
– Fry’s, Best Buy
• WWW
– www.redhat.com/commerce
• FTP or BBS
– ftp.redhat.com/pub/redhat/current
• Note: There are many other places
to get Linux!

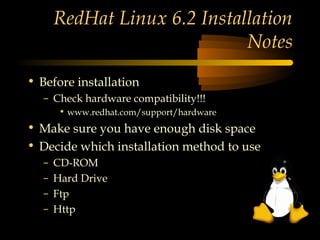

24. RedHat Linux 6.2 Installation
Notes
• Before installation
– Check hardware compatibility!!!
• www.redhat.com/support/hardware
• Make sure you have enough disk space
• Decide which installation method to use
– CD-ROM
– Hard Drive
– Ftp
– Http

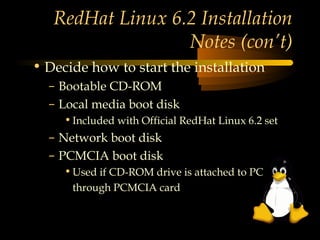

25. RedHat Linux 6.2 Installation
Notes (con’t)
• Decide how to start the installation
– Bootable CD-ROM
– Local media boot disk
• Included with Official RedHat Linux 6.2 set
– Network boot disk
– PCMCIA boot disk
• Used if CD-ROM drive is attached to PC
through PCMCIA card

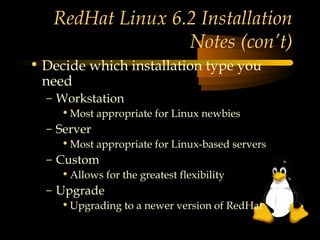

26. RedHat Linux 6.2 Installation
Notes (con’t)
• Decide which installation type you
need
– Workstation
• Most appropriate for Linux newbies
– Server
• Most appropriate for Linux-based servers
– Custom
• Allows for the greatest flexibility
– Upgrade
• Upgrading to a newer version of RedHat

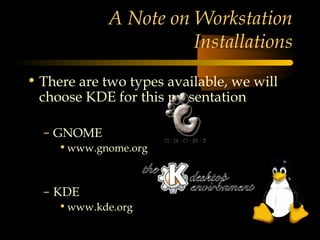

27. A Note on Workstation
Installations
• There are two types available, we will
choose KDE for this presentation
– GNOME
• www.gnome.org
– KDE
• www.kde.org

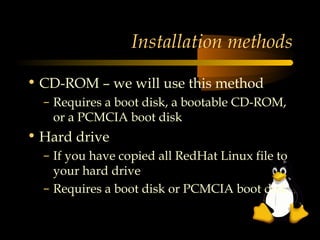

28. Installation methods
• CD-ROM – we will use this method
– Requires a boot disk, a bootable CD-ROM,
or a PCMCIA boot disk
• Hard drive
– If you have copied all RedHat Linux file to
your hard drive
– Requires a boot disk or PCMCIA boot disk

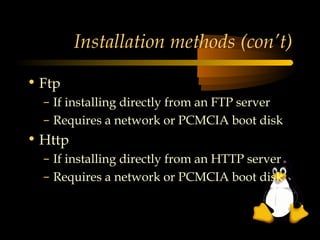

29. Installation methods (con’t)
• Ftp
– If installing directly from an FTP server
– Requires a network or PCMCIA boot disk
• Http
– If installing directly from an HTTP server
– Requires a network or PCMCIA boot disk

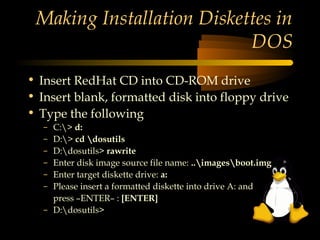

30. Making Installation Diskettes in
DOS
• Insert RedHat CD into CD-ROM drive
• Insert blank, formatted disk into floppy drive
• Type the following
– C:> d:
– D:> cd dosutils
– D:dosutils> rawrite
– Enter disk image source file name: ..imagesboot.img
– Enter target diskette drive: a:
– Please insert a formatted diskette into drive A: and
press –ENTER– : [ENTER]
– D:dosutils>

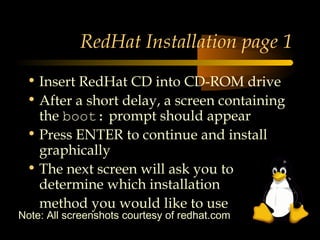

32. RedHat Installation page 1
• Insert RedHat CD into CD-ROM drive
• After a short delay, a screen containing
the boot: prompt should appear
• Press ENTER to continue and install
graphically
• The next screen will ask you to
determine which installation
method you would like to use
Note: All screenshots courtesy of redhat.com
33. RedHat Installation page 2
• Choose the option for CD-ROM and
select OK
• The installation program will probe
your system and attempt to identify
your CD-ROM drive
– Using a common CD-ROM drive will
prevent any problems

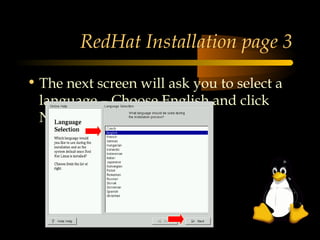

34. RedHat Installation page 3
• The next screen will ask you to select a
language – Choose English and click
Next

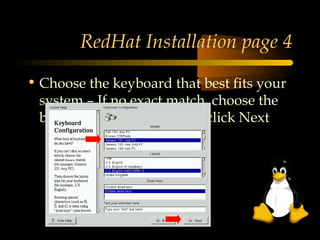

35. RedHat Installation page 4
• Choose the keyboard that best fits your
system – If no exact match, choose the
best GENERIC match and click Next
36. RedHat Installation page 5
• Choose the mouse that best fits your
system – If no exact match, choose the
best GENERIC match and click Next

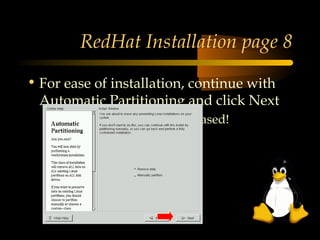

39. RedHat Installation page 8
• For ease of installation, continue with
Automatic Partitioning and click Next
– Note: everything will be erased!
40. RedHat Installation page 9
• Again, for ease of installation and use,
leave defaults selected and click Next
41. RedHat Installation page 10
• Choose your Network device type, then enter your IP Address,
Netmask, Network, and Broadcast addresses and click Next
– Unsure? Ask your network administrator

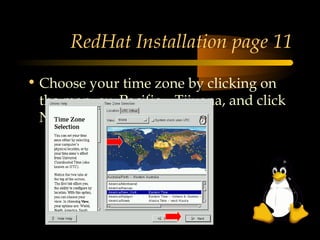

42. RedHat Installation page 11
• Choose your time zone by clicking on
the map, ex. Pacific – Tijuana, and click
Next

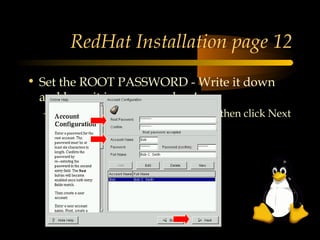

43. RedHat Installation page 12
• Set the ROOT PASSWORD - Write it down
and keep it in a secure place!
– You can add Users at this time too, then click Next

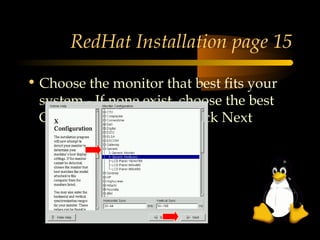

45. RedHat Installation page 15
• Choose the monitor that best fits your
system - If none exist, choose the best
GENERIC monitor and click Next
46. RedHat Installation page 16
• Continue with the video hardware detected
for you unless you know it is incorrect
(change it) and click Next
You can test
the Configuration
if you are not sure.
Make sure USE
GRAPHICAL
LOGIN is
selected!

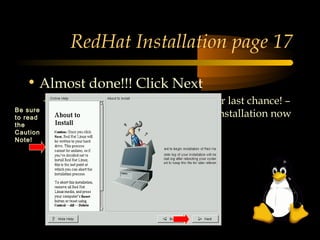

47. RedHat Installation page 17
• Almost done!!! Click Next
– If you would rather quit, this is your last chance! –
Be sure
to read You can reboot and safely exit the installation now
the
Caution
Note!

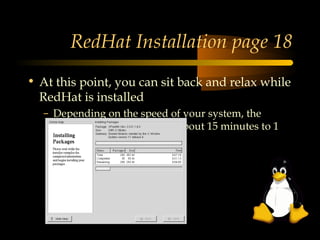

48. RedHat Installation page 18
• At this point, you can sit back and relax while
RedHat is installed
– Depending on the speed of your system, the
installation will take from about 15 minutes to 1
hour

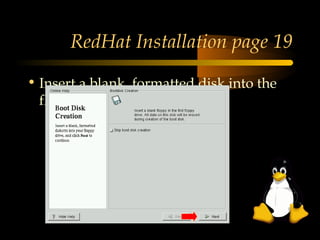

49. RedHat Installation page 19
• Insert a blank, formatted disk into the
floppy drive and click Next

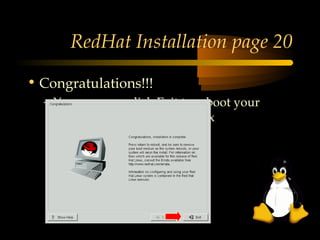

50. RedHat Installation page 20
• Congratulations!!!
– You can now click Exit to reboot your
system and start to use Linux
52. About the KDE Environment
• Desktop – Similar to Windows desktop
– Main workspace of KDE environment
– Supports multiple desktops
• Panel – Similar to Windows taskbar
– Serves as a quick launcher for applications
and applets
53. More About the KDE
Environment
You can find this file by
opening usr/kde/HTML/
default/kdehelp/main.html

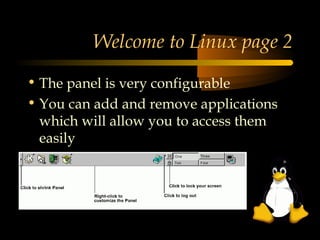

56. Welcome to Linux page 2
• The panel is very configurable
• You can add and remove applications
which will allow you to access them
easily
• You can easily hide the panel

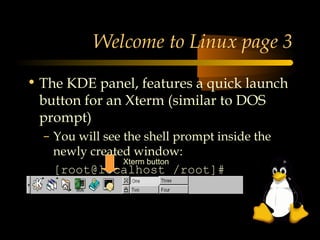

57. Welcome to Linux page 3
• The KDE panel, features a quick launch
button for an Xterm (similar to DOS
prompt)
– You will see the shell prompt inside the
newly created window:
Xterm button
[root@localhost /root]#
58. Welcome to Linux page 4
• Taskbar
– Displays all running applications
– Usually located at the top of the screen, but
can be moved

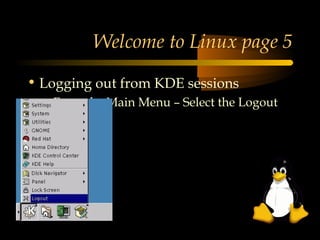

59. Welcome to Linux page 5
• Logging out from KDE sessions
– From the Main Menu – Select the Logout
item
61. Adding a Printer in Linux
• Open an Xterm window
• If not logged in as “Root”, type su at
the prompt and then enter your root
password
• Type printtool and press Enter
• The Printtool window will appear

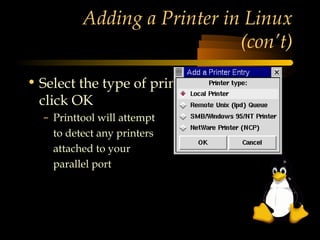

63. Adding a Printer in Linux
(con’t)
• Select the type of printer to add and
click OK
– Printtool will attempt
to detect any printers
attached to your
parallel port
64. Adding a Printer in Linux
(con’t)
• Click OK to continue
after your printer was
detected

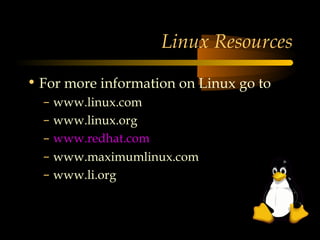

67. Linux Resources
• For more information on Linux go to
– www.linux.com
– www.linux.org
– www.redhat.com
– www.maximumlinux.com
– www.li.org
68. Linux Resources (con’t)
• For applications/software that are Linux
compatible go to
– www.sun.com
– www.corel.com
– www.linuxapps.com
– www.linuxcentral.com/linux/apps/linapps.h
tml
– www.m-tech.ab.ca/linux-biz
– charter.linuxberg.com

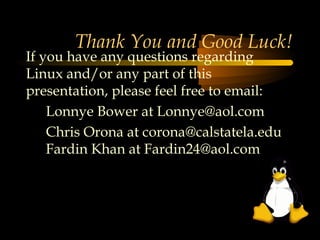

69. Thank You and Good Luck!
If you have any questions regarding
Linux and/or any part of this
presentation, please feel free to email:
Lonnye Bower at Lonnye@aol.com
Chris Orona at corona@calstatela.edu
Fardin Khan at Fardin24@aol.com
Editor's Notes
As we all know, in the UNIX environment there are various flavors of this operating system. To name a few: IBM: AIX SUN: SOLARIS HP: HP-UX SILICON GRAPHICS: IRIX And there’s…………………...
