The NoSQL DB is a database that provides a mechanism for storage and retrieval of data which is modeled in means other than the tabular relations used in relational databases. These databases have speed and high scalability. This kind of database has becoming more popular in several applications, that include financial one. As result of increase the number of user the number of vendors are increasing too, so the current problem how can we avoid lock in? The standard is the answer to solve this problem. Know more about the Diana proposal and the next step to became a NoSQL JSR.

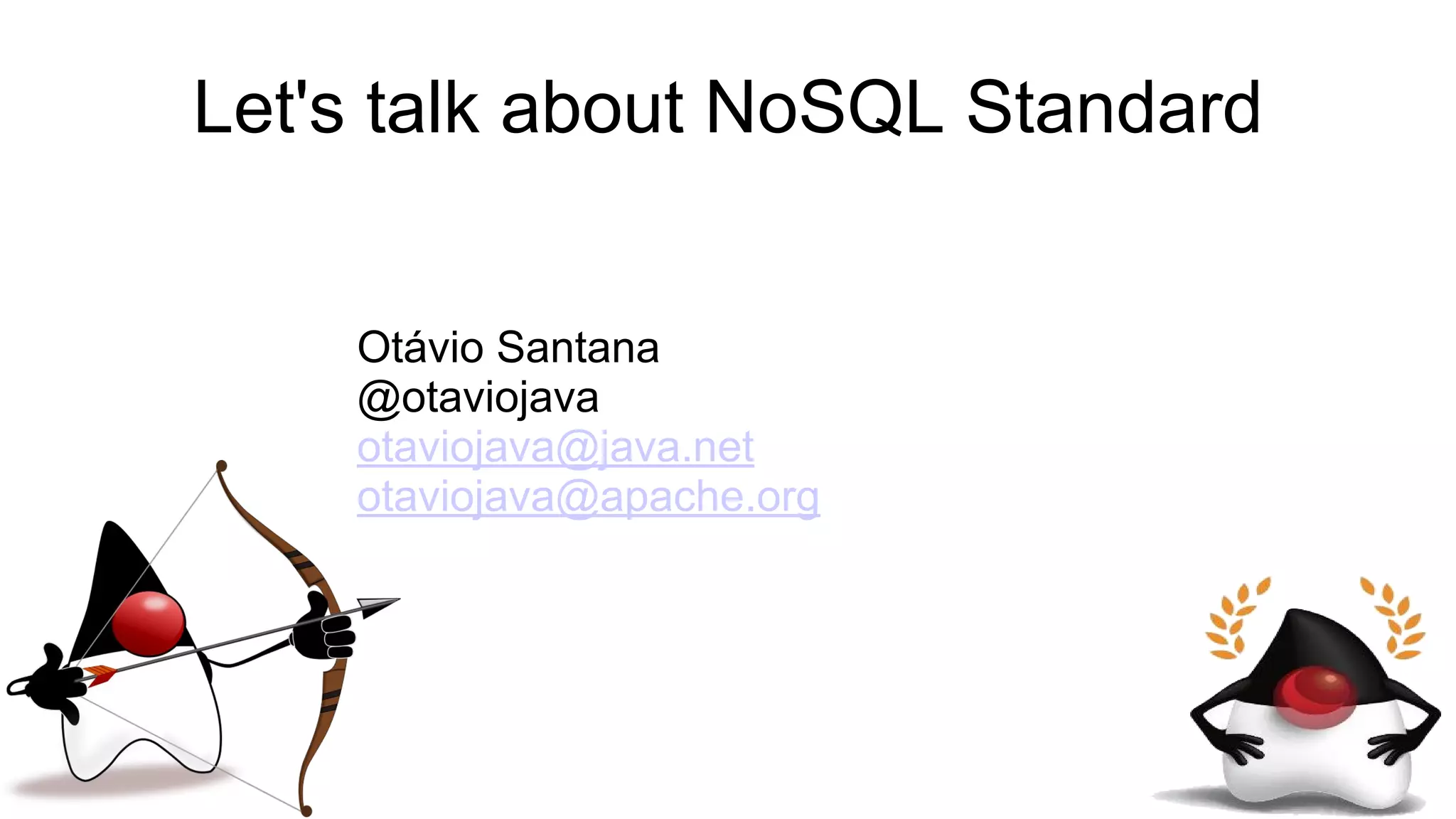

1. Let's talk about NoSQL Standard
Otávio Santana
@otaviojava
otaviojava@java.net
otaviojava@apache.org

2. NoSQL
● Database
● Doesn't use relationship
● BASE
● Five types

3. Key Value
● AmazonDynamo
● AmazonS3
● Redis
● Scalaris
● Voldemort
● Couchbase
valuekey
valuekey
valuekey

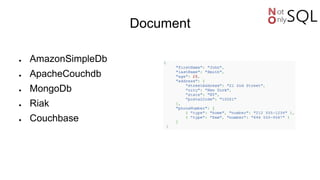

4. Document
● AmazonSimpleDb
● ApacheCouchdb
● MongoDb
● Riak
● Couchbase

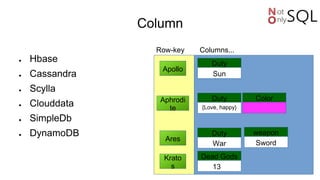

5. Column
● Hbase
● Cassandra
● Scylla
● Clouddata
● SimpleDb
● DynamoDB
Row-key Columns...
Apollo
Aphrodi
te
Ares
Sun
Duty
{Love, happy}
Duty
War
Duty
Sword
weapon
Color
Krato
s
Dead Gods
13

6. Graph
● Neo4j
● InfoGrid
● Sones
● HyperGraphDB
Apollo Ares
Krat
os
was dead was dead
Is brother
killed killed

7. Multi-model
● OrientDB
● Couchbase
● Elasticsearch
● Cassandra

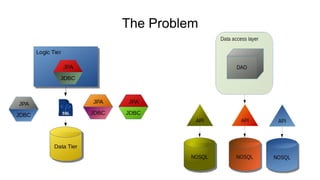

8. The Problem

9. The Problem

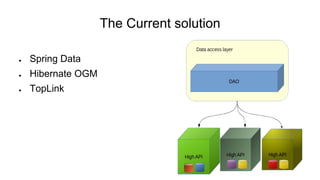

10. The Current solution
● Spring Data
● Hibernate OGM
● TopLink

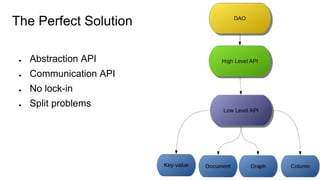

11. The Perfect Solution
● Abstraction API
● Communication API
● No lock-in
● Split problems

12. Apache Diana was Born (incubator)
● API Communication layer
● Apache Project
● Document, key-value, Column, Graph
● Universal Adapter
● Standard

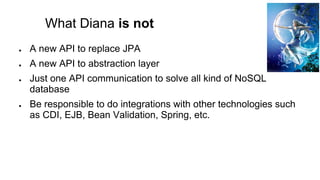

13. What Diana is not
● A new API to replace JPA
● A new API to abstraction layer
● Just one API communication to solve all kind of NoSQL
database
● Be responsible to do integrations with other technologies such
as CDI, EJB, Bean Validation, Spring, etc.

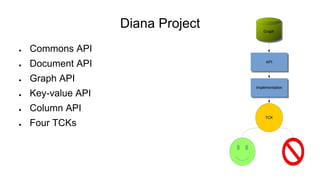

14. Diana Project
● Commons API
● Document API
● Graph API
● Key-value API
● Column API
● Four TCKs

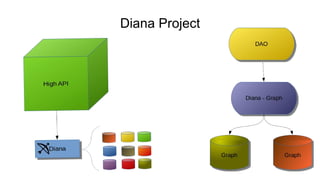

15. Diana Project

16. Why Diana?
● Goddess of the hunt, nature
and moon
● Fought in Troy
● brave warrior and hunter

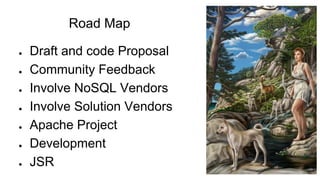

17. Road Map
● Draft and code Proposal
● Community Feedback
● Involve NoSQL Vendors
● Involve Solution Vendors
● Apache Project
● Development
● JSR

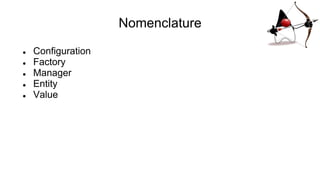

18. Nomenclature
● Configuration
● Factory
● Manager
● Entity
● Value

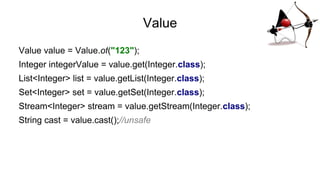

19. Value
Value value = Value.of("123");
Integer integerValue = value.get(Integer.class);
List<Integer> list = value.getList(Integer.class);
Set<Integer> set = value.getSet(Integer.class);
Stream<Integer> stream = value.getStream(Integer.class);
String cast = value.cast();//unsafe

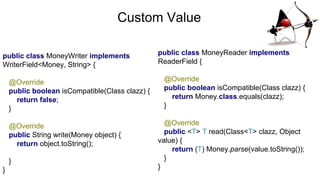

20. Custom Value
public class MoneyWriter implements
WriterField<Money, String> {
@Override
public boolean isCompatible(Class clazz) {
return false;
}
@Override
public String write(Money object) {
return object.toString();
}
}
public class MoneyReader implements
ReaderField {
@Override
public boolean isCompatible(Class clazz) {
return Money.class.equals(clazz);
}
@Override
public <T> T read(Class<T> clazz, Object
value) {
return (T) Money.parse(value.toString());
}
}

21. Entities
Money money = new Money();
Value value = Value.of(money);
DocumentCollectionEntity entity = DocumentCollectionEntity.of("collection");
entity.add(Document.of("name", "Daniel Soro"));
entity.add(Document.of("age", 26));
entity.add(Document.of("salary", money));
String name = entity.getName();
List<Document> documents = entity.getDocuments();
Optional<Document> age = entity.find("age");

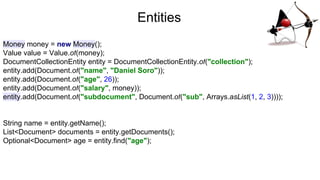

22. Entities
Money money = new Money();
Value value = Value.of(money);
DocumentCollectionEntity entity = DocumentCollectionEntity.of("collection");
entity.add(Document.of("name", "Daniel Soro"));
entity.add(Document.of("age", 26));
entity.add(Document.of("salary", money));
entity.add(Document.of("subdocument", Document.of("sub", Arrays.asList(1, 2, 3))));
String name = entity.getName();
List<Document> documents = entity.getDocuments();
Optional<Document> age = entity.find("age");

23. Entities
Money money = new Money();
Value value = Value.of(money);
ColumnFamilyEntity entity = ColumnFamilyEntity.of("family");
Column id = Column.of("id", 10L);
entity.add(id);
entity.add(Column.of("version", 0.001));
entity.add(Column.of("name", "Diana"));
entity.add(Column.of("options", Arrays.asList(1, 2, 3)));
entity.add(Column.of("pay", value));
String name = entity.getName();
List<Column> columns = entity.getColumns();
Optional<Column> notFound = entity.find("notFound");

24. Entities
Value value = Value.of(new Money());
KeyValue<String> keyValue = KeyValue.of("key", value);
String key = keyValue.getKey();
Value value1 = keyValue.getValue();

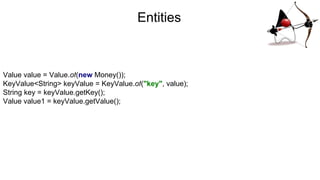

25. Entities
Value value = Value.of(new Money());
KeyValue<String> keyValue = KeyValue.of("key", value);
String key = keyValue.getKey();
Value value1 = keyValue.getValue();

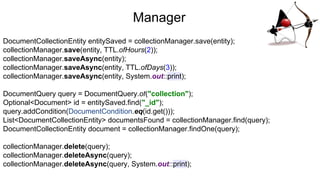

26. Manager
DocumentCollectionEntity entitySaved = collectionManager.save(entity);
collectionManager.save(entity, TTL.ofHours(2));
collectionManager.saveAsync(entity);
collectionManager.saveAsync(entity, TTL.ofDays(3));
collectionManager.saveAsync(entity, System.out::print);
DocumentQuery query = DocumentQuery.of("collection");
Optional<Document> id = entitySaved.find("_id");
query.addCondition(DocumentCondition.eq(id.get()));
List<DocumentCollectionEntity> documentsFound = collectionManager.find(query);
DocumentCollectionEntity document = collectionManager.findOne(query);
collectionManager.delete(query);
collectionManager.deleteAsync(query);
collectionManager.deleteAsync(query, System.out::print);

27. Manager
columnEntityManager.save(entity);
columnEntityManager.saveAsync(entity);
columnEntityManager.saveAsync(entity, TTL.ofDays(3));
columnEntityManager.saveAsync(entity, System.out::print);
ColumnQuery query = ColumnQuery.of("family");
query.addCondition(ColumnCondition.eq(id));
List<ColumnFamilyEntity> entities = columnEntityManager.find(query);
ColumnFamilyEntity family = columnEntityManager.findOne(query);
columnEntityManager.delete(query);
columnEntityManager.deleteAsync(query);
columnEntityManager.deleteAsync(query, System.out::print);

28. Manager
KeyValue<String> keyValue = KeyValue.of("myKey", Value.of("value"));
bucket.put("key", "value");
bucket.put(keyValue);
bucket.put(keyValue, TTL.ofMicros(12));
Optional<Value> value = bucket.get("key");

29. Factory
BucketManager bucket = managerFactory.getBucketManager("bucket");
List<String> list = managerFactory.getList("bucketList", String.class);
Set<String> set = managerFactory.getSet("bucketSet", String.class);
Map<String, Integer> map = managerFactory.getMap("bucketList", String.class,
Integer.class);
Queue<String> queue = managerFactory.getQueue("queueList", String.class);

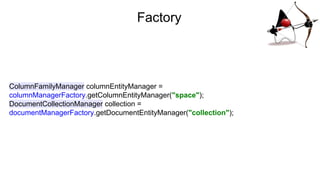

30. Factory
ColumnFamilyManager columnEntityManager =
columnManagerFactory.getColumnEntityManager("space");
DocumentCollectionManager collection =
documentManagerFactory.getDocumentEntityManager("collection");

31. Configuration
ColumnConfiguration columnConfiguration = new ColumnDriver();
DocumentConfiguration documentConfiguration = new DocumentDriver();
KeyValueConfiguration keyValueConfiguration = new KeyValueDriver();
ColumnFamilyManagerFactory columnFactory = columnConfiguration.getManagerFactory();
DocumentCollectionManagerFactory documentFactory =
documentConfiguration.getManagerFactory();
BucketManagerFactory keyFactory = keyValueConfiguration.getManagerFactory();

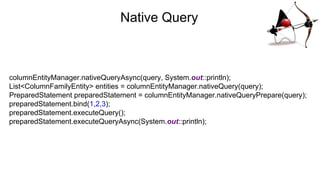

32. Native Query
columnEntityManager.nativeQueryAsync(query, System.out::println);
List<ColumnFamilyEntity> entities = columnEntityManager.nativeQuery(query);
PreparedStatement preparedStatement = columnEntityManager.nativeQueryPrepare(query);
preparedStatement.bind(1,2,3);
preparedStatement.executeQuery();
preparedStatement.executeQueryAsync(System.out::println);

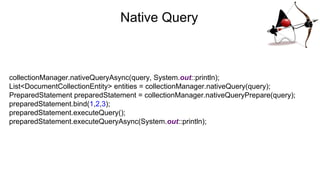

33. Native Query
collectionManager.nativeQueryAsync(query, System.out::println);
List<DocumentCollectionEntity> entities = collectionManager.nativeQuery(query);
PreparedStatement preparedStatement = collectionManager.nativeQueryPrepare(query);
preparedStatement.bind(1,2,3);
preparedStatement.executeQuery();
preparedStatement.executeQueryAsync(System.out::println);

34. Diana Query Language
Select
select * from bucket;
select key1, key2 from bucket;
Insert
INSERT INTO bucket VALUES (key, value);
INSERT INTO bucket VALUES (key, value) ttl 20 (seconds, minutes, hours, days);
Delete
DELETE FROM bucket WHERE id =value;

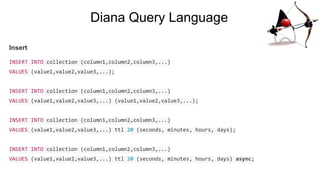

35. Diana Query Language
Insert
INSERT INTO collection (column1,column2,column3,...)
VALUES (value1,value2,value3,...);
INSERT INTO collection (column1,column2,column3,...)
VALUES (value1,value2,value3,...) (value1,value2,value3,...);
INSERT INTO collection (column1,column2,column3,...)
VALUES (value1,value2,value3,...) ttl 20 (seconds, minutes, hours, days);
INSERT INTO collection (column1,column2,column3,...)
VALUES (value1,value2,value3,...) ttl 20 (seconds, minutes, hours, days) async;

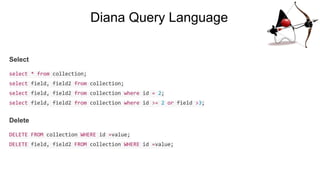

36. Diana Query Language
Select
select * from collection;
select field, field2 from collection;
select field, field2 from collection where id = 2;
select field, field2 from collection where id >= 2 or field >3;
Delete
DELETE FROM collection WHERE id =value;
DELETE field, field2 FROM collection WHERE id =value;

37. Diana Query Language
Insert
INSERT INTO family (column1,column2,column3,...)
VALUES (value1,value2,value3,...);
INSERT INTO family (column1,column2,column3,...)
VALUES (value1,value2,value3,...) (value1,value2,value3,...);
INSERT INTO family (column1,column2,column3,...)
VALUES (value1,value2,value3,...) ttl 20 (seconds, minutes, hours, days);
INSERT INTO family (column1,column2,column3,...)
VALUES (value1,value2,value3,...) ttl 20 (seconds, minutes, hours, days) async;

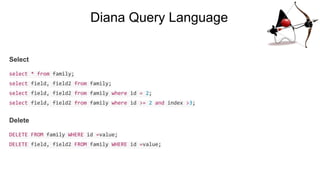

38. Diana Query Language
Select
select * from family;
select field, field2 from family;
select field, field2 from family where id = 2;
select field, field2 from family where id >= 2 and index >3;
Delete
DELETE FROM family WHERE id =value;
DELETE field, field2 FROM family WHERE id =value;

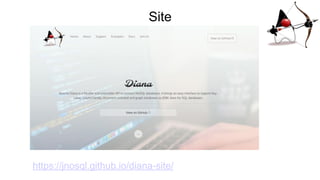

39. Site
https://jnosql.github.io/diana-site/

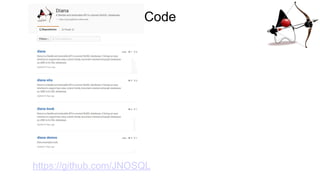

40. Code
https://github.com/JNOSQL

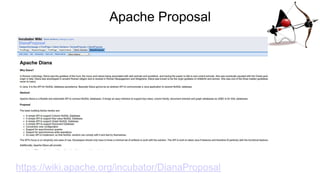

41. Apache Proposal
https://wiki.apache.org/incubator/DianaProposal

42. Thank you
Otávio Santana
@otaviojava
otaviojava@java.net
otaviojava@apache.org
