greenDAO is an ORM (object relational mapping) library that uses code generation to provide a higher level API for SQLite databases on Android. It generates Java classes from an entity model that allows reading and writing objects to the database instead of using raw SQL. This improves productivity by handling common database tasks like queries and transactions. The generated code avoids reflection for better performance compared to annotation-based ORMs. The library focuses on optimization through techniques like custom cursors, entity caching, and bulk operations to achieve high performance suitable for Android.

1. A look behind the scenes
greenDAO
Droidcon Berlin 2012,
Markus Junginger

2. About me, Follow me
Android developer since 2007
Founder of greenrobot.de, Munich
@green_dao Most updates 
@greenrobot_de
Most important updates 
+Markus Junginger 
+greenrobot 

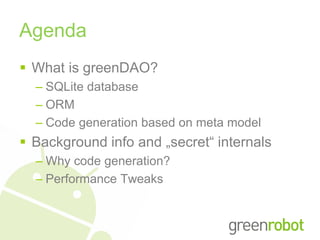

3. Agenda
 What is greenDAO?
– SQLite database
– ORM
– Code generation based on meta model
 Background info and „secret“ internals
– Why code generation?
– Performance Tweaks

4. Problem with DB Development
 Database world  ||  Java world
 No object orientation
 Data access feels quite low levely
 A lot of boilerplate code for SQLite
– SQL scripts, e.g.: CREATE TABLE, Queries
– Cursor iterations
– Parameter binding

5. Common solution: ORM
Java Object
SQLite
greenDAO Java Object
Database
Java Object
 ORM offers a higher level API
– Read and write objects
– CREATE TABLE done for you
– Expressing Queries

6. Example: SQLite vs. greenDAO
String[] columns = { "note", "date_changed" };
String[] idArgs = { String.valueOf(id) };
SQLiteCursor cursor = (SQLiteCursor) db.query("notes", columns,
"_id=?", idArgs, null, null, "note");
try {
// greenDAO
if (cursor.getCount() != 1) {
Note note = noteDao.load(id);
throw new Exception("Unexpected count: " +cursor.getCount());
updateUi(note.getNote(), note.getDate());
}
cursor.moveToNext();
String note = cursor.getString(0);
String date = cursor.getString(1);
updateUi(note, date);
} finally {
cursor.close();
}

7. greenDAO Overview
 Entities & DAOs
 Code generation
 Open Source:
https://github.com/greenrobot/greenDAO
 Apache 2 license: core library
(embedded in your app)
 GPL3: generator
(you usually don‘t have changes here)

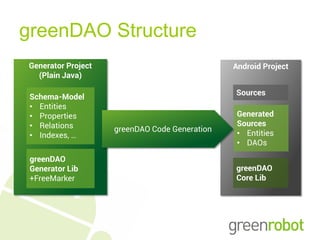

8. greenDAO Structure
Generator Project Android Project
(Plain Java)
Sources
Schema-Model
• Entities
• Properties Generated
• Relations Sources
greenDAO Code Generation
• Indexes, … • Entities
• DAOs
greenDAO
Generator Lib greenDAO
+FreeMarker Core Lib

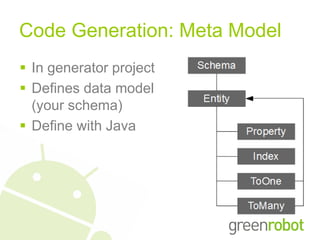

9. Code Generation: Meta Model
 In generator project
 Defines data model
(your schema)
 Define with Java

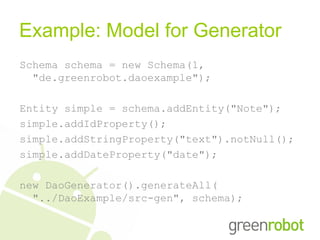

10. Example: Model for Generator
Schema schema = new Schema(1,
"de.greenrobot.daoexample");
Entity simple = schema.addEntity("Note");
simple.addIdProperty();
simple.addStringProperty("text").notNull();
simple.addDateProperty("date");
new DaoGenerator().generateAll(
"../DaoExample/src-gen", schema);

11. Example: Generated Entity
public class Note {
private String text;
// ID, date and constructors skipped
public String getText() {
return text;
}
public void setText(String text) {
this.text = text;
}
}

12. Code: Insert, Update, Delete
Note note = new Note();
note.setText(“Say hello to world”);
noteDao.insert(note);
Log.d("Dao", “New ID: " + note.getId());
note.setText(“Save the world”);
noteDao.update(note);
noteDao.delete(note);

13. QueryBuilder
 References generated Properties
 Java Complier checks
 Example: Get all users with first name
“Joe“, and sort by last name
List<User> joes = userDao.queryBuilder()
.where(Properties.FirstName.eq("Joe"))
.orderAsc(Properties.LastName)
.list();

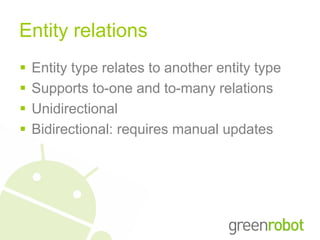

14. Entity relations
 Entity type relates to another entity type
 Supports to-one and to-many relations
 Unidirectional
 Bidirectional: requires manual updates

15. ToOne Example
 Entities Customer & Order
 An order has one customer
 Modelling in the generator project
Property customerId = order.addLongProperty(
"customerId").notNull().getProperty();
order.addToOne(customer, customerId);
 Resolving in the app
Customer customer = order.getCostumer();

16. ToMany Example
 Entities Customer & Order
 A customer places many orders
 Modelling in the generator project
Property customerId = order.addLongProperty(
"customerId").notNull().getProperty();
customer.addToMany(order, customerId);
 Resolving in the app
List<Order> orders = costumer.getOrderList();

17. Active Entities
 Have (some) persistence methods
– update
– delete
– refresh

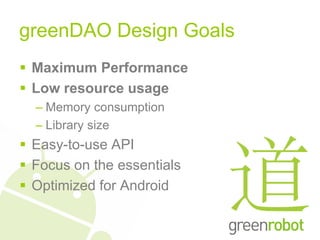

18. greenDAO Design Goals
 Maximum Performance
 Low resource usage
– Memory consumption
– Library size
 Easy-to-use API
 Focus on the essentials
 Optimized for Android

19. Save size, keep it the DRY way
 Generate code, but as sparly as possible
 Example: load method of DAO
 AbstractDao class (core library)
– Implements everything expect readEntity
 Generated DAO implements readEntity
– Just construct entities from a cursor position
 Library size: 59 KByte + some K per DAO

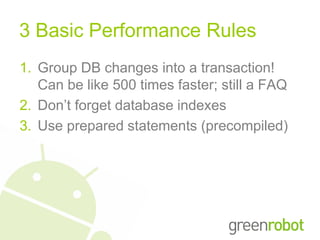

20. 3 Basic Performance Rules
1. Group DB changes into a transaction!
Can be like 500 times faster; still a FAQ
2. Don’t forget database indexes
3. Use prepared statements (precompiled)

21. Regular Performance Tracking
 Different scenarios are tested
 Tracked in Excel files
 Excel files are pushed to github

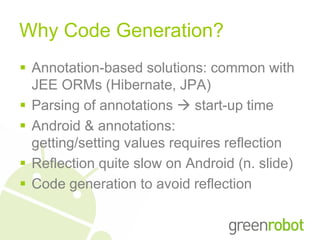

22. Why Code Generation?
 Annotation-based solutions: common with
JEE ORMs (Hibernate, JPA)
 Parsing of annotations  start-up time
 Android & annotations:
getting/setting values requires reflection
 Reflection quite slow on Android (n. slide)
 Code generation to avoid reflection

23. Reflection Performance
Method Reflection (roughly)
getInt ~ 50 x slower
getString ~ 50 x slower
setInt ~ 400 x slower
setString ~ 150 x slower
 Example: 100,000 Operations
(e.g. 10,000 entities with 10 properties)
 setInt: 9 ms, reflected 3875ms

24. Profiling to find hotspots
 Use traceview
 Enable in code:
Debug.
startMethodTracing(
traceName);
 See class
PerformanceTest

25. Reading entities & Constructor
 Entities read from the database
 Solution 1: Calling setters
MyEntity myEntity = new MyEntity();
myEntity.setX(cursor.getString(0));
…
 Solution 2: Constructor only
MyEntity myEntity = new MyEntity(
cursor.getString(0), …);
 Performance gain: 33%

26. Optimization Candidate: Cursor
 Quite some time is spent in Android API
android.database.AbstractWindowedCursor
 get… Methods are “slow”
@Override
public short getShort(int columnIndex) {
checkPosition();
return mWindow.getShort(mPos, columnIndex);
}
@Override
public int getInt(int columnIndex) {
checkPosition();
return mWindow.getInt(mPos, columnIndex);
}

27. Custom Cursor implementation
 Replacing SQLiteCursor
 de.greenrobot.dao.FastCursor
 Performance gain: ~30%

28. Lookup by ID
 Identity Scope (≈ Entity Caching)
 Mapping ID  Entity
 HashMap<Long, MyEntity>
Problem: Long object creation
 LongSparseArray<MyEntity>
Problem: does not scale
 Evaluated several alternatives

29. LongHashMap & More
 Custom de.greenrobot.dao.LongHashMap
 + Locking improvements
 + Minor performance tweaks
 Performance gain: from 30% up to 117%

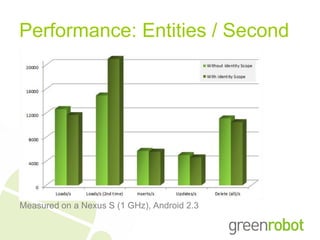

30. Performance: Entities / Second
Measured on a Nexus S (1 GHz), Android 2.3

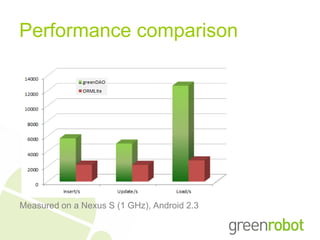

31. Performance comparison
Measured on a Nexus S (1 GHz), Android 2.3

32. Current Workflow vs. Migration
 Works best if you start from scratch
(Start with Entity modeling)
 Migration: additional effort required
– Pre-existing entities: have to be replaced
– Existing tables: entities have to modeled
 Ideas how to address migration
– Generic DAO (Annotation based entities!)
– Import existing Model from SQLite DB files

33. Current Feature Requests
 Generate Adapters, CRUD Apps,
Parceable, conversion to JSON/XML, …
 Convenience support for async ops
 Client/Server(Cloud) data synchronization
 More flexible primary keys (PKs)
 Pre- and post persist callbacks
 What is most important to you?

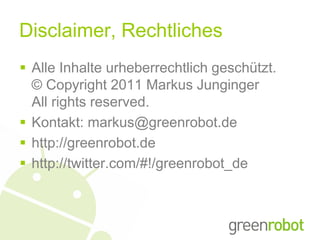

34. Disclaimer, Rechtliches
