JNoSQL is an open source project that provides a common API for working with different NoSQL databases. It includes Diana, which defines a common communication layer, and Artemis, a CDI-based annotation framework. The goal is to simplify development of NoSQL applications by handling differences in data models and query languages between databases in a standardized way.

1. JNoSQL
Otávio Santana
@otaviojava
otaviojava@apache.org

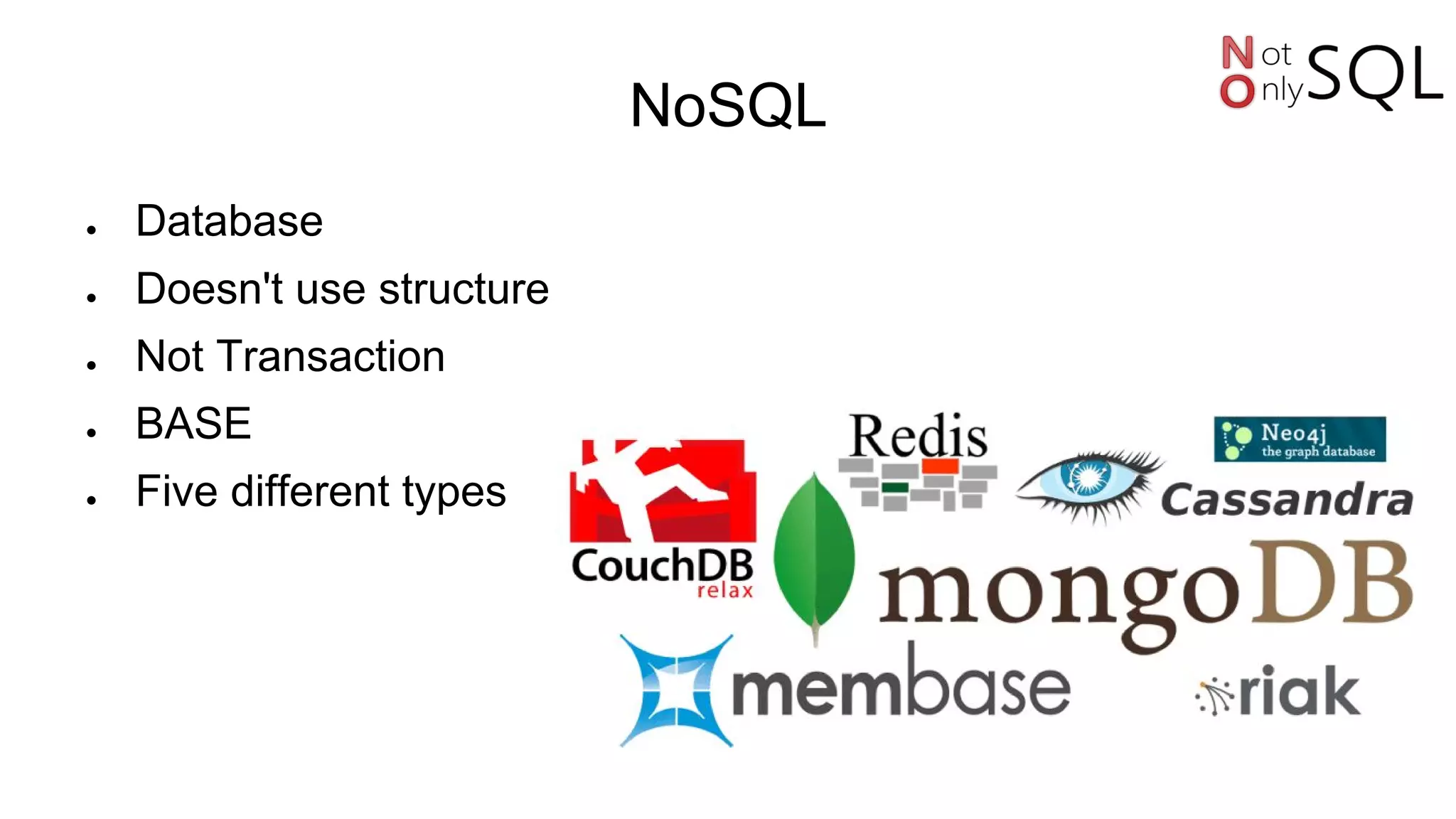

2. NoSQL
● Database
● Doesn't use structure
● Not Transaction
● BASE
● Five different types

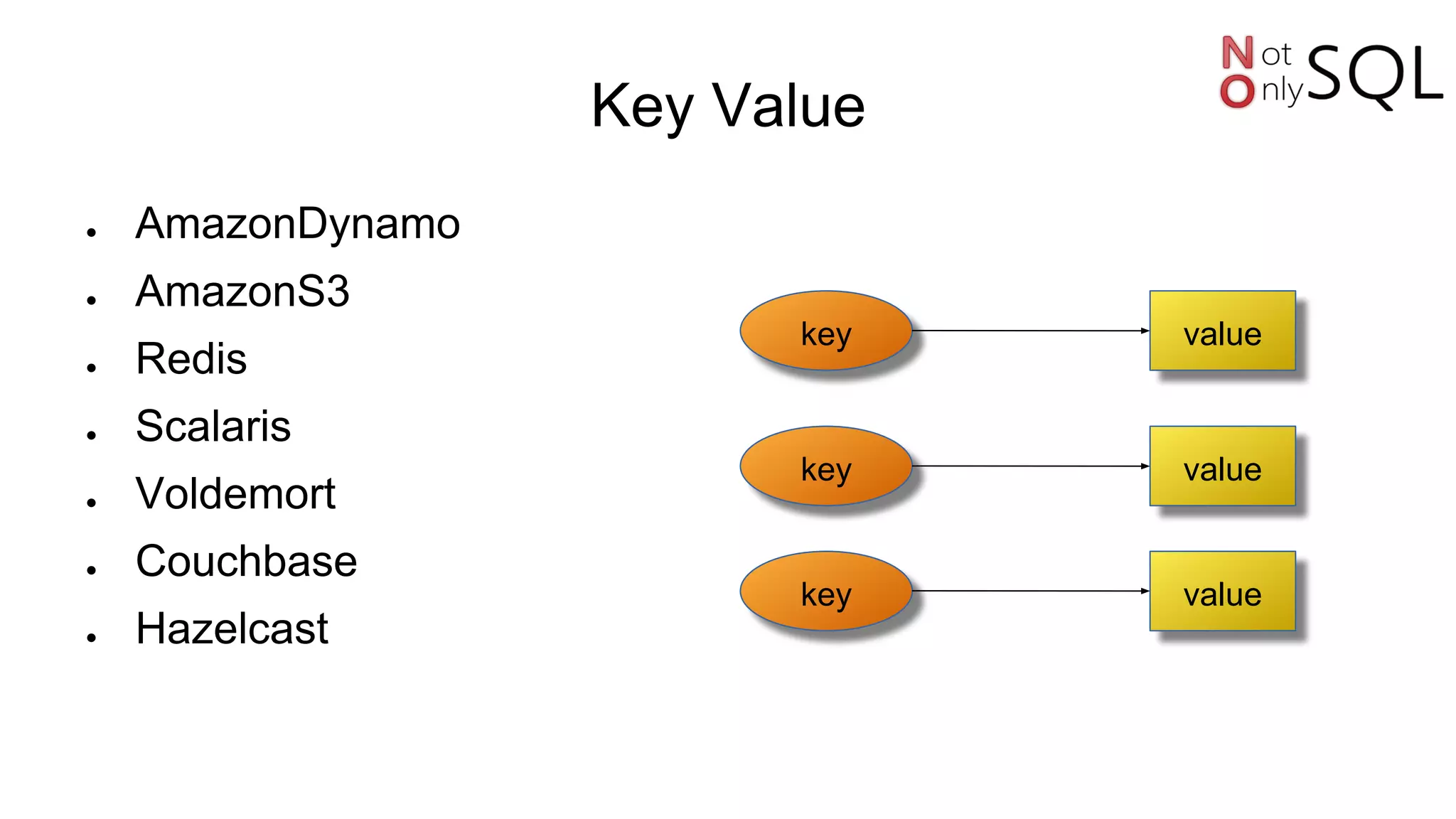

3. Key Value
● AmazonDynamo
● AmazonS3
● Redis
● Scalaris
● Voldemort
● Couchbase
● Hazelcast
valuekey
valuekey
valuekey

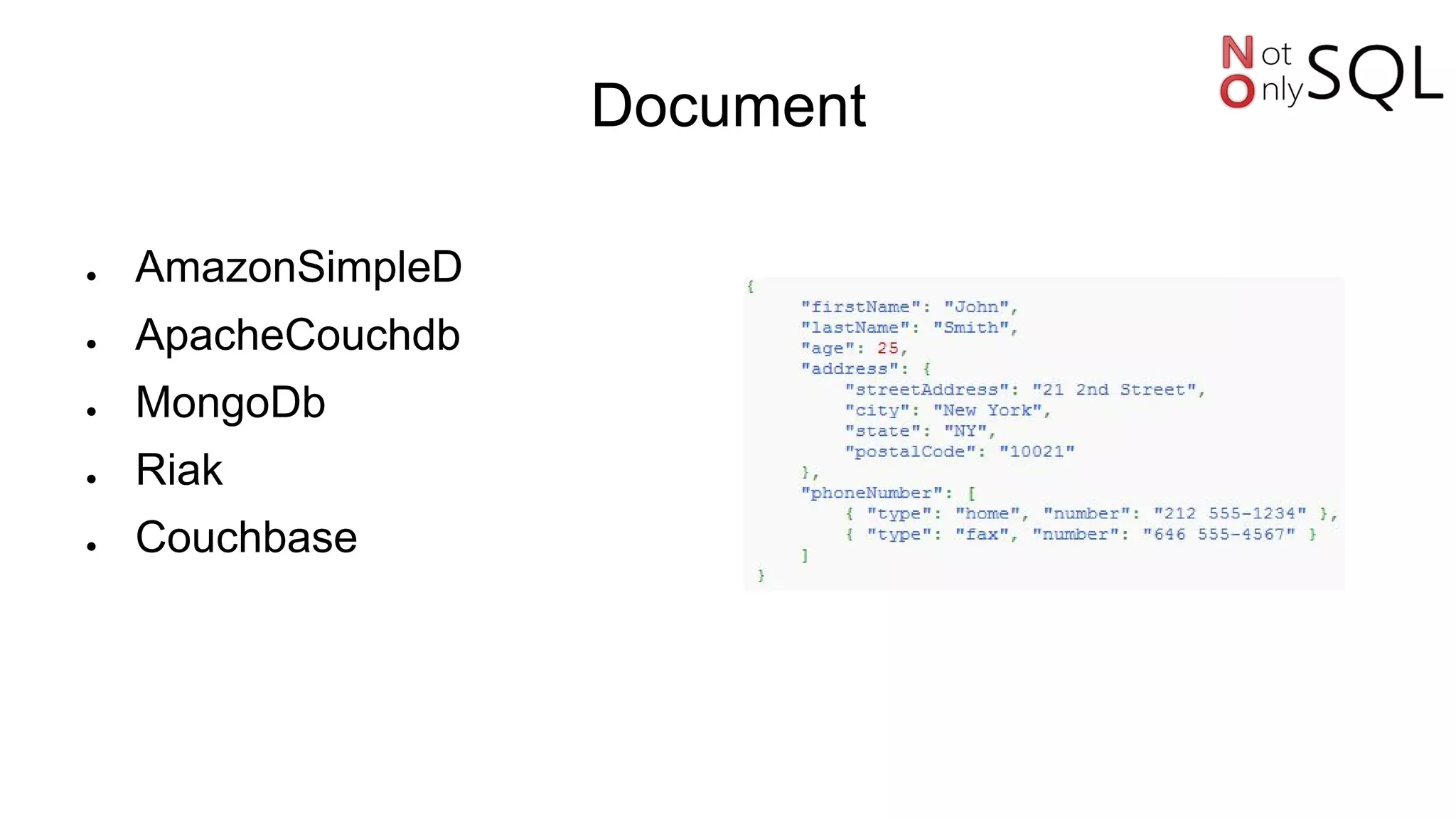

4. Document
● AmazonSimpleD
● ApacheCouchdb
● MongoDb
● Riak
● Couchbase

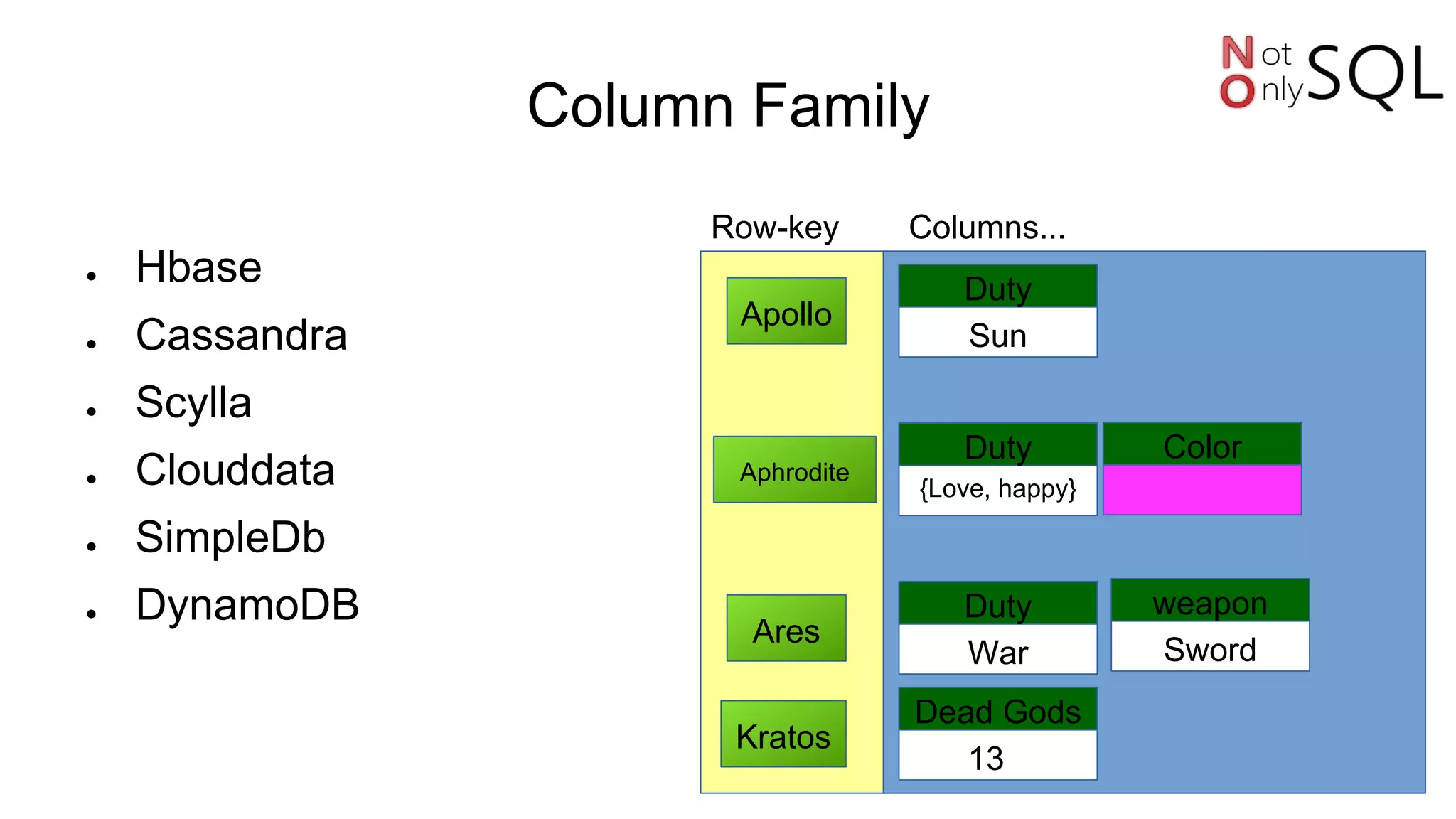

5. Column Family
● Hbase
● Cassandra
● Scylla
● Clouddata
● SimpleDb
● DynamoDB
Row-key Columns...
Apollo
Aphrodite
Ares
Sun
Duty
{Love, happy}
Duty
War
Duty
Sword
weapon
Color
Kratos
Dead Gods
13

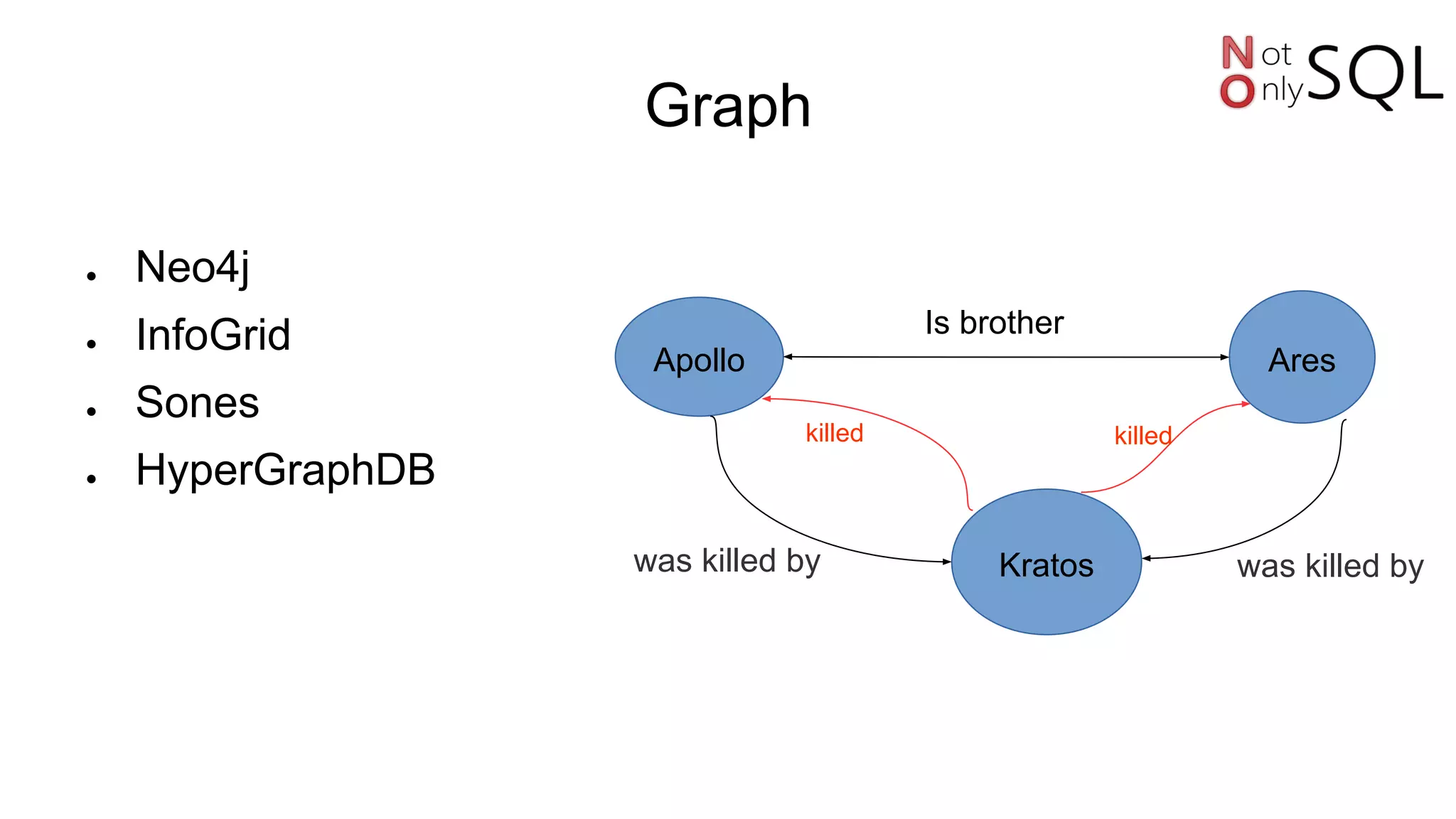

6. Graph
● Neo4j
● InfoGrid
● Sones
● HyperGraphDB
Apollo Ares
Kratoswas killed by was killed by
Is brother
killed killed

7. Multi-Model
● OrientDB (graph, document)
● Couchbase (key value, document)
● Elasticsearch (document, graph)
● Cassandra (column family, graph - in progress)

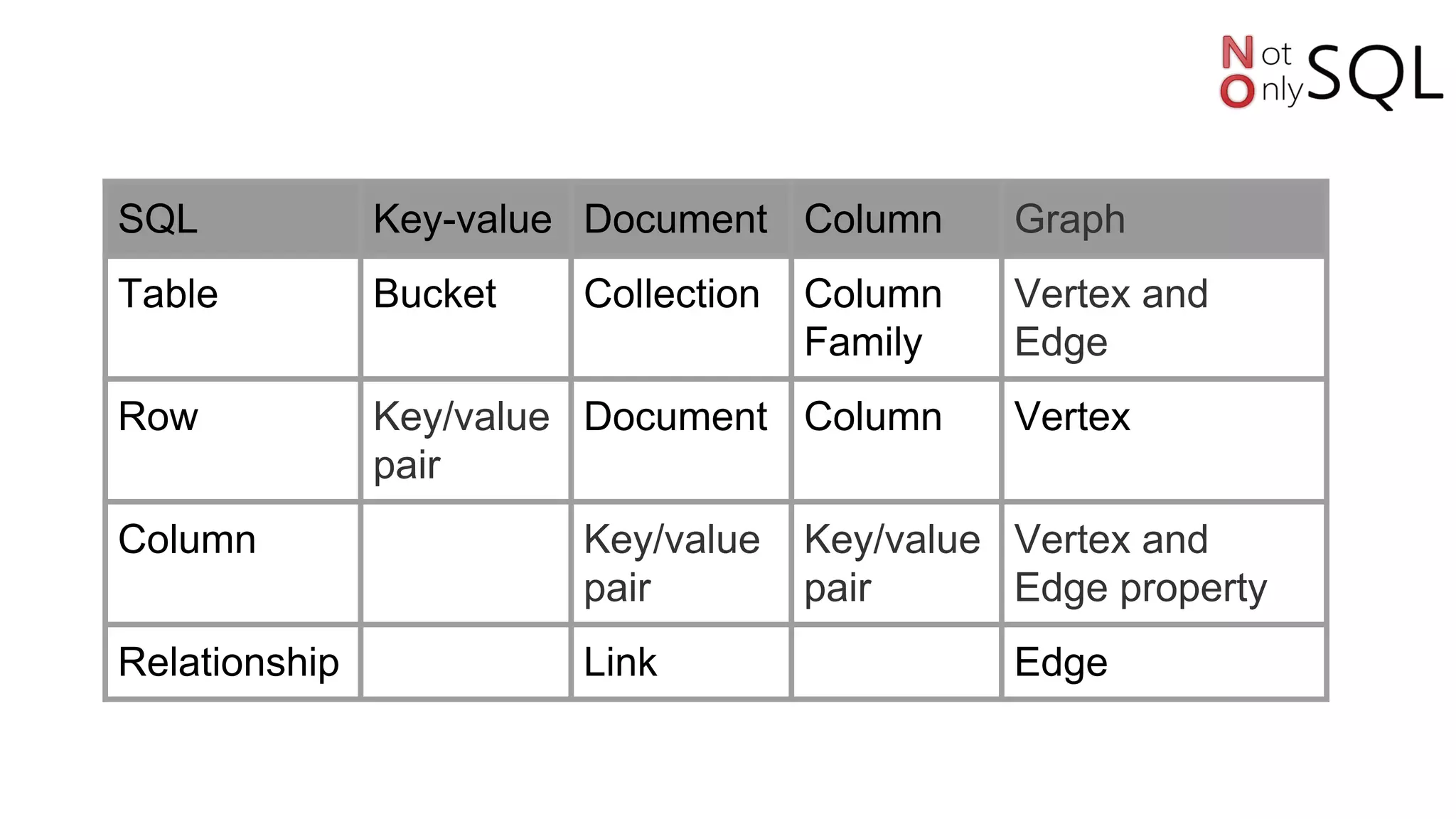

8. SQL Key-value Document Column Graph
Table Bucket Collection Column
Family
Vertex and
Edge
Row Key/value
pair
Document Column Vertex
Column Key/value
pair
Key/value
pair
Vertex and
Edge property
Relationship Link Edge

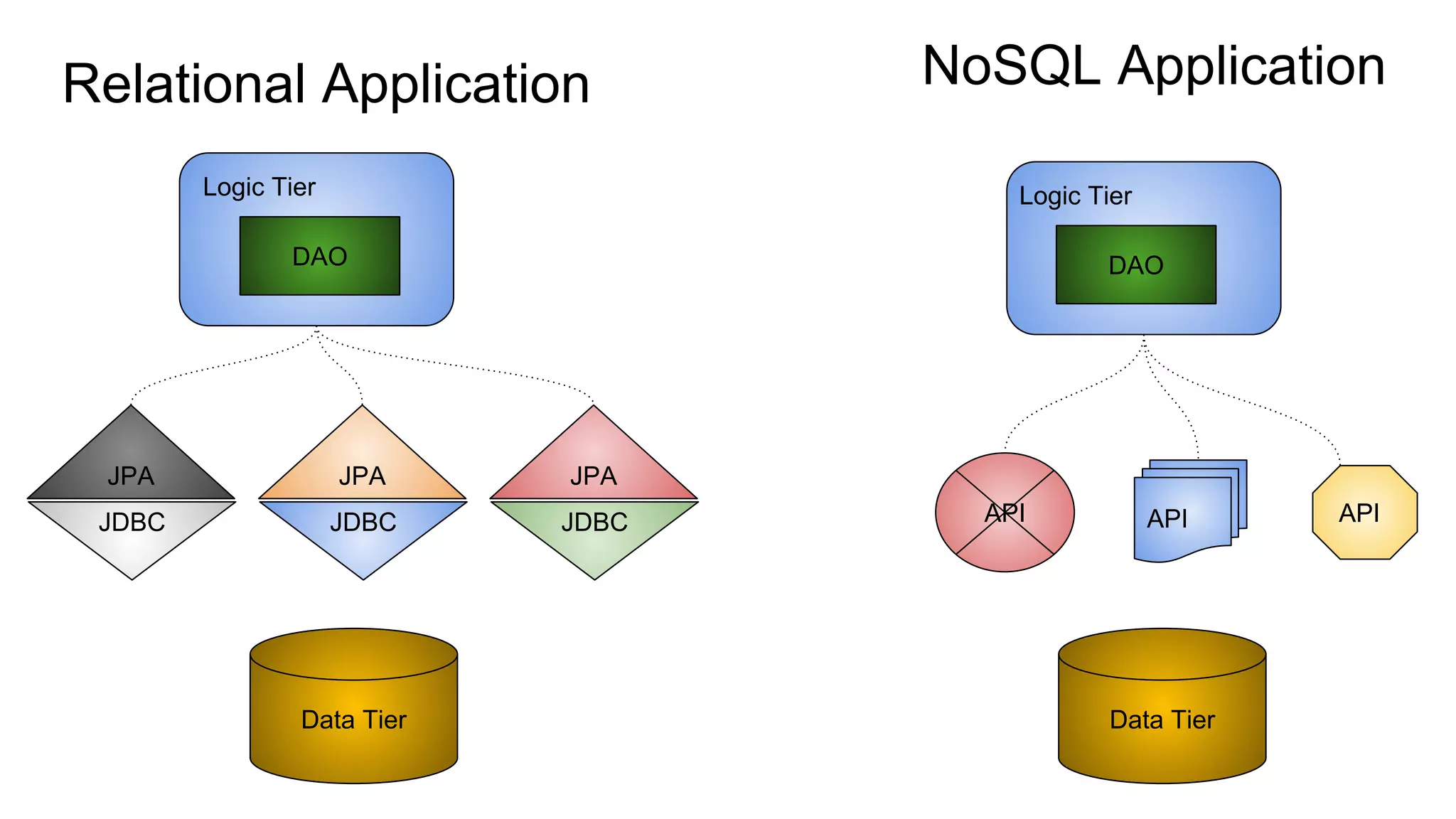

9. Relational Application
DAO
API API API
Data Tier
Logic Tier
DAO
Logic Tier
Data Tier
JPA
JDBC
JPA
JDBC
JPA
JDBC
NoSQL Application

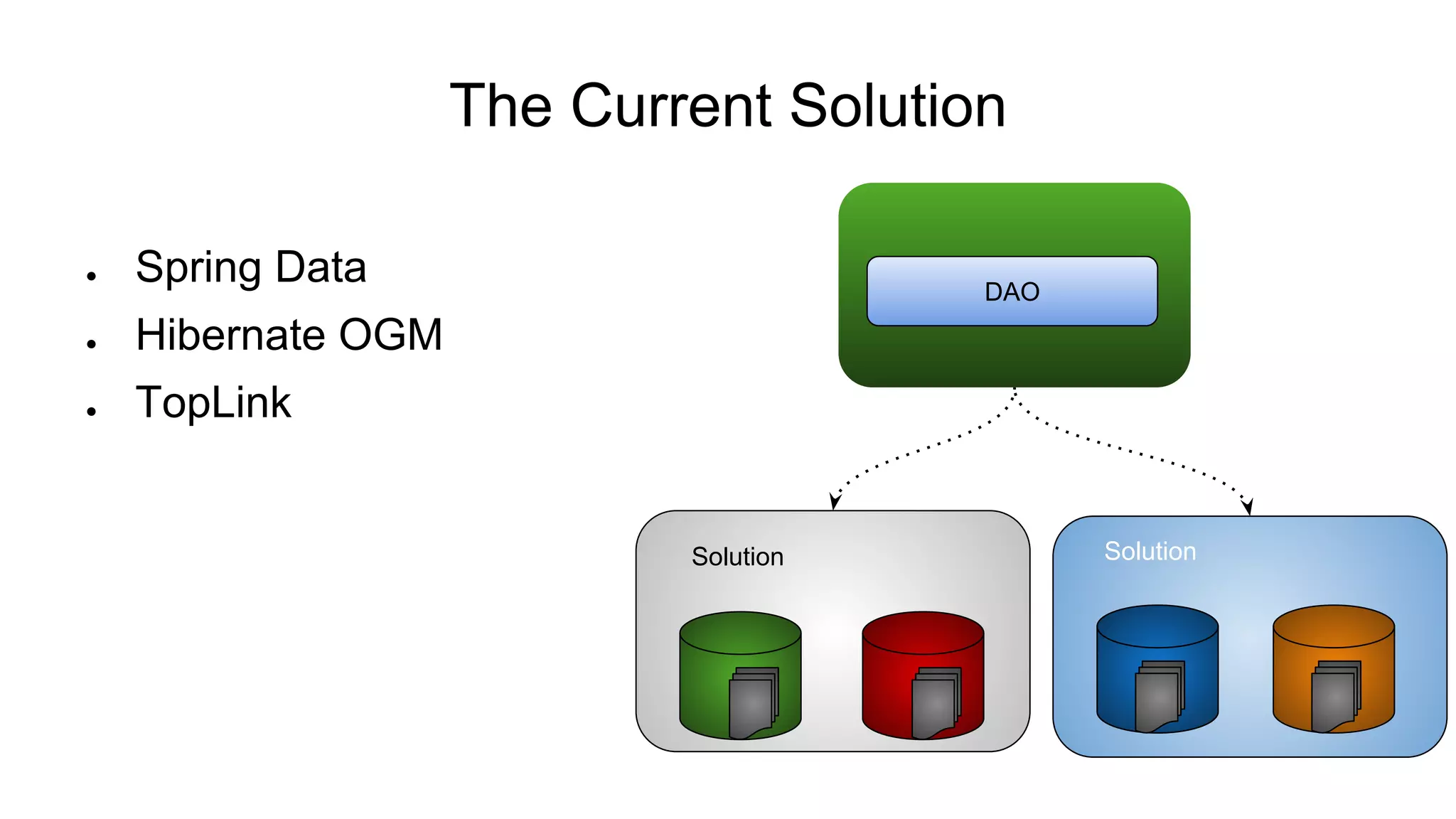

10. The Current Solution
● Spring Data
● Hibernate OGM
● TopLink
DAO
Solution Solution

11. JPA problem for NoSQL
● Saves Async
● Async Callback
● Time to Live (TTL)
● Consistency Level
● SQL based
● Diversity in NoSQL

12. The Challenge
● 4 Types
● Differents goals
● Differents behaviors

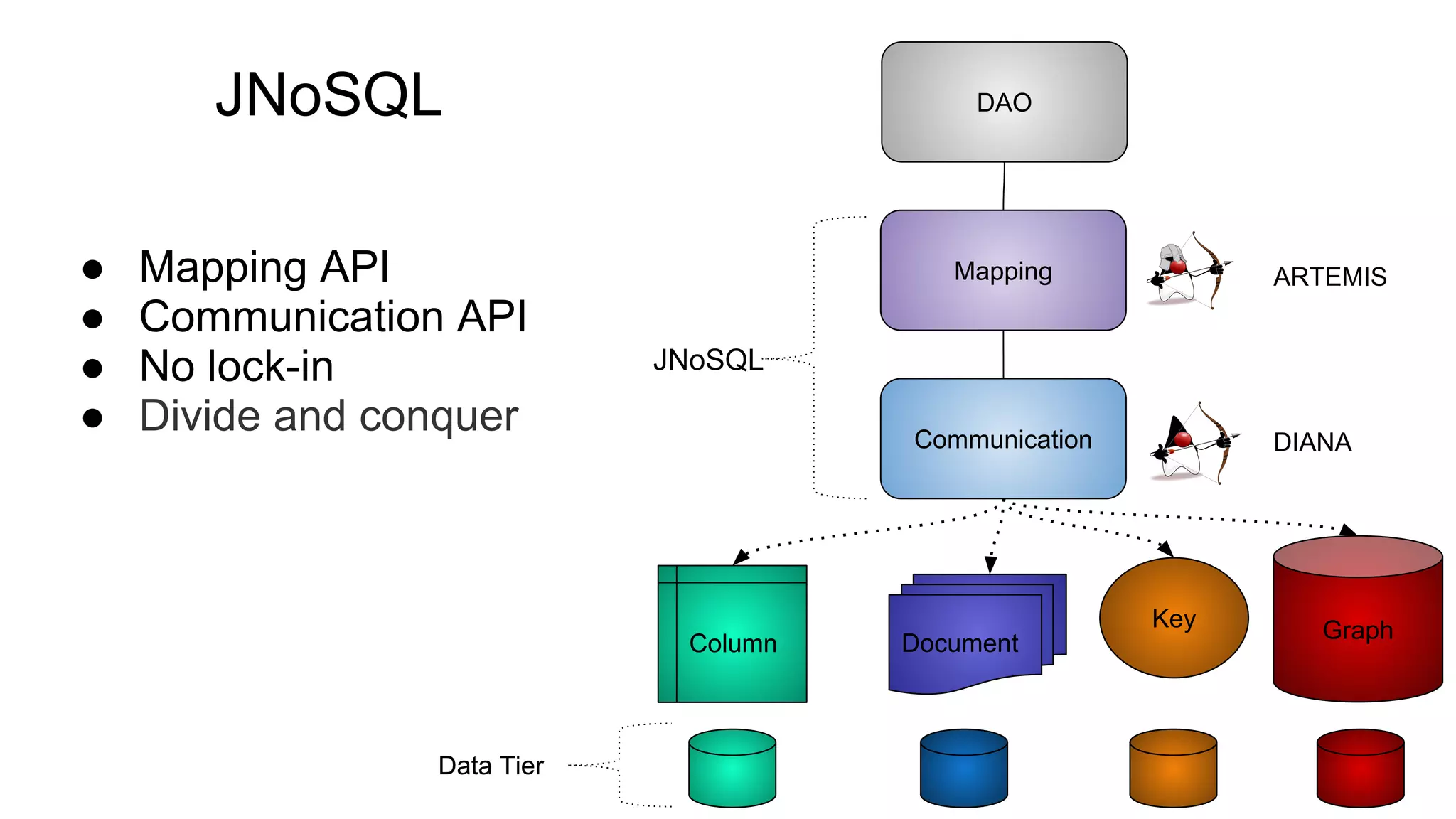

13. JNoSQL
● Mapping API
● Communication API
● No lock-in
● Divide and conquer
DAO
Mapping
Communication
Document
Key
Column
Graph
DIANA
ARTEMIS
JNoSQL
Data Tier

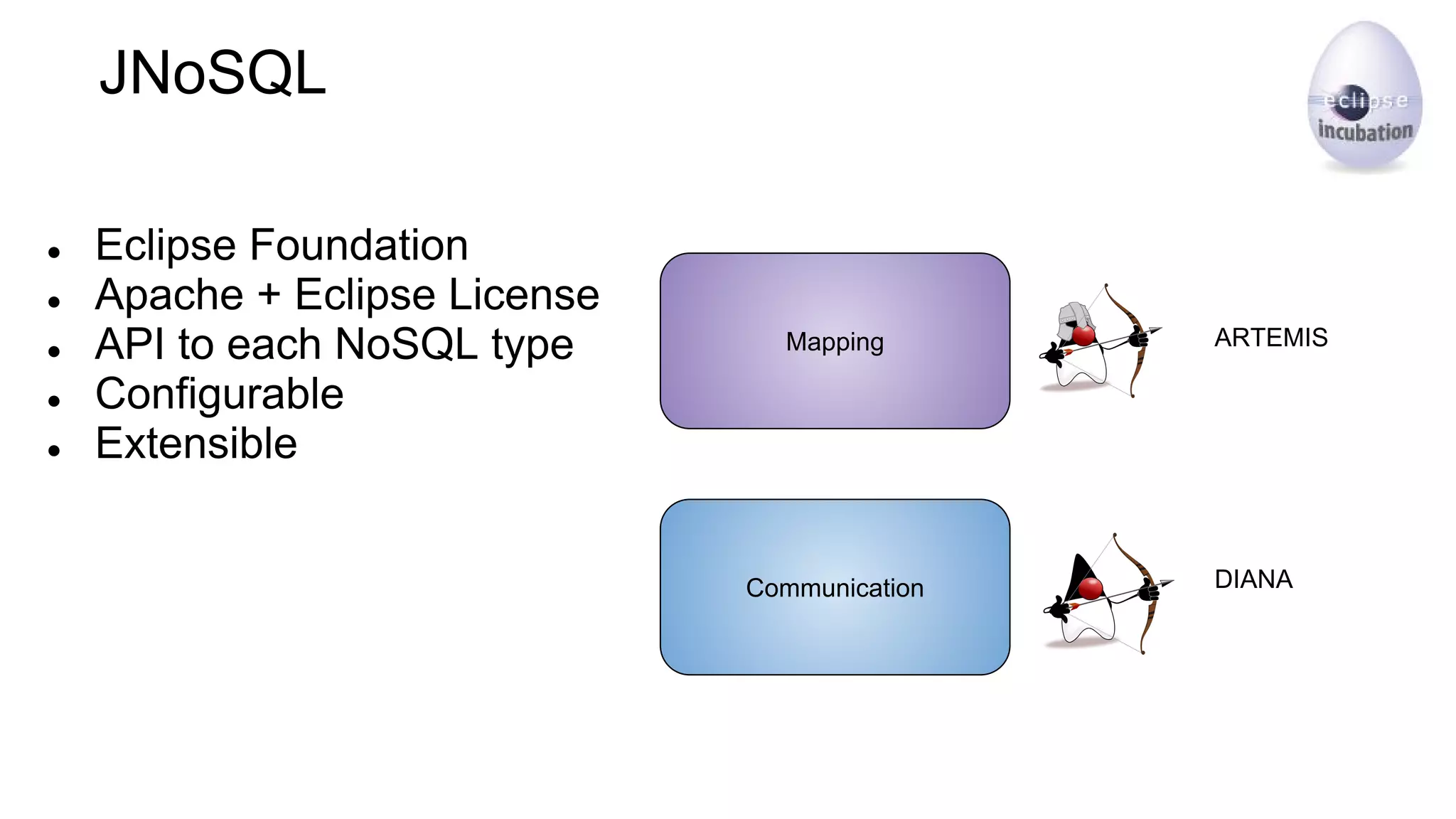

14. JNoSQL
● Eclipse Foundation
● Apache + Eclipse License
● API to each NoSQL type
● Configurable
● Extensible
Mapping
Communication DIANA
ARTEMIS

15. Why Diana?
● Goddess of the hunt, nature and
moon
● Fought in Troy
● Brave warrior and hunter
● Diana Rome = Artemis Greek

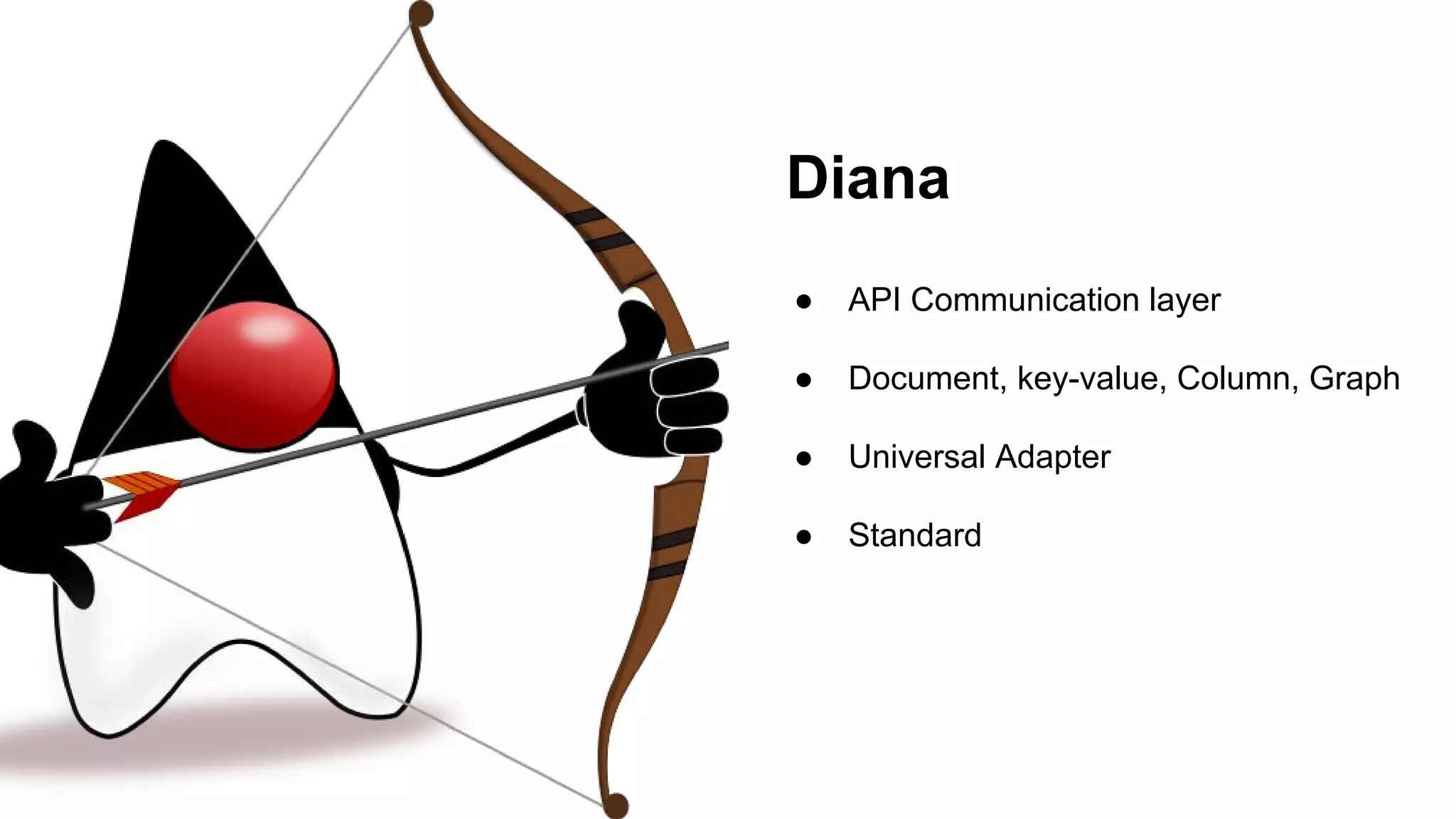

16. Diana
● API Communication layer
● Document, key-value, Column, Graph
● Universal Adapter
● Standard

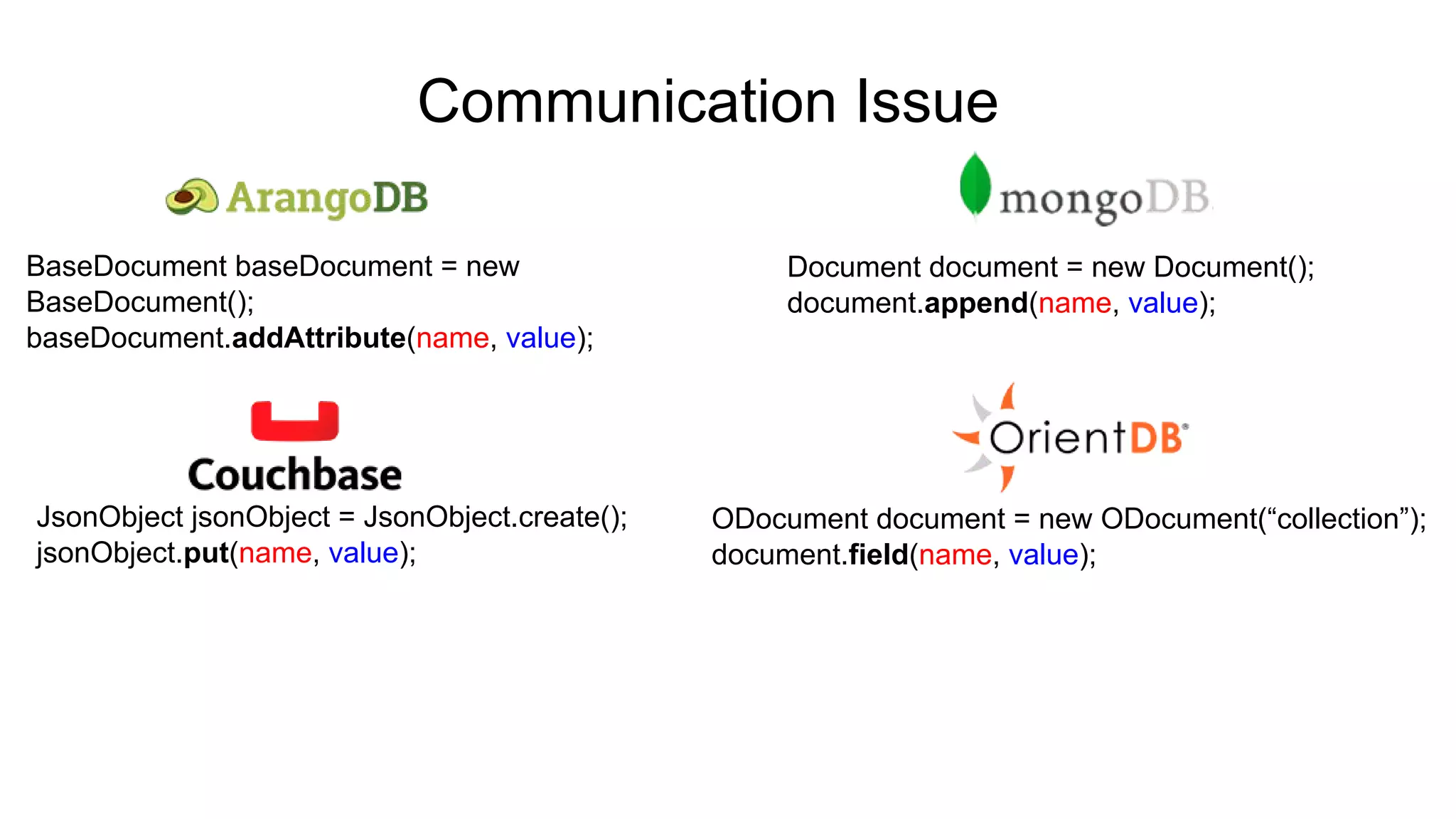

17. Communication Issue
ODocument document = new ODocument(“collection”);
document.field(name, value);
JsonObject jsonObject = JsonObject.create();
jsonObject.put(name, value);
BaseDocument baseDocument = new
BaseDocument();
baseDocument.addAttribute(name, value);
Document document = new Document();
document.append(name, value);

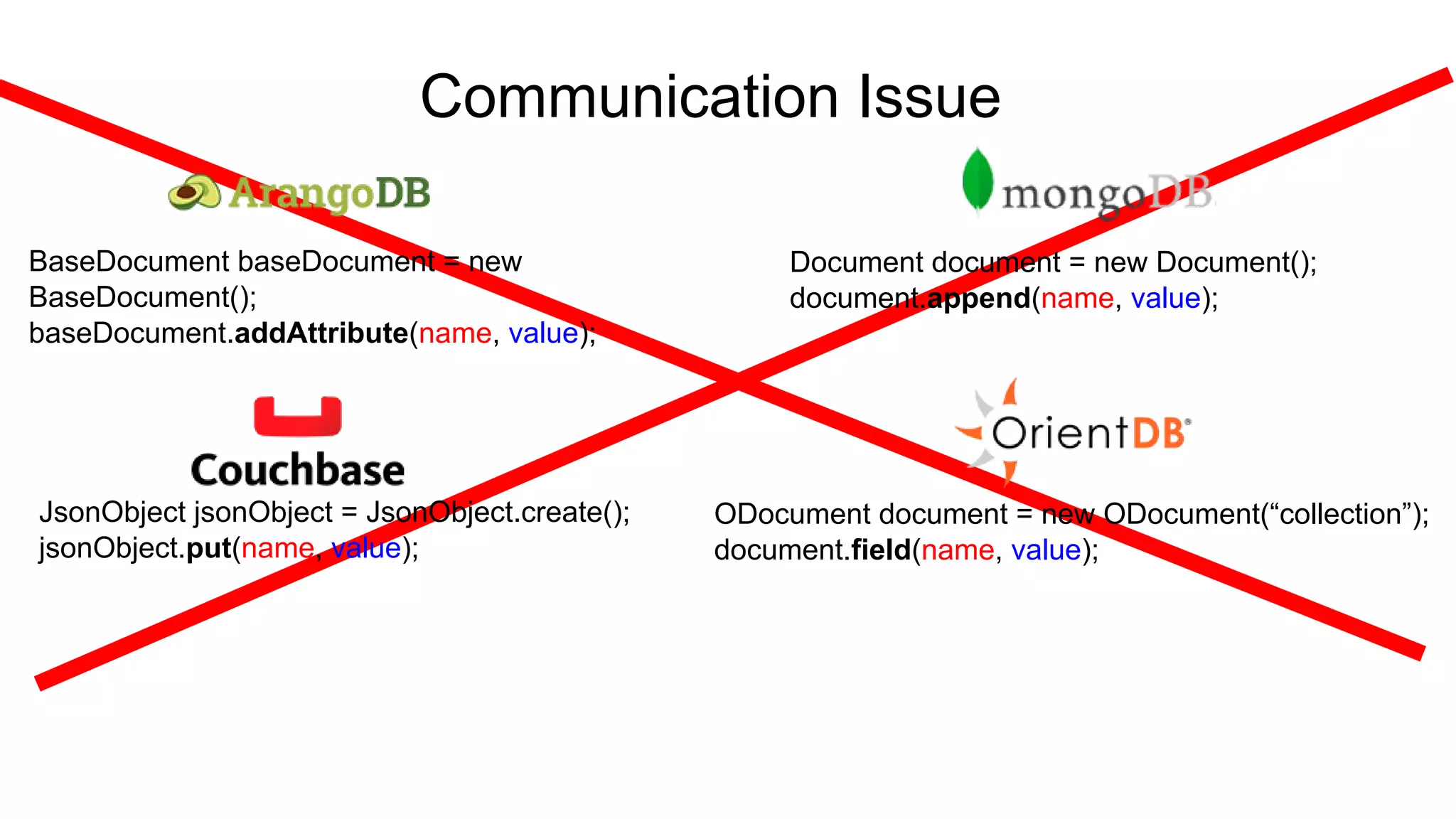

18. Communication Issue
ODocument document = new ODocument(“collection”);
document.field(name, value);
JsonObject jsonObject = JsonObject.create();
jsonObject.put(name, value);
BaseDocument baseDocument = new
BaseDocument();
baseDocument.addAttribute(name, value);
Document document = new Document();
document.append(name, value);

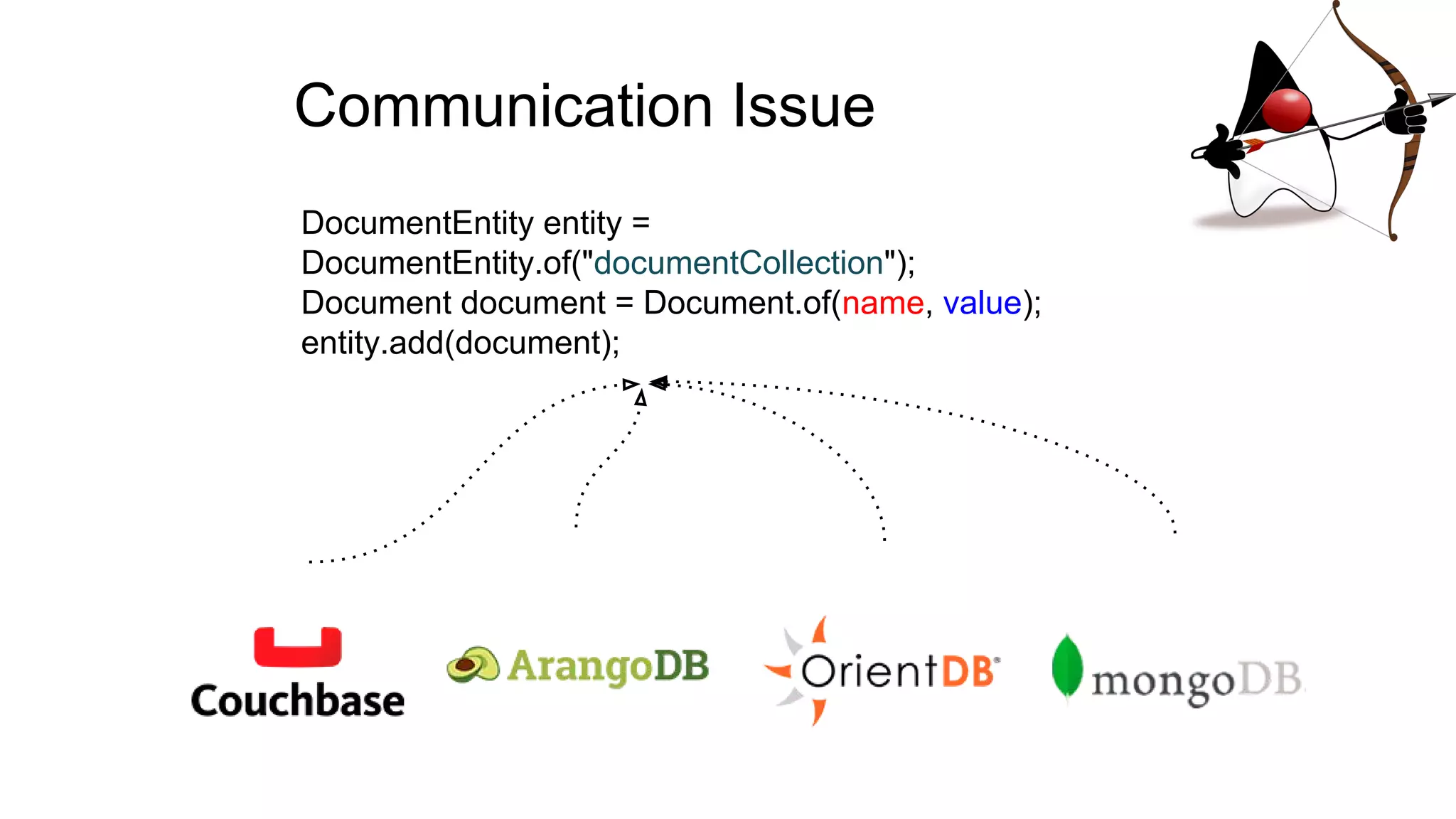

19. Communication Issue
DocumentEntity entity =
DocumentEntity.of("documentCollection");
Document document = Document.of(name, value);
entity.add(document);

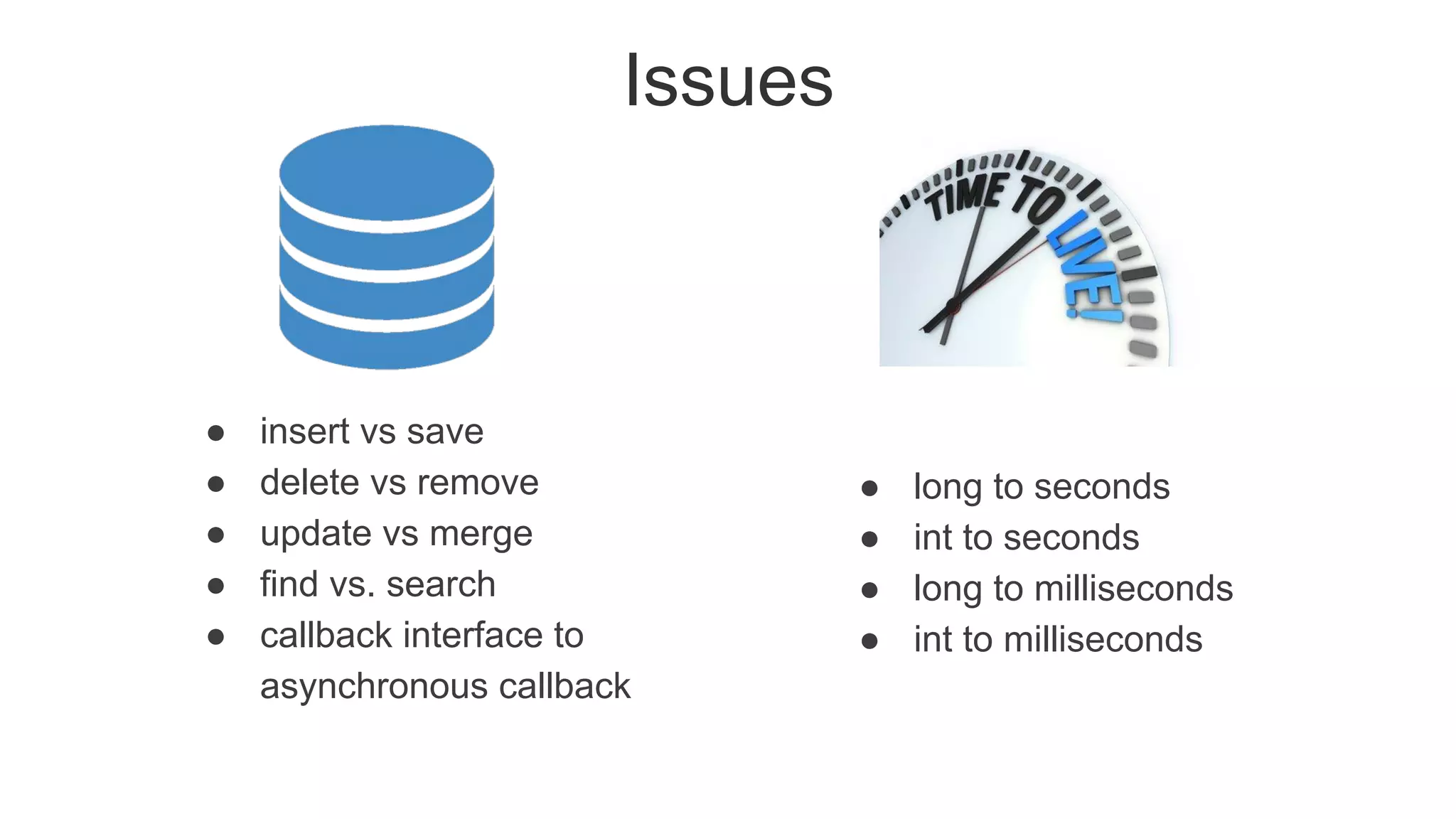

20. Issues
● insert vs save
● delete vs remove
● update vs merge
● find vs. search
● callback interface to
asynchronous callback
● long to seconds
● int to seconds
● long to milliseconds
● int to milliseconds

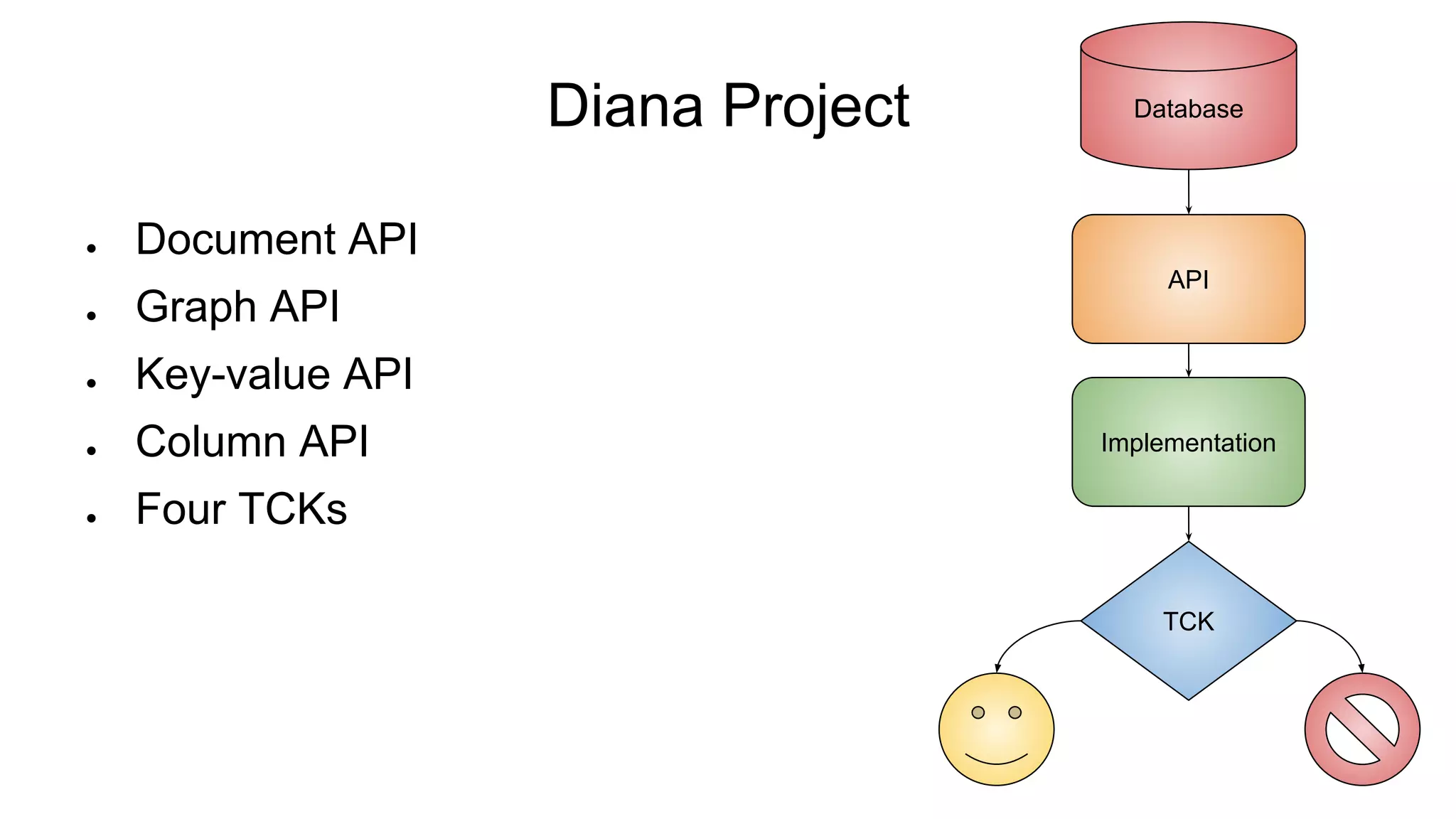

21. Diana Project
● Document API
● Graph API
● Key-value API
● Column API
● Four TCKs
Database
API
Implementation
TCK

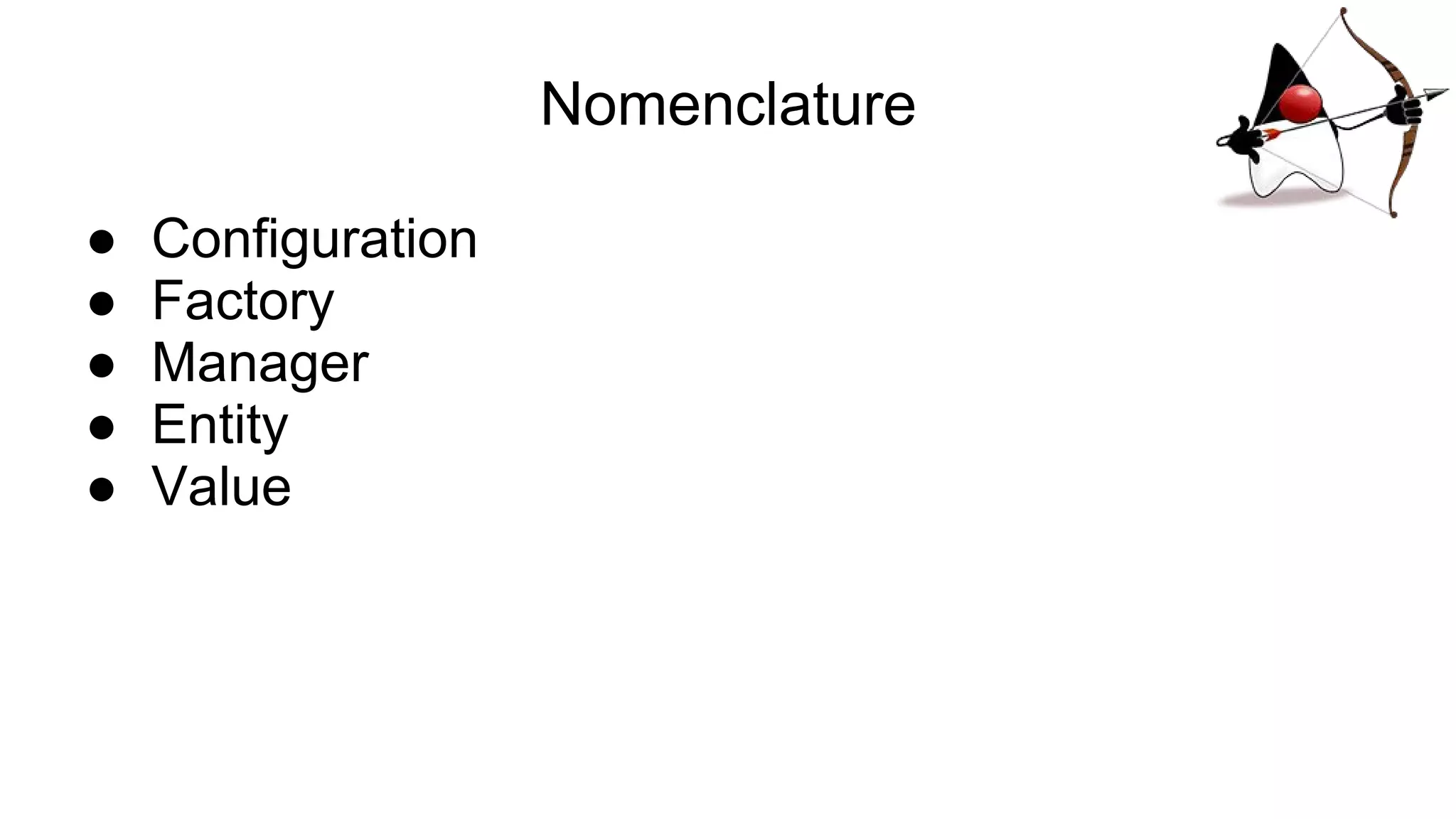

22. Nomenclature
● Configuration
● Factory
● Manager
● Entity
● Value

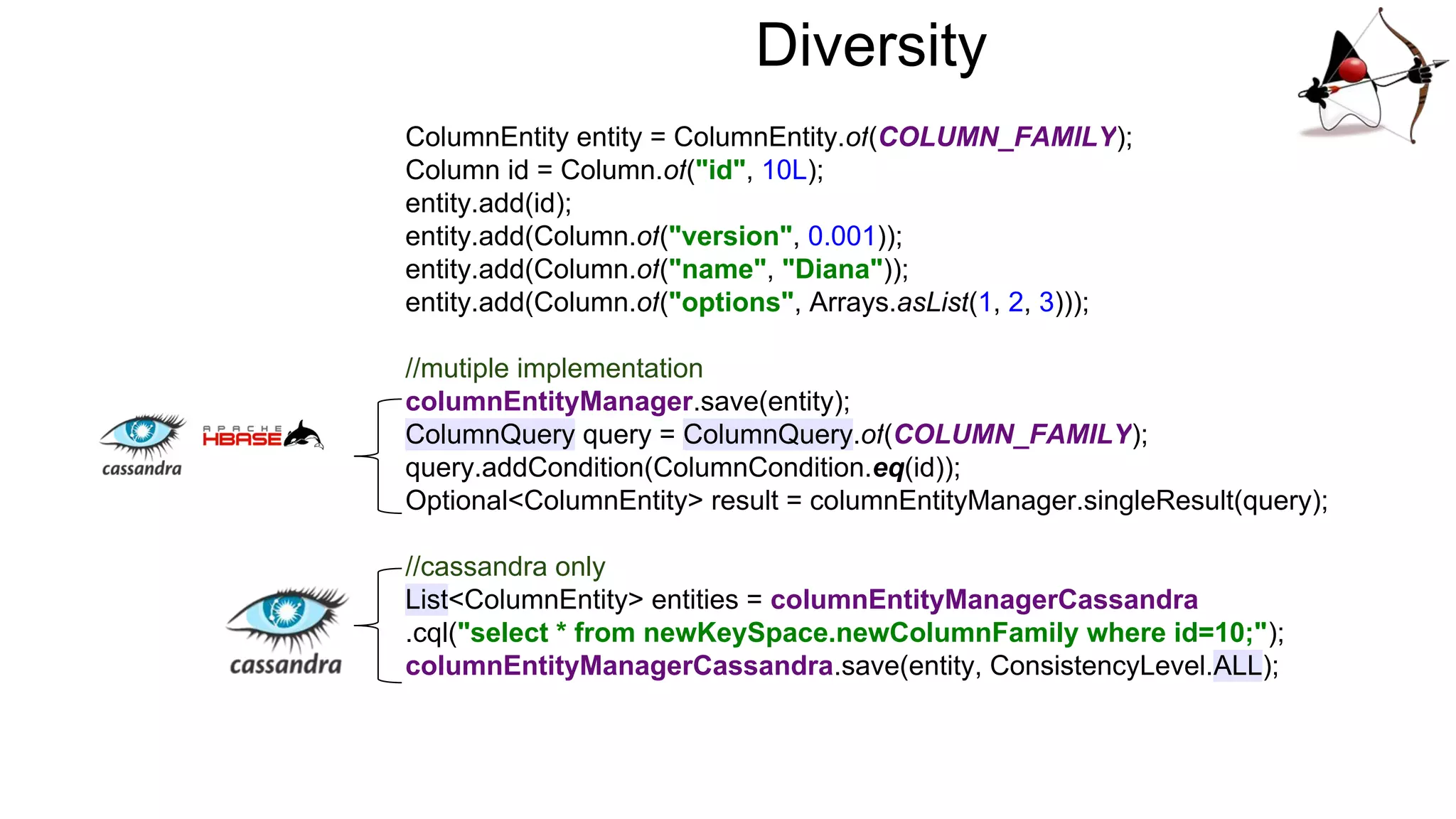

23. Diversity
ColumnEntity entity = ColumnEntity.of(COLUMN_FAMILY);
Column id = Column.of("id", 10L);
entity.add(id);
entity.add(Column.of("version", 0.001));
entity.add(Column.of("name", "Diana"));
entity.add(Column.of("options", Arrays.asList(1, 2, 3)));
//mutiple implementation
columnEntityManager.save(entity);
ColumnQuery query = ColumnQuery.of(COLUMN_FAMILY);
query.addCondition(ColumnCondition.eq(id));
Optional<ColumnEntity> result = columnEntityManager.singleResult(query);
//cassandra only
List<ColumnEntity> entities = columnEntityManagerCassandra
.cql("select * from newKeySpace.newColumnFamily where id=10;");
columnEntityManagerCassandra.save(entity, ConsistencyLevel.ALL);

24. NoSQL Providers

25. JUGs/Communities

26. Artemis● CDI Based
● Diana Based
● Annotation Based
● Events to insert, delete, update
● Supports to Bean Validation
● Configurable and Extensible
● Query Method

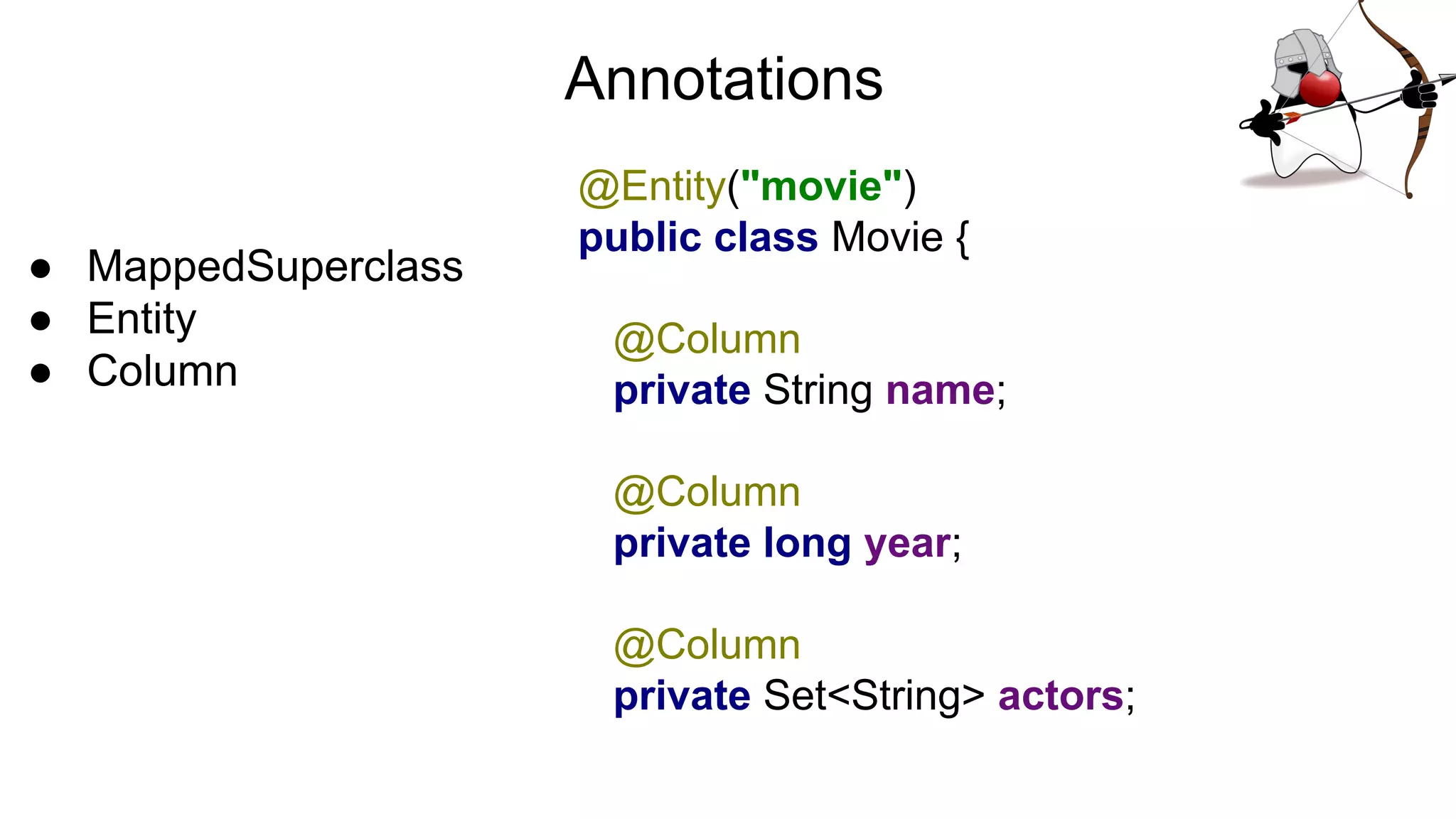

27. Annotations
● MappedSuperclass
● Entity
● Column
@Entity("movie")
public class Movie {
@Column
private String name;
@Column
private long year;
@Column
private Set<String> actors;

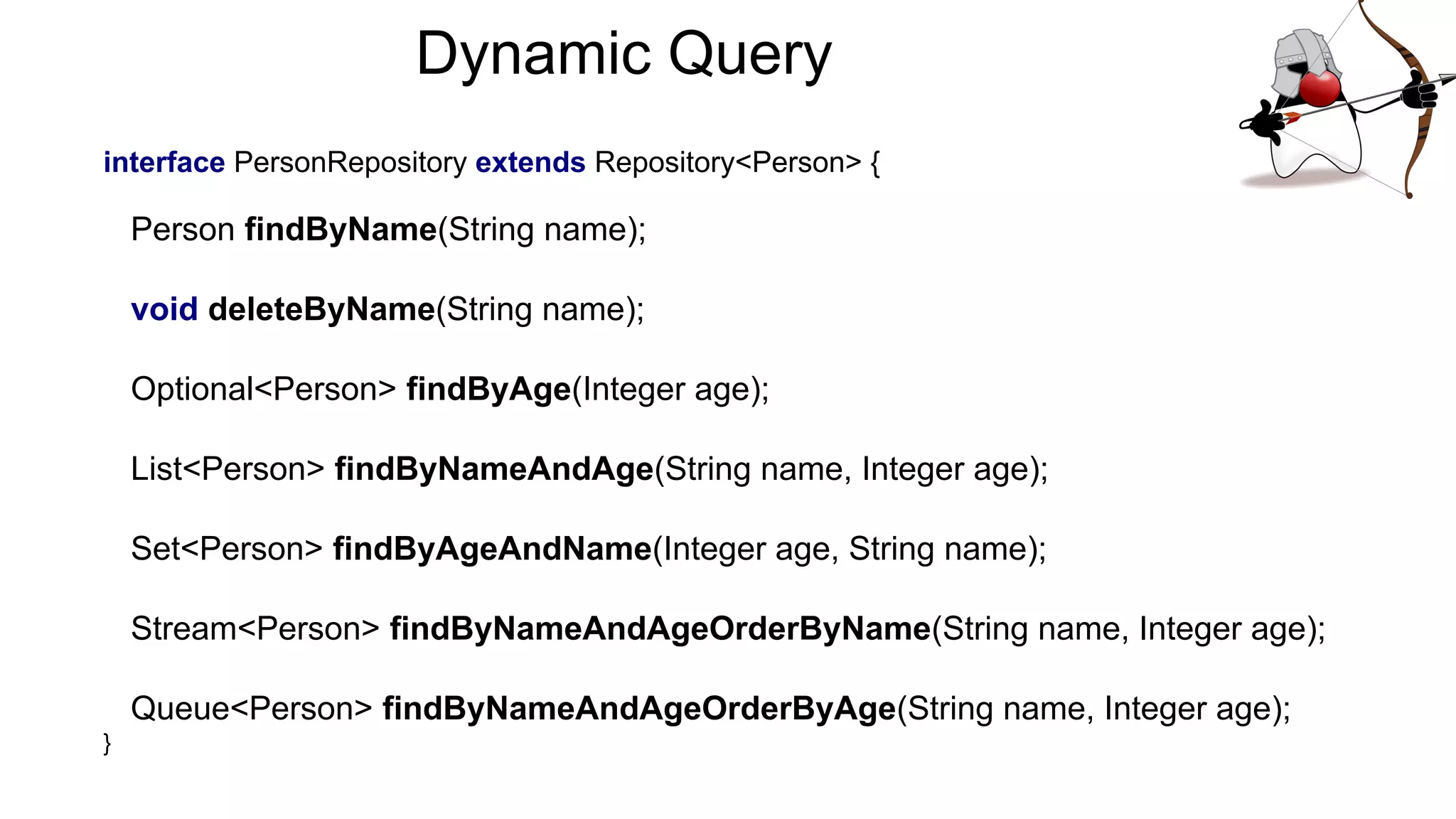

28. interface PersonRepository extends Repository<Person> {
Person findByName(String name);
void deleteByName(String name);
Optional<Person> findByAge(Integer age);
List<Person> findByNameAndAge(String name, Integer age);
Set<Person> findByAgeAndName(Integer age, String name);
Stream<Person> findByNameAndAgeOrderByName(String name, Integer age);
Queue<Person> findByNameAndAgeOrderByAge(String name, Integer age);
}
Dynamic Query

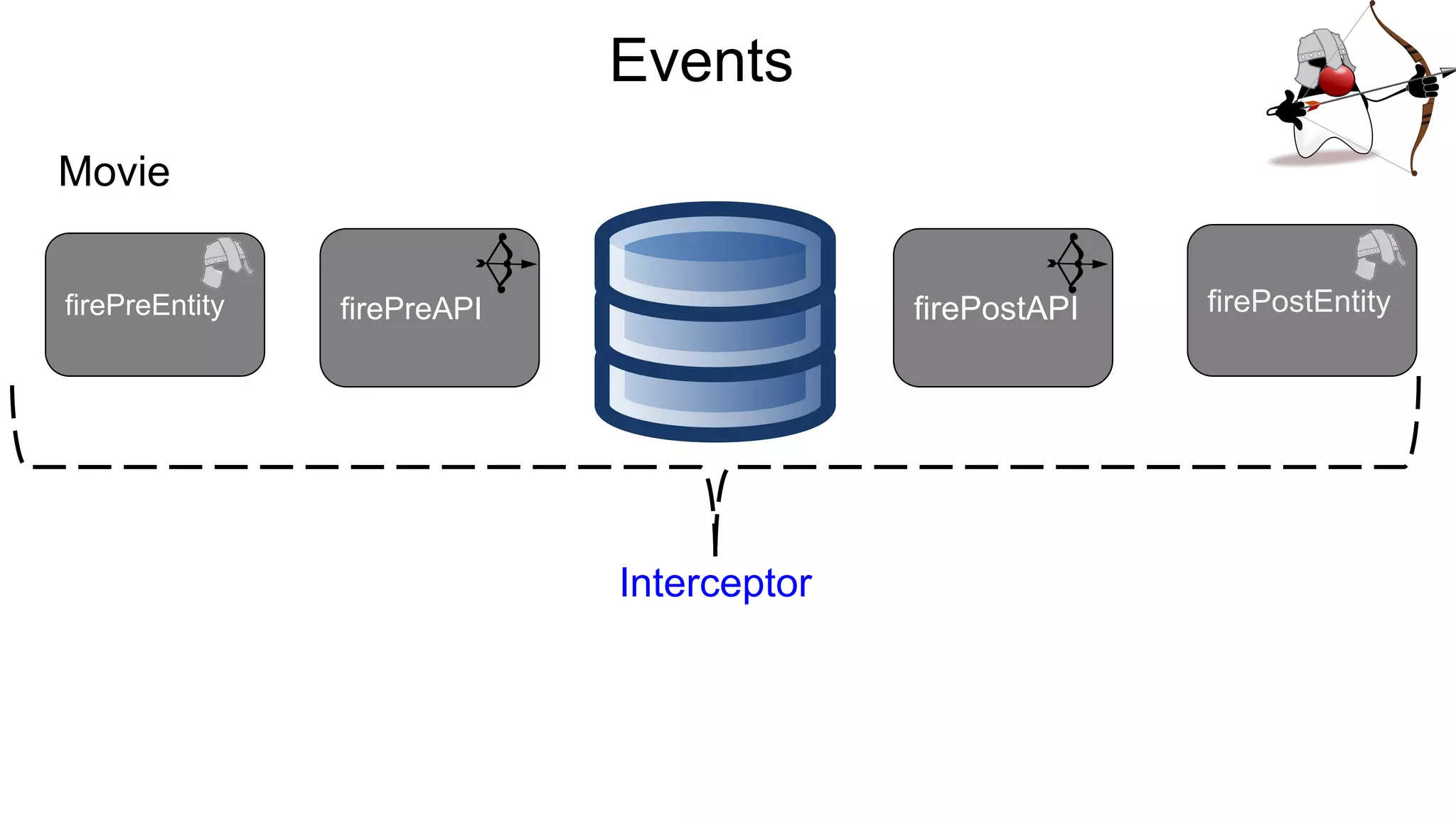

29. Events
Movie
firePreEntity firePreAPI firePostAPI firePostEntity
Interceptor

30. Configurable and
extensible
● EventManager
● CrudOperation
● ClassRepresentations
● Converter
● Decorate
● Replace

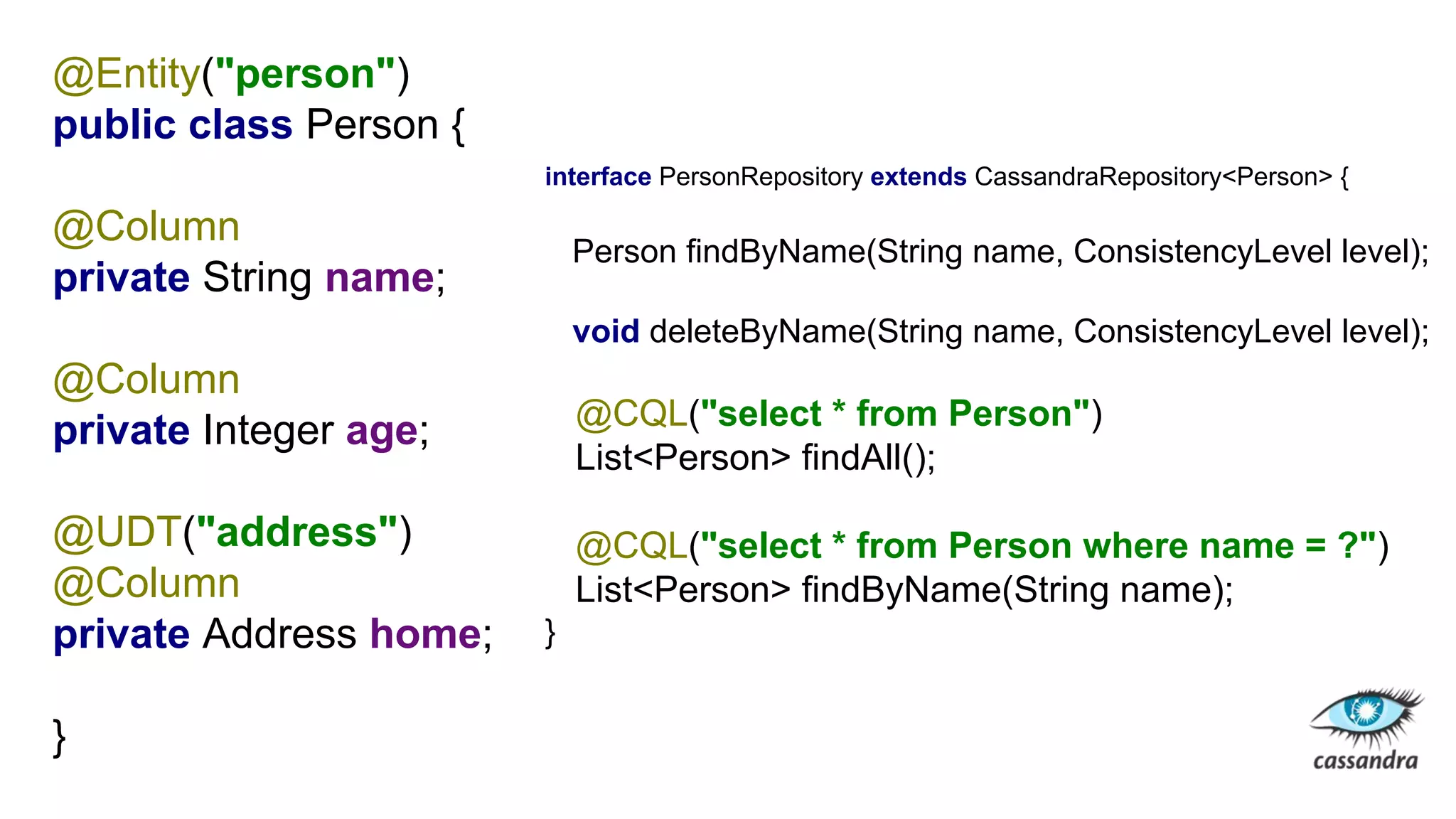

31. @Entity("person")
public class Person {
@Column
private String name;
@Column
private Integer age;
@UDT("address")
@Column
private Address home;
}
interface PersonRepository extends CassandraRepository<Person> {
Person findByName(String name, ConsistencyLevel level);
void deleteByName(String name, ConsistencyLevel level);
@CQL("select * from Person")
List<Person> findAll();
@CQL("select * from Person where name = ?")
List<Person> findByName(String name);
}

32. Road Map
✓ Draft and code proposal
✓ Community Feedback
✓ Involve NoSQL Vendors
✓ Involve Solution
Vendors
✓ Eclipse Project
✓ Development
✓ JSR

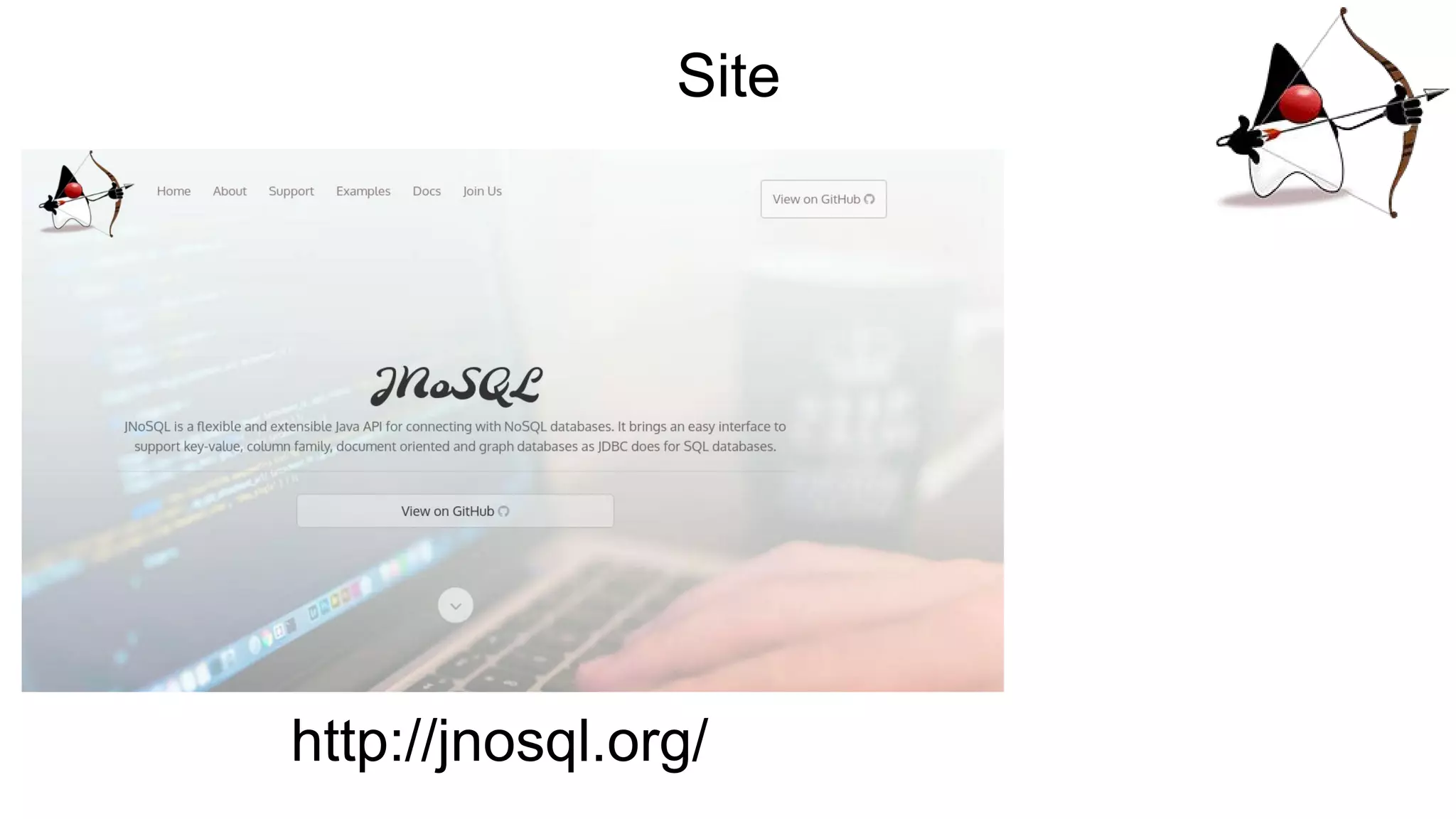

33. Site
http://jnosql.org/

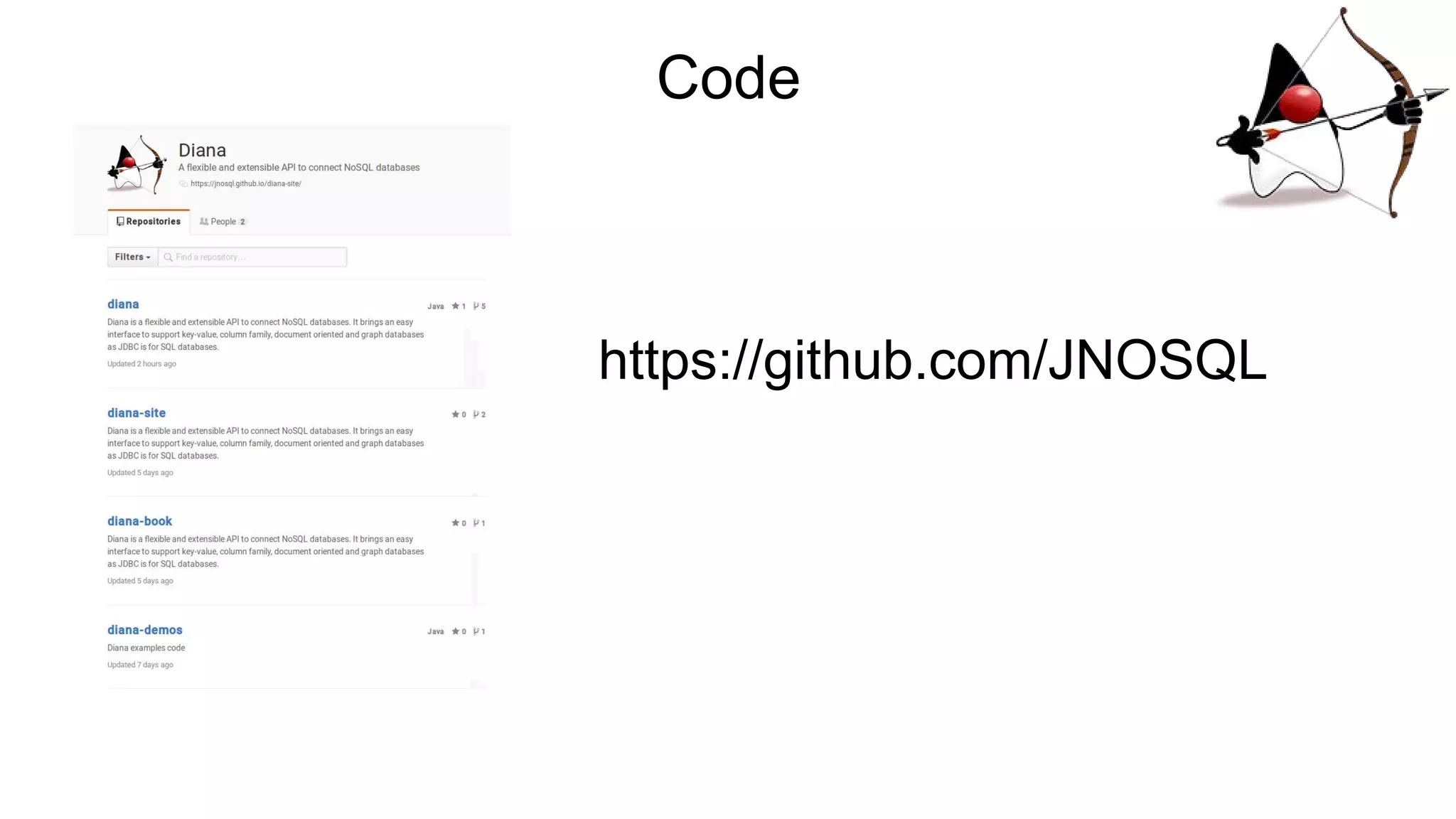

34. Code
https://github.com/JNOSQL

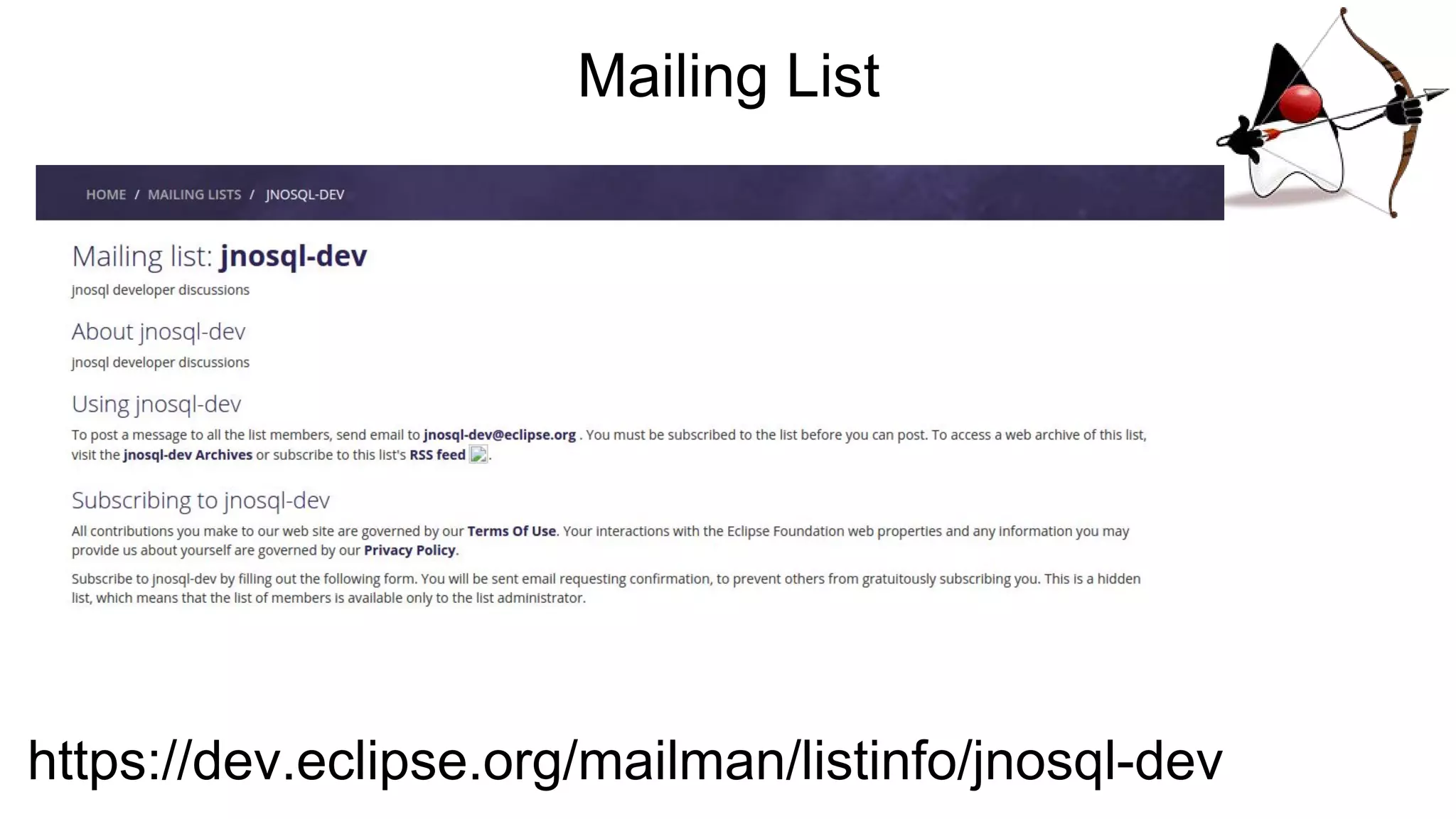

35. Mailing List
https://dev.eclipse.org/mailman/listinfo/jnosql-dev

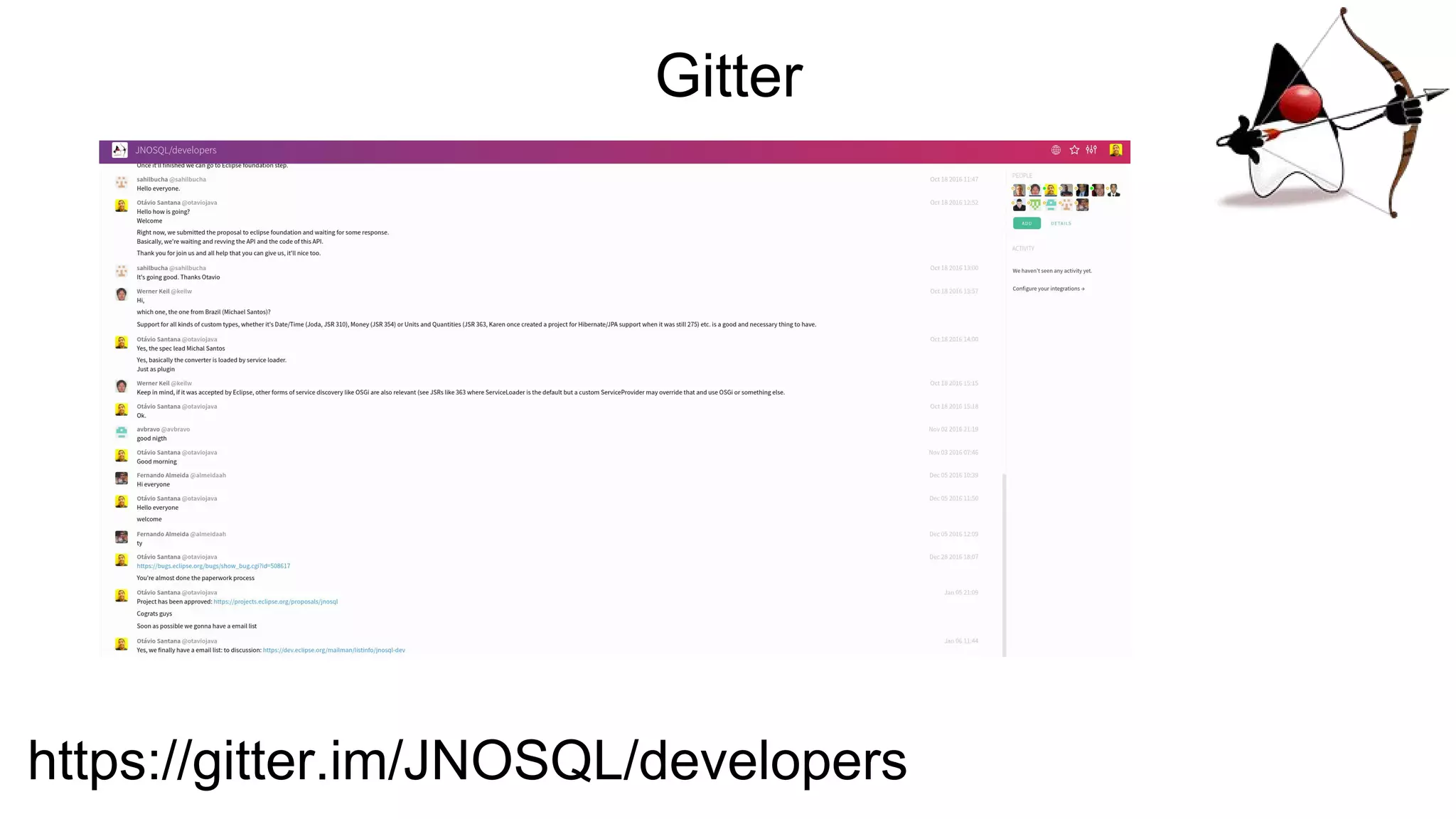

36. Gitter
https://gitter.im/JNOSQL/developers

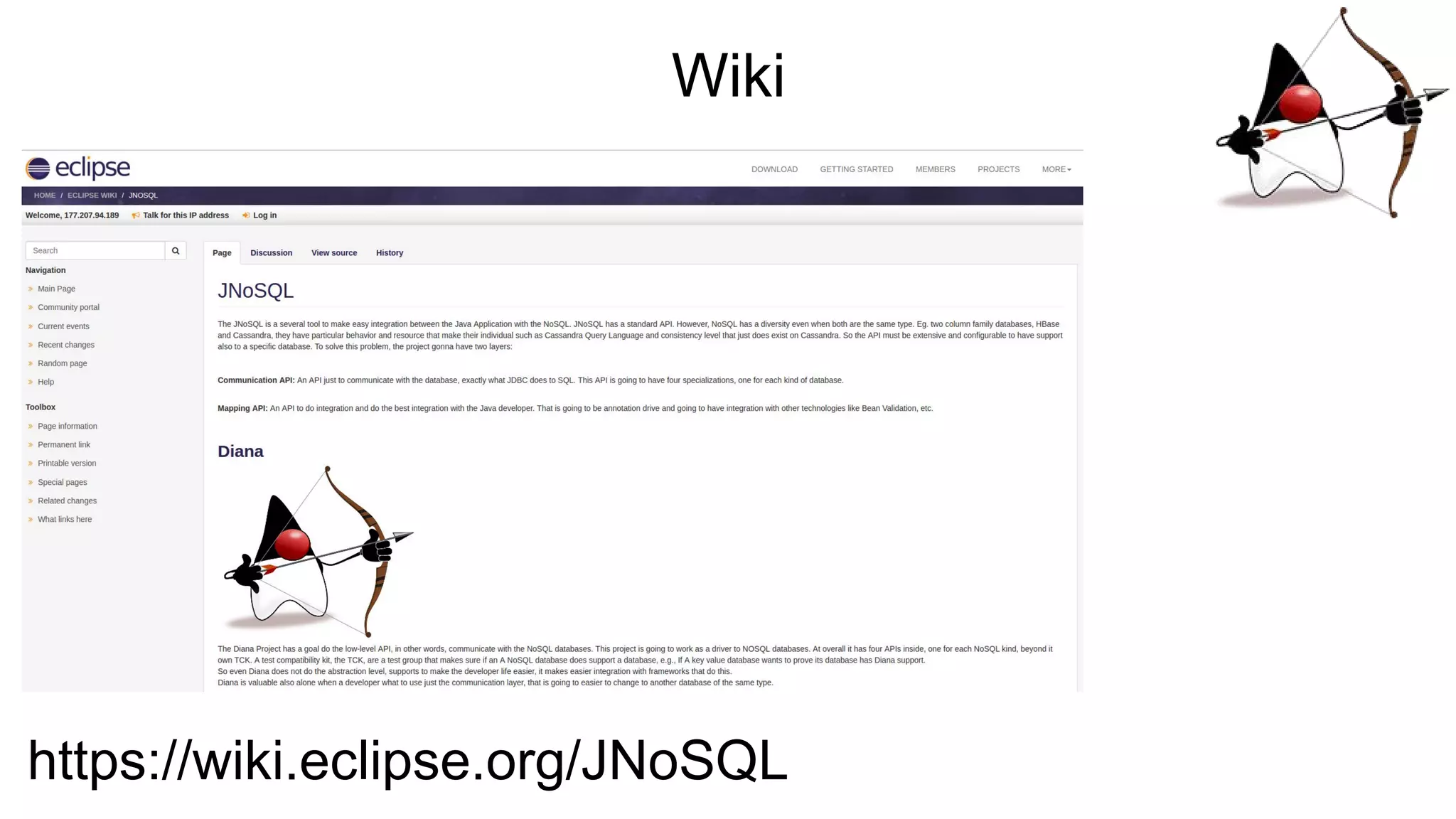

37. Wiki
https://wiki.eclipse.org/JNoSQL

38. Thank you
Otávio Santana
@otaviojava
osantana@tomitribe.com
